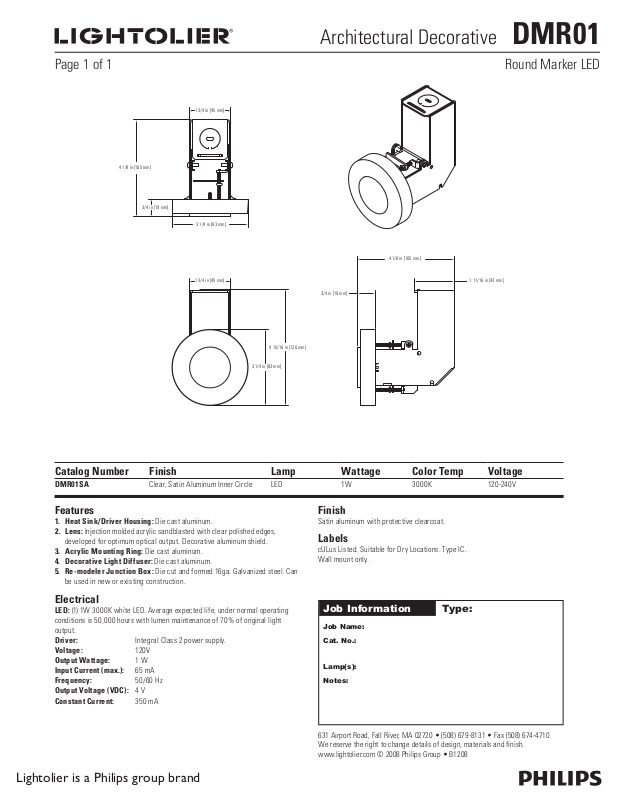

DMR01
Architectural Decorative DMR01
Page 1 of 1 Round Marker LED
1 3/4 in [45 mm]
4 1/8 in [105 mm]
3/4 in [19 mm]
3 1/4 in [83 mm]
4 1/8 in [105 mm]
1 3/4 in [45 mm]
3/4 in [19 mm]
4 15/16 in [126 mm]
3 1/4 in [83 mm]
1 11/16 in [43 mm]
Catalog Number Finish Lamp Wattage Color Temp Voltage
DMR01SA
Features
1. Heat Sink/Driver Housing: Die cast aluminum.
2. Lens: Injection molded acrylic sandblasted with clear polished edges,
developed for optimum optical output. Decorative aluminum shield.
3. Acrylic Mounting Ring: Die cast aluminum.
4. Decorative Light Diffuser: Die cast aluminum.
5. Re-modeler Junction Box: Die cut and formed 16ga. Galvanized steel. Can
be used in new or existing construction.
Clear, Satin Aluminum Inner Circle LED 1W 3000K 120-240V
Finish
Satin aluminum with protective clearcoat.
Labels
cULus Listed. Suitable for Dry Locations. Type IC.
Wall mount only.
Electrical
LED: (1) 1W 3000K white LED. Average expected life, under normal operating
conditions is 50,000 hours with lumen maintenance of 70% of original light
output.
Driver: Integral Class 2 power supply.
Voltage: 120V
Output Wattage: 1 W
Input Current (max.): 65 mA
Frequency: 50/60 Hz
Output Voltage (VDC): 4 V
Constant Current: 350 mA
Lightolier is a Philips group brand
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B1208
