Philips CMP400/55 User Manual

Register your product and get support at

www.philips.com/welcome

EN User manual

2 EN

Contents

1 Important 4

Safety 4
Notice 4

2 Yourcarpoweramplier 5

Introduction 5
What’s in the box 5
Overview of the main unit 5

3 Installation 7

Installation 7
Connect speakers 7
Connect car audio 8
Connect power 9

4 Useyourpoweramplier 10

Select crossover frequency mode 10
Adjust frequency 10
Adjust input level 10
Adjust bass boost 10
About the protector indicator 10
Replace fuse 11

5 Product information 12

English

6 Troubleshooting 13

EN

3

1 Important

Safety

Read and understand all instructions •
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
This unit is designed for negative ground •
(earth) 12 V DC operation only.
Use only the supplied mounting hardware •
for a safe and secure installation.
Do not connect any active speakers (with •

built-in amplier) to the speaker terminals

of the unit. Doing so may damage the
active speakers.
To ensure safe driving, adjust the volume •
to a safe and comfortable level.
To avoid short circuit, do not expose the •
apparatus, remote control or remote
control batteries to rain or water.
Never expose the apparatus to direct •

sunlight, naked ames or heat.

Clean the apparatus with soft, damp •
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.

Any changes or modications made to this

device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.

2009 © Koninklijke Philips Electronics N.V.
All rights reser ved.

Specications are subject to change without

notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.

Notice

Environmental information

All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.

4

EN

abdcegfhijklm

FR

FL

on p

2 Your car power

ba

dc

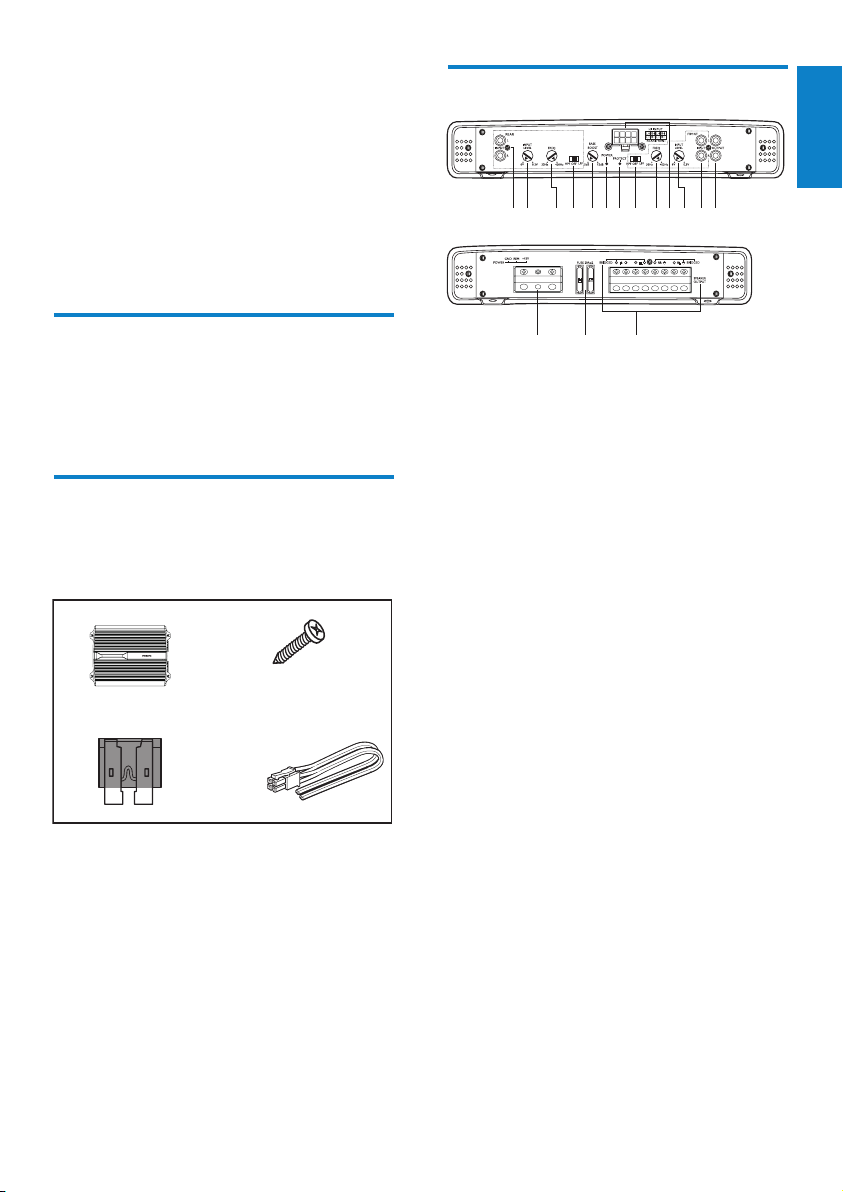

Overview of the main unit

amplifier

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product
at www.philips.com/welcome.

Introduction

With the amplier, you can enjoy high quality

sound performance with powerful bass and
beats.

What’s in the box

Check and identify the contents of your
package:

a Amplier
b Screw_4x25mm (x4)
c Fuse (x2)
d Hi input connector

a OUTPUT L/R

Connect additional amplier for •

additional speakers.

b FRONT INPUT L/R

Connect car audio with RCA cable.•

c FRONT INPUT L/R

Adjust input level (0.3V to 6V).•

d HI INPUT

Connect car audio with the supplied •
high input connector.

e FRONT FREQ

Adjust frequency of HPF or LPF from •
30Hz to 400Hz.

f FRONT HPF/OFF/LPF

Select High-pass-lter (HPF), Low-•
pass-lter(LPF) or OFF (at) mode.

g PROTECT

Lights in red when the PROTECTOR •
is activated.

h POWER

Light in blue when power is turned on.•

i BASS BOOST

Boost the frequencies at around •
45Hz to a maximum of 12dB.

j REAR HPF/OFF/LPF

Select High-pass-lter (HPF), Low-•
pass-lter(LPF) or OFF (at) mode.

English

EN

5

k REAR FREQ

Adjust frequency of HPF or LPF from •
30Hz to 400Hz.

l REAR INPUT LEVEL

Adjust input level (0.3V to 6V).•

m REAR INPUT L/R

Connect car audio with RCA cable.•

n POWER (GND/REM/+12V)

Connect +12V DC power cable, •
ground wire and remote wire..

o Fuse: 20A x 2
p SPEAKER OUTPUT

Connect to speakers or subwoofers.•

6

EN

FR

FL

4 ohm

speaker

4 ohm

speaker

FR

FL

4 ohm

speaker

4 ohm

speaker

4 ohm

speaker

4 ohm

speaker

FR

FL

4 ohm

speaker

4 ohm

speaker

4 ohm

speaker

4 ohm

speaker

8 ohm

speaker

8 ohm

speaker

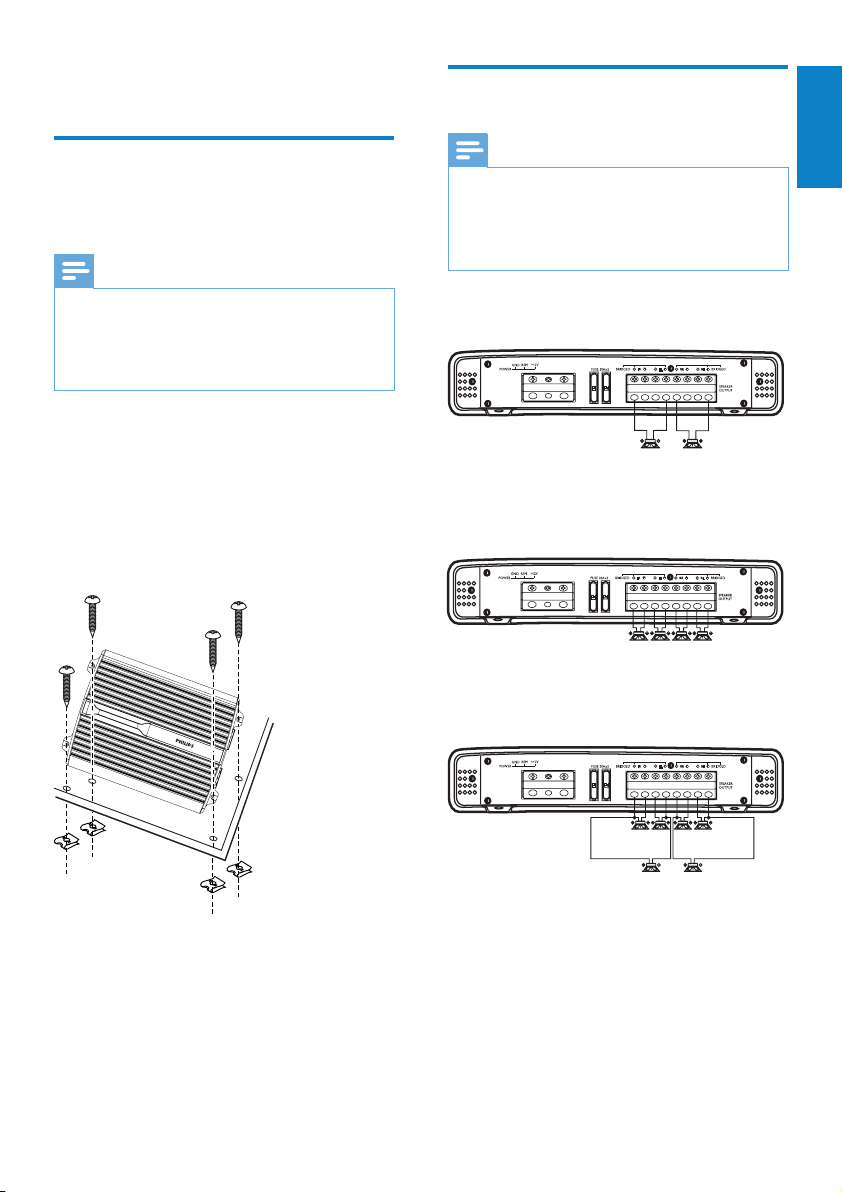

3 Installation

Connect speakers

Installation

You can mount the amplier either under a seat

or on the rear tray.

Note

To avoid inter ference, do not place the •
amplier too close to the car audio or antenna.

The supplied mounting screws are 25mm long.

•

Make sure that the mounting board is thicker
than 25mm.

1 Place the unit on the location for

installation.

2 Mark the positions of the four screw

holes.

3 Drill the holes with driller of

approximately 4mm in diameter.

4 Mount the unit with the supplied screws.

Note

Use speakers with an impedance of 2 to 8 ohm •
(4 to 8 ohm when used as a bridged amplier).

Match the “left”, “right”, “+” and “-” terminals

•

correctly. Revised polarity may degrade sound
quality.

Option 1: Mono bridged mode: connect
2 speaker

Option 2: Stereo mode: connect 4 speakers

Option 3: Tri-mode: connect 6 speakers

English

7

EN

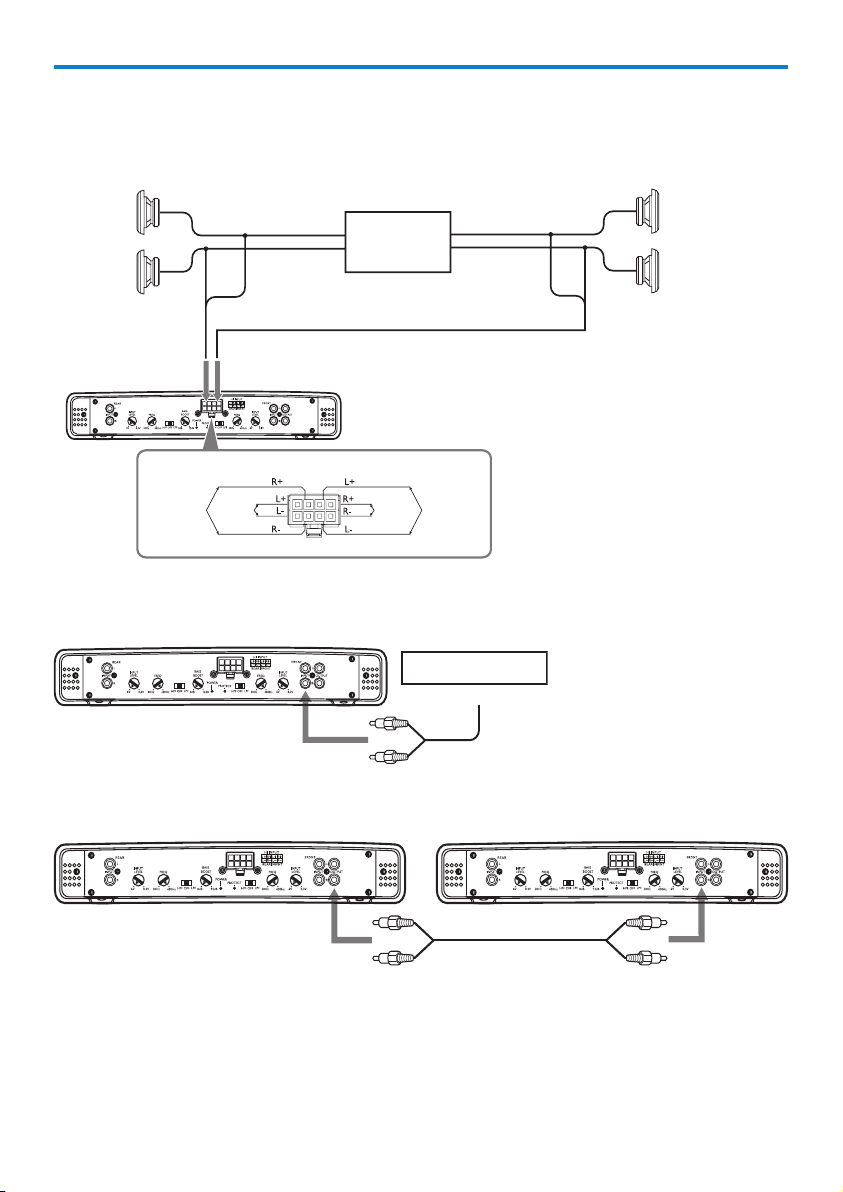

Connect car audio

Left speaker

Right speaker

Left speaker

Right speake

r

Car audio unit

Green

Purple/Black

Green/BlackGrey/Black

Purple

Grey

White/Black

White

HI INPUT

LINE OUT

Car audio unit

Option 1: High level input connection

Connect the amplier to your car audio with the supplied High level input connector.

Option 2: Line input connection

Connect the amplier to the car audio with an RCA cable (not supplied)

Option 3: Line output connection

Connect the amplier to another amplier.

8

EN

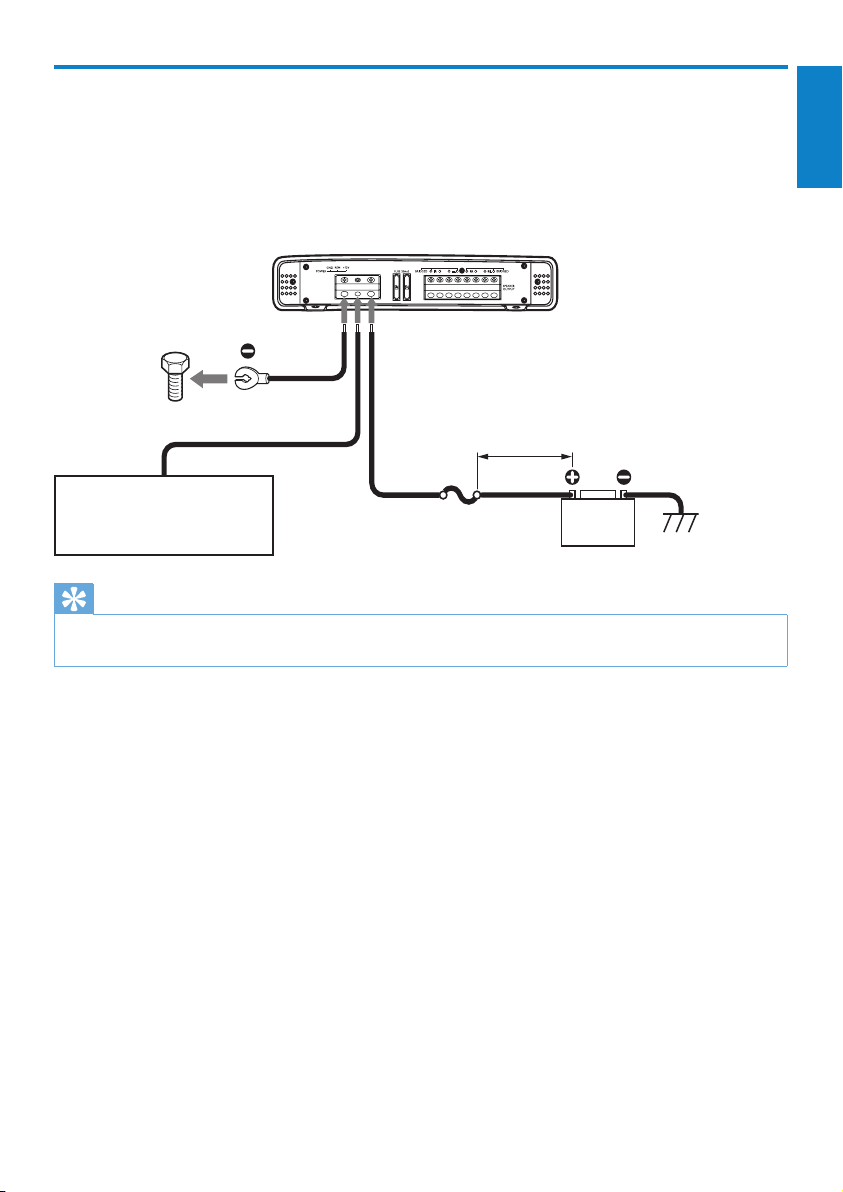

Connect power

FR

FL

to a metal point of the car

Car audio unit

Remote output

Fuse (40 A)

+12 V car battery

less than 450 mm (18 in)

Make the power connection as illustrated below:

1

Connect the ground wire from the car to the • GND socket.
Connect the remote wire from the car audio to the • REM socket.

√ With this connection, you can turn on/off the amplier with the car udio.

Connect the power wire from the car battery to the• +12V socket.

Tip

If your car audio does not have remote output, connect the remote input terminal (REM) to the accessory •
power supply.

English

EN

9

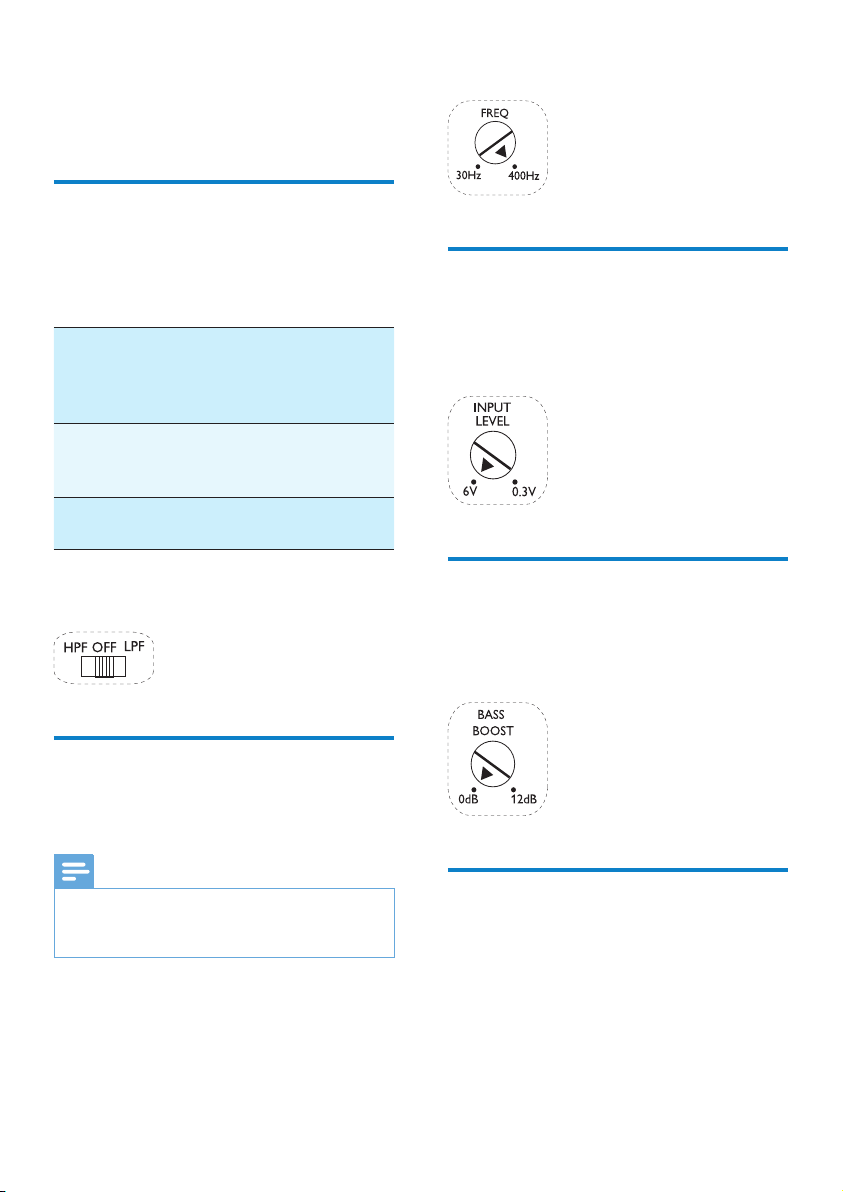

4 Use your power

amplifier

1 Rotate FREQ to select frequency.

Select crossover frequency mode

You can select crossover frequency mode as
below:

HPF
(high-

pass-lter)

mode

LPF (Low-

pass-lter)

mode

OFF (at)

mode

1 Slide HPF/OFF/LPF to the selected

Select this mode when mid­range speakers and tweeters are
connected for high frequency
output.

Select this mode when woofer
and subwoofer is connected for
low frequency output.

Select this mode when tri-mode
speaker connection is used.

positon.

Adjust frequency

Adjust input level

You can adjust the input voltage from 0.3V to 6V.

1 Rotate INPUT LEVEL to adjust input

voltage.

Adjust bass boost

You can punch extra bass for 0 to 12dB.

1 Rotate BASS BOOST to punch for ex tra

bass.

You can adjust frequency of HPF or LPF from
30HZ to 400Hz.

Note

When the • HPF/OFF/LPF switch is set at OFF
position, the frequency adjustment does not
work.

10

EN

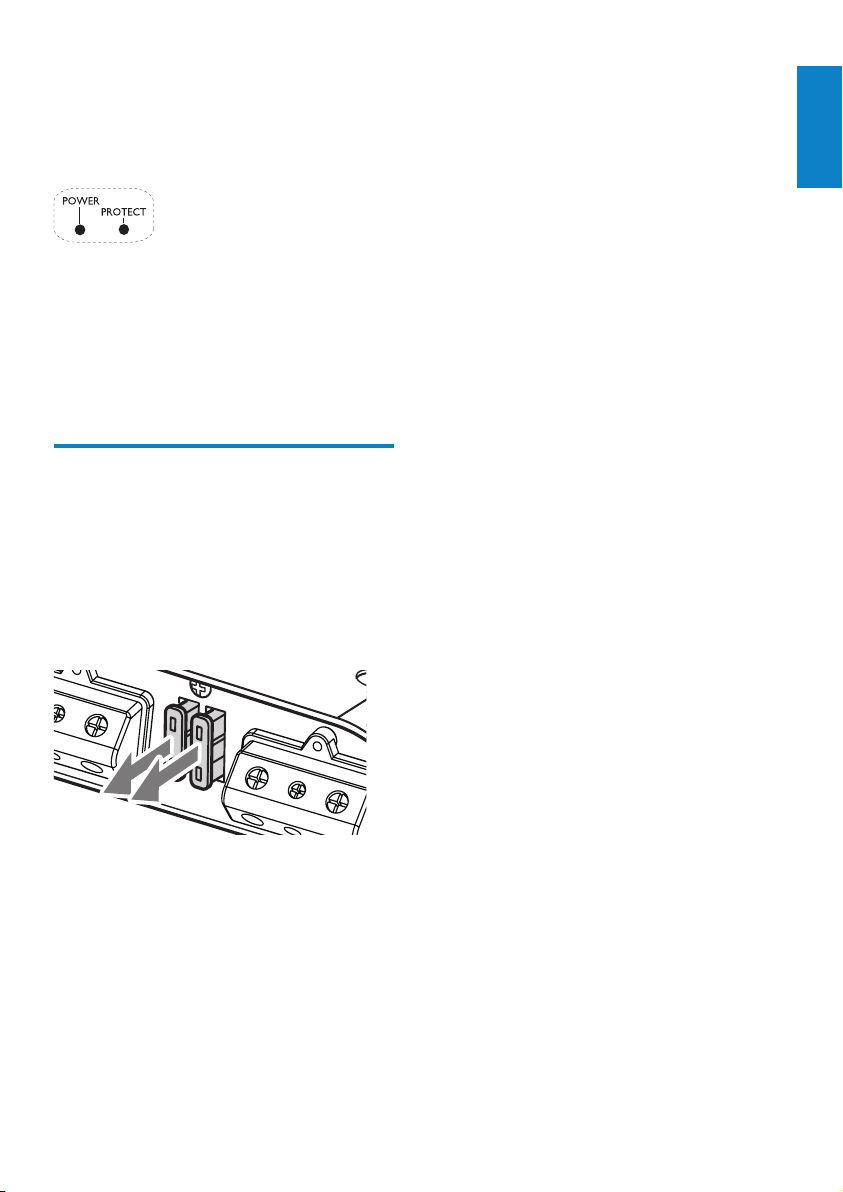

About the protector indicator

The amplier has a built-in protection circuit to

protect the transistors and speakers when:

The unit is overheated. Or•
A DC current is generated. Or•
The batter y voltage is over low or •
over high. Or

The speaker terminals are shor t •
circuited.
When the PROTECT indicator
lights up in red, the unit shuts down
automatically. If this happens, please:

1 Take out the disc or tape and turn off the

car audio.

2 Check the cause of the malfunction (see

above).

3 If the amplier has overheated, wait until

the unit cools down before use.

Replace fuse

If there is no power, the fuse may be damaged
and need to be replaced.

1 Pull out the damaged fuse.
2 Replace the fuse with the supplied fuses

or to buy two fuses that matches the
voltage of the damaged fuse (20A x 2).

English

If the fuse gets damaged immediately after it
has been replaced, there may be an internal
malfunction. In such case, consult your Philips
dealer.

EN

11

5 Product information

Note

Product information is subject to change without prior notice. •

Power output (RMS)

- 4 ohm

- 4 ohm (bridged)

- 2 ohm

Total harmonic distortion 0.016%

Signal to noise ratio 106dB

Channel separation 50dB

Frequency response 5-100kHz

Input sensitivity 300mV - 6V

Input impedance 22k ohm

Fuse rating 20A x 2

Dimensions (DxWxH) 54.4 x 336.5 x 240.2mm

50W x 4
150W x 2
80W x 4

12

EN

6 Troubleshooting

To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the following points before requesting
service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When
you contact Philips, ensure that the apparatus is nearby and the model number and serial number are
available.

Power indicator does not light up

The connected car audio is not turned on. •
The fuse is blown. Replace the fuse with a new one. •

The sound is too low.

The input level is not set correctly (see “ADjust input level”). •

The sound is interrupted or stopped suddenly.

The thermal protector is activated. Reduce the volume. •
The ventilation outlet is blocked. Remove any obstructions from the outlet. •

Alternate noise is heard.

The power connecting wires are installed too close to the RCA pin cords. •
The ground wire is not securely connected to a metal point of the car. •
Negative speaker wires touch the car chassis. •

The protector indicator lights up in red.

The speaker terminals are shor t circuited. Check the speaker connections. •

The amplier is overheated. Cool down the amplier before use. •
The amplier is overloaded. •

The unit becomes abnormally hot.

Place the amplier in a well ventilated location. •
Use speakers with suitable impedance: 2-8 ohm (stereo), 4-8 ohm (bridged). •

English

EN

13

© 2009 Koninklijke Philips Electronics N.V.

All rights reserved.

Document order number: CMP400_55_UM_V3.1
