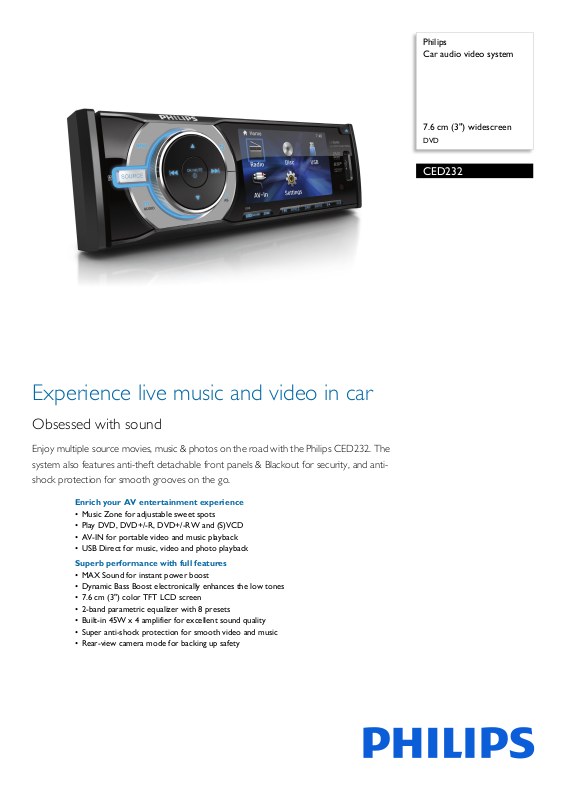

Philips
Car audio video system
7.6 cm (3") widescreen
DVD
CED232
Experience live music and video in car
Obsessed with sound
Enjoy multiple source movies, music & photos on the road with the Philips CED232. The
system also features anti-theft detachable front panels & Blackout for security, and antishock protection for smooth grooves on the go.
Enrich your AV entertainment experience
• Music Zone for adjustable sweet spots
• Play DVD, DVD+/-R, DVD+/-RW and (S)VCD
• AV-IN for portable video and music playback
• USB Direct for music, video and photo playback
Superb performance with full features
• MAX Sound for instant power boost
• Dynamic Bass Boost electronically enhances the low tones
• 7.6 cm (3") color TFT LCD screen
•2-band parametric equalizer with 8 presets
• Built-in 45W x 4 amplifier for excellent sound quality
• Super anti-shock protection for smooth video and music
• Rear-view camera mode for backing up safety
Car audio video system
7.6 cm (3") widescreen DVD
Highlights
CED232/98
MAX Sound
MAX Sound technology produces an instant
boost in bass, maximizing volume performance
and instantly creating the most impressive
listening experience with just the touch of a
button. Its sophisticated electronic circuitry
calibrates existing sound and volume settings,
instantly boosting bass and volume to
maximum levels without distortion. The end
result is a noticeable amplifying of both sound
spectrum and volume and a potent audio boost
that will add mileage to any music.
Music Zone
Philips' innovative Music Zone technology lets
the driver and the passengers enjoy their music
with more vivid spatial effect, just as the artist
intended it to be heard. Users can easily switch
the music listening zones from the driver to
the passengers and back again to get the best
sonic focus in the car. A dedicated zone
control button provides three pre-defined
settings - Left, Right and Front (and All) - so
you can best match your listening needs easily
and dynamically alone or with your passengers.
DBB Dynamic Bass Boost
Activate the Dynamic Bass Boost (DBB), and
the low-end bass frequencies are electronically
enhanced to achieve consistent sound
reproduction, especially when the speaker
volume is set at a low level. You hear
impressive bass at all times.
Built-in 45W x 4 amplifier
Built-in 45W x 4 amplifier for excellent sound
quality
Rear-view camera mode
Rear-view camera mode for backing up safety
Play DVD/DVD+-R/DVD+-RW/SVCD
The Philips player is compatible with most
DVD discs available in the market. DVD,
DVD+/-R, DVD+/-RW and (S)VCD discs - all
of them can play on the player. DVD+/-R is a
shorthand term for a DVD drive that can
accept both of the common recordable DVD
formats. Likewise, DVD+/-RW handles both
common rewritable disc types. SVCD stands
for "Super VideoCD". The quality of a SVCD is
much better than a VCD, especially much
more sharpen picture than a VCD because of
the higher resolution.
Car audio video system
7.6 cm (3") widescreen DVD
Specifications
CED232/98
Picture/Display
• Display screen type: LCD TFT
• Diagonal screen size: 3"
• Resolution: 320(W) x 240(H) x 3(RGB)
• Aspect ratio: Widescreen
• Brightness: 300 cd/m²
• Contrast ratio (typical): 300
• Effective viewing area: 6
• Key illumination: Blue
5.52(W) x 36.84(H) mm
Video Playback
• Playback Media: DVD, DVD-R/-RW, DVD+R/
+RW, Video CD, SVCD
• Disc Playback Modes: A-B Repeat, Angle, Chapter
, Disc Menu, Fast Backward, Fast Forward,
repeat
OSD, Repeat, Resume Playback from Stop, Search
forward/reverse, Still Picture, Zoom
• Video disc playback system: NTSC, PAL
•DVD Region.: 3
• USB Direct Playback: JPEG, MPEG
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD,
WMA-CD, USB flash drive
• Compression format: Dolby
• Disc Playback Modes: Fas
Introscan, Next/Previous Album Search, Next/
Previous Track Search
• ID3 Tag support: Song title, artist, album
• MP3 bit rates: 32-320kbps and variable bit rate
• USB Direct Modes: Play/Pause, Prev
Backward/Fast Forward, Repeat, Shuffle
Digital, MP3, WMA
t Forward/Backward,
ious/Next, Fast
Tuner/Reception/Transmission
• Tuner Bands: AM, FM Stereo
• Auto digital tuning
• Tuner Enhancements: Auto search and store
• No. of preset stations: 18(FM), 12(AM)
• RDS: Station Name
Sound
• Equalizer: 2-bands
• Equalizer settings: Classic, Jazz
Optimal, Techno, User defined
• Sound Enhancement: MAX Sound, Dynamic Bass
t
Boos
• Output power (MAX): 45Wx4 channels
• Output power (RMS): 18Wx4 (4ohms, 10% THD)
, Pop, Rock, Flat,
Connectivity
• USB: USB 2.0 Host
• Video Output - Analog: Composite video out
• Preamp output: 1 pair RCA(L/R)
Security/Anti-theft
• Front panel: Detachable & flip-down
Accessories
• Remote control: Slim remote with battery
• User Manual: English
• Quick start guide: English
Power
• Power supply: 12V DC
Dimensions
• Product dimensions (W x H x D):
188 x 58 x 194 mm
• Chassis: 1 Din
•
Issue date 2013-12-02
Version: 1.0.3
12 NC: 8670 001 08618
EAN: 87 12581 70209 0
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Avoid extensive use of the set in a volume higher than 85 decibel
because this may damage your hearing.
