Philips 32PF9531-10 User Manual

Download

Safety warnings . . . . . . . . . . . . . . . . . . . . . . . . . 2

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . 3

Use of the remote control RC4404/01 . . . . . . 5

Use of the option key . . . . . . . . . . . . . . . . . . . 7

Keys at the left side of the TV . . . . . . . . . . . . . 7

Switch the TV on . . . . . . . . . . . . . . . . . . . . . . . 8

First time installation . . . . . . . . . . . . . . . . . . . . 8

How to navigate through the menus . . . . . . . 11

Use of the TV menu settings . . . . . . . . . . . . . 12

Adjust picture menu settings . . . . . . . . . . 14

Adjust sound menu settings . . . . . . . . . . 17

Adjust feature menu settings . . . . . . . . . . 19

Search for and store TV channels . . . . . . 22

Rearrange the channel number list . . . . . 24

Set your preferences . . . . . . . . . . . . . . . . 25

Select your connections . . . . . . . . . . . . . 26

Select a decoder channel number . . . . . . 26

Reset the factory settings . . . . . . . . . . . . 27

How to upgrade the TV software . . . . . . 27

Create your favourite list . . . . . . . . . . . . . . . . 28

Multimedia Browser . . . . . . . . . . . . . . . . . . . . 29

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

To make video and audio connections . . . . . 34

Side panel overview . . . . . . . . . . . . . . . . . 35

Rear panel overview . . . . . . . . . . . . . . . . 36

Connect:

a VCR or DVD recorder . . . . . . . . . . . . . 37

twoVCRs or VCR and DVD recorder . . .38

a satellite receiver . . . . . . . . . . . . . . . . . . 38

a DVD player, Cable box/game console . .39

a DVD player or Cable box . . . . . . . . . . . 39

a DVD player, sat. receiver or cable box .40

a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

a Home Cinema amplifier . . . . . . . . . . . . 42

Select connected equipment . . . . . . . . . . . . . 43

Record with your recorder . . . . . . . . . . . . . . 43

Audio- and video equipment keys . . . . . . . . . 44

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 45

Annex 1:To set the remote control to

work a Philips DVD or DVD/R . . . . . . . . 46

Annex 2 - Philips TV software upgrade

with portable memory . . . . . . . . . . . . . . . 47

Annex 3 - Philips TV-Slideshow Format

with background music . . . . . . . . . . . . . . 50

Annex 4 - Philips TV - Digital camera

and USB issues . . . . . . . . . . . . . . . . . . . . . 52

Annex 5 - Issues referring to connected

peripherals with a HDMI connector . . . . 53

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Product information . . . . . . . . . . . . . . . . . . . . 55

Contents

If this instruction manual does not give an answer or if ‘Troubleshooting’ does not solve your TV problem, you can call your Local Philips Customer or Service Centre. See the supplied Worldwide

guarantee booklet. Please, have the Model and Product number which you can find at the back or the bottom of your television set or on the packaging, ready, before calling the Philips customer support service.

Model: 32PF9531/10

Product No: ....................................

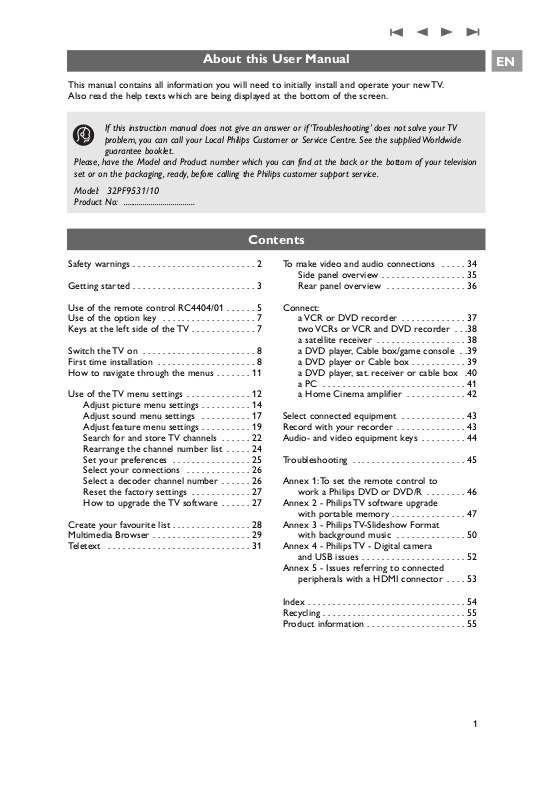

About this User Manual

This manual contains all information you will need to initially install and operate your new TV. Also read the help texts which are being displayed at the bottom of the screen.

Safety warnings

Do not insert the power plug in a wall socket or hang the TV to the wall before all connections are made.

• Place or hang the TV wherever you want, but make sure that air can circulate freely through the ventilation slots.

• Do not install the TV in a confined space such as a book case or a similar unit.

• To prevent any unsafe situations,no naked flame sources, such as lighted candles, should be placed in the vicinity.

• Avoid heat, direct sunlight and exposure to rain or water.

• The equipment shall not be exposed to dripping or splashing.

Do not touch, push or rub or strike the screen with anything hard as this may scratch, mar or damage the screen permanently. And please do not rub with dust clothes with chemical treatment. Do not touch the surface with bare hands or greasy cloth (some cosmetics are detrimental to the screen). Unplug the TV before cleaning the screen. When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks. Do not use acetone, toluene and alcohol because they cause chemical damage. Do not use liquid cleaners or aerosol cleaners.Wipe off saliva or water drops as soon as possible.Their long time contact with the screen causes deformations and colour fading.

Examples of stationary images (this is not an allinclusive list, you may encounter others in your viewing):

• TV and DVD menus:listings of DVD disk content;

• Black bars: when black bars appear at the left and right side of the screen, it is recommended to change to a picture format so that the picture fills the entire screen;

• TV channel logo: present a problem if they are bright and stationary. Moving or low-contrast graphics are less likely to cause uneven aging of the screen;

• Stock market stickers:presented at the bottom of the TV screen;

• Shopping channel logos and pricing displays:bright and shown constantly or repeatedly in the same location on the TV screen. Examples of still pictures also include logos, computer images, time display, teletext and images displayed in 4:3 mode, static images or characters, etc.

• Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus,in general have the ability to emit and receive electro magnetic signals.

• One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

• Philips is committed to develop, produce and market products that cause no adverse health effects.

• Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

• Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardisation for early integration in its products.

Tip: reduce contrast and brightness when viewing.

General

Stationary images on the TV screen

Care of the screen

Electric, Magnetic and Electromagnetic Fields (“EMF”)

A characteristic of LCD and Plasma Panels is that displaying the same image for a long time can cause a permanent after-image to remain on the screen. This is called phosphor burn in. Normal use of the TV should involve the showing of pictures that contain constantly moving and changing images that fill the screen.

Before you switch on your TV, connect all your peripheral equipment. See To make video and audio connections, p. 34.

There is a wide range of audio and video equipment that can be connected to your TV. See To make audio and video connections, p. 34.

EXT1 can handle CVBS, RGB and Audio L/R; EXT2 can handle CVBS, S-VIDEO, RGB,Audio L/R; EXT3 can handle YPbPr and Audio L/R; HDMI 1 and 2. VGA can handle VGA, SVGA and 480p, 576p, 1080i,Audio L/R.

Supported video formats: 480i, 480p, 576i, 576p, 720p, 1080i.

Getting started

Warning: do not insert the mains cord into the mains at the bottom of the TV and in a wall socket

or hang the TV on the wall before all connections are made.

Warning: disconnect all power sources before making any connections.

Tip: it is preferable to connect peripherals with RGB output to EXT1 or EXT2 as RGB provides a

better picture quality.

Before you start

Overview of the rear connector panel

PrPbY

DIGITAL

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

HDMI 1

HDMI ANTENNAVGA EXT2 EXT1

AUDIO OUT

DIGITAL AUDIO IN

HDMI 2 ANTENNA

oo o

PC-VGA EXT2 EXT1

AUDIO IN L/R

EXT3

PrPbY

DIGITAL AUDIO

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO OUT

DIGITAL

AUDIO OUT

HDMI 1

HDMI ANTENNAVGA EXT2 EXT1

AUDIO OUT

DIGITAL AUDIO IN

HDMI 2 ANTENNA

oo o

PC-VGAAUDIO IN L/R

EXT3

EXT2 EXT1

AUDIO in L/R

< Insert the aerial plug firmly into the aerial socket x at the

bottom of the TV.

Getting started (Continued)

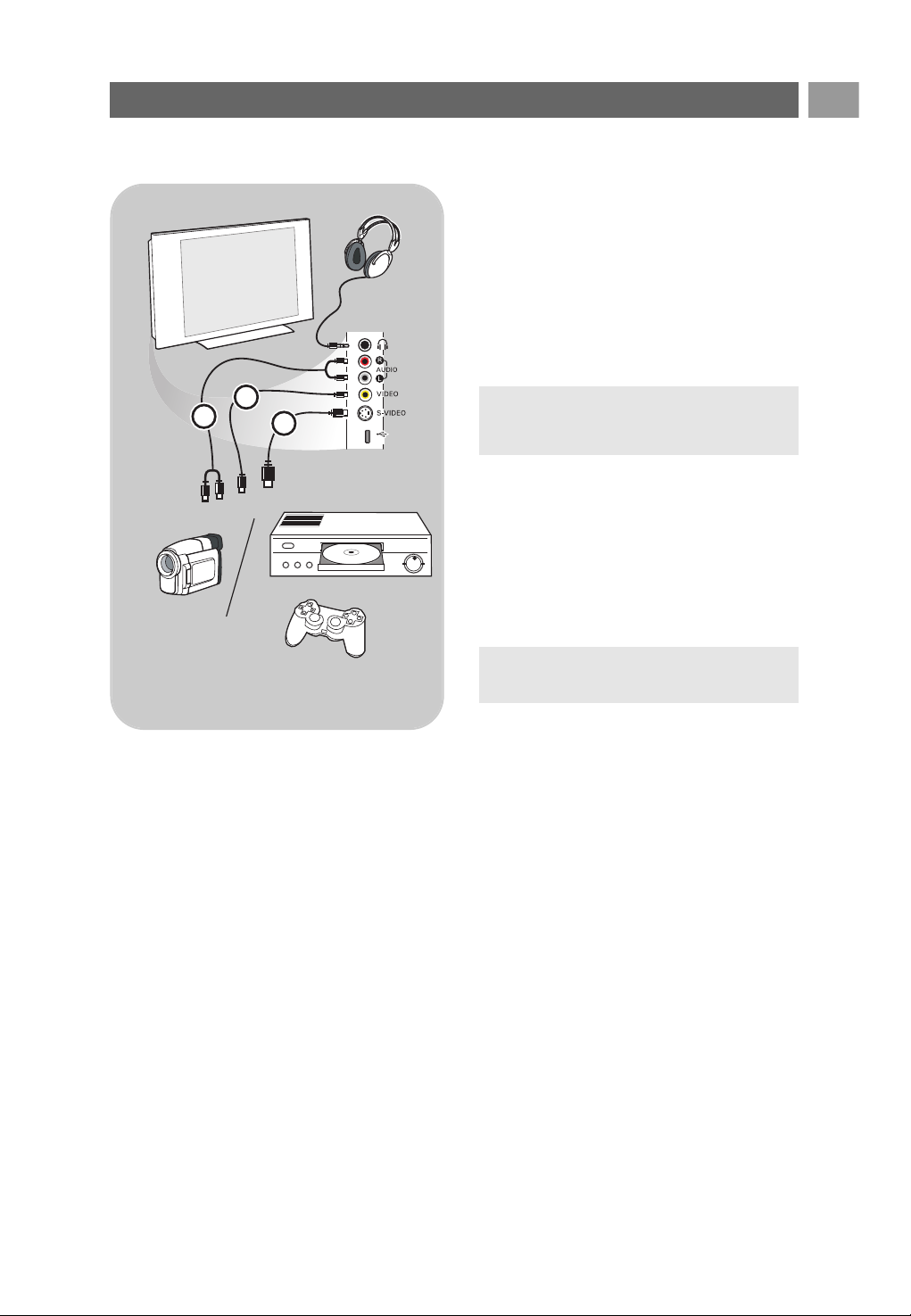

- To connect a camera, camcorder or game, see To make video and audio connections, p. 35.

- To connect a headphone, see To make video and audio connections, p. 35.

- To connect a USB device, see Multimedia browser, p. 29.

UK - EIRE

Tip: for best quality use the suppressor cable supplied.

Warning: verify that the mains supply voltage corresponds

to the voltage printed on the sticker at the rear of the TV.

USB

Overview of the side connector panel

Connect the antenna

Connect the mains

< Insert the mains cord supplied into the mains at the bottom

of the TV and in the wall socket.

Remote control

< Insert the 2 batteries supplied (Type R6-1,5V).

Be sure the (+) and (-) ends of the batteries line up correctly (inside of case is marked.)

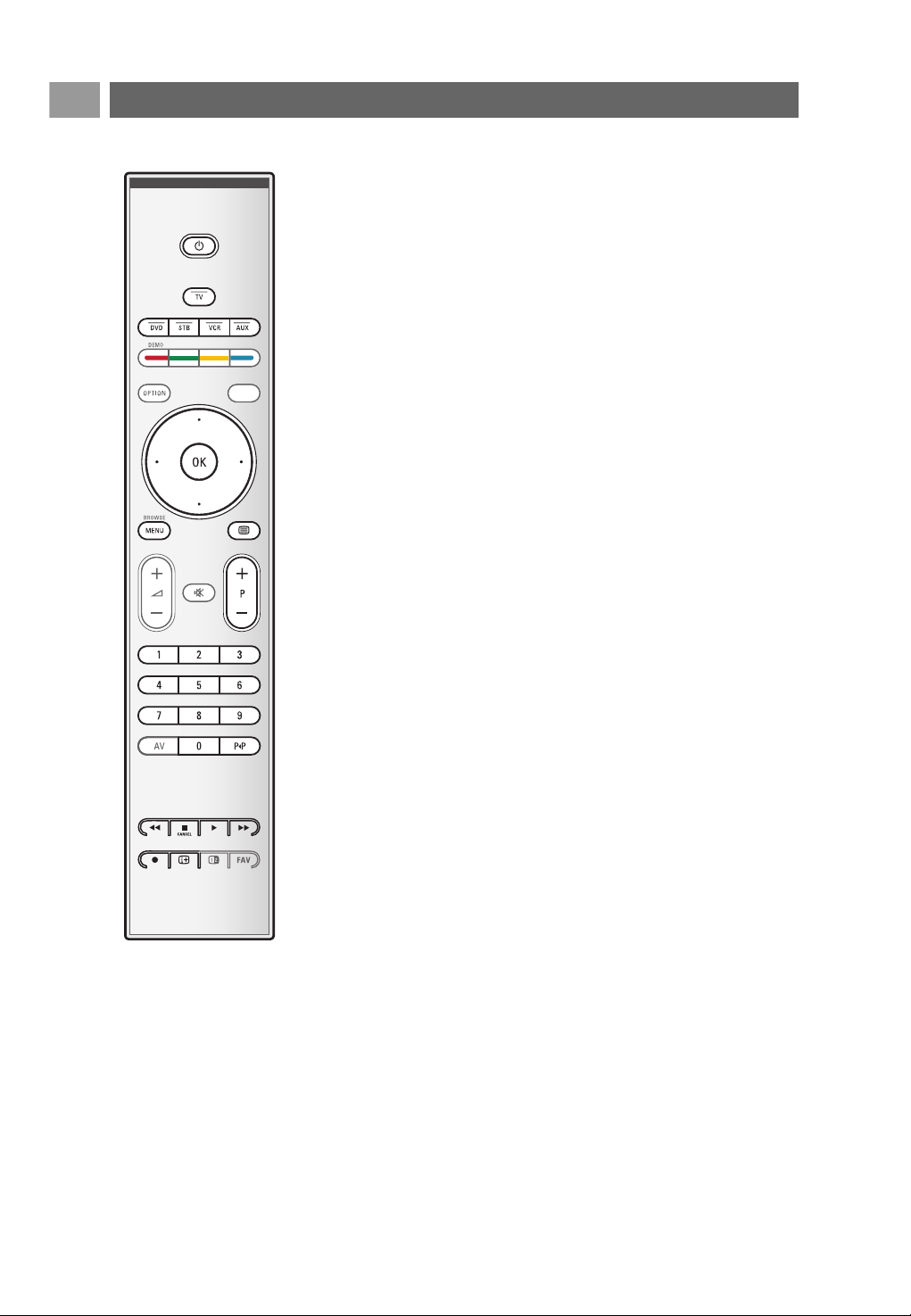

For most keys pressing a key once will activate the function. Pressing a second time will de-activate it.

B Standby

Press to switch the TV from or to standby mode. When switched to standby, a red indicator on the TV lights up.

TV Press to select TV mode.

DVD STB VCR AUX

Press to select one of the system modes in which the remote control can be used. See Audio and Video equipment keys, p. 44.

DEMO Press to switch the Demo menu on or off.

Colour keys

- When functions are attached to the colour keys,the colour keys are shown on screen.

- To select a page in Teletext mode.

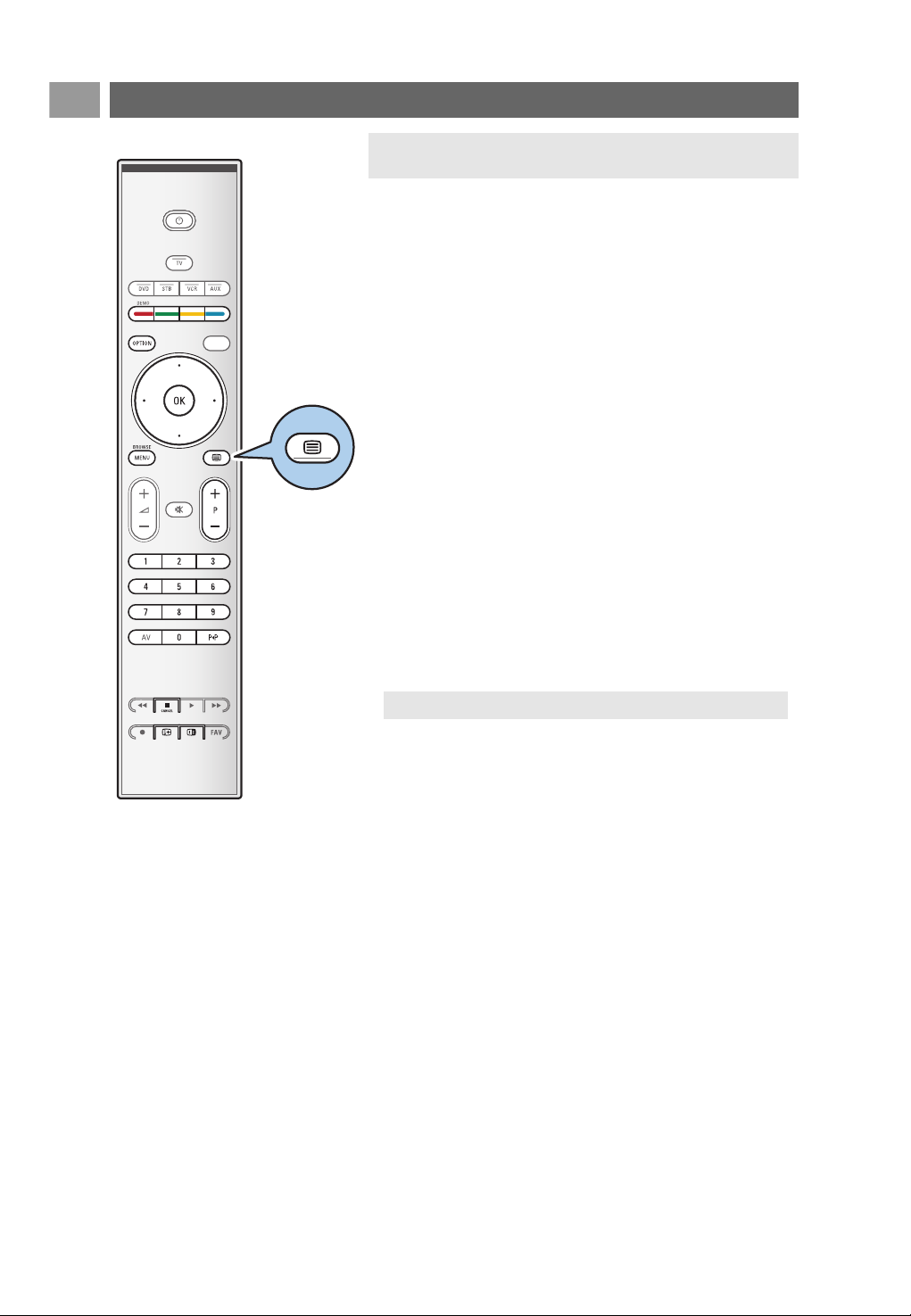

OPTION

- To open and close the Quick access menu which contains a few frequently used options, like Picture format.

- When in teletext, press repeatedly to enlarge the teletext page display. See Teletext, p. 33.

ano function

Cursor keys

Press the cursor keys up/down, left/right to navigate through the menus.

OK - To activate a setting

- Starts playing content in the Multimedia Browser application.

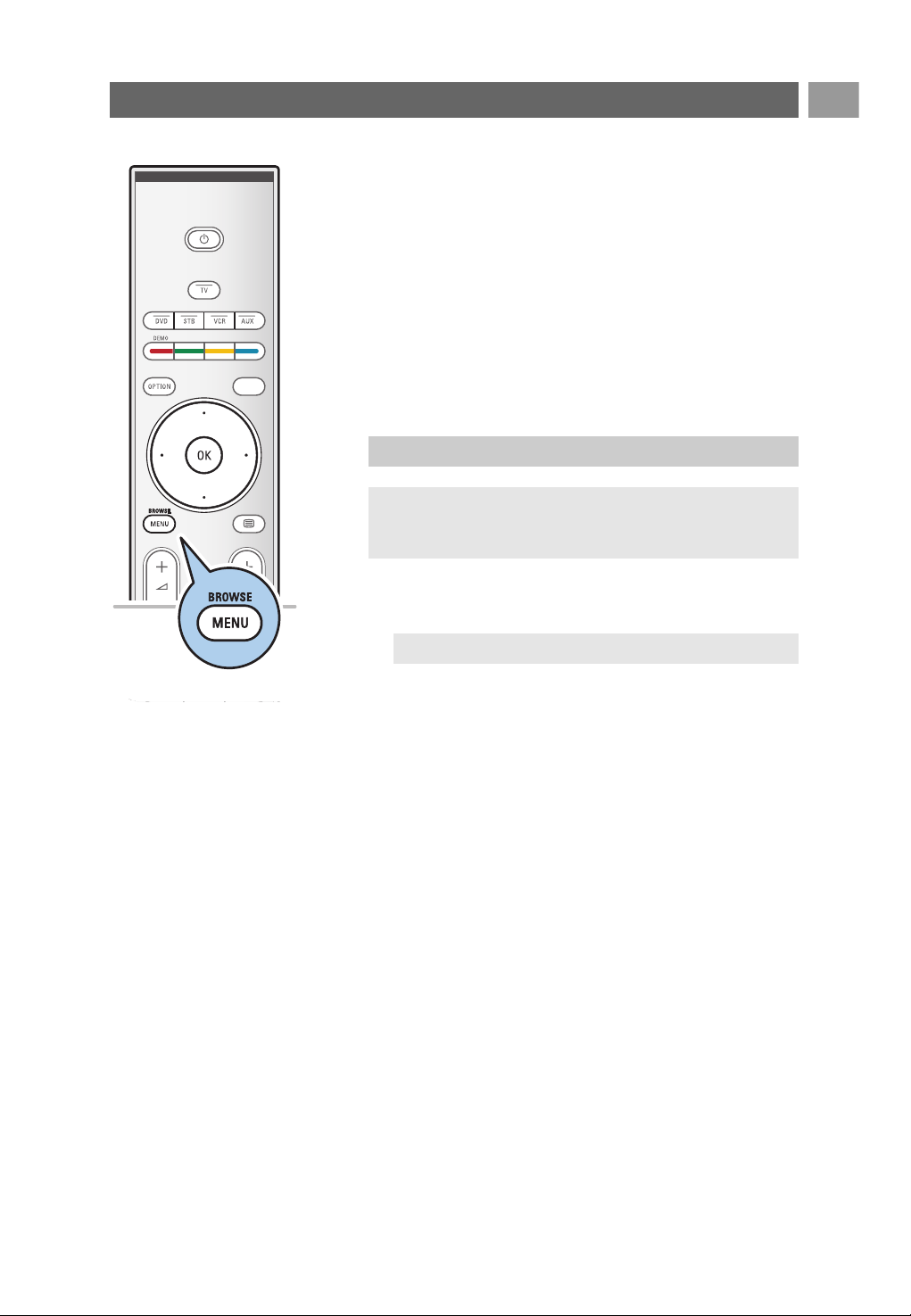

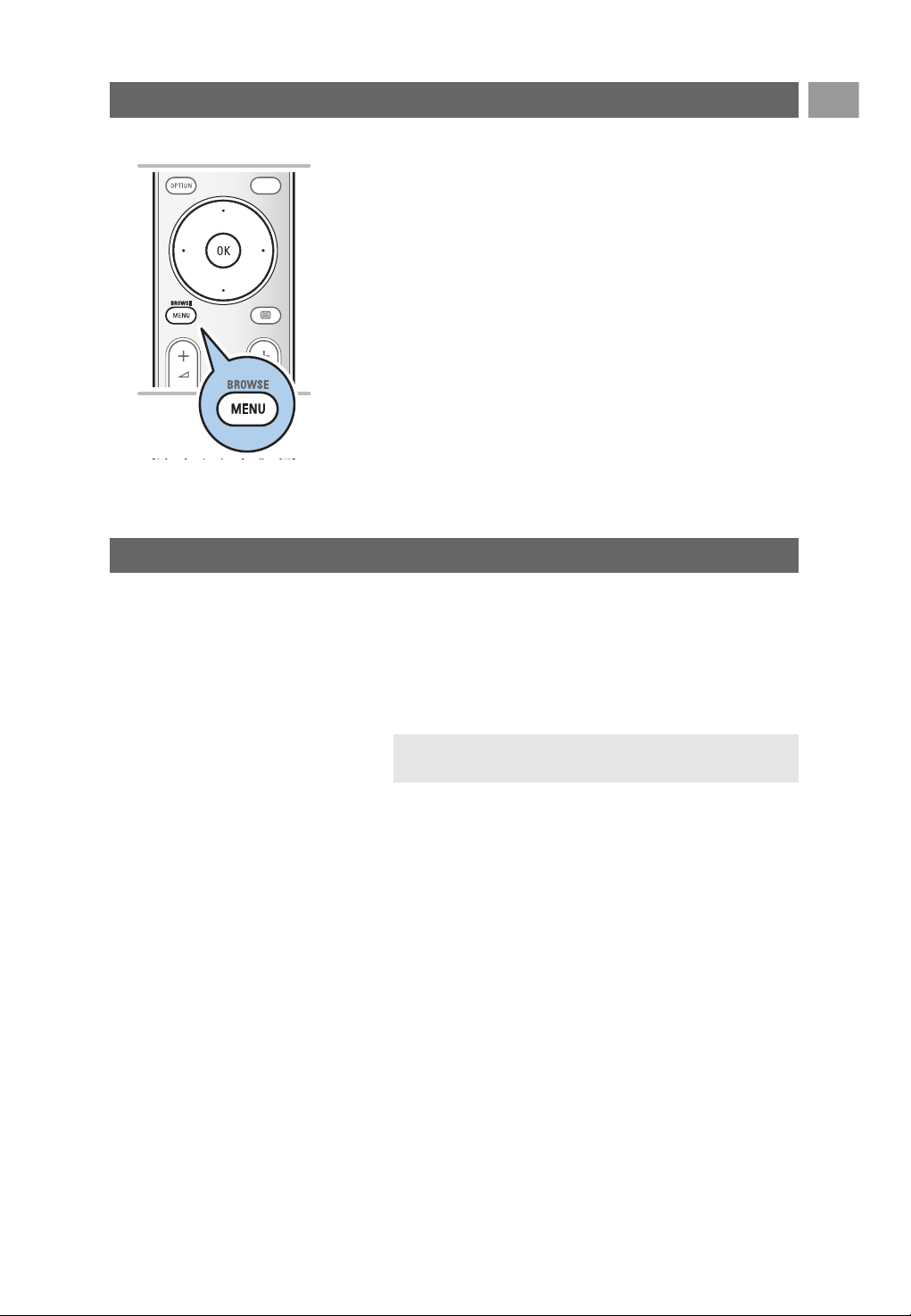

BROWSE/MENU:

To open and close the main menu. See How to navigate through the menus, p. 11.

bTeletext On/Off

Press to switch teletext on. See Teletext, p. 31.

V Volume

Press + or - to adjust the volume.

¬ Mute key: interrupt the sound or restore it.

Use of the remote control RC4404/01

Attention: the TV is never powered off completely unless it is physically unplugged.

Use of the remote control RC4404/01 (continued)

+P- Channel selection

- to browse through the TV channels and sources stored and marked in the Favourite channels lists;

- to select a page in Teletext mode;

- to quickly browse through the lists in the menus;

- to switch the TV on from standby mode.

0/9 Digit keys

To select a TV channel between 0 and 999.

AV Select your peripherals

See Installation menu, Select your connections, p. 26.

0 Previous channel

Press to alternate between the currently viewed and the previously viewed TV channel.

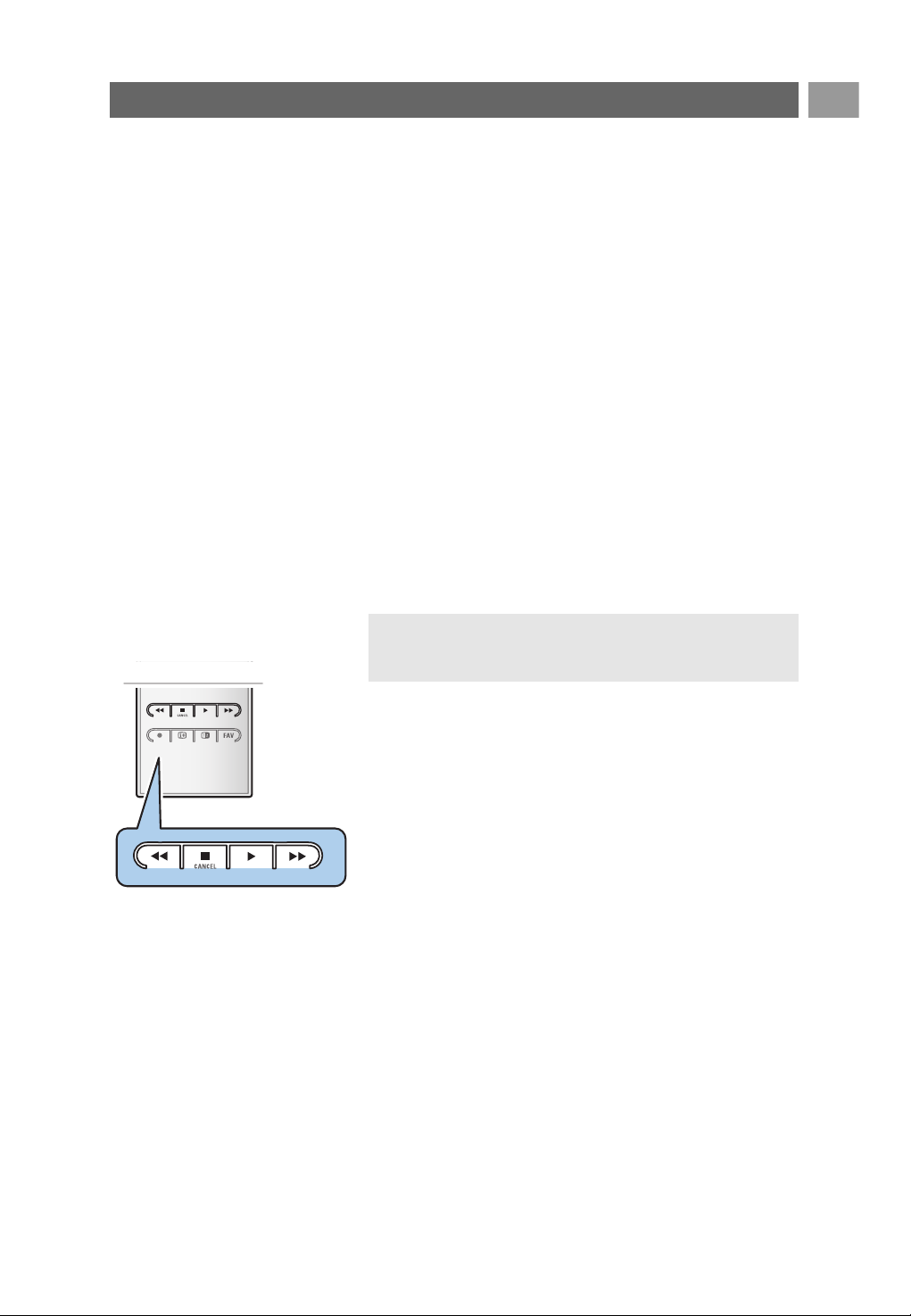

Ò ‡ π † Audio and Video equipment keys

See Audio and Video equipment keys, p. 44. See Multimedia browser functional keys, p. 29.

‡

CANCEL no function

® no function

iOn screen information

Press to display (when available) information about the selected TV channel and programme.

bDual screen

Press the b key to show teletext on the right of the screen.

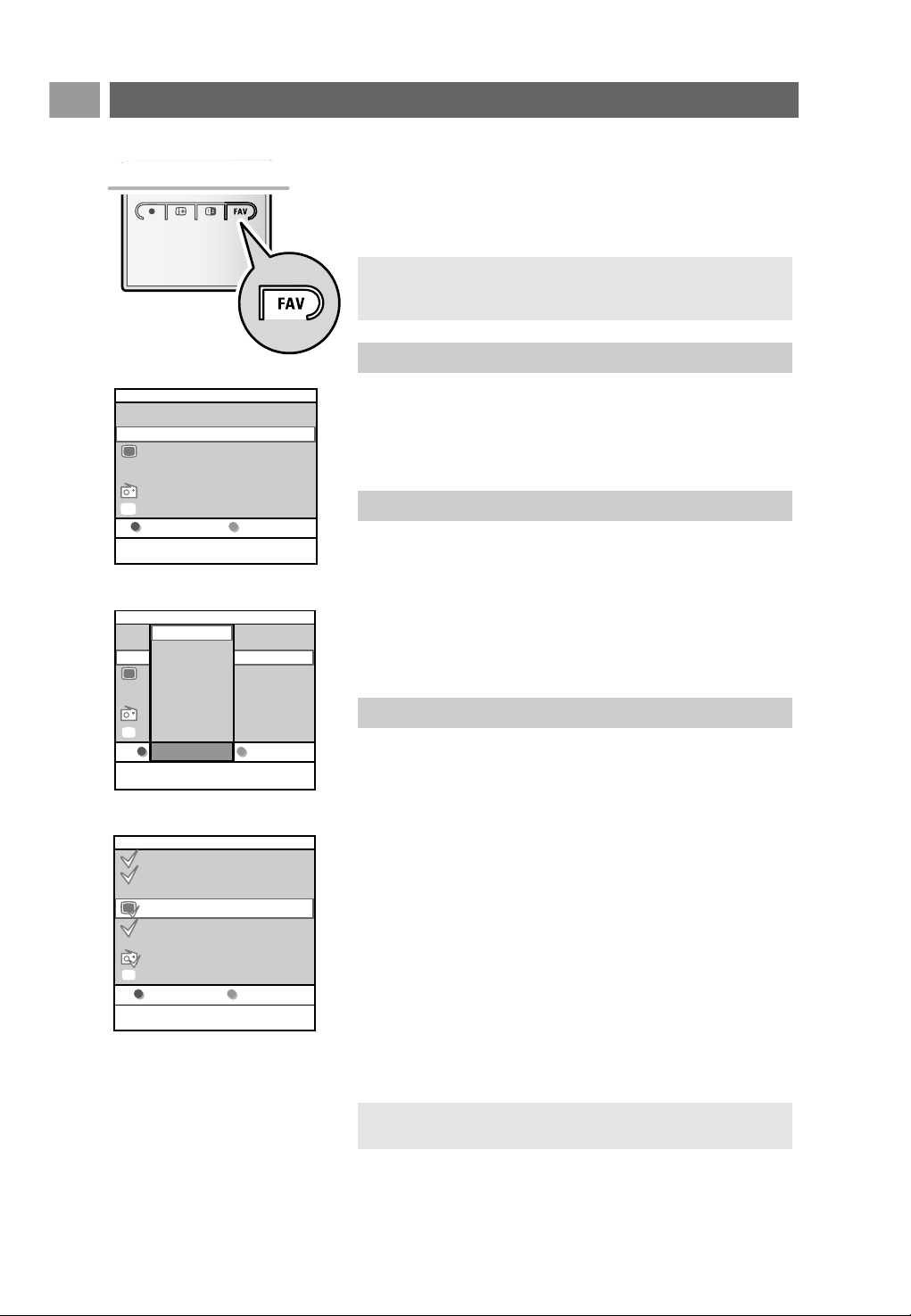

FAV To display the channels list.

You can create up to four favourite lists.

Note: to set the remote control to work a Philips DVD or DVD/R, see p. 46.

The

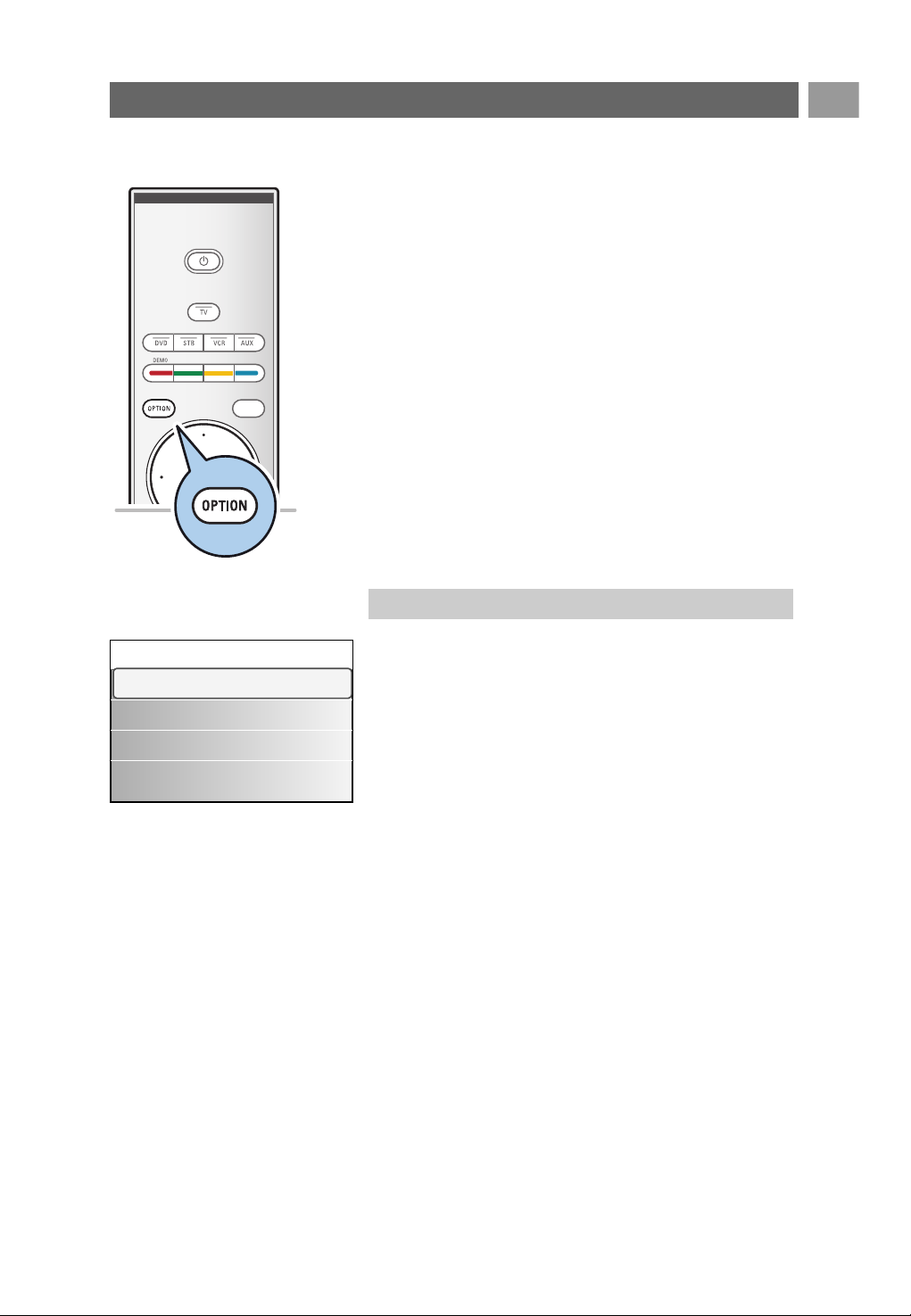

OPTION key allows you to display the Quick access menu

which will give you direct access to some features and menu options.

1. Press the

OPTION key.

> The Quick access menu appears.

2. Press the cursor up/down to select a menu item.

3. Press the

OK key to jump to the selected menu item in the

TV menu. (Except for the Clock option).

4. Use the cursor keys to make a selection.

5. Press the

OPTION key to exit.

Subtitles:

See Adjust feature menu settings, p. 19.

Picture format:

See Use of the TV menu settings,Adjust picture menu settings, p. 16.

Equalizer:

See Use of the TV menu settings,Adjust sound menu settings, p. 17.

Clock:

< Select to activate/deactivate the clock display on the screen.

Use of the OPTION key

Quick access

Subtitles

Picture format

Equalizer Clock

In case your remote is lost or broken, apart from channel selection and volume adjustment, you can still change some of the basic settings with the keys at the side of your TV. < Press the power switch B to switch the TV on or off.

The

MENU key can be used to summon the TV menu

without the remote control. < Use:

- the

VOLUME - and + keys and the

PROGRAM/CHANNEL - and + keys to select menu

items;

- the

MENU key to confirm your selection.

VOLUME

PROGRAMMENUB POWER

Keys at the left side of the TV

Note: if the TV has already been installed before and/or you want to change the First time installation settings, proceed with Use of the TV menu settings, p. 13.

Switch the TV on

< Press the power switch B at the side of the TV.

> An indicator on the front of the TV lights up and the

screen comes on.

< If the TV is in standby mode, press the

-P+ keys or the B

key on the remote control.

Note: the first time (and only the first time) you switch on your TV, you see a Welcome screen followed by the installation procedure. See First time installation, below.

First time installation

The installation procedure consists of a series of screens that will guide you through the installation of your TV. Follow the instructions on screen.

After the Welcome screen you are asked to select a language of the TV's on-screen menus.The text of the header and the info on screen continuously change language.

1. Press the cursor up/down to highlight your language.

2. Press the

OK key on the remote control.

3. Follow the instructions on screen to proceed.

First time installation (Continued)

Step 1: select your on-screen language

1. Press the green colour key on your remote control when

Television is highlighted.

2. Select the country where you are now located.

3. Press the green colour key on your remote control to start the Automatic channel installation. > All available TV channels are searched for and stored

automatically. This will take a few minutes.When the search is complete, the menu will indicate the number of channels found.

4. Press the red colour key again when the search is completed.

Step 2: complete the initial TV installation procedure

Previous Next Skip Stop

PHILIPS Television

System searching: please wait..........

Stop

PHILIPS Installation

This will help you to install the following sections:

Television Settings assistant

Menu language

English

Español Français Hrvatski Italiano Magyar

.............

Please select your

language.....

PHILIPS

using cursor up and down

Note: if you choose to install the channels at a later time, select the Automatic installation in the TV menu, Installation, Channels to scan available channels.

By means of several split screens/full screens you are prompted to select your preferred Picture and Sound settings, to finally arrive at a complete setting which satisfies you.

1. Press the green colour key on your remote control to enter the Settings assistant menu.

2. Select your Location with the cursor up/down. > If you choose Shop it will skip the Settings assistant.

The TV parameters for Picture and Sound will then be set to predefined fixed settings.

Press the green colour key again to proceed. > If you choose Home it will display the Settings

assistant.

3. Use the cursor left/right to each time select your preferred screen.

4. Press the green colour key to each time confirm your selection and to jump to the following screen. > The following items will be presented sequentially.

In the header it is mentioned how many screens have been completed and how many screens there are in

total. The Settings assistant will step sequentially through the following settings: Picture and Sound.

5. Press the green colour key again to store all the settings and to return to the TV installation menu.

6. Press the red colour key again to finish the First time installation procedure and to display the first stored TV channel.

First time installation (Continued)

Note: when you skip or stop the Settings Assistant, then the standard settings Philips selected for you will be chosen.

Note: any time you can change or reset your settings or adjust individual settings for Picture and Sound in the TV settings menu. See p. 13, Use of the TV menu settings. To control the settings of special TV functions, features and accessory equipment, see p. 19, Adjust feature menu settings.

Step 3: Settings assistant: select your TV settings

Previous Next Skip Stop

PHILIPS Installation

This will help you to complete the Settings assistant. Television

Settings assistant

PHILIPS Settings assistant

Please select your location before continuing: Home Shop

A lot of guiding instructions, help texts and messages will be displayed on your TV when you use the menus or when you try to execute an action. Read the help texts which are being displayed on the specific item highlighted. The colour keys at the bottom of the screen refer to the different actions which may be executed. Press the corresponding colour key on the remote control to perform the required or desired action.

1. Press the

MENU/BROWSE key on the remote control.

> The main menu appears on the screen.

- TV menu allows you to access the TV menu. See

below.

- TV channels allows you to access the TV channel list

and to create up to four favourite lists with your preferred TV channels. See Create your favourite channel list, p. 28.

- Multimedia allows you to access the Multimedia

browser application. It lets you display your personal multimedia files. Multimedia is only present when a USB device is connected. See Multimedia browser, p. 29.

2. Use the cursor up/down to highlight and select a menu item.

3. Use the cursor right to enter the highlighted menu item. > The right panel shows the content of the highlighted

menu item.

4. Use the cursor up/down to select a menu item.

- TV settings allows you to adjust your preferred Picture

and Sound settings

- Features allows you to control the settings of special TV

features

- Installation allows you

- to select your menu language;

- to search for and store your TV channels;

- to set or adjust various special functions;

- to select connected peripheral equipment;

- to define one or more channel numbers as decoder channel numbers;

- to reset your Picture and Sound settings to the factory standard settings;

- to upgrade your TV software.

How to navigate through the menus

Introduction

Info

TV menu

TV settings

Settings assistant Reset to standard Picture Sound

TV settings

Features Installation Exit

Television

Multimedia

TV menu TV channels

Info

TV menu

TV settings

Settings assistant Reset to standard Picture Sound

TV settings

Features Installation Exit

How to navigate through the menus (continued)

Use of the TV menu settings

1. Press the MENU/BROWSE key on the remote control. > The main menu appears on the screen.

2. Select TV menu and press the cursor right. > The TV menu is displayed.

3. Select TV settings and press the cursor right. > The TV settings menu is moved to the left.

4. Press the

MENU/BROWSE key to exit the menu.

To make it easier to change the settings of the TV, there are 3 ways of doing it. See next page.

Adjust Picture and Sound settings

5. Press the cursor right to enter the highlighted menu item. > The content of the right panel is moved to the left panel

and the right panel now shows the content of the newly highlighted item in the left panel.

6. Press the

MENU/BROWSE key to exit the main menu.

Note: in some cases it is important that the picture can be

watched while you adjust the settings.This means that when the highlight is on the right side panel, the other menu items hide away.When the cursor left is pressed, the hidden menu items reappear and the highlight moves to the left panel.

The TV menu allows you to access and change settings and preferences in case you want to change the First time installation settings and/or you want to control the settings of special TV functions, features and peripheral equipment

Television

Multimedia

TV menu TV channels

Info

TV menu

TV settings

Settings assistant Reset to standard Picture Sound

TV settings

Features Installation Exit

Each time you've made a selection, press the green key to confirm your selection.

1. Select Settings assistant and press the cursor right. > By means of several split screens/full screens you are

prompted to select your preferred Picture and Sound settings to finally arrive at a complete setting which satisfies you. See First time installation, Step 3: Settings assistant: select your TV settings, p. 10.

2. Press the green colour key to return to the TV menu again.

1313

Use of the TV menu settings (continued)

A. Change settings in an easy-to-use manner with the

Settings assistant.

< Select Picture or Sound and press the cursor right.

> A menu appears which allows you to fine tune the

Picture and Sound settings.

> To adjust the Picture settings, see Adjust picture menu

settings, p. 14.

> To adjust the Sound settings, see Adjust sound menu

settings, p. 17.

C. Individual settings for Picture and Sound

This allows you to reset your settings for viewing and listening to predefined factory settings.

1. Select Reset to standard and press the cursor right. > A menu appears which allows you to select one of the

standard settings for viewing and listening.

> Current shows your current settings for viewing and

listening.

> If you select Natural, it allows you to set your picture

and sound settings to the recommended standard values. In most cases this will give the best balanced viewing experience.

> If you select Vivid, it allows you to set your picture and

sound settings to rich values, making use of the TV capabilities to its full extend.

> If you select Subtle, it allows you to set your picture

and sound settings to the purest representation of the original source content.

2. Press the green colour key to store the selected setting.

B. Use of the Standard settings (if present)

Settings assistant

Reset to standard

Picture Sound

Info

TV menu

TV settings

Reset to standard

Current Natural Vivid Subtle

The picture menu contains the settings that affect the quality of the picture.

1. Press the MENU/BROWSE key on the remote control.

> The main menu appears.

2. Select TV menu and press the cursor right.

> The TV menu is moved to the left.

3. Select TV settings and press the cursor right.

> The TV settings menu is moved to the left panel.

4. Select Picture and press the cursor right.

> The Picture menu is moved to the left panel.

5. Use the cursor up/down to select the Picture menu items.

6. Press the cursor right to enter the selected Picture menu

item.

7. Use the cursor keys to adjust the settings.

8. Press the cursor left to return to the Picture menu.

Contrast

Adjusts the intensity of bright parts in the picture but keep the dark parts unchanged.

Brightness

Adjusts the light output of the complete picture, which will mainly affect the darker areas of the picture.

Colour

Adjusts the saturation level of the colours to suit your personal preference.

Hue

Compensates for the colour variations in NTSC encoded transmissions.

Sharpness

Adjusts the sharpness of fine details in the picture.

Tint

Increases or decreases Warm (red) and Cool (blue) colours to suit personal preferences.

< Select Cool to give the white colours a blue, Normal to

give the white colours a neutral, Warm to give the white colours a red tint.

< Select Custom to make a customised setting in the

Custom tint menu item.

Adjust picture menu settings

Info

TV menu

TV settings

Settings assistant Reset to standard Picture Sound

TV settings

Features Installation Exit

Info

TV menu

TV settings


Contrast Brightness Colour Hue Sharpness Tint

..............

Settings assistant Reset to standard


Sound

Adjust picture menu settings (Continued)

Custom tint (only when Tint is set to Custom)

Fine tunes the white point (WP) and black level (BL) of the picture.

1. Select Custom tint and press the cursor right.

2. Use the cursor keys to select and adjust the settings of:

R-WP: allows you to customise the colour tint by adjusting

the red whitepoint of the picture.

G-WP: allows you to customise the colour tint by adjusting

the green whitepoint of the picture.

B-WP: allows you to customise the colour tint by adjusting

the blue whitepoint of the picture.

R-BL: allows you to customise the colour tint by adjusting

the red blacklevel of the picture.

G-BL: allows you to customise the colour tint by adjusting

the green blacklevel of the picture.

3. Use the colour keys to reset to the predefined settings.

4. Press the cursor left to return to the Picture menu.

Pixel Plus

Pixel Plus is the most ideal setting, as it fully processes the image to make every single pixel the best it can be, improving contrast, sharpness, picture depth, and colour reproduction and brilliance from every source, including High Definition.

< Select On or Off to activate/de-activate Pixel Plus.

Digital Natural Motion

Reduces the field and line flicker and reproduces smooth movement especially in movies.

< Select Off, Minimum or Maximum in order to

activate/de-activate Digital Natural Motion and to really see the difference in picture quality.

ClearLCD

ClearLCD results in superior sharpness of motion reproduction, better black level, high contrast with a flickerfree, quiet image and a larger viewing angle.

< Select On or Off.

Dynamic contrast

Automatically makes the contrast in the darker and the brighter picture areas more noticeable as the image on the screen changes.

< Normally select Medium. It may be preferred to select

Minimum, Maximum or Off.

DNR

DNR automatically filters out and reduces the image noise.

This improves picture quality when receiving weak signals.

< Select Off, Minimum, Medium or Maximum according

to the image noise in the picture.

Info

TV menu

TV settings


.............

Custom tint Pixel Plus Digital Natural Mo.. Clear LCD Dynamic contrast

.............

Settings assistant Reset to standard


Sound

MPEG artefact reduction

MPEG artefact reduction On smoothens the

transitions on digital content.

< Select On or Off.

Colour enhancement

Automatically controls green enhancement and blue stretch. It makes the colours more vivid.

< Select Off, Minimum, Medium or Maximum.

Active control

The TV continuously measures and corrects all incoming signals in order to provide the best picture possible.

< Select On or Off to activate/de-activate Active control.

Picture format

This allows you to adjust the size of the picture dependant on the broadcasted format and your preferred setting. How to navigate through the TV settings menu, see p. 11: Use of the TV menu settings.

Choose among the following picture formats:Auto format, Super zoom, 4;3, Movie Expand 14:9, Movie Expand 16:9 or Wide screen.

Auto format makes the picture fill the screen as much as possible. In case of subtitles in the bottom black bar, Auto format makes the subtitles visible. In case of a broadcaster logo in the corner of the top black bar, the logo disappears from the screen. Super zoom removes the black bars on the sides of 4:3 programmes with minimal distortion. When in Movie Expand 14:9, Movie Expand 16:9 or Super zoom screen format, you can make subtitles visible with the cursor up/down.

Adjust picture menu settings (Continued)

Auto format Super zoom

4:3

Movie expand 14:9

Movie expand 16:9 Wide screen

Note: with HD sources not all picture formats will be available.

Tip: this function is also accessible via the OPTION key on the remote control.

Settings assistant Reset to standard


Sound

Info

TV menu

TV settings


.............

DNR MPEG artefact red. Colour enhancem.. Active control Picture format

The sound menu contains the settings that affect the quality of the sound.

1. Press the MENU/BROWSE key on the remote control.

> The main menu appears.

2. Select TV menu and press the cursor right.

> The TV Menu is moved to the left.

3. Select TV settings and press the cursor right.

> The TV settings menu is moved to the left panel.

4. Select Sound and press the cursor right.

> The Sound menu is moved to the left panel.

5. Use the cursor up/down to select the Sound menu items.

6. Press the cursor right to enter the selected Sound menu

item.

7. Use the cursor keys to adjust the settings.

8. Press the cursor left to return to the Sound menu.

Equalizer

Allows you to change the frequency response of the sound to match your personal taste.

Volume

Allows you to adjust the sound output level.

Balance

Allows you to adjust the output of the right and left speakers to obtain the best stereo reproduction for your listening position.

Dual I/II

Allows you to select, per channel, Dual I or II, when dual sound transmission is available.

Mono/Stereo

Allows you to select, per TV channel, Mono or Stereo sound when stereo broadcasts are available.

Surround mode

Allows you to select the modes for more spatial or surround sound reproduction dependent on the broadcasted signals or signals from external inputs received.

Adjust sound menu settings

Note: dependent on the input signal, one or more menu items may not be selectable.

Tip: this function is also accessible via the OPTION key on the remote control.

Settings assistant Reset to standard Picture

Sound

Info

TV menu

TV settings

Sound

Equalizer Volume Balance Dual I/II Mono/Stereo Surround mode

.............

Adjust sound menu settings (Continued)

Headphone volume

Allows you to control the level of sound through the headphones.

AVL (Automatic Volume Leveler)

Automatically reduces the volume differences between channels and programmes, providing a more constant overall level.This will also reduce the dynamics of sound.

Delta volume

Allows you to correct for any permanent volume differences between TV channels or external sources.

Auto surround

When switched On, this allows the TV to automatically switch to the best surround sound mode the broadcaster transmits.

Settings assistant Reset to standard Picture

Sound

Info

TV menu

TV settings

Sound

.............

Headphone volume AVL Delta volume Auto surround

The Features menu allows you to control the settings of special TV functions, features and accessory equipments.

1. Press the

MENU/BROWSE key on the remote control.

> The main menu appears.

2. Select TV menu and press the cursor right. > The TV Menu is moved to the left.

3. Select Features and press the cursor right. > The Features menu is moved to the left panel.

4. Use the cursor up/down to select the Features menu items.

5. Press the cursor right to enter the selected Features menu item.

6. Use the cursor keys to adjust the settings.

7. Press the cursor left to return to the Features menu.

Subtitle

This displays Teletext subtitles from the selected TV channel. These can be permanently displayed,or only when mute is active.The teletext subtitle page must be stored for each TV channel.

1. Switch on teletext and select the proper subtitle page from the index.

2. Switch off teletext.

3. Select

- Subtitle On to display the subtitles on the selected TV

channels.

- On during mute to automatically display the subtitles

only when the sound has been muted with the ¬ key on the remote control.

Sleeptimer

This sets a time period after which the TV automatically switches to standby.

1. Select Sleeptimer.

2. Press the cursor right.

3. Select a value with the cursor up/down. > The list will have values from 0 to 180 minutes. When 0

is selected, the sleeptimer is switched off.

Adjust feature menu settings

Tip: this function is also accessible via the OPTION key on the remote control.

Info

TV menu Features

Subtitle Sleeptimer Childlock Set/Change code On timer Demo

TV settings

Features

Installation Exit

Note: you can always switch off your TV earlier or select another time set.

Childlock

With a 4-digit code, you are able to lock TV channels and external sources to prevent children from watching certain programmes.

1. Select Childlock.

2. Press the cursor right to enter the Childlock menu.

3. Enter your 4-digit code.

4. Select one of the menu items of the Childlock menu and press the cursor right:

- Lock to lock all channels and externals:

- Custom lock to lock a certain programme or to lock all

the channels from a certain time.

< Select:

- Lock after to lock all programmes from a certain time

onwards.

< Press the cursor right twice. < Select On to set the lock. < Press the cursor left. < Select Time and press the cursor right. < Enter the time with the cursor up/down and right.

- Channel lock to lock a certain TV channel or external.

< Press the

OK key to activate/deactivate.

- Select Unlock to disable all locks you have set.

Adjust feature menu settings (Continued)

Note: you have to re-enter your code each time you enter the Childlock menu.

Important: you have forgotten your code !

1. Select Change code and press the cursor right.

2. Enter the overriding code 8-8-8-8.

3. Enter a new personal 4-digit code.

4. Confirm your new entered code.

The previous code is erased and the new code is stored.

Info

TV menu Features

Subtitle Sleeptimer Childlock Set/Change code On timer Demo

TV settings

Features

Installation Exit

Set code/Change code

This allows you to set or change the personal 4-digit access code that is used in the different lock functions of the TV.

< Select Set or Change code.

> If no PIN-code exists yet, the menu item is set to Set

code. Follow the instructions on screen.

> If a PIN-code has previously been entered, the menu

item is set to Change code. Follow the instructions on screen.

< Enter your code with the digit keys.All number

combinations from 0000 to 9999 are valid numbers. > The Features menu reappears with a message confirming

that your PIN-code has been created or changed.

On timer

From standby, this automatically switches the TV to the specified channel number, at a specified time.

1. Select On timer.

2. Press the cursor right to enter the On timer menu.

3. Select Timer and press the cursor right.

4. Select On.

5. Select Channel and then the TV channel you want your TV to switch to on a selected time and day

6. Select Day and then a day of the week or select Daily.

7. Select Time and enter the time with the digit keys or with the cursor up/down.

8. Press the

OK key to activate.

9. Press the cursor left to return to the Features menu or press the

MENU/BROWSE key to switch off the menu.

Adjust feature menu settings (Continued)

Note: From now on, every week, your TV will automatically switch to the selected channel, on the selected day, at the selected time, until the On timer function is switched off again.

Info

TV menu Features

Subtitle Sleeptimer Childlock Set/Change code On timer Demo

TV settings

Features

Installation Exit

Demo

This allows you to get an idea of the features that are part of the television.

1. Select Demo.

2. Press the cursor right.

3. Select a desired demo.

4. Press the

OK key to start the demo.

> The selected demo is played once.

5. Press the red colour key to stop the demo and to return to the demo menu.

6. Press the red colour key to exit the demo menu.

Info

TV menu

Features

Demo

Pixel Plus ClearLCD Settings assistant Active control

Subtitle Sleeptimer Childlock Set/Change code On timer

Demo

How to search for and store TV channels

Select your country

This allows you to select the country where you are now located.

This menu allows you to select your preferred menu language.

1. Select the language menu item and enter the list of available languages with the cursor right.

2. Select your language with the cursor up/down.

3. Press the

OK key to confirm your selection.

Select your menu language

This menu will adjust settings related to the installation of the TV channels, language and country and to the initial installation of your TV.

1. Press the

MENU/BROWSE key on the remote control.

> The main menu appears.

2. Select TV menu and press the cursor right. > The TV Menu is moved to the left.

3. Select Installation and press the cursor right. > The Installation menu is moved to the left panel.

4. Use the cursor up/down to select the Installation menu items.

5. Press the cursor right to enter the selected Installation menu item.

6. Use the cursor keys to make a selection.

7. Press the

OK key to activate or to confirm.

8. Press the cursor left to return to the Installation menu or press the

MENU/BROWSE key to switch off the menu.

Installation menu

Tip: you will need this chapter only if you want to change the installation settings.

Info

TV menu Installation

Languages Country Channels Preferences Connections Decoder

.............

TV settings Features

Installation

Exit

Info

TV menu

Installation

Languages

Menu language

Languages

Country Channels Preferences Connections Decoder Factory settings Software upgrade

Television

Multimedia

TV menu TV channels

How to search for and store TV channels (Continued)

Info

TV menu

Installation

Channels

Autom. installation Manual installation Rearrange

Languages Country

Channels

Preferences Connections Decoder Factory settings Software upgrade

After language and country are set correctly, you can now search for and store the TV channels.

< Select Channels in the TV, Installation menu.

Automatic installation

The TV will scan the entire frequency spectrum based on the selected country. > All available TV channels are searched for and stored

automatically. This will take a few minutes.

> When the search is complete, the menu will indicate the

number of channels found.

Manual installation

This gives you the possibility to manually install (tuning-in channel by channel) analogue channels.

1. Select Manual installation and press the cursor right.

2. Select System.

3. Select your country or part of the world where you are now located.

4. Select Search and press the cursor right.

5. Select the red or green colour key to proceed.

6. Press the cursor left to store the channel found or to search for another channel.

7. Select Fine tune and press the cursor right. Fine tuning can be useful when the frequency has shifted a bit or when interference of another frequency occurs. Adjust the frequency with the cursor up/down in case of poor reception of the channel found.

8. Select Store current channel if you want to store the frequency under the current channel number. Press the cursor right and confirm with the

OK key.

Select Store as new channel if you want to store the frequency under a new channel number. Press the cursor right and confirm with the

OK key.

9. Use the rearrange menu to rename or reshuffle the channels.

Store TV channels

Tip: if you know the frequency, enter the 3 digits of the

frequency with the digit keys 0 to 9 (For example, 049).

This allows you to rename, to reshuffle and to uninstall or reinstall the stored channels.

< Press the corresponding colour keys and follow the on

screen instructions.

Reshuffle

This allows you to change the order of the stored TV channels.

1. Select the channel you want to change place.

2. Press the yellow colour key to move up a single position in the list.

3. Press the blue colour key to move down a single position in the list.

4. Repeat to reshuffle other TV channels.

Rename

This allows you to change the name stored in the memory or to assign a name to a channel or external for which a name has not yet been entered.

1. Select the channel you want to rename.

2. Press the red colour key on your remote control.

3. Select the characters with the cursor up/down. Select the following position with the cursor right.

4. Press the green colour key or the

OK key when finished.

5. Select another channel number and repeat steps 2 to 5.

Uninstall - reinstall

This allows you to uninstall a stored channel or external so that it is no longer possible to tune to.This also allows you to reinstall an earlier uninstalled channel.

1. Select the channel you want to uninstall.

2. Press the green colour key to uninstall the selected channel. > The uninstalled channel is indicated in the list by an icon

in front of the uninstalled channel.

3. Press the green colour key again to reinstall the uninstalled channel.

Rearrange the channel number list

Notes:

- press the yellow colour key to delete all characters.The cursor is positioned at the beginning again;

- press the blue colour key to delete the character the cursor is positioned. Enter a new character with the cursor up/down;

- a name can be given to the channel numbers 0 to 999;

- space, numbers and other special characters are located between Z and A.

Rearrange

0 1 2 3 4 5 6 7

Rename Uninstall

Move up

Move down

Info

TV menu/Installation

Channels

Rearrange

0 1 2 3 4 5 6 7

Automatic instal... Manual installat...

Rearrange

Info

TV menu

Installation

Channels

Autom. installation Manual installation Rearrange

Languages Country

Channels

Preferences Connections Decoder Factory settings Software upgrade

This menu contains items that can set or adjust various special TV functions and that will typically be accessed only occasionally.

Select your location

This allows you to select the location of your TV. If you choose for Shop it will result in fixed settings of picture and sound. The location Home will give full flexibility to change any predefined settings for picture and sound.

Select Teletext 2.5

Some broadcasters offer the opportunity to see more colours, other background colours and nicer pictures in the teletext pages.

< Select Teletext 2.5 On to take advantage of this feature. < Select Teletext 2.5 Off if you like the more neutral

teletext layout. > The selection made is valid for all the channels which

broadcast Teletext 2.5.

Select the On Screen Display (OSD)

This allows you to select the display of the volume bar and a reduced or extended on screen display of programme and channel information.

< Select Minimum to activate the display of reduced channel

information.

< Select Normal to activate the display of extended channel

and programme information. For example, information on the programme, input signal quality of connected peripheral equipment, the screen format and sound mode, ratings, remaining time of the sleeptimer setting,...

Display a Programme title

This allows you, to display the programme title according to the transmitted information. > When selected Ye s , after the selection of a TV

programme or after you press the i key on the remote control, a programme title will be displayed if transmitted.

> When selected No, the programme title will only

appear after you press the i key and not after the selection of a channel.

Set your preferences

Note: it may take a few seconds before teletext broadcast switches over to Teletext 2.5.

Info

TV menu

Installation

Preferences

Location Teletext 2.5 OSD Programme title

Languages Country

Channels

Preferences Connections Decoder Factory settings Software upgrade

This allows you to select the peripheral equipment you have connected to the audio and video connectors.

1. Select Connections.

2. Press the cursor right.

3. Select the input to which the peripheral equipment is connected. > When you select

EXT1, EXT2, EXT3, HDMI 1,

HDMI 2, VGA, Side, Analogue Audio In or Digital

Audio In, a list appears which allows you to identify

which type of peripheral equipment is attached to this input.

4. Press the cursor right again to enter the list of types of peripherals connected to the selected input.

5. Select the peripheral equipment with the cursor up/down.

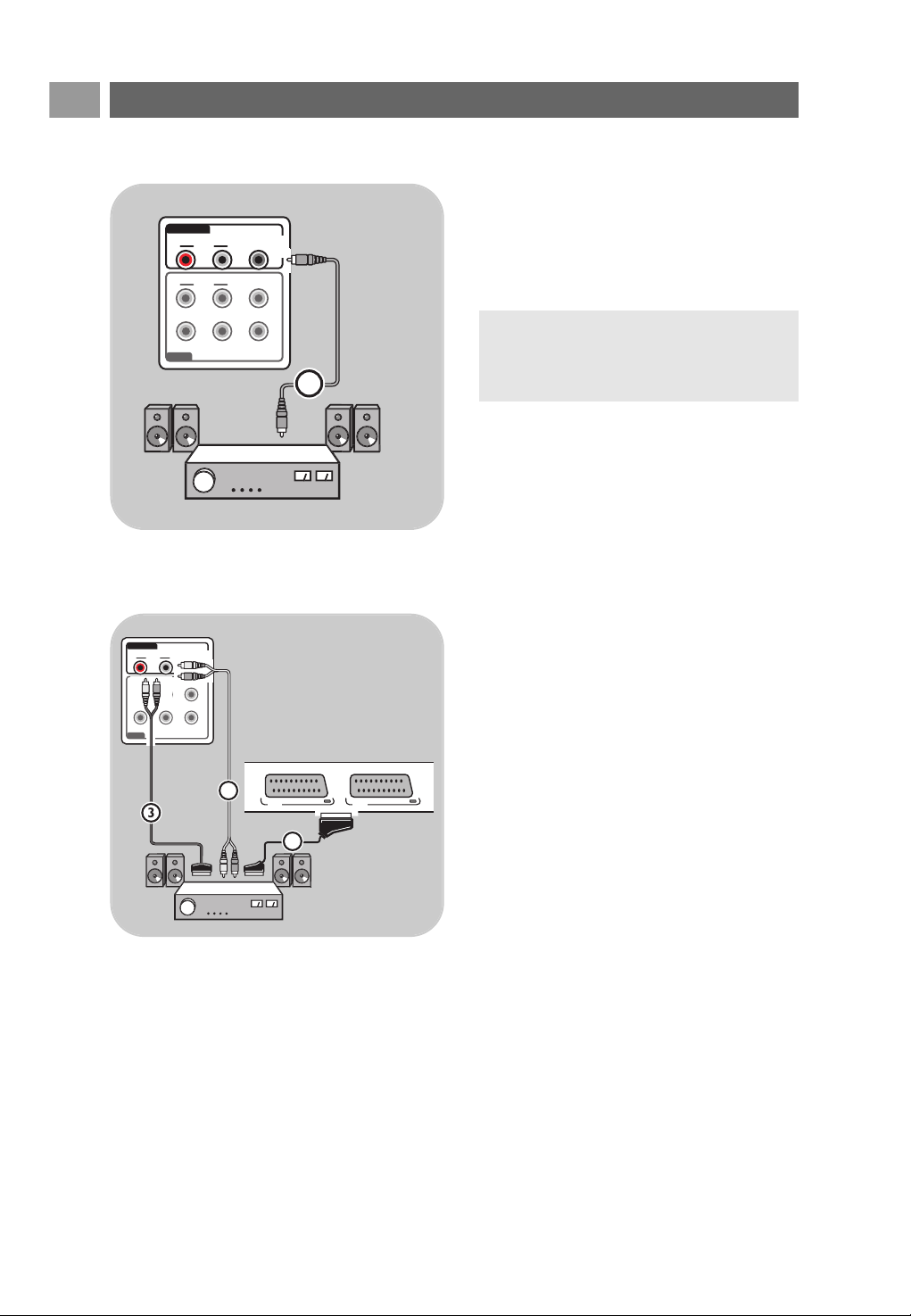

Digital Audio In

If a peripheral equipment has a digital audio output, you can connect this with a single cable to the TV’s

DIGITAL

AUDIO IN

connector. In the Connections menu, assign the Digital Audio In to the corresponding external input to which your peripheral equipment is connected.

In addition to accepting audio input via Digital Audio In, the TV can output encoded Dolby Digital audio via the

DIGITAL AUDIO OUT connector to an external amplifier

or receiver. If your amplifier or receiver has a matching connector for Digital Audio In, you can connect it with a single cable to the TV's

DIGITAL AUDIO OUT.

See To make video and audio connections, Connect a Home Cinema amplifier, p. 42.

Select your connections

Select a Decoder channel number

This allows you to define one or more channel numbers as decoder channel numbers when a decoder or a descrambler is connected to

EXT1 or EXT2.

1. Select the channel number under which you have stored the programme that comes from your decoder or descrambler.

2. Select Status.

3. Select the input used to connect your decoder: None,

EXT1 or EXT2.

< Select None if you do not want the selected channel

number being activated as a decoder channel number.

Info

TV menu

Installation

Decoder

Channel Status

Languages Country Channels Preferences Connections

Decoder

Factory settings Software upgrade

Info

TV menu

Installation

Connections

EXT1 EXT2 EXT3 HDMI 1 HDMI 2 VGA Side Analogue Audio In Digital Audio IN

Languages Country Channels Preferences

Connections

Decoder Factory settings Software upgrade

Reset the Factory settings

This allows you to upgrade your TV software using a USB device.

USB device upgrade

It is possible to initiate an upgrade procedure from a USB device before you start up the TV.The memory device must be filled with the appropriate upgrade image (and structure) which can be found on the www.philips.com/software website. How to upload a new software version on your memory device, see Annex 2, Philips TV software upgrade with portable memory, p. 47.

Automatic software announcement (if present)

When you switch on your TV a message may appear that a new software upgrade is available.

< Press the red colour key on your remote control if you

want to be reminded later on.

< Press the green colour key on your remote control to

confirm you have read the message. > Once you have confirmed, the message will not pop up

again. If however, you want to see the last broadcasted announcement again, select Announcement in the Software upgrade menu.

This allows you to reset most of the predefined factory states.

1. Select and press the cursor right.

2. Press the

OK key to erase settings and reset them to their

default values.

How to upgrade the TV software

Note: as long as the software upgrade has not been

executed, the message will be available.

Info

TV menu

Installation

Factory settings

Reset

Language Country Channels Preferences Connections Decoder

Factory settings

Software upgrade

Info

TV menu

Installation

Software upgrade

Current softw. info Local upgrades Announcement

Language Country Channels Preferences Connections Decoder Factory settings

Software upgrade

Create your favourite list

Favourites 1

EXT1

HDMI

2 Digital channel 1

Digital channel 2

Radio channel 1

5 Data channel 1

Exit

Leave edit

Press the OK key to mark /

All channels

All

TV channels Radio channels Anal

ogue Favourites 1 Favourites 2

Favourites 3

Favourites 4

Change list

All channels

1 Analogue channel 1 2 Digital channel 1 3

Digital channel 2

Radio channel 1

5 Data channel 1

Change list

Tune to a channel by pressing OK.

1 Analogue channel 1

HDMI

unmark.

Use -P+ for page up/down.

Use cursor up/down to select and OK to confirm.

This allows you to select up to four favourite channels lists with your preferred TV channels and radio stations. For example, each member of your family can create his/her own favourite list. In addition to the favourite channel lists you may also select a list with only digital TV channels or a list with only the radio channels or a list with only the analogue channels.

Note: when this key is pressed the first time after you have finished the installation, it will bring up the full channel list. In other situations it will bring up the last selected channel list.

To select a channel from the displayed favourite list

1. Press the

FAV key (or the OK key).

> The last selected channel list appears.

2. Use the cursor up/down to select a channel.

3. Press the

OK key to display the selected channel.

To select another favourite channel list

1. Press the

FAV key.

> The last selected channel list appears.

2. Press the red colour key to bring up the list of possible favourite channel lists.

3. Use the cursor up/down to select a list.

4. Press the

5. Press the

OK key. FAV key again to exit.

To create a favourite list or to modify the list

1. Press the

FAV key.

> The last selected channel list appears.

2. Press the red colour key. > A list with all possible favourite channel lists appears.

3. Use the cursor up/down to select a Favourites (1 to 4) channel list.

4. Press the

OK key.

5. Press the green colour key to enter the Edit mode. > The selected Favourite list will bring up a full channel list.

6. Use the cursor up/down to select a channel.

7. Press the OK key to check or uncheck the highlighted channel and to add it to or remove it from your selected favourite list.

8a. < Press the green colour key again to leave the Edit mode.

> The modified favourite channel list appears. < Press the > With the

FAV key again to exit.

–P+ key you will be able to browse through

the TV channels of the selected list.

8b. Press the red colour key to remove the channel list.

Note: with the digit keys you can still select channels which are not marked as favourite.

The Multimedia browser lets you display pictures, movies or play audio files stored on a USB device.The Multimedia browser application is invoked from the main menu.

-Following file formats can be reproduced: for pictures: JPEG for audio: MP3, MP3 Pro, LPCM for video: MPEG1, MPEG2

- Only FAT/DOS-formatted memory devices are supported.

- Philips can not be held responsible if your USB device is not supported.

To insert a USB device

In case of a USB-memory stick or a digital camera, connect it to the USB connector at the side. See To make video and audio connections, Side panel overview,p. 35. When a USB device is inserted, the Multimedia browser menu is displayed automatically. See further.

To remove the USB device

1. Press the MENU/BROWSE key on the remote control to

switch off the main menu.

2. Remove the USB device.

Multimedia Browser

To view content from a USB device

Tip: if your USB device does not fit into the USB connector at

the side, use an USB extend cable to connect the USB device to the USB port.Ask your dealer for more information.

Note: USB devices are not supplied with this TV.

Multimedia Browser menu

1. Insert a USB device.

2. Select the USB device under Multimedia with the cursor

up/down. > The Multimedia browser allows you to browse content

stored on the inserted USB device.

> The 2-panel browser will be shown with the left panel

containing the content types (Music, Pictures, Movies).

> The right panel will display the content that is available

of the selected content type.

3. Press the cursor right to enter the content.

4. Press the cursor up/down to select a content.

5. Press the cursor right to enter the content.

6. Press the cursor up/down to select a file or a directory.

7. In case a file is selected, press the

OK key to display a

picture file or to play a video or an audio file. In case a directory, album or playlist is selected, press the cursor right to enter the content or press the

OK key

to start a slide show or a loop playback of the files present.

8. Press the cursor left to keep music playing and switch back

to the Multimedia menu.

9. Press one of the colour keys on the remote control to

perform the corresponding function mentioned at the bottom of the screen.

10. To stop playing content, press the ‡ key on the remote

control.

Multimedia Browser (Continued)

Note: press the green colour key to display all the image files in the current directory as thumbnails when browsing pictures. Press the green key again to display the image files in a list.

Tip: the blue colour key can, if necessary, be used to let the colour keys reappear.

Notes:

- your TV supports slide shows with background music. See Annex 3, Philips TV-slideshow format with background music, p. 50;

- the playback will continue to play even if temporarily switched to browser screens.The audio will be stopped when another song starts playing, or when the end has been reached;

- more technical remarks can be found in Annex 4, Philips TV-Digital camera and USB issues, p. 52.

USBDevice 1

Music


Movies


London 2005 The Beatles Xmas2004.alb arnold.jpg

USBDevice 1


London2005

The Beatles Xmas2004.alb arnold.jpg

London 2005

pic001.jpg pic002.jpg pic003.jpg pic004.jpg

USBDevice 1/Picture/London2005

London2005


pic002.jpg pic003.jpg pic004.jpg


USBDevice 1/Picture/London2005

London2005 pic001.jpg

Press OK to play.

Television

Multimedia

TV menu TV channels

Following icons may appear:

folder self made playlist/album

pictures video

music

Function keys at the bottom of the screen

Details to display a description of the selected file

or directory

Transitions to select if you like to apply a transition

during a slide show

Slide time to select the duration a picture will be

displayed in a slide show

Rotate to rotate a picture

Repeat one/all to repeat the playback of a music file

Shuffle to shuffle music collections in a random way

Zoom to select one of the zoom magnifications

(x1, x2, x4) with the cursor up/down.

Additionally you can shift the selected zoom window over the screen with the cursor keys.

Full/small screen to toggle between a full or a small screen

Multimedia function keys on the remote control

Ò to fast rewind displaying content ‡ to stop playing content π - to play a single file, start a slide show, playback of a

folder or other collection

- to pause playing content

† to fast forward displaying content

Multimedia Browser (Continued)

Note: to rotate a picture or to select one of the zoom magnifications, first stop the slide show with the

key or

the blue colour key.

Most TV channels broadcast information via teletext. This TV has a 1200 pages memory that will store most broadcasted pages and subpages to reduce waiting time.After each programme change, the memory is refreshed.

< Press b to switch the teletext on.

> The main index page appears on the screen.

Select a Teletext page

< Enter the desired page number with the digit keys or with

the

-P+ key.

< Select the options at the bottom of the screen with the

colour keys.

Previous selected teletext page

< Press the 0 key.

Select T.O.P. teletext broadcasts

< Press i.

> A T.O.P. overview of the teletext subjects available is

displayed.

< Select with the cursor up/down, left/right the desired

subject and press the

OK key.

Select subpages

When a selected teletext page consists of different subpages, a list of available subpages appears on the screen. Press the cursor left or right to select the next or previous subpage.

Picture/Teletext

1. Press the b key.

2. Press the b key to show Teletext on the right of the

screen.

3. Press the b key to return to a full teletext picture.

4. Press the b key to return to a full screen picture.

Teletext

Note: not all TV channels broadcast T.O.P. teletext.

Note:Teletext is not available via equipment connected to the

HDMI

connector.

Hypertext

With hypertext you can quickly jump to a pagenumber or search for a specific word shown on the current teletext page.

1. Press the

OK key to highlight the first word or a number

on the page.

2. Use the cursor up/down, left/right to select any other word or number you want to search for.

3. Press the

OK key to confirm.The search starts.

> A message appears at the bottom of the screen to

indicate the searching, or that the word or page is not found.

4. Use the cursor up until the top of the page to exit hypertext.

Enlarge a Teletext page

< Press the OPTION key on the remote control repeatedly

to display the upper teletext part, the lower teletext part and then to return to the normal teletext page size.

Teletext (Continued)

The Teletext menu offers various functions to control teletext.

1. Switch teletext on and press the

MENU/BROWSE key to

activate the menu.

2. Press the cursor up/down to select the menu items.

3. Press the

OK key to activate.

4. Press the

MENU/BROWSE key to leave the teletext

menu.

Reveal

Reveals/conceals hidden information on a page, such as solutions to riddles and puzzles.

Cycle subpages (if subpages are available)

Makes the subpages cycle automatically.

< Press the

OK key to activate and to deactivate again.

Language

If the displayed characters on screen do not correspond with the characters used by the teletext broadcaster, you can change the language group here.

< Select

Gr. I or Gr. II with the OK key.

Reveal Off

Cycle subpages Off Language Gr. II

Teletext menu

To make video and audio connections

Tip: use the inputs that are available on your equipment that provide the best video or audio performance, as below.

Note: your TV comes with all types of connectors with the exception of the DVI connector but some of your equipment may be equipped with this type. In this case you'll need a DVI to HDMI adapter or a HDMI to DVI cable and separate audio cables, all available at your local dealer. Warning: be sure to connect the DVI output connector first, then connect to the HDMI input on your TV.

Notes:

- cables are often colour-coded to connectors. Connect red to red, white to white....

- component video (YPbPr) connection is necessary to view video sources, for example digital broadcastings coming from a settop box, in 1080i, 720p, 576i, 576p, 480i or 480p,

- PC equipped with a VGA connector, see p. 41.

S-VIDEO

HDMI

VIDEO

EUROCONNECTOR

PrPbY

DIGITAL

AUDIO

HDTV & Progressive 480p, 576p, 720p, 1080i

EXT3

PrPbY

DIGITAL

AUDIO

HDTV & Progressive 480p, 576p, 720p, 1080i

EXT3

PrPbY

DIGITAL

AUDIO

HDTV & Progressive 480p, 576p, 720p, 1080i

EXT3

PrPbY

DIGITAL

AUDIO

HDTV & Progressive 480p, 576p, 720p, 1080i

EXT3

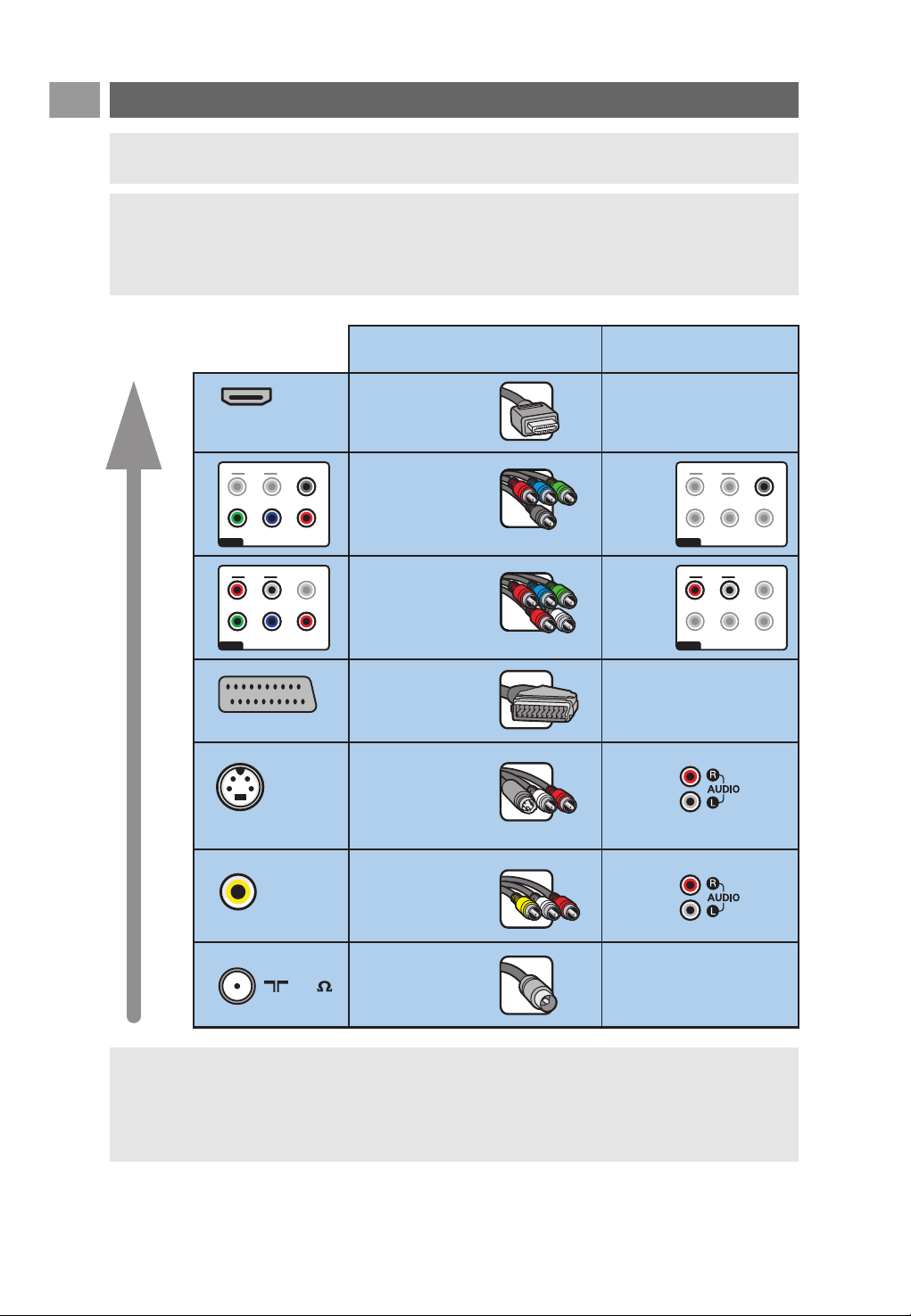

Connector table

HDMI (High-Definition Multimedia Interface)

Component video (480p/576p/720p/ 480i/576i/1080i)

Digital audio

Component video (480p/576p/720p/ 480i/576i/1080i)

Analog audio

Scart

S-Video

Video

RF/Coaxial

Audio connection required

Ye s

Best video performance

USB

Camera, Camcorder, Game

1. Connect your camera, camcorder or game as shown.

2. Connect to

VIDEO 2 and AUDIO L 3 for

mono equipment. For stereo equipment also connect

AUDIO R 3.

S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cables with the

S-VIDEO input 1 and AUDIO inputs

Headphone

1. Insert the plug into the headphone socket L as shown.

2. The headphone impedance must be between 8 and 4000 Ohm.The headphone socket has a

3.5 mm jack. In the Sound menu select Headphone

volume to adjust the headphone volume.

USB

See Multimedia browser, p. 29.

To make video and audio connections - Side panel overview

3535

Warning: do not connect cable 1 and 2 at the same time.This may cause picture distortion !

Tip: Press ¬ on the remote control to switch off the internal loudspeakers of the TV.

PrPbY

DIGITAL

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

HDMI 1 HDMI 2 ANTENNA

oo o

PC-VGA EXT2 EXT1

AUDIO IN L/R

PrPbY

DIGITAL AUDIO

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO

OUT

DIGITAL AUDIO

OUT

HDMI 1

HDMI ETHERNET ANTENNAVGA EXT2 EXT1

AUDIO OUT

DIGITAL AUDIO IN

HDMI 2 ANTENNA

oo o

PC-VGAAUDIO IN L/R

EXT3

EXT2 EXT1

ETHERNET

AUDIO

L/R

VGA

AUDIO

L/R

DVI

AUDIO

L/R

DIGITAL AUDIO IN

CABLE

YPbPr

AUDIO

VCR

DVD player

Satellite receiver

1 DVD recorder - 1 VCR

2 DVD recorders

2 VCRs

Decoder

PC DVI

PC - VGA

DVD player

Cable box

DVD player

Cable box

Decoder

VCR

Digital

Home Cinema

amplifier

Analog

Home Cinema

amplifier

Analog

Home Cinema

amplifier

Game console

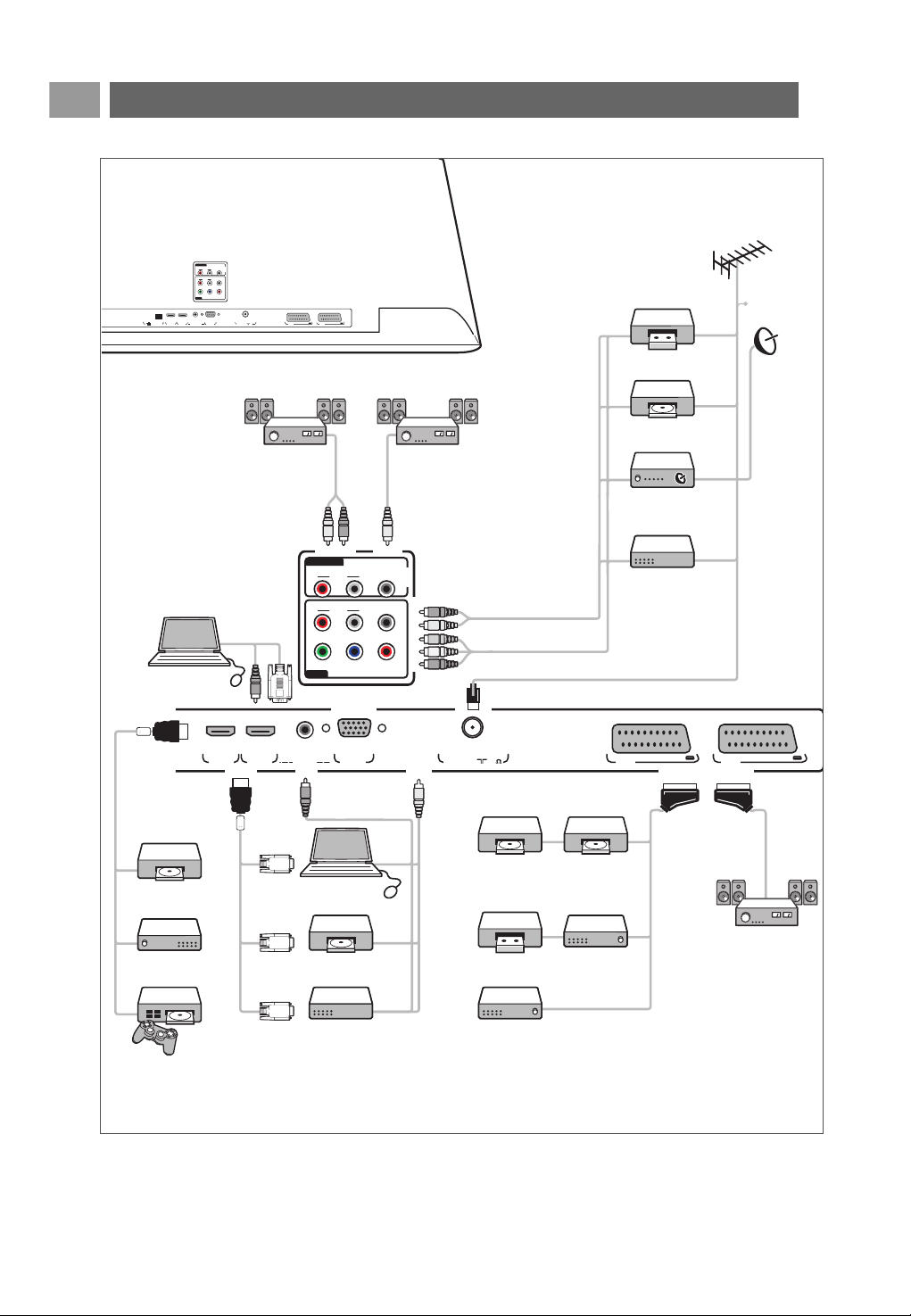

To make video and audio connections - Rear panel overview

ANTENNA EXT2 EXT1

ANTENNA

EXT2 EXT1

RECORDER

CABLE

EXT 1/2

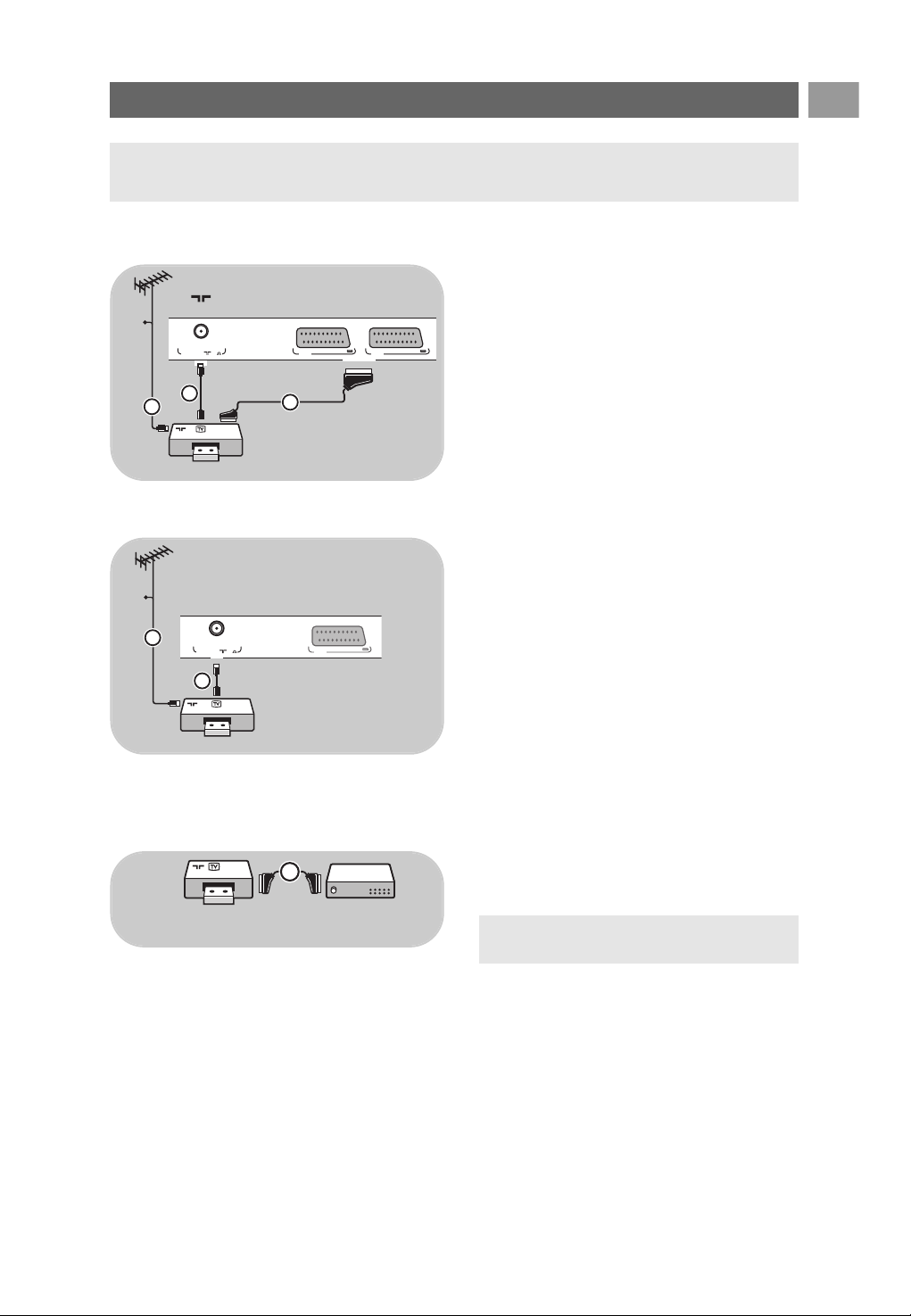

Connect a VCR or DVD recorder

With a eurocable

1. Connect the aerial cables 1 and 2 as shown.

2. Connect the eurocable 3 as shown.

3. Make your selection of the source to which the VCR has been connected in the Installation menu, Select your connections, p. 26.

With the aerial cable only

1. Connect the aerial cables 1 and 2 as shown.

2. Tune in your recorder’s testsignal and store the testsignal under programme number 0. See Manual installation, p. 23. See also the handbook of your recorder.

Connect a decoder and a VCR

Connect a eurocable 4 to your decoder and to the special euroconnector of your recorder. See also the handbook of your recorder.

Warning: do not place your recorder too close to the screen as some recorders may be susceptible for signals from the display. Keep a minimum distance of 0,5 m from the screen.

Tip: you can also connect your decoder directly to EXT1 or EXT2 with a eurocable.

RECORDER DECODER

ANTENNA

EXT2

RECORDER

CABLE

ANTENNA EXT2 EXT1

ANTENNA

EXT2 EXT1

RECORDER

CABLE

RECORDER

EXT 1/2

Note: you can not record signals from equipment connected to the YPbPr input.

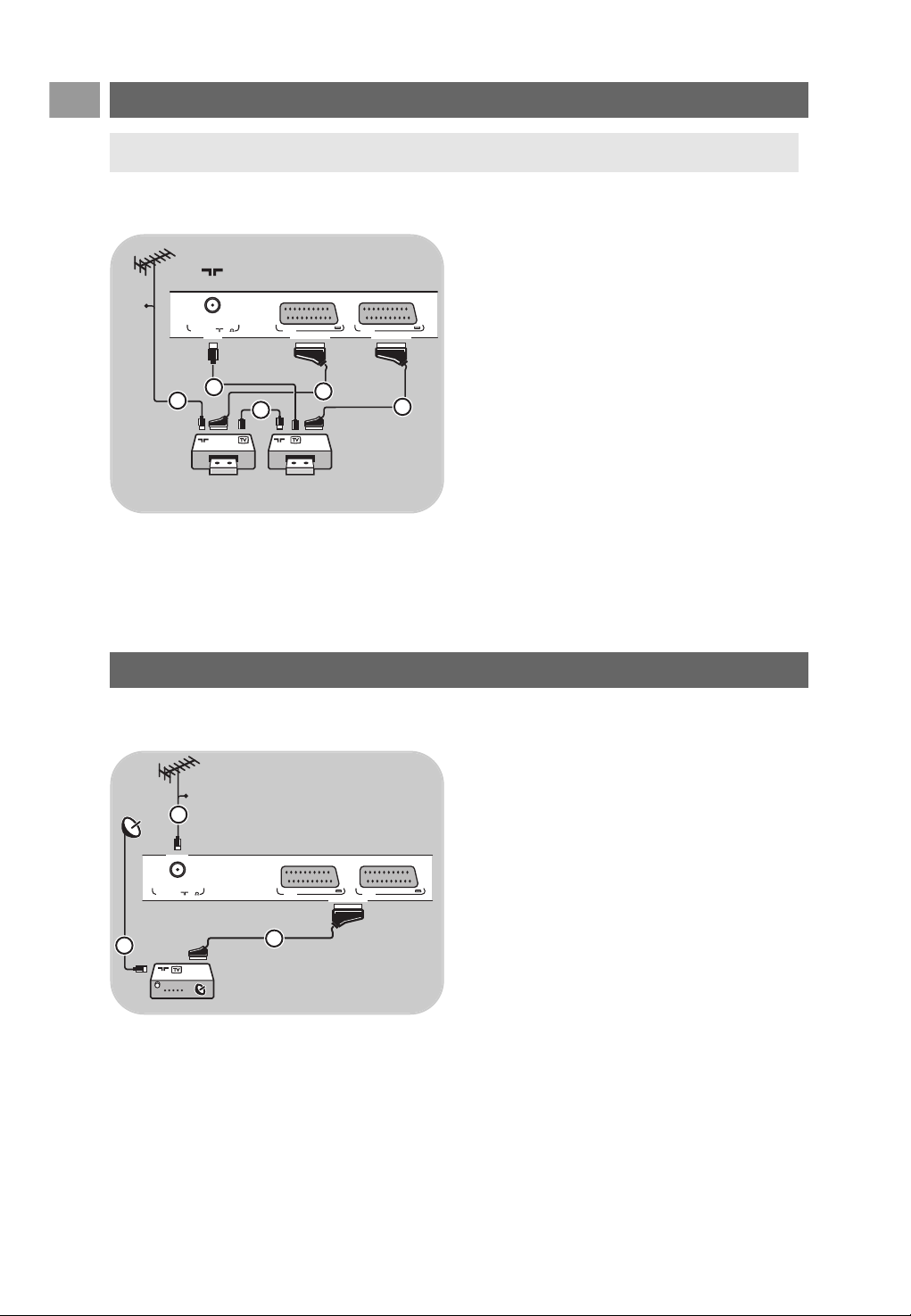

Connect two VCRs or VCR and DVD recorder

With eurocables

1. Connect the aerial cables 1 and 2 as shown.

2. Connect your VCRs or DVD-recorder to

EXT1 and 2 with the eurocables 4 and 5.

3. Select the equipment you have connected in the Installation menu, Select your connections, p. 26, and link it to

EXT1 or 2.

With aerial cables only

1. Connect the aerial cables 1, 2 and 3 as shown.

2. Tune in your recorder’s testsignal and store the testsignal under programme number 0. See Manual installation, p. 23. See also the handbook of your recorder.

With a eurocable

1. Connect the aerial cables 1 and 2 as shown.

2. Connect your satellite receiver to

EXT1 or 2

with a eurocable 3.

3. Select the equipment you have connected in the Installation menu, Select your connections, p. 26, and link it to

EXT1 or 2.

With Component Video connectors

See Connect a DVD player, a satellite receiver or a cable box, p. 40.

Connect a satellite receiver

EXT2 EXT1

ANTENNA

EXT2 EXT1

EXT 1/2

CABLE

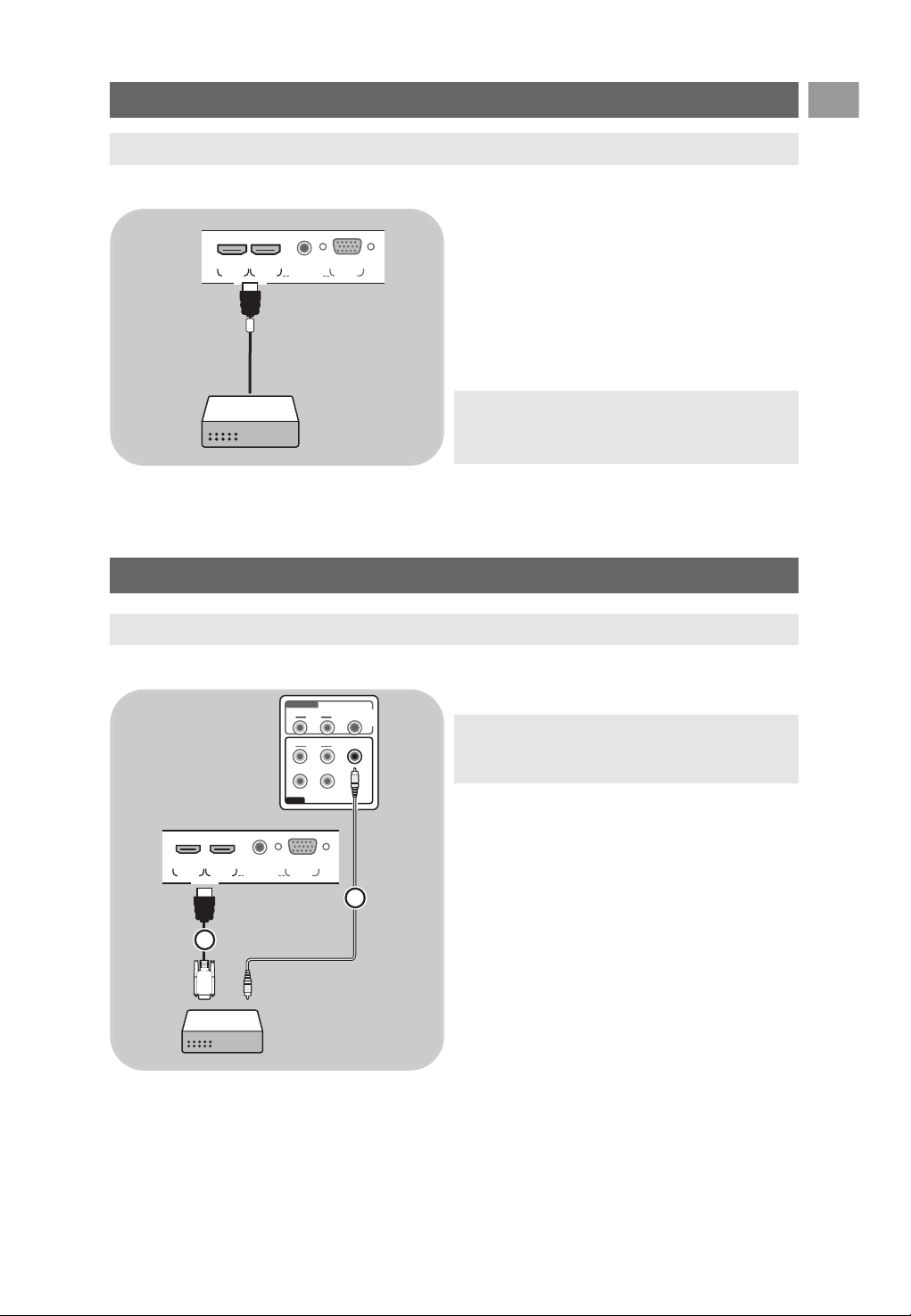

Connect a DVD player, Cable box or game console

Note: in case of any problems, see Annex 5: Issues referring to connected peripherals with a HDMI connector, p. 53.

With a HDMI connector

HDMI is the leading new standard for Digital video and audio interconnection.

1. Connect your equipment with the HDMI connector.

2. Select the equipment you have connected in the Installation menu, Select your connections, p. 26, and link it to

HDMI 1 or 2.

Tip: if necessary, you can adjust the picture position to the centre of the screen with the cursor keys.

HDMI 1/2

HDMI 1 HDMI 2

o o

PC-VGAAUDIO IN L/R

HDMI

PrPbY

DIGITAL AUDIO

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

HDMI 1

HDMI

DIGITAL

AUDIO

HDMI 2

o o

PC-VGAAUDIO IN L/R

EXT3

HDMI

DVI

DIGITAL AUDIO IN

With a DVI connector

1. Connect the DVI to HDMI cable to one of the HDMI connectors of your TV 1.

2. Connect the audio cable 2 to the

DIGITAL

AUDIO IN

connector of the TV.

3. Select the equipment you have connected in the Installation menu, Select your connections, p. 26 and link it

HDMI 1 or 2.

4. Also select Digital audio in in the same Connections menu.

Connect a DVD player or Cable box

Tip: if necessary, you can adjust the picture position to the centre of the screen with the cursor keys.

Note: only a DVD player with DVI with digital

sound can be connected to the HDMI connector.

PrPbY

DIGITAL

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

EXT3 :

YPbPr

EXT3 : AUDIO IN R / L

DVD / STB

DIGITAL AUDIO IN

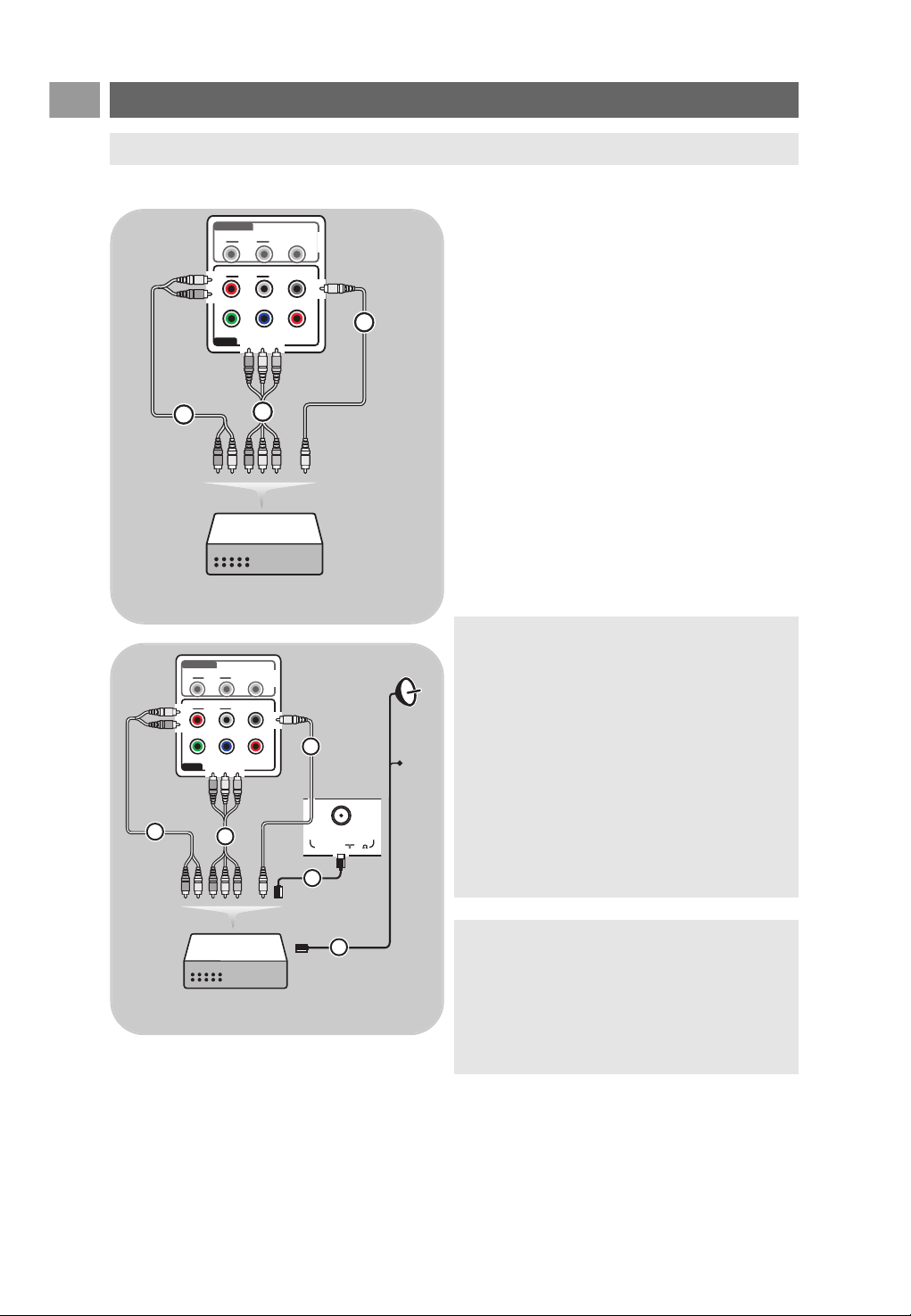

Connect a DVD player, a satellite receiver or Cable box

With Component Video Connectors

1. Connect the three separate component video cables 1 to the YPbPr jacks on the DVD player and to the Y, Pb and Pr jacks of

EXT3

on the TV.

2. Connect the audio cable 2 to the digital out of the equipment and to the

DIGITAL

AUDIO IN

connector of the TV.

3. Select the equipment you have connected in the Installation menu, Select your connections, p. 26. Also select Digital audio in in the same Connections menu and link it to

EXT3.

4. In case of a DVD player with analogue audio, connect the audio cable to the DVD’s audio

and R jacks and to the L/R AUDIO jack of

EXT3 3.

5. In case of a cable box and/or a satellite receiver also connect the cable TV cable and/or the satellite antenna cable 4 and the aerial cable 5.

Tip: if necessary, you can adjust the picture position to the centre of the screen with the cursor keys.

Notes:

- cables are often colour coded. Connect red to red, white to white, etc..;

- the labels for the component video sockets may differ depending on the DVD player connected. Although the abbreviations may vary, the letters B and R stand for the blue and red component signals, respectively, and Y indicates the luminance signal. Refer to the DVD player’s instructions for use for definitions and connection details;

- to get an optimal viewing, it is advised to switch your equipment to the highest possible supported display modes.

Warning: in case you notice scrolling images, wrong colours or no colour, no picture, or even combinations of these on your screen, verify if the connections are done in the correct way and if the resolution and the signal standard of the connected equipment are set in the right way. See the handbook for your equipment.

PrPbY

DIGITAL AUDIO

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

ANTENNA

EXT3 : YPbPr

EXT3 : AUDIO IN R / L

SAT / STB

DIGITAL AUDIO IN

CABLE

Notes:

- only a PC with digital sound can be connected to the HDMI connection;

- if your PC does not have digital sound output, connect your PC via a VGA connector;

- before connecting your PC to the TV, select your PC monitor settings to a refresh frequency of 60 Hz;

- supported PC monitor modes: VGA 640 x 480 SVGA 800 x 600 XGA 1024 x 768

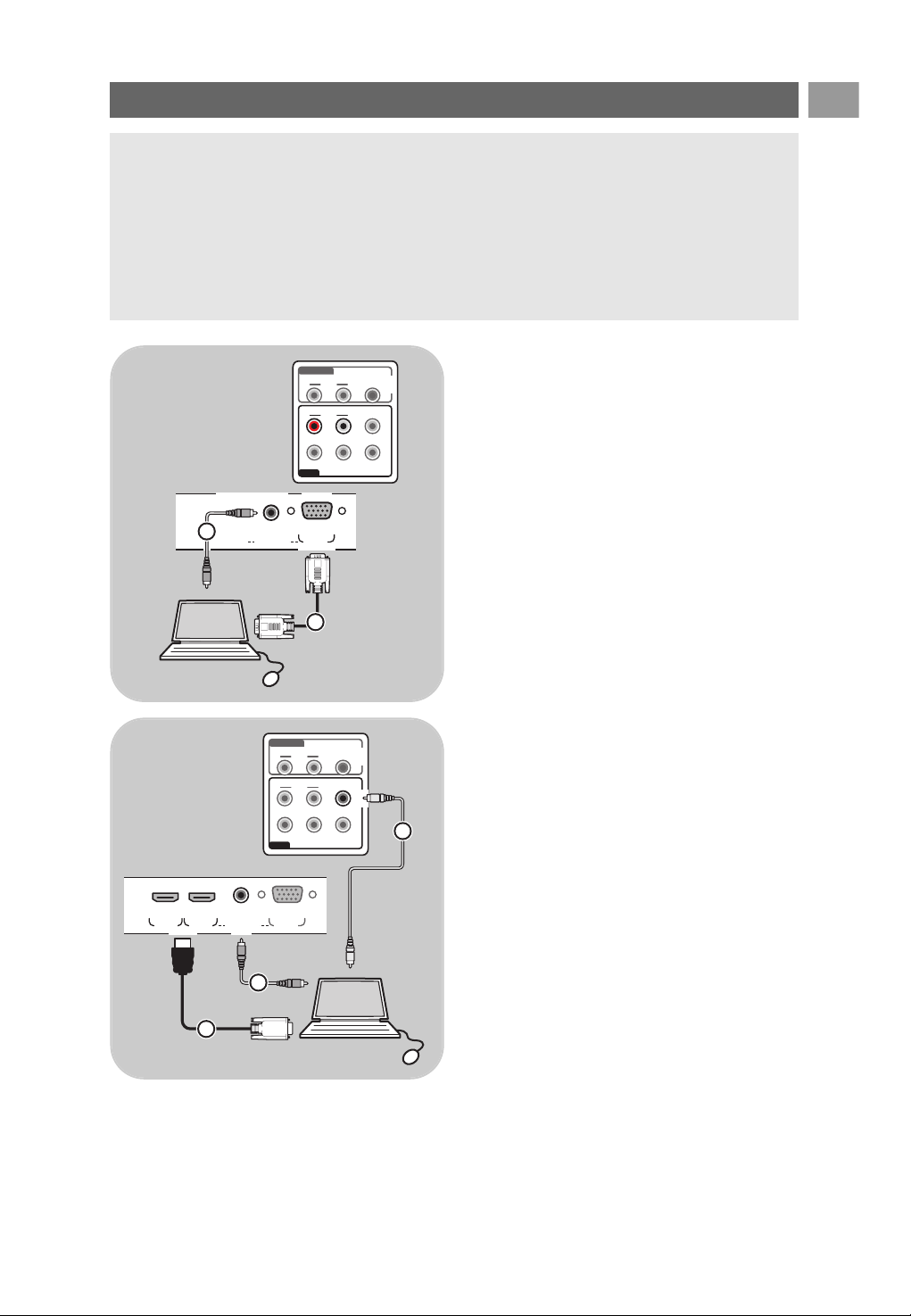

Connect a PC

PrPbY

DIGITAL AUDIO

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

PC-VGAAUDIO IN L/R

VGA

VGAAUDIO in R/L

PrPbY

DIGITAL

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

HDMI 1

HDMI AUDIO in L/R

HDMI 2

o o

PC-VGAAUDIO IN L/R

EXT3

HDMI

DVI

DIGITAL AUDIO IN

PC equipped with a VGA connector:

1. Connect one end of a VGA cable 1 to the video card of the computer and the other end to the

VGA connector at the bottom of the

TV. Fix the connector firmly with the screws on the plug.

2. In case of a Multimedia computer, connect the audio cable 2 to the

AUDIO outputs of your

computer and to the

L/R AUDIO input of the

TV.

3. Select

VGA in the Installation menu, Select

your connections, p. 26 and link it to

VGA.

4. Also select Analogue audio In in the same Connections menu.

PC equipped with a DVI connector:

With Digital audio

1. Use a DVI to HDMI cable to connect to one of the

HDMI connector of your TV 1.

2. Connect the audio cable 2 to the

DIGITAL

AUDIO IN

connector of the TV.

3. Select the computer you have connected in the Installation menu, Select your connections, p. 26 and link it to

HDMI 1 or 2.

4. Also select Digital audio In in the same Connections menu.

With Analogue audio

1. Use a DVI to HDMI cable to connect to the

HDMI 2 connector of your TV 1.

2. Connect the audio cable 3 to the

L/R

AUDIO

input of the TV.

3. Select the computer you have connected in the Installation menu, Select your connections, p. 26 and link it to

HDMI 2.

4. Also select Analogue audio In in the same Connections menu.

PrPbY

DIGITAL

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

AUDIO OUT

DIGITAL AUDIO OUT

DIGITAL

AUDIO

OUT

Connect a Home Cinema amplifier

Digital Home Cinema amplifier

< Connect a digital Home Cinema amplifier to

the

DIGITAL AUDIO OUT connector 1 at

the bottom of the TV.

Analogue Home Cinema amplifier

< According to the type of connector cables and

the connector input available on your Home Cinema amplifier, connect your receiver to the

AUDIO OUT L and R connectors 3 or to EXT1 or 2 2 at the bottom or the rear of

the TV.

Tip: to avoid visible delay between picture and sound, use this

DIGITAL AUDIO OUT

connector to connect your Home Cinema amplifier.

PrPbY

DIGITAL

AUDIO

HDTV & Progressive

DISPLAY SYNCHRONIZED

480p, 576p, 720p, 1080i

EXT3

AUDIO

OUT

AUDIO

OUT

DIGITAL

AUDIO

OUT

EXT2 EXT1

AUDIO OUT

EXT 1 / 2

Select connected equipment

Before operating your connected equipment you have to make a selection in the Installation, Select your connections menu, p. 26.

1. Press the

MENU/BROWSE key.

2. Select TV menu and press the cursor right.

3. Select Installation.

4. Press the cursor right.

5. Select Connections.

6. Press the cursor right.

7. Select the input to which the peripheral equipment is connected.

8. Press the cursor right again to enter the list of types of peripherals connected to the selected input

9. Select the peripheral equipment with the cursor up/down.

Record a TV programme

You can record a TV programme using your recorders tuner without affecting your TV.

1. Select the channel number on your recorder.

2. Set your recorder to record. See the handbook for your recorder.

Note: switching channel numbers on your TV does not disturb recording !

Record with your recorder

Most of the audio and video equipment from our range of products can be operated with the remote control of your TV. Press one of the keys after you pressed one of the mode keys (

DVD , STB, VCR, AUX) according to the equipment you want

to operate with this remote control. See Use of the Remote control, p. 5-6.

B to switch to standby ® for record, Ò for rewind (

VCR, CD);

search down (

DVD )

‡ for stop, π for play, for pause † for fast forward (

VCR, CD);

search up (

DVD )

i to display information

MENU/BROWSE to switch the menu on or off

- P + for chapter, channel, track selection

0 to 9 digit entry,

cursor up/down to select the next or the previous

disc (

CD)

cursor left/right to select the previous or following

track (

CD)

0 to select a DVD title/chapter;

index (

AUX)

b to select your choice of

subtitle language (

DVD )

Normal mode: if no action is being undertaken within 30

seconds, the remote control returns to TV mode. Expert mode: in Expert mode the remote will stay in the selected mode even when the 30 seconds time-out is elapsed.

To select between Normal and Expert mode

1. Select TV mode with the TV key.

2. Press the

OK key simultaneously with the ¬ key for four

seconds. > When the B key is On for one second, the Expert

mode is selected and the remote control will remain in the mode selected.

3. Select the desired mode (

DVD , STB, VCR, AUX)

4. To go back to the TV mode, select

TV and repeat steps 1.

to 3.

Audio- and video equipment keys

Symptom Possible cause/Remedy

No picture < Verify if the supplied cables are connected properly. (The aerial cable to the

TV, the other aerial to your recorder, the power cables, ..)

< Verify if you selected the correct source. < Verify if the child lock has been switched off.

Poor picture < Verify in the Manual installation menu if you have selected the correct TV

system.

< Verify if your TV or house aerial isn't located too close to loudspeakers,

non-earthed audio equipment or neon lights, etc.

< Mountains or high buildings can cause double pictures or ghost images.

Sometimes you can improve the picture quality by changing the direction of the aerial.

< Is the picture or teletext unrecognisable or do you experience bad teletext

reception ? Verify if you have entered the correct frequency, or fine tune the frequency for that specific channel or adjust the antenna direction if the problem isn’t solved by finetuning. See Installation, Manual installation, p. 23.

Poor colour < Select Factory settings in the Installation menu.

< Verify the connections between the optional equipment and the TV.

No sound < Verify if the volume isn't at minimum.

< Verify if the sound hasn't been muted with the ¬ key.

Verify the connections between the optional equipment and the TV.

The remote does < Verify if the remote is set correctly for the equipment your are using. not function < Verify if the batteries are not dead. Replace the batteries.

You can still use the keys at the left side of the TV.

< Select TV mode on your remote control. < When pressing a key and some key leds are blinking with a higher speed

and lower intensity than in a normal working condition, and your TV does not react on the key press, remove the batteries out of the remote control and put them back again.

The remote of < The infrared signals of the screen may influence the reception sensibility connected equip- of other peripherals. ment does not Solution: replace the batteries of the remote of other peripheral function well equipment.

No photo or music < Verify if the source complies with a supported code. play or in poor quality

No stable or not <Verify if you have selected the correct VGA mode in your PC. synchronised VGA See Connect a PC, p. 41. picture < Verify the connections between the TV and the PC.

No solution found <Switch off your TV off and then on again once. for your picture or Never attempt to repair a defective TV yourself. sound problem Verify with your dealer or call a TV technician.

Red blinking led < Unplug the mains cord for 10 seconds and insert it in again.

Troubleshooting

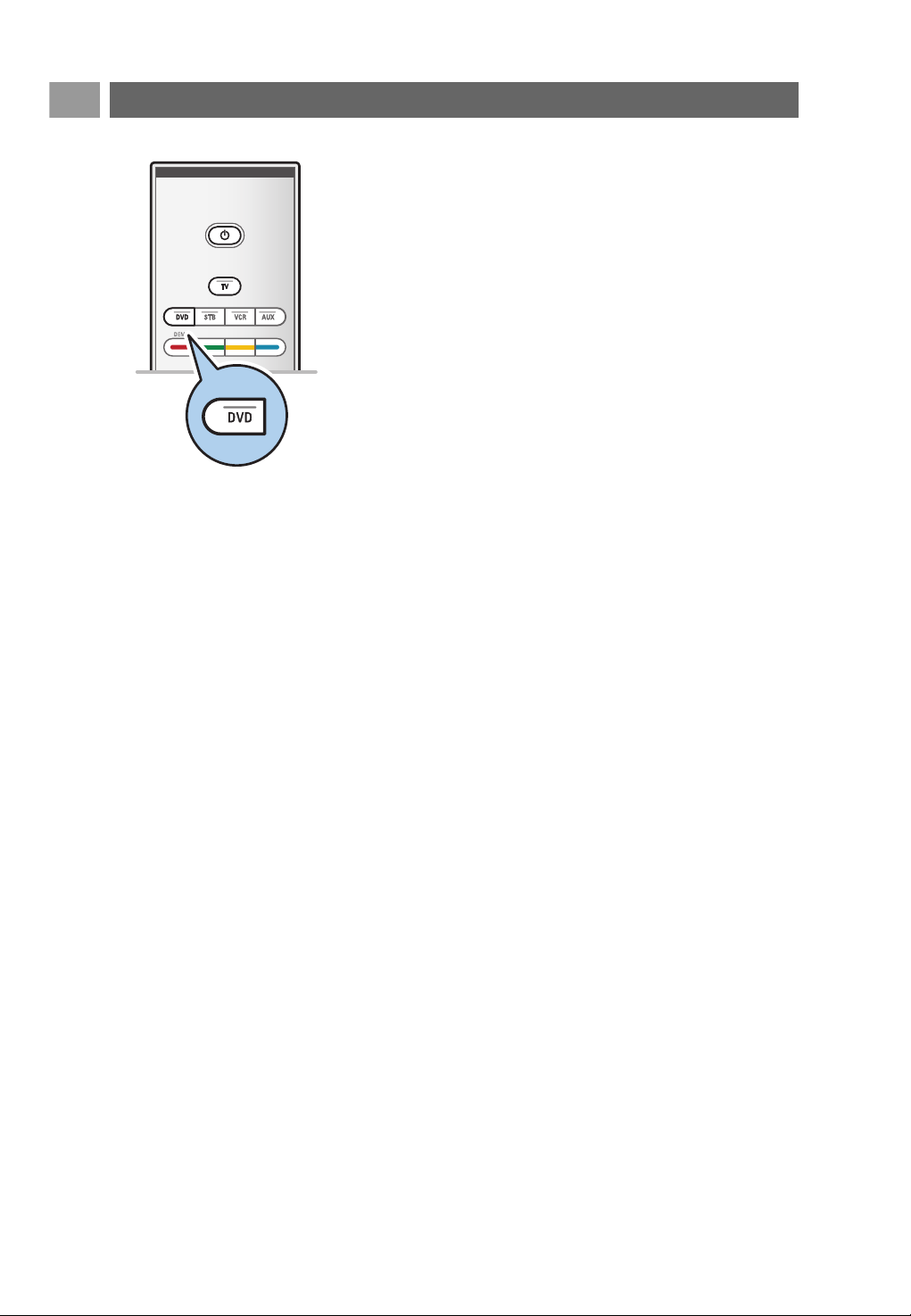

Annex 1:To set the remote control to work a Philips DVD or DVD/R

Your TV remote control gives you the opportunity to control your Philips DVD or DVD/R.

1. Press the DVD mode key for 4 seconds until the LED lights up constantly

2. Enter the code 500 with the digit keys for a Philips DVD player. Enter the code 542 with the digit keys for a Philips DVD recorder. > All mode LEDs will blink fast for 3 seconds as a

confirmation you entered the correct code. If you entered a wrong code all mode LEDs will stay on for 2 seconds. Redo Step 2.

> Your remote control is in the DVD or DVD/R mode.

To cancel the selected mode

< Press the DVD mode key for 4 seconds.

> The remote control will return to

TV mode.

Introduction

Philips offers software upgrade capability for your TV using portable memory.After you have completed a software upgrade, your TV will typically perform better. What improvements are made depends on the upgrade software you are using as well as the software your TV contained before the upgrade. You can execute the software upgrade procedure yourself. Be aware that the content of this document is addressing technical or software skilled users.

To prepare a portable memory for software upgrade

For the procedure you will require:

- a personal computer with web browsing capability;

- an archive utility that supports the ZIP-format (e.g.WinZip for

Windows or Stuffit for Mac OS);

- a preferably empty USB memory stick.

New software can be obtained from your dealer or can be downloaded from the www.philips.com/support website:

1. Go to www.philips.com/support using the web browser on your PC.

2. Follow the procedure to find the information and the software related to your TV.

3. Select the latest software upgrade file and download it to your PC.

4. Decompress the ZIP-file and copy the file “autorun.upg” to the root directory of the USB portable memory.

To verify the version of the TV software

Before you start the software upgrade procedure, it is advised to check what the current TV software is.

1. Select Software Upgrade in the TV menu, Installation, Software upgrade.

2. Press the cursor right. > The Software Upgrade menu moves to the left panel.

3. Select Current Software Info to observe the version and the description of the current software.

Annex 2 - Philips TV software upgrade with portable memory

Note: only FAT/DOS-formatted portable memory is supported.

Note: only use software upgrades that can be found on the www.philips.com/support web site.

Info

TV menu

Installation

Software upgrade

Current softw. info Local upgrades Announcement

Languages Country Channels Preferences Connections Decoder Factory settings

Software upgrade

Annex 2 (Continued)

Automatic software upgrade procedure

1. Switch off your TV and remove all memory devices.

2. Insert the USB portable memory that contains the downloaded software upgrade.

3. Switch on your TV with the power key B at the side of the TV.

4. At startup the TV will scan the USB portable memory until it finds the update content.The TV will automatically go to the upgrade mode.After a few seconds it will display the status of the upgrade procedure.

5. When the software upgrade was successful, remove the USB portable memory and restart your TV with the power switch B at the side of the TV. Your TV will start up with the new software.

Warning:

- you are not allowed to remove the USB portable memory during the software upgrade procedure;

- in case of a power drop during the upgrade procedure, don’t remove the USB portable memory from the TV. The TV will continue the upgrade as soon as the power comes back;

- if you try to upgrade to a software version lower than the current version, a confirmation will be asked. Downgrading to older software should only be done in case of real necessity;

- if an error occurs during the upgrade you should retry the procedure or contact your dealer;

- the automatic software upgrade procedure will only start if the version on the USB portable memory is different from the one in the TV.

Note: once the upgrade is finished use your PC to remove the TV software from your USB portable memory.

Software Id: TL32E-234

Loading Done

Validating Done

Programming

Software Upgrade Application

Upgrade busy...

Annex 2 (Continued)

Manual software upgrade procedure

For a manual software upgrade copy the “autorun.upg” file in a directory called “Upgrades” located in the root of the USB portable memory.You can rename the file if you like but keep the .upg extension.

1. Insert the portable memory that contains the downloaded software upgrade.

2. Select Software Upgrade in the Installation menu. Go to Local upgrades. The TV will list all compatible software available on the USB portable memory and display the data for each selected upgrade version.

3. Select the correct upgrade version and press the red colour key to start the upgrade. Your TV will restart and will automatically go to the upgrade mode.After a few seconds it will display the status of the upgrade procedure.

4. When the software upgrade was successful, remove the USB portable memory and restart your TV with the power switch B at the side of the TV.Your TV will start up with the new software.

Warning: if you try to upgrade to a software version equal or lower than the current version, a confirmation will be asked. Downgrading to older software should only be done in case of real necessity.

Info

TV menu

Installation

Software upgrade

Current softw. info Local upgrades Announcement

Languages Country Channels Preferences Connections Decoder Factory settings

Software upgrade

Introduction

This document explains how to make a Philips slideshow file with background audio. Be aware that the content of this document is addressing technical or software skilled users. To start the slideshow open the slideshow file in the Multimedia browser of your TV.

1. Press the

MENU/BROWSE key on the remote control after having inserted a USB device and

switched on the TV.

2. Go to where you stored the slideshow file (.alb) on your portable memory.

3. Select the slideshow file and press the

OK key to start the slide show.

4. To stop a slide show, press the ‡ key.

General Rules

- The slideshow will use plain ASCII XML syntax to allow the creation and editing of the slideshow files using simple tools.

- All references to network content must be based on the global address of the content.

- Content on a Portable Memory (PM) doesn't have a global address; as a result content from a PM can never be referenced from a slideshow not stored on the PM itself.

- To maintain portability, a slideshow stored on a PM should ONLY reference content on the same PM. Referencing global addresses can result in inconsistencies if the PM is used on a nonnetworked CE device. The latter is however not forbidden, it is only a recommendation.

- It is preferable that URL’s referencing PM content are based on a relative path starting from the directory where the slideshow is stored. This path includes the device or drive name of the PM. An absolute path to content will also be supported.

- relative path: pictures\test1.jpg, tamper.jpg, ..\new\bird.jpg, …

- absolute path: USB1:\pictures1\foo_bar.jpg, C:\f1.jpg, \organization.jpg, …

General Format

The format and syntax below will be used to create the slideshow file (simple ascii text) with the extension .alb (.ALB). Examples: slshow1.alb, summer_holiday_2004.ALB, test.alb, … The following syntax should be used to create the text file:

<?xml version="1.0" encoding="ISO-885h9-1" ?> <philips-slideshow version="1.0" >

<title>Title of the slideshow</title> <audio>audio_url</audio> <slide-duration>30</slide-duration> <slides>

<slide>slide_1_url</slide> <slide>slide_2_url</slide> <slide>slide_3_url</slide> <slide>slide_4_url</slide> <slide>slide_5_url</slide> <slide>slide_6_url</slide> ... <slide>slide_N-1_url</slide> <slide>slide_N_url</slide>

</slides>

</philips-slideshow>

Annex 3 - Philips TV-Slideshow Format with background music

Notes:

- the latest version of this document can be found on the Philips support website (www.philips.com/support). Use the type number of your TV to find this documentation and other related files.

- Philips can’t be held responsible for any problems that may occur as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.

Annex 3 (Continued)

Supported XML-tags

The following table gives a description of the XML syntax.

Tag Name

philips-slideshow title audio

slide-duration

slides slide

Use

mandatory

optional

mandatory

optional

Description

Philips slideshow signature including the version.

The title of the playlist.

The audio-URL following this tag will define the music playing in the background during the slideshow. A single song or playlist (.m3u & .pls) are the only valid audio references. Other reference will not result in any audio playback. If a single song is referenced the song will be repeated forever. If a playlist is referenced the playlist will be played in sequence with a repeat at the end of the playlist.

The default display time (in 0,1 second) of a slide. The TV application isn’t obliged to support this tag. The TV application can force the use of one or multiple predefined display times.

Identifies the slides to show.

Identifies the URL of the individual slide.

Digital Camera Issues

If a USB connection between your digital camera and the TV isn’t working, you can try the solutions below to resolve your problem.

- Make sure your digital camera is switched on and verify if the configuration of your digital camera is correct (see the manual of your digital camera for more information).

- Some digital cameras allow you to switch off the USB interface. Make sure that the USB interface is switched on before connecting to the TV.

- If you have a digital camera with only internal memory (no removable memory) you can try to copy the content manually to a USB memory device using a personal computer.

- Some digital cameras allow you to switch between PTP (Picture Transfer Protocol) or “PC Link” and USB Mass Storage. Make sure that you select USB Mass Storage or “PC Drive” on your digital camera.

- If your camera supports different interface settings be sure to try them one by one or contact the reseller of your camera to find out the correct setting.

USB Memory Device Issues

- Devices connected to the USB port of your TV must be “Mass Storage Class” compliant. If your device (digital camera. MP3 player, portable harddisk, …) is not “Mass Storage Class” compliant it will not be detected by the content browser of the TV.

- The following subsets of the Mass Storage Class specification are supported:

The implementation of the TV is based on the “Universal Serial Bus Mass Storage Class Specification Overview” (v1.2, June 23, 2003) including all documents referenced by the document. The document can be found on the USB standardisation website (www.usb.org). Full support of the USB Mass Storage Class Bulk-Only Transport (bInterfaceProtocol = 50h). Full support of SubClass Code = 05h; SFF-8070i spec. Full support of SubClass Code = 06h; SCSI transparent command set.

- For large USB memory devices, when you are in the Content Browser, it may take a long time before you can access your files.

- When using a USB portable harddisk: Due to the high power consumption of the harddisk, it is advised to use the external power supply of the portable harddisk to guarantee proper working under all conditions.

Digital Content Issues

• Only FAT (DOS) formatted (initialized) portable memory is supported. Errors in this formatting can result in unreadable content. If such problems appear try to re-format the card. Be aware that formatting the card will also delete all the content on it (pictures, music, …).

• The maximum size of any multimedia file should never exceed 4Gbyte.

• Do not use a dot “.” in folder naming.

• If video streams are supporting multiple audio tracks the first audio track will automatically be selected, the other audio tracks can’t be selected.

• External subtitle files (e.g. DivX.srt subtitle files) are not supported.

Annex 4 - Philips TV - Digital camera and USB issues

Notes:

- the latest version of this document can be found on the Philips support website (www.philips.com/support);

- the software of your TV is upgradeable. If you have problems first check if you have the latest software installed on your TV. The latest software, together with instructions, can be found on the Philips support website. Use the type number of your TV to find this documentation and other related files.

- Philips can’t be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.

Annex 5 - Issues referring to connected peripherals with a HDMI connector

The HDMI IN connector allows the following TV and monitor display modes:

HD Standard Definition TV (SDTV) 640x480i

720x480i 720x576i

Enhanced Definition TV (EDTV) 640x480p

720x480p 720x576p

High Definition TV (HDTV) 1920x1080i

1280x720p

PC VGA 640x480

SVGA 800x600 XGA 1024x768

- If necessary, you can adjust the picture position to the centre of the screen with the cursor keys.

- Due to legal requirements, it is possible that with certain copy protected PCM audio qualities from a peripheral equipment connected to the

HDMI input, the Digital audio output signal is muted.

- Your TV supports HDCP (High-bandwidth Digital Content Protection).This is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (DVD, PC, etc.) and your TV. Content is encrypted at the source peripheral equipment to prevent unauthorised copies from being made.

- Proper working is only guaranteed with HDMI compliant consumer products.

- Digital peripheral equipments from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.

- In case no signal is detected from your HDMI equipment, switch off the HDMI equipment and then on again. To get an optimal viewing, it is advised to switch your DVD player, Blu-Ray of HD settop box to the highest possible supported display modes.

active control ........................... 16

antenna......................................... 4

audio receiver .......................... 42

audio equipment keys............. 44

auto format............................... 16

automatic installation.............. 23

avl (audio volume leveller)..... 18

balance ....................................... 17

batteries ................................ 4, 61

brightness.................................. 14

camera ....................................... 35

camcorder................................. 35

care of the screen ..................... 2

change code ............................ 21

channel list........................... 11,27

child lock ................................... 20

clock ............................................. 7

colour......................................... 14

colour enhancement............... 16

colour keys.................................. 5

comp. video connectors.....38,40

connections............................... 34

contrast ..................................... 14

country selection..................... 22

cursor keys.................................. 5

custom tint................................ 15

decoder...................................... 26

delta volume............................. 18

demo .......................................... 21

DNR........................................... 15

dual I/II....................................... 17

DVD player ............................... 39

DVD recorder.......................... 37

DVI connector.................... 39,41

dynamic contrast ..................... 15

equalizer .................................... 17

euroconnector.............. 37,38,42

factory settings......................... 27

favourite key ............................. 28

favourite channel list............... 28

features adjustment menu..... 19

fine tune..................................... 23

first time installation ................. 8

game...................................... 35,39

HDMI connector..................... 39

headphone................................. 35

headphone volume.................. 18

home cinema amplifier........... 42

hue.............................................. 14

hypertext................................... 33

installation menu...................... 22

location...................................... 25

manual installation................... 23

menu key................................... 11

menu language.......................... 22

MPEG reduction ...................... 16

multimedia browser................ 29

mute key...................................... 5

navigate through the menus.. 11

on screen language.................... 9

on screen information.............. 6

on timer..................................... 21

option key ................................... 7

OK key......................................... 5

PC ............................................... 41

picture adjustment menu....... 14

picture format.......................... 16

PIN code ................................... 21

pixel plus.................................... 15

preferences menu.................... 25

previous channel........................ 6

programme title....................... 25

quick access menu..................... 7

rear panel overview................ 36

rearrange channel list............. 24

record a TV programme........ 43

recycling..................................... 55

reinstall ...................................... 24

remote control........................... 5

reset factory settings.............. 27

rename....................................... 24

reshuffle..................................... 24

safety warnings........................... 2

satellite receiver ...................... 40

search for channels................. 22

select your connections......... 26

select connected equipment. 43

set code..................................... 21

settings assistant...................... 10

side connectors ....................... 35

sharpness................................... 14

sleeptimer ................................. 19

slideshow format..................... 50

software upgrade ............... 27,47

sound adjustment menu......... 17

standby key.................................. 5

store channels.......................... 22

subtitles...................................... 19

surround mode........................ 17

switch the TV on........................ 8

teletext ...................................... 31

teletext menu........................... 32

teletext 2.5................................ 25

tint .............................................. 14

T.O.P. teletext pages................ 32

troubleshooting........................ 45

tv menu settings ...................... 12

uninstall...................................... 24

usb connector .......................... 35

usb device.................................. 29

video equipment keys............. 44

volume...........................................5

VCR............................................ 37

Index

Recycling

R The packaging of this product is intended to be recycled.Apply to the local authorities for correct disposal.

Disposal of your old product

Your product is designed and manufactured with highly quality material and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the

European Directive 2002/976/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

The batteries supplied do not contain the heavy metals mercury and cadmium. Please check on how to dispose of exhausted batteries according to local regulations.

Recycling

Product information

- Your TV consumes energy in standby mode. Energy consumption contributes to air and

water pollution.Very low standby power consumption.

- Specifications: see the product leaflet on www. philips. com/support.

- If you need further assistance, please call the customer support service in your country.

The corresponding telephone numbers and addresses are given in the supplied Worldwide guarantee

booklet.

Disposal of batteries

België / Belgique 070 222 303 €0.17/min

Danmark 3525 8759 Local

Deutschland 0180 5 356 767 €0.12/min

France 08 9165 0005 €0.23/min

E§§A™

0 0800 3122 1280 ¢ˆÚÂ¿Ó

España 902 888 784 €0.15/min

Ireland 01 601 1777 Local

Italia 199 404 041 €0.25/min

Luxembourg 40 6661 5644 Local

Nederland 0900 8407 €0.20/min

Norge 2270 8111 Local

Österreich 0820 901114 €0.20/min

Portugal 2 1359 1442 Local

Schweiz / Suisse / Svizzera 0844 800 544 Local

Svenska 08 5792 9100 Local

Suomi 09 2311 3415 Local

United Kingdom 0906 1010016 £0.15/min

Philips 32PF9531-10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
