Pentax TH9320, TH9320WFV User's Guide

Wi-Fi Thermostat

with Voice

9000

User Guide

Control

Features of your Wi-Fi thermostat

With your new thermostat, you can:

• Connect to the Internet to monitor and control your heating/cooling system.

• View and change your heating/cooling system settings.

• View and set temperature and schedules.

• Receive alerts via email and get automatic upgrades.

• View outdoor temperature and humidity (requires Wi-Fi set up and registration).

Need Help?

For assistance please visit http://yourhome.honeywell.com,

or call toll-free: 1-888-235-6569

33-00020EFS—03 ii

Welcome

Congratulations on your purchase of a Honeywell Wi-Fi color touchscreen programmable thermostat. When registered to Honeywell’s Total Connect Comfort Solutions, you can remotely monitor and control the heating and cooling system in your home or business— you can stay connected to your comfort system wherever you go.

Honeywell’s Total Connect Comfort is the perfect solution if you travel frequently, own a vacation home, a business, or manage an investment property or if you are simply looking for peace of mind.

Table of contents

About your new thermostat

Home screen quick reference ..............3

Business screen quick reference .........4

Installation

Connecting to your Wi-Fi network ........6

Registering your thermostat online ......9

Operation

Setting the time/date ..........................13

Setting the fan ....................................14

Selecting system mode ...................... 15

Preset energy-saving schedules ........16

Adjusting program schedules ............. 17

Overriding schedules–home ...............20

Overriding schedules–business .........21

Voice Control ...................................... 22

Viewing equipment status ..................25

Setting vacation hold–home ............... 26

Setting holiday/event schedules–

business .......................................... 27

Setting custom events–business ........28

Setting holiday schedule–business ....30

Setting holiday override–business ......31

33-00020EFS—03 2

Initiating occupancy mode–business ..32

Customizing screen color ................... 33

Setting preferences ............................34

Cleaning the thermostat screen ......... 35

Adjusting security settings ..................36

Smart Response Technology .............37

Pre-occupancy purge ......................... 38

Compressor protection ....................... 39

Auto changeover ................................40

Setting advanced preferences ............41

Disconnecting your Wi-Fi network ......44

Reconnecting your Wi-Fi network ......45

Unregistering your thermostat ............ 46

Changing system setup ...................... 47

Appendices

Frequently asked questions................53

Getting help and responding to

alerts ............................................... 56

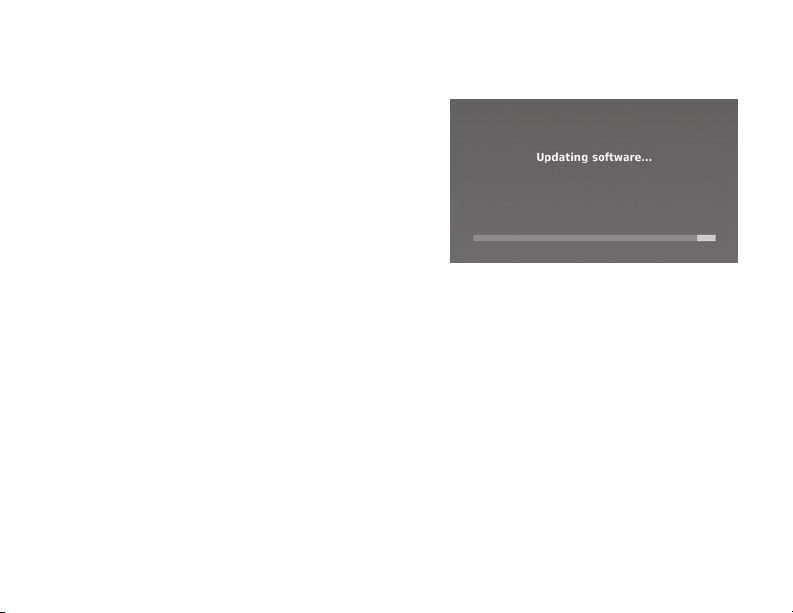

Software updates ...............................58

Troubleshooting ..................................59

Limited warranty ................................. 62

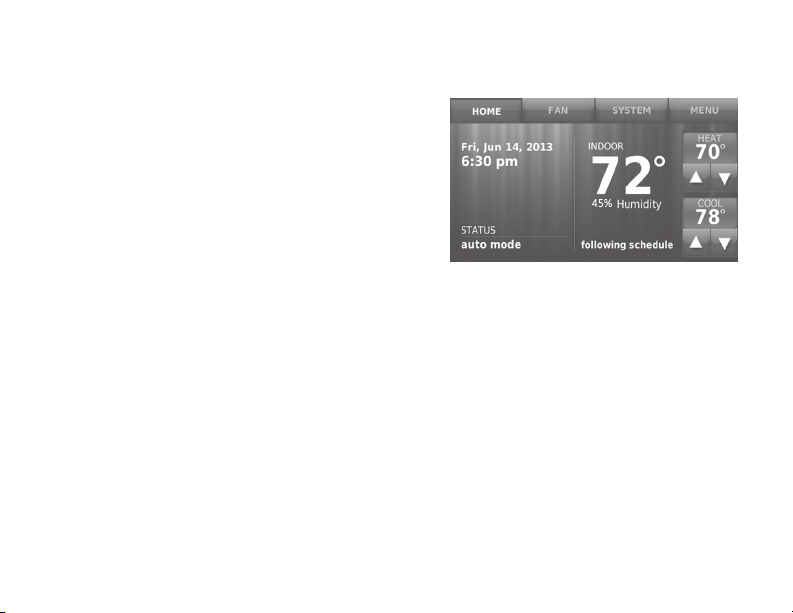

Quick reference: home use

HOME. Touch to display Home screen.

FAN. Select fan mode.

SYSTEM. Select system mode (heat/cool).

MENU. Touch to display options. Start here to

set a program schedule.

Current schedule. Change temperature setting and select temporary or permanent hold.

Indoor conditions. Shows indoor temperature and humidity.

Current date and time.

Current status. Shows system mode (heat/

cool).

Outdoor conditions. Outdoor temperature and humidity appear after registration.

3 33-00020EFS—03

Quick reference: business use

HOME. Touch to display Home screen. FAN. Select fan mode. SYSTEM. Select system mode (heat/cool). MENU. Touch to display options. Start here to

set a program schedule. Thermostat location. Quickly identify which

thermostat is in control of a specific area. Current schedule. Touch an arrow to change

temperature setting and set a temporary hold. Override. Touch to temporarily override the

program schedule. Indoor conditions. Shows indoor temperature

and humidity.

Current date and time. Current status. Shows system mode (heat/

cool). Outdoor conditions. Outdoor temperature

and humidity appear after registration.

33-00020EFS—03 4

Setting up your thermostat

Setting up your Wi-Fi programmable touchscreen thermostat is easy.

Connect it to your home wireless network.

5 33-00020EFS—03

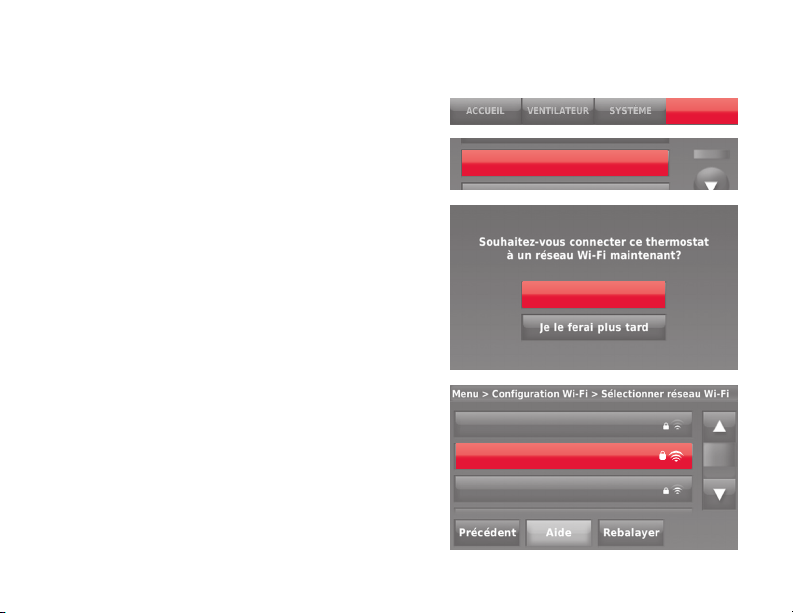

Connecting to your Wi-Fi network

1 Connect the Wi-Fi network.

1a Touch MENU

Wi-Fi Setup.

-OR Touch Yes to connect the thermostat to

your Wi-Fi network.

The screen displays the message “Searching for wireless networks. Please wait...” after which it displays a list of all Wi-Fi networks it can find.

2 Select the network.

2a Touch the name of the network you

want to use. The thermostat displays a password page.

Note: If your home network is not

Rescan

shown on the list, touch

33-00020EFS—03 6

Wi-Fi Setup

Yes

Your Network

Connecting to your Wi-Fi network

2b Using the keyboard, touch the

characters that spell out your home network password.

2c Touch Done. The thermostat displays

“Connecting to your network. Please wait...” then shows a “Connection Successful” screen.

2d Touch Next to display the registration

information screen.

2e Note your Thermostat MAC and

Thermostat CRC. You need these numbers to complete online registration.

7 33-00020EFS—03

Done

Connecting to your Wi-Fi network

To register your thermostat, follow the instructions beginning on page 9.

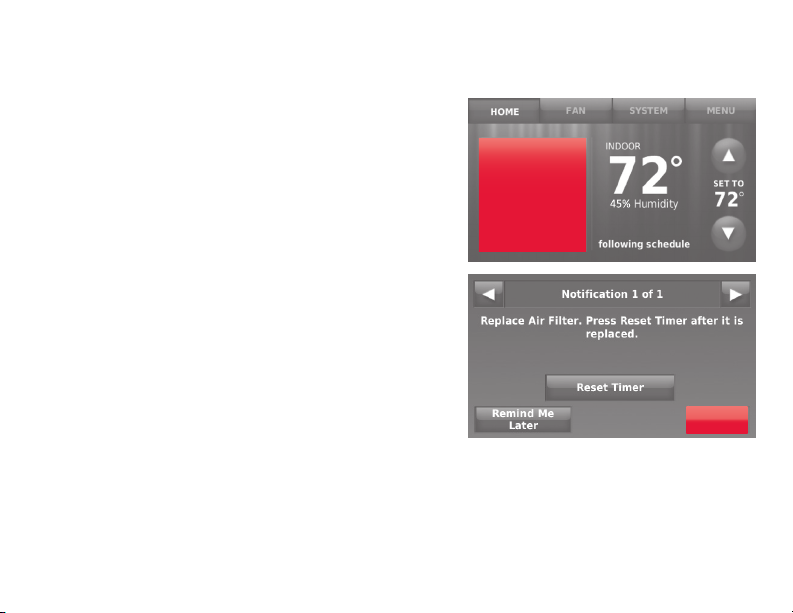

Note: The Register Online screen remains

active until you complete registration and/or touch Done.

Note: If you touch Done before you register

online, your home screen displays an orange alert button telling you to register. Touching that button displays registration information and an option to snooze the task.

Press for info

33-00020EFS—03 8

Done

online for

remote

access

Registering your thermostat online

To view and set your Wi-Fi thermostat remotely, you must have a Total Connect Comfort account. Use the following steps.

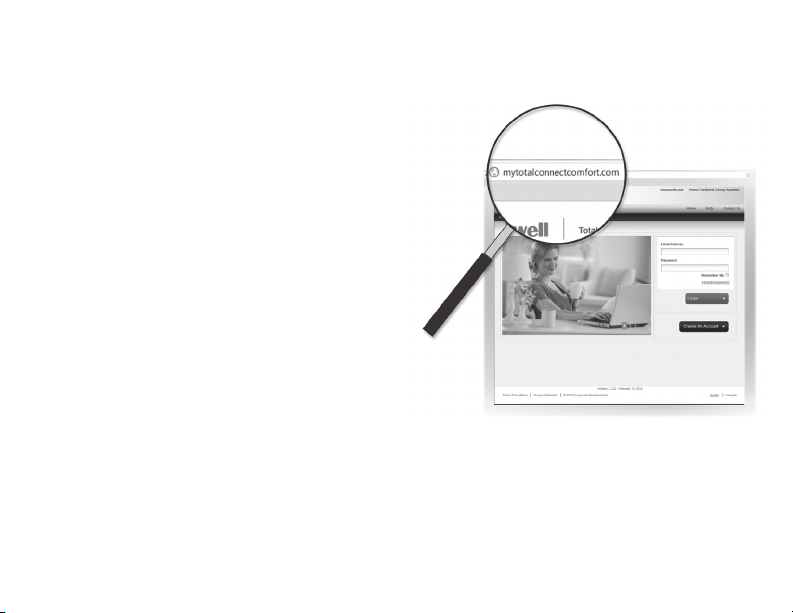

1 Open the Total Connect Comfort web

site.

Go to mytotalconnectcomfort.com

9 33-00020EFS—03

M31570

Registering your thermostat online

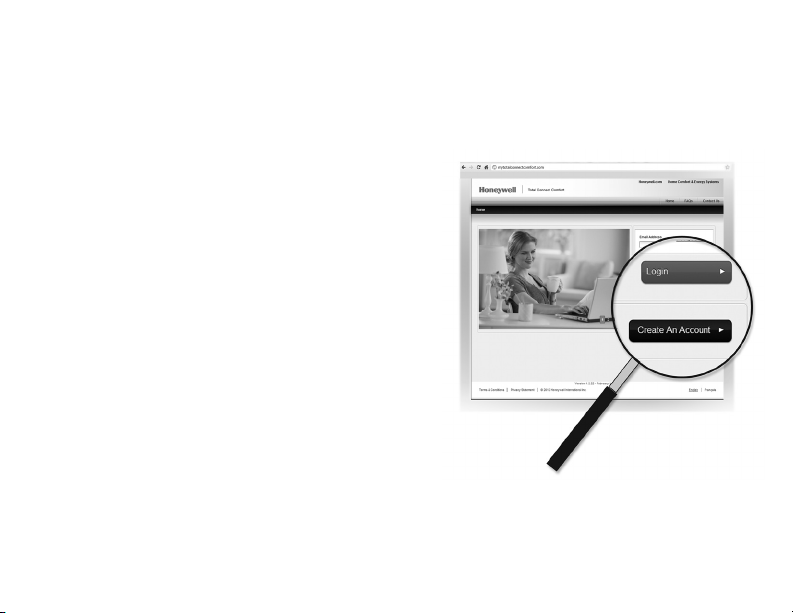

2 Login or create an account.

If you have an account, click Login

– or – click Create An Account 2a Follow the instructions on the screen. 2b Check your email for an activation

message from My Total Connect Comfort. This may take several minutes.

Note: If you do not receive a response,

check your junk mailbox or use an alternate e-mail address.

2c Follow activation instructions in

the email.

2d Log in.

33-00020EFS—03 10

Registering your thermostat online

Printed in U.S.A.

69-2723EFS-01

3 Register your Wi-Fi thermostat.

Thermostat ID Card

After you are logged in to your Total Connect Comfort account, register your thermostat.

3a Follow the instructions on

the screen. After adding your thermostat location, you must enter the thermostat’s unique identifiers:

• MAC ID

• MAC CRC

Note: These IDs are listed on the

11 33-00020EFS—03

Use the MAC ID and CRC ID to register this product at mytotalconnectcomfort.com

Carte d’identification de thermostat

Utilisez l’identication MAC et l’identication CRC pour

enregistrer ce produit à mytotalconnectcomfort.com

Tarjeta de identificación del termostato

Utilice la identicación MAC y la identicación CRC para

inscribir este producto en mytotalconnectcomfort.com

MAC ID MAC CRC

HONEYWELL MODEL: RTH8580WF

MAC ID: MAC CRC:

Registering your thermostat online

iTunes

When the thermostat is successfully registered, the Total Connect Comfort registration screen will display a SUCCESS message.

You can now control your thermostat from anywhere through your laptop, tablet, or smartphone.

Total Connect Comfort free app is available for Apple®

iPhone

, iPad® and iPod touch® devices at iTunes® or at Google Play® for all Android™ devices.

33-00020EFS—03 12

GET IT ON

Download on

Setting the time/date

1 Touch the current time. The screen

displays Set Time/Set Date.

2 Touch Set Time or Set Date. 3 Touch p or q until the proper time/

date is displayed.

4 Touch Done to save or Cancel to ignore

changes.

Note: This thermostat will automatically

update for daylight saving time (if observed in your area) and all date/time information is stored. If the thermostat is connected to Wi-Fi and registered to Total Connect Comfort, the current time is updated from the internet.

13 33-00020EFS—03

Fri, Jun 14, 2013

6:30 pm

Done

Setting the fan

1 Touch FAN to display fan settings. 2 Touch On, Automatic, Circulate, or Follow

Schedule.

3 Touch Done to save and exit.

On: Fan is always on. Automatic: Fan runs only when the

heating or cooling system is on. Circulate: Fan runs randomly about

35% of the time (home use only). Follow Schedule: Fan controlled by

program (see pages

-21).

Note: Touch Auto or On to temporarily

override the programmed fan schedule.

33-00020EFS—03 14

FAN

Done

Setting system mode

1 Touch SYSTEM to display system settings.

SYSTEM

2 Touch desired option:

Heat: Thermostat controls only the heating system.

Cool: Thermostat controls only the cooling system.

Off: Heating/cooling systems are off. Automatic: Thermostat selects heating

or cooling as needed depending on the indoor temperature.

Emergency Heat (heat pumps with aux. heat): Controls auxiliary/

emergency heat. Compressor is locked out.

Done

3 Touch Done to save and exit.

Note: The Automatic and Emergency Heat

system settings may not appear, depending on how your thermostat was installed.

15 33-00020EFS—03

Preset energy-saving schedules

This thermostat uses default Energy Saver settings that can reduce your heating/cooling expenses. To customize settings, see next page.

Heat

(Mon-Fri)Period

Wake 6:00 am 70° 78° 70° 78° Leave 8:00 am 62° 85° 62° 85° Return 6:00 pm 70° 78° 70° 78°

Home Use

Sleep 10:00 pm 62° 82° 62° 82°

Occupied 1 8:00 am 70° 75° On Unoccupied 1 10:00 pm 55° 85° Auto Occupied 2* 12:00 am 70° 75° On Unoccupied 2* 12:00 am 55° 85° Auto

Business Use

* Period 2 is cancelled by default. If you activate it, the values shown above are

default settings.

33-00020EFS—03 16

Cool

(Mon-Fri)Start time

Heat

(Sat-Sun)

CoolStart time HeatPeriod Fan

Cool

(Sat-Sun)

Adjusting program schedules

1 Touch MENU.

2 Select Create/Edit Schedule.

• Touch View/Edit to view the full

schedule and make a quick

Create / Edit Schedule

adjustment.

• Touch Guide Me to create a schedule

by answering simple questions.

• Touch I’ll do it myself to manually

create a program schedule. See page 18.

Note: To reduce costs, use the pre-set

Energy Saver settings described on page 16.

17 33-00020EFS—03

Adjusting program schedules

If you selected I’ll do it myself on the Create/ Edit Schedule screen (page 17), follow these steps:

1 Select the days to schedule, touch Next. 2 Touch Wake to set your Wake time for

selected days.

33-00020EFS—03 18

Heat: 70° Cool: 78° Fan: Auto

6:00 am

WAKE

Adjusting program schedules

3 Touch p or q to set Heat and Cool

temperatures for the Wake period, then touch Done.

4 Touch other time periods (Leave, Return,

Sleep) to set time and temperatures for

each.

5 Touch Done to save and exit.

Note: Touch Delete Period to eliminate any

unwanted time period.

Note: Touch Fan Settings to customize fan

settings for any time period.

19 33-00020EFS—03

Done

Overriding schedules: home use

1 Touch p or q to adjust the

temperature (right side of screen) and the Hold Until time (left side). The schedule will resume when the Hold Until time expires.

2 Touch Switch to Permanent Hold to keep

the same temperature until you change it or resume the program schedule.

3 Touch Cancel Hold at any time to

resume the program schedule.

33-00020EFS—03 20

Switch To

Permanent Hold

Overriding schedules: business use

Touch p or q to adjust the temperature. It will be maintained until the hold time you set.

• To change the hold time, touch the Hold Until arrow buttons. This time can be adjusted up to the maximum time set on the Override Duration screen in Advanced Preferences (page 41).

• Touch Override to use a pre-set occupied temperature if a person uses the room during an unoccupied period. The new temperature will be maintained for 1 hour and can be adjusted up to the maximum time set on the Override Duration screen in Advanced Preferences (page 41).

The programmed schedule will resume when the override timer expires. Touch Cancel Hold at any time to resume the program schedule.

21 33-00020EFS—03

OVERRIDE

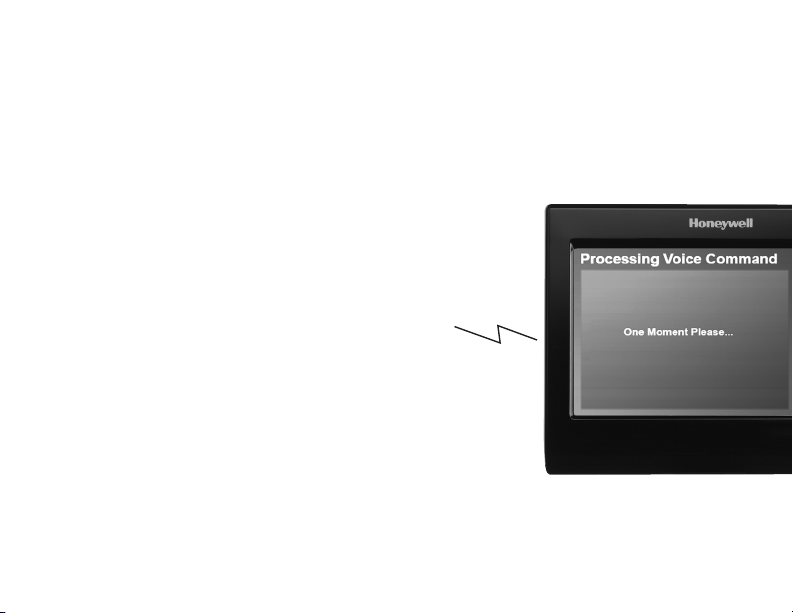

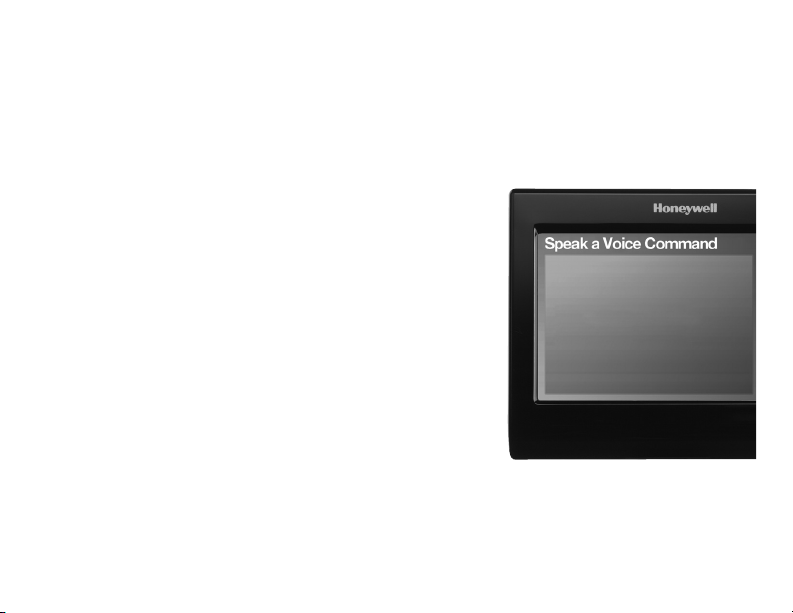

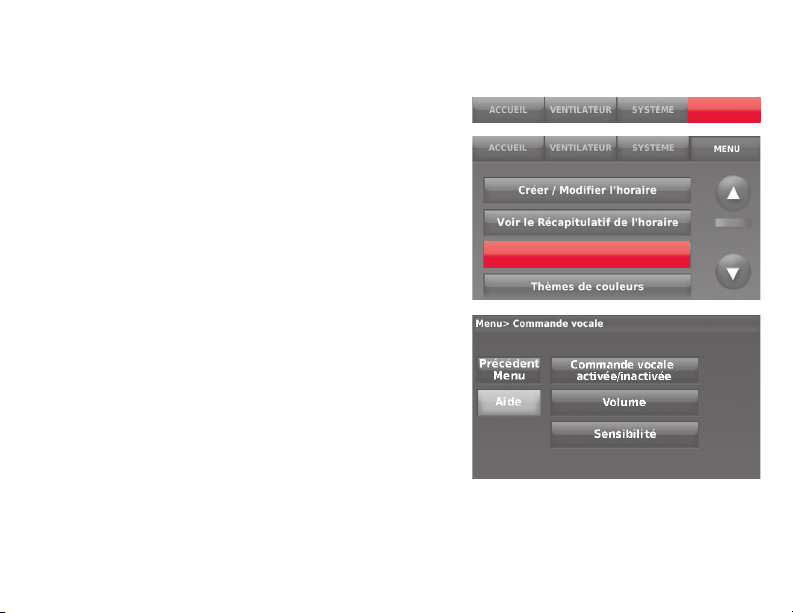

Voice Control

This thermostat has a voice control feature you can use to “talk” to your thermostat. This feature is turned on or not during initial setup or by following the steps below (see page 8).

To use Voice Control, follow these steps: 1 Touch MENU and select Voice Control. 2 Select from the different options:

Voice On/Off - turns Voice Control on or off.

When off, the thermostat functions as a regular thermostat.

Volume - adjusts thermostat speaker volume. Sensitivity - changes the sensitivity of the

thermostat’s audio receiver. The higher the number, the more receptive the thermostat will be to a voice command, but it will also be more likely to pick up something as a command that was not directed at the thermostat.

3 For available commands, see page 23 or

wifithermostat.com/voicecommands.

33-00020EFS—03 22

Voice Control

To start Voice Control, say “Hello, thermostat” to the thermostat. The thermostat will respond, and you can tell it what to do. A common exchange with the thermostat using Voice Control might be as follows.

1 “Hello, Thermostat.”

This phrase activates Voice Control.

2 “Hello! Please say a command.”

3 “Make it 5 degrees warmer / cooler.”

See full list of commands on

4 “One moment please… changing setpoint to…”

If thermostat does not respond at step 2 or 4, return to step 1.

Note: The voice commands for this thermostat

are in English only.

23 33-00020EFS—03

page 24.

Voice Control

Available Commands:*

“Make it warmer / cooler”:

Changes the temperature setting 1 degree F

“Make it much warmer / cooler”:

Changes the temperature setting 4 degrees F

“Make it (1–10) degrees warmer / cooler”:

User selects temperature setting change between 1 and 10 degrees F

“I’m feeling hot / cold”:

Changes the temperature setting 1 degree F

“What can I say?”:

Provides a list of available commands

*For current command list:

wifithermostat.com/voicecommands

33-00020EFS—03 24

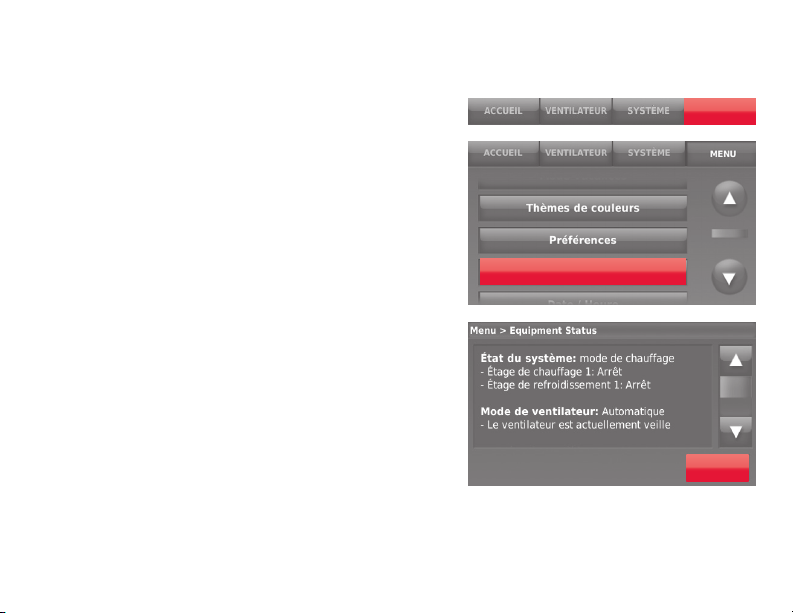

Viewing equipment status

1 Touch MENU.

2 Select Equipment Status. 3 Touch p or q to view the status of

all the equipment your thermostat is controlling. Depending on how your thermostat was installed, the Equipment Status screen can report data about the following systems:

Equipment Status

• Heating and cooling

• Fan

• Thermostat information

Done

25 33-00020EFS—03

Setting vacation hold: home use

This feature helps you save energy while you are away, and restores comfortable settings just before you return home.

1 Touch MENU. 2 Select Vacation Mode. 3 Touch p or q to select the date you

leave, then touch Next for further scheduling details, including times of day, temperature settings, return date, and return settings.

4 Review your selections on the last

display, and touch Done to save your settings. Touch Back, then Cancel to ignore the changes.

33-00020EFS—03 26

Vacaon Mode

Done

Setting holiday/event schedules: business use

This feature helps you conserve energy

when the workplace is unoccupied for special events and holidays.

Holiday / Event Scheduler

1 Touch MENU. 2 Select Holiday/Event Scheduler. 3 Select the item you want to schedule.

• Custom Events lets you set up

Custom events

other days for special schedules.

• US and Canadian Holiday options let you select from a list of holidays commonly observed in each country.

4 Make selections as prompted on each

screen. For more information, see next two pages.

5 Touch Done to save your settings.

27 33-00020EFS—03

Setting custom events: business use

This feature lets you customize temperature settings to be maintained during a specific event. You can set up an event for a specific date or day in a month. The thermostat resumes normal scheduling after the event.

1 Select Custom events from the Holiday/

Event Scheduler menu.

2 Select Create a new event.

33-00020EFS—03 28

Custom events

Create a new event

+ 168 hidden pages
