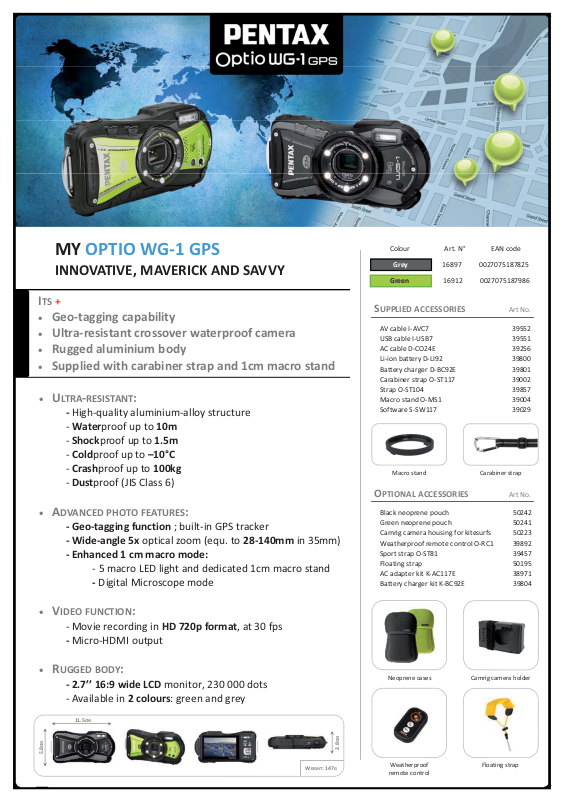

Pentax OPTIO WG-1 GPS DATASHEET

MY OPTIO WG 1 GPS

INNOVATIVE, MAVERICK AND SAVVY

ITS +

Geo tagging capability

Ultra resistant crossover waterproof camera

Rugged aluminium body

Supplied with carabiner strap and 1cm macro stand

ULTRA RESISTANT:

High quality aluminium alloy structure

		Waterproof up to 10m
		Shockproof up to 1.5m
		Coldproof up to –10°C
		Crashproof up to 100kg
		Dustproof (JIS Class 6)
ADVANCED PHOTO FEATURES:
		Geo tagging function ; built in GPS tracker
		Wide angle 5x optical zoom (equ. to 28 140mm in 35mm)
		Enhanced 1 cm macro mode:
			5 macro LED light and dedicated 1cm macro stand
			Digital Microscope mode

VIDEO FUNCTION:

Movie recording in HD 720p format, at 30 fps

Micro HDMI output

RUGGED BODY:

2.7’’ 16:9 wide LCD monitor, 230 000 dots

Available in 2 colours: green and grey

	11.5CM
5.8CM		2.8CM
		WEIGHT: 147G

Colour Art. N° EAN code

Grey16897 0027075187825

Green 16912 0027075187986

SUPPLIED ACCESSORIES	Art No.
AV cable I AVC7	39552
USB cable I USB7	39551
AC cable D CO24E	39256
Li ion battery D LI92	39800
Battery charger D BC92E	39801
Carabiner strap O ST117	39002
Strap O ST104	39857
Macro stand O MS1	39004
Software S SW117	39029

Macro stand Carabiner strap

OPTIONAL ACCESSORIES	Art No.
Black neoprene pouch	50242
Green neoprene pouch	50241
Camrig camera housing for kitesurfs	50223
Weatherproof remote control O RC1	39892
Sport strap O ST81	39457
Floating strap	50195
AC adapter kit K AC117E	38971
Battery charger kit K BC92E	39804

Neoprene cases Camrig camera holder

Weatherproof

Floating strap

remote control

*All.degresfahrenheitbrandsorproductnamesaretrademarksorregisteredtrademarksoftheirrespectivecompanies Picturescopyrights:.com

T WWW.PENTAX.CO.UK/PHOTO

ECHNICAL SPECIFICATIONS

HOTLINE: [phone]

CCD SENSOR
Number of pixels	Approx. 14 megapixels effective
Sensor size	1/2.3’’ CCD
Colour depth	12 bits x 3 colours
Image size	14M (4228x3216), 10M (1:1) (3216x3216),
	10M (16:9) (4224x2376), 7M (3072x2304),
	5M (16:9) (3072x1728), 5M (2592x1944),
	4M (16:9) (2592x1464), 3M (2048x1536),
	2M (16:9) (1920x1080), 1024 (1024x768),
	640 (640x480 pixels)
	3 Quality levels of JPEG (good, better, best)
Sensitivity range	Auto, Fixed (ISO 80 6400)
LENS
Focal length	PENTAX 5 25mm, equ. to 28 140mm in 35mm
Aperture	f/3.5 5.5
Construction	11 elements in 9 groups (5 aspherical elements)
Optical zoom	5x
Digital zoom	Approx. 6.7x
Intelligent zoom	Approx. 7x at 7M, approx. 33.5x at 640 (including
	optical zoom)
LCD SCREEN
Type	2.7’’ (6.86cm) wide colour LCD, approx. 230k dots,
	extra wide angle viewing, with AR coating
FILE FORMATS
Photo format	JPEG (Exif 2.3), DCF 2.0, DPOF,
	PRINT Image Matching III
Video format	AVI (Motion JPEG)
Sound format	WAV (PCM), mono
MEMORY
External memory	Compatible with SD, SDHC, SDXC and Eye Fi* cards
Internal memory	approx. 97.0 MB
FOCUSING
Autofocus	TTL Contrast detection Autofocus system
Focus options	Manual focus, Infinity landscape, Pan focus
AF points	Multi AF 9 points zone, Spot AF, Auto tracking AF
	(anticipating moving subject)
Normal	0.5m infinity (whole zoom area)
Macro	0.1m 0.6m (whole zoom area)
1cm Macro	0.01m 0.30m (middle zoom position)
	Special Macrolight (5 LED at front)
	AF assist lamp
EXPOSURE CONTROL
TTL Metering modes Multi segment, Centre weighted or Spot metering
System	Program controlled electronic auto exposure with
	electronic shutter with CCD
Shutter speeds	1/1500 1/4 sec. 4 sec max. (Night Scene mode)
Sensitivity range	Auto, Fixed (ISO 80 6400)
Scene modes	Auto Picture, Program, Night Scene, Movie, Under
	water, Underwater Movie, Digital Microscope,
	Landscape, Flower, Portrait, Digital Wide, Digital
	Shake Reduction, Surf&Snow, Kids, Pet, Sport,
	Fireworks, Candlelight, Night Scene Portrait, Text,
	Food, Digital Panorama, Frame Composite, Report,
	Green

Exposure compensation ± 2EV (1/3EV steps)

* Recording capacity shows approximate number of shots recorded during CIPA compliant testing.

Actual performance may vary depending on operating conditions. ** According to the result of PENTAX in house testing.

FLASH
Built in flash	Integrated auto flash control
System	Automatic activation in low light conditions
Flash modes	Flash on and Flash off modes. Soft flash
Other	“Red eye” reduction function
Flash range	Wide: approx. 0.2 3.9 m (ISO Auto)
	Tele: approx. 0.2 2.5 m (ISO Auto)
VIDEO
Movie	“Shake reduction” stabilized video with sound
Duration	Depends on memory card capacity
Resolution	HDTV (1280x720) at 30/15fps, VGA (640x480) at
	30/15fps ; QVGA (320x240) at 30/15fps
Video Editing	Yes
POWER SUPPLY
Battery	Rechargeable D LI92 Lithium ion battery
Capacity	Approx. 260 shots* and 280 min** in play mode
Other sources	Optional AC adapter kit
INTERFACES
Video output	Micro HDMI, PC/AV terminal (PAL/NTSC, mono)
USB	USB 2.0 (Hi Speed)
RECORDING PARAMETERS
Drive modes	One shot, Self timer (2 or 10 sec), Continuous
	shooting (2.27 fps), Burst shooting, IR Remote
	Control, Interval shooting, Auto Bracket
White balance	Auto, Daylight, Shade, Tungsten, Fluorescent,
	Manual setting
DRE	Shadows and highlights adjustments
OTHER FEATURES
World time	75 cities, 28 time zones
Languages	English, French, German, Spanish, Portuguese,
	Italian, Dutch, Japanese, Danish, Swedish,
	Finnish, Polish, Czech, Hungarian, Turkish,
	Greek, Russian, Thai, Korean, Simplified Chinese,
	Traditional Chinese
Digital filters	B&W, Sepia, Toy camera, Retro, Colour, Extract
	colour, Colour emphasis, High Contrast,
	Starburst, Soft, Fish eye, Brightness, Miniature
Image Tone	Bright, Natural, Monochrome
Others	Pixel Track SR, Noise Reduction if shutter speed
	exceeds 0.25 sec., Face recognition (detects up
	to 32 faces), Smile capture (smile detection and
	auto picture), Self portrait Assist and Blink de
	tection modes (eyes shut), Pet detection (up to
	3 faces), Slideshow, Image Rotation, Small Face
	Filter, Ink Rubbing Filter, Collage, Digital Filters,
	Original Frame, Frame Composite, Movie Edit,
	Red eye Compensation, Resize, Cropping, Ima
	ge/Sound Copy, Voice Memo, Protect, DPOF,
	Start up screen, Date printing, Face close up
	playback, Eye Fi compatible, Geo tagging
DIMENSIONS AND WEIGHT
Dimensions	115.5 × 58.5 × 28.5 mm (including lens depth)
Weight	147 g unloaded, 167 g loaded and ready
JIS Class	Equivalent to JIS Class 8 waterproof and JIS
	Class 6 dustproof capabilities
SYSTEM REQUIREMENTS
Operating systems	PC: Windows XP SP3, VistaTM and 7
	Mac: OS X 10.3.9 or above
SOFTWARE	PC : Arcsoft Media Impression 3.0 for PENTAX
	Mac: Arcsoft Media Impression 2.1 for PENTAX
