Pentax Optio Q Operating Manual

Download

Digital Camera

Operating Manual

To ensure the best performance from your camera, please

To ensure the best performance from your camera, please read the Operating Manual before using the camera.

read the Operating Manual before using the camera.

Thank you for purchasing this PENTAX Q Digital Camera. Please read this manual before using the camera in order to get the most out of all the features and functions. Keep this manual safe, as it can be a valuable tool in helping you to understand all the camera’s capabilities.

Lenses you can use

Lenses that can be used with this camera are Q-mount lenses.

Regarding copyrights

Images taken with the PENTAX Q that are for anything other than personal enjoyment cannot be used without permission according to the rights as specified in the Copyright Act. Please take care, as there are cases where limitations are placed on taking pictures even for personal enjoyment during demonstrations, performances or of items on display. Images taken with the purpose of obtaining copyrights also cannot be used outside the scope of use of the copyright as laid out in the Copyright Act, and care should be taken here also.

Regarding trademarks

PENTAX, PENTAX Q and smc PENTAX are trademarks of HOYA CORPORATION. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Macintosh, Mac OS, and QuickTime are trademarks of Apple Inc., registered in the U.S. and other countries. SDXC Logo is a trademark of SD-3C, LLC. This product includes DNG technology under license by Adobe Systems Incorporated. The DNG logo is either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and/or other countries. All other brands or product names are trademarks or registered trademarks of their respective companies. However, the TM or ® marks are not used in all cases in this manual.

This product supports PRINT Image Matching III. PRINT Image Matching enabled digital still cameras, printers and software help photographers to produce images more faithful to their intentions. Some functions are not available on printers that are not PRINT Image Matching III compliant. Copyright 2001 Seiko Epson Corporation. All Rights Reserved. PRINT Image Matching is a trademark of Seiko Epson Corporation. The PRINT Image Matching logo is a trademark of Seiko Epson Corporation.

To users of this camera

• Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Strong static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage the stored data, or affect the product’s internal circuitry and cause camera misoperation.

• The liquid crystal panel used for the monitor is manufactured using extremely high precision technology. Although the level of functioning pixels is 99.99% or better, you should be aware that 0.01% or fewer of the pixels may not illuminate or may illuminate when they should not. However, this has no effect on the recorded image.

• There is a possibility that the illustrations and the display screen of the monitor in this manual are different from the actual ones.

• In this manual, the generic term “computer(s)” refers to either a Windows PC or a Macintosh hereafter.

• In this manual, the term “battery(ies)” refers to any type of batteries used for this camera and its accessories.

For Using Your Camera Safely

We have paid close attention to the safety of this product. When using this product, we request your special attention regarding items marked with the following symbols.

Warning

Caution

About the Camera

This symbol indicates that violating this item could cause serious personal injuries. This symbol indicates that violating this item could cause minor or medium personal injuries, or loss of property.

Warning

• Do not disassemble or modify the camera. High voltage areas are present inside the camera, with the risk of electric shock.

• If the camera interior is exposed due to dropping or otherwise damaging the camera, never touch the exposed portion. There is a risk of electric shock.

• Do not aim the camera at the sun or other intense sources of light when taking pictures or leave the camera sitting in direct sunlight with the lens cap off. Doing so may cause the camera to malfunction or cause a fire.

• Do not look through the lens while it is pointed at the sun. Doing so may lead to a loss of eyesight or cause vision to be impaired.

• If any irregularities occur during use, such as smoke or a strange odor, stop use immediately, remove the battery or the AC adapter, and contact your nearest PENTAX Service Center. Continuing to use the product can cause a fire or electrical shock.

• Do not place your finger over the flash when discharging the flash. You may burn yourself.

•

Do not cover the flash with clothing when discharging the flash. Discoloration may occur.

• Some portions of the camera heat up during use. There is a risk of low temperature burns when holding such portions for long periods.

• Should the monitor be damaged, be careful of glass fragments. Also, be careful not to allow the liquid crystal to get on your skin or in your eyes or mouth.

• Depending on your individual factors or physical condition, the use of the camera may cause itching, rashes or blisters. In case of any abnormality, stop using the camera and get medical attention immediately.

About the Battery Charger and AC Adapter

Warning

• Always use the battery charger and AC adapter exclusively developed for this product, with the specified power and voltage. Using a battery charger or AC adapter not exclusive to this product, or using the exclusive battery charger or AC adapter with an unspecified power or voltage can cause a fire, electric shock, or camera breakdown. The specified voltage is 100 - 240V AC.

• Do not disassemble or modify the product. This can cause a fire or electrical shock.

• If the generation of smoke or strange odor from the product or other abnormality occurs, immediately discontinue using and consult a PENTAX Service Center. Continuing to use the product can cause a fire or electrical shock.

• If water should happen to get inside the product, consult a PENTAX Service Center. Continuing to use the product can cause a fire or electrical shock.

• If thunderstorm should be present during use of the battery charger and AC plug cord, unplug the power plug and discontinue use. Continuing to use the product can cause damage to the equipment, fire or electrical shock.

• Wipe off the power plug if it should become covered with dust. Accumulated dust may cause a fire.

• To reduce the risk of hazards, use only CSA/UL certified power supply cord set, cord is Type SPT-2 or heavier, minimum NO.18 AWG copper, one end with a molded-on male attachment plug cap (with a specified NEMA configuration), and the other is provided with a molded-on female connector body (with a specified IEC nonindustrial type configuration) or the equivalent.

Caution

• Do not place or drop heavy objects on or forcefully bend the AC plug cord. Doing so may damage the cord. Should the AC plug cord be damaged, consult a PENTAX Service Center.

• Do not touch or short-circuit the terminal area of the AC plug cord while the cord is plugged in.

• Do not handle the power plug with wet hands. This can cause an electric shock.

• Do not drop the product, or subject it to violent impact. This can cause equipment breakdown.

• Do not use the battery charger to charge batteries other than the rechargeable lithium-ion battery D-LI68. Attempting to charge other types of batteries may cause an explosion or heating, or may damage the battery charger.

About the Rechargeable Lithium-ion Battery

Warning

• If any leakage from the battery should come in contact with your eyes, do not rub them. Flush your eyes with clean water and get medical attention immediately.

Caution

• Only use the specified battery with this camera. Use of other batteries may cause an explosion or fire.

• Do not disassemble the battery. Disassembling the battery may cause an explosion or leakage.

• Remove the battery from the camera immediately if it becomes hot or begins to smoke. Be careful not to burn yourself during removal.

• Keep wires, hairpins, and other metal objects away from the + and - contacts of the battery.

• Do not short the battery or dispose of the battery in fire. This can cause an explosion or fire.

• If any leakage from the battery should come in contact with skin or clothes, it may cause irritation to the skin. Wash the affected areas thoroughly with water.

• Precautions for D-LI68 Battery Usage: USE SPECIFIED CHARGER ONLY.

- DO NOT INCINERATE.

- DO NOT DISASSEMBLE.

- DO NOT SHORT CIRCUIT.

- DO NOT EXPOSE TO HIGH TEMP. (140°F / 60°C)

Keep the Camera and its Accessories out of the Reach of Small Children

Warning

• Do not place the camera and its accessories within the reach of small children.

1. If the product falls or is operated accidentally it may cause serious personal injuries.

2. Wrapping the strap around a neck may cause suffocation.

3. To avoid the risk of a small accessory such as the battery or SD Memory Cards

from being swallowed by mistake, keep them out of the reach of small children. Seek medical attention immediately if an accessory is accidentally swallowed.

Care to be Taken During Handling

Before Using Your Camera

• When traveling, take the Worldwide Service Network listing that is included in the package. This will be useful if you experience problems abroad.

• When the camera has not been used for a long time, confirm that it is still working properly, particularly prior to taking important pictures (such as at a wedding or when traveling). Contents of the recording cannot be guaranteed if recording, playback or transferring your data to a computer, etc. is not possible due to a malfunction of your camera or recording media (SD Memory Card), etc.

About the Battery and Charger

• Storing the battery fully charged may decrease the battery performance. Avoid storing in high temperatures.

• If the battery is left inserted and the camera is not used for a long time, the battery will over-discharge and shorten the battery’s life.

• Charging the battery a day before use or on the day of use is recommended.

• The AC plug cord provided with this camera is developed exclusively for the battery charger D-BC68P. Do not use it with other devices.

Precautions on Carrying and Using Your Camera

• Do not subject the camera to high temperatures or high humidity. Do not leave the camera in a vehicle, as the temperature can get very high.

• Do not subject the camera to strong vibrations, shocks, or pressure. Use a cushion to protect the camera from vibrations of motorcycles, automobiles, or ships.

• The temperature range for camera use is 0°C to 40°C (32°F to 104°F).

• The monitor may appear black at high temperatures, but will return to normal at normal temperatures.

• The monitor may respond more slowly at low temperatures. This is due to liquid crystal properties, and is not a malfunction.

• Sudden temperature changes will cause condensation on the inside and outside of the camera. Place the camera in your bag or a plastic bag, and remove the camera after temperature of the camera and surroundings are equalized.

• Avoid contact with garbage, mud, sand, dust, water, toxic gases, or salt. These could cause the camera to breakdown. Wipe the camera to dry off any rain or water drops.

• Please do not press forcefully on the monitor. This could cause it to break or malfunction.

• Be careful not to overtighten the screw in the tripod socket when using a tripod.

Cleaning Your Camera

• Do not clean the product with organic solvents such as thinner, alcohol, or benzine.

• Use a lens brush to remove dust accumulated on the lens. Never use a spray blower for cleaning as it may damage the lens.

• Please contact a PENTAX Service Center for professional cleaning of the CMOS sensor. (This will involve a fee.)

Storing Your Camera

• Do not store the camera with preservatives or chemicals. Storage in high temperatures and high humidity can cause mold to grow on the camera. Remove the camera from its case and store it in a dry and well-ventilated place.

• Avoid using or storing the camera where it may be exposed to static electricity or electrical interference.

• Avoid using or storing the camera in direct sunlight or in locations where it may be exposed to rapid changes in temperature or to condensation.

• Periodic inspections are recommended every one to two years to maintain high performance.

Other Precautions

• The SD Memory Card is equipped with a writeprotect switch. Setting the switch to LOCK prevents new data from being recorded on the card, the stored data from being deleted, and the card from being formatted by the camera or computer.

• The SD Memory Card may be hot when removing the card immediately after using the camera.

• Do not remove the SD Memory Card or turn off the power while the card is being accessed. This may cause the data to be lost or the card to be damaged.

• Do not bend the SD Memory Card or subject it to violent impact. Keep it away from water and store away from high temperatures.

• Do not remove the SD Memory Card while formatting. The card may be damaged and become unusable.

• Data on the SD Memory Card may be deleted in the following circumstances. We do not accept any liability for data that is deleted if

1. the SD Memory Card is mishandled by the user.

2. the SD Memory Card is exposed to static electricity or electrical interference.

3. the SD Memory Card has not been used for a long time.

4. the SD Memory Card or the battery is removed while the card is being accessed.

• If the SD Memory Card is not used for a long time, the data on the card may become unreadable. Be sure to regularly make a backup of important data on a computer.

• Format new SD Memory Cards. Also format SD Memory Cards used with other cameras.

Write-protect

switch

• Please note that deleting data stored on an SD Memory Card, or formatting an SD Memory Card does not completely erase the original data. Deleted files can sometimes be recovered using commercially available software. If you are going to discard, give away or sell your SD Memory Card, you should ensure that the data on the card is completely deleted or the card itself is destroyed if it contains any personal or sensitive information.

• The data on your SD Memory Card should be managed at your own risk.

Regarding Product Registration

In order to better serve you, we request that you complete the product registration, which can be found on the CD-ROM supplied with the camera or on the PENTAX website. Refer to p.209 for details. Thank you for your cooperation.

For Using Your Camera Safely ............................................................ 1

Care to be Taken During Handling ...................................................... 4

Contents............................................................................................... 7

Composition of the Operating Manual ............................................... 13

Before Using Your Camera 15

Checking the Contents of the Package ......................................16

Names and Functions of the Working Parts ..............................17

Capture Mode .................................................................................... 18

Playback Mode .................................................................................. 20

Monitor Display .................................................................................. 22

How to Change Function Settings ..............................................30

Using the Direct Keys ........................................................................ 30

Using the Control Panel ..................................................................... 31

Using the Menus ................................................................................ 32

Getting Started 35

Attaching the Strap ......................................................................36

Inserting the Battery.....................................................................37

Charging the Battery .......................................................................... 37

Inserting/Removing the Battery .......................................................... 38

Battery Level Indicator ....................................................................... 39

Approximate Image Storage Capacity and Playback Time (when

Using a Fully Charged Battery).......................................................... 40

Using the AC Adapter (Optional) ....................................................... 40

Inserting/Removing an SD Memory Card...................................43

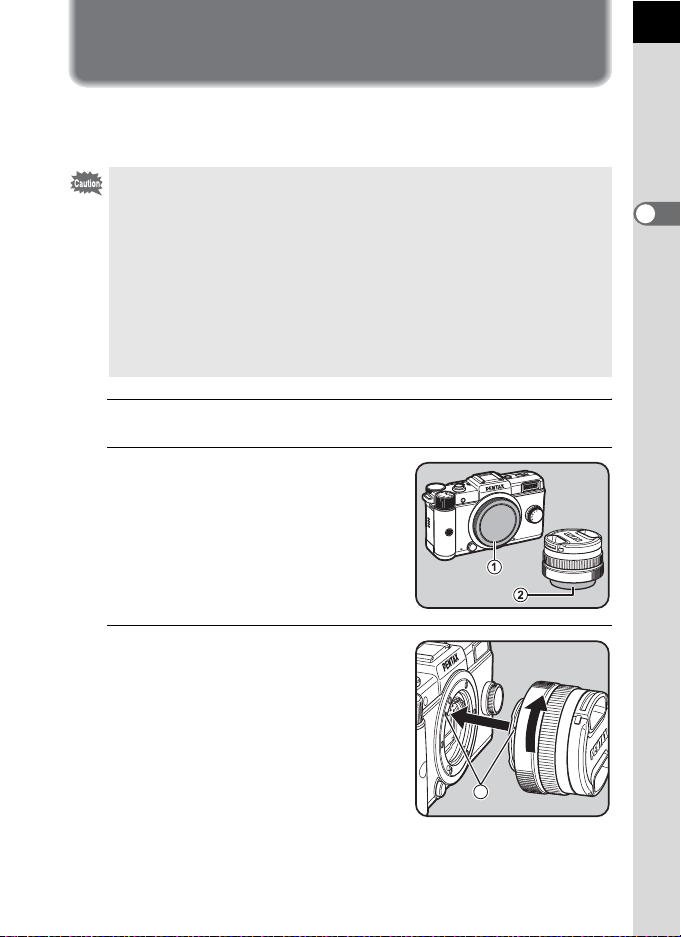

Attaching a Lens...........................................................................45

Turning the Camera On and Off ..................................................47

Initial Settings ...............................................................................48

Setting the Display Language ............................................................ 48

Setting the Date and Time ................................................................. 50

Basic Operations 53

Basic Shooting Operation ...........................................................54

Letting the Camera Choose the Optimal Settings.............................. 54

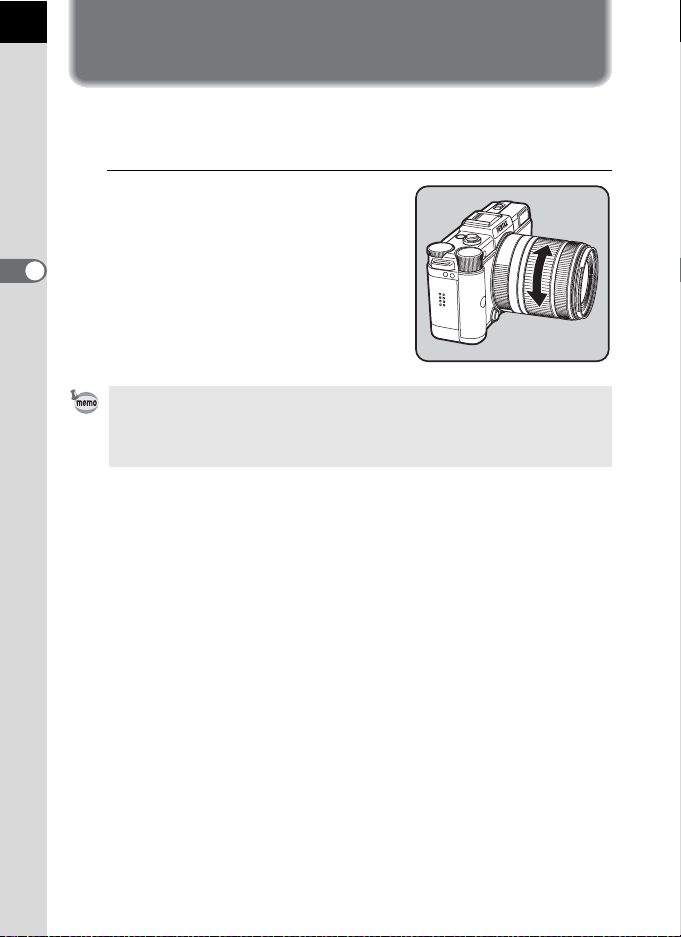

Using a Zoom Lens ......................................................................56

Using the Built-in Flash ...............................................................57

Setting the Flash Mode ...................................................................... 57

Shooting with the Flash...................................................................... 59

Reviewing Images ........................................................................61

Playing Back Images ......................................................................... 61

Deleting a Single Image ..................................................................... 62

Shooting Functions 63

How to Operate the Shooting Functions ....................................64

Direct Keys Setting Items................................................................... 64

Rec. Mode Menu Items...................................................................... 65

Movie Menu Items.............................................................................. 67

Custom Setting Menu Items............................................................... 68

Selecting the Appropriate Capture Mode ...................................69

Auto Picture Modes............................................................................ 70

Scene Modes ..................................................................................... 71

Blur Control Mode .............................................................................. 73

Exposure Modes ................................................................................ 74

Setting the Exposure....................................................................75

Setting the Sensitivity......................................................................... 75

Changing the Exposure Mode ........................................................... 76

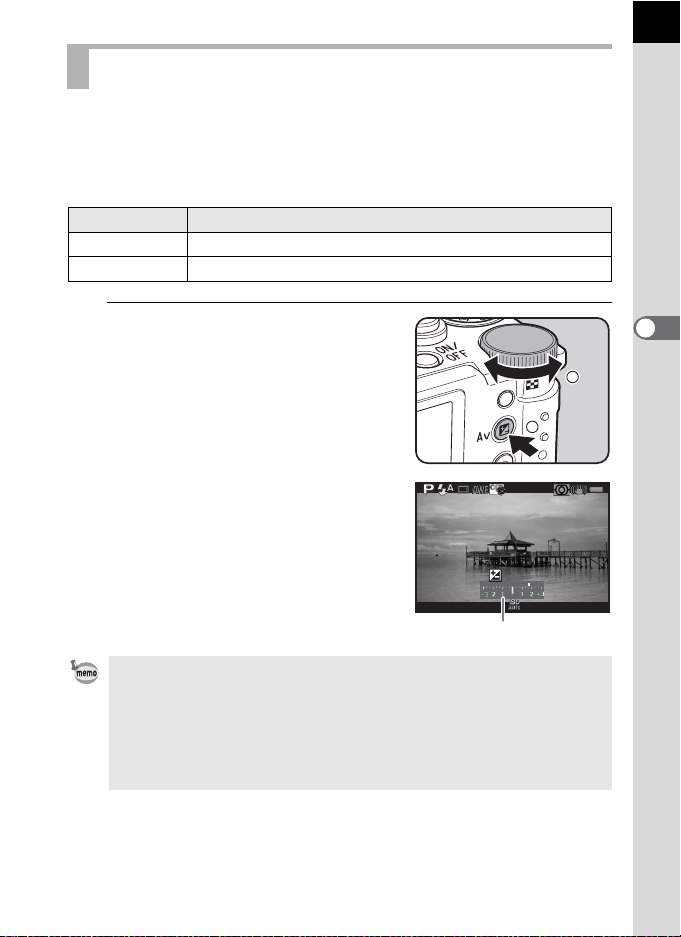

Adjusting the Exposure ...................................................................... 79

Locking the Exposure Before Shooting (AE Lock) ............................. 82

Selecting the Metering Method .......................................................... 84

Reducing Image Noise (Noise Reduction) ......................................... 85

Focusing........................................................................................86

Setting the Focus Method .................................................................. 86

Setting the Autofocus Method ............................................................ 87

Focusing Using the d/i Button........................................................ 90

Locking the Focus (Focus Lock) ........................................................ 91

Adjusting the Focus Manually (Manual Focus) .................................. 92

Checking the Depth of Field (Preview) .......................................94

Assigning the Preview Function to the Green Button ........................ 94

Displaying the Preview....................................................................... 95

Using the Shake Reduction Function to Prevent Camera

Shake .............................................................................................96

Taking Pictures Using the Shake Reduction Function....................... 96

Shooting with Self-timer ..................................................................... 98

Shooting with Remote Control (Optional) ........................................ 100

Taking Pictures Continuously...................................................102

Continuous Shooting........................................................................ 102

Interval Shooting .............................................................................. 104

Multi-exposure ................................................................................. 107

Recording Movies.......................................................................109

Changing the Settings for Movie Recording .................................... 109

Recording Movies ............................................................................ 111

Playing Back Movies ........................................................................ 115

Editing Movies.................................................................................. 117

Shooting Settings 119

Setting a File Format ..................................................................120

File Format ....................................................................................... 121

Aspect Ratio ..................................................................................... 121

JPEG Recorded Pixels .................................................................... 122

JPEG Quality ................................................................................... 123

Color Space ..................................................................................... 123

Setting the White Balance .........................................................124

Adjusting the White Balance Manually............................................. 125

Fine-tuning the White Balance......................................................... 127

Adjusting Brightness .................................................................128

Highlight Correction ......................................................................... 128

Shadow Correction .......................................................................... 129

HDR Capture ................................................................................... 130

Setting the Image Finishing Tone.............................................131

Setting Custom Image ..................................................................... 131

Setting the Digital Filter .................................................................... 135

Saving Frequently Used Functions to the Quick Dial....................... 138

Setting the Smart Effect ................................................................... 140

Saving the Camera Settings ............................................................ 142

Setting the Green Button and E-dial Functions.......................144

Setting the Green Button Operation................................................. 144

Setting the E-dial Operation in e Mode .......................................... 146

Setting the Green Button Operation in a Mode .............................. 147

Setting the Lens Functions .......................................................148

Setting the ND Filter......................................................................... 148

Correcting Lens Distortion ............................................................... 149

Playback Functions 151

Playback Functions Operation..................................................152

Playback Mode Palette Items .......................................................... 152

Playback Menu Items....................................................................... 153

Setting the Playback Display Method.......................................154

Enlarging Images........................................................................155

Displaying Multiple Images .......................................................156

Multi-image Display Screen ............................................................. 156

Displaying Images by Folder............................................................ 157

Displaying Images by Shooting Date (Calendar Display) ................ 158

Comparing Images........................................................................... 159

Joining Multiple Images (Index) ....................................................... 160

Playing Back Images Continuously..........................................162

Setting the Slideshow Display.......................................................... 162

Starting the Slideshow ..................................................................... 163

Displaying Rotated Images........................................................164

Deleting Multiple Images ...........................................................165

Deleting Selected Images ................................................................ 165

Deleting a Folder.............................................................................. 166

Deleting All Images .......................................................................... 167

Connecting the Camera to an AV Device .................................168

Connecting the Camera to a Video Input Terminal or HDMI Input

Terminal ........................................................................................... 168

Setting the Video/HDMI Output Format ........................................... 169

Editing Images 171

Changing the Image Size ...........................................................172

Changing the Number of Recorded Pixels (Resize) ........................ 172

Cropping Out Part of the Image (Cropping)..................................... 173

Processing Images.....................................................................174

Processing Images with Digital Filters ............................................. 174

Editing Out the Unwanted Red-eye Effect ....................................... 179

Developing RAW Images ...........................................................180

Developing One RAW Image ........................................................... 180

Developing Multiple RAW Images ................................................... 182

Changing Additional Settings 183

How to Operate the Set-up Menu ..............................................184

Set-up Menu Items........................................................................... 184

Camera Settings .........................................................................186

Setting the Sound Effects, Date and Time, and Display

Language ......................................................................................... 186

Setting the Monitor and the Menu Display ....................................... 190

Selecting Settings to Save in the Camera (Memory) ....................... 195

Resetting the Menus ........................................................................ 196

Checking the Camera Version Information ...................................... 197

File Management Settings .........................................................198

Formatting an SD Memory Card ...................................................... 198

Protecting Images from Deletion (Protect)....................................... 199

Changing the Naming System for Folders ....................................... 200

Selecting the File Number Setting ................................................... 200

Creating New Folders ...................................................................... 201

Setting the DPOF Settings ............................................................... 201

Connecting to a Computer 203

Manipulating Captured Images on a Computer.......................204

Saving Images on a Computer ..................................................205

Setting the USB Connection Mode .................................................. 205

Connecting the Camera and a Computer ........................................ 206

Using the Provided Software.....................................................207

Installing the Software...................................................................... 207

Screen of the SILKYPIX Developer Studio ...................................... 208

Using the Flash 211

Using the Built-in Flash .............................................................212

Flash Characteristics in Each Exposure Mode ................................ 212

Using the Slow-speed Sync ............................................................. 212

Using the Trailing Curtain Sync ....................................................... 213

Distance and Aperture when Using the Built-in Flash...................... 213

Lens Compatibility with the Built-in Flash ........................................ 214

Using an External Flash (Optional)...........................................215

Using P-TTL Mode ........................................................................... 216

Connecting an External Flash with an Extension Cord.................... 217

Appendix 219

Default Settings ..........................................................................220

Functions Available with Various Lens Combinations...........226

Cleaning the CMOS Sensor .......................................................227

Removing Dust by Shaking the CMOS Sensor (Dust Removal) ..... 227

Optional Accessories.................................................................228

Error Messages...........................................................................232

Troubleshooting .........................................................................234

Main Specifications ....................................................................237

Index ............................................................................................243

WARRANTY POLICY ..................................................................249

Composition of the Operating Manual

This Operating Manual contains the following chapters.

1 Before Using Your Camera

Explains the provided accessories and the names and functions of various parts.

2 Getting Started

Explains your first steps from purchasing the camera to taking pictures. Be sure to read this chapter and follow the instructions.

3 Basic Operations

Explains the procedures for taking and playing back pictures.

4 Shooting Functions

Explains the shooting-related functions.

5 Shooting Settings

Explains the procedures for changing the shooting settings, such as the file format.

6 Playback Functions

Explains the procedures for playing back and deleting images.

7 Editing Images

Explains the procedures for processing images and developing images taken in RAW format.

8 Changing Additional Settings

Explains the general camera settings and file management settings such as the monitor display settings and the image folder naming system.

9 Connecting to a Computer

Explains how to connect the camera to a computer, and includes installation instructions and a general overview of the provided software.

10 Using the Flash

Explains how to use the built-in flash and external flashes.

11 Appendix

Explains troubleshooting, introduces optional accessories and provides various resources.

The symbols used in this Operating Manual are explained below.

Indicates reference page number explaining a related operation.

Indicates useful information.

Indicates precautions to take when operating the camera.

1 Before Using Your

Camera

Check the package contents and the names and functions of working parts before use.

Checking the Contents of the Package .............. 16

Names and Functions of the Working Parts ...... 17

How to Change Function Settings ......................30

Checking the Contents of the Package

The following accessories are packaged with your camera. Check that all accessories are included.

Before Using Your Camera

Hot shoe cover FK

(Installed on camera)

Strap

O-ST115

AC plug cord Software (CD-ROM)

Quick Guide

Refer to p.228 for information on optional accessories.

Body mount cover

(Installed on camera)

Rechargeable lithium-ion

battery D-LI68

S-SW115

USB cable

I-USB7

Battery charger

D-BC68P

Operating Manual

(this manual)

Names and Functions of the Working Parts

Speaker

AF assist light/

Self-timer lamp

Strap lug

Remote control

receiver

Card cover

Hot shoe

Strap lug

Battery cover

Monitor

Connection cable

cover

Tripod socket

Microphones

Lens mount index (red dot)

Built-in flash

Lens information contacts

CMOS sensor

Remote control receiver

Card access lamp

HDMI terminal (Type D)

Terminal cover

PC/AV terminal

Before Using Your Camera

Capture Mode

Here, you can learn which parts and how they work when shooting.

Before Using Your Camera

The factory default setting of each part is explained here, but some parts have multiple functions and work differently depending on the selected setting.

8 6 7

1 E-dial

Sets the shutter speed, aperture, and EV compensation values. (p.77)

You can change the menu when a menu screen is displayed. (p.32)

You can change the settings when the control panel is displayed. (p.32)

2 Mode dial

Changes Capture mode. (p.69)

3 Shutter release button

Press to capture images. (p.55)

4 Quick dial

You can save your preferred shooting settings and then retrieve them easily later on. (p.138)

5 Lens unlock button

Press to detach a lens. (p.46)

6 Q button

Switches to Playback mode. (p.61)

7 Flash pop-up switch

Slide to pop up the built-in flash. (p.59)

8 Power switch

Press to turn the camera on and off. (p.47)

9 mc button

Press to set the EV compensation and aperture values. (p.77, p.79)

0 d/i (Green/Delete)

button

You can assign a function to this button. (p.144)

a 4 button

When the control panel or a menu screen is displayed, press this button to confirm the selected item.

b Four-way controller

(2345)

Displays the Sensitivity/White Balance/Flash Mode/Drive Mode setup menu. (p.64)

When the control panel or a menu screen is displayed, use this to move the cursor or change items.

c 3 button

Displays the [A Rec. Mode 1] menu (p.65). Press this button while the menu is displayed to return to the previous screen. (p.32)

d M button

Changes the style of the display on the monitor. (p.22)

Before Using Your Camera

Playback Mode

Here, you can learn which parts and how they work during playback.

Before Using Your Camera

6 7 8

9 0

1 E-dial

Use this to enlarge an image (p.155) or display multiple images at the same time (p.156).

2 Shutter release button

Press halfway to switch to Capture mode.

3 Q button

Switches to Capture mode.

4 Power switch

Press to turn the camera on and off. (p.47)

5 mc button

When the file format of the last captured image is JPEG, and its data still remains in the buffer memory, press this button to save the image in RAW format. (p.61)

6 d/i (Green/Delete)

button

Press to delete images, or change the settings, such as resetting the values. (p.62, p.144)

7 4 button

Confirms the setting you selected in the menu or playback screen.

8 Four-way controller

(2345)

Use this to move the cursor or change items in the menu or playback screen. Press the four-way controller (3) to display the playback mode palette. (p.152)

9 3 button

Displays the [Q Playback 1] menu (p.153).

0 M button

Changes the style of the display on the monitor. (p.25)

Before Using Your Camera

References to Button Names

In this Operating Manual, the buttons of the fourway controller are referred to in the following way.

2000

F2.8

1600

[

]

Cust om Im age Brig ht

+1. 7

200 0

F2. 8

160 0

[

3 7

]

001 /9 99

200 0

F2. 8

160 0

[

3 7

]

Monitor Display

Various information appears on the monitor depending on the status of the camera.

Before Using Your Camera

The brightness level and the color of the monitor can be adjusted. (p.193)

Capture Mode

While shooting, the current shooting function settings are displayed on the monitor. You can change the style of the display by pressing the M button.

Custom Image Bright

2000

Standard display

F2.8

1600

[

]

Control panel Monitor off

Standard display

(All items are displayed here for explanatory purposes. The actual display may differ.)

123456 789

1600

001/999

[

]

2000

16 17 18 20 2219

1 Capture Mode (p.69) 5 Custom Image (p.131) 2 Flash Mode (p.57) 6 Interval Shooting (p.104)/ 3 Drive Mode (p.64) 4 White Balance (p.124)

F2.8

+1.7

[37]

12 13

2000

F2.8

1600

HDR Capture (p.130)/ Digital Filter (p.135)

[

]

7 AE Metering (p.84) 15 Histogram (p.28) 8 Shake Reduction (p.96)/

Movie SR (p.110)

9 Battery level (p.39) 18 Aperture value (p.77)

10 Turning the focusing ring in

\ mode (p.93)

11 ND Filter (p.148) 21 Image storage capacity 12 Number of shots using

Multi-exposure

13 Multi-exposure (p.107) 14 AF frame (p.55)

* Indicator 14 is displayed in white. When the subject is in focus, a green

square frame is displayed instead. It turns red when the subject is not in focus. It is not displayed when [Focus Method] is set to \.

* For indicator 22, up to 12 face detection frames are displayed when

[Autofocus Method] is set to [Face Detection]. A main face detection frame is displayed in yellow and other frames in white.

16 AE Lock (p.82) 17 Shutter speed (p.77)

19 EV bar (p.79) 20 Sensitivity (p.75)

22 Face detection frame (when

[Autofocus Method] is set to [Face Detection]) (p.87)

Before Using Your Camera

Cus to m I mage Bri gh t

[

65535

]

Cus to m I mage Bri gh t

[

65535

]

Control panel

Press the M button in Capture mode to display the control panel and change settings.

A mode

Before Using Your Camera

Custom Image Bright

C mode

Custom Image Bright

[

65535

1 2

43567

98101112

1413 15 16

]

1 2

438910

1511 17 12

[

65535

]

1 Function name 11 ND Filter (p.148) 2 Setting 12 Shake Reduction (p.96)/ 3 Custom Image (p.131)/

H mode (p.71)

Movie SR (p.110)

13 Aspect Ratio (p.121) 4 Digital Filter (p.135) 14 File Format (p.121) 5 HDR Capture (p.130) 15 JPEG Recorded Pixels (p.122)/ 6 Highlight Correction (p.128)

Movie Recorded Pixels (p.109)

7 Shadow Correction (p.129) 16 JPEG Quality (p.123) 8 AE Metering (p.84) 17 Sound (p.109) 9 Focus Method (p.86) 18 Current date and time (p.50)

10 Autofocus Method (p.87) 19 Image storage capacity

• Settings that cannot be changed due to the current camera setup cannot be selected.

• If no operations are made within 30 seconds in the control panel, the standard display will reappear.

• The control panel for the H (Scene) mode is displayed when the mode dial is set to H. (p.72)

• For more information about the Capture mode display, refer to “Setting the Capture Mode Display Method” (p.191).

Playback Mode

2000

F2.8

200

100- 0001

2000

F2.8

200

100- 0001

+9.9

2000

F2.8 G1A1

50mm

1600

05/0 5/2011

100- 0001

+1.5

10:3 0

The camera switches the type of information displayed when you press the M button during playback.

Standard display

Histogram display

Detailed information display

Captured image, file format and operation guide indicators are displayed.

Captured image and histogram (Brightness/RGB) are displayed. Not available during movie playback. (p.26)

Detailed information on how and when the image was taken is displayed. (p.27)

No info. display Only the captured image is displayed.

2000

F2.8

200

Standard display

100-0001

2000

Histogram display

2000

F2.8 G1A1

05/05/2011

F2.8

1600

10:30AMAM

200

+9.9

50mm

100-0001

+1.5

No info. display Detailed information

display

The type of information display that is shown first during playback is the same as that of the last playback in the previous session. If [Playback Info Display] is set to P (Off) in [Memory] (p.195) of the [A Rec. Mode 3] menu, the Standard display always appears first when the camera is turned on.

Before Using Your Camera

200 0

F2. 8

200

100 -0 001

200 0

F2. 8

200

Histogram display

The following histograms can be displayed when playing back still pictures. The “Brightness histogram” shows the distribution of brightness and the “RGB histogram” shows the distribution of color intensity. Press the four-way controller (23) to switch between “Brightness histogram”

and “RGB histogram”.

Before Using Your Camera

6 7 8 9

1 Histogram (Brightness) 7 Shutter speed 2 Protect setting 8 Aperture value 3 Folder number-File number 9 Sensitivity 4 Save the RAW file data 10 Histogram (R) 5 Switch RGB histogram/

6 File Format

* Indicator 2 appears only for protected images. * Indicator 4 appears only when the file format of the last captured image is

JPEG, and the image can also be saved in RAW format. (p.61)

123

100-0001

2000

F2.8

200

2000

F2.8

6 7 8 9

Brightness histogram RGB histogram

Brightness histogram

11 Histogram (G) 12 Histogram (B)

100-0001

200

If [Bright/Dark Area] (p.154) of the [Q Playback 1] menu is set to O (On), bright (overexposed) portions blink red and dark (underexposed) portions blink yellow (except when in RGB histogram display or Detailed information display).

+1. 0

200 0

F2. 8 G1A 1

50m m

160 0

05/ 05 /20 11

100 -0 001

+1. 5

10: 30

10' 10 "

125

F8. 0 G1A 1

05/ 05 /20 11

100 -0 001

0.0

10: 30

125

Detailed information display

Still picture

234

91011

17 18 19 2120

30 31

678

2000

F2.8 G1A1

05/05/2011

+1.0

1600

50mm

10:30AMAM

100-0001

+1.5

22 23 24 25 26

12 13 14 15

Movie

100-0001

125

F8.0 G1A1

05/05/2011

10'10"

125

10:30AMAM

0.0

22 23

12 13 14 15

1 Captured image 17 White Balance fine-tuning (p.127) 2 Capture Mode (p.69) 18 Highlight Correction (p.128) 3 Protect setting (p.199) 19 Shadow Correction (p.129) 4 Folder number-File number

(p.200)

20 Distortion Correction (p.149)

21 Shake Reduction (p.96)/ 5 Drive Mode (p.64) 6 HDR Capture (p.130)/

Multi-exposure (p.107)

22 File Format (p.121)

23 JPEG Recorded Pixels (p.122)/ 7 Autofocus Method (p.87) 8 AE Metering (p.84) 24 JPEG Quality (p.123) 9 Flash Mode (p.57) 25 Color Space (p.123)

10 Flash Exposure Compensation

(p.58)

11 ND Filter (p.148) 28 Image finishing tone (p.131) 12 Shutter speed (p.77) 29 13 Aperture value (p.77) 30 Shooting date and time 14 Sensitivity (p.75) 31 DPOF setting (p.201) 15 EV Compensation (p.79) 32 Sound (p.109)

26 Lens focal length

27 Digital Filter (p.135)

16 White Balance (p.124) 33 Recording time

* Indicators 9 and 10 appear only for images taken with the flash. * Indicators 6, 11, 17, 18, 19, 20, 26, 27, and 31 appear only for images taken

with the corresponding functions enabled.

* Indicators 23 and 24 do not appear for RAW images.

234

32 33 11

30 31

2120

Movie SR (p.110)

Movie Recorded Pixels (p.109)

Custom Image parameters (p.132)

Before Using Your Camera

Using the Histogram

A histogram shows the brightness distribution of an image. The horizontal axis represents

brightness (dark at the left and bright

Before Using Your Camera

at the right) and the vertical axis represents the number of pixels. The shape and the distribution of the histogram before and after shooting tells you whether the exposure level and contrast are correct or not, and lets you decide if you need to adjust the exposure and take a picture again.

1Adjusting the Exposure (p.79) 1Adjusting Brightness (p.128)

Understanding Brightness

When the brightness is correct and there are no overexposed or underexposed areas, the graph peaks in the middle. If the image is underexposed, the peak is on the left side, and if it is overexposed, the peak is on the right side.

Number of pixels→

(Dark) ←Brightness→ (Bright)

Dark portions Bright portions

Dark (underexposed)


Image with few bright or

dark areas

Bright (overexposed)


When the image is underexposed, the part to the left is cut off (dark (underexposed) portions with no detail) and when the image is overexposed, the part to the right is cut off (bright (overexposed) portions with no detail). This camera can be set so that it displays the Bright/Dark Area warning during Capture or Playback mode.

1Playing Back Images (p.61) 1Setting the Playback Display Method (p.154) 1Setting the Capture Mode Display Method (p.191) 1Setting the Display for Instant Review (p.192)

Understanding Color Balance

Distribution of color intensity is displayed for each color in the RGB histogram. The right side of the graphs look similar for images that have the white balance adjusted well. If only one color is lopsided to the left, that color is too intense.

1Setting the White Balance (p.124)

Guide Indicators

The following indicators appear on the monitor to indicate the keys, buttons and e-dial that can be operated at that time.

Example)

2 Four-way controller (2) Shutter release button 3 Four-way controller (3) 3 button 4 Four-way controller (4) M button

5 Four-way controller (5)

4 button mc button

E-dial

• The image on the monitor may differ from the captured image if the brightness of the subject is low or high. If any changes occur in the light source during shooting, the image may flicker.

• You can cut down on flicker by setting the power frequency in [Flicker Reduction] (p.184) of the [

• If the camera position is changed rapidly during shooting, the image may not be displayed with the appropriate brightness. Wait for the display to become stable before shooting.

• Noise may appear on the monitor image when used in dark locations.

• If you continue shooting for a prolonged period, the internal temperature of the camera may increase, resulting in lower quality images. It is recommended that you turn off the cam era when not shooting. To prevent the image quality from degrading, allow enough time for the camera to cool down while shooting with long exposures or recording movies.

• The higher the sensitivity, the more noise and color unevenness may occur in the monitor image and/or captured image.

• Images cannot be displayed on the monitor while data is being saved to an SD Memory Card.

Green/Delete button

Set-up 1] menu to that used in your region.

Before Using Your Camera

Aut o Fla sh Di schar ge

0.0

Can ce l

How to Change Function Settings

Function settings can be changed using the direct keys, control panel or menus. This section explains the basic ways to change function settings.

Before Using Your Camera

Using the Direct Keys

In Capture mode, you can set Sensitivity, White Balance, Flash Mode and Drive Mode by pressing the four-way controller (2345). (p.64) Below, how to set [Flash Mode] is explained as an example.

Press the four-way controller (4) in Capture mode.

The Flash Mode setting screen appears.

Use the four-way controller (45) to select a flash mode.

Auto Flash Discharge

0.0

Press the 4 button.

The camera is ready to take a picture.

Cancel

Using the Control Panel

Cus to m I mage Bri gh t

JPE G Qua lity

Can ce l

JPE G Qua lity

128

While shooting, the current settings can be checked on the monitor, and you can switch to the control panel and change settings. Below, how to set [JPEG Quality] is explained as an example.

Press the M button in Capture mode.

The control panel appears.

Use the four-way controller (2345) to select an item you want to change the setting for.

You cannot select items that cannot be changed as a result of current camera settings.

Press the 4 button.

The setup screen of the selected item appears.

Custom Image Bright

JPEG Quality

[37]

Before Using Your Camera

Use the four-way controller (45) or e-dial to select a setting value.

JPEG Quality

Cancel

[37]

128

Cus to m I mage Dig it al Filte r Ima ge Ca pture Sett ings Foc us Se tting s AE Me ter ing ND Fi lte r

Exi t

Press the 4 button.

The camera returns to the control panel and is ready to take a picture.

Before Using Your Camera

Using the Menus

This section explains how to use the following menus: [A Rec. Mode], [C Movie], [Q Playback], [R Set-up] and [A Custom Setting]. Below, how to set [High-ISO NR] in the [A Rec. Mode 2] menu is explained as an example.

Press the 3 button in Capture mode.

The [A Rec. Mode 1] menu appears on the monitor.

The menus listed below are displayed in the following situations.

When the mode dial is set to C

In Playback mode

Press the four-way controller (5).

Each time the four-way controller (5) is pressed, the menu will change in the following sequence: [A Rec. Mode 2], [A Rec. Mode 3], [C Movie 1], [Q Playback 1] ... [A Rec. Mode 1].

You can also change the menu by turning the e-dial.

You can also change the setting by turning the e-dial after selecting the item you want to change in Step 2. Detailed settings such as parameters can be changed after pressing the 4 button.

[C Movie 1] menu

[Q Playback 1] menu

1 23

Custom Image Digital Filter Image Capture Settings Focus Settings AE Metering ND Filter

Exit

HDR C apt ur e Mul ti -ex posur e Int er val Shoo ting D-R an ge Setti ng Hig h- ISO NR Dis to rti on Co rrect ion

Exi t

HDR C apt ur e Mul ti -ex posur e Int er val Shoo ting D-R an ge Setti ng Hig h- ISO NR

Exi t

Dis to rti on Co rrect ion

HDR C apt ur e Mul ti -ex posur e Int er val Shoo ting D-R an ge Setti ng Hig h- ISO NR Dis to rti on Co rrect ion

Can ce l

Use the four-way controller (23) to select an item.

Press the four-way controller (5).

Available settings are displayed in the pop-up menu or submenu.

Use the four-way controller (23) to select a setting.

Press the 3 button to cancel the pop-up menu, or return to the previous screen.

Press the 4 button.

The setting is saved. Press the 3 button if a submenu is

displayed.

Next, set other items.

1 2 3

HDR Capture Multi-exposure Interval Shooting D-Range Setting High-ISO NR Distortion Correction

Exit

1 2 3

HDR Capture Multi-exposure Interval Shooting D-Range Setting High-ISO NR Distortion Correction

Exit

1 2 3

HDR Capture Multi-exposure Interval Shooting D-Range Setting High-ISO NR Distortion Correction

Cancel

Before Using Your Camera

Press the 3 button.

The screen that was displayed before selecting the menu appears again.

Even after you press the 3 button and close the menu screen, your settings will not be saved if the camera is turned off improperly (such as by removing the battery while the camera is on).

Before Using Your Camera

• You can select whether to display the menu tab selected the last time first, or to always display the [A Rec. Mode 1] menu first. (p.192)

• Refer to the following pages for details on each menu.

-[A Rec. Mode] menu 1 p.65

-[C Movie] Menu 1p.67

-[Q Playback] menu 1p.153

-[R Set-up] menu 1p.184

-[A Custom Setting] menu 1p.68

• Some shooting functions can be saved to the quick dial and loaded with the dial operation. (p.138)

2 Getting Started

This chapter explains your first steps from purchasing the camera to taking pictures. Be sure to read this and follow the instructions.

Attaching the Strap .............................................. 36

Inserting the Battery ............................................ 37

Inserting/Removing an SD Memory Card ..........43

Attaching a Lens .................................................. 45

Turning the Camera On and Off ..........................47

Initial Settings ....................................................... 48

Attaching the Strap

Pass the end of the strap through the strap lug, then secure it on the inside of the clasp.

Getting Started

Attach the other end of the strap in the same manner as described above.

Inserting the Battery

Insert the battery into the camera. Use the rechargeable lithium-ion battery D-LI68 exclusively developed for the PENTAX Q.

Charging the Battery

When using the battery for the first time, or when the battery has not been used in a long time, or when [Battery depleted] appears, recharge the battery.

Note: AC plug cord “Listed, Type SPT-2 or NISPT-2, 18/2 flexible cord, rated 125 V, 7A, minimum 6ft (1.8m)”

Connect the AC plug cord to the battery charger.

Plug the AC plug cord into the power outlet.

Indicator lamp

Battery charger

AC plug cord

Face the 2 mark on the battery up, and insert it into the battery charger.

The indicator lamp is lit while charging and turns off when the battery is fully charged.

Getting Started

When the battery is fully charged, remove the battery from the battery charger.

•

Do not use the provided Battery Charger D-BC68P to charge batteries other than rechargeable lithium-ion battery D-LI68. Charging other batteries may cause damage or heating.

• Replace the battery with a new one in the following cases:

- If the indicator lamp blinks or does not light after the battery is inserted

correctly

- If the battery starts to run down more quickly even after being charged (the

battery may have reached the end of its service life)

The maximum charging time is approximately 115 minutes (it depends on temperature and remaining battery power). Charge in a location where the temperature is between 0°C and 40°C.

Inserting/Removing the Battery

• Insert the battery correctly. If the battery is inserted incorrectly, it may not be removed. Wipe the electrodes of the battery with a soft dry cloth before inserting.

• Do not open the battery cover or remove the battery while the power is on.

• Be careful as the camera or battery may become hot when the camera is used continuously for a long period of time.

• Remove the battery when you will not use the camera for a long while. The battery may leak.

• The date and time may be reset if you leave the battery out of the camera for long periods of time. If this occurs, follow the procedure described in “Setting the Date and Time” (p.50) to reset the date and time.

Slide the battery cover in the direction of the arrow, and then lift it to open (1→2).

Insert the battery with the 2 mark facing toward the lens.

To remove the battery, push the battery lock lever in the direction of the arrow (3) with your finger. Remove the battery when it pops out slightly.

Close the battery cover, and then

slide it in the direction of the arrow (4→5).

Battery Level Indicator

You can confirm remaining battery level by checking the display on the monitor.

Monitor Display Battery Level

w (Green) Battery is full.

x (Green) Battery is close to full. y (Yellow) Battery is running low.

z (Red) Battery is almost empty.

[Battery depleted] The camera turns off after displaying the message.

Getting Started

y or z (Red) may appear even when the battery level is sufficient if the camera is used at low temperatures or when performing continuous shooting for a long period of time. In this situation, turn the camera off and on again. If w (Green) appears, you can use the camera.

Approximate Image Storage Capacity and Playback Time (when Using a Fully Charged Battery)

Battery Temperature

D-LI68 23°C 250 images 230 images 210 images 160 minutes

The image storage capacity (normal recording and flash use 50%) is based on

Getting Started

measuring conditions in accordance with CIPA standards, while other data is based on our measuring conditions. Some deviation from the above figures may occur in actual use depending on shooting mode and shooting conditions.

• Battery performance temporarily decreases as the temperature decreases. When using the camera in cold climates, have extra batteries at hand and keep them warm in your pocket. Battery performance will return to normal when returned to room temperature.

• Have extra batteries ready when traveling overseas, taking pictures in cold climates, or taking a lot of pictures.

Normal

Shooting

Flash Photography

50% Use

100% Use

Using the AC Adapter (Optional)

We recommend the use of the AC adapter kit K-AC115 (optional) when using the monitor for a long time or when connecting the camera to a computer or AV device.

Make sure that the camera is turned off.

Open the battery cover.

Refer to Step 1 on p.38.

Remove the battery if it is inserted in the camera.

Playback

Time

Pull down the connection cable cover (1) on the bottom side of the battery chamber, and insert the DC coupler into the battery chamber.

To remove the DC coupler, push the battery lock lever in the direction of the arrow (2) with your finger. Remove the DC coupler when it pops out slightly.

Close the battery cover.

Pull out the connection cable from the connection cable cover section.

Connect the DC coupler and the AC adapter.

Getting Started

Connect the AC adapter to the AC plug cord.

Getting Started

Plug the AC plug cord into the power outlet.

• Make sure the camera is turned off before connecting or disconnecting the AC adapter.

• Make sure connections are secure between the terminals. SD Memory Card or data may be corrupted if disconnected while the card is being accessed.

• The connection cable will protrude from the battery cover while the AC adapter is in use. Be careful as you will not be able to set the camera upright on a table, etc.

• After removing the DC coupler, return the connection cable cover to its original location.

Be sure to read the manual of the AC adapter kit K-AC115 when using the AC adapter.

Inserting/Removing an SD Memory Card

This camera uses a commercially available SD Memory Card, SDHC Memory Card, or SDXC Memory Card. (These cards are referred to as SD Memory Cards hereafter.) Make sure the camera is turned off before inserting or removing the SD Memory Card.

• Do not remove the SD Memory Card while the card access lamp is lit.

• If the card cover is opened while the power is on, the camera will turn off. Do not open the cover while the camera is in use.

• Use this camera to format (initialize) an SD Memory Card that is unused or has been used on other devices. Refer to “Formatting an SD Memory Card” (p.198) for details on formatting.

• Use a high-speed memory card when recording movies. If a write speed cannot keep up with a recording speed, the writing may stop during recording.

Make sure that the camera is turned off.

Slide the card cover in the direction of the arrow, and then lift it to open (1→2).

Getting Started

Insert the card all the way with the SD Memory Card label facing toward the monitor.

Getting Started

Push the SD Memory Card in once to remove.

Close the card cover, and then slide it in the direction of the arrow (3→4).

For details on the approximate number of images that can be recorded on an SD Memory Card, refer to “Approximate Image Storage Capacity” (p.242).

Attaching a Lens

Attach a Q-mount lens to the camera’s body. The steps will be described here using a 01 STANDARD PRIME lens.

• When attaching/removing the lens, choose an environment that is relatively free of dirt and dust.

• Keep the body mount cover on the camera when a lens is not attached.

• Be sure to attach the lens mount cover and lens cap to the lens after removing it.

• Do not insert any fingers into the camera mount or touch the CMOS sensor.

• The camera body and lens mount incorporate lens information contacts. Dirt, dust, or corrosion may damage the electrical system. Please contact a PENTAX Service Center for professional cleaning.

• We assume no responsibility nor liability for accidents, damages and malfunctions resulting from the use of lenses made by other manufacturers.

Make sure that the camera is turned off.

Remove the body mount cover (1) and lens mount cover (2).

Be sure to put the lens down with the lens mount side facing upward to protect the lens mount from damage.

Getting Started

Align the Lens mount index (red dots: 3) on the camera and the lens, and secure by turning the lens clockwise until it clicks.

After attaching, turn the lens counterclockwise to check that the lens is locked in place.

Getting Started

Remove the front lens cap by pushing the indicated portions inward.

To remove the lens, attach the lens cap first, hold down the lens unlock button (4), and turn the lens counterclockwise.

If the lens is removed while the power is on, the monitor will turn off, and the shutter release button will be locked. Do not remove the lens while the power is on.

Turning the Camera On and Off

Press the power switch.

The camera will turn on.

Press the power switch again to turn off the camera.

• Always turn the camera off when not in use.

• The power will automatically turn off when you do not perform any operations within a set period of time (Auto Power Off). By default, the camera is set to turn off automatically after 1 minute of inactivity. You can change the setting in [Auto Power Off] of the [R Set-up 2] menu. (p.190)

• To turn the camera on in the playback mode, press the power switch while holding down the Q button.

Getting Started

Can ce l

Dat e For ma t

Dat e A djust men t

Dat e

Tim e

Set ti ngs comp lete

24h

Can ce l

01/ 01 /20 11

00: 00

mm/ dd /yy

Can ce l

Initial Settings

The first time the camera is turned on after purchasing, the [

Language/u] screen

appears on the monitor. Follow the procedure below to set the language displayed on the monitor and the current

date and time. Once these settings are

Getting Started

made, you will not need to set them again the

Cancel

next time you turn on your camera.

If the [Date Adjustment] screen appears, set the date and time by following the procedure in “Setting the Date and Time” (p.50).

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

Setting the Display Language

You can choose the language in which the menus, error messages, etc. are displayed from the following: English, French, German, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese and Japanese.

mm/dd/yy

01/01/2011

00:00

24h

Use the four-way controller (2345) to select the desired language, and press the 4 button.

Cancel

The [Initial Setting] screen appears in the

Ini ti al Setti ng

Set ti ngs comp lete

Can ce l

Eng li sh

New Yor k

Hom et own

New Yor k DST

Can ce l

Ini ti al Setti ng

Set ti ngs comp lete

Can ce l

Eng li sh

New Yor k

selected language.

Proceed to Step 6 if W (Hometown) does not have to be changed.

Press the four-way controller (3) to move the frame to W,

Initial Setting

New York

Settings complete

Cancel

and press the four-way controller (5).

The [W Hometown] screen appears.

Use the four-way controller (45)

Hometown

to select a city.

Refer to “List of World Time Cities” (p.189) for cities that can be selected as a hometown.

Press the four-way controller (3) to select [DST] (daylight

New York DST

Cancel

saving time), and use the four-way controller (45) to select O or P.

Press the 4 button.

The camera returns to the [Initial Setting] screen.

English

Getting Started

Press the four-way controller (3) to select [Settings complete], and press the 4 button.

Initial Setting

English

New York

The [Date Adjustment] screen appears.

Settings complete

Cancel

When the hometown and the date and time are not set, the [Initial Setting] screen or [Date Adjustment] screen will be displayed again the next time the camera is turned on.

Dat e For ma t

Dat e A djust men t

Dat e

01/ 01 /20 11

Tim e

00: 00

Set ti ngs comp lete

mm/ dd /yy

24h

Can ce l

Dat e For ma t

Dat e A djust men t

Dat e

01/ 01 /20 11

Tim e

00: 00

Set ti ngs comp lete

mm/ dd /yy

24h

Can ce l

Setting the Date and Time

Set the current date and time and the display style.

Press the four-way controller (5), and use the four-way

Getting Started

controller (23) to select the date format.

Choose [mm/dd/yy], [dd/mm/yy] or [yy/ mm/dd].

Press the four-way controller (5), and use the four-way controller (23) to select 24h (24-hour display) or 12h (12hour display).

Press the four-way controller (5).

The frame returns to [Date Format].

Press the four-way controller (3), and press the four-way controller (5).

The frame moves to the month if the date format is set to [mm/dd/yy].

Use the four-way controller (23) to set the month.

Set the day and year in the same manner.

Next, set the time.

If you select [12h] in Step 2, the camera switches between am and pm depending on the time.

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

mm/dd/yy

01/01/2011

00:00

mm/dd/yy

01/01/2011

00:00

24h

Dat e For ma t

Dat e A djust men t

Dat e

Tim e

Set ti ngs comp lete

24h

05/ 05 /20 11

10: 00

mm/ dd /yy

Can ce l

Press the four-way controller (3) to select [Settings complete], and press the 4 button.

The camera switches to Capture mode and is ready to take a picture.

If you set the date and time from the

Date Adjustment

Date Format

Date

Time

Settings complete

Cancel

menu, the screen will return to the [R Set-up 1] menu. In this case, press the 3 button.

Pressing the 3 button while setting the date and time cancels the settings made up to that point and switches the camera to Capture mode. After initial settings are complete, if the camera power is turned off before the date and time settings are complete, the [Date Adjustment] screen will appear first the next time you turn the camera on. You can also set the date and time from the menu later. (p.187)

• When you press the 4 button in Step 6, the seconds value is set to 0. To set the exact time, press the 4 button when the time signal (on the TV, radio, etc.) reaches 0 seconds.

• You can change the language and date and time settings from the menu. (p.187, p.190)

mm/dd/yy

05/05/2011

10:00

24h

Getting Started

Memo

3 Basic Operations

This chapter explains basic operations for shooting by setting mode dial to n (Auto Picture) to have the camera select the optimum settings based on the subject.

For information about advanced functions and settings for taking pictures, refer to chapter 4 and onward.

Basic Shooting Operation ................................... 54

Using a Zoom Lens .............................................. 56

Using the Built-in Flash ....................................... 57

Reviewing Images ................................................61

Basic Shooting Operation

Letting the Camera Choose the Optimal Settings

This camera features various capture modes, focus modes, and drive modes. This section explains how to take pictures by simply pressing the shutter release button.

Basic Operations

Set the mode dial to n.

The camera will select the optimal capture mode for the subject.

1Selecting the Appropriate Capture Mode (p.69)

View the subject on the monitor.

A zoom lens can be used to change the size of the subject on the monitor. (p.56)

200 0

F2. 8

160 0

[

3 7

]

Position the subject inside the AF frame, and press the shutter release button halfway.

The autofocus system operates.

The AF frame turns green and you will hear a beep when the subject comes into focus.

When set to n (Auto Picture) mode, the optimal capture mode is automatically selected from U (Standard), c (Portrait), s (Landscape), b (Macro), . (Night Scene Portrait), K (Sunset), d (Blue Sky) or x (Forest). (p.70)

Press the shutter release button fully.

The picture is taken.

This action is referred to as “releasing the shutter” or “release”.

Review the captured image on the monitor.

The image appears for 1 second on the monitor shortly after capturing (Instant Review).

1Setting the Display for Instant Review (p.192)

You can enlarge the image during Instant Review with the e-dial. (p.155) You can delete the image during Instant Review by pressing the d/i

button.

1Deleting a Single Image (p.62)

2000

F2.8

AF frame

1600

[

]

Basic Operations

• The shutter sound and the beep that sounds when the image is focused can be turned off. (p.186)

• You can set the camera so that pressing the d/i button will focus automatically, in the same way as pressing the shutter release button halfway. (p.90)

• You can preview the image on the monitor and check the depth of field before taking pictures. (p.94)

Using a Zoom Lens

Enlarge the subject (telephoto) or capture a wider area (wide angle) with a zoom lens. Adjust the subject to the desired size and take pictures.

Turn the zoom ring to the right or left.

The angle of view changes.

Basic Operations

The following functions can be set on the camera depending on the lens being used.

- Setting whether to use the ND filter built-in to the lens (p.148).

- Correcting distortion (p.149)

Using the Built-in Flash

Use the flash to take pictures in low light or backlit conditions. The built-in flash is optimum for a subject at a distance from 0.7 m to 3 m. Exposure will not be properly controlled and vignetting (darkening of the corners of the image due to a lack of light) may occur when used at a distance closer than 0.7 m (this distance varies slightly depending on the lens being used and the sensitivity setting. (p.213))

For details on the built-in flash and instructions on how to take pictures with an external flash, refer to “Using the Flash” (p.211).

Setting the Flash Mode

Flash Mode Function

Auto Flash

Discharge Auto Flash+Red-

eye Reduction Flash On Discharges the flash for each picture.

Flash On+Red-

eye Reduction

Slow-speed Sync

+Red-eye

Trailing Curtain

Sync

Flash Off The flash is deactivated.

The camera automatically measures the ambient light and determines whether to use the flash.

Discharges a pre-flash for red-eye reduction before the automatic flash.

Discharges a pre-flash for red-eye reduction before the main flash.

Sets to a slow shutter speed depending on the brightness. When using this to shoot a portrait with the sunset in the background, both the person and the background are captured beautifully.

Discharges a pre-flash for red-eye reduction before the main flash is discharged with Slow-speed Sync.

Discharges the flash immediately before closing the shutter. Captures moving objects as if they are leaving a trail behind. (p.213)

Basic Operations

Aut o Fla sh Di schar ge

0.0

Can ce l

The flash modes that can be selected differ depending on the capture mode.

Capture Mode Selectable Flash Mode

n/H

e/c C/i/E/F/G/H/I/a b/a C/i/E/F/I/a

*1 Fixed to a in the K (Sunset), d (Blue Sky), A (Night Scene), Z (Night Scene HDR),

p (HDR), y (Backlight Silhouette), U (Candlelight), n (Stage Lighting) or

E (Museum) mode.

Basic Operations

/u C/i/E/F/a

Press the four-way controller (4) in Capture mode.

The Flash Mode setting screen appears.

The flash modes that can be selected for the set capture mode appear.

Use the four-way controller (45)

Auto Flash Discharge

to select a flash mode, and press the 4 button.

The camera is ready to take a picture.

0.0

Cancel

Compensating Flash Output

You can change the flash output in a range of –2.0 to +1.0. The following flash compensation values can be set in increments of 1/3 EV or 1/2 EV depending on the lens being used.

Step Interval Flash Compensation Value

1/3 EV

1/2 EV

–2.0, –1.7, –1.3, –1.0, –0.7, –0.3, 0.0, +0.3, +0.7, +1.0

–2.0, –1.5, –1.0, –0.5, 0.0, +0.5, +1.0

Aut o Fla sh Di schar ge

+0. 7

Can ce l

Press the four-way controller (3) in Step 2 on p.58.

Turn the e-dial.

The flash compensation value is displayed.

Press the d/i button to reset the value to 0.0. (Available only when [Green Button] is assigned to the d/i button in [Green Button] of the [A Rec. Mode 3] menu (p.144).)

• When the flash output exceeds its maximum amount, the compensation will not be effective even if the compensation value is set to the plus (+) side.

• Compensating to the minus (-) side may have no effect if the subject is too close, the aperture is set to a large opening, or sensitivity is high.

• The flash output compensation is also effective for external flash units which support P-TTL auto flash mode.

Auto Flash Discharge

Cancel

Shooting with the Flash

Select a flash mode.

Slide the flash pop-up switch in the direction of the arrow.

The built-in flash pops up.

+0.7

Basic Operations

Press the shutter release button halfway.

The flash starts charging.

Press the shutter release button fully.

The picture is taken.

Push down in the direction of the arrow to retract the built-in flash.

• The built-in flash discharges even when retracted, which may cause

Basic Operations

vignetting to occur depending on the lens being used. Vignetting may also occur at other times depending on the shooting conditions.

• Be sure to retract the built-in flash if not planning to use it. Be careful not to get your fingers pinched when retracting the flash.

• If you do not want to let the built-in flash discharge while it is retracted, set [10. Flash When Retracted] (p.68) to [Do Not Discharge Flash] in the [A Custom Setting 2] menu.

• You cannot take pictures while the built-in flash is being charged. If you want to take pictures while charging the built-in flash, set [11. Release While Charging] (p.68) to [On] in the [A Custom Setting 2] menu.

Reviewing Images

Playing Back Images

You can play back captured images with the camera.

Press the Q button.

The camera enters Playback mode and the most recently captured image (image with the highest file number) is displayed on the monitor. (For movies, only the first frame is displayed on the monitor.)

Press the M button during playback to display the shooting information of the image. (p.25)

Press the four-way controller (45).

4: Displays the previous image. 5: Displays the next image.

Basic Operations

• Refer to “Playback Functions” (p.151) for details on the playback mode functions.

• When the file format of the last captured image is JPEG, and its RAW data still remains in the buffer memory, you can save the RAW image by pressing the mc button during Instant Review or playback. If the image was shot using any of the following settings, the corresponding image listed is saved.

- Digital Filter RAW image without a filter effect

- Smart Effect RAW image with [Bright] image finishing tone

Can ce l

Del et e

100 -0 001

Deleting a Single Image

You can delete images one by one.

• Deleted images cannot be restored.

• Protected images cannot be deleted. (p.199)

Press the Q button, and use the four-way controller

Basic Operations

(45) to select an image to delete.

Press the d/i button.

The delete confirmation screen appears.

Use the four-way controller (23) to select [Delete].

Select a file format to delete for images saved in RAW+ format.

Delete JPEG

Delete RAW

Delete RAW+JPEG

Deletes only the JPEG image.

Deletes only the RAW image.

Deletes images in both file formats.

Delete

Cancel

100-0001

Press the 4 button.

The image is deleted.

You can delete multiple images at once. Refer to “Deleting Multiple Images” (p.165) for details.

4 Shooting Functions

This chapter describes the various basic and advanced shooting functions available with this camera.

How to Operate the Shooting Functions ........... 64

Selecting the Appropriate Capture Mode ..........69

Setting the Exposure ........................................... 75

Focusing ............................................................... 86

Checking the Depth of Field (Preview) ...............94

Using the Shake Reduction Function to Prevent

Camera Shake ...................................................... 96

Taking Pictures Continuously .......................... 102

Recording Movies .............................................. 109

How to Operate the Shooting Functions

You can change capture-related settings using the direct keys, control panel, [A Rec. Mode] menu, [C Movie] menu or [A Custom Setting] menu.

For details on how to use the menus, refer to “Using the Menus” (p.32).

Direct Keys Setting Items

Press the four-way controller (2345) in

Shooting Functions

Capture mode to set the following items.

Key Item Function Page

Sensitivity Sets the ISO sensitivity. p.75

White Balance

Flash Mode Sets the method of flash discharge. p.57

Drive Mode

Adjusts the color balance to match the type of the light source illuminating the subject.

Selects Continuous Shooting, Selftimer, Remote Control or Exposure Bracketing shooting.

p.124

p.102 p.98 p.100 p.80

Rec. Mode Menu Items

The following settings can be performed in the [A Rec. Mode 1-3] menus. Press the 3 button in Capture mode to display the [A Rec. Mode 1] menu.

Item Function Page

Custom Image

Sets the image finishing tone such as color and contrast before shooting an image.

Digital Filter

File Format

Aspect Ratio

JPEG Recorded

Pixels

JPEG Quality

Color Space Sets the color space to use.

Image Capture Settings

Focus Method

Autofocus Method

Applies a digital filter effect when taking pictures.

Sets the file format.

Sets the horizontal and vertical ratio of

images.

Sets the recording size of images saved in JPEG format.

Sets the quality of images saved in

JPEG format.

Selects the autofocus or manual focus

mode. Selects the autofocus method in =

mode.

Enlarges the monitor display during

MF Assist

Focus Settings

AE Metering

manual focus and makes it easier to focus on the subject.

Selects the part of the sensor to use for measuring brightness and determining exposure.

ND Filter

Sets whether to use the ND filter built-in to the lens.

p.131

p.135

p.120

p.86

p.87

p.93

p.84

p.148

Shooting Functions

HDR Capture

Multi-exposure

Interval Shooting

D-Range Setting

High-ISO NR

Shooting Functions

Distortion Correction

Quick Dial Assigns functions to the quick dial. p.138

Green Button Assigns functions to the d/i button. p.144

LCD View Options

Instant Review

Memory

Shake Reduction

*1 Can be also set through the control panel.

Item Function Page

Enables capturing images with high dynamic range.

Creates a picture by taking multiple exposures and merging them into a single image.

Takes pictures at a set interval from a set time.

Expands the dynamic range and

prevents bright and dark areas from occurring.

Sets the Noise Reduction setting when shooting with a high ISO sensitivity.

Reduces distortions occurring due to lens properties.

Sets the monitor display in Capture mode.

Sets the Instant Review display settings.

Determines which settings to save when the power is turned off.

Activates the Shake Reduction

function.

p.130

p.107

p.104

p.128 p.129

p.85

p.149

p.191

p.192

p.195

p.96

Movie Menu Items

The following settings can be performed in the [C Movie 1] menu. Press the 3 button when the mode dial is set to C to display the [C Movie 1] menu.

*1 Can be also set through the control panel.

Item Function Page

Sets the number of recorded pixels or size

Recorded Pixels

Sound

Exposure Setting Sets whether to set the exposure manually.

Movie SR

Interval Movie

of the movie.

Sets whether to record sound together with movies.

Activates the Movie SR function.

Takes still pictures at a set interval from a set time and records it as a single movie file.

p.109

p.113

Shooting Functions

Custom Setting Menu Items

Set the [A Custom Setting 1-2] menus to fully use the functions of this camera.

Shooting Functions

Item Function Page

1. AE-L with AF Locked

2. Link AE to AF Point

3. Auto Bracketing Order

4. Shake Reduction Options

5. WB When Using Flash

6. AWB in Tungsten Light

7. AF Release Options

8. AF Assist Light

9. AF with Remote Control

10. Flash When Retracted

11. Release While Charging

12. Save Menu Location

13. Electronic Shutter

Reset Custom Functions

Sets whether to lock the exposure value when the focus is locked.

Sets whether to link the exposure and AF point in the focusing area during multisegment metering.

Sets the order for Exposure Bracketing shooting.

Sets whether to use Shake Reduction during standby mode as well.

Sets the white balance setting when using flash.

Sets whether to adjust the tungsten light color tone when the white balance is set to F (Auto White Balance).

Sets the action priority for when the shutter release button is fully pressed in = mode.

Sets whether to use the AF assist light when autofocusing in dark locations.

Sets whether to use autofocus when shooting with remote control.

Sets whether to discharge the built-in flash when retracted.

Sets whether to release the shutter while the built-in flash is charging.

Sets whether to save the last menu tab displayed on the monitor and to display it again the next time the 3 button is pressed.

Sets whether to use the electronic shutter when using a lens that has a lens shutter.

Resets all the settings in the [A Custom Setting 1-2] menus to the defaults.

p.83

p.84

p.80

p.97

p.125

—

p.88

p.87

p.101

p.60

p.192

p.226

p.196

Selecting the Appropriate Capture

Pro gr am

Aut om ati c Exp osure

05/ 05 /20 11

10: 30

Mode

This camera features various shooting modes, enabling you to take pictures with settings suited for your photographic vision. In this manual, the capture modes are referred to as follows.

Capture Mode Mode Page

n (Auto Picture) mode

H (Scene) mode

u (Blur Control) mode

Exposure modes (e/b/c/a)

C (Movie) mode Records a movie. p.111

Turn the mode dial to set the desired capture mode on the mode dial to the dial indicator.

The camera will automatically select the optimal capture mode for the subject.

You can choose the capture mode from various scene styles.

Takes pictures while emphasizing a blur effect.

Changes the shutter speed and aperture value, and takes pictures.

p.70

p.71

p.73

p.74

Shooting Functions

The selected shooting mode is displayed on the monitor (Guide Display).

Dial indicator

Program

Automatic Exposure

05/05/2011

10:30AMAM

• Set the guide display time in [Guide Display] of the [R Set-up 1] menu. (p.191)

• The scene mode selection screen appears when the mode dial is set to H (p.72)

Auto Picture Modes

When set to n (Auto Picture) mode, the camera automatically selects the optimal mode from the following capture modes for the subject.

Mode Characteristics

U Standard This is selected when none of the following seven modes apply.

Shooting Functions

Portrait

Landscape

Macro

Night Scene

Portrait

K Sunset For capturing sunrises or sunsets in beautiful, vivid color

d Blue Sky

Forest

For capturing portraits. Reproduces a healthy and bright skin tone.

For capturing landscape views. Increases color saturation and produces a vivid color image

For capturing tiny objects at close focus range like flowers, coins, jewelry, and more

For capturing images of people in low light conditions, such as dusk or at night. Even though the flash is used, the camera will use slow shutter speeds so the background areas beyond the flash reach will also appear correctly exposed in the picture (1 Slow-speed Sync (p.212)). To prevent camera shake, either use the Shake Reduction function or mount the camera on a tripod.

For capturing images of blue sky. Produces a more impressive deep blue

Enhances colors of trees and sunbeams through foliage and produces a vivid color image

Scene Modes

By setting the mode dial to H (Scene), you can choose from the following scene modes.

Mode Characteristics

Portrait

s Landscape

Macro

Moving

Object

Night Scene

Portrait

K Sunset For capturing sunrises or sunsets in beautiful, vivid color

d Blue Sky

A Night Scene

Night Scene

HDR

l Night Snap For taking snapshots in poorly lit place

Food

Quick

Macro

Z Pet

Kids

Forest

For capturing portraits. Reproduces a healthy and bright skin tone.

For capturing landscape views. Increases color saturation and produces a vivid color image

For capturing tiny objects at close focus range like flowers, coins, jewelry, and more

For capturing images of fast moving subjects, such as at sporting events. The drive mode is fixed to g (Continuous Shooting (Hi)).

For capturing images of people in low light conditions, such as dusk or at night. Even though the flash is used, the camera will use slow shutter speeds so the background areas beyond the flash reach will also appear correctly exposed in the picture ( Sync (p.212)). To prevent camera shake, either use the Shake Reduction function or mount the camera on a tripod.

For capturing images of blue sky. Produces a more impressive deep blue

Used for shooting at night. Use a tripod or flat surface to prevent camera shake blur

Generates a single HDR image with less noise from 3 images captured in dim lighting

For capturing images of food. Saturation will be rather high to make it look appetizing.

For quick capture of tiny objects at close focus range. This mode automatically adds Blur Control.

For capturing moving pets. The drive mode is fixed to g (Continuous Shooting (Hi)).

For capturing moving kids. Reproduces healthy and bright skin tone. The drive mode is fixed to g (Continuous Shooting (Hi)).

Enhances colors of trees and sunbeams through foliage and produces a vivid color image

Slow-speed

Shooting Functions

Por tr ait

For c apt uring port rai ts . Rep ro duc es a healt hy and b rig ht sk in to ne

Can ce l

Sce ne Mo de Dig it al Filte r Ima ge Ca pture Sett ings Foc us Se tting s AE Me ter ing ND Fi lte r

Exi t

Mode Characteristics

Q Surf & Snow

p HDR

Backlight

Silhouette

U Candlelight For capturing scenes in candlelight

Stage

Lighting

E Museum For capturing images in places where a flash is prohibited

The flash mode is fixed to a (Flash Off) in K, d, A, Z, p, y, U, n

Shooting Functions

and E. To prevent camera shake, either set [Shake Reduction] to k (On) or mount the camera on a tripod.

Selecting a Scene Mode

Set the mode dial to H.

The camera switches to the H mode, and the scene mode selection screen appears.

Use the four-way controller (2345) or e-dial to choose a scene mode, and press the 4 button.

The camera is ready to take a picture.

For capturing images of dazzling backgrounds, such as snowy mountains

Captures 3 images to generate a single HDR image and provides a wider dynamic range

Produces a silhouette image of subject in backlight condition

For capturing moving subjects in poorly lit place

For capturing portraits. Reproduces a healthy and bright skin tone

Cancel

Portrait

• To change the scene mode, press the M button, and select [Scene

• When the 3 button is pressed while

Mode] in the control panel.

the mode dial is set to H, the item [Scene Mode] appears on the [A Rec. Mode 1] menu. Press the four-way controller (5) to display the scene mode selection screen and you can select a scene mode in the same way as described in Step 2.

1 23

Scene Mode Digital Filter Image Capture Settings Focus Settings AE Metering ND Filter

Exit

Blur Control Mode

200 0

F2. 8

160 0

[

3 7

]

Blur Control enables you to create a picture that looks as if it was taken with a wide-open aperture and shallow depth of field, by shooting multiple images with different focus positions and merging them into a single image. This can produce a more noticeable blur effect that was difficult to achieve with conventional compact cameras.

In u mode, images are captured using the following settings:

- Exposure control Open aperture priority

- Sensitivity Fixed to AUTO

- File Format Fixed to JPEG

Set the mode dial to u.

The camera switches to u mode.

Turn the e-dial.

Select the level of blur from three levels while viewing the image on the monitor.

Shooting Functions

2000

F2.8

1600

[

]

• Do not move the camera while taking a picture.

• If holding the camera by hand while shooting, set [Shake Reduction] to k (On).

• The function may not work as effectively as expected if a lens other than an AF lens is used.

• The following functions are not available in this mode:

- Continuous Shooting, Remote Continuous Shooting, or Exposure

Bracketing

- Multi-exposure

- HDR Capture

- Smart Effect

• The blur effect may not turn out as well as expected in the following situations:

- when the contrast is low overall

Shooting Functions

- with fountains and other objects that change color or shape constantly

- with moving objects

- with small objects

- with objects at the edge of the screen

- with backlit scenes and other similar conditions

- when a special filter is used

- with far-off objects (Shooting at distances that produce portrait images from

the chest up is recommended)

Exposure Modes

Use the exposure modes to change the shutter speed and aperture value and take pictures.

Mode Characteristics Page

Automatically sets the shutter speed and aperture

Program

Shutter Priority

Aperture Priority

Manual

value to obtain a proper exposure according to the Program line.

Lets you set the desired shutter speed for expressing subject movement.

Lets you set the desired aperture value for controlling the depth of field.

Lets you set the shutter speed and aperture value to match your photographic vision.

p.76

Setting the Exposure

125

32 0 0

64 0 0

ISO

Can ce l

Setting the Sensitivity

You can set the sensitivity to suit the brightness of the surroundings. The sensitivity can be set to AUTO or within a sensitivity range equivalent to ISO 125 to 6400 in increments of 1/3 EV. The default setting is AUTO.

Press the four-way controller (2) in Capture mode.

The Sensitivity setting screen appears.

Use the four-way controller (23) to select [ISO AUTO] or [ISO].

125

3200

ISO AUTO

ISO Sets the fixed value.

Use the e-dial to change the sensitivity value.

Press the 4 button.

The camera is ready to take a picture.

Sets the range to be adjusted automatically.

ISO

Cancel

6400

Shooting Functions

• When the capture mode is set to Z (Night Scene HDR)/l (Night Snap)/ p (HDR)/n (Stage Lighting) of H (Scene) mode, the sensitivity is fixed

to AUTO and cannot be changed.

• When the mode dial is set to a (Manual), [ISO AUTO] is not displayed. When the sensitivity is set to AUTO and the mode dial is set to a, the sensitivity is fixed to the last set value.

• The minimum sensitivity is ISO 250 when [Highlight Correction] (p.128) is set to [On].

• Captured images may show more noise if a higher sensitivity is set. You can change the setting in [High-ISO NR] of the [A Rec. Mode 2] menu. (p.85)

Expanding the Dynamic Range

Dynamic range is the ratio that indicates the light level expressed by the CMOS sensor pixels from bright areas to dark areas. The larger it is, the better the whole range from dark to bright areas will appear in the picture. By expanding the dynamic range, you can expand the light level expressed by the CMOS sensor pixels, making it more difficult for bright areas or dark areas to occur in the image. To expand the dynamic range, make the settings in [D-Range Setting] of the [A Rec. Mode 2] menu. (p.128)

Shooting Functions

Changing the Exposure Mode

This camera features the following four exposure modes. The settings available for each exposure mode are as follows.

z: Available #: Restricted ×: Not available

Exposure Mode

e Program z # b Shutter Priority zz × z c Aperture Priority z × zz

a Manual × zz

*1 In [Green Button] of the [A Rec. Mode 3] menu, you can make the setting so that the

shutter speed and/or aperture value can be changed by turning the e-dial. (p.146)

Set the mode dial to e, b, c or

Compensation

Change

Shutter

Speed

Change

Aperture

Value

Change

Sensitivity

Other than

AUTO

200 0

F2. 8

160 0

[

3 7

]

Turn the e-dial to adjust the value.

5 appears on the monitor before the value that can be changed.

The following parameters can be changed depending on the selected exposure mode.

2000

F2.8

Item set in [Green Button] of the [A Rec. Mode 3] menu (p.146)

Shutter speed

Aperture value

Shutter speed

When set to a mode, press the mc button (1), and then turn the e-dial (2) to change the aperture value.

The exposure compensation value can be adjusted by this operation in e/b/c mode. (p.80)

• A proper exposure may not be obtained with the selected shutter speed and aperture value when the sensitivity is set to the fixed value (p.75).

• Use an optional ND (Neutral Density) filter if the subject is too bright. Use a flash if it is too dark.

•In a mode, the difference from the proper exposure is displayed in a bar graph while the shutter speed or aperture value is adjusted. The exposure value is displayed in red when the difference from the proper exposure becomes ±3.0 or larger.

• You can set the function of the d/i button when the exposure mode is set to a. Set in [Green Button] of the [A Rec. Mode 3] menu. (p.147)

• Sensitivity values higher than ISO 1600 are not available when the shutter speed is set to 2 sec. or slower in b/a mode.

1600

[

Shooting Functions

]

F2. 8

160 0

[

3 7

]

Using the Bulb Shooting

This is useful when shooting night scenes and fireworks which require long exposures.

Set the mode dial to a.

Turn the e-dial to the left (f), and set the shutter speed to h.

h appears after the slowest shutter speed.

Shooting Functions

Press the shutter release button.

The shutter remains open as long as the shutter release button is kept pressed.

• Bulb shooting is available only when using a lens that has a lens shutter.

• In Bulb shooting, the following functions are not available.

- EV Compensation

- Exposure Bracketing

- AE Lock

- Continuous Shooting

- Interval Shooting

- HDR Capture

- Shake Reduction

• Bulb shooting ends compulsorily once the exposure time exceeds 32 seconds.

• Use a sturdy tripod to prevent camera shake during Bulb shooting.

• The upper sensitivity limit for Bulb shooting is ISO 1600.

• We recommend using the AC adapter kit K-AC115 (optional) when shooting with a long exposure setting as the battery drain is high during Bulb shooting. (p.40)

F2.8

1600

[

]

Adjusting the Exposure

200 0

F2. 8

160 0

[

3 7

]

+1. 7

This allows you to deliberately overexpose (brighten) or underexpose (darken) your picture. The compensation value can be set in increments of 1/3 EV or 1/2 EV between -3 and +3 depending on the lens being used.

Step Interval Exposure Setting Value

1/3 EV

1/2 EV

Press the mc button (1), and then turn the e-dial (2).

The exposure is adjusted.

EV bar is displayed on the monitor during adjustment.

Press the mc button to not show the bar.

±0.3, ±0.7, ±1.0, ±1.3, ±1.7, ±2.0, ±2.3, ±2.7, ±3.0

±0.5, ±1.0, ±1.5, ±2.0, ±2.5, ±3.0

+1.7

2000

F2.8

EV bar

1600

[

Shooting Functions

]

• EV Compensation is not available when the capture mode is set to a (Manual).

• The set compensation value is not canceled by turning the camera off or by switching to another capture mode.

• If [Green Button] is assigned to the d/i button in [Green Button] of the [A Rec. Mode 3] menu (p.144), the compensation value is reset to 0.0 when the d/i button is pressed.

Changing the Exposure Automatically when Shooting (Exposure Bracketing)

You can take three consecutive images at three different exposure levels when the shutter release button is pressed.Three images are saved with each release.

Shooting Functions

Standard exposure Underexposure Overexposure

You can set the bracketing order in [3. Auto Bracketing Order] (p.68) of the [A Custom Setting 1] menu. By default, the first image is exposed with no compensation, the second image is underexposed (negative compensation) and the third image is overexposed (positive compensation).

10 - +

2 - 0 +

3+ 0 -

40 + -

Press the four-way controller (5) in Capture mode.

The Drive Mode setting screen appears.

Use the four-way controller (45) to select l.

Standard ´ Underexposed ´ Overexposed (default setting)

Underexposed ´ Standard ´ Overexposed

Overexposed ´ Standard ´ Underexposed

Standard ´ Overexposed ´ Underexposed

• Exposure Bracketing is not available in the following situations.

- when the capture mode is set to \ (Moving Object)/Z (Night Scene

HDR)/Z (Pet)/R (Kids)/p (HDR) of H (Scene) mode

- when the shutter speed is set to h

- when HDR Capture is set

• Exposure Bracketing cannot be used with Interval Shooting or Multiexposure at the same time. (The function selected last is used.)

Exp os ure Brac ketin g

Can ce l

Press the four-way controller (3), and use the four-way controller (45) to select l or c.

Exposure Bracketing

Cancel

l Exposure

Bracketing

Exposure Bracket

+Remote Ctrl

Press the four-way controller (3), and turn the e-dial to set

Takes pictures with the shutter release button.

Takes pictures with an optional remote control unit. The remote control operates according to the Remote Control shooting (p.100) setting. The shutter is immediately released when set to i (Remote Continuous Shooting).

the bracket value.

The bracket value can be set in increments of 1/3 EV or 1/2 EV depending on the lens being used.

Step Interval Bracket Value

1/3 EV

1/2 EV

Available operations

mc button

´ e-dial

d/i button Resets the compensation value.

Press the 4 button.

The camera is ready to take a picture.

±0.3, ±0.7, ±1.0, ±1.3, ±1.7, ±2.0, ±2.3, ±2.7, ±3.0

±0.5, ±1.0, ±1.5, ±2.0, ±2.5, ±3.0

Adjusts the EV compensation value (only when taking underexposed or overexposed images).

(Available only when [Green Button] is assigned to the button in [Green Button] of the [

Rec. Mode 3] menu (p.144).)

d/i

Shooting Functions

Gre en Bu tton Pre vi ew One P ush File Form at AE Lo ck Ena bl e AF

Gre en Bu tton

Can ce l

• When [Autofocus Method] (p.87) is set to [AF Select (25 Points)], [Select] or [Spot], the focus position is locked in the first image and is used for subsequent images.

• Switch to a mode other than l or c in the Drive Mode setting screen to cancel Exposure Bracketing. The setting is canceled when the camera is turned off if [Drive Mode] is set to P (Off) in [Memory] (p.195) of the [A Rec. Mode 3] menu.

• You can combine Exposure Bracketing with the built-in flash or an external flash (P-TTL auto only) to change only the flash output continuously.

Locking the Exposure Before Shooting (AE Lock)

AE Lock is a function that locks the exposure (brightness) prior to taking a

Shooting Functions

picture. Use this when the subject is too small or is backlit and a proper exposure setting cannot be obtained. First, assign the AE Lock function to the d/i button.

Select [Green Button] in the [A Rec. Mode 3] menu, and press the four-way controller (5).

The [Green Button] screen appears.

Press the four-way controller (5), use the four-way controller (23) to select [AE Lock], and press the 4 button.

Green Button

Green Button Preview One Push File Format AE Lock Enable AF

Cancel

Press the 3 button twice.

The AE Lock function is assigned to the d/ i button and the camera is ready to take a picture.

Set the exposure, and press the d/i button.

The camera locks the exposure at that instant.

@ is displayed on the monitor while AE Lock is engaged.

• The exposure remains locked as long as the d/i button is kept pressed or the shutter release button is kept pressed halfway.

• You will hear a beep when AE Lock is activated. The beep can be turned off. (p.186)

• When any of the following operations are performed, AE Lock is canceled.

- the d/i button is pressed again

- the Q button, 3 button, or power switch is pressed

- the mode dial is turned

- the lens is changed

• AE Lock is not available when the shutter speed is set to h.

• The exposure is also locked when the focus is locked. If you do not want to lock the exposure when the focus is locked, set [1. AE-L with AF Locked] (p.68) of the [A Custom Setting 1] menu to [Off].

• When the shutter speed or aperture value is changed while AE Lock is engaged in a (Manual) mode, the combination of shutter speed and aperture value changes while the exposure remains the same. For example, when the shutter speed is 1/125 sec. and aperture is F4 and these settings are locked, the aperture automatically changes to F8 if the shutter speed is changed to 1/30 sec.

• When using a zoom lens whose maximum aperture varies depending on the focal length, the combination of shutter speed and aperture value changes depending on the zooming position even while AE Lock is engaged. However, the exposure value does not change and a picture is taken at a brightness level set when AE Lock is activated.

Shooting Functions

AE Me ter ing Mul ti -se gment

Can ce l

Selecting the Metering Method

Choose the part of the sensor to use for measuring brightness and determining exposure. The following three methods are available.

The sensor meters the brightness in 16 different zones.

Shooting Functions

N Spot metering

Multi-segment metering

Center-weighted metering

Press the M button in Capture mode.

The control panel appears.

Use the four-way controller (2345) to select [AE Metering], and press the 4 button.

The [AE Metering] screen appears.

(default setting) Even in backlit locations, this mode automatically determines what level of brightness is in which portion and automatically adjusts exposure.

Metering is weighted at the center of the sensor. The sensitivity increases at the center and no automatic adjustment is performed even during backlit scenes.

The brightness is measured only within a limited area at the center of the sensor. You can use this in combination with the AE Lock function (p.82) when the subject is extremely small and a correct exposure is difficult to obtain.

Use the four-way controller (45) to select a metering method, and

AE Metering Multi-segment

press the 4 button.

The camera returns to the control panel.

Cancel

• You can also change the setting from the [A Rec. Mode 1] menu.

• In [2. Link AE to AF Point] (p.68) of the [A Custom Setting 1] menu, you can link the exposure and AF point in the focusing area during multi-segment metering.

Reducing Image Noise (Noise Reduction)

HDR C apt ur e Mul ti -ex posur e Int er val Shoo ting D-R an ge Setti ng Hig h- ISO NR Dis to rti on Co rrect ion

Can ce l

When shooting with a digital camera, image noise (image roughness or unevenness) becomes noticeable in the following situations.

- when shooting with a long exposure

- when shooting with a high sensitivity setting

- when the temperature of the CMOS sensor is high

You can reduce image noise by using Noise Reduction.

High-ISO NR

Reduces noise at high sensitivity (ISO) settings.

Select [High-ISO NR] in the [A Rec. Mode 2] menu, and press the four-way controller (5).

Use the four-way controller (23) to select [Auto], [Low] or [High], and press the 4 button.

Auto

Low/High

Press the 3 button.

The camera is ready to take a picture.

1 2 3

HDR Capture Multi-exposure Interval Shooting D-Range Setting High-ISO NR Distortion Correction

Cancel

Applies Noise Reduction at optimally calculated levels throughout ISO range. (default setting)

Applies Noise Reduction at constant chosen level throughout ISO range.

The card access lamp blinks and the camera cannot be operated during Noise Reduction.

Shooting Functions

Foc us Me thod

Can ce l

Focusing

Setting the Focus Method

You can focus with the following methods.

Autofocus

Manual focus Manually adjust the focus.

Shooting Functions

Press the M button in Capture mode.

The control panel appears.

Use the four-way controller (2345) to select [Focus

The camera automatically focuses on the subject when the shutter release button is pressed halfway.

Method], and press the 4 button.

The [Focus Method] screen appears.

Use the four-way controller (45)

Focus Method

to select a focus method, and press the 4 button.

The camera returns to the control panel.

Cancel

Refer to “Letting the Camera Choose the Optimal Settings” (p.54) for information on how to take pictures in = mode.

Refer to “Adjusting the Focus Manually (Manual Focus)” (p.92) for information on how to take pictures in \ mode.

• You can also change the setting from the [Focus Settings] (p.65) of the [A Rec. Mode 1] menu.

• [Focus Method] is fixed to = when the capture mode is set to n (Auto Picture) or u (Blur Control) mode, or \ (Moving Object)/l (Night Snap)/ w (Quick Macro)/Z (Pet)/R (Kids)/n (Stage Lighting) of H (Scene) mode.

•In = mode, when the subject is in a dark location, the AF assist light is used when the shutter release button is pressed halfway. To not use the AF assist light, set [8. AF Assist Light] (p.68) to [Off] in the [A Custom Setting 2] menu.

Setting the Autofocus Method

You can choose from the following five autofocus methods in = mode.

Detects and tracks faces of people. The faces of up to 12 people

Face

Detection

E Tracking

AF Select

(25 Points)

G Select

Spot Sets the focusing area to a limited area at the center.

Press the M button in Capture mode.

The control panel appears.

Use the four-way controller (2345) to select [Autofocus

can be detected. The main face detection frame for autofocus and auto exposure is displayed in yellow. The shutter is released by pressing the shutter release button fully even if the subject is not in focus.

Tracks the subject in focus when the shutter release button is pressed halfway. The shutter is released by pressing the shutter release button fully even if the subject is not in focus.

Sets the focusing area to the desired area. (default setting) The sensor is divided into 25 areas (5 horizontal by 5 vertical), and you can select a wider or narrower focusing area by using 25, 9, 5, 3 or just 1 of those 25 areas available. (p.89)

Sets the focusing area by the number of pixels. You can select a setting more detailed than [AF Select (25 Points)].

Method], and press the 4 button.

The [Autofocus Method] screen appears.

Shooting Functions

Aut of ocu s Met hod AF Se lec t (25 Poin ts)

Can ce l

Use the four-way controller (45) to select an autofocus method, and press the 4 button.

The camera returns to the control panel.

Autofocus Method AF Select (25 Points)

Cancel

• You can also change the setting from the [Focus Settings] (p.65) of the [A Rec. Mode 1] menu.

• [Autofocus Method] is fixed to D when the capture mode is set to n (Auto Picture), or R (Kids) of H (Scene) mode.

• [Autofocus Method] is fixed to E when the capture mode is set to \

Shooting Functions

(Moving Object)/l (Night Snap)/Z (Pet)/n (Stage Lighting) of H (Scene) mode.

• In [AF Select (25 Points)], [Select] or [Spot] mode, you can take pictures by fully pressing the shutter release button only when the subject is in focus. To take pictures when the subject is not in focus, set [7. AF Release Options] (p.68) to [Release-priority] in the [A Custom Setting 1] menu.

Selecting the Desired Focusing Area

Exi t

You can set the position and range of the autofocusing area (AF area).

Select [AF Select (25 Points)] or [Select] in Step 3 on p.88, and press the 4 button.

The camera returns to the control panel.

Press the M button twice.

The camera is ready to take a picture.

Press the 4 button.

The position and range of the AF area can be changed.

Select the AF area.

Exit

Available operations

Four-way controller (2345)

E-dial to the right (y) Increases the size of the AF area (when [AF Select

E-dial to the left (f) Reduces the size of the AF area (when [AF Select

4 button Returns the AF area to the center.

Moves the AF area.

(25 Points)] is selected).

Shooting Functions

Press the 3 button.

The AF area is set.

The set AF area remains in the memory even if the autofocus method is changed or the camera is turned off.

Gre en Bu tton Pre vi ew One P ush File Form at AE Lo ck Ena bl e AF

Gre en Bu tton

Can ce l

Focusing Using the d/i Button

You can set the camera to perform focusing by pressing the d/i button. Use this setting when the autofocus by pressing the shutter release button halfway is not desired. First, assign the Enable AF function to the d/i button.

Select [Green Button] in the [A Rec. Mode 3] menu, and press the four-way controller (5).

The [Green Button] screen appears.

Shooting Functions

Press the four-way controller (5), use the four-way controller (23) to select [Enable AF], and press the 4 button.

Green Button

Green Button Preview One Push File Format AE Lock Enable AF

Cancel

Press the 3 button twice.

Enable AF is assigned to the d/i button and the camera is ready to take a picture.

While viewing the subject on the monitor, press the d/i button.

The autofocus system operates.

When Enable AF is assigned to the d/i button, the autofocus by pressing the shutter release button halfway is disabled.

Locking the Focus (Focus Lock)

200 0

F2. 8

160 0

[

3 7

]

200 0

F2. 8

160 0

[

3 7

]

If the subject is outside the range of the focusing area, the camera cannot automatically focus on the subject. In this case, focus the camera on the subject in the focusing area, lock the focus at that position (Focus Lock), and then recompose your picture.

Set [Focus Method] to =.

Refer to “Setting the Focus Method” (p.86) for details.

Set [Autofocus Method] to [AF Select (25 Points)], [Select], or [Spot].

Refer to “Setting the Autofocus Method” (p.87) for details.

Frame the desired composition for your picture on the monitor.

Shooting Functions

Center the subject to focus on the monitor and press the shutter release button halfway.

The AF frame turns green when focused. The focus is locked while the AF frame is green.

2000

F2.8

1600

Example)

The person is out of focus and the background is in focus instead.

2000

F2.8

1600

[

]

200 0

F2. 8

160 0

[

3 7

]

Recompose the picture while keeping the shutter release button pressed halfway.

• Turning the zoom ring with the focus locked may cause the subject to be out of focus.

• You cannot lock the focus when the capture mode is set to \ (Moving Object)/ l (Night Snap)/Z (Pet)/R (Kids)/n (Stage Lighting) of H (Scene) mode. In such cases, the autofocus continues to focus on the subject until the shutter is released (Continuous Autofocus).

Shooting Functions

Adjusting the Focus Manually (Manual Focus)

Manually adjust the focus.

Set [Focus Method] to \.

Refer to “Setting the Focus Method” (p.86) for details.

While viewing the monitor, turn the focusing ring.

The shutter can be released by pressing the shutter release button fully even if the subject is not in focus.

2000

F2.8

1600

[

]

Focusing with the Image Enlarged

You can more easily focus on the subject by enlarging the image in the center of the monitor during \ mode.

Select [Focus Settings] in the [A Rec. Mode 1] menu, and press the four-way controller (5).

The [Focus Settings] screen appears.

Use the four-way controller (23) to select [MF Assist], and press the four-way controller (5).

Set the magnification to [Off], [x2], or [x4], and press the 4 button.

The magnification can be changed with the e-dial while the image is enlarged.

Press the 3 button twice.

MF Assist is set and the camera is ready to take a picture.

Turn the focusing ring, or press the 4 button.

The image on the monitor is enlarged.

Check that the subject is in focus.

Available operations

E-dial to the right (y) Enlarges the image (up to 4 times). E-dial to the left (f) Reduces the image (up to 1 times).

Four-way controller (2345) Moves the area to enlarge.

If any button other than the four-way controller (2345) is pressed, or if no operations are made within 30 seconds, the camera returns to normal display.

Shooting Functions

Gre en Bu tton Pre vi ew One P ush File Form at AE Lo ck Ena bl e AF

Gre en Bu tton

Can ce l

Checking the Depth of Field (Preview)

You can check the depth of field by stopping down the aperture of the lens to the actually set value.

Assigning the Preview Function to the Green Button

First, assign the Preview function to the d/i button.

Shooting Functions

Select [Green Button] in the [A Rec. Mode 3] menu, and press the four-way controller (5).

The [Green Button] screen appears.

Press the four-way controller (5), use the four-way controller (23) to select [Preview], and press the 4 button.

Green Button

Green Button Preview One Push File Format AE Lock Enable AF

Cancel

Press the 3 button twice.

The Preview function is assigned to the d/i button and the camera is ready to take a picture.

Displaying the Preview

View the subject on the monitor, and press the shutter release button halfway.

The autofocus system operates.

Press the d/i button.

You can check the depth of field on the monitor while the d/i button is pressed.

Take your finger off the d/i button.

Preview is ended and the camera is ready to take a picture.

Shooting Functions

Using the Shake Reduction Function to Prevent Camera Shake

Taking Pictures Using the Shake Reduction Function

The Shake Reduction function reduces camera shake that occurs when the shutter release button is pressed. This is useful for taking pictures in situations where camera shake is likely to occur. The Shake Reduction function works effectively when taking pictures in the following situations.

- When taking pictures in dimly lit locations, such as indoors, at night,

Shooting Functions

on cloudy days and in the shade

- When taking telephoto pictures

• The Shake Reduction function does not compensate for blurring caused by subject movement. To take pictures of a moving subject, increase the shutter speed.

• The Shake Reduction function may not fully reduce camera shake when taking close-up shots. In this case, it is recommended to turn off the Shake Reduction function and use the camera with a tripod.

• The Shake Reduction function will not fully work when shooting with a very slow shutter speed, for example when panning or shooting night scenes. In this case, it is recommended to turn off the Shake Reduction function and use the camera with a tripod.

Press the M button in Capture mode.

The control panel appears.

Use the four-way controller (2345) to select [Shake Reduction], and press the 4 button.

The [Shake Reduction] screen appears.

Sha ke Re ducti on On

Can ce l

200 0

F2. 8

160 0

[

3 7

]

Use the four-way controller (45) to select k or l, and press the 4 button.

The camera returns to the control panel.

Shake Reduction On

Cancel

k Uses Shake Reduction. (default setting)

Does not use Shake Reduction.

Press the shutter release button halfway.

k appears on the monitor and the Shake Reduction function is activated.

2000

F2.8

Be sure to turn the Shake Reduction function off when using the camera with a tripod.

• You can also change the setting from the [A Rec. Mode 3] menu (p.66).

•

[Shake Reduction] is fixed to l in the following situations.

- Self-timer shooting

- Remote Control shooting

- when the shutter speed is set to h

• [Shake Reduction] is fixed to k when the capture mode is set to Z (Night Scene HDR) or p (HDR) of H (Scene) mode.

• You can select whether to use the Shake Reduction function only when taking pictures or during standby mode as well with [4. Shake Reduction Options] (p.68) from the [A Custom Setting 1] menu.

• The Shake Reduction function will not fully work (for about 2 seconds) right after turning on the camera or restoring from Auto Power Off. Wait for the Shake Reduction function to work stably and properly, and then press the shutter button gently.

• The Shake Reduction function is available with any PENTAX Q-mount lens compatible with this camera.

1600

[

Shooting Functions

]

Sel f- tim er (1 2 sec .)

Can ce l

Shooting with Self-timer

This camera has the following two types of self-timers.

Self-timer (12 sec.)

Self-timer (2 sec.)

The self-timer shooting is not available when the capture mode is set to \ (Moving Object)/Z (Pet)/R (Kids) of H (Scene) mode.

Shooting Functions

Mount the camera onto a tripod.

Press the four-way controller (5) in Capture mode.

The Drive Mode setting screen appears.

Use the four-way controller (45) to select g.

Press the four-way controller

The shutter is released after about 12 seconds. Use this mode to include the photographer in the picture.

The shutter is released about 2 seconds after the shutter release button is pressed. Use this mode to avoid camera shake when the shutter release button is pressed.

Self-timer (12 sec.)

(3), use the four-way controller (45) to select g or Z, and press the 4 button.

The camera is ready to take a picture.

Press the shutter release button halfway.

The autofocus system operates.

Cancel
