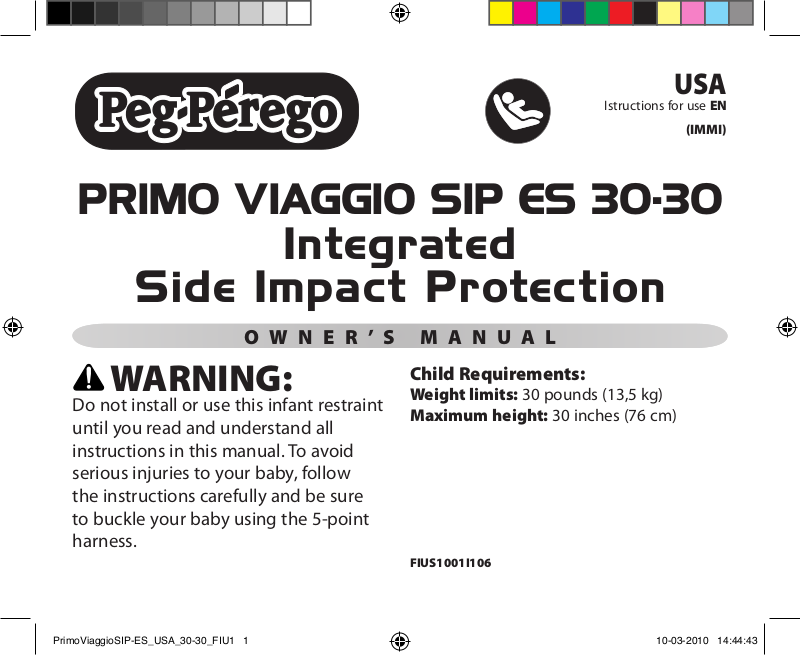

Peg-Perego PRIMO VIAGGIO SIP ES 30.30 User Manual

Do not install or use this infant restraint until you read and understand all instructions in this manual. To avoid serious injuries to your baby, follow the instructions carefully and be sure to buckle your baby using the 5-point harness.

WARNING:

Child Requirements:

Weight limits: 30 pounds (13,5 kg) Maximum height: 30 inches (76 cm)

FIUS1001I106

O W N E R ’ S M A N U A L

USA

Istructions for use EN

(IMMI)

Integrated

Side Impact Protection

PRIMO VIAGGIO SIP ES 30.30

PrimoViaggioSIP-ES_USA_30-30_FIU1 1 10-03-2010 14:44:43

Table of Contents

3 Before You Start 4 Customer Service

4 Registration Form

5 Safety

7 Safety Rules

8 Your Car Seat

9 Your Car Seat Base 10 Travel System 11 Serial Numbers 12 Installation Instructions

Installing the Base

14 How to Install the Base Using the

LATCH SYSTEM

17 How to install the Base Using your

VEHICLE SEAT BELT

19 Installing the Base with Different

Types of Seat Belts

21 How to Install the Locking Clip 22 Different Types of Vehicle Seat Belts

23 Installing the Car Seat on the Base 25

Installing the Car Seat without the Base

27 Installing the Seat with Different

Types of Seat Belts

How to Buckle Your Baby into the Car Seat

33 How to Raise or Lower the Shoulder

Straps

36 Using the Car Seat Outside the

Vehicle

39 How to Use the Car Seat on Aircraft

without the Base

40 How to Use the Car Seat on Aircraft

with the Base

41 Cleaning and Maintenance

42 How to Wash the Chair Padding-

Cover removal

44 How to Wash the Chair Padding-

Refitting

45 Replacement Parts

PrimoViaggioSIP-ES_USA_30-30_FIU2 2 10-03-2010 14:44:44

1 Please read this manual carefully. Keep this manual in the plastic pocket on the

base of the infant car seat.

2 Review car seat parts and read through instructions. Also read the labels. Read and

understand all instructions before using this car seat.

3 Fill in and return the registration form (see page 4). 4 All assembly must be performed by an adult. 5 Do not use the car seat if damaged or parts are missing. 6 Use only the parts or accessories that come with the unit. Do not modify or

repair any part.

7 Remember: this car seat is to be installed rear facing only. 8 Peg Perego has the right to make changes to the product at any time without

notice.

Before You Start

PrimoViaggioSIP-ES_USA_30-30_FIU3 3 10-03-2010 14:44:44

Call Peg Perego USA customer service at 1-800-671-1701 (toll free) for information about repairs or spare parts. If any part is missing or damaged, replace with Peg Perego parts only. See page 46 for a list of replacement parts.

If you want more than one base, you can purchase it from your local dealer, or you can call 1-800-671-1701 (toll free), or you can go to www.pegperego.com.

Important! Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address and the restraint’s model number and manufacturing date to:

Peg Perego U.S.A., Inc. 3625 Independence Drive Fort Wayne, IN 46808

Or call 1-800-671-1701 (toll free)

For recall information, call the U.S. Government’s Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153). Or go to http://www.NHTSA.gov

Customer Service

Registration Form

PrimoViaggioSIP-ES_USA_30-30_FIU4 4 10-03-2010 14:44:44

Warning

• This car seat meets or exceeds all

applicable Federal Motor Vehicle Safety Standard 213 requirements for use in motor vehicles and aircraft.

• Your child could be seriously injured

if you do not follow instructions and warning labels correctly.

•

Use this car seat rear facing only. This seat is not designed to face forward. Serious injury or death can occur in an accident if you install the seat facing forward.

• Never use in a vehicle seat with an

active air bag. Read your vehicle manual for instructions on how to turn off the air bag.

• If your vehicle has air bags, do not

install this car seat on a seat with an active air bags. Death or serious injuries can occur if an air bag hits the unit (read your vehicle owner’s

manual for instructions on where to install an infant car seat in your vehicle).

• This car seat is certified for use with or without base. Use of the base is highly recommended for ease of proper installation. Install this car seat without the base only if needed.

• Never install the car seat in the front vehicle seat unless instructed by your

Safety

PrimoViaggioSIP-ES_USA_30-30_FIU5 5 10-03-2010 14:44:44

vehicle manual. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.

•

Install this car seat on front facing seats only. Do not use on rear facing or side facing seats or in cars with door-mounted or motorized shoulder belts.

•

If you use a lap belt or lap/shoulder

belt to install the base, you must use a seat belt that locks in place. If it does not lock in place, use the locking clip. The seat belt must lock into place for the car seat to be properly secured.

•

Be sure the car seat or car seat base

are properly secured using a vehicle seat belt or LATCH as shown in this manual.

•

Always buckle your baby into the car

seat with the harness. Be sure to latch buckles correctly.

•

When lifting the seat out of the base,

be sure you first secure the handle

into the carrying position.

•

Keep fingers away from moving parts.

•

Use only approved parts. Use of

unapproved parts can affect the safety of the car seat and cause serious injury or death in an accident.

•

Complete and send in the registration

form right away.

•

Always store the manual with car seat.

Keep it in the pocket on front of base.

•

In case of accident: if this car seat

is involved in a car accident, it may be no longer safe to use. You may need to get a new unit. Call customer service at 1-800-671-1701 (toll free) for more information.

•

Do not use Primo Viaggio Sip ES 30•30

with bases manufactured before July

2006.

PrimoViaggioSIP-ES_USA_30-30_FIU6 6 10-03-2010 14:44:44

•

Use only with children who weigh

between 5 and 30 pounds (2.3 and 13,5 kg) and whose height is 30 inches (76 cm) or less. If your baby was born with low birth weight, ask your doctor for special instructions on using an infant car seat.

•

Use this car seat in vehicles with

standard lap or lap/shoulder belts or universal lower anchors. If your vehicle has lower anchors, use those to secure the car seat instead of the standard seat belt. Read your vehicle manual to locate the lower anchors.

•

Be sure the car seat is properly

leveled. If the seat reclines too much, your baby can be injured or ejected from the seat. If the seat is too upright, it can cause your baby to have breathing problems, which could lead to injury or death.

•

Do not place car seat on countertop,

table, or soft surfaces.

•

Never leave your baby alone in the

car seat. He/she could get tangled in

the straps and be seriously injured or could move or tip the seat.

•

Do not leave the car seat or base

unsecured in the vehicle, even if not occupied. A loose car seat can injure other passengers in a crash.

•

Do not use this unit after five (5) years

from the date of production labeled on the seat.

•

Do not hang toys on handle of seat.

Safety Rules

PrimoViaggioSIP-ES_USA_30-30_FIU7 7 10-03-2010 14:44:44

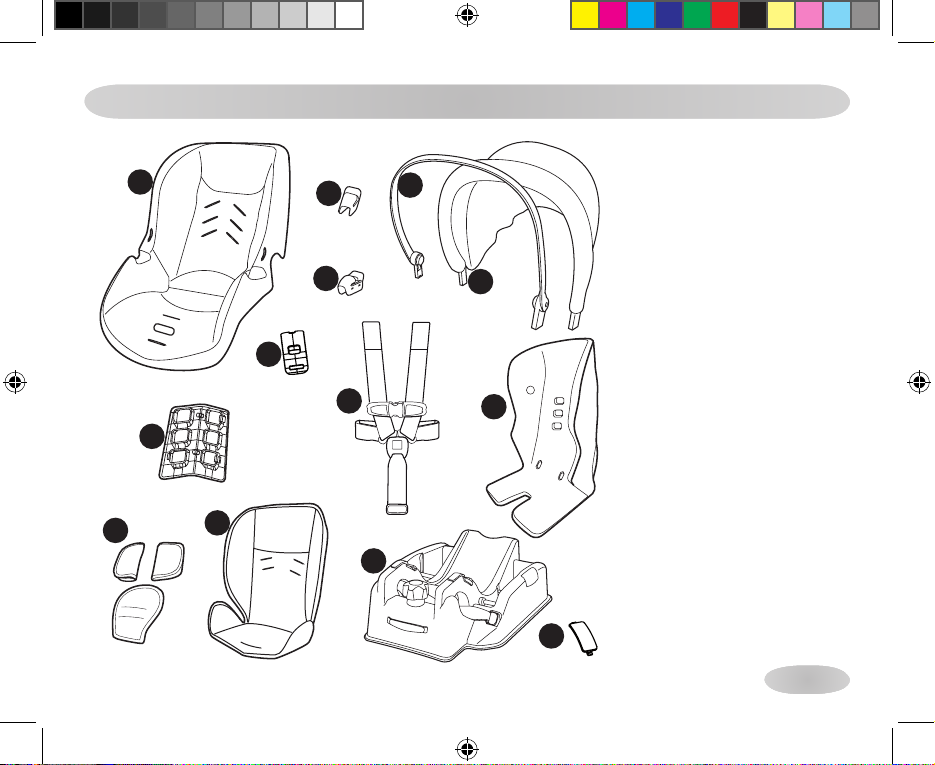

Your Car Seat

HOOD

BACK

Slide adjuster

Harness strap

Anchor buckles

Release lever

FRONT

Energy absorbing Expanded Polystyrene (EPS) foam lined shell for added impact protection.

Chest harness clip

Harness buckle

Harness latch plate

5-POINT HARNESS SYSTEM

Seat handle

Seat pad for infant

Side Impact Head protection

Harness adjuster button

Harness adjuster strap

PrimoViaggioSIP-ES_USA_30-30_FIU8 8 10-03-2010 14:44:45

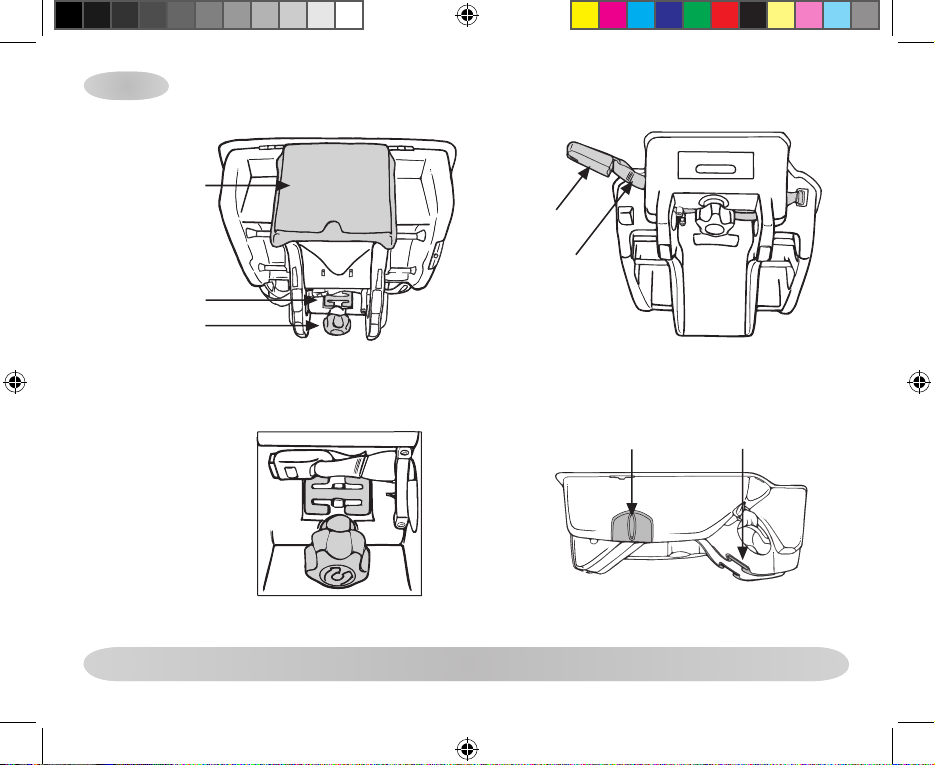

Your Car Seat Base

Belt slots with anti-slip rubber pads

FRONT

Level knob

Locking clip

Anchor latches

Lower connector system hereinafter referred to as LATCH strap

Level indicator

SIDE

LOCKING CLIP STORAGE

BACK

Instruction Manual book pocket

PrimoViaggioSIP-ES_USA_30-30_FIU9 9 10-03-2010 14:44:46

Travel System

Duette SW

Triplette SW

Aria Twin 6040

Pliko Switch Aria

Pliko P3

Uno

Sì

Skate

GT3/GT3 ForTwo

Base

Seat

PrimoViaggioSIP-ES_USA_30-30_FIU10 10 10-03-2010 14:44:46

⇠

Serial Numbers

The following information can be found under the front of the seat of the Primo Viaggio Sip ES 30•30 : product name, production date and serial number.

Buckle production date.

Harness production date. In the event of problems with the product, these details will be of use to customers.

PrimoViaggioSIP-ES_USA_30-30_FIU11 11 10-03-2010 14:44:47

⇠ 12

Installation Instructions

Peg Perego Primo Viaggio Sip ES 30•30 is certified for use with or without the base. Use of the base is highly recommended because it makes installation easier and therefore safer.

PrimoViaggioSIP-ES_USA_30-30_FIU12 12 10-03-2010 14:44:48

⇠ 13

I USING THE LATCH

SYSTEM. If your car has

“universal lower anchors”, you can install the infant car seat using the LATCH system instructions on page

14. The anchor is a bar located where the seat back meets the seat bottom (slide your hand down between the seat back and seat bottom to locate this bar).

Important! Also read your vehicle

manual for locating lower anchors and instructions on using the LATCH system.

II USING THE STANDARD LAP BELT/

SHOULDER STRAP. If your car does

not have universal lower anchors, install the infant car seat using the instructions for lap belt/shoulder straps on page 17.

When using Primo Viaggio Sip ES 30•30 with its base, first you install the base, and then you install the car seat on the base.

Important! Read your vehicle manual for instructions on where to best install an

infant car seat in your vehicle. There are two ways to install the base:

Installing the Base

PrimoViaggioSIP-ES_USA_30-30_FIU13 13 10-03-2010 14:44:48

⇠ 14

Install the base with your vehicle parked on level ground.

1• Take the car seat off the base by

moving the handle to the upright position. Place your hand on the top of the seat back and pull up on the handle with your fingers. Note: Pulling near the center of the handle provides the easiest release.

2• Position the base rear facing in the

back seat of your vehicle. Check the level indicator on the side of the base to make sure that the pointer is in the green area. If it is not, turn the knob left or right until it is in the correct position.

I - How to Install the Base Using the LATCH SYSTEM

PrimoViaggioSIP-ES_USA_30-30_FIU14 14 10-03-2010 14:44:49

⇠ 15

PUSH

•

Remove the two anchor latches from

their housings. The latches are on the sides of the base. First loosen the latch strap by pressing on the gray button and pulling the strap as shown. Then press the red button on top of the latch and pull the latch out of its housing. Repeat on other side.

•

Push each latch onto the anchor bar

located between your vehicle seat back and seat bottom. Press until you hear the click.

PrimoViaggioSIP-ES_USA_30-30_FIU15 15 10-03-2010 14:44:50

⇠ 16

5• Make sure that the latch strap is

threaded flat against the base.

6• Tighten the base against the seat

by pulling the free end of the latch strap. Press down on the base with your body weight and tighten further. Check the level indicator. If the pointer has moved outside of the green area, turn the knob until the pointer is back within the green area. You may need to loosen the strap slightly to do this. Push and pull on the base. If you can move it more than 2,5 cm (1 inch), tighten the belt further.

• Now that you have installed the

base, go to page 23.

PrimoViaggioSIP-ES_USA_30-30_FIU16 16 10-03-2010 14:44:51

⇠ 17

Important! Not all seat belts work the same way. To make sure that the infant car seat is properly installed using your seat belts, read your vehicle owner’s manual. It will suggest proper placement of an infant car seat in your particular vehicle.

Park your vehicle on level ground. 1• Take the car seat off the base by

2• Position the base rear facing in the

II - How to Install the Base Using Your VEHICLE SEAT BELT

PrimoViaggioSIP-ES_USA_30-30_FIU17 17 10-03-2010 14:44:51

⇠ 18

3• Thread the lap belt through the slots

on the base and lock the latch plate into the buckle as shown.

4• Pull the strap to tighten the seat

belt. Press down on the base with your body weight and pull the strap tighter. Then push and pull on the base. If you can move the base more than 2,5 cm (1 inch), tighten the belt further. Once the base is tight, check the level indicator. If the pointer has moved outside of the green area, turn the knob until the pointer is back within the green area. You may need to loosen the strap slightly to do this.

Warning! If you cannot get the belt tight enough, refer to your vehicle manual for instructions on how to secure the base using the type of seat belt in your vehicle. Your baby is not safe riding in a loose car seat.

PrimoViaggioSIP-ES_USA_30-30_FIU18 18 10-03-2010 14:44:51

⇠ 19

Installing the Base with Different Types of Seat Belts

Primo Viaggio Sip ES 30•30 is designed for use with lap or lap/shoulder seat belts. Four of the most common types are listed below. Please read your vehicle manual for instructions on installing an infant car seat using your vehicle seat belts.

I Lap/Shoulder belt with

Switchable Locking Retractor

If your vehicle has Switchable Locking Retractor lap/shoulder belts, pull the shoulder strap all the way out, let it retract several inches, then pull it out again. It should lock in place to properly secure the base.

II Lap/Shoulder belt with

Emergency Locking Retractor (ELR) and free sliding latch plate

This type of seat belt will only lock in an emergency, so you must use the locking clip (stored on infant seat base) to properly secure this type of seat belt (see page 21).

PrimoViaggioSIP-ES_USA_30-30_FIU19 19 10-03-2010 14:44:52

⇠ 20

III Lap/shoulder belt with a locking

latch plate

If you have a lap/shoulder belt with a locking latch plate and the belt comes loose after buckling, unbuckle it, flip it over, and re-buckle. This will usually keep the seat belt locked in place. If not, read your vehicle manual for specific instructions.

IV Different Types of Lap Belts

Lap belts with Emergency Locking Retractors (ELR), Automatic Locking Retractors (ALR), and Switching Locking Retractors (SLR) look as shown. Consult your vehicle owner's manual to determine which style you have.

Lap belts with locking latch plates look as shown.

V Lap belt only with an Emergency

Locking Retractor

If you have a lap belt (without shoulder strap) that locks only in an emergency (ELR), do not use it to secure the Primo Viaggio Sip 30•30 car seat. Please consult a certified Child Passenger Safety Technician for other installation options.

To find a technician in your area, go to:

http://www.nhtsa.dot.gov/people/ injury/childps/contacts/index.cfm, or call 1-888-327-4236.

PrimoViaggioSIP-ES_USA_30-30_FIU20 20 10-03-2010 14:44:53

⇠ 21

How to Install the Locking Clip

To install the locking clip, hold the shoulder strap and lap belt together just above the buckle. Unbuckle the belt while holding the straps. Hook the locking clip around both straps as shown.

Leave 1/2 inch space between the clip and latch. Re-buckle the belt.

PUSH

13 mm

1/2 inch

PrimoViaggioSIP-ES_USA_30-30_FIU21 21 10-03-2010 14:44:54

Different Types of Vehicle Seat Belts

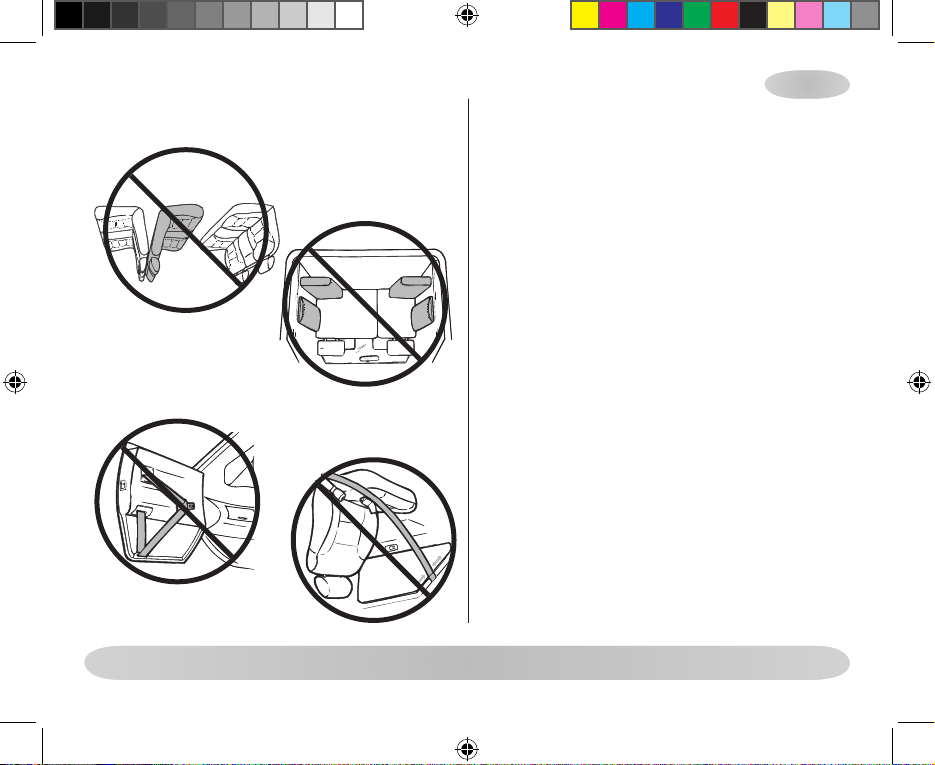

Important! Do not install this car seat

on seats with:

Lap/motorized shoulder belts.

Belts mounted on the door.

Side-facing seats.

Rear-facing seats or seats that rotate.

For your child’s safety, always read your vehicle manual for instructions on installing child car seats.

PrimoViaggioSIP-ES_USA_30-30_FIU22 22 10-03-2010 14:44:55

Now that you have installed the base in your vehicle, you are ready to install the car seat on the base.

1• Holding the car seat by the handle,

press it rear facing on the base until you hear the click. You will not be able to move the car seat if it is properly locked in place. Check to make sure the base is still level. If not, remove the car seat and properly adjust the base.

Important! Newborn infants should be properly reclined. If the seat reclines too much, your baby can be ejected from the seat in an accident. If too upright, it can cause breathing problems.

Installing the Car Seat on the Base

PrimoViaggioSIP-ES_USA_30-30_FIU23 23 10-03-2010 14:44:56

2• Adjust the handle so it rests at the

top edge of the car seat as shown. Any other position may injure your baby in an accident. To rotate the handlebar, press each of the round buttons (located on each side of the handle where it attaches to the seat) and rotate it to the position required.

3• To remove the car seat, move the

handle to the upright position. Place your hand on the top of the seat back and pull up on the handle with your fingers. Note: Pulling near the center of the handle provides the easiest release.

PrimoViaggioSIP-ES_USA_30-30_FIU24 24 10-03-2010 14:44:56

Installing the Car Seat without the Base

Important! The base is designed to

avoid consumer misuse by reducing the number of times the seat must be anchored to your vehicle. Please, use and install Primo Viaggio Sip ES 30•30 without the base only if needed. Park the vehicle on level ground.

1• Position the restraint on the seat,

so your baby is facing the rear of the vehicle. Adjust the handle so it rests at the top edge of the car seat as shown. Any other position may injure your baby in an accident. To move the handle, press the gray buttons on the sides of the handle at the same time and push the handle.

Important! The seat must be parallel to the ground. If necessary, use rolled towels or pool noodles under the seat at vehicle seat crease, so the red line on the side of the seat is parallel with the ground.

PrimoViaggioSIP-ES_USA_30-30_FIU25 25 10-03-2010 14:44:57

⇠ 26

2• Adjust the restraint on the seat.

Check the red line to see that the base is level with the ground. Thread the lap belt through the slots on the seat and lock the latch plate into the buckle as shown.

3• Pull the strap to tighten the seat

belt. Press down on the seat with your body weight and pull the strap tighter. Once the seat is tight, check that the red line on the side of the car seat is level with the ground.

Warning! If you cannot get the belt

tight enough, refer to your vehicle manual for instructions on how to secure the seat using the type of seat belt in your vehicle. Your baby is not safe riding in a loose car seat.

PrimoViaggioSIP-ES_USA_30-30_FIU26 26 10-03-2010 14:44:57

⇠ 27

Installing the Seat with Different Types of Seat Belts

Installation of Primo Viaggio Sip ES 30•30 without base follows the same rules as with base regarding the availability of different types of vehicle seat belts.

Important! For different types of seat belts, please refer to page 19 and 20.

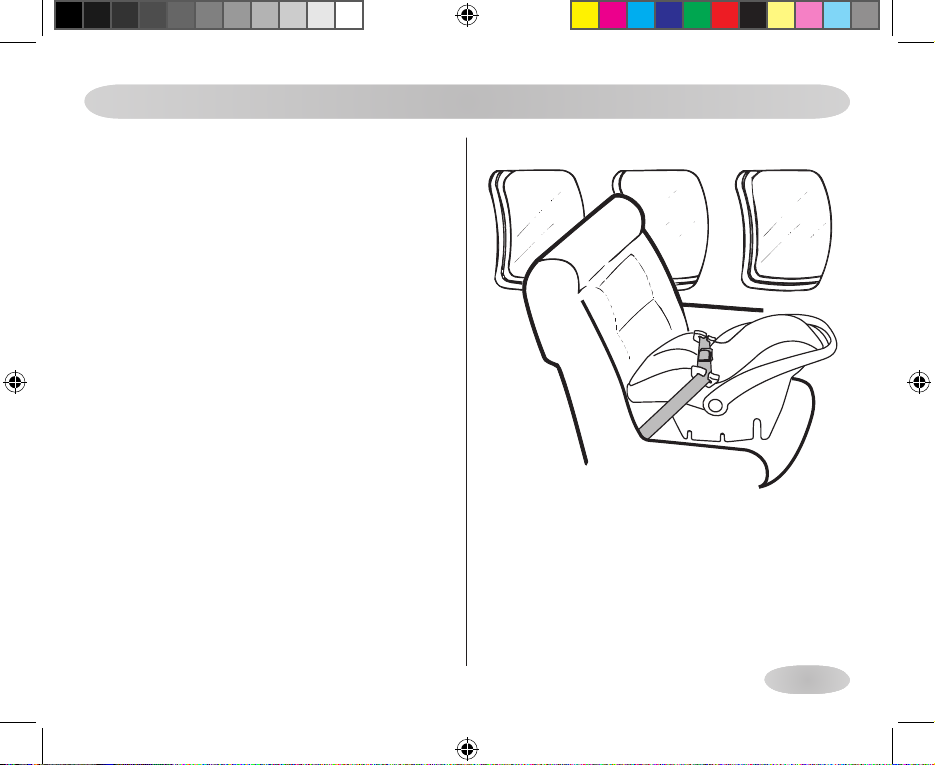

Should your vehicle belt need a locking clip, please refer to page 21 for installation details. Illustration in this page shows the completed installation.

Primo Viaggio Sip ES 30•30 should not be installed on seat types shown on page 22.

PrimoViaggioSIP-ES_USA_30-30_FIU27 27 10-03-2010 14:44:58

⇠ 28

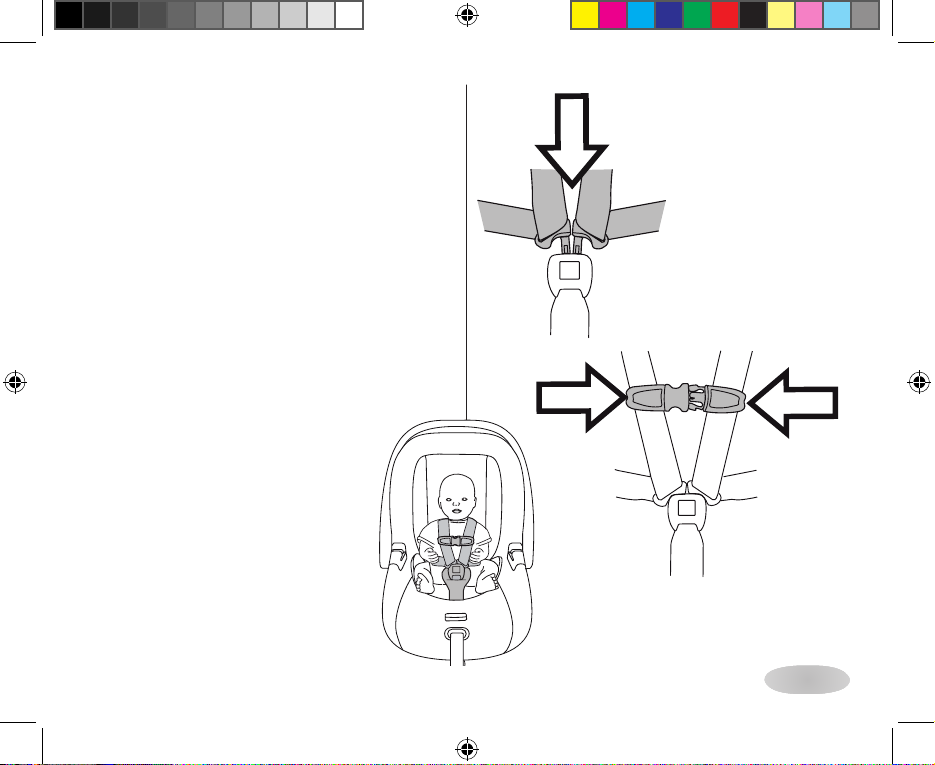

How to Buckle Your Baby into the Car Seat

This restraint uses a 5-point harness system to secure your baby into the car seat. See illustration on page 8.

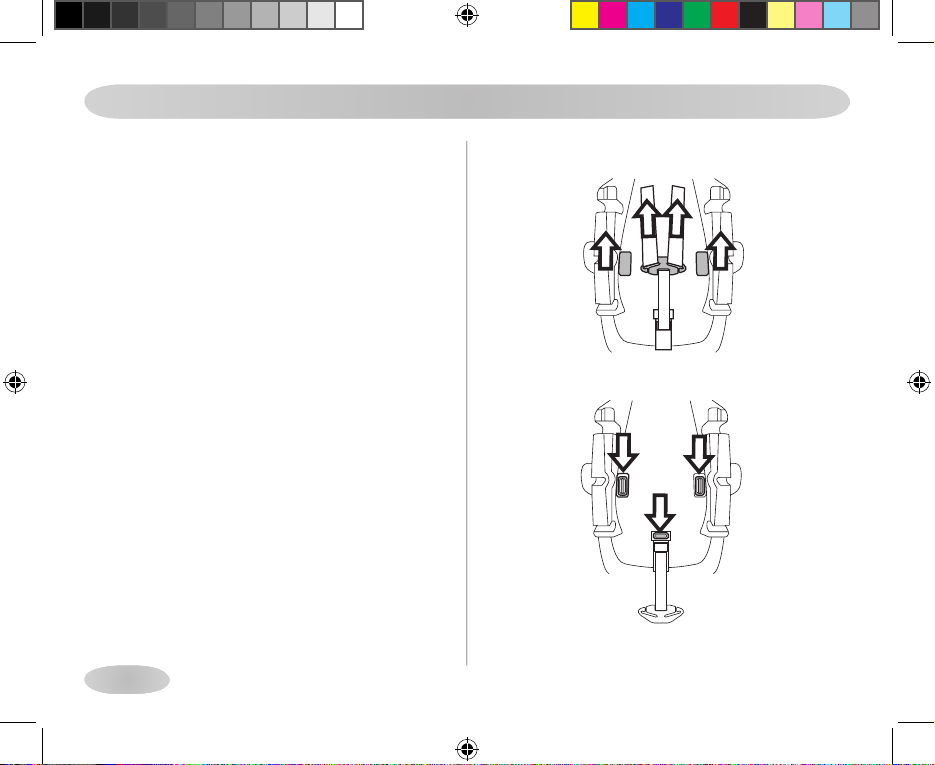

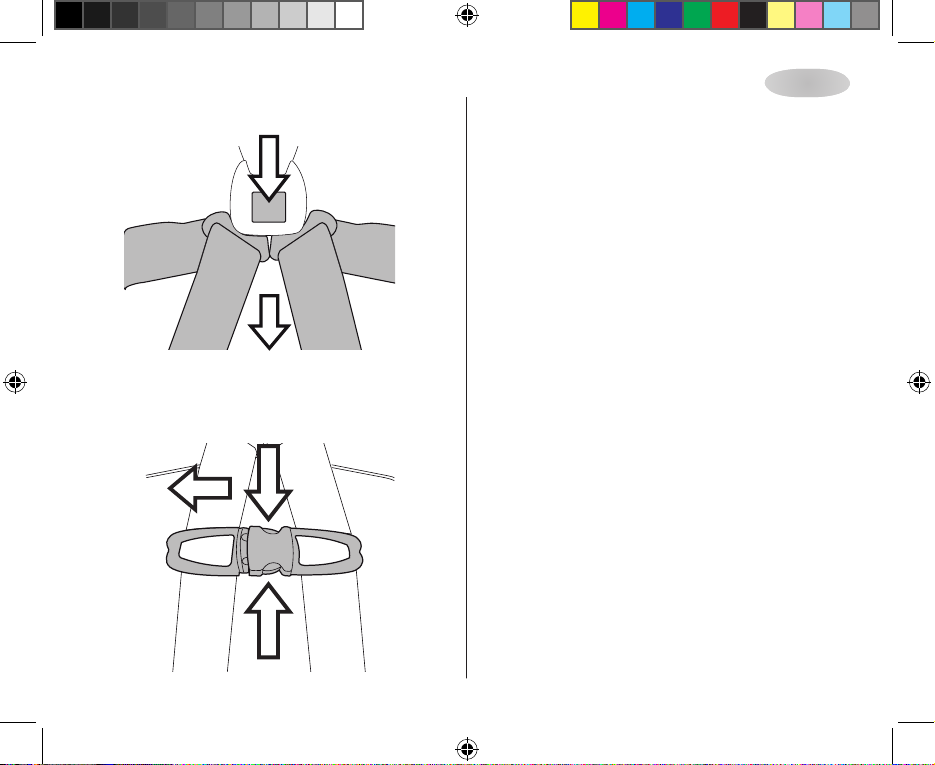

1• Push the red buckle button to

release the harness. Press and hold the harness adjuster button while pulling the shoulder straps out. Lay the shoulder straps to the side to make room for your baby.

2• Put your baby in the car seat with

their bottom and back flat against the child restraint. Bring the two shoulder straps over your baby’s shoulders. Make sure the straps are not twisted behind the backrest or over your baby’s chest.

PrimoViaggioSIP-ES_USA_30-30_FIU28 28 10-03-2010 14:44:58

+ 64 hidden pages
