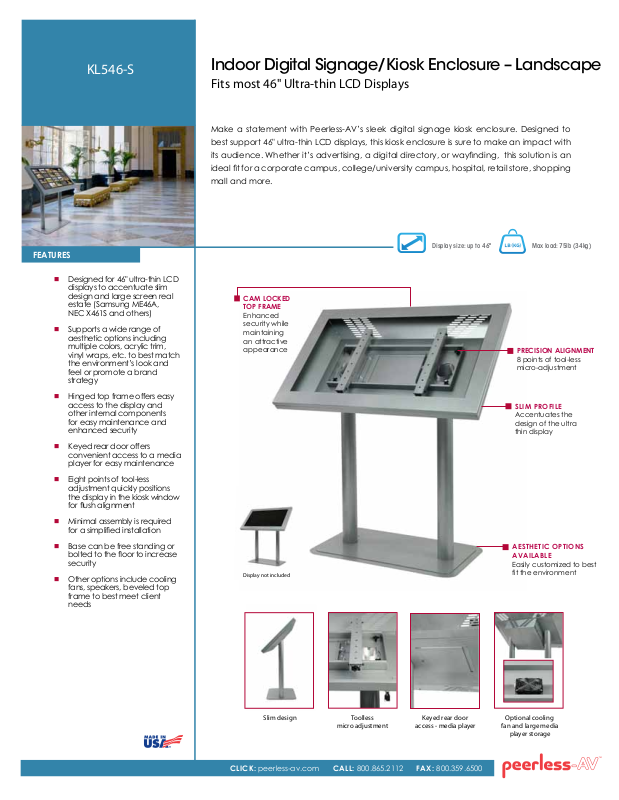

Peerless-AV KL540-S User Manual
KL546-S
Indoor Digital Signage/Kiosk Enclosure – Landscape
Fits most 46" Ultra-thin LCD Displays
Make a statement with Peerless-AV’s sleek digital signage kiosk enclosure. Designed to
best support 46" ultra-thin LCD displays, this kiosk enclosure is sure to make an impact with
its audience. Whether it’s advertising, a digital directory, or waynding, this solution is an
ideal t for a corporate campus, college/university campus, hospital, retail store, shopping
mall and more.
FEATURES
Designed for 46" ultra-thin LCD
displays to accentuate slim
design and large screen real
estate (Samsung ME46A,
NEC X461S and others)
Supports a wide range of
aesthetic options including
multiple colors, acrylic trim,
vinyl wraps, etc. to best match
the environment’s look and
feel or promote a brand
strategy
Hinged top frame offers easy
access to the display and
other internal components
for easy maintenance and
enhanced security
Keyed rear door offers
convenient access to a media
player for easy maintenance
Eight points of tool-less
adjustment quickly positions
the display in the kiosk window
for ush alignment
Minimal assembly is required
for a simplied installation
Base can be free standing or
bolted to the oor to increase
security
Other options include cooling
fans, speakers, beveled top
frame to best meet client
needs
CAM LOCKED
TOP FRAME
Enhanced
security while
maintaining
an attractive
appearance
Display not included
Display size: up to 46" Max load: 75lb (34kg)
PRECISION ALIGNMENT
8 points of tool-less
micro-adjustment
SLIM PROFILE
Accentuates the
design of the ultra
thin display
AESTHETIC OPTIONS
AVAILABLE
Easily customized to best
t the environment
Slim design
CLICK: peerless-av.com CALL: 800.865.2112 FAX: 800.359.6500
Toolless
micro adjustment
Keyed rear door
access - media player
Optional cooling
fan and large media
player storage
Model Numbers
KL546-S Indoor Digital Signage/Kiosk Enclosure – Landscape; Fits most 46" Ultra-thin LCD Displays
Product Specifications
WARRANTY: Limited 5-year
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
KL546-S
47.0" x 55.58" x 23.98"
(1194 x 1412 x 609mm)
Package Specifications
PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS
KL546-S
51.25" x 32.0" x 11.5"
(1302 x 813 x 292mm)
Accessories
ACC-F100: Cooling fan
ACC-MS46: Large media storage attachment
7.87"
(200mm)
MIN
(600mm)
23.62"
MAX
23.98"
(609mm)
133lb (60kg) 75lb (34kg) Powder Coat Silver
143lb (65kg) 735029283287
1.08"
(27mm)
MIN
1.83"
(46mm)
MAX
Base, legs, top, adapter
rails and mounting
hardware
All dimensions = inch (mm)
UNITS IN
PACKAGE
One (1)
47.00"
55.58"
(1412mm)
(1194mm)
TOP VEIW
40.71"
(1034mm)
(591mm)
FRONT
VIEW
23.77"
ADAPTER DEPTH
DETAIL
30.00"
(762mm)
45°
125°
SIDE VIEW
84.49"
(2146mm)
7.87"
(200mm)
11.81"
(300mm)
ADAPTER BRACKET DETAIL
A R C H I T E C T S S P E C I F I C A T I O N S
The Indoor Digital Signage/Kiosk Enclosure – Landscape shall be a Peerless-AV model KL546-S and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
15.75"
(400mm)
Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (630) 375-5100 Fax: (800) 359-6500 peerless-av.com
Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. Peerless-AV™ is a trademark of Peerless Industries, Inc. All rights reserved.
LIT-0807 rev.1
