peerless-AV GC-X360S-B Assembly And Installation Instructions Manual
1
date:01/22/13 #:125-9401
GC-X360S-W
GC-X360S-B
Game Console Security
Cover for Xbox 360S
2
date:01/22/13 #:125-9401

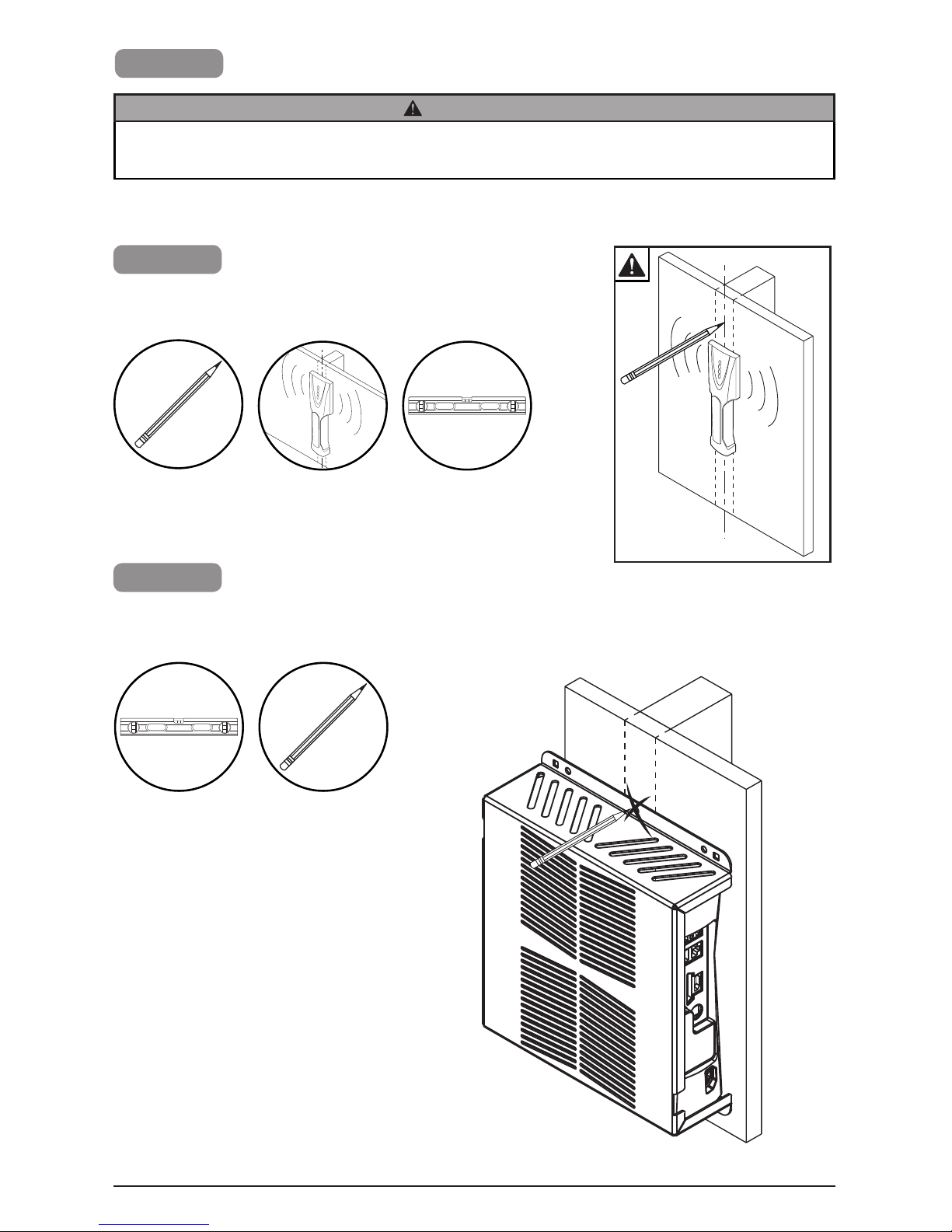

ENG - This product was designed to be installed on wood stud, solid concrete or cinder block walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws
must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed
the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position
equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure
or personal injury. For support please call customer care at 1-800-865-2112.
WARNING
Symbols
WARNING
#
Skip to step.
Display
center.
x3
Screws must get at
least three full turns
and t snug.
Do not over tighten screws
1
2
To properly tighten screws: Tighten until screw head
makes contact, then tighten another 1/2 turn. Do not
overtighten screws.
+1/2
4
3
3
date:01/22/13 #:125-9401
Tools Needed for Assembly.
3/8"
(10mm)
5/16",
5/32", 1/2"
4
date:01/22/13 #:125-9401
A
Parts List
Part Description Quantity Part Number (-B) Part Number (-W)
A
cover plate 1 125-P1455 125-2455
B
1/4-20 x 1.75" carriage bolt 4 520-1017 520-1017
C
#14 2 2.5" hex head wood screw 2 500-1005 500-1005
D
1/4-20 x 1.5" socket pin screw 4 520-1256 520-1256
E
concrete anchor 2 590-0320 590-0320
F
1/4 x 20 slope nut 3 530-0035 530-0035
G
plastic screw cap 4 590-1294 590-1294
H
4 mm allen wrench 1 560-9646 560-9646
I
1/4-20 plastic toggler 4 560-9708 560-9708
J
1/4-20 nylock nut 2 530-9413 530-9413
Before beginning, make sure you have all parts shown below
B
C
F
D
E
H
G
I
J
