FS-MIS38426
For Samsung Super Ultra Wide Curved Monitor
43": LC43J890DKNXZA
49": C49HG90DMN
49": LC49J890DKNXZA
60 lb
MAX
(27 kg)
ENG
1
2019-08-19 #:090-9216-1
WARNING
ENG - Do not begin to install product until you have read and understood the instructions and warnings
contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position
equipment. This product must be installed onto at, hard, level surface to prevent tipping. Use with heavier
displays may result in instability causing tip over resulting in death or serious injury. The stand is not axed or
secured to the surface, and may therefore tip over and/or fall if screen and/or stand is shaken or hit. This product
is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury.
Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never
exceed the Maximum Load Capacity. Be careful not to pinch ngers when operating the mount. Death or serious
injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed
on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on
to the child. Relocating audio and/or video equipment to furniture not specically designed to support audio and/
or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a
child. For support please call customer care at 1-800-865-2112.
ENG
Symbols
ENG
Do not overtighten screws.
ENG
Listen
Tools Needed for Assembly.ENG
3/8"
(10mm)
ENG
WARNING
ENG
ENG
Display center.
#
Skip to step.
ENG
1
2
3
x3
Screws must get at least three
ENG
full turns and t snug.
To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
+1/2
4
2
2019-08-19 #:090-9216-1
ENG
Parts (Before beginning, make sure you have all parts shown below).
Parts List
A base plate 1 091-1207
B adapter bracket 2 091-1211
C right adapter bracket 2 091-1217
D left adapter bracket 2 091-1218
E support tube 1 091-1219
F M6 x 6mm hex set screw 2 510-9150
G M4 x 10mm socket pin screw 8 520-1060
H 1/4-20 x 3/8 socket pin 2 520-1109
I 1/4-20 x 3/4 hex head screw 4 520-1321
J 1/4 x 1/2 x .068 split washer 4 540-9402
K 4mm allen wrench 1 560-9646
L foam strip 48" 1 570-1170
M adhesive pad 6 570-1168
N 3mm allen wrench 1 560-0194
Part #Description Qty
A (1)
base plate
B (2)
adapter bracket
G (8)
M4 x 10mm socket pin screw
H (2)
1/4-20 X 3/8 socket pin screw
I (4)
1/4-20 x 3/4 hex head screw
C (2)
right adapter bracket
K (1)
4mm allen wrench
F (2)
M6 x 6mm hex set screw
J (4)
1/4 x 1/2 x .068 split washer
D (2)
left adapter bracket
L (1)
foam strip
M (6)
adhesive pad
N (1)
3mm allen wrench
E (1)
support tube
3
2019-08-19 #:090-9216-1
1
ENG
Attach adhesive pads to the
bottom of the base plate.
M (6)
A
4
2019-08-19 #:090-9216-1
2
2-1
K
E
A
H (2)
3
3-1
J (4)
I (4)
B (2)
3/8"
(10mm)
3-2
N
F(2)
5
2019-08-19 #:090-9216-1
4
4
ENG
Note orientation of tab
ENG
Samsung Super Ultra Wide Curved Monitor
43" (LC43J890DKNXZA), 49" (C49HG90DMN), 49" (LC49J890DKNXZA)
sold separately
ENG
Top display
4-1
ENG
Note orientation of tab
ENG
Bottom display
6
2019-08-19 #:090-9216-1

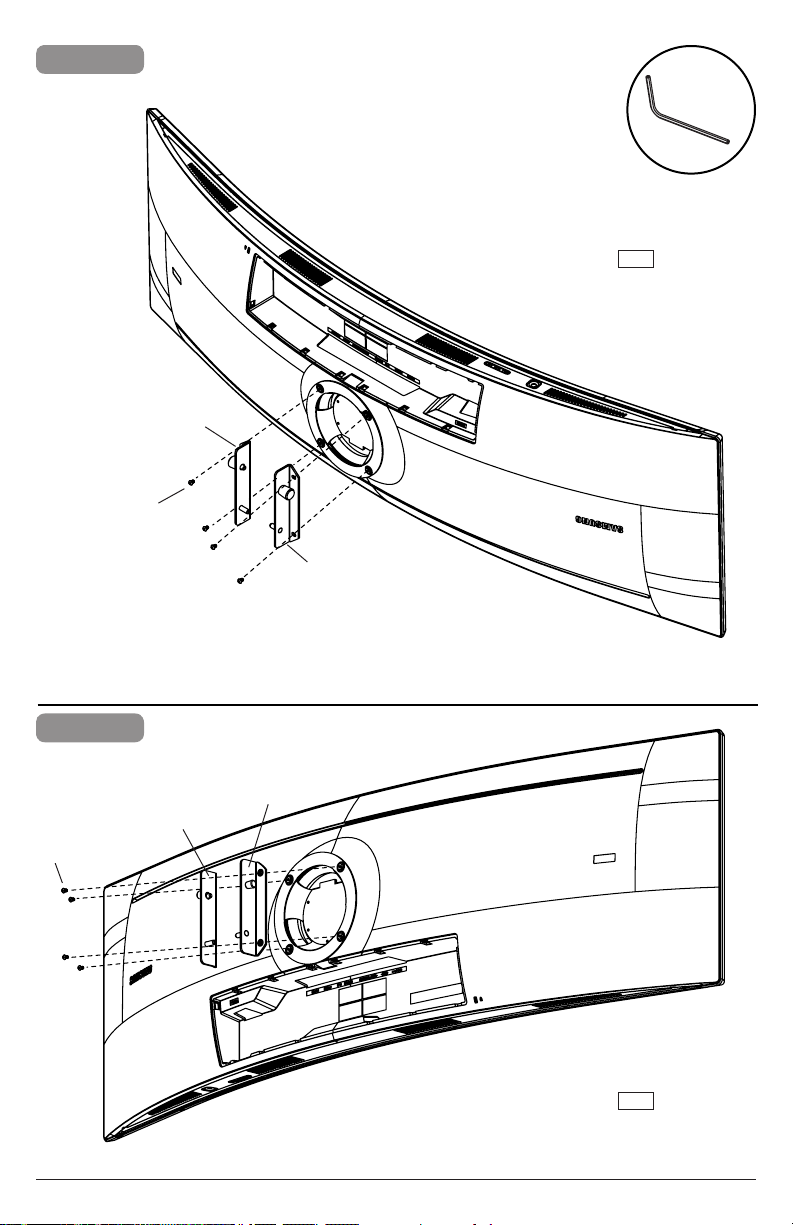

5
G (4)
D
C
ENG
K
Top display
5-1
G (4)
D
C
ENG
Bottom display
7
2019-08-19 #:090-9216-1
6
ENG
Attach foam strip to the top
edge of bottom display.
L
L
L
8
2019-08-19 #:090-9216-1
7
ENG
Attach top display rst.
7-1
ENG
Attach bottom display.
C
C
ENG
D
B
Top view
D
B
ENG
Top view
9
2019-08-19 #:090-9216-1
WARNING
Must support weight/front of display when disengaging
ENG
quick release knobs from support tube.
8
ENG
QUICK RELEASE; Pull knobs to disengage.
8-1
ENG
Support display, tilt forward.
10
2019-08-19 #:090-9216-1
9
ENG
Optional: cable management
11
2019-08-19 #:090-9216-1
Peerless Industries, Inc. (“Peerless-AV”) warrants to original end-users that each Peerless-AV® mounting product will be free from defects
LIMITED FIVE-YEAR WARRANTY
in material and workmanship, under normal use, for the applicable warranty period (from date of the original installation of the product).
At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
Any implied warranty of merchantability or tness for a particular purpose shall be limited to the period of the
express warranty set forth below.
In no event shall Peerless-AV be liable for incidental or consequential damages, whether or not secured by a
security device which may be included with the product.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of incidental or consequential damages, so
the above limitation and/or the above exclusion may not apply to you.
This warranty does not cover damage caused by incorrect selection, installation or the failure to follow Peerless-AV instructions or
warnings when installing, using or storing the product.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. To make a warranty claim in
North America, contact Peerless-AV customer care at 1-800-865-2112. See complete global warranty information for regions outside North
America at www.peerless-av.com/en-uk/customer-care/warranties-returns.
