Panasonic WV-CSR604, WV-CST604, WV-CS604A, WV-BST504 User Manual
Specifications and Main Features

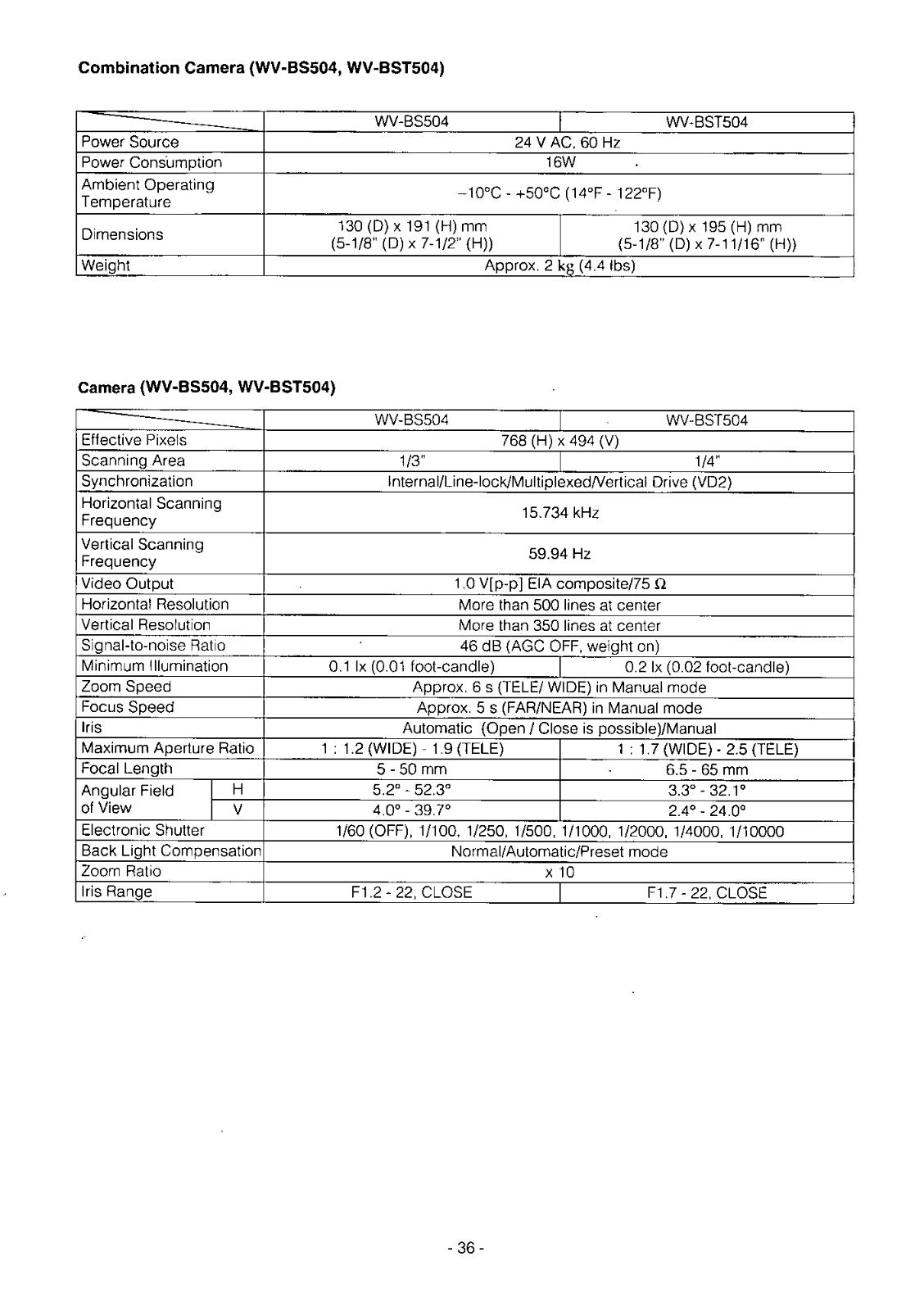

- Model Numbers: WV-BS504, WV-BST504, WV-CS604A, WV-CS604, WV-CST604, WV-CSR604
- Rated Power Supply: 24V AC, 60 Hz
- Power Draw:
- 16 Watts for WV-CS604A
- 18 Watts for WV-CSR604
- 16 Watts for WV-CST604
- Temperature Rating: -10 degrees to + 50 degrees (14 to 122 degrees Fahrenheit)
- Size:
- 14 x112 x 345 WV-CS604A, WV-CS604: 130 mm (D) x 191 mm (H) (5-1/8 (D) x 7-1/2 (H))
- 130 mm (D) x 195 ((5-1/8 (D) x 7-11/16 (H)))
- Approximate Weight: 2Kg (4.4lbs)
- Effective Pixels: 768 (H) x 494 (V)
- Scanning Area:
- WV-CS604A, WV-CSR604: 1/3”
- WV-CST604: 1/4
- Internal Synchronized/Line-lock/Multiplexed/Vertical Drive Scanning: VD2
- Horizontal Scanning Frequency of 15.734kHz
- Vertical Scanning Frequency:
- WV-CS604A, WV-CSR604 - 59.94 Hz
- WV-BS504, WV-BST504 - 99.94 Hz.
- Output Voltage: 1.0V (p-p) - NTSC Composite - 75Ω
- More than 480 lines at center horizontal resolution (WV-BS504, WV-BST504: More than 500 lines at center)
- Vertical: Not less than 350 lines for the verticle.
- Signal ratio-to-noise:
- WV-CS604A, WV-CSR604 48 Db AGC off
- WV-BS504, WV-BST504 46 Db AGC OFF
- Minimum illumination
- WV-CS604A, WV-CSR604 - 3.0 lx (0.3 foot-candle).
- WV-CST604 - 6.0 lx (0.6 foot-candle).
- WV-BS504 – 0.1 lx (0.01 foot-candle)
- WV-BST504: 0.2 lx (0.02 foot-candle)
- Zoom Speed: approximately 6 sec (TELE/WIDE) in manual setting
- Focus Speed: approximately 5 sec (FAR/NEAR) in manual mode
- Iris: Automatic (Open/Close possible)/Manual
- Maximum Aperture Ratio: WV-CS604A, WV-CSR604: 1:1.2 (WIDE) - 1.9 (TELE) & WV-CST604: 1:1.7 (WIDE) - 2.5 (TELE)
- Focal length ranges: for WV-CS604A, WV-CSR604, 5-50mm and for WWV-CST604, 6.5 - 65 mm
- Angular Field of View: WV-CS604A, WV-CSR604: H 39.2° - 52.3°, V 4.0° - 39.7° & WV-CST604: H 3.3° - 32.1°, V 2.4° - 24.0°
- Electronic Shutter: 1/60 (OFF), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000
- Back Light Compensation: Normal/Automatic/Preset mode
- Zoom Ratio: x10
- Iris Range: F1.2 - 22, CLOSE (WV-CS604A, WV-CSR604); F1.7 - 22, CLOSE (WV-CST604)

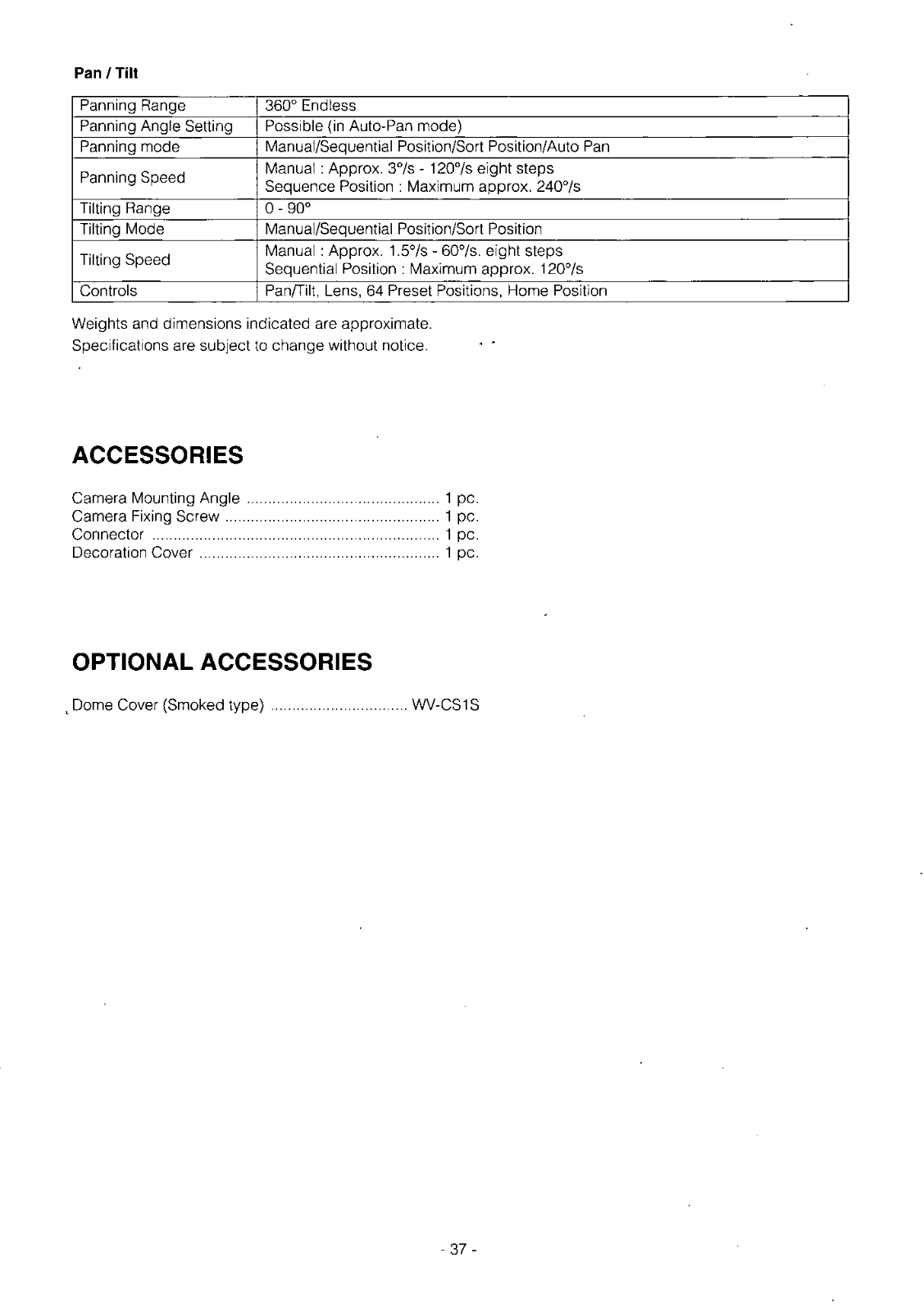

- Panning Range: 360° Endless
- Tilting Range: 0 - 90°
- Controls: Pan/Tilt, Lens, 64 Preset Positions, Home Position
---
Frequently Asked Questions
Q1: What is the power supply intended for the camera?
A1: In order for the camera to function properly, it should be supplied with 24 V AC, 60 Hz.
Q2: How much illumination is needed to operate the camera?
A2: WV-CS604A and WV-CSR604 require a minimum illumination of 3 lx (0.3 foot-candle) while taking WV-CST604, require an illumination of 6 lx (0.6 foot-candle); Similarly, a requirement of 0.1 lx (0.01 foot-candle) for the WV-BS504 while WV-BST504 requires 0.2 lx (0.02 foot-candle) is needed.
Q3: What controls are included in the camera for image modification?
A3: There are several camera controls that can be incorporated such as manual override with automatic light control, a function for white balancing either in auto/manual, back light compensation and an electronic shutter function.
Q4: How about the concentration of the camera? How many positions are stored in the camera?
A4: It is possible to store 64 preset positions in the camera.
Q5: What maximum and minimum inclination angles does the camera have?
A5: The camera can be tilted from 0 - 90 degrees to get a better angle making it more versatile.
Q6: Give some examples of the video outputs for the camera?
A6: The video output for NTSC composite is 1.0 V[p-p] and 75 Ω resistance.
Q7: Is there any serviceable parts in the camera?
A7: The servicing should be done by qualified personnel for all the parts as there are no serviceable parts in the camera.
