Model No.
TX-P42U30B
TX-P50U30B
Operating Instructions
Plasma Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
English |
UK and Ireland model |
TQB0E2135 |
Features
DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.
DVB-T2 tuner built-in
DVB-T2 is an advanced digital terrestrial system for more efficient transmission.
Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.
GUIDE Plus+ (p. 18)
This TV supports the TV Guide services sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 70)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
•This TV supports HDMI (Version 1.4 with Audio Return Channel), Deep Colour, x.v.Colour™.
Timer Programming (p. 19, 41)
Timer Programming enables you to use functions such as programme reminder and programme recording to the external recorder.
VIERA IMAGE VIEWER - SD Card viewer in Media Player (p. 51)
Enjoy your photos or videos recorded on an SD Card on the TV screen.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.
AVCHD
It is possible to play moving pictures recorded on an SD Card in AVCHD format. AVCHD is a high definition video recording format. (p. 69)
Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 58)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility (p. 26)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.
Dolby Digital Plus decoder
It is possible to decode Dolby Digital Plus audio track (multi-channel sound) and output as a Dolby Digital multi-channel sound signal from the DIGITAL AUDIO OUT terminal.
Owner ID (p. 48)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.
Supports Audio Description signal (p. 15, 30)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.
•To retune your TV
[Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 36)
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)
•Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.
2
Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.
Typical still images
•Channel number and other logos
•Image displayed in 4:3 mode
•Video game
•Computer image
To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 72)
Contents
Be Sure to Read
Safety Precautions····································································4
Quick Start Guide
Accessories / Options······························································6
Identifying Controls·································································8
Basic Connection··································································· 10
Auto Setup··············································································· 12
This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/
OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,
OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM. http://www.europe.guideplus.com/
Enjoy your TV!
Basic Features
Watching TV ············································································ 14 Using TV Guide······································································· 18 Viewing Teletext····································································· 21 Watching External Inputs ··················································· 24 How to Use VIERA TOOLS ··················································· 26 How to Use Menu Functions············································· 27
Advanced Features
Retuning from Setup Menu··············································· 36 Tuning and Editing Channels············································ 37 Timer Programming ····························································· 41 Child Lock················································································· 43 Input Labels············································································· 44 Setup for Internet Connection ········································· 45 Shipping Condition ······························································ 47 Owner ID··················································································· 48 Using Common Interface ··················································· 49 Updating the TV Software·················································· 50 Using Media Player ······························································· 51 Link Functions (Q-Link / VIERA Link)······························· 58 External Equipment······························································ 66
Notice for DVB functions
The compatibility with future services is not guaranteed. Check the latest information on the available services at the following website. http://panasonic.jp/support/global/cs/tv/
FAQs, etc.
Technical Information·························································· 68 FAQs ··························································································· 72 On screen messages····························································· 74 Glossary····················································································· 76 Maintenance ··········································································· 77 Licence ······················································································ 77 Index ·························································································· 78 Specifications·········································································· 79
3
Precautions Safety
Safety Precautions
Warning
■Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
•This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
•Insert the mains plug fully into the socket outlet.
•Ensure that the mains plug is easily accessible.
•Remove the mains plug when cleaning the TV.
•Do not touch the mains plug with a wet hand.
•Do not damage the mains lead.
• Do not place a heavy object on the lead.
•Do not place the lead near
a high temperature object.
•Do not pull on the lead.
Hold onto the mains plug
body when disconnecting the plug.
•Do not move the TV with the lead plugged into a socket outlet.
•Do not twist the lead, bend it excessively or stretch it.
•Do not use a damaged mains plug or socket outlet.
•Ensure the TV does not crush the mains lead.
•Do not use any mains lead other than that provided with this TV.
•Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
•An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the body of the fuse.
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer. Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference
and for your safety. If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING: – THIS TV MUST BE EARTHED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
4
Warning
■Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
•Do not remove covers and never modify the TV yourself as live parts are accessible when they are removed. There are no user serviceable parts inside.
•Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.
•Do not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.
•Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base.
•Do not insert foreign objects into the TV through the air vents.
•Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.
•Do not apply strong force or impact to the display panel.
To prevent the spread of fire, keep candles or other open flames away from this product at all times
■Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
•Keep the dangerous parts out of reach of young children.
•Do not allow children to handle SD Card. As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.
Caution
■Ventilation
Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.
•Ventilation should not be impeded by covering the ventilation openings with items such as
newspapers, tablecloths and curtains.
•Whether you are using the pedestal or not, always ensure the vents in the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.
Minimum distance 10
10 |
10 |
7 |
(cm)
■Moving the TV
Before moving the TV, disconnect all cables.
•The TV is heavy. Move the TV with at least two people. Support as shown to avoid injury by the TV tipping or falling.
•Transport only in upright position. Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry.
■When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.
•Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
■Excessive volume
Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.
Precautions Safety
5
Options / Accessories Guide Start Quick
Accessories / Options
Standard accessories
Remote Control |
Batteries for the |
Mains Lead |
Pedestal |
•N2QAYB000487 |
Remote Control (2) |
•K2CT3YY00021 |
TX-P42U30B: |
|
•R6 |
(p. 11) |
•TBL5ZX0030 |
|
(see below) |
|
•TXFBL5Z0001 |
|
|
|
TX-P50U30B: |
|
|
|
•TBL5ZX0033 |
|
|
|
•TXFBL5Z0002 |
|
|
|
(p. 7) |
TV
Operating Instructions Product Registration Leaflet
•Accessories may not be placed all together. Take care not to throw them away unintentionally.
Optional accessories
Ferrite core (2)
•J0KG00000014
(p. 45)
Use the supplied ferrite cores to comply with the EMC standard.
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.
Wall-hanging bracket |
|
|
|
•TY-WK4P1RW |
Rear of the TV |
|
Depth of screw : minimum 15 mm, |
|
400 mm |
|
maximum 30 mm |
|
|
Diameter : M8 |
|
|
|
|
|
|
|
300 mm |
Screw for fixing the TV onto the wall-hanging bracket |
|
|
(not supplied with the TV) |
|
|
|
|
(View from the side)
Holes for wall-hanging bracket installation
Warning
•Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
•Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.
•Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which will void your warranty.
•Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
•To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.
Installing / removing remote’s batteries
1 |
2 |
|
Close |
|
Pull open |
Hook |
Note the correct polarity |
|
(+ or -) |
Caution
|
•Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. |
|
•Do not mix old and new batteries. |
|
•Do not mix different battery types (such as alkaline and manganese batteries). |
|
•Do not use rechargeable (Ni-Cd) batteries. |
|
•Do not burn or breakup batteries. |
|
Batteries must not be exposed to excessive heat such as sunshine, fire or the like. |
6 |
•Do not disassemble or modify the remote control. |
Attaching / removing the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:
Warning
•Do not disassemble or modify the pedestal.
Caution
•Do not use any pedestal other than the one provided with this TV.
•Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.
•During setup, make sure that all screws are securely tightened.
•Ensure that the TV does not suffer any impact during installation of the pedestal.
•Ensure that children do not climb onto the pedestal.
•Install or remove the TV from the pedestal with at least two people.
A |
Assembly screw (4) |
B Assembly screw (4) |
C Pole |
D Base |
|
(silver) |
(black) |
•TBL5ZA3028 |
•TBL5ZX0030 |
|
•XYN5+F20FN |
•THEL088N |
(TX-P42U30B) |
(TX-P42U30B) |
|
|
(TX-P42U30B) |
•TBL5ZA3066 |
•TBL5ZX0033 |
|
|
•THEL087N |
(TX-P50U30B) |
(TX-P50U30B) |
|
|
(TX-P50U30B) |
|
|
|
M5 × 20 |
M5 × 25 |
|
|
1 |
Assembling the pedestal |
2 |
Securing the TV |
|
|
Use the assembly screws A to fasten the pole C |
Use the assembly screws B to fasten the pedestal securely to the |
||
|
to the base D securely. |
|
TV. |
|
|
•Make sure that the screws are securely |
•Tighten the four assembly screws loosely at first, then tighten |
||
|
tightened. |
|
them firmly to fix securely. |
|
|
•Forcing the assembly screws the wrong way |
•Carry out the work on a horizontal and level surface. |
will strip the threads.
A B
D C
Front
Arrow mark
Hole for pedestal installation
D
(View from the bottom)
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.
1 Remove the assembly screws B from the TV.
2 Pull out the pedestal from the TV.
3 Remove the assembly screws A from the pole.
Options / Accessories Guide Start Quick
7
Identifying Controls
Remote Control
|
1 |
15 |
|
|
2 |
||
|
16 |
||
|
3 |
||
Quick |
4 |
17 |
|
6 |
18 |
||
Start |
5 |
||
7 |
19 |
||
Guide |
|||
8 |
20 |
||
|
|||
Identifying |
9 |
21 |
|
|
22 |
||
|
|
||
|
10 |
23 |
|
Controls |
11 |
24 |
|
12 |
|
||
|
|
||
|
13 |
25 |
|
|
14 |
26 |
|
|
|
27 |
1Standby On / Off switch
•Switches TV On or Off standby
2 [Media Player] (p. 51)
•Switches to SD Card viewing / listening mode
3 [Main Menu] (p. 27)
•Press to access Picture, Sound and Setup Menus
4 Aspect (p. 17)
•Changes aspect ratio
5 Information (p. 15)
•Displays channel and programme information
6 VIERA TOOLS (p. 26)
•Displays some special feature icons and accesses easily
7 [VIERA Link Menu] (p. 62)
8OK
•Confirms selections and choices
•Press after selecting channel positions to quickly change channel
•Displays the Channel List
9[Option Menu] (p. 16)
•Easy optional setting for viewing, sound, etc.
10Teletext (p. 21)
•Switches to teletext mode
11Subtitles (p. 17)
•Displays subtitles
12Numeric buttons
•Changes channel and teletext pages
•Sets characters
•When in Standby mode, switches TV On (Press for about 1 second)
13Sound Mute
•Switches sound mute On or Off
14Volume Up / Down
15Input mode selection
•TV - switches between DVB and Analogue modes
(p. 14)
•AV - switches to AV input mode from Input Selection list (p. 24)
16Direct TV Recording (p. 60, 62)
•Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection
17Normalise (p. 27)
•Resets picture and sound settings to their default levels
18Exit
•Returns to the normal viewing screen
19TV Guide (p. 18)
20Cursor buttons
•Makes selections and adjustments
21Return
•Returns to the previous menu / page
22Coloured buttons (red-green-yellow-blue)
•Used for the selection, navigation and operation of various functions
23Hold
•Freeze / unfreeze picture (p. 16)
•Holds the current teletext page (teletext mode)
(p. 22)
24Index (p. 23)
•Returns to the teletext index page (teletext mode)
25Last view (p. 15)
•Switches to previously viewed channel or input mode
26Channel Up / Down
27Connected equipment operations (p. 25, 55, 64)
8
TV
2 1 3 4
5
6
8 9 10
7
1 CI slot (p. 49)
2Function select
•[Volume] / [Contrast] / [Brightness] / [Colour] / [Sharpness] / [Tint] (NTSC signal) / [Bass] / [Treble] /
[Balance] / [Auto Setup] (p. 36)
[Music] or [Speech] mode in the Sound Menu
3Channel Up / Down, Value change (when using the F button), Switching the TV On (press either button for about 1 second when in Standby mode)
Using the On Screen Displays - Operation guide
4 Changes the input mode
5 SD Card slot (p. 51)
6 Headphones jack (p. 67)
7Mains power On / Off switch
•Use to switch the mains power.
If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.
8Remote control signal receiver
•Do not place any objects between the TV remote control signal receiver and remote control.
9C.A.T.S. (Contrast Automatic Tracking System) sensor
•Senses brightness to adjust picture quality when [C.A.T.S.] in the Picture Menu is set to [On] (p. 28)
10Power and Timer LED
•Red : Standby
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming or Direct TV Recording in progress
Red with orange flash :
Standby with Timer Programming On or Direct TV Recording
•The LED blinks when the TV receives a command from the remote control.
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by using the remote control.
Example : [Owner ID]
Owner ID
Please enter new PIN
PIN |
* * * * |
EXIT |
9 PIN entry |
0 |
|
RETURN |
|
Operation guide
How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options have been set
RETURN
Return to the previous menu
EXIT |
Exit the menu system and return to the normal |
|
viewing screen |
Auto power standby function
The TV will automatically go to Standby mode in the following conditions:
•no signal is received and no operation is performed for 30 minutes in Analogue TV mode
•[Off Timer] is active in the Setup Menu (p. 16)
•no operation is performed for the period selected in [Auto Standby] (p. 32)
•This function does not affect the recording of Timer Programming and Direct TV Recording.
Controls Identifying Guide Start Quick
9
Connection Basic Guide Start Quick
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.
Example 1 |
Example 2 |
|
|||||||
Connecting aerial |
Connecting DVD Recorder / VCR |
||||||||
TV only |
TV, DVD Recorder or VCR |
|
|||||||
Rear of the TV |
Terrestrial aerial Rear of the TV |
Terrestrial aerial |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AC 220-240 V |
RF cable |
AC 220-240 V |
RF cable |
50/60 Hz |
|
50 / 60 Hz |
|
Mains lead |
|
Mains lead |
|
(supplied) |
|
(supplied) |
|
Aerial input |
Aerial input |
|
terminal |
terminal |
|
|
Fully wired HDMI |
|
|
compliant cable |
Fully wired |
|
|
SCART cable |
HDMI |
AV |
|
RF IN |
DVD Recorder |
RF OUT |
|
or VCR |
||
RF cable |
||
|
Note
•Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 60).
•For HDMI-compatible equipment, it is possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable (p. 67).
•Q-Link and VIERA Link connection (p. 58, 59)
•Please also read the manual of the equipment being connected.
•Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,
10 distortion of image / sound may occur or operation of other equipment may be interfered.
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Rear of the TV |
Mains Lead |
AC 220-240 V
50 / 60 Hz
Mains lead (supplied)
Make sure that the mains
lead is securely fixed.
Push until both side tabs click
To remove from the TV :
tabs
Press both tabs and pull on mains connector to release
Terrestrial aerial
Connection Basic Guide Start Quick
|
|
|
Fully wired |
|
Fully wired HDMI |
Aerial input |
|
|
SCART cable |
|
compliant cable |
terminal |
|
|
|
|
|
Fully wired HDMI |
Fully wired |
|
|
|
RF cable |
compliant cable |
|
|
|
||
|
SCART cable |
|
|
|
|
HDMI Recorder/AV |
AV 2 |
AV 1 |
HDMI |
||
|
|
|
|
|
RF OUT |
Satellite |
|
|
DVD Recorder |
RF IN |
|
|
|
or VCR |
|
||
receiver |
|
|
|
RF cable |
|
|
|
|
|
RF OUT
RF cable
RF IN
11
Setup Auto Guide Start Quick
Auto Setup
Search and store TV channels automatically.
•These steps are not necessary if the setup has been completed by your local dealer.
•Please complete connections (p. 10, 11) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.
1 Plug the TV into mains socket and switch On
•Takes a few seconds to be displayed.
•If the red LED shows on the TV, press the Standby On / Off switch on the remote control for at least 1 second to turn the TV On.
2
EXIT
3
TV
Select your country
Country Selection
United Kingdom Ireland
Example :
Auto Setup - DVB and Analogue
DVB Scan |
|
CH 21 |
|
|
68 |
Analogue Scan |
|
CH 21 |
|
|
68 |
This will take about 6 minutes. |
|
|
|
|
|
CH |
|
Channel Name |
|
Type |
Quality |
62 |
CBBC Channel |
|
|
Free TV |
10 |
62 |
BBC Radio Wales |
|
|
Free TV |
10 |
62 |
E4 |
|
|
Free TV |
10 |
62 |
Cartoon Nwk |
|
|
Free TV |
10 |
29 |
|
|
|
Analogue |
- |
33 |
BBC1 |
|
|
Analogue |
- |
Free TV: 8 |
Pay TV: 0 |
Radio: 0 |
Data: 0 |
Analogue: 2 |
|
|
|
Searching |
|
|
|
Example :
Auto Setup - DVB and Analogue
|
DVB Scan |
|
CH 5 |
|
|
69 |
||
|
Analogue Scan |
|
CH 1 |
|
99 H: 21 |
|
|
41 |
|
This will take about 6 minutes. |
|
|
|
|
|
|
|
|
CH |
|
Channel Name |
Type |
Quality |
|||
|
62 |
CBBC Channel |
|
|
Free TV |
10 |
|
|
|
62 |
BBC Radio Wales |
|
|
Free TV |
10 |
|
|
|
62 |
E4 |
|
|
Free TV |
10 |
|
|
|
62 |
Cartoon Nwk |
|
|
Free TV |
10 |
|
|
|
29 |
|
|
|
Analogue |
- |
|
|
|
33 |
BBC1 |
|
|
Analogue |
- |
|
|
|
Free TV: 8 |
Pay TV: 0 |
Radio: 0 |
|
Analogue: 2 |
|||
|
|
|
Searching |
|
|
|
|
Sending Preset Data |
|
Please wait! |
|
0% |
100% |
Remote control unavailable
Input Owner ID
Owner ID
Please enter new PIN |
|
PIN |
* * * * |
select set
Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters.
•Actual number of channels may differ due to channel duplication.
If Q-Link or similar technology (p. 60) compatible recorder with analogue tuner is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.)
•If downloading has failed, you can download later through the Setup Menu.
“Q-Link Download” (p. 31)
Please enter your own choice of PIN number, name, etc. to help the police to crack crime.
•Make a note of the PIN number in case you forget it. The PIN number cannot be reset.
•You can input or change the Owner ID later. [Owner ID] (p. 48)
•To skip this step
EXIT
•This step will be skipped in the Auto Setup after [Shipping Condition] (p. 47) is performed.
12
3 |
■How to input Owner ID |
|
|
|
|
|
1 Enter the PIN number (4 digits) |
|
|
mno •Enter the PIN number twice at first setting. |
|
|
Owner ID |
|
ghi |
jkl |
|
|
|
|
|
abc |
def |
|
Please enter new PIN |
|
|
|
|
|
PIN |
* * * * |
pqrs |
tuv |
wxyz |
|
|
|
|
2 Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry |
select |
PIN |
|
NAME |
access |
HOUSE NO |
|
POSTCODE |
|
3 Enter your name, house number and postcode
Set characters
User input
NAME |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
|||
U |
V |
W |
X |
Y |
Z |
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
! |
|
: |
|
# |
|
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
l |
m |
n |
o |
p |
q |
r |
s |
t |
|||
u |
v |
w |
x |
y |
z |
( |
) |
+ |
- |
. |
* |
_ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
1 |
2 |
3 |
|||||||||||||
|
|
|
|
|
|
|
|
.!:# |
|
abc |
|
def |
||||||||||
|
|
|
|
|
|
|
|
4 |
|
5 |
|
6 |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
|
|
jkl |
|
mno |
|
|
|
|
|
|
|
|
7 |
|
8 |
|
9 |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
pqrs |
|
tuv |
|
wxyz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
select set
•You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 70)
4 Exit to go to next step
EXIT
Return to select other items
RETURN
•Select the next item and repeat the operations.
4 |
Select [Home] |
|
|
|
|
Select [Home] viewing environment (highlight [Home] in yellow) to use in your home environment. |
|||
|
Please select your viewing environment. |
|
select |
|
|
Home |
Shop |
|
|
|
|
set
■[Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Select [Home] viewing environment to use in your home environment.
•You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.
1 Return to viewing environment selection screen
Shop
You have selected shop mode |
RETURN |
|
|
Automatic Demo |
|
Off |
On |
2 Select [Home]
Please select your viewing environment.
Home |
|
Shop |
select set
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
[Shipping Condition] (p. 47)
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.
•To check channel list at-a-glance “Using TV Guide” (p. 18)
•To edit or hide (skip) channels “Tuning and Editing Channels” (p. 37 - 40)
•To retune all channels [Auto Setup] (p. 36)
•To initialise all settings [Shipping Condition] (p. 47)
Setup Auto Guide Start Quick
13
TV Watching
Watching TV
SD CARD |
INPUT |
1 |
Turn power on |
|
|
TV |
AV |
|
•Press for about 1 second |
MENU ASPECT |
N |
DIRECT TV REC |
|
•Mains power On / Off switch should be On. (p. 9) |
|
|
EXIT |
2 |
Select DVB or Analogue |
|
||
|
|
|
|
TV |
|
•Also possible to select the mode pressing the TV |
|
|
|
|
|
|
|
button on the side panel of the TV. (p. 9) |
|
OPTION |
|
RETURN |
|
|
|
|
|
TEXT |
STTL INDEX HOLD |
|
|
|
Information banner |
(p. 15) |
|
|
|
|
|
1 BBC ONE WALES |
19:50 |
All DVB Channels |
|
|
|
|
|
Coronation Street |
|
For info press |
|
|
|
|
|
19:30 - 20:00 |
Now |
|
|
|
abc |
def |
|
|
|
|
|
ghi |
jkl |
mno |
|
Select a channel |
|
pqrs |
tuv |
wxyz |
3 |
||
|
|||||
|
|
LAST VIEW
up
or down
PROGRAMME
|
abc |
def |
ghi |
jkl |
mno |
pqrs |
tuv |
wxyz |
DVB channel position numbers run from 1 onwards.
Analogue channel position numbers run in the ranges 0 - 99.
•To select a two or three-digit channel position number, e.g. 399
def wxyz wxyz
Volume
■Select a channel using Information banner (p. 15)
It is possible to confirm the channel name and programme information by using the Information banner before changing channels.
1 Display Information banner if it is not displayed |
2 While the banner is displayed, select the channel |
|
select channel |
|
watch |
■Select a channel using TV Guide (p. 18)
It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.
1 Display TV Guide |
2 Select a current |
3 Select [View] (DVB mode) |
|
|
programme or channel |
|
|
|
select |
Eastender |
select |
|
|
||
|
access |
19:3020:00 |
watch |
|
View |
||
|
|
Timer Programming |
Note
•To watch pay-TV“Using Common Interface” (p. 49)
14
Other useful functions
Display Information banner
Display Information banner
•Also appears when changing a channel
7
1Example : DVB
1 BBC ONE WALES
5 Coronation Street
6 19:30 - 20:00
Mute |
Encrypted |
1 Channel position and name
2 Channel type ([Radio], [Data], [HDTV], etc.)
3 Current time
4[All DVB Channels] or [Favourites1-4] (p. 38) (DVB)
•To switch (blue)
Features available / Message meanings
2 |
8 |
3 |
4 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
All DVB Channels |
|
Radio |
|
|
19:50 |
||||
|
|
|
Also in |
Select favourites |
|||
Now |
|
|
|
|
For info press |
||
AD |
|
STTL TEXT Multi Audio 45 |
5 Programme
6Programme Start / Finish time (DVB) Channel number, etc. (Analogue)
7Progress time indicator of the selected programme (DVB)
8Same programme available as HD broadcast
•To display the extra information for details
[Mute]
Sound mute On
[Bad signal]
Poor TV signal quality
[Encrypted]
Scrambled programme
[AD]
Audio Description service available
•This function can aid visuallyimpaired viewers by adding an additional audio track to describe events on screen.
•For settings(p. 30)
[STLL]
Subtitle service available
[TEXT]
Teletext service available
[Multi Audio]
Multiple audio available
[Stereo], [Mono], [NICAM]
Audio mode
1 - 90
Off Timer remaining time
•For settings(p. 16)
•To confirm another tuned channel name |
•To watch the channel listed in the banner |
•Information on the next programme (DVB) |
•To hide |
•Extra information (DVB) |
•To set display timeout |
EXIT |
(Press again to hide the banner) |
[Banner Display Timeout] (p. 32) |
|
|
•[AD], [STTL], [TEXT], [Multi Audio] indications are displayed as available on particular programmes, but may not be available for all individual programmes being broadcast. Display the extra information to confirm availability of these functions.
Example :
1 BBC ONE WALES |
19:50 |
All DVB Channels |
|
||
Coronation Street |
Now |
Exit info |
|||
19:30 - 20:00 |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
[AD]
AD
Last view
Switch to previously viewed channel or input mode easily
•Press again to return to the present view.
LAST VIEW
Note
TV Watching
•Switching channel is not available while the recording of Timer Programming or Direct TV Recording is in progress. |
|
•Watching less than 10 seconds is not regarded as the previously viewed channel or input mode. |
15 |
Hold
Freeze / unfreeze picture
HOLD
TV Watching
Display the selectable settings for the current status
Check or change the current status instantly
OPTION •To change
select change
[Audio Description]
(DVB mode)
Set to [Auto] if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen
•To adjust the volume for Audio Description
[Audio Description Menu] (p. 30)
[Multi Audio]
(DVB mode)
Allows you to select between alternative language for sound tracks (if available)
•This setting is not memorized and it will return to the default setting once you exit the current programme.
[Monaural Audio]
(DVB mode)
Allows you to select stereo / monaural (if available)
•This setting is not memorized and it will return to the default setting once you exit the current programme.
[Subtitle Language]
(DVB mode)
Allows you to select the language in which subtitles should appear (if available)
•This setting is not memorized and it will return to the default setting once you exit the current programme.
[Teletext Character Set]
Sets the teletext language font
[Setup Menu] (p. 31)
[Teletext Language]
(DVB mode)
Allows you to select between alternative language for teletext (if available)
[NICAM]
(Analogue mode)
Switches NICAM sound (if available)
[Sound Menu] (p. 29)
[Volume Correction]
Adjusts volume of individual channel or input mode
Off Timer
Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
1 Display the menu
MENU
2 Select [Setup]
Main Menu |
select |
access
Sound
Setup
3 Select [Off Timer] and set the time
Setup Menu
Timer Programming |
|
TV Guide Settings |
|
Off Timer |
Off |
Eco Navigation |
|
Link Settings |
|
Child Lock |
|
DVB Tuning Menu |
|
Display Settings |
|
Network Setup |
|
1/2 |
select |
set
•To cancel Set to [Off] or turn the TV off.
•To display the remaining time “Display Information banner” (p. 15)
•When the remaining time is within 3 minutes, the remaining time will flash on the screen.
16
Aspect
Change the aspect ratio (image size)
ASPECT Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 68).
■If you would like to change the aspect ratio manually
1 Display Aspect Selection list
ASPECT
Aspect Selection
Auto 16:9 14:9 4:3 Zoom1 Zoom2
Zoom3 Select
ChangeEXIT RETURN
Aspect Selection list
[Auto]
2 While the list is displayed, select the mode
select store
The best ratio is chosen and the image expanded to fill the screen. For details (p. 68)
[16:9] |
[Zoom1] |
•You can also change the mode only using the ASPECT button.
ASPECT (Press repeatedly until you reach the desired mode)
|
Directly displays the image at 16:9 |
|
Displays a 16:9 letterbox or 4:3 image |
|
without distortion (anamorphic). |
|
without distortion. |
|
|
|
|
[14:9] |
|
[Zoom2] |
|
|
Displays the image at the standard 14:9 |
|
Displays a 16:9 letterbox (anamorphic) |
|
|
||
|
without distortion. |
|
image full-screen without distortion. |
|
|
|
|
[4:3] |
|
[Zoom3] |
|
|
Displays the image at the standard 4:3 |
|
Displays a 2.35:1 letterbox (anamorphic) |
|
|
||
|
without distortion. |
|
image full-screen without distortion. |
|
|
|
At 16:9, displays the image at its maximum |
|
|
|
(with slight enlargement). |
|
|
|
Note
•Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
•Not available in teletext service.
•Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
Display subtitles
■DVB mode
Display / hide subtitles (if available)
STTL |
•To change the language for DVB (if available) |
|
|
[Preferred Subtitles] (p. 32) |
|
■Analogue mode |
|
|
Display subtitles |
Hide subtitles |
|
STTL |
|
EXIT |
Note
•This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 23)
•You cannot change the channel when this function is active.
TV Watching
17
Guide TV Using
18
Using TV Guide
TV Guide−Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).
•This TV supports the GUIDE Plus+ system.
•The Rovi branding partner will supply the rating information in the programme information and the recommended group in the Search list.
•DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel and [A] means Analogue channel. There will be no programme listings for Analogue channels.
•When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
SD CARD |
INPUT |
|
|
TV |
AV |
MENU ASPECT |
N |
DIRECT TV REC |
EXIT
OPTION |
RETURN |
TEXT STTL INDEX HOLD
1
2
Select DVB or Analogue
TV
View TV Guide
|
|
Example : |
|
6 |
|
|
7 |
8 |
|
|
9 |
|||||
1 |
|
|
|
|
|
|
TV Guide |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
Wed 27 Oct 2010 |
|
Wed 27 Oct |
|
|
|
|
Search |
|
|
|
All Channels |
||||
|
10:46 |
1 BBC ONE |
|
|
|
|
|
|
|
|
Also in |
|||||
|
|
|
|
|
|
|
|
|
|
|
||||||
2 |
|
|
20:00 - 20:30 DIY SOS : We open in the Battersbys |
|
|
|
|
|
|
|||||||
|
|
|
|
Time: |
19:30 |
|
20:00 |
|
20:30 |
21:00 |
|
|||||
|
|
D |
1 |
BBC ONE |
Eastender |
|
DIY SOS |
|
Holiday News |
|||||||
3 |
|
|
D |
7 |
BBC THREE |
Hot Wars |
|
|
|
Holiday Program |
||||||
|
|
D |
14 |
E4 |
Emmerdal. |
|
Coronation Street |
|
The Bill |
|||||||
|
|
D |
70 |
BBC FOUR |
10 O’ clock News BBC |
|
Pepsi Char. |
|
Good bye |
|||||||
4 |
|
|
D |
72 |
BBC 2W |
Panorama |
|
Spring watch |
|
|
|
Coast |
||||
|
|
|
D |
105 |
BBCi |
I’m A Celebrity |
|
Pop Idol |
|
News |
||||||
5 |
|
|
D |
719 |
BBC Radi |
Rugby |
|
15 To 1 |
|
|
|
|
Sports |
|||
|
Select channel |
|
|
|
Info |
|
|
|
|
|
|
|||||
|
|
|
|
EXIT |
|
|
|
|
|
|
|
Page up |
||||
|
|
Timer Programming |
|
Select programme |
GUIDE RETURN |
|
|
|
Page down |
|||||||
|
|
|
RETURN |
|
|
OPTION Select Advert |
|
|
|
|||||||
|
|
-24 hours |
|
+24 hours |
|
|
|
Search |
|
|
|
Category |
1 Current date and time
2 TV Guide time
3 Advertisement
4[D] : DVB
[A]: Analogue
5Channel position and name
6 TV Guide date
abc |
def |
7 |
Some programmes may also be broadcast in HD |
|
|
||
■To return to TV |
|
8 |
•You can select HD or SD broadcast before viewing or setting Timer Programming. |
|
Programme |
||
EXIT |
|
||
|
|
|
or
9 Logo of the Rovi branding partner
■To change the layout of TV Guide [TV Guide View] (p. 30)
■To watch the programme
1 Select a current programme or channel
select
access
2 Select [View] (DVB mode)
•If a programme exists in both HD and SD broadcasts, the
Eastender |
|
|
|
|
|
[View Options] screen will be displayed to select HD or |
|||||||
19:3020:00 |
|
|
|
|
|
||||||||
|
|
|
|
|
SD broadcast. (DVB mode) |
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||
|
View |
|
|
Timer Programming |
|
|
select |
||||||
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
DIY SOS |
|
View Options |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
|
101 |
BBC ONE |
19:30-20:00 Wed 27 Oct 2010 |
|
|
|
|||
|
|
|
|
|
|
|
119 |
BBC HD |
19:30-20:00 Wed 27 Oct 2010 |
|
|
watch |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
watch
•To use Timer Programming (p. 19)
■To the previous day (DVB mode)
(red)
■To the next day (DVB mode)
(green)
■View details of the programme (DVB mode)
1 Select the programme |
2 View details |
select |
•Press again to return to TV |
|
Guide. |
■To view a channel list of the selected category
(blue)
(Category list)
Category
All Channels
All Channels |
|
|
|
||
All DVB Channels |
|
|
|
||
|
|
|
|
|
|
All HD Channels |
|
|
|
||
All Analogue Channels |
|
|
|
Only Analogue channels are |
|
|
|
||||
Free DVB Channels |
|
|
listed |
||
TV/Data DVB Channels |
|
|
|
||
|
|
|
|
|
|
Favourites1 |
|
|
|
||
|
|
|
|
|
|
Favourites2 |
|
|
•To list favourite channels |
||
|
|
|
|
|
|
Favourites3 |
|
|
|
||
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
Favourites4 |
|
|
(p. 38) |
■To search programme types and view a channel list of the searched programmes (DVB mode)
(yellow) (Search list)
Search
Search Titles...
Movie
News and Factual
.
.
.
(Type list)
Prog.Type
All Types
All Types
Movie
News
.
.
.
select type view
■To search programme titles and view a list of the searched programmes (DVB mode)
(yellow) |
|
|
|
(Search list) |
1 Select |
2 Set characters |
3 Start [Search] |
Search |
[Search Titles...] |
(maximum: 19 characters) |
(green) |
|
|
select |
|
|
select |
|
|
Search Titles... |
|
set |
|
Movie |
access |
|
|
News and Factual |
|
•To use numeric buttons |
|
. |
|
|
|
. |
|
“Characters table for |
|
. |
|
|
|
|
|
numeric buttons” (p. 70) |
|
•All the programme titles including the word you set will be listed.
•Searching without any characters will list all programmes including current programmes.
Other useful functions
Timer Programming (DVB mode)
Timer Programming can remind you to watch a programme or record one on an external recorder.
1 Select the forthcoming programme
select set
LED will turn to orange if Timer Programming is set.
(Orange LED will flash if the recording of Timer Programming is in progress.)
LED
2 Select the function ([Ext Rec.] or [Reminder])
|
|
|
(Timer Programming screen) |
select |
||||
|
|
|
|
|
||||
Timer Programming |
Wed 27.10.2010 10:46 |
|
||||||
Function |
No. |
Channel Name |
Date |
Start |
End |
store |
||
|
|
|
D 1 |
BBC ONE |
Wed 27 Oct |
20:00 |
20:30 |
|
|
Ext Rec. |
|||||||
|
|
|
|
DIY SOS |
|
(30 min.) |
|
|
|
|
|
|
|
|
|
|
|
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
(--- min.) |
|
|
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
(--- min.) |
|
[Ext Rec.] :
to record the programme to the external recorder [Ext Rec.]
When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV.
[Reminder] :
to remind you to watch the programme
When you are watching TV, a reminder message appears 2 minutes before the start time. Press the OK button to switch to the programmed channel.
■To check / change / cancel a timer programming |
■To return to TV Guide |
|
event |
RETURN |
|
“Timer Programming” (p. 41) |
|
|
■If you select a current programme |
■If a programme exists in both HD and SD broadcasts |
|
|
|
|
|
|
|
Guide TV Using
A confirmation screen asking whether you wish to watch or record the programme will appear.
Select [Timer Programming] and set [Ext Rec.] to record from the time you finish programming the timer event setting.
Eastender |
select |
|
19:3020:00 |
access |
|
View |
||
Timer Programming |
The [Timer Options] screen will be displayed to select HD or SD broadcast.
|
DIY SOS |
|
|
Timer Options |
|
|
|
|
|
|
select |
|
||
|
|
|
|
|
|
|
|
|
|
|||||
|
101 |
BBC ONE |
19:30-20:00 |
Wed 27 Oct 2010 |
|
|
|
|
set |
|
||||
|
119 |
BBC HD |
19:30-20:00 |
Wed 27 Oct 2010 |
|
|
|
|
|
|||||
|
|
|
|
(Timer Programming screen) |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|||||
Timer Programming |
|
Wed 27.10.2010 10:46 |
|
|
|
|
||||||||
|
Function |
No. |
Channel Name |
Date |
Start |
End |
|
|
|
|
||||
|
|
Ext Rec. |
D |
1 |
BBC ONE |
|
Wed 27 Oct |
20:00 20:30 |
|
|
|
|
||
|
|
|
|
|
DIY SOS |
|
|
(30 min.) |
will be displayed if |
|
||||
--- |
|
--- |
|
|
--/-- |
--:-- |
--:-- |
|
||||||
|
|
|
|
|
|
|
|
(--- min.) |
|
|
|
|
||
--- |
|
--- |
|
|
--/-- |
--:-- |
--:-- |
HD broadcast is set. |
19 |
|||||
|
|
|
|
|
|
|
|
(--- min.) |
||||||
|
|
|
|
|
|
|
|
|
|
|
Guide TV Using
Note
•This function is not available in Analogue mode.
•Timer Programming reminder messages will remain displayed until one of the following occurs:
•You press the OK button to view the programme or the EXIT button to cancel the reminder.
•The timer programming event that the reminder is set for ends.
•No other channel can be selected while the recording of Timer Programming is in progress.
•When recording programmes, be sure to make the proper settings on the recorder connected to the TV. (p. 41)
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.
(Timer Programming screen)
Timer Programming |
|
|
Wed 27 Oct 2010 10:46 |
||||||
Function |
|
No. |
Channel Name |
|
|
Date |
Star t |
End |
|
|
Ext Rec. |
D |
1 |
BBC ONE |
|
|
Wed 27 Oct |
20:00 |
20:30 |
|
|
|
|
DIY SOS |
|
Guide |
|
(30 min.) |
|
|
Reminder |
D |
14 |
E4 |
|
|
Wed 27 Oct |
21:00 |
22:30 |
|
|
|
|
The Bill |
|
Guide |
|
(90 min.) |
|
|
Ext Rec. |
D |
72 |
BBC 2W |
|
|
Wed 27 Oct |
22:45 |
23:00 |
|
|
|
|
<TIMER> |
|
|
|
(15 min.) |
|
|
Ext Rec. |
D |
1 |
BBC ONE |
|
|
Thu 28 Oct |
10:30 |
11:30 |
|
|
|
|
Red Cap |
|
S/P |
|
(60 min.) |
|
--- |
|
--- |
|
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
|
(--- min.) |
|
|
Change function |
|
|
|
|
|
1/1 |
||
|
Store timer |
|
EXIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
Page up |
||
|
|
|
Select |
0 9 |
|
|
|
|
|
|
|
|
RETURN |
|
|
|
Page down |
||
|
Delete |
|
|
|
Subtitles auto |
|
|
“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme
“Guide” is displayed if the timer is set from the TV Guide (Guide link programming)
Example :
TV Guide
Wed 27 Oct 2010 |
|
Wed 27 Oct |
|
Search |
All Channels |
|
10:46 |
|
|
|
|
|
|
1 BBC ONE |
|
|
|
|
||
20:00 - 20:30 DIY SOS : We open in the Battersbys |
|
|
||||
|
|
Time: |
19:30 |
20:00 |
20:30 |
21:00 |
D |
1 |
BBC ONE |
Eastender |
DIY SOS |
Holiday News |
|
D |
7 |
BBC THREE |
Hot Wars |
|
Holiday Program |
|
D |
14 |
E4 |
Emmerdal. |
Coronation Street |
The Bill |
|
D |
70 |
BBC FOUR |
10 O’ clock News BBC |
Pepsi Char. |
Good bye |
|
D |
72 |
BBC 2W |
Panorama |
Spring watch |
|
Coast |
D |
105 |
BBCi |
I’m A Celebrity |
|
Pop Idol |
News |
D |
719 |
BBC Radi |
Rugby |
15 To 1 |
|
Sports |
“” or “” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.
Note
•If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.
•Whilst making the Split Programme programming event for [Ext Rec.], you cannot record any channels between the interrupted programmes.
•The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.
•The Split Programme programming event for Reminder will switch to the programmed channel by pressing the OK button even if it is between the interrupted programmes.
•The Split Programme programming does not work if the separated parts are broadcast on different channels.
View advertisement
Enter your postcode when using this function for the first time
[Guide Plus+ Postcode] in [TV Guide Settings] (p. 30)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12, 13), you do not have to enter it again. If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.
Display advertisement information
OPTION |
•To display the latest advertisement, you will need to update the information. |
|
|
To update the information continuously, the TV must be left in Standby mode. |
|
■To change advertisements |
■To return to TV Guide |
|
|
OPTION |
RETURN |
|
|
or |
Note
•Some advertisements are for future programmes.
In this case it is possible to use the Guide link programming function.
•The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
20
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
•The availability of teletext services for a programme is indicated by [TEXT] in the information banner.
1 BBC ONE Wales |
19:50 |
All DVB Channels |
Coronation Street |
|
Select favourites |
19:30 - 20:00 |
Now |
For info press |
|
TEXT |
Information banner (p. 15)
Displayed if programme has teletext service
Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case, the operation of the teletext services may be the same as the analogue teletext services (p. 22).
Digital teletext (MHEG)
Digital teletext services differ greatly from analogue teletext.
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.
SD CARD |
INPUT |
1 Select DVB |
•DVB programmes have digital teletext |
|
|
TV |
AV |
TV |
|
MENU ASPECT |
N |
DIRECT TV REC |
|
services (MHEG). |
|
|
EXIT
OPTION |
RETURN |
TEXT STTL INDEX HOLD
abc def
ghi jklmno
pqrs tuv wxyz
LAST VIEW
PROGRAMME
REC
TV
■To return to TV
TEXT
2 Switch to Teletext
TEXT |
Example : |
|
17:51 28 Feb
■How to operate services
In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of digital equipment, some on screen commands may not correspond exactly to the remote control buttons.
•Select, go |
•Symbol : |
|
|
|
•Back key |
•Coloured characters |
•When options with numbers are |
||
RETURN |
|
displayed |
||
|
|
abc |
def |
|
|
Coloured button |
ghi |
jkl |
mno |
|
pqrs |
tuv |
wxyz |
Note
•As soon as you switch to a digital channel with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete.
•While navigating digital teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example“Loading”) to let you know that this is happening.
Teletext Viewing
21
Teletext Viewing
Analogue teletext
Analogue teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT (FLOF) mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. “Store frequently viewed pages” (p. 23)
■To change mode |
[Teletext] (p. 31) |
|
|
|
|||||
SD CARD |
INPUT |
1 |
Select Analogue |
|
|||||
|
TV |
AV |
|
TV |
|
|
|
|
|
MENU ASPECT |
N |
DIRECT TV REC |
2 |
Switch to Teletext |
|
||||
|
|
EXIT |
•Displays the index page (content varies |
||||||
|
|
|
|
TEXT |
|
|
|
||
|
|
|
|
|
|
|
|
|
depending on the broadcasters) |
|
|
|
|
|
Sub page number |
|
|
||
OPTION |
|
RETURN |
|
|
<< 01 02 03 04 05 06 07 |
>> |
|
||
|
|
|
|
|
17:51 28 Feb |
Time / date |
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
TELETEXT |
|
|
TEXT STTL INDEX HOLD |
|
|
|
INFORMATION |
|
||||
|
|
|
|
|
|
|
|
|
Colour bar |
|
abc |
def |
|
Current page number |
|
|
|||
|
|
|
|
|
|
||||
ghi |
jkl |
mno |
3 |
Select the page |
|
||||
pqrs |
tuv |
wxyz |
|
||||||
|
|
|
|
|
|
|
|||
|
|
LAST VIEW |
|
|
abc |
def |
|
up |
|
|
|
|
ghi |
jkl |
mno |
or |
|
or Coloured button |
|
|
|
|
|
pqrs |
tuv |
wxyz |
|
|
down |
(Corresponds to the colour bar) |
■To return to TV |
■To adjust contrast |
As the blue bar is displayed |
EXIT |
MENU |
|
|
(Press twice) |
|
FULL / TOP / BOTTOM
MENU |
|
(TOP) |
|
|
|
(BOTTOM) |
|
|
|
Normal (FULL) |
|||
(green) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Expand the TOP half) |
|
|
(Expand the BOTTOM half) |
||||||||
Reveal hidden data |
|
|
|
|
|
HOLD |
|
|
|
|
|
||
Reveal hidden words e.g. quiz page answers |
|
Stop automatic updating |
|
|
|
|
|
||||||
MENU |
•Press again to rehide |
|
(If you wish to hold the current page without updating) |
||||||||||
(red) |
|
|
|
|
HOLD |
|
•Press again to resume |
22
INDEX |
Subtitles |
|
|
|
|
|||||
Return to the main index page |
View a favourite page stored |
|||||||||
INDEX |
STTL |
|
|
|
•Factory setting is “P888” |
|||||
|
|
|
|
|
|
|
|
|
|
(subtitle service) on the blue |
|
|
|
|
|
|
|
|
|
|
button (List mode). |
|
|
|
|
|
|
|
|
|
|
|
View in multi window |
|
|
|
|
|
|
|
|||
Watch TV and Teletext in two windows at once |
|
|
|
|
|
|
|
|||
TEXT |
|
|
|
•Operations can be made only in Teletext screen. |
||||||
|
|
|
||||||||
|
|
|
|
•Each time pressed: Teletext |
|
|
|
TV and |
Teletext |
|
|
|
|
|
|
TV |
|
||||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
As page is displayed
press and hold
(Corresponding coloured button)
The number changes to white.
■To change stored pages
•If you wish to use Subtitles, do not change number on blue button.
|
Enter new page number |
|
||
Coloured button you want to |
|
abc |
def |
press and hold |
ghi |
jkl |
mno |
|
|
change |
|
|||
pqrs |
tuv |
wxyz |
|
View sub page
View sub page (Only when teletext is more than one page)
|
|
|
|
|
|
Appears at top of the screen |
•The number of sub pages varies depending on the |
||||||
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
broadcasters (up to 79 pages). |
||||
|
|
|
|
|
|
|
|
|
•It may take some time for searching, during which time |
||||
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
you can watch TV. |
||||
■To view specific sub page |
Enter the 4-digit number |
|
|
|
|
||||||||
MENU |
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
||||||||
|
(blue) |
|
|
|
|
example : P6 |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
mno |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Watch TV while waiting for update
View the TV picture while searching for a teletext page |
|
|
Teletext automatically updates itself when new information becomes available. |
||
|
Changes to TV screen temporarily |
|
MENU |
P108 |
Appears when updating |
(yellow) |
|
is completed |
|
(You cannot change the channel.) |
•The news page provides a function that indicates arrival of latest news (“News Flash”).
View the updated page
(yellow)
Teletext Viewing
23
Inputs External Watching
Watching External Inputs

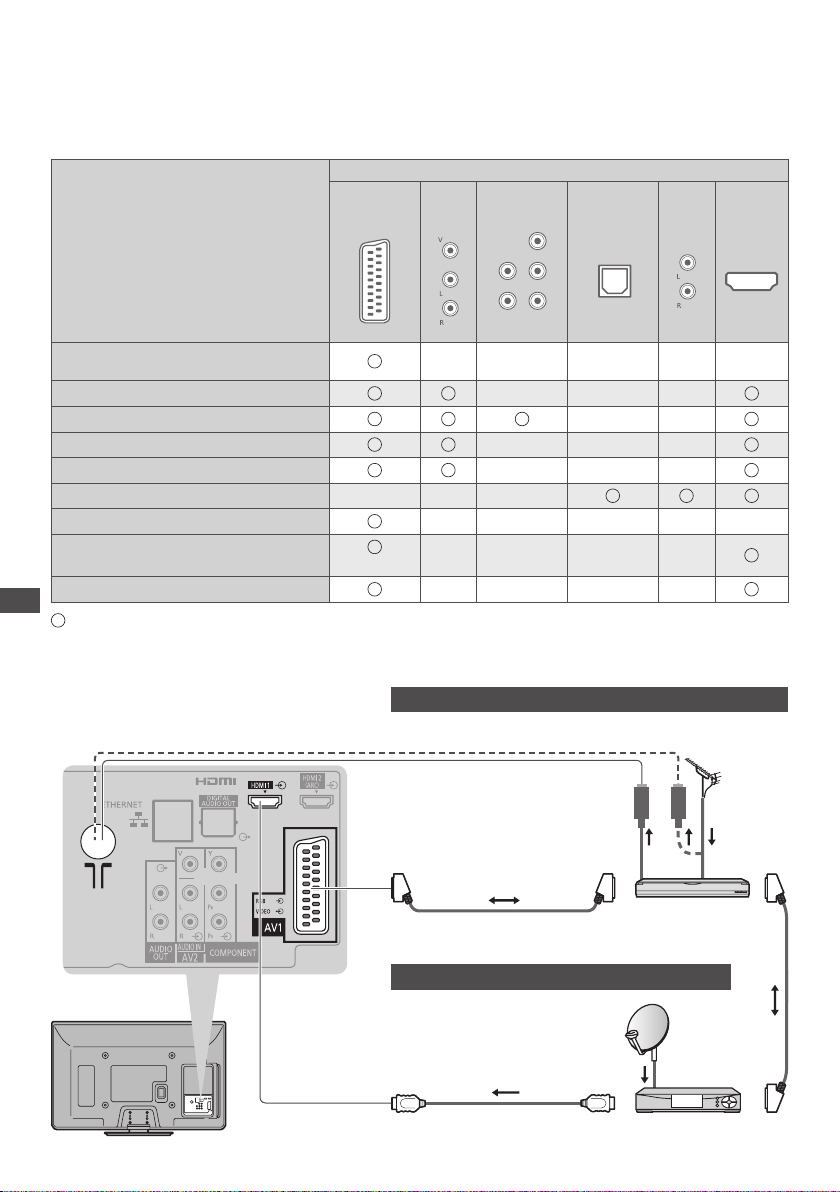

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input. |
|||
•To connect the equipment |
(p. 10, 11, 66, 67) |
||
The Remote Control is capable of operating some functions of selected external equipment. |
|||
“Operating the equipment with the TV remote control” (p. 25) |
|||
SD CARD |
INPUT |
1 Turn the TV on |
|
|
TV |
AV |
|
MENU ASPECT |
N |
DIRECT TV REC |
|
When connecting with SCART as example 2 or 3 (p. 10, 11)
EXIT
Receives input signals automatically when playback starts
•Input signals are automatically identified by the SCART (pin 8) terminal.
•This function is also available for HDMI connections (p. 67).
If input mode is not switched automatically
OPTION |
|
RETURN |
|
Perform 2 and 3 |
|
|
|
|
|
|
•Check the setup of the equipment. |
|
|
TEXT STTL INDEX HOLD |
2 |
Display the input selection menu |
||||
|
|
|
||||
|
|
|
|
AV |
|
|
|
abc |
def |
3 |
Select the input mode connected to the equipment |
||
ghi |
jkl |
mno |
||||
|
|
|
|
Input Selection |
|
select |
pqrs |
tuv |
wxyz |
|
AV1 |
|
|
|
AV2 |
|
watch |
|||
|
|
|
|
|
||
|
|
|
|
COMPONENT |
|
|
|
|
|
|
|
|
|
|
|
LAST VIEW |
|
HDMI1 |
|
|
|
|
|
HDMI2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TV |
|
|
|
|
|
|
SD Card |
|
|
|
PROGRAMME |
|
•You can also select the input using the AV button on the remote control or the side |
|||
|
|
|
|
panel of the TV (except [SD Card]). |
|
|
|
|
|
|
Press the button repeatedly until the desired input is selected. |
||
|
|
REC |
|
•[SD Card] : Switches to Media Player |
[Using Media Player] (p. 51) |
|
|
|
|
|
•You can label or skip each input mode (except [SD Card]). “Input Labels” (p. 44) |
||
|
|
|
|
Skipped inputs will not be displayed when the AV button is pressed. |
||
|
TV |
|
4 |
View |
|
|
|
|
|
Displays the selected mode |
|||
|
|
|
|
AV1 |
■To return to TV
TV
Terminal |
AV1 |
AV2 |
COMPONENT |
HDMI1 |
HDMI2 |
|
|
||||||
Manual input |
AV1 |
|
|
|
|
|
(default setting |
AV2 |
COMPONENT |
HDMI1 |
HDMI2 |
||
AV1-RGB |
||||||
in“Input Labels”) |
|
|
|
|
||
|
|
|
|
|
||
Auto input |
|
|
|
EC/HDMI1 |
EC/HDMI2 |
|
EC/AV1 |
− |
− |
Applicable for |
Applicable |
||
(EC mode or |
||||||
EC/AV1-RGB |
EC mode and |
for |
||||
VIERA Link) |
|
|
||||
|
|
|
VIERA Link |
VIERA Link |
||
|
|
|
|
•If the above information is permanently displayed on the top left of the screen, press the button to clear.
Note
•If the external equipment has an aspect adjustment function, set it to [16:9].
•For details, see the manual of the equipment or ask your local dealer.
24
