Panasonic TXP42V20BA Operating Instructions

Model No.

TX-P42V20BA

TX-P50V20BA

Operating Instructions

Plasma Television

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.

“B” or “B ” model no. suffix denotes UK model.

English U.K. Standard

TQB0E2036

Features

■freesat HD tuner built-in

Receives freesat - free digital satellite broadcasts in the UK

This TV has a built-in freesat HD tuner.

freesat is a free digital TV service which broadcasts via satellite so you can receive TV, radio, interactive TV, and HD TV with crystal clear reception.

You can enjoy sharp pictures, vivid colours, multi-channel sound, and various services with the interactive content.

■DVB-T / DVB-T2 tuner built-in

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts

DVB-T2 is an advanced digital terrestrial system for more efficient transmission.

Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.

■GUIDE Plus+ (p. 21)

This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.

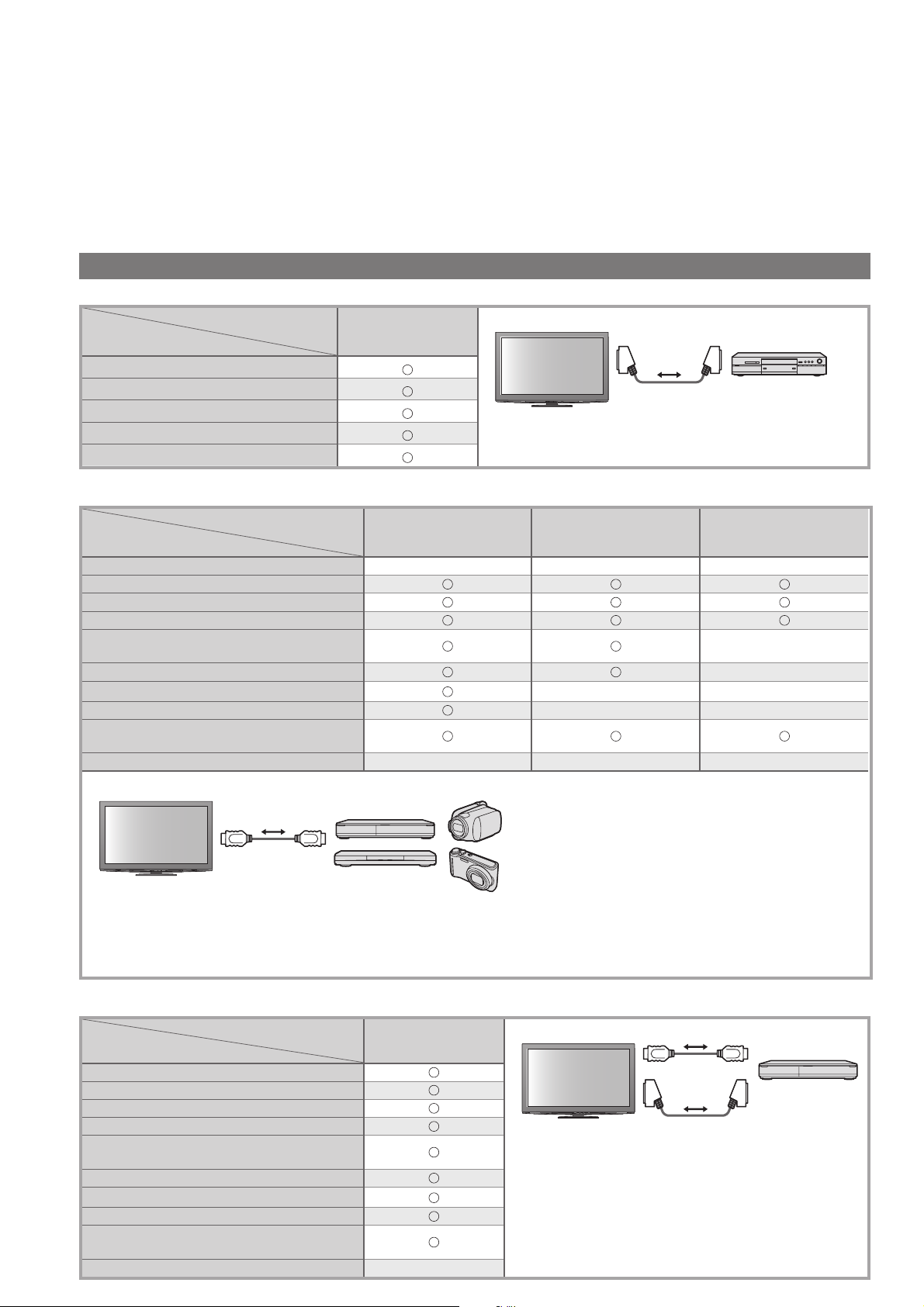

■Sharp pictures and clear sound with HDMI connection (p. 98)

Enjoy high definition digital picture and high quality sound by using an HDMI cable.

●This TV supports HDMI (Version 1.4 with Content Type, Audio Return Channel), Deep Colour, x.v.Colour™.

■Using USB devices

Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 64 and p. 73) Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 68) Wireless LAN Adaptor for the network connection. (p. 6 and p. 13)

Entering characters with the USB Keyboard in VIERA CAST. (p. 85)

■Timer Programming (p. 22 and p. 52)

Timer Programming enables you to use functions such as programme reminder and programme recording to the external recorder / registered USB HDD.

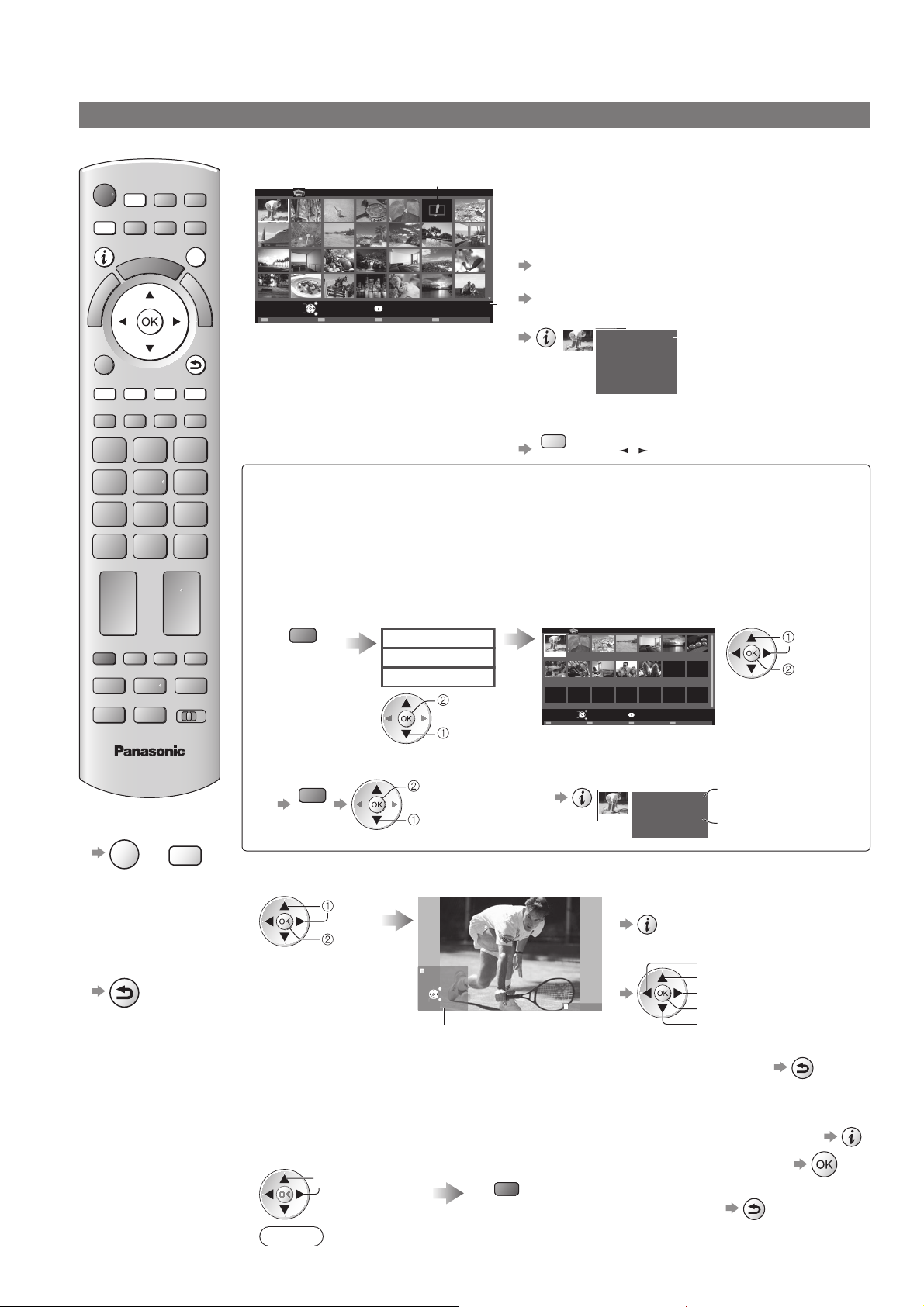

■VIERA IMAGE VIEWER - SD Card viewer in Media Player (p. 68 - 72) Enjoy your photos or videos recorded on an SD Card on the TV screen.

■SDXC Card

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

■AVCHD

It is possible to play moving pictures recorded on an SD Card or a USB Flash Memory in AVCHD format. AVCHD is a high definition video recording format. (p. 68)

■DivX

Offers good compatibility when going from PC to TV, etc. for easy enjoyment of moving pictures. DivX is a video codec that was developed by DivX, Inc. (p. 97)

■DLNA

DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. For example, you can enjoy watching photos and videos stored in the PC connected to your home network by accessing from the TV. (p. 82)

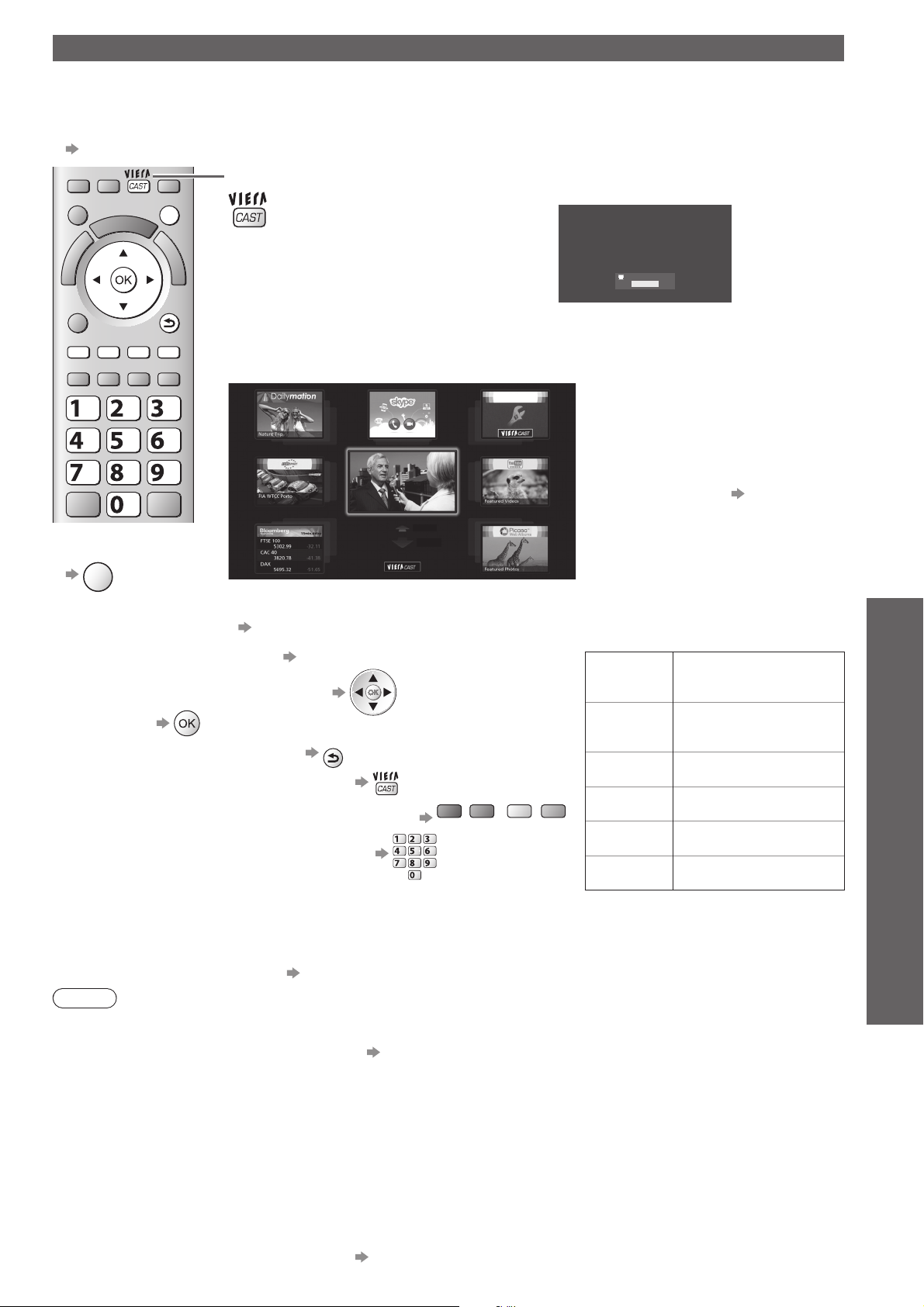

■VIERA CAST - Enjoy great web entertainment (p. 85)

Enjoy the internet contents on the TV such as photos, videos, weather, video communication (ex. Skype™), etc. through an easy-to-use web interface that is built into the TV.

■Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 86 - 93)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

■VIERA TOOLS - Display special feature icons for easy accessibility (p. 30)

Special features (such as VIERA Link, Media Player and DLNA operations) can be accessed easily by using the VIERA TOOLS button.

■Owner ID (p. 57)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.

■Supports Audio Description signal (p. 17 and p. 33)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.

You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk

Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing.

You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.

●To retune your TV “Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 41)

Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

●Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some

cases, despite good reception of analogue channels.

2

■FULL HD

This TV uses a high definition panel to produce high definition pictures close to their original resolution.

■HD TV 1080p

This TV supports high definition TV signals.

■Dolby Digital Plus decoder

It is possible to decode Dolby Digital Plus audio track (multichannel sound) and output as a Dolby Digital multi-channel sound signal from the DIGITAL AUDIO OUT terminal.

■CONEQ (p. 33)

CONEQ is a technology to transduce the sound from speakers. You can enjoy sophisticated sound true to the original one.

Neo PDP

Realizes high picture quality and energy efficient panel.

Intelligent Frame Creation

This increases the frame count and removes juddering movements, for smooth and flicker-less motion images with high resolution.

INFINITE BLACK PRO

A wide contrast ratio will deliver pictures with a deep, rich black level and a brighter white level for greater image depth.

THX Certified Display

Faithfully reproduces the image quality of THX movies that the filmmakers intended.

24p Smooth Film

This item is displayed instead of “Intelligent Frame Creation” when 24p signal input, and produces smoother playback of 24p source movies.

WiFi Ready

Using the Wireless LAN Adaptor (supplied) lets you connect to the network anywhere in the house over a wireless network.

digital tick

The digital tick logo indicates that a digital tuner

is built-in.

Freeview HD

Freeview HD is the way to enjoy high definition digital TV for free.

■Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“image retention”).

This is not considered a malfunction and is not covered by the warranty.

Typical still images

●Channel number and other logos ●Image displayed in 4:3 mode ●Video game

●Computer image

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 101)

■Keep the TV away from these types of equipment

●Electronic equipment

Do not place video equipment too close to the TV, electromagnetic interference may distort pictures / sound.

●Equipment with an infrared sensor

This TV emits infrared rays which may interfere with the operation of other equipment.

Contents

Be Sure to Read

●Safety Precautions (Warning / Caution) ················· 4

Quick Start Guide

●Accessories / Options ·······························6

●Identifying Controls ···································8

●Basic Connection ····································10

●Auto Setup ··············································12

Enjoy your TV!

Basic Features

●Watching TV ························································· 16

●Using TV Guide ···················································· 20

●Viewing Teletext···················································· 25

●Watching External inputs······································ 28

●How to Use VIERA TOOLS ·································· 30

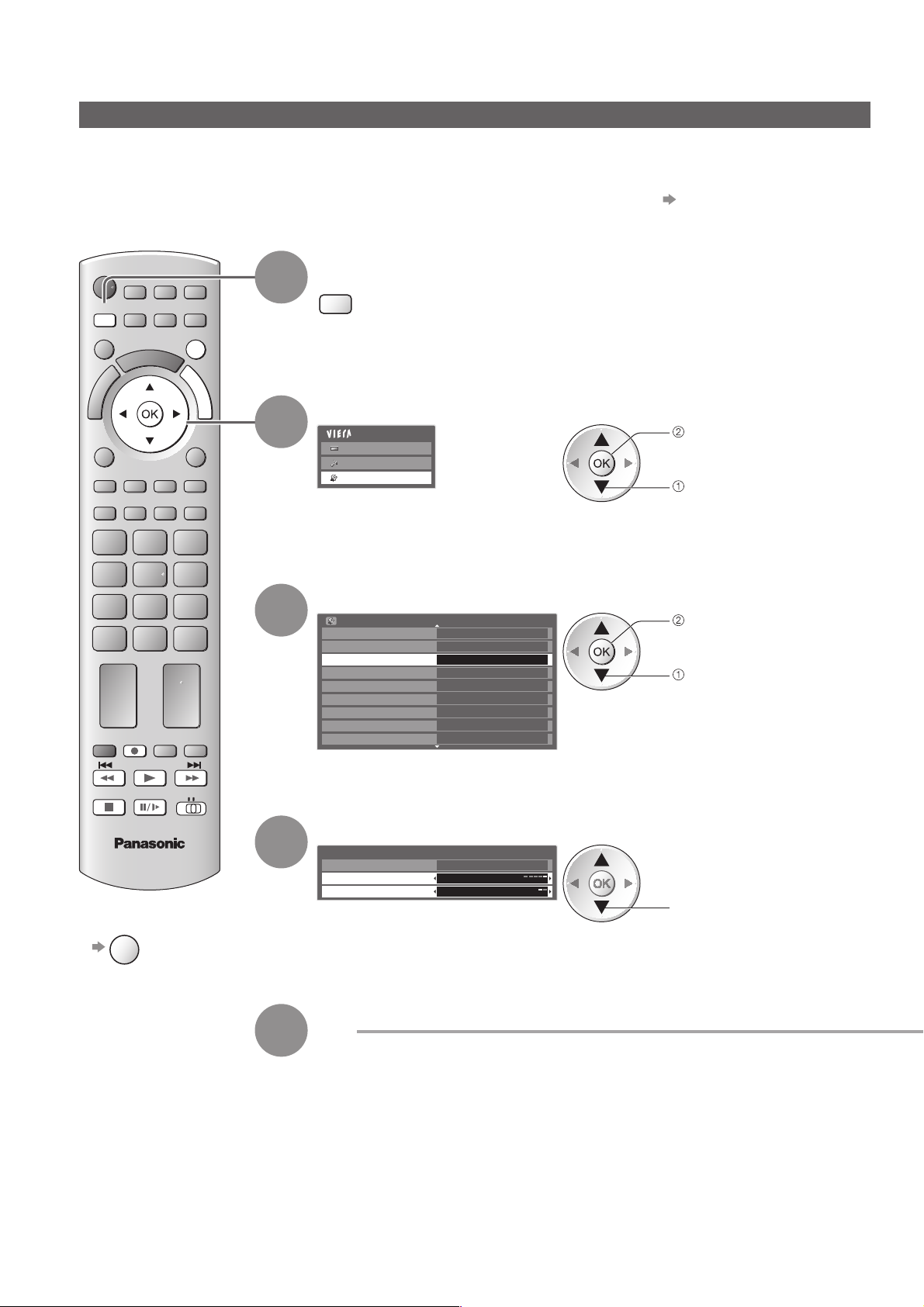

●How to Use Menu Functions ································ 31

Advanced Features

●Retuning from Setup Menu ·································· 40

●Tuning and Editing Channels ······························· 42

●Shipping Condition ··············································· 51

●Timer Programming·············································· 52

●Child Lock····························································· 54

●Input Labels·························································· 56

●Owner ID ······························································ 57

●Using Common Interface······································ 58

●Updating the TV Software ···································· 59

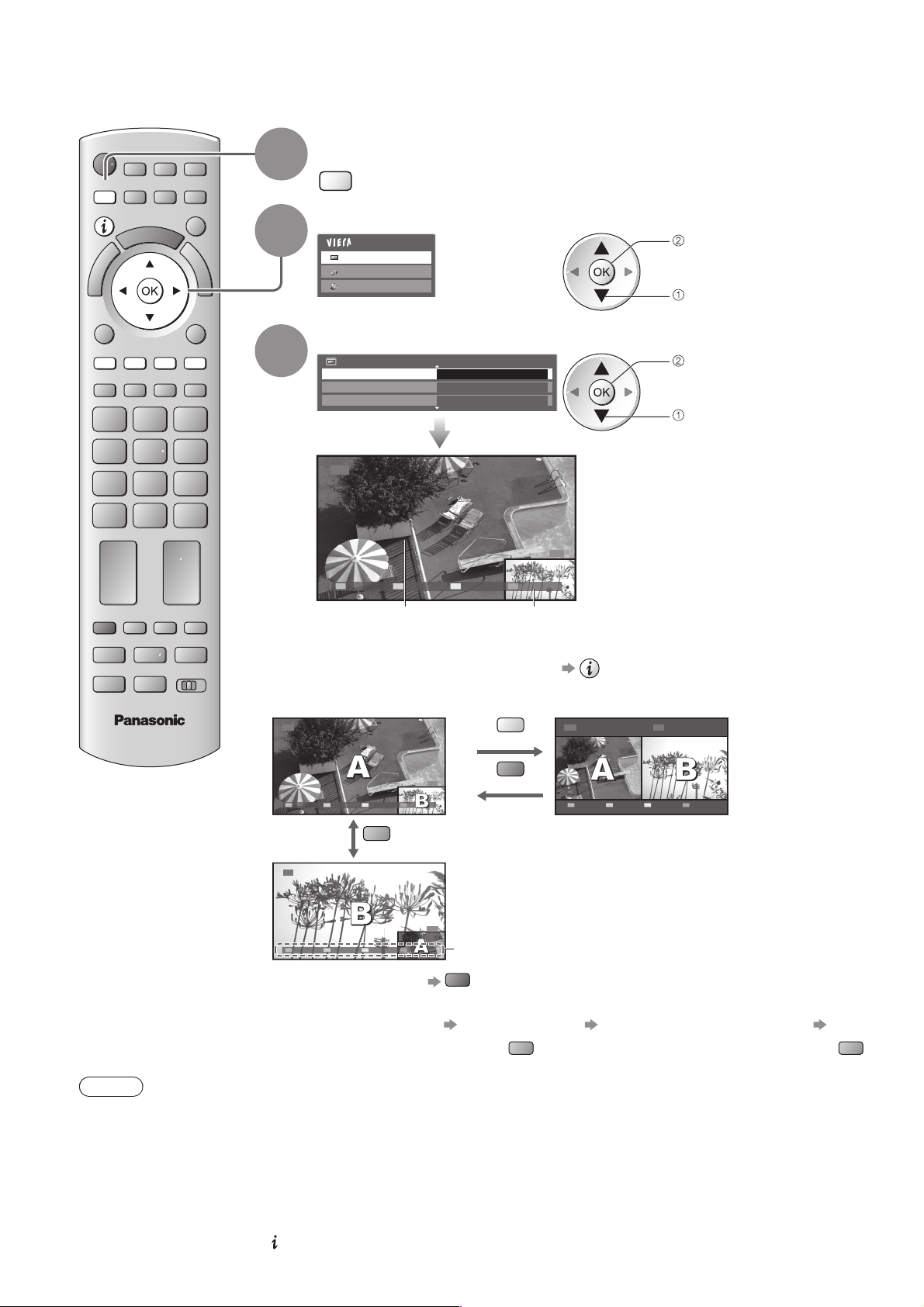

●Multi Window ························································ 60

●Displaying PC Screen on TV································ 61

●Advanced Picture Settings ··································· 62

●USB HDD Recording············································ 64

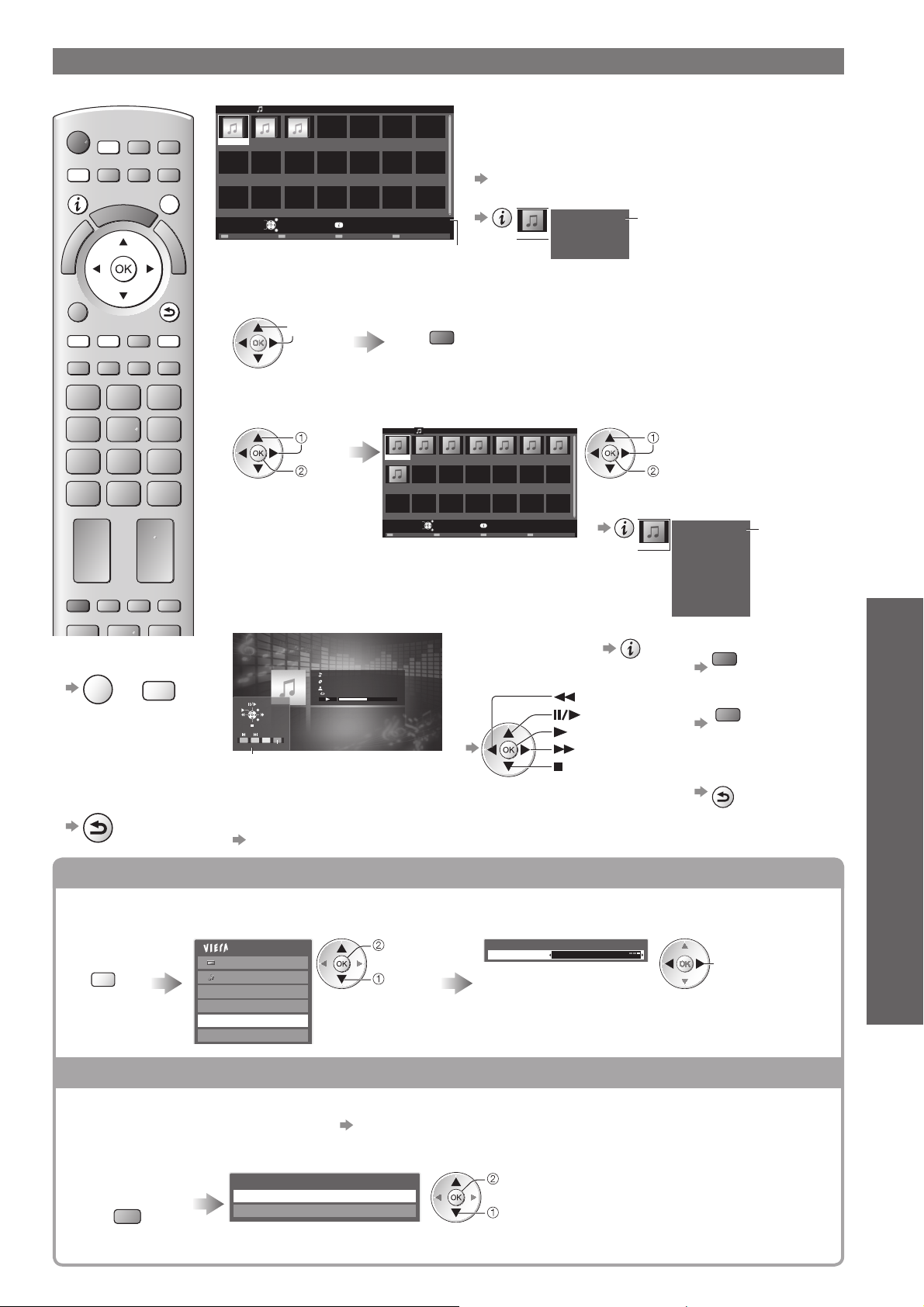

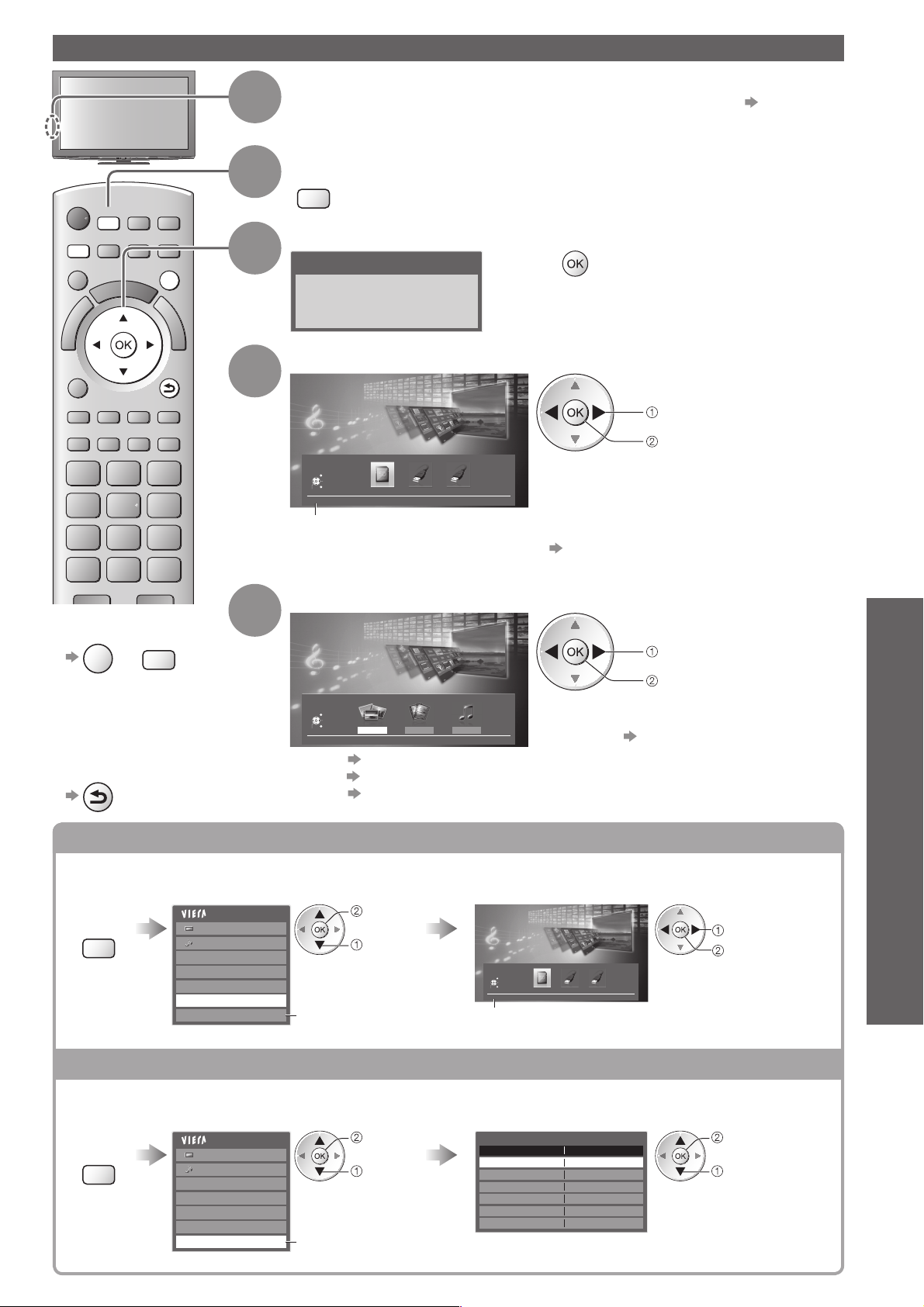

●Using Media Player ·············································· 68

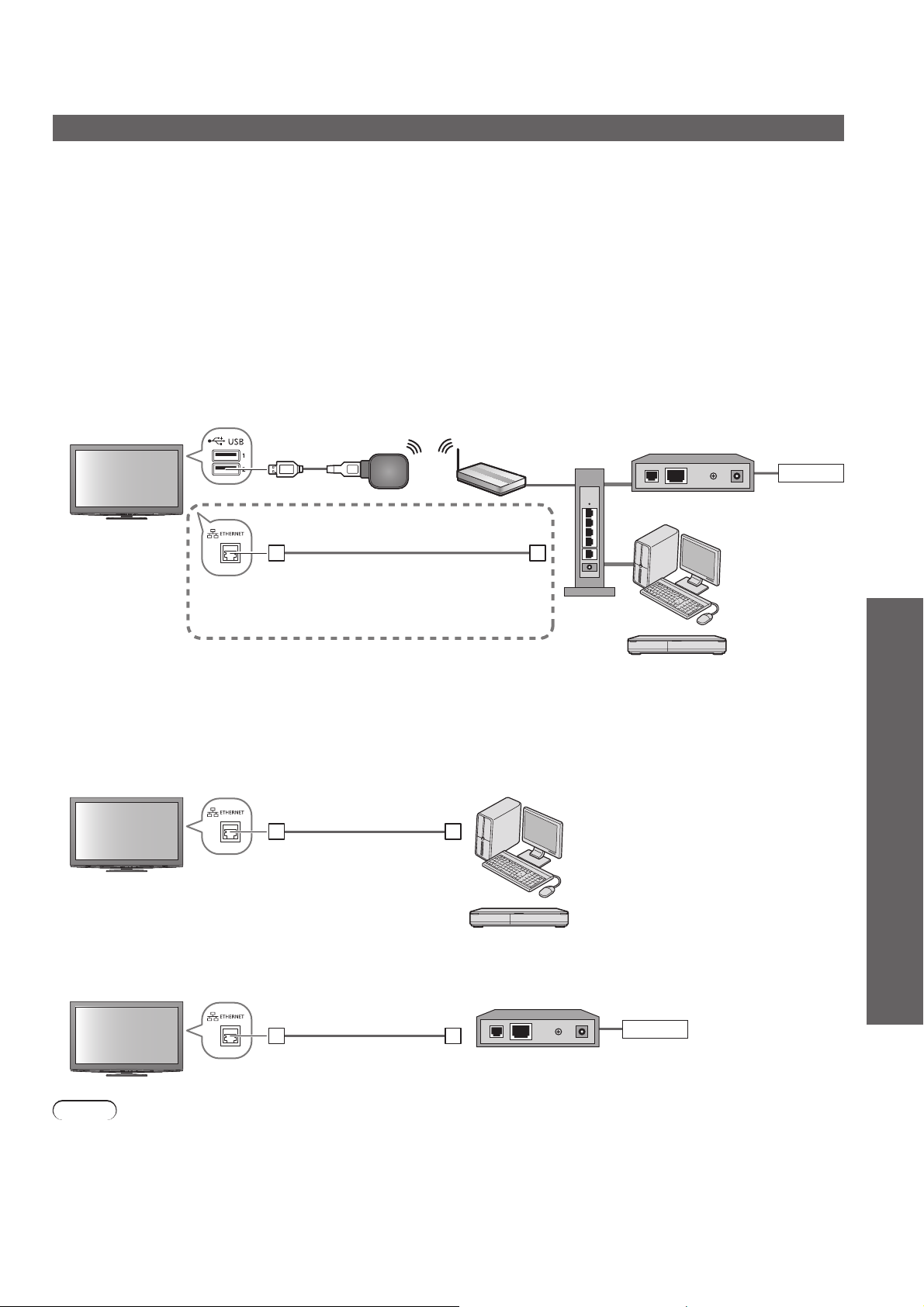

●Using Network Services ······································· 76 (DLNA / VIERA CAST / freesat)

●Link Functions ····················································· 86 (Q-Link / VIERA Link)

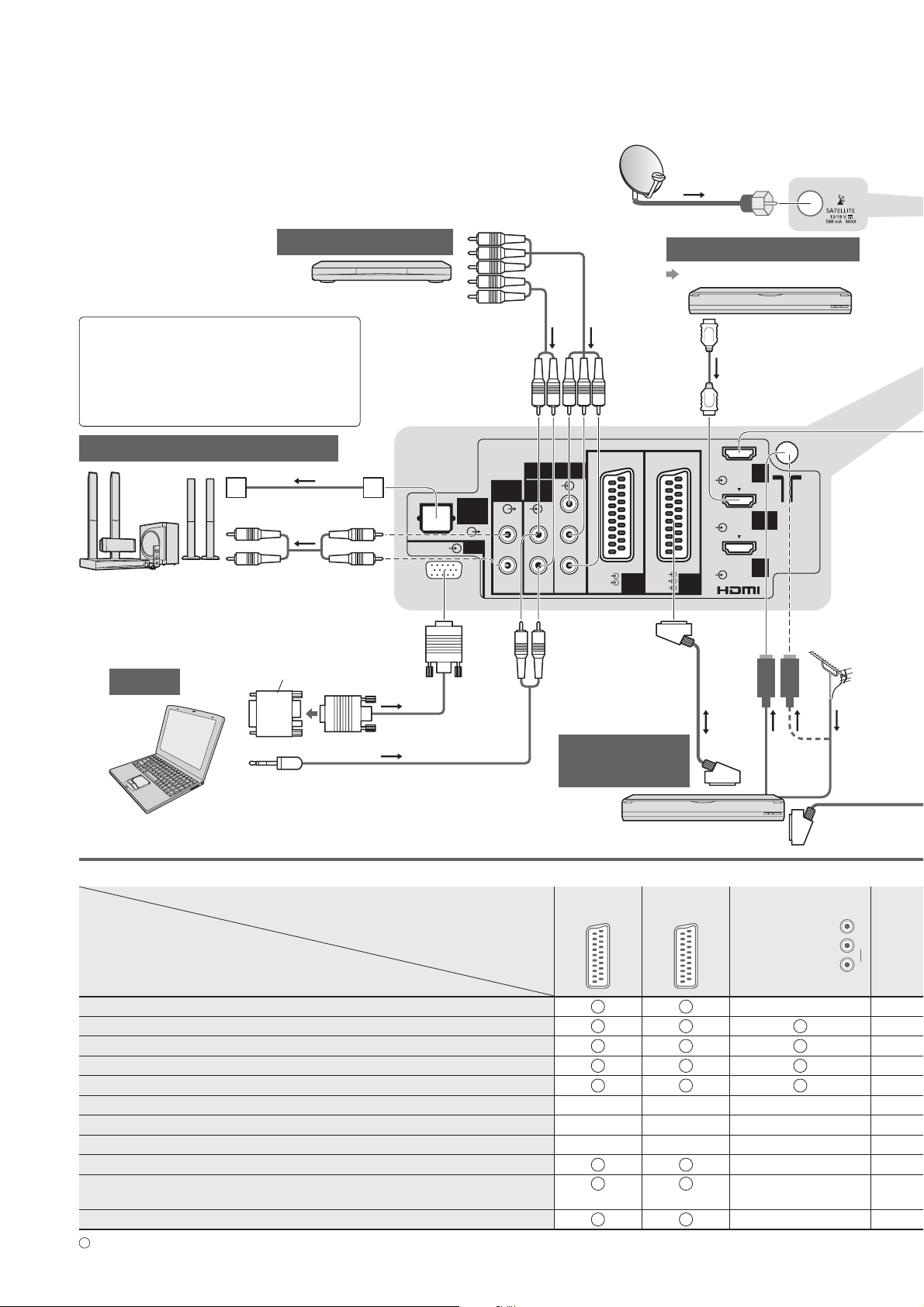

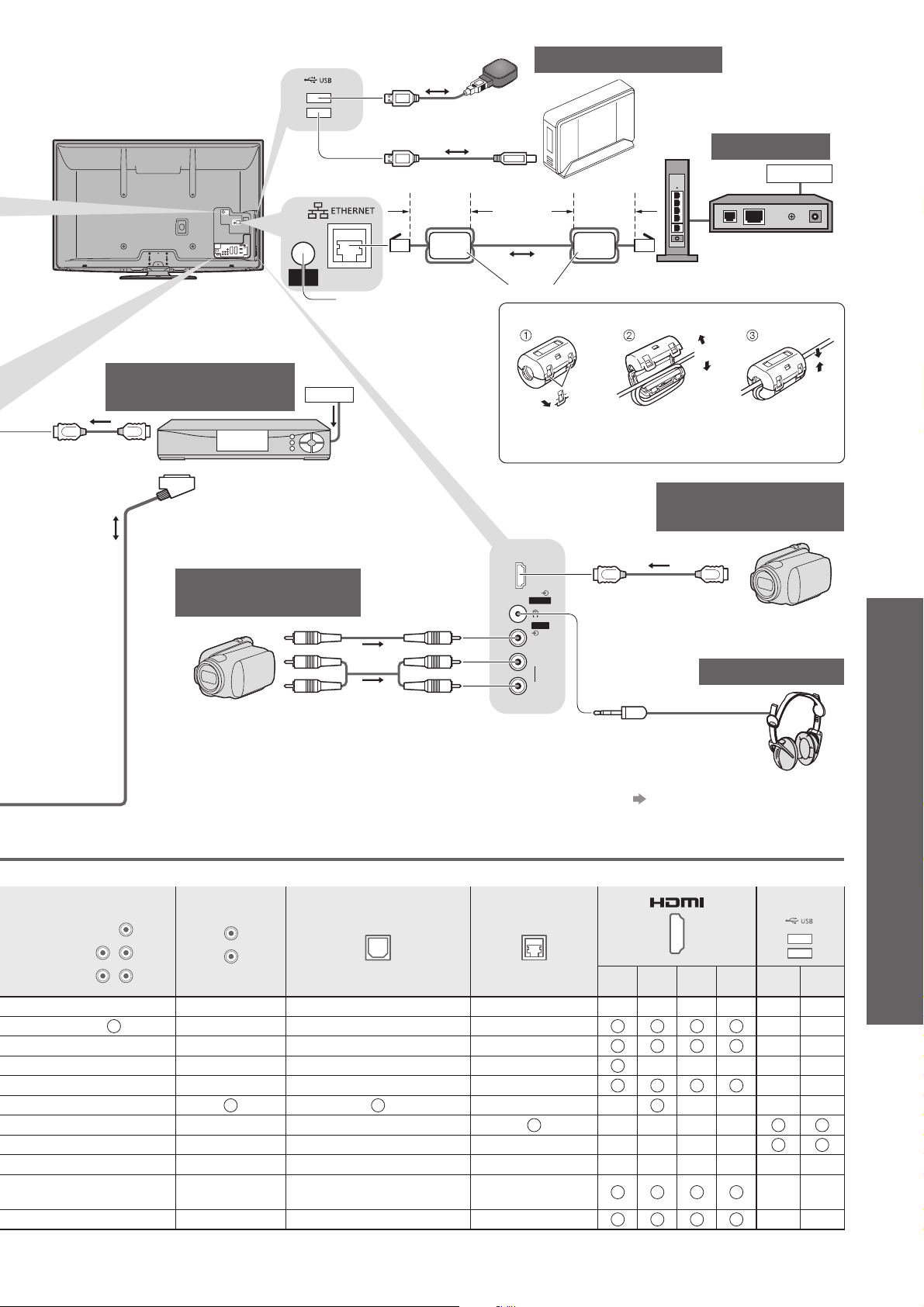

●External Equipment ·············································· 94

FAQs, etc.

●Technical Information ··········································· 96

●FAQs ·································································· 101

●On screen messages ········································· 104

●Maintenance······················································· 107

●Glossary ····························································· 107

●Licence ······························································· 108

●Index··································································· 109

●Specifications ······················································110

Start Quick

Guide

Basic

Advanced

.etc FAQs,

3

AC 220-240 V 50 / 60 Hz

Safety Precautions

Warning

■Mains plug and lead

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

●This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.

●Insert the mains plug fully into the socket outlet. ●Ensure that the mains plug is easily accessible. ●Remove the mains plug when cleaning the TV.

●Do not touch the mains plug with a wet hand.

●Do not damage the mains lead.

• Do not place a heavy object on the lead.

• Do not place the lead near a high temperature object.

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

• Do not pull on the lead.

Hold onto the mains plug

body when disconnecting the plug.

• Do not move the TV with the lead plugged into a socket outlet.

•Do not twist the lead, bend it excessively or stretch it.

•Do not use a damaged mains plug or socket outlet.

•Ensure the TV does not crush the mains lead.

●Do not use any mains lead other than that provided with this TV.

●Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.

•An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark ASA or the BSI mark on the body of the fuse.

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.

A replacement fuse cover may be purchased from your local dealer.

Do not cut off the mains plug.

Do not use any other type of mains lead except the one supplied with this TV.

The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety.

If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

WARNING: – THIS TV MUST BE EARTHED.

How to replace the fuse.

Open the fuse compartment with a screwdriver and replace the fuse.

4

Warning

■Take care

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

●Do not remove covers and never modify the TV yourself as live parts are accessible when they are removed. There are no user serviceable parts inside.

●Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

●Do not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

●Do not place the TV on sloped or unstable surfaces.

●Do not insert foreign objects into the TV through the air vents.

●Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.

●Do not apply strong force or impact to the display panel.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

■Small object

This product contains possibly dangerous parts that can be breathed in or swallowed by young

children accidentally.

●Keep the dangerous parts out of reach of young children.

●Do not allow children to handle SD Card. As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

Caution

■Ventilation
Allow sufficient space around the TV in order to help prevent excessive	Minimum distance
heat, which could lead to early failure of some electronic components.	10
●Ventilation should not be impeded by covering the	10	10	7
ventilation openings with items such as newspapers,
tablecloths and curtains.
●Whether you are using the pedestal or not, always ensure the vents in the
bottom of the TV are not blocked and there is sufficient space to enable			(cm)
adequate ventilation.

■Moving the TV

Before moving the TV, disconnect all cables.

●The TV is heavy. Move the TV with at least two people. Support as shown to avoid injury by the TV tipping or falling.

●Transport only in upright position. Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry.

■When not in use for a long time

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

●Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

■Excessive volume

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

5

Accessories / Options

Standard accessories Check that you have the accessories and items shown

□Remote Control	□Batteries for the	□Clamper		□Mains Lead
●N2QAYB000504	Remote Control (2)		●TMME289	●K2CT3YY00021
	●R6		p. 10	p. 10
	p. 8
□Wireless LAN Adaptor	□Ferrite core (2)		□Pedestal
and Extension cable	●J0KG00000014		TX-P42V20BA:		TX-P50V20BA:
●C5ZZZ0000049	p. 95		●TBLX0151		●TBLX0152
●K2KYYYY00064			●TXFBL01LGUU		●TXFBL01LPUU

p. 13 and p. 77	p. 7

Use the Ferrite cores to comply with the EMC standard.

□Operating Instructions

□Product Registration Leaflet

●Accessories may not be placed all together. Take care not to throw them away unintentionally.

	Optional accessories	Please contact your nearest Panasonic dealer to purchase the recommended
		optional accessories. For additional details, please refer to the manual of the
	□Communication Camera	optional accessories.
		Caution
	●TY-CC10W
		●This camera can be used on VIERA CAST (p. 85).
		●Please also read the manual of the camera.
		●Depending on the area, this optional accessory may not be available.

For details, consult your local Panasonic dealer.

□Wall-hanging bracket

●TY-WK4P1RW

Rear of the TV

		Screw for fixing the TV onto the wall-hanging bracket
		(not supplied with the TV)
	400 mm	Depth of screw:
	300 mm	minimum 15 mm, maximum 30 mm
		Diameter: M8
	Holes for wall-hanging	(View from the side)
	bracket installation

Warning

●Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.

●Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.

●Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which will void your warranty.

●Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

●To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.

6

Attaching / removing the pedestal

To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:

Warning

●Do not disassemble or modify the pedestal.

Caution

●Do not use with any other TVs or displays.

●Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.

●During setup, make sure that all screws are securely tightened.

●Ensure that the TV does not suffer any impact during installation of the pedestal. ●Ensure that children do not climb onto the pedestal.

●Install or remove the TV from the pedestal with at least two people.

Assembly screw (3)	Assembly screw (4)	Pole	Base
(silver)	(black)	●TBLA3828	●TBLX0151
●XYN5+F18FN	●THEL080N	(TX-P42V20BA)	(TX-P42V20BA)
	(TX-P42V20BA)	●TBLA3834	●TBLX0152
	●THEL079N	(TX-P50V20BA)	(TX-P50V20BA)
	(TX-P50V20BA)

M5 × 18	M5 × 30
■Assembling the pedestal			A
Use the assembly screws to fasten the pole	to
the base securely.
●Make sure that the screws are securely tightened.
●Forcing the assembly screws the wrong way will strip		D	Front
the threads.

■Securing the TV

Use the assembly screws to fasten the pedestal securely to the TV.

●Make sure that the screws are securely tightened.

●Carry out the work on a horizontal and level surface.

B

Arrow mark

To remove the pedestal
When removing the pedestal from the TV, remove the
assembly screws first, and then, pull out the TV
from the pedestal.	Hole for pedestal
Caution	installation
●Do not remove the assembly screws before	D
removing the pedestal from the TV to prevent falling
over.	(View from the bottom)

Options / Accessories● StartGuideQuick

7

Identifying Controls

Remote Control

■Installing / removing remote’s batteries

1	Pull	2	Close
	open
Hook			Note the correct
			polarity (+ or -)

Caution

●Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. ●Do not mix old and new batteries.

●Do not mix different battery types (such as alkaline and manganese batteries). ●Do not use rechargeable (Ni-Cd) batteries.

●Do not burn or break up batteries.

Batteries must not be exposed to excessive heat such as sunshine, fire, etc. ●Do not disassemble or modify the remote control.

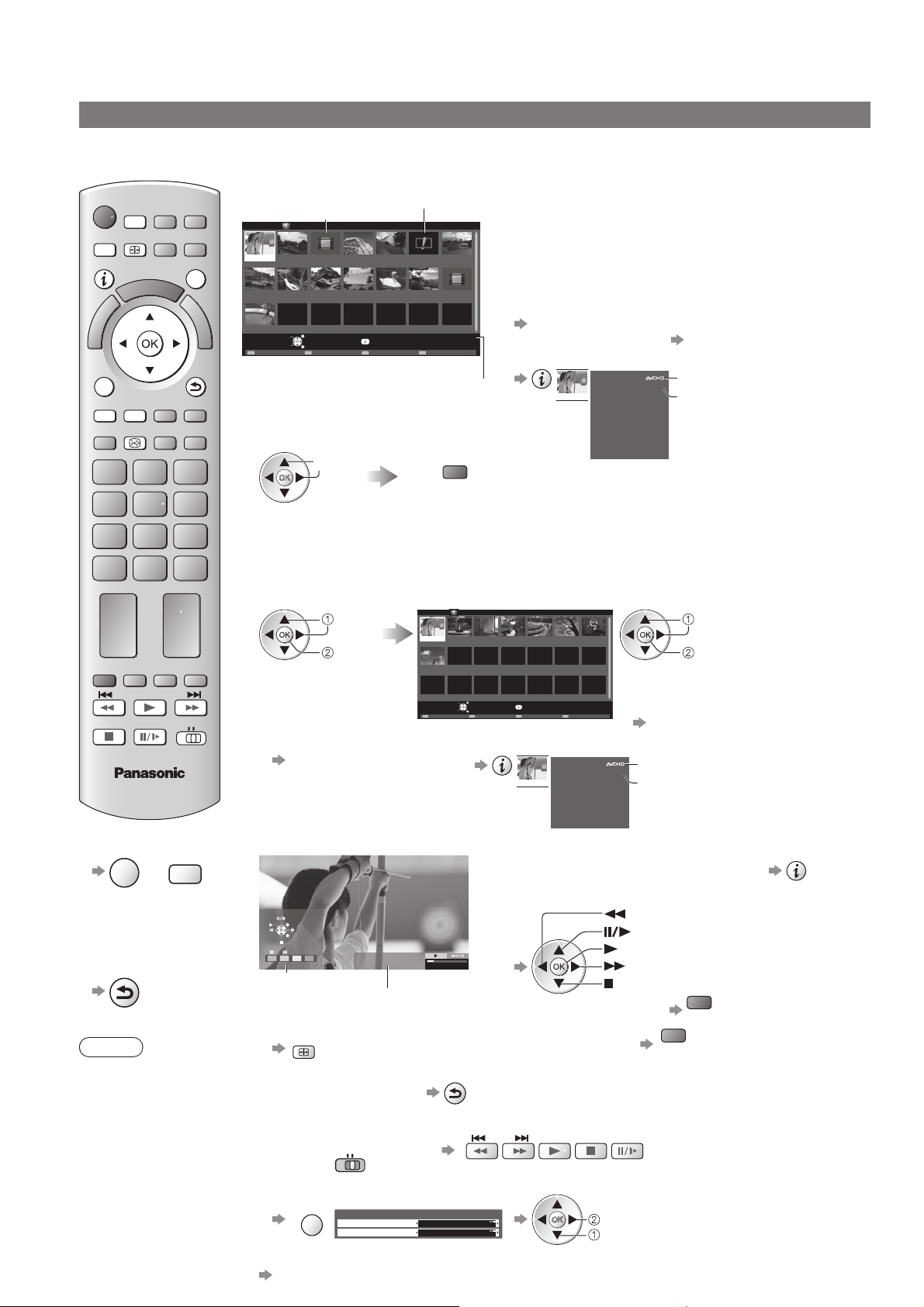

Media Player (p. 68)

●Switches to SD Card and USB device viewing / listening mode

Standby On / Off switch

●Switches TV On or Off standby

Main Menu (p. 31)

●Press to access the Picture, Sound and Setup Menus

Aspect (p. 18)

Channel / Programme Information (p. 17)

●Displays channel and programme information

VIERA Link Menu (p. 90)

●Accesses VIERA Link Menu

OK

●Confirms selections and choices ●Press after entering channel position by

using numeric buttons to change a channel quickly

Option Menu (p. 19)

●Easy optional setting for viewing, sound, etc.

Coloured buttons (red-green-yellow-blue)

●Used for the selection, navigation and operation of various functions

Teletext (p. 25)

●Switches to teletext mode / interactive services

Subtitles (p. 18)

●Displays subtitles

Numeric buttons

●Changes channel and teletext pages ●Sets characters

●When in Standby mode, switches TV On (Press for about 1 second)

Sound Mute

●Switches sound mute On or Off

Volume Up / Down

	SD CARD				INPUT
				TV		AV
MENU ASPECT						DIRECT TV REC
						EXIT
		RA	T
			O
	IE			OL
	V				S
	k					G
	in					U
A	L					I
						D
R
E						E
I
V
OPTION						BACK/
						RETURN
TEXT STTL INDEX HOLD
			abc			def
	ghi		jkl			mno

pqrs tuv wxyz

LAST VIEW

REC PROGRAMME

DVD/VCR TV

TV

Input mode selection

●TV - switches freesat / DVB / Analogue / Other Sat. mode (p. 16)

●AV - switches to AV input mode from Input Selection list (p. 28)

Direct TV Recording (p. 88 and p. 90)

●Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection

VIERA CAST (p. 85)

●Displays VIERA CAST home screen

Exit

●Returns to the normal viewing screen

VIERA TOOLS (p. 30)

●Easily accesses special features such as VIERA Link, Media Player and DLNA operations

TV Guide (p. 20)

●Displays TV Guide

Cursor buttons

●Makes selections and adjustments

Return

●Returns to the previous menu / page

Hold

●Freeze / unfreeze picture (p. 17) ●Holds the current teletext page (teletext

mode) (p. 26)

Index (p. 27)

●Returns to the teletext index page (teletext mode)

Last view (p. 19)

●Switches to previously viewed channel or input mode

Channel Up / Down

●Selects channel in sequence

Connected equipment operations

(p. 29, 66 and p. 92)

8

TV

Remote control signal receiver

●Do not place any objects between the TV remote control signal

receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System) sensor

●Senses brightness to adjust picture quality when “C.A.T.S.”

in the Picture Menu is set to “On” (p. 32)

Power and Timer LED

●Red: Standby

Green: On

Orange: Timer Programming On

Orange (flash): Recording of Timer Programming,

CI slot (p. 58)

Direct TV Recording or

USB 1 / 2 ports (p. 13, 64, 68 and p. 77)

One Touch Recording

is in progress

1

2

Function select

Red with

F

●Volume / Contrast / Brightness / Colour / Sharpness /

orange flash: Standby with Timer Programming

Common Interface

Tint (NTSC signal) / Bass (“Music” or “Speech” mode in the

On, Direct TV Recording or

Sound Menu) / Treble (“Music” or “Speech” mode in the

One Touch Recording

Sound Menu) / Balance / Auto Setup (p. 40 and p. 41)

●The LED blinks when the TV receives a command

from the remote control.

TV

Changes the input mode

For changing TV channel up or down.

AV

When a function is selected by the F button, press to increase or

SD Card slot (p. 68)

decrease the setting of the selected function.

When in Standby mode, press either button for about 1 second to

switch the TV On.

HDMI4 terminal (p. 95)

HDMI 4

AV 3

V

L

R

Headphones jack (p. 95)

AV3 terminals (p. 95)

Mains power On / Off switch

●Use to switch mains power On / Off.

If the TV was switched off whilst in Standby mode, using the Mains Power On / Off switch, then it will be in Standby mode when switched back on using the same switch.

Adjusting the panel to your desired angle

●Do not place any objects within the full rotation range.

(View from the top)

: 15° : 10° (TX-P42V20BA) (TX-P50V20BA)

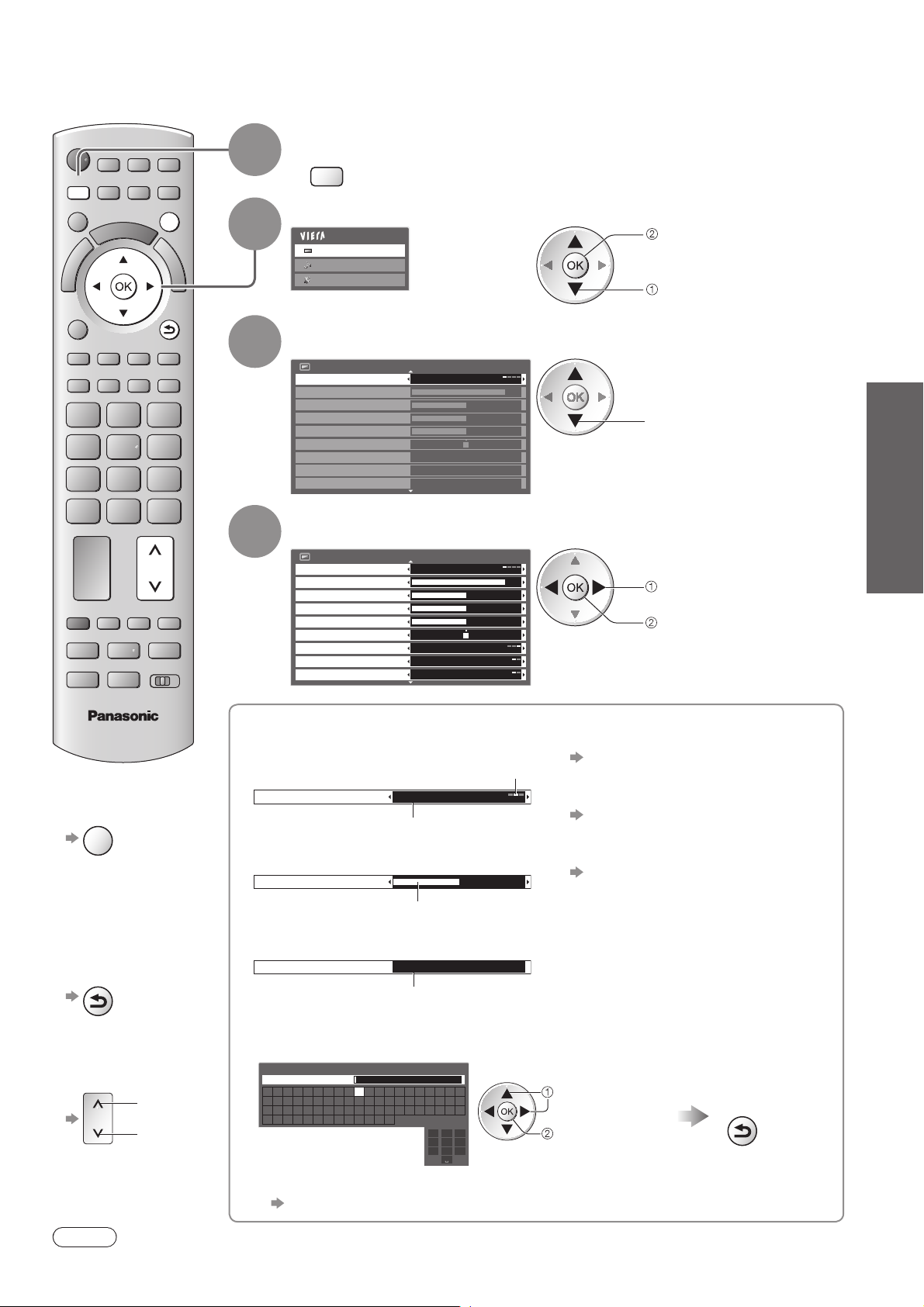

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

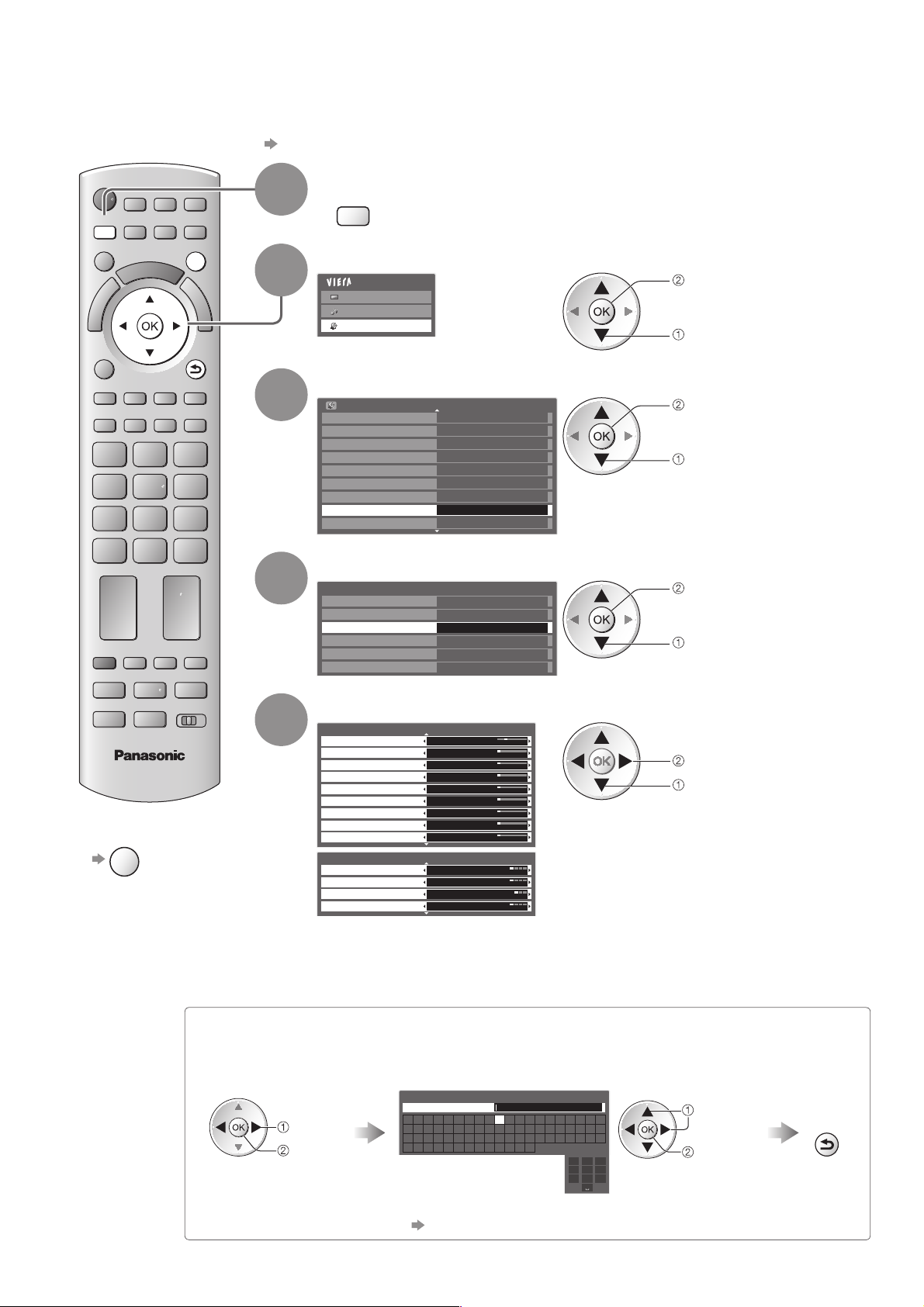

■How to use remote control

MENU	Open the main menu

Move the cursor / select the menu item

Access the menu / store settings after adjustments have been made or options have been set

EXIT	Exit the menu system and return to the
	normal viewing screen
	Move the cursor / adjust levels / select from
	a range of options
BACK/
RETURN	Return to the previous menu

■ON SCREEN HELP Instructions box - Operation guide

Example (Owner ID):

Owner ID
Please enter new PIN
PIN	*	* * *
EXIT	9	PIN entry
0			Operation guide will help you.
RETURN

■Auto power standby function

●The TV will automatically go to Standby mode in the following conditions:

•no signal is received and no operation is performed for 30 minutes in Analogue TV mode

•“Off Timer” is active in the Setup Menu (p. 19)

•no operation is performed for the period selected in “Auto Standby” (p. 36)

●This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.

Controls Identifying● StartGuideQuick

9

Basic Connection

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

Example 1

Connecting dish or aerial

TV only	●The freesat channel uses Astra 2 at 28.2° East, and Eurobird 1
	at 28.5° East satellites. To ensure your satellite dish is correctly
	installed please consult your freesat registered dealer.

Rear of the TV

AC 220-240 V

50 / 60 Hz

Mains lead (supplied)

■Clamper

Attach the clamper

hole

Insert the clamper in a hole

Satellite

dish

●For freesat or other satellite broadcasts

Satellite cable

■Mains Lead

	Make sure that
Push until both side	the mains lead is
tabs click	securely fixed.

●To remove from the TV:

snaps

Keep pushing both side snaps

Bundle the cables

	Set the tip
hooks	in the hooks

●To loosen:

	DIGITAL
	AUDIO
	OUT
	PC
knob	Keep pushing
	the knob

●Do not bundle the Satellite cable, RF cable and mains lead together (could cause distorted image).

●Fix cables with clampers as necessary. ●When using the optional accessory, follow the

10	option’s assembly manual to fix cables.

●To remove from the TV:

tabs

Press both tabs and pull on mains connector to release

Terrestrial

aerial

●For digital terrestrial and analogue broadcasts

Aerial input terminal

	COMPONENT				1	RF cable
					HDMI
AUDIO	AUDIO	Y
OUT	IN
					HDMI 2
					(ARC)
L	L	PB
					HDMI
R	R	PR	RGB	RGB	3
			VIDEO	AV1 SVIDEOVIDEO AV2

Example 2

Connecting DVD Recorder / VCR

TV, DVD Recorder or VCR

Rear of the TV	Terrestrial
	aerial

AC 220-240 V

50 / 60 Hz

	Mains lead					Aerial input
	(supplied)
						terminal
		COMPONENT				HDMI
	AUDIO	AUDIO				1
			Y
DIGITAL	OUT	IN
AUDIO						HDMI 2
OUT
						(ARC)
PC	L	L	PB
						HDMI
	R	R	PR	RGB	RGB	3
				VIDEO	AV1 SVIDEOVIDEO AV2
Fully wired HDMI
compliant cable
			Fully wired
			SCART cable			RF cable
HDMI	AV
				RF OUT

DVD Recorder or VCR

RF cable

RF IN

Example 3

Connecting DVD Recorder / VCR and Cable TV box

TV, DVD Recorder / VCR and Cable

Rear of the TV	Terrestrial
	aerial

AC 220-240 V

50 / 60 Hz

Aerial input terminal

Mains lead

(supplied) Fully wired HDMI compliant cable

	COMPONENT				HDMI
AUDIO	AUDIO				1
		Y
OUT	IN
DIGITAL
AUDIO					HDMI 2
OUT
					(ARC)
PC L	L	PB
					HDMI
R	R	PR	RGB	RGB	3
			VIDEO	AV1 SVIDEOVIDEO AV2

Fully wired	RF
SCART cable	cable

AV 2

AV 1 HDMI

HDMI TV/AV Recorder/AV

DVD Recorder or VCR

Cable

Cable TV box

RF OUT

RF OUT

RF cable

RF IN

RF cable

RF IN

Note

●Connect to the TV’s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 88). ●Connect to the TV’s AV1 for a Cable TV box.

●For HDMI-compatible equipment, it is possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4)

by using HDMI	. 94).
●Network connection	p. 13 and p. 77
●Q-Link connection	p.

●VIERA Link connection p. 86 and p. 87

●Please also read the manual of the equipment being connected.

Connection Basic● StartGuideQuick

11

Auto Setup

Search and store TV channels automatically.

●These steps are not necessary if the setup has been completed by your local dealer.

●Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.

1

EXIT

BACK/

RETURN

abc def

ghi jklmno

pqrs tuv wxyz

2

TV

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

freesat Auto Setup

Searching
Signal Quality	0				10
Signal Strength	0				10
TV Channels Found		8
Radio Channels Found		2
Data Channels Found		1
	Channels found, creating channel list

Auto Setup - DVB and Analogue

DVB Scan		CH 21			68
Analogue Scan		CH 21			68
This will take about 6 minutes.
CH		Channel Name		Type	Quality
62	CBBC Channel			Free TV	10
62	BBC Radio Wales			Free TV	10
62	E4			Free TV	10
62	Cartoon Nwk			Free TV	10
29				Analogue	-
33	BBC1			Analogue	-
Free TV: 8	Pay TV: 0	Radio: 0	Data: 0	Analogue: 2
		Searching

●If the red LED shows on the TV, press the Standby On / Off switch on the remote control for at least 1 second to turn the TV On.

Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters.

●If “freesat Auto Setup” cannot be done completely

“FAQs” (p. 101)

(freesat tuning)

●Actual number of channels may differ due to channel duplication.

(DVB and Analogue tuning)

Sending Preset Data

Please wait!

0%

Remote control unavailable

If Q-Link, or similar technology (p. 88), 100% compatible recorder with analogue tuner

is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.) ●If downloading has failed, you can download

later through the Setup Menu. “Q-Link Download” (p. 34)

Enter your postcode

Enter Postcode for local channels including space

●Your postcode is required to receive local

Postcode

services and sort the channel order.

U

V

W

X

Y

Z

G

0

1

2

3

4

5

6

7

8

9

R

S

T

Please ensure to include a space when

A

B

C

D

E

F

H

I

J

K

L

M

N

O

P

Q

entering your postcode.

4

5

6

1

2

3

●If you skip this step, the default postcode

.!:#

abc

def

ghi

0

mno

jkl

7

8

9

pqrs

tuv

wxyz

(central London) will be set.

■How to enter the postcode

Set characters one by one

select

●You can set characters by using numeric

buttons.

set

“Characters table for numeric buttons”

(p. 97)

Exit to go to next step

green

(continued to the next page)

12

Encryption Key Setting

Connection will be made with the following settings:- SSID : Access Point A

Authentication type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

Access Point Settings

Encryption key

3	Setup the wireless LAN connection
	Setup the wireless LAN connection to enable the network service functions (p. 76).
	(If you do not wish to use wireless LAN connection or the network service functions, skip this step.)
	●To setup the wireless LAN connection, use the Wireless LAN Adaptor (supplied). For the information

about the Wireless LAN Adaptor “Wireless LAN Adaptor” (p. 15)

●Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of the access point.

●Please note that this TV does not support wireless public access points. ●To use a LAN cable instead of the Wireless LAN Adaptor p. 79

Start wireless LAN connection setup?
Yes	No

Please connect the wireless LAN adaptor (DY-WL10) to a USB terminal.

connect the Wireless LAN Adaptor to the USB 1 or 2 port

Internet environment

Access point

select “Yes” access

Wireless LAN Adaptor (optional accessory)

You can setup the wireless LAN connection later “Network Setup” (p. 80)

●To skip this step	EXIT
	or select “No”

Wireless LAN connection setup starts

Connection Type

Select the connection type

●If your access point supports WPS

Please select network connection type.

access

(Push button), then select this option.

WPS(Push button)

Search for access point

■WPS(Push button)

select

If not, select “Search for access point”.

Press the WPS button on the access point until the light flashes.

WPS(Push button)

1) Please press the ‘WPS’ button on the access

And then, press the OK button to connect the Wireless LAN Adaptor and

point until its light flashes.

2) When the light is flashing select ‘Connect’ on

the access point.

TV.

If you are unsure, please check the instruction

●Ensure that your access point supports WPS for this setup.

manual of the access point.

●WPS: Wi-Fi Protected Setup™

Connect

■Search for access point

Access points found automatically are listed.

Select your desired access point

Available Access Points

No.

SSID

Wireless type Encrypt Reception

●To search access points again

1

Access Point A

11n(2.4GHz)

access

2

Access Point B

11n(5GHz)

yellow

3

Access Point C

11n(5GHz)

select

●For the information of the

highlighted access point

: Encrypted access point

●To set manually (p. 81)

red

Access the encryption key input mode

●If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

Enter the encryption key of the access point

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

!

:

#

a

b

c

d

e

f

g

h

i

j

k

l

m

n

o

p

q

r

s

t

u

v

w

x

y

z

(

)

+

-

.

*

_

1

2

3

.!:#

abc

def

4

5

6

ghi

jkl

mno

7

8

9

pqrs

tuv

wxyz

0

Access Point Settings

Encryption key is set to:-

XXXXXXXX

Select ‘Yes’ to confirm.

Select ‘No’ to change.

Yes

No

Set characters one by one	Store
select	BACK/
	RETURN

set

●You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 97) Select “Yes”

select

set

●To re-enter the encryption key, select “No”.

●If the connection has failed, check the encryption key, settings and positions of your access point. And then, follow the on screen instructions.

●If connection to the access point is successful, we recommend you perform the “Connection Test” to confirm connection to the internet has been made. The “Connection Test” can be found in the Network Setup menu (p. 80).

Exit to go to the next step	(continued to the next page)

Setup Auto● StartGuideQuick

13

Auto Setup

Input Owner ID

4	Owner ID
		Please enter new PIN
		PIN	*	* * *

Please enter your own choice of PIN number, name, etc. to help the police to crack crime.

●Make a note of the PIN number in case you forget it. The PIN number cannot be reset.

●You can input or change the Owner ID later. “Owner ID” (p. 57)

●To skip this step	EXIT

●This step will be skipped in the Auto Setup after “Shipping Condition” (p. 51) is performed.

■How to input Owner ID

Enter the PIN number (4 digits)

Owner ID			abc	def
Please enter new PIN
PIN	* * * *	ghi	jkl	mno
		pqrs	tuv	wxyz

●Enter the PIN number twice at first setting.

Enter your name, house number, and postcode, in that order

Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry
PIN

NAME

HOUSE NO

POSTCODE

Set characters one by one

User input

NAME

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

!

:

#

a

b

c

d

e

f

g

h

i

j

k

l

m

n

o

p

q

r

s

t

u

v

w

x

y

z

(

)

+

-

.

*

_

1

2

3

.!:#

abc

def

4

5

6

ghi

jkl

mno

7

8

9

pqrs

tuv

wxyz

0

Return to select other items

Exit to go to next step

EXIT

access select

select

set

BACK/

RETURN

●You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 97)

●Select the next item and repeat the operations.

(continued to the next page)

14

5 Select “Home”

Select “Home” viewing environment (highlight “Home” in yellow) to use in your home environment.

Please select your viewing environment.

Home	Shop	select

set

Auto Setup is now complete and your TV is ready for viewing.

●To check channel list at-a-glance

“Using TV Guide” (p. 20) ●To edit or hide (skip) channels

“Tuning and Editing Channels” (p. 42 - 47) ●If tuning has failed, check the connection of the

Satellite cable, RF cable, and then, follow the on screen instructions.

Note

■“Shop” viewing environment (for shop display only)

“Shop” viewing environment is the demonstration mode to explain main features of this TV.

Select “Home” viewing environment to use in your home environment.

●You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.

Return to viewing environment selection screen

Shop

You have selected shop mode

Automatic Demo
Off	On

Select “Home”

Please select your viewing environment.

Home

Shop

BACK/

RETURN

select set

Auto Setup is complete

●To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

“Shipping Condition” (p. 51)

●If tuning has failed or to retune all channels		Setup” (p. 40 and p. 41)
●If you wish to tune in	satellite channels	“Auto Setup” in “Other Sat. Tuning Menu” (p. 49)
●To re-initialise all settings	“Shipping Condition” (p. 51)

●If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

■Wireless LAN Adaptor

Caution

Be aware of the following limits before using the Wireless LAN Adaptor (DY-WL10).

●To use the Wireless LAN Adaptor, an access point needs to be obtained.

●It is recommended to use the Wireless LAN Adaptor with the supplied extension cable.

●Do not use the Wireless LAN Adaptor to connect to any wireless network (SSID ) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.

SSID is a name for identifying a particular wireless network for transmission.

●Do not subject the Wireless LAN Adaptor to high temperatures, direct sunlight or moisture. ●Do not bend, or subject the Wireless LAN Adaptor to strong impacts.

●Do not disassemble or alter the Wireless LAN Adaptor in any way.

●Do not attempt to install the Wireless LAN Adaptor in any incompatible device. ●Do not remove the Wireless LAN Adaptor from the TV’s USB port during operations. ●Data transmitted and received over radio waves may be intercepted and monitored.

●To avoid malfunctions caused by radio wave interface, keep the TV away from the devices such as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.

●When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case, turn the TV Off with Mains power On / Off switch, then turn it On again.

●Additional information for Wireless LAN Adaptor and access point may be on the following web site. (English only)

http://panasonic.jp/support/global/cs/tv/

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

●To setup the Wireless LAN connection p. 80 and p. 81

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to set it up?

No - Exit

Current network type : Wireless

Yes

No

Setup Auto● StartGuideQuick

15

Other Sat.

TV Selection freesat

DVB Analogue

Watching TV

INPUT TV

MENU ASPECT

EXIT

G

U

I

D

E

OPTION

STTL HOLD

abc def

ghi jkl mno

pqrs tuv wxyz

1	Turn power on
	(Press for about 1 second)
	●Mains power On / Off switch should be On. (p. 9)
2	Select the mode (freesat, DVB, Analogue or
	Other Sat.)

watch

TV

select

Displayed if Other Satellite channels are tuned (p. 49)

●Also possible by pressing the TV button repeatedly on the remote control or side panel of the TV. (p. 9)

			Information banner appears whenever you select a
Coronation Street			channel
103 ITV Wales	19:35	freesat Channel List	●For details
19:30 - 20:00	Now	For info press		p. 17

Select a channel

LAST VIEW	3	up
			or		abc	def
				ghi	jkl	mno
		down		pqrs	tuv	wxyz

Volume

freesat channel position numbers run in the ranges 100 - 999 and 0100 - 0999.

●To select a three-digit channel position number, e.g. 133

def def

●To select a four-digit channel position number, e.g. 0246

TV

Note

watch pay-TV

“Using Common Interface” (p. 58)

■Select a channel using Information banner (p. 17)

abc ghi mno

DVB and Other Sat. channel position numbers run from 1 onwards.

Analogue channel position numbers run in the ranges 0 - 99.

●To select a two or three-digit channel position number, e.g. 39

def wxyz

It is possible to confirm the channel name and programme information by using the Information banner before changing channels.

Display Information banner if it is not displayed

While the banner is displayed, select the channel

select channel

watch

●Possible to set display timeout in “Banner Display Timeout” (p. 35).

■Select a channel using TV Guide (p. 20)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

Display

TV Guide

G

U

I

D

E

Select a current	Select “View”
programme or channel	(DVB mode)
select	Eastender	select
	19:3020:00
	View	Timer Programming
access		watch
	●To use Timer Programming p. 22

16

●To set display timeout

“Banner Display Timeout” (p. 35)

■Other useful functions

Hold

Freeze / unfreeze picture	HOLD

Display Information banner

Display Information banner

●Also appears when changing a channel

Same programme available as HD broadcast ●For details, display the extra information

Channel position

Channel type

TV mode

and name

if it is HDTV, Radio

Example (freesat):

(or Data channel

)

Current time

103 ITV Wales

freesat Channel List

Radio

19:35

Programme

Coronation Street

Also in

19:30 - 20:00

Now

For info press

Mute

Encrypted

AD

STTL TEXT Multi Audio 45

Programme Start / Progress time indicator of the selected programme

Finish time

Features available / Message meanings

“All DVB Channels” or “Favourites1-4” (p. 45)

	●To switch			blue
Example (DVB):
	D 103 ITV Wales			Radio	19:35		All DVB	Channels
	Coronation Street				Also in	Select favourites
	19:30 - 20:00			Now			For info press
	Mute	Encrypted		AD	STTL TEXT		Multi Audio		45
Example (Analogue):
	A 3 ITV			Radio	19:35	All Analogue Channels
	itv1
	CH23						For info press
	Mute	Encrypted		AD	Subtitles TEXT		NICAM		45

Channel number

“All Other Sat. Channels” or “Favourites1-4” (p. 50)
●To switch			blue
Example (Other Sat.):
	S 103 ITV Wales				Radio	19:35	All Other Sat. Channels
	Coronation Street						Select favourites
	19:30 - 20:00				Now		For info press
	Mute		Encrypted			STTL TEXT Multi Audio 45

●To confirm another tuned channel name

Mute

Sound mute On

Bad signal

Poor TV signal quality

Encrypted

Scrambled programme

AD

Audio Description service available

●This function can aid visually-impaired viewers by adding an additional audio track to describe events on-screen.

●For settings p. 33

STTL

Subtitle service available

TEXT

Teletext service available

Multi Audio

Multiple audio available

Stereo, Mono, NICAM

Audio mode

1 - 90

Off Timer remaining time ●For settings p. 19

●To watch the channel listed in the banner

EXIT

●To hide

●Information on the next programme (freesat, DVB, Other sat.)

●Extra information (press again to hide the banner) (freesat, DVB, Other sat.)

●“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as available on particular programmes, but may not be available for all individual programmes being broadcast.

Display the extra information to confirm availability of these functions.

Example:

		103 ITV Wales		19:35	freesat Channel List
	Coronation Street				Exit info
	19:30 - 20:00			Now

[AD]

AD

Basic

TV Watching●

17

Watching TV

■Other useful functions

Display subtitles

■freesat, DVB or Other Sat. mode
Display / hide subtitles (if available)		STTL
●To change the language for DVB (if available)
“Preferred Subtitles” (p. 35)
■Analogue mode
Display subtitles		STTL
●To hide subtitles	EXIT

Note

●This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 27) ●You cannot change the channel when this function is active.

Aspect

Change the aspect ratio (image size)	ASPECT

Enjoy viewing the image at its optimum size and aspect.

Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the Aspect Control Signal (p. 96).

■If you would like to change the aspect ratio manually

Display Aspect Selection list		While the list is displayed, select the mode
ASPECT	Aspect Selection
	Auto	store
	16:9
	4:3
	14:9
	Zoom1
	Zoom2
	Zoom3
	Select
	Change EXIT	select
	RETURN

Aspect Selection list

●To change the mode using the ASPECT button only

ASPECT (Press repeatedly until you reach the desired mode)

Auto

16:9

14:9

4:3

The best ratio is chosen and the image expanded to fill the screen.

For details p. 96

	Zoom1
Directly displays the image at 16:9		Displays a 16:9 letterbox or 4:3 image
without distortion (anamorphic).		without distortion.
	Zoom2
Displays the image at the standard 14:9		Displays a 16:9 letterbox (anamorphic)
without distortion.		image full-screen without distortion.
	Zoom3
Displays the image at the standard 4:3		Displays a 2.35:1 letterbox (anamorphic)
without distortion.		image full-screen without distortion.
		At 16:9, displays the image at its maximum
		(with slight enlargement).

Note

●Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu. ●Only “16:9” and “4:3” are available in PC input mode.

●Not available in teletext service.

●Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.

18

■Other useful functions

Display the selectable settings for the current status

Check or change the current	OPTION
status instantly	●To change
	change
	select

Multi Audio / AD (freesat mode)

Allows you to select between alternative language or Audio Description for sound tracks (if available) ●Set Audio Description “Auto” in the Sound Menu

(p. 33) to select the audio description sound track. In freesat mode, Audio Description cannot be controlled separately from the audio description sound track.

●This setting is not memorized and it will return to the default setting once you exit the current programme.

Multi Audio (DVB or Other Sat. mode)

Allows you to select between alternative language for sound tracks (if available)

●This setting is not memorized and it will return to the default setting once you exit the current programme.

Monaural Audio (DVB mode)

Allows you to select stereo / monaural (if available) ●This setting is not memorized and it will return to the

default setting once you exit the current programme.

Subtitle Language

(freesat, DVB or Other Sat. mode)

Allows you to select the language in which subtitles should appear (if available)

●This setting is not memorized and it will return to the default setting once you exit the current programme.

NICAM (Analogue mode)

Switches NICAM sound (if available)

Sound Menu (p. 33)

Volume Correction

Adjusts volume of individual channel or input mode

Audio Description (DVB mode)

Set to “Auto” if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen

●To adjust the volume for Audio Description “Audio Description Menu” (p. 33)

Safely remove USB

Takes this operation to remove the connected USB device safely from the TV

Last view

Switch to previously viewed	●Press again to return to the present view.
channel or input mode easily	LAST VIEW

Note

●Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.

●Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.

Off Timer

Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Display the menu

Select “Setup”

Select “Off Timer” and set the time

MENU	Main Menu	access	Setup Menu		1/2
	Picture		Timer Programming
			Off Timer	Off	set
	Sound
			USB HDD Setup
	Setup
		select	Link Settings		select
			Child Lock
			freesat Tuning Menu
			Other Sat. Tuning Menu
			Display Settings
			Network Setup

●To cancel Set to “Off” or turn the TV off.

●To display the remaining time Information banner (p. 17)

Note

●When the remaining time is within 3 minutes, the remaining time will flash on the screen.

Basic

TV Watching●

19

Using TV Guide

TV Guide―Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

●When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before the TV Guide is completely shown.

INPUT

TV

EXIT

G

U

I

D

E

BACK/

RETURN

1

2

3

freesat mode

Select freesat				TV
p. 16
Display the Channel				U
Genre selection list				G
				E
				I
				D
Select the genre and view TV Guide
Example:
Channel Genre Selection						select
All Channels			Special Interest
Entertainment			Radio
News & Sport			Shopping
Movies			Gaming & Dating
Lifestyle			Interactive
Music			Regional			view
Children			Favourites

Example:

Programme Current date and time

●There might be some

TV Guide

Wed 28 Oct 2009 10:46

TV Guide date

Wed 28 Oct

Search

All Channels

programmes displayed as

1 BBC ONE

Also in

greyed-out in TV Guide.

TV Guide time

20:00 - 20:30 DIY SOS : We open in the Battersbys

Time: 19:30

20:00

20:30

21:00

21:30

These are the Off-Air

D 101 BBC ONE

Eastender

DIY SOS

The Bill

Red Cap

D 102 BBC 2W

Hot Wars

Holiday Program

Drama

programmes (non-running

D 103 BBC NEWS

Emmerdal.

Coronation Street

The Bill

Cinema

D 104 BBCi

10 O’ clock News

BBC

Pepsi Char.

Good bye

programmes).

■To return to TV

D 105 BBC THRE

Panorama

Spring watch

Coast

D 106 BBC FOUR

I’m A Celebrity

Pop Idol

News

Shop

Channel position

D

107 BBC Radio

Rugby

15 To 1

The Bill

Sports

and name

Select channel

Info

EXIT

Page up

EXIT

G

Select programme

GUIDE RETURN

View / Timer Prog. RETURN

Page down

U

or

I

-24 hours

+24 hours

Search

Channel Genre

D

Some programmes may also be broadcast in HD

E

■To watch the programme

●You can select HD or SD broadcast before viewing or setting Timer Programming.

●If a programme exists in both HD and SD

Select a current

Select “View”

programme or channel

broadcasts, the “View Options” screen will

select

be displayed to select HD or SD broadcast.

Eastender

19:3020:00

select

View Options

watch

access

View

Timer Programming

watch

DIY SOS

●To use Timer Programming

101

BBC ONE

19:30-20:00 Wed 28 Oct 2009

119

BBC HD

19:30-20:00 Wed 28 Oct 2009

select

p. 22

■To view a channel list

■To the previous day

(Channel Genre list)

Channel Genre

All Channels

of the selected genre

select genre

red

All Channels

blue

Entertainment

view

News & Sport

.

.

.

●To list favourite channels p. 43

Favourites

■To search

(Search list)

■To the next day

Search

programme types

select type

green

Search Titles...

and view a channel

Movie

list of the searched

view

News and Factual

programmes

Entertainment

Sport

yellow

Children’s .

.

.

■To search		(Search list)
	Search
programme titles		select
and view a list	Movie
	Search Titles...
of the searched		“Search
	News and Factual
programmes		Titles...”
	Entertainment
		access
	Sport
yellow	Children’s .
	.
	.
	.

Set characters one by one Search (maximum: 19 characters)

select

green

set

You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 97)

20	●All the programme titles including the word you set will be listed.
	●Searching without any characters will list all programmes including current programmes.

DVB or Analogue mode

●This TV supports the GUIDE Plus+ system.

●The Gemstar branding partner will supply the rating informations in the programme information and the recommended group in the Search list.

●DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A” means Analogue channel. There will be no programme listings for Analogue channels.

TV

1

Select DVB or Analogue

p. 16

INPUT

TV

EXIT

U

2

View TV Guide

G

Current date and time

Logo of the

E

G

I

D

Example:

TV Guide date

Programme

Gemstar branding partner

D

U

BACK/

E

TV Guide

OPTION

RETURN

Wed 28 Oct 2009

Wed 28 Oct

Search

All Channels

10:46

1 BBC ONE

Also in

TV Guide time

20:00 - 20:30 DIY SOS : We open in the Battersbys

Time:

19:30

20:00

20:30

21:00

D

1 BBC ONE

Eastender

DIY SOS

Holiday News

Some programmes may

D

7 BBC THREE

Hot Wars

Holiday Program

D

14 E4

Emmerdal.

Coronation Street

The Bill

also be broadcast in HD

Advertisement

D

70 BBC FOUR

10 O’ clock News BBC

Pepsi Char.

Good bye

■To return to TV

D

72 BBC 2W

Panorama

Spring watch

Coast

●You can select HD or

D: DVB

Select channel

I’m A Celebrity

Pop Idol

News

D

105 BBCi

SD broadcast before

D

719 BBC Radi

Rugby

15 To 1

Sports

A: Analogue

EXIT

Info

Page up

viewing or setting

EXIT

U

Timer Programming

OPTION Select Advert

Timer Programming.

RETURN

Page down

G

Select programme

GUIDE RETURN

or

I

-24 hours

+24 hours

Search

Category

D

E	Channel position and name

■To watch the programme

Select a current	Select “View”
programme or channel	(DVB mode)
select	Eastender	select
	19:3020:00
access	View	Timer Programming
		watch
	●To use Timer Programming p. 22

●If a programme exists in both HD and SD broadcasts, the “View Options” screen will be displayed to select HD or SD broadcast. (DVB mode)

							watch
	DIY SOS		View Options
	101	BBC ONE	19:30-20:00 Wed 28 Oct 2009
	119	BBC HD	19:30-20:00 Wed 28 Oct 2009				select

■To view a channel list of the selected category

blue

■To search programme types and view a channel list of the searched programmes

(DVB mode)

yellow

■To search programme titles and view a list of the searched programmes

(DVB mode)

yellow

All Channels		(Category list)			■To the previous day
Category
			Only Analogue		(DVB mode)
All Channels			channels are listed
All DVB Channels					red
All Analogue Channels				select
Free DVB Channels
				category
TV/Data DVB Channels
Favourites1				view
Favourites2
Favourites3				●To list favourite channels p. 45
Favourites4
		(Search list)			■To the next day
Search
				select type	(DVB mode)
Search Titles...
Movie				view	green
News and Factual
Entertainment
Sport
Children’s .
.
.
		(Search list)			Set characters one by one Search
Search
					(maximum: 19 characters)
Search Titles...				select	select
Movie				“Search	green
News and Factual
				Titles...”
					set
Entertainment
				access
Sport					You can set characters by using numeric
Children’s .
.					buttons.
.					“Characters table for numeric buttons” (p. 97)
.

●All the programme titles including the word you set will be listed.

●Searching without any characters will list all programmes including current programmes.

Basic

Guide TV Using●

21

Using TV Guide

■Other useful functions

Timer Programming (freesat or DVB mode)

Timer Programming can remind you to watch a programme or record one on an external recorder or a USB HDD.

Select the

Select the function

forthcoming

(Ext Rec., USB HDD Rec. or Reminder)

programme

store

Function

No.

Channel Name

Date

Start

End

Timer Programming

Wed 28 Oct 2009 10:46

select

DIY SOS

Guide

(30

min.)

LED

Ext Rec.

D 1

BBC ONE

Wed 28 Oct

20:00

20:30

select LED will turn to orange if

---

---

--/--

(---

min.)

--:--

--:--

---

---

--/--

--:--

--:--

Timer Programming is set.

set

(---

min.)

---

---

--/--

--:--

--:--

(Orange LED will flash if the recording

---

---

--/--

--:--

--:--

(--- min.)

(---

min.)

of Timer Programming is in progress.)

(Timer Programming screen)

Ext Rec. /

: to record the programme to the external recorder (Ext Rec.) or the

USB HDD Rec. USB HDD (USB HDD Rec.)

When the start time comes, the channel will be switched automatically

and the video and audio signals will be output. 2 mins. before the starting

time, a reminder message appears if you are watching TV.

Reminder

: to remind you to watch the programme

When you are watching TV, a reminder message appears 2 mins. before

the start time. Press the OK button to switch to the programmed channel.

■To check / change / cancel a timer programming event

“Timer Programming” (p. 53)

BACK/

■To return to TV Guide	RETURN

■If you select a current programme

A confirmation screen asking whether you wish to watch or record the programme will appear. Select “Timer Programming” and set “Ext Rec.” or “USB HDD Rec.” to record from the time you finish programming the timer event setting.

Eastender

19:3020:00		select
View	Timer Programming	access

■If a programme exists in both HD and SD broadcasts

The “Timer Options” screen will be displayed to select HD or SD broadcast.

Timer Options

DIY SOS

101	BBC ONE	19:30-20:00	Wed 28 Oct 2009
119	BBC HD	19:30-20:00	Wed 28 Oct 2009

set
	Timer Programming					Wed 28 Oct 2009 10:46
	Function		No.	Channel Name		Date	Start	End
		Ext Rec.	D 1	BBC ONE		Wed 28 Oct	20:00	20:30
select				DIY SOS	Guide		(30	min.)
	---		---			--/--	(---	min.)
							--:--	--:--
	---		---			--/--	--:--	--:--
							(---	min.)
	---		---			--/--	--:--	--:--
							(---	min.)
	---		---			--/--	--:--	--:--
							(---	min.)

(Timer Programming screen) “” will be displayed if HD broadcast is set.

Note

●This function is not available in Analogue mode. ●Timer Programming can store up to 15 events.

●Timer Programming reminder messages will remain displayed until one of the following occurs:

•You press the OK button to view the programme or the EXIT button to cancel the reminder.

•The timer programming event that the reminder is set for ends.

●No other channel can be selected while the recording of Timer Programming is in progress.

●When recording programmes, be sure to make the proper settings on the recorder connected to the TV. If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 88) and the “Link

Settings” (p. 34) are completed, no setting of the recorder is required. Also read the manual of the recorder. ●When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in

the “USB HDD Setup” (p. 64).

22

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change.

A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.

Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Timer Programming

Wed 28 Oct 2009 10:46

Function

No.

Channel Name

Date

Start

End

Ext Rec.

D

1

BBC ONE

Wed 28 Oct

20:00

20:30

DIY SOS

Guide

(30

min.)

Reminder

D

14

E4

Wed 28 Oct

21:00

22:30

The Bill

Guide

(90

min.)

Ext Rec.

72

BBC 2W

Wed 28 Oct

22:45

23:00

<TIMER>

(15

min.)

Ext Rec.

D

1

BBC ONE

Thu 29 Oct

10:30

11:30

Red Cap

S/P

(60

min.)

---

---

--/--

--:--

--:--

(---

min.)

(Timer Programming screen)

“Guide” is displayed if the timer is set from the TV Guide

(Guide link programming)

“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme

“” or “” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.

TV Guide

Wed 28 Oct 2009			Wed 28 Oct		Search		All Channels
10:46	1 BBC ONE
	20:00 - 20:30 DIY SOS : We open in the Battersbys
			Time:	19:30	20:00	20:30	21:00
	D	1	BBC ONE	Eastender	DIY SOS	Holiday News
	D	7	BBC THREE	Hot Wars		Holiday Program

D	14	E4	Emmerdal.	Coronation Street		The Bill
D	70	BBC FOUR	10 O’ clock News BBC		Pepsi Char.	Good bye
D	72	BBC 2W	Panorama	Spring watch		Coast

D	105	BBCi	I’m A Celebrity		Pop Idol	News
D	719	BBC Radi	Rugby	15 To 1		Sports

Note

●If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.

●Whilst making the Split Programme programming event for Ext Rec. or USB HDD Rec., you cannot record any channels between the interrupted programmes.

●The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view. ●The Split Programme programming event for Reminder will switch to the programmed channel by pressing

the OK button even if it is between the interrupted programmes.

●The Split Programme programming does not work if the separated parts are broadcast on different channels.

View details of the programme (freesat or DVB mode)

Select the programme

View details

10:46

Wed 28 Oct 2009

TV Guide

Wed 28 Oct 2009

select

DIY SOS

BBC ONE

20:00 - 20:30, 30 min.

Details

EXIT

Return to list

Timer Programming

RETURN

●Press again to return to TV Guide.

View advertisement (DVB or Analogue mode)

Enter your postcode when using this function for the first time “Postcode” in “GUIDE Plus+ Settings” (p. 36)

If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to enter it again.

If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

Basic

Guide TV Using●

●To display the latest advertisement, you will need to update the information.

To update the information continuously, the TV must be left in Standby mode at night.

■To change advertisements

■To return to TV Guide	OPTION	BACK/
		or RETURN

Note

●Some advertisements are for future programmes.

In this case it is possible to use the Guide link programming function (above).

●The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot

be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.

23

Using TV Guide

Other Sat. mode

In Other Sat. mode, TV Guide is not available. In stead, Channel List will appear.

●To tune in Other Sat. Channels p. 49

1	Select Other Sat.
	p. 16
	TV

INPUT

TV

EXIT

G

U I D E

2

Display the Channel List

G

U

I

D

E

All Other Sat. Channels

2freesatHome

3freesatSSU

4Brit Shorts

5HINRG LOWNRG

6WELL Class

7GROOVE

8-

	3	Select the channel
		watch
		select

TV

■To return to TV

EXIT

or

G

U I D E

24

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

●The availability of teletext services for a programme is indicated by “TEXT” in the information banner.

D 1 BBC ONE Wales	20:35	All DVB Channels
Coronation Street		Select favourites
19:30 - 20:00	Now	For info press
	TEXT

Information banner (p. 17)

Displayed if programme has teletext service

Digital teletext (MHEG)

Digital teletext services

Digital teletext services differ greatly from analogue teletext.

When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

		1	Select freesat or DVB
			p. 16	●freesat and DVB programmes have digital teletext services
		INPUT	TV
	TV			(MHEG).
		2	Switch to Teletext
			TEXT	17:51 28 Feb
		BACK/
		RETURN
		3	How to use
	TEXT		In all cases, it is possible to navigate the pages using buttons on the
			remote control, but because the commands available must apply to all
	abc	def	manufacturers of digital equipment, some on screen commands may
			not correspond exactly to the remote control buttons.

ghi jkl mno

pqrs tuv wxyz

TV

For example:

●When “select” or “go” is displayed

●When “◄”, “►”, “▲”, “▼” symbol is displayed

BACK/

● RETURN

When “back key” is displayed

	●When the key words are displayed on colour			red green yellow blue
	●When options with numbers are displayed		abc	def
		ghi	jkl	mno
		pqrs	tuv	wxyz

■To return to TV	TEXT

Note

●As soon as you switch to a digital channel with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete.

●While navigating digital teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

Basic

Teletext Viewing● Guide TV Using●

25

Viewing Teletext

Analogue teletext

Analogue teletext services

Analogue teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 27)

■To change mode “Teletext” in the Setup Menu (p. 35)

INPUT TV

MENU

EXIT

TEXT STTL INDEX HOLD

abc def

ghi jkl mno

pqrs tuv wxyz

1

Select Analogue or Other Sat.

p. 16

●Other Sat. programmes are digital broadcasts. The operations

TV

of the teletext services, however, are equal to Analogue teletext

service.

2

Switch to Teletext

Sub page number

TEXT

●Displays the

Current

<< 01 02 03 04 05 06 07

>>

Time / date

index page

17:51 28 Feb

(content varies

page

TELETEXT

number

depending on the

INFORMATION

broadcasters)

3

Select the page

Colour

bar

abc

def

up

ghi

jkl

mno

or

red green yellow

blue

or

pqrs

tuv

wxyz

down

(Corresponds to the colour bar)

MENU

As the blue bar is displayed

■To adjust contrast

(press twice)

EXIT

■To return to TV

Reveal hidden data

Reveal hidden words e.g. quiz page answers

MENU	●To rehide red
red

FULL / TOP / BOTTOM

(TOP)

(BOTTOM)

Normal (FULL)

MENU green

(Expand the TOP half)

(Expand the BOTTOM half)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

HOLD	●To resume	HOLD

26

View the updated page

INDEX

Return to the main index page

INDEX

Subtitles

View a favourite page stored

STTL

●Factory setting is “P888” (subtitle service) on the blue button (List mode).

View in multi window

Watch TV and Teletext in two windows at once

TEXT

●Operations can be made only in Teletext screen.

●Each time pressed: Teletext

TV and Teletext

TV

Store frequently viewed pages

Store frequently viewed pages in the colour bar

(List mode only)

●If you wish to use Subtitles,

As page is

press

do not change number on

Corresponding

and

blue button.

displayed

hold

coloured button

The number changes to white.

■To change stored pages

Enter new page number

abc

def

press

Coloured button

ghi

jkl

mno

and

you want to change

pqrs

tuv

wxyz

hold

View sub page

View sub page (Only when teletext is more than one page)

						Appears at top of
						the screen
■To view specific sub page						Enter the
MENU
						4-digit number
blue						example: P6

mno

●Sub pages:

The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

Changes to TV screen temporarily

P108	Appears when
MENU	updating is
yellow	completed	yellow
(You cannot change the channel.)

Basic

Teletext Viewing●

●The news page provides a function that indicates arrival of latest news (“News Flash”).

27

Watching External inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.

●To connect the equipmentp. 11 and p. 94

The Remote Control is capable of operating some functions of selected external equipment.

INPUT

TV AV

1	Turn the TV on
	■When connecting with SCART as example 2 or 3 (p. 11)
	Receives input signals automatically when playback starts
	●Input signals are automatically identified by the SCART (pin 8) terminal.

●This function is also available for HDMI connections (p. 94).

■If input mode is not switched automatically

Perform and

●Check the setup of the equipment.

abc def

ghi jkl mno

2	DisplayAV	the Input select menu
3	Select the input mode connected to the equipment
	Input Selection	select
	AV1
	AV2/S

	AV3
	COMPONENT	watch
	PC

HDMI1

HDMI2

HDMI3

HDMI4

TV

Media Server

pqrs	tuv	wxyz		●You can also select the input using the AV button on the remote
				control or the side panel of the TV.
				Press the button repeatedly until the desired input is selected.
				●You cannot select “Media Server” using the AV button on the side panel of
				the TV.
				●In order to switch between AV2 and AV2S, move the indicator by pressing
				left and right cursor button.
REC	PROGRAMME			●You can label or skip each input mode “Input Labels” (p. 56)
				Skipped inputs will not be displayed when the AV button is pressed.
	DVD/VCR	TV	4	View

Displays the selected mode

TV

■ return to TV	Note
	●If the external equipment has an aspect adjustment function, set it to “16:9”.
TV	●For details, see the manual of the equipment or ask your local dealer.

28

Screen display

	Terminal	AV1	AV2	AV3	COMPONENT	PC	HDMI1	HDMI2	HDMI3	HDMI4
	Manual input	AV1	AV2
	default setting		AV2-S-Video AV3		COMPONENT	PC	HDMI1	HDMI2	HDMI3	HDMI4
	(in “Input Labels”)	AV1-RGB	AV2-RGB
	Auto input		EC/AV2				EC/HDMI1	EC/HDMI2	EC/HDMI3	EC/HDMI4
		EC/AV1					●Applicable for	●Applicable	●Applicable	●Applicable
	EC mode or		EC/AV2-S-Video	―	―	―
	(VIERA Link )	EC/AV1-RGB	EC/AV2-RGB				EC mode and	for	for	for
							VIERA Link	VIERA Link	VIERA Link	VIERA Link

●If the above information is permanently displayed on the top left of the screen, press the button to clear.

Operating the equipment with the TV remote control

The Panasonic equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

	Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player
	theatre, Blu-ray Disc theatre or VCR
DVD/VCR TV	“How to change the code for the type of the equipment” (see below)

Select “TV” to use USB HDD Recording, Media Player or VIERA Link “USB HDD Recording” (p. 66)

“Media Player” (p. 72) “VIERA Link Control” (p. 92)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD / video content:Skip to the previous track or title

(not available for the operation of USB HDD Recording) Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD / video content:Skip to the next track or title

(not available for the operation of USB HDD Recording) Press and hold to search forward

Pause

Pause / Resume

DVD: Press and hold to play at slow speed

PROGRAMME

Channel Up / Down

Select channel

REC Record

Start recording

■How to change the code for the type of the equipment

Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.

Set the position to “DVD/VCR” DVD/VCRTV

Press and hold during the following operations

Enter the appropriate code,		abc	def
	pqrs	tuv	wxyz	Press
	ghi	jkl	mno
see table below
Type of the equipment				Code
DVD Recorder, DVD Player				70 (default)
Player theatre, Blu-ray Disc theatre				71
VCR				72

Note

Basic

inputs External Watching●

●Confirm if the remote control works correctly after changing the code. ●The codes may be reset to default values if batteries are replaced.

●Some operations may not be possible on some equipment models.	29

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

●For “VIERA Link Control” and “Pause Live TV” functions to operate correctly, ensure the connections and settings are completed.

“Summary of Q-Link and VIERA Link features” (p. 86 and p. 87), “Preparations” (p. 89) After connection, turn the equipment on and then switch the TV on.

●For “Photo”, “Video” and “Music” functions to operate correctly, ensure the device has photo or video data on it and insert it into the SD Card slot or USB port properly.

”Using Media Player” (p. 68)

EXIT

		T
	RA O
IE			OL
V				S

1

2

Display icons of the feature

		T
	RA O
IE			OL
V				S

Select a feature

select access

		VIERA Link Control
3
	Follow the operations of each feature
	●VIERA Link Control “VIERA Link Control” (p. 92)

TV

■To return to TV

EXIT

or	VIE	T	OLS
	RA	O

When two or more compatible equipment are connected, a selection screen will be displayed.

Please select the correct description and access.

●Pause Live TV	“Pause Live TV” (p. 91)
●Photo	“Photo mode” (p. 70)

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

●Video

“Video mode” (p. 72)

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

●Music

“Music mode” (p. 75)

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

●Media Server

“Using DLNA® features” (p. 82)

Note

●If the selected feature is not available, the demonstration to explain how to use it

	30	can be displayed. Press the OK button to view the demonstration after selecting the
		unavailable feature.
