Panasonic TXP50VT20L Operating Instructions

Page 1

Operating Instructions

Plasma Television

Model No.

TX-P50VT20L

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.

English

TQB0E2031

Page 2

Experience an amazing level of multimedia excitement

Enjoy rich multimedia

VCR

Amplifier with

Speaker system

DVD Recorder

DVD Player

USB HDD

Notice for DVB functions

This TV is designed to meet the standards (current as of August, 2009) of DVB-T (MPEG2 and MPEG4-AVC MPEG4-AVC digital satellite services. Consult your local dealer for availability of DVB-T or DVB-S services in your area. Consult your cable service provider for availability of DVB-C services with this TV.

This TV may not work correctly with the signal which does not meet the standards of

●

DVB-T, DVB-C or DVB-S. Not all the features are available depending on the country, area, broadcaster, service

●

provider and satellite. Not all CI modules work properly with this TV. Consult your service provider about the

●

available CI module. This TV may not work correctly with CI module that is not approved by the service provider.

●

Additional fees may be charged depending on the service provider.● This TV does not support digital teletext (MHEG) functions.● The compatibility with future DVB services is not guaranteed.● Check the latest information on the available services at the following website. (English only)

●

http://panasonic.jp/support/global/cs/tv/

(H.264)) digital cable services and DVB-S (MPEG2 and MPEG4-AVC(H.264))

(H.264)) digital terrestrial services, DVB-C (MPEG2 and

Page 3

SD Card

Camcorder

Personal computer

Contents

Be Sure to Read

Safety Precautions (Warning / Caution) ● ················· 4

Quick Start Guide

Accessories / Options ● ·······························6

●

Identifying Controls

●

Basic Connection

●

Auto Setup

··············································12

Enjoy your TV!

Basic Features

Watching TV ● ························································· 16 Using TV Guide ● ···················································· 20 Viewing Teletext ● ···················································· 22 Watching External inputs ● ······································ 24 Viewing 3D images ● ··············································· 26 How to Use VIERA TOOLS ● ·································· 32 How to Use Menu Functions ● ································ 33

···································8

···································· 10

Quick Start Guide

Basic AdvancedQuick Start Guide

Basic

Set top box

Do not display a still picture for a ■

long time

This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still images

Chann ● el number and other logos Image displayed in 4:3 mode ● Video game ● Compu ● ter image

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 99)

Keep the TV away from these types of ■

equipment

Electronic equipment ● Do not place video equipment too close to the TV, electromagnetic interference may distort pictures / sound. Equipment with an infrared sensor ● This TV emits infrared rays which may interfere with the operation of other equipment.

Advanced Features

Retuning from Setup Menu ● ·································· 40 Tuning and Editing Channels (DVB) ● ····················· 44 Tuning and Editing Channels (Analogue) ● ············· 48

●

Timer Programming

●

Child Lock Input Labels ● ·························································· 54 Using Common Interface ● ······································ 55 Shipping Condition ● ··············································· 56 Updating the TV Software ● ···································· 57 Multi Window ● ························································ 58

●

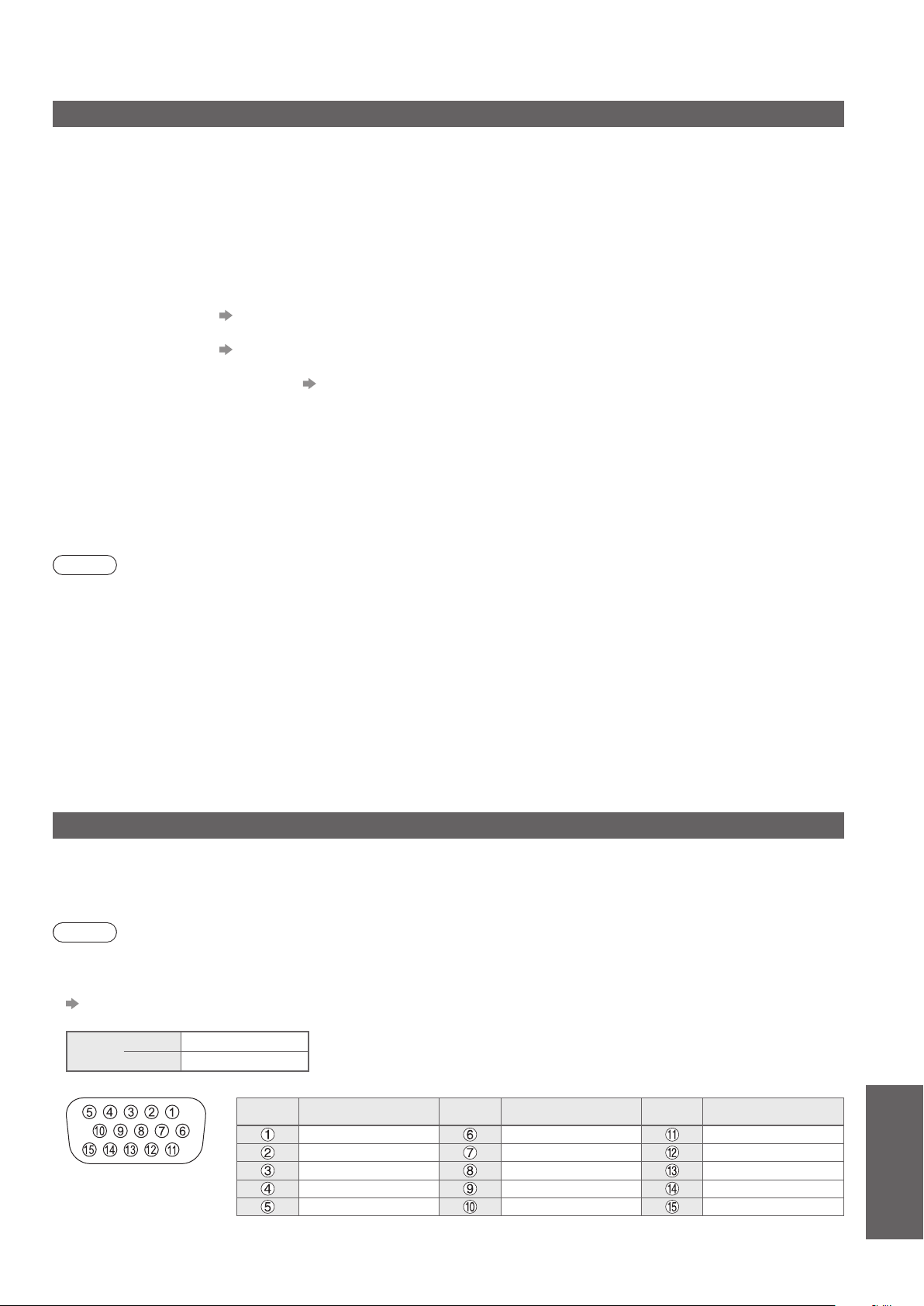

Displaying PC Screen on TV

●

Advanced Picture Settings USB HDD Recording ● ············································ 62 Using Media Player ● ·············································· 66

●

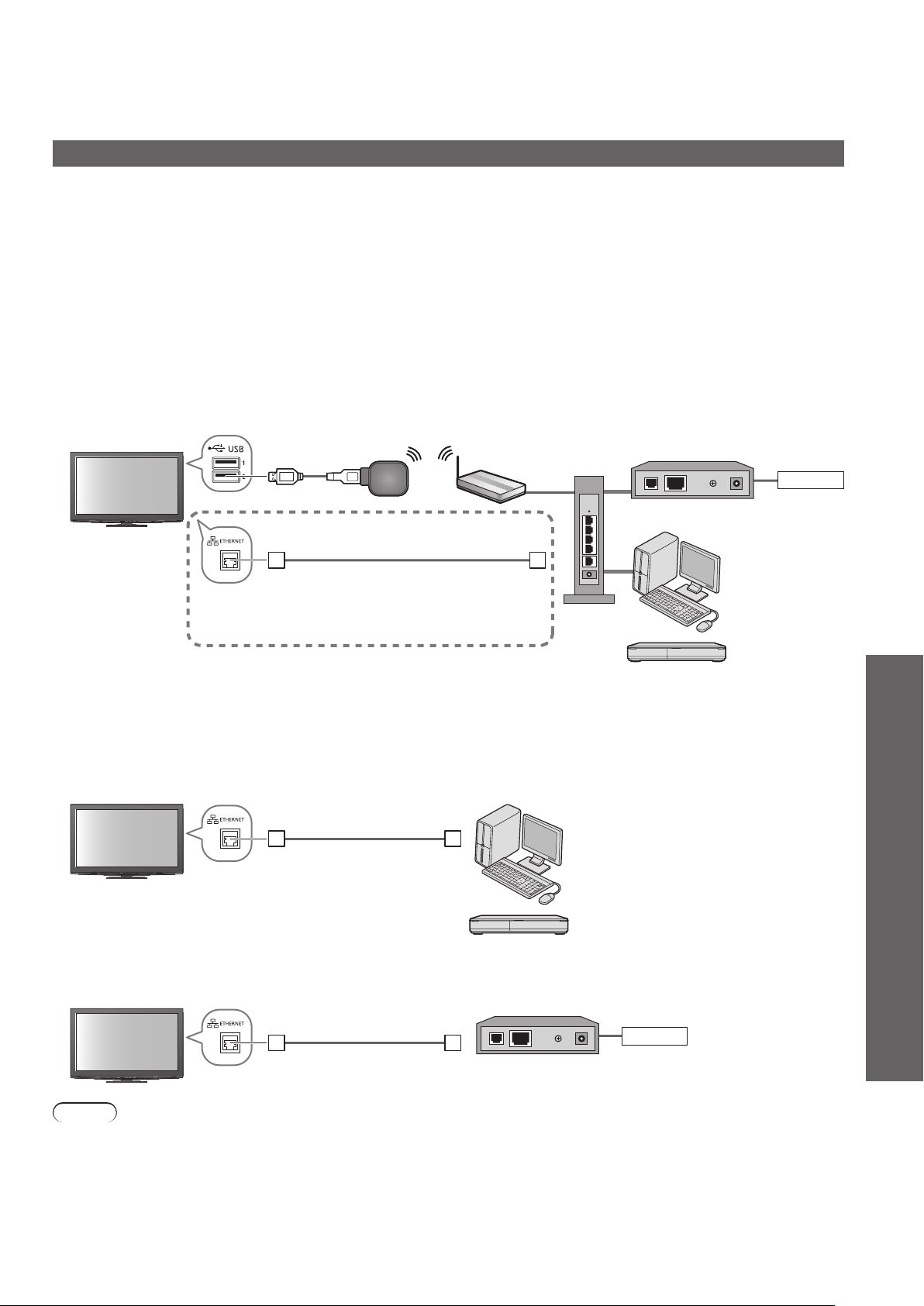

Using Network Services (DLNA / VIERA CAST)

●

Link Functions (Q-Link / VIERA Link)

External Equipment ● ·············································· 92

····························································· 52

·············································· 50

································ 59

··································· 60

······································· 74

······················································ 84

FAQs, etc.

Technical Information ● ··········································· 94

●

FAQs

···································································· 99

●

Maintenance Licence ● ······························································· 103 Specifications ● ····················································· 104

······················································· 102

Advanced

FAQs, etc.

Page 4

Safety Precautions

Warning

Mains plug and lead■

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

This TV is designed to operate on AC 220-240 V, ● 50 / 60 Hz. Insert the mains plug fully into the socket outlet. ● Ensure that the mains plug is easily accessible. ● Remove the mains plug when cleaning the TV. ●

Do not touch the mains plug with a wet hand. ●

Do not damage the mains lead. ●

Do not place a heavy • object on the lead.

Do not place the lead • near a high temperature object.

Do not pull on the lead. • Hold onto the mains plug body when disconnecting the plug. Do not move the TV with the lead plugged into a • socket outlet. Do not twist the lead, bend it excessively or • stretch it. Do not use a damaged mains plug or socket outlet.• Ensure the TV does not crush the mains lead.•

Do not use any mains lead other than that provided with this TV. ● Ensure the earth pin on the mains plug is securely connected to prevent electrical shock. ●

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective • earthing connection.

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

AC 220-240 V 50 / 60 Hz

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is

fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local dealer.

Do not cut off the mains plug. Do not use any other type of mains lead except the one supplied with this TV. The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety. If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

WARNING: – THIS TV MUST BE EARTHED.

How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.

or the BSI mark on the body of the fuse.

ASA

Page 5

Warning

Take care■

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

Do not remove covers and never modify the TV yourself as live parts are accessible when they are ● removed. There are no user serviceable parts inside.

Do not expose the TV to rain or excessive moisture. This TV must not be exposed ● to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not expose the TV to direct sunlight and other sources of heat. To prevent fire ● never place any type of candle or naked flame on top or near the TV.

Do not place the TV on sloped or unstable surfaces.●

Do not insert foreign objects into the TV through the air vents.● Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to ● perform the setup or installation of approved wall-hanging brackets. Do not apply strong force or impact to the display panel.●

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Small object■

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.

Keep the dangerous parts out of reach of young children.● Do not allow children to handle SD Card. As with any small object, the SD Card could be ● swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

Caution

Ventilation■

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

Ventilation should not be impeded by covering the ● ventilation openings with items such as newspapers, tablecloths and curtains. Whether you are using the pedestal or not, always ensure the vents in the ● bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Moving the TV■

Before moving the TV, disconnect all cables.

The TV is heavy. Move the TV with at least two people. Support as shown to ● avoid injury by the TV tipping or falling. Transport only in upright position. Transporting the TV with its display panel ● facing upward or downward may cause damage to the internal circuitry.

When not in use for a long time■

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.●

Excessive volume■

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

Minimum distance

10 7

(cm)

Page 6

Accessories / Options

Standard accessories Check that you have the accessories and items shown

Remote Control □

N2QAYB000489●

Batteries for the □

Remote Control (2)

R6 ● p. 8

Clamper □

p. 10

Mains Lead □

p. 10

Wireless LAN Adaptor and □

Extension cable

p. 14 and p. 75

Operating Instructions □ Product Registration Leaflet □

Accessories may not be placed all together. Take care not to throw them away unintentionally.●

Optional accessories

3D Eyewear set □

TY-EW3D10E ●

Communication Camera □

TY-CC10W●

Wall-hanging bracket □

TY-WK4P1RW●

Rear of the TV

Pedestal □

p. 7

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.

If you need 3D Eyewears additionally, please purchase this optional ● accessory.

3D Eyewear set (2) □

p. 27

Screwdriver □

for replacing the battery

(

of the 3D Eyewear

+ (#0) ● p. 28

Ferrite core (2) □

p. 93

Use the Ferrite cores to comply with the EMC standard.

)

Caution

This camera can be used on VIERA CAST (p. 83).● Please also read the manual of the camera.● Depending on the area, this optional accessory may not be available. ● For details, consult your local Panasonic dealer.

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

400 mm

300 mm

Depth of screw: minimum 15 mm, maximum 30 mm

Holes for wall-hanging bracket installation

(View from the side)

Warning

Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of ● personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty. Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to ● prevent the TV from falling off. Handle the TV carefully during installation since subjecting it to impact or other forces may cause product ● damage. Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes ● in the wall before hanging bracket. To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.●

Page 7

Attaching / removing the pedestal

Warning

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result. ●

Caution

Do not use any other TV and displays.

Otherwise the TV may fall over and become damaged, and personal injury may result. ●

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic ● dealer immediately.

During set-up, make sure that all screws are securely tightened.

If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be ● strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal ● injury may result.

Two or more people are required to install and remove the TV.

If two or more people are not present, the TV may be dropped, and personal injury may result. ●

When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure. (see below)

Otherwise the TV and / or pedestal may fall over and become damaged, and personal injury may result. ●

Quick Start Guide

Accessories / Options ●

Assembly screw (3)

(silver)

M5 × 18

Assembly screw (4)

(black)

M5 × 30

Assembling the pedestal■

Use the assembly screws to fasten the pole to the base securely.

Make sure that the screws are securely tightened.● Forcing the assembly screws the wrong way will strip ● the threads.

Securing the TV■

Use the assembly screws to fasten securely.

Make sure that the screws are securely tightened.● Carry out the work on a horizontal and level surface.●

Pole

TBLA3834 ●

Base

TBLX0155●

Front

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

Remove four assembly screws from the TV. Pull out the pedestal from the TV. Remove three assembly screws from the pole.

Arrow mark

Hole for pedestal

installation

(View from the bottom)

Page 8

Identifying Controls

Remote Control

Installing / removing remote’s batteries■

Pull

Hook

open

Note the correct polarity (+ or -)

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.● Do not mix old and new batteries.● Do not mix different battery types (such as alkaline and manganese batteries).● Do not use rechargeable (Ni-Cd) batteries.● Do not burn or breakup batteries.● Batteries must not be exposed to excessive heat such as sunshine, fire or the like. Do not disassemble or modify the remote control.●

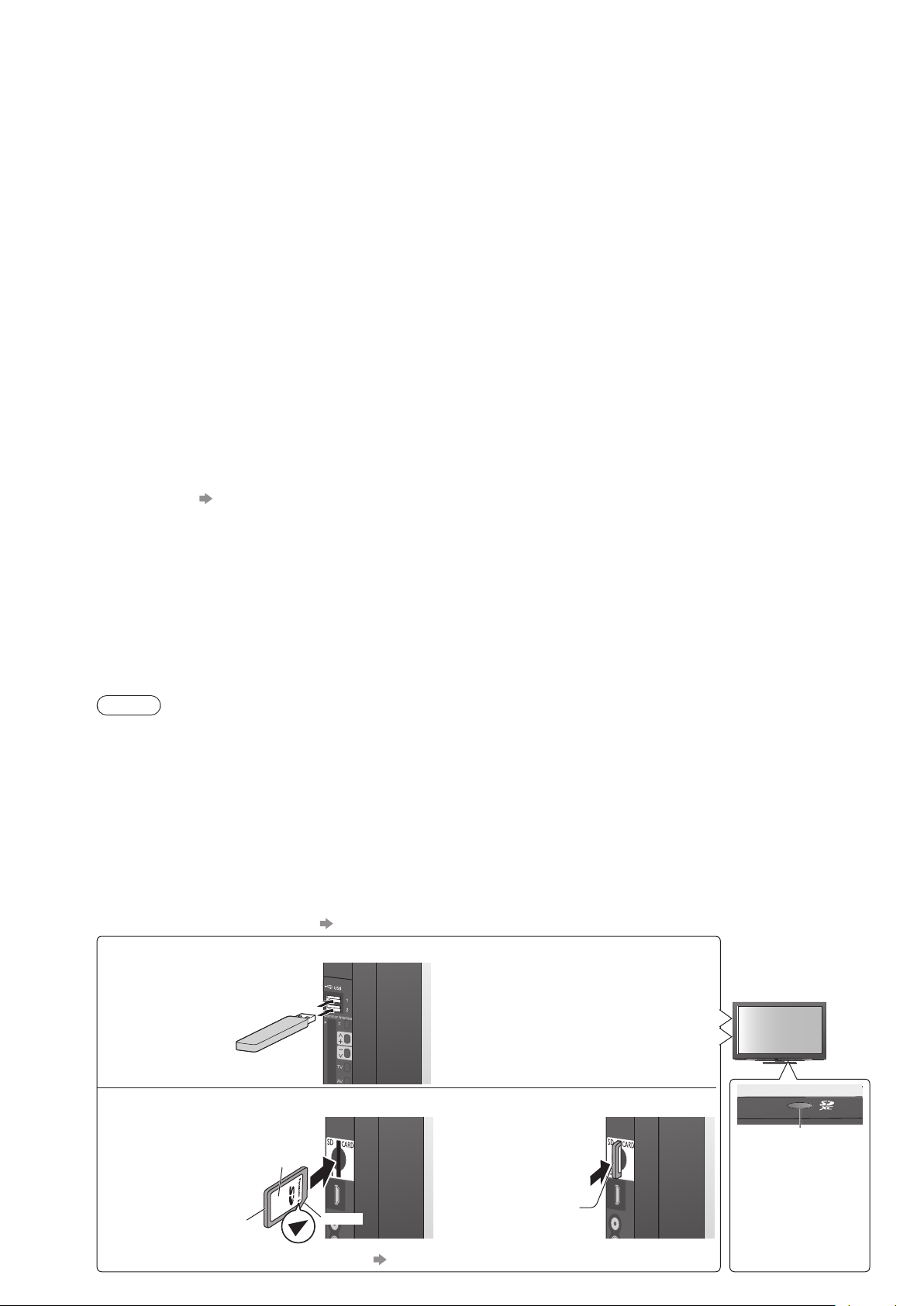

Media Player (p. 66)

Switches to SD Card and USB device

●

viewing / listening mode

Standby On / Off switch

Switches TV On or Off standby●

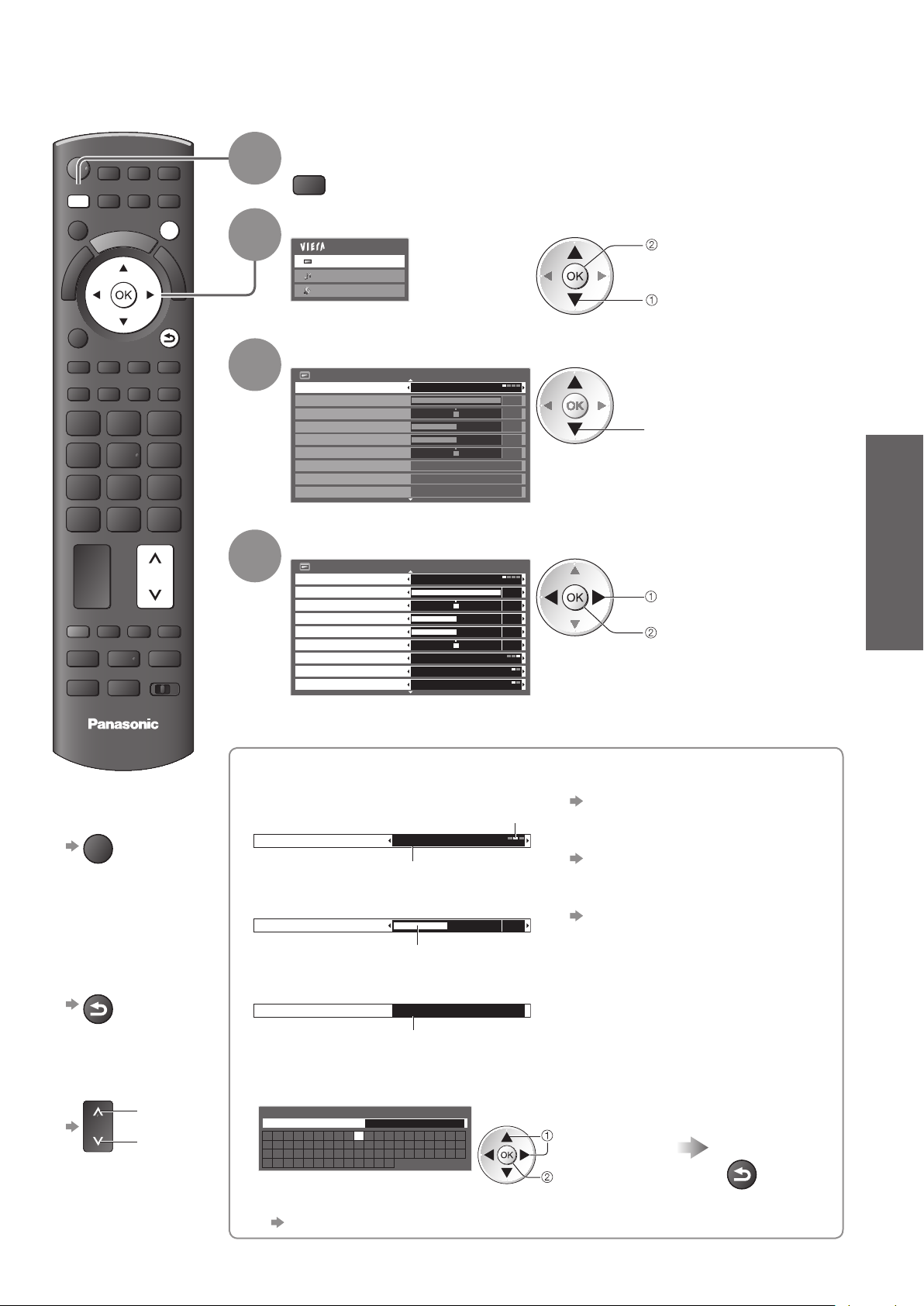

Main Menu (p. 33)

Press to access Picture, Sound and

●

Setup Menus

Aspect (p. 18)

Changes aspect ratio from Aspect Selection

●

list Also possible by pressing this button

●

repeatedly until you reach the desired aspect

Channel / Programme Information (p. 17)

Displays channel and programme

●

information

VIERA Link Menu (p. 88)

Accesses VIERA Link Menu

●

Confirms selections and choices● Press after selecting channel positions ● to quickly change channel Displays the Channel List

●

Option Menu (p. 19)

Easy optional setting for viewing, sound, etc.

●

Coloured buttons

Used for the selection, navigation and ● operation of various functions

Teletext (p. 22)

Switches to teletext mode

●

Subtitles (p. 18)

Displays subtitles

●

Numeric buttons

Changes channel and teletext pages● Sets characters● When in Standby mode, switches TV On ● (Press for about 1 second)

Sound Mute

Switches sound mute On or Off●

Volume Up / Down

OPTION

TEXT

SD CARD

ASPECT

ghi

STTL

REC

INPUT

AVTV

DIRECT TV REC

EXIT

RETURN

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

LAST VIEW

PROGRAMME

DVD/VCR

BACK/

Input mode selection

TV - switches DVB-S / DVB-C / DVB-T / ●

Analogue mode (p. 16)

AV - switches to AV input mode from Input

●

Selection list (p. 24)

Direct TV Recording (p. 86 and p. 88)

Records programme immediately in

●

DVD Recorder / VCR with Q-Link or VIERA Link connection

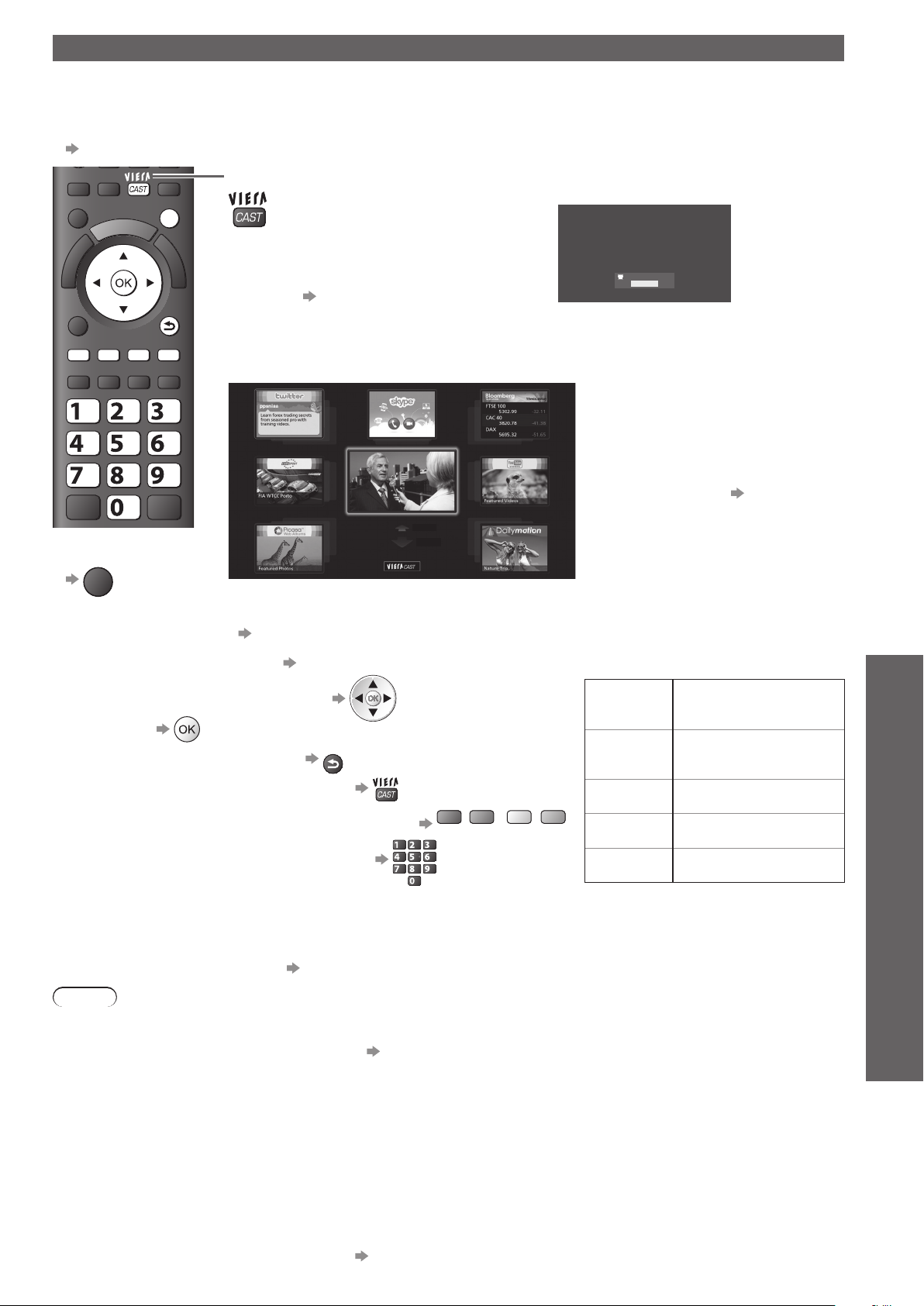

VIERA CAST (p. 83)

Displays VIERA CAST home screen

●

Exit

Returns to the normal viewing screen●

VIERA TOOLS (p. 32)

Displays some special feature icons and

●

accesses easily

TV Guide (p. 20)

Displays TV Guide●

Cursor buttons

Makes selections and adjustments●

Return

Returns to the previous menu / page●

Hold

Freeze / unfreeze picture (p. 17)● Holds the current teletext page (teletext ●

mode) (p. 22)

Index (p. 23)

Returns to the teletext index page ●

(teletext mode)

Last view (p. 19)

Switches to previously viewed channel or

●

input mode

Channel Up / Down

Selects channel in sequence●

Connected equipment operations

(p. 25, 64 and p. 90)

Page 9

Common Interface

HDMI 4

AV 3

Remote control signal receiver

Do not place any objects between the TV remote control signal ● receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System) sensor

Senses brightness to adjust picture quality when “Eco Mode” ● in the Picture Menu is set to “On” (p. 34)

Infrared transmitter for 3D Eyewear

CI slot (p. 55)

Do not place any objects between the ● transmitter and 3D Eyewear.

USB 1 / 2 ports (p. 14, 62, 66 and p. 75)

Function select

Volume / Contrast / Brightness / Colour / Sharpness / ● Tint (NTSC signal) / Bass (“Music” or “Speech” mode in the Sound Menu) / Treble (“Music” or “Speech” mode in the Sound Menu) / Balance / Auto Setup (p. 40, 42 and p. 43)

Changes the input mode

Increases or decreases the channel position by one. When a function is already displayed, press to increase or decrease

SD Card slot (p. 66)

the selected function. When in Standby mode, switches TV On (Press for about 1 second).

HDMI4 terminal (p. 93)

Headphones jack (p. 93)

Adjusting the panel to your desired angle

Do not place any objects within the full rotation range.●

AV3 terminals (p. 93)

Mains power On / Off switch

Switch On to turn on the TV or turn the TV ● to Standby mode by the remote control.

Power and Timer LED

Standby: red● On: green● Timer Programming On: orange● Recording of Timer Programming, ● Direct TV Recording or One Touch Recording is in progress: orange (flash) Standby with Timer Programming On,

●

Direct TV Recording or One Touch Recording: red with orange flash When using the remote control, indicates the TV

●

has received a command.

(View from the top)

Quick Start Guide

Identifying Controls ●

10°10°

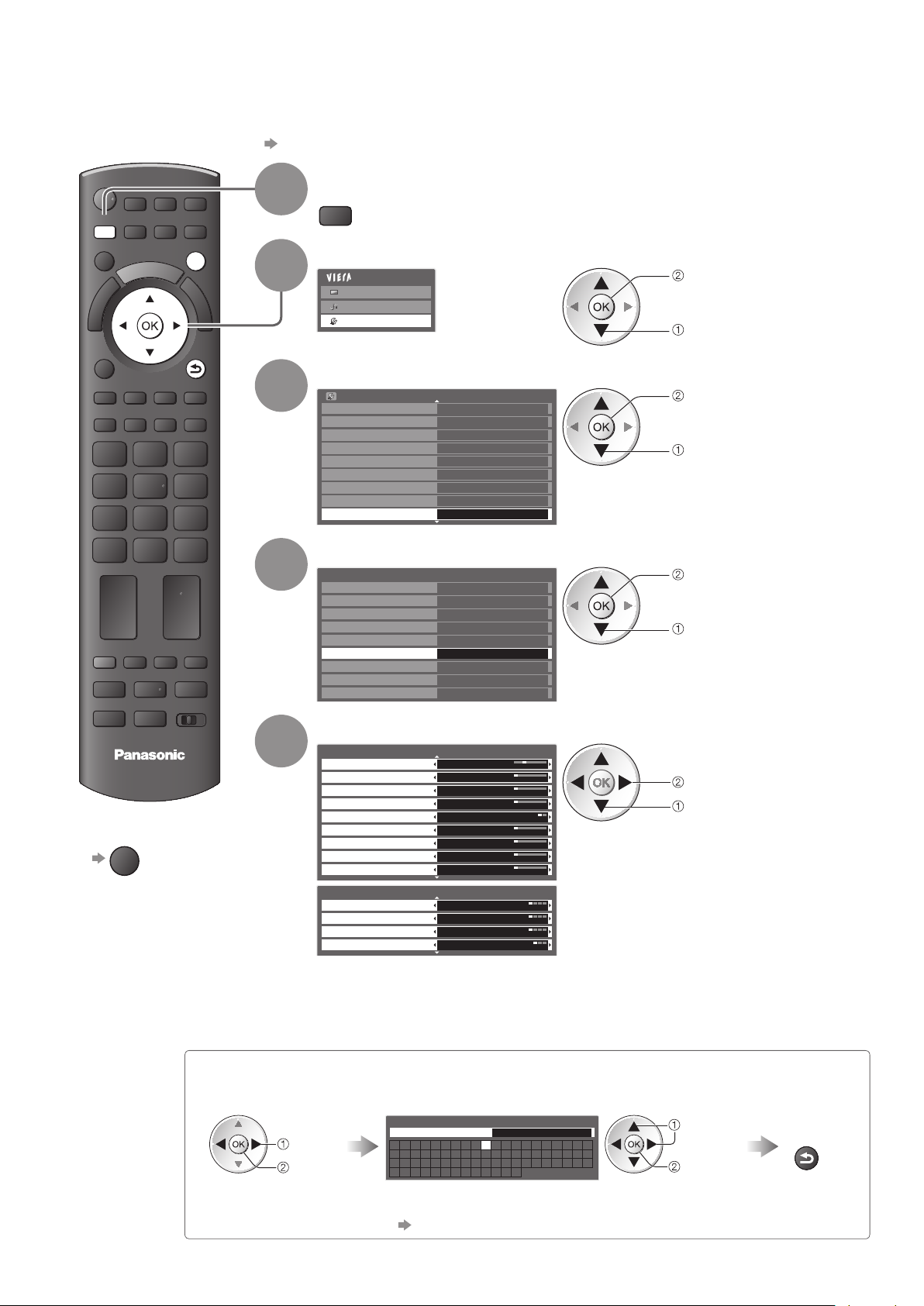

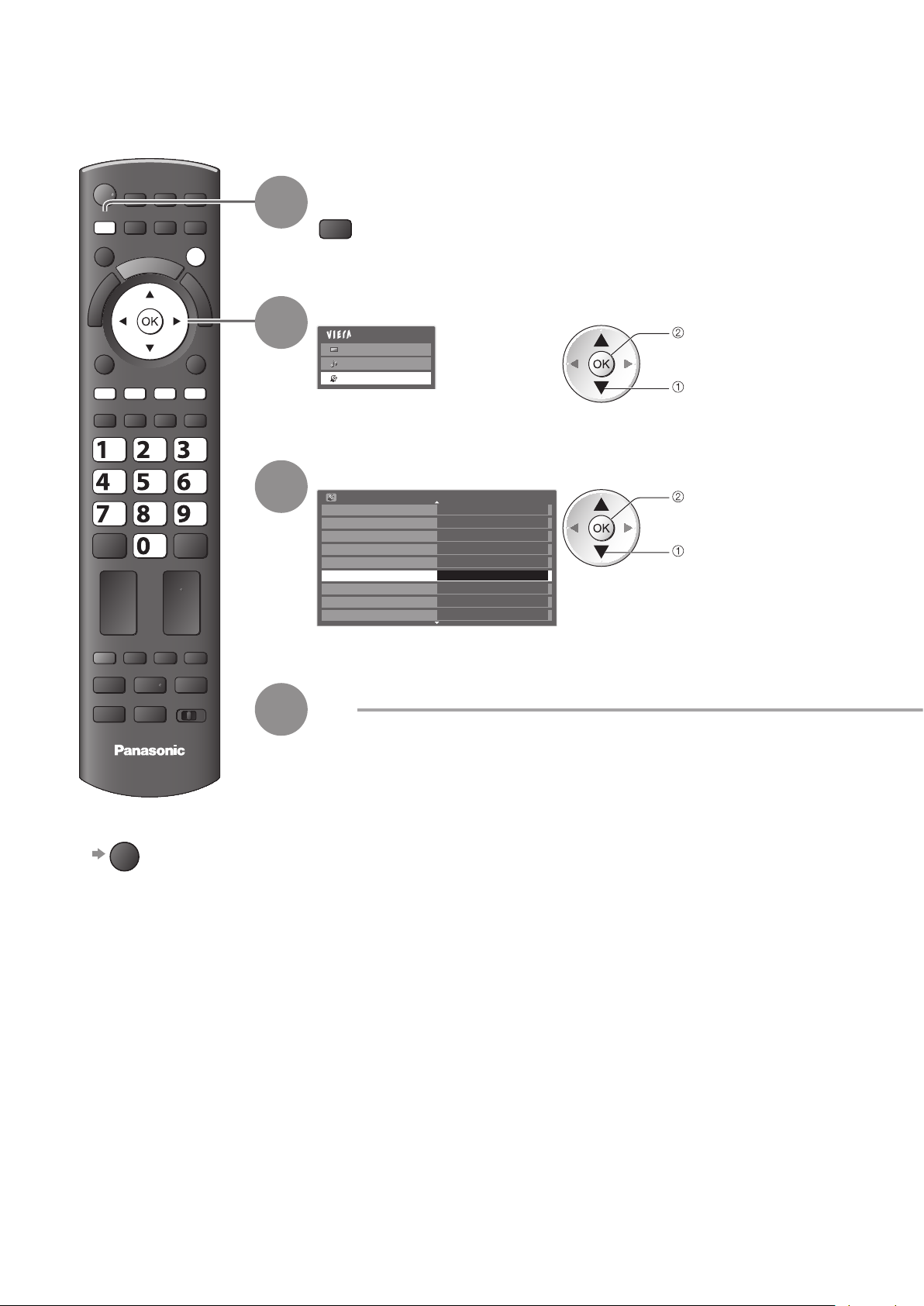

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

■

How to use remote control

Move the cursor / select the menu item

Access the menu / store settings after adjustments have been made or options have been set

Open the main menu

ON SCREEN HELP Instructions box - Operation guide■

Example (Sound Menu):

Sound Menu

Mode Music

Bass Treble Balance Headphone Volume

Volume Correction Speaker Distance to Wall Over 30cm MPX

Select

EXIT Change RETURN

OffSurround

Stereo

Page up

Page down

RETURN

EXIT

1/2

0 0 0

Operation guide will help you.

Move the cursor / adjust levels / select from a range of options

BACK/

Return to the previous menu

Exit the menu system and return to the normal viewing screen

Auto power standby function ■

The TV will automatically go to Standby mode in the following conditions: ●

no signal is received and no operation is performed for 30 minutes in Analogue TV mode• “Off Timer” is active in the Setup Menu (p. 19)• no operation is performed for the period selected in “Auto Standby” (p. 39)•

This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch ● Recording.

Page 10

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first. There are some restrictions on placement for viewing 3D images. For details

Example 1 Connecting dish or aerial

p. 26 and p. 29

TV only

AC 220-240 V 50 / 60 Hz

Clamper■

Attach the clamper

Insert the clamper in a hole

To remove from the TV:●

Mains lead

(supplied)

hole

To ensure your satellite dish is correctly installed, please consult your local dealer.● Also please consult the received satellite broadcasting companies for details.● Selectable satellites and dish alignment to tune DVB-S channels ● p. 41

Rear of the TV

For digital satellite ● broadcasts

Satellite cable

Mains Lead■

Make sure that

Push until both side tabs click

To remove from the TV:●

the mains lead is securely fixed.

Satellite

dish

snaps

Keep pushing

both side snaps

Bundle the cables

Set the tip

hooks

●

To loosen:

in the hooks

Keep pushing

knob

the knob

Do not bundle the Satellite cable, RF cable and ● mains lead together (could cause distorted image). Fix cables with clampers as necessary.● When using the optional accessory, follow the ● option’s assembly manual to fix cables.

DIGITAL

AUDIO

OUT

AUDIO

OUT

RLR

COMPONENT

AUDIO

RGB VIDEO

tabs

Press both tabs and pull on mains connector to release

For digital cable, digital terrestrial ● and analogue broadcasts

HDMI

HDMI 2

(ARC)

HDMI

RGB VIDEO

AV1 AV2

S VIDEO

Terrestrial

aerial

Cable

RF cable

Page 11

Example 2 Connecting DVD Recorder / VCR and Player

Example 3 Connecting DVD Recorder / VCR and Set top box

TV, DVD Recorder / VCR and Player

Rear of the TV

Cable

AC 220-240 V 50 / 60 Hz

Mains lead (supplied)

COMPONENT

AUDIO

DIGITAL

AUDIO

OUT

AUDIO

RLR

OUT

RGB

VIDEO

AV1 AV2

S VIDEO

RF cable

HDMI

HDMI 2

(ARC)

HDMI

Terrestrial

aerial

TV, DVD Recorder / VCR and Set top box

Rear of the TV

AC 220-240 V 50 / 60 Hz

RF cable

Mains lead (supplied)

HDMI

HDMI 2 (ARC)

HDMI

DIGITAL

AUDIO

OUT

AUDIO

OUT

RLR

COMPONENT

AUDIO

RGB VIDEO

AV1 AV2

S VIDEO

Terrestrial

aerial

Quick Start Guide

Basic Connection ●

Fully wired HDMI compliant cable

Fully wired SCART cable

Fully wired

SCART cable

Fully wired HDMI

RF cable

compliant cable

Fully wired SCART cable

Player / 3D-compatible player

DVD Recorder or VCR

RF OUT

RF IN

Set top box

Cable

Note

To watch 3D contents ● p. 26 Connect to the TV’s AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link (p. 86).

●

For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by ● using HDMI cable (p. 92). Network connection

● p. 14 and p. 75

Q-Link connection ● p. 84

● p. 84 and p. 85

VIERA Link connection Please also read the manual of the equipment being connected.

●

RF cable

DVD Recorder or VCR

RF OUT

RF IN

Page 12

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.● Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before ● starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

Select the language

OSD Language

Deutsch Dansk Polski Srpski

English Svenska čeština Hrvatski

Français Norsk Magyar Slovenščina

Italiano Suomi Slovenčina Latviešu

Español Türkçe Български eesti keel

Português

Nederlands

Еλληνικά Românǎ Lietuvių

Select your country

Country

Germany Denmark Poland

Austria Sweden Czech France Norway Hungary

Italy Finland Slovakia

Spain Luxembourg Slovenia

Portugal

Switzerland

Malta

Andorra

Belgium Estonia

Netherlands Lithuania

Turkey Greece

Ireland

Others

Depending on the country you select, you ● may be required to select the Region. In this case, select your region.

select

set

select

set

ASPECT

OPTION

INPUT

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

TEXT

ghi

STTL

REC

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

PROGRAMME

DVD/VCR

Select the mode you want to tune

TV Signal Selection

DVB-S

DVB-C

DVB-T

DVB-T support for HD services

Analogue

Start Auto Setup

: tune (the mode will be tuned and

searched for the available channels)

: skip tuning

“DVB-C” may not appear depending on the ● country you select (p. 106).

tune / skip tuning

select

Select “Start Auto Setup”

TV Signal Selection

DVB-S

DVB-C

DVB-T

DVB-T support for HD services

Analogue

Start Auto Setup

Auto Setup starts

Auto Setup will start to search for TV ● channels and store them. The stored channels and sorted channel order vary depending on the country, area, broadcasting system and conditions of signal reception.

access

select

(continued to the next page)

Page 13

Auto Setup varies depending on the country you select.

DVB-S Search Mode

●

Search Mode

All Channels Free Channels

select mode set

DVB-S Satellite Search●

DVB-S Auto Setup

Satellite

Analogue Scan 21 68 Progress

Analogue Scan 68

This will take up to 40 minutes.

Satellite

Astra 19.2°E Hot Bird 13°E

Checking LNB2

0% 100%

Press EXIT to skip Satellite installation

Searching Satellite

DVB-S Auto Setup●

DVB-S Auto Setup

Satellite

Analogue Scan 21 68 Progress

Analogue Scan 68

This will take about 30 minutes.

No. Channel Name Type Quality

372 CBBC Channel Free TV 10 372 BBC Radio Wales Free TV 10 372 E4 Free TV 10

Free TV: 3 Pay TV: 0 Radio: 0

Checking LNB1

0% 100%

Searching

Quick Start Guide

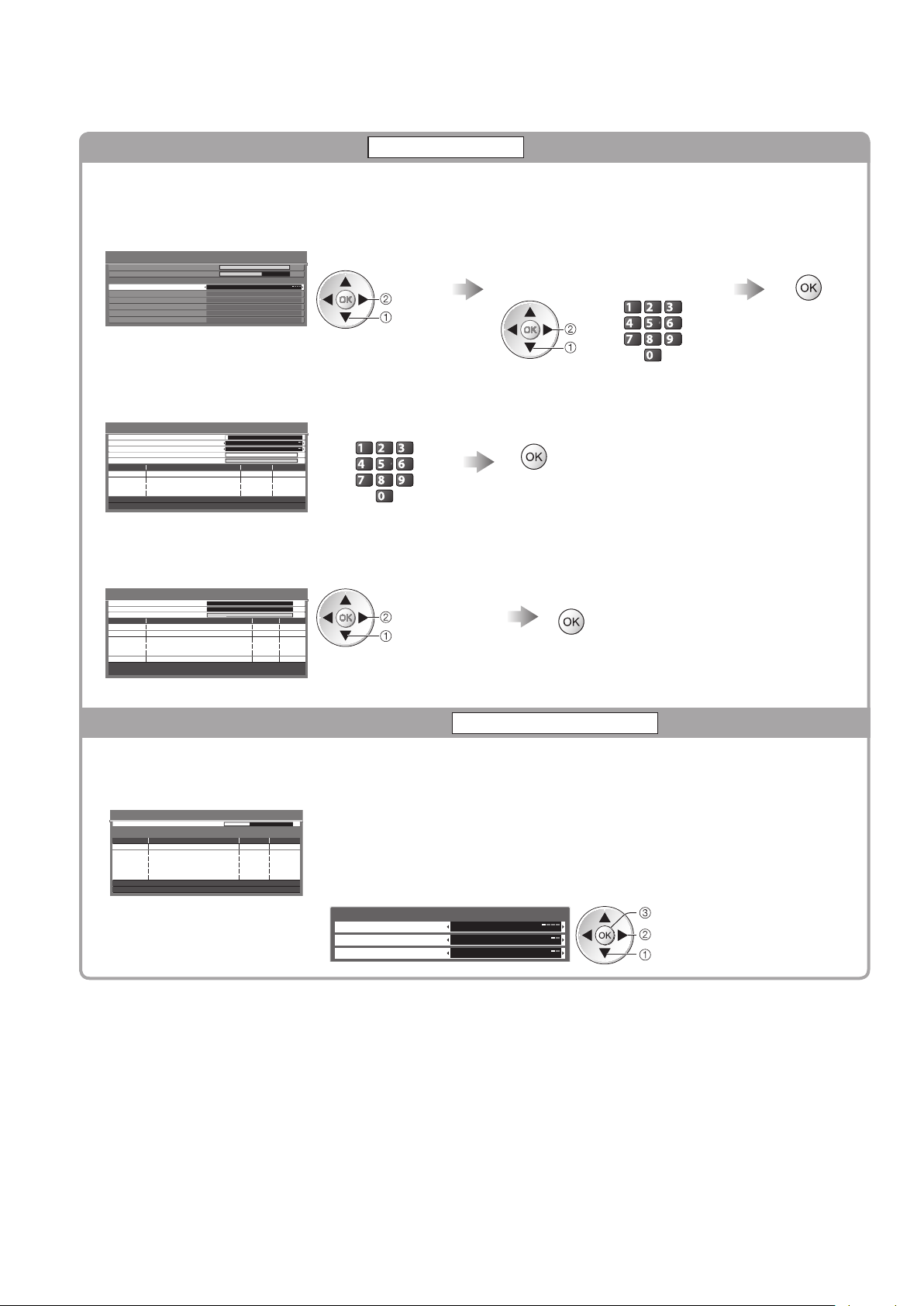

DVB-C Network Settings● Enter the Home Frequency and Network ID specified by your cable provider. And then, select “Start Auto Setup”.

DVB-C Network Settings

Frequency Network ID 41001

Start Auto Setup

362 MHz

enter the frequency and network ID

abc def

Depending on the country you select, “Auto” is displayed

jkl

ghi

mno

and you do not have to enter them.

tuvpqrs

wxyz

In this case, Home Frequency and Network ID will be set automatically.

access

select “Start Auto Setup”

DVB-C Auto Setup●

DVB-C Auto Setup

Progress

This will take about 3 minutes.

No.

1 CBBC Channel 2 BBC Radio Wales 3E4

Free TV: 3 Pay TV: 0 Radio: 0

Channel Name

Searching

0% 100%

Type Quality

Free TV 10 Free TV 10 Free TV 10

DVB-T Auto Setup●

DVB-T Auto Setup

Progress CH 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

62 CBBC Channel Free TV 10 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10

Free TV: 4

Pay TV: 0 Radio: 0

Searching

Depending on the country you select, the channel selection screen will be displayed after DVB-T Auto Setup if multiple channels have the same logical channel number. Select your preferred channel or exit the screen for automatic selections.

Analogue Auto Setup●

Analogue Auto Setup

Scan

This will take about 3 minutes.

CH Channel Name

CH 29 CH 33 BBC1

CH 1 H: 21 4199

Auto Setup ●

Analogue: 2

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

Searching

If Q-Link, VIERA Link or similar technology (p. 86 and p. 87) ● compatible recorder is connected, channel, language, country / region settings are automatically downloaded to the recorder. If downloading has failed, you can download later by the menu item.●

“Download” (p. 36)

(continued to the next page)

Page 14

Auto Setup

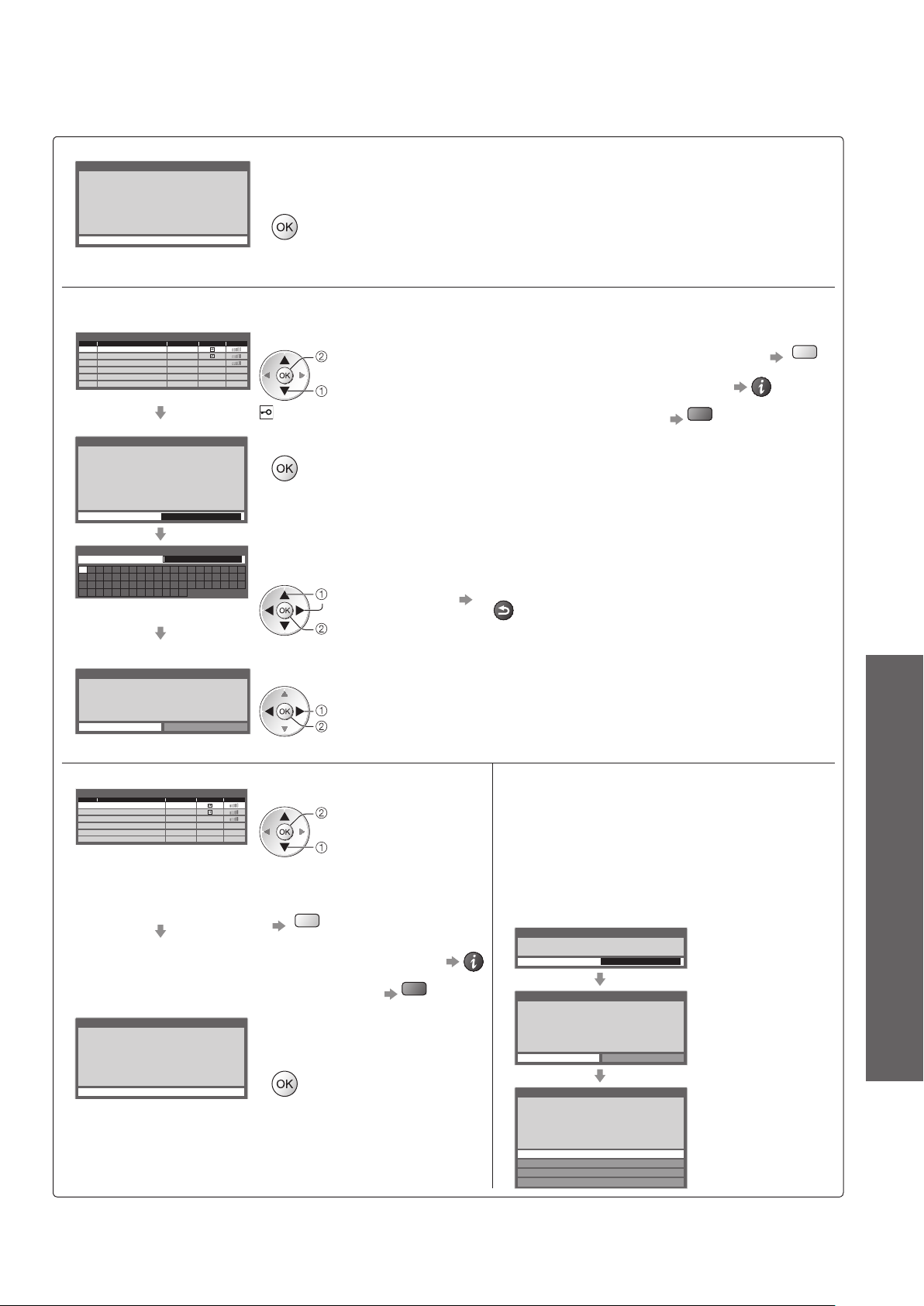

Setup the wireless LAN connection

Setup the wireless LAN connection to enable the network service functions (p. 74). (If you do not wish to use wireless LAN connection or the network service functions, skip this step.)

To setup the wireless LAN connection, use the Wireless LAN Adaptor (supplied). For the information ●

about the Wireless LAN Adaptor “Wireless LAN Adaptor” (p. 15)

Confirm the encryption key, settings and positions of your access point before starting setup. For details, ●

read the manual of the access point.

Start wireless LAN connection setup?

Yes No

Please connect the wireless LAN adaptor (DY-WL10) to a USB terminal.

Wireless LAN connection setup starts

Connection Type

Please select network connection type.

WPS(Push button)

Search for access point

Select the connection type

connect the Wireless LAN Adaptor to the USB 1 or 2 port

Internet

environment

Wireless LAN Adaptor and Extension cable

Access point

(supplied)

You can setup the wireless LAN connection later

select “Yes”

access

select

“Network Setup” (p. 78)

To skip this step

●

EXIT

or select “No”

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ buttton on the access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

Connect

Press the WPS button on the access point until the light flashes. And then, press the OK button to connect the Wireless LAN Adaptor and the access point.

Ensure that your access point supports WPS for this setup.● WPS: Wi-Fi Protected Setup●

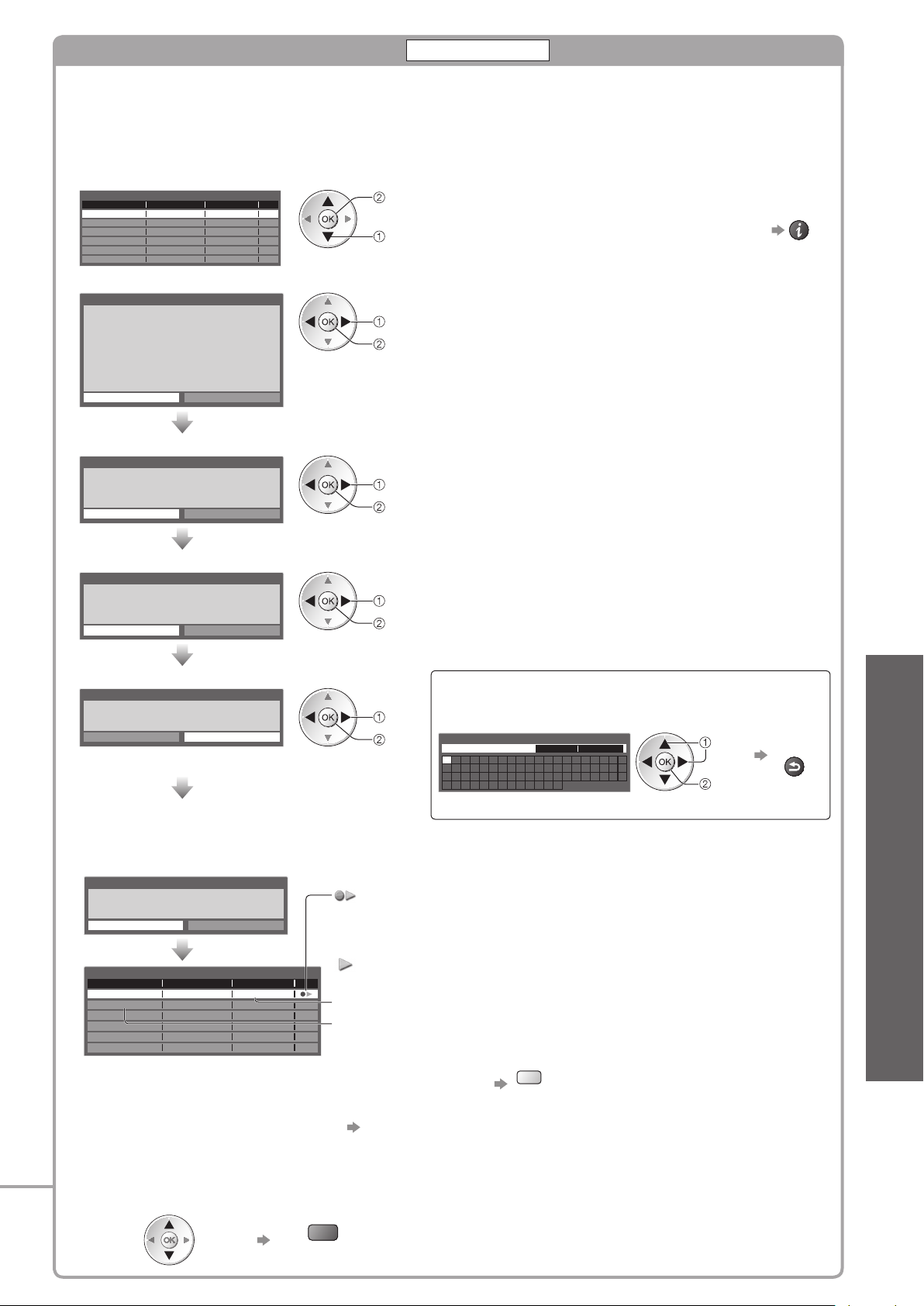

Search for access point■

Access points found automatically are listed.

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

Access Point B

Access Point C 11n(5GHz)

Encryption Key Setting

Connection will be made with the following settings:SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

Access Point Settings

Encryption key

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

11n(5GHz)

O P Q R S T 7 8 9 ! : # o p q r s t

Select your desired access point

access

select

: Encrypted access point

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will ● be displayed. It is recommended to select the encrypted access point.

Enter the encryption key of the access point Set characters one by one Store

select

To search access points again

●

For the information of the ● highlighted access point

To set manually (p. 79) ●

BACK/

RETURN

red

yellow

You can set characters by using numeric buttons.●

Access Point Settings

Encryption key is set to:XXXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes No

Select “Yes”

To re-enter the encryption key, select “No”.●

If the connection has failed, check the encryption key, settings and positions of your access point. And ●

then, follow the on screen instructions.

Exit to go to the next step

set

select set

(continued to the next page)

Page 15

Select “Home”

Note

If tuning has failed or to retune all channels ● “Auto Setup” (p. 40 - 43) To add the available TV mode later ● “Add TV Signal” (p. 37 and p. 38)

● “Shipping Condition” (p. 56)

To initialise all settings To use a LAN cable instead of the Wireless LAN Adaptor

● p. 77

●

If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

Select “Home” viewing environment to use in your home environment.

Please select your viewing environment.

Home Shop

Auto Setup is now complete and your TV is ready for viewing.

select

set

“Shop” viewing environment ■ (for shop display only)

“Shop” viewing environment is the demonstration mode to explain main features of this TV.

Select “Home” viewing environment to use in your home environment.

You can return to viewing environment selection ● screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.

Return to viewing environment selection

screen

Shop

You have selected shop mode

Automatic Demo

Off On

To check channel list at-a-glance ●

“Using TV Guide” (p. 20)

To edit or hide (skip) channels ●

“Tuning and Editing Channels” (p. 44 - 49)

If tuning has failed, check the connection of the ● Satellite cable, RF cable, and then, follow the on screen instructions.

Select “Home”

Please select your viewing environment.

Home Shop

Auto Setup is complete

To change viewing environment later on, you ● will need to initialise all settings by accessing Shipping Condition.

“Shipping Condition” (p. 56)

BACK/

RETURN

select set

Quick Start Guide

Auto Setup ●

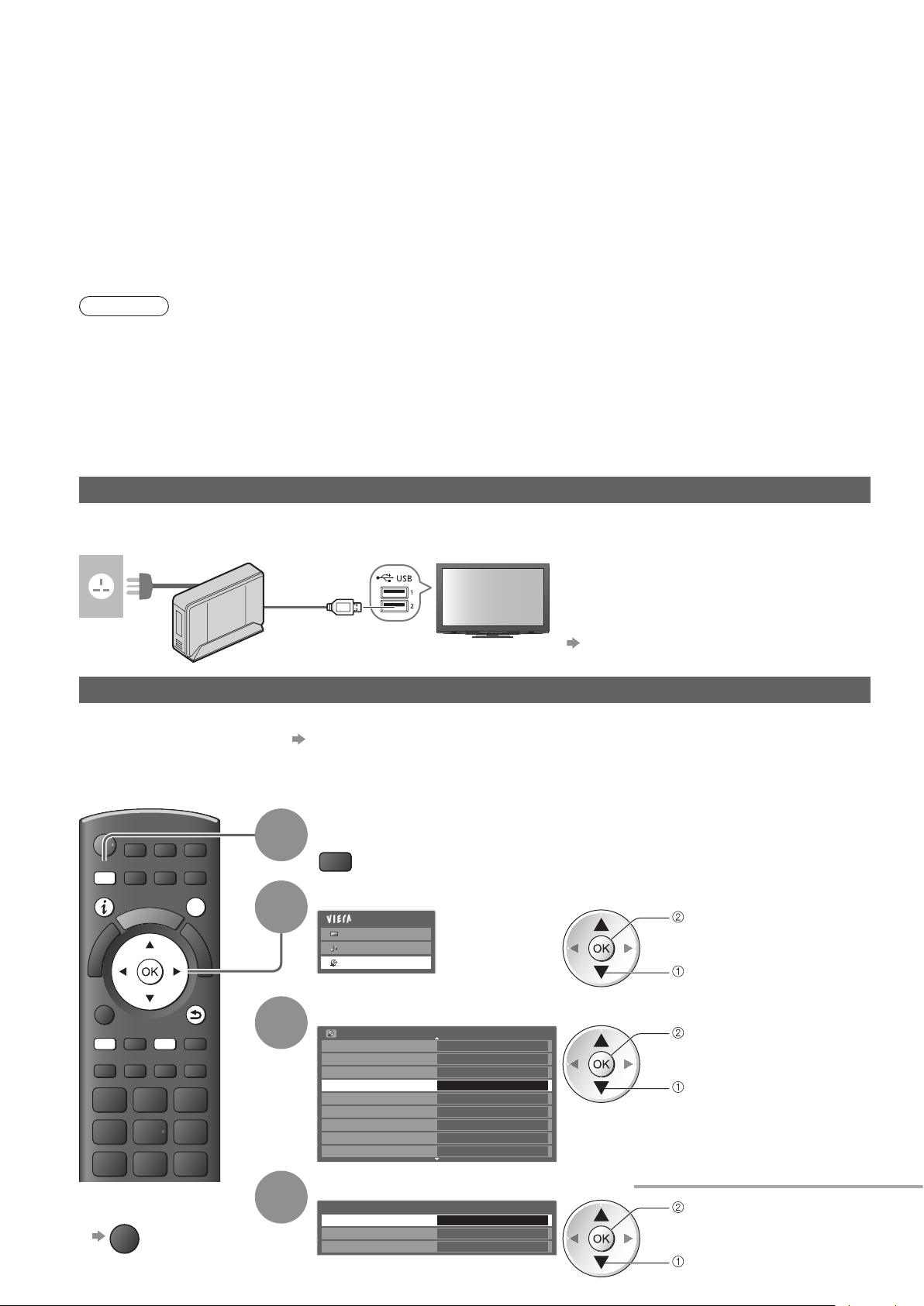

Wireless LAN Adaptor■

Caution

Be aware of the following limits before using the Wireless LAN Adaptor (DY-WL10).

To use the Wireless LAN Adaptor, an access point needs to be obtained.● It is recommended to use the Wireless LAN Adaptor with the supplied extension cable.● Do not use the Wireless LAN Adaptor to connect to any wireless network (SSID● usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.

∗

SSID is a name for identifying a particular wireless network for transmission.

Do not subject the Wireless LAN Adaptor to high temperatures, direct sunlight or moisture.● Do not bend, or subject the Wireless LAN Adaptor to strong impacts.● Do not disassemble or alter the Wireless LAN Adaptor in any way.● Do not attempt to install the Wireless LAN Adaptor in any incompatible device.● Do not remove the Wireless LAN Adaptor from the TV’s USB port during operations.● Data transmitted and received over radio waves may be intercepted and monitored.● To avoid malfunctions caused by radio wave interface, keep the TV away from the devices such as other ● wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor. When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the ● devices. In this case, turn the TV Off with Mains power On / Off switch, then turn it On again. Additional information for Wireless LAN Adaptor and access point may be on the following web site. ● (English only) http://panasonic.jp/support/global/cs/tv/

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

To setup the Wireless LAN connection ● p. 78 and p. 79

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to set it up? No - Exit

Current network type : Wireless

Yes No

∗

) for which you do not have

Page 16

Watching TV

Turn power on

(Press for about 1 second)

Select the mode

The selectable modes vary depending on the stored channels (p. 12).● If “TV Selection” menu is not displayed, press the TV button to switch the ● mode.

OPTION

ASPECT

INPUT

EXIT

BACK/

RETURN

Mains power On / Off switch should be On. (p. 9)●

TV Selection

DVB-S

DVB-C

DVB-T

Analogue

access

select

TEXT

ghi

STTL

INDEX

HOLD

abc def

jkl

mno

1 BBC ONE WALES

Coronation Street 20:00 - 20:55

All DVB-T Channels

20:35

Change category

For info press

Now

Information banner appears whenever you select a channel

For details ● p. 17

Also possible to select the mode pressing the TV button repeatedly on the ●

tuvpqrs

wxyz

LAST VIEW

REC

PROGRAMME

DVD/VCR

Volume

Note

To watch pay-TV ●

“Using Common Interface”

(p. 55)

remote control or side panel of the TV. (p. 9)

Select a channel

down

To select from the Channel List■

abc def

jkl

ghi

All DVB-T Channels Sorting 123...

Cartoon Nwk

BBC Radio Wales

BBC Radio Cymru

BBC ONE Wales

BBC THREE

BBCi

CBBC Channel

mno

tuvpqrs

wxyz

To change the category ● To sort channel names in alphabetical order ●

To select a more than two-digit channel ● position number, e.g. 399

Select a channel using Information banner ■ (p. 17)

Possible to confirm the channel name and programme before changing channels.

Display Information banner if it is not displayed

While the banner is displayed, select the channel

select channel

def

wxyz

select channel

watch

red

blue

Possible to set display timeout in ● “Banner Display Timeout” (p. 38).

Select a channel using TV Guide ■ (p. 20)

Possible to confirm the TV Guide (EPG) before changing channels.

Display TV Guide

The postcode entry or update ● may be required depending on the country you select (p. 12). Follow the on screen instructions.

Select the current programme or channel

select

access

watch

Select “View” (DVB mode)

Das Erste 19:30- 20:00

View

Timer Programming

To use Timer Programming ● p. 21

select

watch

Page 17

Other useful functions

■

Hold

Freeze / unfreeze picture

Display Information banner

Also appears when changing a channel●

Channel position and name

Example (DVB):

1 ZDF

Programme

Programme Start / Finish time

Example (Analogue):

3 ITV

itv1 CH23

Encrypted

Channel number

To confirm another tuned ● channel name

Coronation Street 20:00 - 20:55

Progress time indicator of the selected programme

Radio

19:35

SubtitlesAD

All Analogue Channels

HOLD

Category

All Channels

To the next day ■

(DVB mode)

green

(Type list)

select type

view

(Category list)

Only Analogue channels are listed

select category

view

To list favourite channels ● p. 45

Page 21

Other useful functions

■

View details of the programme (DVB mode)

Select the programme View details

select

Wed 28.10.2009 10:46

Timer Programming

TV Guide: Landscape

Wed 28.10.2009 DIY SOS BBC ONE 20:00 - 20:30, 30 min.

EXIT

RETURN

Return to list

Details

Press again to return ● to TV Guide.

Timer Programming (DVB mode)

Timer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD.

Select the forthcoming programme

select

set

To check / change / cancel a timer programming event■ “Timer Programming” (p. 51)

To return to TV Guide ■

Select the function (Ext Rec., USB HDD Rec. or Reminder)

Timer Programming Wed 28.10.2009 10:46

Channel NameFunction No.

1D BBC ONE

Ext Rec.

<TIMER>

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

(Timer Programming screen)

Ext Rec. / USB HDD Rec.

Date Start End

Wed 28.10.2009 20:00 20:30

(30 min.)

(--- min.)

--/-- --:-- --:--

--/-- --:-- --:-(--- min.)

(--- min.)

: to record the programme to the external recorder (Ext Rec.) or the

USB HDD (USB HDD Rec.) When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 mins. before the starting time, a reminder message appears if you are watching TV.

Reminder : to remind watching the programme

When you are watching TV, a reminder message appears 2 mins. before the start time. Press the OK button to switch to the programmed channel.

BACK/

RETURN

store

select

LED will turn to orange if

LED

Timer Programming is set. (Orange LED will flash if the recording of Timer Programming is in progress.)

Basic

If you select the current programme■

A confirmation screen whether you wish to watch or record it will appear. Select “Timer Programming” and set “Ext Rec.” or “USB HDD Rec.” to record from the time you finish the timer programming event setting.

Das Erste 19:30- 20:00

View

Timer Programming

select access

Note

This function is not available in Analogue mode.● Timer Programming only works reliably if correct time information is received via the signal from the

●

broadcaster or service provider. No other channel can be selected while the recording of Timer Programming is in progress.● When recording programmes to the external recorder, be sure to make the proper settings on the recorder ● connected to the TV. If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 86 and p. 87) and the “Link Settings” (p. 36) are completed, no setting of the recorder is required. Also read the manual of the recorder.

●

When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in the “USB HDD Setup” (p. 62).

View advertisement

Depending on the country you select, this TV supports the GUIDE Plus+ system in DVB-T or Analogue mode

The postcode entry or update is required. Follow the on screen instructions.

Also possible to setup manually from the Setup Menu ●

“Update” / “Postcode” in “GUIDE Plus+ Settings” (p. 39)

Enter your postcode when using this function for the first time. If you enter an incorrect postcode for your ● area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

To display the latest advertisement ●

“Update” in “GUIDE Plus+ Settings” (p. 39)

Using TV Guide ●

To change advertisements■ To return to TV Guide■

Note

To update the information continuously, the TV must be left in Standby mode at night.●

OPTION

BACK/

RETURN

Page 22

Viewing Teletext

Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FLOF (FASTEXT) mode?

In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is TOP mode? (in case of TOP text broadcasting)

TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

Fast overview of the teletext information available● Easy to use step-by-step selection of the topical subject● Page status information at the bottom of the screen●

Available page up / down

To select among subject blocks

To select next subject within the subject block (After the last subject, it moves to the next subject block.)

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 23)

To change mode■ “Teletext” in the Setup Menu (p. 38)

DIRECT TV REC

ASPECT

EXIT

red

green

blue

Switch to Teletext

TEXT

Displays the ● index page (content varies depending on the broadcasters)

yellow

Current page number

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Time / date

OPTION

TEXT STTL

BACK/

RETURN

INDEX HOLD

abc def

Select the page

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To adjust contrast ■

jkl

ghi

mno

tuvpqrs

wxyz

To return to TV ■

Reveal hidden data

Reveal hidden words e.g. quiz page answers

red

To rehide ●

FULL / TOP / BOTTOM

green

Colour bar

green

down

red

(Corresponds to the colour bar)

yellow blue

As the blue bar is displayed

(press three times)

EXIT

red

(TOP) (BOTTOM) Normal (FULL)

(Expand the TOP half) (Expand the BOTTOM half)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

HOLD

To resume ●

HOLD

Page 23

INDEX

Return to the main index page

INDEX

Call up a favourite page

View a favourite page stored

STTL

Call up the page stored on the blue button (List mode).● Factory setting is “P888”.●

View in multi window

Watch TV and Teletext in two windows at once

(press twice)

Operations can be made only in Teletext screen.●

Select Picture and text On or Off

Store frequently viewed pages

Store frequently viewed pages in the colour bar

(List mode only)

Basic

As page is displayed

Corresponding coloured button

press and hold

The number changes to white.

To change stored pages■

Enter new page number

Coloured button you want to change

abc def

jkl

ghi

mno

tuvpqrs

wxyz

press and hold

View sub page

View sub page (Only when teletext is more than one page)

Appears at top of the screen

To view specific sub page■

Enter the

blue

Sub pages: ● The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.

4-digit number

example: P6

mno

Viewing Teletext ●

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

The news page provides a function that indicates arrival of latest news (“News Flash”).●

yellow

Changes to TV screen temporarily

P108

(You cannot change the channel.)

Appears when updating is completed

View the updated page

yellow

Page 24

Watching External inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

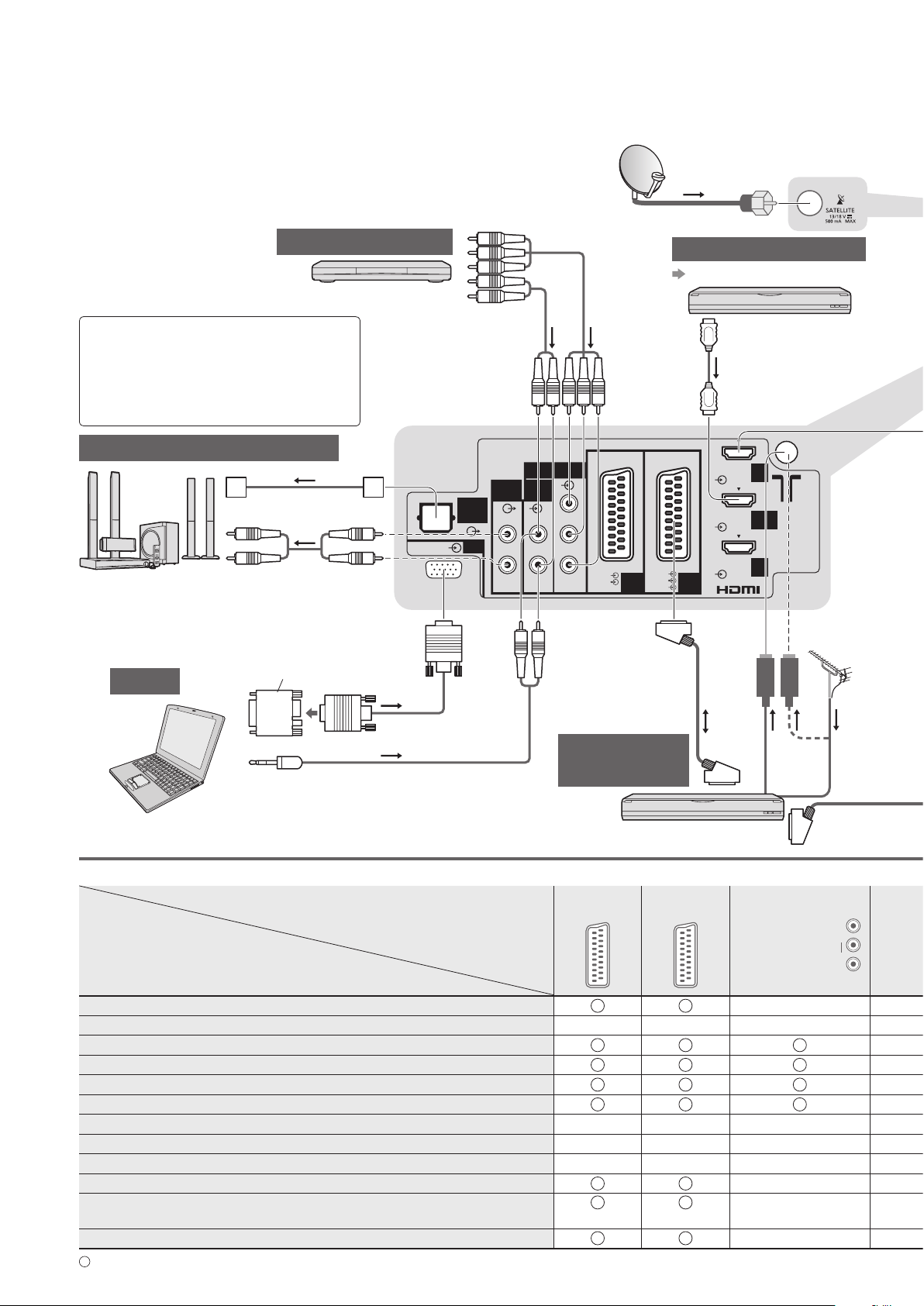

To connect the equipment ● p. 10, 11 and p. 92

The Remote Control is capable of operating some functions of selected external equipment.

Turn the TV on

When connecting with SCART as example 2 or 3 ■ (p. 11)

Receives input signals automatically when playback starts

Input signals are automatically identified by the SCART (pin 8) terminal.● This function is also available for HDMI connections (p. 92).●

If input mode is not switched automatically■

Perform and

Check the setup of the equipment.●

Display the Input select menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2/S

AV3 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 TV Media Server

You can also select the input using the AV button on the remote control or the ● side panel of the TV. Press the button repeatedly until the desired input is selected.

●

You cannot select “Media Server” using the AV button on the side panel of the TV.

●

In order to switch between AV2 and AV2S, move the indicator by pressing left and right cursor button.

● “Input Labels” (p. 54)

You can label or skip each input mode Skipped inputs will not be displayed when the AV button is pressed.

select

watch

ASPECT

OPTION

TEXT STTL

ghi

REC

INPUT

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

PROGRAMME

DVD/VCR

View

To return to TV ■

Note

If the external equipment has an aspect adjustment function, set to “16:9”.● For details, see the manual of the equipment or ask your local dealer.●

Displays the selected mode

Page 25

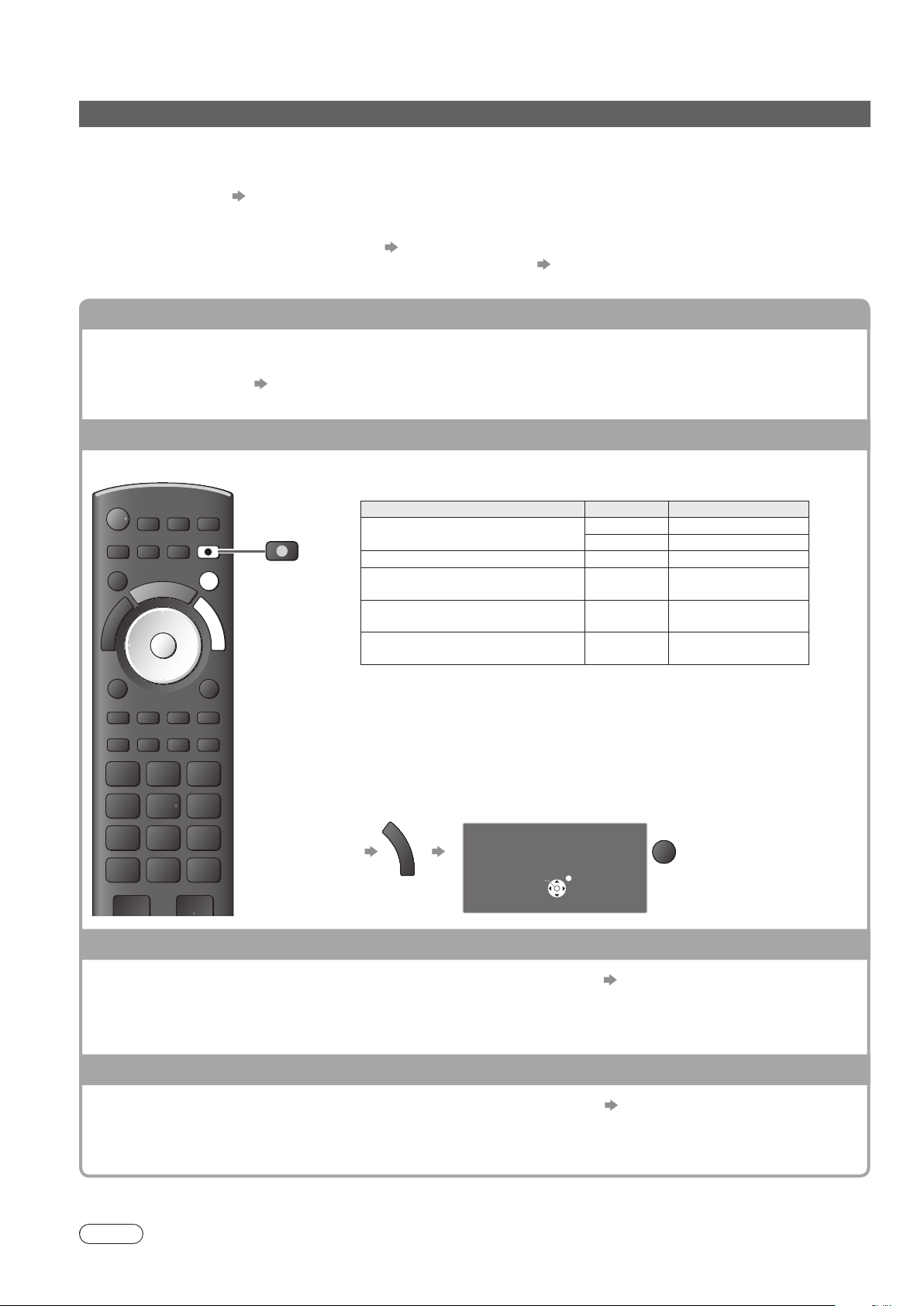

Operating the equipment with the TV remote control

The equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc theatre or VCR

DVD/VCR

■

How to change the code for the type of the equipment

Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.

Set the position to “DVD/VCR”

PROGRAMME

REC

“How to change the code for the type of the equipment” (see below)

Select “TV” to use USB HDD Recording, Media Player or VIERA Link

“USB HDD Recording” (p. 64) “Media Player” (p. 70) “VIERA Link Control” (p. 90)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD / video content: Skip to the previous track or title

(not available for the operation of USB HDD Recording) Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD / video content: Skip to the next track or title

(not available for the operation of USB HDD Recording) Press and hold to search forward

Pause

Pause / Resume DVD: Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

DVD/VCR

Basic

Watching External inputs ●

Press and hold during the following operations

abc def

jkl

ghi

Enter the appropriate code, see table below

Type of the equipment Code

DVD Recorder, DVD Player 70 (default)

Player theatre, Blu-ray Disc theatre 71

VCR 72

mno

tuvpqrs

wxyz

Press

Note

Confirm if the remote control works correctly after changing the code.● The codes may be reset to default values if batteries are replaced.● Some operations may not be possible on some equipment models.●

Page 26

Viewing 3D images

To view 3D contents or programmes in 3D effect (3 Dimensional) you must wear the supplied 3D Eyewear. This TV supports “Frame Sequential

∗

1: The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately played

back

∗

2, ∗3: Other available 3D formats

How to use the 3D Eyewear ● p. 27 and p. 28 How to view the 3D images ● p. 29

To enjoy 3D images safely and comfortably, please read these instructions fully.

Warning

Take care■

To help avoid risk of fire, damage, injury or discomfort, please follow the warnings below:

Do not disassemble or modify the 3D Eyewear.● Incorrect replacement of battery may cause the danger of explosion, leakage and corrosion of battery.● Battery must not be exposed to excessive heat such as sunshine, fire, etc.● Pay special attention when children are using the 3D Eyewear. ● The 3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline. All children must be fully supervised by parents or guardians to ensure their safety and health while using the 3D Eyewear. Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other ● existing medical conditions.

Small object■

The 3D Eyewear contains possibly dangerous parts that can be breathed in or swallowed by young

children accidentally.

Keep the small parts (battery and support band, etc.) out of reach of young children.●

∗

”, “Side by Side

∗

” and “Top and Bottom

∗

” 3D formats.

Caution

Placement and conditions for viewing 3D images

■

Do not use the 3D Eyewear near the devices or objects that emit infrared (ex. remote control, fireplace, stove, ● etc.), as this may cause the 3D Eyewear to mis-operate. Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves ● near the 3D Eyewear as this may cause the 3D Eyewear to malfunction. Do not use the 3D Eyewear at a distance less than the recommended distance.● The recommended viewing distance is 3 times of image height (1.9 m or more). When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance 3 times further than the height of the actual image. (That makes the distance closer than above recommended figure.) Do not use the 3D Eyewear in the condition of high temperature.●

Handling the 3D Eyewear■

Do not drop, exert pressure on, or step on the 3D Eyewear.● Be careful of the tips of the frame when putting on the 3D Eyewear.● Be careful not to trap a finger in the hinge section of the 3D Eyewear.● Do not use the 3D Eyewear if it is physically damaged.● The 3D Eyewear must only be worn when viewing 3D content.●

Viewing 3D Content■

Ensure no breakable objects are nearby to avoid any accidental damage or injury.● Be careful not to strike the TV screen or other people unintentionally. When using the 3D Eyewear the distance ● between the user and screen can be misjudged. Remove the 3D Eyewear before moving around to avoid falling or accidental injury.●

If having eyestrain or discomfort, etc.■

Stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any discomfort.● Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.● After viewing 3D contents or playing 3D games, take a short break to readjust your senses.●

Stopping the usage of the 3D Eyewear■

Stop using the 3D Eyewear immediately if a malfunction or fault occurs, or if you experience any redness, pain, ● or skin irritation around the nose or temples. In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.●

Note

Do not use the 3D Eyewear as sunglasses.● The 3D Eyewear will not work correctly if worn upside down or back-to-front.● If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), ● please ensure to correct your vision before using the 3D Eyewear. If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off ● automatically. 3D effects may be perceived differently depending on the person.● Always store the 3D Eyewear in the case provided when not in use.●

Page 27

3D Eyewear

3D Eyewear set (2)

TY-EW3D10E●

3D Eyewear Support band

Nose pad A Nose pad B 3D Eyewear case

Use either nose pad A or B for your preference.●

3D Eyewear can be worn over vision correction glasses.●

Part names and functions■

Battery cover

When using for the first time, remove the insulating sheet.●

Pull the insulating sheet

Insulating sheet

To replace the battery ● “Replacing the battery” (p. 28)

Infrared receiver

Receives infrared signals from the TV.

3D Eyewear is controlled by receiving infrared signals from the TV, ● which allows you to view 3D images.

Note

Do not soil the infrared receiver section or attach stickers etc. to it.●

Nose pad installation section

If required, attach the nose pad.

To attach the nose pad ● “Attaching the nose pad” (p. 28)

Support band attaching parts

If required, attach the support band.

To attach the band ●

“Attaching the support band” (p. 28)

Basic

Viewing 3D images ●

Lenses - Liquid Crystal Shutter

Controls the images for 3D viewing.

The left and right liquid crystal ● shutters are alternately opened and closed in time with the images on the TV screen to achieve the 3D effect.

Note

Do not apply pressure to or scratch ● the surface of the liquid crystal shutter.

Power button of the 3D Eyewear

(bottom side of the 3D Eyewear)

Switches the 3D Eyewear on or off.

Press the button for about 1 second to turn the power on. The ● power lamp lights for about 2 seconds and then goes off. To turn the power off, press the button for about 1 second again. ● The power lamp flashes 3 times, then the 3D Eyewear turns off.

Power button

Power lamp

Note

If the 3D Eyewear does not receive any signals from the TV for ● about 5 minutes, the 3D Eyewear will be turned off automatically.

Page 28

Viewing 3D images

Replacing the battery■

When the battery is running low, the power lamp flashes 5 times when turning the 3D Eyewear on. In this case, early battery replacement is recommended.

●

Dispose of the old batteries in accordance with the waste disposal regulations in your local area.

Loosen the screw and remove the battery cover using the supplied screwdriver

Screwdriver (supplied)

Battery cover

Replace the battery

Use the specified type of battery (coin-shaped lithium battery CR2032).● Note the correct polarity (+ or -).●

Replace and fasten the battery cover

Battery cover

Make sure that the screw is tightened.●

Attaching the nose pad■

Use either nose pad A or B for your comfort.

If you put the 3D Eyewear on vision correction glasses, the nose pad is recommended to be removed.●

You can select the positions of the nose pad A from the 2 levels ●

Nose pad A

Nose pad B

of height. Use upper 2 protrusions or lower 2 protrusions on the 3D Eyewear to attach the nose pad A. Use all 3 protrusions on the 3D Eyewear to attach the nose pad B.

●

Attaching the support band■

If the 3D Eyewear slips out of place, use the supplied support band to hold it in place.

●

Attach the band to the left and right tips of the frame, and adjust the length.

Support band

Frame

When the end of the support band is straightened, form a loop at the end of the band, and fix the twisted part.

Push to adjust the length of the band

Fix the twisted part

Treat the rubber part carefully not to break it.●

Storing the 3D Eyewear■

Use the supplied 3D Eyewear case to store the 3D Eyewear.● Avoid storing the 3D Eyewear in hot or highly humid locations.●

Page 29

To view the 3D images

To view the contents of the Frame Sequential format (ex. 3D-compatible Blu-ray Disc, etc.) with 3D effect

Connect the 3D-compatible player via an HDMI cable (p. 11 and p. 92) and playback the contents.

Use fully wired HDMI compliant cable.● For the settings of the player, read the manual of the player.● If input mode is not switched automatically, select the input mode connected to the player (p. 24).● If you use the non 3D-compatible player, the images will be displayed without 3D effect.●

To view the contents or programmes of “Side by Side” or “Top and Bottom” with 3D effect

Select suitable picture format in “3D Picture Format” (p. 31) before viewing.

You can view the contents with 3D effect even if you use the non 3D-compatible player.● Please consult the suppliers of contents or programmes for availability of this service.● You can also view 3D programmes recorded to the registered USB HDD with 3D effect by Media Player (p. 62 ● and p. 71).

Turn the 3D Eyewear on

Press the power button on the 3D Eyewear for about 1 second. (p. 27)●

Supporting the 3D Eyewear

If the 3D Eyewear slips out of place, hold it in place using the support band, and adjust the length of the band. ● (p. 28)

View the 3D images

Safety precautions will be displayed on the first 3D image ● detection. Select “Yes” or “No” to continue to view 3D images. If you select “Yes”, this message will be displayed again in the same condition after Mains power On / Off switch is next turned On. Select “No” if you do not wish to display this message again.

Example:

Safety Precautions

To enjoy 3D images safely and comfortably, please read the Operating Instructions fully.

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation.

Always put the 3D Eyewear in the case provided after use.

Would you like to display this message again later?

Yes No

Basic

To turn the 3D Eyewear off■

After using the 3D Eyewear, press the power button on the 3D Eyewear for about 1 second to turn it off. (p. 27)

Note

Direct TV Recording (p. 86 and p. 88) is not available while viewing 3D images.● The 3D effect is not available while multi window (p. 58) is active, VIERA CAST home screen (p. 83) is displayed ● or Ext Rec. of Timer Programming (p. 50) is in progress. As for the contents of the Frame Sequential format, no images will be displayed in these conditions. If the room is lit by using fluorescent lights / dimmers (50 Hz) and light appears to flicker when using the 3D ● Eyewear, switch off or dim the light. Liquid crystal displays (such as computer screens, digital clocks or calculators, etc.) may be difficult to see while ● wearing the 3D Eyewear.

Coverage area / range for 3D viewing

If the 3D Eyewear is placed outside the coverage area for about 5 minutes, the 3D Eyewear will be turned off automatically.

: Coverage area for using the 3D Eyewear

35°35°

20°

Viewing 3D images ●

View from the top View from the side

Note

You cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving ● infrared signals from the TV.

●

The range may be shortened depending on the obstacles between the infrared sensors on the TV and the 3D Eyewear, the dirt on the infrared sensors or the surrounding environment. If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off

●

automatically even if in the coverage area.

Page 30

Viewing 3D images

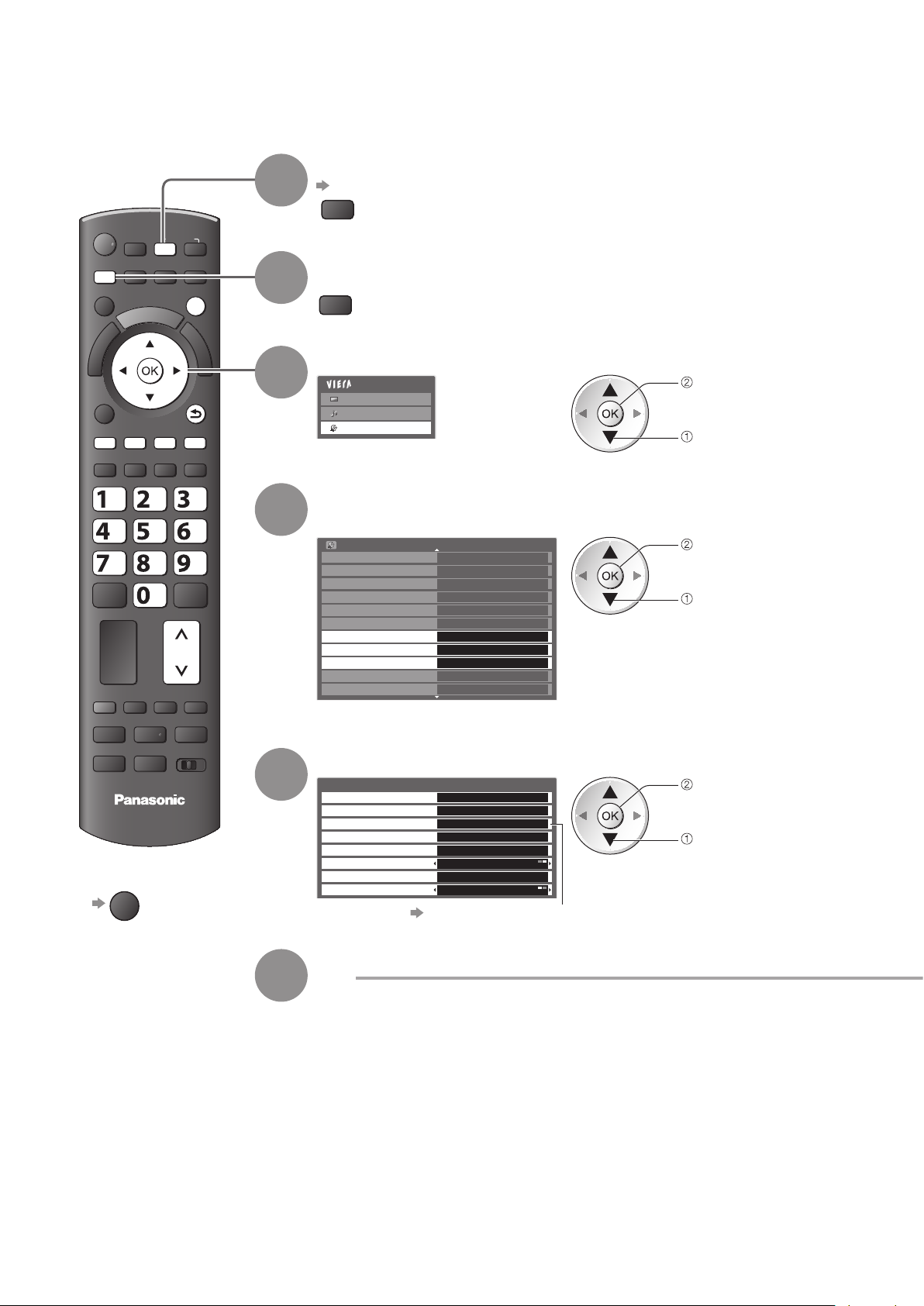

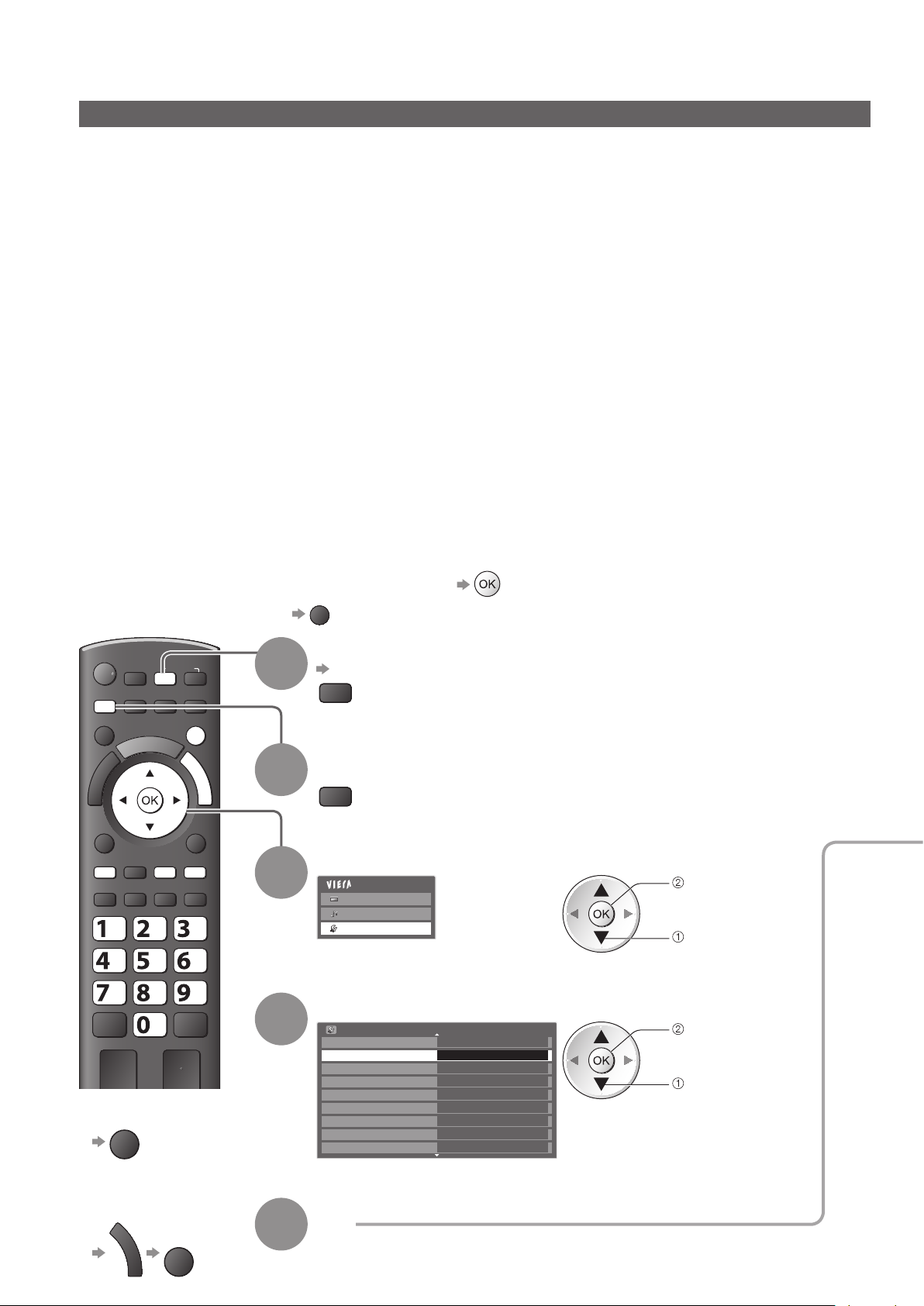

3D Settings

Change the 3D settings in the Setup Menu if 3D images are not displayed correctly.

ASPECT

OPTION

TEXT STTL

ghi

INDEX HOLD

abc def

jkl

tuvpqrs

REC

INPUT

AVTV

DIRECT TV REC

EXIT

mno

wxyz

PROGRAMME

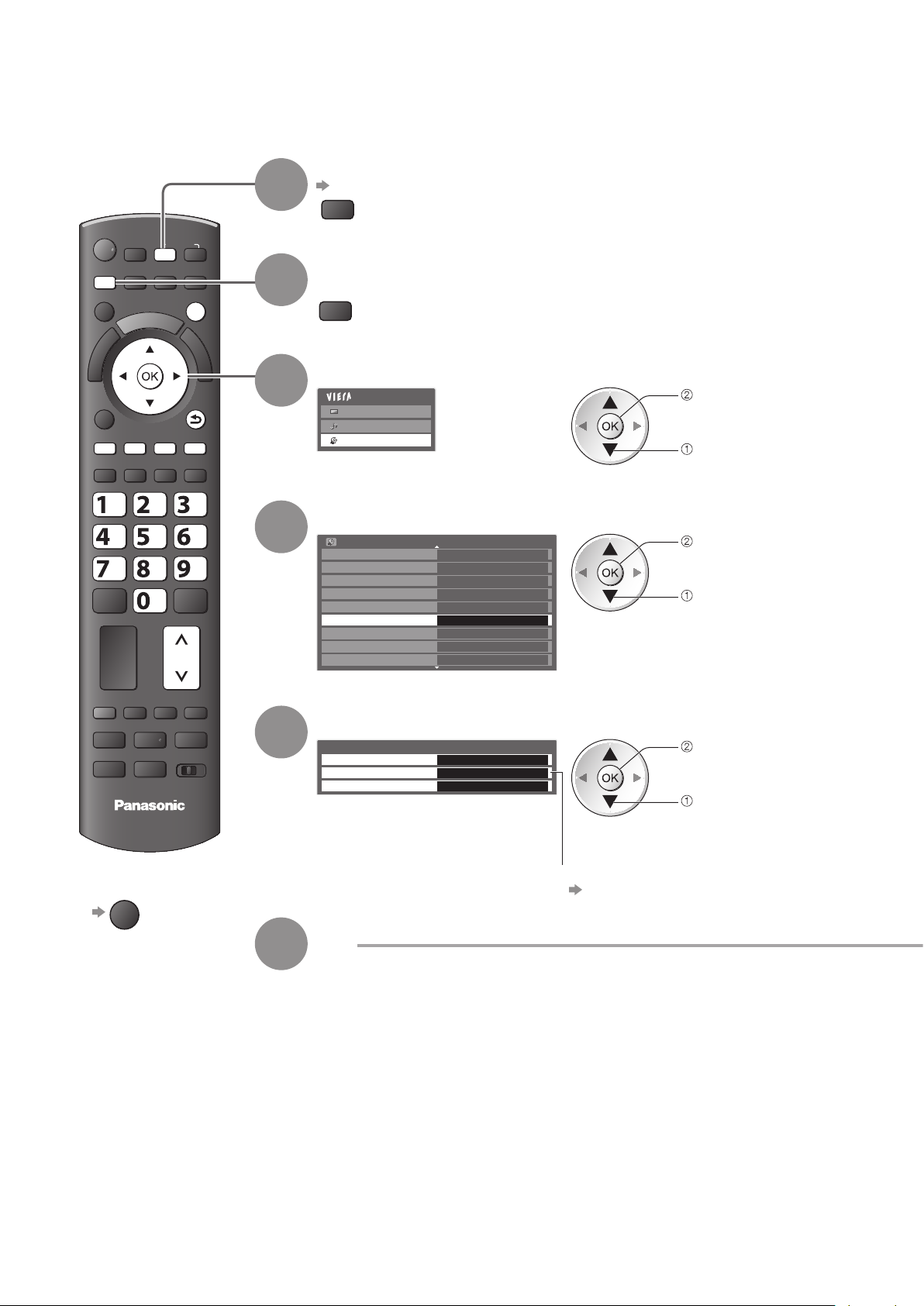

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “3D Settings”

Setup Menu

3D Settings

Off Timer Off USB HDD Setup Link Settings Child Lock Language Display Settings Network Setup DivX® VOD

Access

access

select

1/2

access

select

You can also access 3D Settings menu ● directly by using VIERA TOOLS.

“How to use VIERA TOOLS” (p. 32)

To return to TV■

EXIT

DVD/VCR

Select one of the following functions and set

3D Settings

3D Picture Display 3D 3D Picture Format Auto

3D Picture Sequence Normal Edge Smoother Off Safety Precautions Access

set

select

Page 31

3D Picture Display (2D / 3D)■

Sets the TV to 3D or 2D mode

Select “2D” to view 3D picture in 2 dimensional without wearing the 3D Eyewear.●

3D Picture Format (Auto / Side by Side / Top and Bottom / Original)■

Selects 3D picture format to suit the format of the source signal

When receiving the Frame Sequential format (ex. playback of the 3D-compatible Blu-ray Disc with the ● 3D-compatible player) via an HDMI cable, the 3D images will be displayed correctly regardless of the setting of “3D Picture Format”. (when “3D Picture Display” is set to “3D”)

Auto (default) : 3D images are automatically displayed according to the signal.

This is available when the 3D-compatible player is connected via an HDMI cable.● This mode may not work properly depending on the signal. In this case, select the ● appropriate picture format.

Side by Side / Top and Bottom : One of the formats of the 3D standard

Select these formats as necessary.

●

Original : Displays the input signal as it is.

●

Use to identify the format type of the input signal.

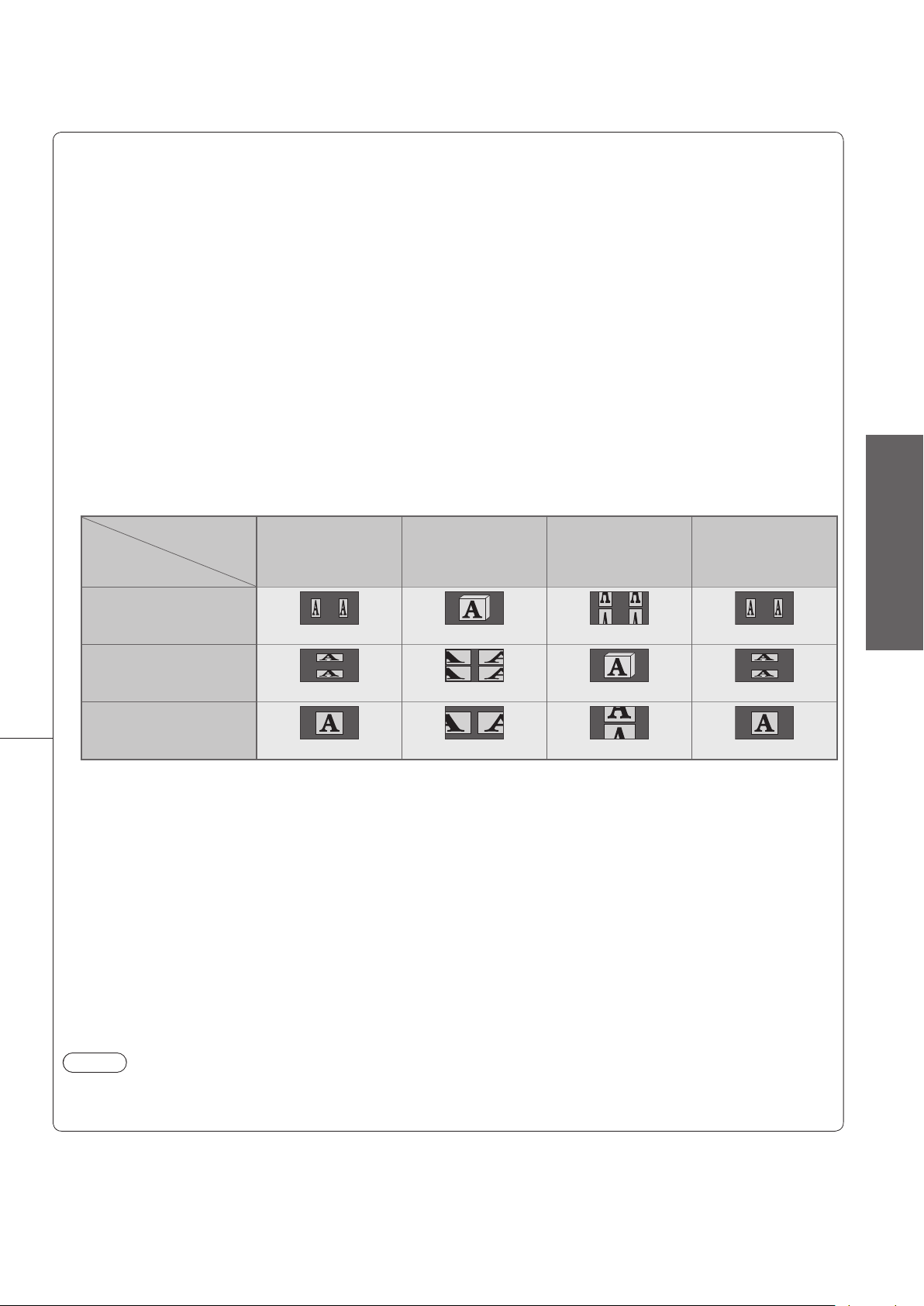

Table of images that can be seen for each 3D Picture Format and the input signal format

If the picture appears to be abnormal, refer to the table below to choose the correct 3D picture format setting.

3D Picture Format

Input signal format

Auto Side by Side Top and Bottom Original

Basic

Side by side

Top and bottom

Normal format

(2D)

∗

when the input signal is not recognized correctly

∗

When “3D Picture Display” is set to “3D”, the images will be displayed with 3D effect. When set to “2D”, displayed without 3D effect.

∗

Normal Normal

Normal

∗

Normal

Depending on the player or broadcasts, the image may be different from the above illustrations.●

3D Picture Sequence (Normal / Reverse)■

Selects “Reverse” if you feel that the sense of depth is unusual.

Edge Smoother (Off / On)■

Select “On” if you feel the contoured parts of an image are not smooth enough. (for “Side by Side” or “Top and Bottom” format)

Safety Precautions■

Displays the precautions for viewing 3D images.

Note

These settings will not be memorized when changing the input mode or channel.● When viewing the 3D-compatible 24p source movie, you can reduce juddering noises by setting “3D 24p Film ●

Display” in “Other Settings” (p. 39).

Viewing 3D images ●

Page 32

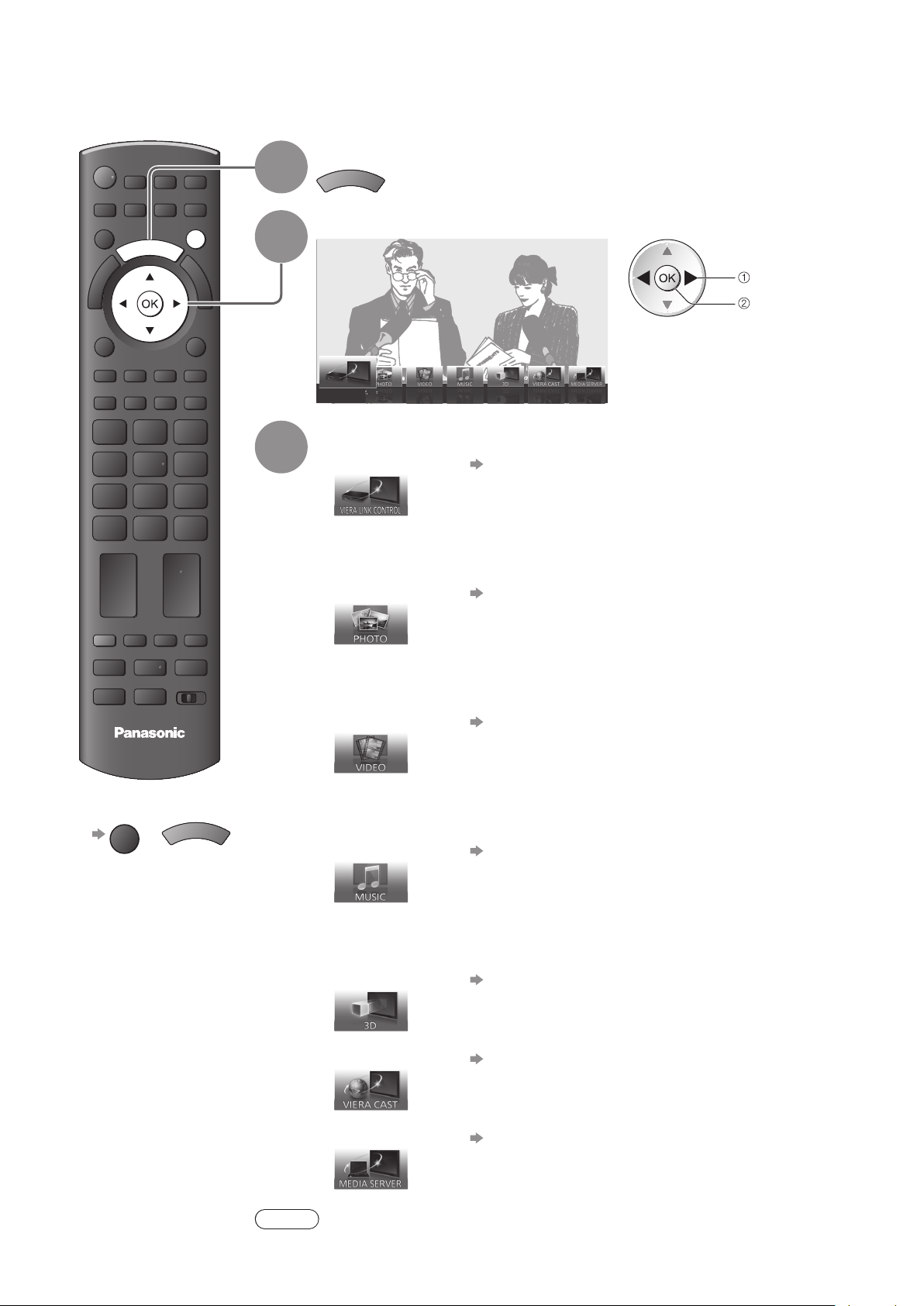

How to Use VIERA TOOLS

rol

You can access some special features easily by using the VIERA TOOLS function.

Display icons of the feature

EXIT

Select a feature

select

access

VIERA Link Control

Follow the operations of each feature

VIERA Link Control● “VIERA Link Control” (p. 90)

When two or more compatible equipment are connected, a selection screen will be displayed. Please select the correct description and access.

Photo● “Photo mode” (p. 68)

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

To return to TV

■

EXIT

Video● “Video mode” (p. 70)

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

Music● “Music mode” (p. 73)

When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.

3D● “3D Settings” (p. 30)

VIERA CAST● “VIERA CAST™” (p. 83)

Media Server● “Using DLNA

features” (p. 80)

Note

If the selected feature is not available, the demonstration to explain how to use it ● can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.

Page 33

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

ASPECT

OPTION

TEXT STTL

ghi

INDEX HOLD

abc def

jkl

tuvpqrs

REC

INPUT

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

mno

wxyz

PROGRAMME

DVD/VCR

Display the menu

Displays the functions that can be set ● (varies according to the input signal)

Select the menu

Main Menu


Sound

Setup

(example: Picture Menu)

Select the item

Picture Menu

Viewing Mode Dynamic

Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour Eco Mode

Warm Off Off

(example: Picture Menu)

Adjust or select

Picture Menu

Viewing Mode Dynamic Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour

Warm Off OffEco Mode

(example: Picture Menu)

access

select

1/2

5 0

select

Basic

1/2

5 0

change

store or access

( Required by

some functions)

How to Use VIERA TOOLS ●

How to Use Menu Functions ●

To return to TV ■ at any time

EXIT

To return to ■ the previous screen

BACK/

RETURN

To change ■ menu pages

down

Choose from among ■ alternatives

■

To reset the settings

To reset the picture settings only●

“Reset to Defaults” in the

Number and positions of alternatives

Colour Balance

Normal

Changed

Adjust using the slide bar■

Sharpness 5

Picture Menu (p. 34)

To reset the sound settings only●

“Reset to Defaults” in the

Sound Menu (p. 36)

To initialise all settings●

“Shipping Condition” in the

Setup Menu (p. 39)

Moved

Go to the next screen■

Child Lock Access

Displays the next screen

Enter characters by free input menu■

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

Set characters one by one Store

select

set

BACK/

RETURN

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 96)

Page 34

How to Use Menu Functions

Menu list■

Viewing Mode


Contrast, Brightness, Colour, Sharpness

Tint

Colour Balance

Vivid Colour

Reversal Film

Eco Mode

P-NR

3D-COMB

Picture in Picture

Panel

Reset to Defaults

Item Adjustments / Configurations (alternatives)

Basic picture mode (Dynamic / Normal / Cinema / THX (True Cinema) / Game / Photo / Professional1 / Professional2)

In each Viewing Mode and input, Contrast, Brightness, Colour, Sharpness, Tint, Colour Balance, Vivid Colour, Eco Mode, P-NR and 3D-COMB can be adjusted and stored to suit your particular viewing requirement.

Set for each input signal.

●

Dynamic : Provides enhanced picture contrast and sharpness when viewing in a

Normal : Recommended for viewing under normal ambient room lighting

Cinema : For watching movies in a darkened room with the improved performance

THX (True Cinema)

Game : Fast response signal specifically to provide suitable images for playing

Photo :

Professional 1 / 2

Increases or decreases the levels of these options according to your personal preference

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste

For NTSC signal reception only

●

Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)

Not valid when “Viewing Mode” is set to “THX (True Cinema)”, “Professional1” or

●

“Professional2”.

Automatically adjusts colours to vivid ones (Off / On)

Not valid on PC signal.

●

Not valid when “Viewing Mode” is set to “Professional1” or “Professional2”.●

Provides the picture effect such as the reversal film (Off / On)

This function is available when “Viewing Mode” is set to “Photo”.

●

Automatic Brightness Control function Adjusts picture settings automatically dependent on ambient lighting conditions (Off / On)

Picture Noise Reduction Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture (Off / Min / Mid / Max)

Not valid on PC signal.

●

Makes still or slow moving pictures look more vivid (Off / On)

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen.

●

Set to “On” to display sharper and more accurate colours. For PAL or NTSC signal reception only

●

Not valid on RGB, S-Video, Component, PC, HDMI and Media Player●

Displays two windows at once (p. 58) Turns the screen off when you select “Off” (Off / On)

The sound is active even if the screen turns off.

●

Press any buttons to turn the screen on.● This function is effective in reducing power consumption when listening to a sound ● without watching the TV screen.

Press the OK button to reset the present Picture Viewing Mode of the selected input to the default settings

bright room.

conditions.

of contrast, black and colour reproduction

Precisely reproduces the original quality of the image without any revision. Recommended for playback of THX disc (disc with “THX” logo) THX mode is used to mirror the picture settings used by professional filmmakers, faithfully reproducing the image quality of THX Certified movies.

THX Certified movies have the “THX” logo on a disc.● “True Cinema” is displayed instead of “THX” in the mode of 3D, ● PC input, Media Player and Network service operations.

games

Not valid on TV mode

●

A continuous record of time spent using Game mode can be displayed ● in the top right of the screen.

“Playing Time Display” (p. 38)

Set “Reversal Film” to “On” to provide the suitable image quality for photos

For HDMI input, Media Player and Network service operations●

: Allows you to set the professional picture settings in “Advanced Settings”,

“Lock Settings” and “Copy Adjustment”

p. 60

This mode is available only when “Advance(isfccc)” in the Setup Menu

●

is set to “On”. Not valid on VIERA CAST

●

If the certified professional dealer sets these modes, “Professional1” ● and “Professional2” may be displayed as “isf Day” and “isf Night”.

Page 35

Mode

Item Adjustments / Configurations (alternatives)

Selects the basic sound mode (Music / Speech / User)

The selected mode affects all input signals.

●

Music: Improves sound quality for watching music videos, etc. Speech: Improves sound quality for watching news, drama, etc.

Music and Speech modes use CONEQ™ brand equalization technology to improve

●

sound quality. CONEQ equalizes acoustic power frequency response and corrects time and phase alignment errors of a speaker system. Speakers with CONEQ perform as near-perfect electro-acoustic transducers providing true to the original sound with the highest musically and intelligibility. In Music and Speech modes, you can adjust “Bass” and “Treble” settings, and those

●

settings will be stored for each mode.

User: Adjusts the sounds manually by using the equalizer to suit your favourite sound quality.

For the User mode, “Equalizer” will appear on the Sound Menu instead of “Bass” and ● “Treble”. Select the “Equalizer” and adjust the frequency. “Equalizer” (below)

Bass

Treble

Equalizer

Balance

Sound

Headphone Volume

Surround

Volume Correction

Speaker Distance to Wall

Increases or decreases level to enhance or minimise lower, deeper sound output

Increases or decreases level to enhance or minimise sharper, higher sound output

Adjusts the frequency level to suit your favourite sound quality

This function is available when “Mode” is set to “User”.

●

Select the frequency and change the frequency level by using the cursor button.● If you want to enhance the bass sound, raise the level of the lower frequency. If you ● want to enhance the treble sound, raise the level of the higher frequency. To reset the levels of each frequency to the default settings, select the “Reset to

●

Defaults” by using cursor button, and then press the OK button.

Adjusts volume level of right and left speakers

Adjusts the volume of the headphones

Surround sound settings (Off / V-Audio / V-Audio Surround / V-Audio ProSurround) V-Audio: Provides a dynamic enhancer of width to simulate improved spatial effects V-Audio Surround: Provides a dynamic enhancer of width and depth to simulate

V-Audio ProSurround: Provides a more progressive enhancer and reverberation to

Adjusts the volume of individual channel or input mode

Adjusts the low frequency sound (Over 30cm / Up to 30cm)

If the back space between the TV and wall is over 30 cm, “Over 30cm” is recommended.

●

If the back space between the TV and wall is within 30 cm, “Up to 30cm” is recommended.

●

improved spatial effects

simulate improved spatial effects

Basic

How to Use Menu Functions ●

Selects multiplex sound mode (if available)

Normally: Stereo

●

MPX

Audio Preference

A different menu will be displayed when “Advance(isfccc)” in the Setup Menu is set to “On” or in the mode of PC ● input, Media Player or Network service operations. (p. 59 - 61, 67 - 73 and p. 82) Only available items can be selected.●

Stereo signal cannot be received: Mono● M1 / M2: Available while mono signal is transmitted● Analogue mode only●

Selects the initial setting for audio tracks (Auto / MPEG) Auto : Automatically selects the audio tracks if programme has more than two tracks.

The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby Digital, MPEG.

MPEG : The priority is given to MPEG as long as the programme contains MPEG audio.

Dolby Digital Plus and Dolby Digital are the methods of coding digital signals developed by

●

Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio. HE-AAC is a perceptual coding method used to compress digital audio for efficient ● storage and transmission. MPEG is an audio compression method that compresses audio to the smaller size

●

without any considerable loss of audio quality. Dolby Digital Plus and HE-AAC are the technologies for HD (High definition) programmes.

●

DVB mode only●

Page 36

How to Use Menu Functions

Sound

Item Adjustments / Configurations (alternatives)

SPDIF Selection

MPEG Optical Level

HDMI1 / 2 / 3 / 4 Input

SPDIF Delay

Reset to Defaults

3D Settings

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto : Dolby Digital Plus and Dolby Digital are output as Dolby Digital Bitstream.

HE-AAC (48 kHz) 5.1ch is output as DTS. MPEG is output as PCM.

PCM : Digital output signal is fixed to PCM.

For DVB mode, Network video contents (p. 81) or Video mode (p. 70)

●

Adjusts the audio level of MPEG output from DIGITAL AUDIO OUT terminal as the initial setting (0 / -2 / -4 / -6 / -8 / -10 / -12dB)

Normally, MPEG sound is larger comparing with the other types of audio track.

●

DVB mode only●

Select to fit the input signal (Digital / Analogue) (p. 97) Digital : HDMI cable connection Analogue : HDMI-DVI adapter cable connection

HDMI input mode only

●

Adjusts the delay time of the sound output from DIGITAL AUDIO OUT terminal if the sound does not synchronize the image

DVB mode only

●

Press the OK button to reset the present Sound Mode, Balance, Headphone Volume and Surround to the default settings

Adjusts and sets to view 3D images (p. 30)

Timer Programming

Off Timer

USB HDD Setup

VIERA Link

HDMI Content Type

Setup

Q-Link

Link Settings

AV1 / AV2 out

Power on Link

Power off Link

Standby Power Save

Sets a timer to remind watching or record forthcoming programmes (p. 50)

DVB mode only

●

Sets the time the TV automatically goes to Standby mode (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) (p. 19)

Sets to use VIERA Link functions (Off / On) (p. 87)

Adjusts the picture settings according to the content type signal from the connected equipment via HDMI cable (Off / Auto)

This function is available if the connected equipment supports HDMI Content Type.

●

The content type information will be displayed for several seconds when this function ● works.

Selects which AV terminal is to be used for data communication between this TV and a compatible recorder (AV1 / AV2) (p. 86)

Select the connected terminal to the recorder even it is not compatible with Q-Link.

●

Chooses the signal to be transmitted from the TV to Q-Link

(TV / AV1 / AV2 / AV3 / Monitor)

Monitor: Image displayed on screen

●

Component, PC and HDMI signals cannot be outputted.●

Sets to use Power on Link function (Off / On) (p. 86 and p. 87)

Sets to use Power off Link function (Off / On) (p. 86 and p. 87)

Controls the power consumption in Standby mode of the connected equipment to reduce the consumption (Off / On) (p. 88)

This function is available when “VIERA Link” is set to “On” and “Power off Link” is set

●

to “On”.

Intelligent Auto Standby

Download

Child Lock

Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption (Off / On (With reminder) / On (No reminder)) (p. 88)

This function is available when “VIERA Link” is set to “On”.

●

Downloads channel, language, country / region settings to a Q-Link or VIERA Link compatible equipment connected to the TV

DVB-S and DVB-C channel settings cannot be downloaded.

●

Locks a channel / AV input to prevent access to it (p. 52)

Page 37

Favourites Edit Channel List Auto Setup Manual Tuning

DVB-S Tuning Menu

Update Channel List New Channel

Message Signal Condition

Antenna System

LNB Configuration

Add TV Signal

Favourites Edit Channel List Auto Setup Manual Tuning

DVB-C Tuning Menu

Update Channel List

Setup

Favourite Network

New Channel Message

Service Replacement

Signal Condition Attenuator

Add TV Signal

Favourites Edit Channel List Auto Setup

DVB-T Tuning Menu

Manual Tuning Update Channel List

Favourite Network

New Channel Message

Signal Condition

Add TV Signal

Item Adjustments / Configurations (alternatives)

Creates list of favourite DVB-S channels (p. 45)

Skips the unwanted DVB-S channels or edits DVB-S channels (p. 45)

Automatically sets the DVB-S channels received in the area (p. 40)

Sets the DVB-S channels manually (p. 46)

Updates DVB-S Channel List while keeping your settings (p. 46)

Selects whether to give a notification message when a new DVB-S channel is found (Off / On) (p. 47)

Checks the DVB-S signal condition (p. 47)

Sets the antenna system to use plural LNBs for receiving several satellites (One LNB / MiniDiSEqC / DiSEqC1.0 / Single Cable) (p. 41)

This TV supports DiSEqC Version 1.0.

●

Selects the satellite for each LNB (p. 41)

Adds the TV mode

This function is available if you skip any modes to tune in “Auto Setup” for first

●

using the TV. To operate, refer to the “Auto Setup” operations for first using the TV (p. 12 and

●

p. 13).

Creates list of favourite DVB-C channels (p. 45)

Skips the unwanted DVB-C channels or edits DVB-C channels (p. 45)

Automatically sets the DVB-C channels supplied (p. 42)

Sets the DVB-C channels manually (p. 46)

Updates DVB-C Channel List while keeping your settings (p. 46)

Selects your favourite network for each broadcasters (only available in some countries)

Selects whether to give a notification message when a new DVB-C channel is found (Off / On) (p. 47)

Set to “On” to enable a message to switch to the available service (only available in some countries) (Off / On)

Checks the DVB-C signal condition (p. 47)

Automatically reduces the DVB-C signal to avoid the interference (Off / On) (p. 47)

Adds the TV mode

This function is available if you skip any modes to tune in “Auto Setup” for first

●

using the TV. To operate, refer to the “Auto Setup” operations for first using the TV (p. 12 and

●

p. 13).

Creates list of favourite DVB-T channels (p. 45)

Skips the unwanted DVB-T channels or edits DVB-T channels (p. 45)

Automatically sets the DVB-T channels received in the area (p. 43)

Sets the DVB-T channels manually (p. 46)

Updates DVB-T Channel List while keeping your settings (p. 46)

Selects your favourite network for each broadcasters (only available in some countries)

Selects whether to give a notification message when a new DVB-T channel is found (Off / On) (p. 47)

Checks the DVB-T signal condition (p. 47)

Adds the TV mode

This function is available if you skip any modes to tune in “Auto Setup” for first

●

using the TV. To operate, refer to the “Auto Setup” operations for first using the TV (p. 12 and

●

p. 13).

Basic

How to Use Menu Functions ●

Page 38

How to Use Menu Functions

Item Adjustments / Configurations (alternatives)

Analogue Tuning Menu

Channel List

Auto Setup

Manual Tuning

Add TV Signal

OSD Language

Language

Preferred Audio 1 / 2

Preferred Subtitles 1 / 2

Preferred Teletext

Preferred Subtitle Type

Skips the unwanted Analogue channels or edits Analogue channels (p. 49)

Automatically sets the Analogue channels received in the area (p. 43)

Sets the Analogue channels manually (p. 49)

Adds the TV mode

This function is available if you skip any modes to tune in “Auto Setup” for first

●

using the TV. To operate, refer to the “Auto Setup” operations for first using the TV (p. 12 and

●

p. 13).

Changes language for on screen displays

Selects the first and second preferred language for DVB multi audio (depending on the broadcaster)

Selects the first and second preferred language for DVB subtitles (depending on the broadcaster)

To display subtitles

● p. 18

Selects the preferred language for DVB teletext service (depending on the broadcaster)

Selects the preferred subtitle type (Standard / Hard of Hearing)

“Hard of Hearing” provides aids in understanding and enjoyment with DVB

●

subtitles (depending on the broadcaster). “Preferred Subtitles 1 / 2” in “Language” are given priority.

●

Teletext

Setup

Teletext Character Set

Side Panel

Display Settings

Default Guide

Input Labels

Banner Display Timeout

Playing Time Display

Radio Mode

Teletext display mode (TOP (FLOF) / List) (p. 22)

Selects teletext language (West / East1 / East2)

West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.

●

East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.● East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc.●

Increases the brightness of the side panel (Off / Low / Mid / High)

The recommended setting is “High” to prevent panel “image retention”.

●

Selects the default TV Guide type when the GUIDE button is pressed

(TV Guide / Channel List)

TV Guide : Electronic Programme Guide (EPG) is available.

● p. 20

Channel List : EPG is not available and the channel list will appear instead of it.

Labels or skips each input terminal (p. 54)

Sets how long the Information banner (p. 17) stays on screen

(0 (No display) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 seconds)

Set to “On” to display a continuous record of time spent using Game mode every 30 mins (Off / On)

This function is available when “Game” is selected in “Viewing Mode” (p. 34).

●

Sets the timer for turning off the screen automatically when a radio channel is selected

(Off / 5 / 10 / 15 / 20 seconds)

The sound is active even if the screen turns off.

●

Press any buttons except Volume Up / Down and Sound Mute buttons to turn the ● screen on. This function is effective in reducing power consumption when listening to a radio ● channel.

To use EPG

Common Interface

Network Setup

DivX® VOD

Uses include to watch pay-TV (p. 55)

Sets the network setting to use in your network environment (p. 76)

Displays DivX VOD registration code (p. 95)

Page 39

Item Adjustments / Configurations (alternatives)

Advance(isfccc)

USB Keyboard

System Menu

Layout

Shipping Condition

Enables the advanced picture settings (Off / On)

Set to “On” to enable the mode of “Professional1” and “Professional2” in

●

“Viewing Mode”. Set to “On” to display the advanced items in the Picture Menu - “Advanced

●

Settings”, “Lock Settings” and “Copy Adjustment”. “Copy Adjustment” will be displayed when “Viewing Mode” is set to “Professional1” or “Professional2”. “isfccc” is the picture setting for the certified professional dealer. For details,

●

consult your local dealer.

Selects the language that your USB Keyboard supports

Use a USB Keyboard to enter characters in VIERA CAST (p. 83).

●

Characters may not be displayed correctly on the TV screen depending on the ● connected keyboard or the keyboard layout setting.

Resets all settings, for example, when moving house (p. 56)

System Update

Software Licence

System Information

AV Colour System

GUIDE Plus+

Settings

Update

Postcode System

Information

Intelligent Frame Creation

Setup

24p Smooth Film

3D 24p Film Display

Other Settings

Super Resolution

Auto Standby

Power Save

16:9 Overscan

SD Card LED

Time Zone

DVI Input Setting

Downloads new software to TV (p. 57)

Displays the software licence information

Displays the system information of this TV

Selects optional colour system based on video signals in AV mode

(Auto / PAL / SECAM / M.NTSC / NTSC)

Performs the update of the GUIDE Plus+ schedule and advertising informations for the GUIDE Plus+ system (p. 21)

Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 21)

Displays the system information of the GUIDE Plus+ system

Automatically compensates the picture frame rate and removes juddering movements to make the images smooth and clear (Off / On)

This function is not available for selection (default to “Off”) when “Viewing Mode” is

●

set to “Game” or in the mode of 3D, PC input, photo or Network service operations.

Automatically compensates the picture frame rate to make the 24p source movie images smooth (Off / On)

This is available only for 24p signal input and displayed instead of

●

“Intelligent Frame Creation”. This function is not available for selection (default to “Off”) when “Viewing Mode” is

●

set to “Game” or in the mode of 3D, PC input, photo or Network service operations.

Reduces juddering noises of the 3D images (Off / On)

Set to “On” for the cinema-like images.

●

This function is available for the 3D-compatible 24p source movie.●

Enhances the picture resolution to make the image sharper (Off / Mid / Max)

This function is available for SD (Standard definition) signal.

●

As for HD (High definition) signal, this function is available when aspect mode is ● set to 16:9 (16:9 Overscan is set to “On”), 4:3 Full or Zoom. Not valid on 3D, PC, VIERA CAST and Media Player

●

Sets the time the TV automatically goes to Standby mode when no operation is performed for the selected times (Off / 2 / 4 hours)

Starting Timer Programming automatically does not affect this function.

●

Automatic input switching with the connected equipment affects this function and ● time-count will be reset. The notification message will appear 3 minutes before going to Standby mode.

●

Reduces brightness of picture to economise on power consumption (Off / On)

Selects the screen area displaying the image (Off / On) On : Enlarged the image to hide the edge of the image. Off : Displayed the image in the original size.

Set to “On” if noise is generated on the edge of the screen.

●

This function is available when aspect is set to Auto (16:9 signal only) or 16:9.● This function can be memorized separately for SD (Standard definition) and HD ● (High definition) signals.

Lights blue LED while SD Card is inserted (Off / On) (p. 66) Adjusts the time data

The time data will be corrected based on GMT.

●

Set to “Auto” to adjust the time automatically according to your area.●

Changes the black level in the image for HDMI input mode with DVI input signal manually (Normal / Full)

When the DVI input signal from the external equipment, especially from PC, is

●

displayed, the black level may not be suitable. In this case, select “Full”. The black level for HDMI input signal will be adjusted automatically.

●

For HDMI input mode with DVI input signal only●

Basic

How to Use Menu Functions ●

Page 40

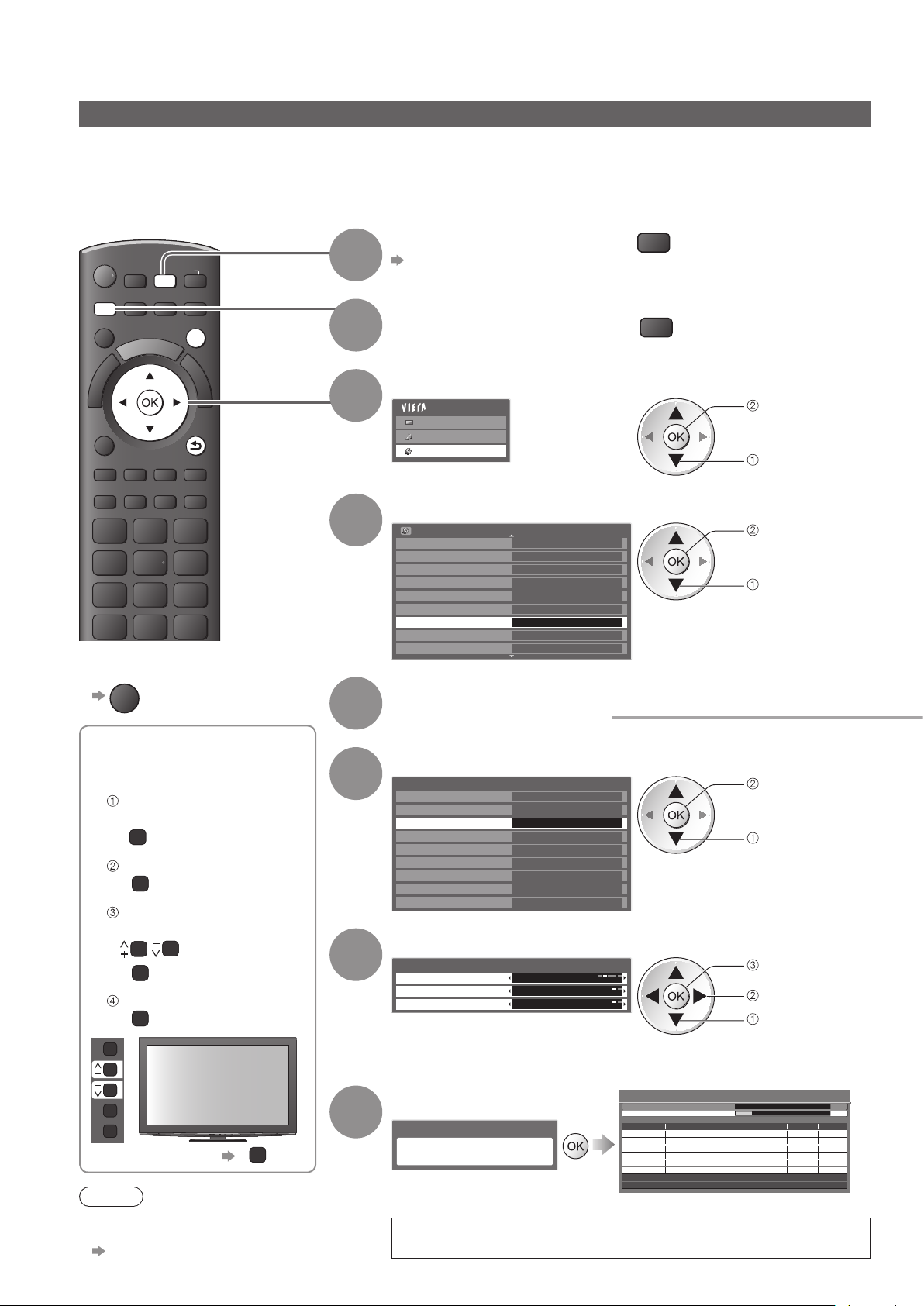

Retuning from Setup Menu

DVB-S channels

Automatically retune all the DVB-S channels received in the area.

●

This function is available if DVB-S channel tuning is already performed. Only DVB-S channels are retuned.● All the previous tuning settings are erased.● If a Child Lock PIN number (p. 52) has been set, it must be entered.●

INPUT

DIRECT TV REC

EXIT

INDEX HOLD

BACK/

RETURN

ASPECT

OPTION

TEXT STTL

To return to TV■

EXIT

For Auto Setup, using ■ the buttons on the side panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

Access “Auto Setup”

Set the satellite, search

mode and scan mode

(select the item)

TV (set)

Start “Auto Setup”

Select DVB-S

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

Select “DVB-S Tuning Menu”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

DVB-S Tuning Menu

Language Display Settings

1/2

Access

access

select

Set “Antenna System” and “LNB Configuration”

Select “Auto Setup”

DVB-S Tuning Menu

Favourites Edit Channel List

Auto Setup

Manual Tuning Update Channel List New Channel Message Signal Condition Antenna System DiSEqC1.0 LNB Configuration

Access

access

select

Set the satellite, search mode and scan mode

DVB-S Auto Setup Settings

Satellite Astra 19.2° E Search Mode Free Channels Scan Mode Quick

Full: scans the whole frequency range Quick: scans the suitable frequency for the selected satellite

store

set

select

To return to TV ●

Note

If tuning has not been done ● completely

“Manual Tuning” (p. 46)

Start Auto Setup

DVB-S Auto Setup

All DVB-S tuning data will be erased

DVB-S Auto Setup

Satellite

Analogue Scan 21 68 Progress

Analogue Scan 68

This will take about 40 minutes.

No. Channel Name Type Quality

372 CBBC Channel Free TV 10 372 BBC Radio Wales Free TV 10 372 E4 Free TV 10

Free TV: 3 Pay TV: 0 Radio: 0

Astra 19.2° E

0% 100%

Searching

Settings are made automatically

When the operation is completed, the channel at the lowest position will be displayed.

Page 41

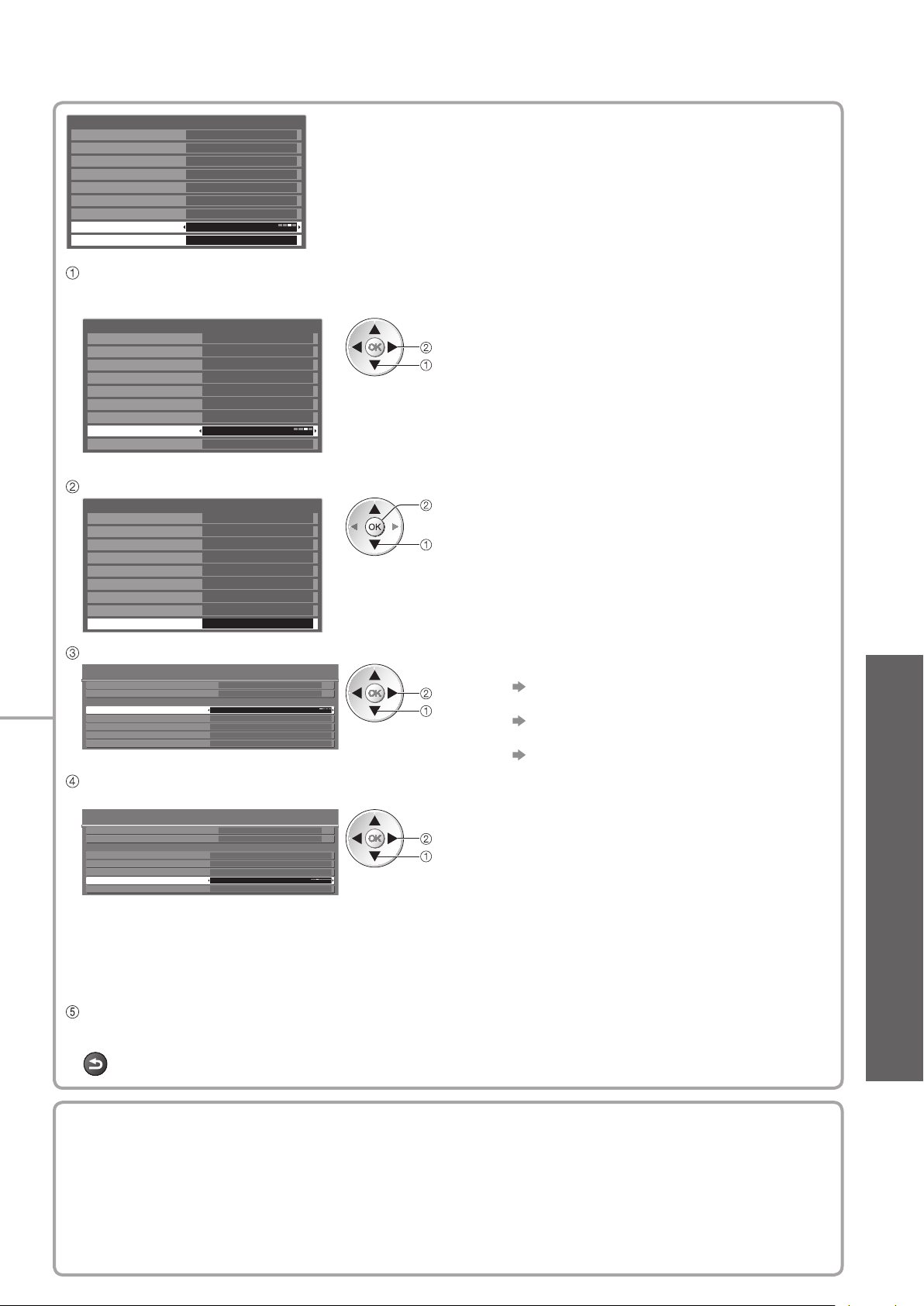

DVB-S Tuning Menu

Favourites Edit Channel List Auto Setup Manual Tuning Update Channel List New Channel Message On Signal Condition

Antenna System DiSEqC1.0 LNB Configuration Access

Select “Antenna System” and set

You can receive several satellites if you have DiSEqC control antenna system.

●

This TV supports DiSEqC Version 1.0.

DVB-S Tuning Menu

Favourites Edit Channel List Auto Setup Manual Tuning Update Channel List New Channel Message On Signal Condition

Antenna System DiSEqC1.0

LNB Configuration

set select

One LNB

compatible with single LNB

MiniDiSEqC

up to 2 LNBs can be controlled

DiSEqC1.0

up to 4 LNBs can be controlled

Single Cable

When using the Single Cable router, up to 8 user bands are available.

Select “LNB Configuration”

DVB-S Tuning Menu

Favourites Edit Channel List Auto Setup Manual Tuning Update Channel List New Channel Message On Signal Condition Antenna System DiSEqC1.0

LNB Configuration Access

access

select

Retuning from Setup Menu ●

Select “LNB” and set one of the LNBs

LNB Configuration

Signal Quality Signal Strength 0 10

Analogue Scan 68

LNB

Analogue Scan 21 68

LNB Low Band Frequency LNB High Band Frequency

Analogue Scan 21

Satellite Test Transponder Frequency

Analogue Scan 21

010

AA 9750 MHz 10600 MHz No Satellite 10700 MHz

Select “Satellite” and set

Set the connected satellite for the selected LNB.

LNB Configuration

Signal Quality Signal Strength 0 10

Analogue Scan 68

LNB

Analogue Scan 21 68

LNB Low Band Frequency LNB High Band Frequency

Analogue Scan 21 Satellite

Test Transponder Frequency

Analogue Scan 21

010

AA 9750 MHz 10600 MHz Astra 19.2° E 10744 MHz

Store

BACK/

RETURN

set select

If you set to “One LNB”●

not selectable

If you set to “MiniDiSEqC” or “Single Cable”●

select between LNB AA and AB

If you set to “DiSEqC1.0”●

select between LNB AA, AB, BA and BB

Select “No Satellite” if you do not know the ● connected satellite (available satellite will be searched in Auto Setup). Select “User defined” to set “Test Transponder ● Frequency” manually. If you set to “Single Cable”, additional settings ● are required. Set “User Band”, “User Band Frequency” and “PIN” (depending on the Single Cable router you use). For details, read the manual of the Single Cable router.

Advanced

Selectable satellites and dish alignment to tune DVB-S channels:■

Turksat at 42° East• Hellas at 39° East• Astra at 28.2° East• Arabsat at 26° East• Astra at 23.5° East• Astra at 19.2° East•

To ensure your satellite dish is correctly installed, please consult your local dealer.● Also please consult the received satellite broadcasting companies for details.●

Eutelsat at 16° East• Hot Bird at 13° East• Eutelsat at 10° East• Eurobird at 9° East• Eutelsat at 7° East• Sirius at 5° East•

Thor at 0.8° West / Intelsat at 1° West• Amos at 4° West• Atl. Bird at 5° West• Atl. Bird at 7° West• Atl. Bird at 8° West• Hispasat at 30° West•

Page 42

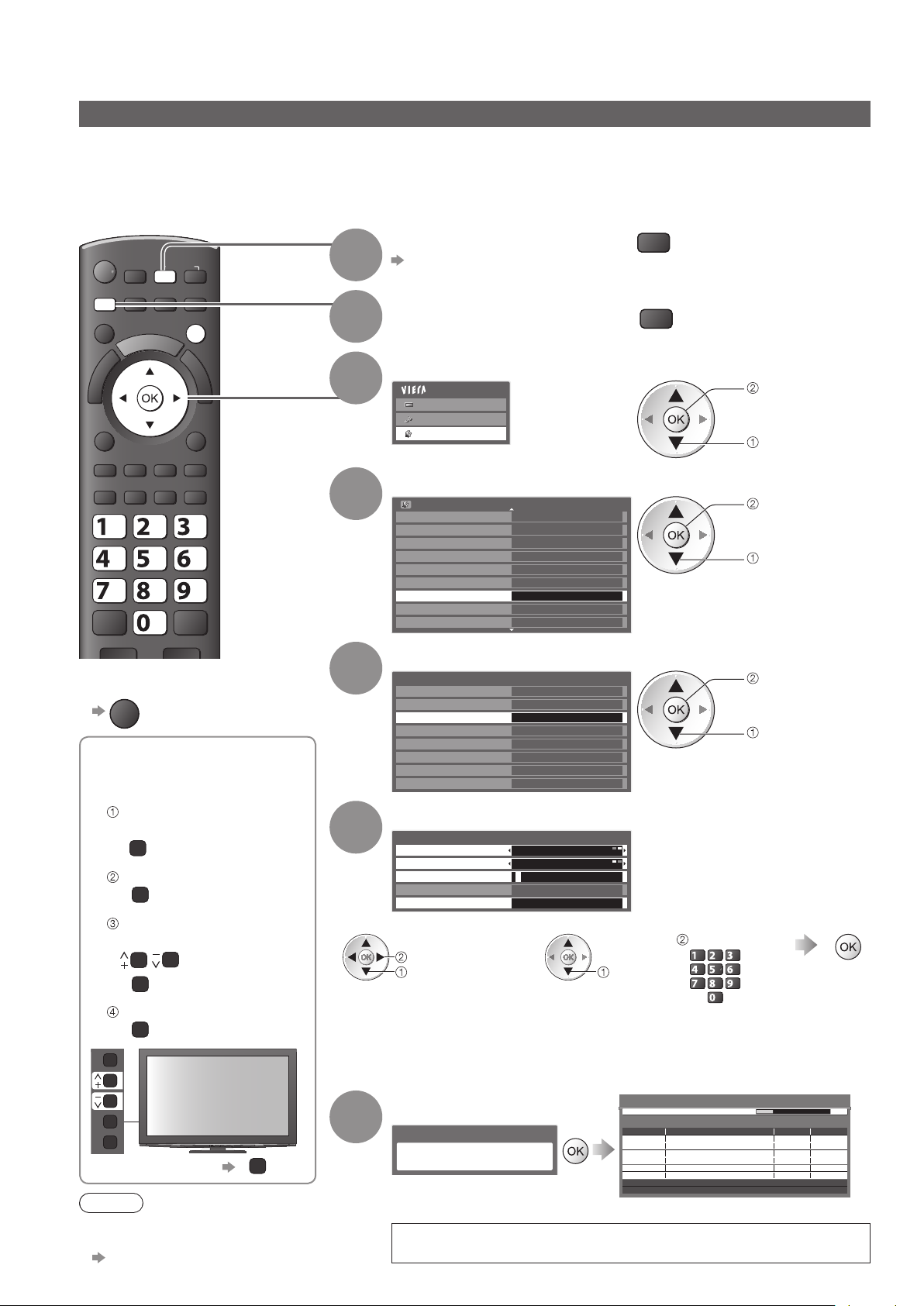

Retuning from Setup Menu

DVB-C channels

Automatically retune all the DVB-C channels supplied.

●

This function is available if DVB-C channel tuning is already performed. Only DVB-C channels are retuned.● All the previous tuning settings are erased.● If a Child Lock PIN number (p. 52) has been set, it must be entered.●

INPUT

DIRECT TV REC

EXIT

INDEX HOLD

abc def

jkl

tuvpqrs

mno

wxyz

ASPECT

OPTION

TEXT STTL

ghi

To return to TV■

EXIT

For Auto Setup, using ■ the buttons on the side panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

Access “Auto Setup”

Set the search mode

and scan mode

(select the item)

TV (set)

Start “Auto Setup”

To return to TV ●

Note

If tuning has not been done ● completely

“Manual Tuning” (p. 46)

Select DVB-C

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “DVB-C Tuning Menu”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

DVB-C Tuning Menu

Language Display Settings

Access

1/2

Select “Auto Setup”

DVB-C Tuning Menu

Favourites Edit Channel List

Auto Setup

Manual Tuning Update Channel List New Channel Message Signal Condition Attenuator Off

Access

Set the Auto Setup settings

DVB-C Auto Setup Settings

Search Mode Free Channels Scan Mode Frequency

Symbol Rate

Network ID 41001

Quick

362 MHz

Auto

Search mode, Scan mode● Frequency, Network ID● Store

set select select

Full: scans the whole

frequency range

Quick: scans the suitable

frequency in your country

Enter the Home Frequency and Network ID specified by your cable provider. Depending on the country you select, “Auto” is displayed and you do not have to enter them.

Start Auto Setup

DVB-C Auto Setup

All DVB-C tuning data will be erased

When the operation is completed, the channel at the lowest position will be displayed.

Normally set Symbol Rate ● “Auto”.

enter

ghi

DVB-C Auto Setup

Progress

This will take about 3 minutes.

No.

1 CBBC Channel 2 BBC Radio Wales 3E4

Free TV: 3 Pay TV: 0 Radio: 0

Channel Name

Settings are made automatically

access

select

access

select

access

select

abc def

jkl

mno

tuvpqrs

wxyz

0% 100%

Searching

Type Quality

Free TV 10 Free TV 10 Free TV 10

Page 43

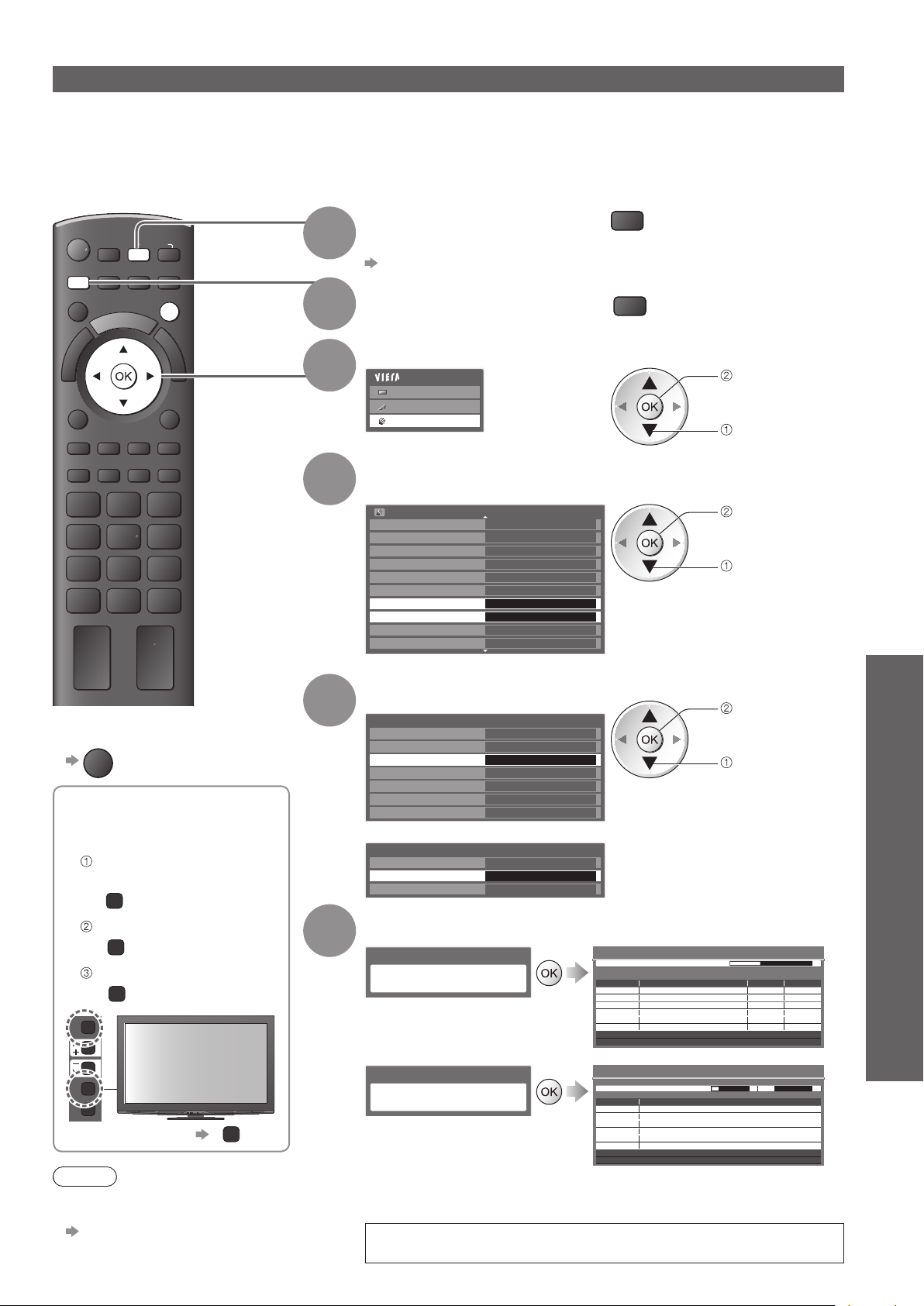

DVB-T or Analogue channels

Automatically retune all DVB-T or Analogue channels received in the area.

Auto Setup is available if channel tuning is already performed.● Only DVB-T channels are retuned in DVB-T mode.● Only Analogue channels are retuned in Analogue mode.● All the previous tuning settings are erased.● If a Child Lock PIN number (p. 52) has been set, it must be entered.●

ASPECT

OPTION

TEXT STTL

INPUT

DIRECT TV REC

EXIT

INDEX HOLD

BACK/

RETURN

2 3

Select DVB-T or

Analogue

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “DVB-T Tuning Menu” or “Analogue Tuning Menu”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

DVB-T Tuning Menu Analogue Tuning Menu

Language Display Settings

Access Access

1/2

“DVB-T Tuning Menu” is ● available in DVB-T mode only. “Analogue Tuning Menu” is ● available in Analogue mode only.

access

Retuning from Setup Menu ●

select

access

select

REC

PROGRAMME

To return to TV■

EXIT

For Auto Setup, using ■ the buttons on the side panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

Access “Auto Setup”

Start “Auto Setup”

To return to TV ●

Note

If tuning has not been done ● completely

“Manual Tuning”

(p. 46 and p. 49)

Select “Auto Setup”

DVB-T:

DVB-T Tuning Menu

Favourites Edit Channel List

Auto Setup

Manual Tuning Update Channel List New Channel Message On Signal Condition

Analogue:

Analogue Tuning Menu

Channel List

Auto Setup

Manual Tuning

Access

access

select

Start Auto Setup

DVB-T:

DVB-T Auto Setup

All DVB-T tuning data will be erased

Analogue:

Analogue Auto Setup

All analogue tuning data will be erased

The channel, language, country / region settings are downloaded to

●

a Q-Link or VIERA Link compatible equipment connected to the TV.

When the operation is completed, the channel at channel position “1” will be displayed.

DVB-T Auto Setup

Progress CH 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

62 CBBC Channel Free TV 10 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10

Free TV: 4

Analogue Auto Setup

Scan

This will take about 3 minutes.

CH Channel Name

CH 29 CH 33 BBC1

Analogue: 2

Pay TV: 0 Radio: 0

Searching

CH 1 H: 21 4199

Searching

Settings are made automatically

Advanced

Page 44

Tuning and Editing Channels

(DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select DVB-S, DVB-C or DVB-T

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

INPUT

EXIT

BACK/

RETURN

abc def

jkl

ghi

tuvpqrs

To return to TV

■

EXIT

mno

wxyz

Select “DVB-S Tuning Menu”, “DVB-C Tuning Menu” or “DVB-T Tuning Menu”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

DVB-C Tuning Menu DVB-T Tuning Menu

Language Display Settings

AccessDVB-S Tuning Menu Access Access

1/2

“DVB-S Tuning Menu” is available in ● DVB-S mode only. “DVB-C Tuning Menu” is available in ● DVB-C mode only.

●

“DVB-T Tuning Menu” is available in DVB-T mode only.

access

select

Select one of the following functions

DVB-C Tuning Menu

Favourites Edit Access Channel List Auto Setup Manual Tuning Update Channel List New Channel Message Signal Condition Attenuator Off

Auto Setup ● “Retuning from Setup Menu” (p. 40 - 43)

Access Access Access Access On Access

The function items vary depending on ● the country you select (p. 12).

access

select

Set

Page 45

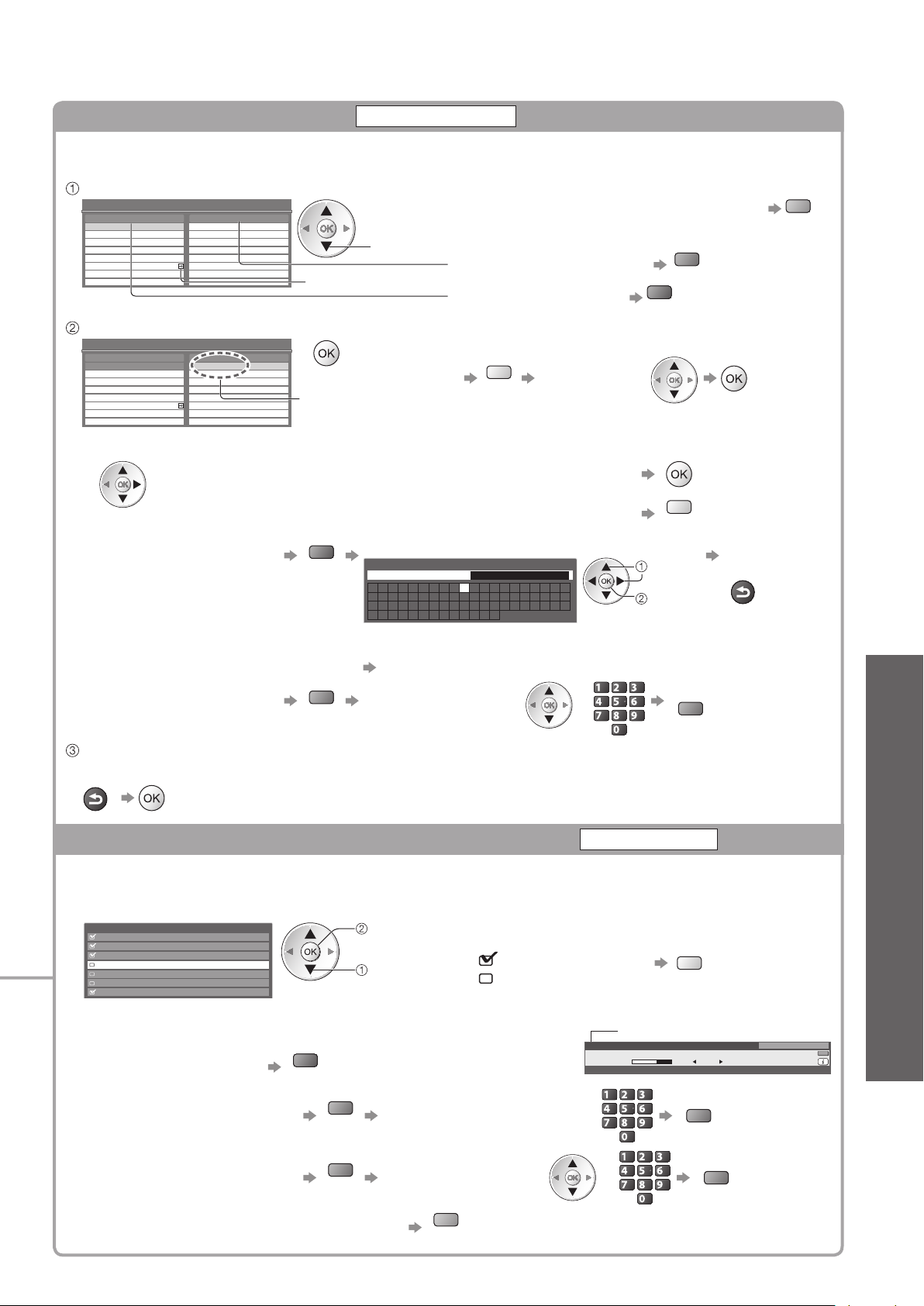

List favourite DVB channels

Favourites Edit

Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4). The DVB Favourites lists are available from “Category” in the Information banner (p. 17) and the TV Guide (p. 20).

Select a channel to list

DVB-C Favourites Editor Sorting 123...

All DVB-C Channels

BBC One Wales

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

select

Encrypted channel

To sort channel names in alphabetical order ●

To display other Favourites ●

To change the category ●

green

red

blue

Add it to the Favourites list

DVB-C Favourites Editor Sorting 123...

All DVB-C Channels

BBC One Wales1 BBC One Wales1

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Favourites1

A channel is added

To add continuous block of channels to the list at once ●

yellow

Make the block

To edit Favourites list■

To delete the channel

Select the field of Favourites to edit and:

●

Tuning and Editing Channels ●

To delete all channels●

To name the Favourites●

red

Set characters one by one Store

User input

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

yellow

select

set

BACK/

RETURN

(maximum: ten characters) You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 96)

abc def

jkl

To move the channel●

green

Select the new position or

ghi

tuvpqrs

Store

mno

wxyz

green

Store

BACK/

RETURN

Skip unwanted DVB channels, Edit DVB Channels

You can hide unwanted DVB channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

All DVB-C Channels Sorting 123...

CBBC Channel

Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC ONE Wales

BBC THREE

reveal / hide

select

: reveal : hide (skip)

Channel List

To reveal all channels●

yellow

(DVB)

Advanced

To edit channels■

You can also edit each channel in Channel List.

To change the category●

●

To swap the channel position (if available)

To move the channel position ● (if available)

To sort channel names in alphabetical order●

red

green

Enter the new position number

Select the new position or

blue

Channel position

1 ZDF

Coronation Street 19:30 - 20:00

abc def

jkl

ghi

mno

tuvpqrs

wxyz

abc def

jkl

ghi

tuvpqrs

mno

wxyz

Now

Store

green

Store

green

19:35

All DVB-T Channels

Change category

For info press

Page 46

Tuning and Editing Channels

(DVB)

Set DVB channel manually

Manual Tuning

Normally use “Auto Setup” or “Update Channel List” to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial or dish, use this function.

All channels found will be added to the Channel List.●

DVB-S:

DVB-S Manual Tuning

Signal Quality 0 10

Analogue Scan 21 68

Signal Strength 010

Satellite

Transponder Frequency Symbol Rate Polarisation Modulation Service ID

Astra 19.2° E 10847 MHz Auto Horizontal Auto Auto

Please consult the received satellite ● broadcasting companies for the setting.

DVB-C:

DVB-C Manual Tuning

Frequency Symbol Rate Service ID Signal Quality 0 10 Signal Strength 0 10

No. Channel Name Type New

Free TV: 0

Pay TV: 0 Radio: 0

Stopped

474,00 MHz

Auto Auto

Set the satellite Set “Transponder Frequency”,

“Symbol Rate”, “Polarisation”,

set select

“Modulation” and “Service ID”

abc def

jkl

ghi

set select

mno

tuvpqrs

wxyz

Enter the frequency Search

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Normally set Symbol Rate and Service ID to “Auto”.●

DVB-T:

DVB-T Manual Tuning

Frequency Signal Quality 0 10

Analogue Scan 21 68 Signal Strength 0 10

No. Channel Name Type New

474,00 MHz[CH21]

adjust frequency select channel

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Stopped

Set where the level of “Signal Quality” becomes the maximum.●

Update DVB channel automatically

Update Channel List

You can add new channels, delete removed channels, update channel name and position automatically to Channel List.

DVB-T Update Channel List

Progress CH 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

Free TV: 0

Pay TV: 0 Radio: 0

Searching

Channel List is updated while keeping your settings in Favourites Edit, ● Channel List, Child Lock, etc.

To update DVB-S channels, the satellite, search mode and scan mode ● settings are required before updating.

DVB-S Update Channel List Settings

Satellite Astra 19.2° E Search Mode Scan Mode

Free Channels Quick

store

set

select

Page 47

Display a notification message

New Channel Message

Selects whether to give a notification message when a new DVB channel is found. (Off / On)

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

Selecting OK will perform “Update Channel List”.●

Check DVB signal

Signal Condition

Selects a channel and checks the DVB signal condition.

To change the channel ●

DVB-S:

DVB-S Signal Condition

Channel Name 1 BBC 1 East (W)

Signal Quality Signal Strength Bit Error Rate 0.00E+00 Satellite Parameter 10847MHz, H, 22000kS/s

DVB-C:

DVB-C Signal Condition

Channel Name 70 CBBC Channel

Signal Quality Signal Strength Bit Error Rate 0.00E+00 Network Name Parameter 802,00 MHz, 64 QAM, 6940 kS/s

DVB-T:

DVB-T Signal Condition

Channel Name 70 CBBC Channel

Signal Quality Signal Strength Bit Error Rate 0.00E+00 Network Name Parameter [CH62] 802,00 MHz

Reduce the DVB-C signal

010 010

Astra 19.2° E

010 010

Wenvoe

010 010

Wenvoe

Attenuator

A good Signal Strength is not an indication of suitable signal for DVB reception. Please use the Signal Quality indicator as follows:

Signal Quality:

Green bar

● Good

● Poor

Yellow bar Red bar ● Bad (Check the Terrestrial aerial, cable or

Satellite dish)

Tuning and Editing Channels ●

(DVB)

Advanced

If the DVB-C signal is too strong, the interference may occur. In this case set to “On” to reduce the signal automatically.

●

This function is available only for DVB-C signal.

Page 48

Tuning and Editing Channels

(Analogue)

You can retune channels or skip unwanted channels, edit channels etc.

Select Analogue

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

INPUT

EXIT

BACK/

RETURN

To return to TV■

ghi

EXIT

abc def

jkl

tuvpqrs

mno

wxyz

Select “Analogue Tuning Menu”

Setup Menu

Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock

Analogue Tuning Menu

Language Display Settings Common Interface

Access

1/2

Select one of the following functions

Analogue Tuning Menu

Channel List Access Auto Setup Access Manual Tuning Access

The function items vary depending on the ● country you select (p. 12).

Auto Setup ●

“Retuning from Setup Menu” (p. 43)

Set

access

select

access

select

Page 49

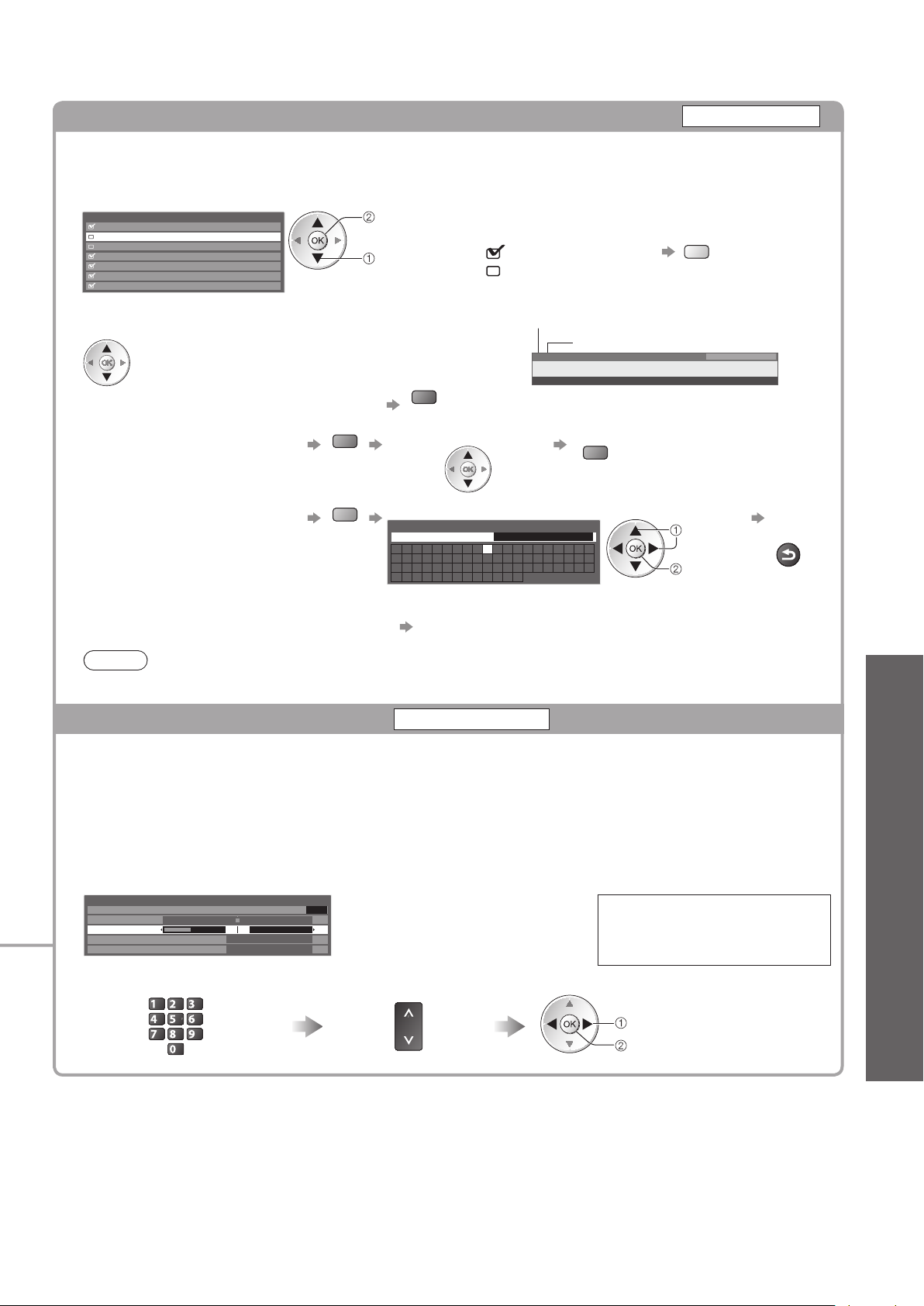

Skip unwanted Analogue channels, Edit Analogue channels

Channel List

You can hide unwanted Analogue channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Analogue Channel List

BBC1

*****

3 4 5 6 7

reveal / hide

select

: reveal : hide (skip)

To reveal all channels

●

yellow

To edit channels■

You can also edit each channel in Channel List.

Select a channel to edit and:

To retune each channel (Manual Tuning)●

To move the channel position●

To rename the channel name●

green

blue

Select the new position Store

Set characters one by one Store

Edit channel name

(see below)

red

Name

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

Channel position

Channel name

3 ITV

itv CH23

Mute Encrypted

green

O P Q R S T 7 8 9 ! : # o p q r s t

Radio

23:35

SubtitlesAD TXT

select

set

All Analogue Channels

For info press

(maximum: five characters)

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 96)

Note

If a VCR is connected only with the RF cable, edit “VCR”.●

Set Analogue channel manually

Manual Tuning

Fine Tuning■

Use to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)

Manual Tuning■

Set Analogue channel manually after Auto Setup.

Set Sound System and Colour System, and then perform this function.

●

Normally set Colour System “Auto”. If a VCR is connected only with the RF cable, select channel position “0”.●

Analogue Manual Tuning

1 BBC1 CH33 Fine Tuning

Manual Tuning

Sound System Colour System

SC2 Auto

4119921

Select the channel position Select the channel Search and store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

SC1: PAL B, G, H / SECAM B, G SC2: PAL I SC3: PAL D, K / SECAM D, K F: SECAM L, L’

store

45Multi Audio

RETURN

Tuning and Editing Channels ●

BACK/

(Analogue)

Advanced

Page 50

Timer Programming

Timer Programming from Menu

The Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder or the USB HDD. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode. TV Guide may also be used to set timer programming event

This function is not available in Analogue mode.● Timer Programming can store up to 15 events.● Timer Programming only works reliably if correct time information is received via the signal from the broadcaster ● or service provider. For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed, ● the TV must be On. No other channel can be selected while the recording of Timer Programming is in progress.● It may not be possible to record an encrypted programme (which is copy-protected).● When recording programmes to the external recorder, be sure to make the proper settings on the recorder ● connected to the TV. If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 86 and p. 87) and the “Link Settings” (p. 36) are completed, no setting of the recorder is required. Also read the manual of the recorder. If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, set “Q-Link” in the Setup Menu

●

(p. 36) to the connected terminal (AV1 or AV2), and make timer programming of the recorder. For preparations of a recorder, read the manual of the recorder. When recording programmes to the USB HDD, be sure to register the USB HDD and enable it for recording in the ● “USB HDD Setup” (p. 62). Recordings are always in standard definition composite video via SCART, even if the original programme is in ● high definition. 2 mins. before the starting time, a reminder message appears if you are watching TV.●

To remove the message and start the programming •

To cancel the programming •

EXIT

(p. 21).

ASPECT

OPTION

TEXT STTL

ghi

To return to TV■

EXIT

INPUT

DIRECT TV REC

EXIT

INDEX HOLD

abc def

jkl

tuvpqrs

BACK/

RETURN

mno

wxyz

Select the mode you want to set

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Timer Programming”

Setup Menu

3D Settings

Timer Programming

Off Timer Off USB HDD Setup Link Settings Child Lock DVB-C Tuning Menu Language Display Settings

Access

1/2

access

select

access

select

To unlock the tuner ■ (stop recording)

EXIT

Set

Page 51

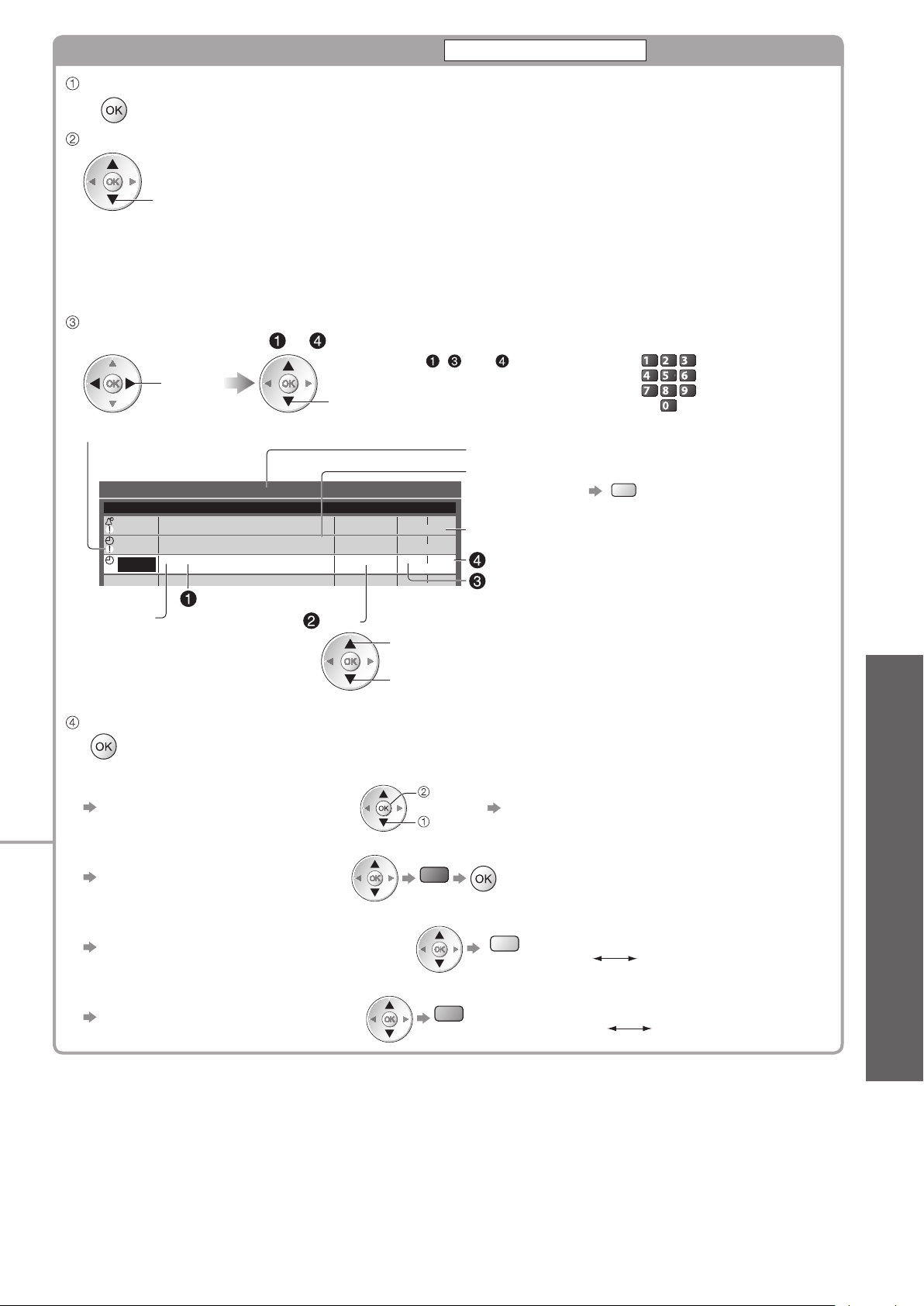

Set timer programming event details

Timer Programming

Start making the settings

Select the function (Ext Rec., USB HDD Rec. or Reminder)

Ext Rec. / USB HDD Rec.

select

Reminder : to remind watching the programme

: to record the programme to the external recorder (Ext Rec.) or the

When you are watching TV, a reminder message appears 2 mins. before the start time. Press the OK button to switch to the programmed channel.

Set the channel, date and time (repeat the operations as below)

Set items in the order of

to .

● , and can also be

select the item

set

Displayed if the timer programming events are overlapped

Timer Programming USB HDD Remaining Capacity 500GB (50%) Wed 28.10.2009 10:46

Function Channel Name

Reminder

Ext Rec.

No.

CITV1

---

7D BBC7

<TIMER>

1D BBC1

<TIMER>

---

Date Start End

Wed 28.10.2009 17: 00 18: 30

Wed 28.10.2009 18: 00 20: 00

STTL

Thu 29.10.2009

--/-- --:-- --:--

Channel number

S: DVB-S C: DVB-C D: DVB-T

You cannot change the ● mode within the menu.

Date

Store

entered with numeric buttons.

Information of the USB HDD (if available) Records with subtitles (if available)

To indicate this ●

(90 min.)

(120 min.)

21:30 22:30

(60 min.)

Duration (automatic display)

Ending time Starting time

one day ahead

daily or weekly (press repeatedly)

Daily Sun-Sat: Sunday to Saturday

●

Daily Mon-Sat: Monday to Saturday● Daily Mon-Fri: Monday to Friday● Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun:● Same time on the same day every week

ghi

( press again to

yellow

remove subtitles)

abc def

jkl

tuvpqrs

mno

wxyz

Timer Programming ●

To change a timer programming event■

access

Select the programme to be changed

select

Correct as necessary

(as above)

To cancel a timer programming event■

Select the programme to be deleted

red

To record with subtitles ■ (if available)

Select the programme to record with subtitles

yellow

Each time pressed:● auto off

To cancel a timer programming event temporarily■

Select the programme to be cancelled

blue

Check that the LED is orange. If not, timer programmes are not active or not stored.● Timer Programming reminder messages will remain displayed until one of the following occurs:●

You press the OK button to view the programme or the EXIT button to cancel the reminder.• The timer programming event that the reminder is set for ends.•

●

“!” identifies that any timer programming events have overlapped. “Ext Rec.” and “USB HDD Rec.” are given priority over “Reminder”. As for the overlapped two or more “Ext Rec.” / “USB HDD Rec.”, the first timer programming event starts and finishes as programmed. The next timer programming event can then start.

●

The recording of Timer Programming will automatically change to the programmed channel 10 seconds before the start time.

●

To stop recording the timer programming event directly prior to the start time, it may be necessary to stop the recorder manually. The recording of Timer Programming will be performed even if the TV is in REW LIVE TV recording (p. 65) and

●

Pause Live TV recording (p. 89). In this case, these recordings will be cancelled.

Each time pressed:● cancel stop cancelling

Advanced

Page 52

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.

Display the menu

ghi

EXIT

abc def

jkl

mno

tuvpqrs

wxyz

Select “Setup”

Main Menu


Sound

Setup

Select “Child Lock”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings

Child Lock

DVB-C Tuning Menu Language Display Settings

Access

1/2

access

select

access

select

To return to TV■

EXIT

Set

Page 53

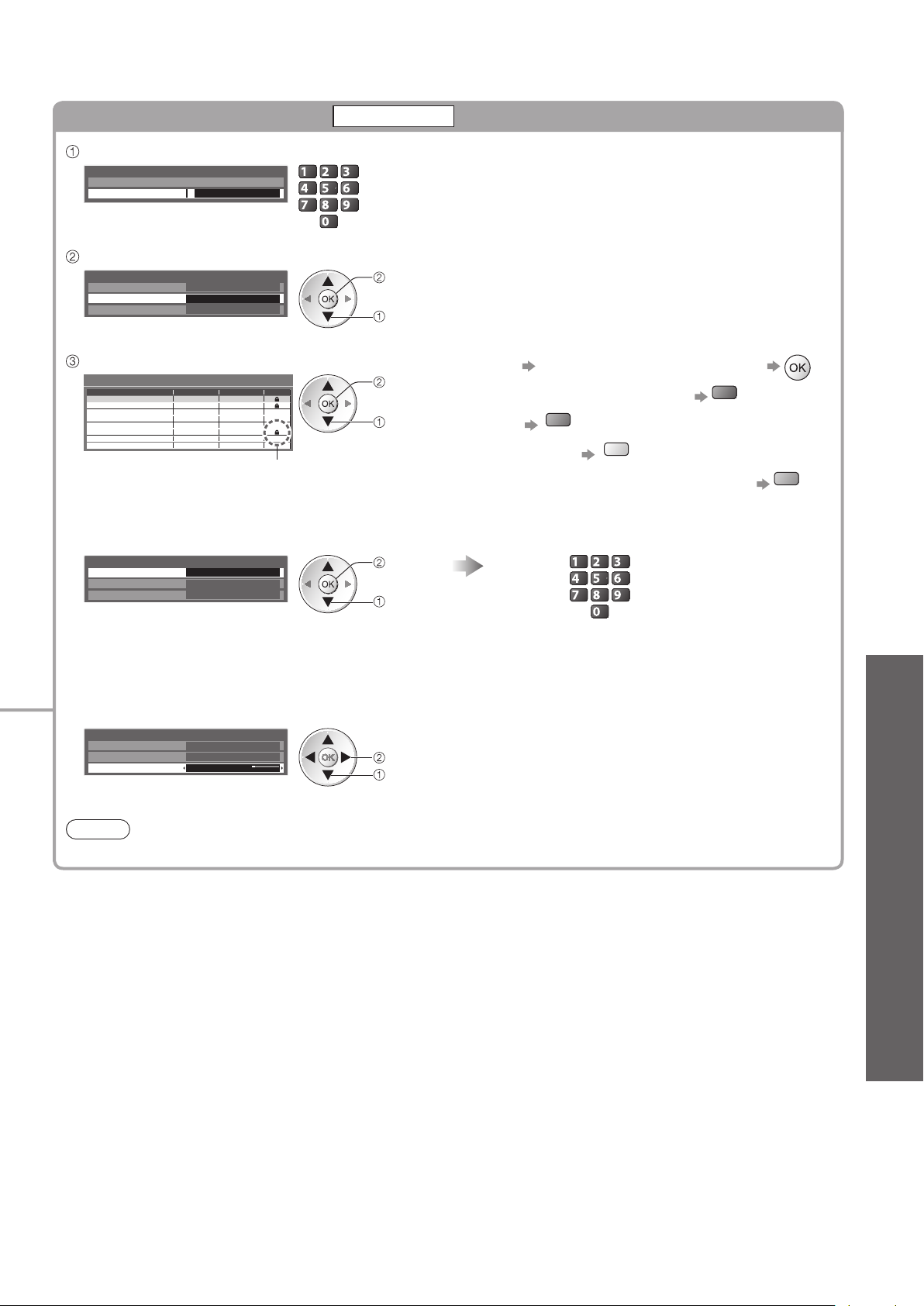

Control channel audience

Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

PIN * * * *

Select “Child Lock List”

Child Lock

Change PIN

Child Lock List

Parental Rating

Access No Limit

ghi

Child Lock

abc def

jkl

mno

tuvpqrs

wxyz

access

select

Enter the PIN number twice at first setting.● Make a note of the PIN number in case you forget it.● “0000” may be stored as the default PIN number which ● depends on the country you select (p. 12).

Select the channel / input to be locked

Child Lock List - TV and AV

Name Input LockType

BBC 1 Wales DVB-C FreeTV

101

BBC THREE DVB-T LockFreeTV

E4 DVB-T LockFreeTV

VCR Analogue LockAnalogue

BBC1 Analogue LockAnalogue

***** Analogue LockAnalogue

AV1 External LockAV AV2/ S

External LockAV

Appears when the channel / input is locked

Sorting 123...

lock

select

To cancel ● Select the locked channel / input To jump to the top of the next input ● To lock all ● To cancel all locks ●

green

yellow

red

To sort channel names in alphabetical order ●

blue

To change the PIN number■

Select “Change PIN” Enter a new PIN number twice

Child Lock

Change PIN Access

Child Lock List Parental Rating No Limit

access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To set Parental Rating■

The availability of this function depends on the country you select (p. 12).●

If the DVB programme has the rated information for over the selected age, you have to enter the PIN number to watch (depending on the broadcaster).

Select “Parental Rating” and set an age for the restriction of programmes.

Child Lock

Change PIN Child Lock List

Parental Rating No Limit

set select

Child Lock ●

Note

Setting “Shipping Condition” (p. 56) erases the PIN number and all settings.●

Advanced

Page 54

Input Labels

For easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected to any equipment.

To select the input mode ● p. 24

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Display Settings”

Setup Menu

3D Settings Timer Programming Off Timer Off USB HDD Setup Link Settings Child Lock DVB-C Tuning Menu Language

Display Settings

Access

1/2

access

select

access

select

EXIT

BACK/

RETURN

To return to TV■

EXIT

Select “Input Labels”

Display Settings

Preferred Subtitle Type Standard Teletext Teletext Character Set Side Panel Default Guide TV Guide

Input Labels

Banner Display Timeout Playing Time Display Radio Mode

TOP West Off

Access 3 seconds On Off

access

select

Select a input terminal and set

Input Labels

AV1 DVD AV2/S AV3 COMPONENT PC PC HDMI1 HDMI2 HDMI3 HDMI4 HDMI4

Input Labels

DVB-S DVB-S DVB-C DVB-C DVB-T DVB-T Analogue Analogue

AV2/S AV3 COMPONENT

HDMI1 HDMI2 HDMI3

The labels you set will be displayed in “Input Selection” menu (p. 24), “TV Selection” menu (p. 16) or banner.

If “Skip” is selected, you cannot select the mode.●

1/2

set

select

2/2

User input■

You can name each input mode freely.

Select “User input” Set characters one by one Store

select

access

User input

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

(maximum: ten characters)

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 96)

select

set

BACK/

RETURN

Page 55

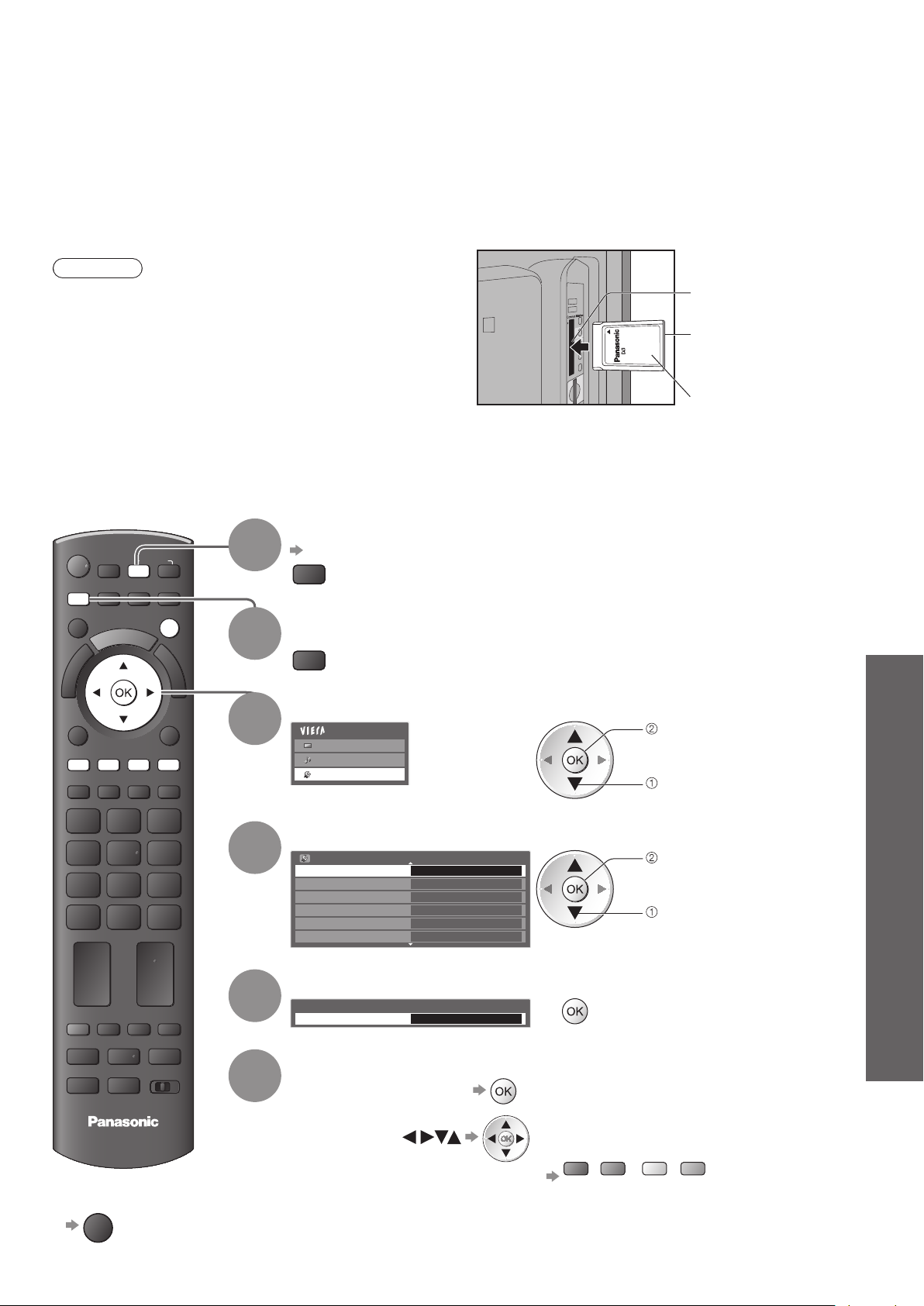

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.

This function may not be available in some countries or regions.● Video and audio signals may not be output depending on broadcasts or services.●

Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. pay-TV). Please use only the approved CI module by the broadcaster. Consult your local Panasonic dealer or broadcasters for more information and conditions of the services.

Caution

Turn Off Mains power On / Off switch whenever inserting ● or removing the CI module. If a view card and a card reader come as a set, first insert ● the card reader, then insert the view card into the card reader. Insert the module in the correct direction.●

Side of the TV

Insert the CI module (optional)

The features that appear on screen are dependent on the contents of the selected CI module.● Normally pay-TV channels will appear. Follow the on screen operation guide.● If pay-TV channel does not appear, perform below. For more details, see the manual of the CI module, or check with the broadcaster.

●

CI slot

Insert or remove straightly and completely

CI module

Using Common Interface ●

INPUT

EXIT

Select DVB-S, DVB-C or DVB-T

p. 16

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Common Interface”

Setup Menu

Common Interface

Network Setup DivX® VOD Advance(isfccc) System Menu Other Settings

Access

Off

2/2

Input Labels ●

access

select

Advanced

access

select

To return to TV■

EXIT

Access Common Interface

Common Interface

Slot 1:

Module inserted

Follow the on screen operation guide

For example: select, go

Coloured characters

On screen operation guide may not correspond to the remote control ● buttons.

red green yellow blue

Page 56

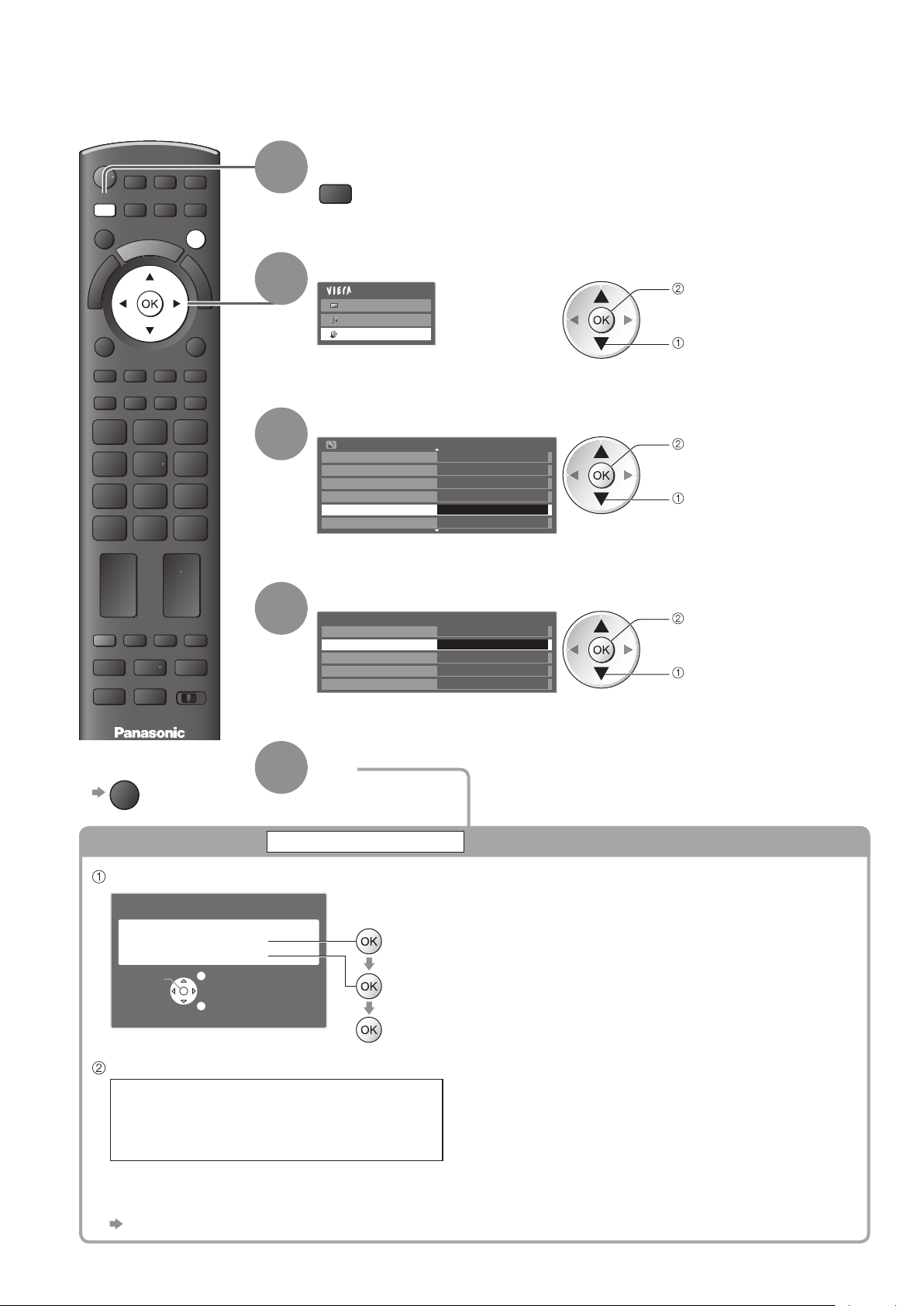

Shipping Condition

Resets the TV to its original condition, i.e. no channels tuned in. All settings other than “USB HDD registration” are reset (channels, picture, sound settings, etc.).

Display the menu

EXIT

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Common Interface Network Setup DivX® VOD Advance(isfccc)

System Menu

Other Settings

Off Access

2/2

access

select

access

select

To return to TV

■

EXIT

Restore Settings

Check the message and initialise

Shipping Condition

All tuning data will be erased

Confirm

Are you sure? Are you sure?

EXIT

RETURN

Shipping Condition

Select “Shipping Condition”

System Menu

USB Keyboard Layout English(UK)

Shipping Condition Access

System Update Software Licence System Information

Set

(confirm)

(start Shipping Condition)

access

select

Follow the on screen instructions

Reset to Factory Shipping Condition

Completed.

Please switch off TV.

“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)●

To retune TV channels only, e.g. after moving house■

“Retuning from Setup Menu” (p. 40 - 43)

Page 57

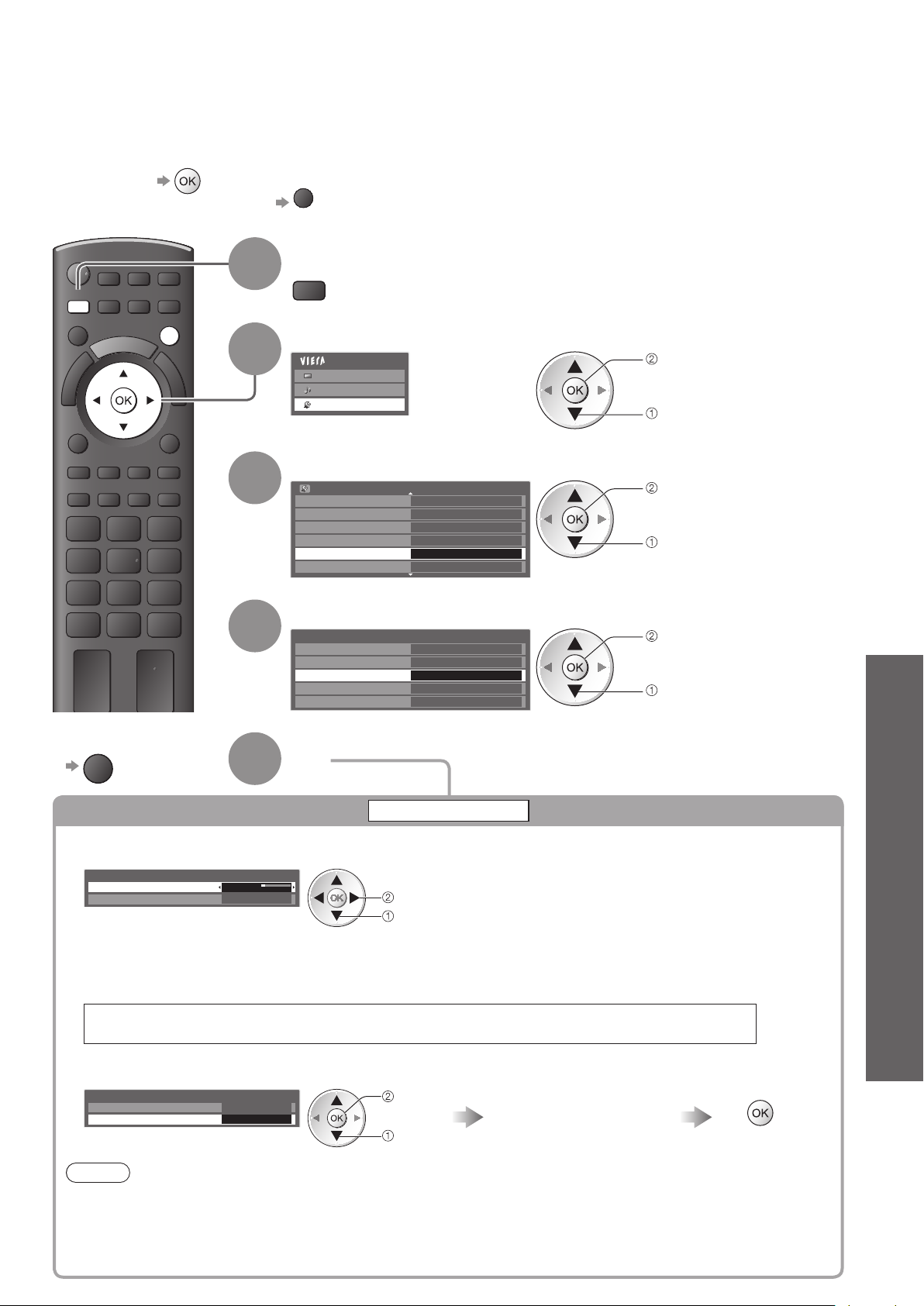

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the performance or operations of the TV. If there is an update available, a notification banner is displayed when the channel has the update information.

To download ● If you choose not to download ●

You can update any new software automatically or update manually.

EXIT

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

Updating the TV Software ●

Select “System Menu”

Setup Menu

Common Interface Network Setup DivX® VOD Advance(isfccc)

System Menu

Other Settings

2/2

Off Access

access

select

Select “System Update”

To return to TV

■

EXIT

Update TV’s software system

System Menu

USB Keyboard Layout English(UK) Shipping Condition

AccessSystem Update Software Licence System Information

Set

System Update

To update automatically■

Select “Auto Update Search in Standby”

System Update

Auto Update Search in Standby

System Update Search Now

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set “Auto Update Search in Standby” to “Off”.

Off

set select

Every time you set, the TV automatically performs a ● search in standby and downloads an update, if any software updates are available. The automatic updating is performed under the

●

following conditions:

Standby (TV turned Off with the remote control)• Recording of Timer Programming, Direct TV • Recording or One Touch Recording is not in progress.

access

select

Shipping Condition ●

Advanced

To update immediately■

Select “System Update Search Now” Download

System Update

Auto Update Search in Standby

System Update Search Now Access

Off

access

select

Searches for an update (for several mins.) and displays a corresponding message if any

Note

Download may take for about 60 mins.● During software download and update, DO NOT switch Off the TV.● The message might be the notification beforehand. In this case, the schedule information (the date that the ● new version can be used) will appear. You can set the reservation for update. The update will not start when the TV is set to Off.

Page 58

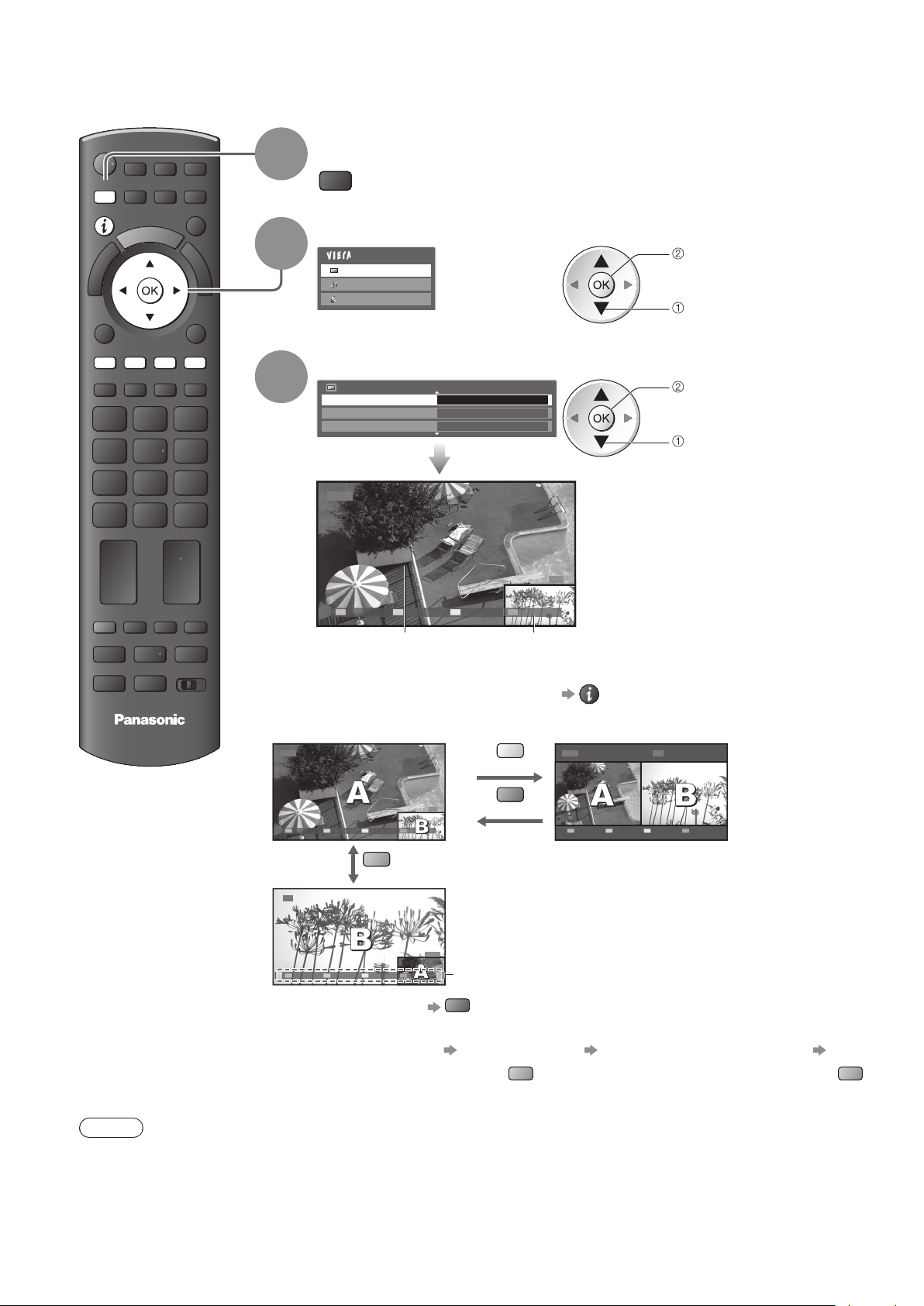

Multi Window

Enjoy viewing the digital TV programme and external input (AV, COMPONENT or HDMI) at once.

Display the menu

Select “Picture”

Main Menu


Sound

Setup

Select “Picture in Picture”

Picture Menu

Picture in Picture

Panel Reset to Defaults

Access On Reset

2/2

access

select

access

select

1 DVB-T

AV1

EXIT PandP Swap

Main screen Sub screen

How to operate in multi window■

Display the colour bar if it is not displayed

Picture-in-Picture mode (PinP)

1 DVB-T

AV1

EXIT PandP Swap

blue

AV1

yellow

green

Picture-and-Picture mode (PandP)

1 DVB-T AV1

Remote control operations apply to ● the main screen.

EXIT PinP Swap

Note

Each input mode can only be displayed either on main screen or sub screen.● The sound comes from only the main screen in multi window.● You cannot change the aspect ratio in multi window.● This function cannot be used with PC, Media Player or Network services.● HDMI is available only for main screen.● Some signals are reformatted for suitable viewing on your display.●

1 DVB-T

EXIT PandP Swap

To exit multi window ● To change the ●

input mode or channel of sub screen

Colour bar

red

Swap sub screen for main screen

blue

Change the input mode or channel by the remote control (p. 16 or p. 24)

Swap again

blue

Page 59

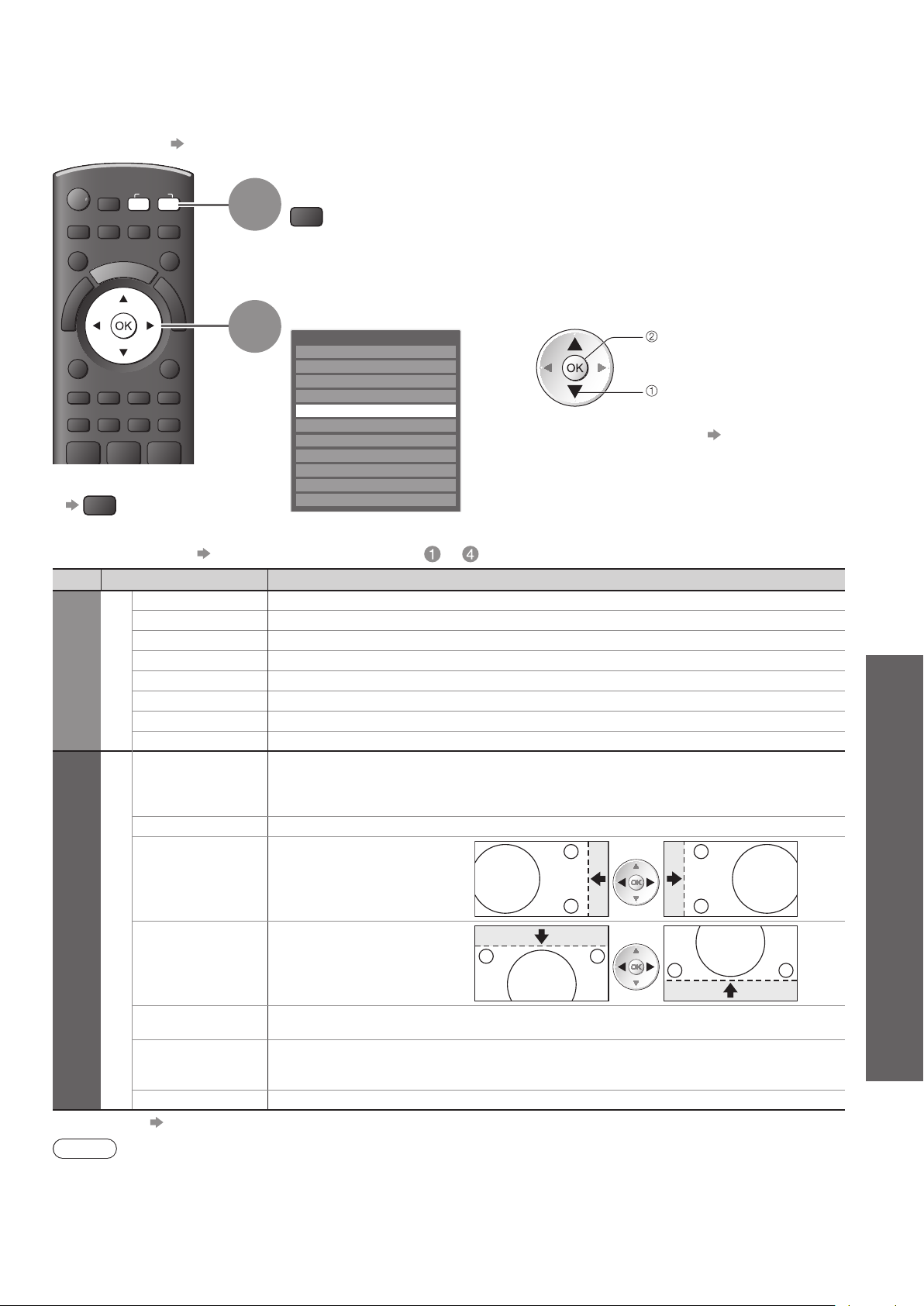

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.

To connect PC ● p. 92

ASPECT

OPTION

TEXT STTL

To return to TV■

INPUT

INDEX HOLD

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

Select the external input

Select “PC”

Input Selection

AV1 AV2/S AV3 COMPONENT

HDMI1 HDMI2 HDMI3 HDMI4 TV Media Server

access

select

Corresponding signals ● p. 98 If “H-freq.” or “V-freq.” is shown in red, ● the signals may not be supported.

PC menu setting■

To make settings ● “How to Use Menu Functions” to (p. 33)

Menu Item Adjustments / Configurations (options)

Advanced Settings

R-Gain G-Gain


B-Gain R-Cutoff G-Cutoff B-Cutoff Gamma Reset to Defaults

Input Resolution

Clock

Adjusts the white balance of bright red area Adjusts the white balance of bright green area Adjusts the white balance of bright blue area Adjusts the white balance of dark red area Adjusts the white balance of dark green area Adjusts the white balance of dark blue area Switches the gamma curve (S Curve / 1.8 / 2.0 / 2.2 / 2.4 / 2.6) Press the OK button to reset to the default Advanced Settings Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels), ● XGA (1,024 × 768 pixels), WXGA (1,280 × 768 pixels, 1,366 × 768 pixels) Options change depending on signals

●

Set to the minimum level if noise occurs Adjusts horizontal position

Displaying PC Screen on TV ●

Multi Window ●

Advanced

H-pos

PC Setup

Setup

V-pos

Clock Phase

Sync

Reset to Defaults

Other items ● p. 34 - 39

Note

For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using ● HDMI cable (p. 97).

Adjusts vertical position

Eliminates flicker and distortion

Adjust after Clock adjustment

● Set to the minimum level if noise occurs●

Chooses another synchronous signal if the image is distorted (H & V / On Green)

H & V : by the horizontal and vertical signals from your PC

●

On Green : by the green signal from your PC (if available)

Press the OK button to reset to the default PC Setup settings

Page 60

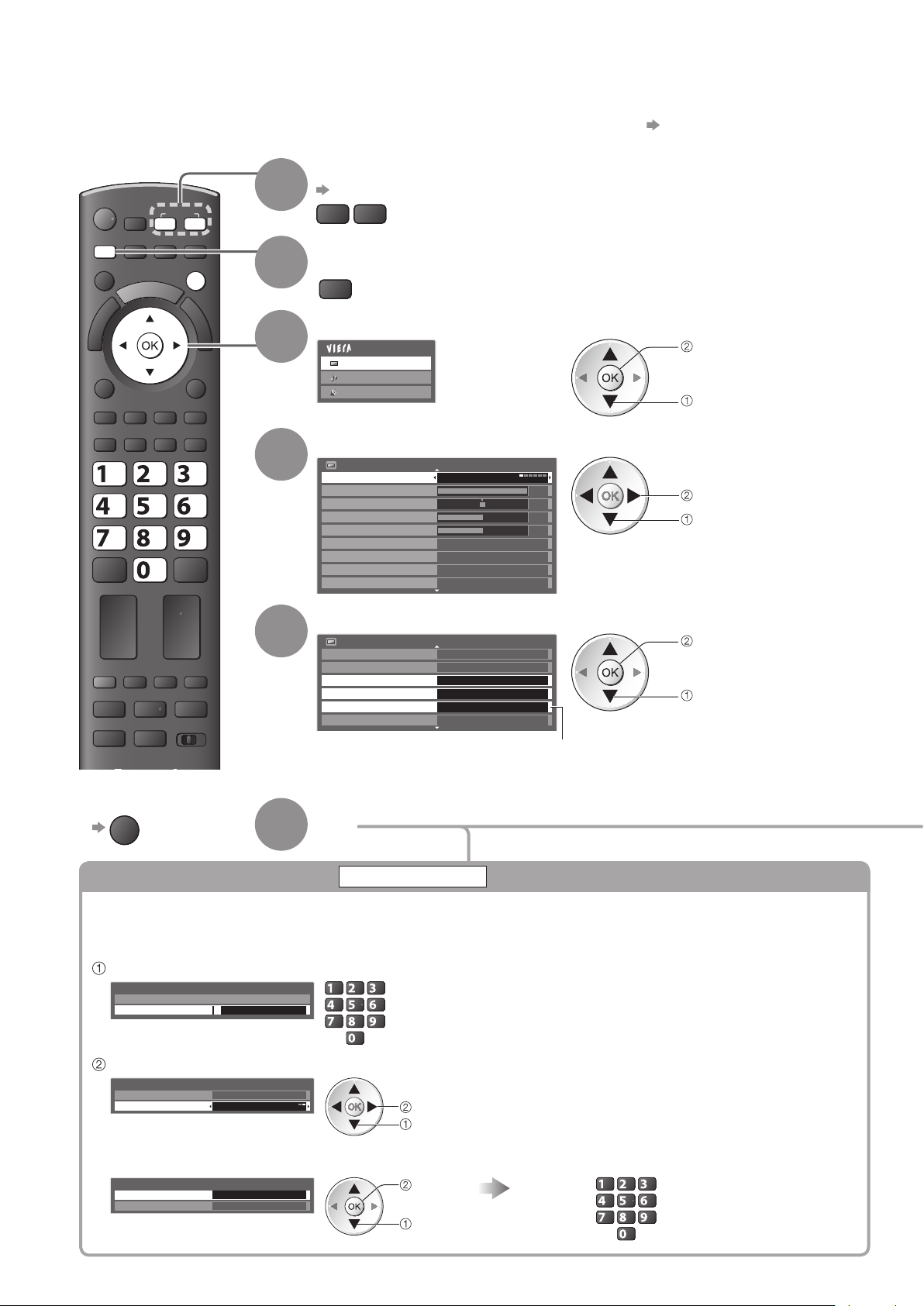

Advanced Picture Settings

You can adjust and setup the detailed picture settings for each input and Viewing Mode.

To use this function completely, set “Advance(isfccc)” to “On” in the Setup Menu. ● p. 39 For PC input mode, some functions are available without setting “Advance(isfccc)”.●

Select the input mode to adjust and setup

p. 16 and p. 24

TV AV

Display the menu

Select “Picture”

Main Menu


Sound

Setup

access

select

Select “Viewing Mode” and set the mode

Picture Menu

Viewing Mode Dynamic

Contrast Brightness Colour Sharpness Colour Balance Vivid Colour Eco Mode P-NR

Warm Off Off Off

1/2

set

select

ghi

INPUT

AVTV

EXIT

abc def

jkl

mno

tuvpqrs

wxyz

Select one of the following functions

Picture Menu

Picture in Picture Panel On

Advanced Settings Lock Settings Copy Adjustment

Reset to Defaults

Access Access Access Reset

2/2

“Copy Adjustment” is available when ● “Viewing Mode” in the Picture Menu is set

To return to TV■

to “Professional1” or “Professional2”.

EXIT

Lock the picture setting

Set

Lock Settings

Advanced Settings can be locked for each Viewing Mode and input. Additionally, Contrast, Brightness, Colour, Sharpness, Tint and Reset to Defaults in the Picture Menu can be locked for “Professional1” and “Professional2”.

Enter the PIN number (4 digits)

Lock Settings-PIN Entry

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.● Make a note of the PIN number in case you forget it.●

Select “Adjustment Lock” and set to “On”

Lock Settings

Change PIN

Adjustment Lock On

set select

access

select

To change the PIN number■

Select “Change PIN” Enter a new PIN number twice

Lock Settings

Change PIN Access

Adjustment Lock On

access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Page 61

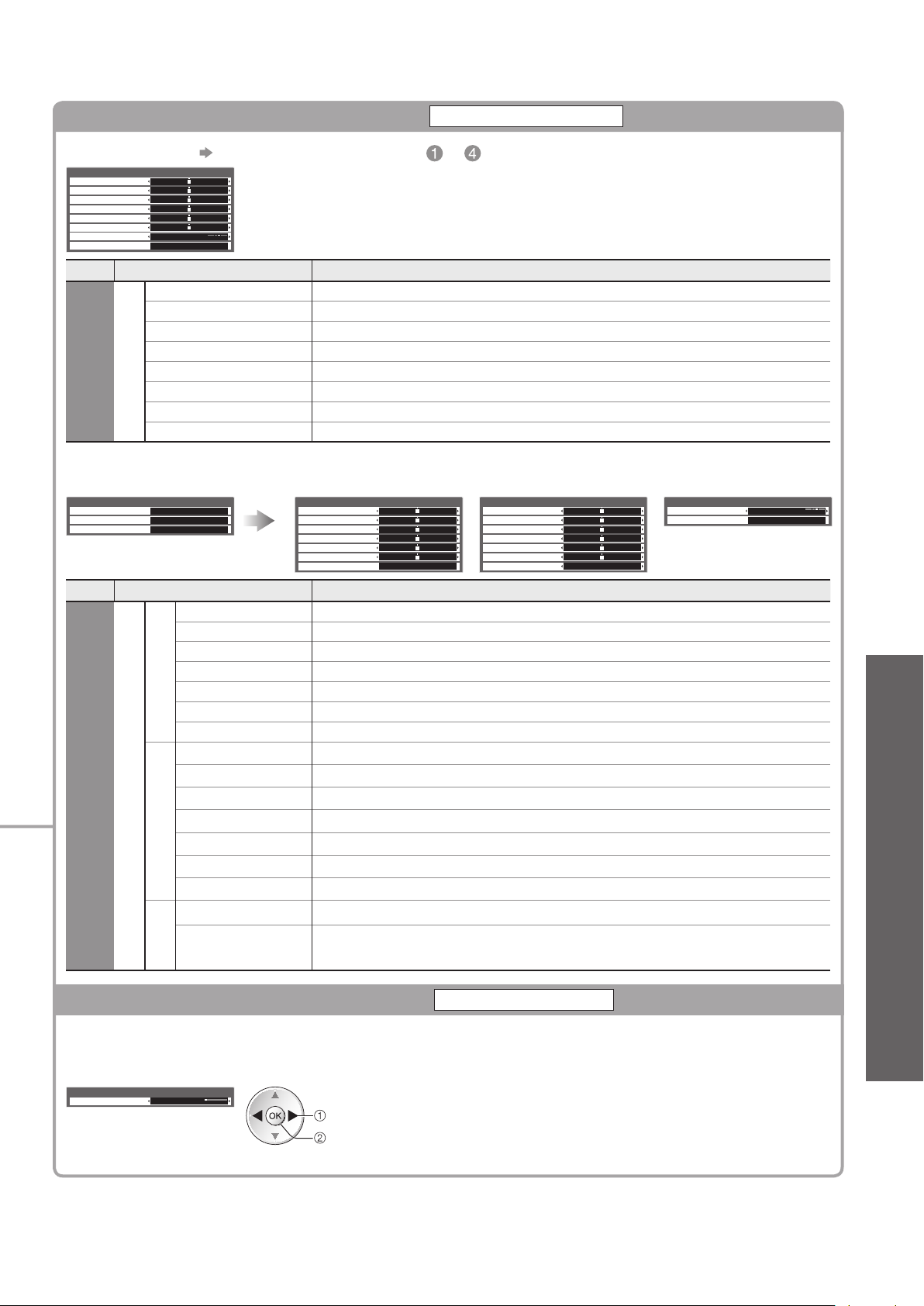

Adjust the detailed picture settings

Advanced Settings

To make settings ● “How to Use Menu Functions” to (p. 33)

Advanced Settings

R-Gain G-Gain B-Gain R-Cutoff G-Cutoff B-Cutoff Gamma Reset to Defaults

2.2 Reset

Menu Item Adjustments / Configurations (alternatives)

Advanced Settings

R-Gain G-Gain


B-Gain R-Cutoff G-Cutoff B-Cutoff Gamma Reset to Defaults

For the mode of “Professional1” or “Professional2” in “Viewing Mode”■

White Balance● Colour Management● Gamma●

Advanced Settings

White Balance Colour Management Gamma Access

Access Access

White Balance

R-Gain G-Gain B-Gain R-Cutoff G-Cutoff B-Cutoff Reset to Defaults Reset

Colour Management

R-Hue G-Hue B-Hue R-Saturation G-Saturation B-Saturation Reset to Defaults Reset

Gamma

Gamma Reset to Defaults Reset

Advanced Picture Settings ●

2.2

Menu Item Adjustments / Configurations (alternatives)

R-Gain

White Balance

G-Gain B-Gain R-Cutoff G-Cutoff

Advanced Settings


B-Cutoff Reset to Defaults

Colour Management

R-Hue G-Hue B-Hue R-Saturation G-Saturation B-Saturation Reset to Defaults

Gamma

Reset to Defaults

Copy the settings to the other input

Adjusts the white balance of bright red area Adjusts the white balance of bright green area Adjusts the white balance of bright blue area Adjusts the white balance of dark red area Adjusts the white balance of dark green area Adjusts the white balance of dark blue area Press the OK button to reset to the default White Balance

Adjusts the picture hue of red area

Adjusts the picture hue of green area

Adjusts the picture hue of blue area

Adjusts the saturation of red area

Adjusts the saturation of green area

Adjusts the saturation of blue area

Press the OK button to reset to the default Colour Management

Switches the gamma curve (S Curve / 1.8 / 2.0 / 2.2 / 2.4 / 2.6)

Press the OK button to reset to the default Gamma

Copy Adjustment

You can copy the selected “Professional1” or “Professional2” settings to that of the other input. The settings of Contrast, Brightness, Colour, Sharpness, Tint and Advanced Settings will be copied.

Select the destination to copy to

Copy Adjustment

Destination All

select

copy

You cannot copy to the locked mode.●

Advanced

Page 62

USB HDD Recording

You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.

Analogue TV programme cannot be recorded to the USB HDD.● The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.● Not all the programmes can be recorded depending on the broadcaster and service provider.● This TV supports USB HDD with capacity from 160 GB up to 2 TB.● If the remaining capacity of the USB HDD is run out, the recording cannot be done.● Regarding the performance, not all USB HDDs are guaranteed.● Check the USB HDDs that have been tested for the performance with this TV at the following website. (English only) http://panasonic.jp/support/global/cs/tv/

Caution

Register the USB HDD with this TV in order to use it for recording. Please note that USB HDD will be formatted ● and all data (including the data from your PC, etc.) in it will be erased when you register it. In order to use the USB HDD with your PC after you use it with this TV for recording, format the drive on your PC. ● To format, refer to the manual of the PC. Please note that all data in the USB HDD will be erased when it is formatted. The data recorded to the USB HDD with this TV can only be played back on this TV. You cannot playback its ● contents with another TV (including the TV of the same model number) or any PCs. If your TV is repaired due to a malfunction, the registered USB HDD may not be available with your repaired TV. ● Register this USB HDD again to use it with your repaired TV. (All data in it will be erased.)

USB HDD connection

Connect the USB HDD to the USB 1 or 2 port.

●

socket outlet

USB

cable

USB HDD

Be sure to connect the USB HDD to the

socket outlet.

Do not turn off or disconnect the USB HDD ●

during operation. It may cause malfunction of the drive or damage the recorded data.

To remove the USB HDD safely from the TV ●

p. 63 and p. 67

Setting for USB HDD

Register and setup the USB HDD with this TV in order to use it for recording. Connect the USB HDD before starting this settings.

Before the settings, be sure to turn on the USB HDD.● You cannot change the settings for the USB HDD while recording is in progress.● Please note that USB HDD will be formatted and all data in it will be erased when you register it.●

EXIT

BACK/

RETURN

“USB HDD connection” (above)

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “USB HDD Setup”

Setup Menu

3D Settings Timer Programming Off Timer

USB HDD Setup

Link Settings Child Lock DVB-C Tuning Menu Language Display Settings

Off Access

1/2

access

select

access

select

To return to TV■

EXIT

Select “Device Setup” and set

USB HDD Setup

Device Setup

One Touch Recording REW LIVE TV Off

Access 180 minutes

access

select

Page 63

Device Setup

All the USB devices recognized as a mass storage device will be listed. You can only register USB HDDs.

Up to 8 USB HDDs can be registered with this TV. However you can only choose one USB HDD for recording ● at a time. Some USB HDD may not be registered.

●

Select the USB HDD for recording and start registration / setup

USB HDD Device Setup

Yes

ProductConnect Name

USB Drive A

USB Flash Disk

Caution of USB HDD recording and playing back●

USB HDD Registration

The data recorded to the USB HDD with this TV can only

be played back on this TV.

You cannot playback it with other TV (including the TV

of the same model number) or any PCs.

If your TV is repaired due to a malfunction, the

registered USB HDD may not be available with your

repaired TV.

Continue?

Yes No

access

select

select “Yes”

set

For the information of the highlighted device ●

Confirmation of USB HDD registration●

USB HDD Registration

To use this device for recording,

it must be registered first.

Continue?

Yes No

select “Yes”

set

Confirmation of USB HDD format●

USB HDD Registration

This device will be formatted and

all contents deleted.

Yes No

Confirmation of USB HDD name●

USB HDD Registration

Name : USB HDD 1

Yes No

Are you sure?

Edit name?

select “Yes”

set

The name for the registered USB HDD is created automatically. If you want to edit the name, select “Yes”.

select

set

Set characters one by one

USB HDD

Name USB HDD 1

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

You can set characters by using numeric buttons.●

Confirmation to enable USB HDD for recording● If the registered USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB HDD for recording.

USB HDD Registration

Do you want to enable this

device now for recording?

Yes No

: The USB HDD is registered and available for recording / playing

back if the connection status is “Yes”. Only one registered USB HDD on the list can be available for recording.

USB HDD Device Setup

Yes

ProductConnect Name

USB Drive A

USB Flash Disk

USB HDD 1

: The USB HDD is registered and available for playing back if the

connection status is “Yes”. Name is displayed if the registration is completed Connection status (Yes: connected / No: not connected)

To remove the USB HDD safely from the TV, ensure the status is “No” before removing.

To change the status

●

yellow

You can also remove the USB HDD safely from Media Player ●

“Remove the USB devices safely” (p. 67)

To unregister the registered USB HDD■

Once you unregister the USB HDD, it will not be possible to playback any of the recorded content on any ● TV. Select the USB HDD Unregister

select

set

Store

BACK/

RETURN

USB HDD Recording ●

Advanced

red

The confirmation screen will be displayed twice. ● Select “Yes” to unregister.

Page 64

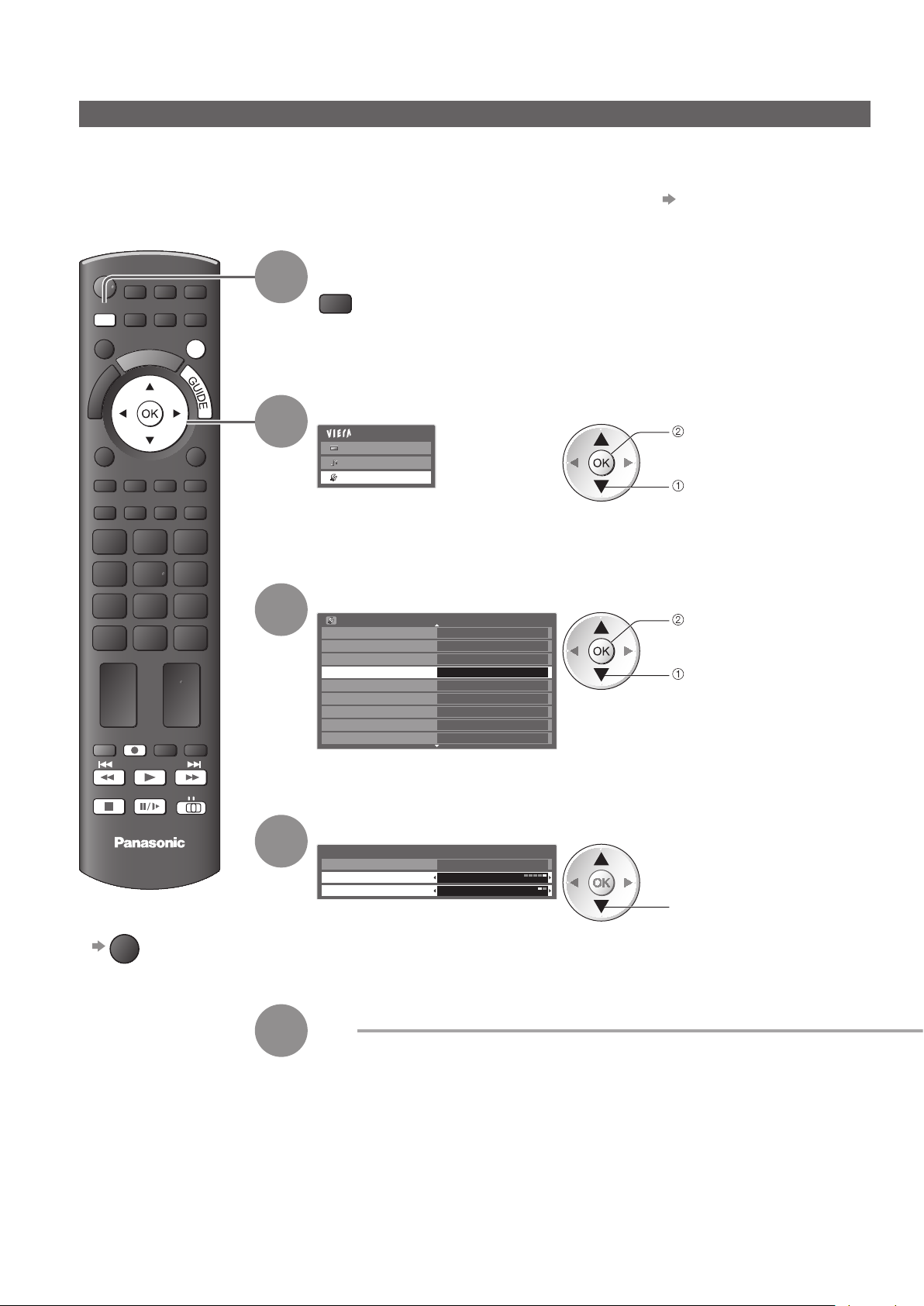

USB HDD Recording

Recording the TV programme to USB HDD

You can record the current programme immediately by using “One Touch Recording”. You can also record the current programme constantly for the selected period by using “REW LIVE TV” so that you can go back or pause the current programme.

Ensure the connection, registration and setup are completed before start recording ● p. 62 and p. 63 Ensure not to connect or disconnect any USB devices during USB HDD recording. Otherwise the recording may ● not work properly.

Display the menu

EXIT

Select “Setup”

Main Menu


Sound

Setup

access

select

To return to TV■

EXIT

REC

DVD/VCR

Select “USB HDD Setup”

Setup Menu

3D Settings Timer Programming Off Timer

USB HDD Setup

Link Settings Child Lock DVB-C Tuning Menu Language Display Settings

1/2

Off Access

access

select

Select “One Touch Recording” or “REW LIVE TV”

USB HDD Setup

Device Setup

One Touch Recording REW LIVE TV Off

180 minutes

select

Set

Page 65

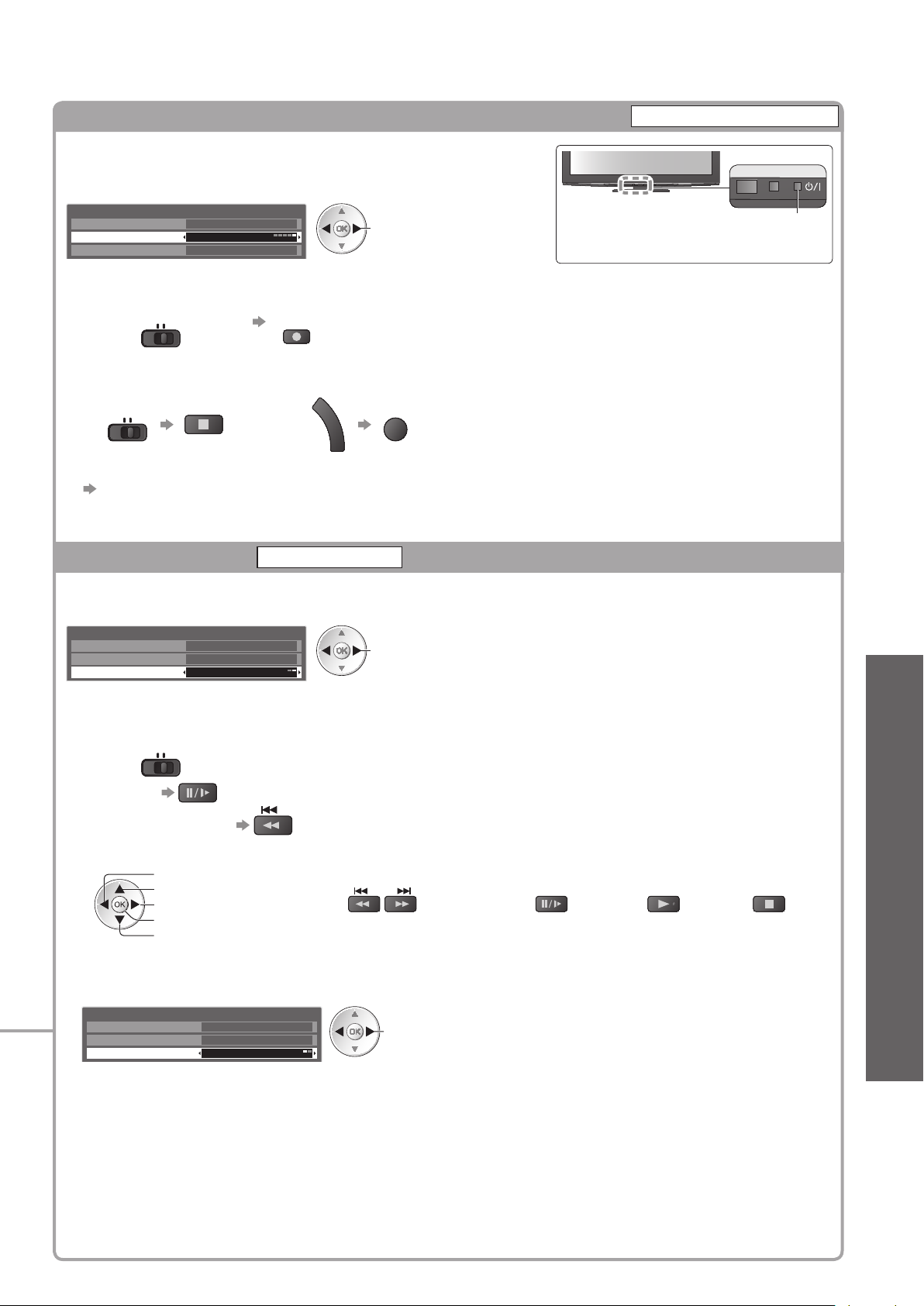

One touch direct TV recording - What you see is What you record

Recording the current programme in the USB HDD immediately.

Select the maximum recording time (30 / 60 / 90 / 120 / 180 minutes)

USB HDD Setup

Device Setup

One Touch Recording

REW LIVE TV Off

180 minutes

To start One Touch Recording■

Set the position to “TV” Start

DVD/VCR

REC

No other channel can be selected while the recording is in progress.●

To stop recording on the way■

DVD/VCR

select

LED will turn to orange (flash) while One Touch Recording is in progress.

EXIT

One Touch Recording

LED

To playback or delete the recorded contents■

“Using Media Player” (p. 71) or “Video” in VIERA TOOLS (p. 32) Even if One Touch Recording is in progress, you can playback all the contents. ● However, the recording may not work properly while playback.

Record constantly

REW LIVE TV

Recording the current programme constantly.

Select “On” to start REW LIVE TV

USB HDD Setup

Device Setup One Touch Recording

REW LIVE TV On

180 minutes

select

When you select “On”, the recording will start automatically.●

To operate the REW LIVE TV■

Set the position to “TV”

DVD/VCR

To pause ●

To search backward ● (press and hold)

After pausing or searching backward, the following buttons are available to operate.●

search backward pause search forward playback stop (stops the current operation and goes back to live TV)

search backward / forward pause / playback playback stop

(press and hold)

stops the current operation and goes back to

(

live TV

To stop the REW LIVE TV■

USB HDD Setup

Device Setup One Touch Recording

REW LIVE TV Off

REW LIVE TV will be stopped and the recorded content deleted automatically in the following conditions:

●

180 minutes

(Even if REW LIVE TV stops for the following conditions, as long as the setting is “On”, the new recording will start automatically in a condition that makes the recording available.)

selected other channels• selected locked channel• selected invalid channel• no TV signal• when the other recording starts• when the TV is turned off or standby•

select “Off”

If you stop the REW LIVE TV, the recorded content for the REW LIVE ● TV will be deleted.

USB HDD Recording ●

Advanced

)

Page 66

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and recorded contents on the registered USB HDD. VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot.

Photo mode : Still pictures recorded by digital cameras will be displayed. Video mode : (For SD Card or USB Flash Memory) Moving pictures recorded by digital video cameras will be

played back. (For registered USB HDD) TV programmes recorded in USB HDD registered to this TV will be played back.

Music mode : Digital music data will be played back.

During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals. ● But no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the Setup Menu (p. 36). “Date” shows the date on which the recording was made by the recording equipment. The file without record of ● the date is shown “**/**/****”.

Data format for SD Card / USB Flash Memory browsing■

Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF●

Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0) Image resolution - 8 × 8 to 30,719 × 17,279 pixels

Video : SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD Standard compatible files with an audio ●

format that is either MPEG-1/Layer-2 format or Dolby Digital format (A modified data with a PC may not be displayed correctly.) DivX p. 95

Music : Data format - MP3 and AAC (Copy-protected files cannot be played back.)● SD Card format : SDXC Card - exFAT●

SDHC Card / SD Card - FAT16 or FAT32

Compliant card type (maximum capacity): SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), ● miniSD Card (2 GB) (requiring miniSD adapter) If miniSD Card is used, insert / remove it together with the adapter.● Check the latest information on the card type at the following website. (English only)● http://panasonic.jp/support/global/cs/tv/ USB Flash Memory format : FAT16, FAT32 or exFAT●

∗

DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).

(A USB HDD formatted by PC is not supported in Media Player.)

Note

Format the device with the recording equipment.● The picture may not appear correctly on this TV depending on the recording equipment used.● Display may take some time when there are many files and folders.● This function cannot display Motion JPEG and still image not JPEG formatted (i.e. TIFF, BMP).● A data modified with a PC may not be displayed.● Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.● Partly degraded files might be displayed at a reduced resolution.● The folder and file names may be different depending on the digital camera or digital video camera used.● Do not use two-byte characters or other special codes.● The device may become unusable with this TV if the file or folder names are changed.●

∗

and EXIF standards

To insert or remove the SD Card / USB Flash Memory ■

For the USB HDD Connection ● p. 62

USB Flash Memory

SD Card

To insert the ● SD Card

Gently insert the SD Card label surface facing front.

Push until a

click is heard

For more information of the SD Card ● p. 94

Label surface

Cutout

Insert or remove straightly and ● completely. Before removing the USB Flash ● Memory, ensure to perform “Remove the USB devices safely” (p. 67)

To remove the ● SD Card

Push the centre of

the card

Blue LED

Blue LED lights ● while SD Card is inserted if “SD Card LED” is set to “On” in the Setup Menu (p. 39).

Page 67

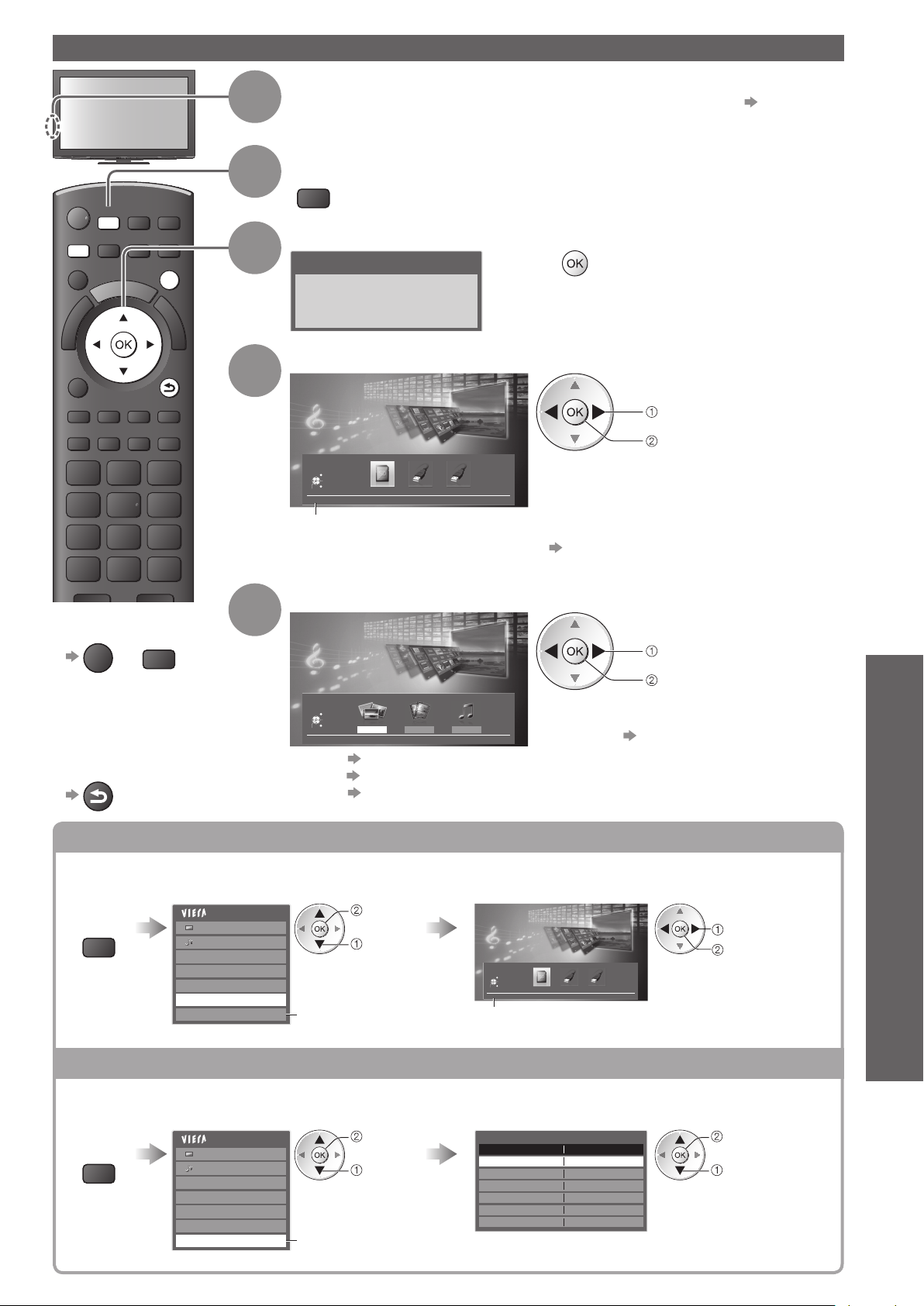

ASPECT

SD CARD

INPUT

TV AV

DIRECT TV REC

EXIT

Starting Media Player

Insert the SD Card or USB Flash Memory

For registered USB HDD, ensure the connection status is “Yes”. ● p. 63

Switch to Media Player

SD CARD

When SD Card is inserted, switching will be done automatically.●

Start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

BACK/

RETURN

TEXT STTL

INDEX HOLD

To return to TV■

EXIT

SD CARD

To return to ■ the previous screen

BACK/

RETURN

Change the device

Select the icon you want to access to

Media Player

select

access

Drive Select

EXIT

Select

RETURN

Access

SD Card

selected device name

If two or more devices are not connected, ● this step will be skipped. For the registered USB HDD, all the USB

●

HDD of which the connection status is “Yes” is available.

“Register and setup the USB HDD”

(p. 63)

Select the content

Media Player

select

access

Contents Select

EXIT

Select

RETURN

Access

SD Card

Photo Video Music

Photo ● “Photo mode” (p. 68) Video ● “Video mode” (p. 70)

● “Music mode” (p. 73)

Music

For registered USB HDD, this step will be ● skipped and recorded contents list will be displayed. p. 71

Using Media Player ●

Advanced

You can change to the other device directly in the same mode if two or more devices are connected. Display

the menu

Select “Drive Select” Select the icon you want to access to

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

USB Remove Safely

access

select

Appears if the USB device is connected to the TV.

Media Player

Drive Select

EXIT

Select

RETURN

Access

SD Card

selected device name

select access

Remove the USB devices safely

Before remove the USB devices, please take the following steps in order to protect the devices. Display

the menu

Select “USB Remove Safely”

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

USB Remove Safely

Appears if the USB device is connected to the TV.

access

select

Select the USB Flash Memory or USB HDD to remove

USB Remove Safely

USB Flash Disk

NameProduct

set

select

Page 68

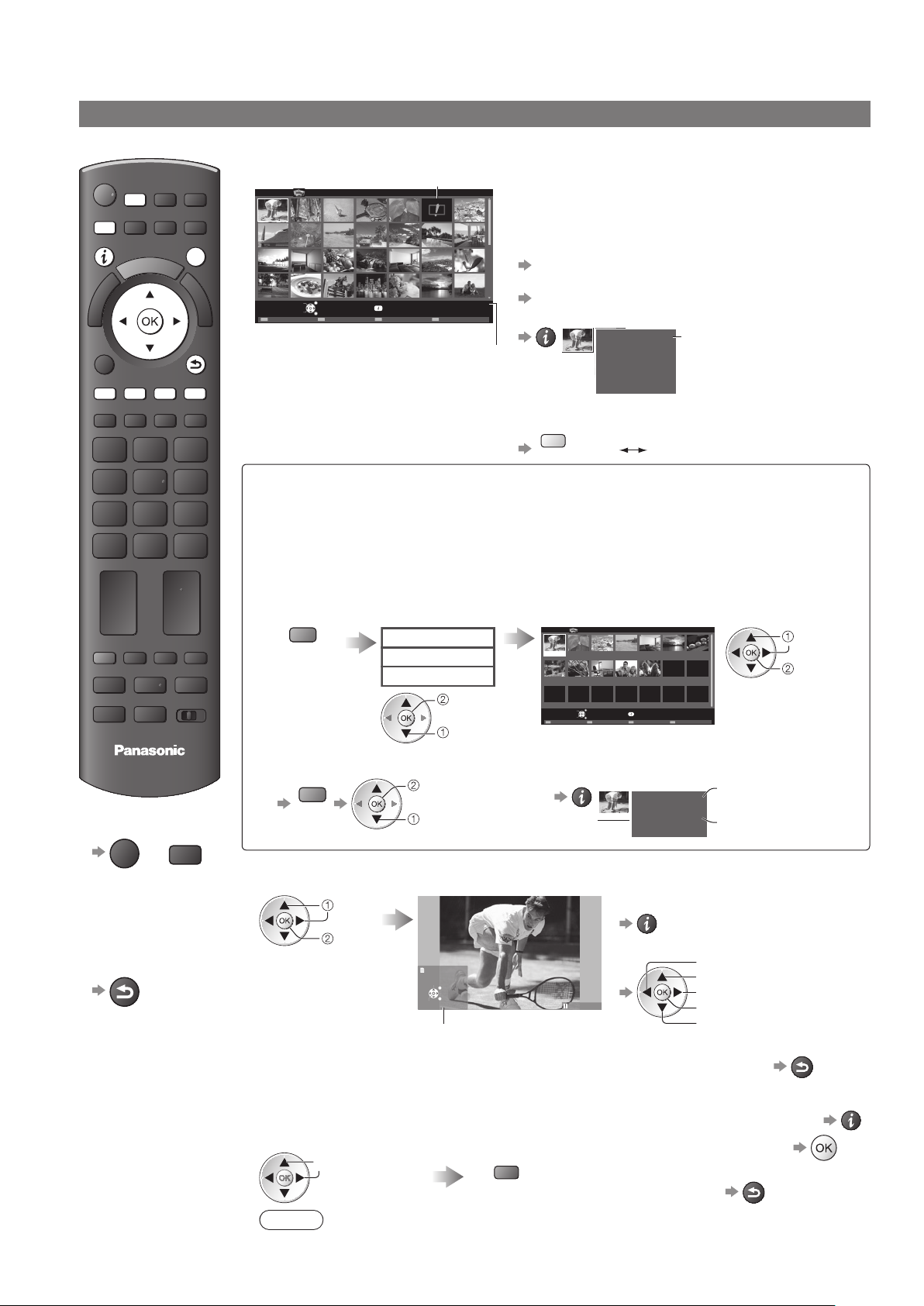

Using Media Player

Photo mode

Photo mode will read all “.jpg” extension files in the SD Card or USB Flash Memory.

Error display (images that could not be loaded, etc.)

The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed.

You can also access Photo mode directly by using ● VIERA TOOLS.

“How to Use VIERA TOOLS” (p. 32)

To change the back ground music ●

Info

SD Card

“Photo Setup” (p. 69)

To display the information of the highlighted photo ●

selected device name

To change the number of photos on a thumbnail ● screen at a time

yellow

The files which are not into a folder will be collected to the folder named “/”.●

The group of the photos without recorded date is shown as “Unknown”.●

Select the sort type

Folder view

Sort by Date

Sort by Month

Select one of the sorted group to display the thumbnail of the selected group

Media Player Photo

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

access

select

access

select

“All photos”

Single view

Rotate

EXIT Select RETURN

Slideshow

Operation guide

(Single view)

Start Slideshow

red

File name


Date

23/10/2009

Pixel

1600X1200

(7 × 4 10 × 6)

Access

EXIT

Select

RETURN

Slideshow Contents Select

View Select

Info

To display the information of the ● highlighted group

23/10/2009

Folder name

Number of files

To display / hide the operation guide ●

To operate Single view●

Single view

To return to thumbnail ●

To display / hide the operation guide ● To pause (return to Single view) ●

To return to thumbnail ●

STTL

REC

INPUT

TV AV

INDEX HOLD

PROGRAMME

DVD/VCR

ASPECT

TEXT

SD CARD

To return to TV■

EXIT

SD CARD

To return to ■ the previous screen

BACK/

RETURN

DIRECT TV REC

EXIT

BACK/

RETURN

Media Player Photo All photos

View

EXIT

Select

RETURN

Slideshow Contents SelectChange Size

View Select

(Thumbnail - All photos)

To sort by folder, recorded date or recorded month■

Folder view : Displays the thumbnail grouped by folder

Sort by Date : Displays the thumbnail grouped by the same date

Sort by Month : Displays the thumbnail grouped by the same month

Display the view selection

green

To return to the thumbnail ● of all photos

green

Single view■ - Displayed one at a time

Select the file from the thumbnail of photos to be viewed

select

access

Slideshow■ - Slideshow will be completed within the thumbnail from which it was started.

Select the file from the thumbnail of photos for the first view

select

1/48

file number / total file number

Sort by Date

SD Card

group number /

1/12

23/10/2009

total group number

folder name,

date or month

To the previous photo Rotate 90˚ (anti-clockwise) To the next photo Slideshow Rotate 90˚ (clockwise)

RETURN

BACK/

select

thumbnail

of the selected group

BACK/

RETURN

Note

Picture quality may become lower depending on the slideshow settings.● Picture setting may not work depending on the slideshow settings.●

Page 69

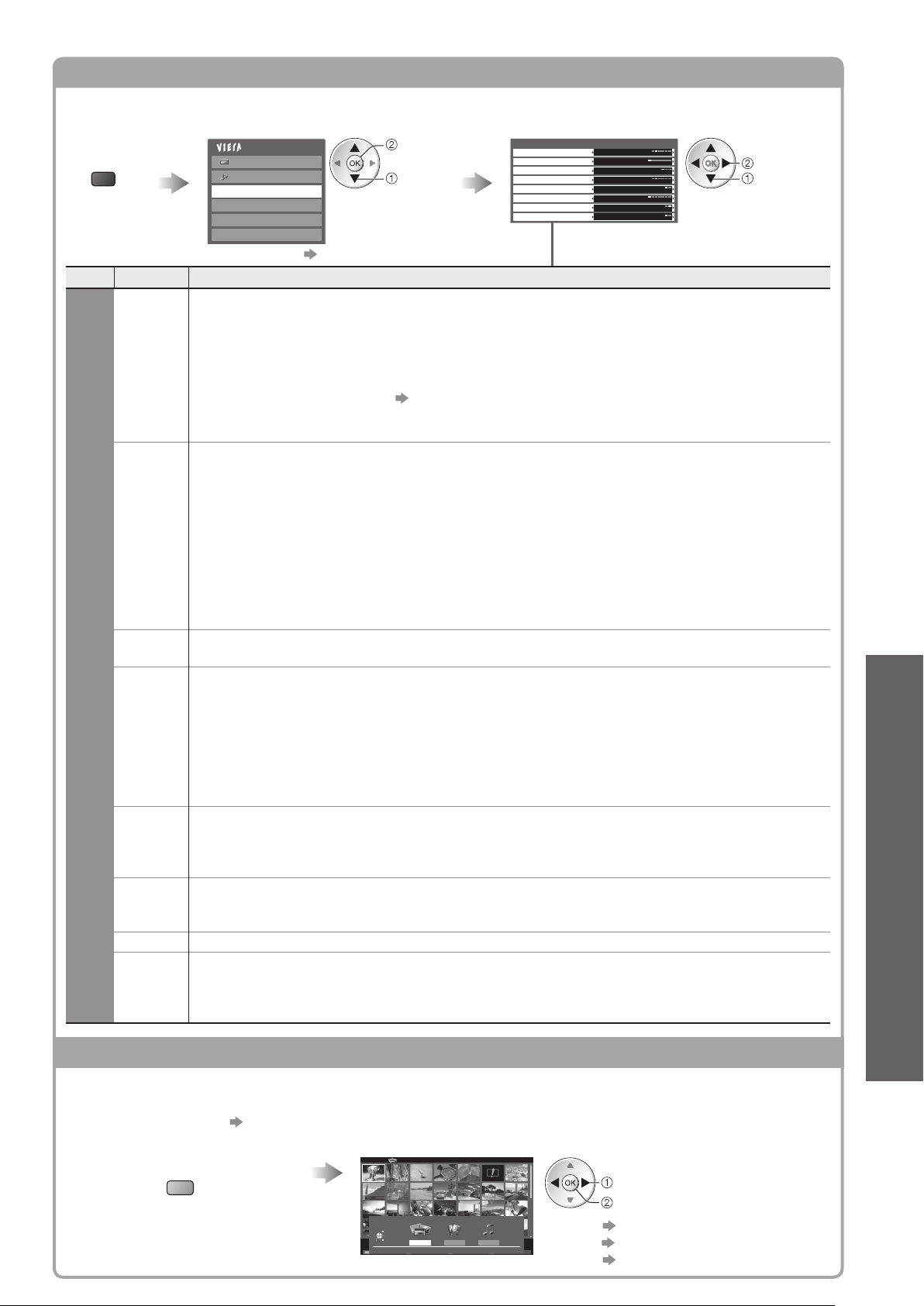

Photo Setup

Setup the settings for Photo mode.

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Back Ground Music

Frame

Photo Setup

Colour Effect

Transition Effect

Screen Mode

Interval

Repeat Slideshow repeat (Off / On)

Burst Playback

Select “Photo Setup” Select the items and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

access

select

Photo Setup Menu

Back Ground Music Type1 Frame Off Colour Effect Transition Effect Screen Mode Interval 5 seconds Repeat On Burst Playback Off

Off Fade Normal

Other items ● p. 34 - 36, 67, 72 and p. 73

Selects the back ground music during the Photo mode

(Off / Type1 / Type2 / Type3 / Auto / User)

Type1, Type2 and Type3 are the fixed music each installed in this TV.●

Auto : Music data stored in the root folder of the SD Card will be played back randomly.

If there is no available music data, no sound will be produced.●

User :

Music data in the current device registered by yourself in Music mode will be played back.

To register the music ● “Set background music for Photo mode” (p. 73) If no music has been registered or the registered music device are removed, no ● sound will be produced.

Selects the indication frame of the slideshow

(Off / Multi / Collage / Drift (+ calendar) / Drift / Gallery (+ calendar) / Gallery / Cinema)

Multi : 9 division display like tiled design Collage : A photo is displayed at random position and random scale. Drift (+ calendar) / Drift : Photos are displayed like flow images.

You can select to display the calendar or not. The month of ● calendar is turned by pressing up or down cursor button.

Gallery (+ calendar) / Gallery : The various size of photos in the frame are displayed.

You can select to display the calendar or not. The month of ● calendar is turned by pressing up or down cursor button.

Cinema : Photos are displayed like old films (sepia tone) Selects the colour effect of photos on Single view and Slideshow (Off / Sepia / Gray scale)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.●

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually. Slide : The next photo slides and appears from the left side. Dissolve : The photo is replaced by an indefinite block unit. Motion : The photo is replaced with enlarged, reduced, moved up or moved down. Random : Each transition is selected at random.

This function is available when “Frame” is set to “Off”.

●

Selects whether enlarged or normal viewing on Single view and Slideshow (Normal / Zoom)

This function is not available when “Frame” is set to “Collage”, “Drift”, “Gallery” or “Cinema”.

●

This function is not available when “Transition Effect” is set to “Motion”.● Depending on the photo size, the photo may not be enlarged.●

Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.● This function is not available when “Transition Effect” is set to “Motion”.●

Selects whether the continuous shots are displayed in rapid interval during the slideshow

(Off / On)

This function is not available when “Frame” is set to “Drift”, “Gallery” or “Cinema”.● This function is not available when “Transition Effect” is set to “Motion”.●

set select

Using Media Player ●

Advanced

Change the contents

You can switch to the other mode of Media Player from the thumbnail.

The mode can be switched in the current device.● To change the device ● “Change the device” (p. 67)

While the thumbnail is displayed, display the contents selection

blue

Select the contents

Media Player Photo All photos

Contents Select

EXIT

Select

RETURN

View

EXIT

Photo Video Music

Access

Select

RETURN

SD Card

Slideshow Contents SelectChange Size

View Select

Info

Photo ● “Photo mode” (p. 68)

SD Card

Video

● “Video mode” (p. 70)

● “Music mode” (p. 73)

Music

select access

Page 70

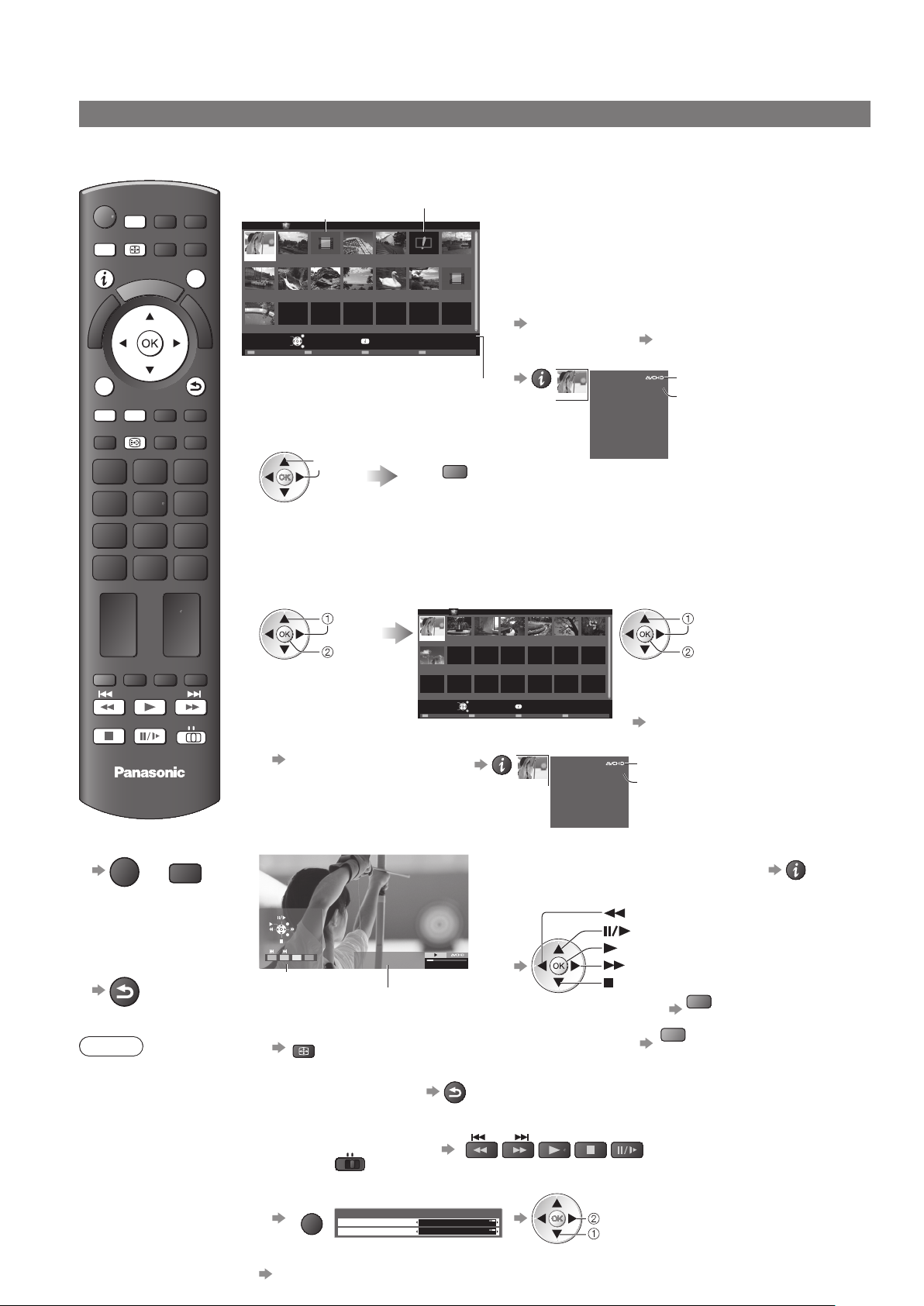

Using Media Player

Video mode

For SD Card or USB Flash Memory

Video mode supports AVCHD, MPEG2 and DivX® file formats.

Error display (images that could not be loaded, etc.)

The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. The preview will start when the title is highlighted if it supports a preview.

You can also access Video mode directly by using ● VIERA TOOLS

SD Card

“How to Use VIERA TOOLS” (p. 32)

To off the preview ● “Video Setup” (p. 72) To display the information of the highlighted title●

Trip1

red

DivX contents cannot be played back from Title view. Select DivX ● folder and press the OK button to display DivX files, and then select one of the file to be played back.

Media Player Video

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Trip1_8

Play

EXIT

Select

RETURN

Info

(Thumbnail - Scene view)

Title view > Trip1

Contents Select

To display the information of the highlighted scene●

Scene

Trip1

Date & Time

19/02/2009 11:21

Duration

To display / hide the operation guide ● and information banner To operate the playback●

Trip1 19/02/2009 11:21

00:02.05 / 00:15.39

(Playback)

To the previous scene ●

To the next scene ●

BACK/

RETURN

STTL

REC

INPUT

TV AV

DIRECT TV REC

EXIT

BACK/

RETURN

INDEX HOLD

PROGRAMME

DVD/VCR

OPTION

TEXT

SD CARD

ASPECT

To return to TV■

EXIT

SD CARD

To return to the ■ previous screen

BACK/

RETURN

Note

The structure of ● titles and scenes may vary depending on the digital video camera used.

Film icon will be displayed if the file does not support thumbnail view.

Media Player Video Title view

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

2009_9

Access

EXIT

Select

Play Contents Select

RETURN

Info

(Thumbnail - Title view)

selected device name

Playback from Title view■

Playback of the selected title will start.

Select the title Start playback

select

Playback from the selected scene in the title (AVCHD or MPEG2)■

Playback will start from the selected scene to the end of the title.

Select the title Select the scene to start playback

select

access

To repeat playback

●

“Video Setup” (p. 72)

How to operate in the playback■

EXIT

RETURN

Title Date & Time

Operation guide

To change aspect ● (only for the 4:3 video content)

SPECT

To return to thumbnail ● You can also use the following buttons. (p. 25)●

Set the position to “TV”

DVD/VCR

Information banner

file format

Title

Date & Time

Number of scenes

Duration

1/15

Trip1

19/02/2009 11:21

00h15m39s

title number / total title number

select

playback

The preview will start when the scene is highlighted if it supports a preview.

SD Card

To off the preview ●

“Video Setup” (p. 72)

file format

1/8

scene number / total scene number

Trip1_1

00h04m12s

Rewind

Pause / Playback

Playback

Fast forward

Stop

red

green

To confirm or change the current status (if available)●

Example:

OPTION

Option Menu

Multi Audio Audio1 DivX Subtitle Subtitle1

To change the content in the current device■

“Change the contents” (p. 69)

change select

Page 71

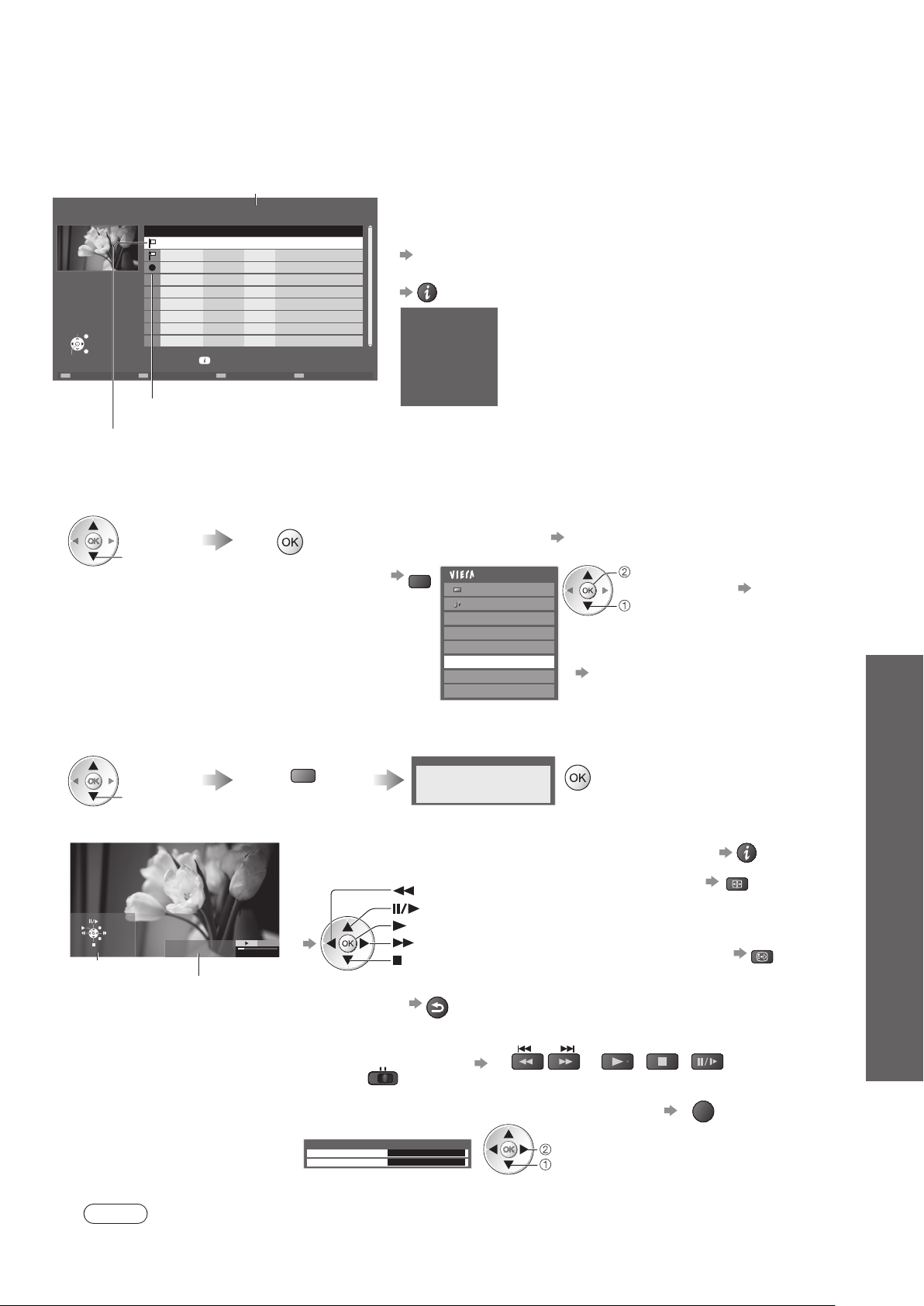

For registered USB HDD

Remaining capacity of the HDD

This value may not be accurate depending on the condition.●

Media Player USB HDD recordings Remaining Capacity 500GB (50%)

TitleDate

Wed 28/10

Sun 10/01

Fri 15/01

Time

12:00

13:30

13:50

Das Erste

News

Cinema

Channel

BBC 1

ITV

BBC 2

Contents list of the registered USB HDD will be displayed.

●

You can also access the contents list directly by using VIERA TOOLS.

“How to use VIERA TOOLS” (p. 32)

To display the information of the highlighted content ●

Select

Play

Delete

EXIT

RETURN

Info

USB HDD 1

Channel :

DVB-T, BBC 1

Title :

Das Erste

Date & Time :

Wed 28/10/2009 12:00

Duration :

00:20

Content under recording

You can playback this content even if under recording.●

Content not played back

Once you playback the content, this icon will disappear.●

Playback the content from the list■

Select the content Start playback

You can playback the recorded 3D programmes with 3D effect.

To view the 3D images ● p. 29 To adjust and setup the 3D settings

select

●

Delete the selected content■

Select the content Delete the content Confirm

select

red

Delete

How to operate in the playback■

To display / hide the operation guide and information banner ● To operate the playback●

Rewind

Pause / Playback

EXIT

RETURN

Operation guide

Title

Das Erste

Date & Time

28/10/2009 12:00

00:02.05 / 00:15.39

(Playback)

Information banner

To return to list ●

Playback

Fast forward

Stop

BACK/

RETURN

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

Drive Select

USB Remove Safely

DVB-T, BBC 1

Das Erste

Wed 28/10/2009 12:00

00:20

access

For details ●

p. 31

select “3D Settings”

You can also access 3D Settings menu ● directly by using VIERA TOOLS.

“How to use VIERA TOOLS” (p. 32)

To change aspect ●

To display the subtitle ●

ASPECT

STTL

(if available)

Using Media Player ●

Advanced

Note

Depending on the recorded programmes, some playback operations may not work properly.●

You can also use the following buttons. (p. 25)● Set the position to “TV”

DVD/VCR

(press and hold)

To confirm or change the current status (if available) ●

Example:

Option Menu

Multi Audio eng Dual Audio eng

change select

OPTION

Page 72

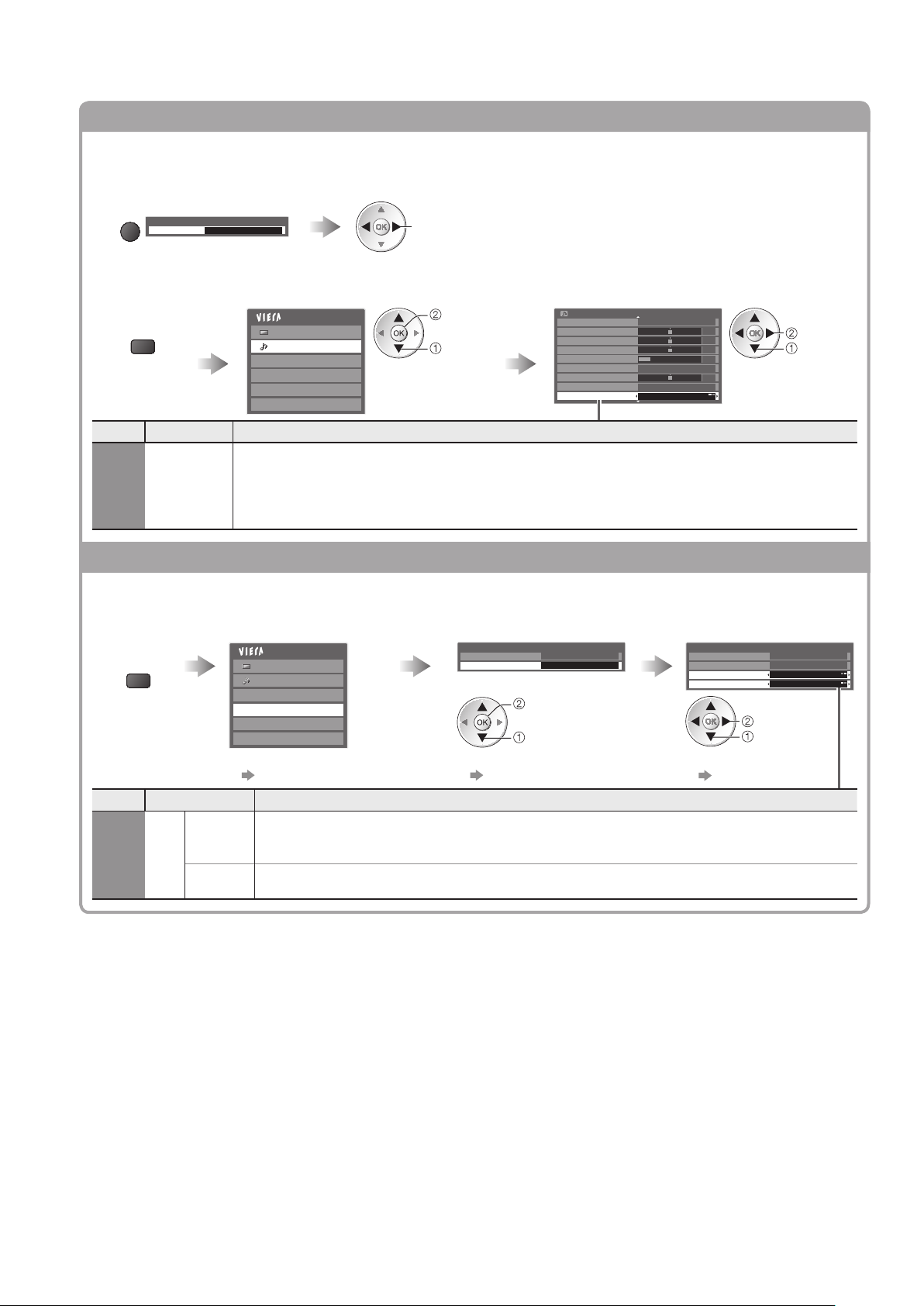

Using Media Player

Sound Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

To confirm or change the current sound status

■ (during playback)

Display the Option menu Change the sound (if the video has multiple audio signals)

Example:

OPTION

Option Menu

Multi Audio Stereo

(current sound status)

Audio output settings■

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

Select “Sound” Select “SPDIF Selection” and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM. PCM

: Digital output signal is fixed to PCM.

change

access

select

It may take several seconds to change the sound.●

Sound Menu

Mode Music Bass Treble Balance Headphone Volume

Volume Correction Speaker Distance to Wall Over 30cm

SPDIF Selection

OffSurround

Auto

1/2

0 0 0

set select

Video Setup

Setup the settings for Video mode.

These settings are not available for the registered USB HDD.● Display

the menu

Menu Item Adjustments / Configurations (alternatives)

Setup

Settings

Video

Other

Select “Video Setup” Select “Other Settings” Select the items and set

Video Setup Menu

Display Settings

Other Settings Access

access

select

Display Settings ●

p. 38

Video Preview

Repeat

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

Other items ●

p. 34 - 36, 67, 69 and p. 73

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the preview ● “Off” to resolve this.

Playback repeat within the title (Off / On)

Only the selected file will be repeated for DivX contents.●

Other Settings

Intelligent Frame Creation Off 16:9 Overscan On

Video Preview On Repeat Off

set select

Other items ●

p. 39

Page 73

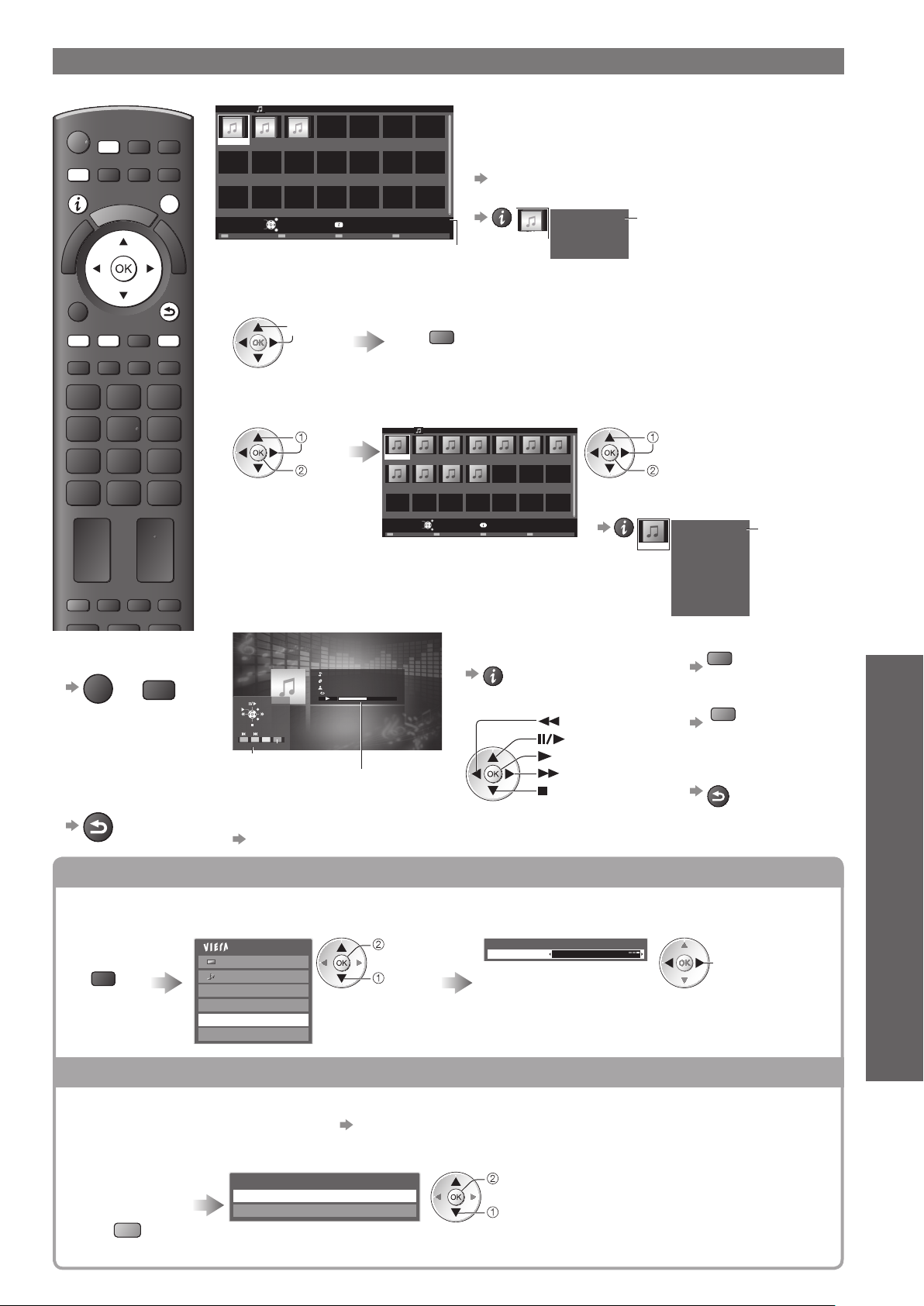

Music mode supports MP3 and AAC file format.

Media Player Music

SD CARD

INPUT

TV AV

DIRECT TV REC

EXIT

My Music_1 My Music_2 My Music_3

Access

EXIT

Select

RETURN

Info

selected device name

Playback from Folder view■

BACK/

RETURN

Playback all the files in the selected folder will start.

Select the folder Start playback

select

TEXT

STTL

INDEX HOLD

Playback from File view■

Playback of the selected file will start.

Select the folder Select the file to start playback

select

access

PROGRAMME

REC

How to operate in the playback■

To return to TV■

EXIT

SD CARD

EXIT

RETURN

My Song_9

My Favourite My Music_1

00:02.43 / 00:05.44

To return to ■ the previous screen

BACK/

RETURN

User BGM

Operation guide (Playback)

Information banner

To change the content in the current device■

“Change the contents” (p. 69)

Music mode

Folder view

The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed.

You can also access Music mode directly by using ● VIERA TOOLS

“How to use “VIERA TOOLS” (p. 32)

To display the information of the highlighted title●

SD Card

Contents SelectPlay Folder

red

Media Player Music Folder view > My Music_1

My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7

My Song_8 My Song_9 My Song_10 My Song_11

Play

EXIT

Select

RETURN

My Music_1

Info

Contents Select

To display / hide the operation ● guide and information banner

To operate the playback●

Playback

Stop

Folder name

Number of files

1/3

My Music_1

To display the information of the ● highlighted title

SD Card

Rewind

Fast forward

Pause / Playback

folder number / total folder number

select

playback

Title

Album

Artist

Track No.

Duration

My Song_1

My Music_1

My Favorite

00h03m29s

My Song_1

To the previous track ●

red

To the next track ●

green

To return to thumbnail ●

BACK/

RETURN

1/11

file number / total file number

Using Media Player ●

Advanced

Music Setup

Setup the setting for Music mode.

Display the menu

Select “Music Setup” Set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

Drive Select

access

select

Music Setup Menu

Repeat One

Folder : Playback repeat within the selected folder One : Playback repeat of the selected one file

Set background music for Photo mode

You can register your favourite music as background music for Photo mode.

Select “User” in “Back Ground Music” ● “Photo Setup” (p. 69) If you remove the device in which the registered music is stored, the setting of “User” will be reset.●

While playing music, display the selection screen

blue

Select “File” or “Folder” and set

File

Folder

set

select

File : The current music will be

registered as back ground music.

Folder : All the music in the current folder

will be registered as back ground music.

set

Page 74

Using Network Services

(DLNA / VIERA CAST)

DLNA

This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. It allows you to share photos and videos (including 3D images) stored in the DLNA Certified media server (for example, PC with windows 7 installed, DIGA Recorder etc.) connected to your home network, and enjoy watching them on the TV screen.

Applicable data format

■

Photo : JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)

Video : MPEG-2 (PS format and TS format)

Media server■

Ensure the connected equipment has a DLNA Certified media server. To use the PC, install the server software on the PC for obtaining a media server. Store photos or videos into the media server, and then you can watch them on the TV. “TwonkyMedia server 5.1.x” and “Windows 7” are the server software that has been tested for the performance with this TV (current as of January, 2010). For installing, read the manual of the server software.

●

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media servers.

●

Network connection■

Network setup■

DLNA operations■

Image resolution - 8 × 8 to 30,719 × 17,279 pixels

MOTION JPEG and Progressive JPEG are not supported.●

AVCHD and DivX files are not supported by DLNA, but can be played by Media Player (p. 70).●

Music files are not supported by DLNA, but MP3 and AAC files can be played back by Media Player (p. 73).●

The DLNA control function of Windows 7 is not supported with this TV. When a server software for the media server is installed on the PC, the data may be at risk of being accessed ● by other people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at home when not using a router.

For details, read the manual of the DIGA Recorder.

Example 1 or Example 2 in “Network connections” (p. 75)

p. 76 - 79

p. 80 - 82

VIERA CAST™

VIERA CAST is a gateway to the internet services unique to Panasonic. By connecting the TV to the internet environment, VIERA CAST allows you to enjoy internet content on the TV screen such as photos, videos, weather, etc. from VIERA CAST home screen. You can access VIERA CAST home screen directly by pressing the VIERA CAST button on the remote control.

Network connection

■

Example 1 or Example 3 in “Network connections” (p. 75)

Network setup■

p. 76 - 79

VIERA CAST operations■

p. 83

Page 75

Network connections

To use only DLNA features, you can operate the features without Broadband network environment. To use VIERA CAST features, you need a Broadband network environment.

If you do not have a Broadband network services, please consult your retailer for assistance.● Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications ● company. Set up and connect any equipment required for the network environment.● Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the ● transfer speed is not enough, contents may not be played back properly. Read the manual of the network equipment, too.●

Example 1■

Wireless LAN connection■

You can connect to the network by using a Wireless LAN Adaptor (supplied) and an access point.

It is recommended to use the Wireless LAN Adaptor with the supplied extension cable.●

Internet

Modem

LAN cable

Using Network Services ●

(DLNA / VIERA CAST)

Wired LAN connection■

You can also connect to the network directly by using a LAN cable.

Ensure to use a LAN straight cable for this connection.● If your modem has no broadband router functions, use a broadband router.● If your modem has broadband router functions but there are no vacant ports, use a hub.● Ensure that the Broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.● If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.●

Hub, Router

Access point

DLNA Certified media server (for example, PC, DIGA Recorder, etc.)

Example 2■

You can connect the TV and the equipment directly to use DLNA features.

LAN cable

DLNA Certified media server (for example, PC, DIGA Recorder, etc.)

Ensure to use a LAN cross cable for this connection.●

Example 3■

You can connect the TV and the telecommunication equipment directly to use VIERA CAST features.

LAN cable

Modem

Internet

Advanced

Note

Depending on the ISP or telecommunications company, the required equipment and the internet connection ● procedure are different. Ensure that you use the network equipment that are authorized by your ISP and telecommunications company. You cannot make settings for the network equipment on this TV. You may be required to make settings on your

●

computer. Depending on the terms and conditions of the contracts with your ISP or telecommunications company, additional ● fees may be charged or multiple connections to the internet may be impossible.

●

Please contact your ISP or telecommunications company if you require further assistance regarding the network equipment.

Page 76

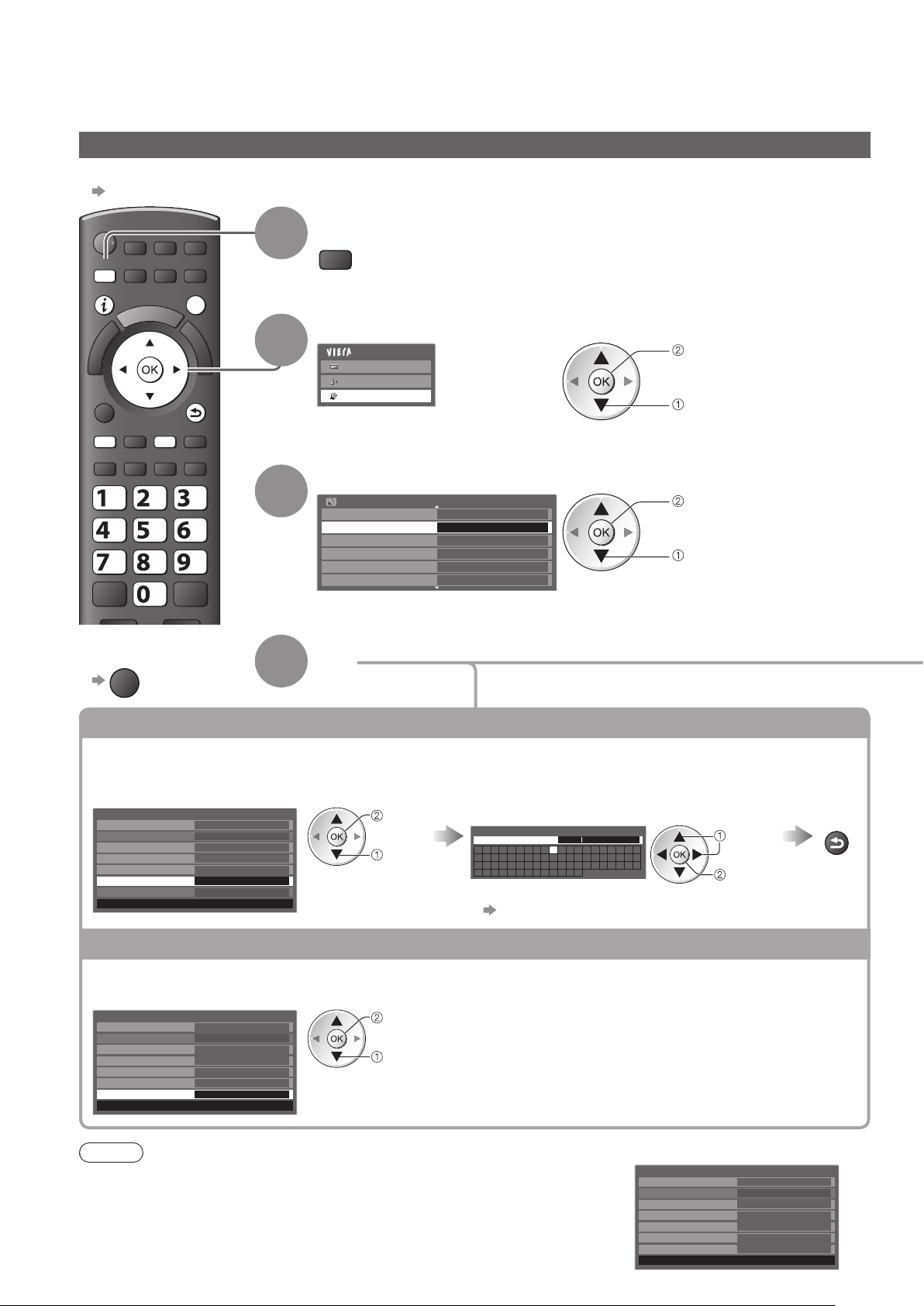

Using Network Services

(DLNA / VIERA CAST)

Network Setup

Ensure the connections are completed before starting Network Setup.●

“Network connections” (p. 75)

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Network Setup”

Setup Menu

Common Interface

AccessNetwork Setup

DivX® VOD

OffAdvance(isfccc) System Menu Other Settings

2/2

access

select

access

select

ghi

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

To return to TV■

EXIT

Set

Edit the name of this TV

You can set your favourite name for this TV. This name will be used to display the name of this TV on the screen of the other DLNA compatible equipment.

Select “VIERA Name” Edit the name

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test

VIERA Name VIERA

Software Update MAC Address ab-cd-ef-gh-ij-kl

---

access

select

Set characters one by one

VIERA Name

Name VIERA

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : # o p q r s t

select

set

You can set characters by using numeric buttons.●

“Characters table for numeric buttons” (p. 96)

Update TV’s software

Accesses the specific web site to update TV’s software and search if any software updates are available.

Select “Software Update”

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name

Software Update

MAC Address ab-cd-ef-gh-ij-kl

---

VIERA Access

Follow the on screen instructions●

access

select

Store

BACK/

RETURN

Note

MAC Address

MAC address is a unique address that identifies hardware in the network. ● (for information only)

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

Page 77

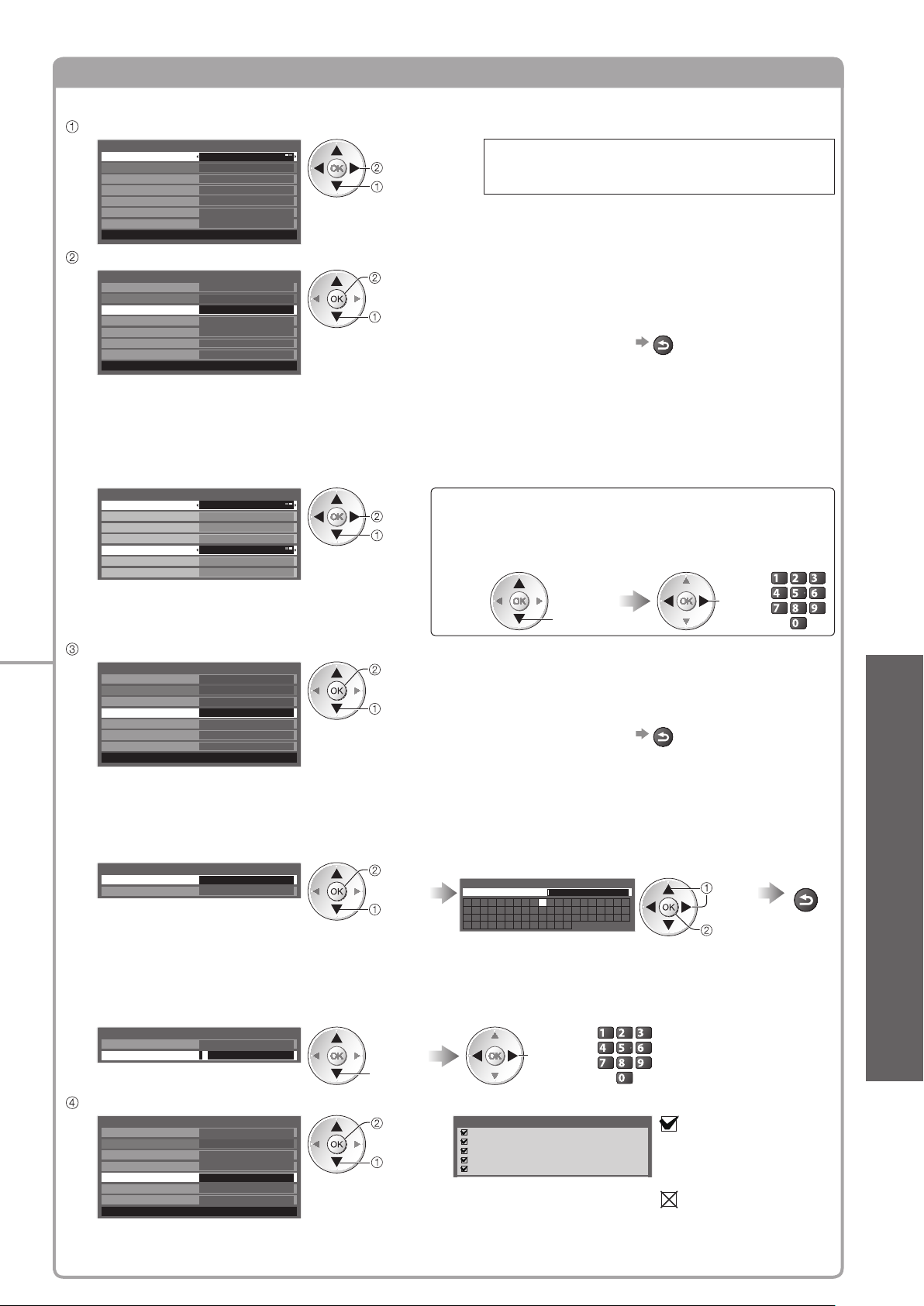

Network settings for the LAN Cable connection

This setting is for the network connection by using the LAN cable.

Select “Network Type” and set to “Wired”

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

set select

Select “IP/DNS Settings” and set the items

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings

Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

Access

After settings, return to “Network Setup” screen

access

select

Acquire IP Address■ Acquire DNS Address■

Sets IP Address, Subnet Mask, Gateway, Primary DNS and Secondary DNS. For most users, the recommended method of connection to your network is by using Auto feature.

Select “Acquire IP Address” and then set to “Auto” Select “Acquire DNS Address” and then set to “Auto”

IP/DNS Settings

Acquire IP Address

IP Address Subnet Mask Gateway . . .

Acquire DNS Address Auto

Primary DNS . . . Secondary DNS . . .

Auto . . . . . .

The available settings are ● displayed automatically.

set select

Manual settings

If you wish to set these functions manually, select “Manual”. Select “IP Address”, “Subnet

Mask”, “Gateway”, “Primary DNS” or “Secondary DNS”

If you make the network connection like “Example2” (p. 75), you do not have to set “Acquire DNS Address”, “Proxy” and “Proxy Port”.

BACK/

RETURN

Move the cursor and enter the number

select

move

Using Network Services ●

(DLNA / VIERA CAST)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Select “Proxy Settings” and set the items

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings

Proxy Settings

Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

Access

After settings, return to “Network Setup” screen

access

select

BACK/

RETURN

Proxy■

Sets Proxy address.

This is the address of the relay server that is connected to the target server instead of the browser and ● sends data to the browser. Setting is required if specified by the provider.

Select “Proxy” Enter the address Store

Proxy Settings

Proxy

Proxy Port 0

access

select

Set characters one by one

Proxy

Host

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : # o p q r s t

You can set characters by using numeric buttons.●

select

set

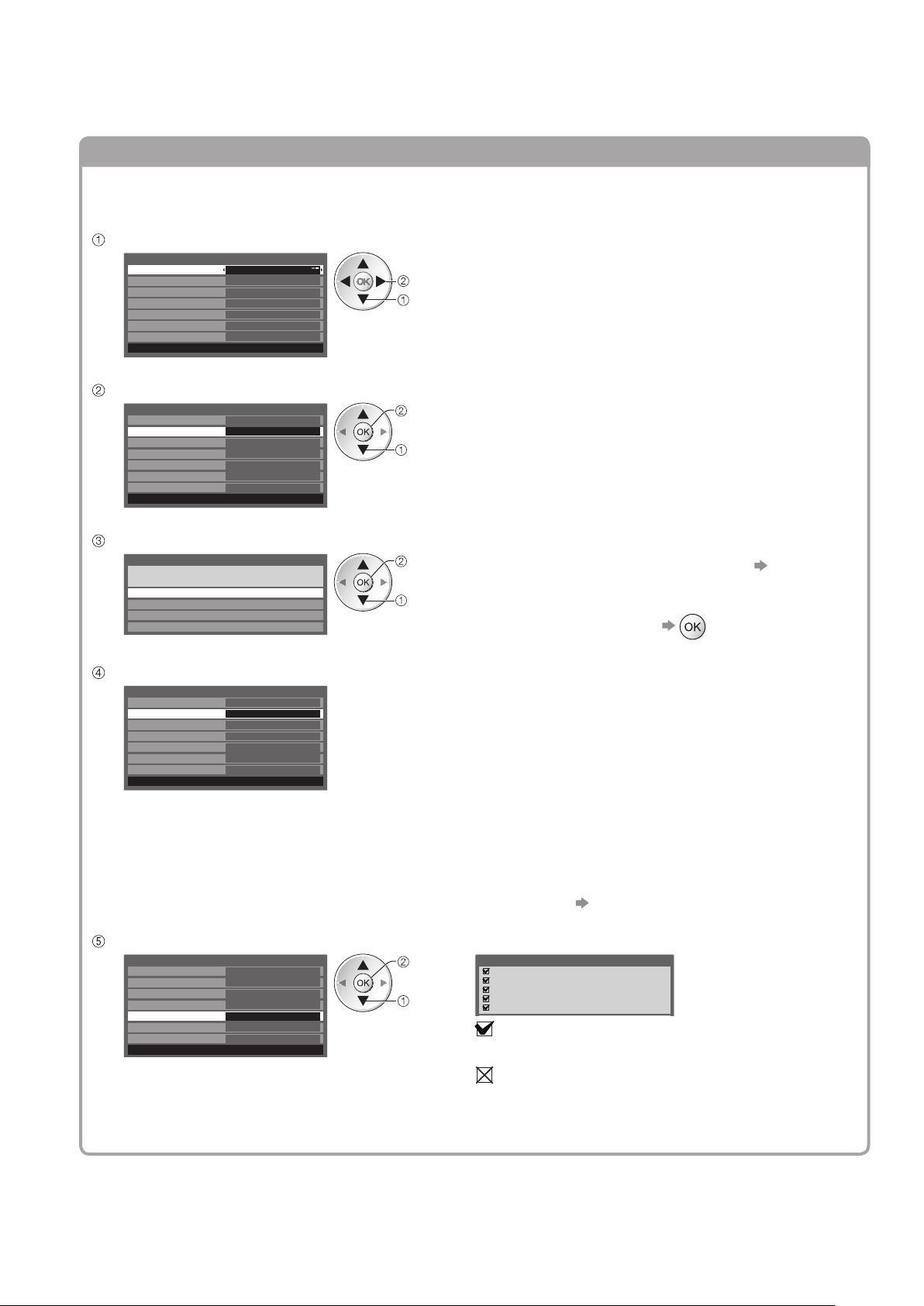

Proxy Port■

Sets Proxy port number.

This number is also specified by the provider with the Proxy address.●

Select “Proxy Port” Move the cursor and enter the number

Proxy Settings

Proxy

Proxy Port 0

move

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

BACK/

RETURN

Advanced

Select “Connection Test” and access to test

Network Setup

Network Type Wired

Access Point Settings

IP/DNS Settings Proxy Settings

Connection Test

VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

---

Access

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

access

select

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

succeeded

The test is successful and the TV is connected to the network.

failed

Check the settings and connections, and then perform this function again.

Page 78

Using Network Services

(DLNA / VIERA CAST)

Network settings for the Wireless LAN connection

This setting is for the network connection by using Wireless LAN Adaptor. (Wireless LAN connection)

Confirm the encryption key, settings and positions of your access point before starting setup. For details, read ● the manual of the access point.

Select “Network Type” and set to “Wireless”

Network Setup

Network Type Wireless

Access Point Settings IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

Select “Access Point Settings”

Network Setup

Network Type Wireless

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

No settings

set select

access

select

Select the connection type and set

Connection Type

Please select network connection type.

WPS(Push button)

WPS(PIN)

Search for access point

Manual

After settings, return to “Network Setup” screen

access

select

For details of each connection type ● p. 79

Confirm the connection status of “Access Point Settings”

Network Setup

Network Type Wireless

Access Point Settings

IP/DNS Settings Proxy Settings Connection Test VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

Connected

- - - : “Wired” is selected in “Network Type”. No adaptor : Wireless LAN Adaptor is not connected. No settings : Setting for connecting to the access point has not been set. Connecting... : Connecting to the access point in progress. Connected : Wireless LAN connection to the access point succeeded

To display the current access point settings, press the OK ● button. To change the settings, select “No” on this screen. Some access points do not allow access to the internet. ● Perform “Connection Test” (below) to check if internet

connection is available. USB overcurrent : Overcurrent error p. 101

Select “Connection Test” and access to test

Network Setup

Network Type Wireless Access Point Settings IP/DNS Settings Proxy Settings

Connection Test

VIERA Name VIERA Software Update MAC Address ab-cd-ef-gh-ij-kl

Connected

Access

access

select

Performs automatic testing of the network connection for the TV. (It takes a while to test.)

Connection Test

Check access point connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection.

succeeded

The test is successful and the TV is connected to the network.

failed

Check the settings and connections, and then perform this function again. If you continue to have difficulty, please contact your internet service provider.

Page 79

WPS(Push button)■

WPS(Push button)

1) Please press the ‘WPS’ buttton on the access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

Connect

Press the WPS button on the access point until the light flashes. And then, press the OK button to connect the Wireless LAN Adaptor and the access point.

Ensure that your access point supports WPS for this setup.● WPS: Wi-Fi Protected Setup●

Search for access point■

Access points found automatically are listed.

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

Access Point B

Access Point C 11n(5GHz)

Encryption Key Setting

Connection will be made with the following settings:SSID : Access Point A Authentication type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

11n(5GHz)

Select your desired access point

access

select

: Encrypted access point

Access the encryption key input mode

If the selected access point is not encrypted, the confirmation screen will be ● displayed. It is recommended to select the encrypted access point.

To search access points again ● For the information of the ●

highlighted access point To set manually ●

red

yellow

Using Network Services ●

(DLNA / VIERA CAST)

Access Point Settings

Encryption key

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

Access Point Settings

Encryption key is set to:XXXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes No

WPS(PIN)■

Available Access Points

SSIDNo. Wireless type Encrypt Reception

Access Point A 11n(2.4GHz)

Access Point B

Access Point C 11n(5GHz)

WPS(PIN)

Please register the following PIN codes on the access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the settings on the access point.

Connect

11n(5GHz)

O P Q R S T

7 8 9 ! : # o p q r s t

Enter the encryption key of the access point Set characters one by one Store

select

set

BACK/

RETURN

You can set characters by using numeric buttons.●

Select “Yes”

select confirm

To re-enter the encryption key, select “No”.●

Manual■

Select your desired access point

access

select

Ensure that your access point ● supports WPS for this setup. To search access points again ●

yellow

For the information of the ● highlighted access point

To set manually ●

red

Enter the PIN code to the access point, and then select “Connect”

You can setup SSID, authentication type, encryption type, and encryption key manually. Follow the on screen instructions and set manually.

When you use 11n (5GHz) for the wireless

●

system between the Wireless LAN Adaptor and access point, please select “AES” for the encryption type.

Access Point Settings

Please input the SSID.

SSID XXXXXXX

SSID Setting

SSID is set to:XXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Authentication Type Settings

Connection will be made with the following settings:SSID : XXXXXXX

Please select the authentication type.

Advanced

Yes No

WPA2-PSK

WPA-PSK

Shared key

Open

Page 80

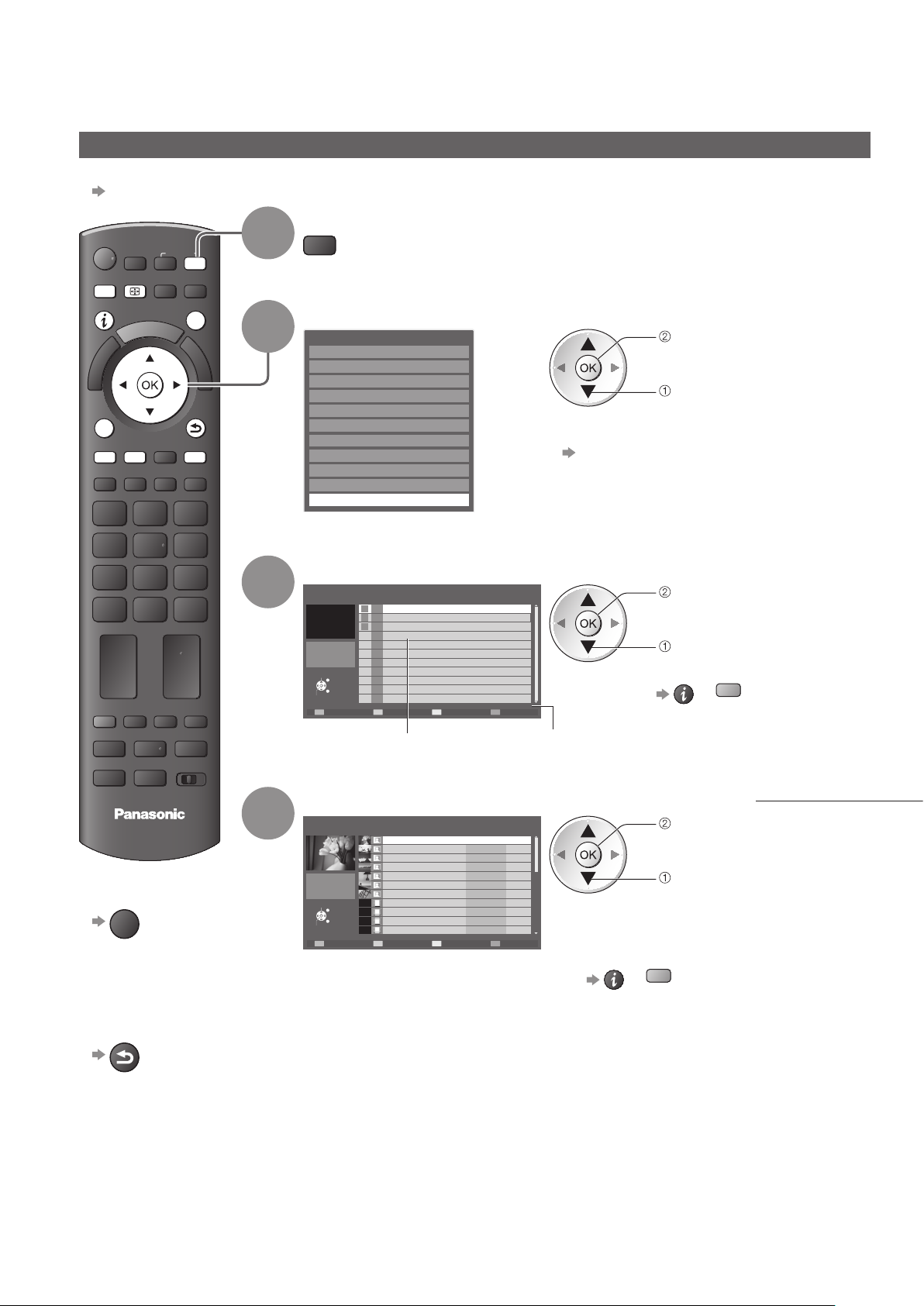

Using Network Services

(DLNA / VIERA CAST)

Using DLNA® features

Ensure the preparation of media server, network connections and network settings are completed.●

“Media server” (p. 74), “Network connections” (p. 75), “Network Setup” (p. 76 - 79)

Display the Input select menu

OPTION

ASPECT

INPUT

EXIT

BACK/

RETURN

Select “Media Server”

Input Selection

AV1 AV2/S AV3 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 TV

Media Server

access

select

You can also access directly by using ● VIERA TOOLS

“How to Use VIERA TOOLS” (p. 32)

To return to TV■

EXIT

To return to ■ the previous screen

BACK/

RETURN

Select one of the media servers you want to access

Media Server

SERVER1

SERVER2

SERVER3 DIGA

Select

EXIT

RETURN

Access

Available media servers

Info

(Media server list)

To display the information of the highlighted ● media server or

Total listed number

access

select

blue

Select the file (photo or video) to be viewed

Media Server

SERVER1

P000102 2008-10-05 09:54 P000135 2008-11-20 13:18 P000180 2008-12-07 11:31 P000214 2008-12-10 15:20

Pixel

3648x2736

Format

Select

EXIT

RETURN

View

Slideshow Info

P000251 2008-12-19 12:39 P000276 2008-12-25 14:06 P000293 2009-01-06 13:52

JPEG

M10025 2009-01-12 15:56 M10042 2009-01-20 10:08 M10054 2009-01-28 14:48 M10078 2009-02-09 19:58

(File list)

Depending on the conditions of media ● server, you may need to select the folder before selecting the file. To display the information of the highlighted ●

file or

access

select

blue

Page 81

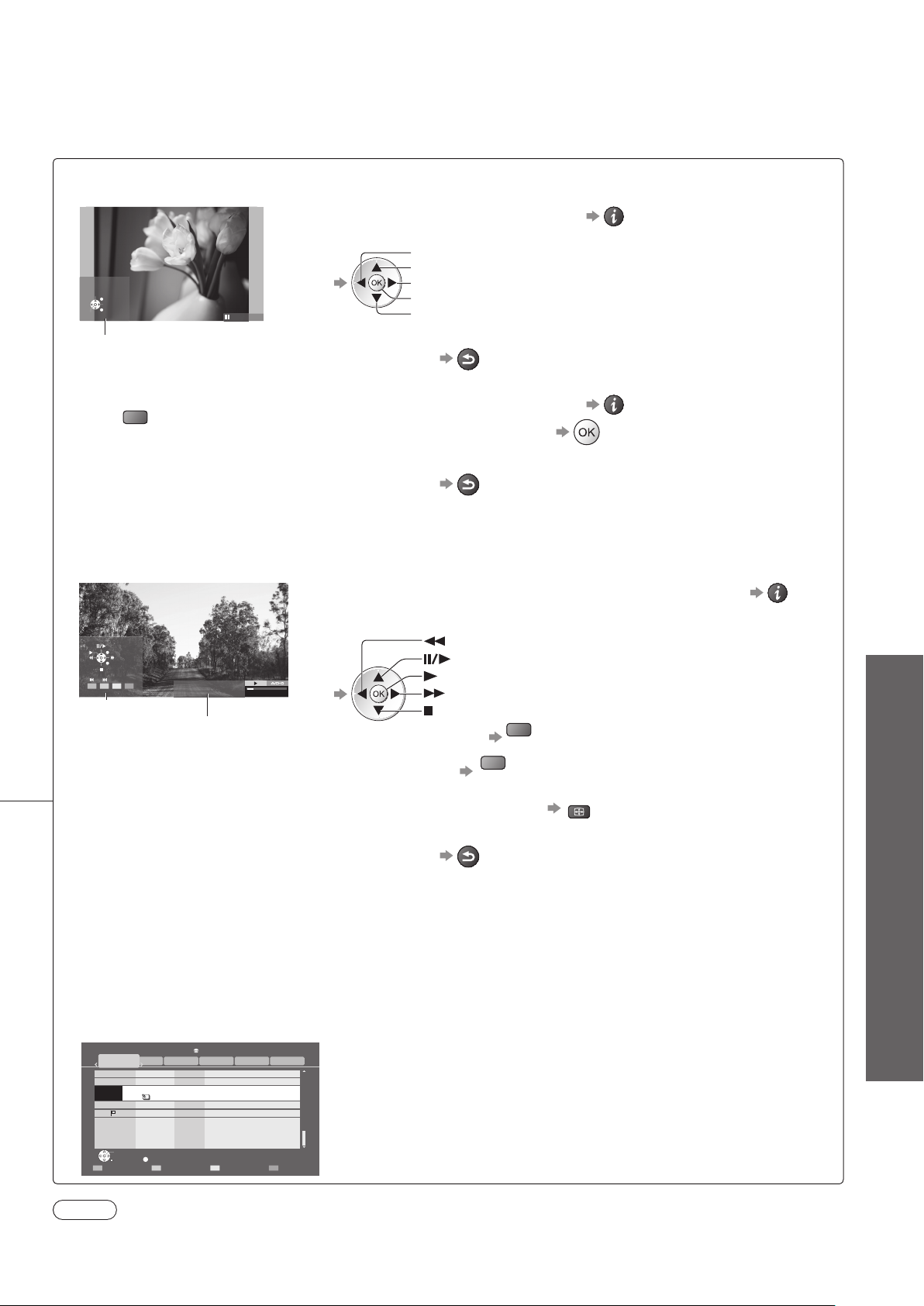

For photo file

Single view■ - Displayed one at a time

To display / hide the operation guide ● To operate Single view●

To the previous photo

Single view

Rotate

EXIT Select RETURN

Slideshow

Operation guide

Single view

(Single view)

Rotate 90˚ (anti-clockwise) To the next photo Slideshow Rotate 90˚ (clockwise)

BACK/

RETURN

To return to list ●

Slideshow■ - Slideshow will be started from the selected photo file and completed within the list.

Start Slideshow

red

To display / hide the operation guide ● To pause (return to Single view) ●

BACK/

RETURN

To return to list ●

For video file

Playback ■ - Playback will start.

To display / hide the operation guide and information banner ● To operate the playback●

EXIT

RETURN

Operation guide

Title

Trip1

Date & Time

19/02/2009 11:21

00:02.05 / 00:15.39

(Playback)

Information banner

To the previous scene ●

Rewind

Pause / Playback

Playback

Fast forward

Stop

red

Using Network Services ●

(DLNA / VIERA CAST)

To the next scene ● To change aspect ●

green

ASPECT

(only for the 4:3 video content)

BACK/

RETURN

To return to list ●

For DIGA Recorder

Control the DIGA Recorder■

The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote control according to the operation guide.

●

Before operating, register this TV on the DIGA Recorder. For details, read the manual of the DIGA Recorder.●

Example:

DIRECT NAVIGATOR (Grouped Titles)

All

OK RETURN

Note

You may select and playback the music file.● Non-playable files are also listed but cannot be selected.● Turn the TV off, and then on again when changing or reconnecting the network connection.●

Liberty TV FR Journal Télévisé / Météo

AV1

Bibel TV Bibel TV das Gespräch

WDR Aachen

WDR Wuppertal

OPTION

HDD

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

18.08(Tue)

WDR aktuell

18.08(Tue)

WDR aktuell

Time Remaining 36:17 (DR)

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

Page 005/005

Delete TitleSelect

Advanced

Page 82

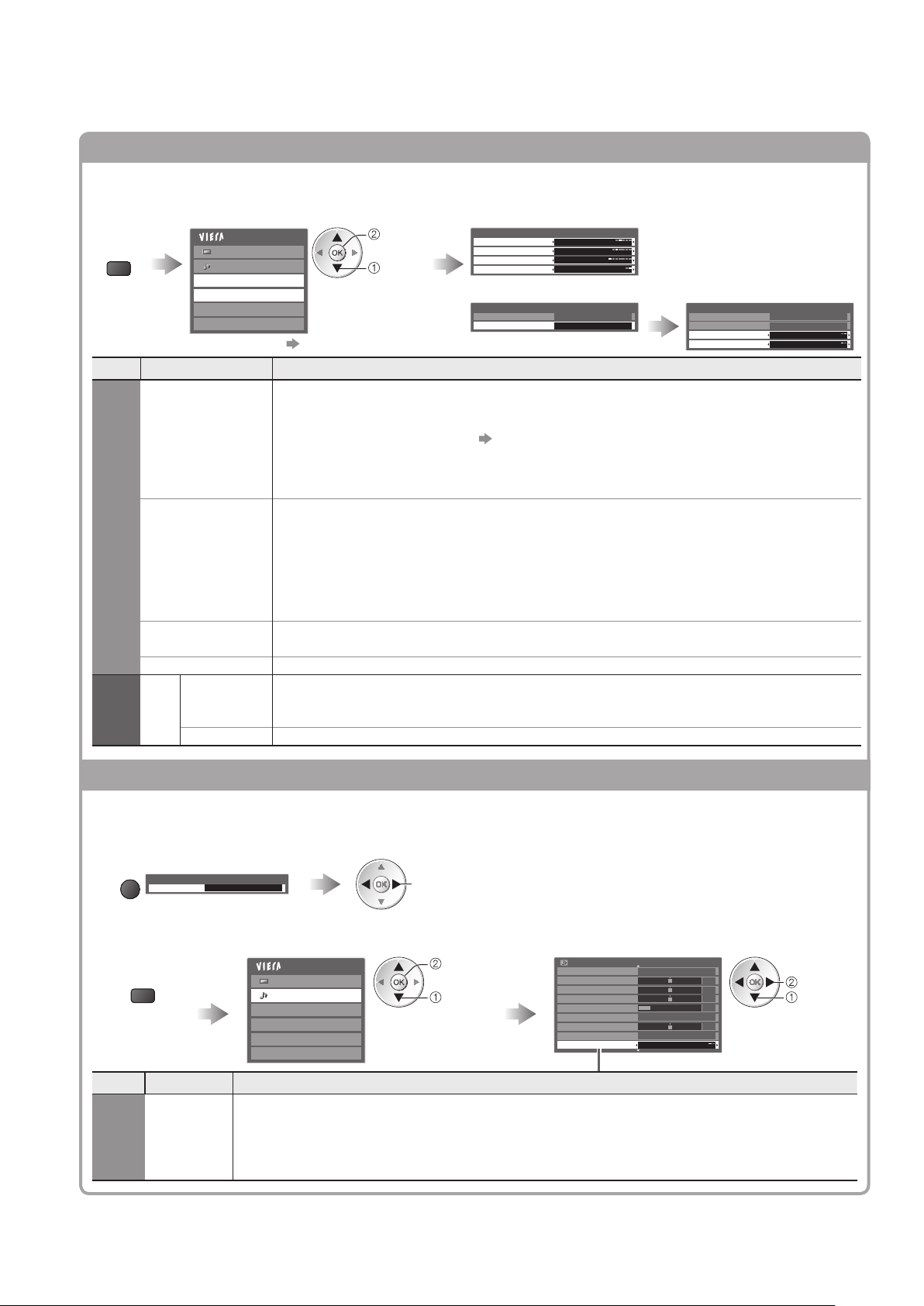

Using Network Services

(DLNA / VIERA CAST)

Photo Setup (for photo contents) and Video Setup (for video contents)

Setup the settings for Photo and Video file operations.

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Photo Setup

Setup

Video

Select “Photo Setup” or “Video Setup”

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

access

select

Other items ● p. 31, 34 - 39 and p. 73

Selects the back ground music while photo (Off / Type1 / Type2 / Type3 / User)

Type1, Type2 and Type3 are the fixed music each installed in this TV.●

Back Ground Music

User : Music data registered by yourself in Music mode will be played back.

To register the music ● “Set background music for Photo mode” (p. 73) Only available music files can be registered.● If no music has been registered or you change to the other media server, no ● sound will be produced.

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually.

Transition Effect

Slide : The next photo slides and appears from the left side. Dissolve : The photo is replaced by an indefinite block unit. Motion : The photo is replaced with enlarged, reduced, moved up or moved down. Random : Each transition is selected at random.

Interval

Repeat Slideshow repeat (Off / On)

Settings

Other

Video Preview

Selects slideshow interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)

This function is not available when “Transition Effect” is set to “Motion”.●

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the

●

preview “Off” to resolve this.

Repeat Playback repeat within the title (Off / On)

Select the items and set

Photo Setup Menu

Back Ground Music Type1 Transition Effect Fade Interval 5 seconds Repeat On

Select “Other Settings” Select the items and set

Video Setup Menu

Display Settings

Other Settings Access

Other Settings

Intelligent Frame Creation Off 16:9 Overscan On

Video Preview On Repeat Off

Sound Settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

To confirm or change the current sound status

■ (during playback)

Display the Option menu Change the sound (if the video has multiple audio signals)

Example:

OPTION

Option Menu

Multi Audio Stereo

(current sound status)

Audio output settings■

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

Select “Sound” Select “SPDIF Selection” and set

Main Menu


Sound

Photo Setup

Video Setup

Music Setup

3D Settings

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM. PCM

: Digital output signal is fixed to PCM.

change

access

select

It may take several seconds to change the sound.●

Sound Menu

Mode Music Bass Treble Balance Headphone Volume

Volume Correction Speaker Distance to Wall Over 30cm

SPDIF Selection

OffSurround

Auto

1/2

0 0 0

set select

Page 83

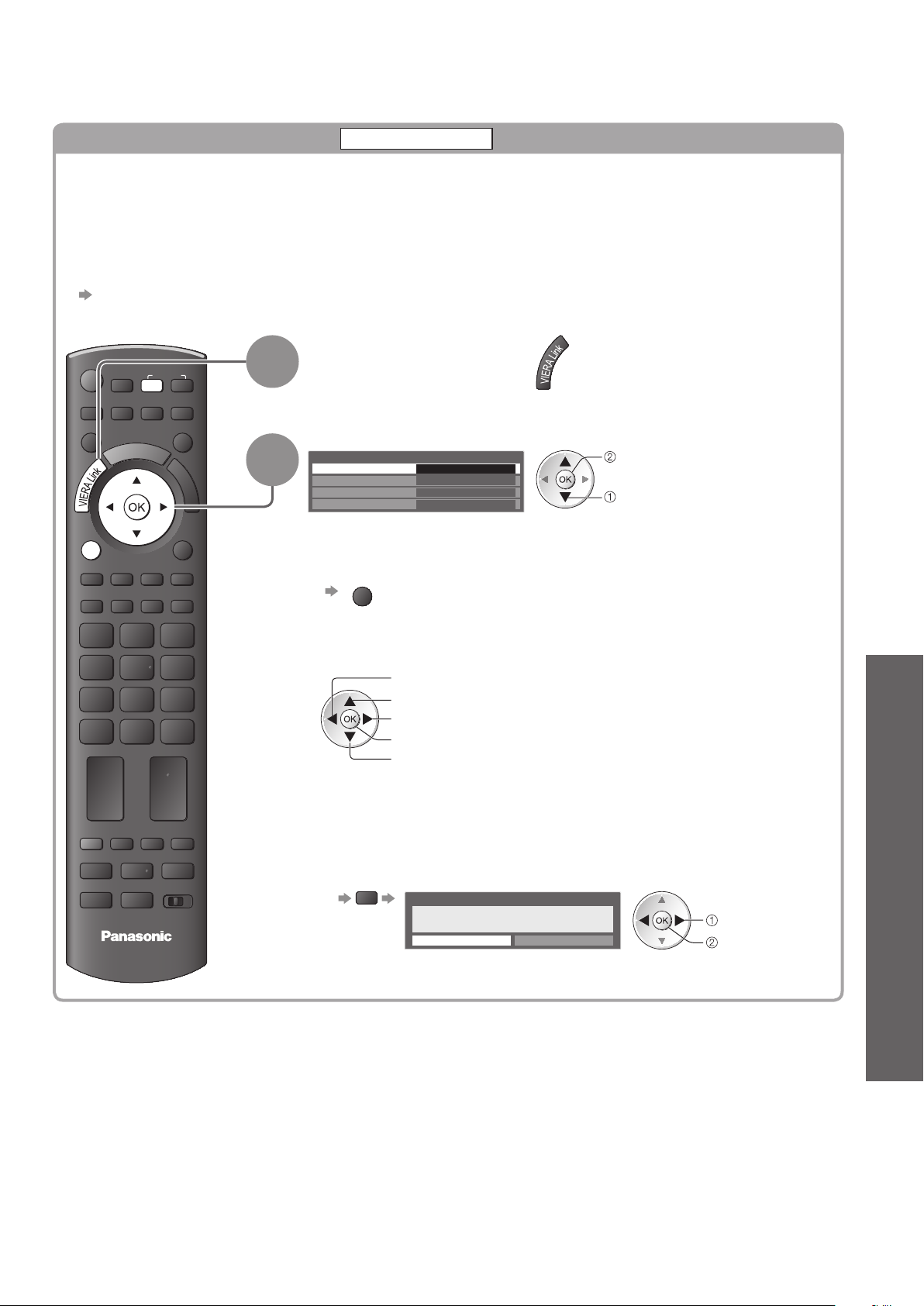

VIERA CAST™

You can access a selection of internet services from VIERA CAST home screen. For example, YouTube, Picasa Web Albums (current as of March, 2010).

VIERA CAST requires a broadband internet connection. Dial-up internet connections cannot be used.● Ensure the network connections and network settings are completed.●

“Network connections” (p. 75), “Network Setup” (p. 76 - 79)

Access VIERA CAST

Example:

Welcome to VIERA CAST™

VIERA CAST™ home screen is subject to change without notice.

The services through VIERA CAST™ are operated by their respective service providers, and service may

be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no

warranty for the content or the continuity of the services.

All features of websites or content of the service may not be available.

Don’t show this message again

ENTER

Some content may be inappropriate for some viewers.

Some content may only be available for specific countries and may be presented in specific languages.

Messages might be displayed before ● VIERA CAST home screen. Please read these instructions carefully and follow the on screen instructions.

Video communication ● (ex. Skype™) requires an exclusive Communication Camera TY-CC10W (optional accessory p. 6). For details, read the manual of the Communication Camera.

To return to TV■

ghi

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

Depending on the usage conditions, ● it may take a while to read all the data.

You can also access VIERA CAST ● by using VIERA TOOLS

“How to Use VIERA TOOLS”

(p. 32)

Example:

BACK

VIERA CAST home screen

Using Network Services ●

(DLNA / VIERA CAST)

How to operate VIERA CAST ■ (current as of March, 2010)

To go to the next level ● Select “MORE” To back to the previous level ● Select “BACK”

To move the cursor / select the item ● To access ● To return to the previous screen ●

BACK/

RETURN

To return to VIERA CAST home screen ●

When the key words are displayed on colour bar ●

abc def

jkl

When options with numbers are displayed ●

ghi

tuvpqrs

red green yellow blue

mno

wxyz

Setup menu● (Items in the “Setup” may change

without notice.)

Customize HomeScreen

My Account

Lock

Beep

Notices

Changes the position of each services on VIERA CAST home screen

Confirms or removes the account information of the TV you entered on VIERA CAST

Sets to restrict access to some services

Sets beep sound On or Off when operating VIERA CAST

Displays the information of VIERA CAST

USB Keyboard■

You can input characters on VIERA CAST screen by using the USB Keyboard connected to the USB port.

●

You cannot use two or more keyboards simultaneously.

●

The USB Keyboard which requires the driver is not supported.

●

To change the language type

“USB Keyboard Layout” (p. 39)

Note

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is ● not updated, you will not be able to use VIERA CAST. You can update the software later manually “Software Update” in the Network Setup Menu (p. 76) VIERA CAST™ home screen is subject to change without notice.

●

The services through VIERA CAST™ are operated by their respective service providers, and service may be ● discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services. All features of websites or content of the service may not be available.● Some content may be inappropriate for some viewers.● Some content may only be available for specific countries and may be presented in specific languages.● Depending on the connection environment, the internet connection may be slow or may not be successful.● During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals. ● But no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the Setup Menu (p. 36).

● “Child Lock” (p. 52)

You can set to restrict using VIERA CAST Turn the TV off, and then on again when changing or reconnecting the network connection.

●

Advanced

Page 84

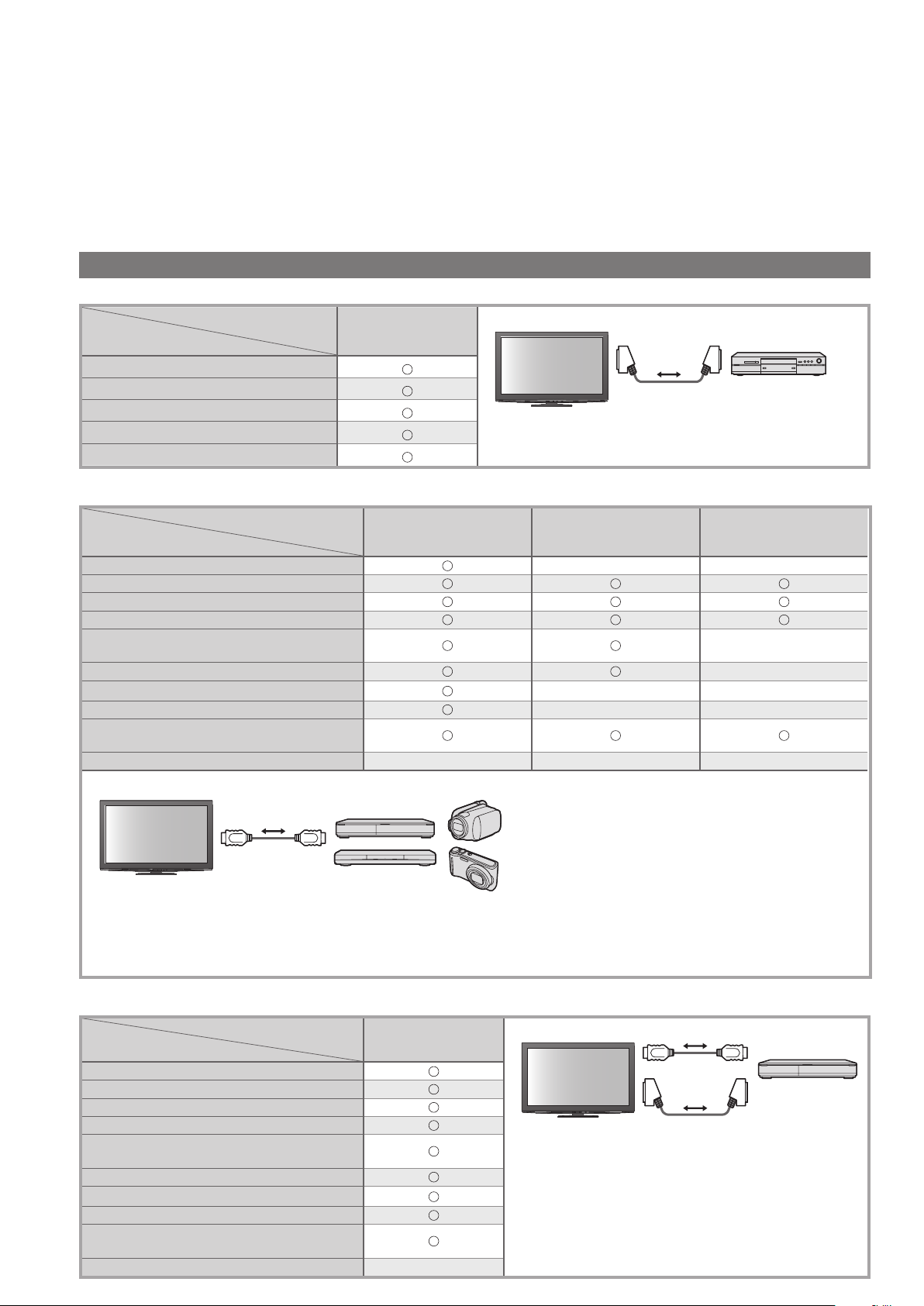

Q-Link

Link Functions

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 86) VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control, convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting. (p. 87 - 91) You can use Q-Link and VIERA Link functions together.

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s ● version of HDAVI Control. Please refer to the manual of the equipment to confirm the version. VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.●

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection only)■

Connected equipment

Features

Preset download

Easy playback

Power on link

Power off link

Direct TV Recording

VIERA Link (HDMI connection only)■

Connected equipment

Features

Preset download Easy playback Power on link Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected

equipment by VIERA remote control Speaker control

Connection

DVD Recorder / VCR

with Q-Link function

DIGA Recorder with VIERA Link function

–––

(

VIERA Link

)

Connection

SCART cable

DVD Recorder / VCR with Q-Link function

Use fully wired SCART cable.● Connect the DVD Recorder / VCR supporting Q-Link ● to the TV’s AV1 or AV2 terminal via a SCART cable.

DVD Player /

Blu-ray Disc Player with

∗

VIERA Link function

––

∗

–– ––

∗

HD Video Camera /

LUMIX Camera with

VIERA Link function

–

∗

HDMI cable

Use fully wired HDMI compliant cable.● Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an ● HDMI cable. About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the ● equipment.

VIERA Link (HDMI and SCART connections)■

Connected equipment

Features Preset download Easy playback Power on link Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected

equipment by VIERA remote control Speaker control

DIGA Recorder with

VIERA Link function

∗

–

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

Connection

HDMI cable

DIGA Recorder with VIERA Link

SCART cable

function

Use fully wired HDMI compliant cable.● Connect the equipment supporting VIERA Link ● to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable. Use fully wired SCART cable.● Connect the equipment supporting VIERA Link to ● the TV’s AV1 or AV2 terminal via a SCART cable.

Page 85

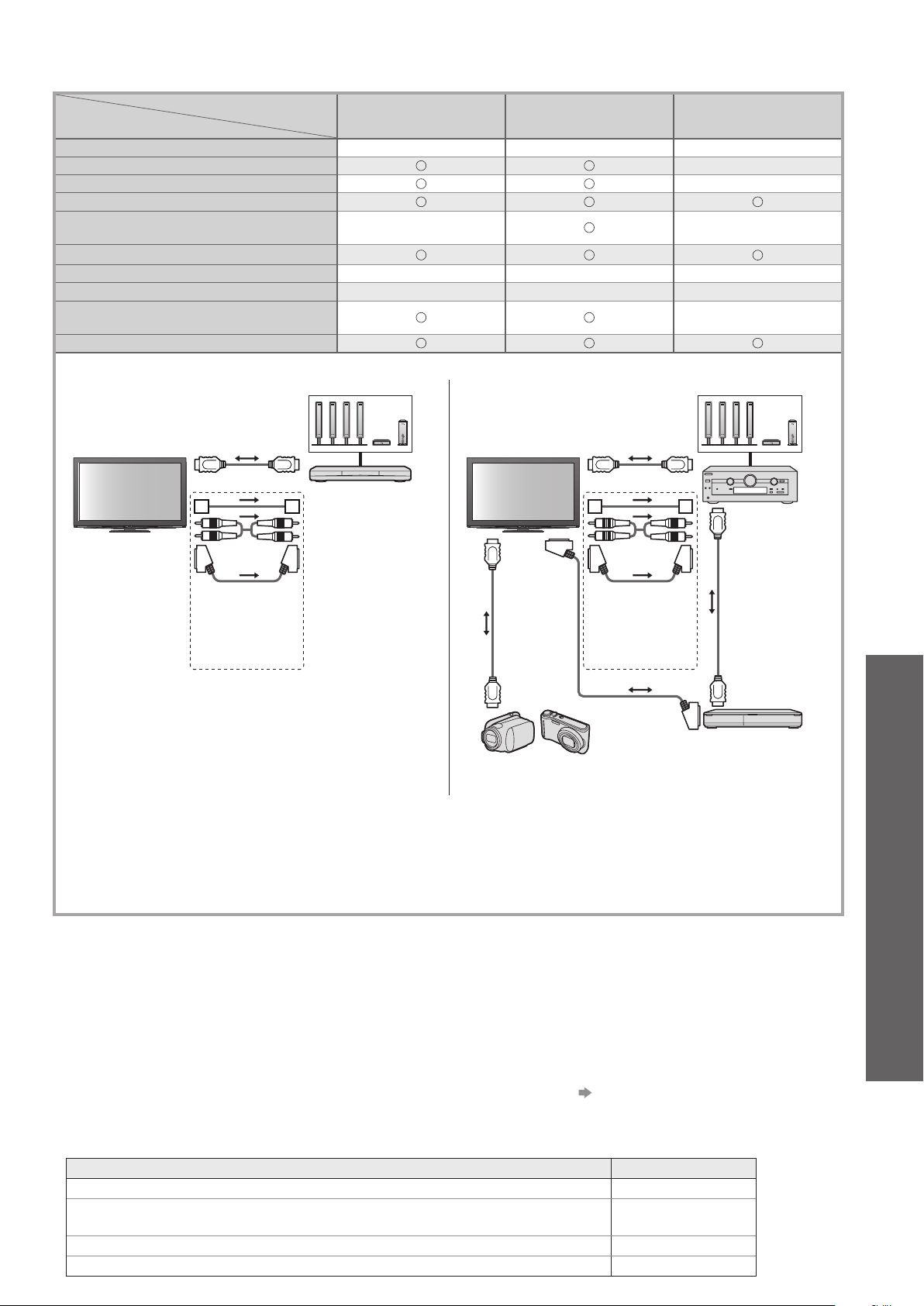

VIERA Link (HDMI and Audio out connections)■

Connected equipment

Features Preset download Easy playback Power on link – Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme ––– Direct TV Recording ––– Control the menu of the connected

equipment by VIERA remote control Speaker control

Connection

To use Player theatre / ●

Speaker system

Blu-ray Disc theatre:

Player theatre with

VIERA Link function

–––

∗

–

∗

To use Amplifier:●

Blu-ray Disc theatre with

VIERA Link function

∗

Amplifier with

VIERA Link function

–

∗

–

Speaker system

(Q-Link / VIERA Link)

HDMI cable

Player theatre / Blu-ray Disc theatre with VIERA Link function

HDMI cable

Amplifier with VIERA Link function

Link Functions ●

Optical digital

audio cable

RCA cable

SCART cable

∗

Use fully wired HDMI compliant cable.●

HDMI cable

HD Video Camera / LUMIX Camera with VIERA Link function

Optical digital

audio cable

RCA cable

SCART cable

HDMI cable

∗

DIGA Recorder with VIERA Link function

Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI ● cable. Use fully wired SCART cable.

●

If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 or ● AV2 terminal and set “AV1 / AV2 out” to “Monitor” in the Setup Menu (p. 36). Use any one of the optical digital audio cable, RCA cable and SCART cable for audio output from the TV.●

∗

1: Available with the equipment which has “HDAVI Control 2 or later” function.

∗

2: Available with the equipment which has “HDAVI Control 3 or later” function.

∗

3: Available with the equipment which has “HDAVI Control 4 or later” function.

∗

4: Available with DIGA Recorder which has HDD.

∗

5: while playingback a disc

∗

6: except for watching a disc

∗

7: If the connected equipment has “HDAVI Control 5” function, you do not have to use this audio cable (Optical

digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

VIERA Link Control of compatible equipment ■ (VIERA Link Control p. 90)

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. ● This includes connections to equipment already connected to the TV. For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number Recorder (DIGA Recorder, etc.) 3 Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera,

Digital Camera, Player theatre, Blu-ray Disc theatre, etc.) Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1 Tuner (Set top box, etc.) 4

Advanced

Page 86

Q-Link

Link Functions

Q-Link

Preparations■

Connect the DVD Recorder / VCR with the following logos:● “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK” Q-Link connection ● p. 84

●

Use fully wired SCART cable. Set up the DVD Recorder / VCR. Read the manual of the recorder.● Q-Link terminal setup in the Setup Menu ● “Q-Link” (p. 36), “AV1 / AV2 out” (p. 36)

● “Preset download” (see below)

Download preset - channel, language, country / region settings

Features available■

Preset download

Channel, language, country / region settings can be downloaded to the recorder.

DVB-S and DVB-C channel settings cannot be downloaded.● To download settings ● “Download” (p. 36) or “Auto Setup” (p. 43) or “Auto Setup” - when first using the TV

(p. 12 and p. 13)

Direct TV Recording - What you see is What you record

Recording the current programme in DVD Recorder / VCR immediately.

Available conditions:●

Current mode Using tuner How to record

DIRECT TV REC

EXIT

DIRECT TV REC

Analogue

DVB TV TV monitor out AV ( watching recorder’s tuner) AV ( watching recorder’s external input) AV ( watching TV’s external input)

When Direct TV Recording is performed, the recorder is automatically ● turned on if it is in Standby mode. Changing channel or turning off the TV is available while the recorder is ● recording from its own tuner. Changing channel is not available while the recorder is recording from ● the TV tuner.

(

VIERA Link

TV TV monitor out

Recorder Recorder’s tuner

–

– TV monitor out

)

Recorder’s

external input

To stop recording ■

Unlock the tuner

Press EXIT to unlock and stop recording

Tuner Locked

Continue

Unlock

EXIT

Power on link and Easy playback

Set Power on Link “On” in the Setup Menu to use this function “Power on Link” (p. 36)

When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link “On” in the Setup Menu to use this function “Power off Link” (p. 36)

When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)

This function will work even if the TV enters Standby mode automatically by auto power standby function.●

“DATA LOGIC” (a trademark of Metz Corporation)• “Easy Link” (a trademark of Philips Corporation)•

Note

Some recorders are not applicable. Read the manual of the recorder.●

“Megalogic” (a trademark of Grundig Corporation)• “SMARTLINK” (a trademark of Sony Corporation)•

Page 87

VIERA Link “ Control™”

∗Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 84 and p. 85). These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the ● connected equipment’s version of HDAVI Control. VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard ● known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function. ● About applicable Panasonic equipment, consult your local Panasonic dealer ● or refer to the URL: www.panasonic.co.uk

Preparations■

Connect the equipment supporting VIERA Link.● VIERA Link connection ● p. 84 and p. 85

●

Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized. Recommended Panasonic’s HDMI cable part number:

RP-CDHS15 (1.5 m)• RP-CDHS30 (3.0 m)• RP-CDHS50 (5.0 m)•

Use fully wired SCART cable.● Set up the connected equipment. Read the manual of the equipment.● For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the ● recorder. Download preset - channel, language, country / region settings

● “Preset download” (see below)

● “VIERA Link” (p. 36)

Set VIERA Link On in the Setup Menu Set up the TV●

After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p. 24), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

for the first time• when adding or reconnecting equipment• when changing setup•

∗

(Q-Link / VIERA Link)

Link Functions ●

Features available■

Preset download

Channel, language, country / region settings can be downloaded to the recorder.

DVB-S and DVB-C channel settings cannot be downloaded.● To download settings ● “Download” (p. 36) or “Auto Setup” (p. 43) or “Auto Setup” - when first using the TV

(p. 12 and p. 13)

Easy playback

Automatic Input switching - When the connected equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

Power on link

Set Power on Link “On” in the Setup Menu to use this function “Power on Link” (p. 36)

When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link “On” in the Setup Menu to use this function “Power off Link” (p. 36)

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the TV enters Standby mode automatically by auto power standby function.●

Advanced

Page 88

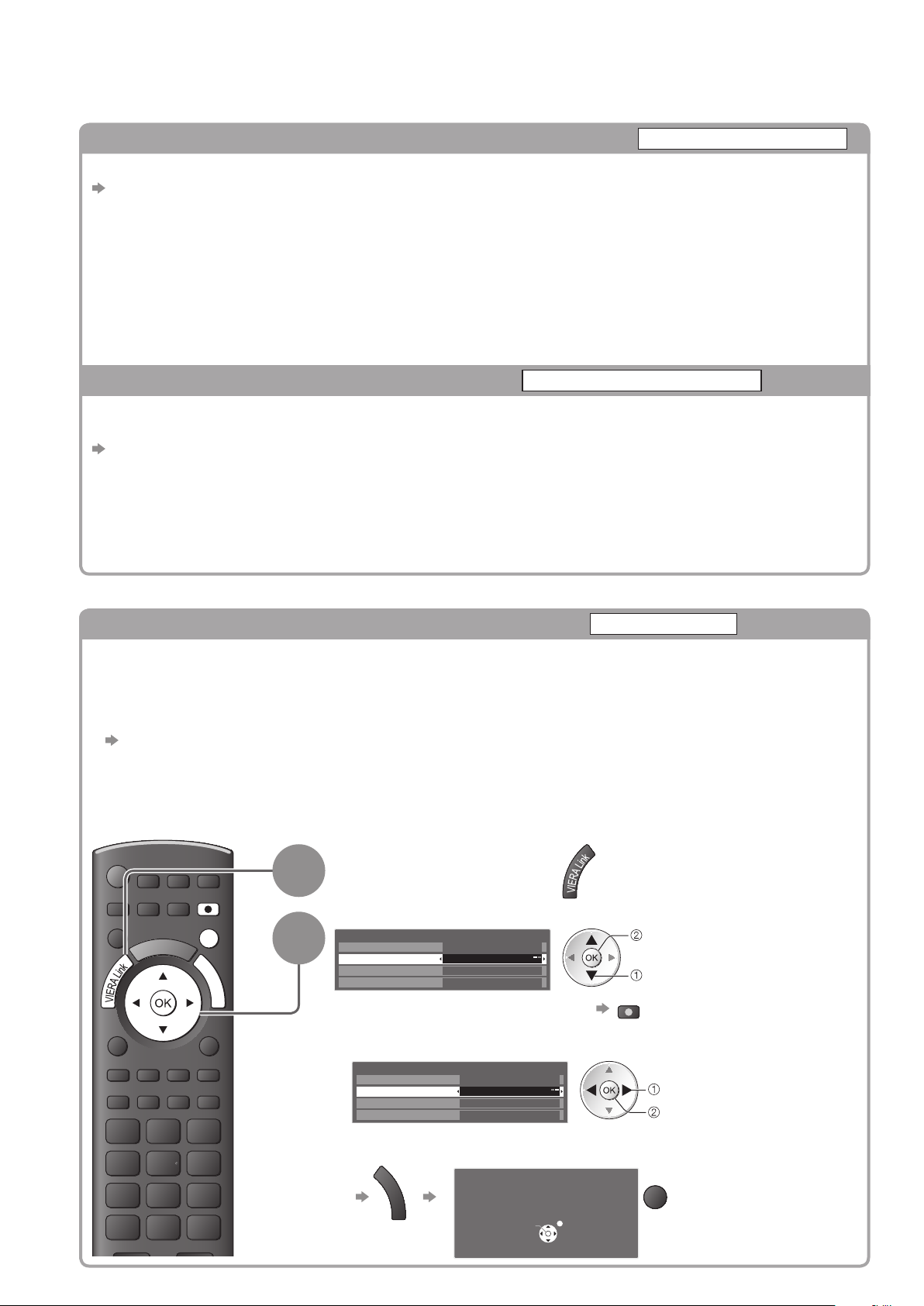

Link Functions

Features available■

Q-Link

(

VIERA Link

)

Reduce unnecessary power consumption in standby

Standby Power Save

Set Standby Power Save “On” in the Setup Menu to use this function

“Standby Power Save” (p. 36)

The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronization with the TV On / Off state to reduce the consumption. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in Standby mode of the connected equipment is automatically minimized. When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make startup time early.

This function is effective if the connected equipment can change the power consumption in Standby mode ● and is set to higher consumption. This function will work when “Power off Link” is set to “On”.●

Auto standby for unnecessary equipment

Intelligent Auto Standby

Set Intelligent Auto Standby “On (With reminder)” or “On (No reminder)” in the Setup Menu to use this function

“Intelligent Auto Standby” (p. 36)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI, when Speaker Selection is changed to “TV” (except for watching a disc).

If you select “On (With reminder)”, the on screen message will be displayed to be noticed before working this ● function. This function may not work properly depending on the connected equipment. If required, set to “Off”.●

Features available ■ (Using VIERA Link Menu)

Direct TV Recording - What you see is What you record

Direct TV Rec

Recording the current programme in DIGA Recorder immediately.

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ● connect DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, in this case connect DIGA Recorder to HDMI1.

●

If you cannot operate, check the settings and the equipment

“Summary of Q-Link and VIERA Link features” (p. 84 and p. 85), “Preparations” (p. 87)

If you wish to record the programme which DIGA Recorder does not support, SCART connection is required ● and the programme is recorded by Q-Link function (p. 86). Depending on the programme, SCART connection may be required to record.● Changing channel or turning off the TV is available while the recorder is recording from its own tuner.● Changing channel is not available while the recorder is recording from the TV tuner.●

Display “VIERA Link Menu”

DIRECT TV REC

EXIT

Select “Direct TV Rec” and start recording

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control Speaker Selection

You can also start recording directly ●

Start Recorder Home Cinema

start

select

DIRECT TV REC

To stop recording■

Select “Stop” in “Direct TV Rec” and access

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control Speaker Selection

You can also stop recording directly.●

Unlock the tuner

Stop Recorder Home Cinema

Press EXIT to unlock and stop recording

Tuner Locked

Continue

Unlock

EXIT

select

stop

Page 89

Features available ■ (Using VIERA Link Menu)

Pause Live TV programme

Pause Live TV

You can pause the live TV programme and resume later. Live TV programme will be recorded on HDD of the connected DIGA Recorder.

This function is available with DIGA Recorder which has HDD.● If you connect a variety of recorders including other manufacturers’ recorders at the same time, please ● connect DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, in this case connect DIGA Recorder which has HDD to HDMI1. If you cannot operate, check the settings and the equipment

●

“Summary of Q-Link and VIERA Link features” (p. 84 and p. 85), “Preparations” (p. 87)

Access and pause the live TV programme

Display “VIERA Link Menu”

INPUT

Select “Pause Live TV” and pause

pause

select

OPTION

VIERA Link Menu

Pause Live TV Start

Direct TV Rec VIERA Link Control Speaker Selection

Start Recorder Home Cinema

The TV picture will be paused.

Live TV programme is recorded on HDD from where it was paused.● If the paused TV picture disappears after a few minutes●

OPTION

Follow the operation guide to operate Pause Live TV function.

●

(the paused picture will be restored)

(Q-Link / VIERA Link)

Link Functions ●

To operate Pause Live TV■

search backward pause search forward playback stop

If you stop playback, the recorded programme ● will be deleted from HDD.

Operations may be different ● depending on the recorder. In this case, follow the operation guide or read the manual of the recorder.

To return to Live TV ■

(stop playback of Pause Live TV / cancel pause)

Select “Yes”

If you stop playback or cancel pause, the recorded programme will be ● deleted from HDD.

Pause Live TV

Yes

Stop Pause Live TV?

Advanced

select

stop

Page 90

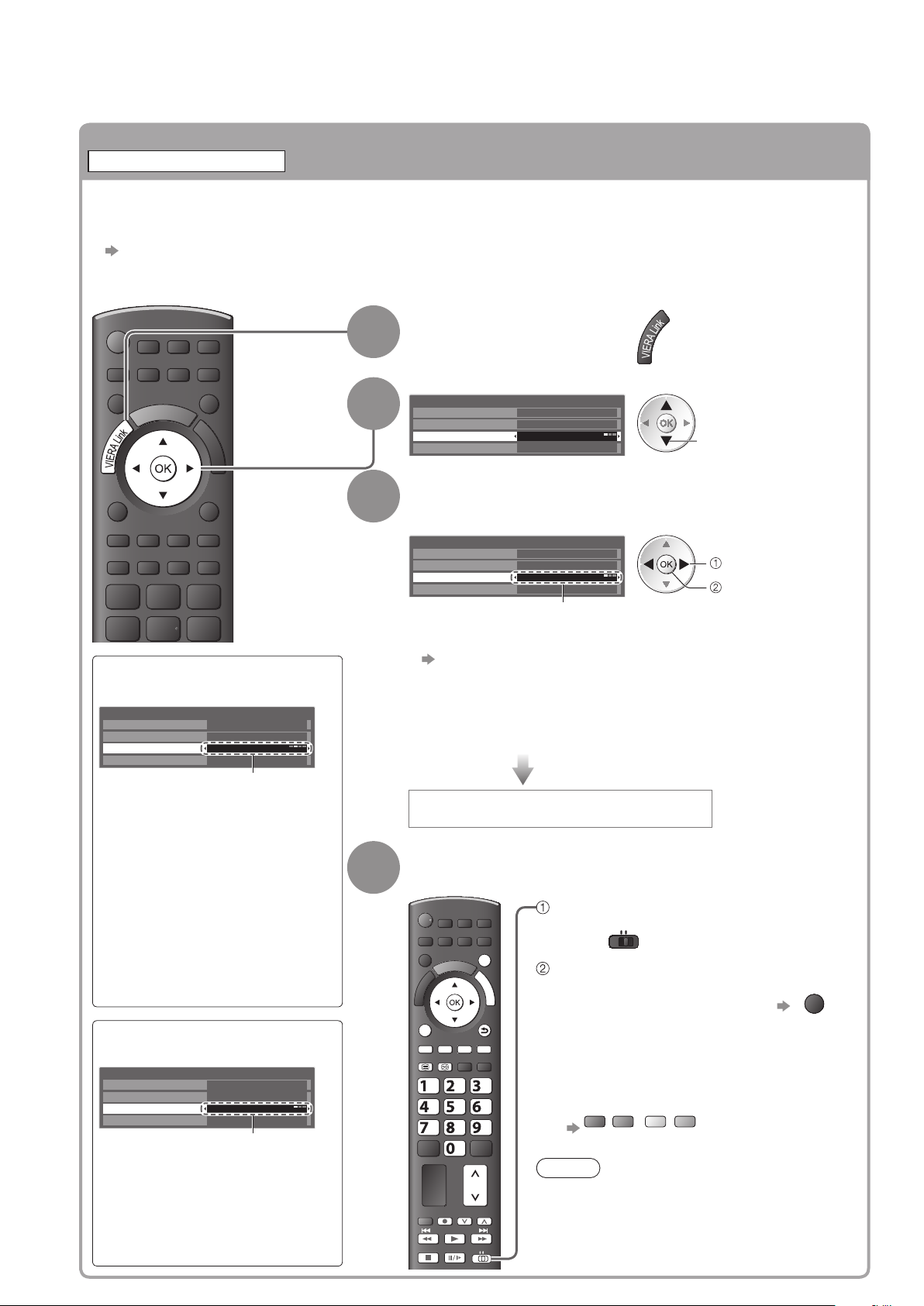

Q-Link

Link Functions

Features available ■ (Using VIERA Link Menu)

Control the menu of the connected equipment by VIERA remote control

VIERA Link Control

You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 84 and p. 85), “Preparations” (p. 87)

For details of the operations for the connected equipment, read the manual of the equipment.●

Access and operate the menu of the equipment

Display “VIERA Link Menu”

(

VIERA Link

)

Select “VIERA Link Control”

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder Home Cinema

select

Select the equipment you want to access

The type of the connected equipment is displayed. Select the type of the equipment and access.

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Recorder / Player / Home Cinema / Video Camera / LUMIX / Digital Camera / Other

Start Recorder Home Cinema

select

access

You can also access directly by using VIERA TOOLS ●

“How to Use VIERA TOOLS” (p. 32)

The displayed item may vary depending on the connected ● equipment. “Home Cinema” means Player theatre, Blu-ray Disc theatre or ● Recorder theatre. “Other” means Tuner set top box.●

The menu of the accessed equipment

(Input mode will be changed automatically)

Operate the menu of the equipment

Available VIERA remote control buttons: (depending on the connected equipment)

Set the position to “TV”

DVD/VCR

EXIT

Follow the operation guide

To display the operation guide ●

If other manufacturers’ equipment is

OPTION

D E

BACK/

RETURN

accessed, Setup / Contents Selection

TEXT

STTL

abc def

jkl

ghi

mno

tuvpqrs

wxyz

menu may be displayed.

When the key words are displayed on ●

colour bar

red green yellow blue

Note

Some operations may not be available ●

REC

PROGRAMME

DVD/VCR

depending on the equipment. In this case use its own remote control to operate the equipment.

OPTION

If multiple recorders or ■ players are connected

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder2 Home Cinema

Recorder1-3 / Player1-3

The number is given from the TV’s lower HDMI terminal number connected to the same type equipment. For example, two recorders to HDMI2 and HDMI3, in this case the recorder connected to HDMI2 is displayed as “Recorder1”, and the recorder connected to HDMI3 is displayed as “Recorder2”.

If you access ■ non-VIERA Link equipment

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder Home Cinema

The type of the connected equipment is displayed. You can access the menu of the equipment. But you cannot operate it. Use its own remote control to operate the equipment.

Page 91

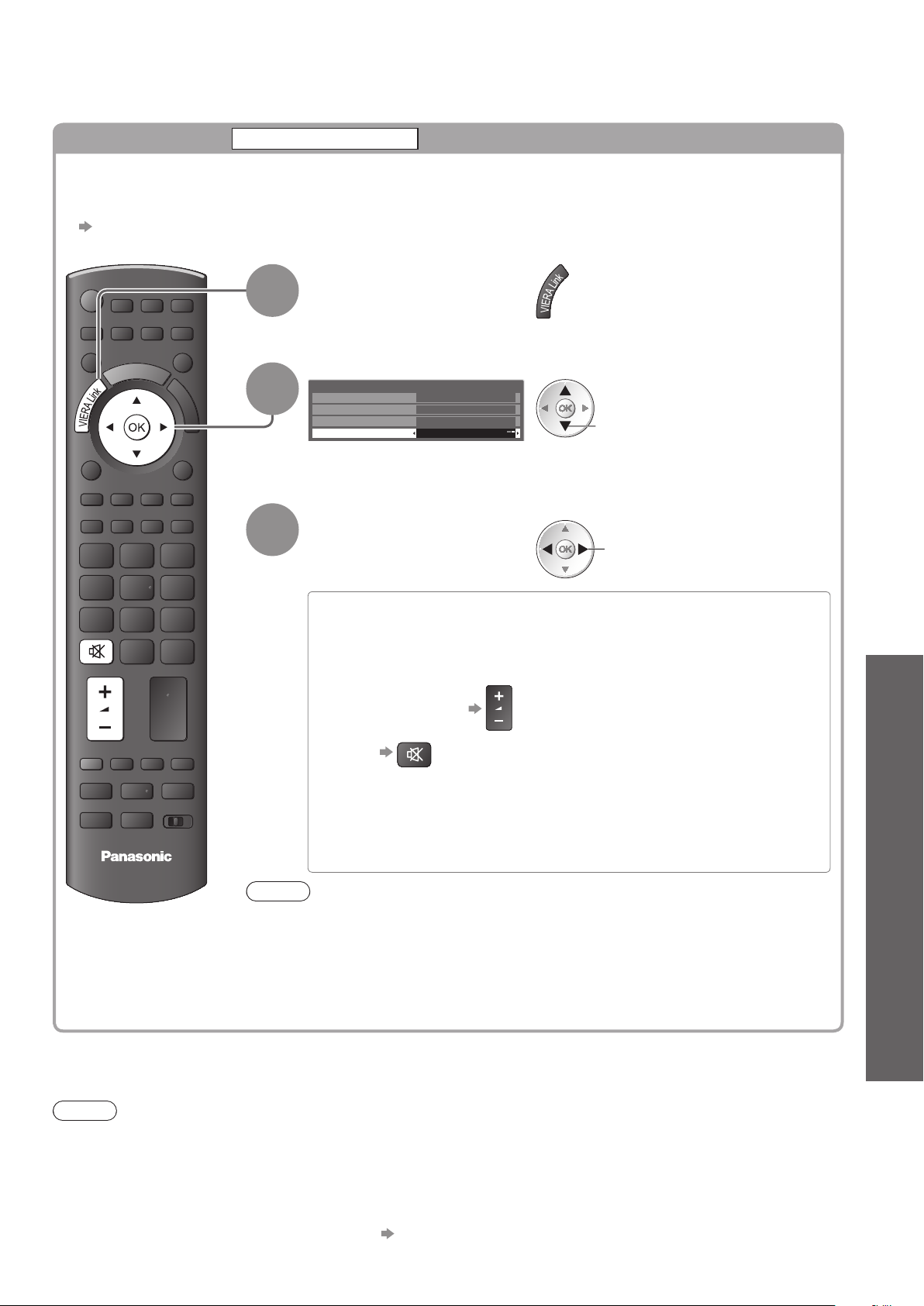

Features available ■ (Using VIERA Link Menu)

Speaker control

You can control the theatre speaker with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot operate, check the settings and the equipment ●

“Summary of Q-Link and VIERA Link features” (p. 84 and p. 85), “Preparations” (p. 87)

Access and control the speaker volume

Speaker Selection

Display “VIERA Link Menu”

Select “Speaker Selection”

VIERA Link Menu

Pause Live TV Start Direct TV Rec VIERA Link Control

Speaker Selection

Set to “Home Cinema” or “TV”

Start Recorder Home Cinema

select

set

(Q-Link / VIERA Link)

Link Functions ●

Home Cinema■

Player theatre, Blu-ray Disc theatre or Amplifier will be

automatically turned on if it is in Standby mode and the sound is from theatre speakers connected to the equipment.

Volume up / down ●

Mute ●

The sound of TV speakers is mute.● When the equipment is turned off, TV speakers will be active.●

TV■

TV speakers are active.

Note

If you wish to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an ● Amplifier, connect with HDMI cable and Optical digital audio cable (p. 85), and then select “Home Cinema”. If your Amplifier has “HDAVI Control 5” function, you can connect only with HDMI cable. In this case, connect your Amplifier to the TV’s HDMI2 terminal. To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from the DIGA Recorder to the Amplifier (p. 85).

Advanced

Note

These functions may not work properly depending on the connected equipment.● Image or sound may not be available for the first few seconds when Input mode is switched.● Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. ● Read the manual of the equipment. “HDAVI Control 5” is the newest standard (current as of December, 2009) for HDAVI Control compatible ● equipment. This standard is compatible with conventional HDAVI equipment. To confirm this TV’s version of HDAVI Control ● “System Information” (p. 39)

Page 92

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p. 107).

Satellite

dish

To watch DVDs

DVD Player

To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

To listen with speakers

Optical digital audio cable

Amplifier with

RCA cable

speaker system

Conversion adapter (if necessary)

(Viewing)

(Listening)

AUDIO

DIGITAL

AUDIO

OUT

RLR

OUT

COMPONENT

AUDIO

RGB VIDEO

SCART cable

AV1 AV2

Satellite cable

HDMI equipment

“HDMI connection” (p. 97)

RGB VIDEO S VIDEO

Fully wired

Recorder / Player

Fully wired HDMI compliant cable

HDMI

HDMI 2

(ARC)

HDMI

Terrestrial aerial

(Viewing)

(Listening)

Computer

Types of connectable equipment to each terminal■

Terminal

Recording / Playback (equipment)

To record / playback videocassettes / DVDs (VCR / DVD Recorder) To watch 3D contents (Blu-ray Disc Player) To watch DVDs (DVD Player) To watch camcorder images (Video camera) To watch cable broadcasts (Set top box) To play games (Game equipment) To use amplifier with speaker system To use Network services USB HDD Recording Q-Link

To record /

playback

DVD Recorder / VCR

AV1 AV2 AV3

Side panel

(

of the TV

RF cable

)

VIERA Link

Direct TV Recording

: Recommended Connection

∗

1 : applicable if your amplifier has ARC (Audio Return Channel) function

(with HDMI) (with HDMI)

Page 93

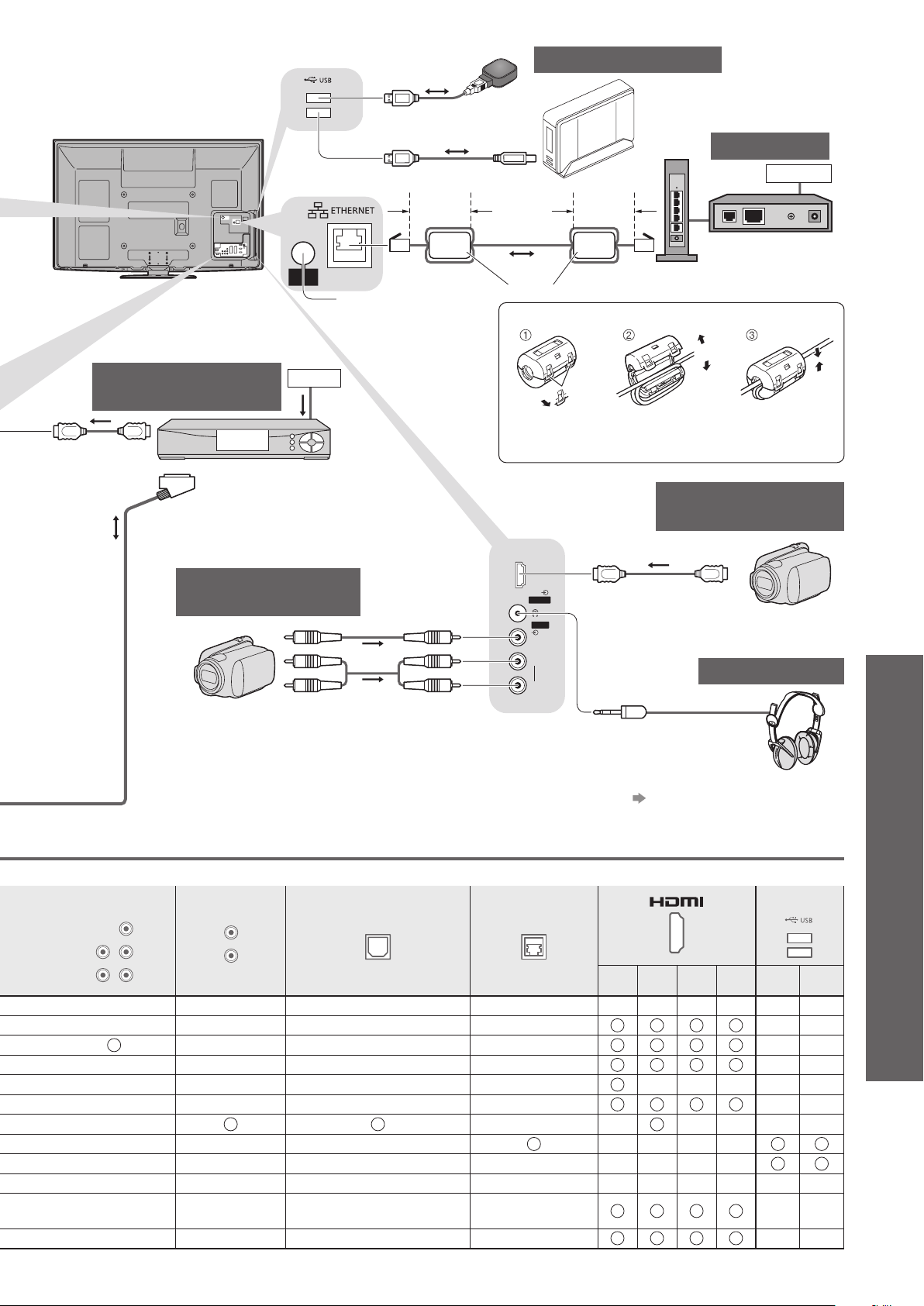

Rear of the TV

USB devices

Network

USB cable

Internet

To watch

cable broadcasts

Fully wired HDMI compliant cable

Fully wired SCART cable

Service

Port

This terminal is only for the authorized service dealer.

Cable

Set top box

Camcorder /

Game equipment

Less than 10 cm

(Viewing)

(Listening)

Less than 10 cm

LAN cable

Hub or Router

Ferrite core (supplied)

Installing the Ferrite core

Pull back the tabs (in two places)

HDMI 4

AV 3

Wind the cable twice

Fully wired HDMI compliant cable

(M3 stereo mini plug)

Modem

Open

Press the cable through and close

External Equipment ●

Camcorder /

HDMI equipment

Headphones

COMPONENT

AUDIO OUT

DIGITAL AUDIO OUT ETHERNET

To adjust volume●

“Headphone Volume” in the

Sound Menu (p. 35)

USB

12341 2

∗

Advanced

Page 94

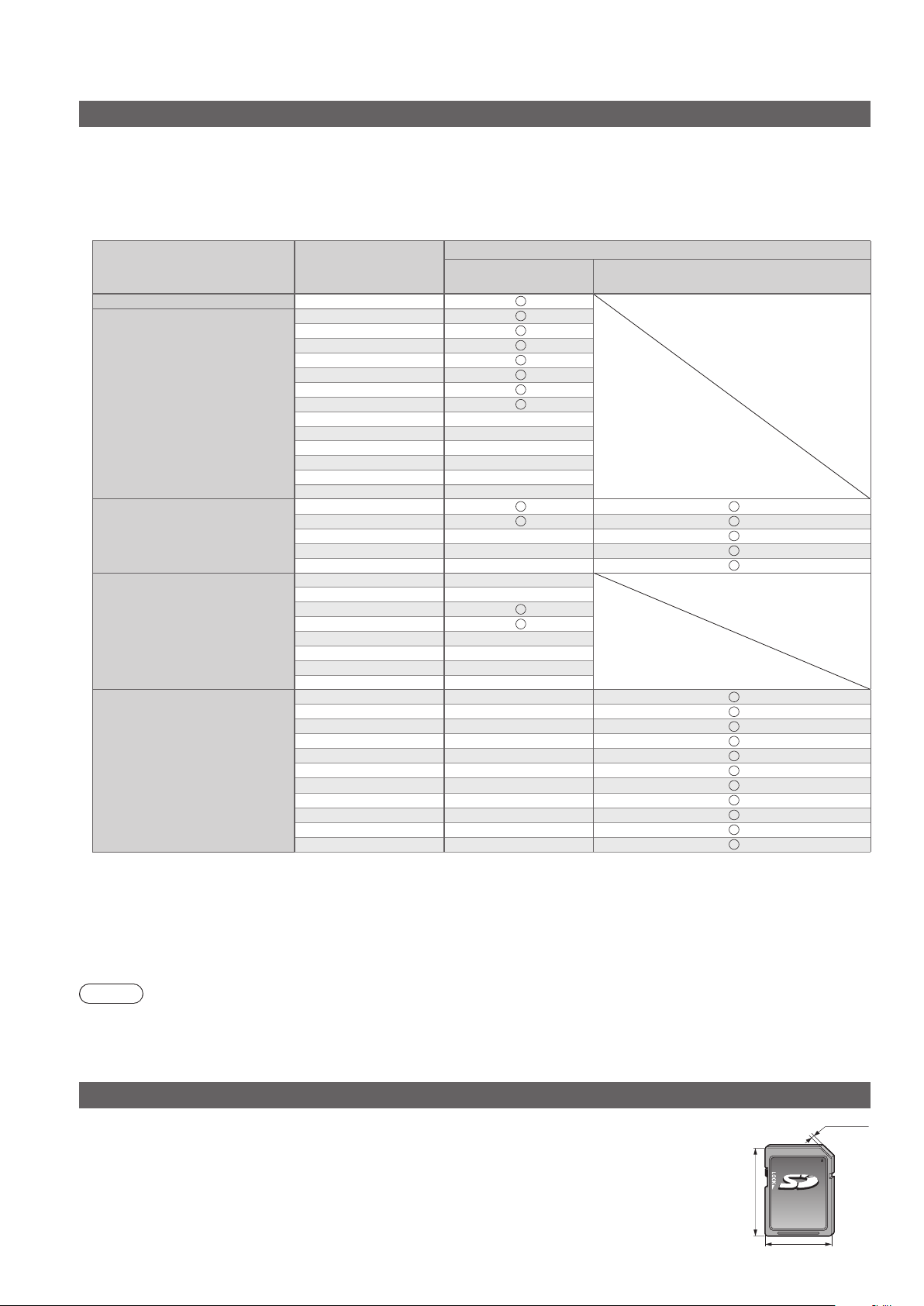

Technical Information

Auto Aspect

The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 18)

Aspect Control Signal■

“WIDE” will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal is found. The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio. This function will work in any aspect mode.

Aspect Control Signal

Input terminal Input signal format

Satellite DVB-S

Cable RF

AV1 (Composite) AV2 (Composite or S-Video) AV3

COMPONENT

HDMI1 HDMI2 HDMI3 HDMI4

DVB-C DVB-T PAL B, G, H, I PAL D, K SECAM B, G SECAM L, L’ SECAM D, K PAL 525/60 6.5 MHz – PAL 525/60 6.0 MHz – PAL 525/60 5.5 MHz – M.NTSC 6.5 MHz – M.NTSC 6.0 MHz – M.NTSC 5.5 MHz – PAL SECAM PAL 525/60 – M.NTSC – NTSC – 525 (480) / 60i – 525 (480) / 60p – 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p – 750 (720) / 50p – 1,125 (1,080) / 60i – 1,125 (1,080) / 50i – 525 (480) / 60i – 525 (480) / 60p – 625 (576) / 50i – 625 (576) / 50p – 750 (720) / 60p – 750 (720) / 50p – 1,125 (1,080) / 60i – 1,125 (1,080) / 50i – 1,125 (1,080) / 60p – 1,125 (1,080) / 50p – 1,125 (1,080) / 24p –

Auto mode■

Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS, Control signal through SCART / HDMI terminal, Letterbox detection, or Justify to fill the screen) to determine. This process may take several minutes, depending on the darkness of the image. Letterbox detection: If black bands at the top and bottom of the screen are detected, Auto mode chooses the best ratio and expands the image to fill the screen. If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.

Note

The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top ● and bottom of the screen may appear. If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the ● tracking of the VCR. Read the manual of the VCR.

Widescreen signal (WSS)

Control signal through SCART (pin8) / HDMI terminal

SD Card

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.● Do not remove the card while the TV is accessing data (this can damage card or TV).● Do not touch the pins on the back of the card.● Do not subject the card to a high pressure or impact.● Insert the card in the correct direction (otherwise, card may be damaged).● Electrical interference, static electricity, or erroneous operation may damage the data or ● card. Back up the recorded data at regular intervals in case of deteriorated or damaged data ● or erratic operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)

2.1 mm

32 mm

24 mm

Page 95

DivX

ABOUT DIVX VIDEO:

DivX

is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video.

Visit www.divx.com for more information and software tools to convert your files into DivX video.

DivX video file■

DivX Certified to play DivX video up to HD 1080p, including premium content. Extension - “.divx” or “.avi” Image resolution - Up to 1,920 × 1,080 pixels

Video

Number of stream: Up to 1• Codec: DIV3, DIV4, DIVX, DX50, DIV6• FPS (Frame Per Second): Up to 60 fps•

Audio

Number of stream: Up to 8• Format: MP3, MPEG, AC3• Multi channel: AC3 is possible. MPEG multi is 2 ch conversion.•

GMC (Global Motion Compensation) is not supported.●

Subtitle text file of DivX■

Subtitles format - MicroDVD, SubRip, TMPlayer

The DivX video file and subtitles text file are inside the same folder, and the file names are the same except for ● the file extensions. If there are more than one subtitles text files inside the same folder, they are displayed in the following order of ● priority: “.srt”, “.sub”, “.txt”. To confirm or change the current subtitle status while playing DivX content, press the OPTION button to ● display Option Menu. Depending on the methods used to create the file or the state of recording, only parts of the subtitles may be ● displayed, or the subtitles may not be displayed at all.

Note

Depending on how you make SD Card or USB Flash Memory, files and folders may not be displayed in the order ● you numbered. Depending on the software you use to create DivX files, the files may not play.● Depending on how you create the files and the structure of folders, the files and folders may not be displayed.● When there are many files and folders, operation may take time to complete or some files may not be displayed ● or playable.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified To generate the registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

device must be registered in order to play DivX Video-on-Demand (VOD) content.

To show DivX VOD registration code■

“DivX® VOD” in the Setup Menu (p. 38) If you want to generate the new registration code, you have to deregister the present registration code.

●

After playing DivX VOD content once, the confirmation screen to deregister will be displayed in “DivX® VOD” in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration code will be generated and you will not be able to play any contents that you purchased using the present registration code. You will obtain the new registration code by pressing the OK button on the deregistration code screen. If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able

●

to play this content. (“Your device is not authorized to play this DivX protected video.” is displayed.)

Regarding DivX content that can only be played a set number of times■

Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. (“This DivX rental has expired.” is displayed.)

When playing this content, the number of remaining plays is reduced by one in the following conditions:●

If you exit the current application.• If you play the other content.• If you go to the next or previous content.•

Technical Information ●

FAQs, etc.

Page 96

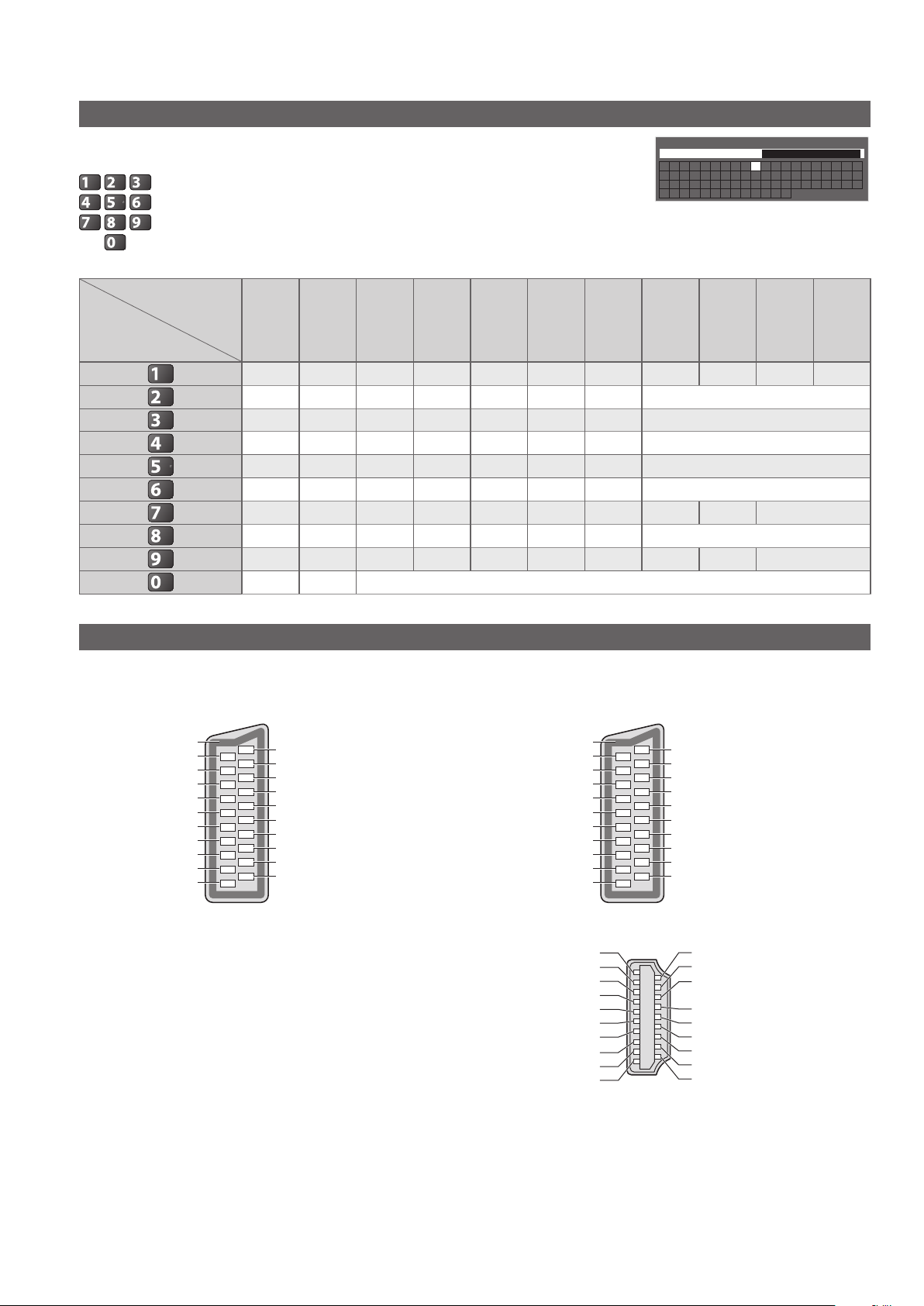

Technical Information

Characters table for numeric buttons

You can enter characters by using numeric buttons for free input items. Press the numeric button repeatedly until you reach the desired character.

abc def

jkl

ghi

tuvpqrs

Characters table:

Numeric buttons

The character is set automatically if you leave for one second.● You can also set the character by pressing the OK button or ●

mno

other numeric buttons within one second.

wxyz

The number of

times to press

1234567891011

.1! :#+-*_()

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

abc2ABC

def3DEF

gh i 4GHI

jkl5JKL

mn o 6MNO

pqr s7PQRS

tuv8TUV

wxy z 9WXYZ

Space 0

User input

Name

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : # o p q r s t

SCART and HDMI terminal information

AV1 ■ SCART terminal

(RGB, VIDEO, Q-Link)

Suitable inputs for AV1 include RGB (Red / Green / Blue).

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1

20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

AV2 ■ SCART terminal

(RGB, VIDEO, S-VIDEO, Q-Link)

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in, S.C. - in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1

20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

HDMI ■ terminal

Hot Plug Detect 19 DDC/CEC Ground 17 SCL 15 CEC 13 TMDS Clock Shield 11 TMDS Data0− 9 TMDS Data0+ 7 TMDS Data1 Shield 5 TMDS Data2− 3 TMDS Data2+ 1

18 +5V Power 16 SDA 14 Reserved

(in cable but N.C. on device)

12 TMDS Clock− 10 TMDS Clock+ 8 TMDS Data0 Shield 6 TMDS Data1− 4 TMDS Data1+ 2 TMDS Data2 Shield

Page 97

HDMI connection

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. About connections, see “External Equipment” (p. 92).

Applicable HDMI features■

Input audio signal : 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)● Input video signal : 480i, 480p, 576i, 576p, 720p, 1080i and 1080p●

Input PC signal : ● “Input signal that can be displayed” (p. 98)

VIERA Link (HDAVI Control 5) : ● “VIERA Link” (p. 87) 3D● Content Type● Deep Colour● x.v.Colour™● Audio Return Channel●

DVI connection■

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1 / 2 / 3: use COMPONENT-AUDIO terminals / HDMI4: use AV3 audio terminals).

Note

Audio settings can be made on the “HDMI1 / 2 / 3 / 4 Input” in the Sound Menu. (p. 36)● If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.● These HDMI connectors are “type A”.● These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright ● protection. An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,

●

“S-VIDEO”, or “VIDEO” to receive analogue signals. This TV incorporates HDMI™ technology. ●

(∗1)

with an HDMI or DVI output terminal, such as a DVD player, a set top box or a

“Input signal that can be displayed” (p. 98)

Match the output setting of the digital equipment.

Match the output setting of the PC.

(∗3)

(HDMI2 terminal only)

(∗1): The HDMI logo is displayed on HDMI-compliant equipment. (∗2): Enquire at your local digital equipment retailer shop. (∗3): Audio Return Channel (ARC) is a function to be able to

send digital sound signals via an HDMI cable.

(∗2)

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency ● 59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image). A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.●

Note

Some PC models cannot be connected to this TV.● When using PC, set the colour display quality of PC to the highest position.● For details of the applicable PC signals●

“Input signal that can be displayed” (p. 98)

Max. display resolution●

1,440 × 1,080 pixels

Aspect

D-sub 15-pin connector signal●

4:3

16:9

1,920 × 1,080 pixels

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

R GND (Ground) NC (not connected)

G GND (Ground) NC (not connected)

B GND (Ground) HD

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC (not connected)

Technical Information ●

FAQs, etc.

Page 98

Technical Information

USB connection

It is recommended to connect the USB HDD or USB Flash Memory directly to the TV’s USB ports.● Some USB devices or USB HUB may not be used with this TV.● You cannot connect any devices by using USB card reader.●

The combination of USB devices that have been tested for each TV’s USB port.■

Combination of USB port 1 + port 2 (and vice versa):

USB HDD + USB Flash Memory• USB HDD + Wireless LAN Adaptor• USB HDD + USB Keyboard• USB Flash Memory + Wireless LAN Adaptor• USB Flash Memory + USB Keyboard• Wireless LAN Adaptor + USB Keyboard•

Note

Additional information for USB devices may be on the following web site. (English only)● http://panasonic.jp/support/global/cs/tv/

Input signal that can be displayed

COMPONENT (Y, PB, PR), HDMI

∗ Mark: Applicable input signal

Signal name COMPONENT HDMI

525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p 1,125 (1,080) / 50p 1,125 (1,080) / 24p

∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗

∗ ∗ ∗

PC (from D-sub 15P) Applicable input signal for PC is basically compatible to VESA standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 400 @70 Hz 31.47 70.07 640 × 480 @60 Hz 31.47 59.94 640 × 480 @75 Hz 37.50 75.00 800 × 600 @60 Hz 37.88 60.32 800 × 600 @75 Hz 46.88 75.00 800 × 600 @85 Hz 53.67 85.06 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,024 × 768 @70 Hz 56.48 70.07 1,024 × 768 @75 Hz 60.02 75.03 1,024 × 768 @85 Hz 68.68 85.00 1,280 × 768 @60 Hz 47.70 60.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,366 × 768 @60 Hz 48.39 60.04 Macintosh13” (640 × 480) 35.00 66.67 Macintosh16” (832 × 624) 49.73 74.55 Macintosh21” (1,152 × 870) 68.68 75.06

PC (from HDMI terminal) Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 480 @60 Hz 31.47 60.00 750 (720) / 60p 45.00 60.00 1,125 (1,080) / 60p 67.50 60.00

Note

Signals other than above may not be displayed properly.● The above signals are reformatted for optimal viewing on your display.● PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient ● clarity.

Page 99

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance.

Block noise, frozen or disappearing image occurs in DVB mode / White spots or shadow image (ghosting) occurs in Analogue mode / Some channels cannot be tuned

Check the position, direction and connection of ● the aerial or dish. Check “Signal Condition” (p. 47). If “Signal

●

Quality” is displayed in red, the DVB signal is weak. Weather conditions will affect signal reception ● (heavy rain, snow, etc.), in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels. Due to the digital reception technologies ● involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels. Turn the TV off with the Mains power On / Off ● switch, and then on again. If problem persists, consult your local dealer or

●

service provider for the availability of services.

No programmes shown on TV Guide

Check the digital transmitter.● Adjust the direction of the aerial or dish to another ● transmitter installed nearby. Check the analogue broadcast.● If the image quality is poor, check the aerial and consult your local dealer.

Input mode, i.e. EC/AV1 remains on the screen

Press the ● button to clear these. Press again to redisplay.

DVB-S Auto Setup cannot be done completely

Check connections and dish alignment. (p. 41)● If the problem persists, consult your local dealer.

●

Neither image nor sound is produced

Is the TV in AV mode?● Check the correct AV input mode is selected.● Check the mains lead is plugged into the ● socket outlet. Has the TV been turned On?● Check the Picture Menu (p. 34) and volume.● Check all required cables and connections are ● firmly in place.

Auto aspect

Auto aspect is designed to provide you with the ● best ratio to fill the screen. (p. 94) Press the ASPECT button if you would like to ● change the aspect ratio manually (p. 18).

S-Video / black and white picture

Check that the output of the external equipment

●

matches the input of the TV. If the output of the external equipment is set to S-Video, the TV must also be set to S-Video (p. 24).

Q-Link function does not work

Confirm SCART cable and connection. ● Also set “AV1 / AV2 out” in the Setup Menu (p. 36).

“VIERA Link” function does not work and an error message appears

Confirm the connection. (p. 84 and p. 85)● Turn the connected equipment on and then switch the ● TV on. (p. 87)

Recording does not start immediately

Check the settings of the recorder. For details, read the ● manual of the recorder.

Contrast is reduced

Contrast is lowered in the following conditions without ● any user operation for a few minutes:

no signal in DVB or AV mode• selected locked channel• selected invalid channel• selected radio channel• displayed menu• Thumbnail, list or still picture in Media Player or • DLNA operations

Frequently Asked Questions ●

Technical Information ●

FAQs, etc.

Page 100

FAQs

Problem Actions

Chaotic image, noisy

Set “P-NR” in the Picture Menu (to remove noise). (p. 34)● Check nearby electrical products ● (car, motorcycle, fluorescent lamp).

Screen

No image can be displayed

Blurry or distorted image

(no sound or low volume)

Unusual image is displayed

No sound is produced

Sound

Sound level is low or sound is distorted

Unusual sound from the TV

Cannot see 3D images

Is “Contrast”, “Brightness” or “Colour” in the Picture Menu set to the ● minimum? (p. 34)

Reset channels. (p. 40 - 43)●

Turn the TV Off with Mains power On / Off switch, then turn it On ● again. If the problem persists, perform “Shipping Condition” (p. 56).

●

Is “Sound mute” active? (p. 8)● Is the volume set to the minimum?●

Sound signal reception may be deteriorated.● Set “MPX” (p. 35) in the Sound Menu to “Mono”. (Analogue only)●

When power is on, whirring sound of cooling fan or drive noise may ● be heard from inside the TV (not a sign of faulty operation).

Has the 3D Eyewear been switched On?● Ensure that “3D Picture Display” in “3D Settings” is set to “3D”. ● (p. 31) Some 3D image signals may not be automatically recognized as ● 3D images. Set “3D Picture Format” in “3D Settings” to match the picture format. (p. 31) Check that there are no obstacles between the infrared sensors on

●

the TV and the 3D Eyewear. If the 3D Eyewear stops receiving the infrared signal for about 5 minutes, the 3D Eyewear will be turned off automatically. Check the coverage area to use the 3D Eyewear. (p. 29)

●

Depending on the person, the 3D images may be difficult to see, ● or cannot be seen, especially in users that have a different level of eyesight between the left and right eyes. Take the necessary steps (wearing glasses etc.) to correct your eyesight before use.

100

3D Eyewear is turned off automatically

There is something wrong with the 3D images

The power lamp does not light when pressing the power button on the 3D Eyewear

Sound is unusual

HDMI

Pictures from external equipment are unusual when the equipment is connected via HDMI

Check that there are no obstacles between the infrared sensors on ● the TV and the 3D Eyewear or that the 3D Eyewear is placed inside the coverage area (p. 29). If the 3D Eyewear stops receiving the infrared signal for about 5 minutes, the 3D Eyewear will be turned off automatically.

Check the setting of “3D Picture Sequence” or “Edge Smoother”. ● (p. 31)

The battery may be running low or flat. Replace it.●

Set the sound setting of the connected equipment to “2ch L.PCM”.● Check the “HDMI1 / 2 / 3 / 4 Input” setting in the Sound Menu. (p. 36)

●

If digital sound connection has a problem, select analogue sound ● connection. (p. 97)

Check the HDMI cable is connected properly. (p. 92)● Turn the TV and equipment Off, then turn them On again.● Check an input signal from the equipment. (p. 98)● Use an equipment compliant with EIA/CEA-861/861B.●
