Operating Instructions
Plasma Television
Model No.
TX-P42S31B
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this
product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
English
UK and Ireland model
QB0E2159
Features
DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.
DVB-T2 tuner built-in
DVB-T2 is an advanced digital terrestrial system for more efficient transmission.
Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.
GUIDE Plus+ (p. 21)
This TV supports the TV Guide services sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 85)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.

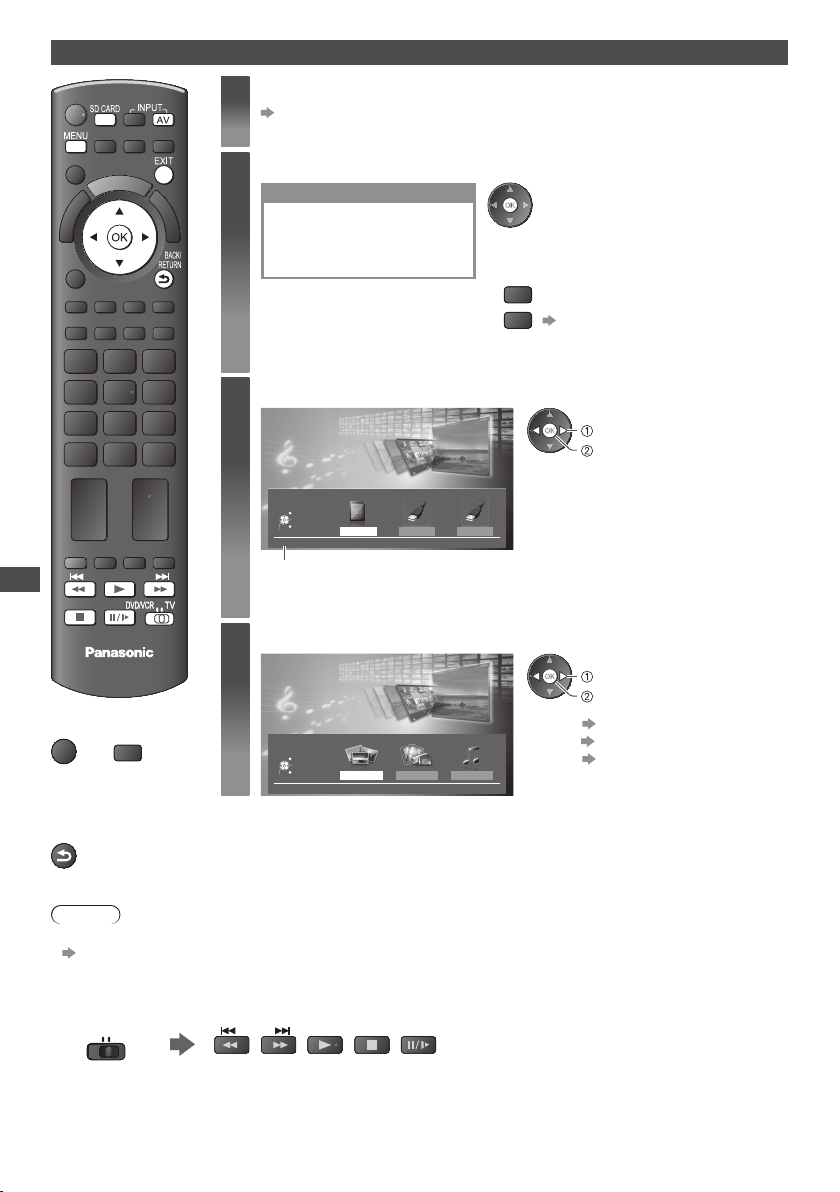

Using USB devices
Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 53)

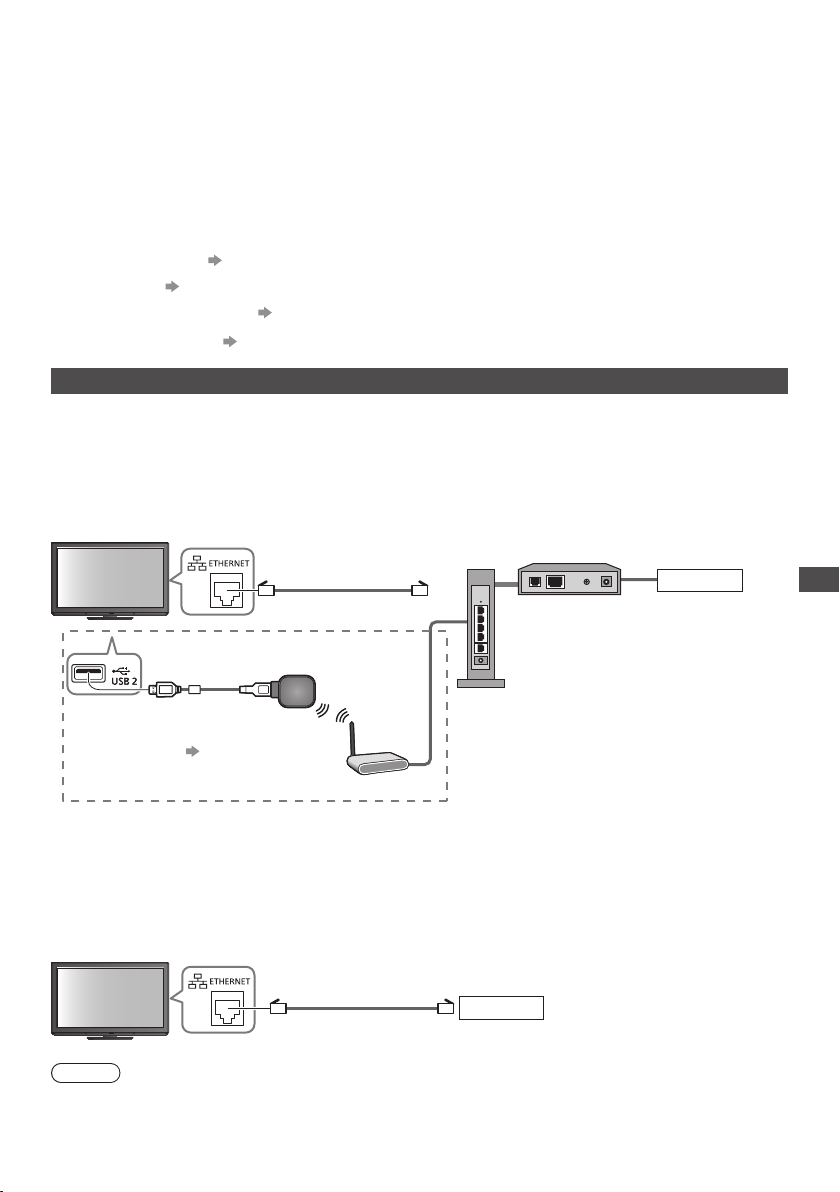

Wireless LAN Adaptor for the network connection. (p. 6, 11, 13)

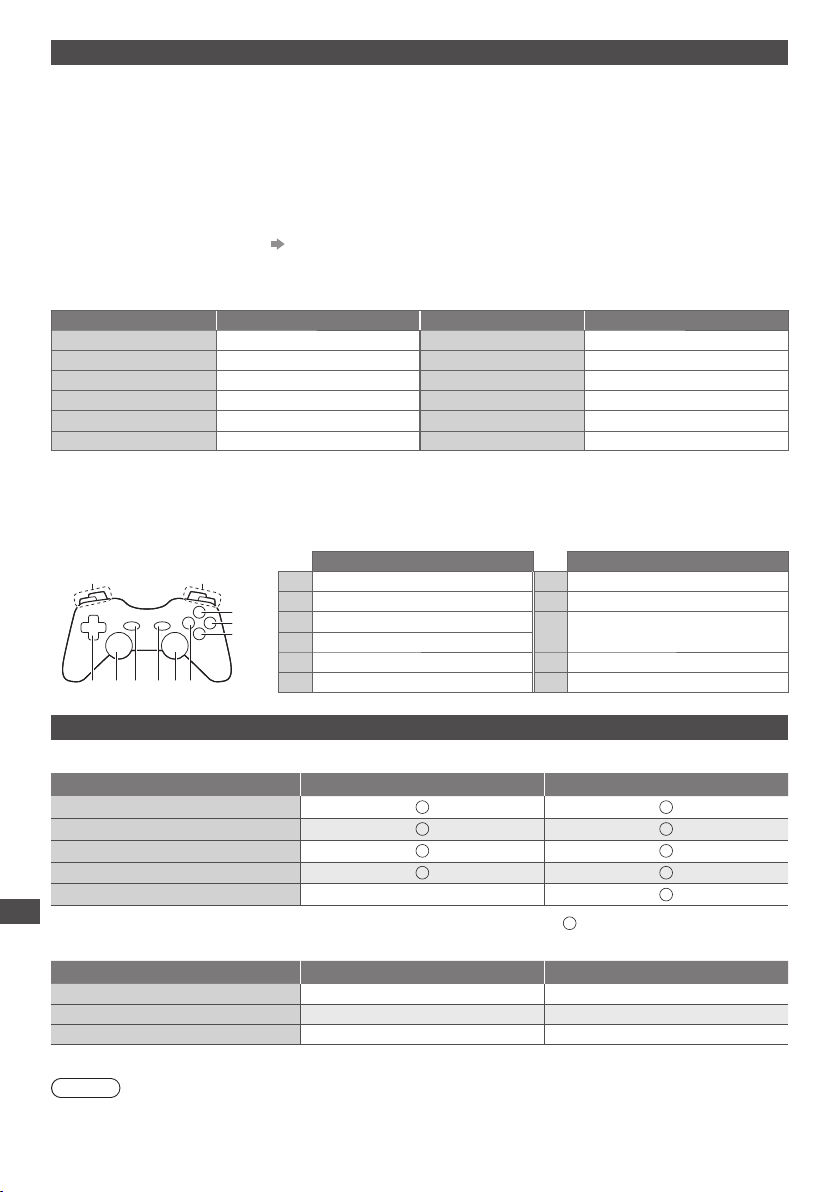

USB keyboard, gamepad, etc. are available. (p. 86)
Timer Programming (p. 22, 45)
Timer Programming enables you to use functions such as programme reminder and programme
recording to the external recorder.

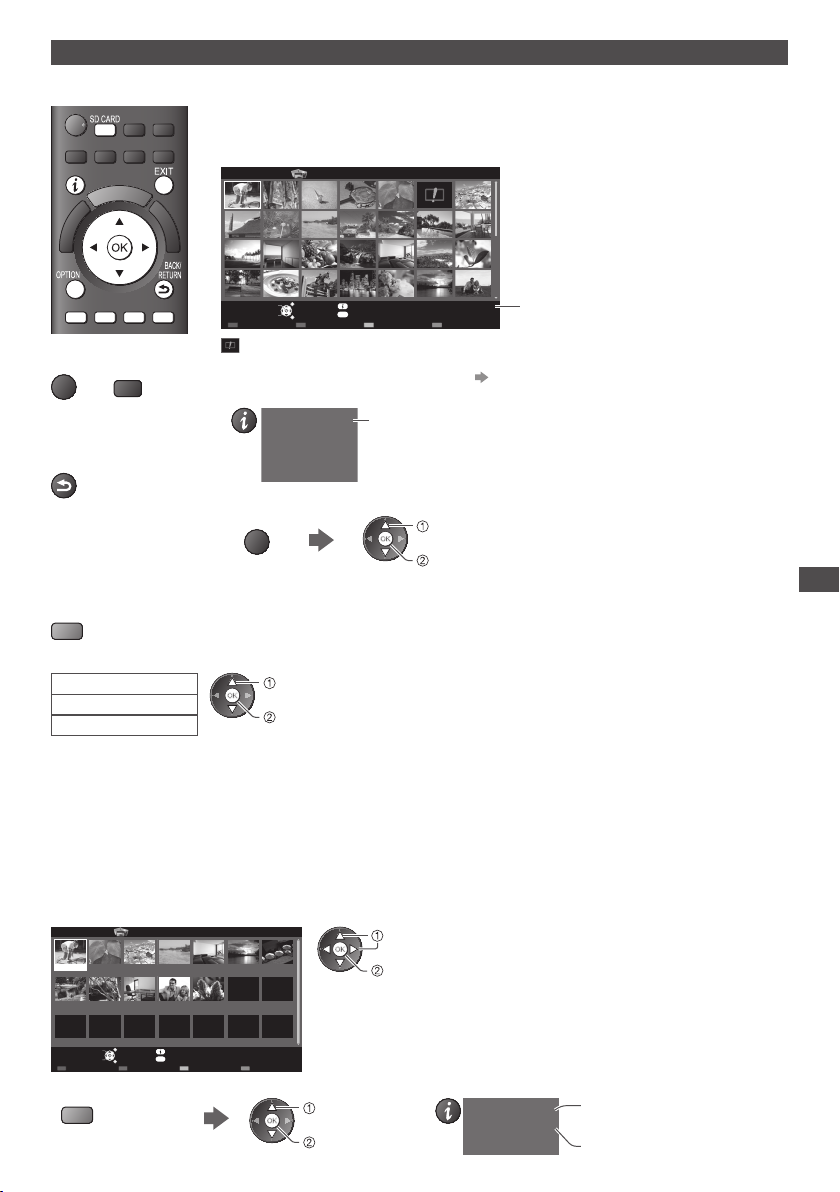

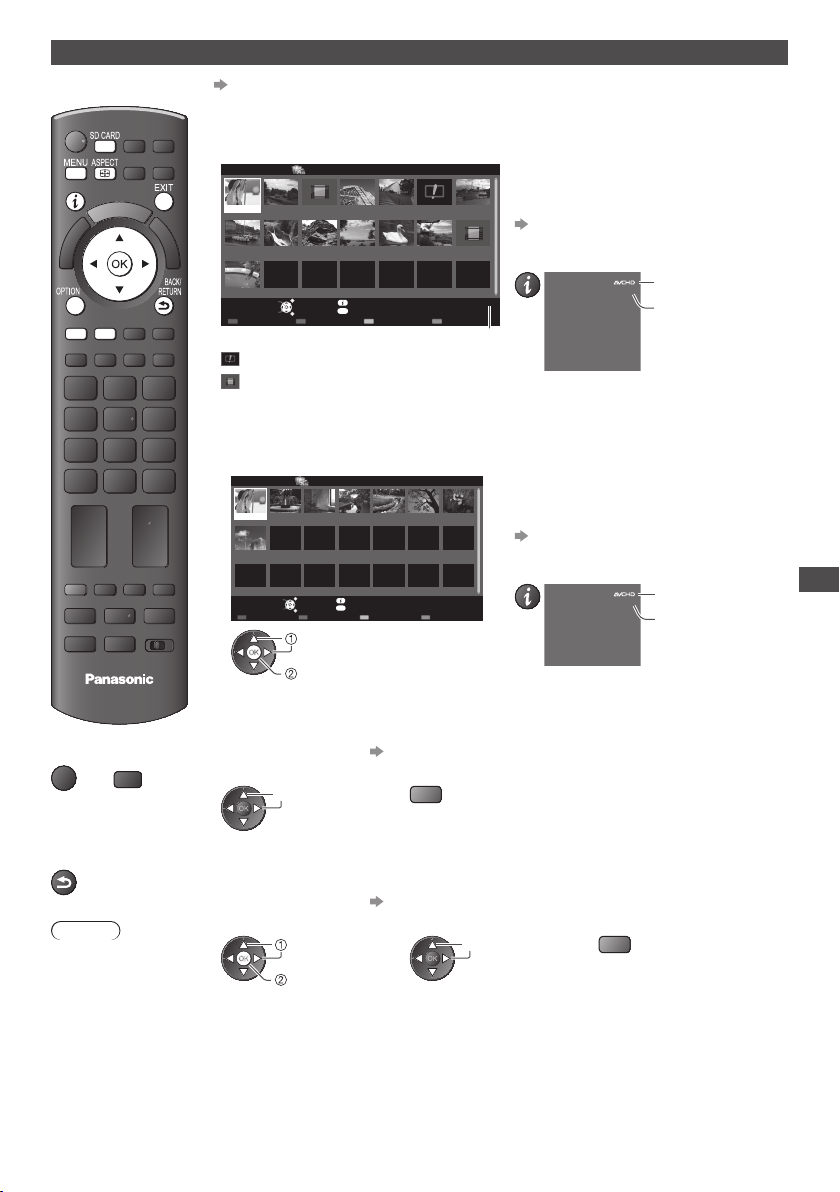

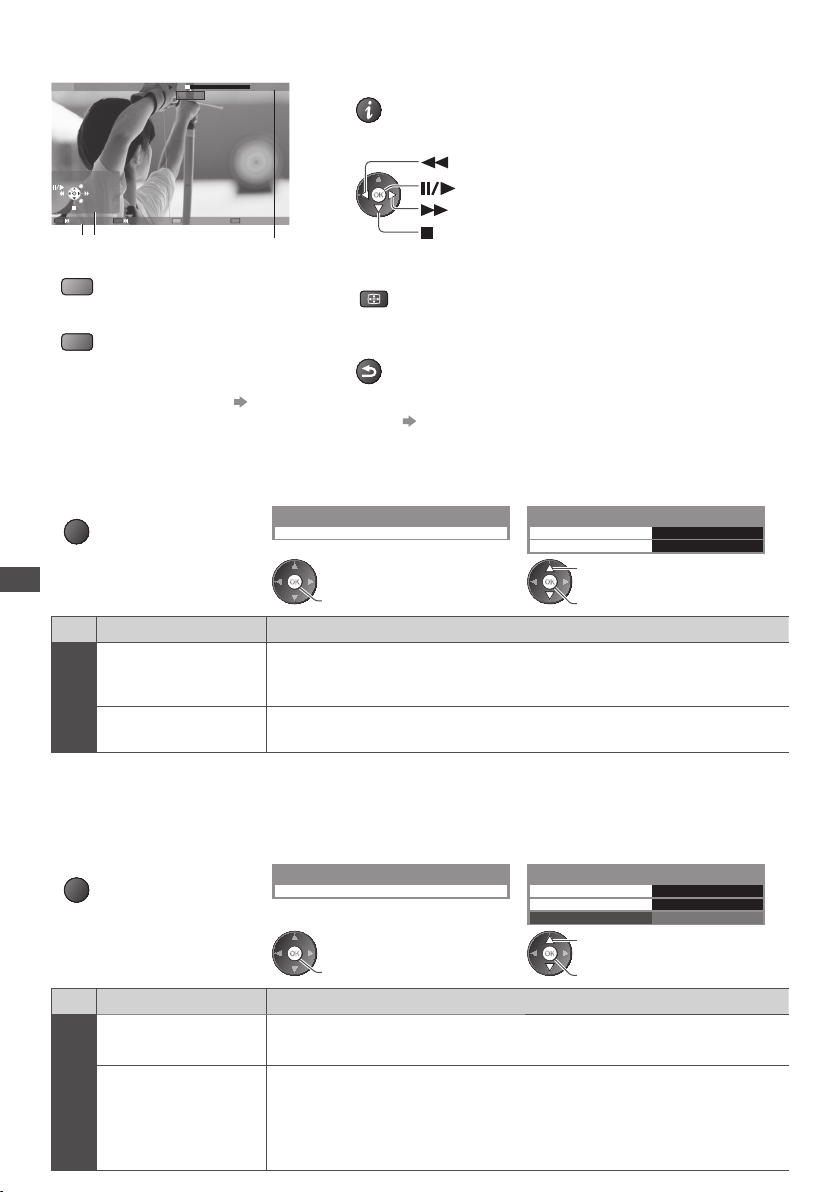

VIERA IMAGE VIEWER - SD Card viewer in Media Player (p. 53)
Enjoy your photos or videos recorded on an SD Card on the TV screen.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity
card.
VIERA Connect - Enjoy great web entertainment (p. 16, 69)
Enjoy the internet contents on the TV such as photos, videos, weather, video communication
(ex. Skype™), etc. through an easy-to-use web interface that is built into the TV.
Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 70)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without
complicated settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility (p. 29)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA
TOOLS button.
Dolby Digital Plus / Dolby Pulse decoders
It is possible to decode Dolby Digital Plus / Dolby Pulse multi-channel audio tracks and output as
Dolby Digital Bitstream (multi-channel sound signal) from DIGITAL AUDIO OUT / HDMI2 (ARC
function) terminals.
Owner ID (p. 50)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help
the Police to determine the owner in the case of theft.
Supports Audio Description signal (p. 18, 33)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen
(narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description
soundtrack independently of the main volume.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by
TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV
channels and some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue
channels are permanently turned off, it will not be possible to recover them.
To retune your TV [Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 40)
•
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via
their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in
•
some cases, despite good reception of analogue channels.
2
Do not display a still picture for a long time
This causes the image to remain on the plasma
screen (“image retention”). This is not considered a
malfunction and is not covered by the warranty.
Typical still images :
Channel number and other logos
•
Image displayed in 4:3 mode
•
Video game
•
Computer image
•
To prevent image retention, contrast is lowered
automatically after a few minutes if no signals are
sent or no operations are performed. (p. 87)
Panasonic does not guarantee operation and
performance of peripheral devices made by other
manufacturers; and we disclaim any liability or
damage arising from operation and/or performance
from usage of such other maker’s peripheral
devices.
This product is licensed under the AVC patent
portfolio license for the personal and non-commercial
use of a consumer to (i) encode video in compliance
with the AVC Standard (“AVC Video”) and/or (ii)
decode AVC Video that was encoded by a consumer
engaged in a personal and non-commercial activity
and/or was obtained from a video provider licensed to
provide AVC Video. No license is granted or shall be
implied for any other use.
Additional information may be obtained from
MPEG LA, LLC.
See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED
AFFILIATES ARE NOT IN ANY WAY LIABLE FOR
THE ACCURACY OF THE PROGRAM SCHEDULE
INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL ROVI CORPORATION
AND/OR ITS RELATED AFFILIATES BE LIABLE FOR
ANY AMOUNTS REPRESENTING LOSS OF PROFITS,
LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR
CONSEQUENTIAL DAMAGES IN CONNECTION WITH
THE PROVISION OR USE OF ANY INFORMATION,
EQUIPMENT, OR SERVICES RELATING TO THE
GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Contents
Be Sure to Read
Safety Precautions ·····································4
Quick Start Guide
Accessories / Options ·································6
Identifying Controls ·····································8

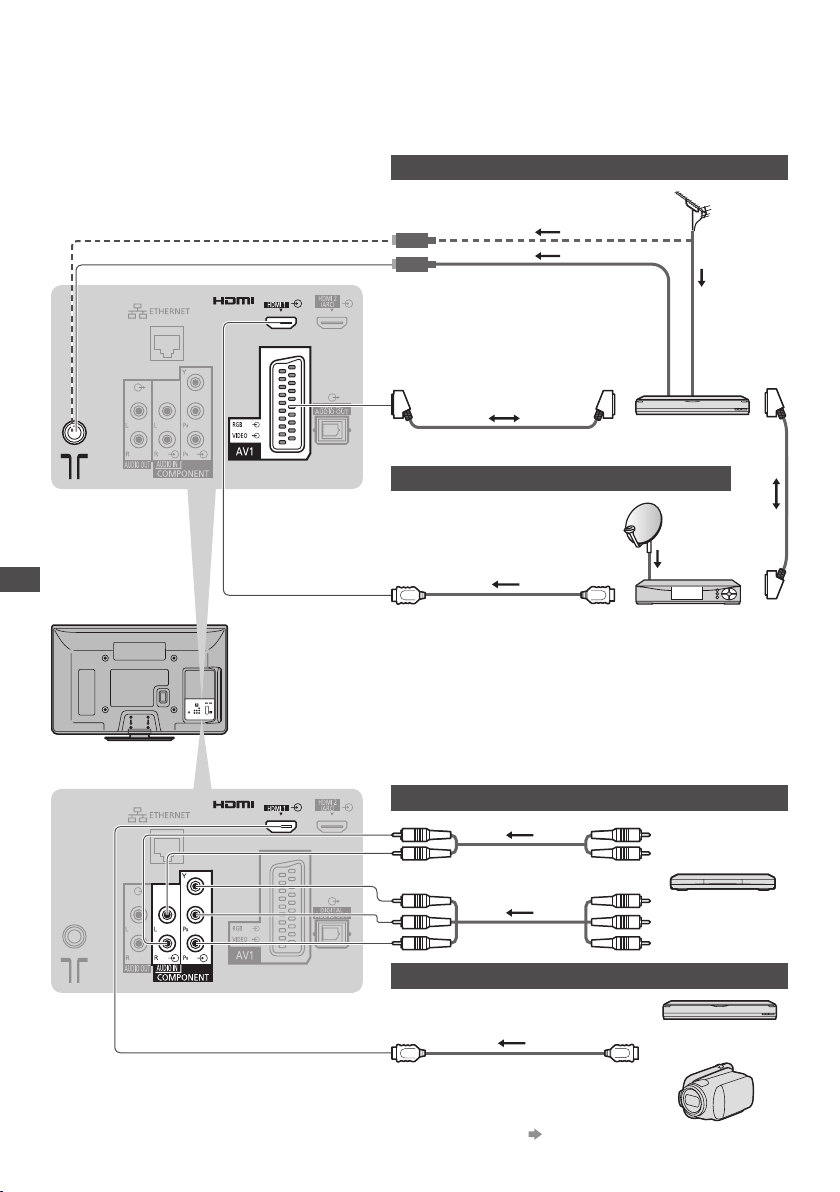

Basic Connection······································10
Auto Setup ················································12
Enjoy your TV!
Basic Features
Using “VIERA Connect” ····························16
Watching TV ·············································17
Using TV Guide ········································21
Viewing Teletext ········································24
Watching External Inputs ··························27
How to Use VIERA TOOLS ······················29

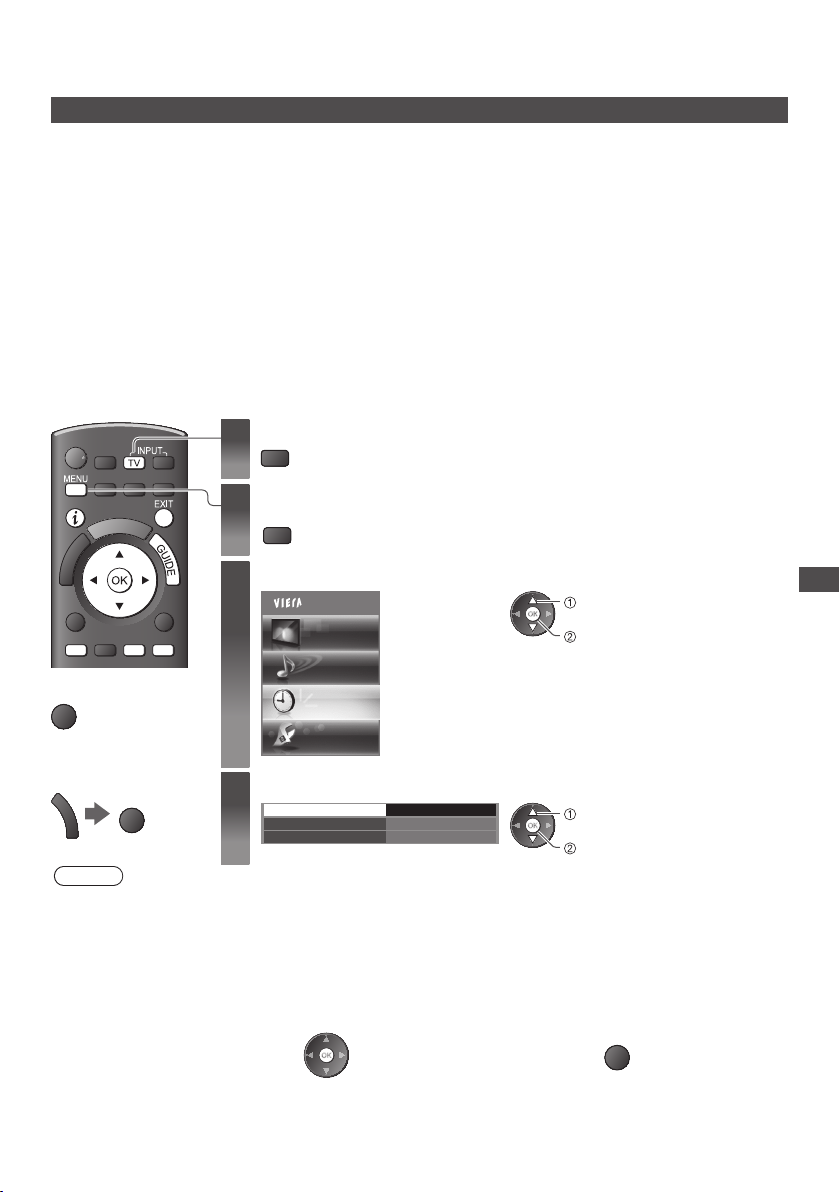

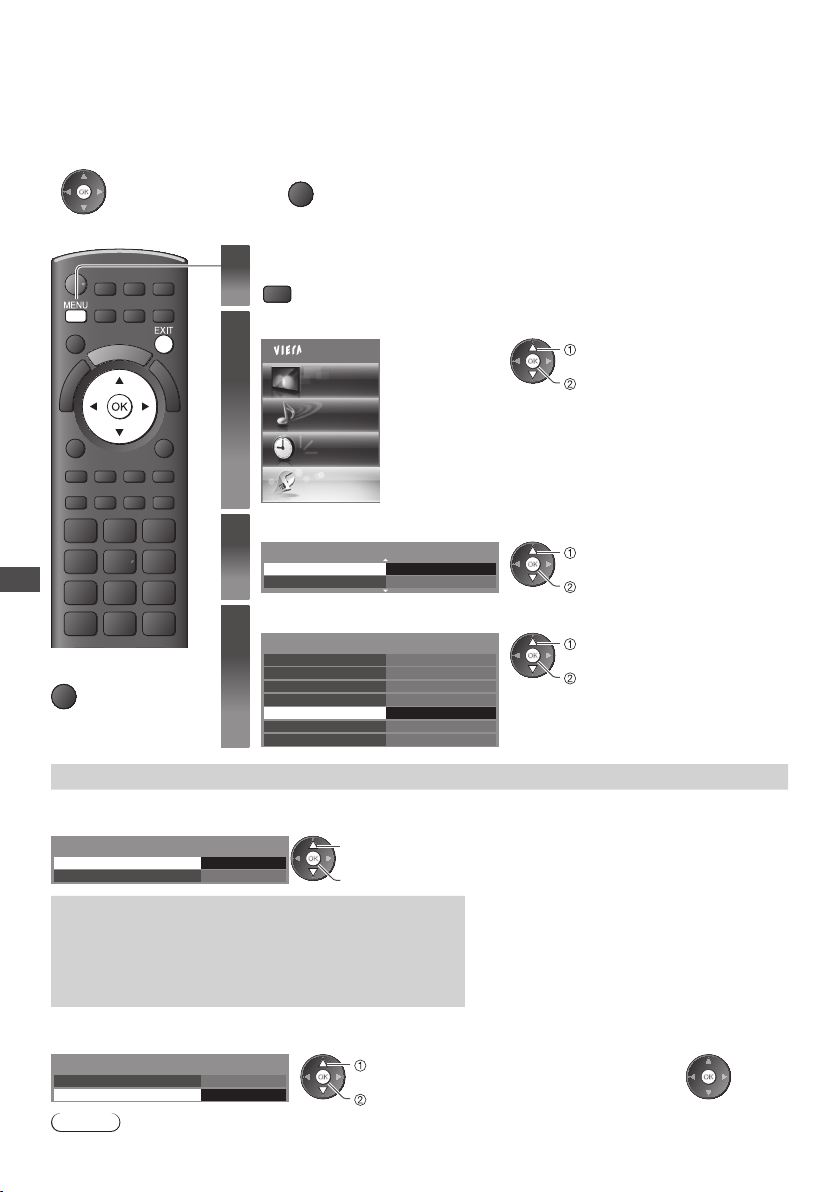

How to Use Menu Functions ····················30
Advanced Features

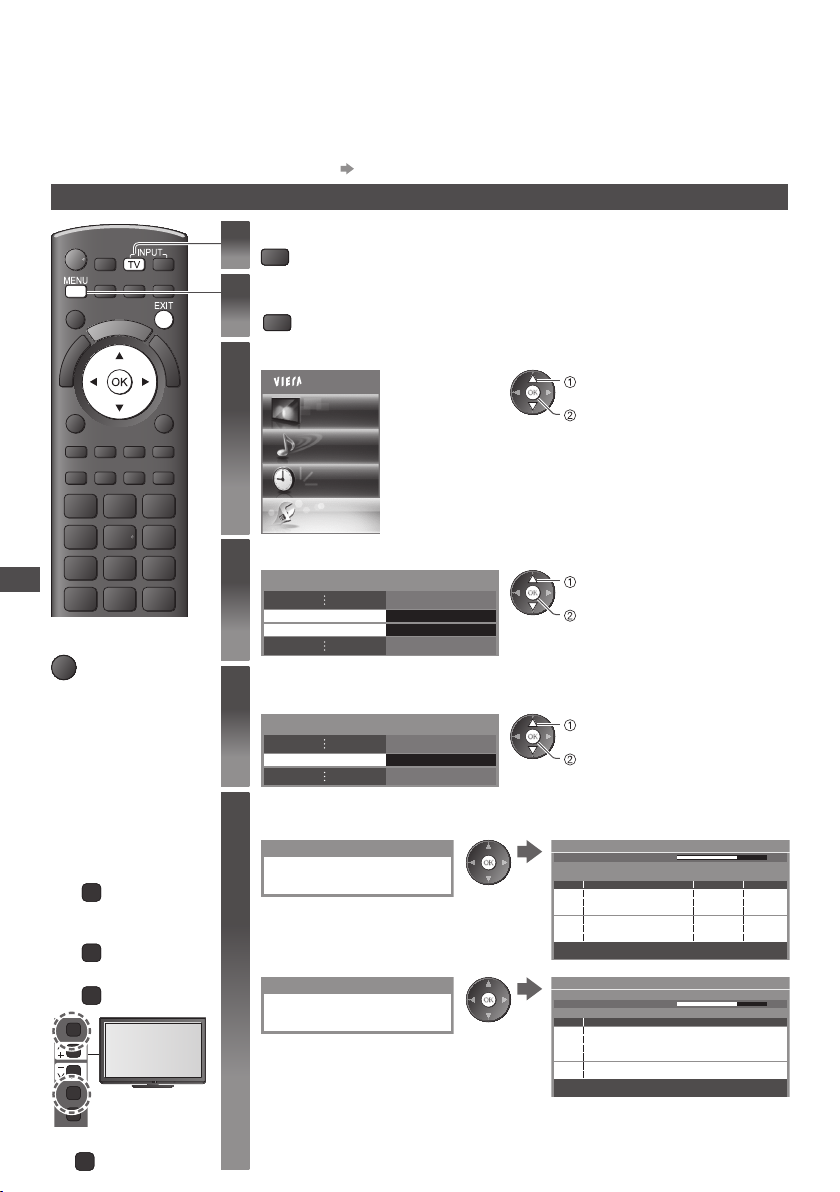

Retuning from Setup Menu·······················40
Tuning and Editing Channels ···················41
Timer Programming ··································45
Child Lock ·················································47
Input Labels ··············································48
Shipping Condition ···································49
Owner ID ··················································50
Using Common Interface ··························51
Updating the TV Software ························52
Using Media Player ··································53
Using Network Services ···························63
Link Functions (Q-Link / VIERA Link) ·······70
External Equipment ··································78
FAQs, etc.
Technical Information································81
FAQs·························································87
On screen messages································89
Glossary ···················································91
Maintenance ·············································91
Notice for DVB / Data broadcasting / IPTV functions
This TV is designed to meet the standards (as of
August, 2010) of digital services.
The compatibility with future services is not guaranteed.
•
Check the latest information on the available
•
services at the following website.
http://panasonic.jp/support/global/cs/tv/
Index ·························································92
Licence ·····················································93
Specifications ···········································94
3
Safety Precautions
Warning
Safety Precautions
■ Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
•
Insert the mains plug fully into the socket outlet.
•
Ensure that the mains plug is easily accessible.
•
Remove the mains plug when cleaning the TV.
•
Do not touch the mains plug with a wet
•
hand.
Do not damage the mains lead.
•
• Do not place a heavy
object on the lead.
• Do not place the
lead near a high
temperature object.
• Do not pull on the
lead. Hold onto the
mains plug body when
disconnecting the
plug.
• Do not move the TV with the lead plugged into a socket outlet.
• Do not twist the lead, bend it excessively or stretch it.
• Do not use a damaged mains plug or socket outlet.
• Ensure the TV does not crush the mains lead.
Do not use any mains lead other than that provided with this TV.
•
Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
•
• An apparatus with CLASS I construction shall be connected to a mains socket outlet with a
protective earthing connection.
If you detect anything unusual,
immediately switch off the mains supply
switch and remove the mains plug.
AC 220-240 V
50 / 60 Hz
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10
amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the
replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to
avoid interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified
electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an
authorized dealer.
WARNING: – THIS TV MUST BE EARTHED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
or the BSI mark on the body of the fuse.
4
Warning
■ Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
Do not remove covers and never modify the TV yourself as live parts are
•
accessible when they are removed. There are no user serviceable parts inside.
Do not expose the TV to rain or excessive moisture. This TV must
•
not be exposed to dripping or splashing water and objects filled with
liquid, such as vases, must not be placed on top of or above the TV.
Do not expose the TV to direct sunlight and other sources of heat. To
•
prevent fire never place any type of candle or naked flame on top or
near the TV.
Do not place the TV on sloped or unstable surfaces, and ensure that
•
the TV does not hang over the edge of the base.
Do not insert foreign objects into the TV through the air vents.
•
Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic
•
dealer to perform the setup or installation of approved wall-hanging brackets.
Do not apply strong force or impact to the display panel.
•
To prevent the spread of fire, keep candles or other
open flames away from this product at all times
■ Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
Keep the dangerous parts out of reach of young children.
•
Do not allow children to handle SD Card. As with any small object, the
•
SD Card could be swallowed by young children. Please remove SD Card
immediately after use and store out of reach of young children.
Caution
■ Ventilation
Allow sufficient space around the TV in order to help prevent excessive
heat, which could lead to early failure of some electronic components.
Ventilation should not be impeded by covering
•
the ventilation openings with items such as
newspapers, tablecloths and curtains.
Whether you are using the pedestal or not, always ensure the vents
•
in the bottom of the TV are not blocked and there is sufficient space to
enable adequate ventilation.
■ Moving the TV
Before moving the TV, disconnect all cables.
The TV is heavy. Move the TV with at least two people. Support as
•
shown to avoid injury by the TV tipping or falling.
Transport only in upright position. Transporting the TV with its display panel
•
facing upward or downward may cause damage to the internal circuitry.
■ When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still
connected to a live socket outlet.
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
•
■ Excessive volume
Do not expose your ears to excessive volume from the headphones.
Irreversible damage can be caused.
Minimum distance
10
10
10
(cm)
Safety Precautions
7
5
Accessories / Options
Standard accessories
Remote Control
Quick Start Guide
N2QAYB000490
•
or
N2QAYB000672
•
Batteries for the
Remote Control (2)
(p. 8)
R6
•
Pedestal
TBL5ZX0030
•
TXFBL5Z0001
•
(p. 7)
Operating Instructions Mains Lead (p. 10) Ferrite core (2) (p. 11, 79)
Product Registration
Leaflet
Accessories / Options
Accessories may not be placed all together. Take care not to throw them away unintentionally.
•
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For
additional details, please refer to the manual of the optional accessories.
Wireless LAN Adaptor
DY-WL10E-K
•
Wall-hanging bracket
TY-WK4P1RW• Tilting angle for this TV : 0 (vertical) to 20 degrees
•
Warning
Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of
•
personal injury and product damage. In order to maintain the unit’s performance and safety, be sure
to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused
by installing without a qualified installer will void your warranty.
Carefully read the instructions accompanying optional accessories, and be sure to take steps to
•
prevent the TV from falling off.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause
•
product damage which will void your warranty.
Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically
•
give off high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by
•
metal within the wall. Always ensure that there are no electrical cables or pipes in the wall before
hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an
•
extended period of time.
6
Caution
To use the Wireless LAN Adaptor, an access point needs to be obtained.
•
It is recommended to use the Wireless LAN Adaptor with the extension cable.
•
To avoid malfunctions caused by radio wave interference, keep the TV away from
•
the devices such as other wireless LAN devices, microwaves and the devices that
use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.
Depending on the area, this optional accessory may not be available.
•
Additional information for Wireless LAN Adaptor and access point may be on the
•
following website.
http://panasonic.jp/support/global/cs/tv/
Rear of the TV
Holes for wall-hanging bracket installation
K2CT3YY00021
•
400 mm
300 mm
(View from the side)
J0KG00000014
•
Depth of screw : minimum 15 mm,
Diameter : M8
Screw for fixing the TV onto the wall-hanging
bracket (not supplied with the TV)
Use the Ferrite cores to
comply with the EMC standard.
maximum 30 mm
Communication Camera
TY-CC10W
•
Caution
This camera can be used on VIERA Connect (p. 16, 69).
•
Please also read the manual of the camera.
•
Depending on the area, this optional accessory may not be available.
•
For details, consult your local Panasonic dealer.
Attaching / removing the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and
cautions below :
Warning
Do not disassemble or modify the pedestal.
•
Caution
Do not use any pedestal other than the one provided with this TV.
•
Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your
•
nearest Panasonic dealer immediately.
During setup, make sure that all screws are securely tightened.
•
Ensure that the TV does not suffer any impact during installation of the pedestal.
•
Ensure that children do not climb onto the pedestal.
•
Install or remove the TV from the pedestal with at least two people.
•
Quick Start Guide
Accessories / Options
B
Front
Assembly screw (4)
(black)
THEL088N
•
M5 × 25
A
to
2
Assembly screw (4)
A
(silver)
XYN5+F20FN
•
M5 × 20
Assembling the pedestal
1
Use the assembly screws
fasten the pole C to the base D
securely.
Make sure that the screws are
•
securely tightened.
Forcing the assembly screws the
•
wrong way will strip the threads.
D
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way when using the wall-hanging bracket or
repacking the TV.
1 Remove the assembly screws B from the TV.
2 Pull out the pedestal from the TV.
3 Remove the assembly screws A from the pole.
A
C
C
Pole
TBL5ZA3028
•
Securing the TV
Use the assembly screws
Tighten the four assembly screws loosely at first,
•
then tighten them firmly to fix securely.
Carry out the work on a horizontal and level surface.
•
B
Hole for
pedestal
installation
D
(View from the bottom)
D
Base
TBL5ZX0030
•
B
to fasten securely.
Arrow mark
7
Identifying Controls
Remote Control
INPUT
MENU
L
A
R
E
I
V
OPTION
TEXT
SD CARD
ASPECT
V
k
n
i
STTL
ghi
REC
T
A
R
E
I
INDEX HOLD
abc def
jkl
tuvpqrs
TV
AVTV
DIRECT TV REC
EXIT
O
O
L
S
G
U
I
D
E
BACK/
RETURN
mno
wxyz
LAST VIEW
PROGRAMME
DVD/VCR
TV
1
2
3
Quick Start Guide
4
5
6
7
8
Identifying Controls
9
10
11
12
13
14
■ Installing / removing remote’s batteries
1
Pull open
Hook
2
Note the correct
8
polarity (+ or -)
1 Standby On / Off switch
Switches TV On or Off standby
15
16
17
18
19
20
21
22
23
24
25
26
27
Close
•
2 [Media Player] (p. 53)
Switches to SD Card and
•
USB device viewing /
listening mode
3 [Main Menu]
Press to access Picture, Sound,
•
Timer and Setup Menus
4 Aspect (p. 20)
Changes aspect ratio
•
5 Information
Displays channel and
•
programme information
6 VIERA TOOLS
Displays some special feature
•
icons and accesses easily
7
[VIERA Link Menu] (p. 74)
8OK
Confirms selections and choices
•
Press after selecting
•
channel positions to quickly
change channel
Displays the Channel List
•
9 [Option Menu]
Easy optional setting for
•
viewing, sound, etc.
10 Teletext
Switches to teletext mode
•
11 Subtitles
Displays subtitles
•
12 Numeric buttons
Changes channel and
•
teletext pages
Sets characters
•
When in Standby mode,
•
switches TV On (Press for
about 1 second)
13 Sound Mute
Switches sound mute On or Off
•
14 Volume Up / Down
Caution
Incorrect installation may cause battery leakage and
•
corrosion, resulting in damage to the remote control.
Do not mix old and new batteries.
•
Do not mix different battery types (such as alkaline and
•
manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries.
•
Batteries must not be exposed to excessive heat such as
sunshine, fire or the like.
Do not disassemble or modify the remote control.
•
(p. 30)
(p. 17)
(p. 24)
(p. 20)
(p. 29)
(p. 19)
15 Input mode selection
TV - switches between DVB
•
and Analogue modes (p. 17)
AV - switches to AV input mode
•
from Input Selection list (p. 27)
16 Direct TV Recording
(p. 72, 74)
Records programme
•
immediately in DVD
Recorder / VCR with Q-Link
or VIERA Link connection
17
[VIERA Connect] (p. 16, 69)
Displays VIERA Connect
•
home screen
18 Exit
Returns to the normal
•
viewing screen
19 TV Guide
20 Cursor buttons
Makes selections and adjustments
•
21 Return
Returns to the previous
•
menu / page
22 Coloured buttons
(red-green-yellow-blue)
Used for the selection, navigation
•
and operation of various functions
23 Hold
Freeze / unfreeze picture
•
(p. 19)
Holds the current teletext
•
page (teletext mode)
(p. 25)
24 Index
Returns to the teletext
•
index page (teletext mode)
25 Last view
Switches to previously viewed
•
channel or input mode
26 Channel Up / Down
27
Connected equipment operations
(p. 28, 54, 76)
(p. 21)
(p. 26)
(p. 18)
TV
2
1
5
8
1 CI slot (p. 51)
2 Function select
3 Channel Up / Down, Value change (when
4 Changes the input mode
5 USB 1 / 2 port (p. 80)
6 SD Card slot
3
4
6
7
9
10
[Volume] / [Contrast] / [Brightness] / [Colour] /
•
[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ /
[Treble]∗ / [Balance] / [Auto Setup] (p. 40)
∗ [Music] or [Speech] mode in the Sound Menu
using the F button), Switching the TV On
(press either button for about 1 second when
in Standby mode)
11 12 13
(p. 53)
7 HDMI3 terminal
8 Headphones jack
9 AV2 terminals
10 Mains power On / Off switch
Use to switch the mains power.
•
If you turned the TV Off during Standby
mode by the remote control last time, the TV
will be in Standby mode when you turn the
TV On with Mains power On / Off switch.
11 Remote control signal receiver
Do not place any objects between the TV
•
remote control signal receiver and remote
control.
12 C.A.T.S. (Contrast Automatic Tracking
System) sensor
Senses brightness to adjust picture quality
•
when [C.A.T.S.] in the Picture Menu is set to
[On] (p. 31)
13 Power and Timer LED
Red : Standby
•
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming or
Direct TV Recording in progress
Red with orange flash :
Standby with Timer Programming On
or Direct TV Recording
The LED blinks when the TV receives a
•
command from the remote control.
(p. 80)
(p. 80)
(p. 80)

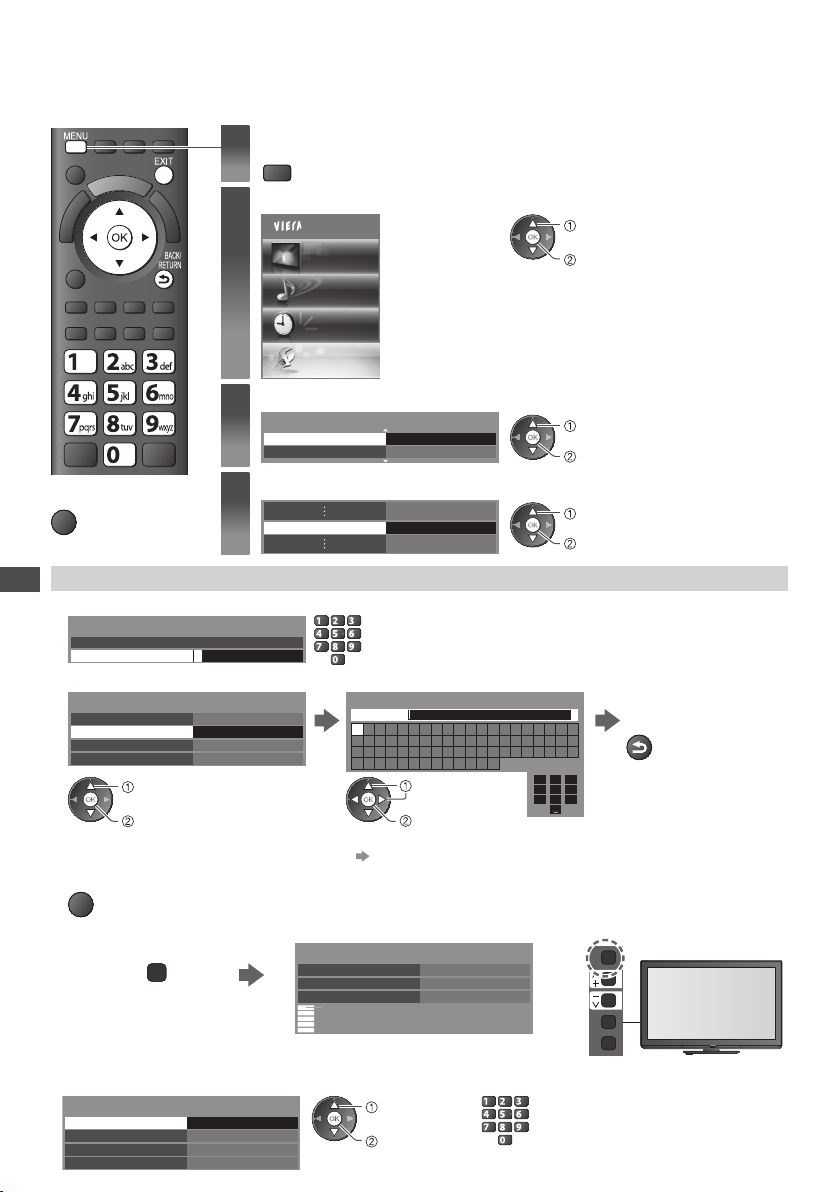

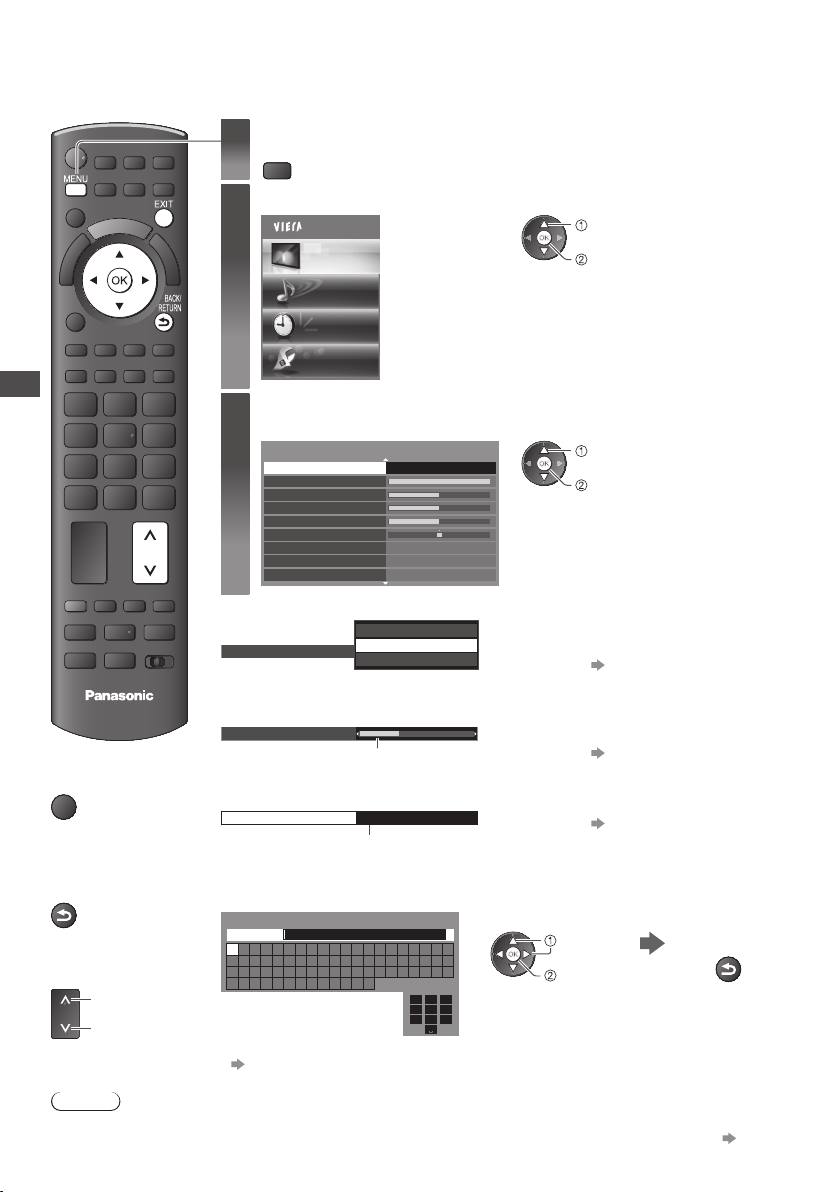

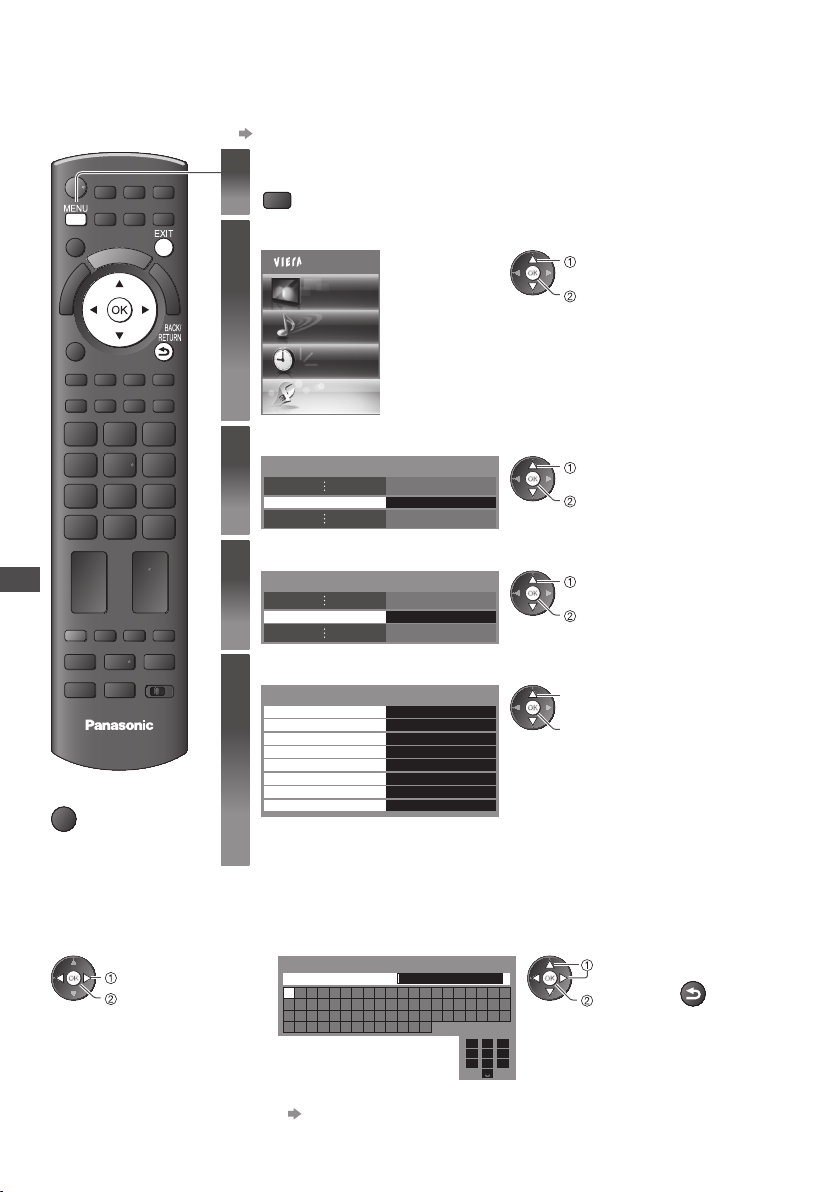

Using the On Screen Displays - Operation guide
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by using
the remote control.
Example : [Owner ID]
Owner ID
Please enter new PIN
PIN
EXIT
Operation guide
* * * *
09
PIN entry
How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item /
select from a range of options
Move the cursor / adjust levels /
select from a range of options
Access the menu / store settings after
adjustments have been made or options
have been set
BACK/
RETURN
Return to the previous menu
Quick Start Guide
Identifying Controls
EXIT
Exit the menu system and return to the
normal viewing screen
Auto power standby function
The TV will automatically go to Standby mode in the following conditions :
• no signal is received and no operation is performed for 30 minutes in Analogue TV mode
• [Off Timer] is active in the Timer Menu (p. 19)
• no operation is performed for the period selected in [Auto Standby] (p. 34)
This function does not affect the recording of Timer Programming and Direct TV Recording.
•
9
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.
Example 1 Example 2
Connecting aerial Connecting DVD Recorder / VCR
Quick Start Guide
TV only TV, DVD Recorder or VCR
Rear of the TV
Terrestrial aerial
Rear of the TV
Terrestrial aerial
Basic Connection
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Aerial input terminal
Mains Lead
Make sure that
Push until both side
tabs click
To remove from the TV :
tabs
Press both tabs and pull on mains connector to
release
the mains lead is
securely fixed.
RF cable
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
RF cable
RF OUT
DVD Recorder or VCR
RF IN
Aerial input terminal
Fully wired
HDMI
compliant
cable
Fully wired
SCART cable
HDMI AV
RF cable
Note
Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 70).
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3) by
•
using HDMI cable (p. 78).
Q-Link and VIERA Link connection (p. 70, 71)
•
Please also read the manual of the equipment being connected.
•
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared
•
sensor. Otherwise, distortion of image / sound may occur or operation of other equipment may be
interfered.
10
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Rear of the TV
Aerial input terminal
AC 220-240 V
50 / 60 Hz
Fully wired HDMI
compliant cable
Fully wired
HDMI
compliant
cable
Fully wired
SCART
cable
RF cable
Terrestrial
aerial
Quick Start Guide
Basic Connection
Mains lead
(supplied)
Recorder/AV
HDMI
Satellite receiver
Fully wired
SCART cable
RF OUT
RF IN
AV 2 AV 1
DVD Recorder
or VCR
RF cable
HDMI
RF OUT
RF IN
RF cable

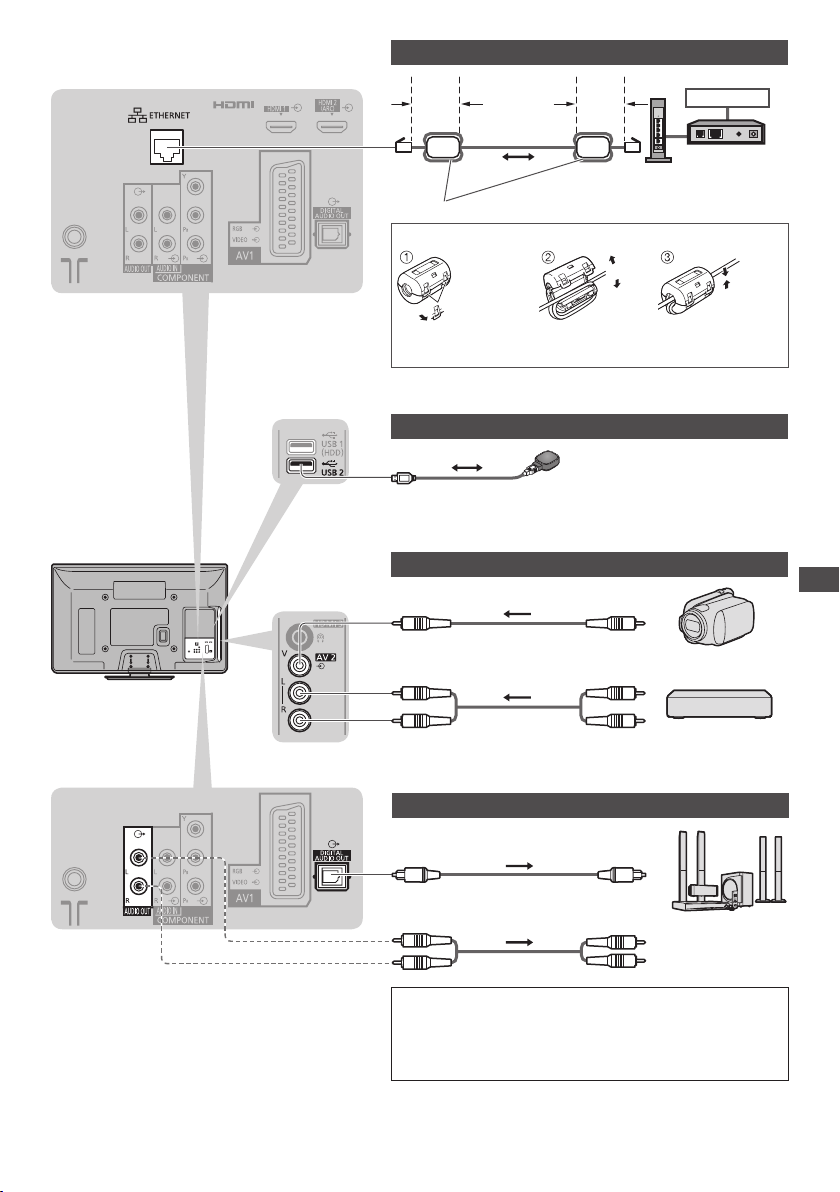

■ Connecting to the network environment (Network connections)
To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a
broadband network environment.
If you do not have any broadband network services, please consult your retailer for assistance.
•
Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).
•
Setup of the network connection will start after the tuning (when first using the TV) (p. 12 - 14)
•
Rear of the TV
Wired connection
Less
than
10 cm
Note
For more information of the network connections (p. 63)
•
Wireless connection
Wireless LAN Adaptor and Extension cable
“Optional accessories” (p. 6)
Connect to the USB 1 or 2 port.
•
Ferrite core (supplied)
Installing the Ferrite core
LAN cable
Less
than
10 cm
Internet
environment
Pull back the tabs
(in two places)
Wind the
cable twice
Internet
environment
Access point
Press the cable
through and close
11

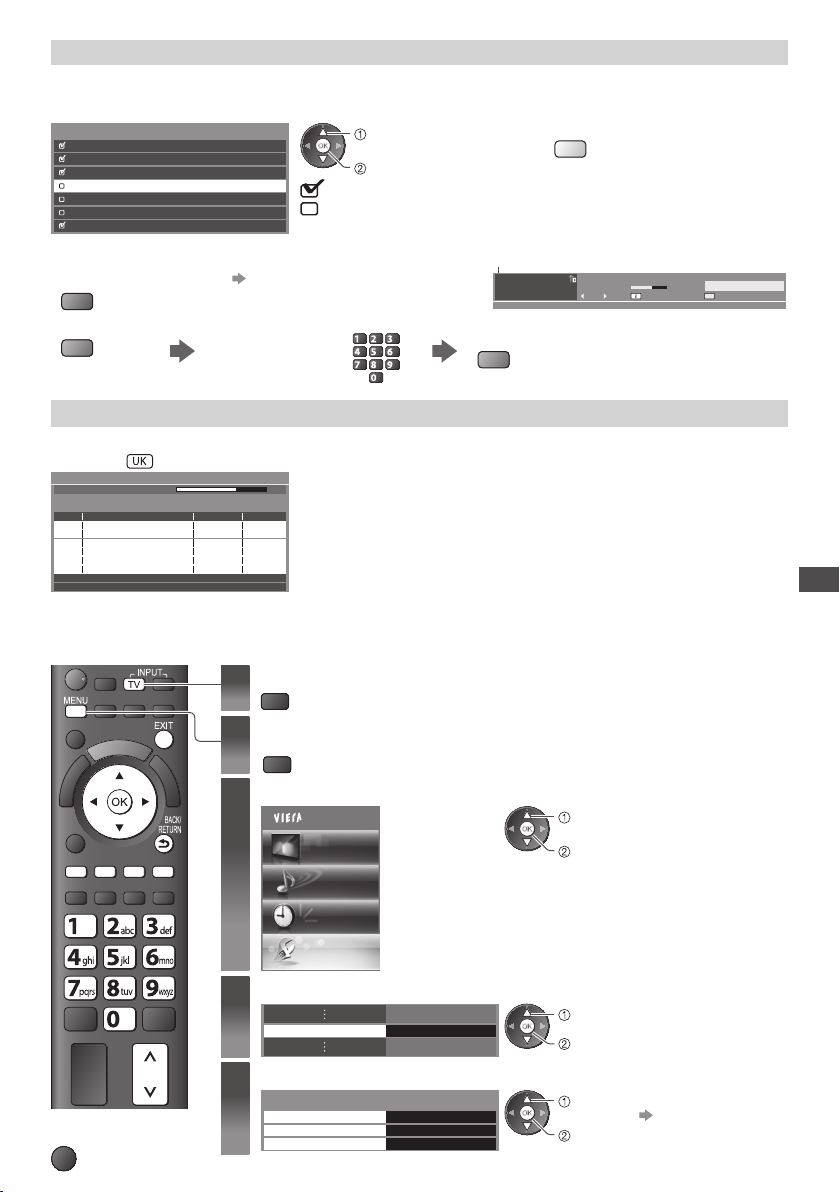

Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.
•
Please complete connections (p. 10, 11) and settings (if necessary) of the connected equipment before
•
starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.
Plug the TV into mains socket and switch On
Quick Start Guide
Auto Setup
1
Select your country
2
Country Selection
United Kingdom Ireland
Takes a few seconds to be displayed.
•
If the red LED shows on the TV, press the Standby On / Off switch
•
on the remote control for at least 1 second to turn the TV On.
select
set
Example :
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
29 33 -BBC1
Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2
Example :
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
CH29 CH33 -BBC1
Free TV: 8 Pay TV: 0 Radio: 0 Analogue: 2
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
CH 21 68
CH 21 68
Searching
CH 5 69
CH 1 99 41H: 21
Searching
Free TV
Free TV
Free TV
Free TV
Analogue
Analogue
Free TV
Free TV
Free TV
Free TV
Analogue
Analogue
Quality
10
10
10
Quality
10
10
10
Auto Setup will start to search for
TV channels and store them in the
numbered order as specified by the
broadcasters.
Actual number of channels may
•
differ due to channel duplication.
If Q-Link or similar technology (p. 72) compatible recorder with analogue
tuner is connected, analogue channel setting is automatically downloaded
to the recorder. (Digital channel setting is not downloaded.)
If downloading has failed, you can download later through the Setup Menu.
•
“Q-Link Download” (p. 34)
12
Setup the network connection
3
Setup the network connection to enable the network service functions
TV
such as VIERA Connect, etc. (p. 16, 63).
To setup the wireless connection, the Wireless LAN Adaptor
•
(optional accessory) is required.
Please note that this TV does not support wireless public access points.
Ensure the network connections (p. 11) and network environment are
•
completed before starting setup.
Select the network type
Network Setup
Select Wired or Wireless
Wired Wireless Set later
[Wired] “Wired connection” (p. 11)
[Wireless] “Wireless connection” (p. 11)
To setup later on or
•
select
access
skip this step
Select [Set later]
EXIT
or
■ [Wired]
3
1. Select [Auto]
Acquire IP Address
Auto Manual
select
access
2. Go to the next step
Automatically setup is done and the test of the
network connection starts.
4
•
(Press twice)

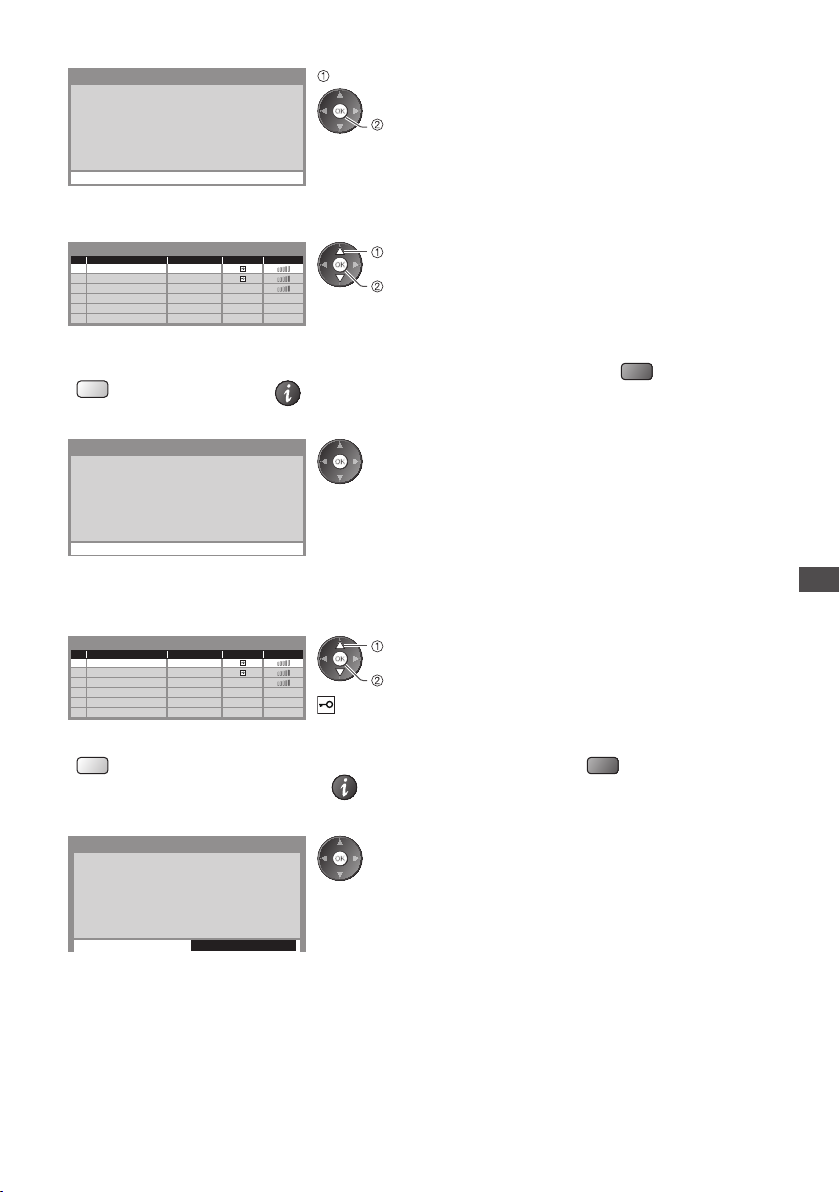

■ [Wireless]
Select the connection type
Connection Type
Please select network connection type.
Search for access point
WPS(Push button)
[Search for access point]
Access points found automatically are listed.
1. Select your desired access point
Available Access Points
No. Wireless type Encrypt Reception
SSID
1
Access Point A
Access Point B
2
Access Point C
3
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
Connection Test
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
To set manually, select [Manual] and set
each item. For details (p. 65)
select
access
select
access
: Encrypted access point
: succeeded
The test is
successful and the
TV is connected to
the network.
: failed
Check the settings
and connections,
and then select
[Retry].
Quick Start Guide
Auto Setup
To search access points again
•
(yellow)
For the information of the
•
highlighted access point

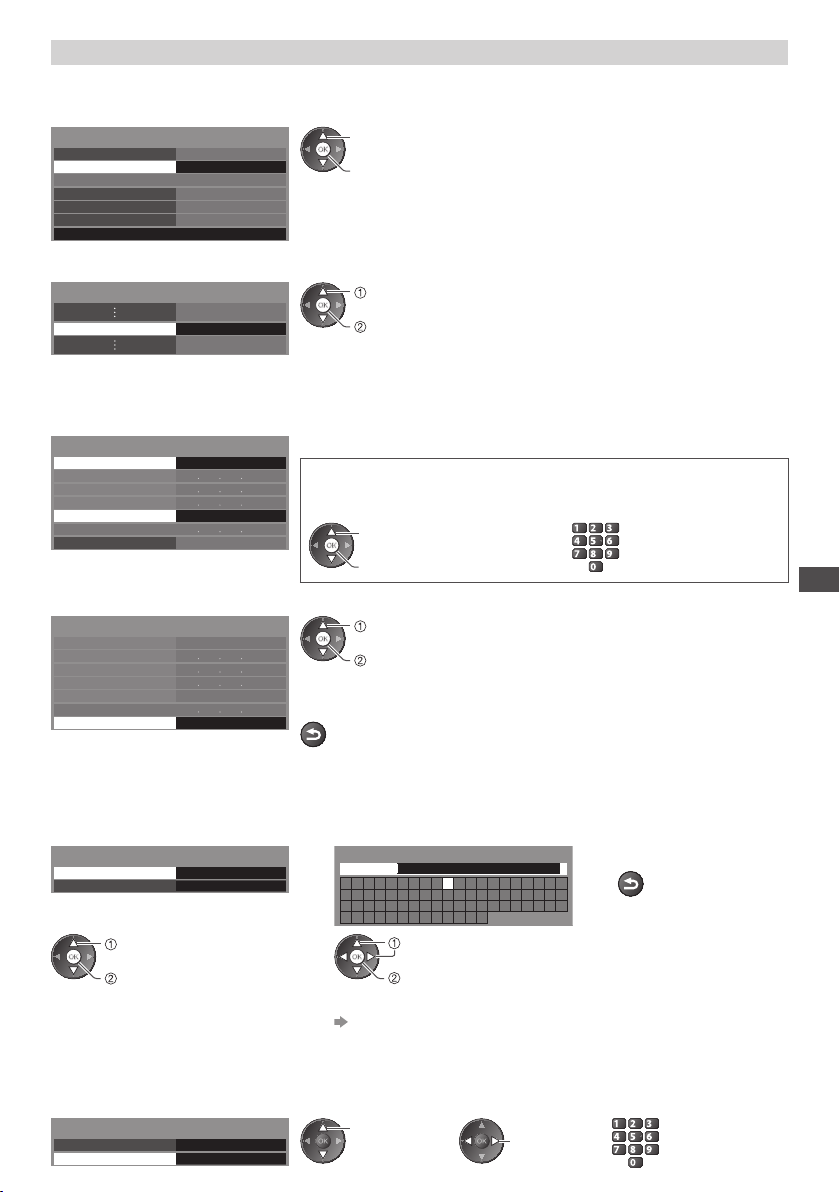

2. Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
If the selected access point is not encrypted,
•
the confirmation screen will be displayed.
It is recommended to select the encrypted access point.

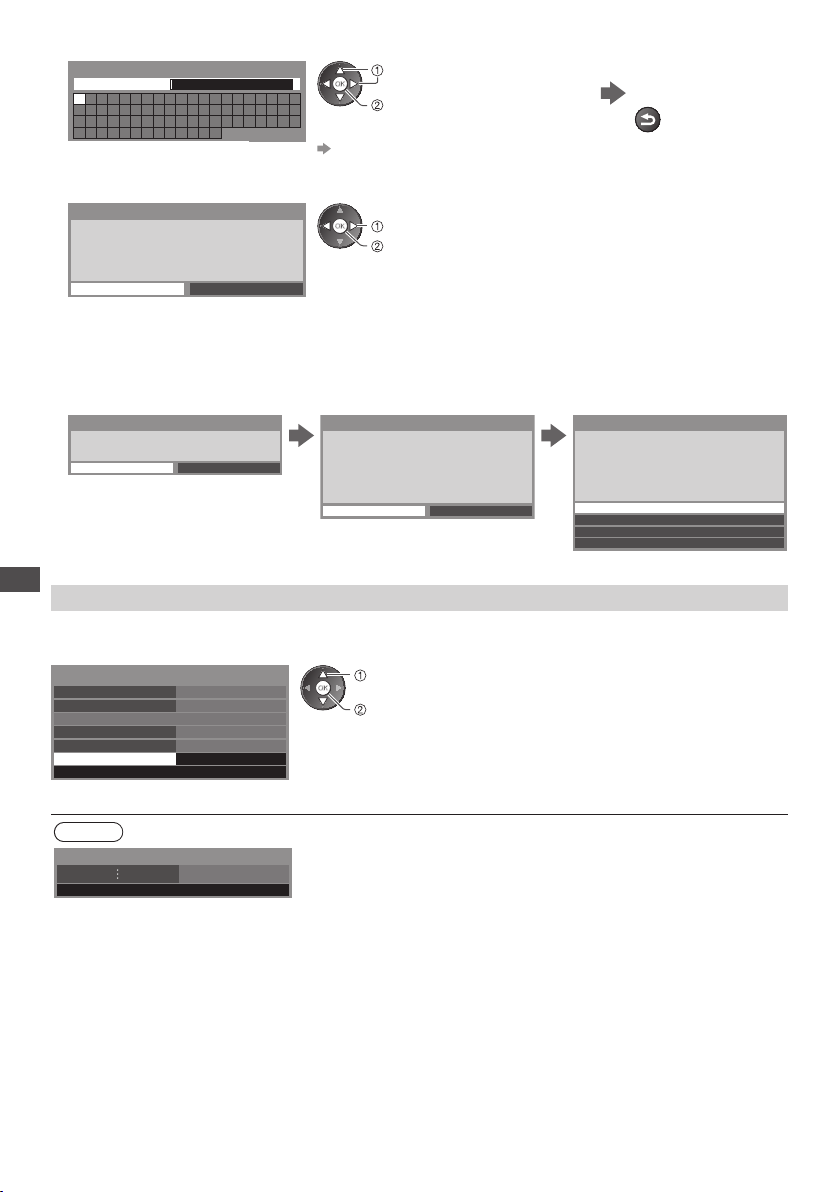

3. Enter the encryption key of the access point
Access Point Settings
Encryption key
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _

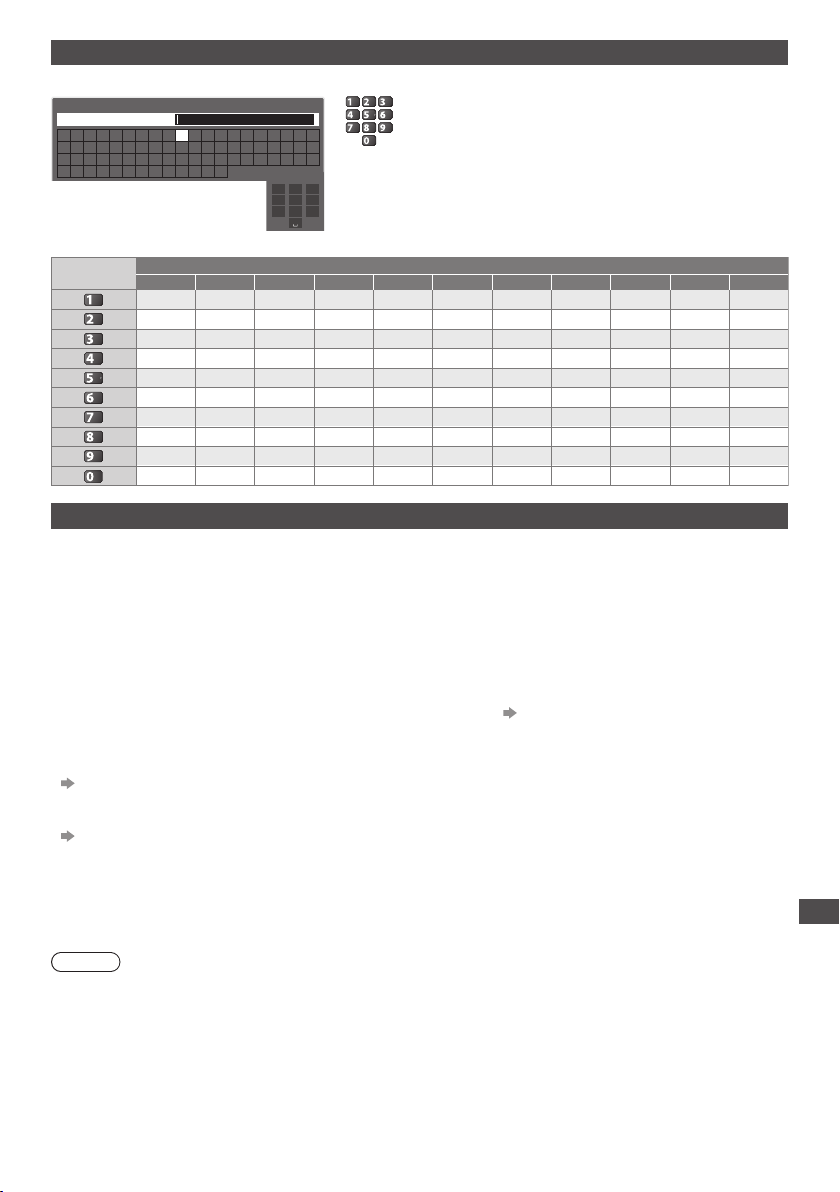

You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p. 85)
Set characters
select
set
4. Select [Yes]
Access Point Settings
Encryption key is set to:XXXXXXXX
Select 'Yes' to confirm.
Select 'No' to change.
Yes
No
•
•
select
set
To re-enter the encryption key, select [No].
If the connection has failed, check the encryption key,
settings and positions of your access point. And then,
follow the on screen instructions.
To set manually (p. 68)
•
(red)
Store
BACK/
RETURN
13
5. After the access point setting is finished, perform the connection test
3
Quick Start Guide
6. Go to the next step
Connection Test
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
(Press twice)
: succeeded
The test is successful and the TV is connected
to the network.
: failed
Check the settings and connections, and then
select [Retry].
To set manually, select [Manual] and set
•
each item. For details (p. 65)
4
Auto Setup
4
[WPS(Push button)]
1. Press the WPS button on the access point until the light flashes
2. Connect the Wireless LAN Adaptor and the access point
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light flashes.
2) When the light is flashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
Connect
Ensure that your access point supports WPS for this setup.
•
WPS : Wi-Fi Protected Setup™
•
If the connection has failed, check the settings and
•
positions of your access point. And then, follow the on
screen instructions.
3. After the access point setting is finished, perform the connection test
Connection Test
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
4. Go to the next step
(Press twice)
4
: succeeded
The test is successful and the TV is
connected to the network.
: failed
Check the settings and connections, and then
select [Retry].
To set manually, select [Manual] and set
•
each item. For details (p. 65)
Input Owner ID
Owner ID
Please enter new PIN
PIN
Make a note of the PIN number in case you forget it. The PIN number cannot be reset.
•
You can input or change the Owner ID later. [Owner ID] (p. 50)
•
To skip this step
•
EXIT
* * * *
Please enter your own choice of PIN number, name, etc. to
help the police to crack crime.
14
This step will be skipped in the Auto Setup after [Shipping Condition] (p. 49) is performed.
•
■ How to input Owner ID
1 Enter the PIN number (4 digits)
abc def
Owner ID
Please enter new PIN
PIN
ghi
* * * *
Enter the PIN number twice at first setting.
•
jkl
mno
tuvpqrs
wxyz
2 Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
* * * *
select
access
3 Enter your name, house number and postcode
4
Set characters Return to select other items
User input
NAME
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p. 85)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
select
set
BACK/
RETURN
Select the next item and repeat the
•
operations.
4 Exit to go to next step
EXIT
Quick Start Guide
Select [Home]
5
Select [Home] viewing environment (highlight [Home] in yellow) to use in your home environment.
Please select your viewing environment.
Home Shop
select
set
■ [Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Select [Home] viewing environment to use in your home environment.
You can return to viewing environment selection screen at the stage of Shop confirmation
•
screen and Automatic Demo Off / On selection screen.
1 Return to viewing environment
selection screen
Shop
You have selected shop mode
Automatic Demo
Off
On
To change viewing environment later on, you will need to initialise all settings by accessing
Shipping Condition. [Shipping Condition] (p. 49)
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the RF cable, and then, follow the on screen
instructions.
To check channel list at-a-glance “Using TV Guide” (p. 21)
•
To edit or hide (skip) channels “Tuning and Editing Channels” (p. 41 - 44)
•
To retune all channels [Auto Setup] (p. 40)
•
To initialise all settings [Shipping Condition] (p. 49)
•
2 Select [Home]
Please select your viewing environment.
Home Shop
BACK/
RETURN
Auto Setup
select
set
If you connect the Wireless LAN Adaptor later on, the confirmation
screen will be displayed for the setup.
To setup the wireless connection (p. 66 - 68)
•
Wireless LAN adaptor connection
Wireless LAN adaptor connected, do you want to
set it up?
No - Exit
Current network type : Wireless
Yes
No
15
Using “VIERA Connect”
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy
internet contents such as photos, videos, games, etc. from VIERA Connect home screen.
This TV has no full browser function and all features of websites may not be available.
•
Turn power on
1
Press for about 1 second
•
Mains power On / Off switch should be On.
•
(p. 9)
Enjoy selected internet content with VIERA Connect.
Simply press the OK / INTERNET button
Access VIERA Connect
2
Using “VIERA Connect”
While the banner is displayed
INTERNET
Example :
Welcome to VIERA Connect™
VIERA Connect™ home screen is subject to change without notice.
The services through VIERA Connect™ are operated by their respective service providers, and service may
be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no
warranty for the content or the continuity of the services.
All features of websites or content of the service may not be available.
■
To exit from
VIERA Connect
EXIT
Don’t show this message again
ENTER
Some content may be inappropriate for some viewers.
Some content may only be available for specific countries and may be presented in specific languages.
Example : VIERA Connect home screen
To set the VIERA
•
Connect instruction
banner display off
[VIERA Connect
Banner] (p. 35)
■ How to operate VIERA Connect (current as of January, 2011)
To move the cursor / select the item
•
To access
•
Every time you turn on the TV, VIERA Connect
introduction banner appears. The banner is
subject to change.
The button design varies depending on the
•
remote control.
While the VIERA Connect introduction banner
•
is displayed for a few seconds after power on,
pressing the OK button will also start VIERA
Connect.
Depending on the usage conditions, it may
•
take a while to read all the data.
Messages might be displayed before
•
VIERA Connect home screen.
Please read these instructions carefully and
follow the on screen instructions.
To go to the next level
•
[MORE]
To back to the previous level
•
[BACK]
MORE
BACK
To return to the previous screen
•
BACK/
RETURN
When the key words are displayed on colour bar
•
(red) (green) (yellow) (blue)
Video communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.
•
“Optional accessories” (p. 6)
When options with
•
numbers are displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
To return to VIERA Connect
•
home screen
INTERNET
For details, read the manual of the Communication Camera.
You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.
•
You ca
n also operate the TV with a keyboard or a gamepad other than VIERA Connect features.
For more in
formation
“USB connection” (p. 86)
Note
If you cannot access VIERA Connect, check the network connections (p. 11) and settings (p. 12 - 14).
•
For more information of VIERA Connect (p. 69)
•
16
Watching TV
Turn power on
1
You can access to VIERA Connect and enjoy the various
contents.
•
•
Select DVB or Analogue
2
TV
Press for about 1 second
•
Mains power On / Off switch should be On. (p. 9)
•
■ VIERA Connect introduction banner appears
(p. 16)
To remove this banner, leave for about 5 seconds or press any
buttons (except the buttons to access VIERA Connect).
To set this banner display off [VIERA Connect Banner] (p. 35)
Also possible to select the mode pressing the TV button on
•
the side panel of the TV (p. 9).
Watching TV
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Now Info
Select a channel
3
All DVB Channels
Select favourites
20:35
Information banner (p. 18)
DVB channel position numbers run from
1 onwards.
Analogue channel position numbers run
Volume
up
down
or
abc def
jkl
ghi
mno
in the ranges 0 - 99.
tuvpqrs
wxyz
To select a two or three-digit channel
•
position number, e.g. 399
wxyz
wxyz
def
■ Select a channel using Information banner (p. 18)
It is possible to confirm the channel name and programme information by using the Information banner
before changing channels.
1
Display Information banner if it is not displayed2 While the banner is displayed, select the channel
select channel
watch
■ Select a channel using TV Guide (p. 21)
It is possible to confirm the channel and programme information by using the TV Guide (EPG)
before changing channels.
1 Display TV
Guide
G
U
I
D
E
2 Select a current
programme or channel
select
access
3 Select [View] (DVB mode)
Eastender
19:30- 20:00
View Timer Programming
select
watch
Note
To watch pay-TV “Using Common Interface” (p. 51)
•
17
Other useful functions
Display Information banner
Display Information banner
Also appears when changing a channel
•
1
Example : DVB
1
ZDF
Mute STTLAD TEXT Multi Audio
Channel position and name
1
Channel type ([Radio], [Data],
2
[HDTV], etc.) / Encrypted channel ( ) /
TV mode (), )
Programme
3
Current time
4
Watching TV
Features available / Message meanings
HDTV
Bad signal
23 6 745
Coronation Street
20:00 - 20:55
Now
All DVB Channels
Select favouritesInfo
Programme Start / Finish time (DVB)
5
20:35
45
Channel number, etc. (Analogue)
Progress time indicator of the selected programme
6
(DVB)
[All DVB Channels] or [Favourites1-4] (p. 42) (DVB)
7
To switch
•
(blue)
[Mute]
Sound mute On
[Bad signal]
Poor TV signal quality
[Also in
]
Same programme available as HD
broadcast
To display the extra information for
•
details
To confirm another tuned
•
channel name
To hide
•
EXIT
[AD]
Audio Description service
available
This function can aid visually-
•
impaired viewers by adding
an additional audio track to
describe events
For settings (p. 33)
•
on screen.
[STLL]
Subtitle service available
To watch the channel listed in
•
the banner
Extra information (DVB)
•
(Press again to hide the
banner)
[AD], [STTL], [TEXT], [Multi Audio] indications are displayed as available on particular programmes,
•
but may not be available for all individual programmes being broadcast. Display the extra information
[TEXT]
Teletext service available
[Multi Audio]
Multiple audio available
[Stereo], [Mono],
[NICAM]
Audio mode
1 - 90
Off Timer remaining time
For settings (p. 19)
•
Information on the next
•
programme (DVB)
To set display timeout
•
[Banner Display Timeout]
(p. 35)
to confirm availability of these functions.
Example :
1
BBC ONE WALES
Coronation Street
20:00 - 20:55
Now
[AD]
AD
All DVB Channels
Select favourites
20:35
Last view
Switch to previously viewed channel or input mode easily
Press again to return to the present view.
•
LAST VIEW
Note
Switching channel is not available while the recording of Timer Programming or Direct TV Recording is
•
in progress.
Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
18
•
Hold
Freeze / unfreeze picture
HOLD
Display the selectable settings for the current status
Check or change the current status instantly
OPTION
[Audio Description]
(DVB mode)
Set to [Auto] if the programme
has Audio Description service,
then you will hear an additional
audio track to describe events
on screen
To adjust the volume for Audio
•
Description
[Audio Description Menu]
(p. 33)
[Multi Audio]
(DVB mode)
Allows you to select between
alternative language for sound
tracks (if available)
This setting is not memorised
•
and it will return to the default
setting once you exit the
current programme.
To change
•
select
access
select / change
store
[Monaural Audio]
(DVB mode)
Allows you to select stereo /
monaural (if available)
This setting is not memorised
•
and it will return to the default
setting once you exit the current
programme.
[Subtitle Language]
(DVB mode)
Allows you to select the language
in which subtitles should appear
(if available)
This setting is not memorised
•
and it will return to the default
setting once you exit the current
programme.
[Teletext Character Set]
Sets the teletext language font
[Setup Menu] (p. 35)
[Teletext Language]
(DVB mode)
Allows you to select between
alternative language for teletext
(if available)
[NICAM]
(Analogue mode)
Switches NICAM sound
(if available)
[Sound Menu] (p. 33)
[Volume Correction]
Adjusts volume of individual
channel or input mode
Watching TV

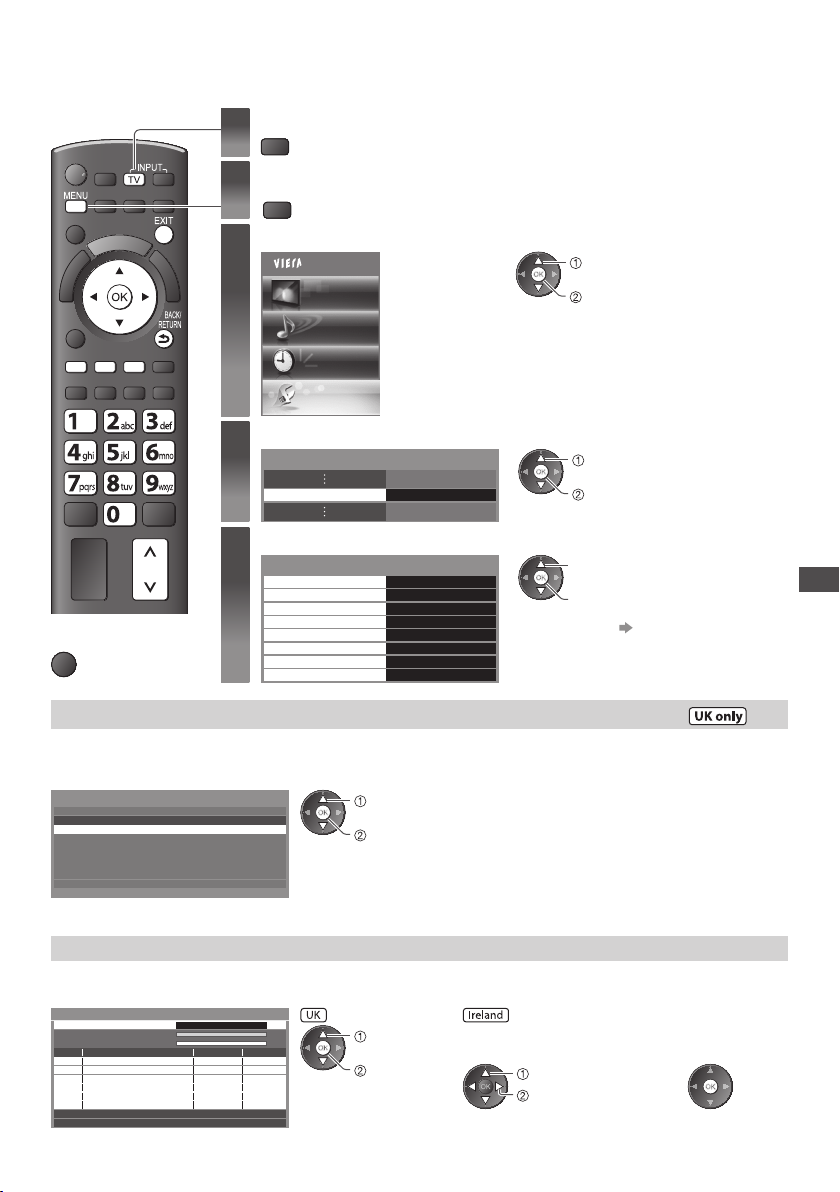

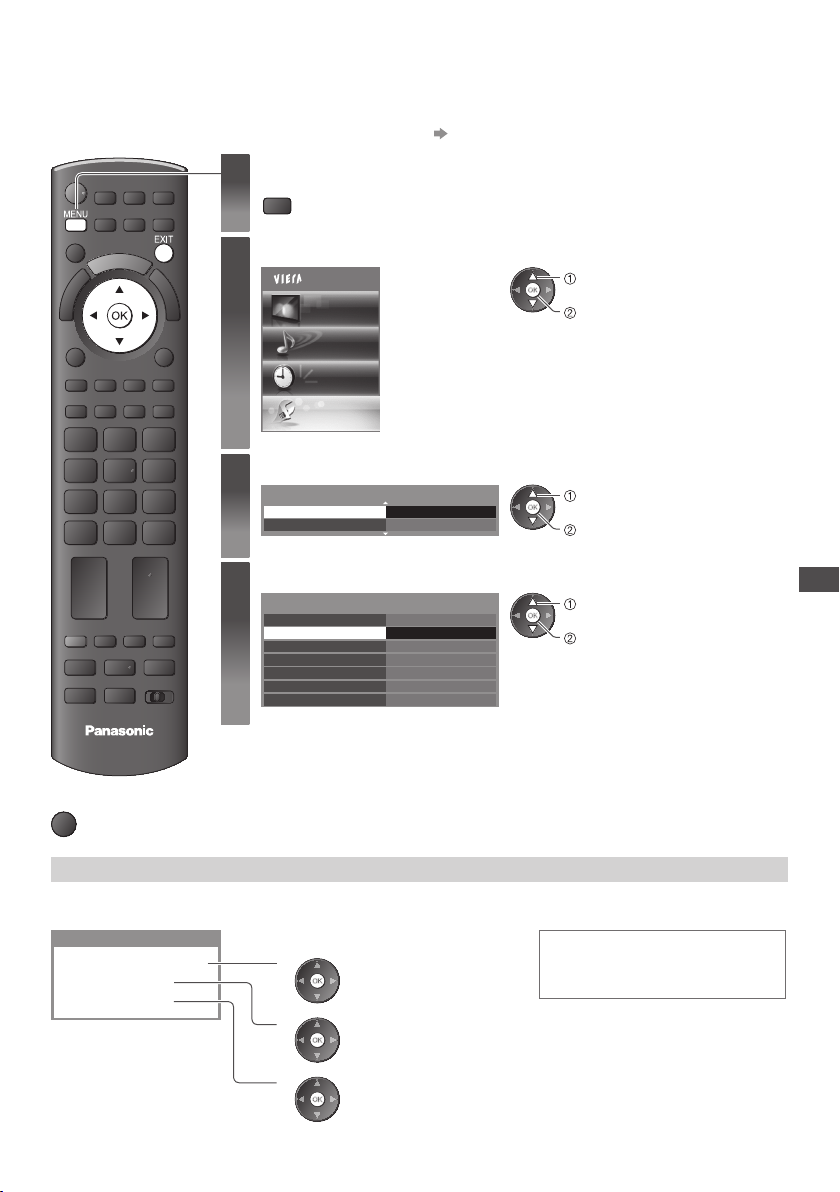

Off Timer
Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
1 Display the menu
MENU
2 Select [Timer]
Main Menu
Sound
Timer
Setup
select
access
3 Select [Off Timer] and set the time
Timer Programming
Off Timer
Auto Standby
Off
15
30
45
60
75
90
minutes
minutes
minutes
minutes
minutes
minutes
•
•
•
select
[Off Timer]
access
select the time
store
To cancel Set to [Off] or turn the TV off.
To display the remaining time
“Display Information banner” (p. 18)
When the remaining time is within 3 minutes, the remaining time
will flash on the screen.
19
Aspect
Change the aspect ratio (image size)
ASPECT
Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV
will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 81).
■ If you would like to change the aspect ratio manually
1 Display Aspect Selection list 2 While the list is displayed,
ASPECT
Aspect Selection list
Aspect Selection
Auto
16:9
14:9
4:3
Zoom1
Zoom2
Zoom3
Select
Change
EXIT
RETURN
select the mode
select
store
You can also change the mode
•
only using the ASPECT button.
ASPECT
(Press repeatedly until
you reach the desired
mode)
Watching TV
[Auto]
The best ratio is chosen and the image expanded to fill the screen.
For details (p. 81)
[16:9] [Zoom1]
Directly displays the image at 16:9
without distortion (anamorphic).
Displays a 16:9 letterbox or 4:3
image without distortion.
[14:9] [Zoom2]
Displays the image at the
standard 14:9 without distortion.
Displays a 16:9 letterbox
(anamorphic) image full-screen
without distortion.
[4:3] [Zoom3]
Displays the image at the
standard 4:3 without distortion.
Displays a 2.35:1 letterbox
(anamorphic) image full-screen
without distortion. At 16:9, displays
the image at its maximum (with
slight enlargement).
Note
Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
•
Not available in teletext service.
•
Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition)
•
signals.
Display subtitles
■ DVB mode
Display / hide subtitles (if available)
STTL
To change the language for DVB (if available)
•
[Preferred Subtitles] (p. 35)
■ Analogue mode
Display subtitles Hide subtitles
STTL
Note
This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service).
•
(p. 26)
You cannot change the channel when this function is active.
•
20
EXIT
Using TV Guide
TV Guide−Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently
broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).
This TV supports the GUIDE Plus+ system.
•
The Rovi branding partner will supply the rating information in the programme information and the
•
recommended group in the Search list.
DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel
•
and [A] means Analogue channel. There will be no programme listings for Analogue channels.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take
•
some time before TV Guide is completely shown.
Select DVB or Analogue
1
TV
View TV Guide
2
■
To return to TV
EXIT
or
G
U
I
D
E
G
U
Example :
I
D
E
Wed 27 Oct 2010
1
10:46
2
3
4
5
Timer Programming
-24 hours +24 hours Search Category
7
Some programmes may also be broadcast in HD
You can select HD or SD broadcast before viewing or setting Timer
•
Programming.
678 9
TV Guide
Wed 27 Oct Search All Channels
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
D
D
D
D
D
D
Select channel
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS Holiday News
BBC ONE
1
Hot Wars Holiday Program
BBC THREE
7
Emmerdal.
E4
14
10 O’ clock News BBC
BBC FOUR
70
BBC 2W
72
105
BBCi
719
BBC Radi
EXIT
Select programme
RETURN
Coronation Street
09
Info
RETURN
GUIDE
OPTION
Select Advert
Enter Channel
Pepsi Char.
Also in
The Bill
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebrity
Sports15 To 1Rugby
Page up
Page down
8 Programme
9
Logo of the Rovi branding partner
Current date and
1
time
TV Guide time
2
Advertisement
3
[D] : DVB
4
[A] : Analogue
Channel position
5
and name
TV Guide date
6
Using TV Guide
■ To change the layout of TV Guide [TV Guide View] (p. 34)
■ To watch the programme
1
Select a current
programme or channel
select
access
or
abc def
jkl
ghi
mno
tuvpqrs
wxyz
■ To the previous day (DVB mode) ■
(red) (blue)
■ To the next day (DVB mode)
(green)
■ View details of the programme (DVB mode)
1 Select the programme 2 View details
select
2 Select [View] (DVB mode)
Eastender
19:30- 20:00
View
To use Timer Programming
•
(p. 22)
•
Timer Programming
select
watch
Press again to
return
to TV Guide.
If a programme exists in both HD and SD
•
broadcasts, the [View Options] screen
will be displayed to select HD or SD
broadcast. (DVB mode)
DIY SOS
To view a channel list of the selected category
(Category list)
Category
All Channels
All Channels
All DVB Channels
All HD Channels
All Analogue Channels
Free DVB Channels
TV/Data DVB Channels
Favourites1
Favourites2
Favourites3
Favourites4
View Options
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
Only Analogue
channels are listed
To list favourite
•
channels (p. 42)
select
watch
21
■ To search programme types and view a channel list of the searched programmes (DVB mode)
(yellow)
(Search list)
Search
Search Titles...
Movie
News and Factual
Prog.Type
All Types
Movie
News
(Type list)
All Types
select type
view
■ To search programme titles and view a list of the searched programmes (DVB mode)
(yellow)
(Search list)
Search
Search Titles...
Movie
News and Factual
Using TV Guide
1
Select
[Search Titles...]
select
access
2 Set characters
(maximum : 19 characters)
3 Start
[Search]
select
set
To use numeric buttons
•
“Characters table for numeric
buttons” (p. 85)
(green)
All the programme
•
titles including the
word you set will be
listed.
Searching without
•
any characters will
list all programmes
including current
programmes.
Timer Programming (DVB mode)
Timer Programming can remind you to watch a programme or record one on an external recorder.
1 Select the forthcoming programme
select
set
LED will turn to orange if Timer
Programming is set.
(Orange LED will flash if the
recording of Timer Programming
is in progress.)
LED
■ To check / change / cancel a timer
programming event
“Timer Programming” (p. 45)
2 Select the function ([Ext Rec.] or [Reminder])
select
(Timer Programming screen)
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
D
DIY SOS
--- --/-- --:-- --:-----
[Ext Rec.]
Wed 27.10.2010 10:46
Wed 27 Oct
:
19:30119 BBC HD 20:00
(30 min.)
(--- min.)
store
to record the programme to the external recorder
When the start time comes, the channel will be switched
automatically and the video and audio signals will be output.
2 minutes before the starting time, a reminder message appears
if you are watching TV.
[Reminder]
:
to remind you to watch the programme
When you are watching TV, a reminder message appears
2 minutes before the start time. Press the OK button to switch to
the programmed channel.
■ To return to TV Guide
BACK/
RETURN
■ If you select a current programme ■ If a programme exists in both HD and SD
broadcasts
A confirmation screen asking whether you wish to
watch or record the programme will appear.
Select [Timer Programming] and set [Ext Rec.]
to record from the time you finish the timer
programming event setting.
Eastender
19:30- 20:00
View
Timer Programming
22
select
access
The [Timer Options] screen will be displayed to
select HD or SD broadcast.
DIY SOS
(Timer Programming screen)
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
Timer Options
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
Wed 27.10.2010 10:46
D
DIY SOS
--- --/-- --:-- --:-----
Wed 27 Oct
19:30119 BBC HD 20:00
(30 min.)
(--- min.)
if HD broadcast
is set.
select
set
will be displayed
Note
This function is not available in Analogue mode.
•
Timer Programming reminder messages will remain displayed until one of the following occurs :
•
• You press the OK button to view the programme or the EXIT button to cancel the reminder.
• The timer programming event that the reminder is set for ends.
No other channel can be selected while the recording of Timer Programming is in progress.
•
When recording programmes, be sure to make the proper settings on the recorder connected to the
•
TV. If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 72) and the
[Link Settings] (p. 34) are completed, no setting of the recorder is required. Also read the manual of the
recorder.
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if
programme start and end times are changed by the broadcaster, the timer programming event will follow
the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other
programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if
correct information is received from broadcasters.
Timer Programming
(Timer Programming screen)
Function No. Date Start EndChannel Name
Ext Rec. Wed 27 Oct
7 BBC ONE
D
DIY SOS
Reminder
14 E4 21:00 22:30
D
The Bill
Ext Rec.
72 BBC 2W
D
<TIMER>
Ext Rec.
BBC ONE1
---
D
Red Cap
------
Guide
Wed 27 Oct
Guide
Wed 27 Oct
Thu 28 Oct
S/P
Wed 27 Oct 2010 10:46
20:00 20:30
(30 min.)
(90 min.)
22:45 23:00
(15 min.)
10:30 11:30
(60 min.)
--:----:-- --:--
(--- min.)
“S/P” is displayed if the timer is set from the TV
Guide and the programme is a Split Programme
“Guide” is displayed if the timer is set from the
TV Guide (Guide link programming)
Note
If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no
•
longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.
Whilst making the Split Programme programming event for [Ext Rec.], you cannot record any channels
•
between the interrupted programmes.
The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.
•
The Split Programme programming event for Reminder will switch to the programmed channel by
•
pressing the OK button even if it is between the interrupted programmes.
The Split Programme programming does not work if the separated parts are broadcast on different channels.
•
Example :
Wed 27 Oct 2010
10:46
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
D
D
D
D
D
D
TV Guide
Wed 27 Oct Search All Channels
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS Holiday News
BBC ONE
1
Hot Wars Holiday Program
BBC THREE
7
Emmerdal.
14
70
72
105
719
E4
BBC FOUR
BBC 2W
BBCi
BBC Radi
Coronation Street
10 O’ clock News BBC
Pepsi Char.
“ ” or “ ” will be displayed in the TV
Guide if Timer Programming is set as
the Guide link programming.
The Bill
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebrity
Sports15 To 1Rugby
Using TV Guide
View advertisement
Enter your postcode when using this function for the first time
[Guide Plus+ Postcode] in [TV Guide Settings] (p. 34)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12 - 15), you do
not have to enter it again.
If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be
displayed correctly.
Display advertisement information
OPTION
To display the latest advertisement, you will need to update the information.
•
To update the information continuously, the TV must be left in Standby mode.
■ To change advertisements ■ To return to TV Guide
or
BACK/
RETURN
OPTION
Note
Some advertisements are for future programmes.
•
In this case it is possible to use the Guide link programming function (see above).
The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot
•
be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
23
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
The availability of teletext services for a programme is indicated by [TEXT] in the information banner.
•
Information banner (p. 18)
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Now
Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case,
the operation of the teletext services may be the same as the analogue teletext services (p. 25).
Digital teletext (MHEG)
Digital teletext services differ greatly from analogue teletext.
Viewing Teletext
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out
and controlled in a manner decided by the broadcaster.
TEXT
20:35
All DVB Channels
Select favourites
1
2
Displayed if programme has teletext service
Select DVB
TV
Switch to Teletext
TEXT
DVB programmes have digital teletext
•
services (MHEG).
Example :
17:51 28 Feb
■ How to operate services
In all cases, it is possible to navigate the pages using buttons on the remote
control, but because the commands available must apply to all manufacturers
of digital equipment, some on screen commands may not correspond exactly
to the remote control buttons.
Select, go
•
■
To return to TV
TEXT
Back key
•
BACK/
RETURN
Note
As soon as you switch to a digital channel with links to a teletext service, software is downloaded in
•
the background to enable the teletext function.
This means that when switching to a digital channel, you should wait for approximately 5 seconds
before pressing the TEXT button - this will allow the software to download. If you press the TEXT
button before download is complete, it will be ignored and you will have to press the TEXT button
again when the download is complete.
While navigating digital teletext, you will find there is a short delay when moving between pages while
•
the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”)
to let you know that this is happening.
24
Symbol :
•
Coloured characters
•
Coloured button
When options with numbers
•
are displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Analogue teletext
Analogue teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access
more information about one of these subjects, press the appropriately coloured button. This facility
enables fast access to information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory.
■
To change mode
[Teletext] (p. 35)
Select Analogue
1
TV
Switch to Teletext
2
TEXT
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
“Store frequently viewed pages” (p. 26)
Displays the index page (content
•
varies depending on the broadcasters)
Time / date
TELETEXT
INFORMATION
Colour bar
Current page number
Viewing Teletext
Select the page
3
■
To return to TV
EXIT
abc def
jkl
ghi
mno
or
tuvpqrs
wxyz
■ To adjust contrast
MENU
(Press twice)
up
down
or
Coloured button
(Corresponds to the colour bar)
As the blue bar is displayed
FULL / TOP / BOTTOM
MENU
(green)
(TOP) (BOTTOM) Normal (FULL)
(Expand the TOP half)
(Expand the BOTTOM half)
Reveal hidden data HOLD
Reveal hidden words e.g. quiz page answers Stop automatic updating
MENU
(red)
Press again to
•
rehide
(If you wish to hold the current page without
updating)
HOLD
Press again to resume
•
25
INDEX Subtitles
Return to the main index page View a favourite page stored
INDEX
STTL
Factory setting is “P888” (subtitle
•
service) on the blue button (List mode).
View in multi window
Watch TV and Teletext in two windows at once
TEXT
Operations can be made only in Teletext screen.
•
Each time pressed : Teletext TV and Teletext
•
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
As page is displayed
Viewing Teletext
(Corresponding
press and hold
coloured
button)
The number changes
to white.
■ To change stored pages
Enter new page number
Coloured button you want to
change
abc def
jkl
ghi
mno
tuvpqrs
wxyz
TV
If you wish to use
•
Subtitles, do not
change number on
blue button.
press and hold
View sub page
View sub page (Only when teletext is more than one page)
The number of sub pages varies depending
Appears at top of the
screen
•
on the broadcasters (up to 79 pages).
It may take some time for searching, during
•
which time you can watch TV.
■ To view specific sub page
MENU
(blue)
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
(yellow)
P108
(You cannot change the channel.)
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
26
Enter the 4-digit number
example : P6
mno
Appears when
updating is
completed
View the
updated page
(yellow)
Watching External Inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
To connect the equipment (p. 10, 11, 78 - 80)
•
The Remote Control is capable of operating some functions of selected external equipment.
“Operating the equipment with the TV remote control” (p. 28)
Turn the TV on
1
When connecting with SCART as example 2 or 3 (p. 10, 11)
Receives input signals automatically when playback starts
Input signals are automatically identified by the SCART (pin 8) terminal.
•
This function is also available for HDMI connections (p. 78).
•
If input mode is not switched automatically
Perform 2 and
Check the setup of the equipment.
•
Display the input selection menu
2
AV
Select the input mode connected to the equipment
3
Input Selection
AV1
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
TV
SD Card/USB
You can also select the input using the AV button on the remote control
•
or the side panel of the TV (except [SD Card/USB]).
Press the button repeatedly until the desired input is selected.
[SD Card/USB] : Switches to Media Player “Using Media Player” (p. 53)
•
You can label or skip each input mode (except [SD Card/USB]).
•
“Input Labels” (p. 48)
Skipped inputs will not be displayed when the AV button is pressed.
3
select
watch
Watching External Inputs
TV
■
To return to TV
TV
Terminal
Manual input
(default
setting in
“Input Labels”)
Auto input
(EC mode or
VIERA Link)
If the above information is permanently displayed on the top left of the screen, press the button to clear.
•
Note
If the external equipment has an aspect adjustment function, set it to [16:9].
•
For details, see the manual of the equipment or ask your local dealer.
•
EC/AV1-RGB
View
4
AV1
AV1 AV 2
AV1
AV1-RGB
EC/AV1
Displays the selected mode
COMPONENT
AV2
COMPONENT
−−
Applicable for
EC mode and
HDMI1 HDMI2 HDMI3
HDMI1 HDMI2 HDMI3
EC/HDMI1
VIERA Link
EC/HDMI2
Applicable for
VIERA Link
EC/HDMI3
Applicable for
VIERA Link
27
Operating the equipment with the TV remote control
The equipment connected to the TV can be directly operated with the below buttons of this TV remote
control.
Selection Switch for operating the connected equipment
Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player
DVD/VCR
TV
Watching External Inputs
PROGRAMME
REC
theatre, Blu-ray Disc theatre or VCR
“How to change the code for the type of the equipment” (see below)
Select “TV” to use Media Player or VIERA Link
“Media Player” (p. 54)
“VIERA Link Control” (p. 76)
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD / video content
Stop
Stop the operations
Rewind / Skip / Search
VCR :
Rewind, view the picture rapidly in reverse
DVD / video content :
Skip to the previous track, title or chapter
Press and hold to search backward
Fast-forward / Skip / Search
VCR :
Fast-forward, view the picture rapidly forward
DVD / video content :
Skip to the next track, title or chapter
Press and hold to search forward
Pause
Pause / Resume
DVD : Press and hold to play at slow speed
Channel Up / Down
Select channel
Record
Start recording
How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.
1 Set the position to “DVD/VCR”
DVD/VCR
TV
2 Press and hold during the following operations
Enter the appropriate
code, see table below
DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)
Player theatre, Blu-ray Disc theatre 71
Note
Confirm if the remote control works correctly after changing the code.
•
The codes may be reset to default values if batteries are replaced.
•
Some operations may not be possible on some equipment models.
•
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Press
Type of the equipment Code
VCR 72
28
How to Use VIERA TOOLS
You can access some special features easily by using the VIERA TOOLS function.
For [VIERA Link Control] function to operate correctly, ensure the connections and settings are
•
completed.
“Summary of Q-Link and VIERA Link features” (p. 70, 71), “Preparations” (p. 73)
After connection, turn the equipment on and then switch the TV on.
For [Photo], [Video] and [Music] functions to operate correctly, ensure the device has photo, video or
•
music data on it and insert it into the SD Card slot or USB port properly.
“Using Media Player” (p. 53)
Display icons of the feature
1
2
T
O
A
O
R
L
E
S
I
V
Select a feature
select
access
How to Use VIERA TOOLS
■
To return to TV
EXIT
or
A
R
E
I
V
T
O
O
L
S
VIERA Link Control
■ Follow the operations of each feature
[VIERA Link Control]
“VIERA Link Control” (p. 75)
When two or more compatible
equipment are connected, a selection
screen will be displayed.
Please select the correct description
and access.
∗
[Photo]
“Photo mode” (p. 55)
∗
When two or more available devices are connected, a selection screen will be displayed.
Please select the correct description and access.
Note
If the selected feature is not available, the demonstration to explain how to use it can be displayed.
•
Press the OK button to view the demonstration after selecting the unavailable feature.
∗
[Video]
“Video mode” (p. 59)
∗
[Music]
“Music mode” (p. 61)
29
Loading...
