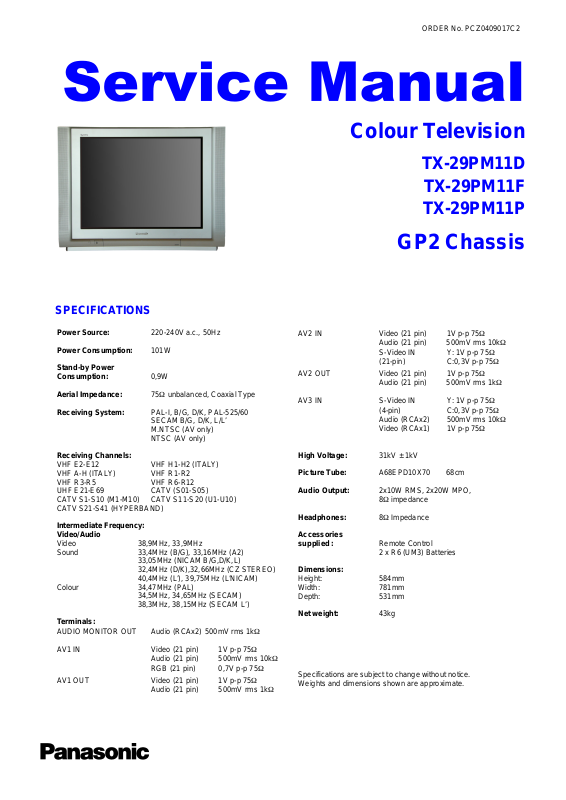

Panasonic TX29PM11D.F.P Schematic

ORDER No. PCZ0409017C2

Colour Television

TX-29PM11D

TX-29PM11F

TX-29PM11P

GP2 Chassis

SPECIFICATIONS

Power Source: 220-240V a.c., 50Hz
Power Consumption: 101W
Stand-by Power

Consumption: 0,9W
Aerial Impedance: 75Ω unbalanced, Coaxial Type
Receiving System: PAL-I, B/G, D/K, PAL-525/60

SECAM B/G, D/K, L/L ’
M.NTSC (AV only)
NTSC (AV only)

Receiving Channels:

VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)

Intermediate Frequency:
Video/Audio

Video 38,9MHz, 33,9MHz
Sound 33,4MHz (B/G), 33,16MHz (A2)

33,05MHz (NICAM B/G,D/K,L)
32,4MHz (D/K),32,66MHz (CZ STEREO)
40,4MHz (L’), 39,75MHz (L’NICAM)

Colour 34,47MHz (PAL)

34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L’)

Terminals:

AUDIO MONITOR OUT Audio (RCAx2) 500mV rms 1kΩ

AV2 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500m V rms 10kΩ
S-Video IN Y: 1V p-p 75Ω
(21-pin) C:0,3V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV3 IN S-Video IN Y: 1V p-p 75Ω

(4-pin) C:0,3V p-p 75Ω
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω

High Voltage: 31kV ± 1kV
Picture Tube: A68EPD10X70 68cm
Audio Output: 2x10W RMS, 2x20W MPO,

8Ω impedance

Headphones: 8Ω Impedance
Accessories

supplied : Remote Control

2 x R6 (UM3) Batteries

Dimensions:

Height: 584mm
Width: 781mm
Depth: 531mm

Net weight: 43kg

AV1 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω

AV1 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

Specifications are subject to change without notice.
Weights and dimensions shown are approximate.

CONTENTS

SAFETY PRECAUTIONS..........................................................................................................................................................2

SERVICE HINTS.......................................................................................................................................................................3

ADJUSTMENT PROCEDURE AND SELF-CHECK ..................................................................................................................4

WAVEFORM PATTERN TABLE...............................................................................................................................................5

ALIGNMENT SETTINGS...........................................................................................................................................................6

BLOCK DIAGRAMS..................................................................................................................................................................7

PARTS LOCATION.................................................................................................................................................................12

REPLACEMENT PARTS LIST................................................................................................................................................13

SCHEMATIC DIAGRAMS.......................................................................................................................................................23

CONDUCTOR VIEWS.............................................................................................................................................................28

SAFETY PRECAUTION

GENERAL GUIDE LINES

1. It is advisable to insert an isolation transformer in the
a.c. supply before servicing a hot chassis.

2. When servicing, observe the original lead dress in the
high voltage circuits. If a short circuit is found, replace
all parts that have been overheated or damaged by
the short circuit.

3. After servicing, see that all the protective devices
such as insulation barriers, insulation papers, shields
and isolation R-C combinations are correctly
installed.

4. When the receiver is not being used for a long period
of time, unplug the power cord from the a.c. outlet.

5. Potentials as high as 32kV are present when this
receiver is in operation. Operation of the receiver
without the rear cover involves the danger of a shock
hazard from the receiver power supply. Servicing
should not be attempted by anyone who is not
familiar with the precautions necessary when working
on high voltage equipment. Always discharge the
anode of the tube.

6. After servicing make the following leakage current
checks to prevent the customer from being exposed
to shock hazard.

LEAKAGE CURRENT COLD CHECK

1. Unplug the a.c. cord and connect a jumper between
the two prongs of the plug.

2. Turn on the receiver’s power switch.

3. Measure the resistance value with an ohmmeter,
between the jumpered a.c. plug and each exposed
metallic cabinet part on the receiver, such as screw
heads, aerials, connectors, control shafts etc. When
the exposed metallic part has a return path to the
chassis, the reading should be between 4M ohm and
20M ohm. When the exposed metal does not have a
return path to the chassis, the reading must be
infinite.

LEAKAGE CURRENT HOT CHECK

1. Plug the a.c. cord directly into the a.c. outlet. Do not
use an isolation transformer for this check.

2. Connect a 2kΩ 10W resistor in series with an
exposed metallic part on the receiver and an earth,
such as a water pipe.

3. Use an a.c. voltmeter with high impedance to
measure the potential across the resistor.

4. Check each exposed metallic part and check the
voltage at each point.

5. Reverse the a.c. plug at the outlet and repeat each of
the previous measurements.

6. The potential at any point should not exceed
1,4 Vrms. In case a measurement is outside the limits
specified, there is a possibility of a shock hazard, and
the receiver should be repaired and rechecked before
it is returned to the customer.

HOT CHECK CIRCUIT

a.c. VOLTMETER

2kΩ 10 Watts

TO INSTRUMENT'S EXPOSED
METALLIC PARTS

Fig. 1.

X-RADIATION WARNING

1. The potential sources of X-Radiation in TV sets are
the high voltage section and the picture tube.

2. When using a picture tube test jig for service, ensure
that the jig is capable of handling 32kV without
causing X-Radiation.

NOTE: It is important to use an accurate periodically

calibrated high voltage meter.

1. Set the brightness to minimum.

2. Measure the high voltage. The meter should indicate:

31kV ± 1kV.
If the meter indication is out of tolerance, immediate
service and correction is required to prevent the
possibility of premature component failure.

3. To prevent any X-Radiation possibility, it is essential
to use the specified tube.

WATER PIPE

(

EARTH)

2

SERVICE HINTS

How to remove the rear cover

1. Remove the 12 screws as shown in Fig.2.

SCREWS

LOCATION OF CONTROLS

SCREWS

Fig. 2

L-BoardA-Board Focus

Fig. 3

3

G-BoardScreen D-Board

ADJUSTMENT PROCEDURE

Item / Preparation Adjustments
+B SET-UP

1. Receive a Window pattern.

2. Set the controls :
Brightness Minimum
Contrast Minimum
Volume Minimum

Confirm the following voltages:

TPD1 205 ± 10V D9 pin3 9 ± 0,5V
TPD2 137 ± 2V D9 pin7 10,5 ± 0,5V
TPD3 42 ± 2V D2 pin22 3,3 ± 0,1V
TPD5 42 ± 2V D2 pin26 2,5 ± 0,1V
TPD6 12,5 ± 1V D2 pin14 3,3 ± 0,1V
TPD7 -12,5 ± 1V D9 pin5 5 ± 0,5V
TPD8 30,5 ± 1V D9 pin11 6,5 ± 0,5V
TPD11 5 ± 0,5V

CUT OFF / Ug2 Test

1. Receive a Window pattern.

2. Set Viewing Mode: Normal

3. Normalize the TV set.

4. Set brightness: Minimum

To adjust Cutoff connect an oscilloscope to the Blue cathode. Adjust
the screen VR until the black level is 160V +5V/-5V.

Black Level
160V+5V/-5V
GND

SELF CHECK

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set.To enter Self-Check mode, press
the STATUS button on the remote control and at the same time press the down (-/v) button on the customer controls at
the front the TV set. To exit Self Check, switch off the TV set at the power button.

E2 O.K.
DDP O.K.
VSP O.K.
VPCD O.K.
AVSW O.K.
TUN O.K.
MSP O.K.
DPL --­MAS ---

SUM **

TX-29PM11D TX-29PM11F

TX-29PM11P

OPTION 1 0F 0F
OPTION 2 00 00
OPTION 3 A0 A0
OPTION 4 11 11
OPTION 5 00 00
OPTION 6 05 05
OPTION 7 7F 7F
OPTION 8 D0 50
OPTION 9 00 00
OPTION 10 80 80
OPTION 11 1B 1B
OPTION 12 00 00
OPTION 13 0C 0C

CHECK BB 3B

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

4

WAVEFORM PATTERN TABLE

CONDITIONS: CONTRAST...MAX, BRIGHTNESS...MID, COLOUR...MID, SHARPNESS...MID

5

ALIGNMENT SETTINGS

(The figures below are nominal and used for representative purposes only.)

1. Set the Bass to maximum position, set the Treble to minimum position, set the Volume to minimum then press the
down button (-/v) on the customer controls at the front of the TV and at the same time press the INDEX button on the
remote control, this will place the TV into the Service Mode 1.

2. Press the RED / GREEN buttons to step up / down through the functions.

3. Press the YELLOW / BLUE buttons to alter the function values.

4. Press the OK button after each adjustment has been made to store the required values.

5. To exit the Service Mode, press the "N" button.

Alignment Function

Horizontal Position

Vertical Position

Horizontal Amplitude

Vert. Amplitude

EW-amplitude

Lower Corner

Trapezium-comp

Upper Corner

Vertical Linearity

Vertical Symmetry

Setting indication

Note: All setting values are approximate

H-Pos

40

V-Pos

30

H-Amp

2

V-Amp

-33

EW-Amp 1

- 36

Lower Corner

1

Trapez 1

-5

Upper Corner

1

V-Lin

-5

V-Sym

38

Settings / Special features

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Angle

Bow

DVCO

Highlight

Lowlight

Sub-Brightness

Angle

0

Bow

0

DVCO

0

High 0403 0318 0350
Low 0130 0150 0160

Sub-Brightness

13

Optimum setting.

Optimum setting.

Receive a PAL Colour Bar Pattern. For
DVCO alignment press "Blue" button, wait
until the figure colour is changed from red
to black colour.

Optimum setting.

Optimum setting.

6

A

Y

A

R

VM COIL

8

Q901

Q903Q904

A - BOARD

Q902

6435

643 5 8

L2

IC1701

DDP3315CQAG3

394041

R EXT

G EXT

SVM

41

DEFLECTION

Q1712 Q1719

R OUT

PROCESSOR

B EXT

Q1705 Q1708

G OUT

42

0÷Y7

8bit

Y0÷Y7

53

V1_CVBS

Q1704 Q1707

B OUT

43

4

LLC2

9

63

AV1 OUT

Q1703 Q1706

44

IC1501

Y/V_IN

A2

SENSE

35

51 52 53

B OSD

G OSD

R OSD

59

57

58

Q352

5

IC351

MICRO

IC1101

IDEO SIGNAL

PROCESSOR

VSP9415BVKC3

56

62

52

57

55

C_IN

AV2 OUT

58

61

V3_C

V3_V/Y

TV_CVBS

TXT CVBS

PROCESSOR

SDA5550MQBTL

21

TXT CVBS

R OUT

3

CRT

IC361

3

IC371

G OUT

B OUT

3

VIDEO BLOCK DIAGRAM

Q1501Q1508

Q1502Q1507

Q1503Q1504

V3 V/

V3 C

TV CVBS

715

A3

L - BOARD

D - BOARD

715

D1

14

14

D8

G7

G - BOARD

AV1

VIDEO IN 20

GREEN IN 11

VIDEO OUT 19

BLUE IN 7

RED IN 15

/VIDEO IN 20

VIDEO OUT 19

C IN 15

AV2

7

VIDEO

AV3

TUNE

C

TUNE

R

A

R

A

R

L

1

4

AM

MSP

41

D17

Q101 Q102

102

101

Q106

IC251

LA4282

R OUT 7

L OUT 11

AUDIO OUTPUT

5 R IN

2 L IN

G14

41

G16

V3

HEADPHONE

5

9

8

4

2 L

3 R

R

L

AUDIO BLOCK DIAGRAM

A3 D1

IC2001

MSP3410GAB83

57

30

30

AV1 R IN

SPKR OUT L

67 ANA IN 1

60 MONO IN

UDIO

36

37

56

545333

78 D CTRL

28

SPKR OUT R

27

PROCESSOR

5150

24

25

34

Q251

Q252

V3

V3 L

SMUTE

7

6

67

D8

G7

G - BOARD

D - BOARD

8

6

28

27

8

6

28

AV1 L I N

AV2 R IN

AV1 L O UT

AV1 R OUT

20

22

33

26

27

26

AV2 L I N

32

20

22

33

32

AV2 L O UT

AV2 R OUT

MONITOR L

MONITOR R

A - BOARD

Q3003

Q3006

Q3009

SMUTE

Q3008

OUT

AUDIO

L

MONITOR

R

8

Q3002

Q3005

LEFT IN 6

AV1

RIGHT IN 2

RIGHT OUT 1

LEFT IN 6

RIGHT IN 2

LEFT OUT 3

AV2

LEFT OUT 3

RIGHT OUT 1

A

R

SCL2

SDA2

SCL2

AFC

TUNE

SDA2

D - BOARD

RC SIG

7

SDA1

SCL1

56

SDA2

SCL2

34

D3

FBT, HEATER

PROT1

D2

BUS

TV OFF

SDA1(3.3V)

SCL2(5V)

SCL1(3.3V)

1528303132

15A1283031

3

SDA2

IC2001

2

SCL2

21 RESET

Q252

Q251

POWER SUPPLY

IC851

IC880

1 CTL

Q873

TV OFF

ROTATION

STBY LED

RC SIG

KEYSCAN

9

12 11 10

D8

9

12 11 10

G7

G - BOARD

Q1901

IC1900

D1001

Q1002

RM1001

RC RECEIVER

V1

8 SLOW1

/AV LINK

10 SCL

12 SDA

V2

8 SLOW2

16 FBL1

10 AV LIN K

Q1105

SDA2(5V)

AFC

33

32

33

ST/ON

ROTATION

STBY LE D

RC SIG

KEYSCAN

SMUTE

RST5.0

4

9

D1

4A39

101112

101112

15

31

15

31

34

34

KEYSCAN

Q1108

SERVICE

Q1107

AV LIN K

CONTROL BLOCK DIAGRAM

FBL1 37

A - BOARD

SDA1(3,3V) 6

IC1501

IDEO SIGNAL

AFC

ROTATION

RST 24

SCL1(3,3V) 13

RST 62

ROTATION 20

SDA1(3,3V) 64

SCL1(3,3V) 63

RST5.0

RST3.3

SCL2(5V)

SDA2(5V)

SCL1(3.3V)

SDA1(3.3V)

5V

ST/ON

PROT1

RC SIG

TV OFF

KEYSCAN

SMUTE

STBY LE D

Q1112

1

PROCESSOR

IC1701

DEFLECTION

PROCESSOR

IC1105

10

RESET 15

MICRO

IC1101

SCL1(3.3V) 9

SDA1(3.3V)

PROCESSOR

Q1109

3,3V

11

SCL2(5V)

6

5

LEVEL

Q1110

12

SDA2(5V)

SCL1

IC1104

SDA1

SHIFTER

TV OFF 13

EAROM

Q1116

62

24

AFC 25

RC IN 33

ST/ON

KEYSCAN

SMUTE 45

PROT1 31

STBY L ED 44

88 PSEN OUT

G 24

IC1103

D0÷D7

0÷A18

EPROM MEMORY

1

IC1106

RST 50

D0÷D7

A0÷A19

64 WR OUT

65 RD OUT

24

OE

WE 29

D0÷D7
A0÷A19

SDRAM

IC1102

SCL2(5V)

SDA2(5V)

Q1104

AV1/AV 2

Q1114

Q1115

Q1113

Q1111

Q1119

AV LINK IN

AV LINK OUT

Q1118

SLOW2 26

SLOW1 27

AV1/AV 2 37

SERVICE 16

AV LINK IN 34

AV LINK OUT 35

9

VERT DY

3

D16

HORIZ DY

5

D19

2

1

6

10

FBT

DIODE

MODULATOR

DEFLECTION BLOCK DIAGRAM

3

8

IC451

VERTICAL

6

LA7876N

HFLB

VFLB

1

3

10

1A13106

H DRIVE

D - BOARD

VERT+

D2

Q551

T501

Q503

EW

6

5

5

Q703

A - BOARD

EW

H DRIVE

Q1713

Q1715

Q1701 Q1702

VFLB

IC1701

DDP3315CQAG3

VS 10

EW 39

HFLB 30

VERT+ 37

HOUT 23

IC1501

DEFLECTION

PROCESSOR

VS 23

H SYNC 8

IDEO SIGNAL

PROCESSOR

VSP9415BVKC3

IC1101

SDA5550MQBTL

MICRO

VFLB 30

H SYNC 29

PROCESSOR

10
