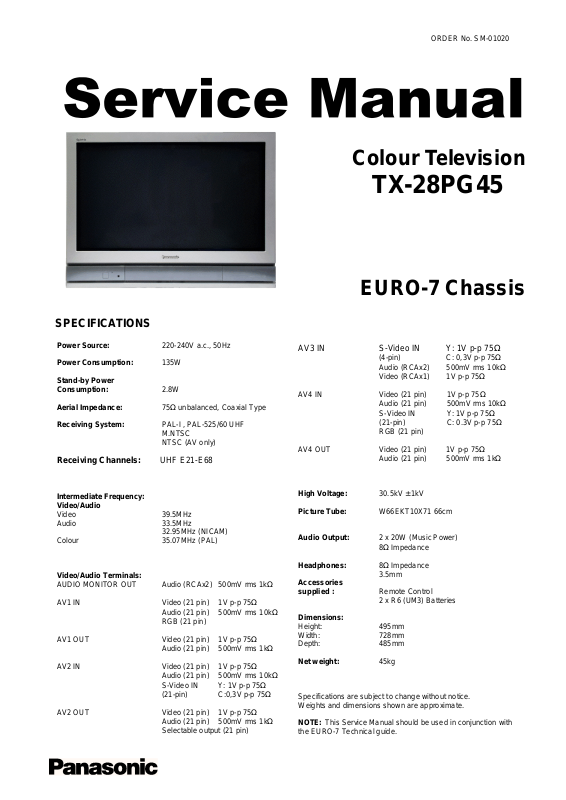

Panasonic TX28PG45 Euro7 Schematic

ORDER No. SM-01020

Colour Television

TX-28PG45

EURO-7 Chassis

SPECIFICATIONS

Power Source: 220-240V a.c., 50Hz
Power Consumption: 135W
Stand-by Power

Consumption: 2.8W
Aerial Impedance: 75Ω unbalanced, Coaxial Type
Receiving System: PAL-I , PAL-525/60 UHF

M.NTSC
NTSC (AV only)

Receiving Channels: UHF E21-E68

Intermediate Frequency:
Video/Audio

Video 39.5MHz
Audio 33.5MHz

32.95MHz (NICAM)

Colour 35.07MHz (PAL)

Video/Audio Terminals:

AUDIO MONITOR OUT Audio (RCAx2) 500mV rms 1kΩ
AV1 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin)

AV1 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV2 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ
S-Video IN Y: 1V p-p 75Ω
(21-pin) C:0,3V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ
Selectable output (21 pin)

AV3 IN S-Video IN Y: 1V p-p 75Ω

(4-pin) C: 0,3V p-p 75Ω
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω

AV4 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ
S-Video IN Y: 1V p-p 75Ω
(21-pin) C: 0.3V p-p 75Ω
RGB (21 pin)

AV4 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

High Voltage: 30.5kV ± 1kV
Picture Tube: W66EKT10X71 66cm

Audio Output: 2 x 20W (Music Power)

8Ω Impedance

Headphones: 8Ω Impedance

3.5mm

Accessories
supplied : Remote Control

2 x R6 (UM3) Batteries

Dimensions:

Height: 495mm
Width: 728mm
Depth: 485mm

Net weight: 45kg

Specifications are subject to change without notice.
Weights and dimensions shown are approximate.

NOTE: This Service Manual should be used in conjunction with
the EURO-7 Technical guide.

CONTENTS

SAFETY PRECAUTIONS..........................................................................................................................................................2

SERVICE HINTS.......................................................................................................................................................................3

ADJUSTMENT PROCEDURE AND FACTORY SETTINGS.....................................................................................................4

WAVEFORM PATTERN TABLE...............................................................................................................................................5

ALIGNMENT SETTINGS...........................................................................................................................................................6

BLOCK DIAGRAMS..................................................................................................................................................................7

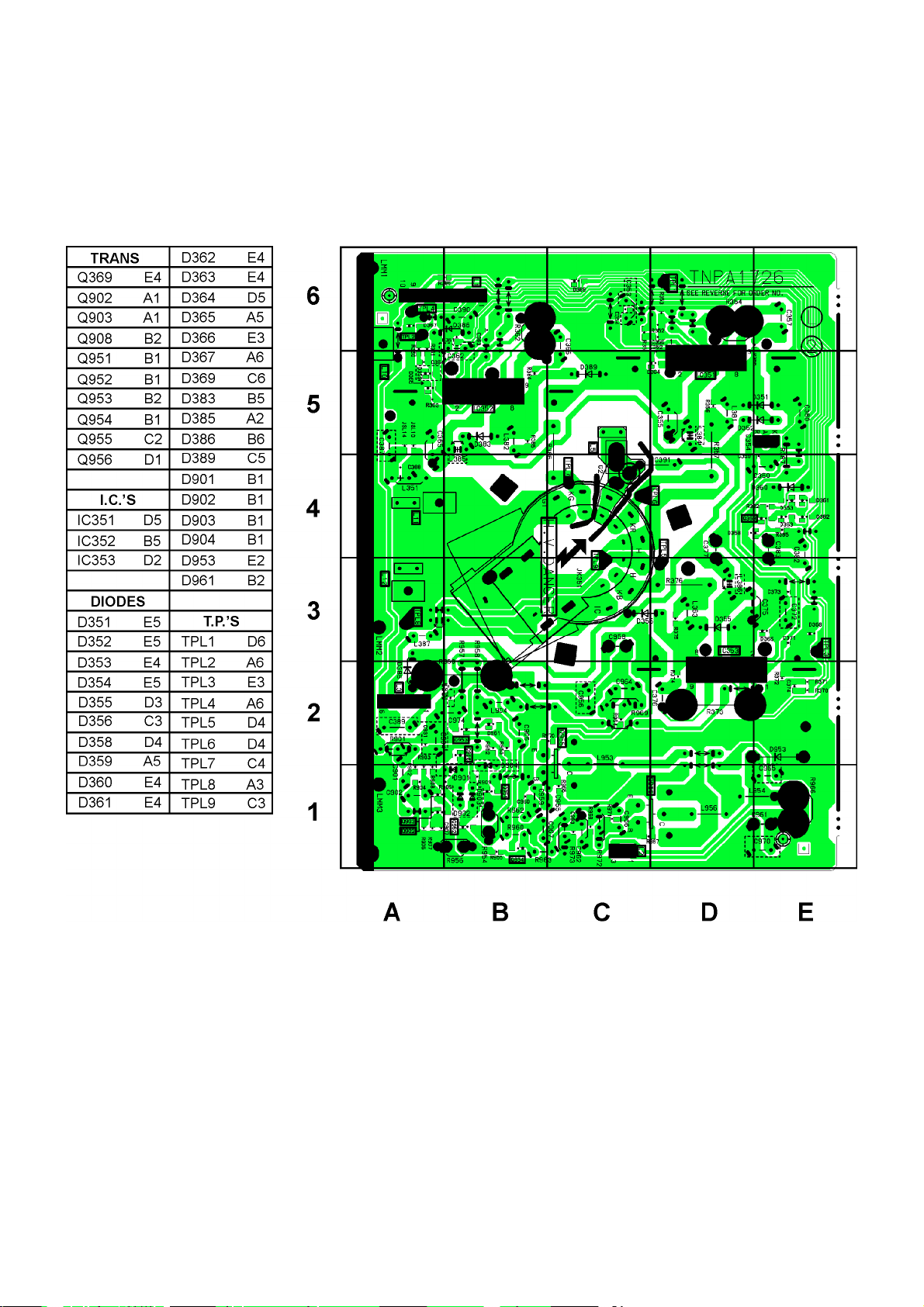

PARTS LOCATION.................................................................................................................................................................12

REPLACEMENT PARTS LIST................................................................................................................................................13

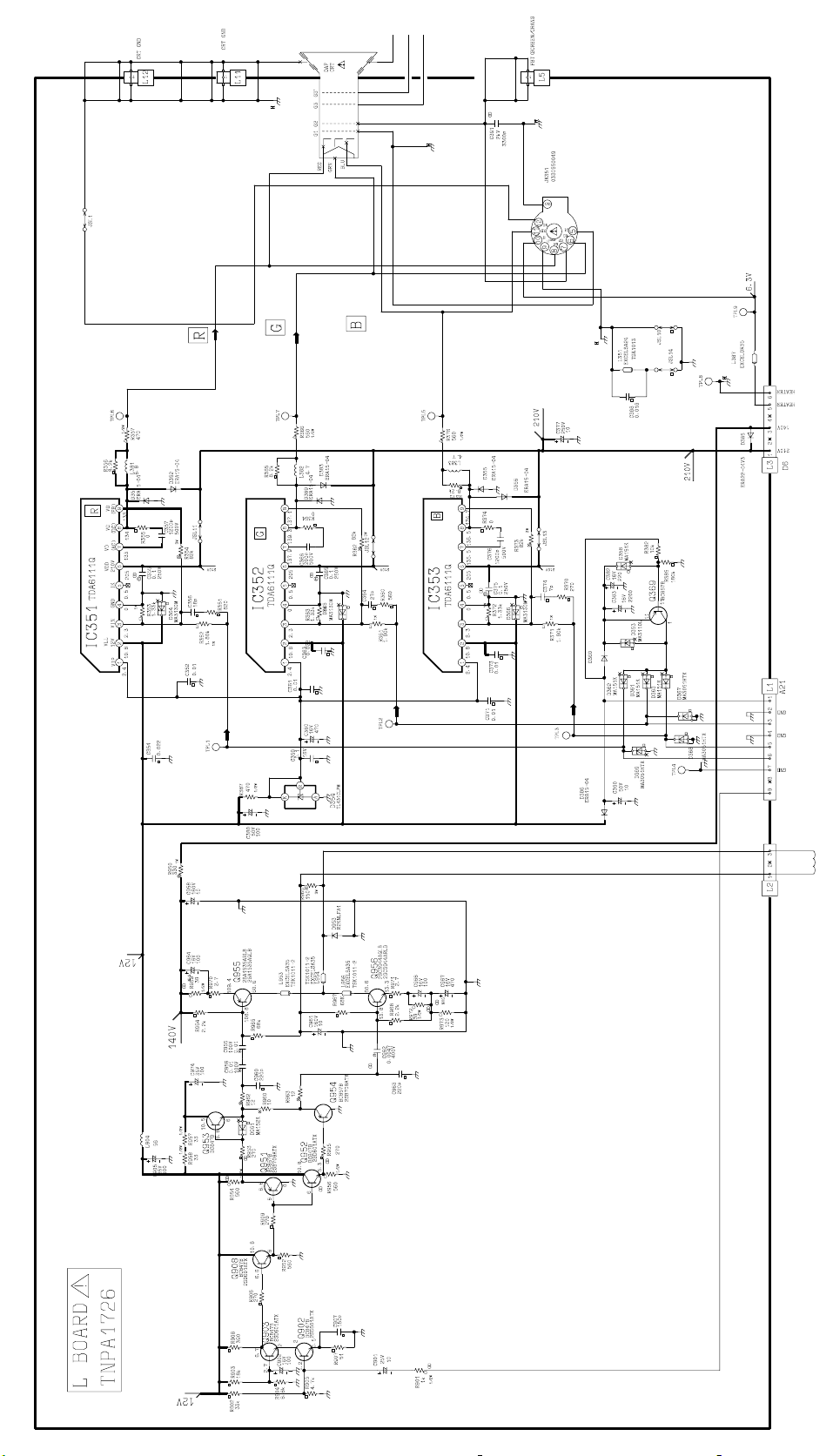

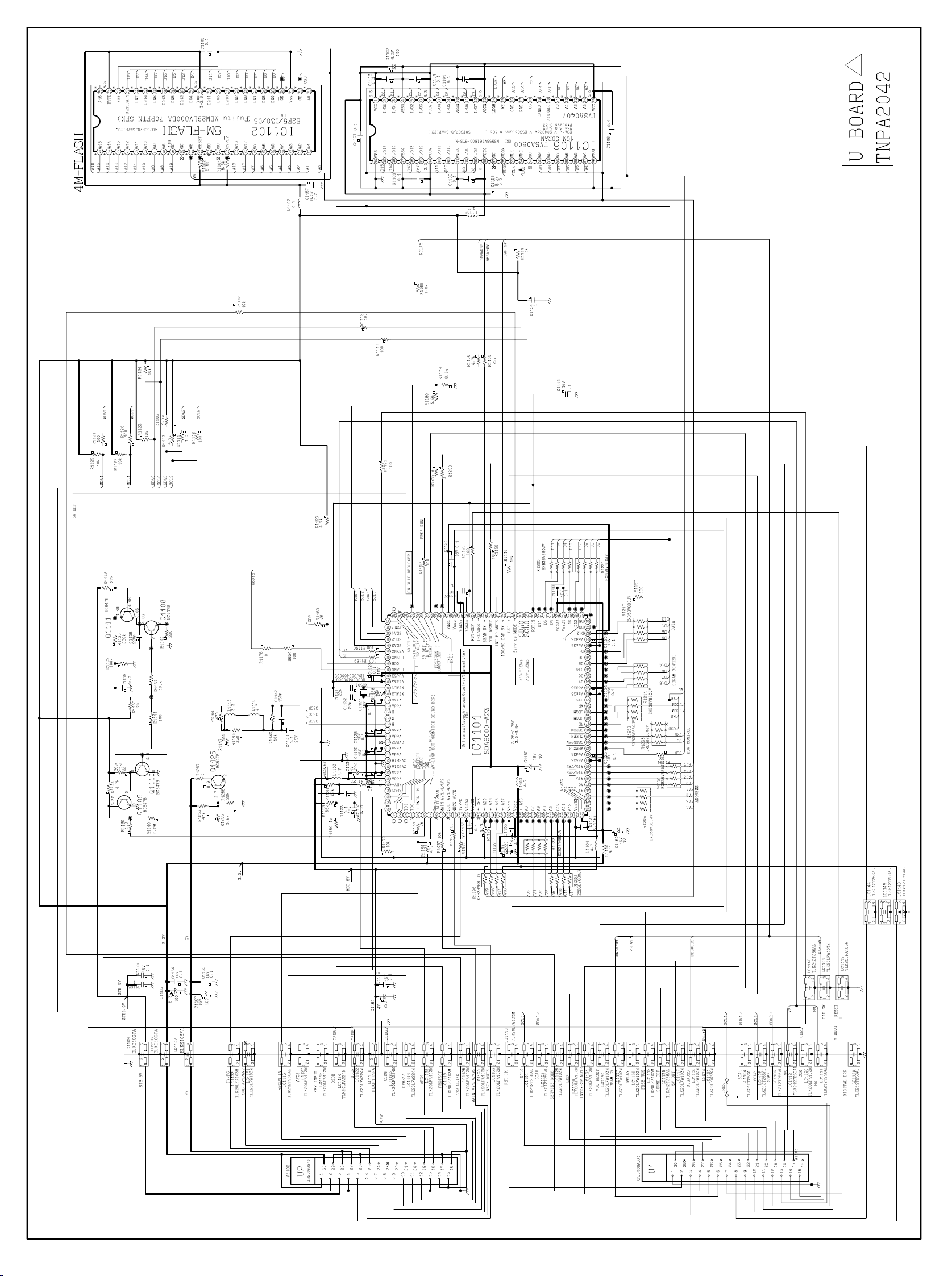

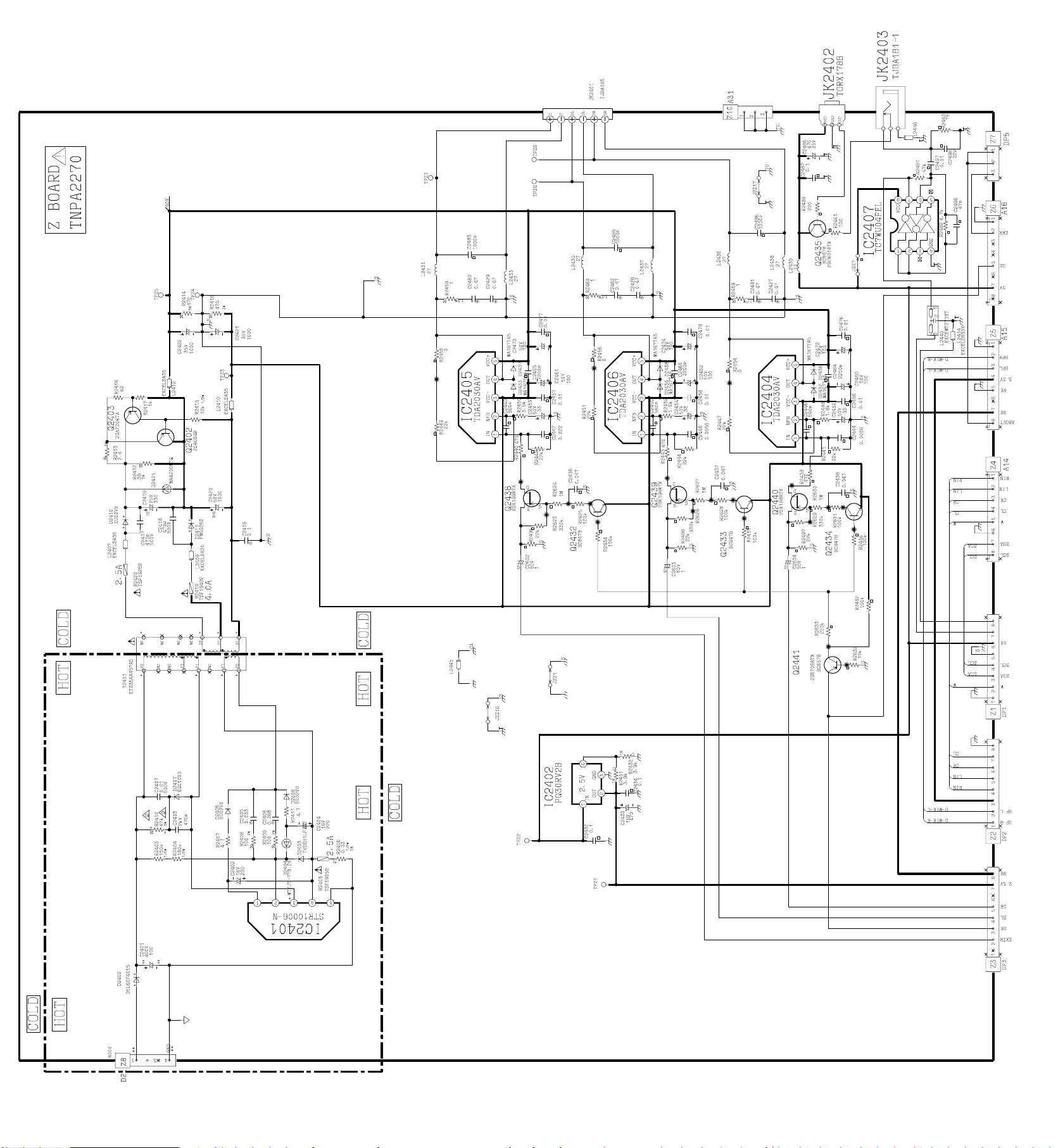

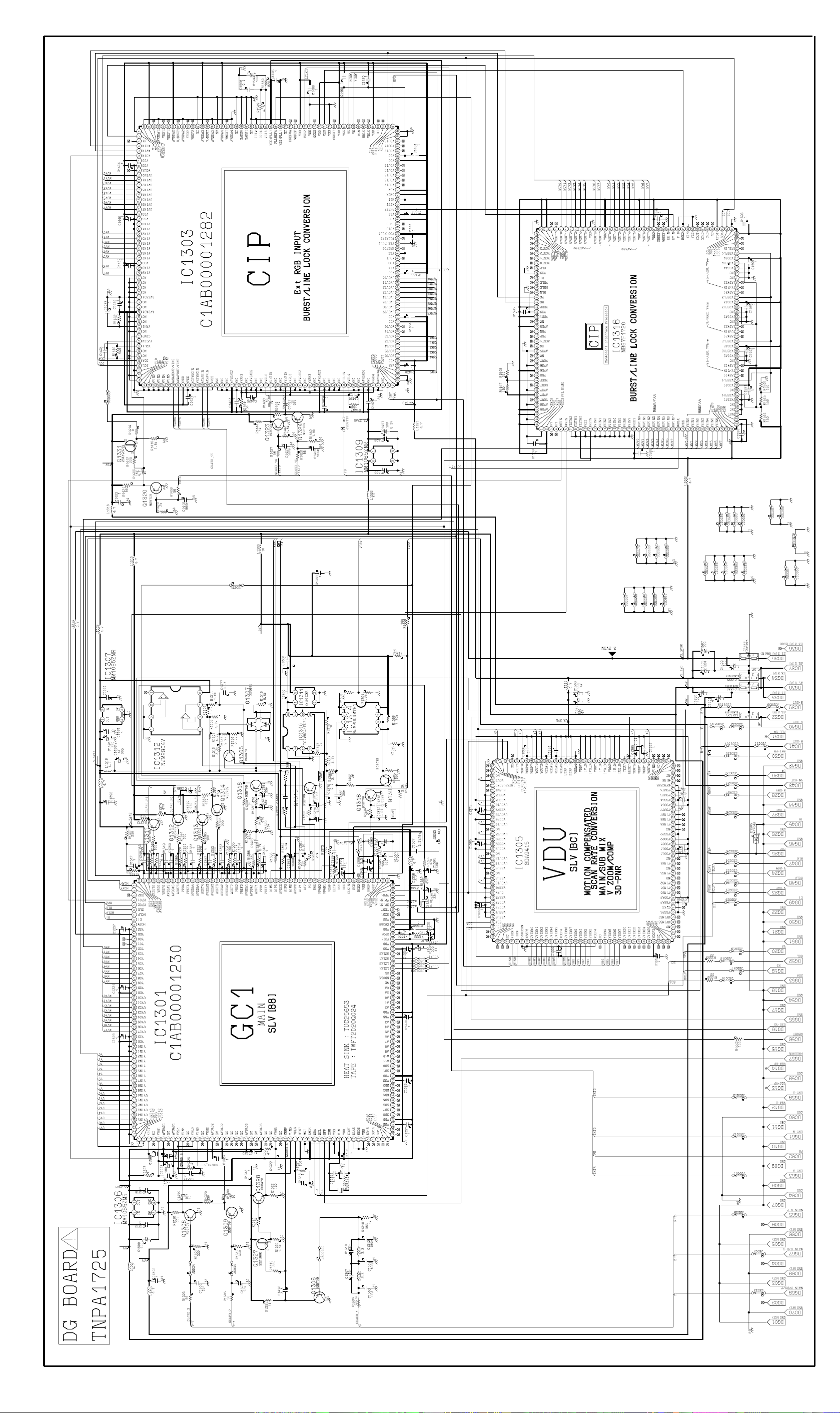

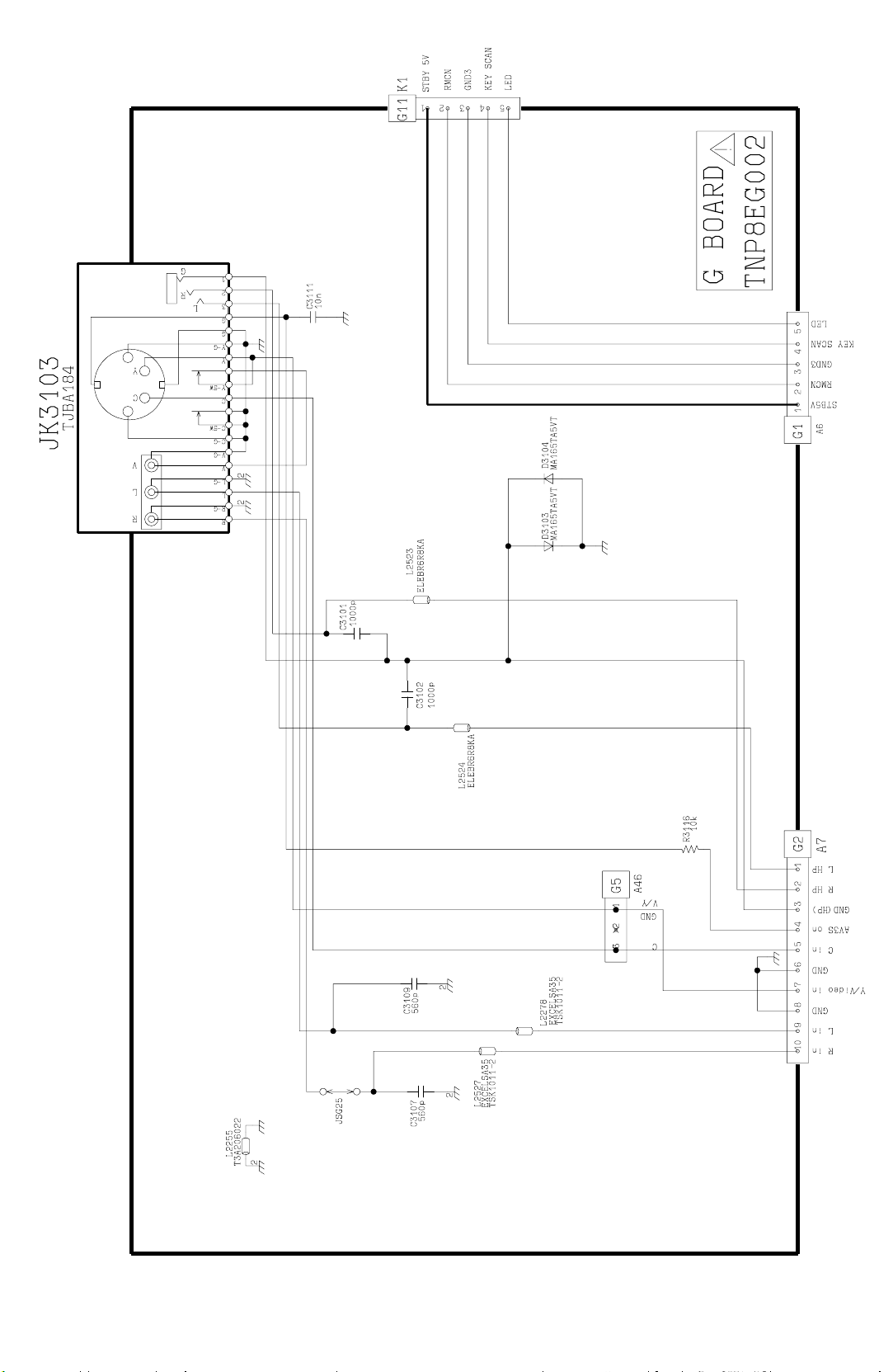

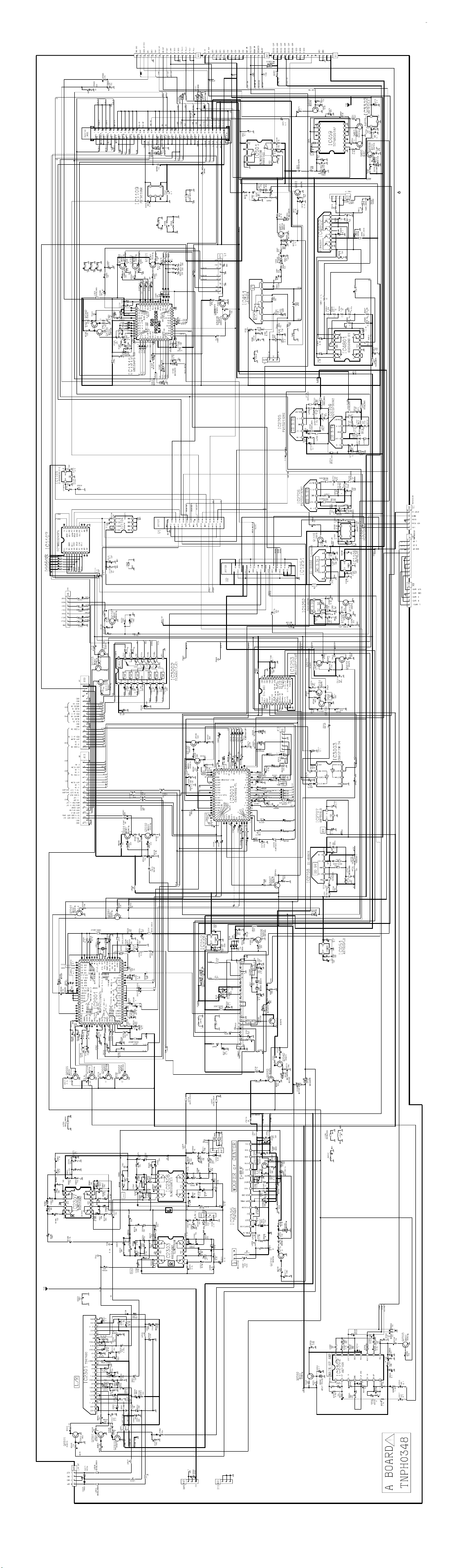

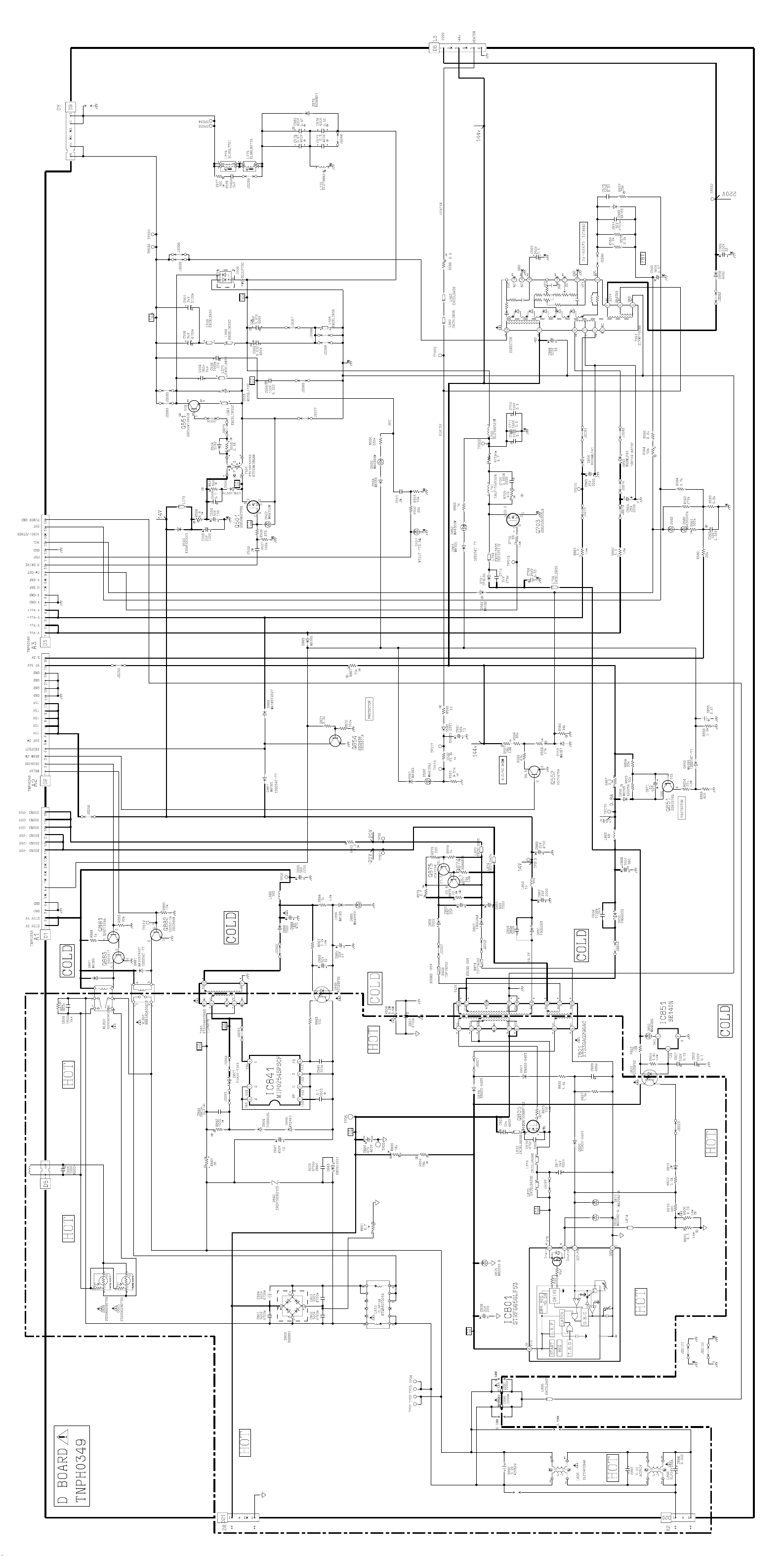

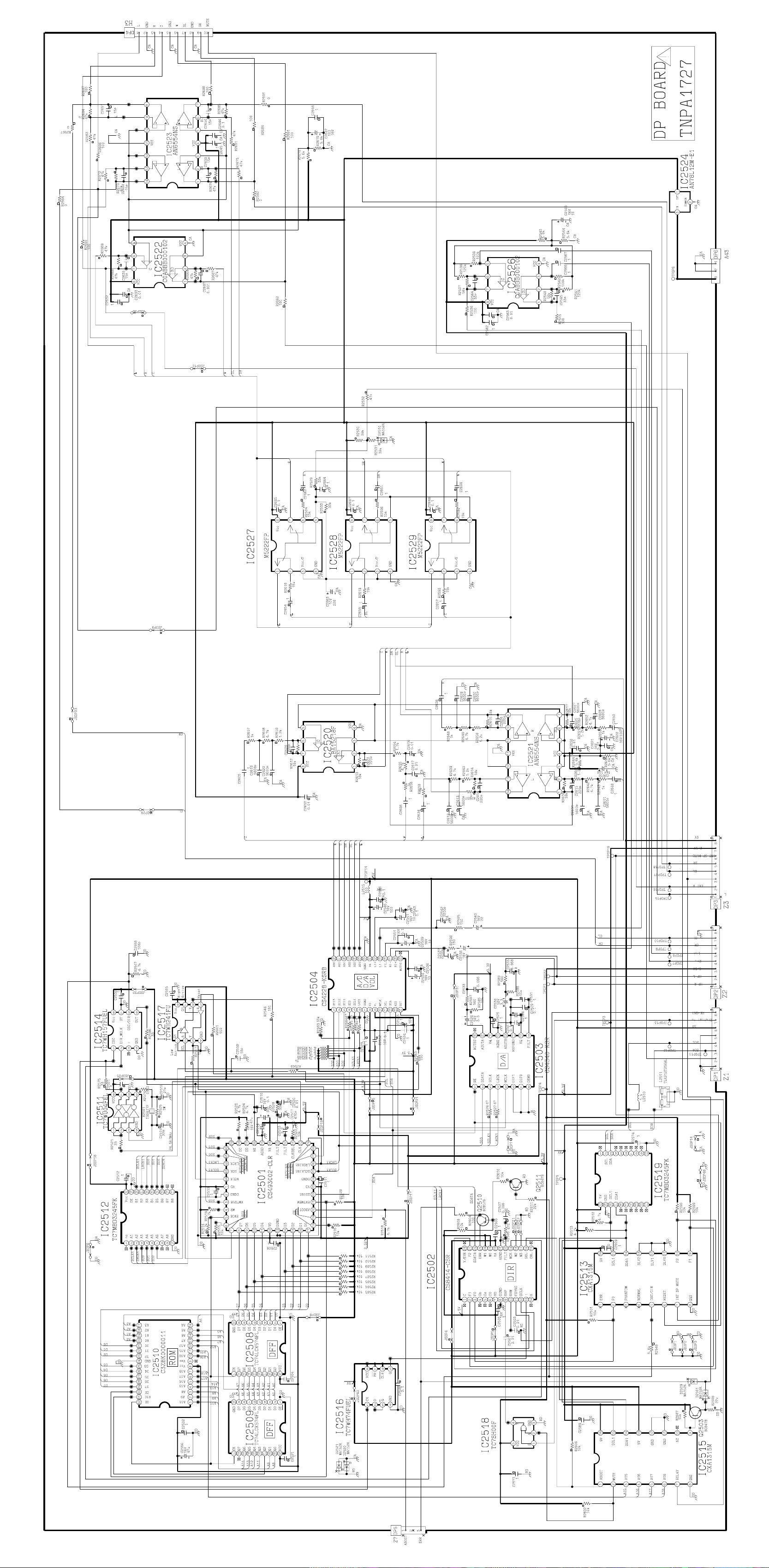

SCHEMATIC DIAGRAMS.......................................................................................................................................................33

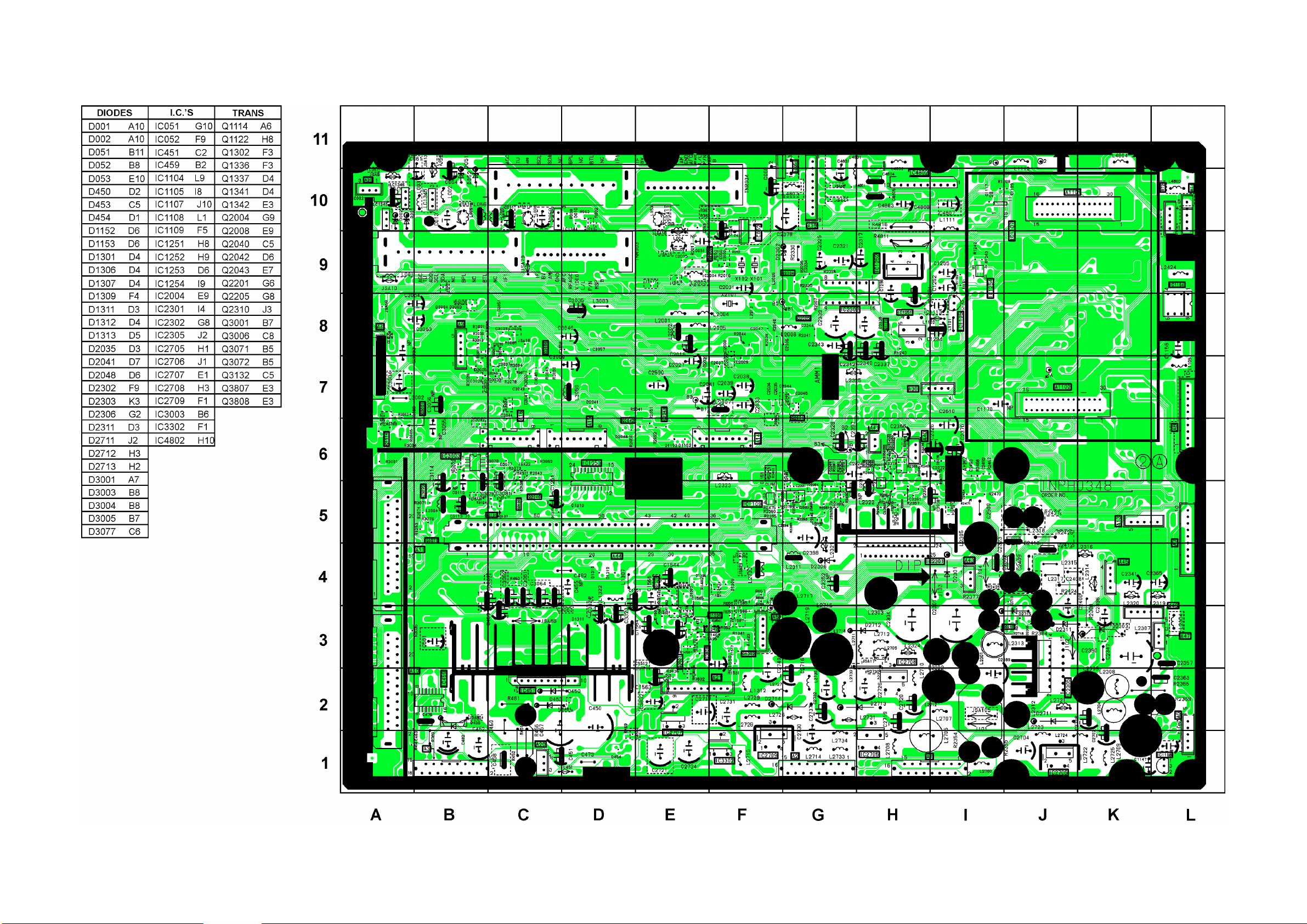

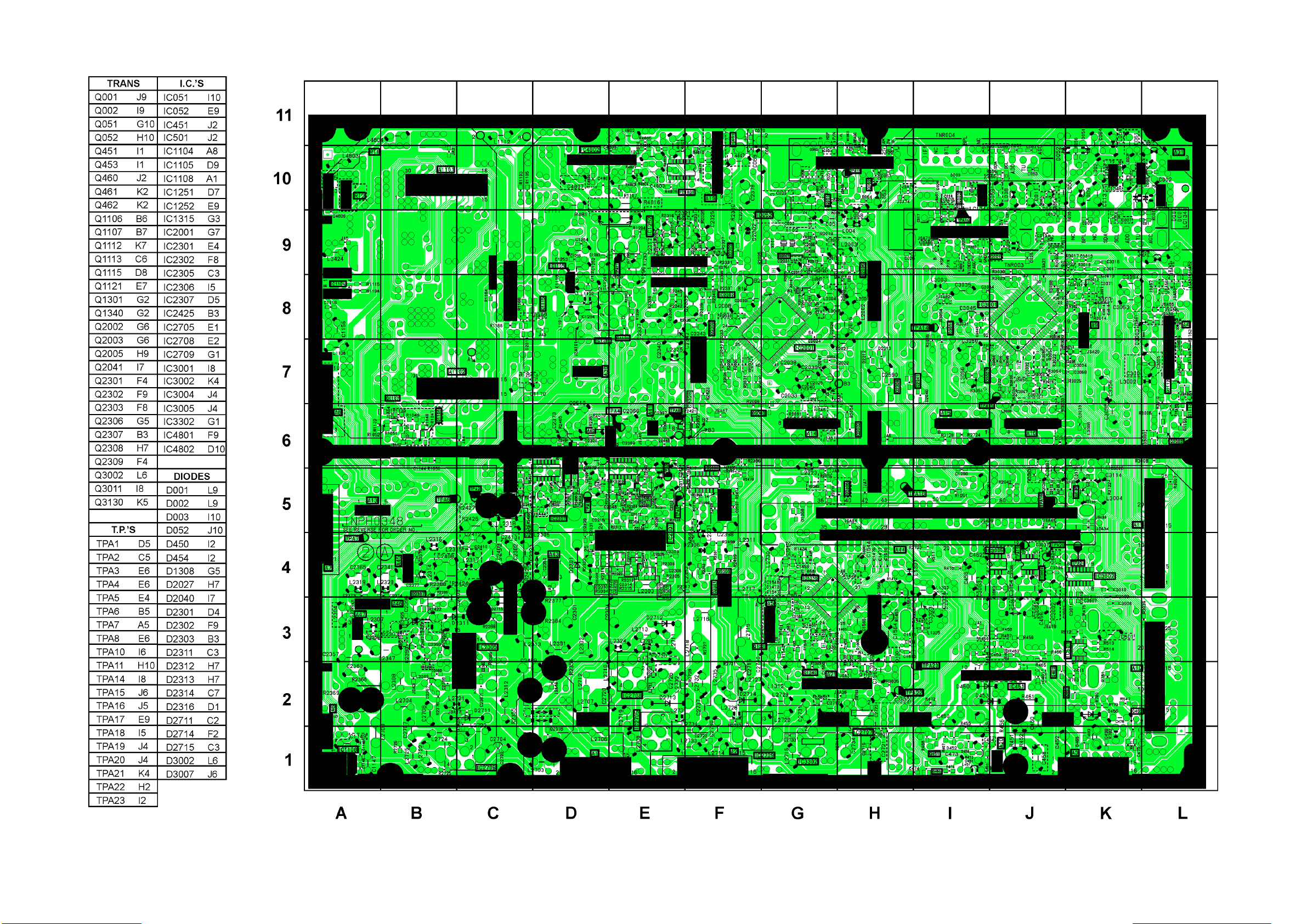

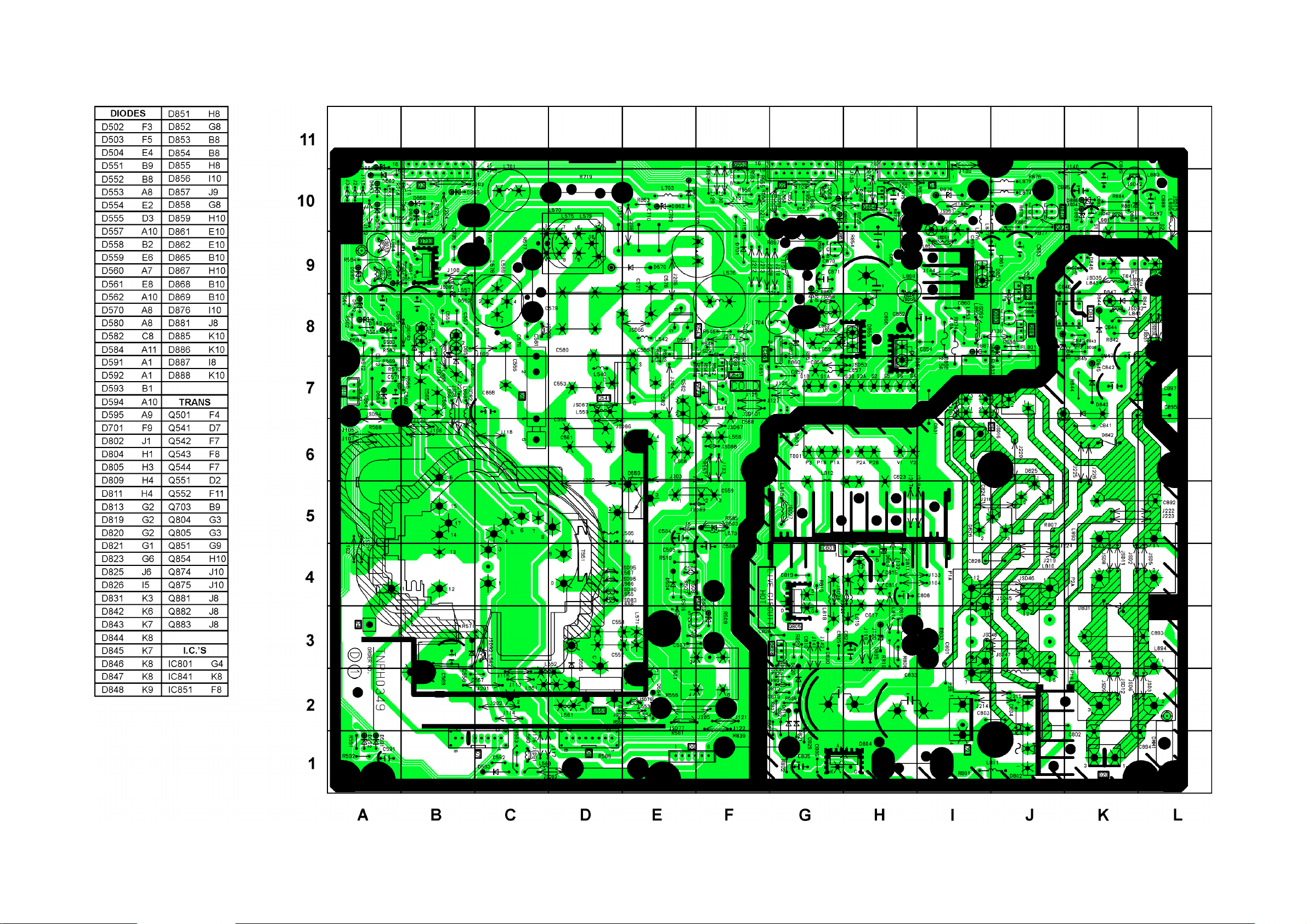

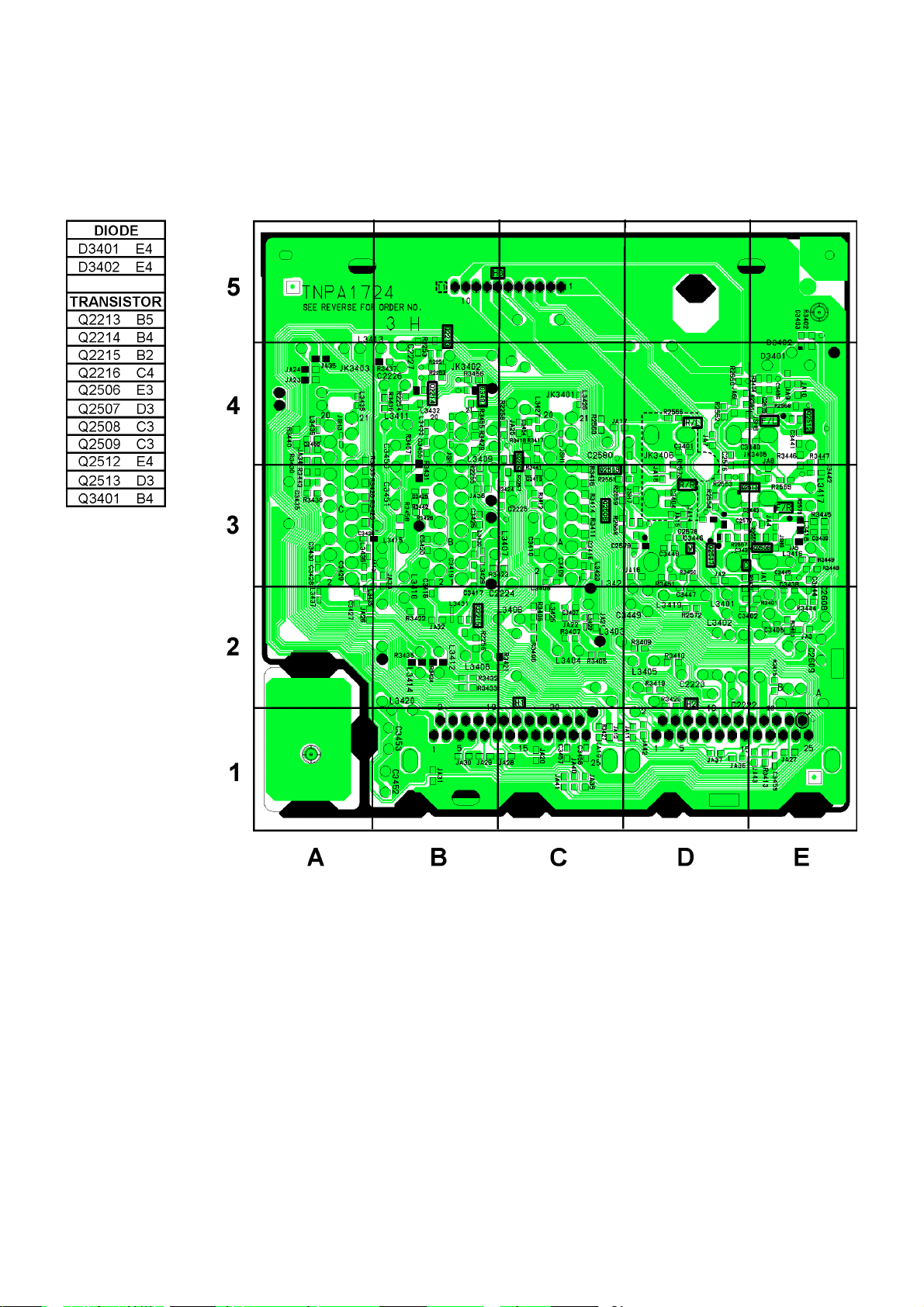

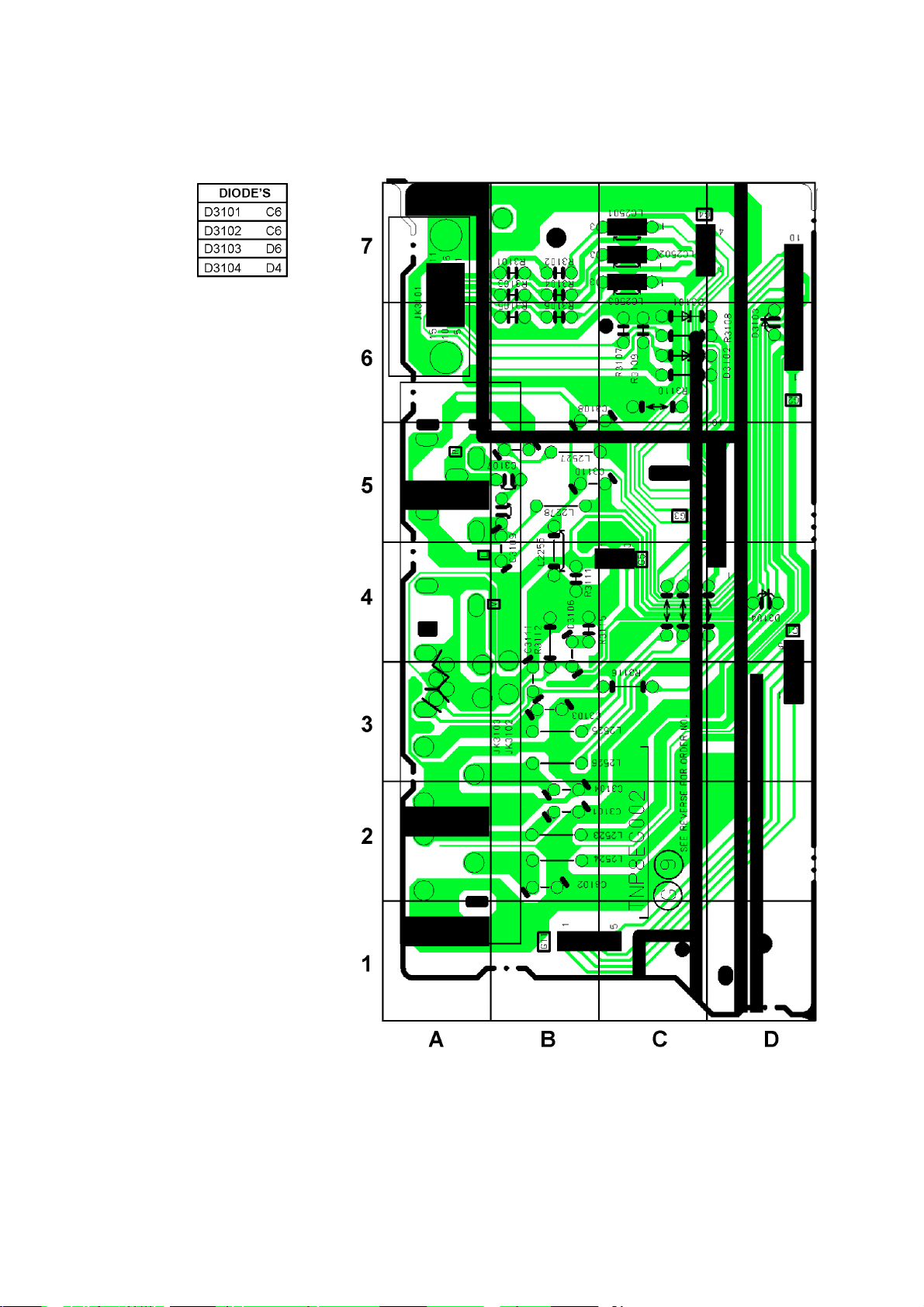

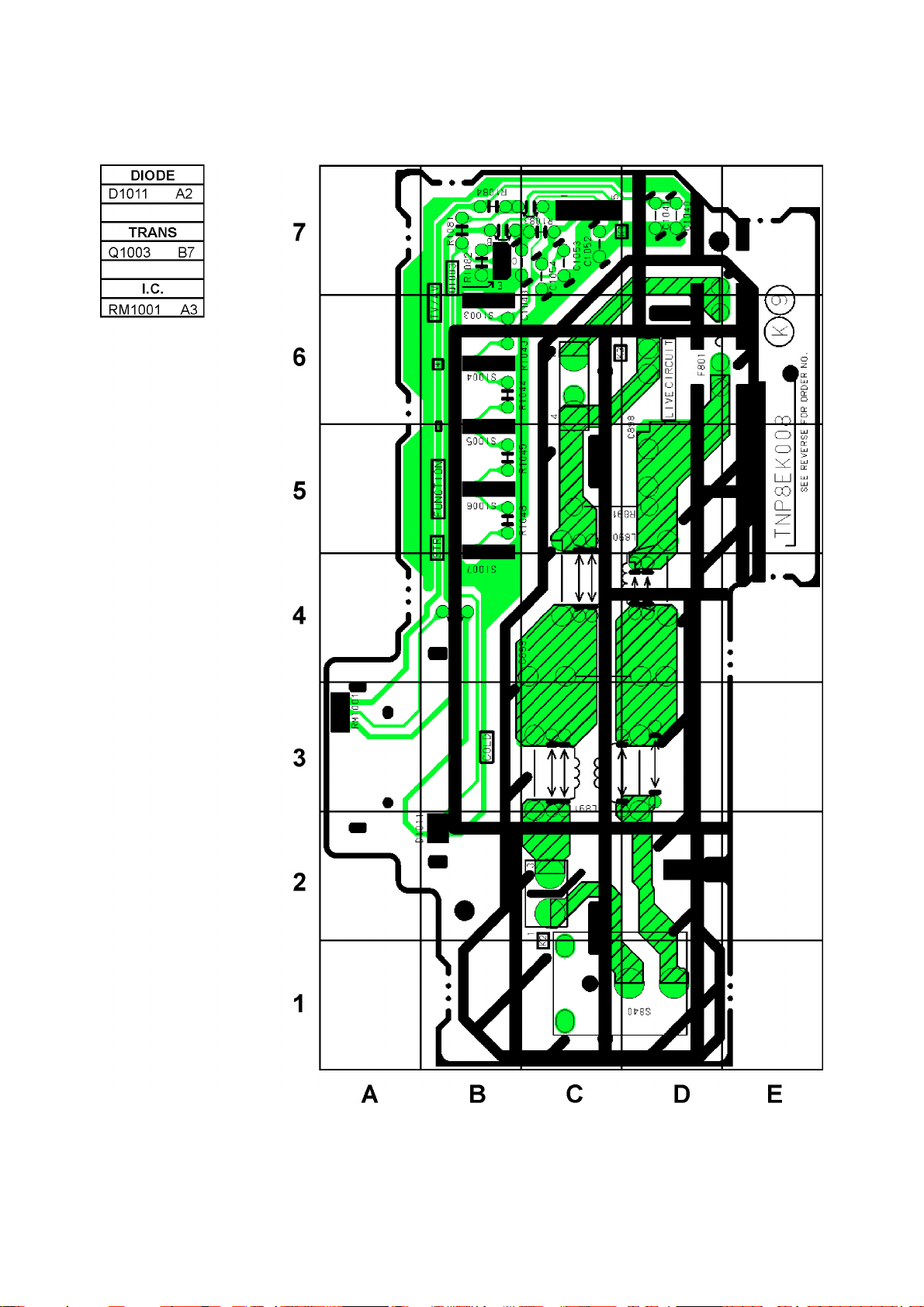

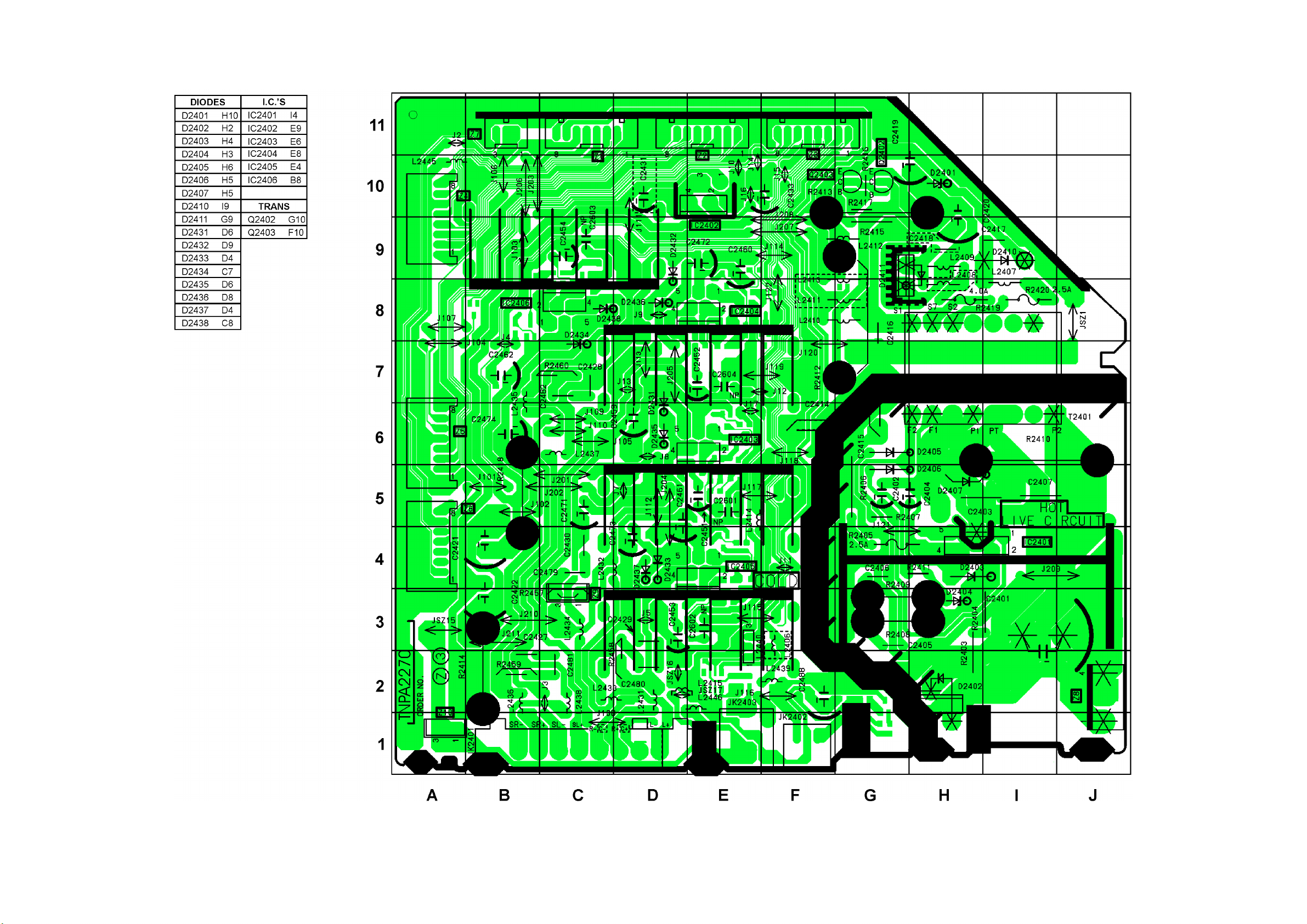

CONDUCTOR VIEWS.............................................................................................................................................................42

SAFETY PRECAUTIONS

GENERAL GUIDE LINES

1. It is advisable to insert an isolation transformer in the
a.c. supply before servicing a hot chassis.

2. When servicing, observe the original lead dress in the
high voltage circuits. If a short circuit is found, replace
all parts that have been overheated or damaged by
the short circuit.

3. After servicing, see that all the protective devices
such as insulation barriers, insulation papers, shields
and isolation R-C combinations are correctly
installed.

4. When the receiver is not being used for a long period
of time, unplug the power cord from the a.c. outlet.

5. Potentials as high as 31.5kV are present when this
receiver is in operation. Operation of the receiver
without the rear cover involves the danger of a shock
hazard from the receiver power supply. Servicing
should not be attempted by anyone who is not
familiar with the precautions necessary when working
on high voltage equipment. Always discharge the
anode of the tube.

6. After servicing make the following leakage current
checks to prevent the customer from being exposed
to shock hazard.

LEAKAGE CURRENT COLD CHECK

1. Unplug the a.c. cord and connect a jumper between
the two prongs of the plug.

2. Turn on the receiver’s power switch.

3. Measure the resistance value with an ohmmeter,
between the jumpered a.c. plug and each exposed
metallic cabinet part on the receiver, such as screw
heads, aerials, connectors, control shafts etc. When
the exposed metallic part has a return path to the
chassis, the reading should be between 4M ohm and
20M ohm. When the exposed metal does not have a
return path to the chassis, the reading must be
infinite.

LEAKAGE CURRENT HOT CHECK

1. Plug the a.c. cord directly into the a.c. outlet. Do not
use an isolation transformer for this check.

2. Connect a 2kΩ 10W resistor in series with an
exposed metallic part on the receiver and an earth,
such as a water pipe.

3. Use an a.c. voltmeter with high impedance to
measure the potential across the resistor.

4. Check each exposed metallic part and check the
voltage at each point.

5. Reverse the a.c. plug at the outlet and repeat each of
the above measurements.

6. The potential at any point should not exceed
1,4Vrms. In case a measurement is outside the limits
specified, there is a possibility of a shock hazard, and
the receiver should be repaired and rechecked before
it is returned to the customer.

HOT CHECK CIRCUIT

a.c. VOLTMETER

2kΩ 10 Watts

TO INSTRUMENT’S EXPOSED
METALLIC PARTS

Fig. 1.

X-RADIATION WARNING

1. The potential sources of X-Radiation in TV sets are
the high voltage section and the picture tube.

2. When using a picture tube test jig for service, ensure
that the jig is capable of handling 31.5kV without
causing X-Radiation.

NOTE: It is important to use an accurate periodically
calibrated high voltage meter.

1. Set the brightness to minimum.

2. Measure the high voltage. The meter should indicate.

30.5kV ± 1kV.
If the meter indication is out of tolerance, immediate
service and correction is required to prevent the
possibility of premature component failure.

3. To prevent any X-Radiation possibility, it is essential
to use the specified tube.

WATER PIPE

(

EARTH)

2

SERVICE HINTS

Focus

How to remove the rear cover

1. Remove the 9 screws as shown in Fig.2.

L-Board

SCREWS

LOCATION OF CONTROLS

SCREWS

Fig.2.

Abb.2.

Fig. 2.

Z-Board

H-Board

A-Board

D-Board

P-Board

Screen

DP-BoardDG-Board

G-Board

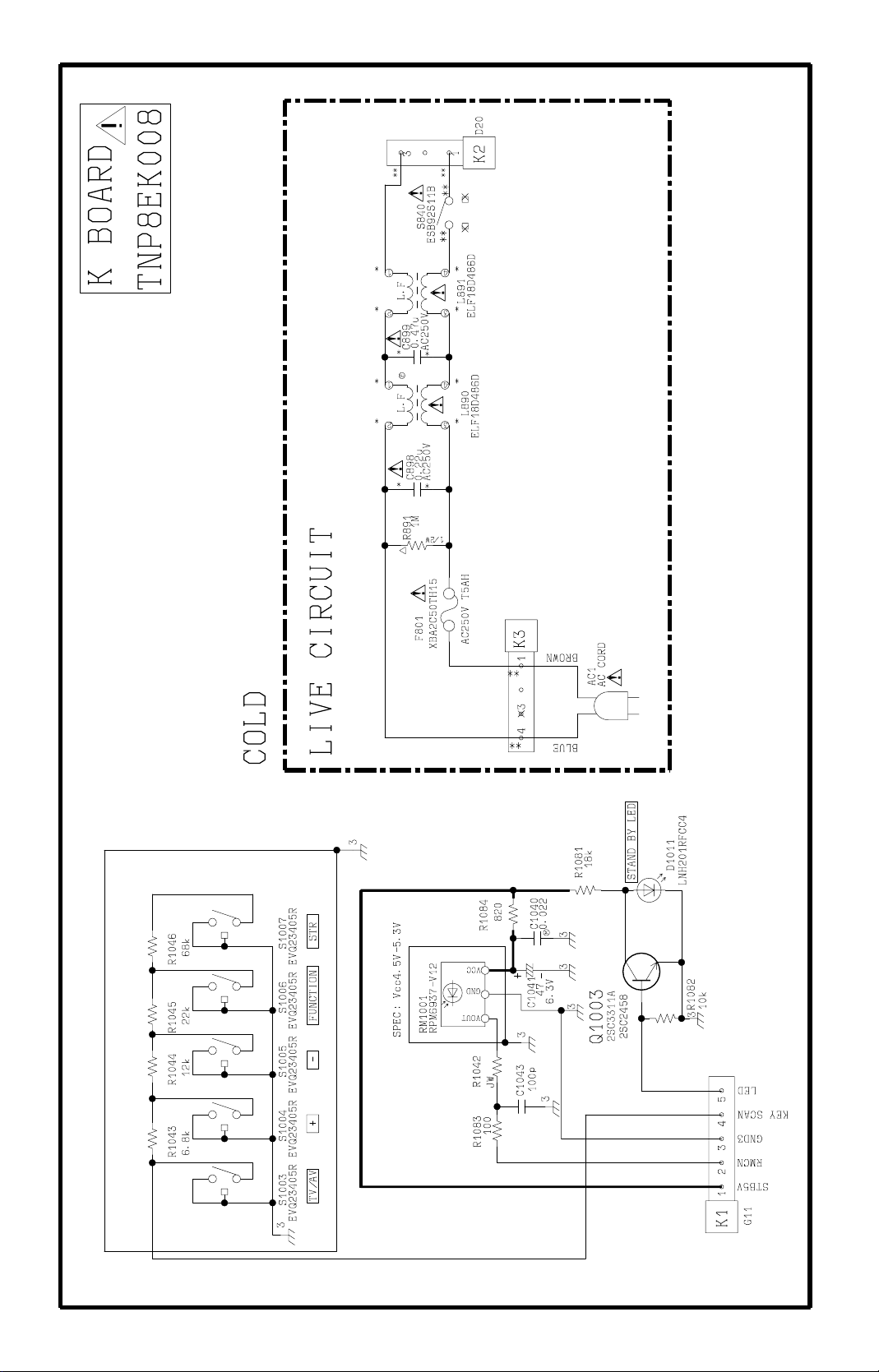

K-Board

3

ADJUSTMENT PROCEDURE

Item / Preparation Adjustments
+B SET-UP

1. Receive a Greyscale signal.

2. Set the controls :­Brightness Minimum
Contrast Minimum
Volume Minimum

1. Set the +B voltage up as follows:­Adjust R811 so that B2 shows 148V±1V.

2. Confirm the following voltages.

B9 5 ± 0,25V B10 5 ± 0,25V
B5 12 ± 0,5V B11 33 ± 1,5V
B4 15 ± 1V B7 8 ± 0,5V
B12 26 ± 2V B8 6±1V
B3 36 ± 1,5V B13 13 ± 1V
B1 205 ± 10V B14 14 ± 1V

CUT OFF / Ug2 Test

1. Receive a Greyscale signal.

2. Degauss the tube externally.

3. Set the TV into Service Mode 1.

4. Select Cut off mode.

To adjust Cutoff connect an oscilloscope to the Blue
cathode. Press "STR" and adjust "cutoff" value using the
"Yellow" and "Blue" buttons until the black level is 160V±5V,
press "STR" to store the value. Remove the oscilloscope.
Select Ug2 adjustment and adjust the screen VR until the
display shows "O.K."

FACTORY SETTINGS

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To get in to Self-Check mode
press the down (-/v) button on the customer controls at the front of the TV set, at the same time pressing the STATUS button
on the remote control.

MEM O.K.
GC1 O.K.
GC2 -- -­VDU O.K.
CIP O.K.
RGB O.K.

TUN1 O.K.
TUN2 -- -­DAC1 O.K.
MSP O.K.
DOLBY O.K.
CODEC O.K.

AVSW O.K.

DAC2 O.K.
DAC3 O.K.

TX- 28PG45

OPTION1 0D OPTION8 41
OPTION2 00 OPTION9 81
OPTION3 10 OPTION10 80
OPTION4 10 OPTION11 1B
OPTION5 00 OPTION12 28
OPTION6 50 OPTION13 FA
OPTION7 00 CHECK FC

To exit Self Check, switch off the TV set at the power button.

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

4

WAVEFORM PATTERN TABLE

,

Vert Out
IC601 Pin 31

0,7V

H - Out
IC601 Pin 50

3V

HFLB
IC601 Pin 13

6,2V

20mS

64µS

Vert Drive
IC451 Pin 2

57V

H - Out
IC701 Pin 5

30mV

HFLB
IC701 Pin 8

1,5V

20mS

64µS

VFLB
IC451 Pin 3

1V

20mS

H - Pulse
Base Q503

2V

64µS

Video Out
IC601 Pin 59

2V

R - Out
IC601 Pin 37

275mV

R - Out
E8 Pin 5

6V
4

SCL
IC1201 Pin 3

64µS

64µS

64µS

G - Out
IC601 Pin 38

275mV

G - Out
E8 Pin 3

4,4V

SVM Out
IC601 Pin 34

64µS

64µS

64µS

64µS

B - Out
IC601 Pin 39

275mV

64µS

B - Out
E8 Pin 4

4,6V

64µS

3,7V

13µS

88mV

64µS

5

ALIGNMENT SETTINGS

(The figures below are nominal and used for representative purposes only.)

1. Set the Bass to maximum position, set the Treble to minimum position, press the volume down button
(-/v) on the customer controls at the front of the TV and at the same time press the INDEX button on the remote
control, this will place the TV into the Service Mode.

2. Press the RED / GREEN buttons to step up / down through the functions.

3. Press the YELLOW / BLUE buttons to alter the function values.

4. Press the STR button after each adjustment has been made to store the required values.

5. To exit the Service Mode, press the "N" button.

Alignment Function Settings / Special features

Horizontal Position

Vertical Position

Horizontal Amplitude

Vert. Amplitude

EW-amplitude

EW-amplitude

Trapezium-comp

Trapezium-comp

Vertical Linearity

Vertical Symmetry

DVCO

Cut-off DC

Ug2 Test

H-Pos

061

V-Pos

005

H-Amp

055

V-Amp

054

E/W-Amp1

-128

E/W-Amp2

006

Trapez-1

047

Trapez-2

-128

V-Lin

006

V-Sym

002

DVCO

-005

Cut-off

0171

Ug2

055

O.K.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Receive a PAL Colour Bar Pattern. For
DVCO alignment press "Blue" button, wait
until the colours are changing slowly and
press "STR".

To adjust Cutoff connect an oscilloscope to
the blue cathode. Press "STR" and adjust
"cutoff" value using the "Yellow" and
"Blue" buttons until the black level is

160V±5V press "STR" to store the value.
Remove the oscilloscope.
Select Ug2 adjustment and adjust the
screen VR until the display shows "O.K."

Black Level

160V±5V
GND

Highlight

Lowlight

Sub-Brightness

High 0902 0777 0864
Low 0117 0132 0112

Sub-Brightness

255

6

Optimum setting.

Optimum setting.

H3 9 7 6 4 3 1

JK3405

LRC

JK3406

WSLSR

JK3406

R Out

L Out

R Out

L In

R In

R Out

L Out

L In

R In

L Out

R Out

L In

1

1

333

6

2

AV1

AV2

R In

1

6

2

6

2

AV4

AUDIO BLOCK DIAGRAM

Tweeter

JK2401

L + R

Speaker

A45

1

R

IC2303

L 28

R 27

H/P L 47

H/P R 48

L 53

R 54

1

1

A46

L 3

R 23

IC2301

18 R

10 L

8

9

7

8

L

2105

IC2306

5

10

R 33

L 37

R 57

R 36

R MIC

2

1

A41

A40

1

1

L 56

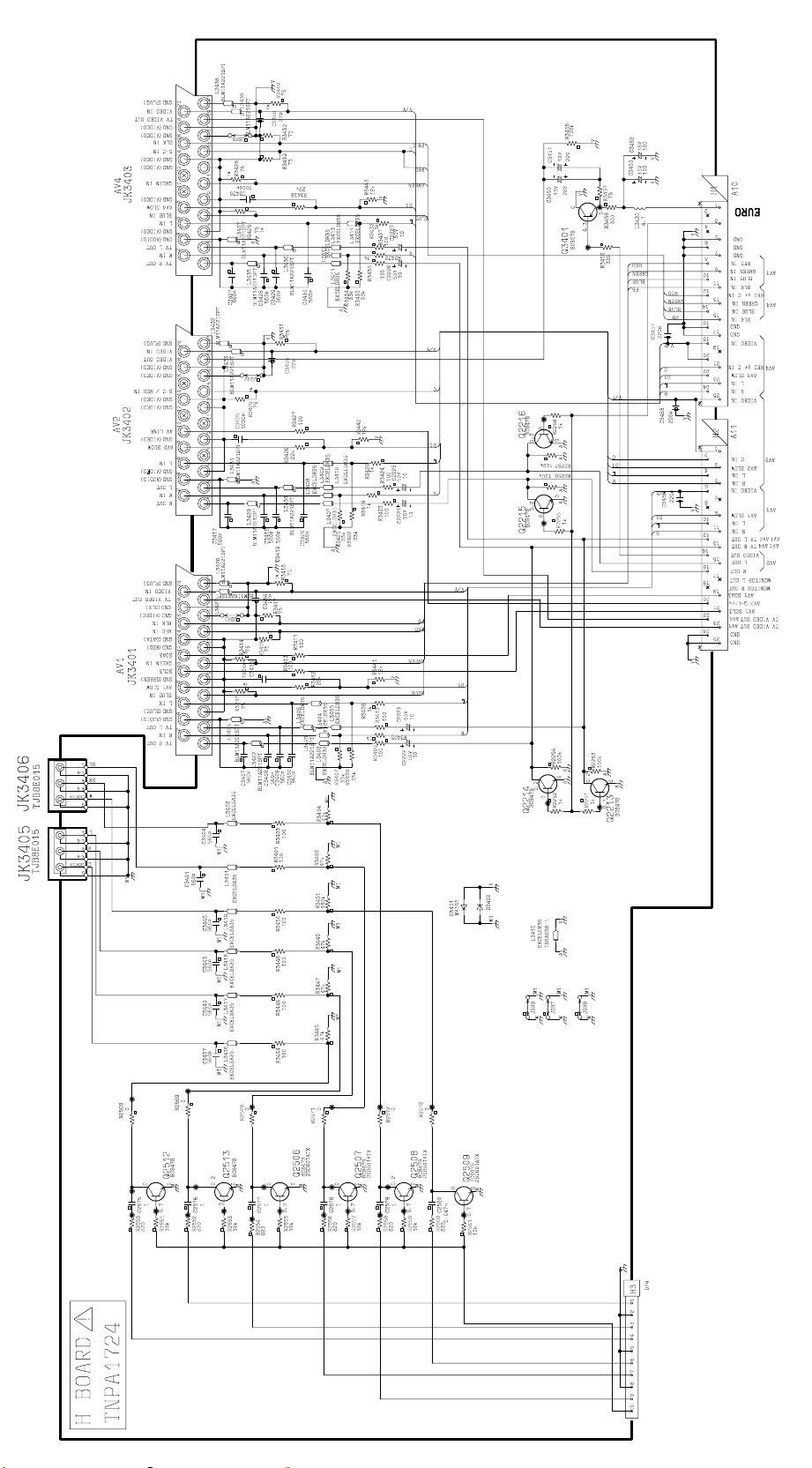

H - BOARD

L 38

L 38

16151718121310

H2

16151718121310

A11

L 59

L 52

R 61

R 40

5

4

11

H1

23

5

4

11

23

A10

L 2

R 4

R 11

L 62

R 64

L 23

R 25

JK3102

Main H/P

R

L

R

L

A - BOARD

IC2001

60 Mono In

67 Ana In

Main

Tuner

TNR003

25 H/P L

24 H/P R

L 314 L

R 611 R

IC2302

IC3001

16 L

18 R

A9
4

G - BOARD

A13
4

12 910

G2 or G6 1 2 9 10

7

RCA

Audio

JK3406

Z1

DP1

AV4

JK3403

Z2

DP5

DP2

DP3

Z3

Z - BOARD

Z7

RT1

Rotation

A20

DY Coil

AV2

DG - BOARD

DG01toDG70

JK3402

H - BOARD

AV1

JK3401

H1

A10

A44

H3

A11 H2

DP4

DP - BOARD

WIRING BLOCK DIAGRAM

AV3

JK3102

G - BOARD

K - BOARD

K3

In

Mains

G11

K1

G1

G2

K2

A46

A - BOARD

A7

A6

A9

A3D3

A2D2

A1D1

D20

D6

A13

A21L1

A21

L3

A1101U1

Tweeter Vertical

Speakers

A41 A45

A4 A40

Jig R-Mic L-Mic L+R

A1102U2

D - BOARD

D5

D9

DY

Coil

Coil

Degauss

8

CRT

JK351

Socket

L - BOARD

L5

L2

L11

L12

VM

Coil

CRT

CRT

Earth

Earth

U - BOARD

Heater Supply

H. Flyback

D595

D592

H-DAF

V-DAF

D - BOARD

D1

7

8

A3

A1

V PROTECTION

EW Protection

D862

6

6

Q451

-VCC Vertical

D865

+15V Supply

D867

+VCC Vertical

D869

JK3102

AV3

GND

IC1101

MATRIX

SWITCH

5

6

99987574101

76

PROTECT

U - BOARD

SERVICE

Q854 Q851

4

D2

4

A2

U1413122728151426

4

A1101

Q1114

SCL3(0)

SDA3(0)

SCL1

SDA1

13122728151426

77

100

LED

SCL2

SDA2

U2

A1102

127

KEY SCAN

PROTECT

9

9

124

20

20

RMCN

7

In

Out

QLINK

8

22

8

22

RM1001

K - BOARD

2

A4

K1

A6

Rout

RMCN

KEY

245

245

MODEL DEPENDANT

D1011

LED

G - BOARD

G2

A7

MODEL DEPENDANT

4

4

CONTROL BLOCK DIAGRAM

A - BOARD

SDA2

SCL2

9

27

53

52

SDA2

SCL2

7

6

IC1315

SLOW AV4

SLOW AV2

SLOW AV1

6

13

27

IC3001

IC2001

21

3

SDA1

SCL1

Sub

Tuner

TNR004

SDA1 SCL1

SDA1

Main

Tuner

TNR003

SCL1

34

33

2

SDA1

SCL1

IC1253

2

SCL1

IC1107

3

SDA1

SDA1

SDA0

A4
JIG

SDA2

SCL1

SCL2

32456

1714181615

SDA1

SCL1

SDA2

4

35176

SDA0

SCL0

7

SDA0

SCL0

5

6

IC1104

13

SCL2

SCL0

A44

DG

SDA2

23

53

522327

SCL2

V-DAF

H-DAF

1

90

89

Q1316

89

90

IC1304 IC1301

82

83

IC1316

48

49

IC1303

H - BOARD

DG - BOARD

AV1

A11

H2

SCL2

SCL2

3

19

20

9

3

21

19

20

SDA2

QLINK

SLOW AV1

SLOW AV2

8

10

12

8

10

AV2

22

A10

22

H1

SLOW AV4

8

AV4

9

4

2.5V

84

140

IC1305

IC1316

28

49

434952

138
136
120119

IC1306

2
100 107
97

66

75

80

57

55

59
61
65

80
84
88
90

101

149

154

7

28

61

718998

18

38

109

117

129

135

138

IC1303

207

1

IC1309

2

33

23

58

70

78

160

147

201196 206

193

IC1304

185 190

157

160158
150
161

168

172176

192
196

202

11

95
108
117
130144

166
179

2

20

40

9

18

20

21

122141
102

DG - Board

201196 206

IC1301

193

1

185 190

1

58

70

78

332311

DG01TODG70

A44

9V

8

IC3003

IC2001

11 12 13 65 66 80 39

5V

9V

1

11

IC459

3

16

IC051

Q1328
95
108

117

Q1327

130144

164147
166

IC1307

2

1

12

323635343337382327

323635343337382327

5V

1

2

3.3V

IC1105

5

IC1109

20

IC1107

8

IC1104

5

IC1253

IC1254

11 13 20 21 22

IC23074IC23064IC23034IC3001

94

IC1101

5V Det

IC1312

IC1310

8

7

8

32 42 53 61 69 85 106 21 87 111 116119 123
14

IC1314

IC1311

8

U - Board

U1

A1101

H - Daf

V - Daf

12

IC2302

1

IC3002

8V

3

42

7

IC4802

20

20

5V Det

CVBS

1

3027281415

U2

1

3027281415

A1102

3.3V

8

IC501

Switch

9V

9V

IC1315

Circuit

3.3V

271630

28

IC1110

IC1106 IC1102 IC1111

1 7 13 25 38 44 37 47 5

16

16

2.5V

44

POWER SUPPLY BLOCK DIAGRAM

ACL

EHT

Circuit

Monitor

IC851

1

14V

-20V

140V +B2

600V

600V

4

3

T801

IC801

5

376V

D802

D - Board

1

3

D20

1

3

K2

S840

F801

K - Board

MODEL DEPENDANT

1

4

K3

140V +B2

+20V

328

6

376V

MODEL DEPENDANT

14.5V

11

121817

13

10

140V +B2

+15.5V

-15.5V

Heater

220V

6

8

4

9

T551

376V

7.5V

600V

5102

T841

Circuit

Degauss

1

2

D5

Coil

Degauss

5

IC841

D9

H - DY

1

10

12

1300V

5

6

D3123478D1 1 2 11 12 13 14 15 16

A3123478A1 1 2 11 12 13 14 15 16

+20V

-20V

7.5V

D2 6 7 8 9 10 15 16

A2 6 7 8 9 10 15 16

IC4801

A - Board

D6 1 3 5

L3 1 3 5

8

2

D8

IC353

IC352

IC351

L - Board

4

22

2124

IC2301

15V

4

2

6
2

6
2

6

31

1

A21

1

L1

12V 12V

220V

140V

VM

Circuit

3.3V

IC1251

IC1252

534

7.5V

3.3V

2

1

IC3302

IC2709

JK351

Heater

CRT

IC1108

2

2

1

1

5V STBY

1

1

2

2

IC2705

IC2706

PIN10

K - Board

-15.5V

+15.5V

IC451

1256

1

2

3

1

4

IC2707

IC2708

1

A6

1

K1

5V STBY

VCC

RM1011

MODEL DEPENDANT

Tuner Tuner

30V

5V

9V

VOUT(A)

VOUT(B)

1

2

A10

1

3

A20

V - DY

In

Mains

10

IC1303

82

79

43

44

Q1331

Q1320

AV3

C

Y

83

84

207

62

202
200

IC1304

DG - Board

84

Q1329

DG01ToDG70

65

Q1322

6

83

Q1319

2694

2694

62

Q1321

Q1308

67

67

Q1324

195

Q1323

Q1313

5961634140

5961634140

IC1301

205

Q1311

39

39

197

194

Q1312

Q1327 Q1328

A9

Q1306

1

3

3

A13

G - Board

7

5

G2orG6

1

7

5

A7

IC1101

114 Blue

113 Green

112 Red

121 CVBS1A

U - Board

181219

U2

18

12

19

11 11

A1102

C.R.T.

VIDEO BLOCK DIAGRAM

IC3003

IC3001

R-Y 38

IC1315

Red

IC351

R

Y 37

15

B-Y 39

G

14

B

13

R

23

G

21

B

19

536L1536

A21

IC352

Green

38

38

Blue

IC353

38

L - Board

Out 5

B 10

7 In

IC3002

Yout 1 56

V/Yout 44

Cout 2 47

Cout 1 58

30 V 5

63 TV

G 11

41 Vout 3

2

R

R 12

3

G

4

B

6

R

7

G

8

B

22

Y 3 17

Cin 19

Cin 20

1 V 1

12 C 2

10 Y2

V4

24

Y4

26

C4

8

V2

14 13 12 10 9 8

AV4

25 21 20 18

25 21 20 18 14 13 12 10 9 8

H1

A10

AV2

Sub

TNR004

Main

TNR003

A - Board

Tuner

Q3006

Tuner

23 22 14 6 2 1H223 22 14 6 2 1

A11

19 7112015 19 20 15 2071115 19

AV1

H - Board

11

23

25

3

9

PARTS LOCATION

NOTE:

The numbers on the exploded view below
refer to the mechanical section of the
Replacement Parts List.

26

22

6

1

5

4

AV COVER

7

20

21

14

27

24

28

17

15

17

19

18

9

11

8

2

12

13

16

10

12

Components Identifie d by mark have special characteristics im portant for safety.
* When replacing any of these components, use only manufacturers specified parts.
In case of ordering these spare parts, please always add the complete Model-Type
number to your order.

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

EXPLODED VIEW

SPEAKER 1 EABG12506A2
TUNER 2 ENG27511G
REMOTE CONTROL 3 EUR511212A
PANASONIC BADGE 4 TBMA060
POWER BUTTON 5 TBXA24103A
CRT FIXING SCREW 6 THT1062
DOOR LID 7 TKPA34403
CONTROL BRACKET 8 TMWA003-2
CHASSIS FRAME 9 TMX8E050
G P.C.B. 10 TNP8EG002AA
K P.C.B. 11 TNP8EK008AA
H P.C.B. 12 TNPA1724
DG P.C.B. 13 TNPA1725AB
L P.C.B. 14 TNPA1726AC
DP P.C.B. 15 TNPA1727AB
U P.C.B. 16 TNPA2042AE
Z P.C.B. 17 TNPA2270AB
A P.C.B. 18 TNPH0348AY
D P.C.B. 19 TNPH0349AM
MODEL LABEL 20 TQF8E3158
REAR COVER 21 TTUA0371
28PG45 CABINET 22 TTYA0442
POWER CORD 23 TXASX01CJUG
FOCUS LEAD ASSEMBLY 24 TXJF0C0CJFG
BATTERY COVER (REMOTE) 25 UR51EC904A
C.R.T. 26 W66EKT10X71
ANODE CABLE 27 ZTBZAD550A
FBT 28 ZTFM77020A

MISCELLANEOUS COMPONENTS

SET FOOT (FRONT) . TBLG3019
REAR COVER LABEL . TBM8E2154
AV LABEL . TBM 8E2168
INDICATION SHEET . TBMU105
LID CATC H . TEK6940
CRT EARTH SPRING . TES2298
SPEAKER REFLECTOR. TKK8E026
AV COVER . TKP8E1323-1
PANEL LEFT . TKPA34605
FRONT PANEL RIGHT. TKPA34707
HANDLE . TKRA14105
PCB BRACKET . TMW8E042
POWER BUTTON JOINT. TMX8E052
OUTER CARTON . TPC8E4870
OUTER CARTON . TPCA77701
CUSHION . TPD8E746
TOP CUSHION . TPD8E747
BOTTOM CUSHION . TPD8E748
LID BOX . TPDF0388
INSERT CUSHION . TPDF0389
BATTERY PACK . UM-3DJ-2P
ROTATION COIL DEGC TLK8E05172

REPLACEMENT PA RTS LIST

Important Safety Notice

VIDEO CABINET VID TS-28PG45

I.C.s

REGULATOR D354 TL431CLPM
5V REGULATOR IC051 AN7805FLB
5V REGULATOR IC052 AN7805FLB
RGB OUTPUT IC351 TDA6111Q-N4
RGB OUTPUT IC352 TDA6111Q-N4
RGB OUTPUT IC353 TDA6111Q-N4
VERTICAL OUTPUT I C451 LA7845N
MULTIVIBRATOR IC459 TC74HC221AF
AUDIO AMPLIFIER IC501 NJM2903MTE1
POWER SUPPLY IC801 STRF6656LF53
POWER SUPPLY SWITCHINGIC841 MIP0254SPSCF
ERROR AMPLIFIER IC851 SE140N
MICRO PROCESSOR IC1101 SDA6000-A23
EEPROM * IC1102 E2F5/020/05
IC EAROM * IC1104 X24BR200-1FA
5V REGULATOR IC1105 S-80843ALY-Z
SDRAM IC1106 TVSA0500
CONVERTER IC1107 TC7MBD3245FK
5V REGULATOR IC1108 AN78L05TA
SYSTEM RESET IC1109 PST9119NR

3.5V REGULATOR IC1251 SI-3033C

2.5V REGULATOR IC1252 PQ30RV21B
D/A CONVERTER IC1253 M62392FP70BC
RESET I C1254 PST9128NR
VIDEO PROCESSOR IC1301 C1AB00001468
VIDEO PROCESSOR IC1303 C1AB00001282
SCAN RATE CONVERTOR IC1305 SDA9415

3.3V REGULATOR IC1306 MM1065ZMR

3.3V REGULATOR IC1307 MM1065ZMR
VIDEO LOGIC IC IC1310 TC7WH241FUEL

3.3V REGULATOR IC1311 MM1065ZMR
AUDIO AMPLIFIER IC1312 NJM2904VTE1
AUDIO AMPLIFIER IC1314 NJM2904MTE1
R.G.B. PROCESSOR IC1315 AN5394FB
CIP IC1316 MB87F1720
M.S.P. IC2001 MSP3410DQAC5
AUDIO AMPLIFIER IC2301 TDA7490
H.P. AMPLIFIER IC2302 AN7108
QUAD AMPLIFIER IC2303 NJM2059MTE1
AUDIO AMPLIFIER IC2305 TDA7481
QUAD AMPLIFIER IC2306 NJM2059MTE1
QUAD AMPLIFIER IC2307 NJM2059MTE1
POWER SUPPLY IC2401 STR10006-N

2.5V REGULATOR IC2402 PQ30RV21B
AUDIO AMPLIFIER IC2404 TDA2030AV
AUDIO AMPLIFIER IC2405 TDA2030AV
AUDIO AMPLIFIER IC2406 TDA2030AV
INVERTER BUFFER IC IC2407 TC7WU04FEL
AUDIO DECODER IC IC2501 CS493002-CLR
DIGITAL AUDIO RECEIVERIC2502 CS8414-CSR

13

FUSES

DIODES

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

STEREO D/A CONVERTER IC2503 CS4340-KSR
AUDIO D/A & A/D IC2504 CS4228-KSRB
ADDRESS BUFFER IC IC2508 TC74LCX574FL
ADDRESS BUFFER IC IC2509 TC74LCX574FL
4MBIT FLASH EPROM IC2510 C3ZBK0000011
INVERTER BUFFER IC IC2511 TC7WU04FEL
CONVERTER IC2512 TC7MBD3245FK
D/A CONVERTER IC IC2513 CXA1315M-T4
D/A CONVERTER IC IC2515 CXA1315M-T4
D TYPE F.F. LOGIC IC IC2516 TC7WH74FUEL
VIDEO LOGIC IC IC2517 TC7WH241FUEL
2 INPUT NAND GATE IC IC2518 TC7SH00FEL
CONVERTER IC2519 TC7MBD3245FK
AMPLIFIER IC2520 BA15218F-E2
OPERATIONAL AMPLIFIER IC2521 AN6554NSF-E2
OPERATIONAL AMPLIFIER IC2522 C 0ABBB000102
OPERATIONAL AMPLIFIER IC2523 AN6554NSF-E2
12V REGULATOR IC2524 AN78L12M-E1
OPERATIONAL AMPLIFIER IC2526 C 0ABBB000102
DUAL VCA (AMPLIFIER) IC2527 M5222FP-E2
DUAL VCA (AMPLIFIER) IC2528 M5222FP-E2
DUAL VCA (AMPLIFIER) IC2529 M5222FP-E2
REGULATOR IC2705 PQ1CG21H2RZ
REGULATOR IC2706 PQ1CG21H2RZ
8V REGULATOR IC2707 AN7808LB
POWER SUPPLY IC2708 SI-8090K
REGULATOR IC2709 PQ1CG21H2RZ
SWITCHING IC3001 CXA2069Q-TL
12V REGULATOR IC3002 TDA8601T/C1
VIDEO AMPLIFIER IC3003 CXA1211M-T4
12V REGULATOR IC3302 L78M12MRB
OPERATIONAL AMPLIFIER IC4801 AN6564NS-E1
GEOMAGNETIC CORRECTIONIC4802 PUB4301
REMOTE RECEIVER IC RM1001 RPM6937-V12

FUSE HOLDER F801-1 EYF52BC
FUSE HOLDER F801-2 EYF52BC
FUSE F801 XBA2C50TH15

DIODE D003 MA3150HTX
DIODE D004 MA3150HTX
DIODE D010 MA152KTX
DIODE D053 MA152KTX
DIODE D351 ERA15-04V3
DIODE D352 ERA15-04V3
DIODE D353 MA3110LTX
DIODE D355 ERA15-04V3
DIODE D356 ERA15-04V3
DIODE D358 MA151ATX
DIODE D360 ERA15-02V3
DIODE D361 MA151ATX
DIODE D362 MA151ATX
DIODE D363 MA151ATX
DIODE D364 MA3130MTX
DIODE D365 MA3130MTX
DIODE D366 MA3130MTX
DIODE D367 MA3051HTX
DIODE D368 MA3051HTX
DIODE D369 MA3051HTX
DIODE D383 ERA15-04V3
DIODE D385 ERA22-04V3
DIODE D386 ERA15-04V3
DIODE D389 ERA15-04V3
DIODE D452 MA152KTX
DIODE D453 EU02AV1
DIODE D454 MA152KTX

DIODE D455 MA152KTX
DIODE D456 ERA22-02V3
DIODE D465 MA3039HTX
DIODE D502 MA4150TA
DIODE D503 ERA81004V3
DIODE D504 D1NL40V70
DIODE D553 MA167TA5
DIODE D554 EU02
DIODE D555 RH3GLF102
DIODE D557 MA1033MTA
DIODE D558 AU02V0
DIODE D559 FMV-3GULF730
DIODE D560 MA165TA5
DIODE D562 MA182TA
DIODE D570 RU3ANV1
DIODE D580 MA4360
DIODE D591 MA165TA5
DIODE D592 MA4104
DIODE D593 ERA15-02V3
DIODE D594 MA165TA5
DIODE D595 MA4360MTA
DIODE D701 D1NL40V70
DIODE D802 D6SB80LF-B
DIODE D805 MA2240-BLFS
DIODE D809 MA2082-ALFS
DIODE D811 MA2082-ALFS
DIODE D819 ERA22-04V3
DIODE D820 ERA22-04V3
DIODE D821 ERA22-04V3
DIODE D823 PC123FY2
THERMISTOR D825 232266296706
THERMISTOR D826 232266296706
DIODE D843 ERC0510V1
DIODE D844 TVSSR2KL
DIODE D845 RY24V1
DIODE D847 ERA22-10
DIODE D848 PC123FY2
DIODE D851 FMGG26S
DIODE D852 MA4030LTA
DIODE D853 RU2AMLFA1
DIODE D854 RU2AMLFA1
DIODE D855 FMGG2CS
DIODE D856 EU02
DIODE D857 FMGG26S
DIODE D858 MA165TA5
DIODE D859 MA165TA5
DIODE D861 MA165TA5
DIODE D862 MA4360MTA
DIODE D865 MA165TA5
DIODE D867 MA165TA5
DIODE D869 MA165TA5
DIODE D881 MA165TA5
DIODE D885 MA4056HTA
DIODE D886 MA165TA5
DIODE D887 MA165TA5
DIODE D888 EU02
DIODE D891 ERC0510V1
DIODE D953 R2KNLFA1
DIODE D961 MA152KTX
L.E.D. D1011 LNH201RFCC4
DIODE D1152 MA152KTX
DIODE D1153 MA152KTX
DIODE D1302 MA152KTX
DIODE D1305 MA704ATX
DIODE D1306 MA3062MTX
DIODE D1307 MA3091MTX

14

TRANSISTORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

DIODE D1308 MA152KTX
DIODE D1309 MA152KTX
DIODE D1310 MA3062MTX
DIODE D1311 MA3062MTX
DIODE D1312 MA3062MTX
DIODE D1313 MA3043MTX
DIODE D1315 MA3043MTX
DIODE D2040 MA152KTX
DIODE D2041 MA152KTX
DIODE D2048 MA152KTX
DIODE D2301 TVSRM26V1
DIODE D2302 MTZJT-775.6B
DIODE D2305 MA3047MTX
DIODE D2306 MA29TA5
DIODE D2311 MA1180HTA
DIODE D2312 MA3130MTX
DIODE D2313 MA152KTX
DIODE D2314 MA152KTX
DIODE D2316 MA152KTX
DIODE D2401 MA4200MTA
DIODE D2402 D5L60F4015
DIODE D2403 TVSEH1LF-F7
DIODE D2404 MTZJT-778.2A
DIODE D2405 EU02
DIODE D2406 EU02
DIODE D2407 EG01CV0
DIODE D2410 EU02
DIODE D2411 FMGG26S
DIODE D2432 MA167TA5
DIODE D2433 MA167TA5
DIODE D2434 MA167TA5
DIODE D2436 MA167TA5
DIODE D2437 MA167TA5
DIODE D2438 MA167TA5
DIODE D2501 MA152KTX
DIODE D2509 MA152KTX
DIODE D2510 MA152KTX
DIODE D2520 MA152KTX
DIODE D2521 MA152KTX
DIODE D2711 RK34LFC4
DIODE D2712 AK04V0
DIODE D2713 RK34LFC4
DIODE D2714 RK34LFC4
DIODE D2715 MA29TA5
DIODE D3003 MA3091LTX
DIODE D3004 MA3091LTX
DIODE D3103 MA165TA5
DIODE D3104 MA165TA5
DIODE D3401 MA165TA5
DIODE D3402 MA165TA5

TRANSISTOR IC2514 TC7WH157FUEL
TRANSISTOR Q002 BC857B
TRANSISTOR Q052 BC857B
TRANSISTOR Q369 BC857B
TRANSISTOR Q451 BC847B
TRANSISTOR Q460 BC847B
TRANSISTOR Q461 BC847B
TRANSISTOR Q462 BC847B
TRANSISTOR Q501 2SK2962TPE6
TRANSISTOR Q551 2SC5591000RK
TRANSISTOR Q552 2SC1473ATA
TRANSISTOR Q703 2SK2538000LB
TRANSISTOR Q805 2SK2123000LB
TRANSISTOR Q851 2SA1018QTA
TRANSISTOR Q854 2SC3311ATA

TRANSISTOR Q874 2SA684R
TRANSISTOR Q875 2SA720-RS
TRANSISTOR Q881 2SC3311ATA
TRANSISTOR Q882 2SC3311ATA
TRANSISTOR Q883 2SC1317-TA
TRANSISTOR Q902 BC847B
TRANSISTOR Q903 BC847B
TRANSISTOR Q908 BC847B
TRANSISTOR Q951 BC857B
TRANSISTOR Q952 BC847B
TRANSISTOR Q953 BC847B
TRANSISTOR Q954 BC857B
TRANSISTOR Q955 2SA1535ARLB
TRANSISTOR Q956 2SC3944ARLB
TRANSISTOR Q1003 2SC3311ATA
TRANSISTOR Q1107 BC847B
TRANSISTOR Q1108 BC847B
TRANSISTOR Q1109 BC847B
TRANSISTOR Q1110 BC847B
TRANSISTOR Q1111 BC847B
TRANSISTOR Q1112 BC847B
TRANSISTOR Q1113 BC847B
TRANSISTOR Q1114 BC847B
TRANSISTOR Q1115 BC847B
TRANSISTOR Q1121 BC847B
TRANSISTOR Q1122 BC847B
TRANSISTOR Q1125 BC847B
TRANSISTOR Q1301 BC847B
TRANSISTOR Q1302 BC847B
TRANSISTOR Q1303 BC847B
TRANSISTOR Q1305 BC847B
TRANSISTOR Q1306 BC857B
TRANSISTOR Q1307 XN5601TX
TRANSISTOR Q1308 BC857B
TRANSISTOR Q1309 BC857B
TRANSISTOR Q1311 BC857B
TRANSISTOR Q1312 BC857B
TRANSISTOR Q1313 BC857B
TRANSISTOR Q1314 BC857B
TRANSISTOR Q1315 BC857B
TRANSISTOR Q1316 BC857B
TRANSISTOR Q1318 BC857B
TRANSISTOR Q1320 BC857B
TRANSISTOR Q1323 BC857B
TRANSISTOR Q1324 BC857B
TRANSISTOR Q1327 2SK198RTX
TRANSISTOR Q1328 BC847B
TRANSISTOR Q1331 2SK198RTX
TRANSISTOR Q1336 BC857B
TRANSISTOR Q1340 BC847B
TRANSISTOR Q2002 BC857B
TRANSISTOR Q2003 BC857B
TRANSISTOR Q2004 BC857B
TRANSISTOR Q2005 BC857B
TRANSISTOR Q2040 BC847B
TRANSISTOR Q2041 BC847B
TRANSISTOR Q2042 BC847B
TRANSISTOR Q2043 BC847B
TRANSISTOR Q2213 BC847B
TRANSISTOR Q2214 BC847B
TRANSISTOR Q2215 BC847B
TRANSISTOR Q2216 BC847B
TRANSISTOR Q2301 BC847B
TRANSISTOR Q2302 BC847B
TRANSISTOR Q2303 BC847B
TRANSISTOR Q2307 BC847B

15

TRANSFORMERS

COILS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

TRANSISTOR Q2308 BC857B
TRANSISTOR Q2309 BC847B
TRANSISTOR Q2310 BC847B
TRANSISTOR Q2311 BC847B
TRANSISTOR Q2402 2SA684R
TRANSISTOR Q2403 2SA720-RS
TRANSISTOR Q2432 BC847B
TRANSISTOR Q2433 BC847B
TRANSISTOR Q2434 BC847B
TRANSISTOR Q2435 BC847B
TRANSISTOR Q2438 2SK198RTX
TRANSISTOR Q2439 2SK198RTX
TRANSISTOR Q2440 2SK198RTX
TRANSISTOR Q2441 BC857B
TRANSISTOR Q2503 BC847B
TRANSISTOR Q2506 BC847B
TRANSISTOR Q2507 BC847B
TRANSISTOR Q2508 BC847B
TRANSISTOR Q2509 BC847B
TRANSISTOR Q2510 BC857B
TRANSISTOR Q2511 BC847B
TRANSISTOR Q2512 BC847B
TRANSISTOR Q2513 BC847B
TRANSISTOR Q3001 BC847B
TRANSISTOR Q3002 BC847B
TRANSISTOR Q3006 BC857B
TRANSISTOR Q3007 BC847B
TRANSISTOR Q3011 BC847B
TRANSISTOR Q3071 BC847B
TRANSISTOR Q3072 BC847B
TRANSISTOR Q3130 BC847B
TRANSISTOR Q3131 BC857B
TRANSISTOR Q3132 BC847B
TRANSISTOR Q3401 BC857B
TRANSISTOR Q3807 BC847B
TRANSISTOR Q3808 BC847B

TRANSFORMER L810 ETQR45T001A
TRANSFORMER T501 ETH19Y187AY
TRANSFORMER T801 ETS39AG296AC
TRANSFORMER T841 ETS19AB1G6AG
TRANSFORMER T2401 ETS35AA457AD

COIL L002 ELESN2R2KA
COIL L003 ELESN2R2KA
COIL L008 EXCELDR35V
COIL L009 ELESN101KA
COIL L351 EXCELSA24T
COIL L381 ELESN6R8JA
COIL L382 ELESN4R7KA
COIL L383 ELESN4R7KA
COIL L387 EXCELDR35V
COIL L558 EXCELDR35C
COIL L559 EXCELDR35C
COIL L560 EXCELDR35V
COIL L561 EXCELDR35C
COIL L563 EXCELSA39V
COIL L568 EXCELDR35C
COIL L571 EXCELDR35C
COIL L574 ELHKLB070B
COIL L576 ELC18B221F
COIL L579 ELHKLB061B
COIL L701 TALFP15B152K
CHOKE COIL L702 ELC18B121G
COIL L703 EXCELSA35T
COIL L704 EXCELDR35V

COIL L812 EXCELSA39V
COIL L815 EXCELSA39V
COIL L818 EXCELSA39V
COIL L860 TALL08T100KA
COIL L862 TALL08T680KA
COIL L874 EXCELSA35T
COIL L877 EXCELSA35T
COIL L883 TALL08T181KA
COIL L891 ELF18D486D
COIL L895 EXCELSA35T
COIL L904 TLT560K991R
COIL L953 EXCELSA35T
COIL L954 EXCELSA35T
COIL L956 EXCELSA35T
COIL L1103 TALC325T4R7M
COIL L1104 TALC325T4R7M
COIL L1106 ELESN4R7KA
COIL L1107 TALC325T4R7M
COIL L1108 TALC325T4R7M
COIL L1109 TALC325T4R7M
COIL L1110 TALC325T4R7M
COIL L1112 EXCELDR35V
COIL L1115 TALC325T3R3M
COIL L1116 TALC325T4R7M
COIL L1300 TALC325T4R7M
COIL L1303 TALC168T2R2K
COIL L1304 TALC325T4R7M
COIL L1305 TALC168T3R3K
COIL L1306 TALC325T4R7M
COIL L1308 TALC325T100K
COIL L1309 TALC325T4R7M
COIL L1310 TALC325T4R7M
COIL L1311 TALC325T4R7M
COIL L1312 EXCELDR35V
COIL L1313 TALC325T4R7M
COIL L1314 TALC325T4R7M
COIL L1316 TALC325T4R7M
COIL L1318 TALC325T4R7M
COIL L1320 TALC325T100K
COIL L1321 TALC325T4R7M
COIL L1322 EXCELDR35V
COIL L1330 TALC325T4R7M
COIL L2001 EXCELDR35V
COIL L2002 EXCELDR35V
COIL L2004 TLT068K991R
COIL L2005 EXCELDR35V
COIL L2007 EXCELDR35V
COIL L2008 EXCELDR35V
COIL L2009 TALC325T4R7M
COIL L2010 TALC325T4R7M
COIL L2278 EXCELSA35T
COIL L2301 TALL08T100KA
COIL L2302 TALL08T100KA
COIL L2303 TAL10RP390LB
COIL L2305 TAL10RP390LB
COIL L2308 TALL08T270KA
COIL L2309 TAL10RP390LB
COIL L2311 ELESN101KA
COIL L2312 TALL08T100KA
COIL L2313 TALL08T100KA
COIL L2314 EXCELDR35V
COIL L2316 EXCELDR35V
COIL L2321 EXCELDR35V
COIL L2322 EXCELDR35V
COIL L2323 EXCELDR35V
COIL L2324 EXCELDR35V

16
