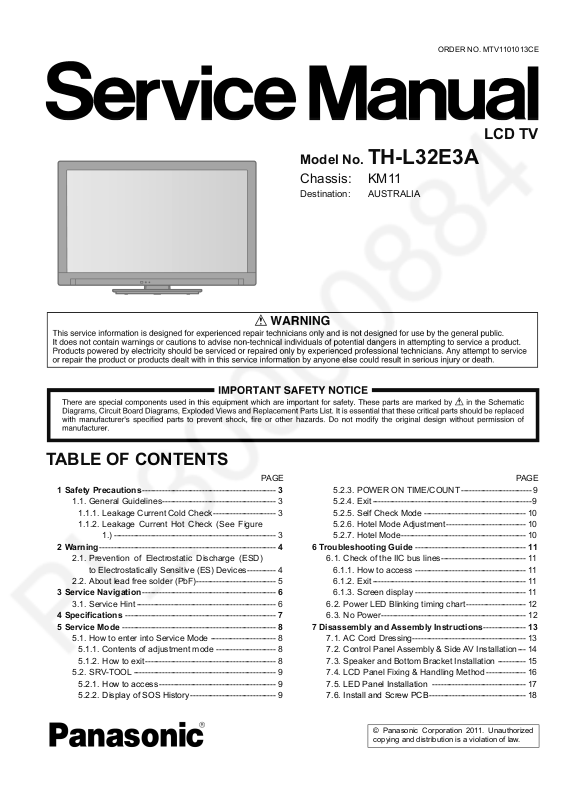

Panasonic TH-L32E3A Schematic

ORDER NO. MTV1101013CE

Model No. TH-L32E3A

Chassis: KM11

Destination: AUSTRALIA

LCD TV

TABLE OF CONTENTS

1 Safety Precautions ----------------------------------------------- 3

1.1. General Guidelines---------------------------------------- 3

1.1.1. Leakage Current Cold Check ---------------------- 3

1.1.2. Leakage Current Hot Check (See Figure

1.) --------------------------------------------------------- 3

2 Warning-------------------------------------------------------------- 4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices---------- 4

2.2. About lead free solder (PbF)---------------------------- 5

3 Service Navigation ----------------------------------------------- 6

3.1. Service Hint ------------------------------------------------- 6

4 Specifications ----------------------------------------------------- 7 5 Service Mode ------------------------------------------------------ 8

5.1. How to enter into Service Mode ----------------------- 8

5.1.1. Contents of adjustment mode --------------------- 8

5.1.2. How to exit---------------------------------------------- 8

5.2. SRV-TOOL -------------------------------------------------- 9

5.2.1. How to access ----------------------------------------- 9

5.2.2. Display of SOS History ------------------------------ 9

PAG E PAG E

5.2.3. POWER ON TIME/COUNT -------------------------9

5.2.4. Exit --------------------------------------------------------9

5.2.5. Self Check Mode ------------------------------------ 10

5.2.6. Hotel Mode Adjustment ---------------------------- 10

5.2.7. Hotel Mode-------------------------------------------- 10

6 Troubleshooting Guide --------------------------------------- 11

6.1. Check of the IIC bus lines------------------------------ 11

6.1.1. How to access --------------------------------------- 11

6.1.2. Exit ------------------------------------------------------ 11

6.1.3. Screen display --------------------------------------- 11

6.2. Power LED Blinking timing chart --------------------- 12

6.3. No Power--------------------------------------------------- 12

7 Disassembly and Assembly Instructions--------------- 13

7.1. AC Cord Dressing---------------------------------------- 13

7.2. Control Panel Assembly & Side AV Installation--- 14

7.3. Speaker and Bottom Bracket Installation ---------- 15

7.4. LCD Panel Fixing & Handling Method -------------- 16

7.5. LED Panel Installation --------------------------------- 17

7.6. Install and Screw PCB ---------------------------------- 18

TH-L32E3A

7.7. Small Part Install, Screw and Sponge Sticking ---19

7.8. Back Cover Installation ---------------------------------20

7.9. Stand MTG Assembly & Accessories Assembly ---------------------------------------------------21

8 Measurements and Adjustments -------------------------- 22

8.1. Voltage chart of A-board-------------------------------- 22

8.2. Voltage chart of P-board-------------------------------- 22

9 Block Diagram --------------------------------------------------- 23

9.1. Main Block Diagram ------------------------------------- 23

10 Wiring Connection Diagram --------------------------------- 24

10.1. Wire Dressing --------------------------------------------- 24

11 Schematic Diagram--------------------------------------------- 25

11.1. Schematic Diagram Notes ----------------------------- 25

11.2. A Board ----------------------------------------------------- 26

11.2.1. A Board - Sheet : 002 (1 / 2)---------------------- 26

11.2.2. A Board - Sheet : 002 (2 / 2)---------------------- 27

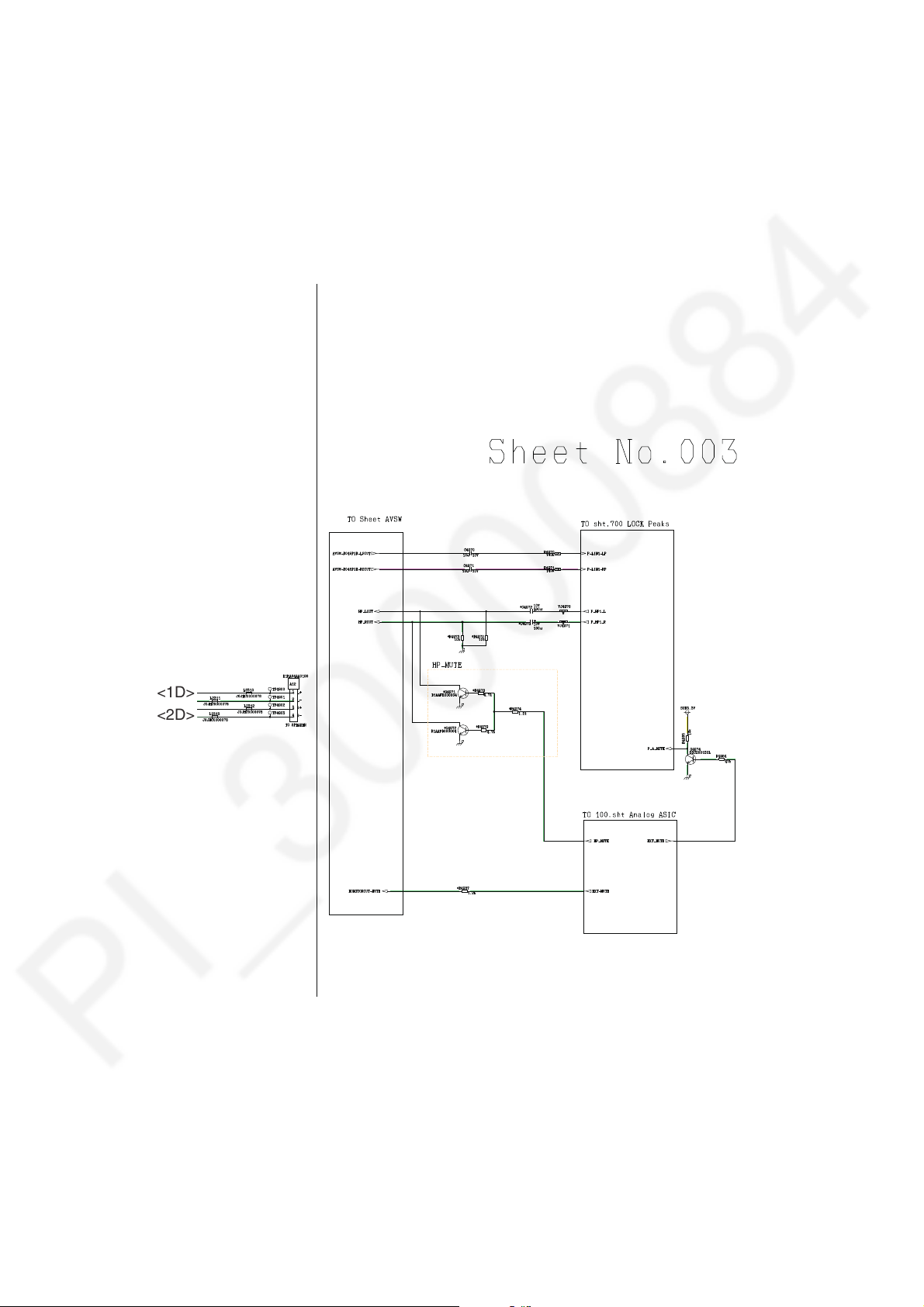

11.2.3. A Board - Sheet : 003 (1 / 5)---------------------- 28

11.2.4. A Board - Sheet : 003 (2 / 5)---------------------- 29

11.2.5. A Board - Sheet : 003 (3 / 5)---------------------- 30

11.2.6. A Board - Sheet : 003 (4 / 5)---------------------- 31

11.2.7. A Board - Sheet : 003 (5 / 5)---------------------- 32

11.2.8. A Board - Sheet : 004 (1 / 2)---------------------- 33

11.2.9. A Board - Sheet : 004 (2 / 2)---------------------- 34

11.2.10. A Board - Sheet : 005 (1 / 2)---------------------- 35

11.2.11. A Board - Sheet : 005 (2 / 2)---------------------- 36

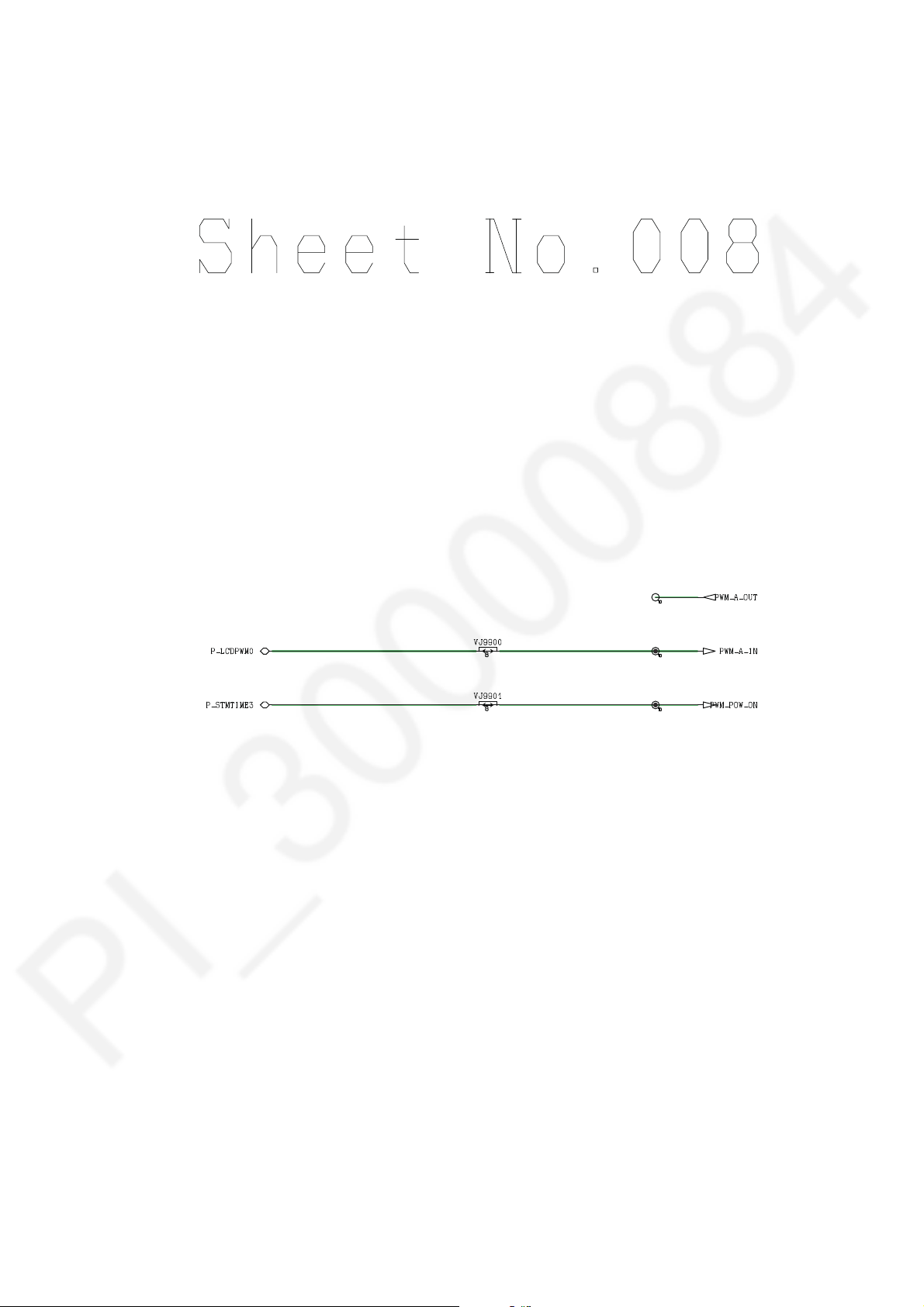

11.2.12. A Board - Sheet : 008 (1 / 1)---------------------- 37

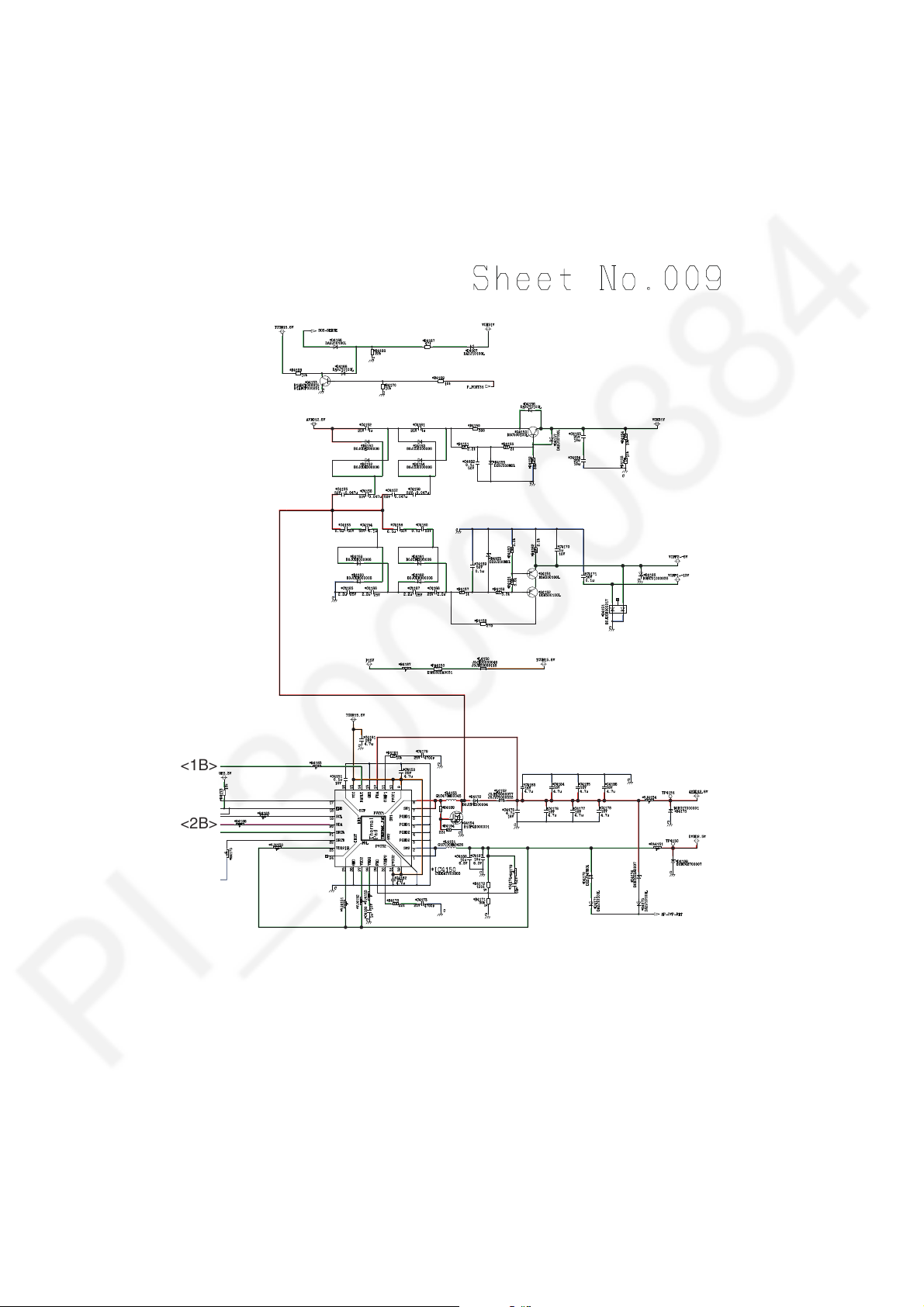

11.2.13. A Board - Sheet : 009 (1 / 3)---------------------- 38

11.2.14. A Board - Sheet : 009 (2 / 3)---------------------- 39

11.2.15. A Board - Sheet : 009 (3 / 3)---------------------- 40

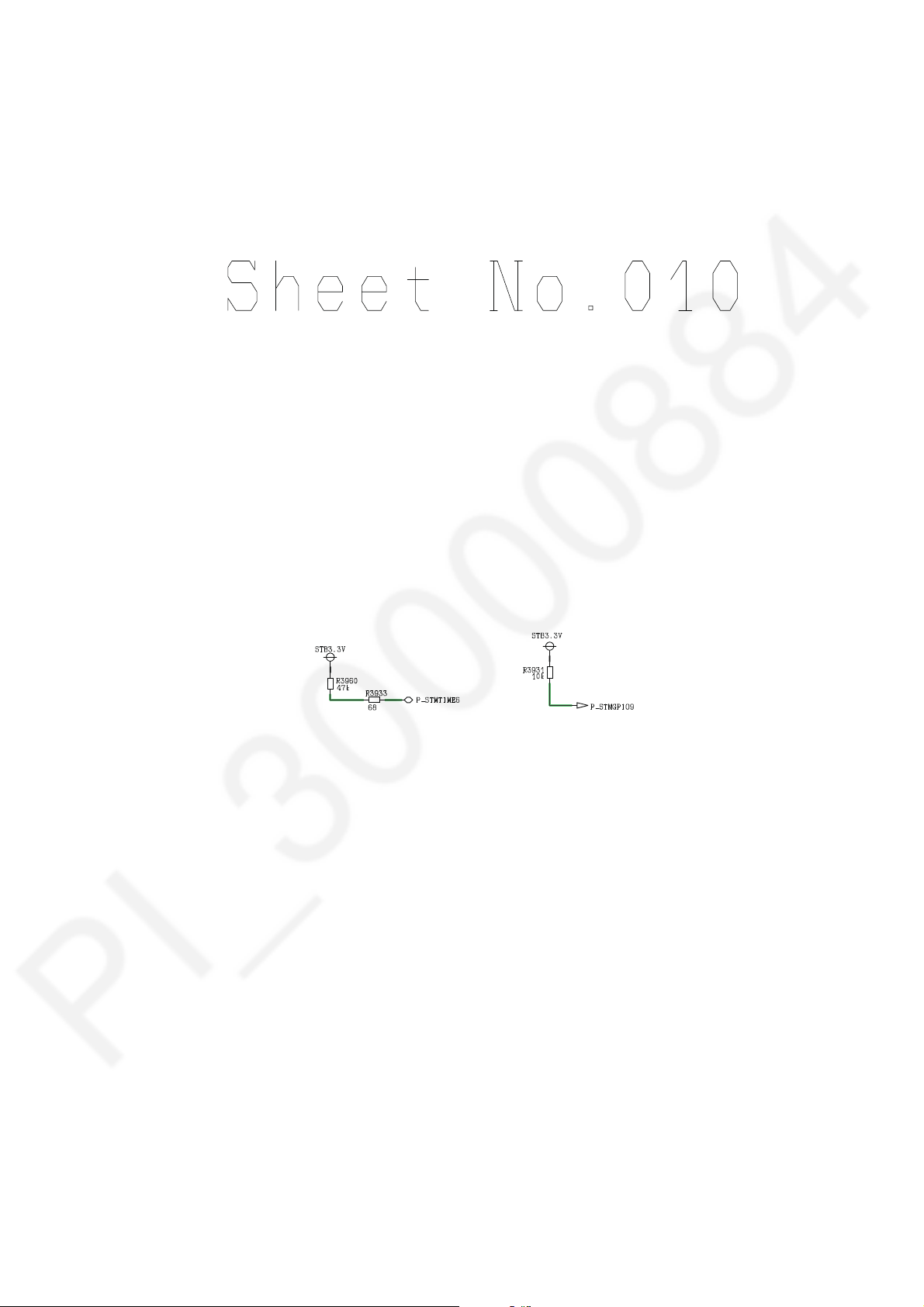

11.2.16. A Board - Sheet : 010 (1 / 1)---------------------- 41

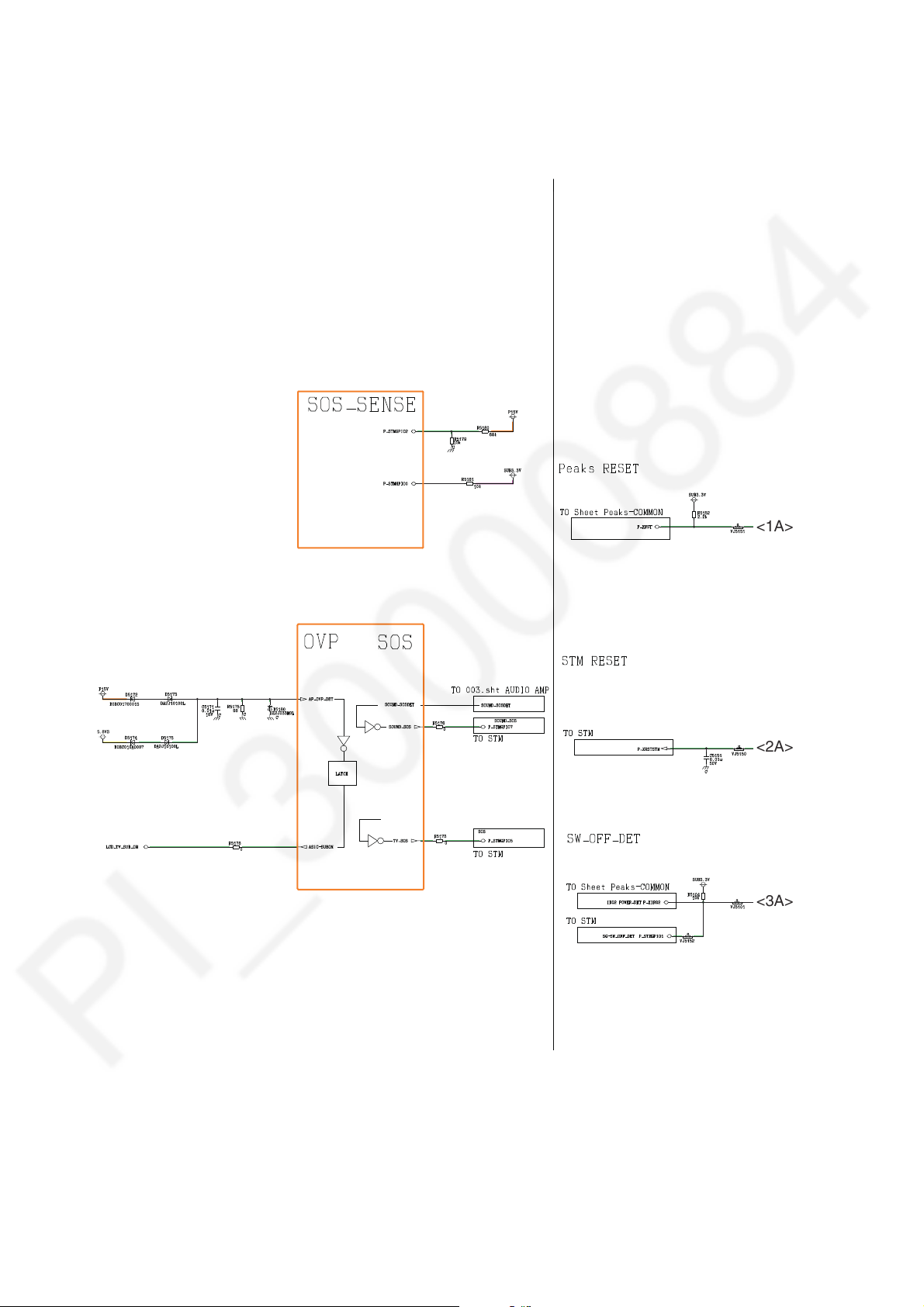

11.2.17. A Board - Sheet : 100 (1 / 2)---------------------- 42

11.2.18. A Board - Sheet : 100 (2 / 2)---------------------- 43

11.2.19. A Board - Sheet : 101 (1 / 3)---------------------- 44

11.2.20. A Board - Sheet : 101 (2 / 3)---------------------- 45

11.2.21. A Board - Sheet : 101 (3 / 3)---------------------- 46

11.2.22. A Board - Sheet : 300 (1 / 1)---------------------- 47

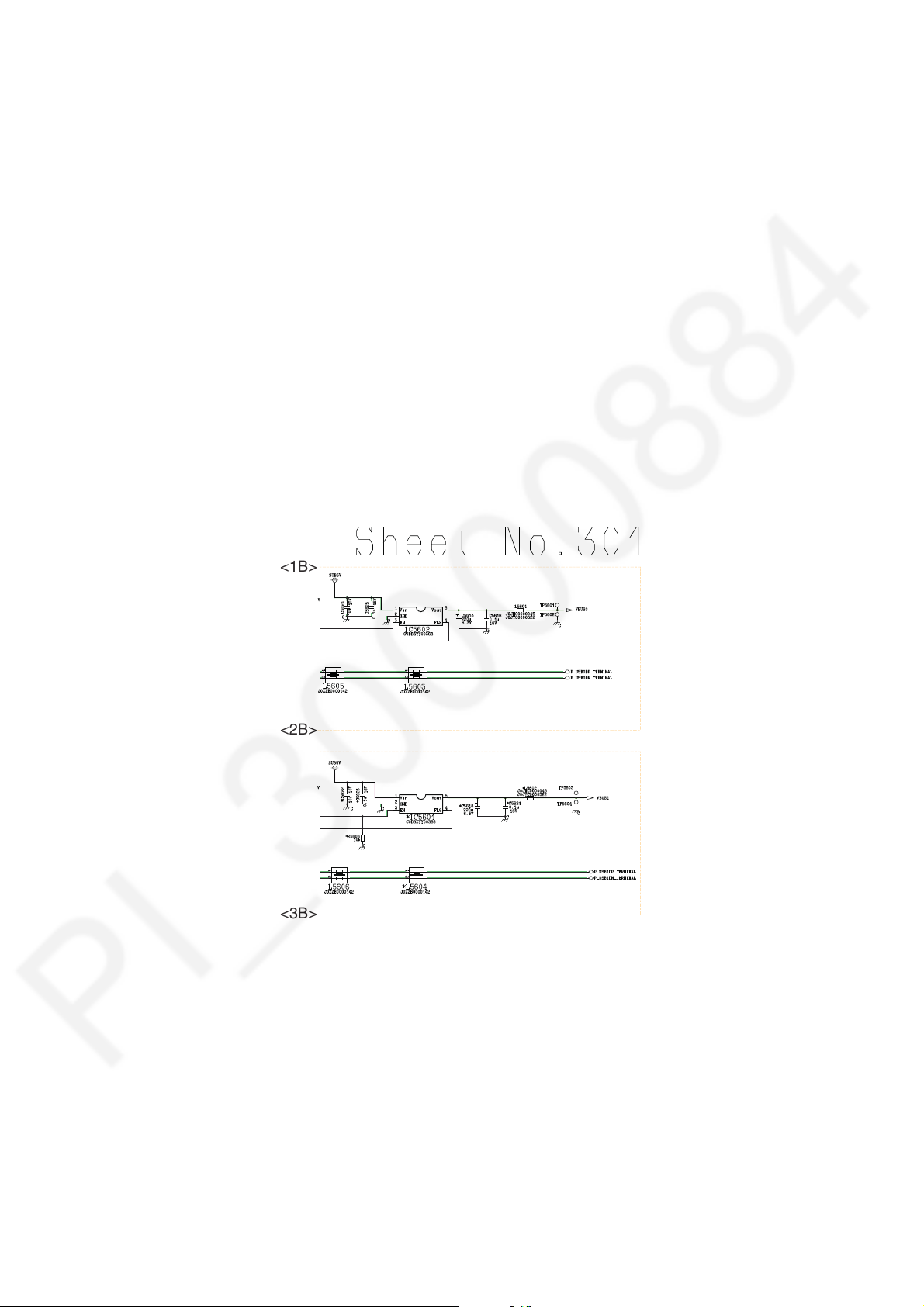

11.2.23. A Board - Sheet : 301 (1 / 3)---------------------- 48

11.2.24. A Board - Sheet : 301 (2 / 3)---------------------- 49

11.2.25. A Board - Sheet : 301 (3 / 3)---------------------- 50

11.2.26. A Board - Sheet : 302 (1 / 2)---------------------- 51

11.2.27. A Board - Sheet : 302 (2 / 2)---------------------- 52

11.2.28. A Board - Sheet : 700 (1 / 2)---------------------- 53

11.2.29. A Board - Sheet : 700 (2 / 2)---------------------- 54

11.2.30. A Board - Sheet : 701 (1 / 2)---------------------- 55

11.2.31. A Board - Sheet : 701 (2 / 2)---------------------- 56

11.2.32. A Board - Sheet : 702 (1 / 2)---------------------- 57

11.2.33. A Board - Sheet : 702 (2 / 2)---------------------- 58

11.2.34. A Board - Sheet : 703 (1 / 1)---------------------- 59

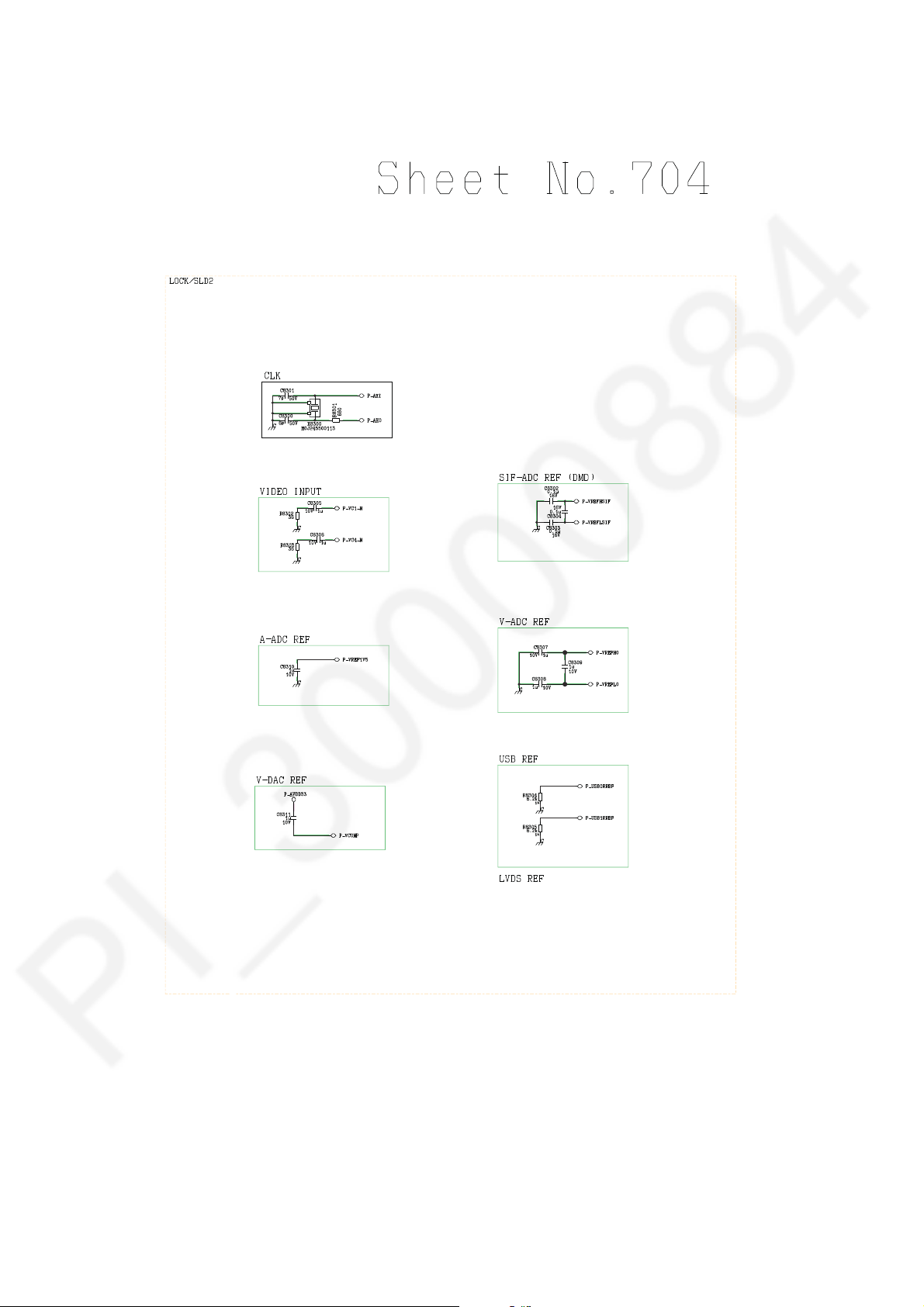

11.2.35. A Board - Sheet : 704 (1 / 1)---------------------- 60

11.2.36. A Board - Sheet : 708 (1 / 1)---------------------- 61

11.3. KA Board --------------------------------------------------- 62

11.4. LD Board -------------------------------------------------- 63

11.4.1. LD Board (1 / 2) -------------------------------------- 63

11.4.2. LD Board (2 / 2) -------------------------------------- 64

11.5. P Board ----------------------------------------------------65

11.5.1. P Board (1 / 3)---------------------------------------- 65

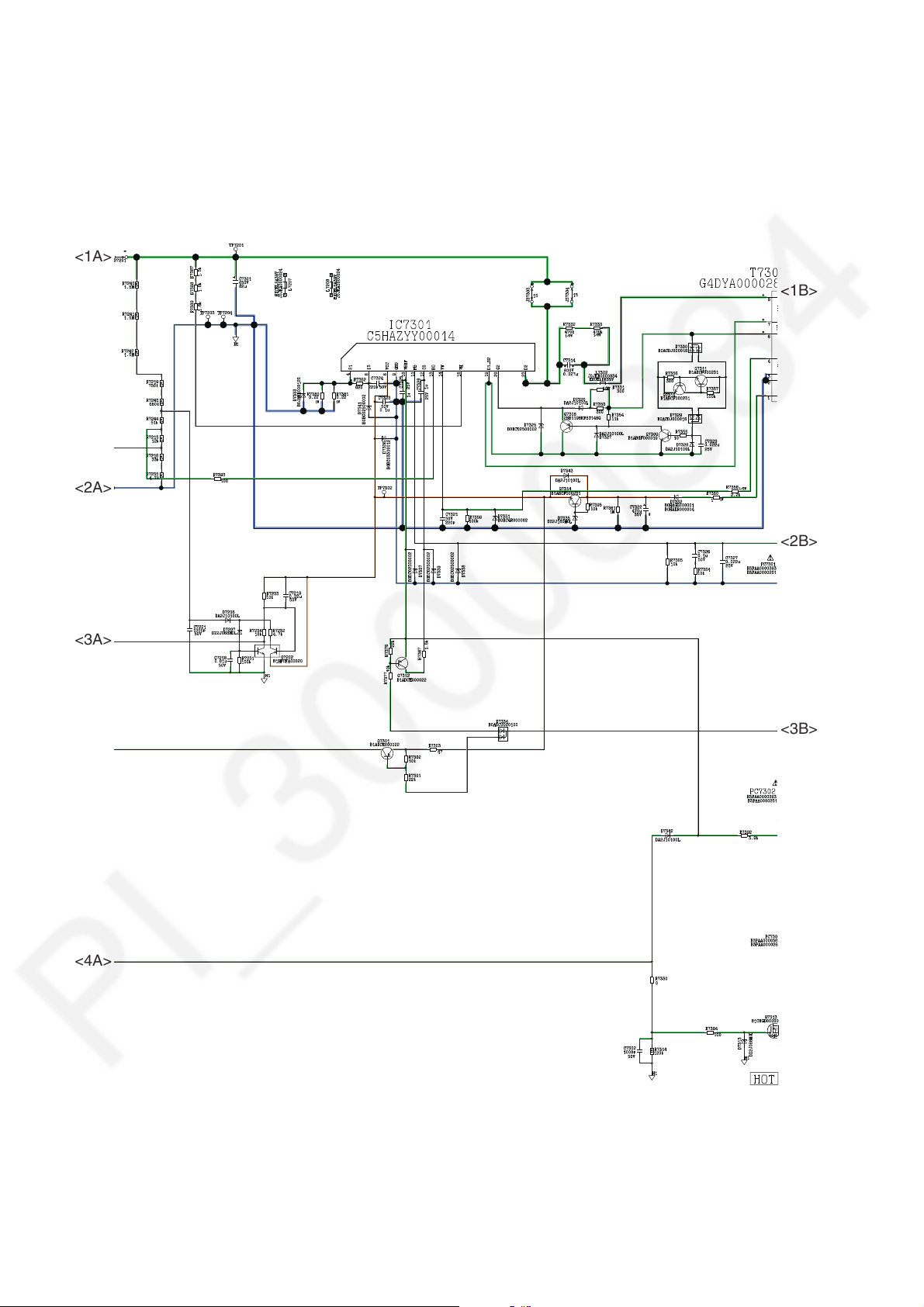

11.5.2. P Board (2 / 3)---------------------------------------- 66

11.5.3. P Board (3 / 3)---------------------------------------- 67

11.6. TC Board -------------------------------------------------- 68

11.6.1. TC Board (1 / 2)-------------------------------------- 68

11.6.2. TC Board (2 / 2)-------------------------------------- 69

12 Printed Circuit Board------------------------------------------ 70

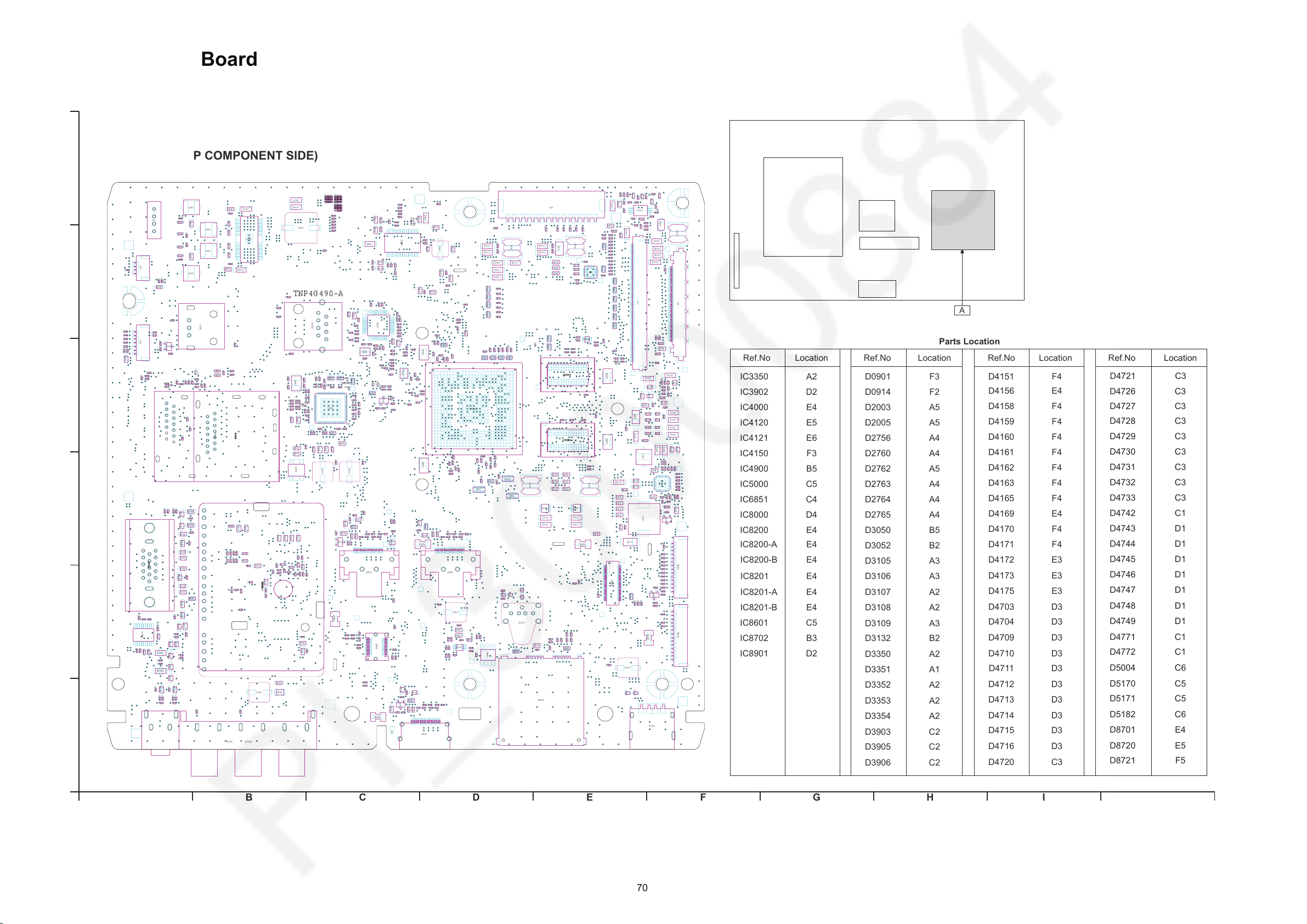

12.1. A-BOARD-------------------------------------------------- 70

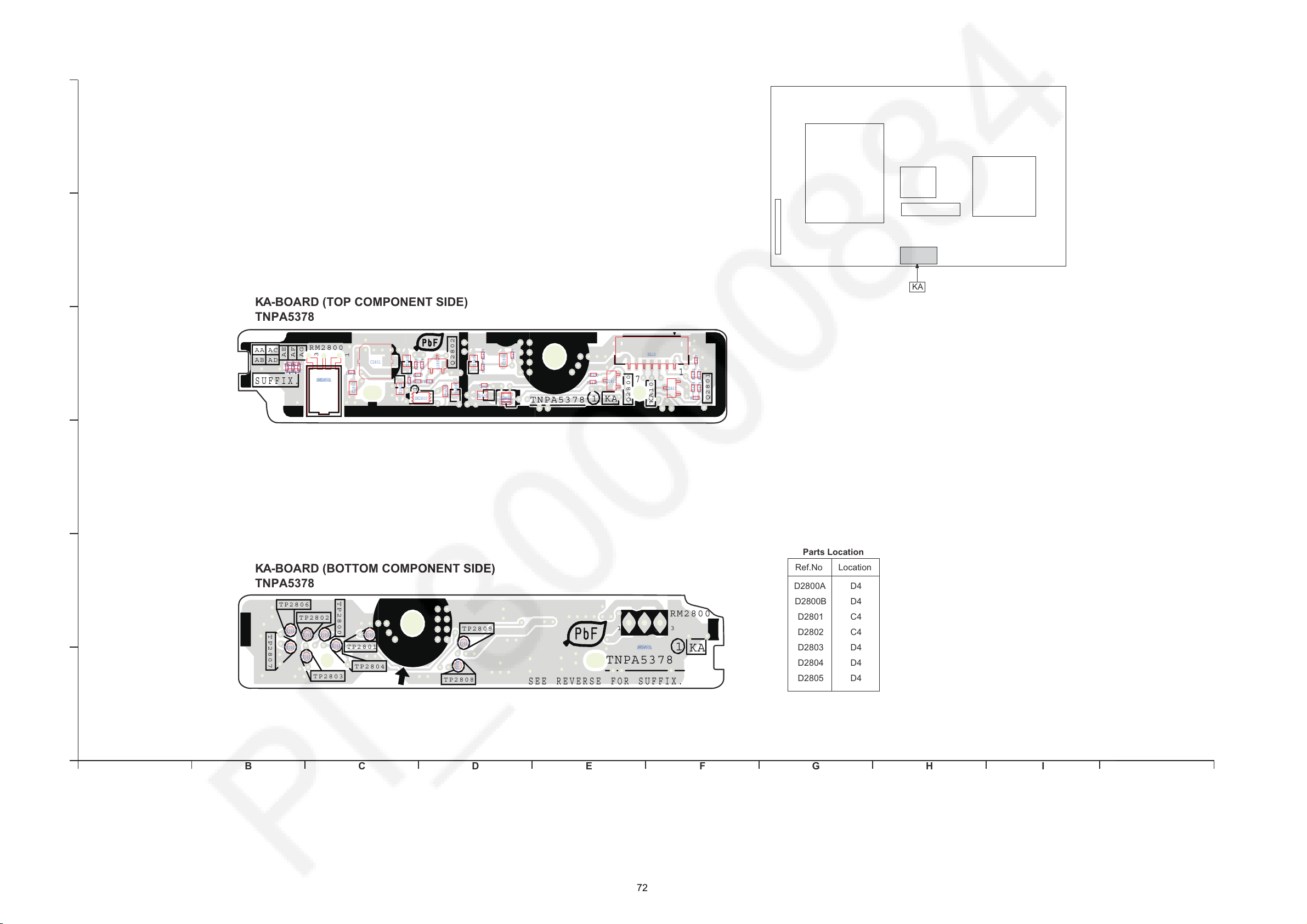

12.2. KA-BOARD------------------------------------------------ 72

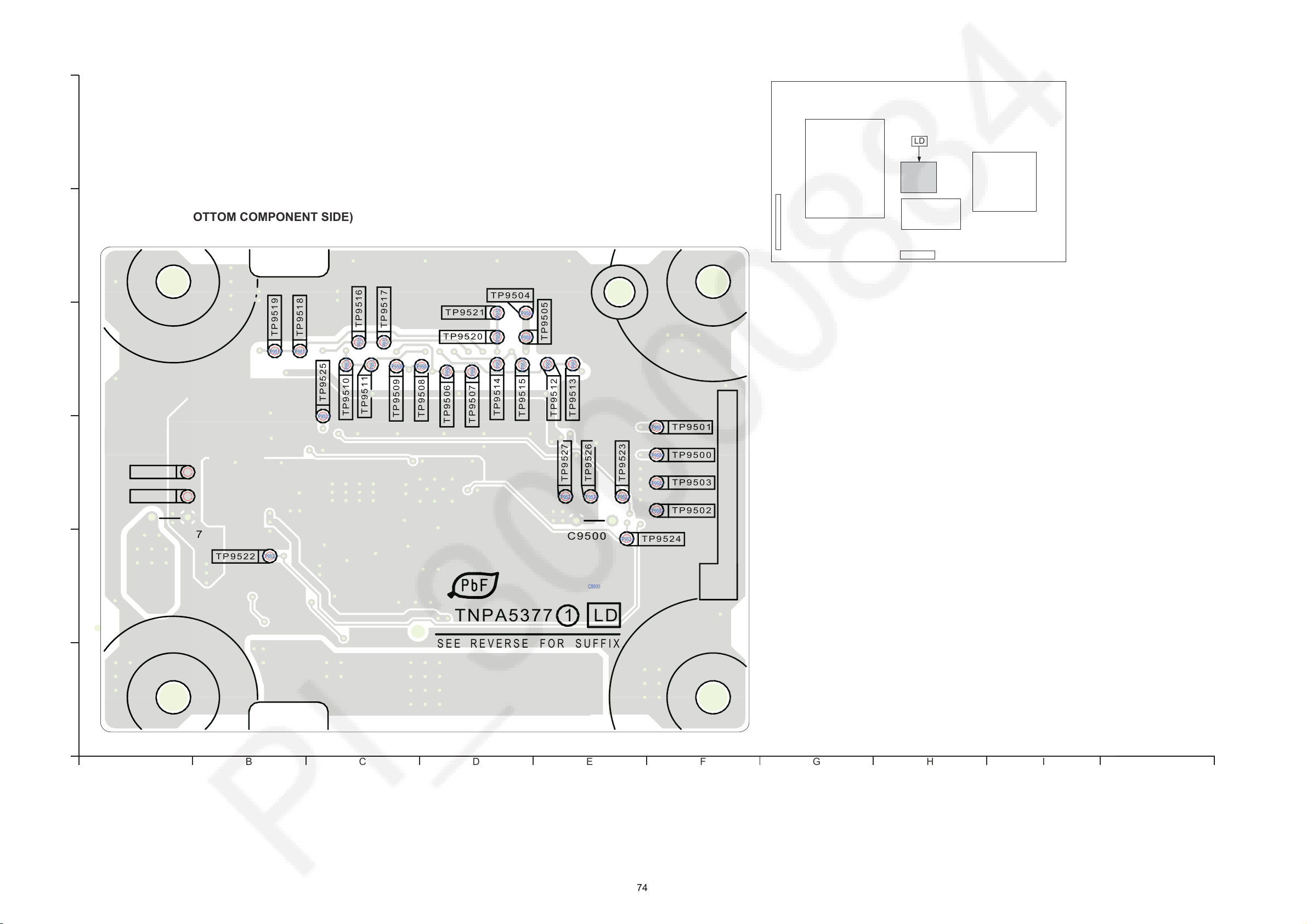

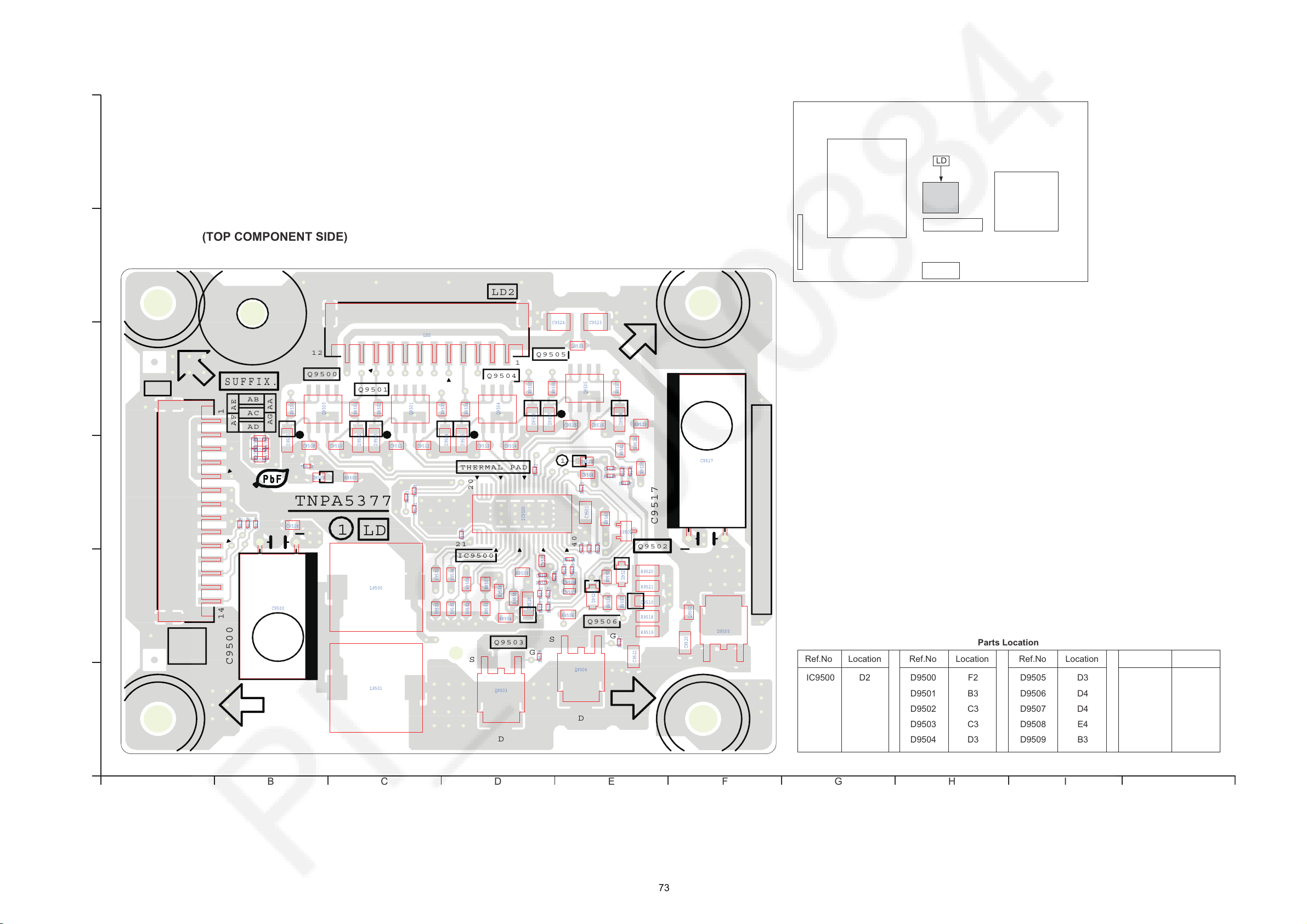

12.3. LD-BOARD ------------------------------------------------ 73

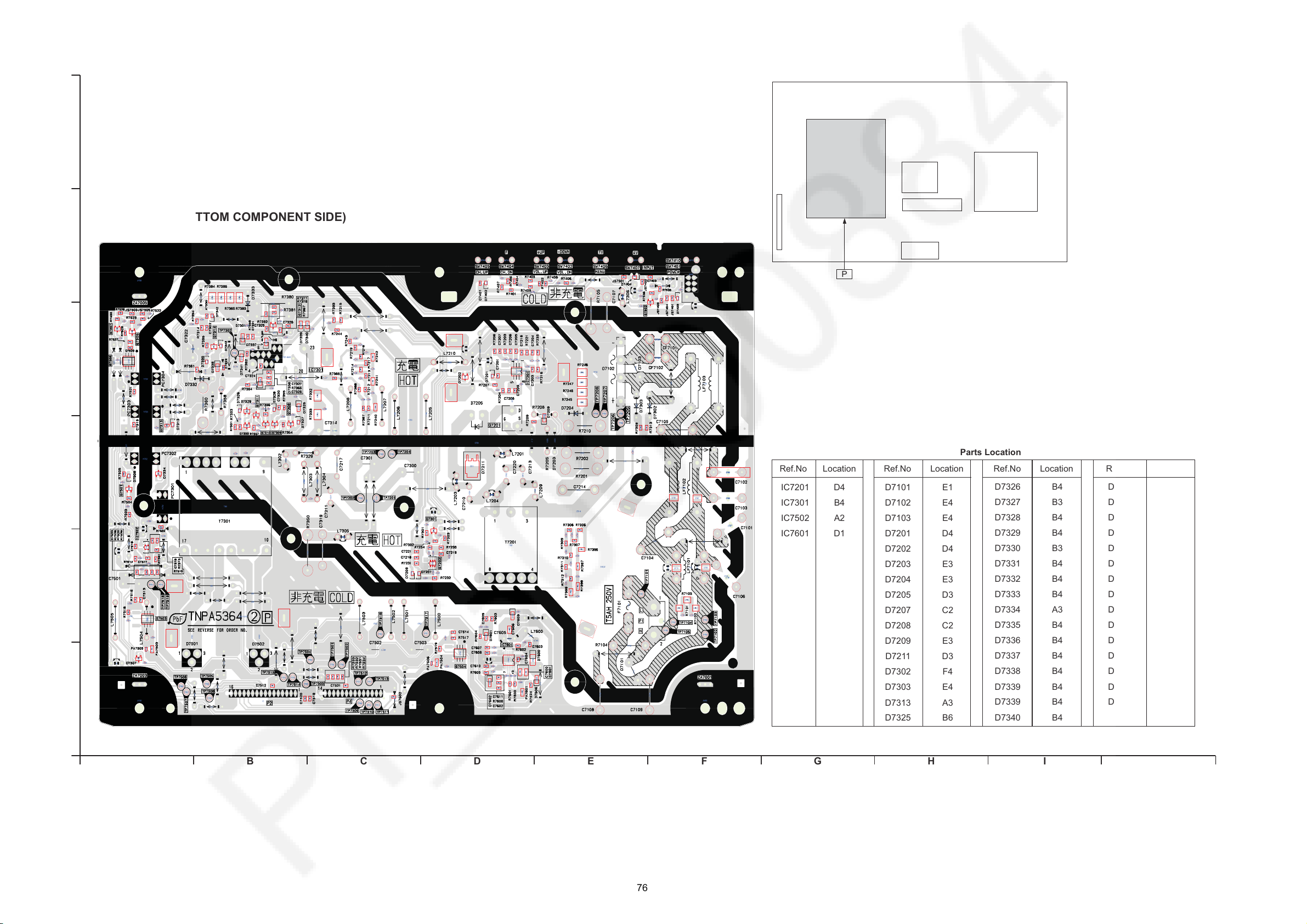

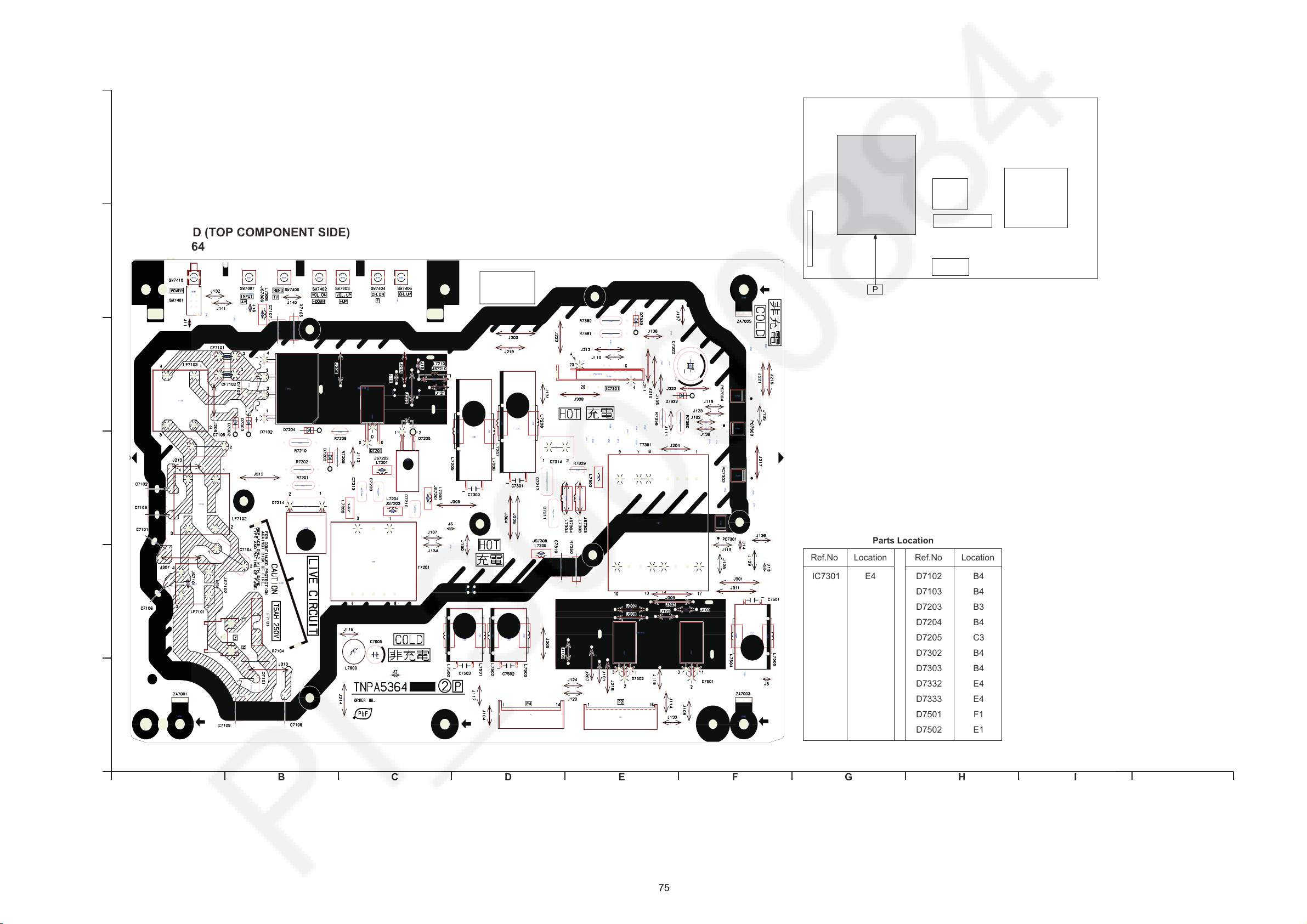

12.4. P-BOARD-------------------------------------------------- 75

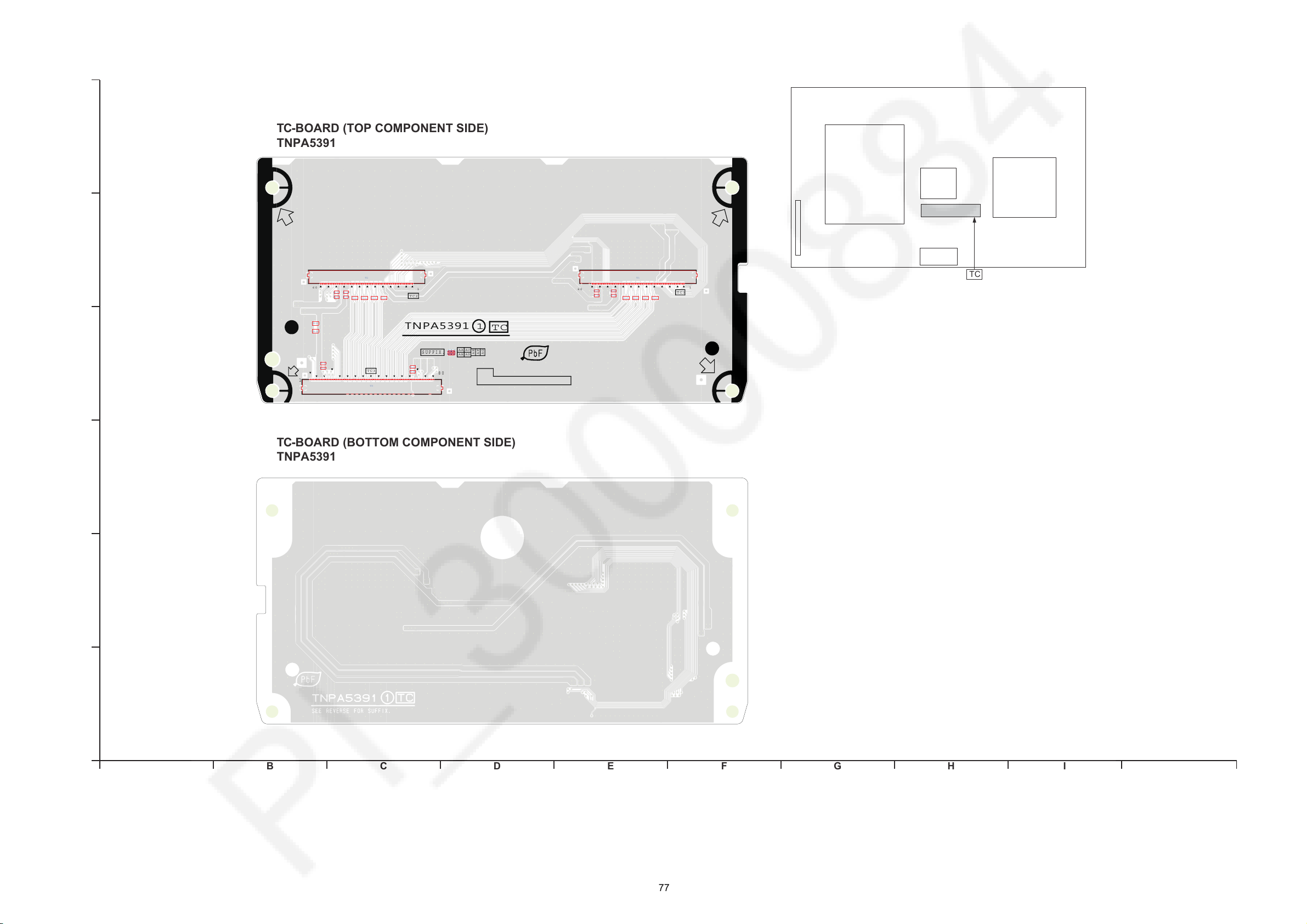

12.5. TC-BOARD------------------------------------------------ 77

13 Exploded View and Replacement Parts List----------- 78

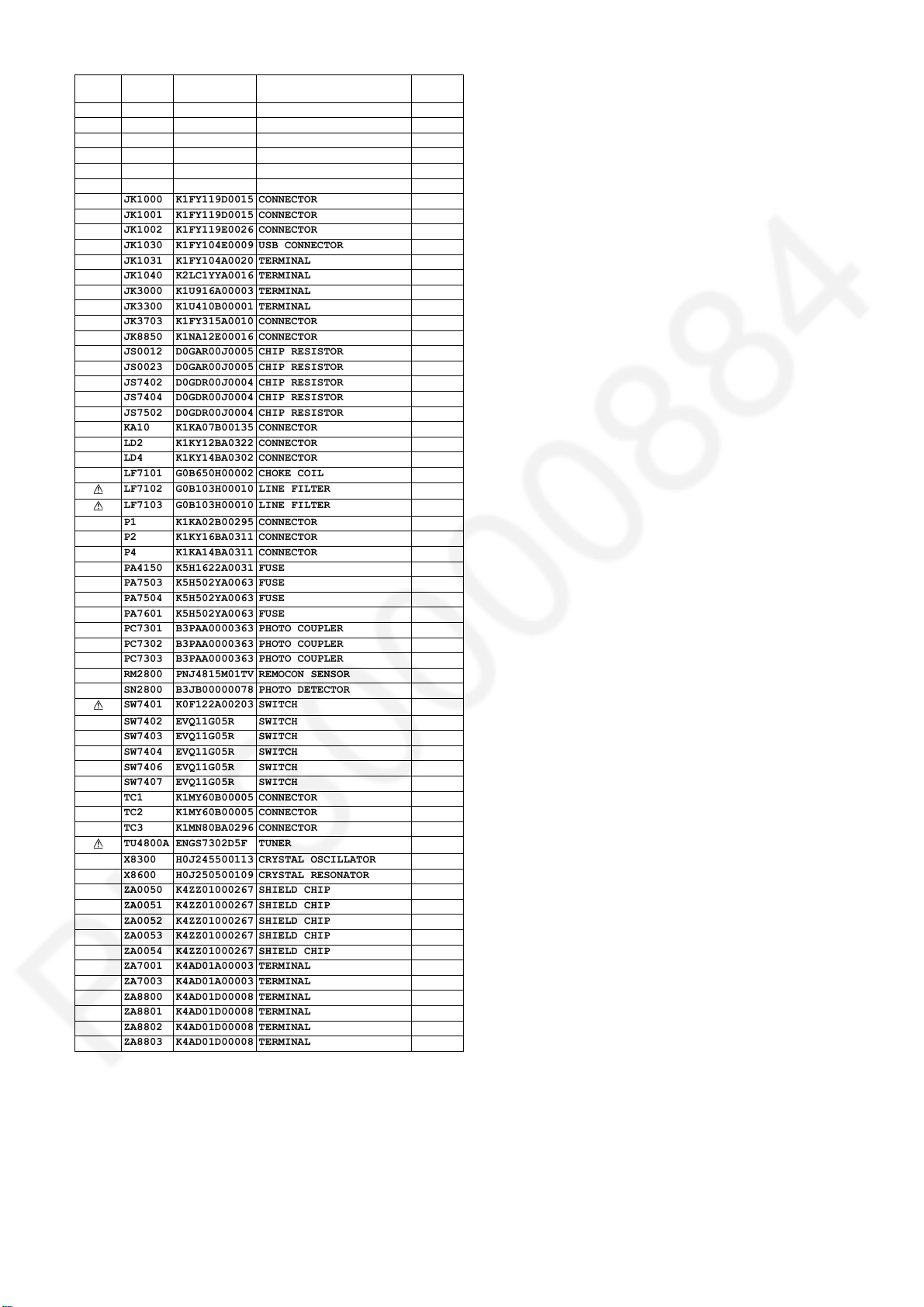

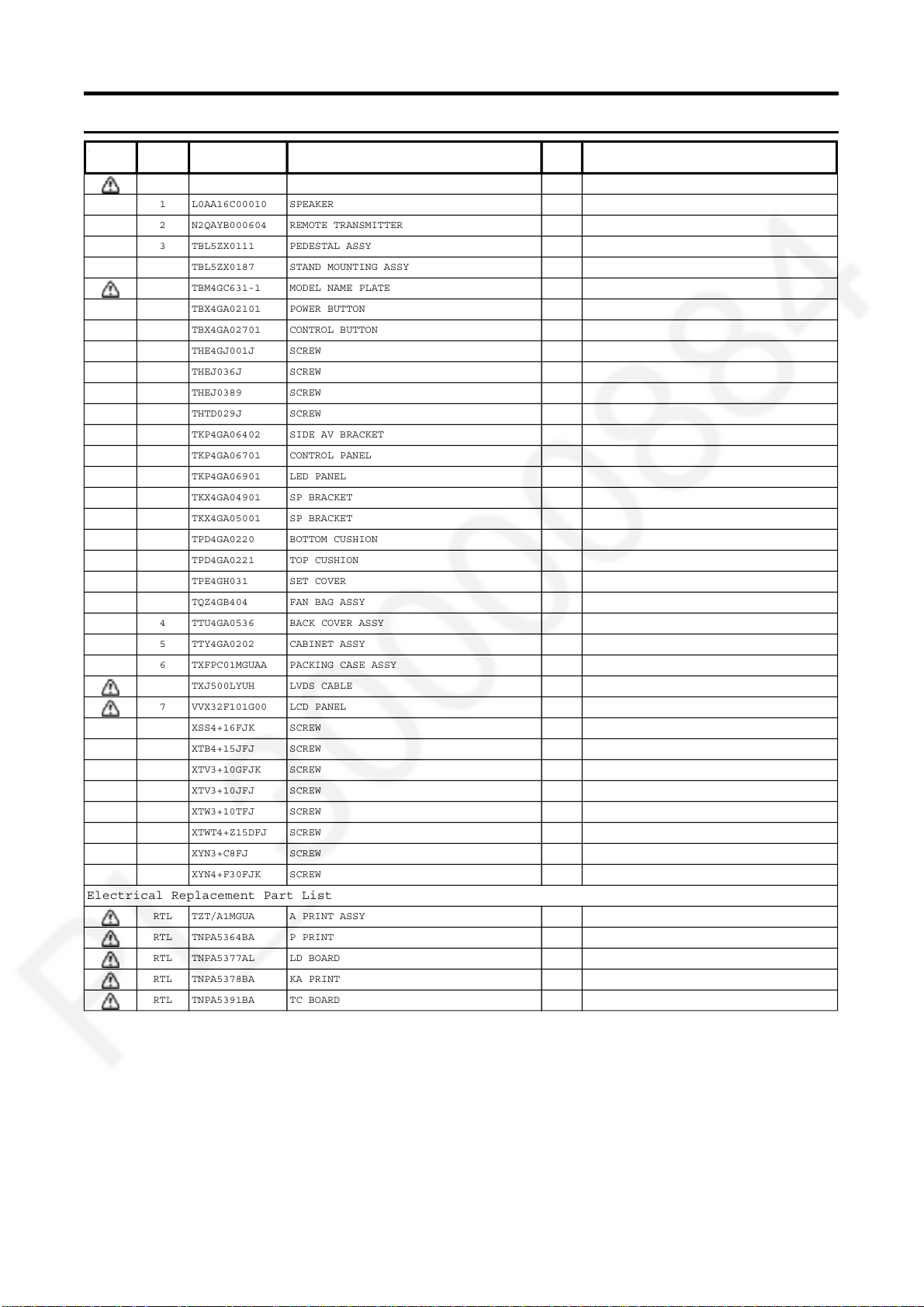

13.1. Exploded View and Mechanical Replacement Parts List--------------------------------------------------- 78

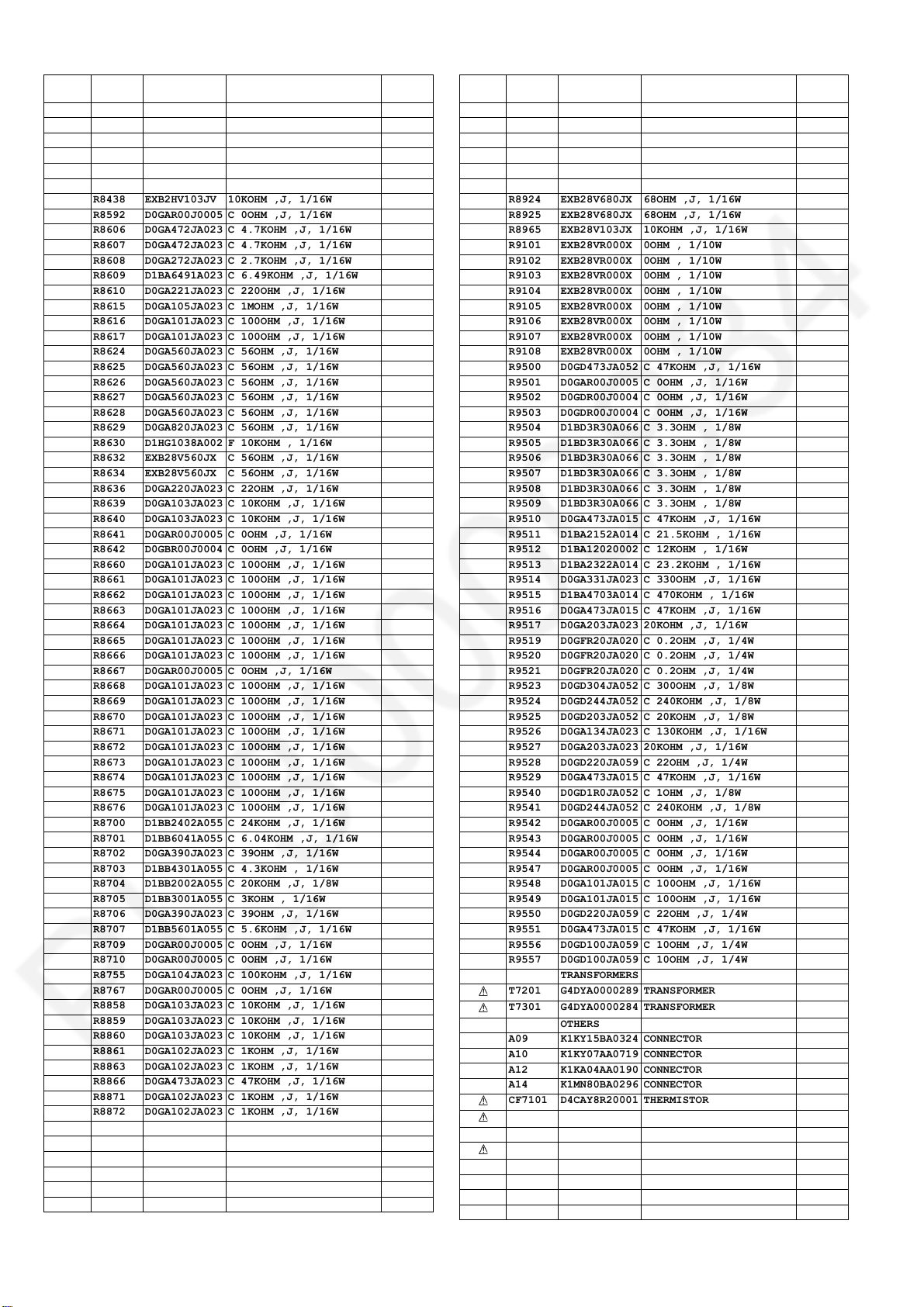

13.2. Electrical Replacement Parts List ------------------- 78

13.2.1. Replacement Parts List Notes ------------------- 78

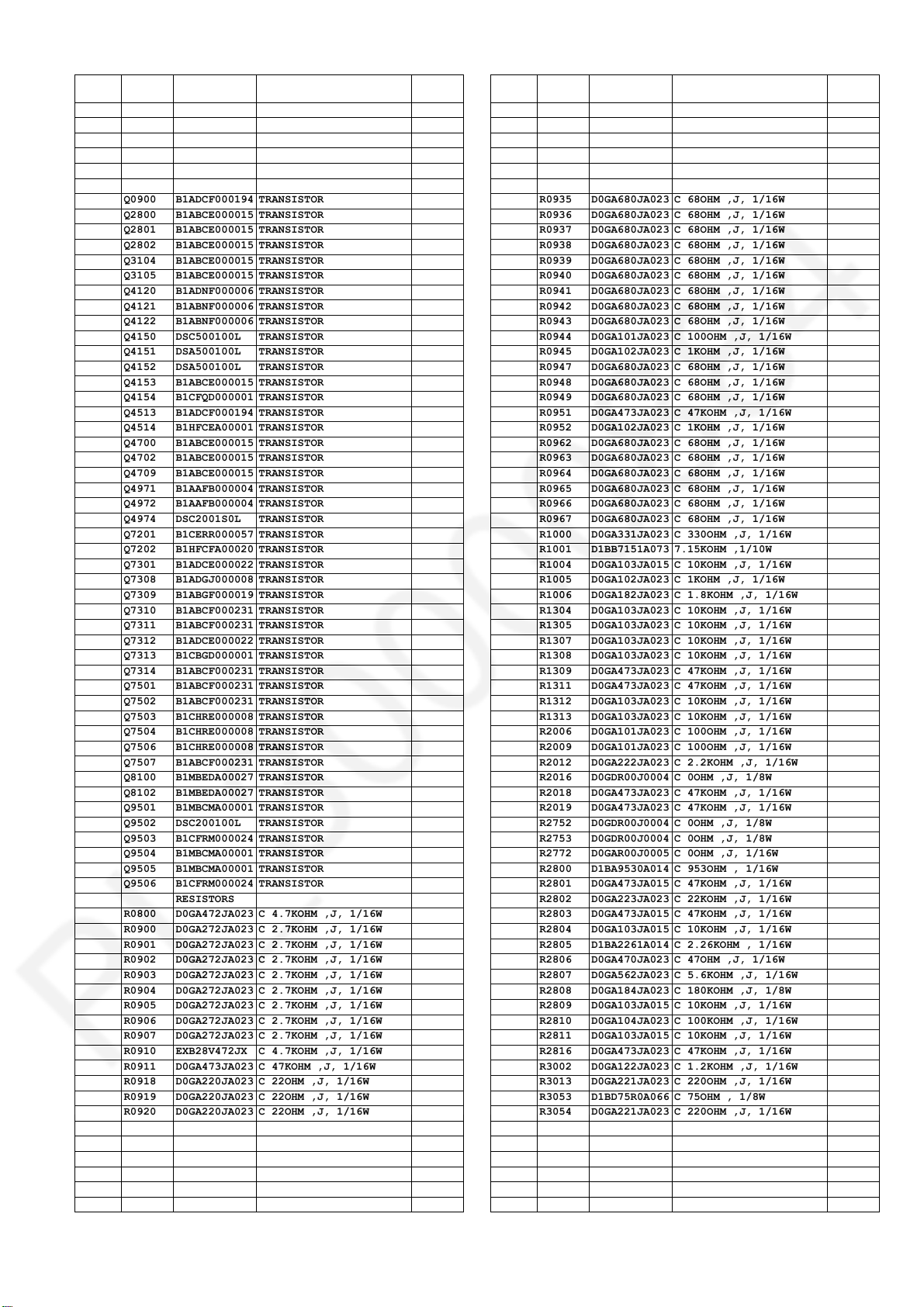

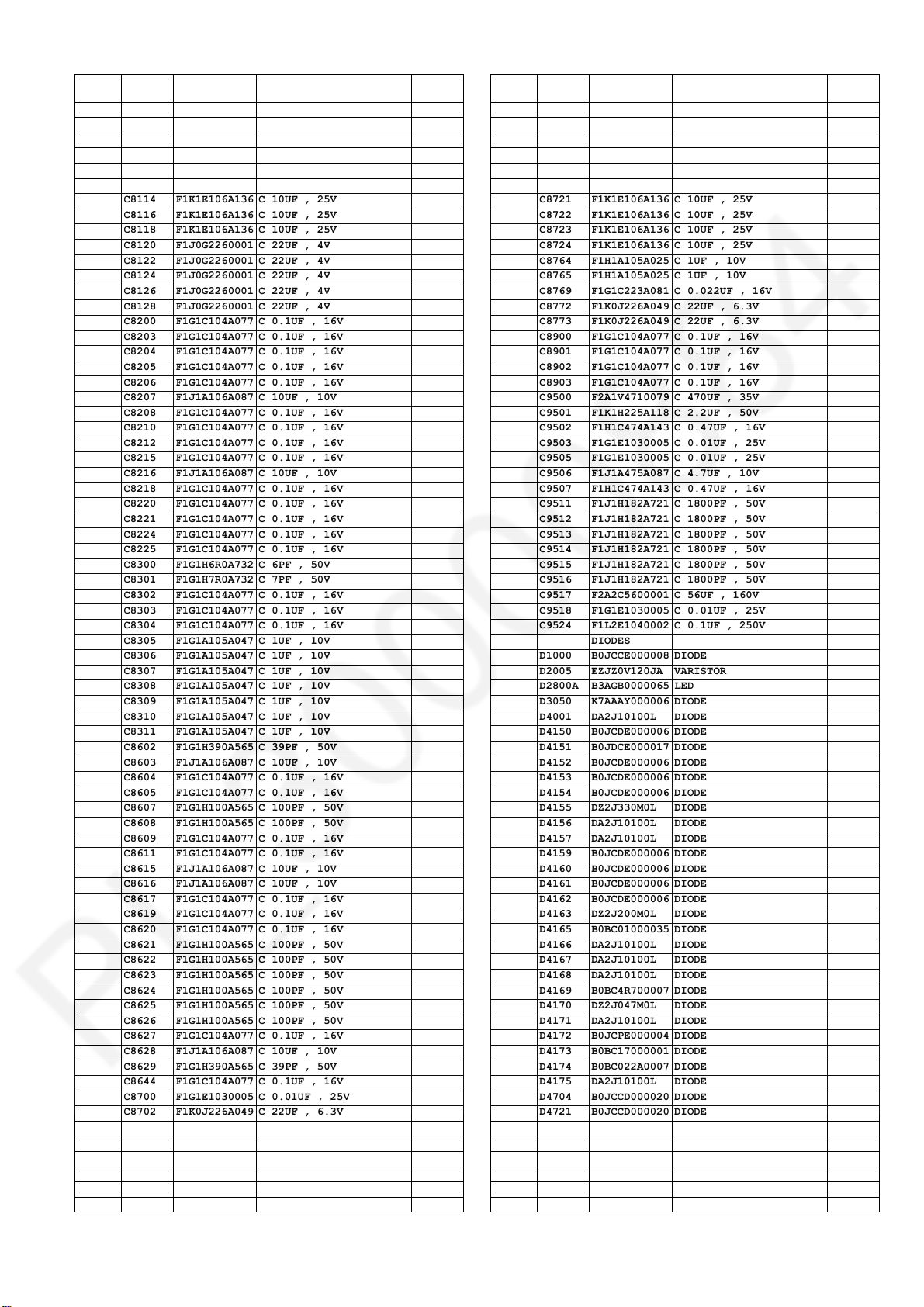

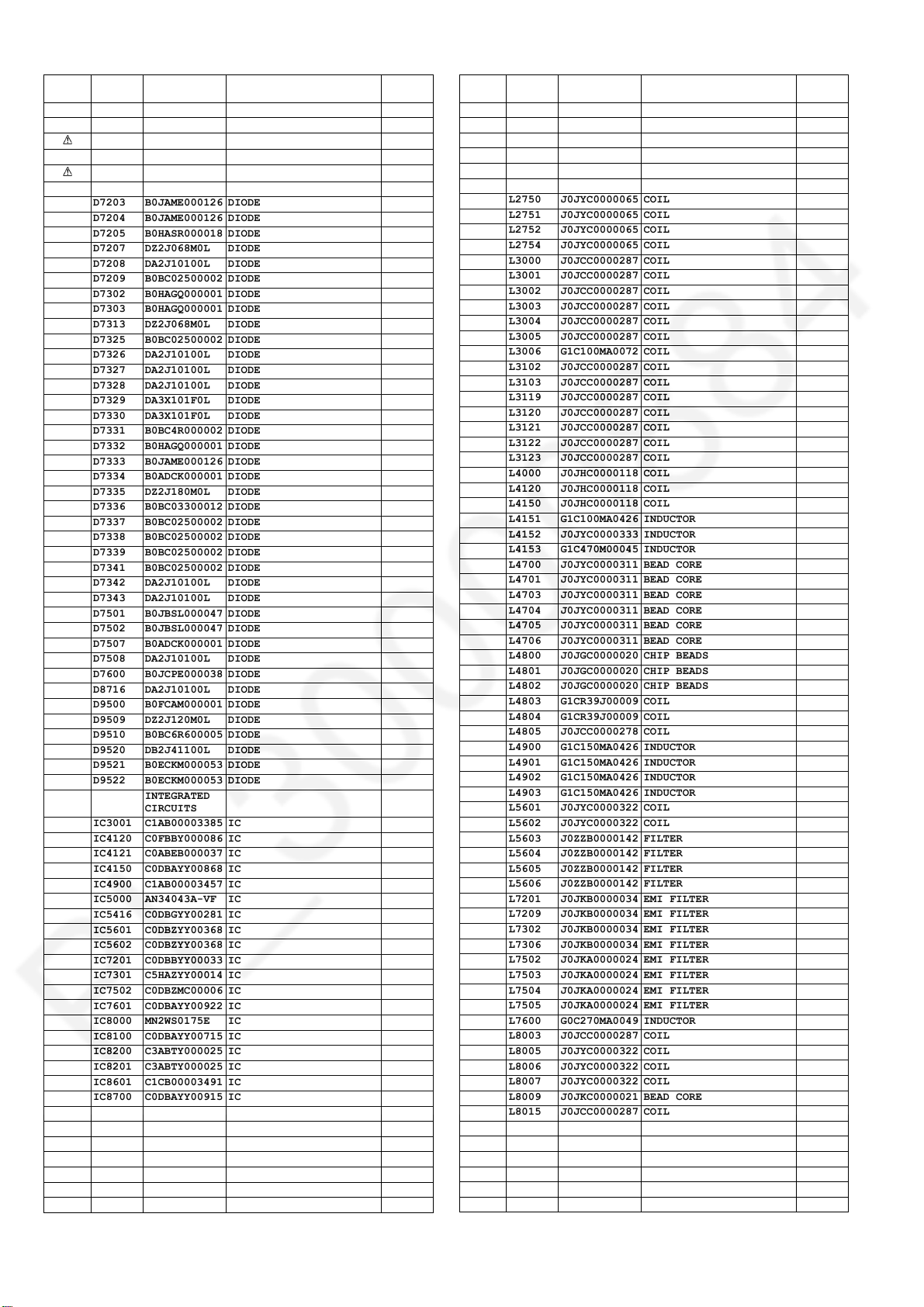

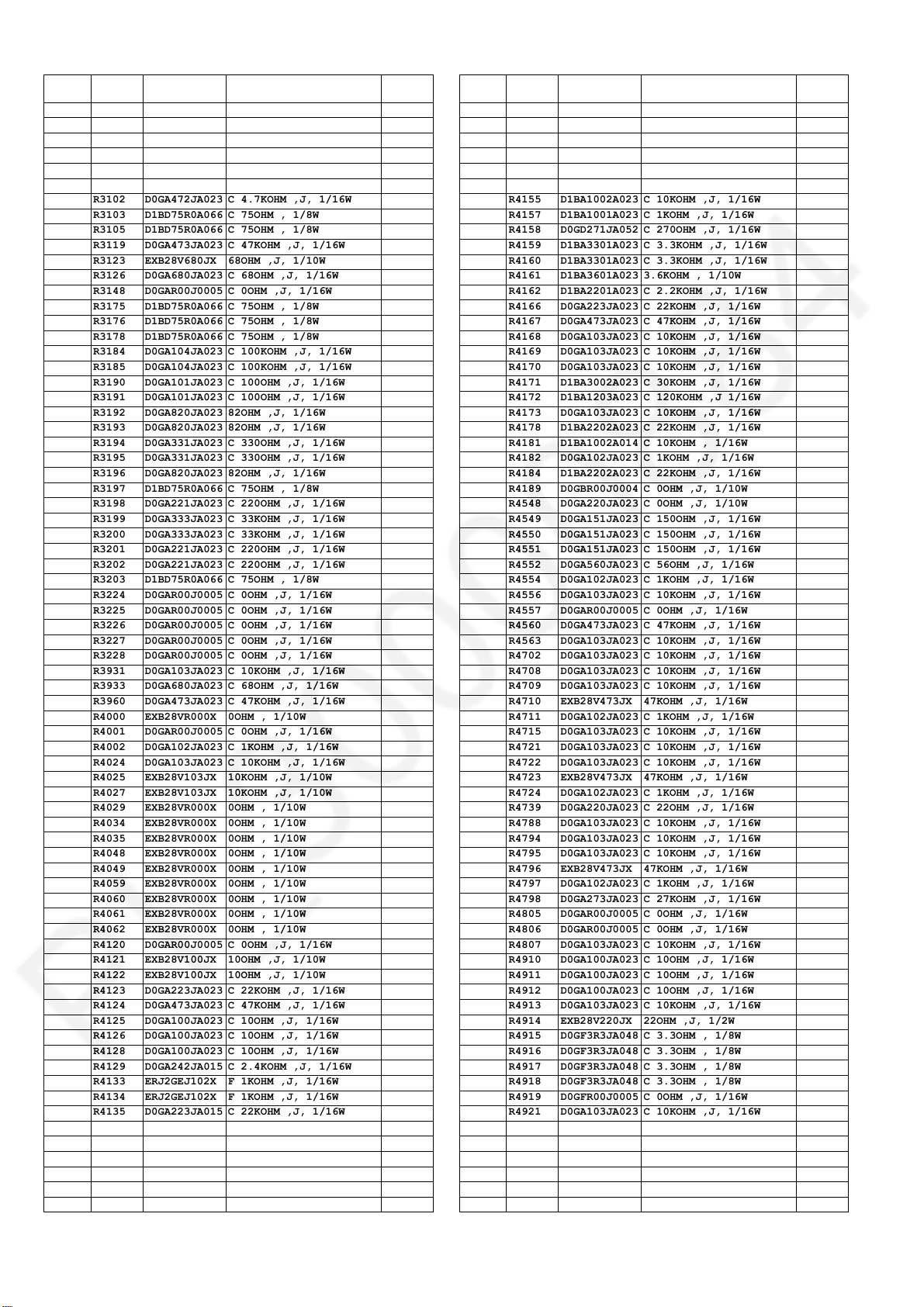

13.2.2. Electrical Replacement Parts List--------------- 79

TH-L32E3A

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

6. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight out.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the two prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the chassis, the reading should be 100 Mohm and over. When the exposed metal does not have a return path to the chassis, the reading must be .

1.1.2. Leakage Current Hot Check (See Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a 1.5kohm, 10 watts resistor, in parallel with a

0.15μF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

Figure 1

TH-L32E3A

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

TH-L32E3A

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below)

TH-L32E3A

3 Service Navigation

3.1. Service Hint

Board Name Main Device Remarks

A BOARD AVSW, TUN, OFDM, P-SLD2, EEP Repairable

P BOARD Power Supply Repairable

KA BOARD Remote, LED, Luminunce Sensor Repairable

LD BOARD LED Driver Repairable

TC BOARD FHD LVDS signal board Repairable

Control Panel Assy Power Switch,Keyscan

Control Button, Power switch Non serviceable Control Panel Assy should be exchanged for service.

Repairable

4 Specifications

Power

Power Rating AC 220 - 240 V, 50 / 60 Hz 0.33 A Normal (Home) mode 44 W Standby Condition 0.2 W

Display panel

Aspect Ratio 16:9 Visible screen size 80 cm (diagonal)

698 mm (W) × 393 mm (H)

Number of pixels 2,073,600 (1,920 (W) × 1,080 (H))

Sound

Speaker 160 mm × 42 mm × 2, 8 Ω Audio Output 20 W (10 W + 10 W) Headphones M3 (3.5 mm) stereo mini Jack × 1

PC signals VGA, SVGA, WVGA, XGA

SXGA, WXGA ...... (compressed)

Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz

Receiving Systems / Band name PAL B/G Reception of Off air broadcasts

Digital TV 7 MHz VHF / UHF (Australia) free-to-air TV broadcast

reception

PAL 60 Hz Playback of NTSC tape from some PAL Video recorders

M.NTSC Playback from M. NTSC Video recorders (VCR) NTSC Playback from NTSC Video recorders (VCR)

Aerial - Rear Standard Belling & Lee connector Operating Conditions Temperature : 0°C - 35°C

Humidity : 20 % - 80 % RH (non-condensing)

Connection Terminals

AV1 Input AUDIO L-R RCA PIN Type × 2 0.5 V [rms]

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω) COMPONENT Y 1.0 V [p-p] (including synchronization)

, PR/C

B/CB

AV2 Input AUDIO L-R RCA PIN Type × 2 0.5 V [rms]

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

AV3 Input AUDIO L-R RCA PIN Type × 2 0.5 V [rms]

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω) Audio Output AUDIO L-R RCA PIN Type × 2 0.5 V [rms] (high impedance) Others HDMI 1 - 3 Input TYPE A Connectors • This TV supports ‘HDAVI Control 5’ function.

PC Input HIGH-DENSITY D-SUB 15 PIN R / G / B: 0.7 V[p-p] (75 Ω)

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber optic

Card Slot SD Card slot × 1

USB 1/2 USB 2.0 TYPE A Connectors DC 5 V, Max. 500 mA

ETHERNET 10BASE-T / 100BASE-TX

Dimension (W x H x D) 769 mm × 514 mm × 207 mm (With Pedestal)

769 mm × 480 mm × 75 mm (TV only)

Mass 11.0 kg Net (With Pedestal)

9.5 kg Net (TV only)

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

(VCR)

± 0.35 V [p-p]

HD / VD: TTL LEVEL 2.0-5.0 V [p-p] (high impedance)

TH-L32E3A

5 Service Mode

5.1. How to enter into Service Mode

While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.

5.1.1. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data

ADJUST CONTRAST 000

COLOR 59

TINT FE

SUB-BRT 800

BACKLGT 20D

B-Y-G 40

R-Y-A 0

VCOM 189

WB-ADJ R-GAIN 75

G-GAIN 80

B-GAIN 65

R-CENT 80

G-CENT 80

B-CENT 9B

OPTION Boot ROM

STBY-SET 00

EMERGENCY ON

CLK MODE 00

CLOCK FC7

EDID-CLK HIGH

SRV-TOOL 00

5.1.2. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

TH-L32E3A

5.2. SRV-TOOL

5.2.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

5.2.2. Display of SOS History

SOS History (Number of LED blinking ) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory shipment setting].

5.2.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3sec. Time : Cumulative power on time, indicated hour : minute by decimal Count : Number of ON times by decimal Note : This indication will not be cleared by either of the self-checks or any other command.

5.2.4. Exit

1. Disconnect the AC cord from wall outlet.

TH-L32E3A

5.2.5. Self Check Mode

1. Press the ‘MENU’ button (on the remote control) and the ‘VOL DOWN’ button on the LCD panel.

2. Press ON/OFF button on the panel to Exit.

5.2.6. Hotel Mode Adjustment

1. Press the ‘VOLUME DOWN’ button on the TV panel and simultaneously press the AV button on the remote control 3 times to enter Hotel Mode.

2. Set Hotel mode ‘on/off’, then press ‘EXIT’ to come out.

5.2.7. Hotel Mode

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu. In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV] : Vol [Down] + [REMOTE] : INPUT (3 times).

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

Item Function

Mode Select hotel mode ON/OFF

Input Select input signal modes.

Set the input, when each time power is switched on. Selection :

-/RF/HDMI1/HDMI2/HDMI3/Component/ Video/PC

• Off: give priority to a last memory.

Channel Select channel when input signal is RF.

Set the channel, each time power is switched on. Selection : Any channel number or [-]. [-] means the channel when turns off.

Volume Adjust the volume when each time power is

switched on. Range : 0 to 100

Vol. Max Adjust maximum volume.

Range : 0 to 100

OSD Ctrl Restrict the OSD.

Selection : OFF/PATTERN1

• OFF: No restriction

• PATTERN1: restriction

FP Ctrl Select front key conditions.

Selection : OFF/PATTERN1/ALL

• OFF: altogether valid.

• PATTERN1: only input key is valid.

• ALL: altogether invalid.

Pow Ctrl Select POWER-ON/OFF condition when AC

power cord is disconnected and then connected. OFF: The same condition when AC power cord is disconnected. ON: Forced power ON condition.

TH-L32E3A

6 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

6.1. Check of the IIC bus lines

6.1.1. How to access

Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds. Self-check indication and forced to factory shipment setting: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

6.1.2. Exit

Disconnect the AC cord from wall outlet.

6.1.3. Screen display

TH-L32E3A

6.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:

LCD

Times SOS

1 BackLight_SOS A BOARD

2 FAN_SOS Peaks

3 SOS(Tuner_SOS) SUB3.3V/panel_15V

4 SUB12V_SENSE_SOS

7 SUB3.3V_SENSE_SOS

9 SOUND_SOS

10 ZWEI2_SOS detect of IIC

12 BackEnd(sLD)_SOS

13 EMERGENCY_SOS communication error

14 IROM_SOS Error of STM micon

6.3. No Power

First check point There are following 2 states of No Power indication by power LED.

1. No lit

2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

Remark PCB NAME

7 Disassembly and Assembly Instructions

7.1. AC Cord Dressing

1. Fix Re-Use band at bottom bracket.

2. Cover AC cord with protect sheet and dressing with re-use band.

(follow sequence 1→2→3→4)

TH-L32E3A

7.2. Control Panel Assembly & Side AV Installation

Fix control panel button into control panel bracket.

7.3. Speaker and Bottom Bracket Installation

1. Fix SP Rubber Bush at SP unit (L & R).

2. Install SP unit L and SP unit R.

3. Install bottom bracket.

TH-L32E3A

7.4. LCD Panel Fixing & Handling Method

1. Place down the cabinet as shown below.

2. Fix LCD panel into the cabinet by taking below precautions.

Other general precautions

1. Do not press panel surface to avoid blue spot on the panel display.

2. Do not use hard cloth or rub the surface too hard. This may cause scratches on the surface.

3. Take care not to subject the TV’s surface to water or detergent. Any liquid (including pets urine) if enters the product could lead to TV failure.

4. Take care not to subject the surface to insect repellent, solvent, thiner or other voiltile substances. This may degrade surface quality or cause peeling of the paint.

5. The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch with your fingernail or other hard objects.

7.5. LED Panel Installation

1. Fix LED PANEL on CABINET.

2. Insert an A10-KA10 lead connector in KA-Print.

3. Put KA-Print on LED PANEL.

4. Fix LED PANEL assy with SCREW.

TH-L32E3A

7.6. Install and Screw PCB

1. Install P-print on LCD panel.

2. Install A-print on LCD panel.

3. Install Metal Bracket PCB A on LCD panel.

4. Fix power button into P Print first before control panel.

5. Fix spacer in to P Print.

6. Stick AL Pet + Tape at mini LVDS wire.

7.7. Small Part Install, Screw and Sponge Sticking

1. Install Control Panel

2. Install side AV bracket.

3. Install Speaker Bracket (4).

4. Install Metal Bracket Bottom.

5. Screw Control Panel into board.

6. Screw Side AV bracket.

7. Screw Metal Bracket Bottom.

8. Screw Speaker bracket.

9. Slot clamper into LCD Panel.

10. Slot LVDS wire and Stick PET+AL-tape.

TH-L32E3A

7.8. Back Cover Installation

1. Screw back cover.

2. Stick model name plate, rear av indication sheet at back cover.

3. Fix adjustment sheet at back cover.

4. Stick serial no label at back cover.

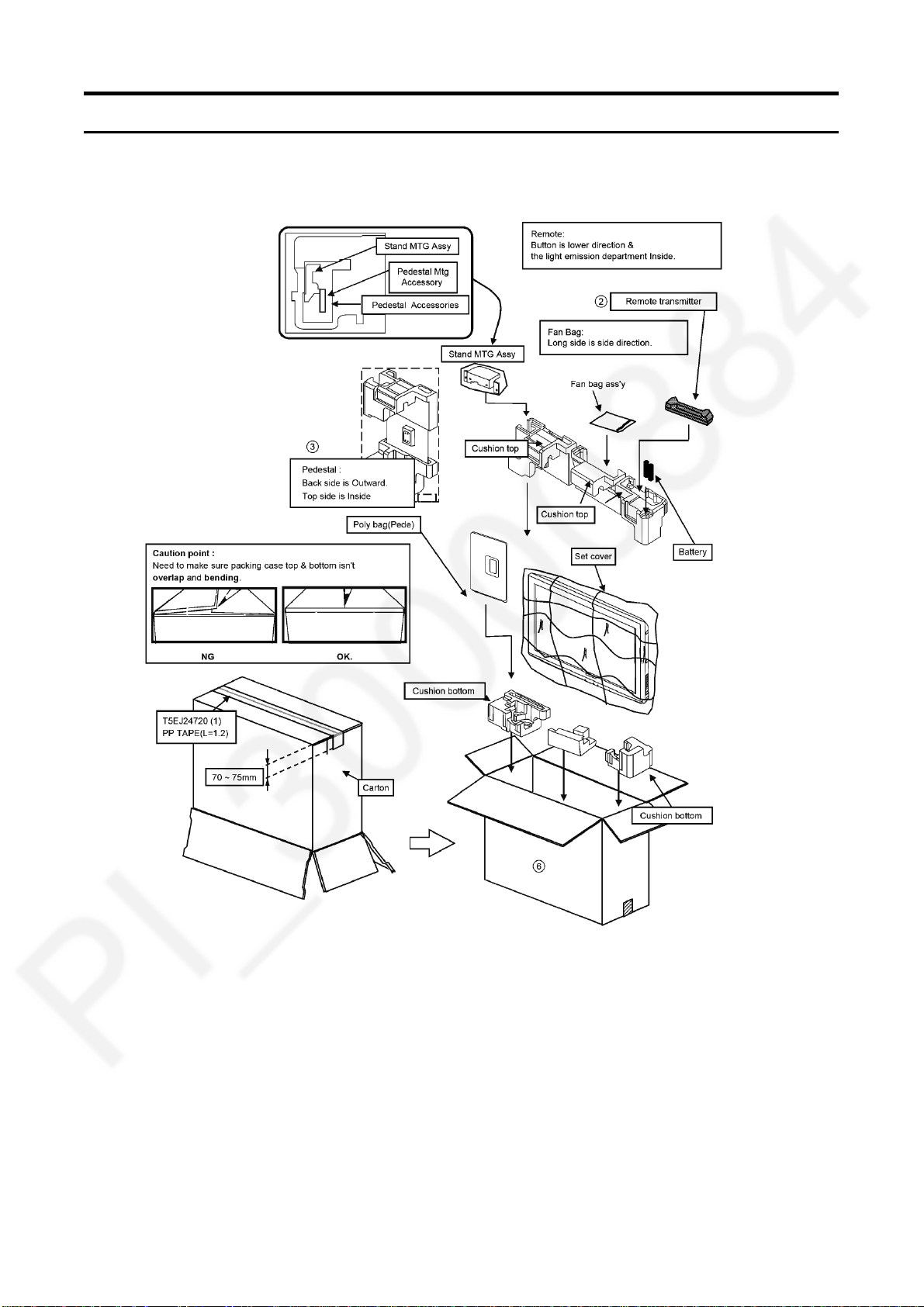

7.9. Stand MTG Assembly & Accessories Assembly

1. Wrapping stand mounting with plastic bag (Make by supplier).

2. Stick yellow tape.

TH-L32E3A

Put all screw inside plastic bag.

TH-L32E3A

8 Measurements and Adjustments

8.1. Voltage chart of A-board

Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.

POWER SUPPLY NAME MEASUREMENT POINT SPECIFICATION

SUB1.8V TP8700 1.74 - 1.90 V

SUB1.2V TP8100 1.18 - 1.32 V

SUB3.3V TP8701 3.19 - 3.46 V

SUB5V TP8702 4.75 - 5.25 V

STB5V TP5400 4.9 - 5.1 V

SUB1.5V TP8101 1.4 - 1.6 V

8.2. Voltage chart of P-board

Set IP-Board to a dummy set and check the satisfaction with the specified voltage as following table.

VOLTAGE TEST POINT SPECIFICATION (V) STATE

PFC390V TP7201, 7202 390 ± 15 Reception * HOT

LED24V TP7514, 7515 24 ± 2 Reception

DTV16V TP7503, 7504 16 ± 1.5 Reception

STBY6V TP7501, 7502

5.8 ± 0.8 Reception

5.8 ± 0.8 Stand by

9 Block Diagram

(LED:4 TIMES)

(LED:9 TIMES)

(LED:7 TIMES)

(LED:1 TIME)

(LED:3 TIMES)

LAN DATA

DCDC

VIDEO

1, 2, 3 SIDE

C.A.T.S. SENSOR

EEPROM

P15V SENSE

LCD DRIVER

SUB3.3V

INPUT/OK

DVDD2.5V

OPERATION KEYS

LVDS-TX

STB3.3V

R/G/B/H/V

REMOTE RECEIVER

LINE

FILTER

CPU BUS

SLOT

KEY3

SUB5V

VOFF2-6V

KEY1

TC1

LD2

SUB5V

TC2

STB1.2V

TC3

SUB1.2V

STB1.2V

(SIDE)

SUB_ON

SUB3.3V

POWER LED

PWM

ANALOG-ASIC

AV SW

DCDC

ARC OFF

+6V

SIF_OUT

LAN I/F

REMOTE IN

DCDC

IFD_OUT

RECEIVER

P15V

SUB5V

BL_SOS

HDMI1

P15V

SD CARD DATA

LD4

SUB3.3V SENSE

LED

DRIVER

SUB3.3V

STB3.3V

RELAY

STB5V

MAIN

USB

L/R

SUB1.8V

PWM

PROCESS

VOLTAGE

CONVERTER

ARC BUFFER SW

Y/PB/PR

STB5V

NEUTRAL

HDMI I/F

USB I/F

STB3.3V

SUB9V

C.A.T.S. SENSOR

SUB_ON

VON31V

5.8VS

NAND

FLASH

VIDEO_OUT

STB5V

SUB1.5V

KEY3

A10

DCDC

HDMI2

HDMI3

COMP

ETHERNET

PANEL

SUB1.5V

REMOTE RECEIVER

BL_ON

5.8VS

USB DATA

PFC

CIRCUIT

24V

POWER

EEPROM

CPU BUS

I/F

POWER LED

BL_SOS

SUB1.2V

HDMI3.3V

KEY1

KEY3

T-CON

DCDC

RECTIFIER

LIVE

P15V

F16V

DDR3

KEY1

VOL

TUNER

C.A.T.S. SENSOR

SUB3.3V

LCD PANEL

OUT

LED DRIVER

PWM

STB5.8V

BL_SOS

RELAY SUBSTRATE

VOL

POWER SUPPLY

POWER LED(R)

LVDS DATA

DCDC

SD CARD

L/R

OVP DET

A09

DCDC

ETHER PHY

P15V

BL_ON

SUB3.3V

P15V

AC CORD

STB5V

100BASE-TX

STB3.3V

10BASE-T/

PWM

CONTROL

BL_ON

LED BACK LIGHT

STB5.8V

SUB_ON

SD CARD DATA

DIGITAL

SUB1.8V

GAMMA

DAC

AVDD12.6V

A14

RELAY

KA10

SPDIF

P15V

STB5.8V

ARC

HDMI3.3V

AUDIO

SUB3.3V

SOUND SOS

sLD2

AUDIO OUT

AMP

AUDIO

SPEAKER(R)

SPEAKER(L)

A12

PWM

SOUND

SOS

SOS_

SENCE

TCON SOS

SOS_SENCE

(LED:4 TIMES)

(LED:9 TIMES)

(LED:7 TIMES)

(LED:1 TIME)

(LED:3 TIMES)

TMDS DATA

9.1. Main Block Diagram

TH-L32E3A

10 Wiring Connection Diagram

10.1. Wire Dressing

1. Connect all wire connector to connector.

2. Dressing wire follow diagram.

Wire

No.1 A09 - P2

No.2 Panel - LD2

No.3 P4 - LD4

No.4 A10 - KA10

No.5 A11 - SP (L)

No.6 A11 - SP (R)

Clamper

12345678

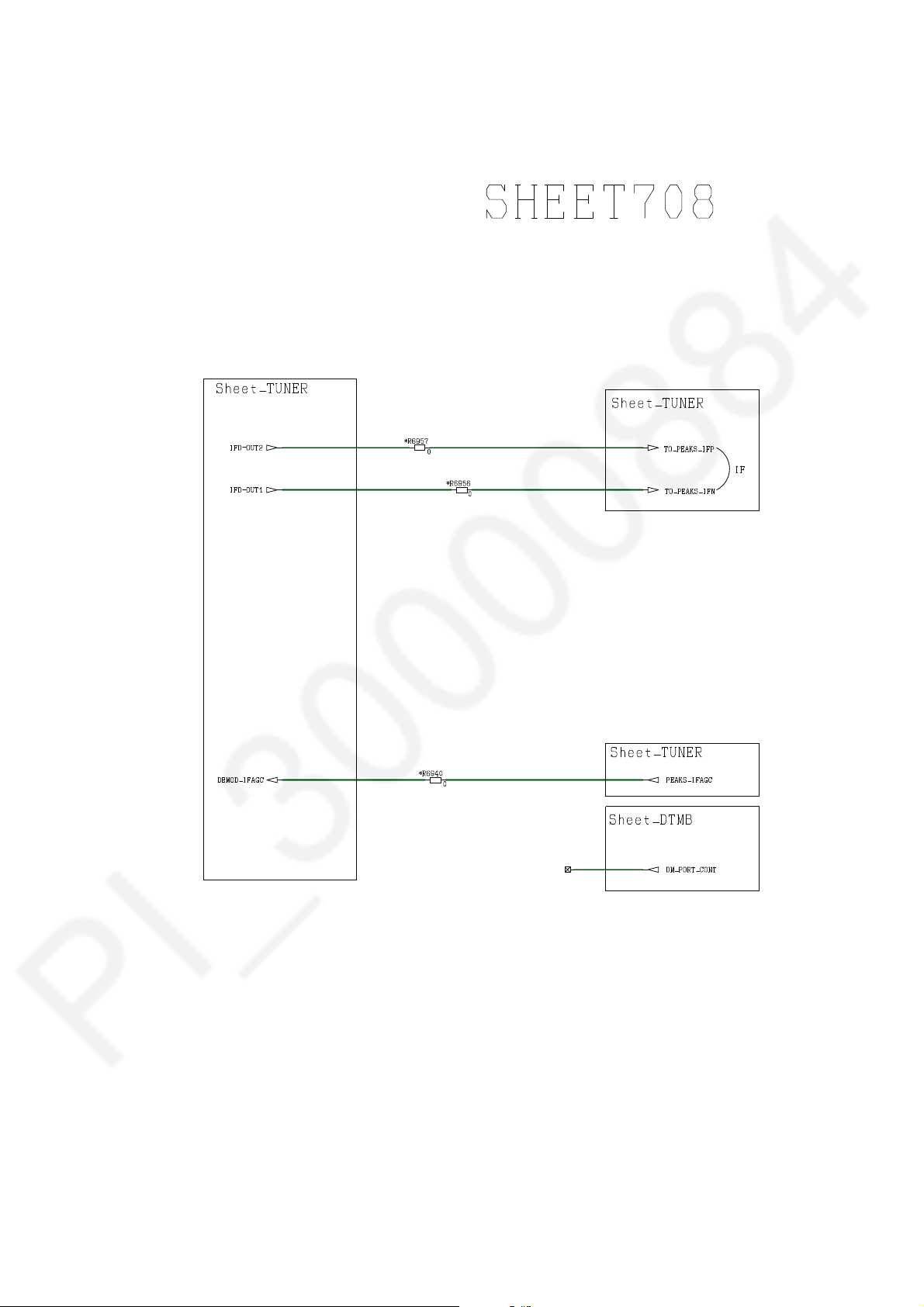

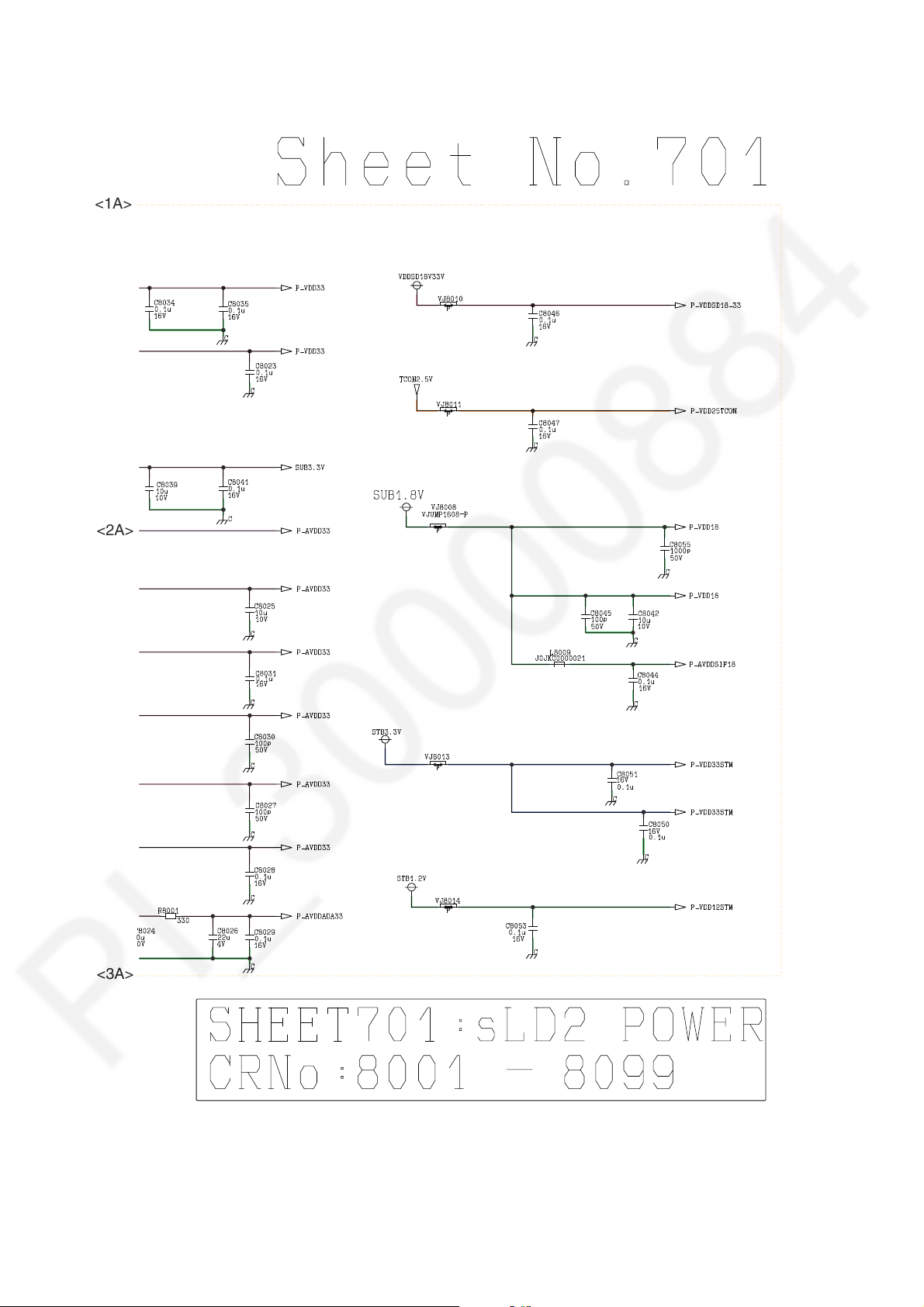

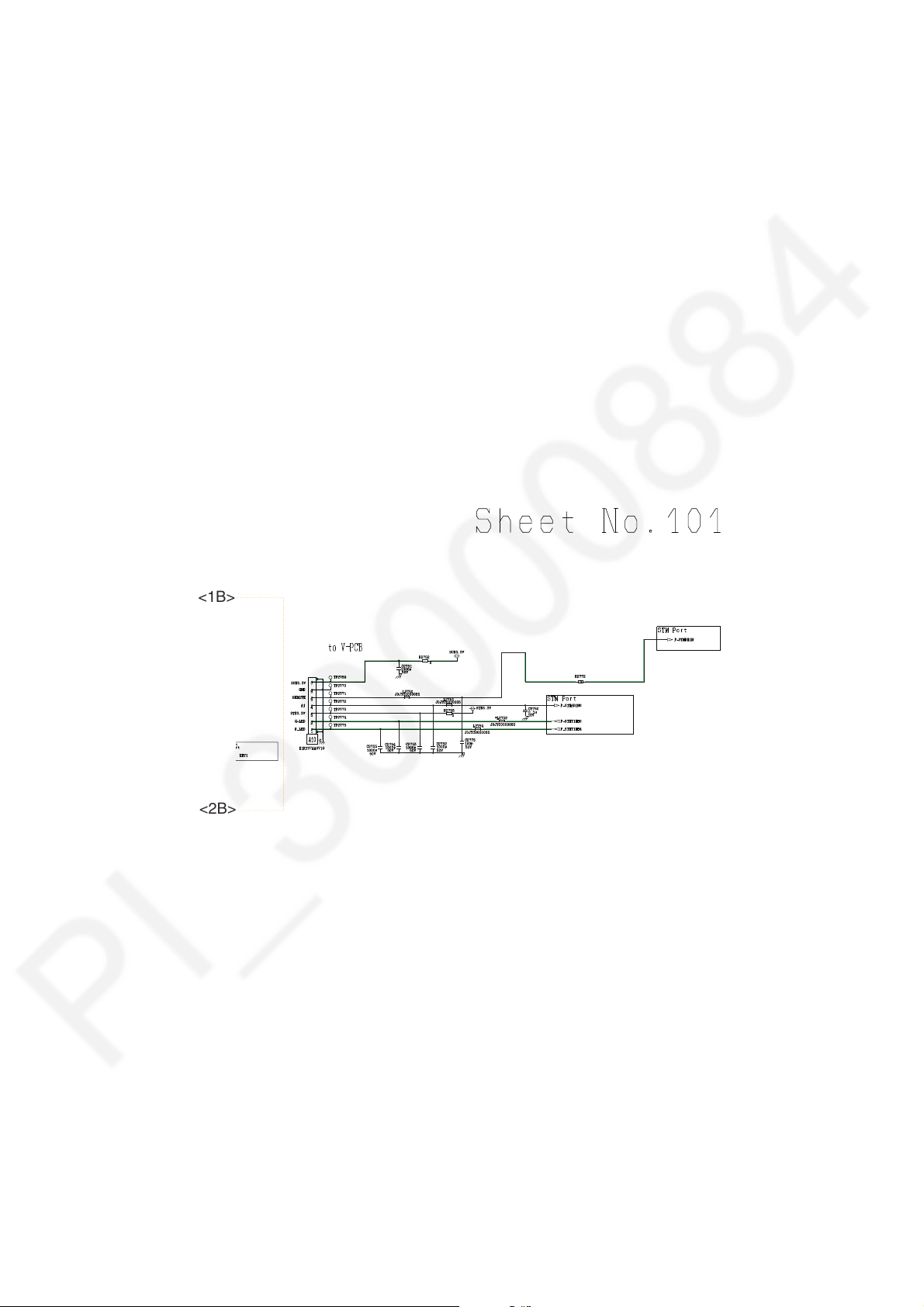

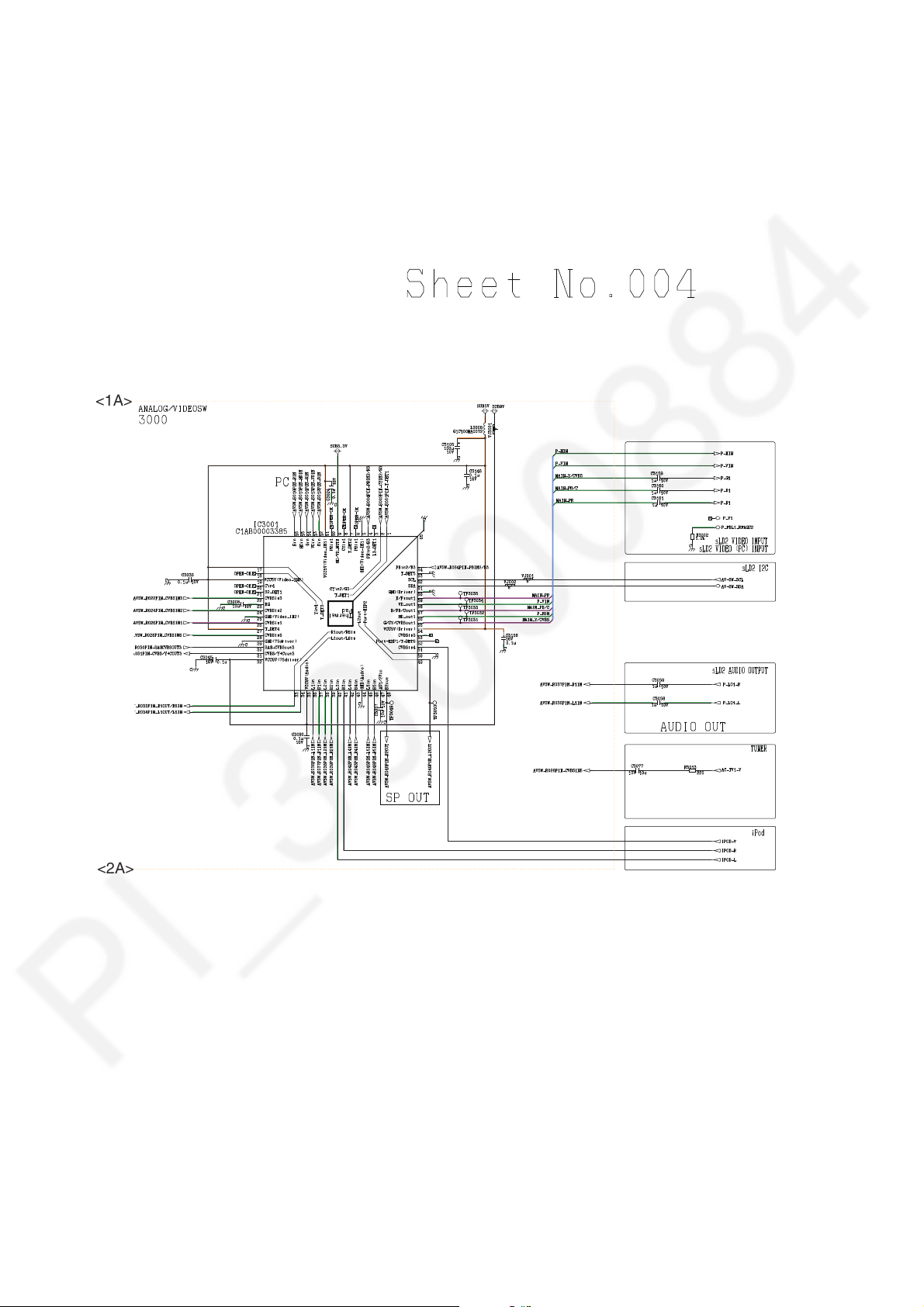

11 Schematic Diagram

11.1. Schematic Diagram Notes

TH-L32E3A

<1A>

<2A>

<3A>

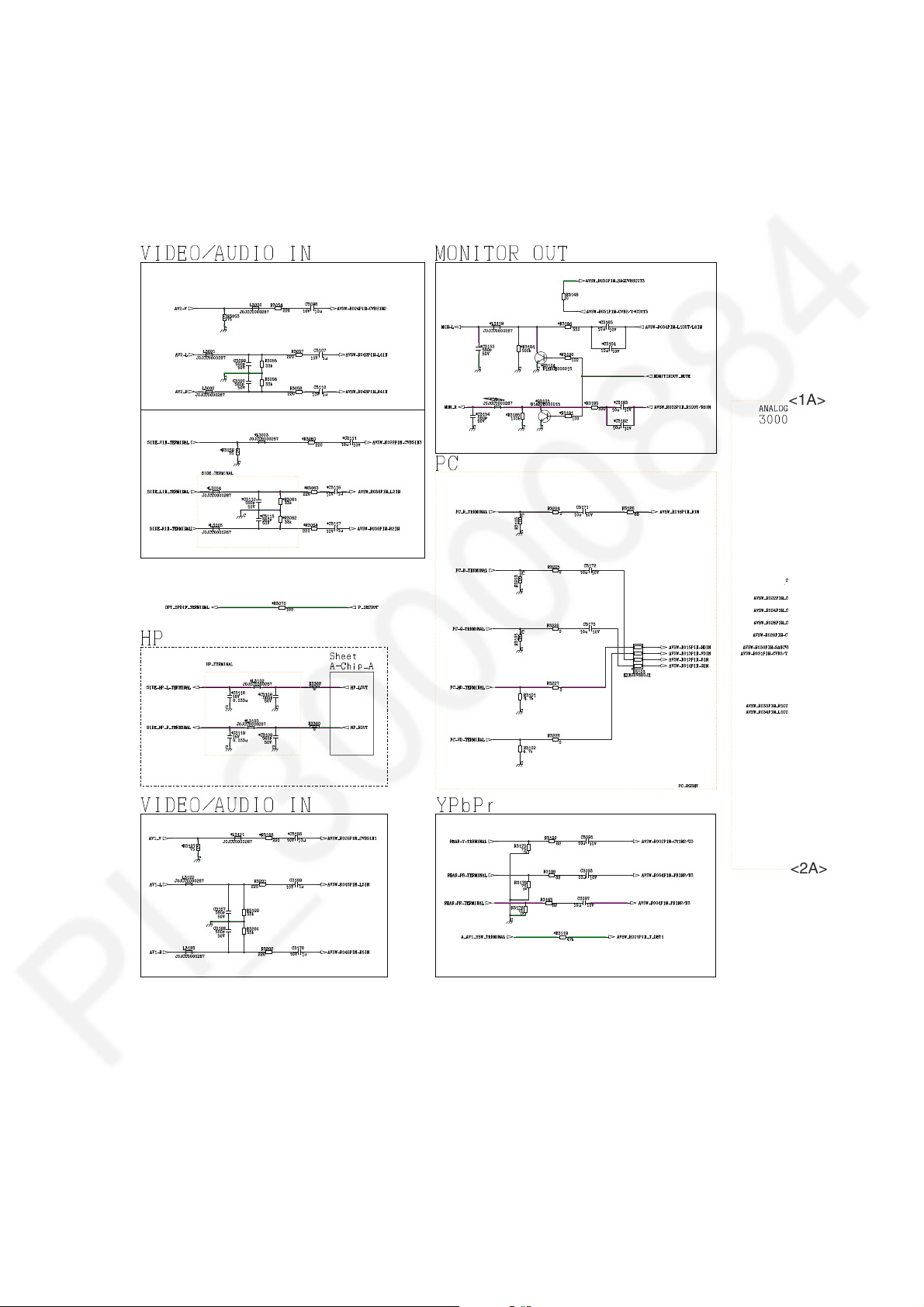

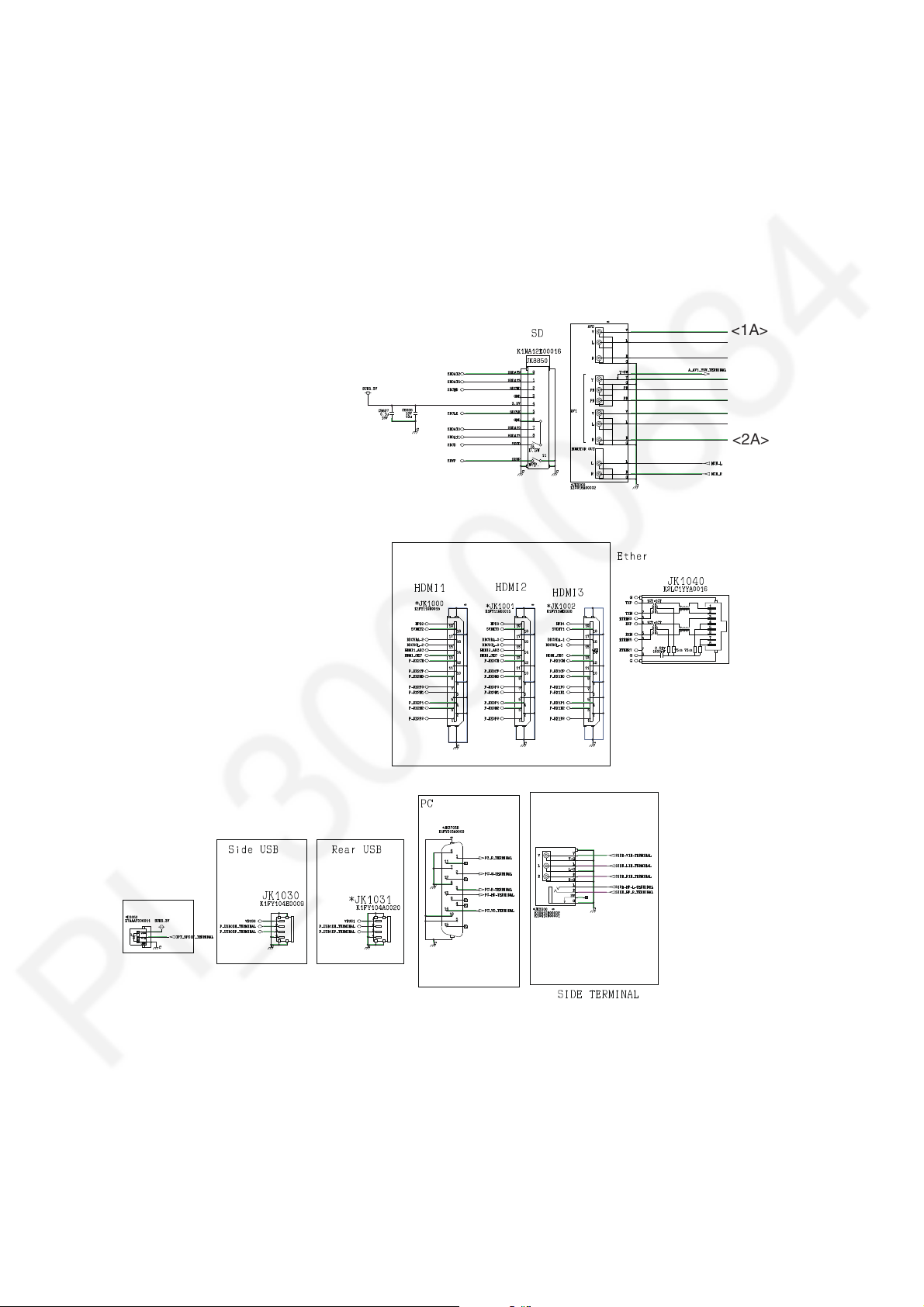

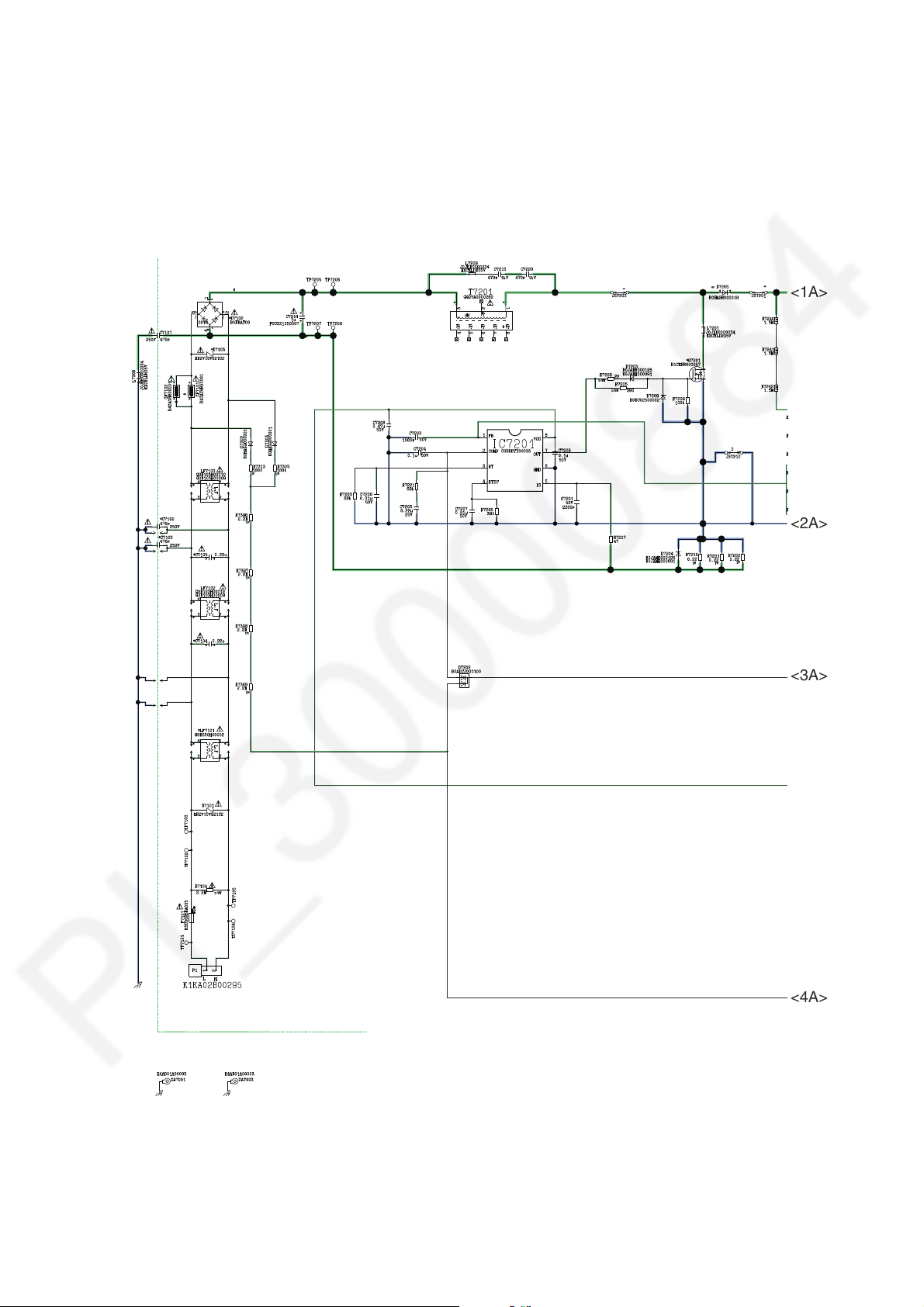

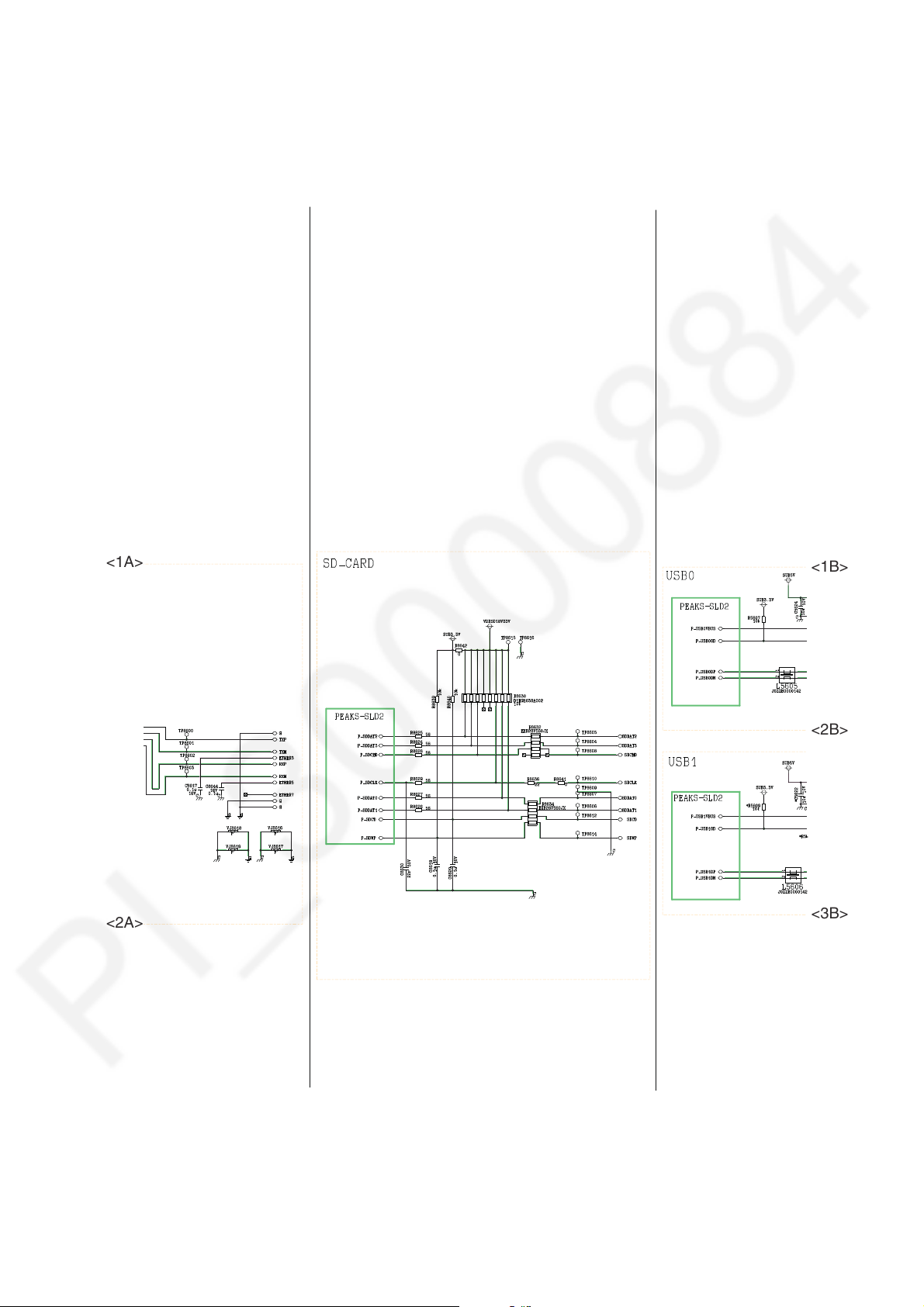

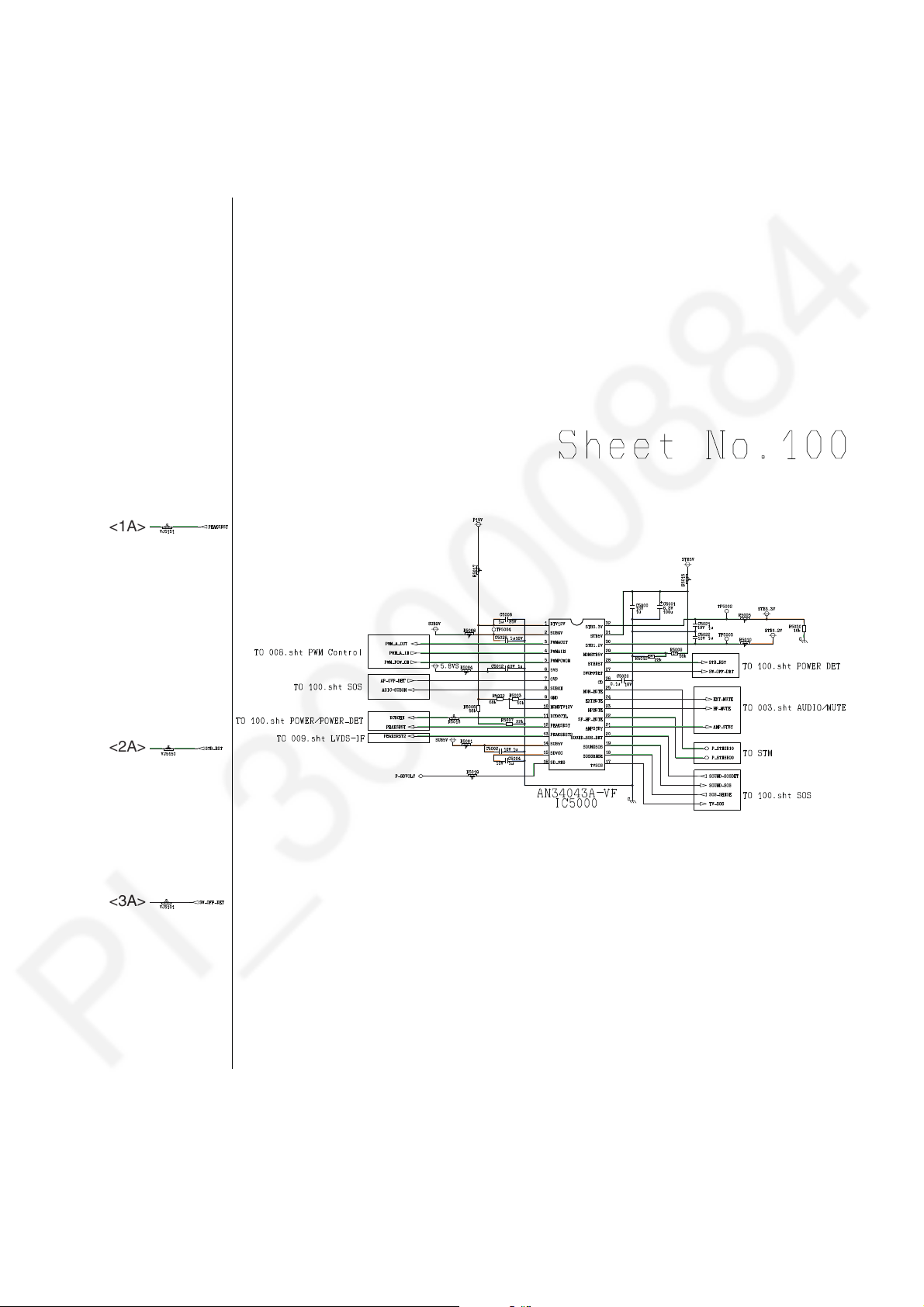

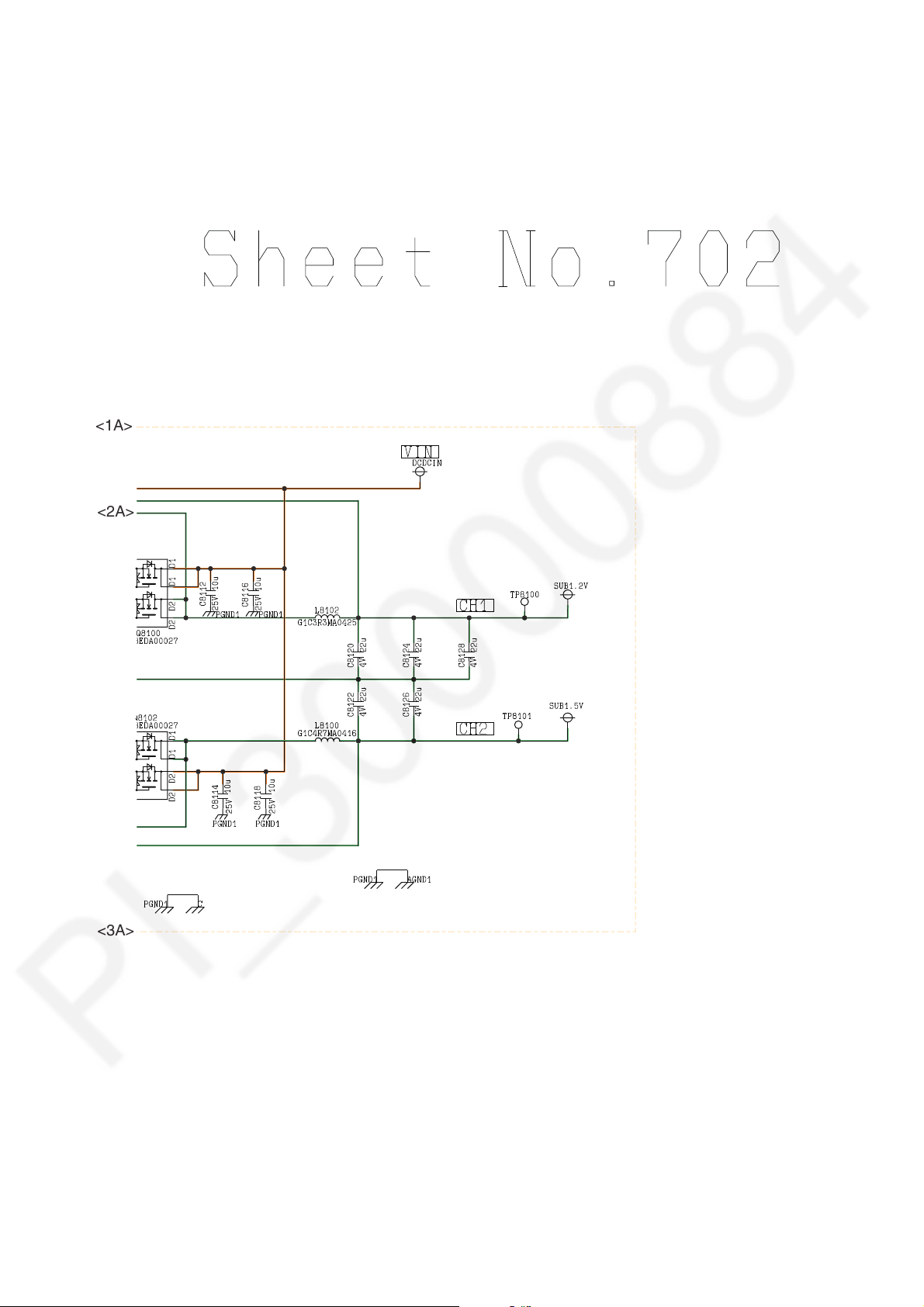

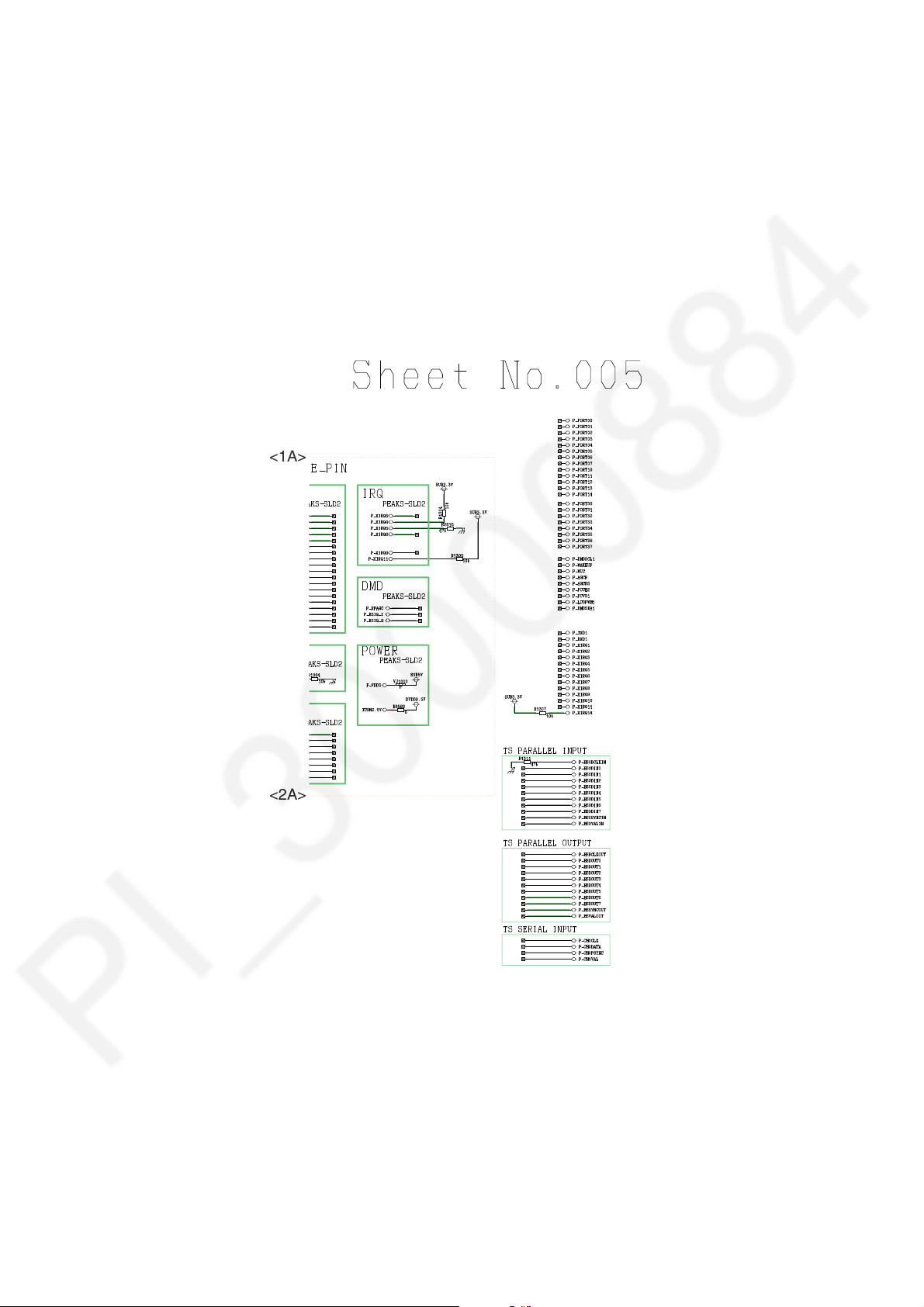

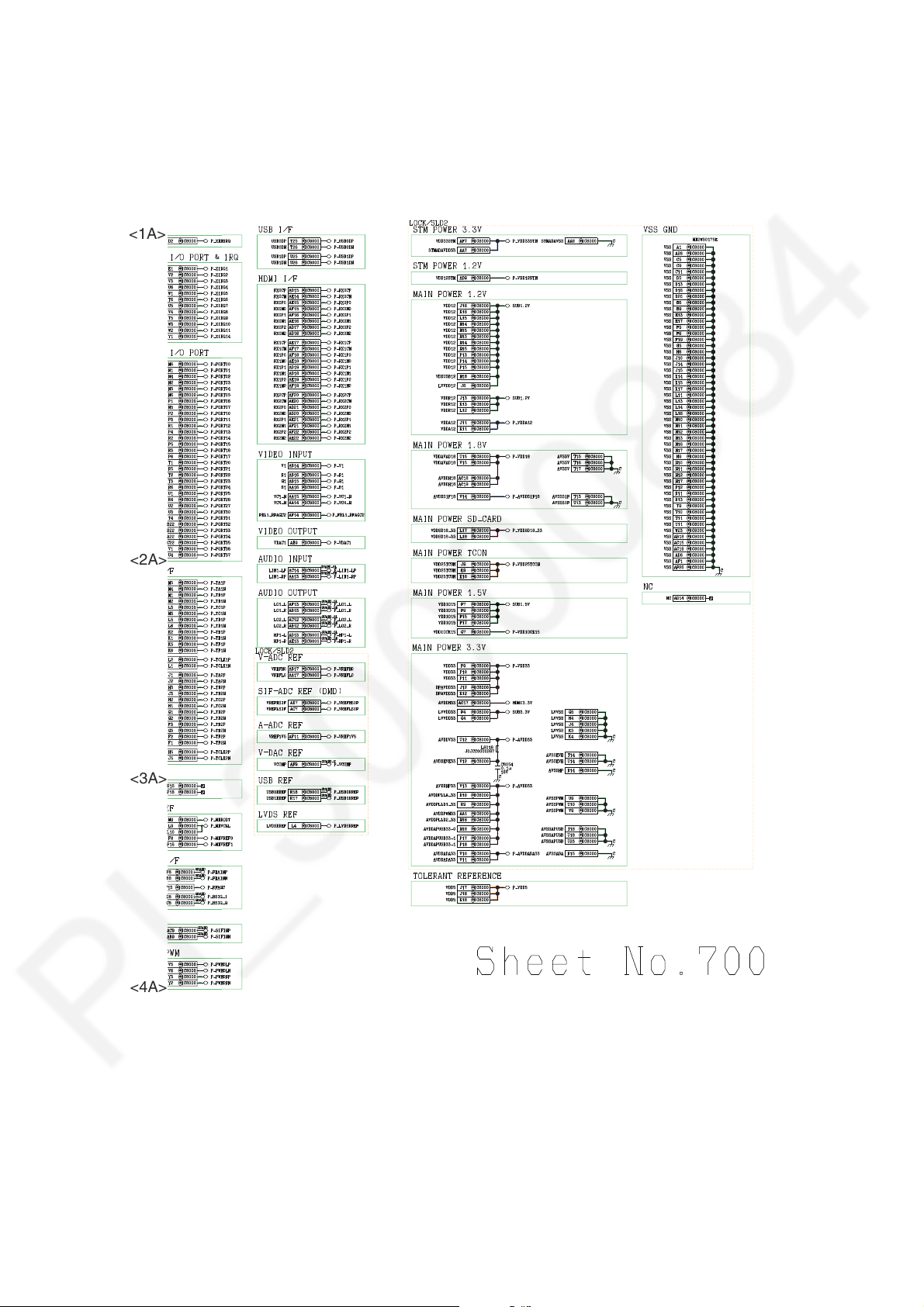

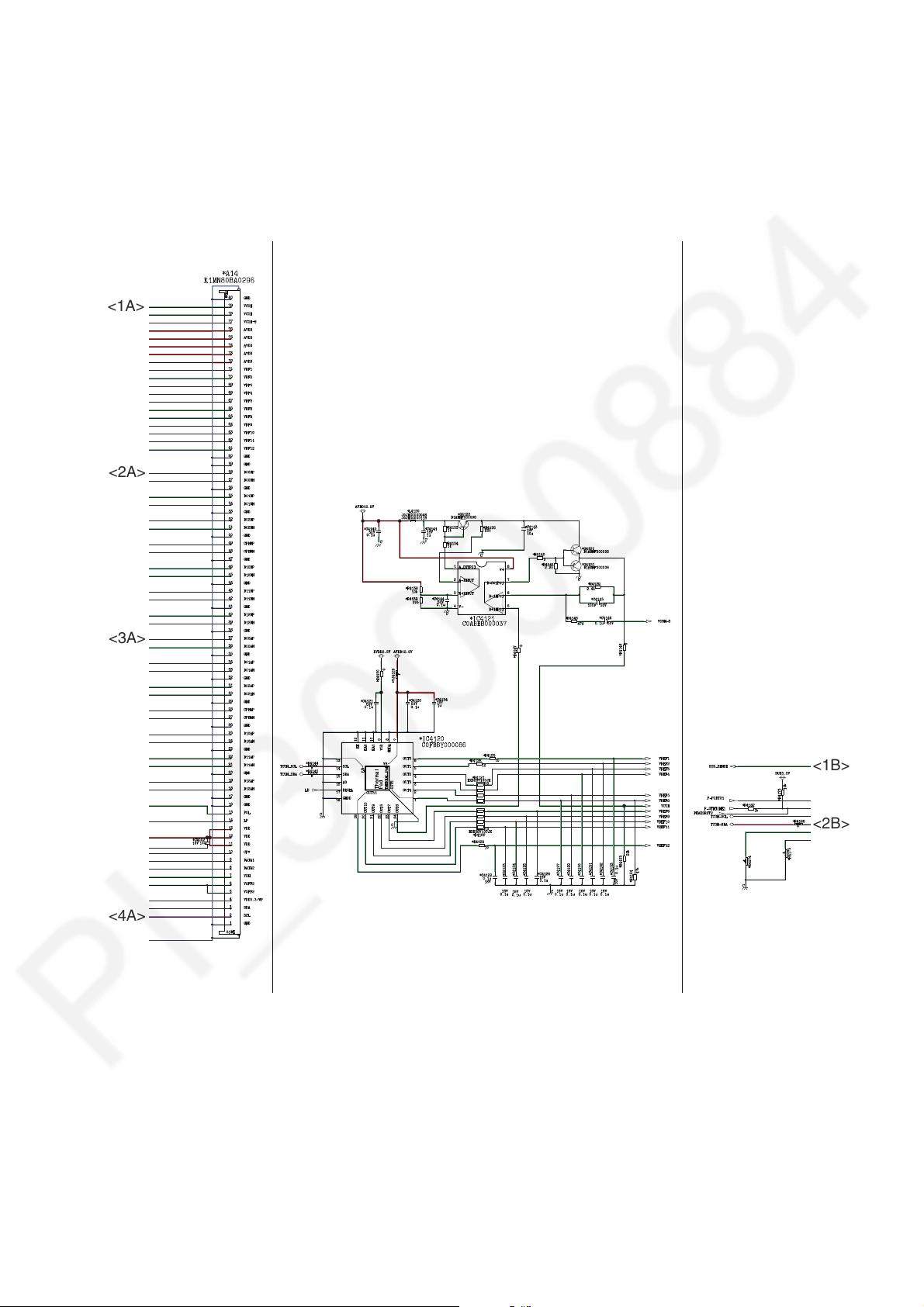

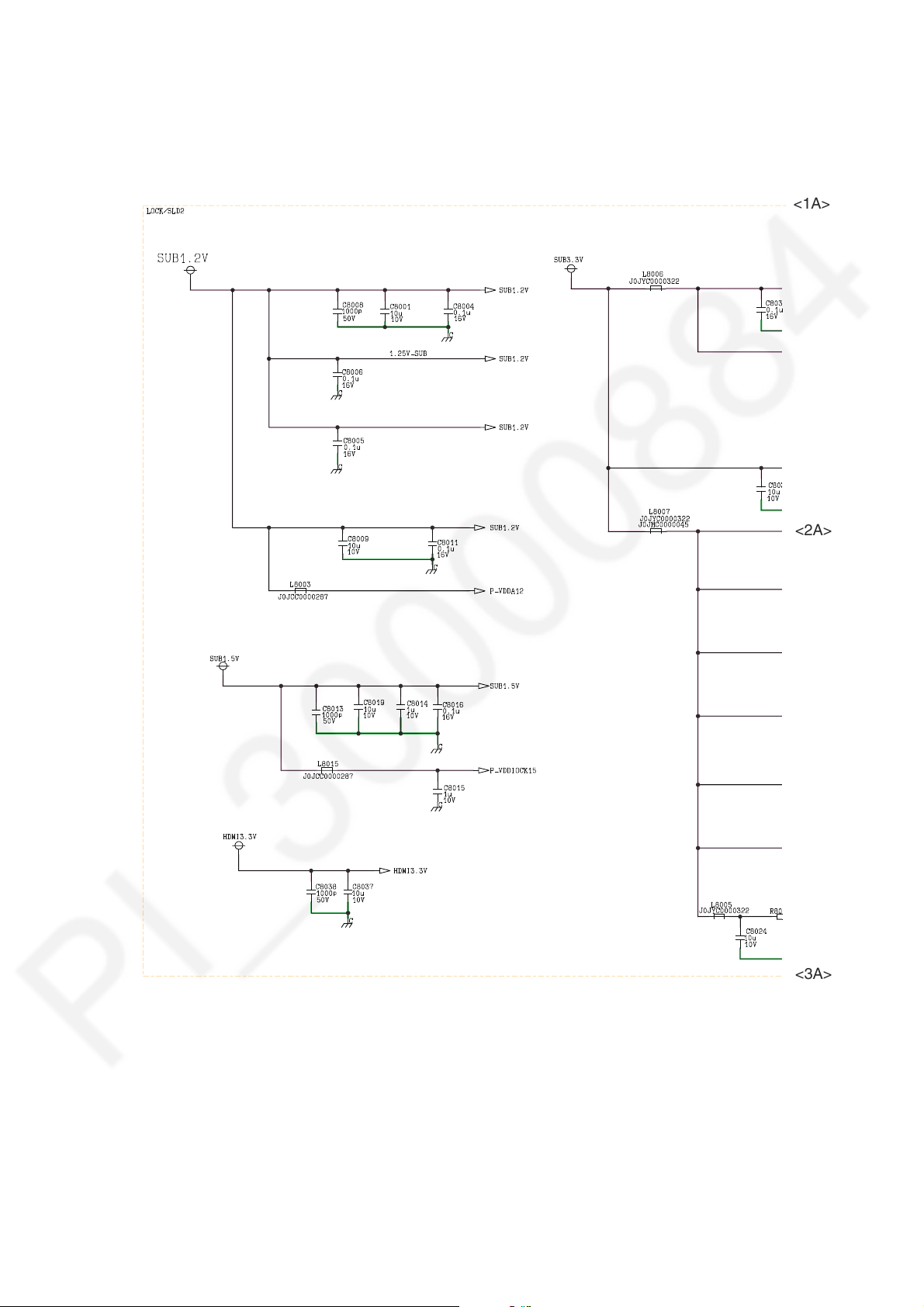

11.2. A Board

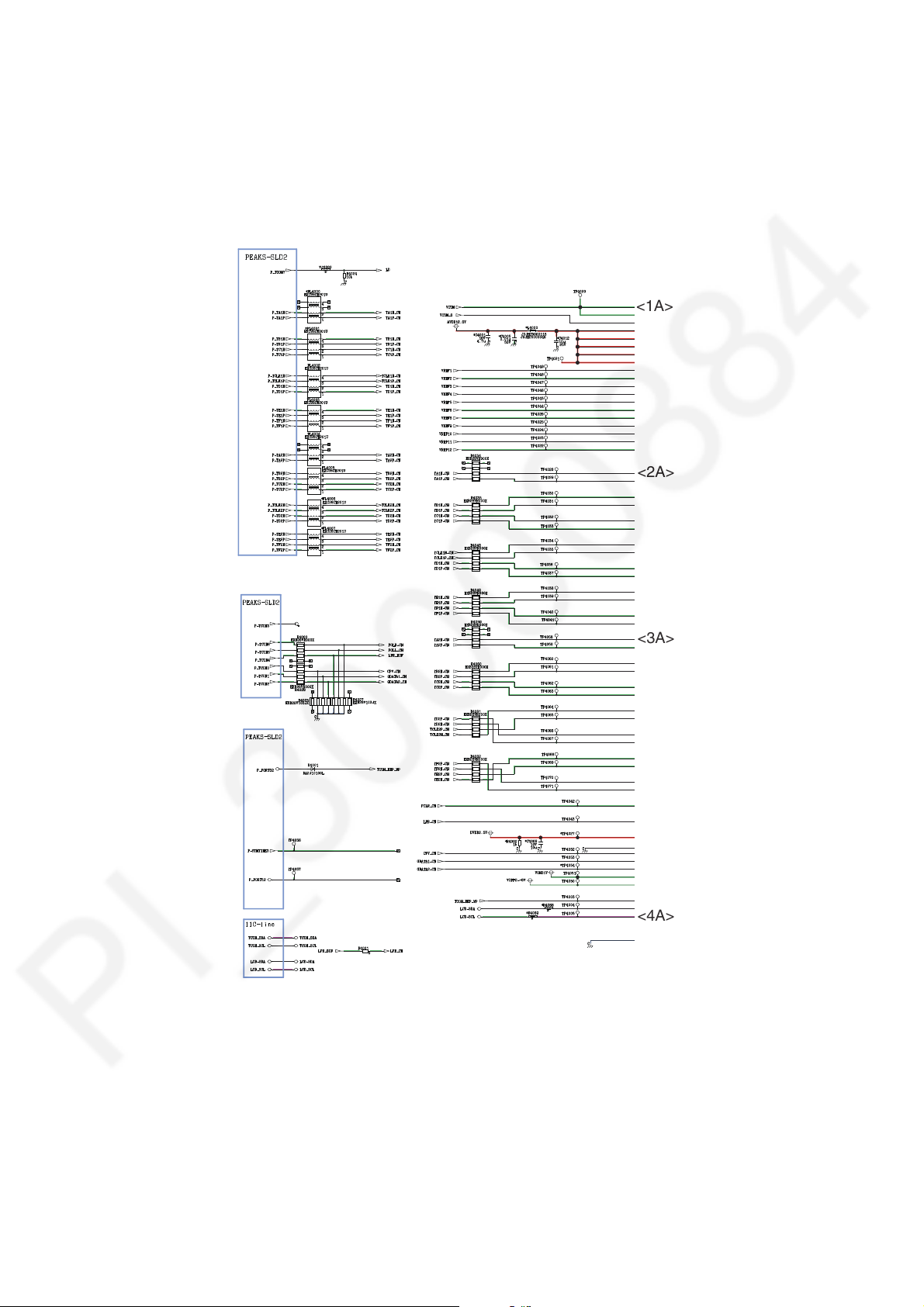

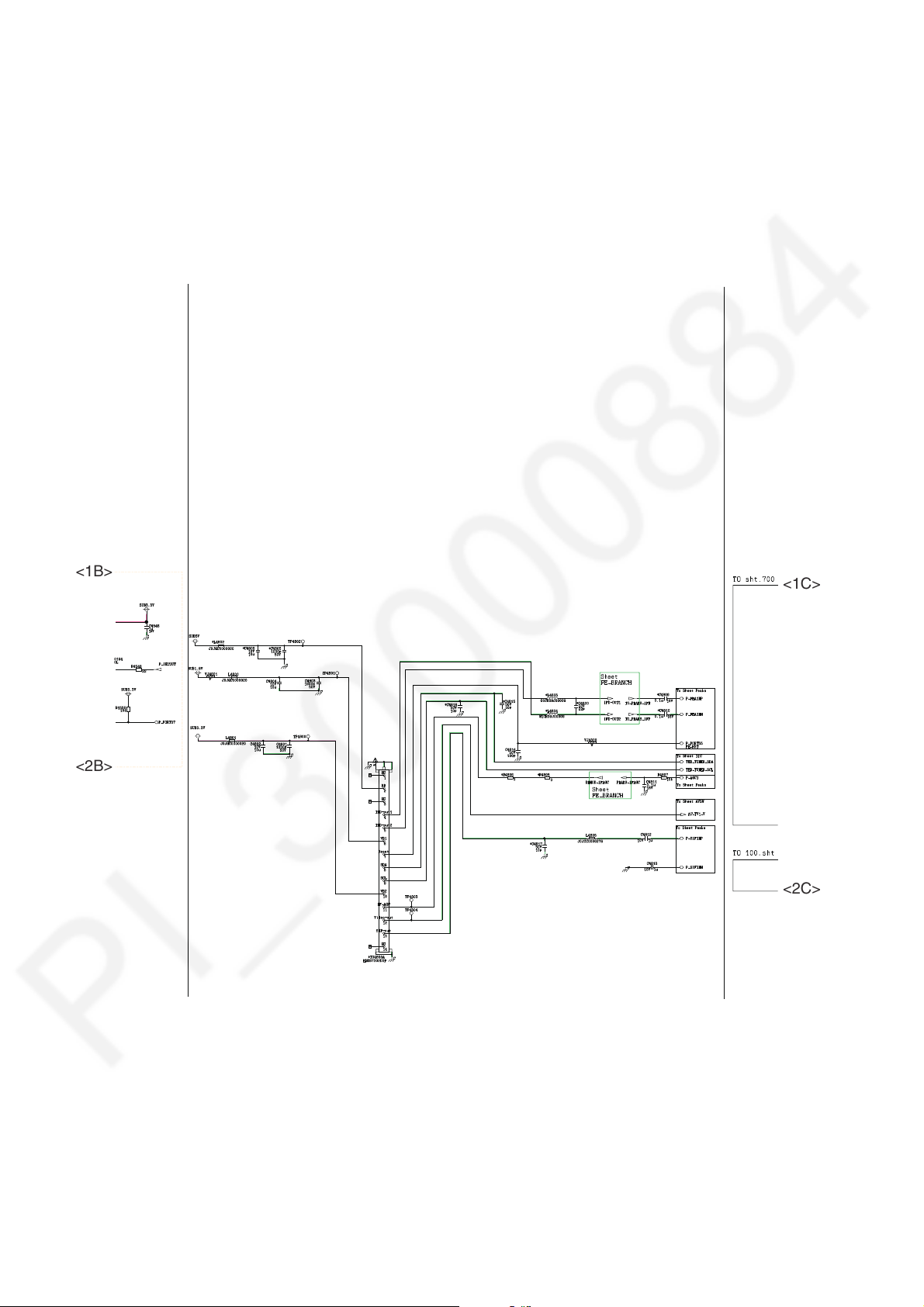

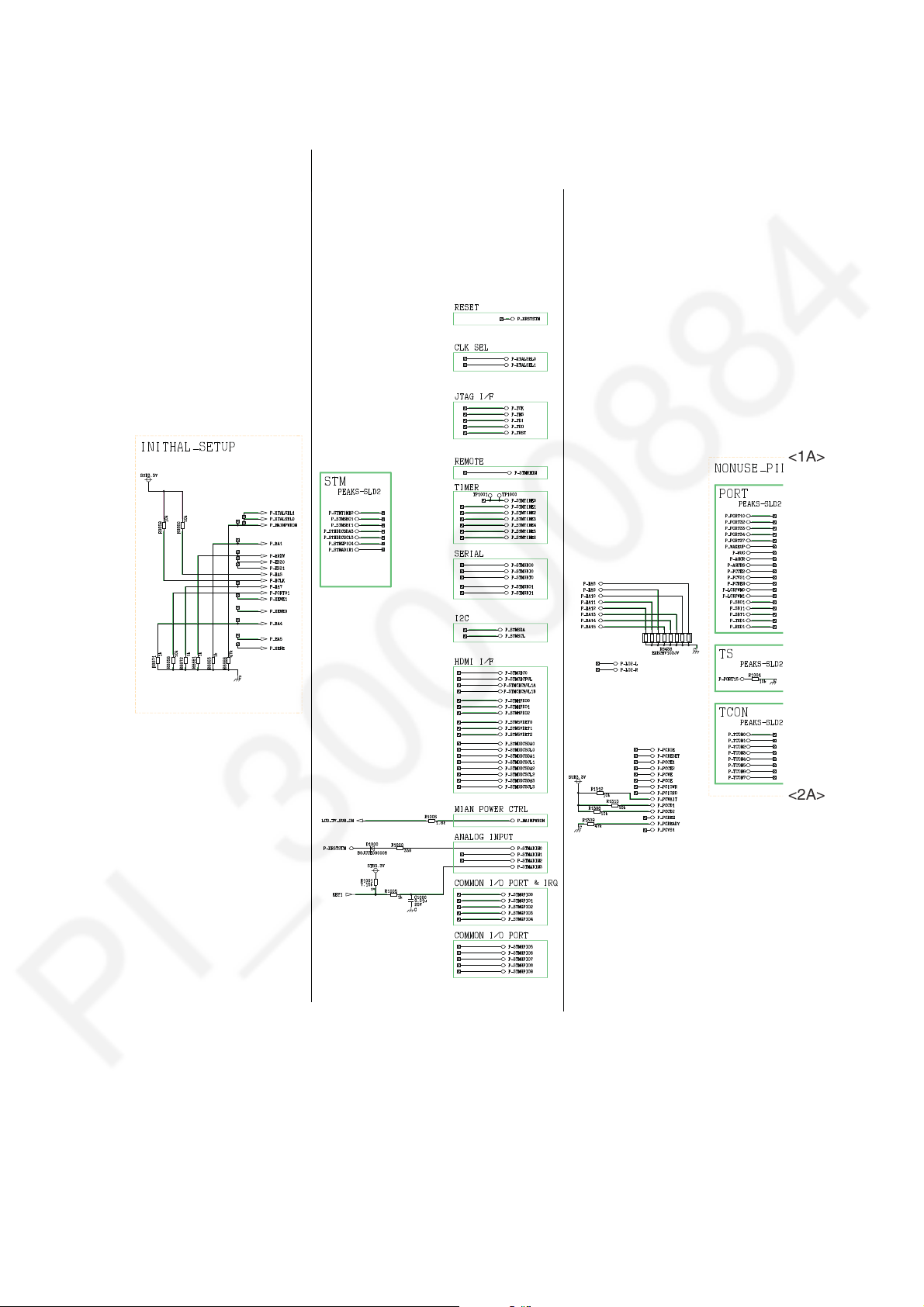

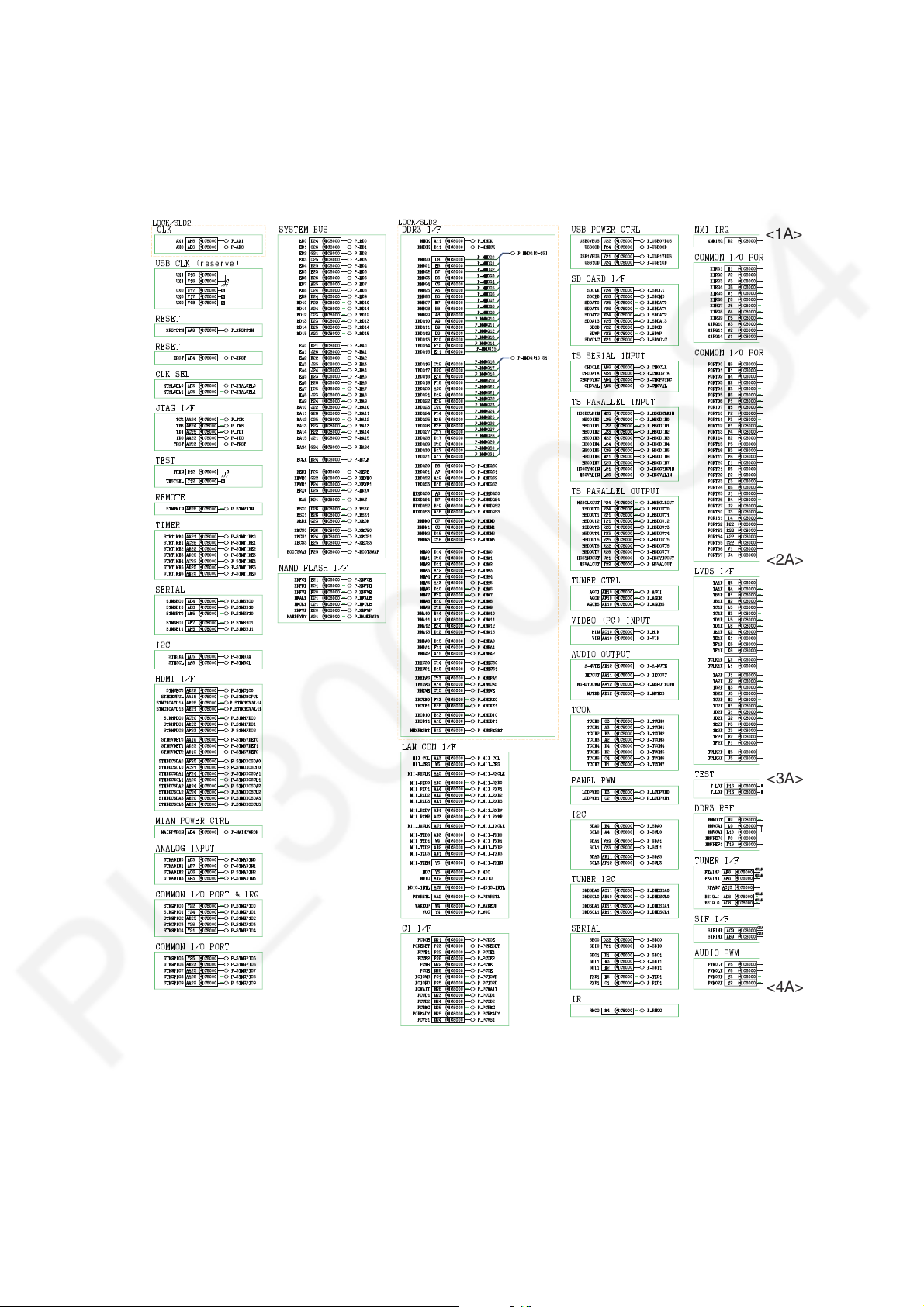

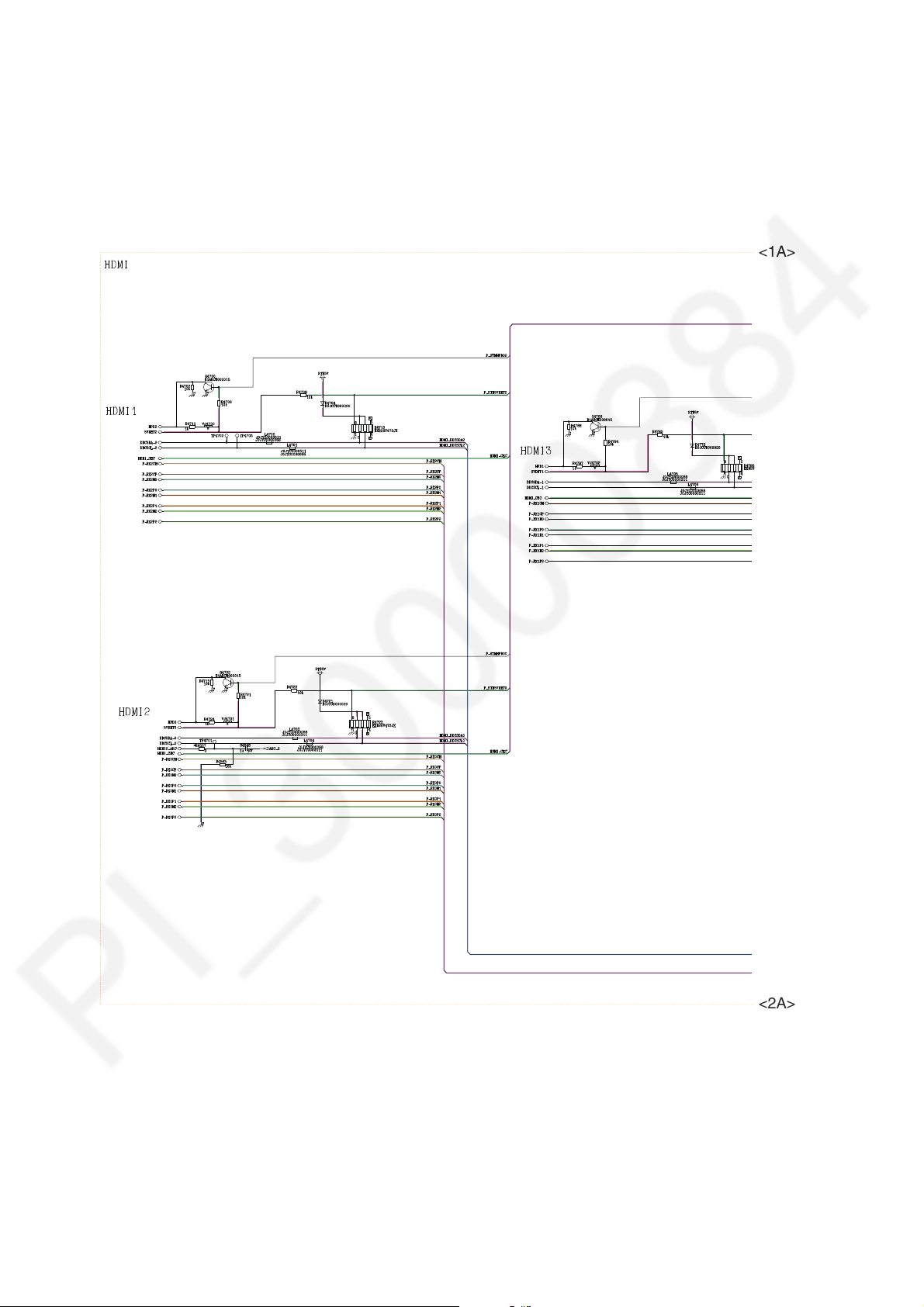

11.2.1. A Board - Sheet : 002 (1 / 2)

<1A>

<2A>

<3A>

TH-L32E3A

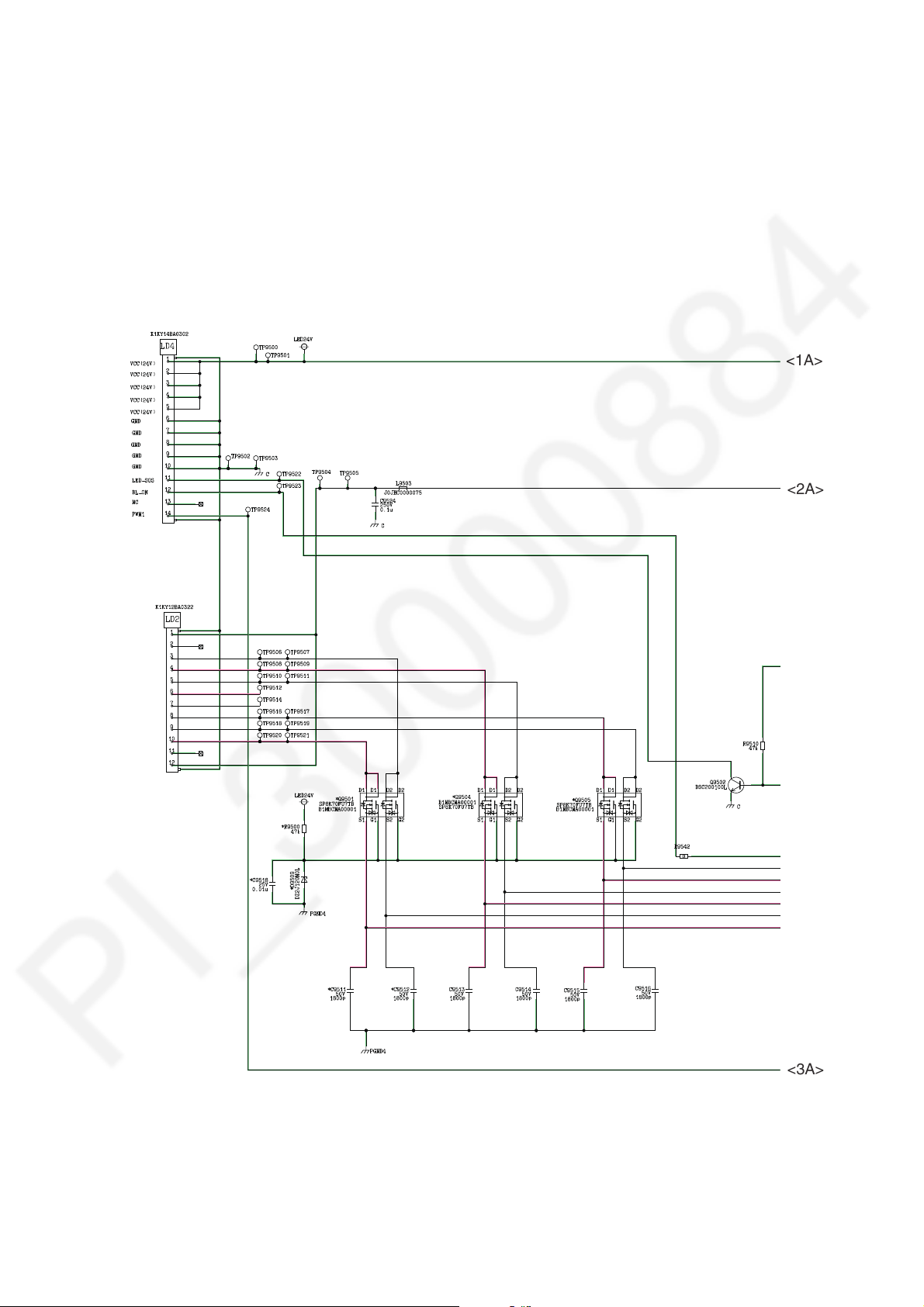

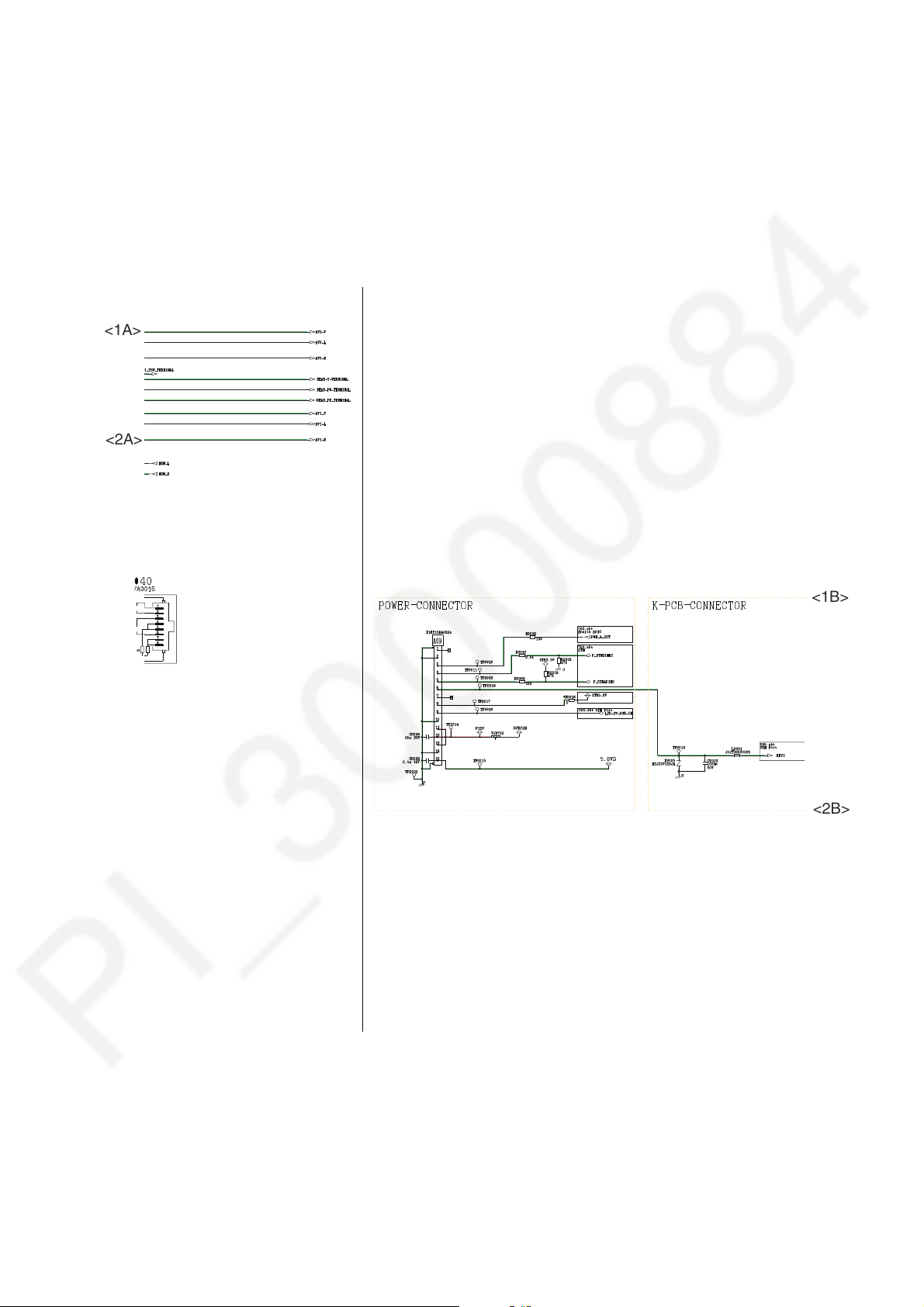

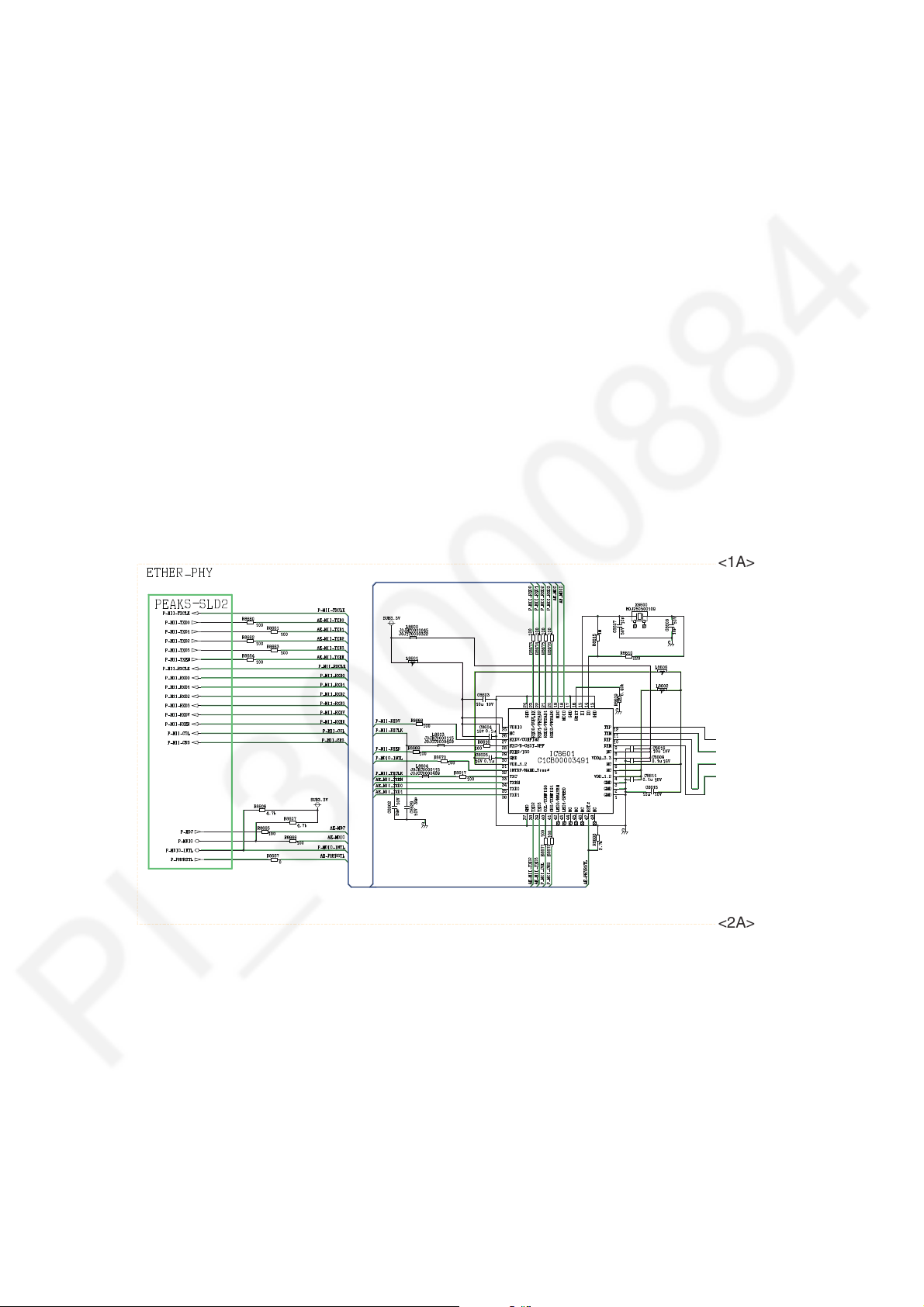

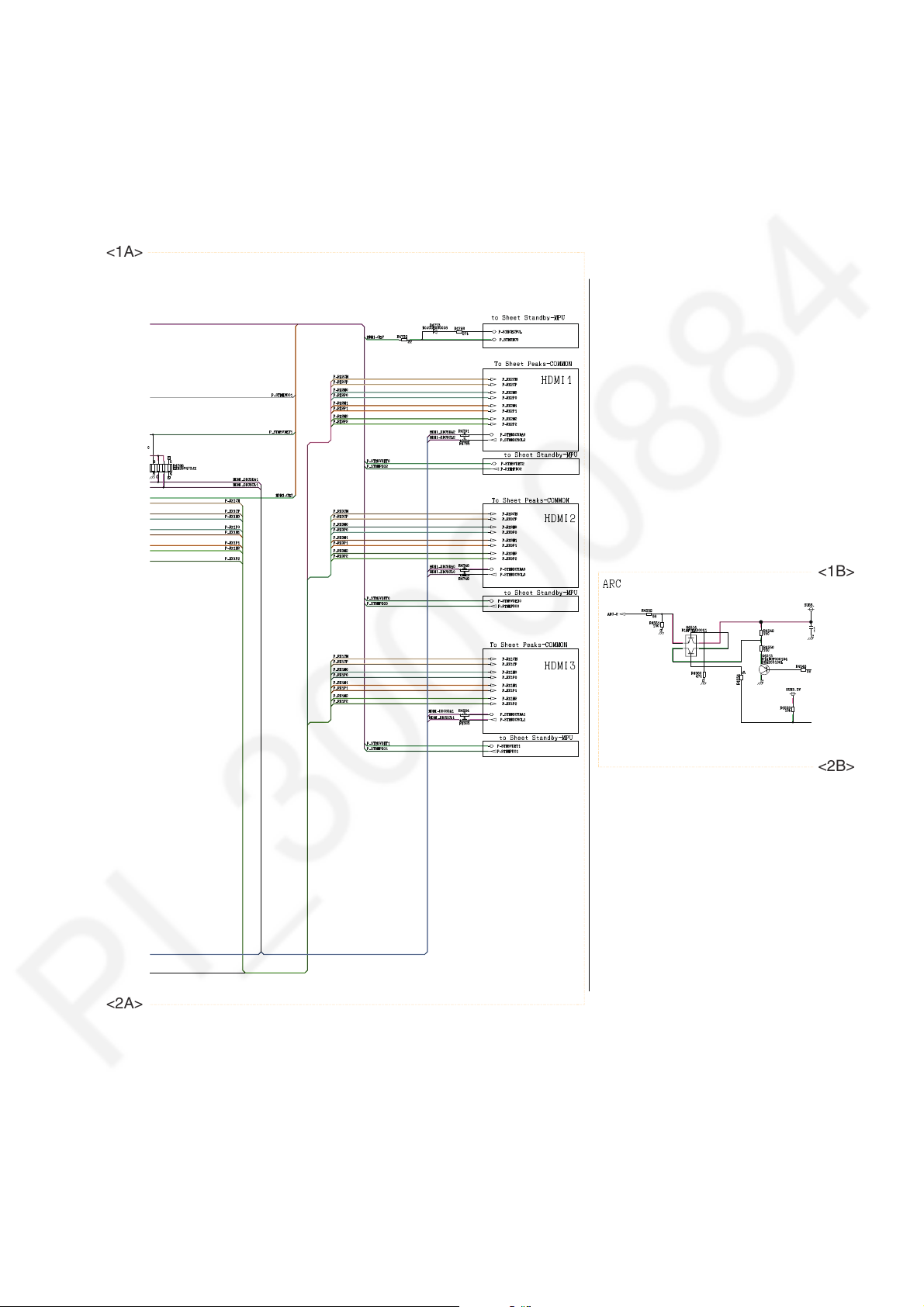

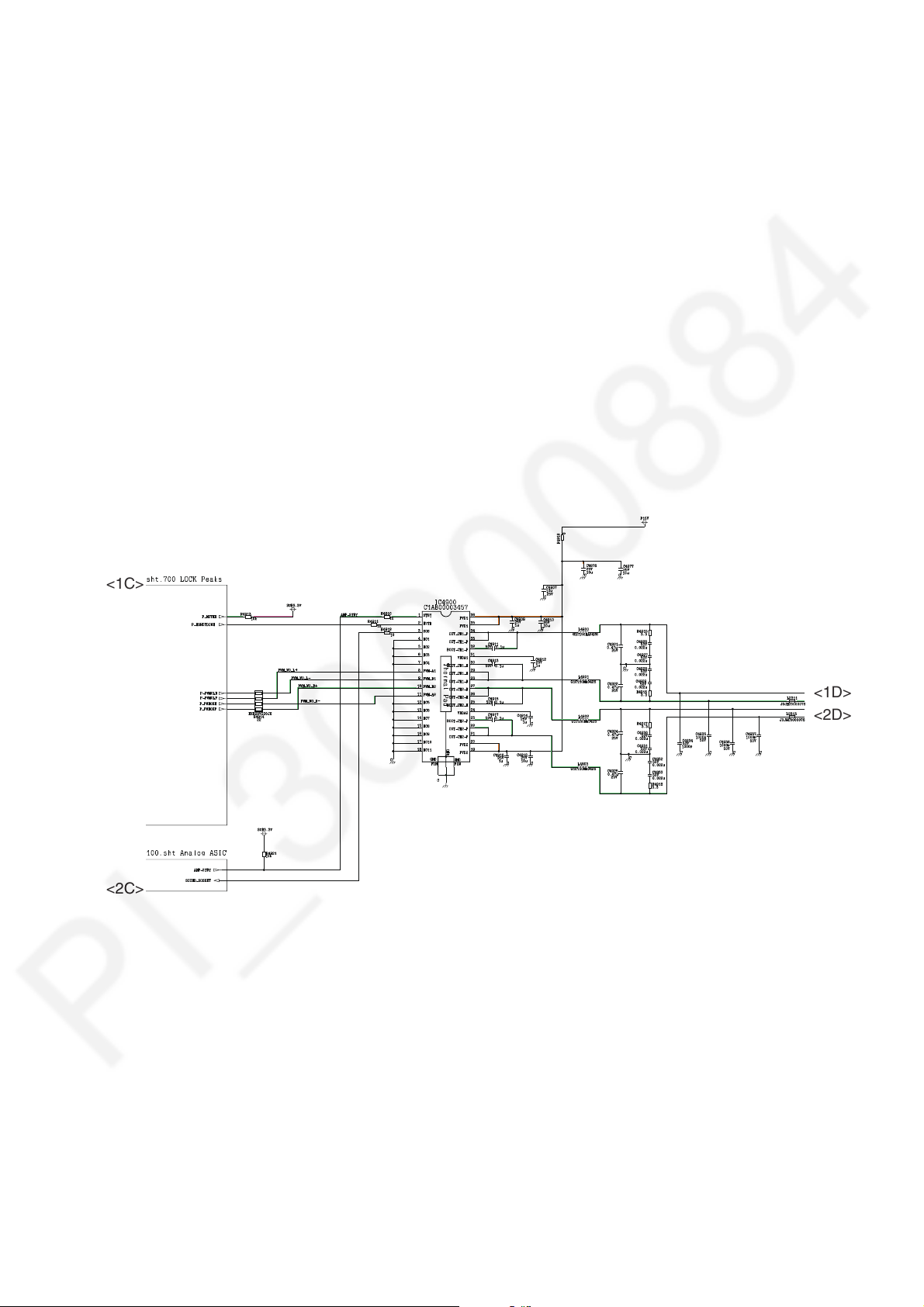

11.2.2. A Board - Sheet : 002 (2 / 2)

+ 63 hidden pages

Panasonic TH-L32E3A Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
