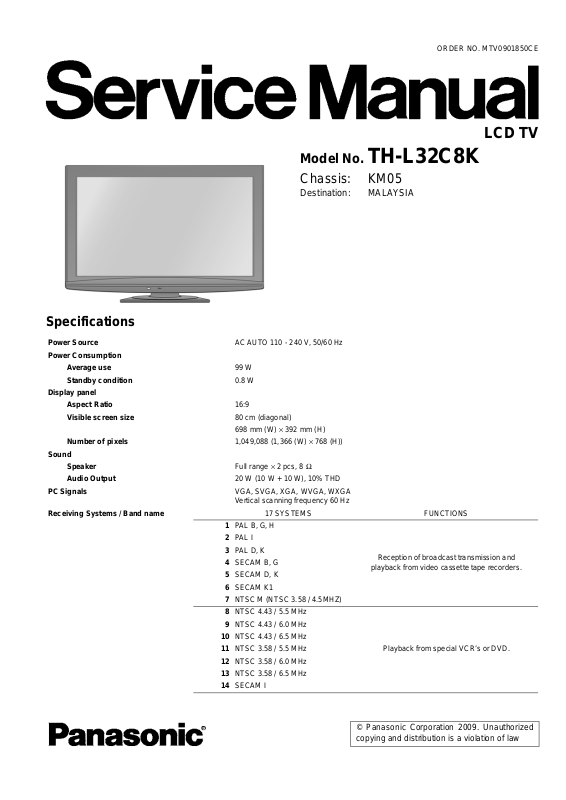

Page 1
Specifications
ORDER NO. MTV0901850CE
LCD TV
Model No. TH-L32C8K
Chassis: KM05
Destination: MALAYSIA
Power Source AC AUTO 110 - 240 V, 50/60 Hz
Power Consumption
Average use 99 W
Standby condition 0.8 W
Display panel
Aspect Ratio 16:9
Visible screen size 80 cm (diagonal)
698 mm (W) × 392 mm (H)
Number of pixels 1,049,088 (1,366 (W) × 768 (H))
Sound
Speaker Full range × 2 pcs, 8 Ω
Audio Output 20 W (10 W + 10 W), 10% THD
PC Signals VGA, SVGA, XGA, WVGA, WXGA
Receiving Systems / Band name 17 SYSTEMS FUNCTIONS
Vertical scanning frequency 60 Hz
1 PAL B, G, H
2 PAL I
3 PAL D, K
4 SECAM B, G
5 SECAM D, K
6 SECAM K1
7 NTSC M (NTSC 3.58 / 4.5MHZ)
8 NTSC 4.43 / 5.5 MHz
9 NTSC 4.43 / 6.0 MHz
10 NTSC 4.43 / 6.5 MHz
11 NTSC 3.58 / 5.5 MHz
12 NTSC 3.58 / 6.0 MHz
13 NTSC 3.58 / 6.5 MHz
14 SECAM I
Reception of broadcast transmission and
playback from video cassette tape recorders.
Playback from special VCR’s or DVD.
© Panasonic Corporation 2009. Unauthorized
copying and distribution is a violation of law
Page 2
TH-L32C8K
15 PAL 60 Hz / 5.5 MHz Playback from Special Disc Players and
16 PAL 60 Hz / 6.0 MHz
17 PAL 60 Hz / 6.5 MHz
Receiving Channels (Analogue TV)
VHF BAND 2 - 12 (PAL / SECAM B, K1)
0 - 12 (PAL B AUST.)
1 - 9 (PAL B N.Z.)
1 - 12 (PAL / SECAM D)
1 - 12 (NTSC M JAPAN)
2 - 13 (NTSC M USA)
UHF BAND 21 - 69 (PAL G, H, I / SECAM G, K, K1)
28 - 69 (PAL B AUST.)
13 - 57 (PAL D, K)
13 - 62 (NTSC M JAPAN)
14 - 69 (NTSC M USA)
CATV S1 - S20 (OSCAR)
1 - 125 (USA CATV)
C13 - C49 (JAPAN)
S21 - S41 (HYPER)
Z1 - Z37 (CHINA)
5A, 9A (AUST.)
Aerial - Rear VHF / UHF
Operating Conditions Temperature : 0°C - 40°C
Humidity : 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1 Input AUDIO L-R RCA PIN Type × 2 0.5 V [rms]
VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
AV2 Input AUDIO L-R RCA PIN Type × 2 0.5 V [rms]
VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
COMPONENT Y 1.0 V [p-p] (including synchronization)
, PR/C
P
B/CB
PC Input HIGH-DENSITY D-SUB 15 PIN R, G, B / 0.7 V [p-p] (75 Ω)
Dimensions (W x H x D) 798 mm × 551 mm × 217 mm (With Pedestal)
798 mm × 511 mm × 93 mm (TV only)
Mass 12.3 kg Net (With Pedestal)
11.4 kg Net (TV only)
Design and specifications are subject to change without notice. Weight and dimensions shown are approximate.
R
± 0.35 V [p-p]
HD, VD / TTL LEVEL 2.0-5.0 V [p-p] (high impedance)
Special VCR’s or DVD.
TABLE OF CONTENTS
1 Safety Precautions -----------------------------------------------4
1.1. General Guidelines ----------------------------------------4
1.2. Touch-Current Check--------------------------------------4
2 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices ------------------5
3 About Lead Free Solder (PbF)--------------------------------6
4 Power LED Blinking Timing -----------------------------------7
5 Location of Controls and Components--------------------8
5.1. Wire Dressing-----------------------------------------------8
6 Disassembly and Assembly Instructions-----------------9
PAGE PAGE
6.1. AC Cord Dressing -----------------------------------------9
6.2. AC Cord Installation------------------------------------- 10
6.3. LED Panel Installation And Fitting--------------------11
6.4. VESA Metal Assembly --------------------------------- 12
6.5. LCD Mounting Fixing ----------------------------------- 13
6.6. Chassis Frame Installation---------------------------- 14
6.7. Control Panel Assembly ------------------------------- 15
6.8. Chassis Installation-------------------------------------- 17
6.9. Sponge Speaker Sticking and VESA Fixing------- 18
6.10. Speaker Installation------------------------------------- 19
2
Page 3
6.11. Back Cover Screw----------------------------------------20
7 Service Mode Adjustment ------------------------------------21
7.1. Self Check Mode ----------------------------------------- 21
7.2. Hotel Mode Adjustment---------------------------------21
7.3. Hotel Mode-------------------------------------------------21
8 Measurements and Adjustments---------------------------22
8.1. A-PCB Electrical Check---------------------------------22
8.2. P-PCB Electrical Check---------------------------------22
9 Printed Circuit Board-------------------------------------------23
9.1. A-Board -----------------------------------------------------23
9.2. A-Board -----------------------------------------------------23
10 Schematic Diagram---------------------------------------------24
10.1. Schematic Diagram Notes -----------------------------24
10.2. A Board -----------------------------------------------------25
10.2.1. A Board (1 / 7)----------------------------------------25
10.2.2. A Board (2 / 7)----------------------------------------26
10.2.3. A Board (3 / 7)----------------------------------------27
10.2.4. A Board (4 / 7)----------------------------------------28
10.2.5. A Board (5 / 7)----------------------------------------29
10.2.6. A Board (6 / 7)----------------------------------------30
10.2.7. A Board (7 / 7)----------------------------------------31
10.3. H Board -----------------------------------------------------32
10.3.1. H Board (1 / 3)----------------------------------------32
10.3.2. H Board (2 / 3)----------------------------------------33
10.3.3. H Board (3 / 3)----------------------------------------34
10.4. K Board -----------------------------------------------------35
10.4.1. K Board (1 / 2)----------------------------------------35
10.4.2. K Board (2 / 2)----------------------------------------36
10.5. P Board -----------------------------------------------------37
10.5.1. P Board (1 / 4)----------------------------------------37
10.5.2. P Board (2 / 4)----------------------------------------38
10.5.3. P Board (3 / 4)----------------------------------------39
10.5.4. P Board (4 / 4)----------------------------------------40
10.6. V Board -----------------------------------------------------41
10.6.1. V Board (1 / 3)----------------------------------------41
10.6.2. V Board (2 / 3)----------------------------------------42
10.6.3. V Board (3 / 3)----------------------------------------43
11 Exploded View and Replacement Parts List -----------44
11.1. Exploded View and Mechanical Replacement
Parts List----------------------------------------------------44
1 1 .2. Electrical Replacement Parts List --------------------44
1 1.2.1. Replacement Parts List Notes--------------------44
1 1 .2.2. Electrical Replacement Parts List ---------------45
TH-L32C8K
3
Page 4
TH-L32C8K
1 Safety Precautions
1.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, repla ce all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.2. Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch cu rrents between each exposed metallic part on the set and a good earth ground
such as a water pipe as shown in Figure 1.
3. Use the Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part and measure the voltage at each point.
5. The potential at any point (touch current) expressed as voltage U
For AC: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For DC: U
NOTE :
The limit value of U
DC.
The limit value U
= 1.0 V,
1
= 0.35 V (peak) for AC and U1 = 1.0 V for DC correspond to the values 0.7 mA (peak) AC and 2.0 mA
2
= 35 V (peak) for AC correspond to the value 70 mA (peak) AC for frequencies greater than 100 kHz.
1
and U2, do not exceed the following values:
1
6. Should a measurement be out of the limits specified, there is a possibility of a sh ock hazard, and the equipment should be
repaired and rechecked before it is returned to the customer.
4
Page 5
TH-L32C8K
2 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easi ly by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits a nd some fieldeffect transistors and semiconductor “chip” components. The following techniques should be used to help redu ce the
incidence of component damage caused by electro static discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminium foil to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can
generate electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it (most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminium foil or
comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution:
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices (otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can gen erate static electricity (ESD)
sufficient to damage an ES device).
5
Page 6
TH-L32C8K
3 About Lead Free Solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead Solder and PbF will refer to Lead Free Solder.
The Lead Free Solder (PbF) used in our manufacturing proce ss and discussed below is (Sn+Ag+Cu).
Those are Tin (Sn), Silver (Ag) and Copper (Cu), although other types are available.
This model uses PbF in its manufacture due to environmental conservation issues. For service and repair work, we would suggest
the use of PbF as well, although Pb may be used.
PCBs manufactured using lead-free will have the “PbF within a leaf Symbol” stamped on their back.
Caution
• PbF has a higher melting point than that of standard solder. Typically the melting point is 50 ~ 70°F (30~40°C) higher.
Please use a high temperature soldering iron and set it to 700 ± 20°F (370 ± 10°C).
• PbF will tend to splash when heated too high (about 1100°F or 600°C).
If you must use Pb solder, please completely remove all of the PbF on the pins or solder area before applyi ng Pb. If this is not
practical, be sure to heat the PbF until it melts, before applying Pb.
• After applying PbF to double layered boards, please check the component side for excess solder which may flow onto the
opposite side (see Figure 2).
Figure 2
Suggested PbF
There are several kinds of PbF available for purchase. This product uses Sn+Ag+C u (tin, silver, copper) solder. However, Sn+ Cu
(tin, copper) and Sn+Zn+Bi (tin, zinc, bismuth) solders can also be used.
Figure 3
6
Page 7
4 Power LED Blinking Timing
1. Subject
Information of LED Flashing timing.
2. Contents
When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the
defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:
Blinking times Contents Check Point
2 INVERTER - SOS FPGA 6pin
5 24 down VCTP 106pin
6 SUB 8V down VCTP 1pin
7 Voltage down_3.3V VCTP 160pin
8 FPGA down VCTP 105pin
TH-L32C8K
7
Page 8
TH-L32C8K
5 Location of Controls and Components
5.1. Wire Dressing
1. Wiring No.1 ~ No.14
2. Remove dust of terminal of LVDS and PB connector. (by ion blow)
Wire
No.1 CN 1 ~ P2
No.2 CN 1 ~ A6
No.3 A12 ~ SP(R)
No.4 A12 ~ SP(L)
No.5 A9 ~ V10
No.6 A01 ~ K01
SLOT AT CHASSIS FRAME CLAMPER
1234567891011121314
8
SLOT AT CHASSIS
FRAME
CLAMPER
Page 9
6 Disassembly and Assembly Instructions
6.1. AC Cord Dressing
1. Clamp plug with clamper.
2. Insert beads 3pcs. And slide down to lower hole.
TH-L32C8K
9
Page 10
TH-L32C8K
6.2. AC Cord Installation
1. Put on the AC CORD BRACKET on the CABINET.
2. Fix the AC CORD BRACKET with SCREW.
3. AC CORD BARRIER setting.
4. Insert AC CORD connector into P-PCB connector.
5. Clamp the AC CORD.
6. Insert AC CORD bushing into the AC CORD BRACKET.
10
Page 11
6.3. LED Panel Installation And Fitting
1. Fix LED PANEL on CABINET.
2. Wire connecting. (V10)
3. Put V-PCB on CABINET.
4. Fix them with SCREW.
5. Insert the CLAMPER.
TH-L32C8K
11
Page 12
TH-L32C8K
6.4. VESA Metal Assembly
Assemble LCD TOP MTG(L,R) , VESA METAL(upper) and fix them with screw. Please use jig for vesa metal assembly
preparation.
12
Page 13
6.5. LCD Mounting Fixing
STEP 1
1. Fixing LCD SIDE MTG L and R on the CABINET.
2. LCD BTM MTG on the CABINET.
3. Fix them with SCREW.
TH-L32C8K
STEP 2
1. Fixing VESA METAL ASSY on the LCD PANEL.
2. Fix the VESA METAL ASSY with SCREW.
13
Page 14
TH-L32C8K
6.6. Chassis Frame Installation
PART 1
1. A-PB-MTG METAL
2. Fix it with screw
PART 2
1. PI-PCB FRAME
2. Fix it with screw
14
Page 15
6.7. Control Panel Assembly
1. Wire connecting. (K01)
2. Assemble POWER BUTTON to the K-PRINT.
3. Assemble K-PRINT, CONTROL BUTTON, CONTROL PANEL BRACKET.
4. Fix them with SCREWS.
5. Stick the FELT.
TH-L32C8K
15
Page 16
TH-L32C8K
1. Put control panel Assy on the cabinet.
2. Fix the control panel with screws.
16
Page 17
6.8. Chassis Installation
1. Stick Felt at Side AV Bracket.
2. Install Chassis at Chassis Frame.
3. Fix Side AV Bracket.
4. Fix Chassis with Screw.
TH-L32C8K
17
Page 18
TH-L32C8K

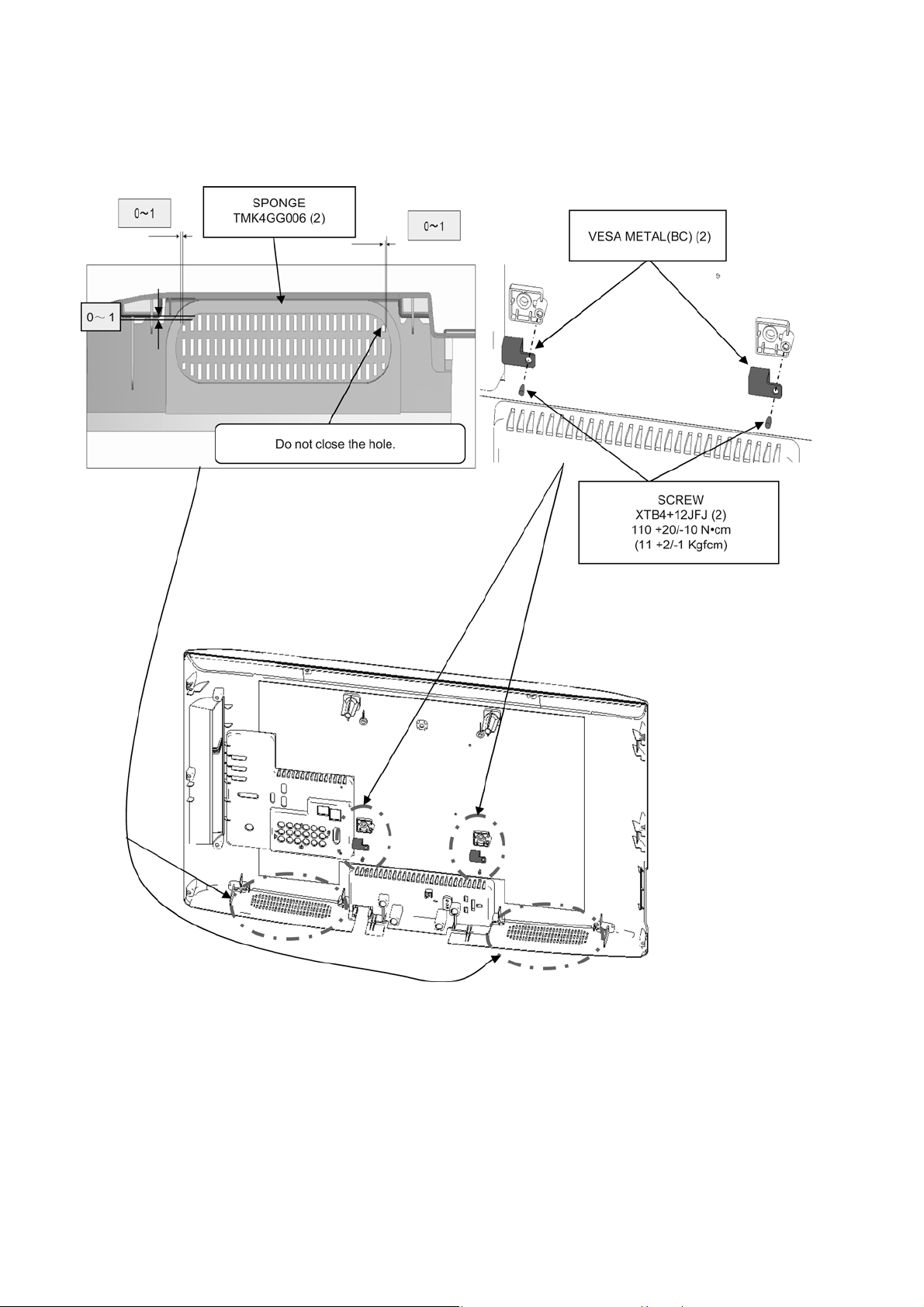

6.9. Sponge Speaker Sticking and VESA Fixing
1. Stick the SPONGE.Follow the picture. Please use jig to control position spec.
2. Put VESA METAL(BC) on the BACK COVER.
3. Fix them with SCREWS.
18
Page 19

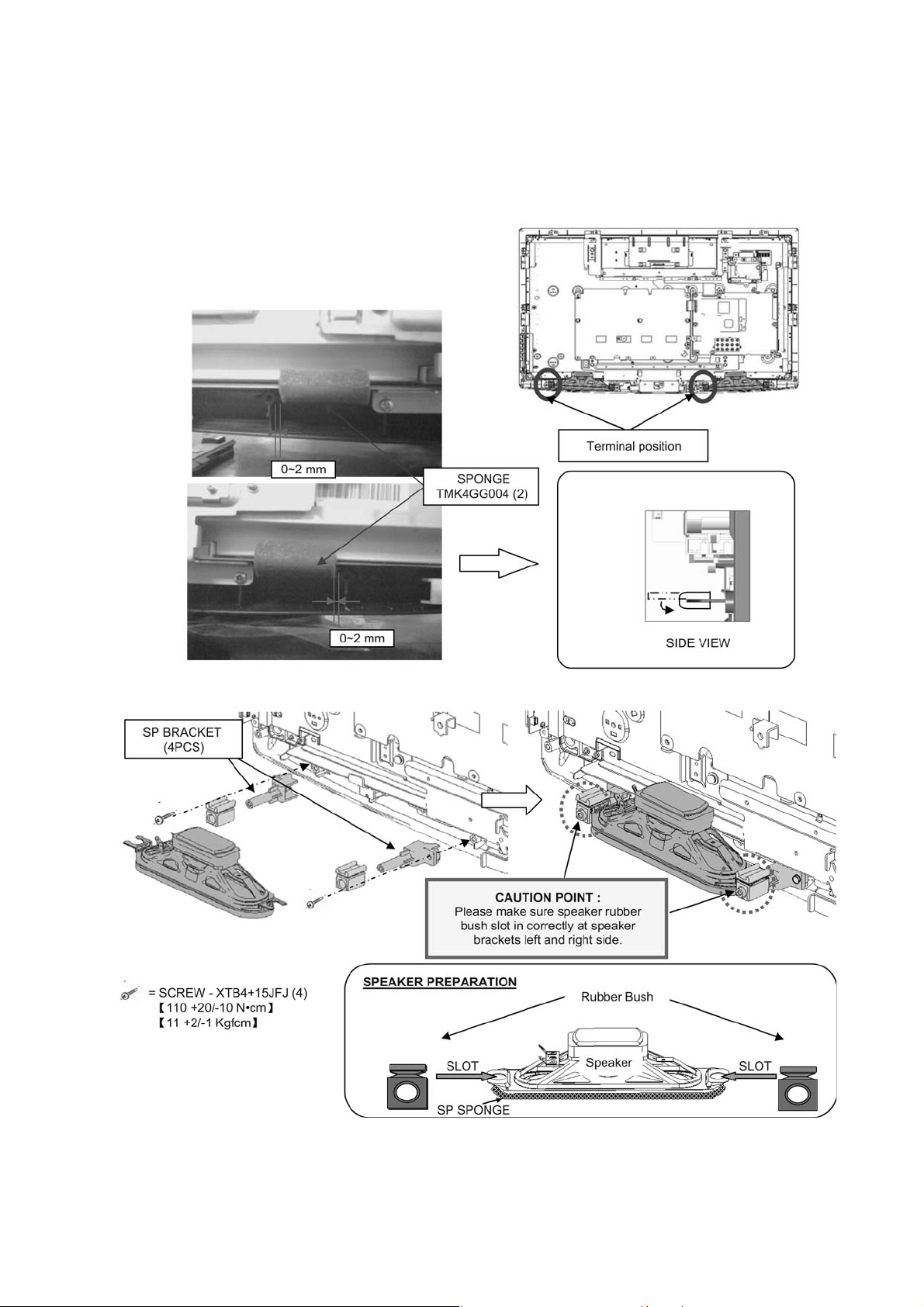

6.10. Speaker Installation
1. Stick the SPONGE. Follow the bellow spec.
2. SP BRACKET slot at CABINET.
3. Insert the SP RUBBER BUSH into the SP UNIT.
4. Insert the SP UNIT to SP BRACKET.
5. Fix them with SCREWS.
TH-L32C8K
19
Page 20
TH-L32C8K

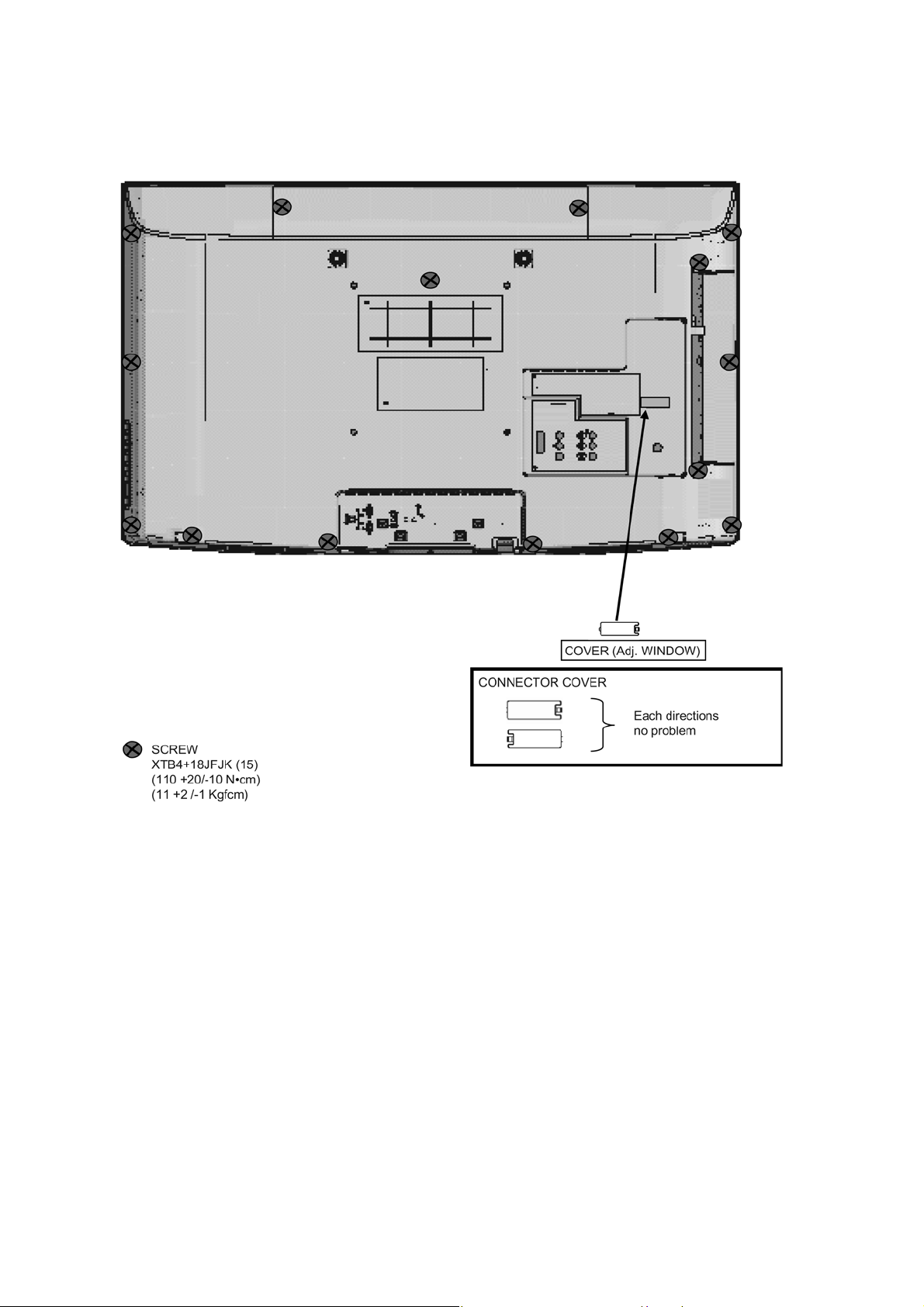

6.11. Back Cover Screw
1. Fix the BACK COVER with SCREWS.
2. Insert COVER (Adj. window).
20
Page 21
TH-L32C8K
7 Service Mode Adjustment
Set timer to 30min, press the “RECALL” button on the remote control and press “-” vol button on the LCD panel.
• Press button R and G for adjustment.
7.1. Self Check Mode
1. Press the “MENU” button (on the remote control) and the “DOWN” button on the LCD panel.
2. Press ON/OFF button on the panel to Exit.
7.2. Hotel Mode Adjustment
1. Press the “VOLUME DOWN” button on the TV panel and simultaneously press the AV button on the remote control 3 times to
enter Hotel Mode.
2. Set Hotel mode “on/off”, then press “EXIT” to come out.
7.3. Hotel Mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu, please
enter the following command (within 2 second).
[TV] : Hold Vol [Down] + [Remote] : Press AV button 3
times.

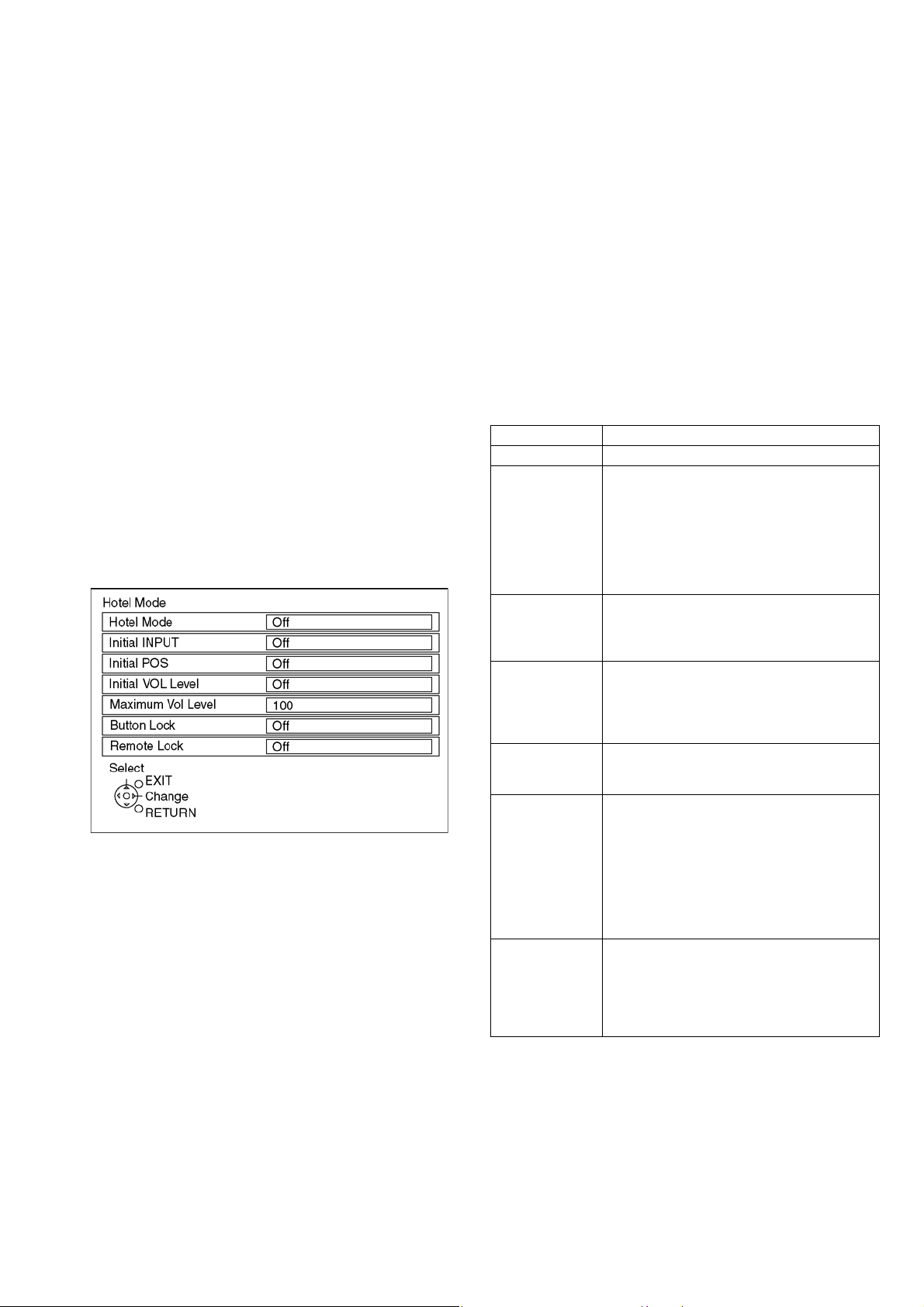

Then, the Hotel mode setup menu is displayed.
Item Function
Hotel Mode Select hotel mode ON/OFF
Initial INPUT Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
OFF/Analogue TV/Digital TV/AV1/AV2/AV3//PC/
HDMI1/HDMI2/HDMI3
• Off: give priority to a last memory.
• Selectable input is depend on the model.
Initial POS Select programme number.
Selection :
Off/0 to 100
• Off: give priority to a last memory.
Initial VOL level Adjust the volume when each time power is
switched on.
Selection/Range :
Off/0 to 100
• Off: give priority to a last memory.
Maximum VOL
level
Button lock Select local key conditions.
Remote lock Select remote control key conditions.
Adjust maximum volume.
Range :
0 to 100
Selection :
Off/SETUP/MENU/All
• Off: altogether valid.
• SETUP: only F-key is invalid.
(Tuning guide (menu) can not be selected.)
• MENU: only F-key is invalid.
(only Volume/Mute can be selected.)
• ALL: altogether invalid.
Selection :
Off/SETUP/MENU
• Off: altogether valid.
• SETUP: only Setup menu is invalid.
• MENU: Picture/Sound/Setup menu are invalid.
21
Page 22
TH-L32C8K
8 Measurements and Adjustments
8.1. A-PCB Electrical Check
1. Connect the dummy set and turn on the main power SW and check that each output voltage of test point is within the specifications below.
CONDITION : Philip pattern - dynamic (Normal)
- Sound Minimum
2. Turn off the power supply by the remote controller and set to standby and check that each output voltage of test point is within
the specifications below.
Power Supply name Test Point
MAIN_5V TP5427 5.10 ± 0.25V -
PANEL_12V TP5413 2.0 + 0.6V / -0.45V -
BT_30V TP5429 30.0V ± 2.0V -
24V TP5423 24.0 ± 1.2V -
MAIN_8V TP5425 8.1V ± 0.4V STB_3.3V TP5420 3.30 ± 0.17V 3.30 ± 0.17V
STB_1.8V TP5421 1.89 ± 0.09V 1.89 ± 0.09V
SOUND_11V TP5417 13.43V ± 0.7V -
3. Main power SW circuit check
Turn the power off with the power key on the remote controller and the set shall not turn on when the main power SW is turned
on.
Receiving Standby
Spec.
8.2. P-PCB Electrical Check
1. Connect the dummy set and turn on the main power SW and check that each output voltage of test point is within the specifications below.
CONDITION : Philip pattern - dynamic (Normal)
- Sound Minimum
2. Turn off the power supply by the remote controller and set to standby and check that each output voltage of test point is within
the specifications below.
Power Supply name Test Point Normal condition (V) Standby Condition (V)
24V TPP026 24 ± 1.2 Don’t care
12V TPP033 12.0 + 0.6 / -0.45 < 1.0
AUDIO_VCC TPP028 13.43 ± 0.7 Don’t care
STB_5R6V TPP012 5.8 ± 0.3 5.8 ± 0.3
22
Page 23
9 Printed Circuit Board
1
A
B
C
2 3 4 5 6 7 8 9 10
1
A
B
C
2 3 4 5 6 7 8 9 10

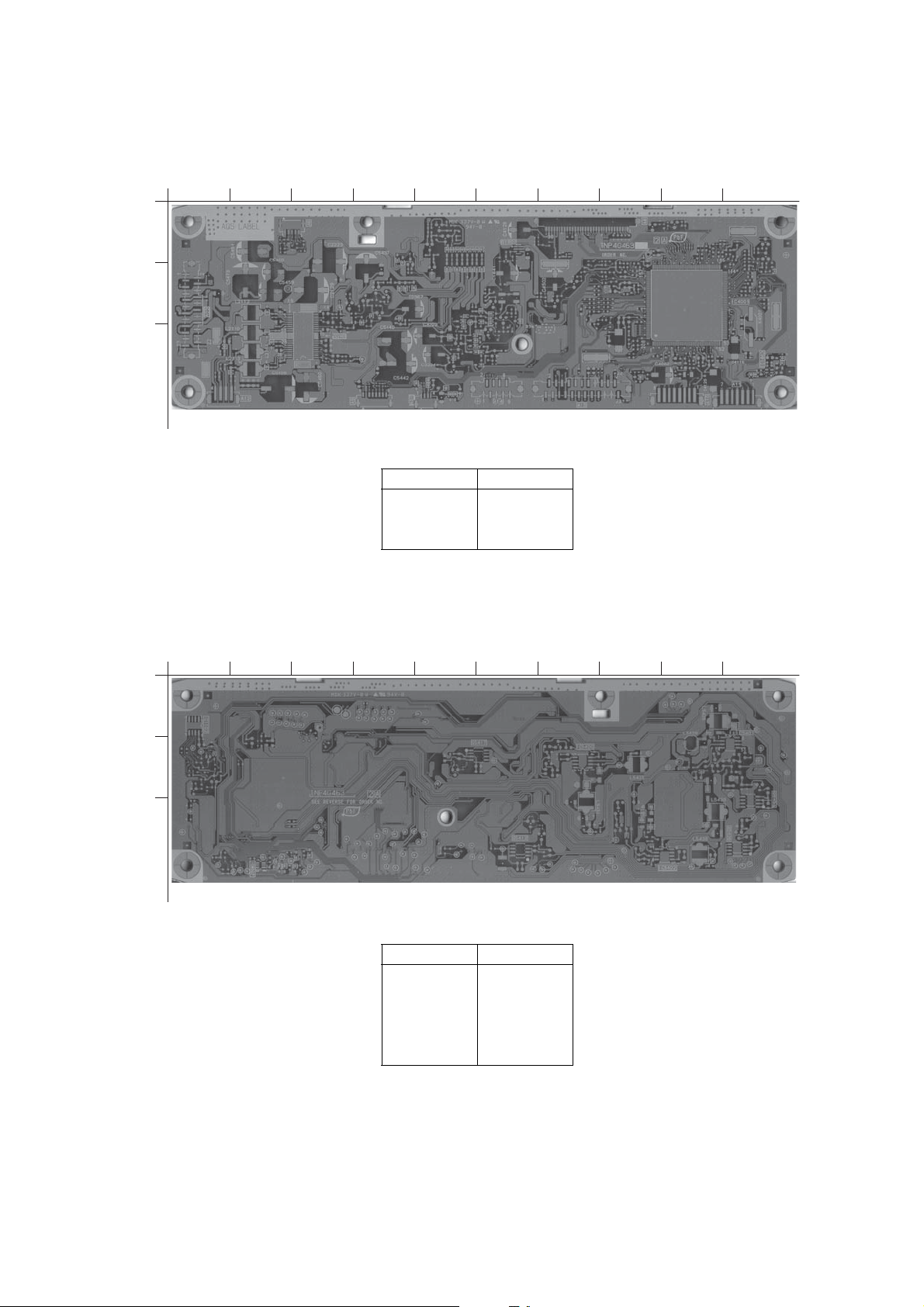

9.1. A-Board
A-Board (A Side)
TNP4G463
TH-L32C8K
Parts Location
Ref. No Location
IC1803 C10
IC2001 C3
IC4001 B9
9.2. A-Board
A-Board (B Side)
TNP4G463
Parts Location
Ref. No Location
IC1102 A1
IC4007 C2
IC5400 B7
IC5401 B10
IC5402 C9
23
Page 24
TH-L32C8K
10 Schematic Diagram

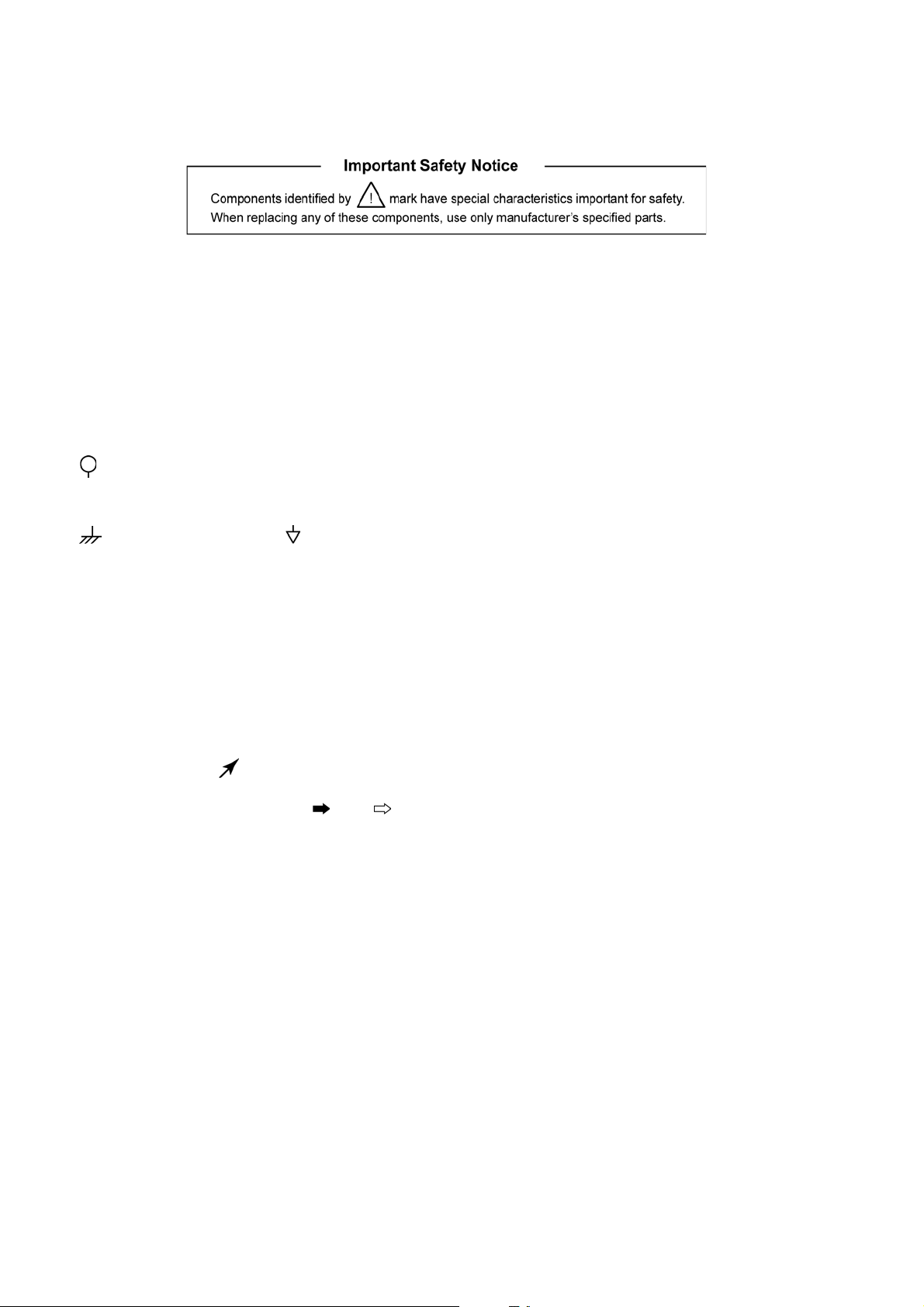

10.1. Schematic Diagram Notes
Notes :
1. Resistor
Unit of resistance is OHM [Ω] (K = 1 000, M = 1 000 000).
2. Capacitor
Unit of capacitance is μF unless otherwise noted.
3. Coil
Unit of inductance is μF unless otherwise noted.
4. Test Point
: Test Point position
5. Earth Symbol
: Chassis Earth (Cold) : Line Earth (Hot)
6. Voltage Measurement
Voltage is measured using DC voltmeter.
Conditions of the measurement are the following :
Power Source....................AC AUTO 110-240 V, 50/60 Hz
Receiving Signal................Colour Bar signal (RF)
All customer’s controls.......Maximum positions
7. Number in red circle indicates waveform number.
(See waveform pattern table)
8. When an arrow mark ( ) is found, connection is easily found from the direction of the arrow.
9. Indicates the major signal flow: Video Audio
10. This schematic diagram is the latest at the time of printing and subject to change without notice.
Remarks :
1. The Power Circuit contains a circuit area which uses a separate power supply to isolate the earth connection.
The circuit is defined by HOT and COLD indications in the schematic diagram. Take the following precautions:
All circuits, except the Power Circuit are cold.
Precautions:
a. Do not touch the hot part or the hot and cold parts at the same time or you may be shocked.
b. Do not short-circuit the hot and cold circuits or a fuse may blow and parts may break.
c. Do not connect an instrument such as an oscilloscope to the hot and cold circuits simultaneously or a fuse may blow.
Connect the earth of instruments to the earth connection of the circuit being measured.
d. Make sure to disconnect the power plug before removing the chassis.
24
Page 25

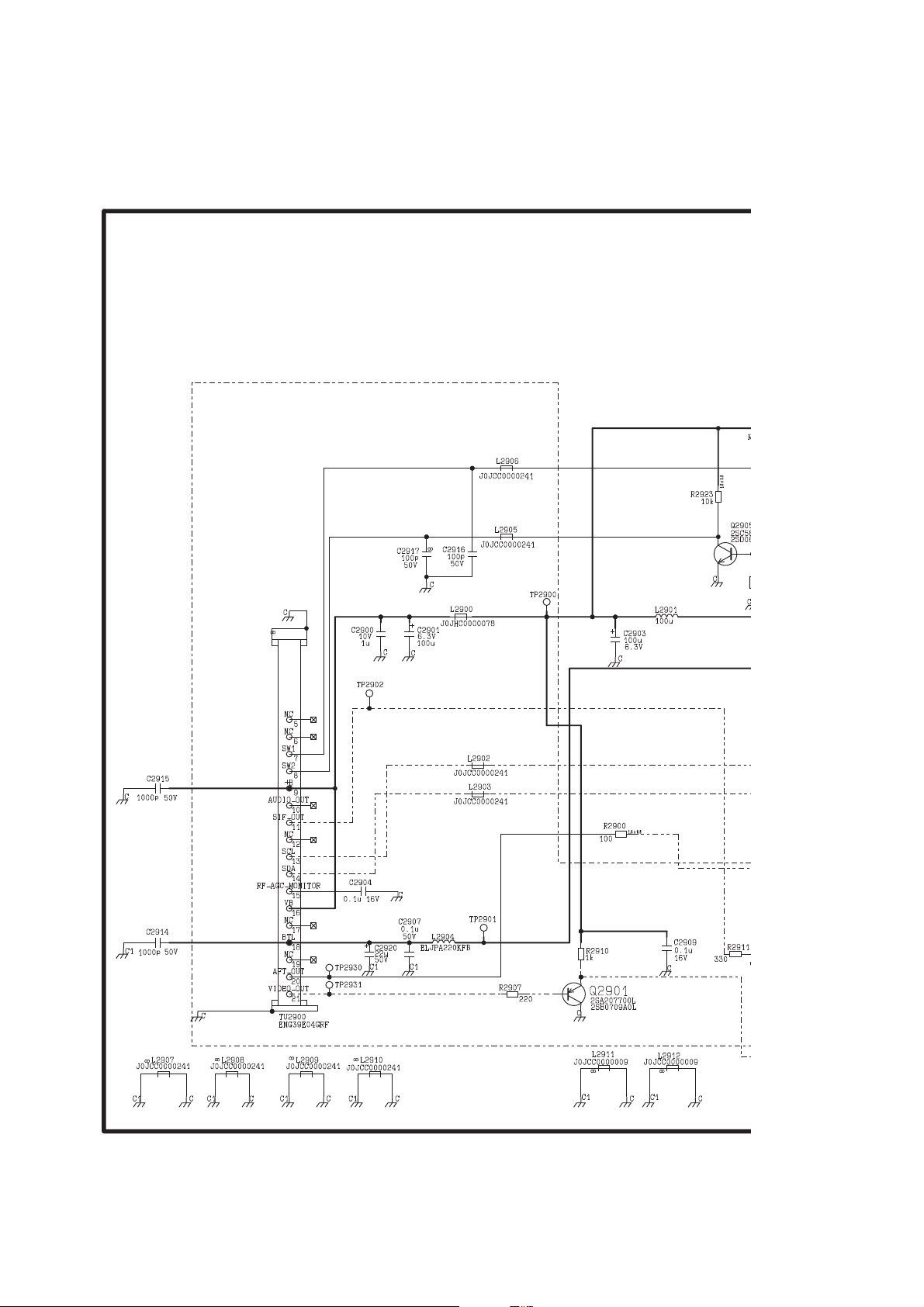

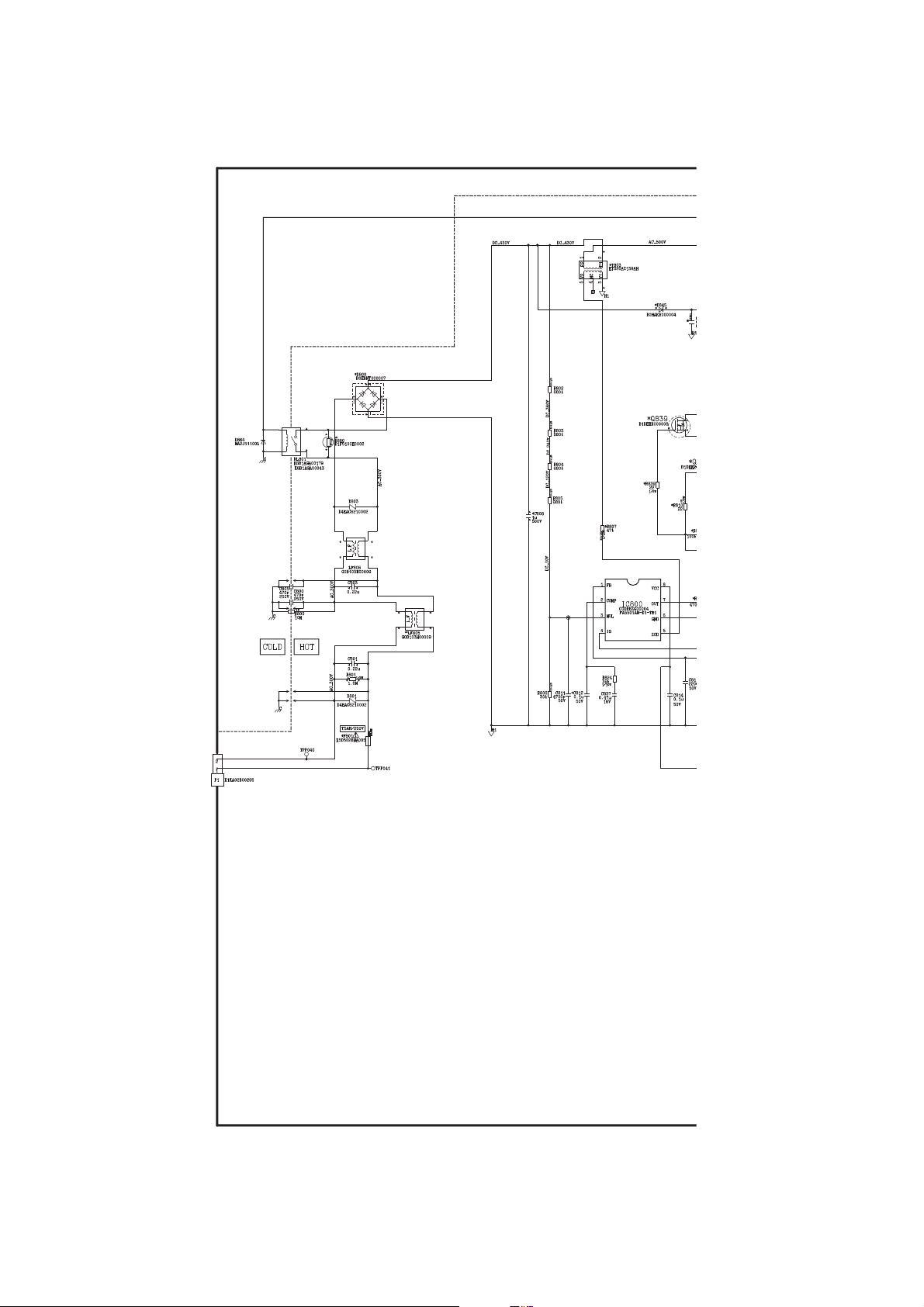

10.2. A Board
<1A>
<2A>
<3A>
<4A>
<5A>
<6A>
<7A>
<8A>

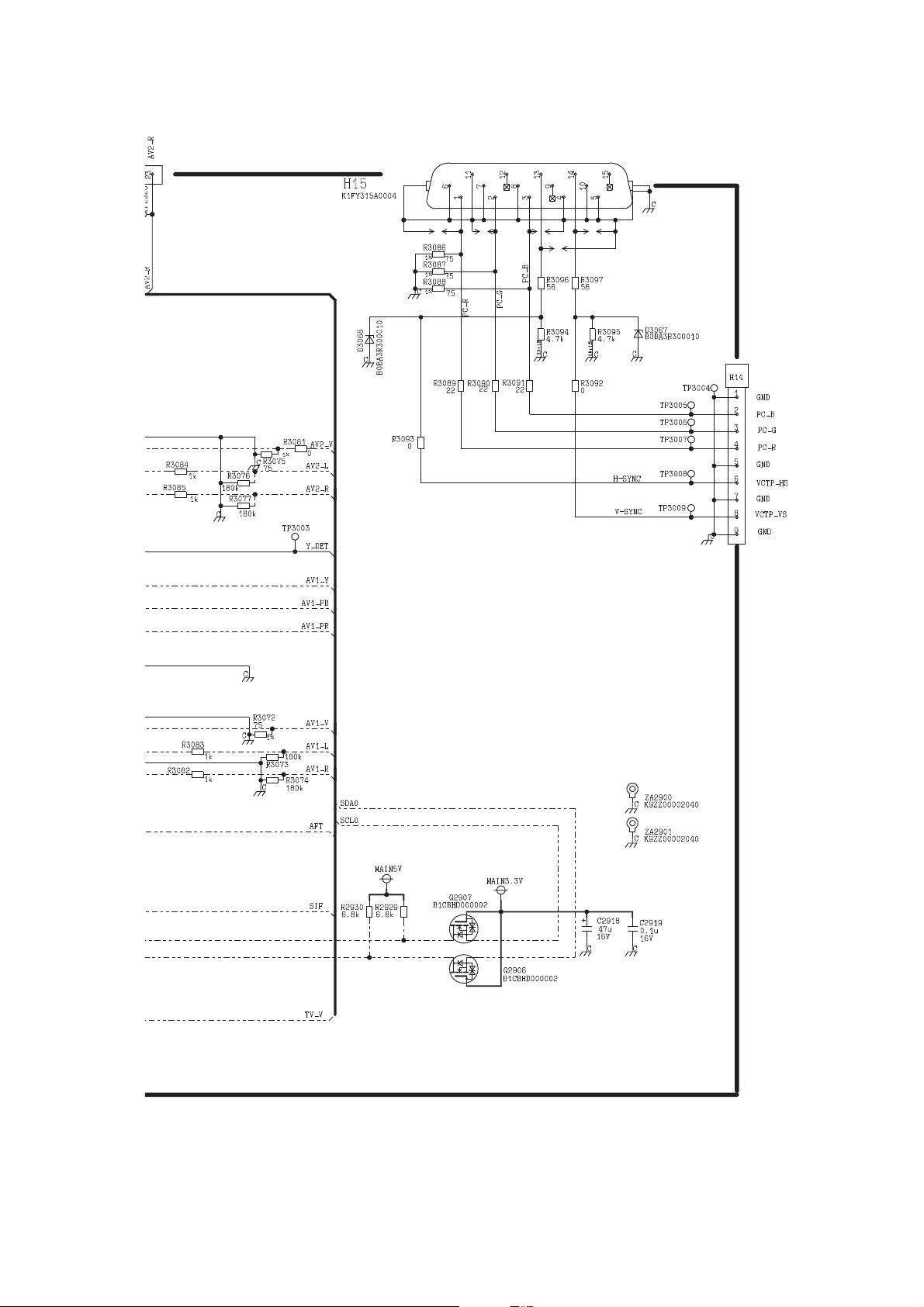

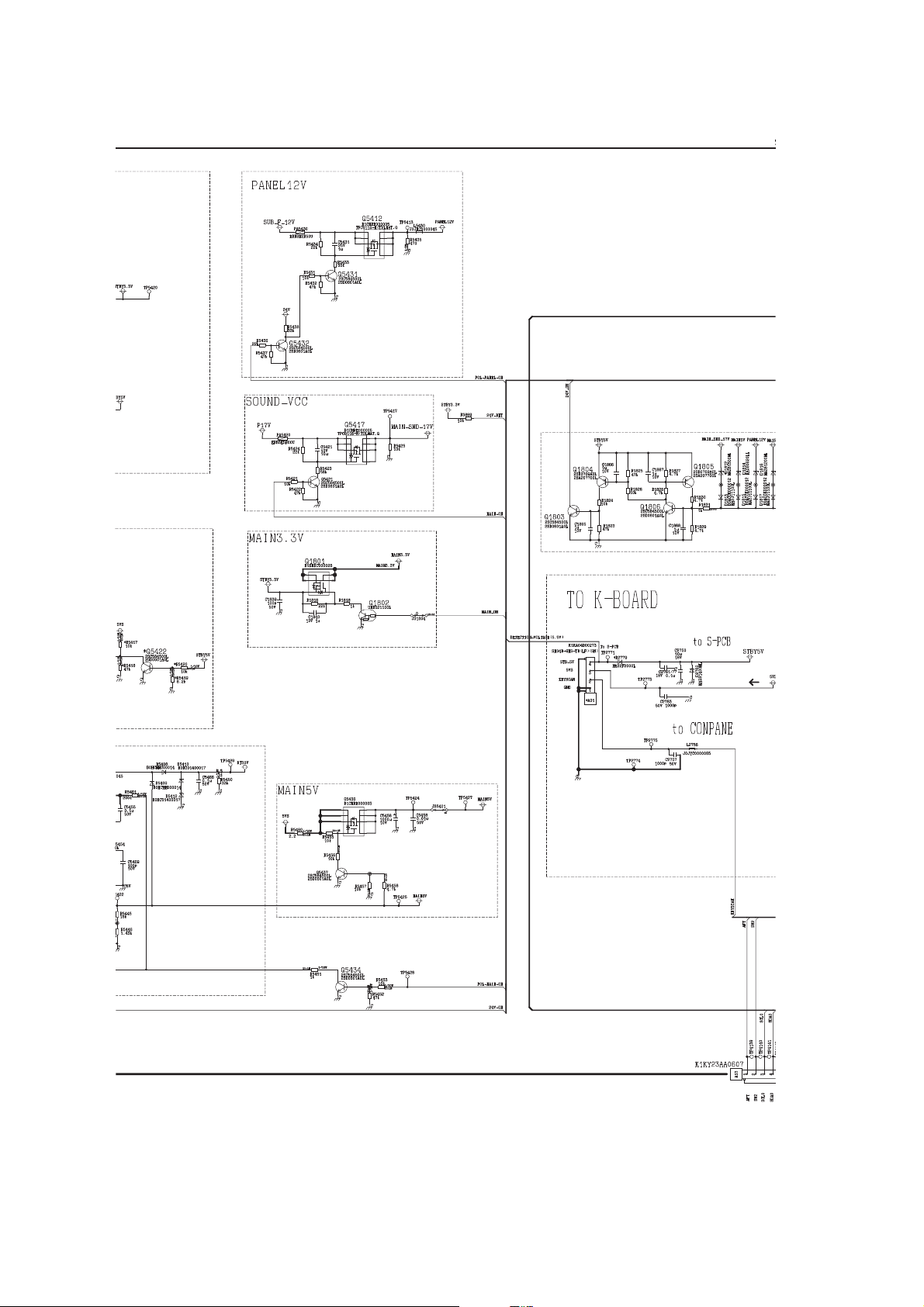

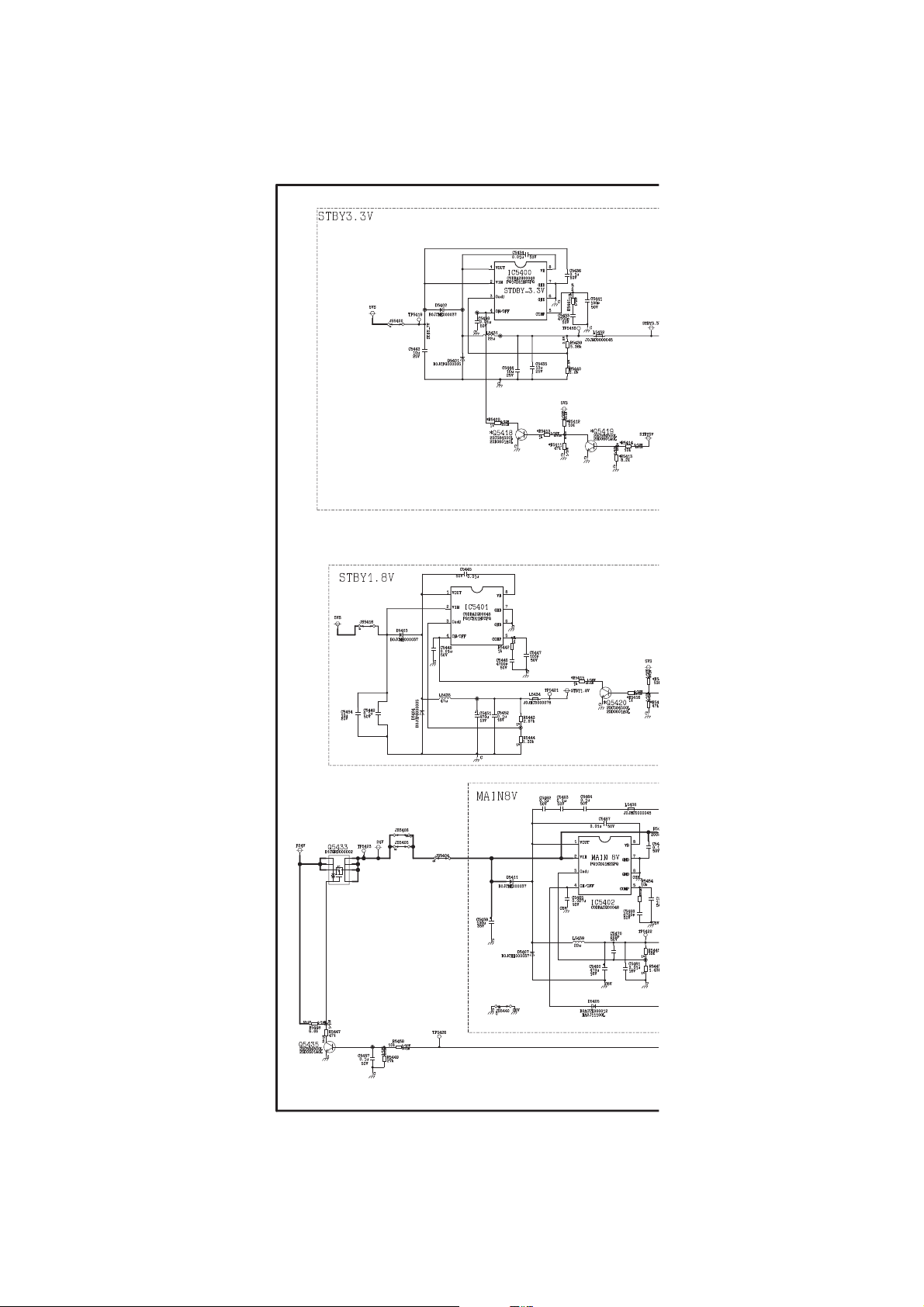

10.2.1. A Board (1 / 7)
TH-L32C8K
25
Page 26
TH-L32C8K
<1B>
<2B>
<3B>
<4B>
<5B>
<6B>
<1A>
<2A>
<3A>
<4A>
<5A>
<6A>
<7A>
<8A>

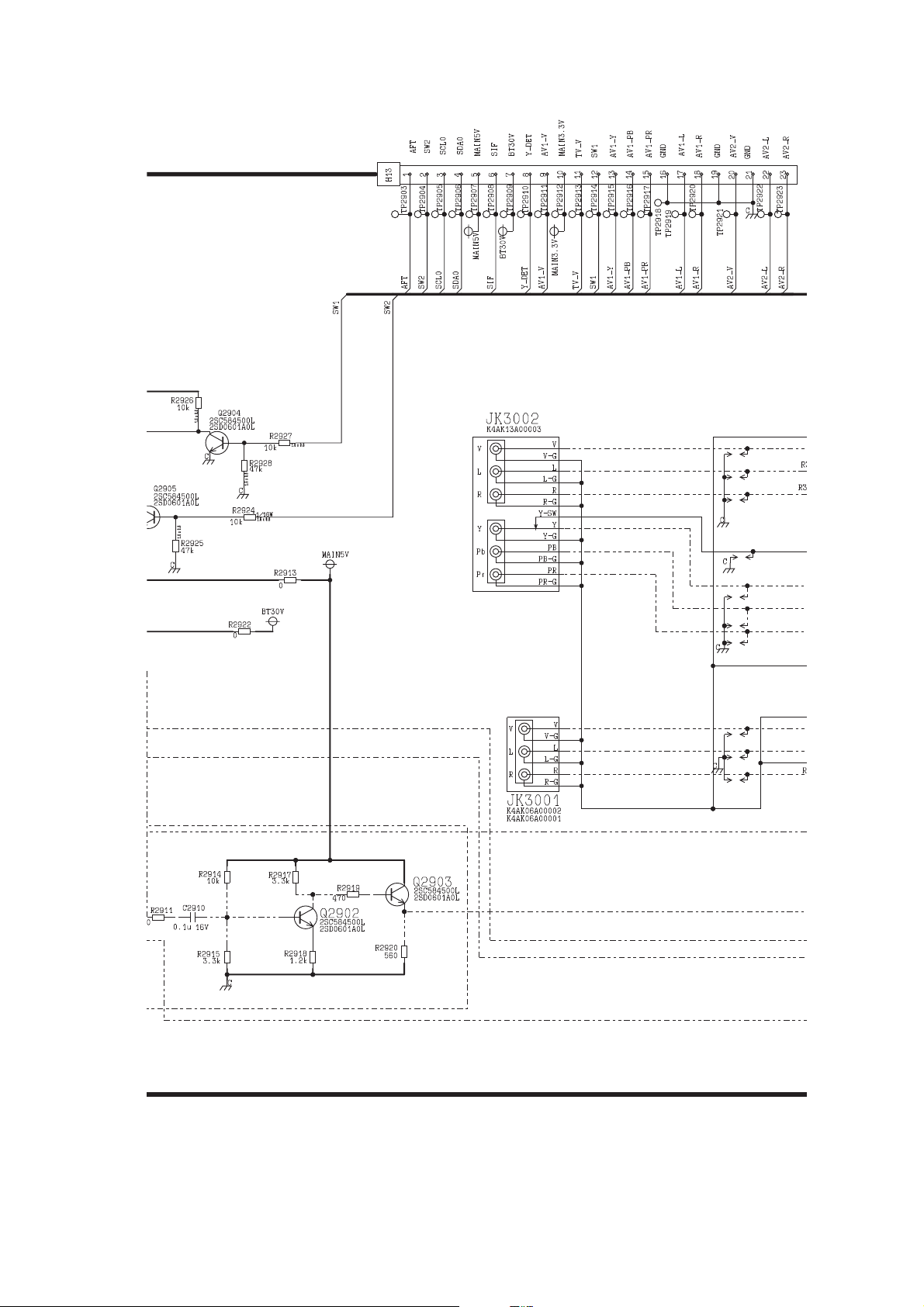

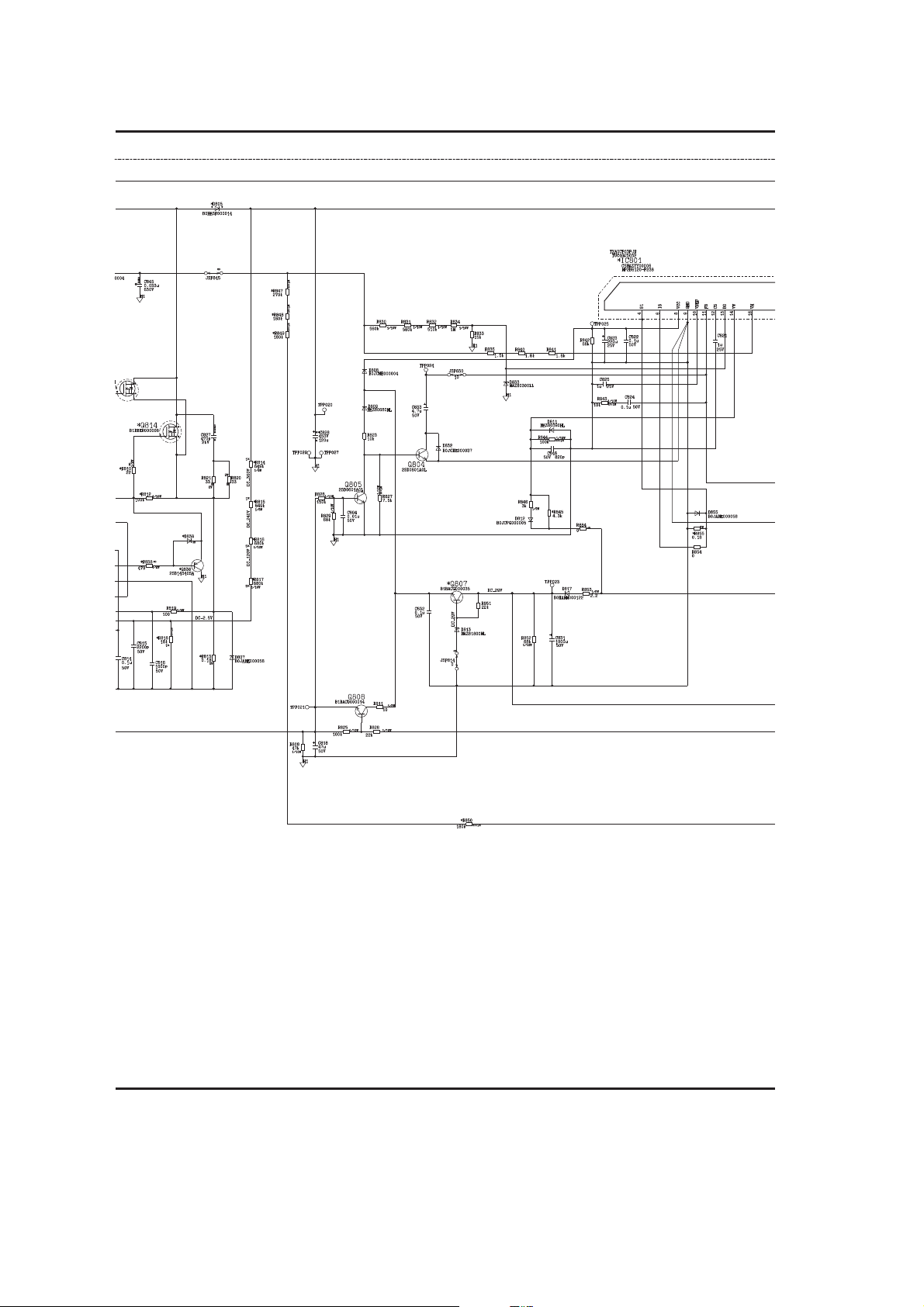

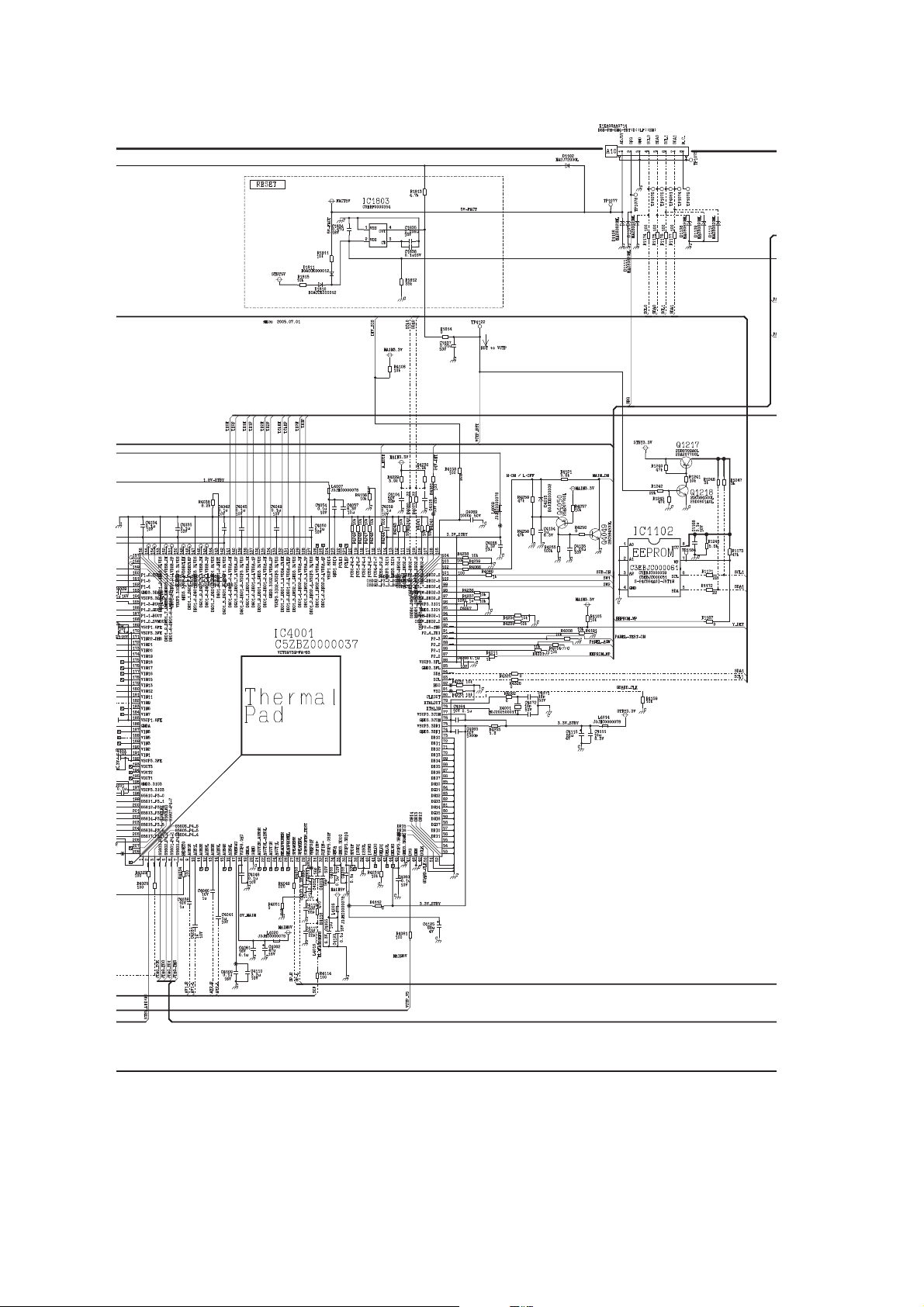

10.2.2. A Board (2 / 7)
26
Page 27

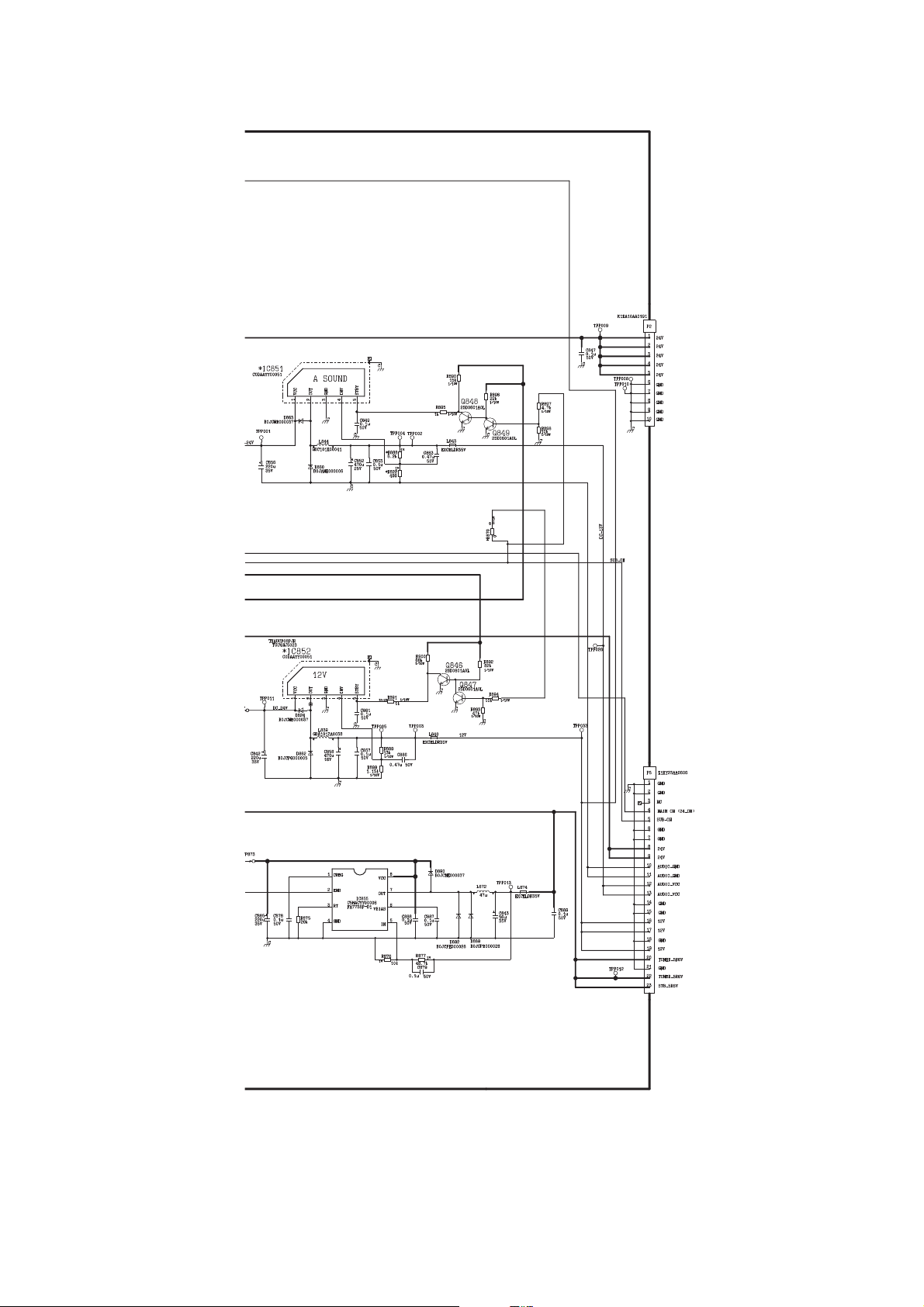

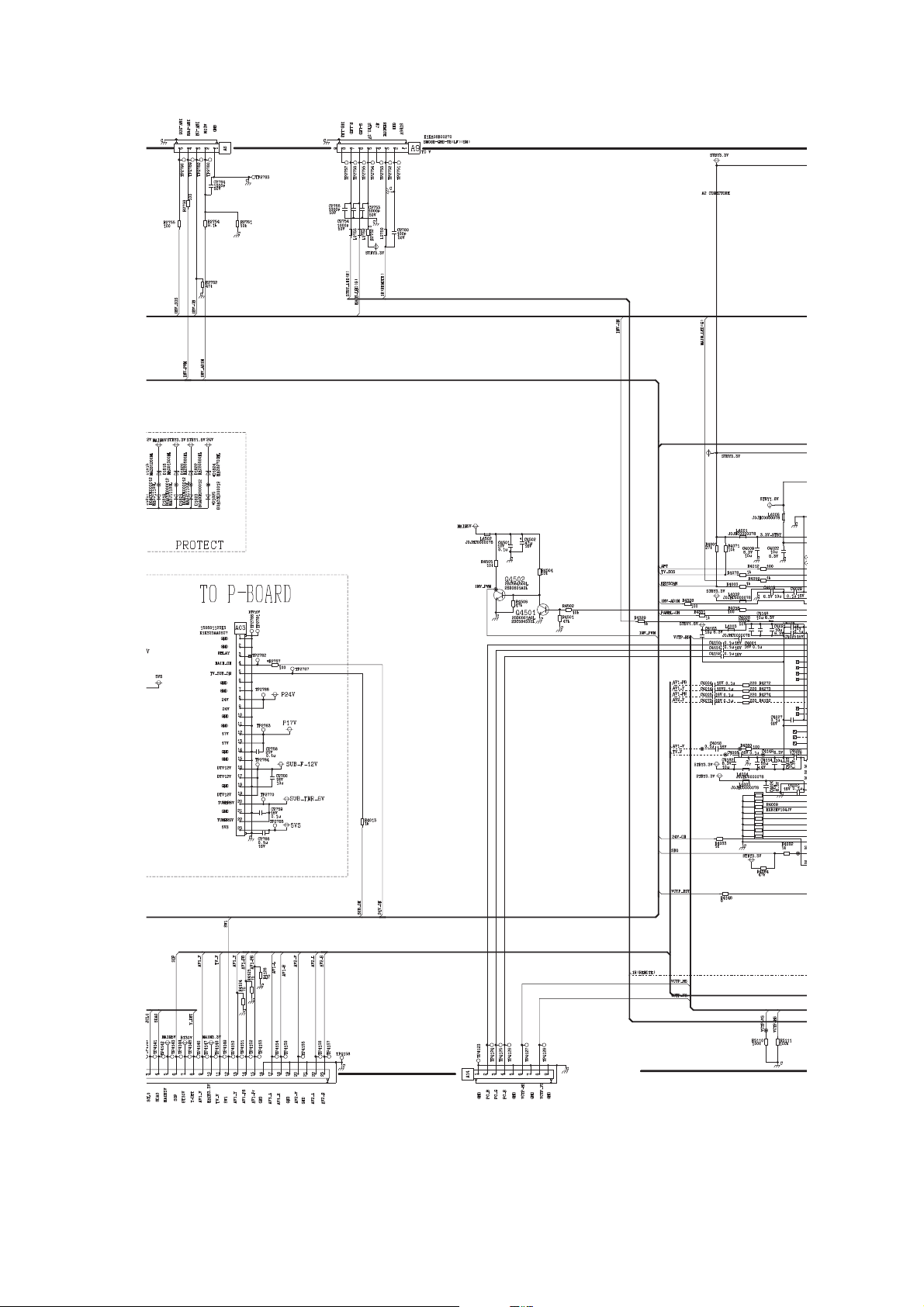

10.2.3. A Board (3 / 7)
<1C>
<2C>
<3C>
<4C>
<5C>
<6C>
<7C>
<8C>
<9C>
<1B>
<2B>
<3B>
<4B>
<5B>
<6B>
TH-L32C8K
27
Page 28
TH-L32C8K
<1D>
<2D>
<3D>
<4D>
<5D>
<1C>
<2C>
<3C>
<4C>
<5C>
<6C>
<7C>
<8C>
<9C>

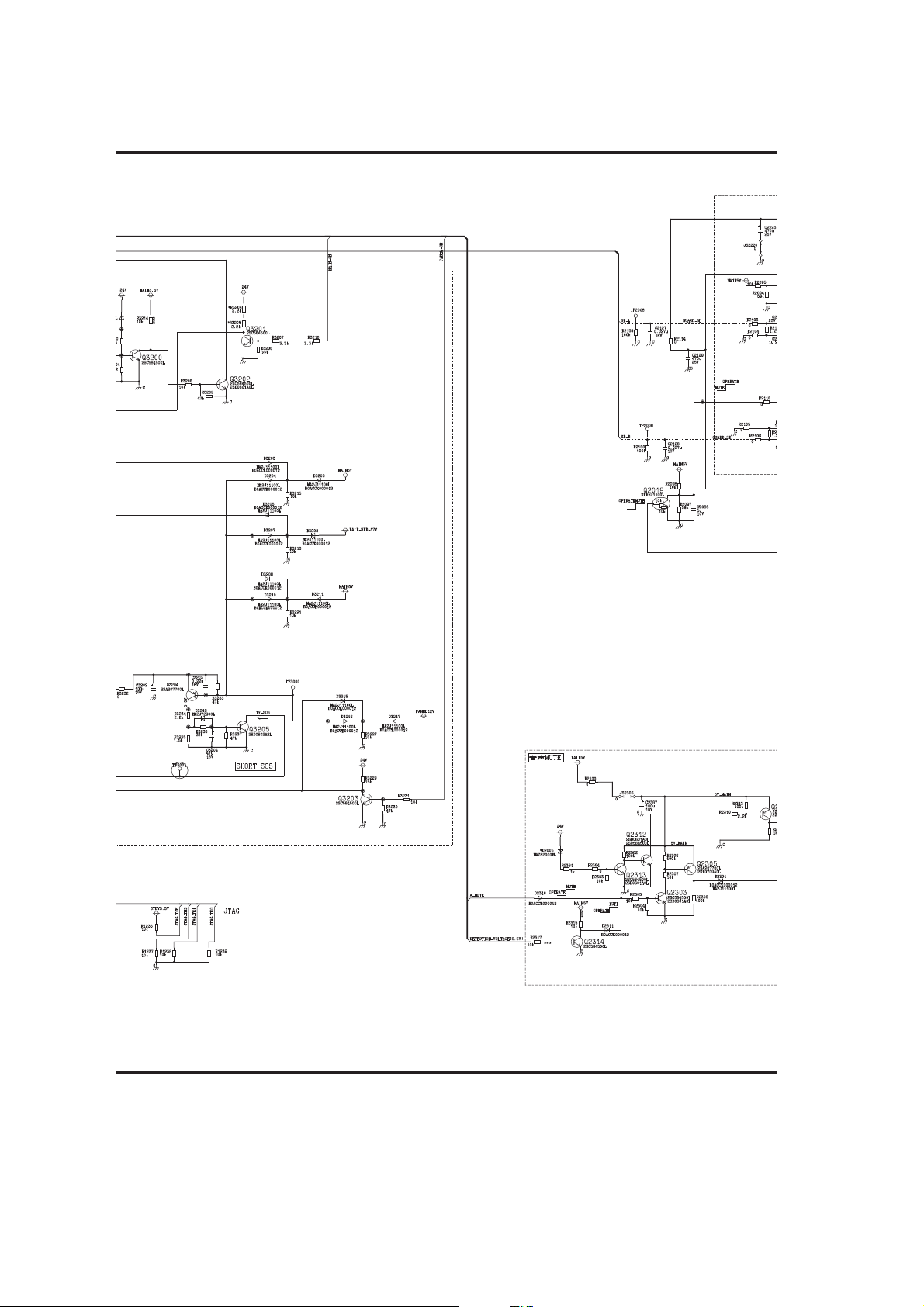

10.2.4. A Board (4 / 7)
28
Page 29

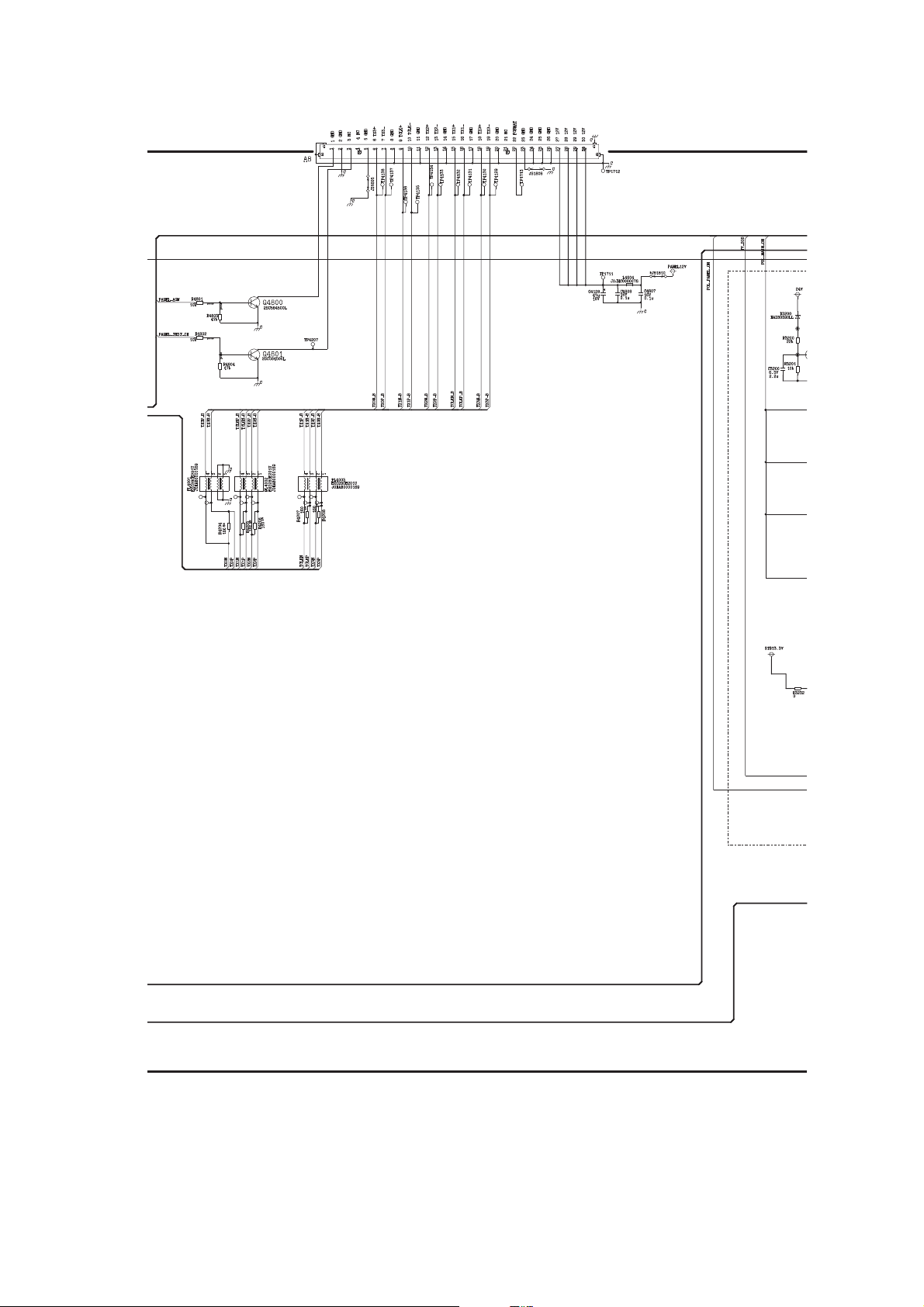

10.2.5. A Board (5 / 7)
<1E>
<2E>
<3E>
<4E>
<5E>
<6E>
<7E>
<1D>
<2D>
<3D>
<4D>
<5D>
TH-L32C8K
29
Page 30
TH-L32C8K
<1F>
<2F>
<3F>
<4F>
<5F>
<6F>
<7F>
<8F>
<1E>
<2E>
<3E>
<4E>
<5E>
<6E>
<7E>
10.2.6. A Board (6 / 7)
30
Page 31

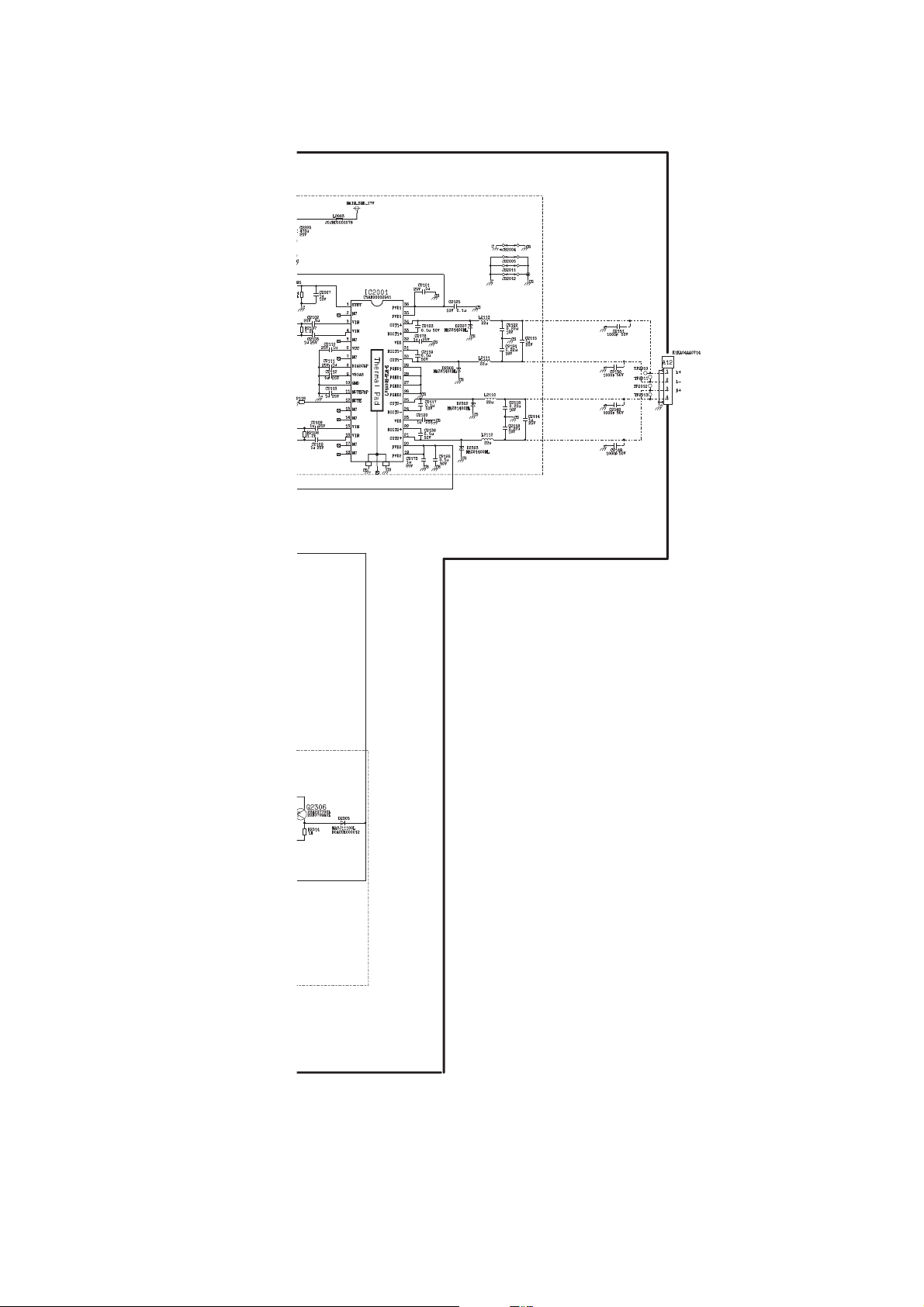

10.2.7. A Board (7 / 7)
<1F>
<2F>
<3F>
<4F>
<5F>
<6F>
<7F>
<8F>
TH-L32C8K
31
Page 32
TH-L32C8K
<1A>
<2A>
<3A>
<4A>
<5A>
<6A>
<7A>
<8A>

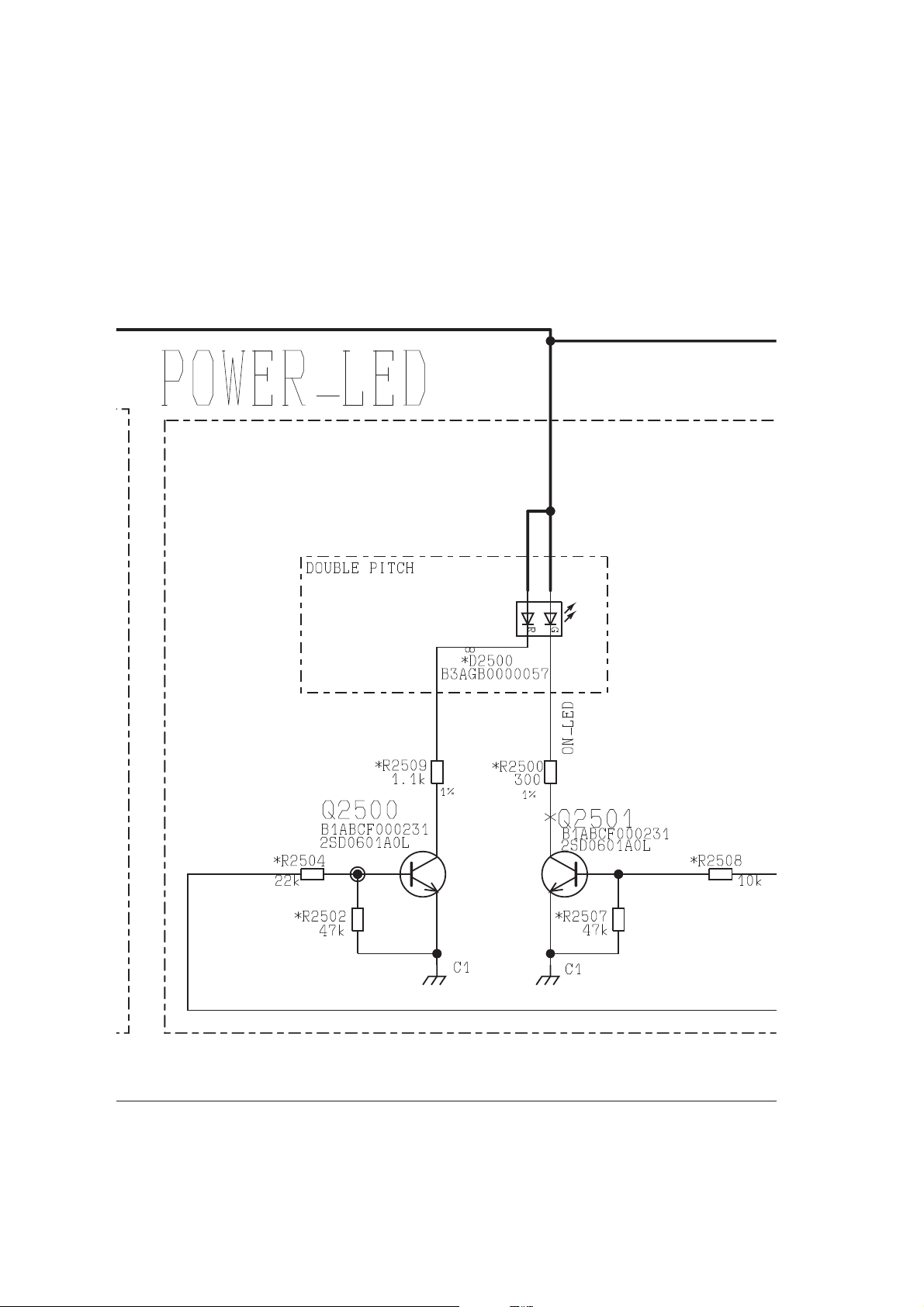

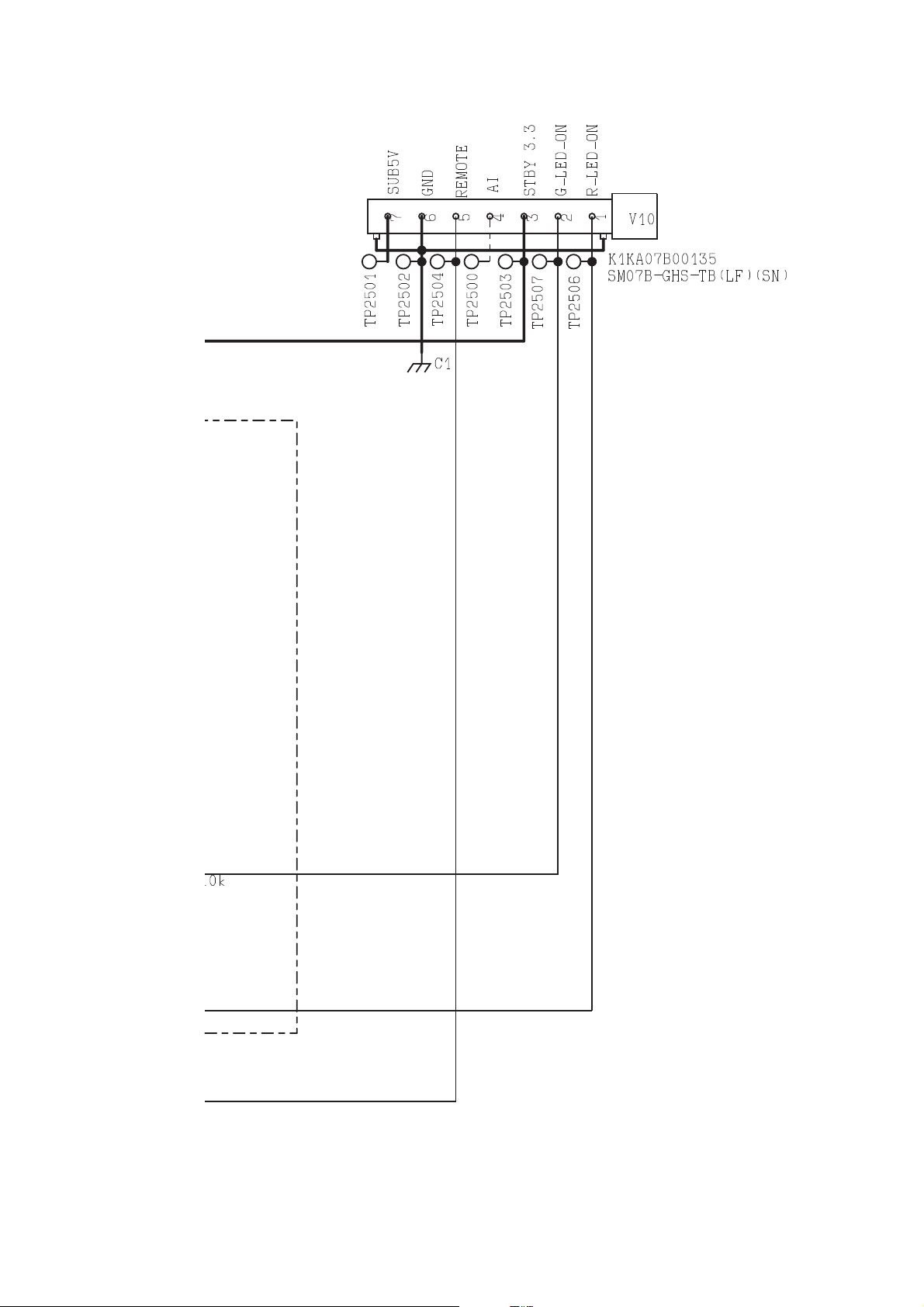

10.3. H Board
10.3.1. H Board (1 / 3)
32
Page 33
<1B>
<2B>
<3B>
<4B>
<5B>
<6B>
<7B>
<8B>
<9B>
<1A>
<2A>
<3A>
<4A>
<5A>
<6A>
<7A>
<8A>
TH-L32C8K
10.3.2. H Board (2 / 3)
33
Page 34
TH-L32C8K
<1B>
<2B>
<3B>
<4B>
<5B>
<6B>
<7B>
<8B>
<9B>
10.3.3. H Board (3 / 3)
34
Page 35

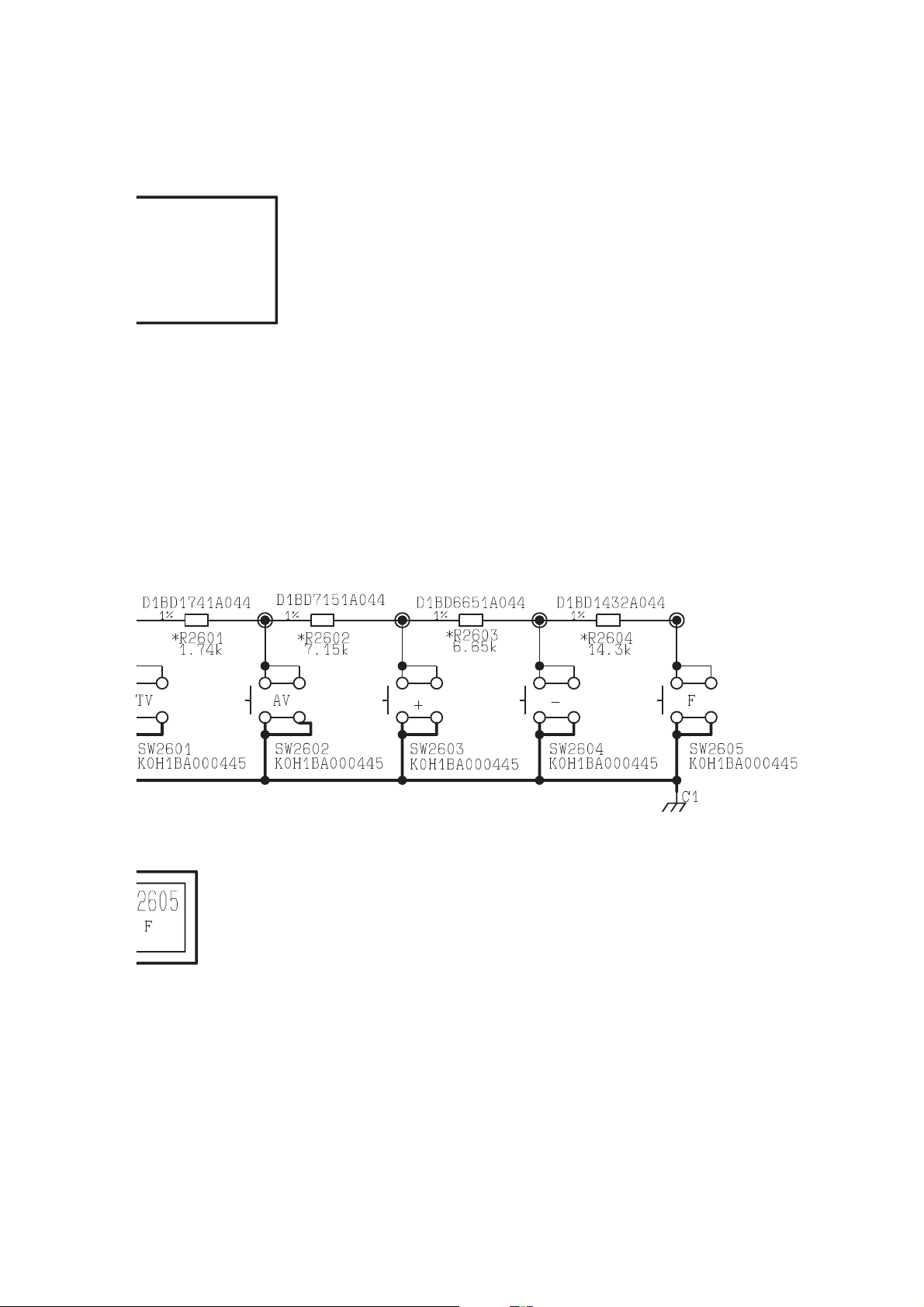

10.4. K Board
<1A>
<2A>
<3A>
<4A>
<5A>
<6A>

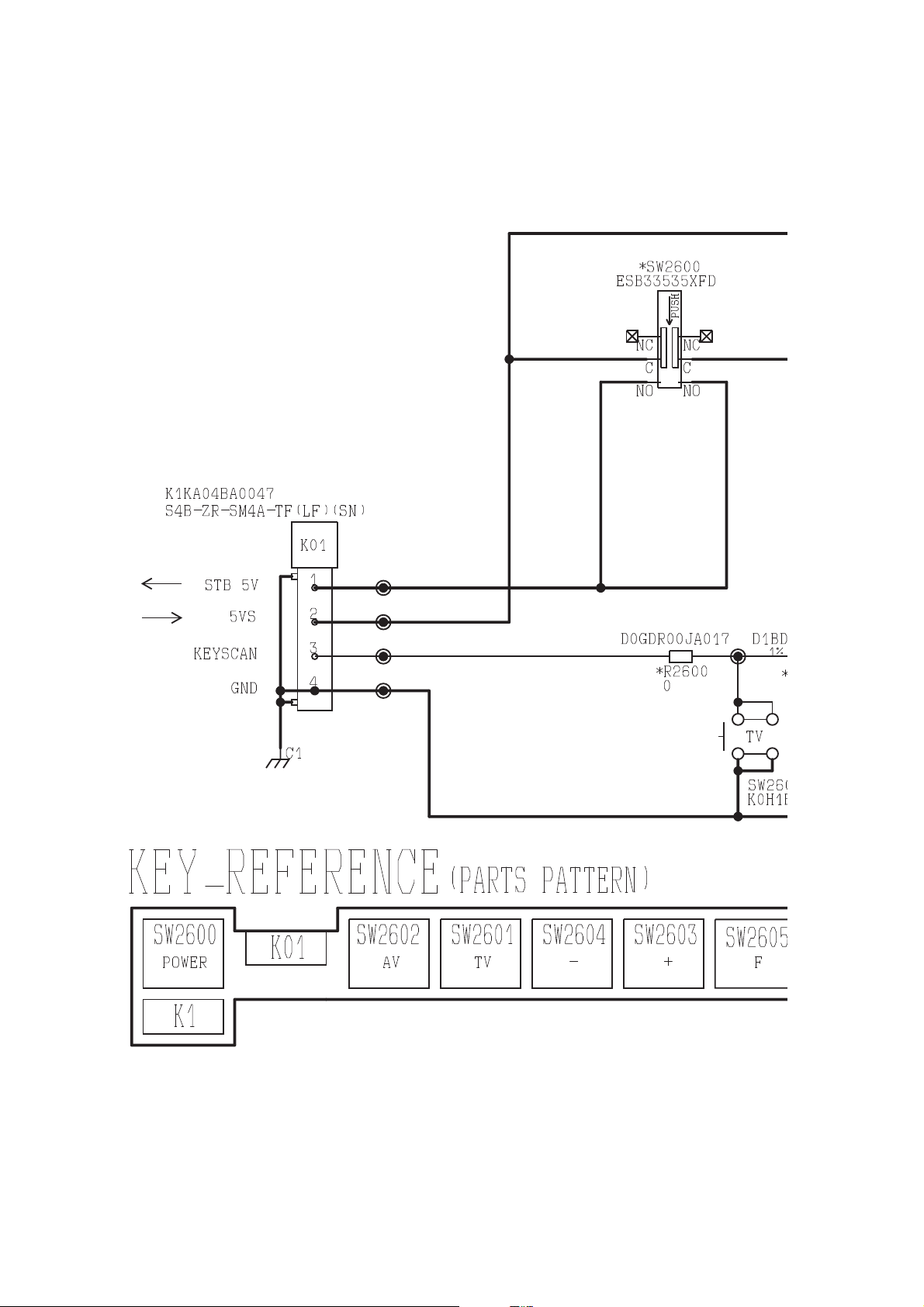

10.4.1. K Board (1 / 2)
TH-L32C8K
35
Page 36
TH-L32C8K
<1A>
<2A>
<3A>
<4A>
<5A>
<6A>
10.4.2. K Board (2 / 2)
36
Page 37

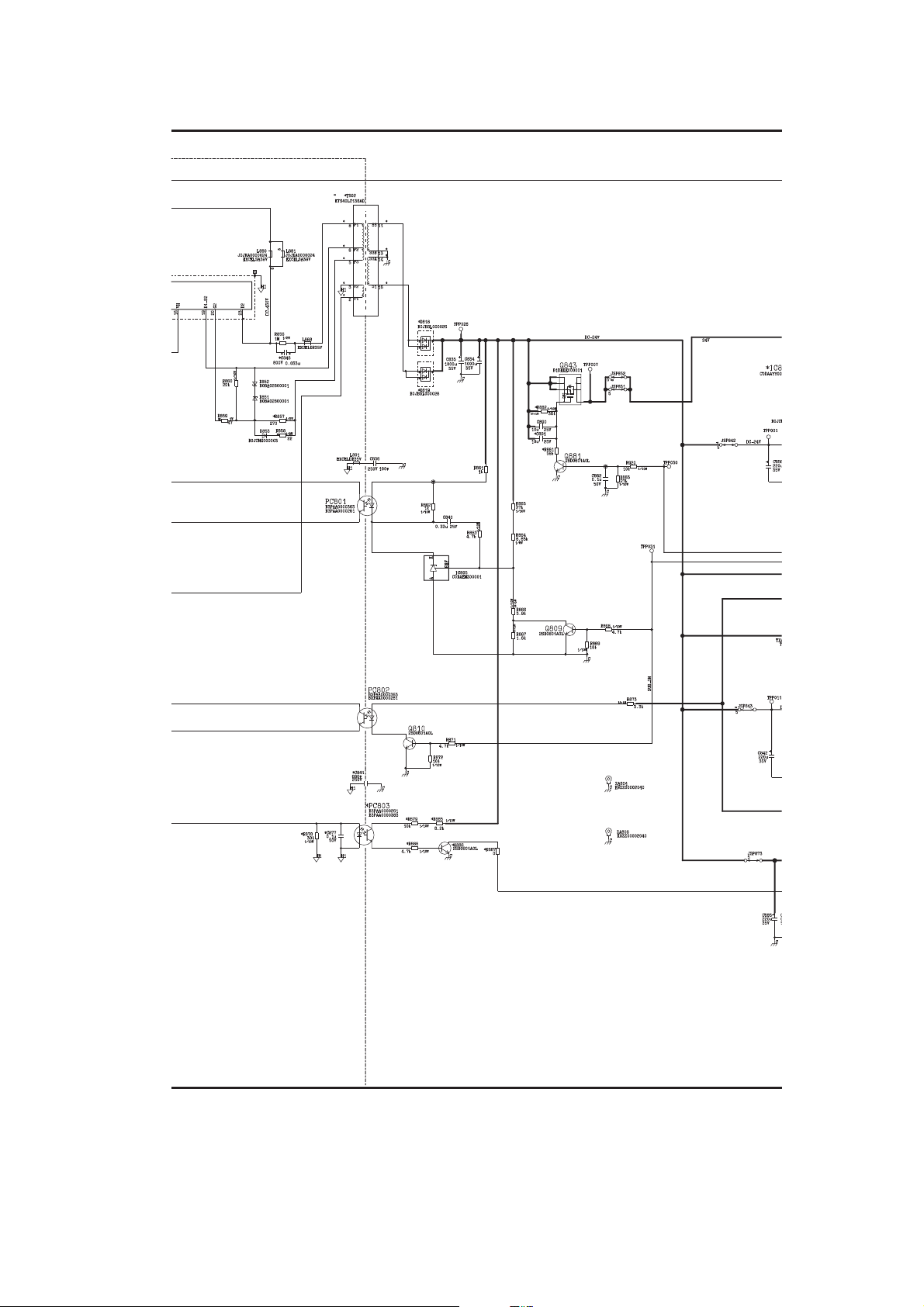

10.5. P Board
<1A>
<2A>
<3A>
<4A>
<5A>
<6A>
10.5.1. P Board (1 / 4)
TH-L32C8K
37
Page 38
TH-L32C8K
10.5.2. P Board (2 / 4)
<1A>
<2A>
<3A>
<1B>
<2B>
<3B>
<4B>
<4A>
<5A>
<5B>
<6B>
<7B>
<6A>
<8B>
38
Page 39
10.5.3. P Board (3 / 4)
TH-L32C8K
<1B>
<2B>
<3B>
<4B>
<1C>
<2C>
<3C>
<4C>
<5B>
<6B>
<7B>
<5C>
<6C>
<7C>
<8B>
<8C>
39
Page 40
TH-L32C8K
<1C>
<2C>
<3C>
<4C>
<5C>
<6C>
<7C>
<8C>
10.5.4. P Board (4 / 4)
40
Page 41
10.6. V Board
<1A>
<2A>

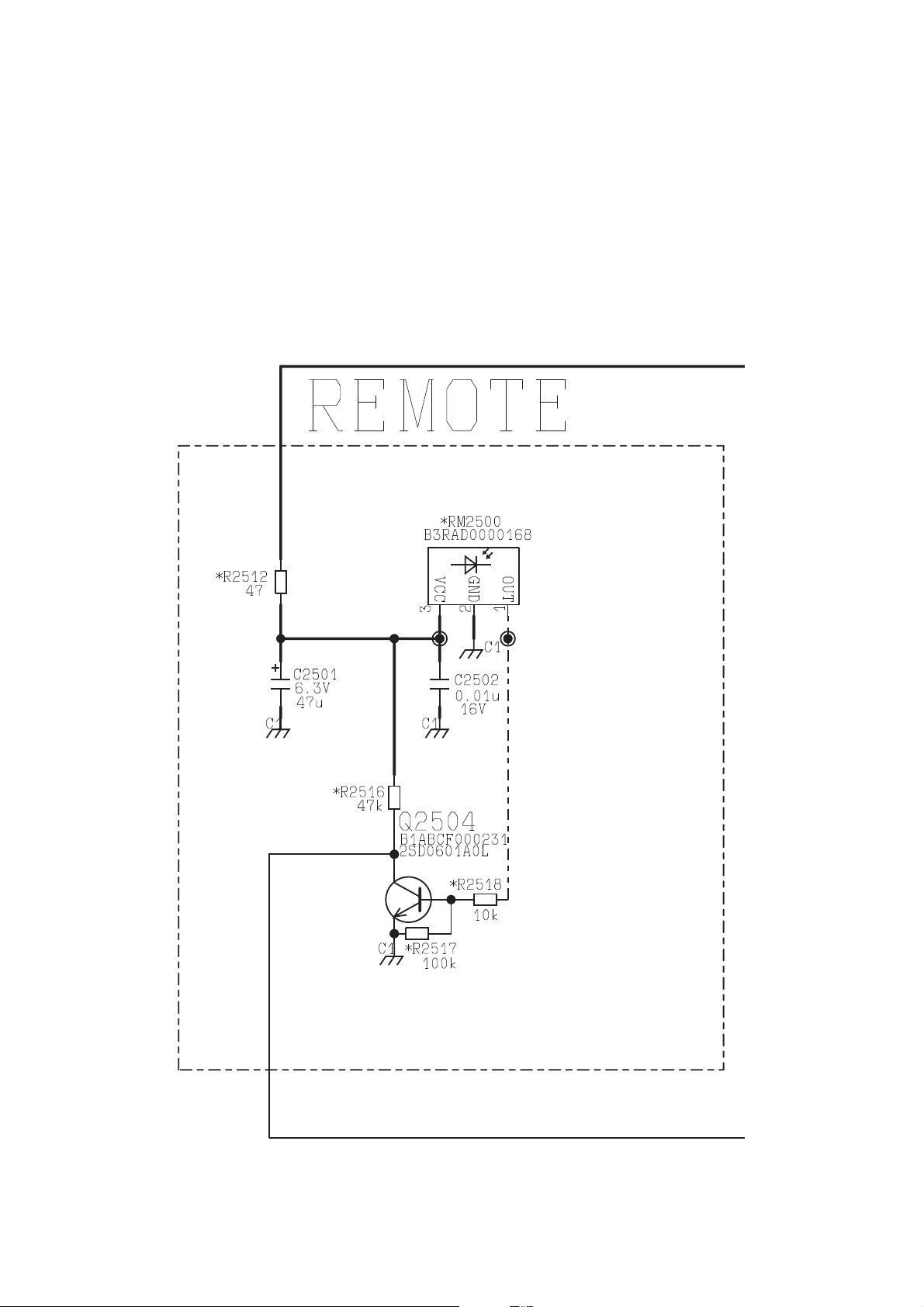

10.6.1. V Board (1 / 3)
TH-L32C8K
41
Page 42
TH-L32C8K
<1B>
<2B>
<3B>
<4B>
<5B>
<1A>
<2A>
10.6.2. V Board (2 / 3)
42
Page 43
10.6.3. V Board (3 / 3)
<1B>
<2B>
<3B>
<4B>
<5B>
TH-L32C8K
43
Page 44
TH-L32C8K

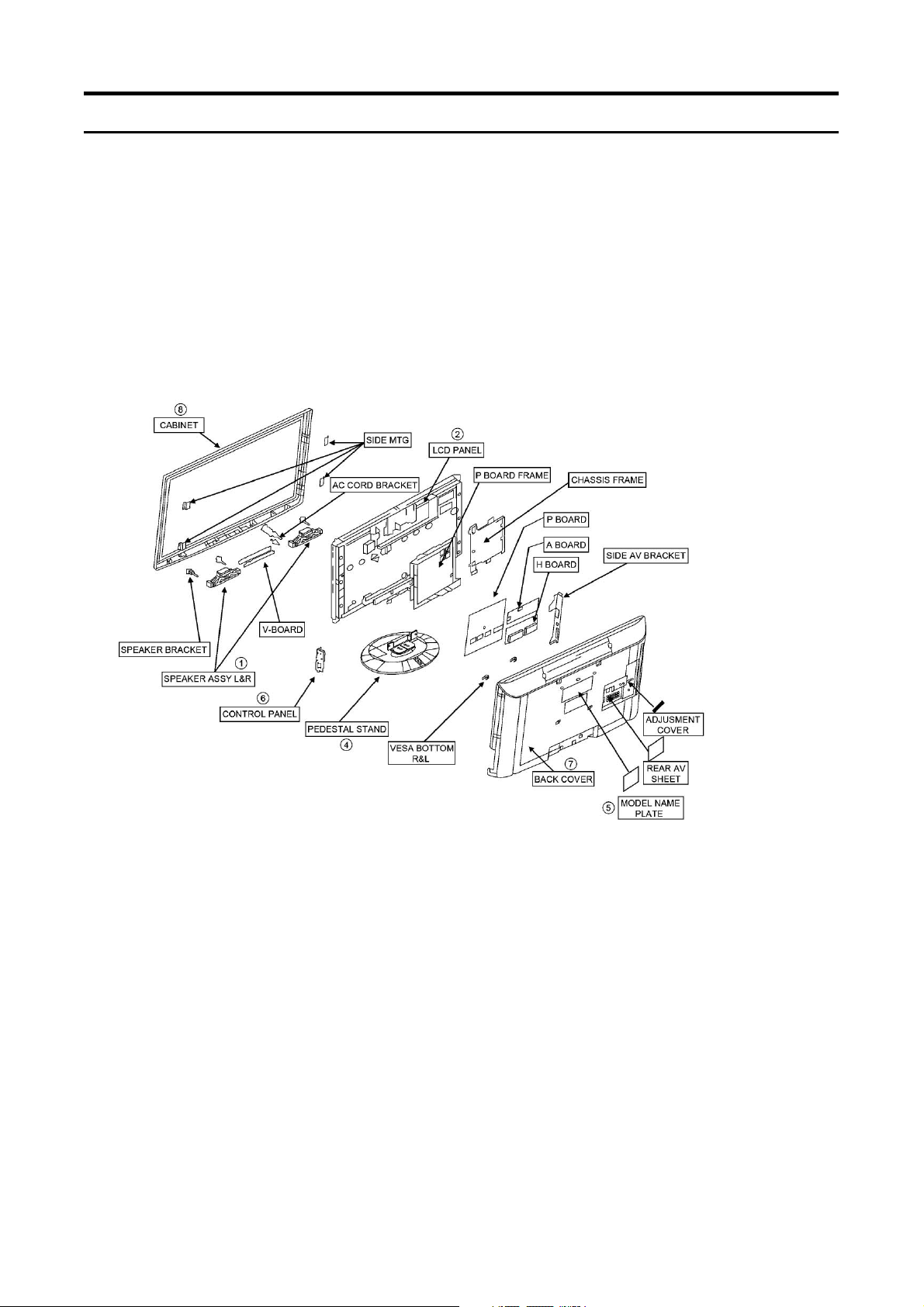

11 Exploded View and Replacement Parts List
11.1. Exploded View and Mechanical Replacement Parts List
Please click the radio button for “Diagrams ll/Parts List” on the menu bar.
11.2. Electrical Replacement Parts List
11.2.1. Replacement Parts List Notes
Important Safety Notice
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use manufacturer’s specified parts.
Note: Printed circuit board assembly with “NLA” is no longer available after production
discontinuation of the complete set.
Abbreviation of part name and descriptio n
1. Resistor
Example :
ERD25TJ104 C 100 KΩ, J, 1/4 W
Type Allowance
Type Allowance
C : Carbon F : ± 1%
F : Fuse G : ± 2%
M : Metal Oxide J : ± 5%
Metal Film K : ± 10%
S : Solid M : ± 20%
W : Wire Wound
2. Capacitor
Example :
ECKF1H103ZF C 0.01 μF, Z, 50 V
Type Allowance
Type Allowance
C : Carbon C : ± 0.25 pF
E : Electrolytic D : ± 0.5 pF
P : Polyester F : ± 1 pF
Polypropylene G : ± 3%
T : Tantalum J : ± 5%
K : ± 10%
L : ± 15%
M : ± 20%
P : ± 100%, -0%
44
Z : ± 80%, -20%
Page 45
1 1 .2.2. Electrical Replacement Parts List
Safety Ref.
No.
C1168 ECJ1VB1C104K C 0.1UF, K, 16V
C1834 F1J1C474A194 CHIP CAPACITOR
C1835 ECJ1VB1C563K C 0.056UF, K, 16V
C1836 ECJ1VB1C104K C 0.1UF, K, 16V
C1837 F1H1H103A013 CERAMIC CAPACITOR
C1839 F1H1H101A971 CERAMIC CAPACITOR
C1840 F1H1A105A025 CHIP CAPACITOR
C1865 F1H1A105A025 CHIP CAPACITOR
C1866 F1H1A105A025 CHIP CAPACITOR
C1867 F1H1A105A025 CHIP CAPACITOR
C1868 F1H1A105A025 CHIP CAPACITOR
C2067 F1H1A105A025 CHIP CAPACITOR
C2068 F1H1A105A025 CHIP CAPACITOR
C2101 F1J1E105A171 CERAMIC CAPACITOR
C2102 F1J1E105A171 CERAMIC CAPACITOR
C2103 F1J1E105A171 CERAMIC CAPACITOR
C2106 F1J1E105A171 CERAMIC CAPACITOR
C2109 F1J1E105A171 CERAMIC CAPACITOR
C2110 F1J1E105A171 CERAMIC CAPACITOR
C2111 F1J1E105A171 CERAMIC CAPACITOR
C2112 F1J1E105A171 CERAMIC CAPACITOR
C2113 F1J1E105A171 CERAMIC CAPACITOR
C2114 F1J1E105A171 CERAMIC CAPACITOR
C2115 F1J1E105A171 CERAMIC CAPACITOR
C2116 F1H1C2240011 CHIP CAPACITOR
C2117 ECJ1VB1H104K CERAMIC CAPACITOR
C2118 F1H1C2240011 CHIP CAPACITOR
C2119 ECJ1VB1H104K CERAMIC CAPACITOR
C2120 F1J1E105A171 CERAMIC CAPACITOR
C2122 F1H1C2240011 CHIP CAPACITOR
C2124 F1H1C2240011 CHIP CAPACITOR
C2125 ECJ1VB1H104K CERAMIC CAPACITOR
C2126 ECJ1VB1H104K CERAMIC CAPACITOR
C2127 F1G1C273A081 CHIP CAPACITOR
C2128 F1G1C273A081 CHIP CAPACITOR
C2129 F2G1E4710007 ELECTROLYTIC CAPACITOR
C2138 ECJ1VB1H104K CERAMIC CAPACITOR
C2148 F1H1H102A219 CERAMIC CAPACITOR
C2149 F1H1H102A219 CERAMIC CAPACITOR
C2150 F1H1H102A219 CERAMIC CAPACITOR
C2151 F1H1H102A219 CERAMIC CAPACITOR
C2163 ECJ1VB1H104K CERAMIC CAPACITOR
C2173 F1J1E105A171 CERAMIC CAPACITOR
C2178 F1J1E105A171 CERAMIC CAPACITOR
C2223 F2G1E4710007 ELECTROLYTIC CAPACITOR
C2367 EEEHB1C101UP ELECTROLYTIC CAPACITOR
C2501 F2G0J470A019 ELECTROLYTIC CAPACITOR
C2502 F1G1C103A116 CERAMIC CHIP CAPACITOR
C2750 F1K1C1060004 CERAMIC CAPACITOR
C2753 F1G1H1020008 CERAMIC CAPACITOR
C2754 F1G1H1020008 CERAMIC CAPACITOR
C2755 F1G1H1020008 CERAMIC CAPACITOR
C2757 F1G1H1020008 CERAMIC CAPACITOR
C2758 F1H1E104A029 CHIP CAPACITOR
C2759 F1G1C104A120 CERAMIC CAPACITOR
C2760 F1K1C1060004 CERAMIC CAPACITOR
C2761 F1G1C104A120 CERAMIC CAPACITOR
C2763 F1G1H1020008 CERAMIC CAPACITOR
C2764 F1H1H102A219 CERAMIC CAPACITOR
C2766 F1G1C104A120 CERAMIC CAPACITOR
C2780 F1G1H101A565 CERAMIC CAPACITOR
C2900 F1H1A105A025 CHIP CAPACITOR
C2901 F2A0J101A278 ELECTROLYTIC CAPACITOR
C2903 F2A0J101A278 ELECTROLYTIC CAPACITOR
C2904 ECJ1VB1C104K C 0.1UF, K, 16V
C2907 ECJ1VB1H104K CERAMIC CAPACITOR
C2909 ECJ1VB1C104K C 0.1UF, K, 16V
C2910 ECJ1VB1C104K C 0.1UF, K, 16V
C2914 F1H1H102A971 C 1000PF,J, 50V
Part No. Part Name & Description Remarks
CAPACITORS
Safety Ref.
No.
C2915 F1H1H102A971 C 1000PF,J, 50V
C2916 F1H1H101A971 CERAMIC CAPACITOR
C2917 F1H1H101A971 CERAMIC CAPACITOR
C2918 F2A1C470A244 ELECTROLYTIC CAPACITOR
C2919 ECJ1VB1C104K C 0.1UF, K, 16V
C2920 F2A1H220A267 ELECTROLYTIC CAPACITOR
C3200 F1H0J2250006 CHIP CAPACITOR
C3202 EEEHB1C101UP ELECTROLYTIC CAPACITOR
C3203 F1H1C2240011 CHIP CAPACITOR
C3204 EEEHB1C470P ELECTROLYTIC CAPACITOR
C4001 ECJ1VB1C104K C 0.1UF, K, 16V
C4004 ECJ1VB1C104K C 0.1UF, K, 16V
C4005 ECJ1VB1C104K C 0.1UF, K, 16V
C4008 ECJ1VB1C104K C 0.1UF, K, 16V
C4009 F1J0J1060004 CERAMIC CAPACITOR
C4014 ECJ1VB1C104K C 0.1UF, K, 16V
C4018 ECJ1VB1C104K C 0.1UF, K, 16V
C4019 F1J0J1060004 CERAMIC CAPACITOR
C4020 F1J0J1060004 CERAMIC CAPACITOR
C4021 F1J0J1060004 CERAMIC CAPACITOR
C4022 F1J0J1060004 CERAMIC CAPACITOR
C4023 F1J0J1060004 CERAMIC CAPACITOR
C4024 F1H1A105A025 CHIP CAPACITOR
C4025 ECJ1VB1C104K C 0.1UF, K, 16V
C4027 ECJ1VB1C104K C 0.1UF, K, 16V
C4028 F1H1H222A219 CHIP CAPACITOR
C4029 ECJ1VB1C104K C 0.1UF, K, 16V
C4030 F1H1A105A025 CHIP CAPACITOR
C4031 ECJ1VB1C104K C 0.1UF, K, 16V
C4034 F1G1A1040006 CERAMIC CAPACITOR
C4035 F1G1A1040006 CERAMIC CAPACITOR
C4036 F1H1A105A025 CHIP CAPACITOR
C4037 F1H1A105A025 CHIP CAPACITOR
C4040 F1H1A105A025 CHIP CAPACITOR
C4041 F1H1A105A025 CHIP CAPACITOR
C4042 F1G1A1040006 CERAMIC CAPACITOR
C4045 F1G1A1040006 CERAMIC CAPACITOR
C4046 F1G1A1040006 CERAMIC CAPACITOR
C4049 F1G1A1040006 CERAMIC CAPACITOR
C4050 F1G1A1040006 CERAMIC CAPACITOR
C4051 ECJ1VB1C104K C 0.1UF, K, 16V
C4052 F1H1H5600007 CHIP CAPACITOR
C4053 F1H1H5600007 CHIP CAPACITOR
C4054 F1G1A1040006 CERAMIC CAPACITOR
C4055 F1J0J1060004 CERAMIC CAPACITOR
C4056 F1G1A1040006 CERAMIC CAPACITOR
C4057 F1J0J1060004 CERAMIC CAPACITOR
C4058 F1G1A1040006 CERAMIC CAPACITOR
C4059 F1G1A1040006 CERAMIC CAPACITOR
C4060 F1G1A1040006 CERAMIC CAPACITOR
C4061 ECJ1VB1C104K C 0.1UF, K, 16V
C4062 EEEHB1C470P ELECTROLYTIC CAPACITOR
C4064 F1G1A1040006 CERAMIC CAPACITOR
C4065 F1G1H1020008 CERAMIC CAPACITOR
C4066 F1G1A1040006 CERAMIC CAPACITOR
C4067 F1G1A1040006 CERAMIC CAPACITOR
C4068 F1J0J1060004 CERAMIC CAPACITOR
C4071 F1H1H1800004 CHIP CAPACITOR
C4072 F1H1H1800004 CHIP CAPACITOR
C4073 ECJ1VB1C104K C 0.1UF, K, 16V
C4104 F1G1H220A731 CERAMIC CAPACITOR
C4105 F1G1H220A731 CERAMIC CAPACITOR
C4109 ECJ1VB1C104K C 0.1UF, K, 16V
C4110 ECJ2FB1A335K CERAMIC CAPACITOR
C4111 F1J0J1060004 CERAMIC CAPACITOR
C4114 EEFCD0G560ER ELECTROLYTIC CAPACITOR
C4115 EEFCD0G560ER ELECTROLYTIC CAPACITOR
C4117 F1H1H220A971 CERAMIC CAPACITOR
C4119 F1G1H560A565 CHIP CAPACITOR
C4123 ECJ1VB1C104K C 0.1UF, K, 16V
C4125 F4Z0G6860002 CAPACITOR
C4127 F1J0J1060004 CERAMIC CAPACITOR
Part No. Part Name & Description Remarks
TH-L32C8K
45
Page 46
TH-L32C8K
Safety Ref.
No.
C4128 F2H1C470A009 ELECTROLYTIC CAPACITOR
C4134 F1H0J1050013 CERAMIC CAPACITOR
C4135 F1H1H103A013 CERAMIC CAPACITOR
C4148 F1J0J1060004 CERAMIC CAPACITOR
C4149 F1J0J1060004 CERAMIC CAPACITOR
C4150 ECJ1VB1C104K C 0.1UF, K, 16V
C4151 ECJ1VB1C104K C 0.1UF, K, 16V
C4152 ECJ1VB1C104K C 0.1UF, K, 16V
C4182 F1J0J1060004 CERAMIC CAPACITOR
C4183 F1J0J1060004 CERAMIC CAPACITOR
C4501 F1G1A1040006 CERAMIC CAPACITOR
C4502 EEEHB1C470P ELECTROLYTIC CAPACITOR
C4807 ECJ1VB1C104K C 0.1UF, K, 16V
C4808 ECJ1VB1C104K C 0.1UF, K, 16V
C5421 F1J1A106A043 CERAMIC CAPACITOR
C5431 F1J1E105A171 CERAMIC CAPACITOR
C5433 F1H1H472A219 CHIP CAPACITOR
C5434 F1H1H103A219 CHIP CAPACITOR
C5435 F1K1E106A136 CERAMIC CAPACITOR
C5436 ECJ1VB1H104K CERAMIC CAPACITOR
C5439 F1H1H103A219 CHIP CAPACITOR
C5441 F1H1H101A971 CERAMIC CAPACITOR
C5443 F1K1E106A136 CERAMIC CAPACITOR
C5444 F1K1E106A136 CERAMIC CAPACITOR
C5445 F1H1H103A219 CHIP CAPACITOR
C5446 F1H1H472A219 CHIP CAPACITOR
C5447 F1H1H101A971 CERAMIC CAPACITOR
C5448 F1H1H103A219 CHIP CAPACITOR
C5449 ECJ1VB1H104K CERAMIC CAPACITOR
C5451 F2G1A4710013 CAPACITOR
C5452 ECJ1VB1C104K C 0.1UF, K, 16V
C5454 F1K1E106A136 CERAMIC CAPACITOR
C5455 ECJ1VB1H104K CERAMIC CAPACITOR
C5456 F2G1A1020007 CAPACITOR
C5457 ECJ1VB1H104K CERAMIC CAPACITOR
C5458 F1H1H103A219 CHIP CAPACITOR
C5459 F2G1V1010021 CAPACITOR
C5460 F2G1C4710021 CAPACITOR
C5461 F1J1C103A074 CERAMIC CAPACITOR
C5462 ECJ1VB1H104K CERAMIC CAPACITOR
C5463 ECJ1VB1H104K CERAMIC CAPACITOR
C5464 ECJ1VB1H104K CERAMIC CAPACITOR
C5465 F1H1C273A143 CHIP CAPACITOR
C5466 ECJ1VB1H104K CERAMIC CAPACITOR
C5467 F1H1H103A219 CHIP CAPACITOR
C5468 F1J1H472A590 CERAMIC CAPACITOR
C5469 F1H1H101A971 CERAMIC CAPACITOR
C5470 F1H1H221A792 CHIP CAPACITOR
C800 F1A2E471A003 CERAMIC CAPACITOR
C801 F0CAF224A066 PLASTIC FILM CAPACITOR
C803 F0CAF224A066 PLASTIC FILM CAPACITOR
C805 F1A2E471A003 CERAMIC CAPACITOR
C808 F0C2H105A011 PLASTIC FILM CAPACITOR
C811 F1H1H472A219 CHIP CAPACITOR
C812 ECJ1VB1H104K CERAMIC CAPACITOR
C814 ECJ1VB1H104K CERAMIC CAPACITOR
C815 F1H1H222A219 CHIP CAPACITOR
C816 F1H1H102A219 CERAMIC CAPACITOR
C818 ECA1HM470B E 47UF, 50V
C821 F1J1E105A171 CERAMIC CAPACITOR
C822 ECJ1VB1H104K CERAMIC CAPACITOR
C823 F2A1E221A487 ELECTROLYTIC CAPACITOR
C824 ECJ1VB1H104K CERAMIC CAPACITOR
C825 F1J1E105A171 CERAMIC CAPACITOR
C827 ECKW3D471KBP C 470PF, K, 2KV
C828 F2A2W1210001 CAPACITOR
C831 F2B1H102A007 ELECTROLYTIC CAPACITOR
C832 ECJ1VB1H104K CERAMIC CAPACITOR
C833 F2A1H4R7A122 ELECTROLYTIC CAPACITOR
C834 F2A1V1020043 ELECTROLYTIC CAPACITOR
C835 F2A1V1020043 ELECTROLYTIC CAPACITOR
C836 F1A2E101A002 CERAMIC CAPACITOR
C837 F1J1C474A194 CHIP CAPACITOR
Part No. Part Name & Description Remarks
Safety Ref.
No.
C840 F1J1E3340003 CERAMIC CAPACITOR
C841 F1A2E681A002 CERAMIC CAPACITOR
C842 F2A1V221A470 ELECTROLYTIC CAPACITOR
C843 F2A1V5600014 ELECTROLYTIC CAPACITOR
C845 ECQE6333JF P 0.033UF,K,630V
C846 F1H1H821A971 C 820PF,J,50V
C847 ECJ1VB1H104K CERAMIC CAPACITOR
C848 F0C2K333A035 CAPACITOR
C849 ECJ1VB1H104K CERAMIC CAPACITOR
C852 F2A1E471A218 ELECTROLYTIC CAPACITOR
C853 ECJ1VB1H104K CERAMIC CAPACITOR
C856 F2A1V221A470 ELECTROLYTIC CAPACITOR
C857 ECJ1VB1H104K CERAMIC CAPACITOR
C858 F2A1C471A537 ELECTROLYTIC CAPACITOR
C861 ECJ1VB1H104K CERAMIC CAPACITOR
C862 ECJ1VB1H104K CERAMIC CAPACITOR
C863 F1J1H474A757 CERAMIC CAPACITOR
C877 ECJ1VB1H104K CERAMIC CAPACITOR
C878 ECJ1VB1H104K CERAMIC CAPACITOR
C879 ECJ1VB1H104K CERAMIC CAPACITOR
C885 F2A1V221A470 ELECTROLYTIC CAPACITOR
C886 F1J1H474A757 CERAMIC CAPACITOR
C887 ECJ1VB1H104K CERAMIC CAPACITOR
C888 ECJ1VB1H104K CERAMIC CAPACITOR
C889 ECJ1VB1H104K CERAMIC CAPACITOR
C890 F1K1E106A136 CERAMIC CAPACITOR
C891 F1K1E106A136 CERAMIC CAPACITOR
C894 F1H1H103A219 CHIP CAPACITOR
D1102 MA2J72900L DIODE
D1106 MAZ80620ML DIODE
D1107 MAZ80620ML DIODE
D1108 MAZ80620ML DIODE
D1109 MAZ80620ML DIODE
D1110 MAZ80620ML DIODE
D1111 MAZ80620ML DIODE
D1810 B0ACCK000012 DIODE
D1811 B0ACCK000012 DIODE
D1812 MAZ81500ML DIODE
D1813 B0ACCK000012 DIODE
D1814 MAZ80620LL DIODE
D1815 B0ACCK000012 DIODE
D1816 MAZ81200ML DIODE
D1817 B0ACCK000012 DIODE
D1818 MAZ81300ML DIODE
D1819 B0ACCK000012 DIODE
D1820 MAZ80560ML DIODE
D1821 B0ACCK000012 DIODE
D1822 MAZ80560ML DIODE
D1823 B0ACCK000012 DIODE
D1824 MAZ82700ML DIODE
D1825 B0ACCK000012 DIODE
D2005 MAZ82000ML DIODE
D2301 B0ACCK000012 DIODE
D2302 MAZ81400ML DIODE
D2303 MAZ81400ML DIODE
D2305 B0ACCK000012 DIODE
D2306 MAZ81400ML DIODE
D2307 MAZ81400ML DIODE
D2310 B0ACCK000012 DIODE
D2311 B0ACCK000012 DIODE
D2500 B3AGB0000057 DIODE
D2760 MAZ81400ML DIODE
D2779 MA22F2000L DIODE
D3067 B0BA3R300010 ZENER DIODE
D3068 B0BA3R300010 ZENER DIODE
D3200 MAZ80390LL DIODE
D3203 B0ACCK000012 DIODE
D3204 B0ACCK000012 DIODE
D3205 B0ACCK000012 DIODE
D3206 B0ACCK000012 DIODE
D3207 B0ACCK000012 DIODE
D3208 B0ACCK000012 DIODE
Part No. Part Name & Description Remarks
DIODES
46
Page 47
TH-L32C8K
Safety Ref.
No.
D3209 B0ACCK000012 DIODE
D3210 B0ACCK000012 DIODE
D3211 B0ACCK000012 DIODE
D3215 B0ACCK000012 DIODE
D3216 B0ACCK000012 DIODE
D3217 B0ACCK000012 DIODE
D3219 MA2J72900L DIODE
D4015 B0JCDD000002 DIODE
D5401 B0JCPG000005 DIODE
D5402 B0JCME000037 DIODE
D5403 B0JCME000037 DIODE
D5404 B0JCPG000005 DIODE
D5405 B0ACCK000012 DIODE
D5407 B0JCME000037 DIODE
D5408 B0HCMM000014 DIODE
D5409 B0HCMM000014 DIODE
D5410 B0BC01400017 DIODE
D5411 B0JCME000037 DIODE
D5412 B0BC01400017 DIODE
D800 B0EBNT000007 DIODE
D801 D4EAC6210002 VARISTOR
D803 D4EAC6210002 VARISTOR
D805 B0HASR000014 DIODE
D807 B0JAME000058 DIODE
D808 B0JCNE000004 DIODE
D809 MAZ80680ML DIODE
D811 MAZ80390HL DIODE
D812 B0JCPG000005 DIODE
D813 MAZ81800ML DIODE
D817 B0HAMM000122 DIODE
D818 B0JBSL000026 DIODE
D819 B0JBSL000026 DIODE
D824 B0JCME000037 DIODE
D832 B0JCME000037 DIODE
D833 MAZ80300LL DIODE
D838 B0JAME000091 DIODE
D845 AU02A DIODE
D851 B0BA02800001 VOLTAGE REGULATOR DIODE
D852 B0BA02800001 VOLTAGE REGULATOR DIODE
D853 B0JCNG000003 DIODE
D855 B0JAME000058 DIODE
D860 B0JANE000006 DIODE
D862 B0JCPG000005 DIODE
D863 B0JCME000037 DIODE
D864 MA2J11100L DIODE
D889 B0JCPE000028 DIODE
D890 B0JCME000037 DIODE
D892 B0JCPE000028 DIODE
IC1102 TVR4GAS854 ROM IC (C3EBJC000061)
IC1803 C0EBF0000354 IC, RESET
IC2001 C1AB00002941 IC
IC4001 TVR4G76-AC ROM IC (C5ZBZ0000037)
IC5400 C0DBAZG00048 IC
IC5401 C0DBAZG00048 IC
IC5402 C0DBAZG00048 IC
IC800 C0DBBZG00004 IC
IC801 C5HAZYY00006 IC
IC805 C0DAEMZ00001 IC
IC851 C0DAAYY00051 IC
IC852 C0DAAYY00051 IC
IC855 C5HACYY00006 IC
L2003 J0JHC0000078 BEAD CORE
L2110 G1C220MA0291 COIL
L2111 G1C220MA0291 COIL
L2112 G1C220MA0291 COIL
L2113 G1C220MA0291 COIL
L2750 J0JYC0000065 COIL
L2752 J0JYC0000065 COIL
L2755 J0JYC0000065 COIL
L2756 J0JYC0000065 COIL
Part No. Part Name & Description Remarks
INTEGRATED
CIRCUITS
COILS
Safety Ref.
No.
L2900 J0JHC0000078 BEAD CORE
L2901 G0C101K00023 COIL
L2902 J0JCC0000241 BEAD CORE
L2903 J0JCC0000241 BEAD CORE
L2904 ELJPA220KFB COIL
L2905 J0JCC0000241 BEAD CORE
L2906 J0JCC0000241 BEAD CORE
L2907 J0JCC0000241 BEAD CORE
L2908 J0JCC0000241 BEAD CORE
L2909 J0JCC0000241 BEAD CORE
L2910 J0JCC0000241 BEAD CORE
L2911 TSK1045 BEAD CORE
L2912 TSK1045 BEAD CORE
L4001 J0JHC0000078 BEAD CORE
L4002 J0JHC0000078 BEAD CORE
L4003 J0JHC0000078 BEAD CORE
L4004 J0JHC0000078 BEAD CORE
L4005 J0JHC0000078 BEAD CORE
L4006 J0JHC0000078 BEAD CORE
L4007 J0JHC0000078 BEAD CORE
L4008 J0JHC0000078 BEAD CORE
L4009 J0JHC0000078 BEAD CORE
L4014 J0JHC0000078 BEAD CORE
L4016 ELJFA6R8KFB CHIP INDUCTOR
L4020 J0JHC0000078 BEAD CORE
L4502 J0JHC0000078 BEAD CORE
L4904 J0JHC0000078 BEAD CORE
L5430 J0JHC0000045 COIL
L5431 G1C220MA0291 COIL
L5432 J0JHC0000045 COIL
L5434 J0JHC0000078 BEAD CORE
L5435 G1C470MA0291 COIL
L5436 J0JHC0000045 COIL
L5439 G1C220MA0291 COIL
L801 EXCELDR35V CORE
L839 G0A101ZA0038 COIL
L840 EXCELDR35V CORE
L843 EXCELDR35V CORE
L844 G0C101K00041 COIL
L868 EXCELDR35V CORE
L872 G0A470ZA0037 COIL
L874 EXCELDR35V CORE
L880 J0JKA0000024 EMI FILTER
L881 J0JKA0000024 EMI FILTER
Q1217 2SA207700L TRANSISTOR
Q1218 2SC584500L TRANSISTOR
Q1801 B1DHDC000028 TRANSISTOR
Q1802 UNR521100L TRANSISTOR
Q1803 2SC584500L TRANSISTOR
Q1804 2SA207700L TRANSISTOR
Q1805 2SA207700L TRANSISTOR
Q1806 2SC584500L TRANSISTOR
Q2019 UNR521100L TRANSISTOR
Q2303 2SC584500L TRANSISTOR
Q2305 2SA207700L TRANSISTOR
Q2306 2SA207700L TRANSISTOR
Q2312 2SC584500L TRANSISTOR
Q2313 2SC584500L TRANSISTOR
Q2314 2SC584500L TRANSISTOR
Q2500 B1ABCF000231 TRANSISTOR
Q2501 B1ABCF000231 TRANSISTOR
Q2504 B1ABCF000231 TRANSISTOR
Q2901 2SA207700L TRANSISTOR
Q2902 2SC584500L TRANSISTOR
Q2903 2SC584500L TRANSISTOR
Q2904 2SC584500L TRANSISTOR
Q2905 2SC584500L TRANSISTOR
Q2906 B1CBHD000002 TRANSISTOR
Q2907 B1CBHD000002 TRANSISTOR
Q3200 2SC584500L TRANSISTOR
Q3201 2SC584500L TRANSISTOR
Q3202 2SC584500L TRANSISTOR
Part No. Part Name & Description Remarks
TRANSISTORS
47
Page 48
TH-L32C8K
Safety Ref.
No.
Q3203 2SC584500L TRANSISTOR
Q3204 2SA207700L TRANSISTOR
Q3205 2SD0602ASL TRANSISTOR
Q4049 2SC584500L TRANSISTOR
Q4050 2SA207700L TRANSISTOR
Q4501 2SC584500L TRANSISTOR
Q4502 2SC584500L TRANSISTOR
Q4800 2SC584500L TRANSISTOR
Q4801 2SC584500L TRANSISTOR
Q5412 B1CHRE000005 TRANSISTOR
Q5417 B1CHRE000005 TRANSISTOR
Q5418 2SC584500L TRANSISTOR
Q5419 2SC584500L TRANSISTOR
Q5420 2SC584500L TRANSISTOR
Q5421 2SC584500L TRANSISTOR
Q5422 2SC584500L TRANSISTOR
Q5431 2SC584500L TRANSISTOR
Q5432 2SC584500L TRANSISTOR
Q5433 B1CGRD000002 TRANSISTOR
Q5434 2SC584500L TRANSISTOR
Q5435 2SC584500L TRANSISTOR
Q5436 B1CHRE000003 TRANSISTOR
Q5437 2SC584500L TRANSISTOR
Q804 2SD0601A0L TRANSISTOR
Q805 2SD0601A0L TRANSISTOR
Q807 B1BACG000035 TRANSISTOR
Q808 B1BACD000014 TRANSISTOR
Q809 2SD0601A0L TRANSISTOR
Q810 2SD0601A0L TRANSISTOR
Q814 B1DEER000008 MOSFET TRANSISTOR
Q838 2SB14340SA TRANSISTOR
Q839 B1DEER000008 MOSFET TRANSISTOR
Q843 B1DHKE000001 TRANSISTOR
Q846 2SD0601A0L TRANSISTOR
Q847 2SD0601A0L TRANSISTOR
Q848 2SD0601A0L TRANSISTOR
Q849 2SD0601A0L TRANSISTOR
Q881 2SD0601A0L TRANSISTOR
Q886 2SD0601A0L TRANSISTOR
R1167 ERJ3GEYJR00 CHIP RESISTOR
R1171 ERJ3GEYJ220 M 22OHM,J,1/16W
R1172 ERJ3GEYJ220 M 22OHM,J,1/16W
R1173 ERJ3GEYJ473 M 47KOHM,J,1/16W
R1174 ERJ3GEYJ101 M 100OHM,J,1/16W
R1175 ERJ3GEYJ101 M 100OHM,J,1/16W
R1176 ERJ3GEYJ101 M 100OHM,J,1/16W
R1177 ERJ3GEYJ101 M 100OHM,J,1/16W
R1236 ERJ3GEYJ103 M 10KOHM,J,1/16W
R1237 ERJ3GEYJ103 M 10KOHM,J,1/16W
R1238 ERJ3GEYJ103 M 10KOHM,J,1/16W
R1239 ERJ3GEYJ103 M 10KOHM,J,1/16W
R1240 ERJ3GEYJ473 M 47KOHM,J,1/16W
R1241 ERJ3GEYJ103 M 10KOHM,J,1/16W
R1242 ERJ3GEYJ223 M 22KOHM,J,1/16W
R1243 ERJ3GEYJ473 M 47KOHM,J,1/16W
R1246 ERJ3GEYJ302 M 3KOHM,J,1/16W
R1247 ERJ3GEYJ302 M 3KOHM,J,1/16W
R1248 ERJ3GEYJ562 M 5.6KOHM,J,1/16W
R1811 D0GD103JA017 FIXED RESISTOR
R1812 ERJ3GEYJ333 M 33KOHM,J,1/16W
R1813 ERJ3GEYJ472 M 4.7KOHM,J,1/16W
R1814 ERJ3GEYJR00 CHIP RESISTOR
R1815 D0GD103JA017 FIXED RESISTOR
R1816 ERJ3GEYJ223 M 22KOHM,J,1/16W
R1818 ERJ3GEYJ102 M 1KOHM,J,1/16W
R1823 ERJ3GEYJ473 M 47KOHM,J,1/16W
R1824 ERJ3GEYJ103 M 10KOHM,J,1/16W
R1825 ERJ3GEYJ473 M 47KOHM,J,1/16W
R1826 ERJ3GEYJ103 M 10KOHM,J,1/16W
R1827 ERJ3GEYJ472 M 4.7KOHM,J,1/16W
R1828 ERJ3GEYJ472 M 4.7KOHM,J,1/16W
R1829 ERJ3GEYJ472 M 4.7KOHM,J,1/16W
Part No. Part Name & Description Remarks
RESISTORS
Safety Ref.
No.
R1830 ERJ3GEYJ472 M 4.7KOHM,J,1/16W
R1831 ERJ3GEYJ102 M 1KOHM,J,1/16W
R2094 D0GA393JA015 CHIP RESISTOR
R2095 D0GA103JA015 CHIP RESISTOR
R2096 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2097 D0GA393JA015 CHIP RESISTOR
R2100 ERJ3GEYJR00 CHIP RESISTOR
R2103 ERJ3GEYJR00 CHIP RESISTOR
R2104 ERJ3GEYJR00 CHIP RESISTOR
R2105 ERJ3GEYJR00 CHIP RESISTOR
R2106 ERJ3GEYJR00 CHIP RESISTOR
R2107 ERJ3GEYJ122 M 1.2KOHM,J,1/16W
R2108 ERJ3GEYJ122 M 1.2KOHM,J,1/16W
R2114 D0GDR00JA017 CHIP RESISTOR
R2118 ERJ3GEYJR00 CHIP RESISTOR
R2159 D0GA104JA015 CHIP RESISTOR
R2160 D0GA104JA015 CHIP RESISTOR
R2303 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2304 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2306 ERJ3GEYJ104 M 100KOHM,J,1/16W
R2307 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2308 ERJ3GEYJ104 M 100KOHM,J,1/16W
R2310 ERJ3GEYJ222 M 2.2KOHM,J,1/16W
R2313 ERJ3GEYJ104 M 100KOHM,J,1/16W
R2314 ERJ3GEYJ105 M 1MOHM,J,1/16W
R2315 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2317 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2381 ERJ3GEYJ102 M 1KOHM,J,1/16W
R2382 ERJ3GEYJ104 M 100KOHM,J,1/16W
R2383 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2384 ERJ3GEYJR00 CHIP RESISTOR
R2500 ERJ2RKF3000X RESISTOR
R2502 D0GA473JA015 CHIP RESISTOR
R2504 D0GA223JA015 CHIP RESISTOR
R2507 D0GA473JA015 CHIP RESISTOR
R2508 D0GA103JA015 CHIP RESISTOR
R2509 ERJ2RKF1101X CHIP RESISTOR
R2512 D0GA470JA015 CHIP RESISTOR
R2516 D0GA473JA015 CHIP RESISTOR
R2517 D0GA104JA015 CHIP RESISTOR
R2518 D0GA103JA015 CHIP RESISTOR
R2600 D0GDR00JA017 CHIP RESISTOR
R2601 D1BD1741A044 CHIP RESISTOR
R2602 D1BD7151A044 CHIP RESISTOR
R2603 D1BD6651A044 CHIP RESISTOR
R2604 D1BD1432A044 CHIP RESISTOR
R2752 D0GDR00JA017 CHIP RESISTOR
R2754 D1BB9101A055 CHIP RESISTOR
R2755 ERJ3GEYJ101 M 100OHM,J,1/16W
R2757 D0GA101JA015 CHIP RESISTOR
R2759 ERJ3GEYJ101 M 100OHM,J,1/16W
R2761 ERJ3EKF1002 M 10KOHM,F,1/16W
R2762 ERJ3GEYJ473 M 47KOHM,J,1/16W
R2900 ERJ3GEYJ101 M 100OHM,J,1/16W
R2907 ERJ3GEYJ221 M 220OHM,J,1/16W
R2910 ERJ3GEYJ102 M 1KOHM,J,1/16W
R2911 ERJ3GEYJ331 M 330OHM,J,1/16W
R2913 ERJ3GEYJR00 CHIP RESISTOR
R2914 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2915 ERJ3GEYJ332 M 3.3KOHM,J,1/16W
R2917 ERJ3GEYJ332 M 3.3KOHM,J,1/16W
R2918 ERJ3GEYJ122 M 1.2KOHM,J,1/16W
R2919 ERJ3GEYJ471 M 470OHM,J,1/16W
R2920 ERJ3GEYJ561 M 560OHM,J,1/16W
R2922 ERJ12Y0R00U FIXED RESISTOR
R2923 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2924 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2925 ERJ3GEYJ473 M 47KOHM,J,1/16W
R2926 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2927 ERJ3GEYJ103 M 10KOHM,J,1/16W
R2928 ERJ3GEYJ473 M 47KOHM,J,1/16W
R2929 ERJ3GEYJ682 M 6.8KOHM,J,1/16W
R2930 ERJ3GEYJ682 M 6.8KOHM,J,1/16W
Part No. Part Name & Description Remarks
48
Page 49
TH-L32C8K
Safety Ref.
No.
R3072 ERJ6ENF75R0 M 75OHM, 1/10W
R3073 ERJ3GEYJ184 M 180KOHM,J,1/16W
R3074 ERJ3GEYJ184 M 180KOHM,J,1/16W
R3075 ERJ6ENF75R0 M 75OHM, 1/10W
R3076 ERJ3GEYJ184 M 180KOHM,J,1/16W
R3077 ERJ3GEYJ184 M 180KOHM,J,1/16W
R3081 ERJ3GEYJR00 CHIP RESISTOR
R3082 ERJ3GEYJ102 M 1KOHM,J,1/16W
R3083 ERJ3GEYJ102 M 1KOHM,J,1/16W
R3084 ERJ3GEYJ102 M 1KOHM,J,1/16W
R3085 ERJ3GEYJ102 M 1KOHM,J,1/16W
R3086 ERJ6ENF75R0 M 75OHM, 1/10W
R3087 ERJ6ENF75R0 M 75OHM, 1/10W
R3088 ERJ6ENF75R0 M 75OHM, 1/10W
R3089 ERJ3GEYJ220 M 22OHM,J,1/16W
R3090 ERJ3GEYJ220 M 22OHM,J,1/16W
R3091 ERJ3GEYJ220 M 22OHM,J,1/16W
R3092 ERJ3GEYJR00 CHIP RESISTOR
R3093 ERJ3GEYJR00 CHIP RESISTOR
R3094 D0GD472JA017 FIXED RESISTOR
R3095 D0GD472JA017 FIXED RESISTOR
R3096 ERDS2TJ560 C 56OHM,J, 1/4W
R3097 ERDS2TJ560 C 56OHM,J, 1/4W
R3200 ERJ3GEYJ223 M 22KOHM,J,1/16W
R3201 ERJ3GEYJ103 M 10KOHM,J,1/16W
R3204 ERJ14YJ222U FIXED RESISTOR
R3205 ERJ14YJ222U FIXED RESISTOR
R3206 ERJ3GEYJ223 M 22KOHM,J,1/16W
R3207 ERJ3GEYJ332 M 3.3KOHM,J,1/16W
R3208 ERJ3GEYJ103 M 10KOHM,J,1/16W
R3209 ERJ3GEYJ473 M 47KOHM,J,1/16W
R3210 ERJ3GEYJ332 M 3.3KOHM,J,1/16W
R3214 ERJ3GEYJ103 M 10KOHM,J,1/16W
R3215 ERJ3GEYJ103 M 10KOHM,J,1/16W
R3218 ERJ3GEYJ103 M 10KOHM,J,1/16W
R3221 ERJ3GEYJ103 M 10KOHM,J,1/16W
R3227 ERJ3GEYJ103 M 10KOHM,J,1/16W
R3229 ERJ3GEYJ153 M 15KOHM,J,1/16W
R3230 ERJ3GEYJ473 M 47KOHM,J,1/16W
R3231 ERJ3GEYJ103 M 10KOHM,J,1/16W
R3232 D0GDR00JA017 CHIP RESISTOR
R3233 ERJ3GEYJ473 M 47KOHM,J,1/16W
R3234 ERJ3GEYJ222 M 2.2KOHM,J,1/16W
R3235 ERJ3GEYJ152 M 1.5KOHM,J,1/16W
R3236 ERJ3GEYJ223 M 22KOHM,J,1/16W
R3237 ERJ3GEYJ473 M 47KOHM,J,1/16W
R3869 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4001 ERJ3GEYJ273 M 27KOHM,J,1/16W
R4003 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4007 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4008 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4009 EXB2HV104JV RESISTOR ARRAY
R4011 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4012 ERJ3GEYJ101 M 100OHM,J,1/16W
R4013 D0GA102JA015 CHIP RESISTOR
R4014 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4023 ERJ3GEYJ101 M 100OHM,J,1/16W
R4025 ERJ3GEYJ101 M 100OHM,J,1/16W
R4033 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4034 ERJ3GEYJ101 M 100OHM,J,1/16W
R4038 D0GA822JA015 CHIP RESISTOR
R4049 ERJ3GEYJ221 M 220OHM,J,1/16W
R4050 ERJ3GEYJ221 M 220OHM,J,1/16W
R4051 ERJ3GEYJR00 CHIP RESISTOR
R4058 ERJ3GEYJ101 M 100OHM,J,1/16W
R4059 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4061 ERJ3GEYJ101 M 100OHM,J,1/16W
R4062 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4064 ERJ3GEYJ473 M 47KOHM,J,1/16W
R4066 ERJ3GEYJ101 M 100OHM,J,1/16W
R4069 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4071 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4077 ERJ3GEYJ220 M 22OHM,J,1/16W
Part No. Part Name & Description Remarks
Safety Ref.
No.
R4078 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4080 ERJ3GEYJ220 M 22OHM,J,1/16W
R4081 ERJ3GEYJ101 M 100OHM,J,1/16W
R4082 ERJ3GEYJR00 CHIP RESISTOR
R4105 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4106 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4112 ERJ3GEYJR00 CHIP RESISTOR
R4114 ERJ3GEYJ101 M 100OHM,J,1/16W
R4118 ERJ3GEYJ471 M 470OHM,J,1/16W
R4121 ERJ3GEYJ562 M 5.6KOHM,J,1/16W
R4124 ERJ6ENF75R0 M 75OHM, 1/10W
R4125 ERJ6ENF75R0 M 75OHM, 1/10W
R4126 ERJ6ENF75R0 M 75OHM, 1/10W
R4148 ERJ3GEYJR00 CHIP RESISTOR
R4152 ERJ3GEYJ221 M 220OHM,J,1/16W
R4156 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4158 ERJ3GEYJ101 M 100OHM,J,1/16W
R4159 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4191 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4204 D0GA161JA015 CHIP RESISTOR
R4205 D0GA161JA015 CHIP RESISTOR
R4206 D0GA161JA015 CHIP RESISTOR
R4207 D0GA161JA015 CHIP RESISTOR
R4208 D0GA161JA015 CHIP RESISTOR
R4229 ERJ3GEYJ392 M 3.9KOHM,J,1/16W
R4230 ERJ3GEYJ392 M 3.9KOHM,J,1/16W
R4231 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4232 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4233 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4234 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4235 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4236 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4237 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4238 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4239 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4240 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4241 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4242 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4243 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4244 ERJ3GEYJ101 M 100OHM,J,1/16W
R4246 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4247 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4248 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4249 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4253 ERJ3GEYJ1R8 CHIP RESISTOR
R4255 ERJ3GEYJ104 M 100KOHM,J,1/16W
R4256 ERJ3GEYJR00 CHIP RESISTOR
R4257 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4258 ERJ3GEYJ473 M 47KOHM,J,1/16W
R4259 ERJ3GEYJ473 M 47KOHM,J,1/16W
R4272 ERJ3GEYJ221 M 220OHM,J,1/16W
R4273 ERJ3GEYJ221 M 220OHM,J,1/16W
R4274 ERJ3GEYJ221 M 220OHM,J,1/16W
R4280 ERJ3GEYJ101 M 100OHM,J,1/16W
R4325 ERJ2GE0R00X FIXED RESISTOR
R4326 ERJ2GE0R00X FIXED RESISTOR
R4328 ERJ3GEYJ101 M 100OHM,J,1/16W
R4329 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4331 ERJ3GEYJ102 M 1KOHM,J,1/16W
R4501 ERJ3GEYJ473 M 47KOHM,J,1/16W
R4502 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4504 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4505 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4506 ERJ3GEYJ473 M 47KOHM,J,1/16W
R4801 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4802 ERJ3GEYJ103 M 10KOHM,J,1/16W
R4803 ERJ3GEYJ473 M 47KOHM,J,1/16W
R4804 ERJ3GEYJ473 M 47KOHM,J,1/16W
R5110 ERJ3GEYJ104 M 100KOHM,J,1/16W
R5111 ERJ3GEYJ104 M 100KOHM,J,1/16W
R5409 D0GD102JA017 FIXED RESISTOR
R5410 D0GD102JA017 FIXED RESISTOR
R5411 D0GD473JA017 FIXED RESISTOR
Part No. Part Name & Description Remarks
49
Page 50
TH-L32C8K
Safety Ref.
No.
R5412 D0GD103JA017 FIXED RESISTOR
R5413 D0GD822JA017 FIXED RESISTOR
R5414 D0GD103JA017 FIXED RESISTOR
R5415 D0GD102JA017 FIXED RESISTOR
R5416 D0GD102JA017 FIXED RESISTOR
R5417 D0GD103JA017 FIXED RESISTOR
R5418 D0GD473JA017 FIXED RESISTOR
R5419 D0GD822JA017 FIXED RESISTOR
R5420 D0GD103JA017 FIXED RESISTOR
R5421 D0GA103JA015 CHIP RESISTOR
R5422 D0GA473JA015 CHIP RESISTOR
R5423 D0GA563JA015 CHIP RESISTOR
R5424 D0GA223JA015 CHIP RESISTOR
R5425 D0GA103JA015 CHIP RESISTOR
R5431 D0GA103JA015 CHIP RESISTOR
R5432 D0GA473JA015 CHIP RESISTOR
R5433 D0GA333JA015 CHIP RESISTOR
R5434 D0GA223JA015 CHIP RESISTOR
R5435 ERJ12YJ471U M 470OHM,J, 1/2W
R5436 D0GA223JA015 CHIP RESISTOR
R5437 D0GA473JA015 CHIP RESISTOR
R5438 D0GA333JA015 CHIP RESISTOR
R5439 ERJ3RBD5361 CHIP RESISTOR
R5440 ERJ3RBD122 FIXED RESISTOR
R5441 D0GD103JA017 FIXED RESISTOR
R5442 D0GD102JA017 FIXED RESISTOR
R5443 ERJ3EKF2871 M 2.87KOHM,F,1/16W
R5444 ERJ6ENF1331 M1.33KOHM, 1/10W
R5445 ERJ6ENF1802 M 18KOHM, 1/10W
R5446 ERJ6ENF1431 FIXED RESISTOR
R5447 D0GD473JA017 FIXED RESISTOR
R5448 D0GD682JA017 FIXED RESISTOR
R5449 D0GD273JA017 FIXED RESISTOR
R5450 D0GD333JA017 FIXED RESISTOR
R5451 D0GD102JA017 FIXED RESISTOR
R5452 D0GD473JA017 FIXED RESISTOR
R5453 D0GD103JA017 FIXED RESISTOR
R5454 D0GD103JA017 FIXED RESISTOR
R5455 D0GD103JA017 FIXED RESISTOR
R5456 D0GD103JA017 FIXED RESISTOR
R5457 D0GD103JA017 FIXED RESISTOR
R5458 D0GD472JA017 FIXED RESISTOR
R5459 D0GD103JA017 FIXED RESISTOR
R5460 D0GD2R2JA017 CHIP RESISTOR
R5461 D0GD204JA017 FIXED RESISTOR
R800 D0XB106J0003 RESISTOR
R801 ERC12ZGK185 S 1.8KOHM,K, 1/2W
R802 D0GD684JA017 CHIP RESISTOR
R803 D0GD684JA017 CHIP RESISTOR
R804 D0GD684JA017 CHIP RESISTOR
R805 D0GD684JA017 CHIP RESISTOR
R806 D0GD303JA017 CHIP RESISTOR
R807 D0GD473JA017 FIXED RESISTOR
R808 D0GD473JA017 FIXED RESISTOR
R810 ERDS1TJ220 C 22OHM,J, 1/2W
R811 ERJ12YJ100U CHIP RESISTOR
R812 D0GD104JA017 FIXED RESISTOR
R813 D0D5R18KA007 CEMENT RESISTOR
R814 ERJ6ENF6493 M 649KOHM, 1/10W
R815 ERJ6ENF6493 M 649KOHM, 1/10W
R816 D0GD684JA017 CHIP RESISTOR
R817 D0GD684JA017 CHIP RESISTOR
R818 ERJ6ENF1802 M 18KOHM, 1/10W
R819 ERDS2TJ101 C 100OHM,J, 1/4W
R820 ERG2SJ330H M 33OHM,J,2W
R821 ERG2SJ330H M 33OHM,J,2W
R822 D1BB4990A055 CHIP RESISTOR
R823 D0GD103JA017 FIXED RESISTOR
R824 D0GD393JA017 FIXED RESISTOR
R825 D0GD104JA017 FIXED RESISTOR
R826 D0GD223JA017 FIXED RESISTOR
R827 D0GD752JA017 FIXED RESISTOR
R828 D0GD154JA017 CHIP RESISTOR
Part No. Part Name & Description Remarks
Safety Ref.
No.
R829 D0GD683JA017 FIXED RESISTOR
R830 D0GD564JA017 CHIP RESISTOR
R831 D0GD564JA017 CHIP RESISTOR
R832 D0GD514JA017 CHIP RESISTOR
R833 D0GD153JA017 FIXED RESISTOR
R834 D0GD105JA017 CHIP RESISTOR
R835 D0GD152JA017 FIXED RESISTOR
R838 ERDS1TJ471 C 470OHM,J, 1/2W
R839 ERDS1TJ220 C 22OHM,J, 1/2W
R840 D0GD162JA017 CHIP RESISTOR
R841 D0GD162JA017 CHIP RESISTOR
R842 D0GD683JA017 FIXED RESISTOR
R843 D0GD103JA017 FIXED RESISTOR
R844 D0GD104JA017 FIXED RESISTOR
R845 ERG1SJW432E RESISTOR
R846 ERDS1TJ302T CARBON RESISTOR
R847 D0GD274JA017 FIXED RESISTOR
R848 D0GD184JA017 FIXED RESISTOR
R849 D0GD184JA017 FIXED RESISTOR
R850 D0GD184JA017 FIXED RESISTOR
R851 D0GD223JA017 FIXED RESISTOR
R852 D0GD683JA017 FIXED RESISTOR
R853 ERDS1TJ2R2 C 2.2OHM,J, 1/2W
R854 ERDS2T0T C 0OHM, 1/4W
R855 D0D3R18KA004 RESISTOR
R856 ERDS1TJ105 C 1MOHM,J, 1/2W
R857 ERDS1TJ271 C 270OHM,J, 1/2W
R858 ERQ12AJ220P F 22OHM, J,1/2W
R859 ERG1SJ470P METAL OXIDE FILM RESIS-
R860 D0GD223JA017 FIXED RESISTOR
R861 ERJ8GEYJ102 M 1KOHM,J, 1/8W
R862 D0GD102JA017 FIXED RESISTOR
R863 D0GD472JA017 FIXED RESISTOR
R864 ERJ6ENF6651 M6.65KOHM, 1/10W
R865 ERJ3EKF2702 M 27KOHM,F,1/16W
R866 D0GD392JA017 FIXED RESISTOR
R867 ERJ6ENF1801 M 1.8KOHM, 1/10W
R868 D0GD472JA017 FIXED RESISTOR
R869 D0GD103JA017 FIXED RESISTOR
R870 D0GDR00JA017 CHIP RESISTOR
R871 D0GD472JA017 FIXED RESISTOR
R872 D0GD103JA017 FIXED RESISTOR
R873 D0GD332JA017 FIXED RESISTOR
R875 D0GD203JA017 FIXED RESISTOR
R876 ERJ3EKF1002 M 10KOHM,F,1/16W
R877 ERJ3EKF4872 FIXED RESISTOR
R878 D0GD303JA017 CHIP RESISTOR
R879 D0GD103JA017 FIXED RESISTOR
R880 D1F5100E0002 WIRE WOUND RESISTOR
R881 D0GD563JA017 FIXED RESISTOR
R882 D0GD363JA017 CHIP RESISTOR
R883 D0GD273JA017 FIXED RESISTOR
R884 D0GDR00JA017 CHIP RESISTOR
R885 D0GD822JA017 FIXED RESISTOR
R886 D0GD472JA017 FIXED RESISTOR
R887 D0GDR00JA017 CHIP RESISTOR
R888 ERJ3EKF6201 FIXED RESISTOR
R889 ERJ3EKF1302 M 13KOHM,F,1/16W
R890 D0GD153JA017 FIXED RESISTOR
R891 D0GD102JA017 FIXED RESISTOR
R892 D0GD823JA017 FIXED RESISTOR
R893 D0GD473JA017 FIXED RESISTOR
R894 D0GD103JA017 FIXED RESISTOR
R895 D0GD102JA017 FIXED RESISTOR
R896 D0GD223JA017 FIXED RESISTOR
R897 D0GD472JA017 FIXED RESISTOR
R898 D0GD103JA017 FIXED RESISTOR
R899 ERJ3EKF1151 FIXED RESISTOR
R900 D0GD683JA017 FIXED RESISTOR
R920 D0GD103JA017 FIXED RESISTOR
T802 ETS40LC136AD TRANSFORMER
Part No. Part Name & Description Remarks
TOR
TRANSFORMERS
50
Page 51
TH-L32C8K
Safety Ref.
No.
T803 ETS26AZ139AH TRANSFORMER
A01 K1KA04B00273 CONNECTOR
A03 K1KY23AA0607 CONNECTOR
A10 K1KA08AA0714 CONNECTOR
A12 K1KA04AA0714 CONNECTOR
A13 K1KY23AA0607 CONNECTOR
A14 K1KY09AA0607 CONNECTOR
A6 K1KA05A00466 CONNECTOR
A8 K1KY30B00015 CONNECTOR
A9 K1KA08B00270 CONNECTOR
F801 K5D502BNA005 FUSE
FL4001 EXC28CE201U CHOKE COIL
FL4002 EXC28CE201U CHOKE COIL
FL4003 EXC28CE201U CHOKE COIL
H13 K1KY23AA0606 CONNECTOR
H14 K1KY09AA0606 CONNECTOR
H15 K1FY315A0004 CONNECTOR
JA1 D0GDR00JA017 CHIP RESISTOR
JA10 D0GDR00JA017 CHIP RESISTOR
JA12 D0GDR00JA017 CHIP RESISTOR
JA13 D0GDR00JA017 CHIP RESISTOR
JA14 D0GDR00JA017 CHIP RESISTOR
JA4 D0GDR00JA017 CHIP RESISTOR
JA6 D0GDR00JA017 CHIP RESISTOR
JA7 D0GDR00JA017 CHIP RESISTOR
JA8 D0GDR00JA017 CHIP RESISTOR
JA9 D0GDR00JA017 CHIP RESISTOR
JK3001 K4AK06A00002 AV TERMINAL
JK3002 K4AK13A00003 AV TERMINAL
JS1804 ERJ3GEYJR00 CHIP RESISTOR
JS1805 ERJ3GEYJR00 CHIP RESISTOR
JS1806 ERJ3GEYJR00 CHIP RESISTOR
JS1810 ERJ2GE0R00X FIXED RESISTOR
JS2004 D0GDR00JA017 CHIP RESISTOR
JS2005 D0GDR00JA017 CHIP RESISTOR
JS2011 D0GDR00JA017 CHIP RESISTOR
JS2012 D0GDR00JA017 CHIP RESISTOR
JS2220 D0GDR00JA017 CHIP RESISTOR
JS2306 ERJ3GEYJR00 CHIP RESISTOR
JS5400 D0GDR00JA017 CHIP RESISTOR
JS5401 D0GDR00JA017 CHIP RESISTOR
JS5404 D0GDR00JA017 CHIP RESISTOR
JS5405 D0GDR00JA017 CHIP RESISTOR
JS5406 D0GDR00JA017 CHIP RESISTOR
JS5416 D0GDR00JA017 CHIP RESISTOR
JS5440 ERJ3GEYJR00 CHIP RESISTOR
JSP814 D0GDR00JA017 CHIP RESISTOR
K01 K1KA04BA0047 CONNECTOR
LF805 G0B103H00009 CHOKE COIL
LF806 G0B103H00009 CHOKE COIL
P1 K1KA02B00295 CONNECTOR
P2 K1KA10AA0191 CONNECTOR
P5 K1KY23AA0606 CONNECTOR
PA5420 ERBSE5R00U FUSE
PA5430 ERBSE2R50U FUSE
PC801 B3PAA0000363 PHOTO COUPLER
PC802 B3PAA0000363 PHOTO COUPLER
PC803 B3PAA0000363 PHOTO COUPLER
RL801 K6B1AGA00179 RELAY
RM2500 B3RAD0000168 PHOTO DETECTOR
SW2600 ESB33535XFD POWER SWITCH
SW2601 K0H1BA000445 CONNECTOR
SW2602 K0H1BA000445 CONNECTOR
SW2603 K0H1BA000445 CONNECTOR
SW2604 K0H1BA000445 CONNECTOR
SW2605 K0H1BA000445 CONNECTOR
TU2900 ENG39E04GRF TUNER
V10 K1KA07B00135 CONNECTOR
X4001 H0J202500011 CRYSTAL OSC
Part No. Part Name & Description Remarks
OTHERS
51
Page 52
Model No. : TH-L32C8K Parts Location
Page 53

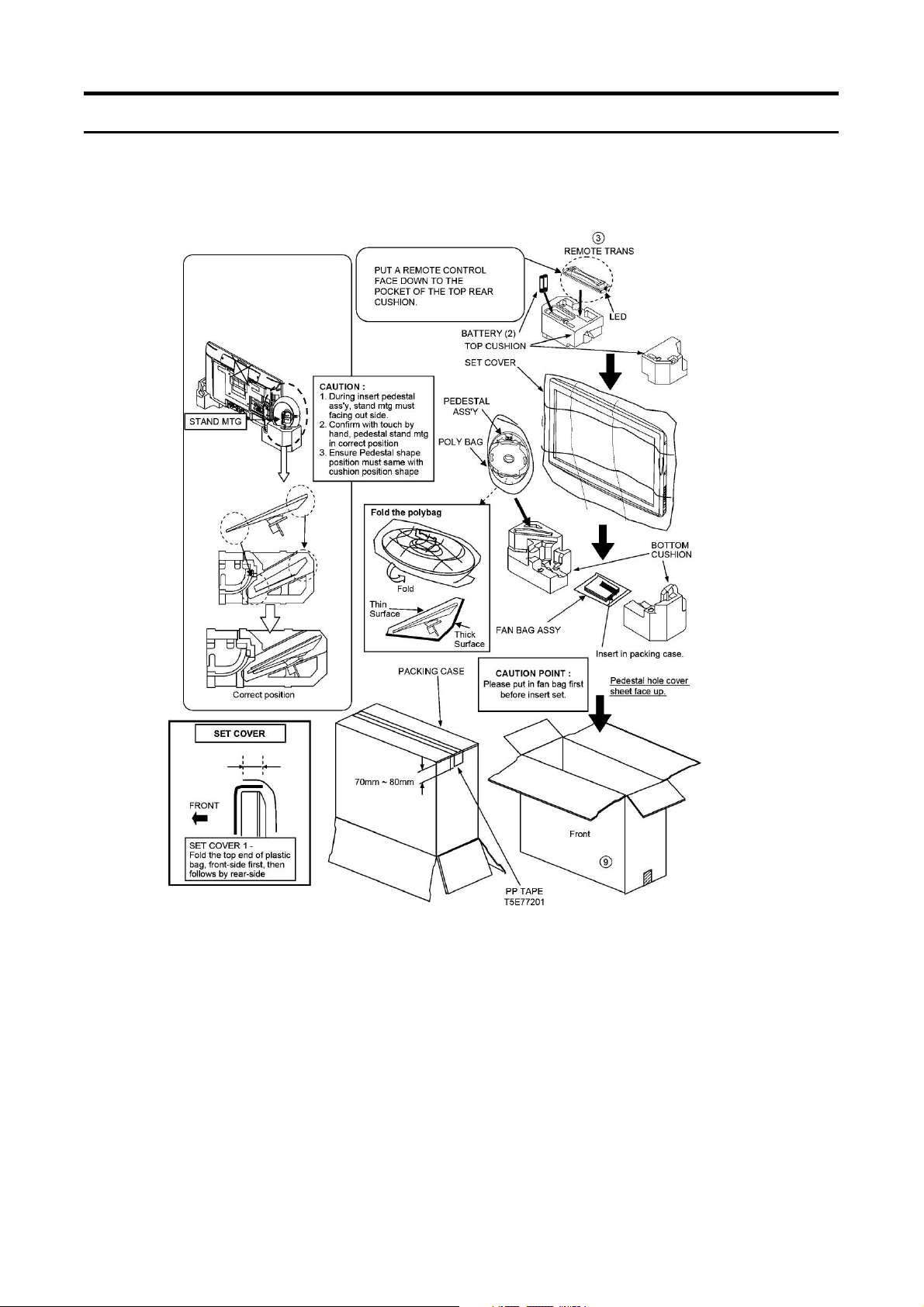

Model No. : TH-L32C8K Packing Exploded View
Page 54
Model No. : TH-L32C8K Parts List
Ref.
No.
1 L0AA14B00003 SPEAKER UNIT
2 L5EDD8Q00060 LCD PANEL
3 N2QAYB000455 REMOTE CONTROL TRANSMITTER
4 TBL4GA0028 PEDESTAL ASSY
5 TBM4GC384 MODEL NAME PLATE
6 TBX4GA01101A CONTROL BUTTON
NLA TZT/A10PFU A BOARD
NLA TNP4G459AE P BOARD
NLA TNP4G464AA H BOARD
NLA TNPA4834BP V BOARD
NLA TNPA4901BH K BOARD
7 TTU4GA0285 BACK COVER ASSY
8 TTY4GA0106 CABINET ASSY
9 TXFPC010PFU PACKING CASE ASSY
Part No. Part Name & Description Q'ty Remarks
K2CQ2YY00036 AC CORD
TBX4GA01201C POWER BUTTON
TKK4GC5021 LED PANEL
TKP4GA02504 SIDE AV BRACKET
TKP4GA02601 CONTROL PANEL BRACKET
TKX4GA01001 SPEAKER BRACKET
TMX4GX001 AC CORD BRACKET
TPD4GA0092-3 TOP CUSHION
TPD4GA0093-1 BOTTOM CUSHION
TQZ4GB225 FAN BAG ASSY
TXJA370PHU LVDS CABLE
Safety
Loading...
