Panasonic TH-86CQ1U Instructions

86-inch Class 4K UHD LCD TV

TH-86CQ1U

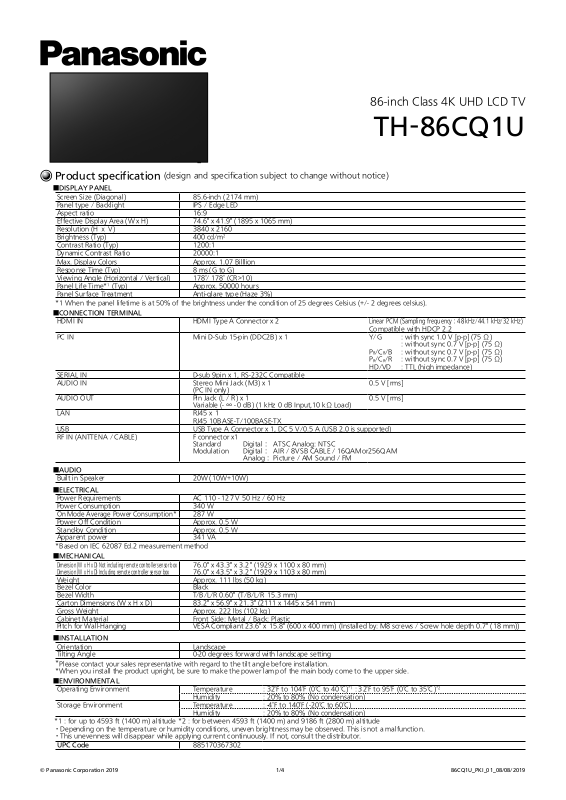

Product specification

■DISPLAY PANEL

Screen Size (Diagonal) 85.6-inch (2174 mm) Panel type / Backlight IPS / Edge LED Aspect ratio 16:9 Effective Display Area (W x H) 74.6" x 41.9" (1895 x 1065 mm) Resolution (H ｘ V) 3840 x 2160 Brightness (Typ) 400 cd/m Contrast Ratio (Typ) 1200:1 Dynamic Contrast Ratio 20000:1 Max. Display Colors Approx. 1.07 Billlion Response Time (Typ) 8 ms (G to G) Viewing Angle (Horizontal / Vertical) 178°/ 178° (CR>10) Panel Life Time Panel Surface Treatment Anti-glare type (Haze 3%)

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2

PC IN Mini D-Sub 15-pin (DDC2B) x 1 Y/G

SERIAL IN D-sub 9pin x 1, RS-232C Compatible AUDIO IN Stereo Mini Jack (M3) x 1

AUDIO OUT Pin Jack (L / R) x 1

LAN RJ45 x 1

USB USB Type A Connector x 1, DC 5 V/0.5 A (USB 2.0 is supported) RF IN (ANTTENA / CABLE) F connector x1

■AUDIO

Built in Speaker 20W (10W+10W)

■ELECTRICAL

Power Requirements AC 110 - 127 V 50 Hz / 60 Hz Power Consumption 340 W On Mode Average Power Consumption*287 W Power Off Condition Approx. 0.5 W Stand-by Condition Approx. 0.5 W Apparent power 341 VA

*Based on IEC 62087 Ed.2 measurement method

■MECHANICAL

Dimension (W x H x D) Not including remote controller sensor box Dimension (W x H x D) Including remote controller sensor box Weight Approx. 111 lbs (50 kg) Bezel Color Black Bezel Width T/B/L/R 0.60" (T/B/L/R 15.3 mm) Carton Dimensions (W x H x D) 83.2" x 56.9" x 21.3" (2111 x 1445 x 541 mm) Gross Weight Approx. 222 lbs (102 kg) Cabinet Material Front Side: Metal / Back: Plastic Pitch for Wall-Hanging VESA Compliant 23.6" x 15.8" (600 x 400 mm) (Installed by: M8 screws / Screw hole depth 0.7" (18 mm))

■INSTALLATION

Orientation Landscape Tilting Angle 0-20 degrees forward with landscape setting

Please contact your sales representative with regard to the tilt angle before installation.

*When you install the product upright, be sure to make the power lamp of the main body come to the upper side.

■ENVIRONMENTAL

Operating Environment Temperature : 32°F to 104°F (0℃ to 40℃)

Storage Environment Temperature : -4°F to 140°F (-20℃ to 60℃)

*1 : for up to 4593 ft (1400 m) altitude *2 : for between 4593 ft (1400 m) and 9186 ft (2800 m) altitude

・Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction. ・This unevenness will disappear while applying current continuously. If not, consult the distributor.

UPC Code 885170367302

(Typ)

(design and specification subject to change without notice)

Approx. 50000 hours

Linear PCM (Sampling frequency：48 kHz/44.1 kHz/32 kHz)

Compatible with HDCP 2.2

B/CB

R/CR

HD/VD

(PC IN only)

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)

RJ45 10BASE-T/100BASE-TX

Standard Digital： ATSC Analog: NTSC Modulation Digital： AIR / 8VSB CABLE / 16QAMor256QAM Analog： Picture / AM Sound / FM

76.0" x 43.3" x 3.2" (1929 x 1100 x 80 mm)

76.0" x 43.5" x 3.2" (1929 x 1103 x 80 mm)

Humidity : 20% to 80% (No condensation)

0.5 V [rms]

: 32°F to 95°F (0℃ to 35℃)

: with sync 1.0 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω)

: without sync 0.7 V [p-p] (75 Ω)

: TTL (high impedance)

86-inch Class

4K UHD

LCD TV

TH-86CQ1U

MAIN FEATURE

TV (NTSC / ATSC) Yes USB Media File Playback Function Yes Memory Viewer Yes Auto setting Yes No signal power off Yes Button lock RC control lock Yes Dynamic contrast Yes Dynamic backlight Yes SERIAL control (RS232C) Yes Motion Smoother Yes LAN control Yes HDMI CEC Compatible Yes Operating Time

* In case of running for a long time, the moving image is recommended

to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying movie images.

Yes

16 h / day

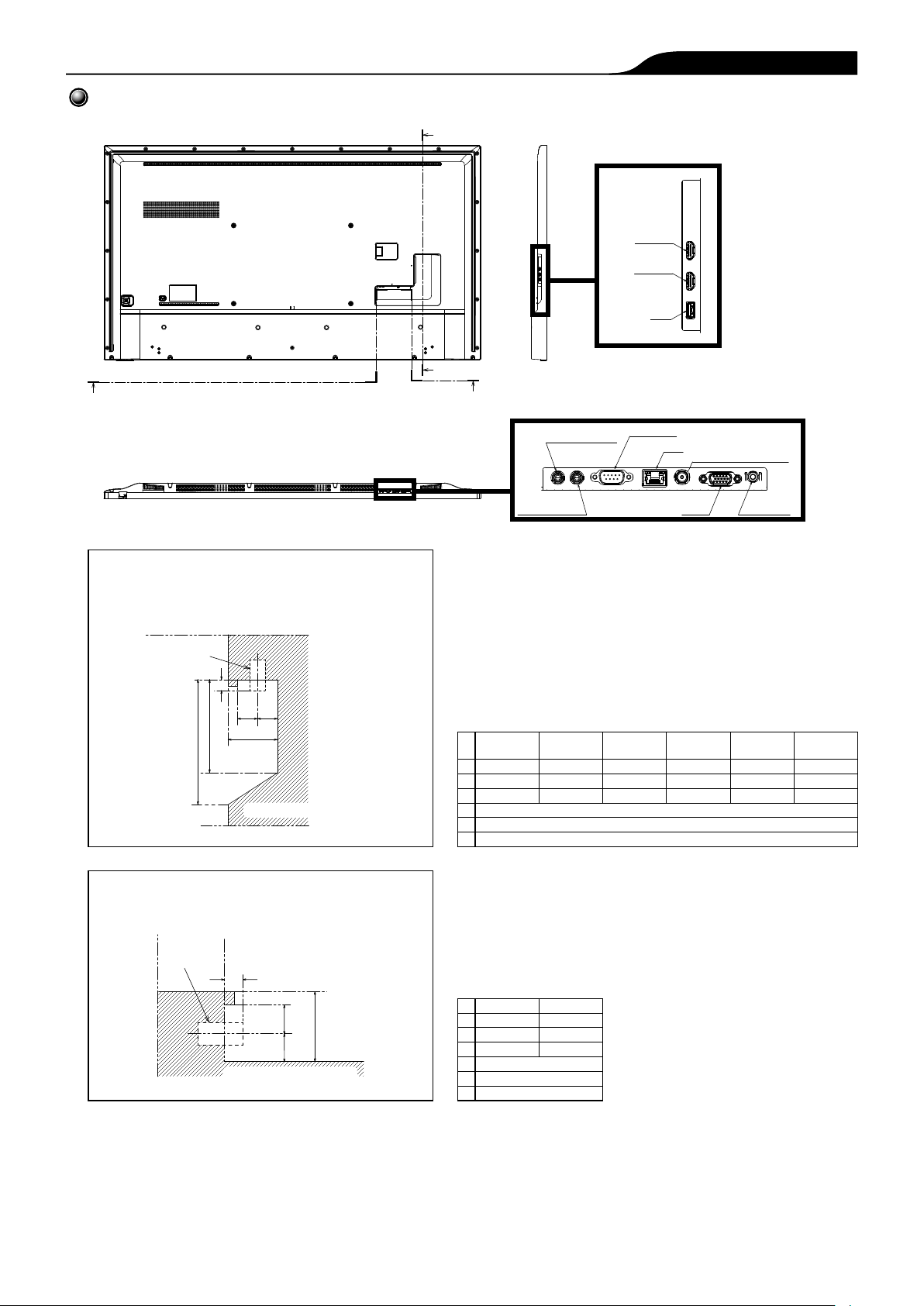

DIMENSIONS

3.2(80)

76.0(1929)

0.6(15.3)

Active Area 74.60(1895.04)

2.0(50)

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS ANSI / UL62368-1:2014

RADIATION REGULATIONS

CAN / CSA C22.2 No. 62368-1-14 FCC 47 CFR, Part 15, Subpart B Class B

ANSI C63.4-2014 ICES-003

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V (AAA Size batteries x 2) Operating distance Approx. 23 ft (7 m) Weight Approx. 3.2 oz (91 g) including batteries Dimemsions (W x H x D) 1.9" x 1.1" x 7.5" (48 x 27 x 190 mm)

*When operated directly in front of receptor.

INCLUDED ACCESSORIES

- Remote Control　- Batteries (AAA size) x 2　- Warranty

- AC cord (Approx. 118.1" (3 m))　- Operating Instruction Book

Cautions: This drawing is not a scale

1.2(30)

8.7(219)

5.6(140)

15.8(400)

23.7(600)

Units : inches (mm)

0.6(15.3)

21.2(538) 21.2(538)

CONNECTION TERMINAL

Active Area

41.96(1065.96)

1.7(42)

3.8(96)

43.3(1100)

43.5(1103)

0.2(3)

21.7(550)

10.3(260)

ANTENNA/ CABLE IN

26.2(665) M8 Screw hole depth 0.8(18)

HDMI

5V DC 0.5A

* Specifications and appearance are subject to change without notice.
