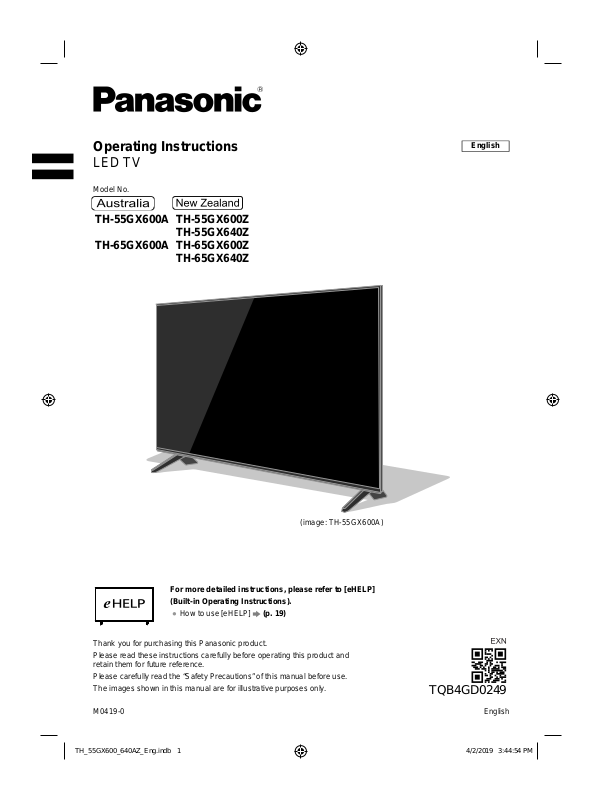

Operating Instructions
LED TV
Model No.
TH-55GX600A TH-55GX600Z
TH-55GX640Z
TH-65GX600A TH-65GX600Z
TH-65GX640Z
English
(image: TH-55GX600A)
For more detailed instructions, please refer to [eHELP]
(Built-in Operating Instructions).
●
How to use [eHELP]
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and
retain them for future reference.
Please carefully read the “Safety Precautions” of this manual before use.
The images shown in this manual are for illustrative purposes only.
M0419-0 English
(p. 19)
TQB4GD0249
Page 2
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator,
Inc. in the United States and other countries.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol are
trademarks of Dolby Laboratories.
x.v.Colour™ is a trademark.
●
For the information of the trademarks, refer to
[eHELP] (Search by Purpose > Read First > Before
use > Licence).
The illustration for TH-55GX600A is used in this
manual unless otherwise mentioned.
Illustrations shown may be different between models
and countries.
Contents
Be Sure to Read
Important Notice··················································· 3
Safety Precautions ··············································· 4
Accessories ························································ 6
Installing the TV ··················································· 7
Installing the wall-hanging bracket ··························10
Connections ·······················································10
Identifying Controls ··············································15
First time Auto Tuning···········································17
Watching TV·······················································18
How to Use eHELP ··············································19
FAQs ································································19
Maintenance ······················································21
Specifications ·····················································21
English
2
Page 3
Important Notice
Internet apps are provided by their respective service
providers, and may be changed, interrupted, or
discontinued at any time. Panasonic assumes no
responsibility and makes no warranty for the availibility
or the continuity of the services.
Panasonic does not guarantee operation and
performance of peripheral devices made by other
manufacturers; and we disclaim any liability or damage
arising from operation and/or performance from usage of
such other maker’s peripheral devices.
Handling of customer information
Certain customer information such as IP address of your
device (this TV)’s network interface will be collected as
soon as you connect your Panasonic-branded smart
television (this TV) or other devices to the internet
(excerpted from our privacy policy). We do this to protect
our customers and the integrity of our Service as well as
to protect the rights or property of Panasonic. If you wish
to know more about the processing of your information
in this context, please refer to the full text of our privacy
policy displayed at [eHELP] (Search by Purpose >
Network > Network settings > Terms of Service and
Settings).
When using Internet connecting function of this TV, after
agreeing to Panasonic‘s terms of service / privacy policy
(hereinafter referred to as terms and conditions etc.),
Customer Information on the use of this unit may be
collected and used according to terms and conditions
etc.
For details of terms of service / privacy policy, refer
to [eHELP] (Search by Purpose > Network > Network
settings > Terms of Service and Settings).
Customer’s personal information may be recorded on
this TV by broadcasting organization or application
provider. Before repairing, transferring or discarding
this TV, erase all the information recorded on this TV
according to the following procedure.
[eHELP] (Search by Purpose > Functions > Shipping
Condition).
Customer Information may be collected by provider
via application provided by third parties on this TV or
website. Please confirm the terms and conditions etc. of
provider in advance.
Panasonic will not be held responsible for collecting
•
or using customer Information via application
provided by third party on this TV or website.
When entering your credit card number, name, etc.,
•
pay special attention to the trustworthiness of the
provider.
Registered information may be registered in the
•
server etc. of provider. Before repairing, transferring
or discarding this TV, be sure to erase the information
according to the terms and conditions etc. of provider.
The recording and playback of content on this or any
other device may require permission from the owner
of the copyright or other such rights in that content.
Panasonic has no authority to and does not grant
you that permission and explicitly disclaims any right,
ability or intention to obtain such permission on your
behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable
copyright legislation in your country. Please refer to that
legislation for more information on the relevant laws and
regulations involved or contact the owner of the rights in
the content you wish to record or playback.
This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the
AVC Standard (“AVC Video”) and/or (ii) decode AVC
Video that was encoded by a consumer engaged in
a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC
Video. No license is granted or shall be implied for any
other use.
Additional information may be obtained from MPEG LA,
LLC.
See http://www.mpegla.com.
Panasonic and its affiliates make no representations or
warranties of any kind with respect to the USB devices
and the performance of communication between the
USB devices and the USB port of Panasonic products,
and expressly disclaims any and all warranties, whether
express or implied or otherwise, including without
limitation any implied warranty of fitness for a particular
purpose, any loss of data, and any implied warranties
arising from course of dealing or course of performance
of data communication between the USB devices and
the USB port of Panasonic products.
Transport only in upright position.
This mark indicates the product operates on AC voltage.
This mark indicates a Class II or double insulated
electrical appliance wherein the product does not
require a safety connection to electrical earth (ground).
English
3
Page 4
Safety Precautions
To help avoid risk of electrical shock, fire, damage or
injury, please follow the warnings and cautions below:
■ Mains plug and lead
Warning
If you detect anything unusual,
immediately remove the mains
plug.
Note
●
Mains Plug and lead types vary depending on the
model and countries.
●
This TV is designed to operate on AC
50 / 60 Hz.
●
Insert the mains plug fully into the mains socket.
●
To turn Off the apparatus completely, you must pull
the mains plug out of the mains socket.
Consequently
accessible at all times.
●
Disconnect the mains plug when cleaning the TV.
●
Do not touch the mains plug with wet
hands.
●
Do not damage the mains lead.
Do not place a heavy
•
object on the lead.
Do not place the lead near
•
a high temperature object.
Do not pull on the lead.
•
Hold onto the mains plug
body when disconnecting
the plug.
Do not move the TV with the lead plugged into a
•
mains socket.
Do not twist the lead, bend it excessively or stretch it.
•
Do not use a damaged mains plug or mains
•
socket.
Ensure the TV does not crush the mains lead.
•
●
Do not use any mains lead other than that provided
with this
, the mains plug should be easily
TV.
■ Take care
Warning
●
Do not remove covers and never
modify the
parts are accessible and risk
of electric shock when they are
removed. There are no user
serviceable parts inside.
TV yourself as live
220-240 V,
●
Do not expose the TV to rain
or excessive moisture.
TV must not be exposed to
dripping or splashing water
and objects filled with liquid,
such as vases, must not be
placed on top of or above
the TV.
●
Do not insert foreign objects into the TV through the
air vents.
●
If the TV is used in an area where insects may easily
TV.
enter the
It is possible for insects to enter the TV, such as small
flies, spiders, ants, etc. which may cause damage to
the TV or become trapped in an area visible on the
TV, e.g. within the screen.
●
Do not use an unapproved pedestal / mounting
equipment. Be sure to ask your local Panasonic
dealer to perform the setup or installation of approved
wall-hanging brackets.
●
Do not apply any strong force or impact to the display
panel.
●
Ensure that children do not climb on the TV.
●
Do not place the TV on sloping
or unstable surfaces, and
ensure that the
hang over the edge of the
base.
Important information
If the TV is not positioned in a sufficiently stable
location, it can be potentially hazardous due to
falling. Many injuries, particularly to children, can
be avoided by taking simple precautions such as:
Using cabinets or stands recommended by the
•
manufacturer of the TV.
Only using furniture that can safely support the
•
TV.
Ensuring the TV is not overhanging the edge of
•
the supporting furniture.
Not placing the TV on tall furniture (for example,
•
cupboards or bookcases) without anchoring
both the furniture and the TV to a suitable
support.
Not standing the TV on cloth or other materials
•
placed between the TV and supporting furniture.
Educating children about the dangers of
•
climbing on furniture to reach the TV or its
controls.
If your existing TV is being retained and relocated,
the same considerations as above should be
applied.
●
This TV is designed for indoor use.
●
This TV is designed for table-top use.
●
Do not expose the TV to direct
sunlight and other sources of
heat.
This
TV does not
4
English
Page 5
To prevent the
spread of fire, keep
candles or other
open flames away
from this product at
all times
■ Suffocation / Choking Hazard
Warning
●
The packaging of this product may cause suffocation,
and some of the parts are small and may present a
choking hazard to young children. Keep these parts
out of reach of young children.
■ Display
Caution
●
Do not spray water or
detergent directly on
screen for cleaning purpose.
Leaking liquid substance will
cause damage to TV.
●
Be careful of cats, rats or other
animals that may urinate on
TV (front and rear). It may
the
lead to TV failure.
●
Do not use sharp or hard objects (finger nails, knife
and etc.) on
the screen surface.
■ Pedestal
Warning
●
Do not disassemble or modify the pedestal.
Caution
●
Do not use any pedestal other than the one provided
TV.
with this
●
Do not use the pedestal if it becomes warped or
physically damaged. If this occurs, contact your
nearest Panasonic dealer immediately
●
During setup, make sure that all screws are securely
tightened.
●
Ensure that the TV does not suffer any impact during
installation of the pedestal.
●
Ensure that children do not climb onto the pedestal.
●
Install or remove the TV from the pedestal with at
least two people.
●
Install or remove the TV according to the specified
procedure.
■ Radio waves
Warning
●
Do not use the TV in any medical institutions or
locations with medical equipment. Radio waves may
interfere with the medical equipment and may cause
accidents due to malfunction.
TV
TV screen. This may cause damage to
.
●
Do not use the TV near any automatic control
equipment such as automatic doors or fire alarms.
Radio waves may interfere with the automatic
control equipment and may cause accidents due to
malfunction.
●
Keep at least 15 cm away from the TV if you have a
cardiac pacemaker
the operation of the pacemaker.
●
Do not disassemble or alter the TV in any way.
. Radio waves may interfere with
■ Built-in wireless LAN
Caution
●
Do not use the built-in wireless LAN to connect to any
wireless network (SSID*) for which you do not have
usage rights. Such networks may be listed as a result
of searches. However
as illegal access.
*
SSID is a name for identifying a particular wireless
network for transmission.
●
Do not subject the built-in wireless LAN to high
temperatures, direct sunlight or moisture.
●
Data transmitted and received over radio waves may
be intercepted and monitored.
●
The built-in wireless LAN uses 2.4 GHz and
5 GHz frequency bands.
slow response caused by radio wave interference
when using the built-in wireless LAN, keep the TV
away from other devices that use 2.4 GHz and
5 GHz signals such as other wireless LAN devices,
microwave ovens, and mobile phones.
●
In case there are difficulties to connect to 2.4GHz
network, please try connecting to 5GHz network. In
an ideal condition, this would provide faster network
capability and better performance.
●
When problems occur due to static electricity, etc., the
TV might stop operating to protect itself. In this case,
TV off at the Mains power On/Off switch, then
turn the
turn it back on.
, using them may be regarded
To avoid malfunctions or
■ Ventilation
Caution
Allow sufficient space (at least 10 cm) around the TV in
order to help prevent excessive heat, which could lead
to early failure of some electronic components.
10
10
●
Ventilation should not be
impeded by covering the
ventilation openings with
items such as newspapers,
tablecloths and curtains.
●
Whether you are using a pedestal or not, always
ensure the vents at the bottom of the
blocked and there is sufficient space to enable
adequate ventilation.
10
10
(cm)
TV are not
English
5
Page 6
■ Moving the TV
Caution
Before moving the TV, disconnect all cables.
●
At least two people are required to move the TV.
■ When not in use for a long time
Caution
This TV will still consume some power even in the Off
mode, as long as the mains plug is still connected to a
live mains socket.
●
Remove the mains plug from the wall socket when
TV is not in use for a prolonged period of time.
the
■ Excessive volume
Caution
●
Do not expose your ears to
excessive volume from the
headphones. Irreversible
damage can be caused.
●
If you hear a drumming noise in your ears, turn down
the volume or temporarily stop using the headphones.
■ Battery for the Remote Control
Caution
●
Incorrect installation may cause battery leakage,
corrosion and explosion.
●
Replace only with the same or equivalent type.
●
Do not mix old and new batteries.
●
Do not mix different battery types (such as alkaline
and manganese batteries).
●
Do not use rechargeable batteries (Ni-Cd, etc.).
●
Do not burn or break up batteries.
●
Do not expose batteries to excessive heat such as
sunshine, fire or the like.
●
Make sure you dispose of batteries correctly.
●
Remove the battery from the unit when not using for
a prolonged period of time to prevent battery leakage,
corrosion and explosion.
Accessories
Remote Control
●
N2QAYB001188
(p. 15)
Pedestal
(p. 7, 8, 9)
Mains lead
(p. 11)
Batteries (2)
●
R6
(p. 16)
Operating Instructions with
Warranty statement
Fall prevention parts
(p. 9)
●
The fall-prevention band is fixed to the pedestal with
tapes.
55-inch model
6
English
●
Accessories may not be placed all together. Take care
not to throw them away unintentionally
Note
●
Illustrations shown above may be different between
models and countries.
.
Page 7
Installing the TV
Assembling / Removing the pedestal
Assembly screw (4)
M5 × 12 (mm)
Assembly screw (4)
M4 × 12 (mm)
Bracket
1
Bracket
2
Assembling the pedestal
●
Select a method to assemble the pedestal from the
following styles.
●
Do not assemble the pedestal by any method other
than those specified below
.
■ <Style 1>
2
2
1
1
Base
1
Base
2
Preparations
Take out the pedestal and the TV from the packing case
and put the TV onto a work table with the screen panel
down on the clean and soft cloth (blanket, etc.)
●
Use a flat and firm table bigger than the TV.
●
Do not hold the screen panel part.
●
Make sure not to scratch or break the TV.
1
A
D
F
A
C
E
English
7
Page 8
■ <Style 2>
2
2
2
3
B
1
A
D
F
A
C
E
1
1
8
English
Page 9
Preventing the TV from falling over
2
It is recommended to secure the pedestal to a furniture
as shown to prevent the TV from falling over.
●
This information is designed to reduce the risk of
injuries caused by the
measure can guarantee protection in all cases.
TV falling over. However, no
3

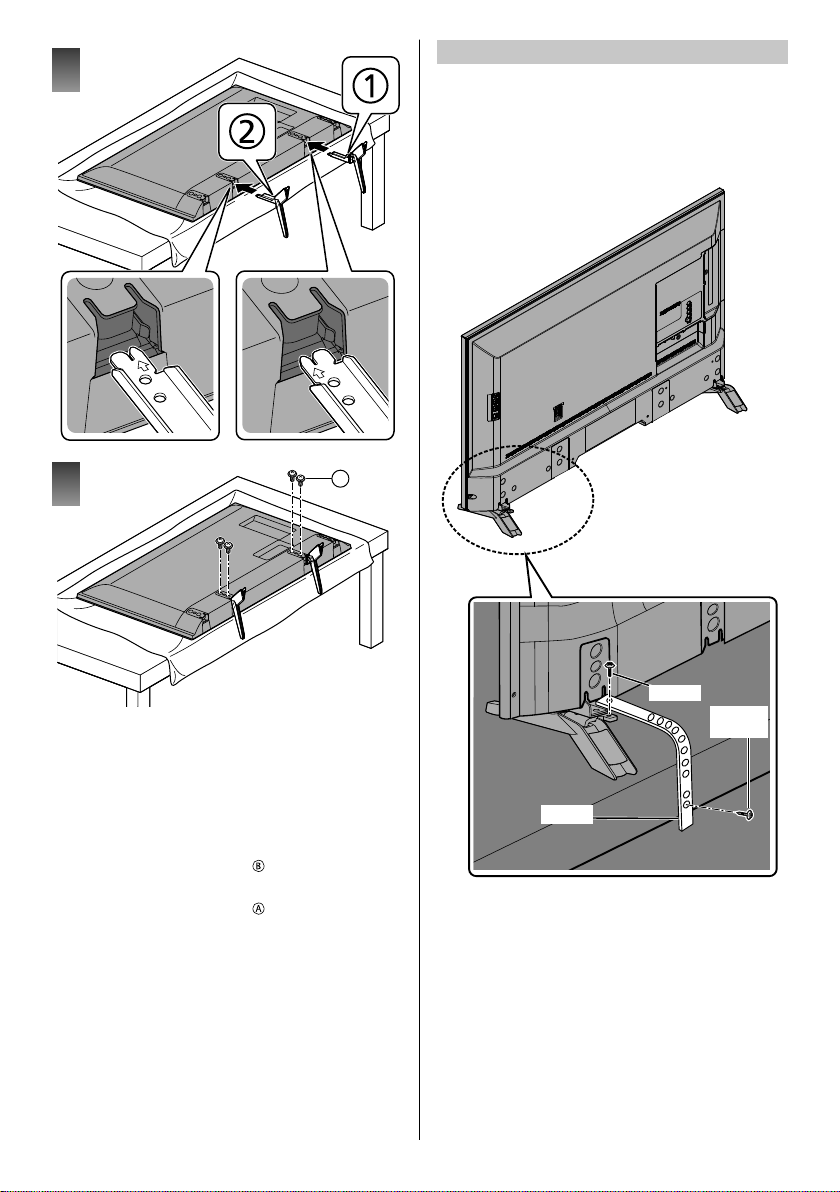

Removing the pedestal from the TV
Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking the
TV.
1 Put the TV onto a work table with the screen panel
down on the clean and soft cloth.
2 Pull out the covers.
3 Remove the assembly screws
4 Pull out the pedestal from the TV.
5 Remove the assembly screws
from the TV.
from the bracket.
B
Screw
Wood
screw
Band
English
9
Page 10
Installing the wall-
Connections
hanging bracket
Choosing to wall mount the TV shall be done at the
owner’s risk. Always use a qualified installer to perform
a TV wall bracket installation. Incorrect fitting may cause
equipment to fall, resulting in injury and product damage.
Any such damage will void your warranty.
●

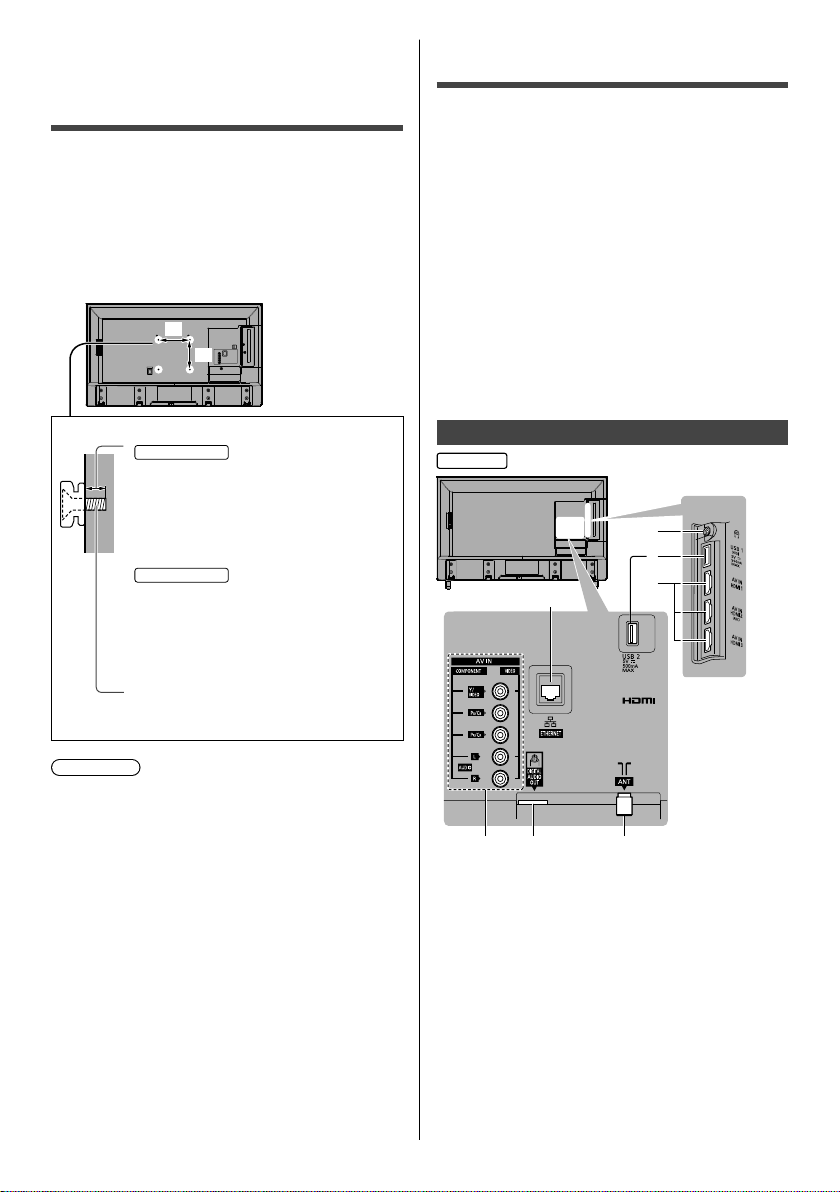

Holes for wall-hanging bracket installation
Rear of the TV
a
b
(View from the side)
55-inch model
Depth of screw
minimum: 8 mm
maximum: 16 mm
Type of screw: M6
65-inch model
Depth of screw
minimum: 9 mm
maximum: 16 mm
Type of screw: M6
Screw for fixing the TV onto the
wall-hanging bracket (not supplied with
the TV)
a: 400 mm
b: 400 mm
●
External equipment and cables shown are not
supplied with this
●
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
●
Check the terminal type and cable plugs are correct
for connection.
●
Use a fully wired HDMI compliant cable. Please use
a High Speed HDMI cable when connecting for high
resolution pictures.
●
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
●
Please also read the manual of the equipment being
connected.
TV.
Terminals
Australia
1
2
3
,
Warning
●
When optional accessories such as wall brackets, etc.
are used, always read and follow the manufactures
installation and usage instructions.
●
Do not mount the unit directly below ceiling lights
(such as spotlights or halogen lights) which typically
f high heat. Doing so may warp or damage
give of
plastic cabinet parts.
●
When installing wall brackets you must ensure the
wall bracket is not electrically grounded to metal wall
Always ensure that there are no electrical
studs.
cables, pipes, etc. in the wall before you begin the
wall bracket installation.
●
To prevent fall and injury, remove the TV from its fixed
wall position when it is no longer in use.
English
10
5467
Page 11
New Zealand
5467

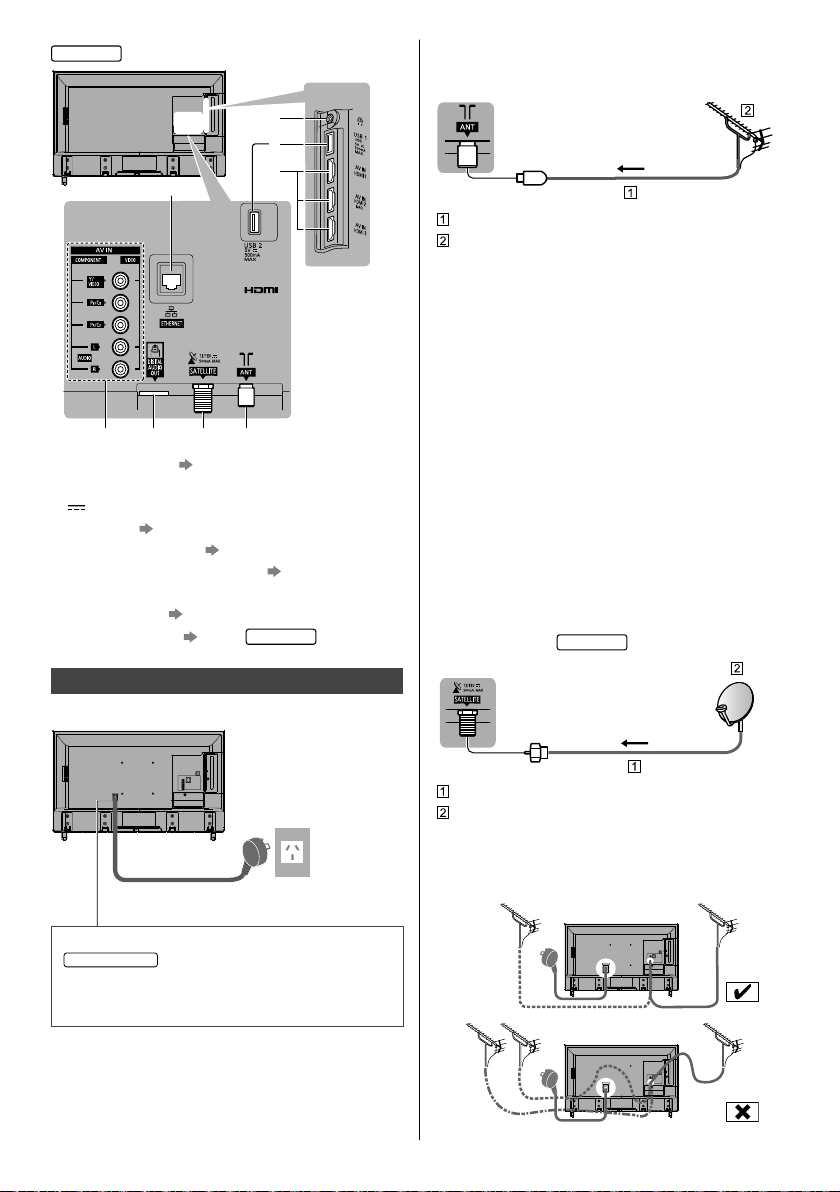

1 Headphone jack (p. 13)
2 USB 1 port
This symbol indicates DC operation
3 HDMI 1 - 3
4 ETHERNET terminal
5 AV IN (COMPONENT / VIDEO)
6 DIGITAL AUDIO OUT
7 Aerial terminal
8 Satellite terminal
8
(p. 12 - 13)
(p. 11)
(p. 11)
(p. 12)
New Zealand
1
2
3
(p. 13)
■ Aerial
TV
RF cable
Aerial
●
For Digital TV, Analogue TV
●
Keep RF (aerial) cable away from the mains lead to
avoid and minimise mains interference pickup.
●
Do not place the RF cable under the TV.
●
An aerial, correct cable (75 coaxial) and correct
terminating plug are required to obtain optimum
quality picture and sound.
●
If a communal aerial system is used, you may require
the correct connection cable and plug between the
wall aerial socket and the
●
Your local Television Service Centre or dealer may
be able to assist you in obtaining the correct aerial
system for your particular area and the accessories
required.
●
Any matters regarding aerial installation, upgrading
of existing systems or accessories required, and
the costs incurred, are the responsibility of you, the
.
customer
●
If the aerial is placed in the wrong location,
interference might happen.
■ Satellite dish
TV.
New Zealand
Basic connections
■ Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
Insert the mains plug firmly into place.
55-inch model
●
When disconnecting the mains lead, be absolutely
sure to disconnect the mains plug from the mains
socket first.
Satellite cable
Satellite dish
●
For Satellite TV
●
To ensure your satellite dish is correctly installed,
please consult your local dealer
received satellite broadcasting companies for details.
. Also consult the
English
11
Page 12

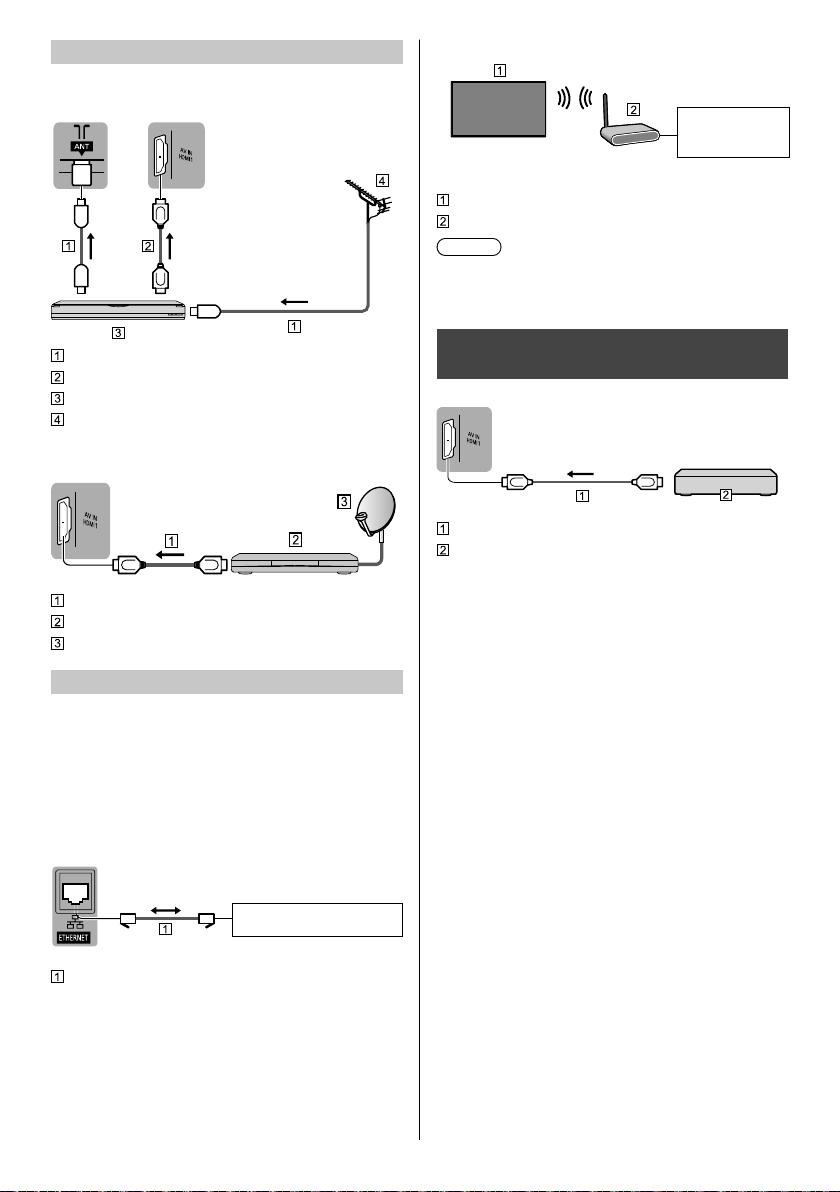

AV devices
■ DVD Recorder / VCR
TV
■ Wireless connection
Internet
Built-in wireless LAN (Rear of the TV)
Access point
Note
Network reconnection may take a while after the TV set
is turned on. If network features cannot be accessed,
please wait and try again later.
environment
RF cable
HDMI cable
DVD Recorder / VCR
Aerial
■ Set top box
TV
HDMI cable
Set top box
Satellite dish
Network
A broadband network environment is required to be able
to use internet services.
●
If you do not have any broadband network services,
please consult your retailer for assistance.
●
Prepare the internet environment for wired connection
or wireless connection.
■ Wired connection
TV
Internet environment
LAN cable (Shielded)
●
Use Shielded Twist Pair (STP) LAN cable.
Connections for 4K / HDR compatible
equipment
TV
HDMI cable
4K / HDR compatible equipment
●
To watch high-definition 4K more accurately or HDR
content, connect the 4K / HDR compatible equipment
to HDMI1 or 2 terminal.
●
Connect the 4K compatible equipment to HDMI
terminal using a 4K compatible cable and you can
watch content in 4K format.
●
Supporting HDR does not increase the peak
brightness capabilities of the
TV panel.
■ [HDMI 2.0 Setting] (Setup Menu)
Reproduces the image more precisely with the
expanded colour gamut when connecting the 4K
compatible equipment. Select the mode depending on
the equipment.
[4K@60Hz 4:2:0]:
For better compatibility. Set to [4K@60Hz 4:2:0]
when the image or sound in HDMI input is not played
properly.
[4K@60Hz 4:4:4/4:2:0]:
For the 4K compatible equipment that has the
function to output the image precisely with the
expanded colour gamut.
●
To change the mode
Select the HDMI input mode connected to the
1.
equipment.
2. Display the menu and select [HDMI 2.0 Setting]
(Setup Menu).
●
For information about the valid format, refer to
[eHELP] (Search by Purpose > W
resolution > Valid 4K format).
atching > 4K
12
English
Page 13

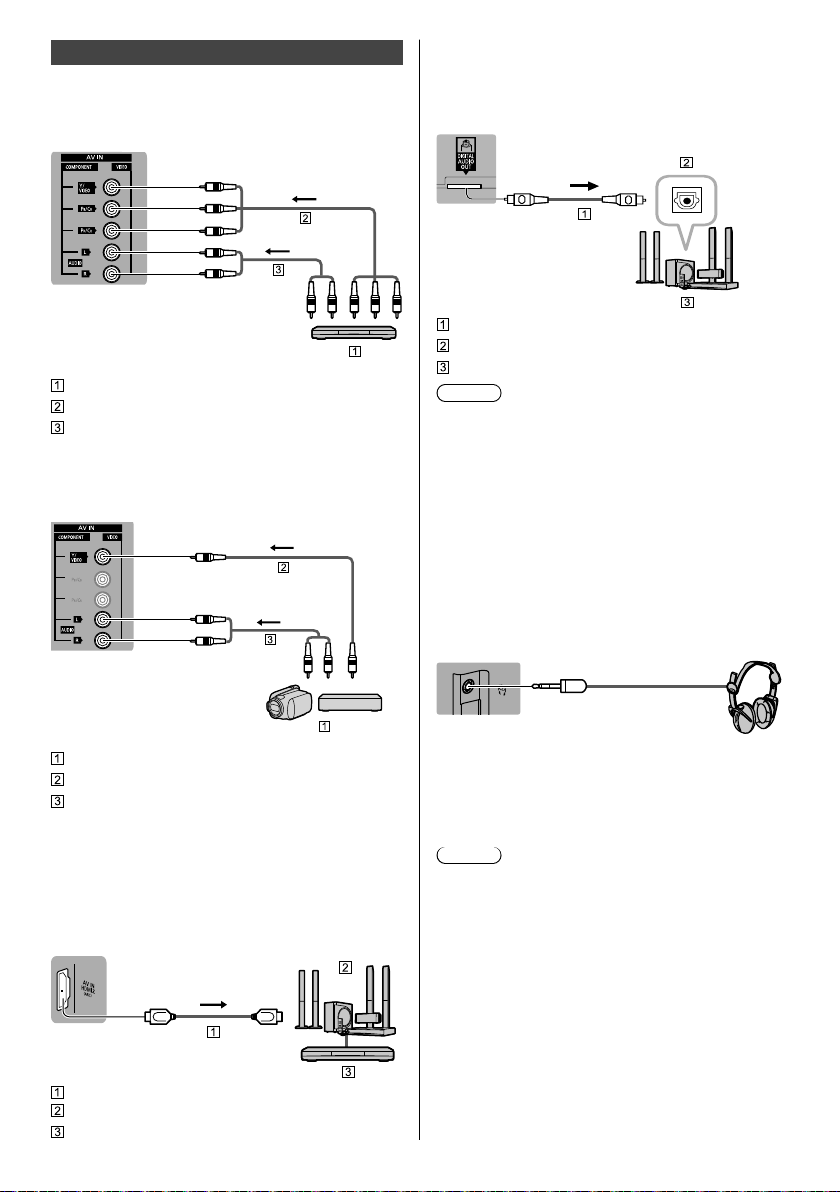

Other connections
■ DVD Player
(COMPONENT equipment)
TV
(Listening)
DVD Player
Component video cable (Shielded)
Audio cable (Shielded)
■ Camcorder / Game equipment
(VIDEO equipment)
TV
(Viewing)
(Listening)
(Viewing)
●
Use HDMI2 to connect the TV to an amplifier which
ARC (Audio Return Channel) function.
has
If connecting to an amplifier without ARC function,
use DIGITAL AUDIO OUT.
TV
Optical cable
DIGITAL AUDIO IN
e.g. Amplifier with speaker system
Note
●
ARC function is not supported when performing
mirroring on the
●
To enable ARC function in CEC Menu
Display Home with [HOME].
1
2 Select ‘CEC’ and press [OK] to access.
3 Choose “Enable Audio System” under Audio
System (*).
(*) Name will vary depending on external equipment
and amplifier.
TV set.
■ Headphones
●
For information about the volume settings, refer to
[eHELP] (Search by Purpose > Settings >
Audio).
Camcorder / Game equipment
Composite video cable (Shielded)
Audio cable (Shielded)
■ Amplifier (listening with external speakers)
●
To enjoy multi-channel sound from external
equipment (e.g. Dolby Digital 5.1ch), connect the
equipment to the amplifier
connections, read the manuals of the equipment and
amplifier.
TV
HDMI cable
Amplifier with speaker system
External equipment (DVD Player, etc.)
. For information about the
(3.5 mm stereo mini plug)
■ USB HDD (for recording)
●
Use USB 1 port for connecting the USB HDD.
●
For details, refer to [eHELP] (Search by Purpose >
Recording).
Note
●
The TV supports USB HDD capacity up to 2 TB.
■ HDMI CEC
●
Use HDMI1 - 3 for HDMI CEC connection.
●
For details, refer to [eHELP] (Search by Purpose >
Functions > HDMI CEC).
■ Media Player
●
Select “Filter” options to filter the files as per the
content type (Photo / V
1 Display the option menu with [OPTION].
2 Select “Filter” and press [OK] to access.
3 Select “Photo / Video / Music” and press [OK] to
set.
ideo / Music)
English
13
Page 14
Cable arrangement

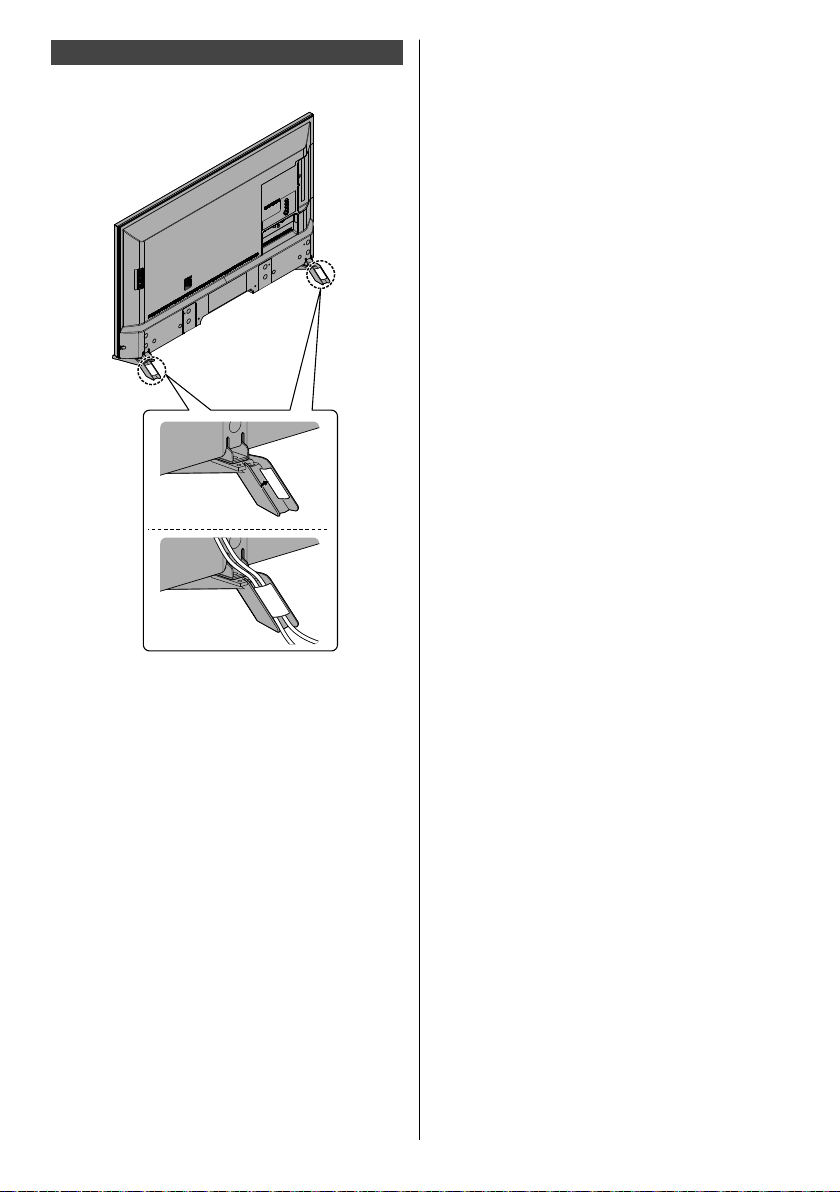

■ Fixing the cables
●
Fix cables as necessary.
●
When using the optional accessory, follow the option’s
assembly manual to fix cables.
English
14
Page 15
Identifying Controls

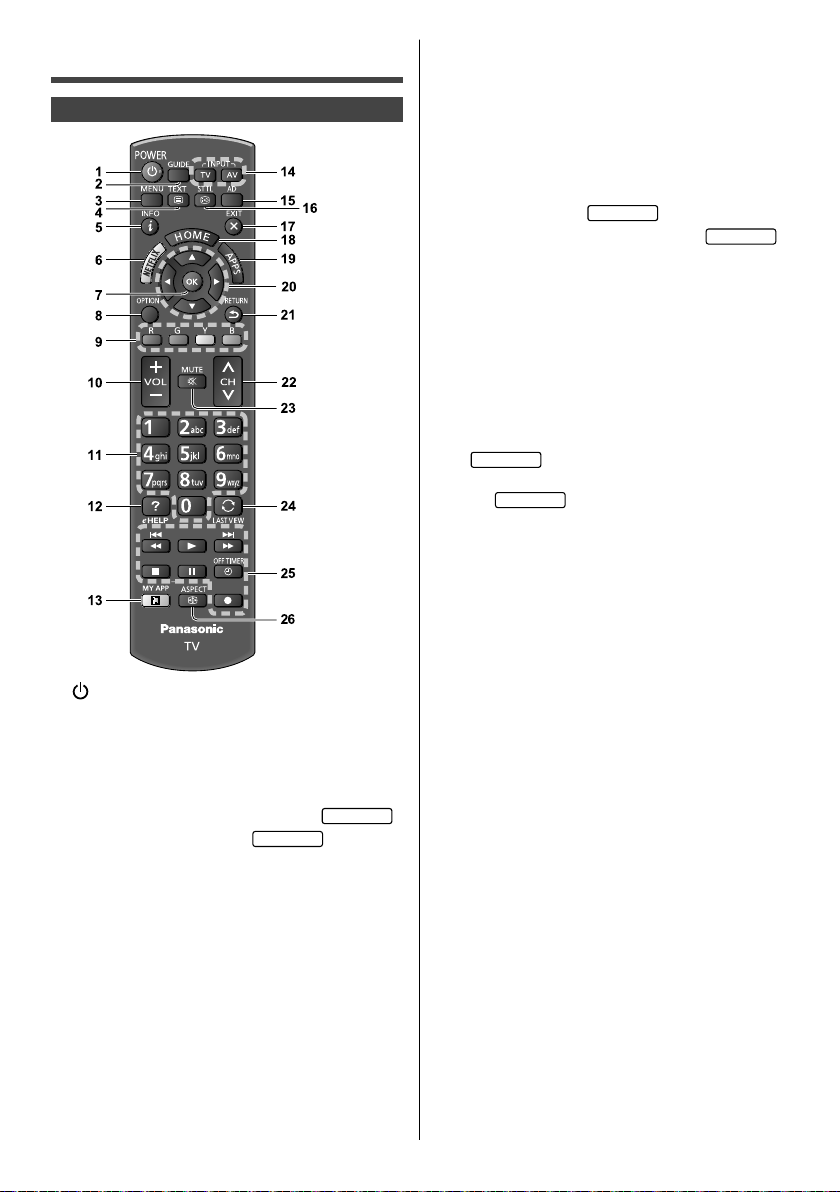

Remote Control
1 [ ]: Switches TV On or Off (Standby)
2 TV Guide
3 [Main Menu]
●
Press to access Video, Audio, TV, Setup and
Parental Menus, etc.
eletext button
4 T
●
This button is not used for this model.
●
Switches to teletext mode.
5 Information
●
Displays channel and programme information.
6 Netflix
●
Accesses NETFLIX service directly.
●
A broadband network environment is required in
order to fully use this function.
●
This service may be stopped or changed without
notice.
7 OK
●
Confirms selections and choices.
●
Press after selecting channel positions to quickly
change channel.
●
Displays channel list.
New Zealand
Australia
8 [Option Menu]
●
Easy optional setting for viewing, sound, etc.
9 Coloured
(red-green-yellow-blue)
●
10
Volume Up / Down
11
Numeric buttons
●
●
●
12
[eHELP]
●
13
[My App]
●
●
14
Input mode selection
●
●
●
15
Audio Description
●
16
Subtitles
●
17
Exit
●
18
HOME
●
●
19
APPS
●
20
Cursor buttons
●
21
Return
●
22
Channel Up / Down
23
Sound Mute On / Off
24
Last view
●
25
Operations for contents, connected equipment,
etc.
buttons
Used for the selection, navigation and operation of
various functions.
Changes channel.
Changes channel and teletext pages.
Sets characters.
Displays [eHELP] (Built-in Operating Instructions).
Assigns a favourite application. After setting, starts
the application easily by pressing this button.
For details, refer to [eHELP] (Search by Purpose >
Apps)
Home >
TV - switches to Digital TV / Analogue TV.
Australia
TV - switches to Satellite TV / Digital TV / Analogue
New Zealand
.
TV
AV - switches to AV input mode from Input
Selection list.
Displays [Audio Description].
Displays [Subtitle Menu].
Returns to normal viewing screen.
Displays [Home].
For details, refer to [eHELP]
(Search by Purpose > Read first > Features).
Displays [Apps] (applications list).
Makes selections and adjustments.
Returns to the previous menu / page.
Switches to previously viewed channel or input
mode.
Australia
New Zealand
English
15
Page 16
26
ASPECT
●
Changes aspect ratio.
●
Displays the [Aspect Selection] screen. [Auto] /
[16:9] / [Just] / [4:3] / [Zoom]
■ [Auto]
The best ratio is selected automatically
*
■ [16:9]
Directly displays the image at 16:9 without distortion
(anamorphic).
- For Digital Broadcast channels, image will be
displayed based on broadcasted channel aspect
ratio.
Note
●
16:9 Overscan Function only applies for 16:9 input
source
■ [Just]
Displays a 4:3 image full-screen. Stretching is only
noticeable at the left and right edges.
■ [4:3]
Displays the image at the standard 4:3 without
distortion.
■ [Zoom]
Displays a 16:9 letterbox or 4:3 image without
distortion
*
●
Select [16:9 Overscan] in [Screen Settings]
ideo Menu).
(V
●
Selects the screen area displaying the image for
16:9 aspect. [Off] / [On].
[On]: Enlarges the image to hide the edge of the
image.
[Off]: Displays the image in the original size.
●
Set to [On] if noise is generated on the edge of
the screen.
.

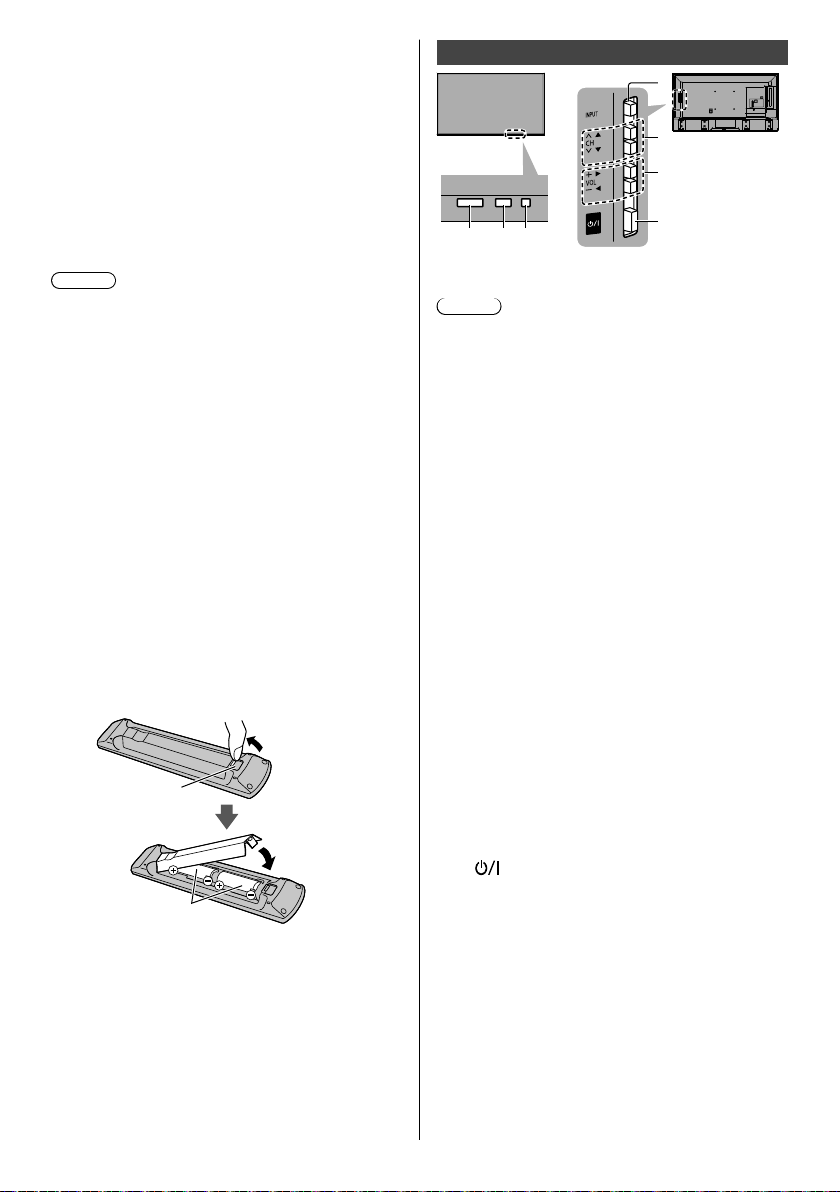

■ Installing / Removing batteries
Pull open
Hook
Close
Indicator / Control panel
4
5
6
123
Rear side of the TV
Note
●
Location of indicators may vary depending on the
models.
1
Remote control signal receiver
●
Do not place any objects between the TV remote
control signal receiver and remote control.
2 Ambient
3 Power LED
4
5
6 Volume Up / Down
7 Mains power On / Off switch
sensor
●
Senses brightness to adjust picture quality when
[Ambient Sensor] in the V
Red: Standby
Green: On
Orange: Standby with some functions (recording,
●
Input mode selection
●
[Main Menu]
●
OK (when in the menu system)
Channel Up / Down
Cursor Up / Down (when in the menu system)
Cursor Left / Right (when in the menu system)
●
●
●
etc.) active
The LED blinks when the TV receives a command
from the remote control.
Press repeatedly until you reach the desired mode.
Press and hold for about 3 seconds to display main
menu.
Use to switch the mains power.
To turn Off the apparatus completely, you must pull
the mains plug out of the mains socket.
]: Standby / On
[
7
ideo Menu is set to [On].
16
Note the correct
polarity (+ or -)
English
Page 17

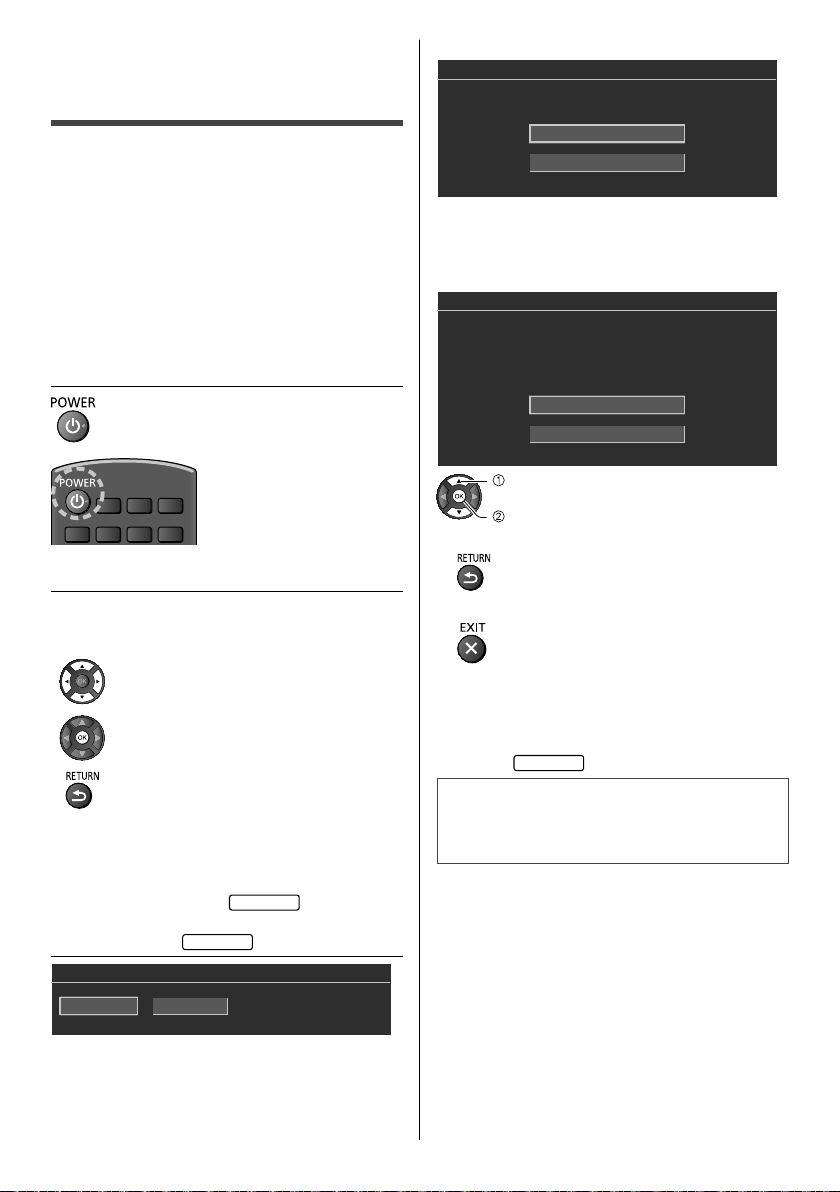

First time Auto
Tuning
When the TV is turned on for the first time, it will
automatically search for available TV channels and give
options to set up the TV.
●
These steps are not necessary if the setup has been
completed by your local dealer
●
Please complete connections (p. 10 - 14) and
settings (if necessary) of the connected equipment
before starting
the settings for the connected equipment, read the
manual of the equipment.
Auto Tuning. For information about
1 Plug the TV into a live mains socket
and turn the power on
●
Takes a few seconds to be displayed.
2 Select the following items
Set up each item by following the on-screen instructions.
■ How to use remote control
.
[Satellite]
Satellite Type
Please select satellite type.
Freeview
All Satellites
●
Freeview > Operator type > Region > Antenna type
> Satellite
●
All Satellites > Antenna type > Satellite
[Antenna] [Satellite]
Automatic channel search
First, please connect antenna.
Start channel scan now ?
If you skip this step, the channel scan could be performed in Menu
Scan
Skip Scan
select
confirm
●
To return to the previous screen / field
●
To exit Channel Scan
Move the cursor
Access the item / store the setting
Return to the previous item (if available)
Select your viewing environment
Connect to the Internet
Set up the network connection
Select your State/Territory
3 Tuner Mode
Tuner Mode
Antenna
Satellite
Australia
New Zealand
●
If some channels are not tuned correctly, you can try
to tune them by [Channel Scan] in [T
Menu).
●
If Satellite were selected, please configure type of
scan info
New Zealand
uning Menu] (TV
Congratulations !!
Completed Initial Setup.
Please press [ENTER] to exit the wizard.
If tuning has failed check the RF cable, and the network
connection, and then follow the on-screen instructions.
English
17
Page 18
Note
●
The TV goes into Standby mode when no operation
is performed. User can choose when the
go into standby mode by selecting available options
in [Auto Sleep] in [Time Setup] (Setup) (Off / 4 / 6 / 8
hours).
●
The TV goes into Standby mode when no signal is
received and no operation is performed for
10 minutes if [No signal Power of
(Setup) is set to [On].
●
To retune all channels
[Channel Scan] in [Tuning Menu] (TV Menu)
[Satellite Re-scan] in [Tuning Menu] (TV Menu)
New Zealand
●
If no satellite channel is found, set [LNB Frequency]
to suit your environment.
[LNB Frequency] in [Tuning Menu] [Satellite
Re-scan] [Antenna Setup] (Setup Menu)
●
To add the available TV channels later
[Update Scan] in [Tuning Menu] (TV Menu)
[Satellite Add] in [Tuning Menu] (TV Menu)
New Zealand
●
To initialise all settings
[Shipping Condition] in (Setup Menu)
●
In TV mode, Information banner will show the input
source frequency (i.e 24Hz / 25Hz/etc..)
New Zealand
TV should
f] in the [Time Setup]
W atching TV
1 Turn power on
(TV)
or
(Remote Control)
●
Mains power On / Off switch should be on.
(p. 16)
2 Select a channel
up
down
or
●
To select a channel position with 2 or more-digit, e.g.
399
18
English
Page 19
How to Use eHELP
FAQs
[eHELP] is the detailed operating instructions built into
the TV, and gives a more detailed explanation for a
better understanding of the operation of each feature.
1 Display [eHELP]
2 Select the menu
select
access
●
To access [How to use]
(green)
[Keyword Search]:
Search the content of eHELP in the keyword.
[Search by Purpose]:
Search the content of eHELP for each item.
[Support]:
Access the support information (FAQs, etc.).
3 Select the item
Example:
Before requesting service or assistance, please follow
these simple guides to solve the problem.
●
For details, refer to [eHELP] (Support > FAQs).
The TV does not switch on
●
Check the mains lead is plugged into the TV and the
mains socket.
The TV goes into Standby mode
●
Auto Sleep function is activated.
The remote control does not work or is intermittent
●
Are the batteries installed correctly?
●
Has the TV been switched on?
●
The batteries may be running low. Replace them with
new ones.
●
Point the remote control directly at the TV’s remote
control signal receiver (within about 7 m and a
30 degree angle of the signal receiver).
●
Situate the TV away from sunshine or other sources
of bright light so they do not shine on the
control signal receiver.
No image is displayed
●
Check the TV is turned on.
●
Check the mains lead is plugged into the TV and the
mains socket.
●
Check the correct input mode is selected.
●
Check the selection of [Composite] / [Component] in
[Input Selection] to match the signal being output by
the external equipment.
●
Is [Backlight], [Contrast], [Brightness] or [Colour] in
ideo Menu set to the minimum?
the V
●
Check all required cables and connections are firmly
in place.
(p. 16)
TV’s remote
select item
access
●
To scroll the description (if more than 1 page)
While the description is highlighted
●
To open the reference screen (
●
To check the features of this TV
Search by Purpose > Read first > Features
An unusual image is displayed
●
Turn the TV off with Mains power On / Off switch,
then turn it on again.
●
If the problem persists, initialise all settings.
[Shipping Condition] in [Setup Menu]
The image or sound from external equipment are
unusual when the equipment is connected via HDMI
●
Set [HDMI 2.0 Setting] (Setup Menu) to [4K@60Hz
4:2:0]
)
(p. 12)
English
19
Page 20
Favourite List
Create favourite channels list from various broadcasters
during watching.
[Main Menu] > TV > Tuning Menu > Favourite
List
●
Press remote OK to add or remove channels from list
Parts of the TV become hot
●
Parts of the TV may become hot. These temperature
rises do not pose any problems in terms of
performance or quality
When pushed with a finger, the display panel moves
slightly and makes a noise
●
There is a little gap around the panel to prevent
damage to the panel.
About the inquiry
●
Please contact your local Panasonic dealer for
assistance.
If you make an inquiry from a place where this
is not present, we cannot answer about contents
that require visual confirmation for connection,
phenomenon, etc. of this TV itself.
Moving image is not smooth
●
Intelligent Frame Creation automatically compensates
the picture frame rate and removes juddering
movements to make the images smooth.
●
However, smoothness of moving image is not
guaranteed for certain input stream formats.
.
This is not a malfunction.
TV
The LED indicator flashes red
●
Please reset the TV by unplugging it from the
electrical outlet if the LED flashes red.
●
After a minute, plug the TV back in to the electrical
outlet.
●
If the flashing continues, contact your TV dealer or
Panasonic service center
Parental Password is forgotten.
●
Initialise all settings.
[Shipping Condition] in [Setup Menu]
English
20
.
Page 21
Maintenance
Specifications
First, remove the mains plug from the
mains socket.
Display panel, Cabinet, Pedestal
Regular care:
Gently wipe the surface of the display panel, cabinet,
or pedestal by using a soft cloth to remove dirt or
fingerprints.
For stubborn dirt:
(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted
neutral detergent (1 part detergent to 100 parts
water).
(3) Wring out the cloth firmly. (Please note, do not let
liquid enter the TV inside as it may lead to product
failure.)
(4) Carefully wipe moisten and wipe away the stubborn
dirt.
(5) Finally, wipe away all the moisture.
Caution
●
Do not use a hard cloth or rub the surface too hard,
otherwise this may cause scratches on the surface.
●
Take care not to subject the surfaces to insect
repellent, solvent, thinner or other volatile substances.
This may degrade surface quality or cause peeling of
the paint.
●
The surface of the display panel is specially treated
and may be easily damaged.
scratch the surface with your fingernail or other hard
objects.
●
Do not allow the cabinet and pedestal to make
contact with a rubber or PVC substance for a long
This may degrade surface quality.
time.
Take care not to tap or
Mains plug
Wipe the mains plug with a dry cloth at regular intervals.
Moisture and dust may cause fire or electrical shock.
■ TV
Model No.
TH-55GX600A,
TH-55GX600Z, TH-55GX640Z
TH-65GX600A,
TH-65GX600Z, TH65GX640Z
Dimensions (W × H × D)
55-inch model
1 240 mm × 779 mm × 242 mm (With Pedestal)
1 240 mm × 722 mm × 78 mm (TV only)
65-inch model
1 460 mm × 910 mm × 345 mm (With Pedestal)
1 460 mm × 844 mm × 78 mm (TV only)
Mass
55-inch model
17.5 Net (With Pedestal)
Net (TV only)
17.0
65-inch model
26.5 Net (With Pedestal)
Net (TV only)
26.0
Power Rating
55-inch model
TH-55GX600A:
AC 220-240 V, 50 / 60 Hz 0.67 A
TH-55GX600Z / TH-55GX640Z:
AC 220-240 V, 50 / 60 Hz 0.72 A
65-inch model
TH-65GX600A:
AC 220-240 V, 50 / 60 Hz 0.91 A
TH-65GX600Z / TH-65GX640Z:
AC 220-240 V, 50 / 60 Hz 0.97 A
Normal (Home) mode
55-inch model
80.0 W
65-inch model
116.6 W
Standby power consumption
0.50 W
Visible screen size (diagonal)
55-inch model
139 cm
65-inch model
164 cm
English
21
Page 22
Display resolution
3 840 (W) × 2 160 (H)
Panel
LED backlight Liquid Crystal Display
Sound
Speaker output
20 W (10 W + 10 W)
Headphones
3.5 mm stereo mini jack × 1
Connection terminals
AV IN (COMPONENT / VIDEO)
VIDEO
Pin jack × 1
1.0 V[p-p] (75 )
AUDIO L - R
Pin jack × 2
0.5 V[rms]
Y
1.0 V[p-p] (including synchronisation)
B/CB, PR/CR
P
±0.35 V[p-p]
HDMI 1 / 2 / 3 input
TYPE A Connectors
HDMI1 / 3:
4K, Content Type, Deep Colour, x.v.Colour™
HDMI2:
4K, Content Type, Audio Return Channel,
Deep Colour, x.v.Colour™.
ETHERNET
10BASE-T / 100BASE-TX
USB 1 / 2
USB1: DC
(USB 3.0)]
USB2: DC
(USB 2.0)]
DIGITAL AUDIO OUT
PCM / Dolby Digital, Fibre optic
5 V, Max. 900 mA [SuperSpeed USB
5 V, Max. 500 mA [Hi-Speed USB
Receiving systems / Band name
Satellite TV
New Zealand
Digital satellite services
Receiver frequency range - 950 MHz to 2150 MHz
DiSEqC - Version 1.0
English
22
Digital TV
Australia
7 MHz VHF / UHF (Australia) free-to-air TV
broadcast reception
New Zealand
8 MHz VHF / UHF (New Zealand) free-to-air TV
broadcast reception
PAL B / G
Reception of Off air broadcast
PAL 60 Hz
Playback of NTSC tape from some PAL Video
recorders (VCR)
M.NTSC
Playback from M.NTSC Video recorders (VCR)
NTSC
Playback from NTSC Video recorders (VCR)
Satellite dish input
New Zealand
Female F-type 75 x 1
Aerial input
Standard Belling & Lee connector
VHF / UHF
Operating conditions
Temperature
0 °C - 35 °C
Humidity
20 % - 80 % RH (non-condensing)
Built-in wireless LAN
Standard compliance and Frequency range
IEEE802.11a/n/ac
5.15 GHz -5.35 GHz, 5.47 GHz -5.85 GHz
IEEE802.11b/g/n
2.400 GHz -2.4835 GHz
Security
WPA2-PSK (TKIP/AES)
WPA-PSK (TKIP/AES)
WEP (64 bit/128 bit)
*
: The frequency and channel differ depending on the
country.
Note
●
Design and Specifications are subject to change
without notice. Mass and Dimensions shown are
approximate.
●
For information about the open source software, refer
to [eHELP] (Search by Purpose > Read First > Before
use > License).
*
Page 23
Australia
Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on
1.
the product, without charge for parts or labour, if in the o pinion of Panasonic the product is found to have a
manufacturing defect within one (1) year or (12 months) (the “warranty period”) from the date of purchase appea ring
on your purchase receipt.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia, it’s A uthorised
Distributors, or Dealers, and only where the products are used and serviced within Australia or its territories. Warranty
cover only applies to t he services that are carried out by a Pa nasonic Authorise d Service Centre an d only if valid proo f of
purchase is presented when the warranty service is requested.
3. This warranty only applies if the product ha s been installed and/or used in accordance with the manufacturer’s
recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of
Panasonic). The warranty does not cover damage, malfunction or failure resulting from use of incorrect voltages,
incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls,
mains supply probl ems, thund erstorm activity, infestat ion by insects or vermin, tampering or repair by unauthorised
persons (including unauthorised alterations), exposure to abnormally corrosive conditions, or any foreign object or
matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Consumable parts
(b) Cosmetic parts
(c) Worn or damaged parts
(d) Information stored on Hard Disk Drives, Optical Discs, USB Devices, SD Cards, Tapes
(e) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
5. Some products may be supplied with E thernet connection hardware. The warranty is limited on such products and will
not cover:
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) Incompatible software or software not specifically stipulated in the product operations manual; and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to
the internet or any other device.
6. To claim warranty service, when required, you should:
Contact Panasonic’s Customer Care Centre on 132 600 for Service Centre information.
Confirm the opening and acceptance times with the Authorised Se rvice Centre that you choose.
Then send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase
receipt.
Any freight and insurance costs associated with the transport o f the product to and/or from your nearest
Authorised Service Centre must be arrange d and paid for by you.
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation
or re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and
any other ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof
or replacement of and do not extend to, and exclude, any damage or loss occurri ng by reaso n of, duri ng, assoc iated wit h,
or related to such installation, de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia,
however, coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product,
please telephone our Customer Care Centre on 132 600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded
under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have
a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop
in value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable
quality and the failure does not amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonabl e
period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic
may choose to repair or replace the product and will do so in a reasonable period of time from recei ving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic
Australia website
www.panasonic.com.au
or contact by phone on
132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
Panasonic Warranty
1 Innovation Road, Macquarie Park NSW 2113
PRO-031-F11 Issue: 5.0 23-01-2018
www.panasonic.com.au
Page 24
New Zealand
WARRANTY - New Zealand only
NEW ZEALAND
Distributed in New Zealand by Panasonic New Zealand Limited
18 Sir Woolf Fisher Drive, Highbrook, East Tamaki, Private Bag 14911, Panmure, Auckland
Tel. 09 272 0100
Email: Customerservice@nz.panasonic.com
Warranty
Customer Care Center
www.panasonic.co.nz
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Web Site: http://www.panasonic.com
Printed in Malaysia
© Panasonic Corporation 2019
English
04-2019
Loading...
