Panasonic TH-42PV70FA, TH-50PV70FA, TH-37PV70FA User Manual

Operating Instructions
Model No. TH-37PV70FA
TH-42PV70FA TH-50PV70FA
INPUT
OPTION
DIRECT TV REC
EXIT
RETURN
F.P.
TV
English
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Turn your own living room into a movie theatre!
Experience an amazing level of multi-
2
media excitement
Enjoy rich multi-media
Contents
Be Sure to Read
Safety Precautions ······································ 4
(Warning / Caution)
Notes ··························································· 5
Maintenance ··············································· 5
Quick Start Guide

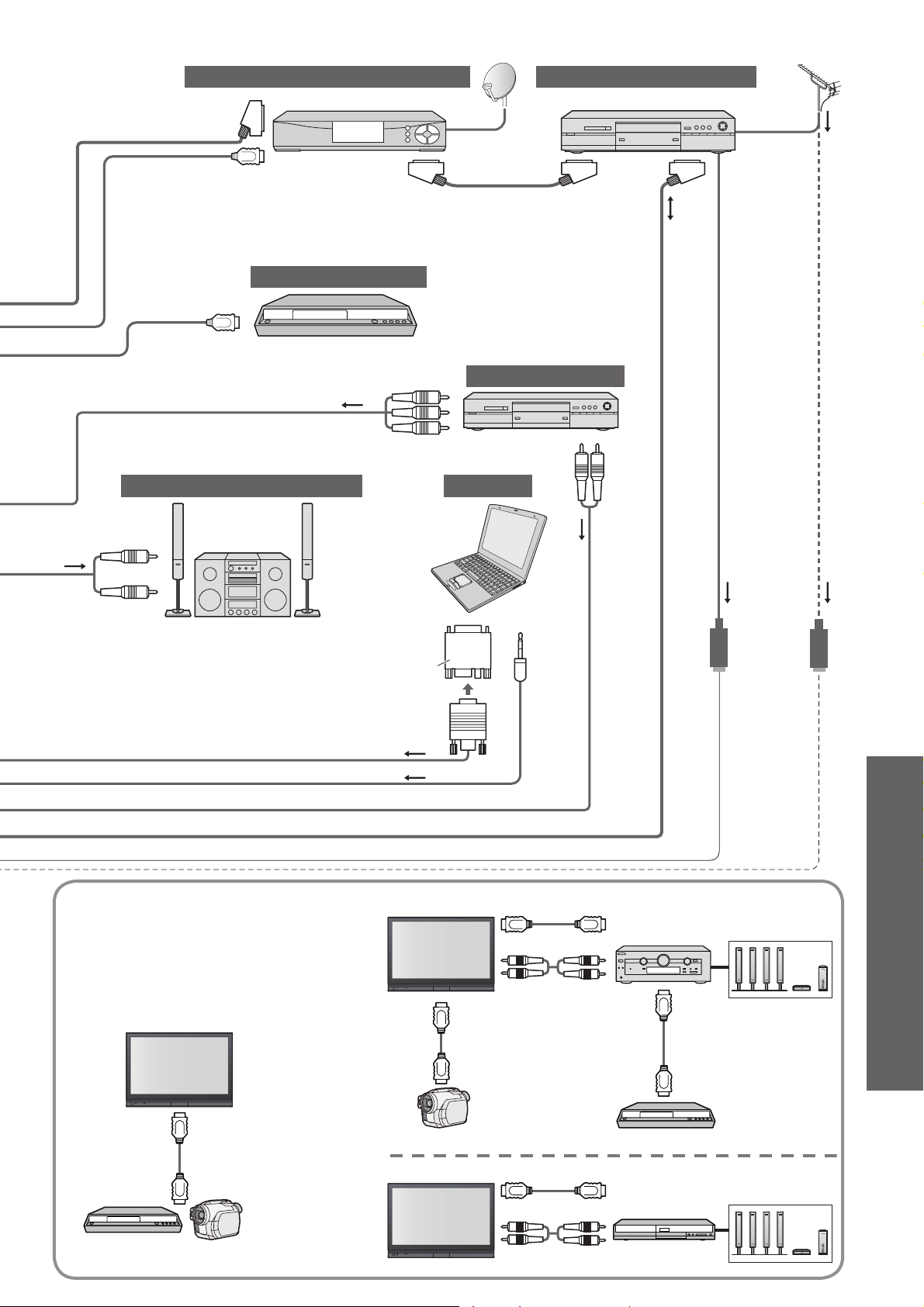

Amplifi er with Speaker system
VCR
DVD Recorder
DVD player
Camcorder
Personal
computer
Set top box
Accessories / Options Installation of the pedestal Identifying Controls Basic Connection Auto Setup
Enjoy your TV!
Basic Features
Watching TV ·············································· 14
Watching Videos and DVDs ······················ 16
Viewing Teletext ········································18
······························· 12
················· 10
·········· 6
··············· 9
Advanced Features
How to Use Menu Functions ····················· 20
(picture, sound quality, etc.)
Editing and Setting Channels
Control Channel Audience ························ 26
Restore Settings ······································ 27
Input Labels ·············································· 28
Displaying PC Screen on TV ····················· 29
Q-Link Functions ······································· 30
HDMI Functions ·······································31
(HDMI terminal / VIERA Link)
External Equipment ··································· 34
······················ 24
··· 7
Viewing Advanced FAQs, etc.Quick Start Guide
FAQs, etc.
Technical Information ································36
FAQs ·························································39
Licence ······················································ 41
Specifi cations ············································ 42
3
Safety Precautions
Warning
Handling the mains plug and lead
Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fi re.) Ensure that the mains plug is easily accessible. Ensure the grounding pin on the mains plug is securely connected to prevent electrical shock.
An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective
earthing connection. Do not touch the mains plug with a wet hand. (This may cause electrical shock.) Do not use any mains lead other than that provided with this TV. (This may cause fi re or electrical shock.) Do not damage the mains lead. (A damaged lead may cause fi re or electrical shock.)
Do not move the TV with the lead plugged in the socket outlet. Do not place a heavy object on the lead or place the lead near a high-temperature object. Do not twist the lead, bend it excessively, or stretch it. Do not pull on the lead. Hold onto the mains plug body when disconnecting lead. Do not use a damaged mains plug or socket outlet.
If you fi nd any abnormality, remove the mains plug immediately!
AC 220-240 V 50 / 60 Hz
Do not remove covers NEVER modify the TV yourself
(High-voltage components may cause serious electrical shock.)
Have the TV checked, adjusted, or repaired at your local Panasonic dealer.
Keep liquids away from the TV
To prevent damage which may result in fi re or shock hazard, do not expose this appliance to dripping or splashing. Do not place containers with water (fl ower vase, cups, cosmetics, etc.) above the TV. (including on shelves above, etc.)
Do not expose to direct sunlight and other sources of heat
Avoid exposing the TV to direct sunlight and other sources of heat. To prevent fi re never place any type of candle or naked fl ame on top or near the TV.
Do not place foreign objects inside the TV
Do not let metal or fl ammable objects drop into the TV through the air vents (fi re or electrical shock may result).
Do not place the TV on sloped or unstable surfaces
The TV may fall off or tip over.
Use only the dedicated stands / mounting equipment
Using an unauthorized stand or other fi xtures may make the TV shaky, risking injury. Be sure to ask your local Panasonic dealer to perform setup. Use optional stands / mounts (p. 6).
4
Notes
Caution
When cleaning the TV, remove the
mains plug
(Cleaning an energized TV may cause electrical shock.)
When TV will not be used for a
long time, remove the mains plug
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.
Transport only in upright position
Transporting the TV with its display panel facing upright or downward may cause damage to the internal circuitry.
Allow suffi cient space around the
TV for radiated heat
Minimum distance
10
10
Do not block the rear air vents
Blocked ventilation by curtains, etc. may cause overheating, fi re or electrical shock.
10
7
(cm)
Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.
Typical still images
Channel number and other logos Image displayed in 4:3 mode Video game Computer image
To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 39)
Auto power standby function
If no signal is received and no operation is performed in TV mode for 30 minutes, the TV will automatically go to standby mode.
Keep the TV away from these equipment
Electronic equipment In particular, do not place video equipment near the TV (electromagnetic interference may distort images / sound).
Equipment with an infrared sensor This TV also emits infrared rays (this may affect
operation of other equipment).
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth. Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent by 100 times of water. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Caution
The surface of the display panel has been specially treated and may be easily damaged.
Do not tap or scratch the surface with your fi ngernail or other hard object. Use care not to subject the surface to bug repellent, solvent, thinner, or other volatile substances
(this may degrade surface quality).
Cabinet
Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
Use care not to subject the TV's surfaces to detergent.
(A liquid inside the TV could lead to product failure.) Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances
(this may deteriorate the surface by peeling the paint). Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fi re or electrical shock.)
5
Accessories / Options
Standard accessories
Remote Control Transmitter
EUR7737Z60
TV
Operating Instructions
Check that you have the accessories and items shown
Batteries for the Remote Control Transmitter
R6 (UM3)
Pan European Guarantee Card
Installing remote’s batteries
Pull open
1
Hook
Close
2
Note the correct polarity (+ or -)
Clamper (2)
(2)
Pedestal (ST-42D2-WK / ST-50D2-WK)
For installation p. 7 and p. 8
Rear of the TV
1. Attach the clamper
Mains Lead
TBL0E0007 (TH-37PV70FA, TH-42PV70FA)
TBL0E0010 (TH-50PV70FA)
Using the clamper
Do not bundle the RF cable
and mains lead together (could cause distorted image). Fix cables with clampers as
necessary. When using the optional
accessory, follow the option’s assembly manual to fi x cables. How to fi x cables when using the
pedestal (standard accessory)
“Attaching the bands for
xing cables” (p. 8)
To remove from the TV:
hole
snaps
6
Caution
Incorrect installation may cause battery
leakage and corrosion, resulting in damage to the remote control. Do not mix old and new batteries.
Do not mix different battery types (such
as alkaline and manganese batteries). Do not use rechargeable (Ni-Cd)
batteries. Do not burn or breakup batteries.
Optional accessories
Pedestal
TY-ST42D1-WG TY-ST42D1-WK TY-ST42D2-WG
( TH-37PV70FA, TH-42PV70FA)
TY-ST50D1-WG TY-ST50D1-WK TY-ST50D2-WG
(TH-50PV70FA)
Caution
In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced
contractor to secure the wall-hanging brackets. Carefully read the instructions accompanying the plasma TV stand or pedestal, and be absolutely sure to take
steps to prevent the TV from tipping over. Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
Plasma TV stand
TY-S37PX70WK
( TH-37PV70FA)
TY-S42PX70WK
( TH-42PV70FA)
TY-S50PX70WK
( TH-50PV70FA)
2. Bundle the cables
hooks
Insert the clamper in a hole
Set the tip
in the hooks
Wall-hanging bracket (vertical)
TY-WK42PV3W
(angle)
TY-WK42PR2W TY-WK42PR3W
To loosen:
knob
Keep pushing
both side snaps
Keep pushing
the knob
Installation of the pedestal
Warning
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest
Panasonic dealer immediately.
During set-up, make sure that all screws are securely tightened.
If suffi cient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be
strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Use the accessory fall-prevention brackets to secure the TV.
If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal
injury may result.
Two or more people are required to install and remove the TV.
If two or more people are not present, the TV may be dropped, and personal injury may result.
Note
Maintenance
Wipe the surfaces with a soft, dry cloth. If the pedestal is particularly dirty, clean it using a cloth soaked with water to which a small amount of neutral detergent has been added, and then wipe with a dry cloth.
Do not use products such as solvents, thinner or household wax for cleaning, as they can damage the surface coating.
(If using a chemically-treated cloth, follow the instructions supplied with the cloth.) Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term
contact with rubber, vinyl products or the like. (Doing so will cause deterioration.)
Quick Start Guide
Attaching the pedestal
Assembly screw (4)
M5 × 16
Assembling the pedestal
Use the four assembly screws to fasten the left and right poles to the base securely.
TH-37PV70FA
Pole
( )
B
Align the stamped marks. Align the stamped marks.
Forcing the assembly screws the wrong way will strip the threads.
Securing the TV
Use the assembly screws to fasten securely.
Carry out work on a horizontal and level surface.
TH-42PV70FA TH-50PV70FA
Front
Assembly screw (4) Pole (2) Base
A
M5 × 30
TH-37PV70FA
Pole
( )
Front
Pole
A
Pole
B
Pole
(
A
)
Front
Band (2)
TH-42PV70FA TH-50PV70FA
Pole
( )
Front
Installation of the pedestal
Accessories / Options
View from the bottom
B
Hole for pedestal installation
Arrow mark
Label
D
7
Band (2) Screw (2)
Nominal diameter 4 mm × 12
Wood screw (2) Clamp (2)
Installation of the pedestal
Attaching the bands for fixing cables
Insert the spigot on the two bands into the pedestal.
To tighten:
To loosen:
E
Keep the knob
pressed
Preventing the TV from falling over
The TV could fall over during an earthquake, etc. We recommend that measures are taken to prevent the TV from falling over in such an event.
The information in this section is designed to reduce the risk of injuries caused by the TV falling over during an
earthquake, etc.
However, no measure can guarantee protection against all earthquakes.
The precautions in this section are recommendations for providing more secure installation of your TV if you live
in an earthquake prone area.
Securing to a base
Fix pedestal and base together with band.
Securing to a wall
Fix to wall or post with strong commercial wire or chain.
8
4
Remove the screws at both top corners on the rear of the TV, and attach the clamps to the TV using the removed screws.
Remove
Attach
PULL
Identifying Controls
Mains power On / Off switch
Remote control signal receiver
Power LED
Standby: red
On: green
Standby On / Off switch
(Switches TV On or Off standby)
Surround (p. 22)
Function select
Volume / Contrast / Brightness /
Colour / Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup (p. 24)
Lift door to open
INPUT
OPTION
DIRECT TV REC
Changes the input mode
Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On.
Changes the input mode TV -
changes TV mode
AV - changes AV input mode (p. 16)
DIRECT TV Recording
To immediately record programme in VCR / DVD recorder with Q-Link connection (p. 30)
(p. 16)
Quick Start Guide
Identifying Controls
Installation of the pedestal
Access VIERA Link Menu (p. 33) Changes aspect ratio (p. 15)
OK button to confi rm selections and choices Press after selecting programme positions to quickly change programme.

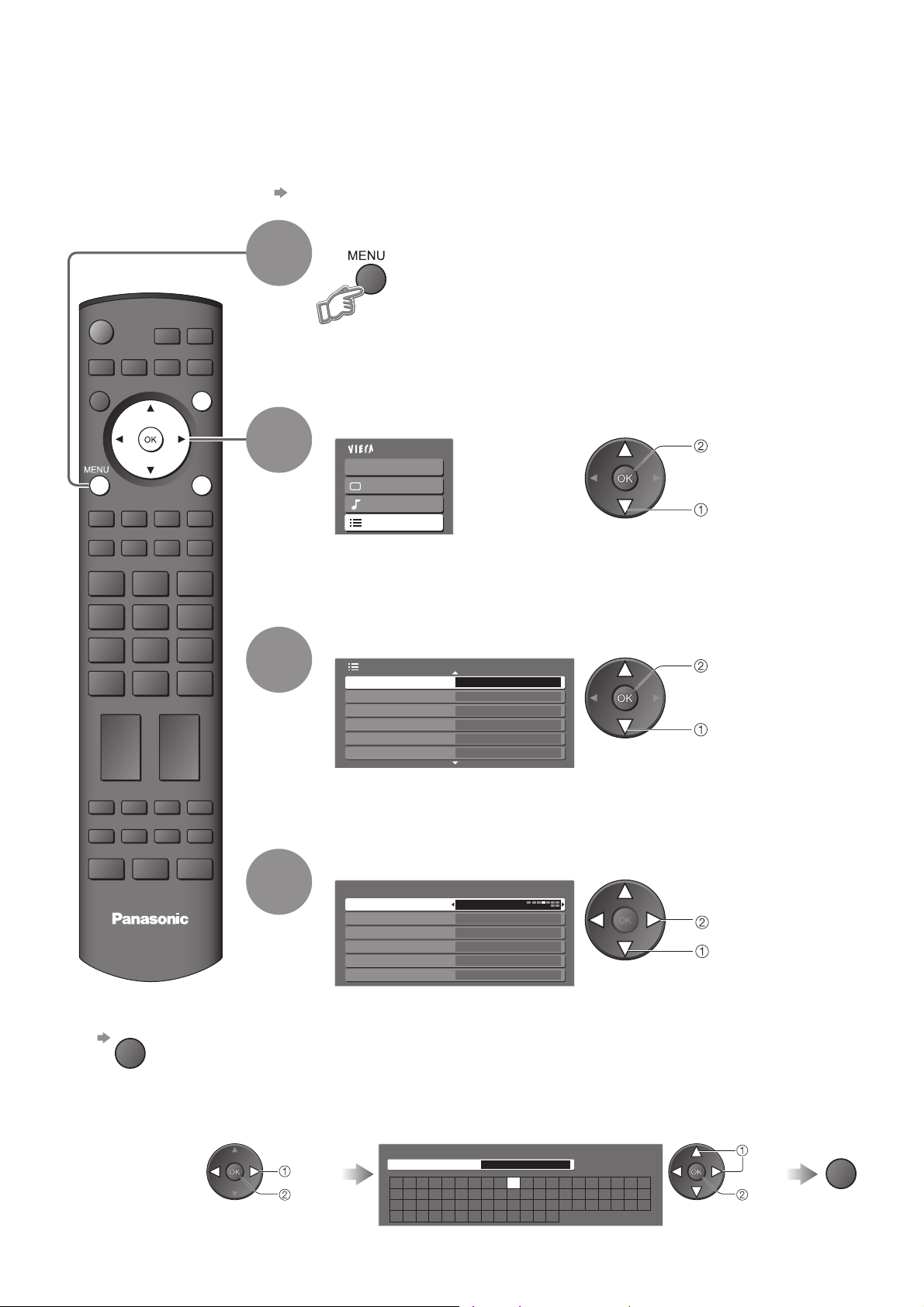

Main Menu Press to access VIERA Link, Picture, Sound and Setup menus (p. 20)
Teletext (p. 18)
Viewing a favourite teletext channel (p. 19)
Programme / channel change buttons (0-9) and Teletext page buttons. (p. 14 and p. 18) When in Standby mode, switches TV On.
Programme Information (p. 15)
Selects programmes in sequence
F.P.
EXIT
RETURN
Option menu Sets the preferred settings of viewing and sound options easily (p. 15)
EXIT (Returns to TV screen)
Cursor buttons to make selections and adjustments
Returns to the previous menu
Coloured buttons used for the selection, navigation and operation of various functions

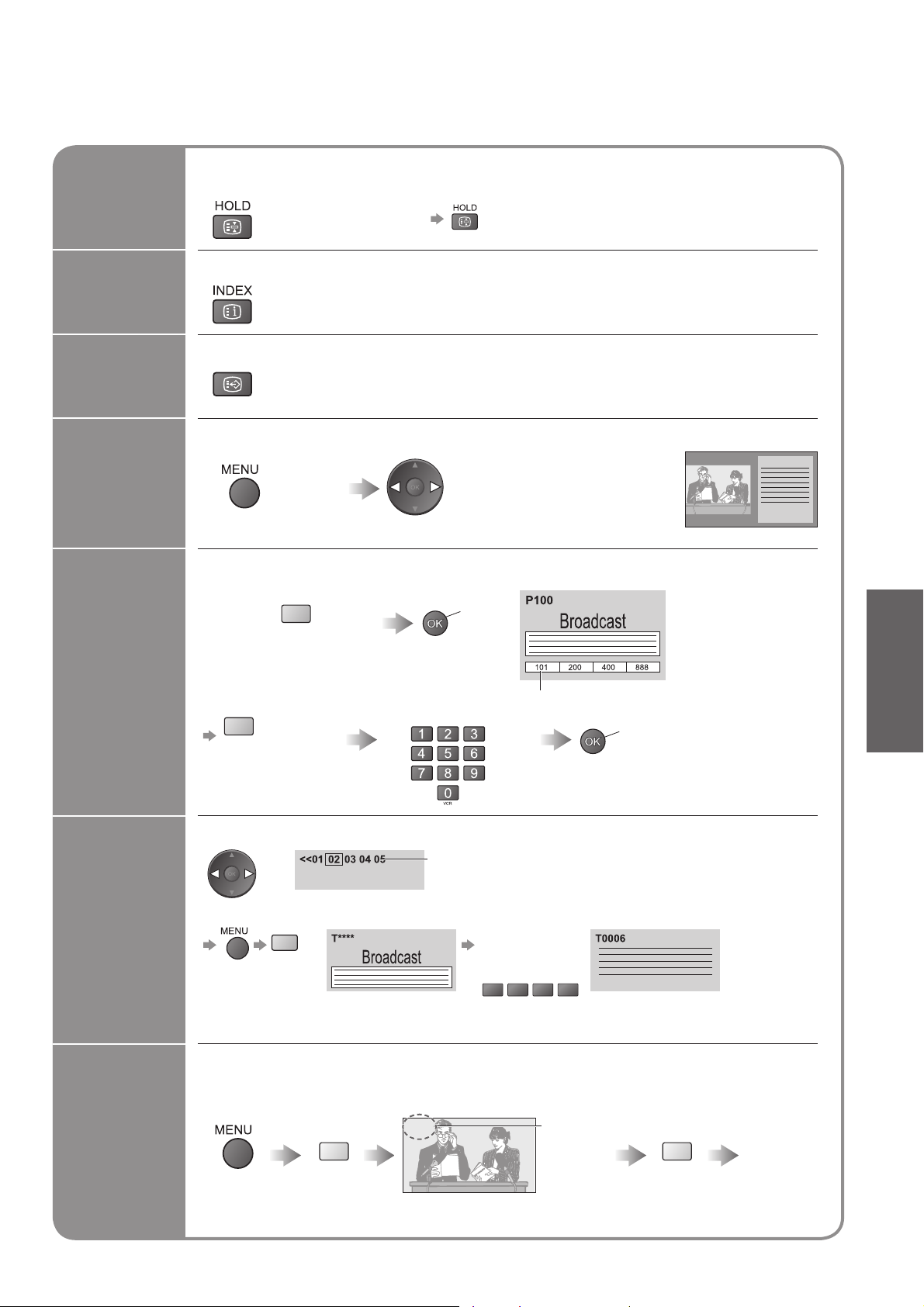

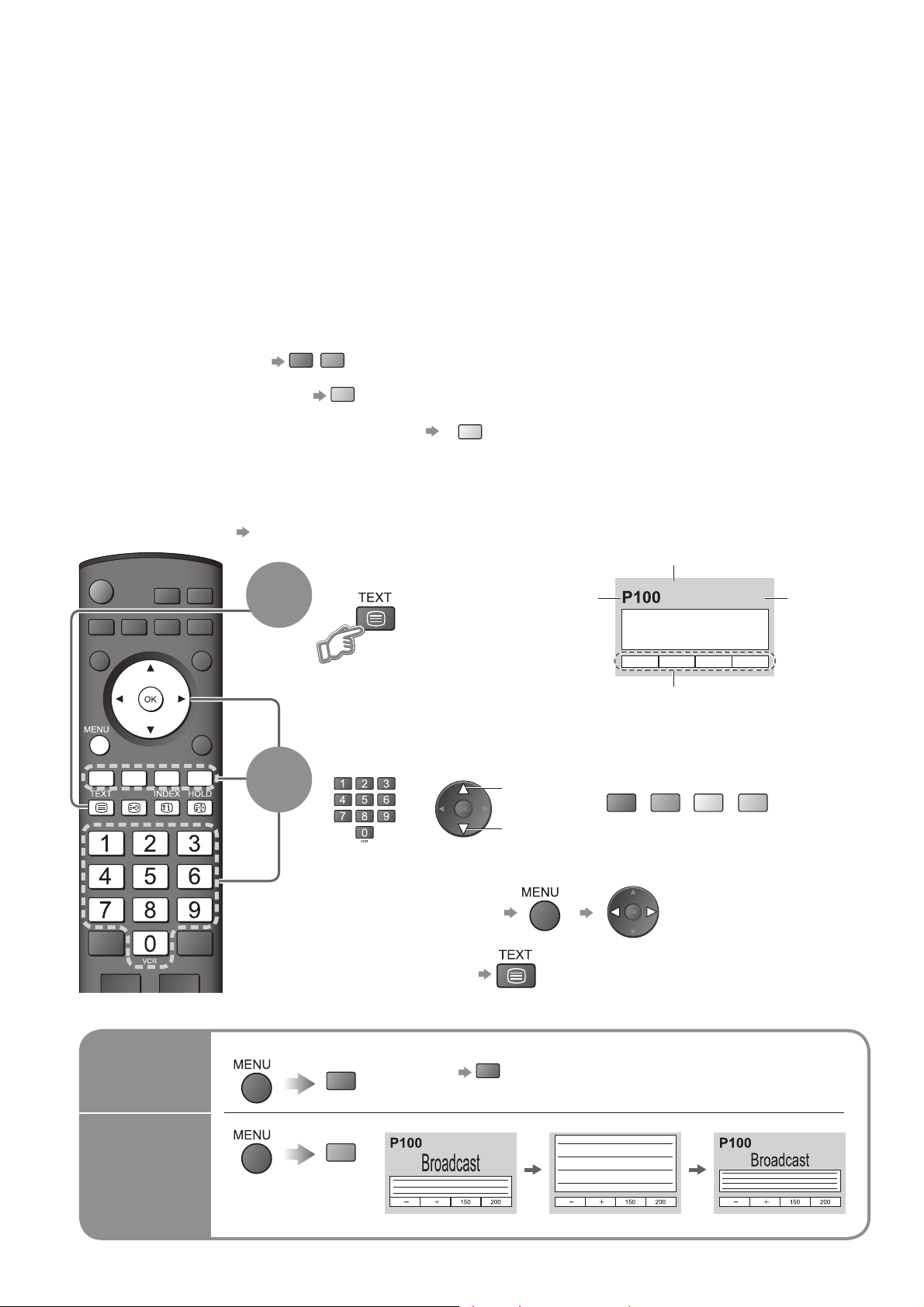

Still picture (p. 15) Teletext Hold (p. 19)
Teletext Index (p. 19)
Sound mute On / Off
Volume

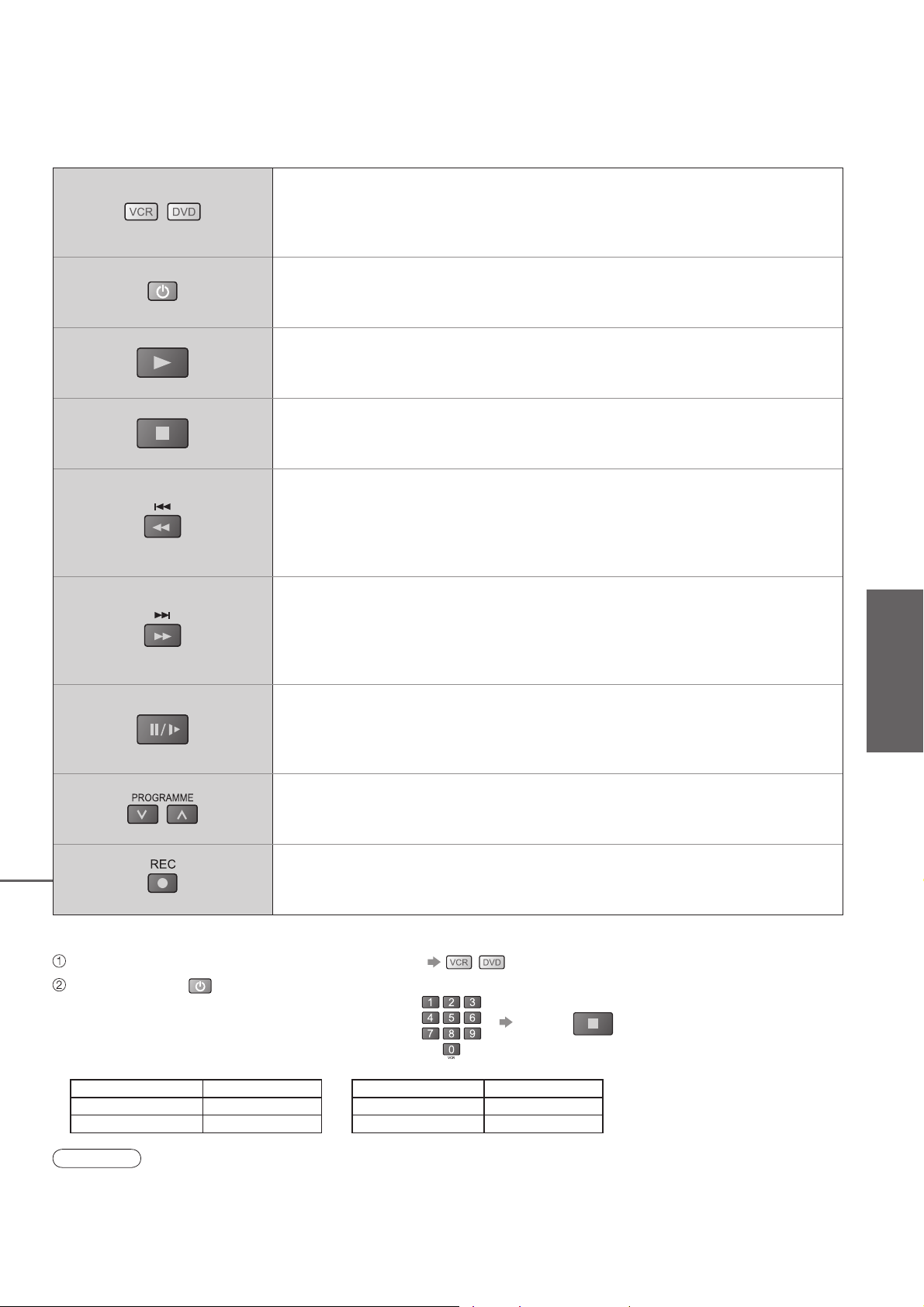

VCR / DVD operations (p. 17)
TV
9

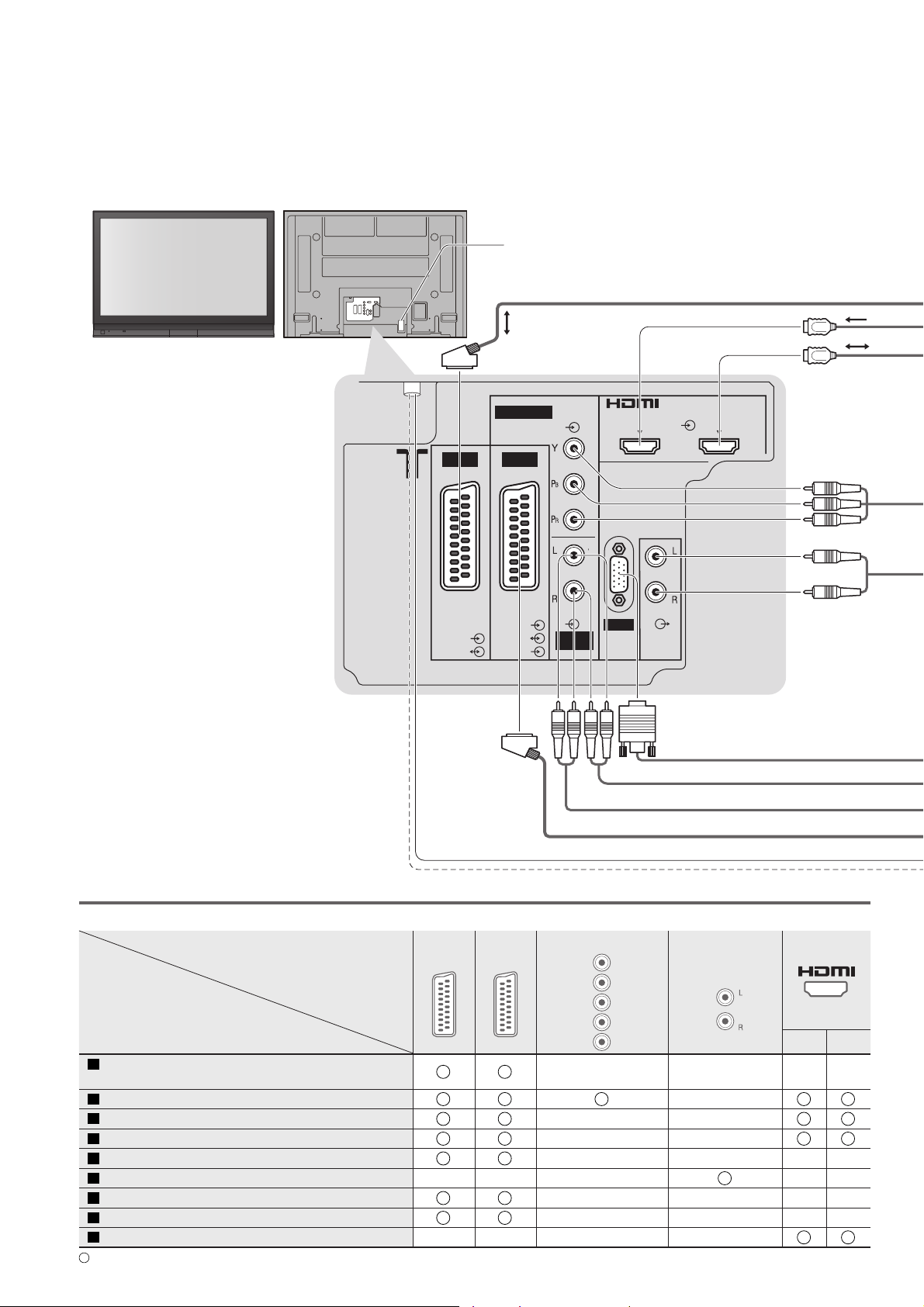

Basic Connection
External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet fi rst.
Example 1 Connecting aerial
Example 2 Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Aerial AerialRear of the TV Rear of the TV
AC 220-240 V 50 / 60 Hz
RF cable
COMPONENT
AV 1 AV 2
Mains lead (supplied)
VIDEO
COMPONENT
AV 1 AV 2
Mains lead (supplied)
VIDEO
HDMI 1 HDMI 2
AV
AC 220-240 V 50 / 60 Hz
HDMI 1 HDMI 2
AV
AUDIO
PC
DVD Recorder or VCR
RGB
VIDEO
RGB
VIDEO
S VIDEO
AUDIO
AUDIO
IN
Note
Connect to AV1 / 2 for a DVD Recorder / VCR supporting Q-Link (p. 30).
RGB
VIDEO
SCART cable (fully wired)
RGB
VIDEO
S VIDEO
AUDIO
AUDIO
IN
PC
AUDIO
RF cable
RF IN
RF OUT
RF cable
10
Example 3 Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
Rear of the TV
COMPONENT
AV 1 AV 2
VIDEO
RGB
S VIDEO
VIDEO
RGB
VIDEO
AUDIO
AUDIO
IN
HDMI 1 HDMI 2
AV
AUDIO
PC
Clamper
To unfasten
Mains lead (supplied)
AC 220-240 V 50 / 60 Hz
Aerial
RF cable
Quick Start Guide
Basic Connection
SCART cable (fully wired)
SCART cable (fully wired)
RF cable
RF OUT
RF IN
DVD Recorder
or VCR
RF cable
SCART cable (fully wired)
RF OUT
RF IN
RF cable
RF IN
Set top box
11
Auto Setup
Search and store TV channels automatically. These steps are not necessary if the setup has been completed by your local dealer.
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
1
You can now use the remote
control to turn On the TV or turn the TV to standby mode. (Power LED: On)
Select the language
INPUT
OPTION
DIRECT TV REC
EXIT
RETURN
2
3
Menüsprache
Deutsch
English
Français
Italiano
Еλληνικά
čeština
Slovenčina
Srpski
Español
Norsk Dansk
Svenska
Magyar
Български
Slovenščina
Select your country
Country
Germany
Austria France
Italy
Spain
Portugal
Netherlands
Denmark
Sweden Norway Finland Belgium
Switzerland
Greece
Nederlands
Suomi
Türkçe
Português
Hrvatski Românǎ
Polski
Poland
Czech
Hungary
Ireland
E.Eu
select
store
select
Start Auto Setup
4
Auto Setup
Scan 214178
Channel Service Name
CH 29 CH 33
This will take about 3 mins.
EXIT
RETURN
DOWNLOAD IN PROGRESS
PLEASE WAIT
Programme : 63
Remote control unavailable
Select the picture setting
Viewing Mode
5
TV
Dynamic Normal Cinema
Also possible to change the setting
in Picture Menu (p. 22)
Auto Setup will start to search for
TV channels and store them.
The sorted programme order
depends upon the TV signal, the broadcasting system and reception conditions.
If a compatible recording equipment
with Q-Link or similar technologies (p. 30) is connected, channel information is automatically downloaded to the equipment.
select
set
12
Auto Setup is now complete and your TV is ready for viewing.
To edit channels
Editing and Setting Channels
(p. 24)
Using the On Screen Displays
Many features available on this TV can be accessed via the On Screen Display menu.
How to use remote control

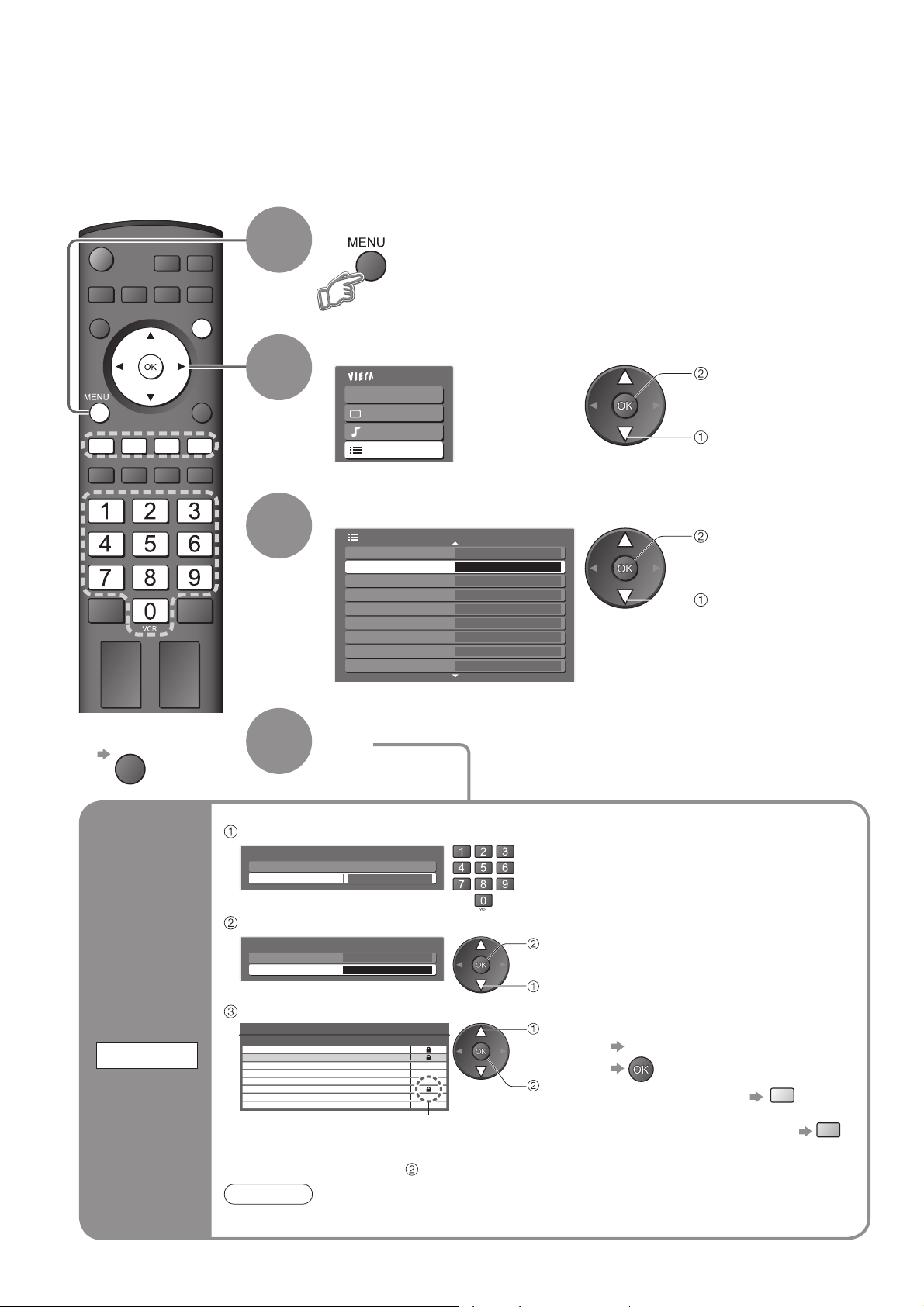

Open the main menu
Move the cursor / select the menu
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options have been set
RETURN
Return to the previous menu
EXIT
Exit the menu system and return to the normal viewing screen
Quick Start Guide
Auto Setup
ON SCREEN HELP Instructions box
(example: Sound Menu)
Sound Menu
Mode Music
Bass Treble Balance Surround Off Volume Correction MPX Stereo Reset to Default Set
Select
EXIT Change RETURN
On-screen operation guide will help you.
Note
If tuning has failed “Auto Setup” (p. 24).
If downloading has failed “Download” (p. 23).
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
with Mains power On / Off switch.
13
Watching TV
Turn power on
INPUT
OPTION
DIRECT TV REC
EXIT
RETURN
1
2
(Press for about 1 second)
Mains power On / Off switch should be On.
1 BBS
CH05 SC1 PAL Corontation Street
Information banner
Select a channel
up
or
down
To select the two-digit programme number, e.g. 39
3
9
(in a short time)
Volume
TV
14
Loading...
+ 30 hidden pages
