Panasonic TC-P54VT25 Service manual

ORDER NO.MTNC100435CE

B34 Canada: B62

54 inch Class 1080p Plasma HDTV

Model No. TC-P54VT25

GPF13DU Chassis

© Panasonic Corporation 2010.
Unauthorized copying and distribution is a violation
of law.

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------------- 3

1.1. General Guidelines---------------------------------------------3

2Warning-------------------------------------------------------------------- 4

2.1. Prevention of Electrostatic Discharge (ESD) to
Electrostatically Sensitive (ES) Devices-------------------

2.2. About lead free solder (PbF)--------------------------------- 5

3 Service Navigation ----------------------------------------------------- 6

3.1. Service Hint------------------------------------------------------- 6

3.2. Applicable signals----------------------------------------------- 7

4 Specifications------------------------------------------------------------ 8
5 Service Mode------------------------------------------------------------- 9

5.1. How to enter into Service Mode----------------------------- 9

5.2. Option - Mirror --------------------------------------------------11

5.3. Service tool mode----------------------------------------------11

5.4. Hotel mode ------------- -----------------------------------------12

5.5. Data Copy by SD Card ---------------------------------------13

6 Troubleshooting Guide----------------------------------------------16

6.1. Check of the IIC bus lines------------------------------------16

6.2. Power LED Blinking timing chart---------------------------17

6.3. No Power---------------------------------------------------------18

6.4. No Picture--------------------------------------------------------19

6.5. Local screen failure--------------------------------------------20

7 Service Fixture & Tools----------------------------------------------21

7.1. SC jig--------------------------------------------------------------21

8 Disassembly and Assembly Instructions ---------------------22

8.1. Remove the Rear cover-------------------------------- ------22

8.2. Remove the AC inlet ------------------------------------------22

8.3. Remove the P-Board------------------------------------------22

8.4. Remove the Side terminal cover and the Side
shield metal------------------------------------------------------

8.5. Remove the Tuner unit ---------------------------------------23

8.6. Remove the A-Board------------------------------------------23

8.7. Remove the Speakers ----------------------------------------23

8.8. Remove the Woofer-------------------------------------------23

8.9. Remove the Fan------------------------------------------------24

8.10. Remove the SU-Board----------------------------------------24

8.11. Remove the SD-Board----------------------------------------24

8.12. Remove the SC-Board----------------------------------------24

8.13. Remove the SS2-Board--------------------------------------25

8.14. Remove the SS-Board----------------------------------------25

8.15. Remove the Hanger metals and the Stand
brackets ----------------------------------------------------------

8.16. Remove the Cabinet mount metals------------------------25

8.17. Remove the D-Board------------------------------------------26

8.18. Remove the C1-Board ----------------------------------------26

8.19. Remove the C2-Board ----------------------------------------26

8.20. Remove the C3-Board ----------------------------------------26

8.21. Remove the C4-Board ----------------------------------------26

8.22. Remove the C5-Board ----------------------------------------27

8.23. Remove the C6-Board ----------------------------------------27

8.24. Remove the Plasma panel section from the
Cabinet assy ----------------------------------------------------

8.25. Remove the Contact metals---------------------------------28

8.26. Remove the K-Board------------------------------------------28

8.27. Remove the V-Board------------------------------------------28

8.28. Replace the plasma panel-----------------------------------28

9 Measurements and Adjustments---------------------------------29

9.1. Adjustment-------------------------------------------------------29

10 Block Diagram----------------------------------------------------------35

10.1. Main Block Diagram-------------- -----------------------------35

10.2. Block (1/5) Diagram-------------------------------------------36

10.3. Block (2/5) Diagram-------------------------------------------37

10.4. Block (3/5) Diagram-------------------------------------------38

10.5. Block (4/5) Diagram-------------------------------------------39

10.6. Block (5/5) Diagram-------------------------------------------40

11 Wiring Connection Diagram----------------------------------------41

11. 1 . Caution statement.---------------------------------------------41

PAGE PAGE

11.2. Wiring (1)---------------------------------------------------------41

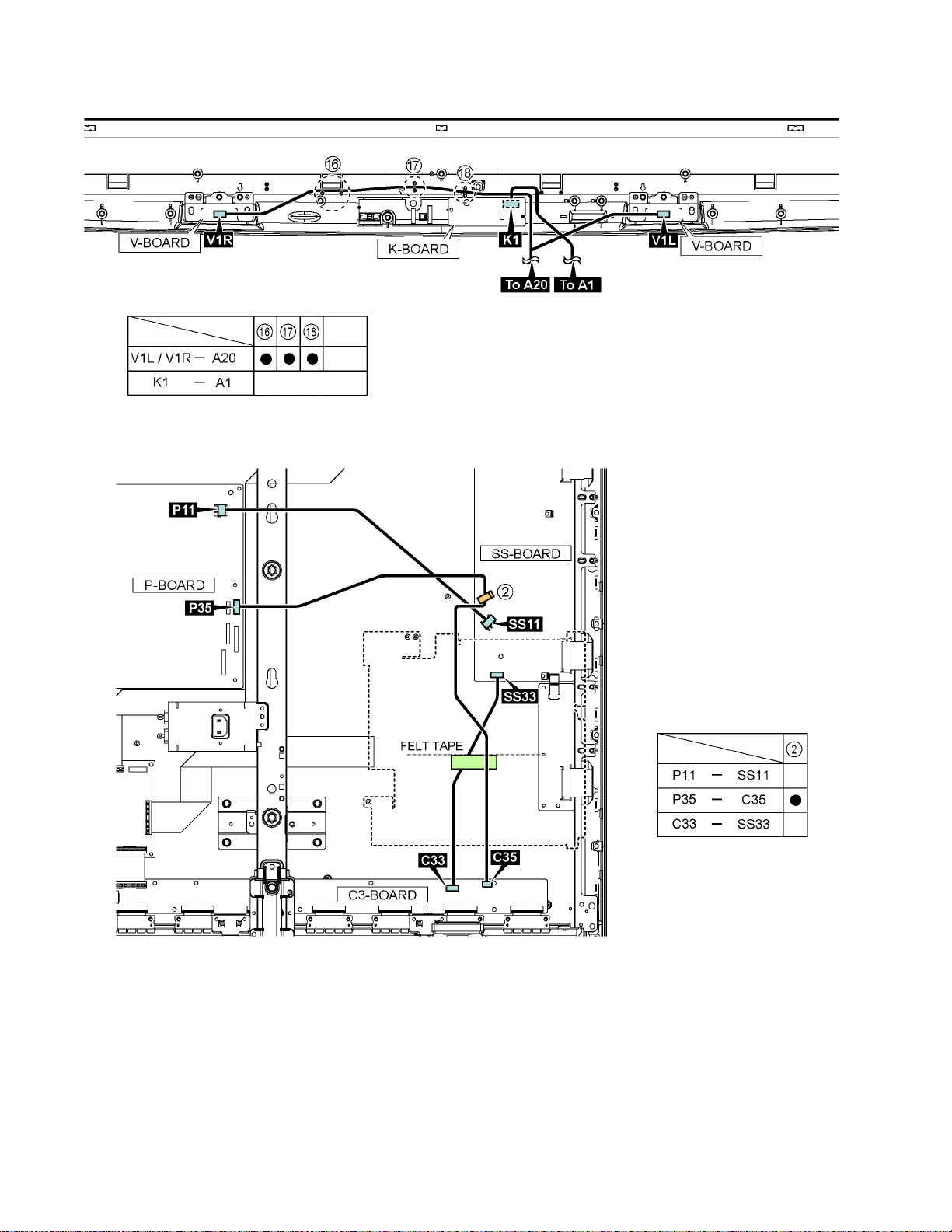

11.3. Wiring (2)---------------------------------------------------------42

11.4. Wiring (3)---------------------------------------------------------42

12 Schematic Diagram---------------------------------------------------43

4

22

25

27

12.1. Schematic Diagram Note ------------------------------------43

12.2. P-Board (1/3) Schematic Diagram-------------------------44

12.3. P-Board (2/3) Schematic Diagram-------------------------45

12.4. P-Board (3/3) Schematic Diagram-------------------------46

12.5. A-Board (1/20) Schematic Diagram-----------------------47

12.6. A-Board (2/20) Schematic Diagram-----------------------48

12.7. A-Board (3/20) Schematic Diagram-----------------------49

12.8. A-Board (4/20) Schematic Diagram-----------------------50

12.9. A-Board (5/20) Schematic Diagram-----------------------51

12.10. A-Board (6/20) Schematic Diagram-----------------------52

12.11. A-Board (7/20) Schematic Diagram-----------------------53

12.12. A-Board (8/20) Schematic Diagram-----------------------54

12.13. A-Board (9/20) Schematic Diagram-----------------------55

12.14. A-Board (10/20) Schematic Diagram ---------------------56

12.15. A-Board (11/20) and K-Board Schematic Diagram----57

12.16. A-Board (12/20) Schematic Diagram ---------------------58

12.17. A-Board (13/20) Schematic Diagram ---------------------59

12.18. A-Board (14/20) Schematic Diagram ---------------------60

12.19. A-Board (15/20) and V-Board Schematic Diagram----61

12.20. A-Board (16/20) Schematic Diagram ---------------------62

12.21. A-Board (17/20) Schematic Diagram ---------------------63

12.22. A-Board (18/20) Schematic Diagram ---------------------64

12.23. A-Board (19/20) Schematic Diagram ---------------------65

12.24. A-Board (20/20) Schematic Diagram ---------------------66

12.25. D-Board (1/5) Schematic Diagram ------------------------67

12.26. D-Board (2/5) Schematic Diagram ------------------------68

12.27. D-Board (3/5) Schematic Diagram ------------------------69

12.28. D-Board (4/5) Schematic Diagram ------------------------70

12.29. D-Board (5/5) Schematic Diagram ------------------------71

12.30. C1-Board Schematic Diagram------------------------------72

12.31. C2-Board (1/2) Schematic Diagram-----------------------73

12.32. C2-Board (2/2) Schematic Diagram-----------------------74

12.33. C3-Board (1/2) Schematic Diagram-----------------------75

12.34. C3-Board (2/2) Schematic Diagram-----------------------76

12.35. C4-Board Schematic Diagram------------------------------77

12.36. C5-Board (1/2) Schematic Diagram-----------------------78

12.37. C5-Board (2/2) Schematic Diagram-----------------------79

12.38. C6-Board (1/2) Schematic Diagram-----------------------80

12.39. C6-Board (2/2) Schematic Diagram-----------------------81

12.40. SC-Board (1/4) Schematic Diagram ----------------------82

12.41. SC-Board (2/4) Schematic Diagram ----------------------83

12.42. SC-Board (3/4) Schematic Diagram ----------------------84

12.43. SC-Board (4/4) Schematic Diagram ----------------------85

12.44. SS-Board (1/2) Schematic Diagram-----------------------86

12.45. SS-Board (2/2) and SS2-Board Schematic
Diagram ----------------------------------------------------------

13 Printed Circuit Board-------------------------------------------------88

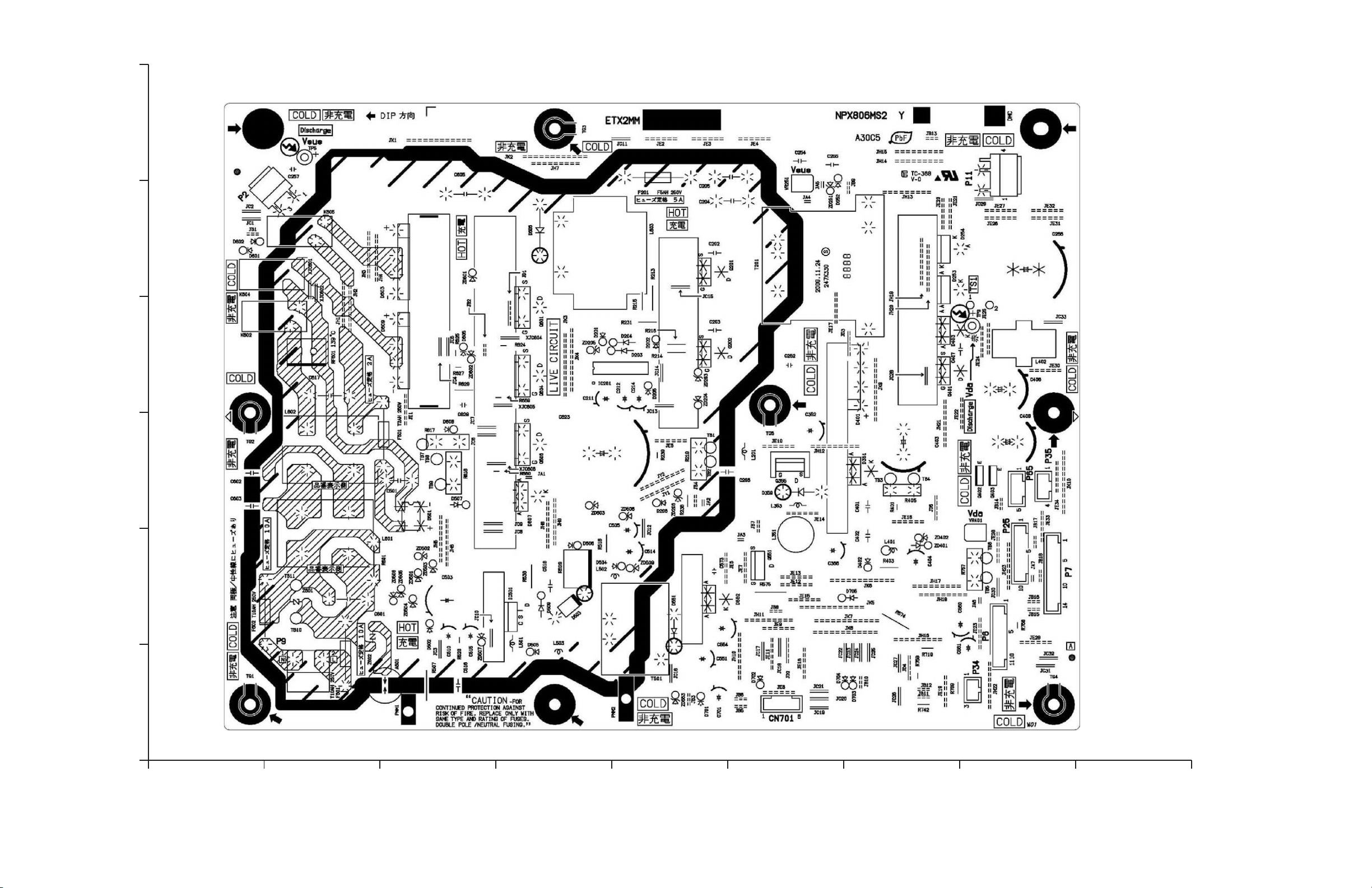

13.1. P-Board-----------------------------------------------------------88

13.2. K, V and SS2-Board-------------------------------------------91

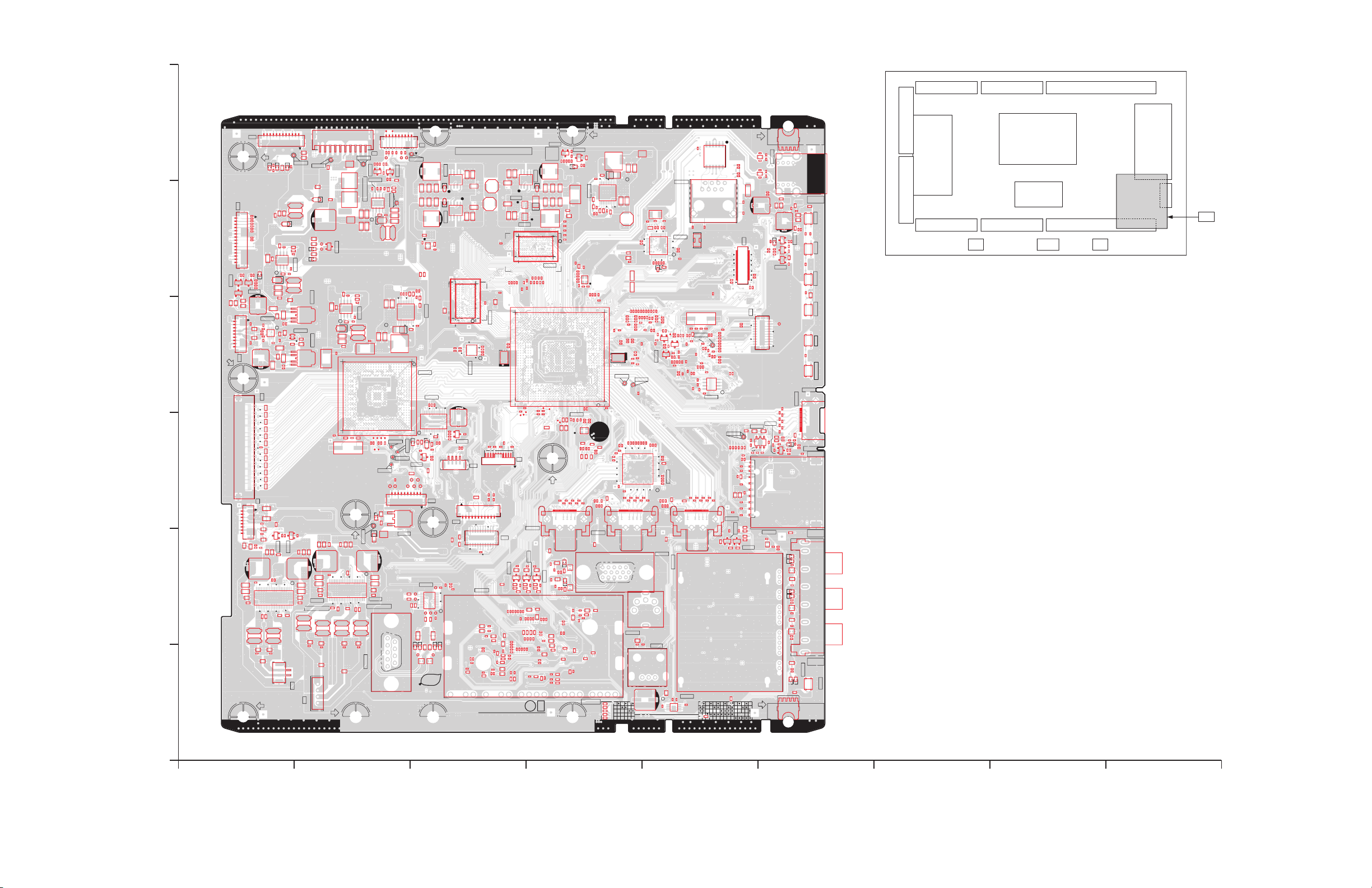

13.3. A-Board-----------------------------------------------------------92

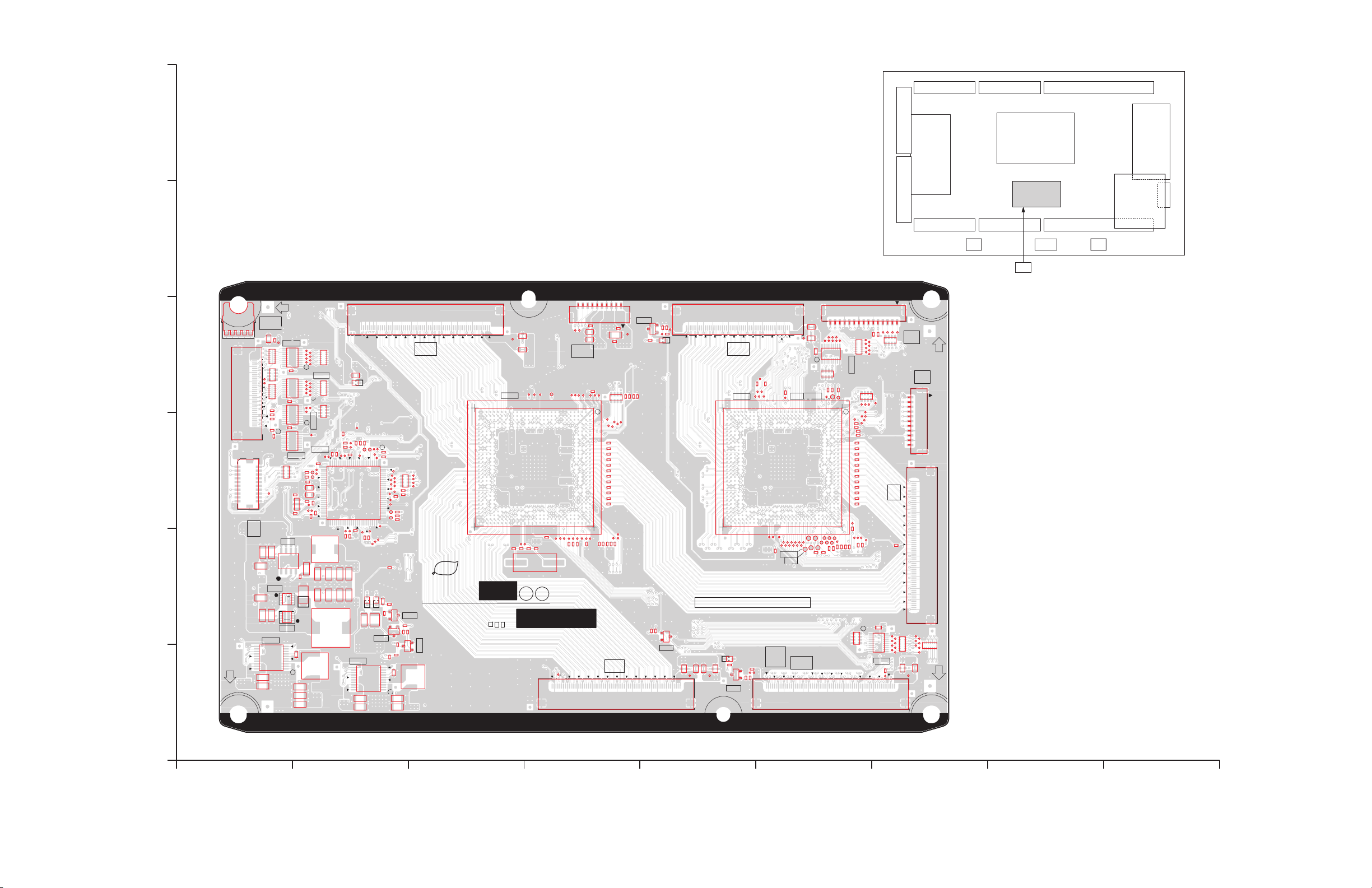

13.4. D-Board-----------------------------------------------------------94

13.5. C1-Board---------------------------------------------------------96

13.6. C2-Board---------------------------------------------------------97

13.7. C3-Board---------------------------------------------------------98

13.8. C4-Board---------------------------------------------------------99

13.9. C5-Board-------------------------------------------------------100

13.10. C6-Board------------------------------------------------------- 101

13.11. SC-Board-------------------------------------------------------102

13.12. SS-Board-------------------------------------------------------104

14 Exploded View and Replacement Parts List----------------107

14.1. Exploded View and Mechanical Replacement
Parts List-------------------------------------------------------

14.2. E lectrical Replacement Parts List -------------------------113

87

107

2

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Faston connectors but plug t hem straight in or unplug them straight
out.

4. When servicing, observe the original lead dress. If a shor t circuit is found, replace all parts which have been overheated or
damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properl y
installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.1.1. Leakage Current Cold Check

1. Unplu g the AC cord and connect a jumper between the
two prongs on the plug.

2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed metal­lic cabinet part on the equipment such as screwheads,
connectors, control shafts, etc. When the exposed metal­lic part has a return path to the chassis, the reading
should be between 1Mohm and 5.2Mohm.
When the exposed metal does not have a return path to
the chassis, the reading must be .

1.1.2. Leakage Current Hot Check (See Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.

2. Connect a 1.5kohm, 10 watts resistor, in parallel with a

0.15μF capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensi­tivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the volt­age at each point.

5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.

6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a measure­ment is outside of the limits specified, there is a possibility
of a shock hazard, and the equipment should be repaired
and rechecked before it is returned to the customer.

Figure 1

3

2 Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec­trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrica l assembly equ ipped with ES devices, plac e the assembly on a cond uctive su rface such as alumi­num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara­ble conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush­ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient
to damage an ES device).

4

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (37 0 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol­der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How­ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

5

3 Service Navigation

3.1. Service Hint

Board Name Function Board Name Function

P Power Supply C1 Data Driver (Lower Right)

C2 Data Driver (Lower Center)

A DC-DC Converter, Tuner

Speaker out, AV Terminal, HDMI in, SD Card, PC in
Digital Signal Processor, PEAKS-LDA2
Power Switch, Key Switch

K Remote receiver, Power LED, C.A.T.S sensor SU Scan out (Upper)
V 3D Eyewear transmitter
D Format Converter, Plasma AI, Sub-Field Processor

C3 Data Driver (Lower Left)
C4 Data Driver (Upper Right)
C5 Data Driver (Upper Center)
C6 Data Driver (Upper Left)
SC Scan Drive
SS Sustain Drive

SS2 Sustain out (Lower)

Non serviceable.
SU-Board should be exchanged for service.

SD Scan out (Lower)

Non serviceable.
SD-Board should be exchanged for service.

6

3.2. Applicable signals

* Mark: Applicable input signal for Component (Y, PB, PR), HDMI and PC

horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI PC
525 (480) / 60i 15.73 59.94 * *
525 (480) /60p 31.47 59.94 * *
750 (720) /60p 45.00 59.94 * *
1,125 (1,080) /60i 33.75 59.94 * *
1,125 (1,080) /60p 67.43 59.94 *
1,125 (1,080) /60p 67.50 60.00 *
1,125 (1,080) /24p 26.97 23.98 *
1,125 (1,080) /24p 27.00 24.00 *
640 × 400 @70 31.47 70.08 *
640 × 480 @60 31.47 59.94 *
Macintosh13 inch (640 × 480) 35.00 66.67 *
640 × 480 @75 37.50 75.00 *
852 × 480 @60 31.44 59.89 *
800 × 600 @60 37.88 60.32 *
800 × 600 @75 46.88 75.00 *
800 × 600 @85 53.67 85.08 *
Macintosh16 inch (832 × 624) 49.73 74.55 *
1,024 × 768 @60 48.36 60.00 *
1,024 × 768 @70 56.48 70.07 *
1,024 × 768 @75 60.02 75.03 *
1,024 × 768 @85 68.68 85.00 *
Macintosh 21 inch (1,152 ×870) 68.68 75.06 *
1,280 × 768 @60 47.78 59.87 *
1,280 × 1,024 @60 63.98 60.02 *
1,366 × 768 @60 48.39 60.04 *

Note

• Signals other than those shown above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

7

4 Specifications

Power Source AC 120 V, 60 Hz
Power Consumption

Maximum 529 W
Standby condition 0.2 W

Plasma Display panel

Drive method AC type
Aspect Ratio 16:9
Visible screen size 54 inch class (54.1 inches measured diagonally)
(W × H × Diagonal) 47.1 inch × 26.5 inch × 54.1 inch (1,198 mm × 673 mm × 1,374 mm)
(No. of pixels) 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]

Sound

Audio Output 30 W [ 10 W + 10 W + 10 W ] ( 10 % THD )

PC signals VGA, SVGA, XGA, WXGA, SXGA

Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz

Channel Capability (Digital/Analog) VHF/ UHF: 2 - 69, CATV: 1 - 135
Operating Conditions

Temperature: 32 °F - 104 °F (0 °C - 40 °C)
Humidity: 20 % - 80 % RH (non-condensing)

Connection Terminals

VIDEO IN 1-2 VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

COMPONENT IN 1-2 Y: 1.0 V [p-p] (including synchronization)

PB, PR: ±0.35 V [p-p]
AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

HDMI 1-4 TYPE A Connector × 4

This TV supports [HDAVI Control 5] function.

USB 1-2 USB 2.0 Type A connector x 2 (DC 5 V MAX 500 mA)
PC D-SUB 15PIN: R,G,B / 0.7 V [p-p] (75 Ω)

RS232C (Serial) D-sub 9pin for external control
LAN (for VIERA CAST IPTV) RJ45 (10BASE-T/100BASE-TX)
Card slot SD CARD slot × 1
DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES 3D Y/C FILTER

CLOSED CAPTION V-Chip
IPTV (VIERA CAST) Media player
VIERA IMAGE VIEWER HDAVI Control 5

Dimensions (W × H × D)

Including pedestal 52.0 inch ×
TV Set only 52.0 inch × 32.9 inch × 3.6 inch (1,319 mm × 834 mm × 90 mm)

Mass

Including pedestal 73.9 lb (33.5 kg)
TV Set only 67.3 lb (30.5 kg)

34.8 inch × 1

HD, VD / 1.0 - 5.0 V [p-p] (high impedance)

h (1,319 mm × 883 mm × 387 mm)

5.3 inc

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

8

5 Service Mode

5.1. How to enter into Service Mode

While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds

Note:

Service Mode can not be entered when 3D signal input.
Input 2D signal to enter Service Mode.

5.1.1. Key command

[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

9

5.1.2. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 46

COLOR 00
TINT 00
SUB-BRT 000

WB-ADJ R-CUT 80

G-CUT 80
B-CUT 80
R-DRV FD
G-DRV FB
B-DRV FF
ALL-CUT 80
ALL-DRV FF

OPTION BOOT ROM Factory Preset

STBY-SET - ­EMERGENCY ON
CLK MODE ON
CLOCK FFF
EDID-CLK HIGH

MIRROR 00 (See next)
VSUS
AGING ALL WHITE Built-in test patterns can be

AI ALL BLUE + WHITE FRAME

AI ALL GREEN

AI ALL RED

LOW STEP WHITE

LOW STEP BLUE

LOW STEP GREEN

LOW STEP RED

RAMP WHITE

RAMP RED

RAMP GREEN

RAMP BLUE

A-ZONE B-ZONE

1% WINDOW

COLOR BAR

9 POINT BRIGHTNESS

WHITE FRAME

AI ALL BLUE

TWICE FIXATION 1% WINDOW

SCROLL

ON/OFF OR WHITE

R/G/B/W AGING MODE

0.5 TIME FIXATION ALL WHITE

ALL WHITE WITH COUNT
SRV-TOOL - See next

displayed.

5.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

10

5.2. Option - Mirror

Picture can be reversed left and right or up and down.
00 : Default (Normal picture is displayed)
01 : Picture is reversed left and right.
02 : Picture is reversed up and down.

Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in
A-board.

5.3. Service tool mode

5.3.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

5.3.2. Display of SOS History

SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory ship­ment setting].

5.3.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for (3sec).
Time : Cumulative power on time, indicated hour : minute by decimal
Count : Number of ON times by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.

5.3.4. Exit

1. Disconnect the AC cord from wall outlet.

11

5.4. Hotel mode

1. Purpose
Restrict a function for hotels.

2. Access command to the Hotel mode setup menu
In order to display the Hotel mode setup menu, please
enter the following command (within 2 second).
[TV] : Vol. [Down] + [REMOTE] : INPUT (3 times)

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

item Function
Mode Select hotel mode ON/OFF
Input Select input signal modes.

Set the input, when each time power is
switched on.
Selection:

---/RF/HDMI1/HDMI2/HDMI3/HDMI4/
COMP1/COMP2/VIDEO1/VIDEO2/PC

• OFF: give priority to a last memory.

Channel Select channel when input signal is RF.

Set the channel, each time power is switched
on.
Selection:
Any channel number or [-].
[-] means the channel when turns off.

Volume Adjust the volume when each time p ower is

switched on.
Range:
0 to 100

Vol. Max Adjust maximum volume.

Range:
0 to 100

OSD Ctrl Restrict the OSD.

Selection:
OFF/PATTERN1

• OFF: No restriction

• PATTERN1: restriction

FP Ctrl Select front key conditions.

Selection:
OFF/ALL/PATTERN1

• OFF: altogether valid.

• ALL: altogether invalid.

• PATTERN1: only input key is valid.

Pow Ctrl Select POWER-ON/OFF con dition when AC

power cord is disconnected and then con­nected.
OFF: The same condition when AC power
cord is disconnected.
ON: Forced power ON condition.

12

5.5. Data Copy by SD Card

5.5.1. Purpose

(a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.

(b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other
TVs.

5.5.2. Preparation

Make pwd file as startup file for (a) or (b) in a empty SD card.

1. In sert a empty SD card to your PC.

2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default
(New Text Document.txt).

3. Right-c lick the new text document that you just created and select rename, and then change the name and exten sion of the
file to the following file name for (a) or (b) and press ENTER.

File name:

(a) For Board replacement : boardreplace.pwd
(b) For Hotel : hotel.pwd

Note:

Please make only one file to prevent the operation error.
No any other file should not be in SD card.

13

5.5.3. Data copy from TV set to SD Card

1. Turn on the TV set.

2. Insert SD card with a startup file (pwd file) to SD slot.
On-screen Display will be appeared according to the startup file automatically.

3. Inpu t a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2770

(b) For Hotel : 4850
Data will be copied from TV set to SD card.
It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to SD card, remove SD card from TV set.

5. Turn off the TV set.

Note:

Following new folder will be created in SD card for data from TV set.

(a) For Board replacement : user_setup
(b) For Hotel : hotel

14

5.5.4. Data copy from to SD Card to TV set

1. Turn on the TV set.

2. Insert SD card with Data to SD slot.
On-screen Display will be appeared according to the Data folder automatically.

3. In put a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2771
(b) For Hotel : 4851

Data will be copied from SD card to TV set.

4. After the completion of copying to SD card, remove SD card from TV set.

(a) For Board replacement : Data will be deleted after copying (Limited one copy).
(b) For Hotel : Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data copy for board replacement does not work.

2. This function can be effective among the same model numbers.

15

6 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

6.1. Check of the IIC bus lines

6.1.1. How to access

Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
Self-check indication and forced to factory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote con­trol for more than 3 seconds.

6.1.2. Exit

Disconnect the AC cord from wall outlet.

6.1.3. Screen display

6.1.4. Check Point

Confirm the following parts if NG was displayed.

16

6.2. Power LED Blinking timing chart

1. Subject
Information of LED Flashing timing chart.

2. Contents
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

17

6.3. No Power

First check point
There are following 2 states of No Power indication by power LED.

1. No lit

2. Red is lit then turns red blinking a few seconds later . (See 6.2.)

18

6.4. No Picture

19

6.5. Local screen failure

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

20

7 Service Fixture & Tools

7.1. SC jig

Purpose:

To find the failure board (SC or SU/SD) when the power LED is blinking 7 times.

SC jig:

Jumper connector to connect to SC50 connector on SC board

Part number:

TZSC09187

How to use:
Caution: Remove SC jig from SC board after inspection.

1. Remove all connector between SC board and SU/SD board to isolate SC board from both SU and SD board electrically.
Note: The board will be damaged if all connector is not removed (for example; remove connector only for SU b oard and s tay
connecting with SD board. The board will be damaged.)

2. Connect SC jig to connector SC50 at left bottom side of SC board

3. Turn on the TV/Display Unit and confirm the power LED blinking.
LED blinking: Possible cause of failure is in SC board
No LED blinking (Lighting or no lighting): Possible cause of failure is in SU or SD board

4. After inspection, turn off the TV/Display Unit and wait a few minutes to discharge.

5. Remove SC jig from SC board.

Remark: This SC jig can be used for all 2010 Plasma TV and Plasma Display.

21

8 Disassembly and Assembly Instructions

8.1. Remove the Rear cover

1. See Service Hint (Section 3)

8.2. Remove the AC inlet

Caution:

To remove P.C.B. wait 1 minute after power was off for dis­charge from electrolysis capacitors.

1. Unlock the cable clampers to free the cable.

2. Discon nect the connector (P9).

3. Remove the screw (×1 ) and remove the AC inlet.

8.3. Remove the P-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for dis­charge from electrolysis capacitors.

1. Unlock the cable clampers to free the cable

2. Disconnect the connectors (P2, P6, P7, P9, P11, P25,
P35 and P65).

3. Re move the screws ( ×9 ) and remove the P-Board.

8.4. Remove the Side terminal cover and the Side shield metal

1. Remove the screws (×2 , ×1 , ×1 ).

2. Remove the Side terminal cover.

3. Remove the Side shield metal.

22

8.5. Remove the Tuner unit

1. Remove the Side terminal cover and the Side shield
metal. (See section 8.4.)

2. Unlock the cable clampers to free the cable.

3. Disco nnect the connectors (A1, A6, A7, A11, A12, A20,
A30 and A32).

4. Disco nnect the flexible cable (A31).

5. Remov e the screws ( ×2 ) and remove the Tuner unit.

8.7. Remove the Speakers

1. Unlock the cable clampers to free the cable.

2. Disconnect the Speaker terminal.

3. Remove the screws (×2 each) and remove the Speak­ers (L, R).

8.8. Remove the Woofer

1. Unlock the cable clampers to free the cable.

2. Disconnect the connector (A12). (See section 8.5.)

3. Remove the screws (×3 ) and remove the Woofer.

4. Remove the screws (×2 ) and remove the Woofer
bracket.

5. Remove the screws (×2 ) and remove the 54 Woofer
bracket.

8.6. Remove the A-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Remov e the screws ( ×6 ) and remove the A-Board.

23

8.9. Remove the Fan

1. Unlock the cable clampers to free the cable.

2. Re move the screws ( ×2 ).

3. Re move the relay connectors and remove the Fan unit.

4. Remove the screw (×1 ) on the back side.

5. Remove the Fan.

8.11. Remove the SD-Board

1. Remove the flexible cables (SD1, SD2, SD3, SD4 and
SD5) connected to the SD-Board.

2. Remove the flexible cable (SU11-SD11) and the bridge
connectors (SC42-SD42 and SC46-SD46).

3. Remove the molding prop (×1 ).

4. Remove the screws (×2 , ×2 ) and remove the SD-
Board.

8.10. Remove the SU-Board

1. Remove the flexible cables (SU1, SU2, SU3, SU4 and
SU5) connected to the SU-Board.

2. Remove the flexible cable (SU11-SD11) and the bridge
connector (SC41-SU41).

3. Remove the molding prop (×1 ).

4. Re move the screws (×2 , ×2 ) and remove the SU-
Board.

8.12. Remove the SC-Board

1. Remove the SU-Board and SD-Board. (See section 8.10.
and 8.11.)

2. Unlock the cable clampers to free the cable.

3. Disconnect the connector (SC2).

4. Disconnect the flexible cable (SC20).

5. Remove the screws (×7 ) and remove the SC-Board.

24

8.13. Remove the SS2-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Disconnect the bridge connector (SS21-SS24) and dis­connect the flexible cable (SS58).

3. Remove the screws (×2 ) and remove the SS2-Board.

8.14. Remove the SS-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Unlock the cable clampers to free the cable.

3. Disco nnect the connectors (SS11 and SS33).

4. Disco nnect the flexible cables (SS53 and SS56).

5. Disco nnect the bridge connector (SS21-SS24).

6. Remov e the screws ( ×6 ) and remove the SS-Board.

3. Remove the Hanger metals (L, R) fastening screws (×2
each) and remove the Hanger metals (L, R).

8.16. Remove the Cabinet mount

8.15. Remove the Hanger metals and the Stand brackets

1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.

2. Remov e the Stand brackets (L, R) fastening screws (×3

each) and the Stand brackets (L, R).

metals

1. Remove the Cabinet mount metals fastening screws (×9
, ×18 ) and remove the Cabinet mount metal top

and the Cabinet mount metal bottom.

25

8.17. Remove the D-Board

1. Re move the AC inlet. (See section 8.1.)

2. Re move the Woofer. (See section 8.8.)

3. Discon nect the flexible cables (D5, D20, D31, D32, D33
and D34).

4. Disconnect the connectors (D3 and D25).

5. Re move the screws ( ×4 ) and remove the D-Board.

8.18. Remove the C1-Board

1. Remove the Cabinet mount metal bottom (See section

8.16.).

2. Remove the flexible cable holder fastening screws (×6

).

3. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).

4. Discon nect the flexible cable (C10).

5. Re move the screws ( ×4 ) and remove the C1-Board.

8.20. Remove the C3-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Remove the Hanger metal L and the stand bracket L.
(See section 8.15.)

3. Remove the Cabinet mount metal bottom (See section

8.16.).

4. Remove the flexible cable holder fastening screws (×9

).

5. Disconnect the flexible cables (CB9, CB10, CB11, CB12,
CB13, CB14 and CB15).

6. Disconnect the flexible cables (C31 and C36).

7. Disconnect the connectors (C33 and C35).

8. Remove the screws (×5 ) and remove the C3-Board.

8.19. Remove the C2-Board

1. Re move the Woofer. (See section 8.8.)

2. Remove the Hanger metal R and the stand bracket R.
(See section 8.15.)

3. Remove the Cabinet mount metal bottom (See section

8.16.).

4. Remove the flexible cable holder fastening screws (×5

).

5. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).

6. Disconnect the flexible cables (C20, C21 and C26).

7. Re move the screws ( ×4 ) and remove the C2-Board.

8.21. Remove the C4-Board

1. Remove the Fan. (See section 8.9.)

2. Remove the Cabinet mount metal top. (See section 8.16.)

3. Remove the flexible cable holder fastening screws (×6
).

4. Disconnect the flexible cables (CA1, CA2, CA3 and CA4).

5. Disconnect the flexible cable (C40).

6. Remove the screws (×4 ) and remove the C4-Board.

26

8.22. Remove the C5-Board

1. Remov e the Fan. (See section 8.9.)

2. Remove the Hanger metal R. (See section 8.15.)

3. Remove the Cabinet mount metal top. (See section 8.16.)

4. Disco nnect the flexible cable hold er fastening screws (×6
).

5. Disconnect the flexible cables (CA5, CA6, CA7 and CA8).

6. Disco nnect the flexible cables (C50, C51 and C56).

7. Remov e the screws ( ×4 ) and remove the C5-Board.

8.23. Remove the C6-Board

1. Remov e the Hanger metal L. (See section 8.15.)

2. Remove the Cabinet mount metal top. (See section 8.16.)

3. Disconnect the flexible cable holder fastening screws

(×10 ).

4. Disco nnect the flexible cables (CA9, CA10, CA11, CA12,

CA13, CA14 and CA15).

5. Disco nnect the flexible cables (C61 and C66).

6. Remov e the connector (C65).

7. Remov e the screws (×4 ) and remove the C6-Board.

8.24. Remove the Plasma panel sec­tion from the Cabinet assy

1. Remove the Cabinet mount metals fastening screws (×9
).

2. Remove the plasma panel fastening screws (×4 , ×8
) and remove the cabinet assy.

3. For leaving the cabinet assy from the plasma panel, pull

the bottom of the cabinet assy forward, lift, and remove.

27

4. Re move the Rear cover hook (L, R).

8.25. Remove the Contact metals

1. Remove the Cabinet assy. (See section 8.24.)

2. Re move the screws ( ×4 ).

3. Remove the Contact metal top.

4. Re move the screws ( ×6 ).

5. Remove the Contact metal bottom.

6. Re move the screws ( ×6 ).

7. Remove the Contact metal side (L, R).

8.26. Remove the K-Board

1. Remove the Contact metal bottom. (See section 8.25.)

2. Remove the screw (×1 ).

3. Remove the claw (×1 ).

4. Disconnect the connector (K1) and Remove the K-Board
from LED Panel.

8.27. Remove the V-Board

1. Remove the Contact metal bottom. (See section 8.25.)

2. Remove the screw (×1 each).

3. Disconnect the connector (V1 each) and Remove the V­Board from the Emitter fixing metal.

8.28. Replace the plasma panel

Caution:

A new plasma panel itself without Hanger metals is
fragile.
To avoid the damage to new plasma panel, carry a new
plasma panel taking hold of the Hanger metals after
assembling the Hanger metals and the Stand brackets.

1. Place a carton box packed a new plasma panel on the flat
surface of the work bench.

2. Open a box and without taking a new plasma panel;
Attach the C1, C2, C3, C4, C5 and the C6-Board, connect
the flexible cables from the plasma panel to the C1, C2,
C3, C4, C5 and the C6-Board, and fit the flexible cable
holders.

3. Attach the Hanger metals and the Stand brackets to the
new plasma panel.

4. Place the plasma panel on the servicing stand taking hold
of the Hanger metals.

5. Attach the cabinet assy and each P.C.Board and so on, to
the new plasma panel.

*When fitting the cabinet assy, be careful not to allow any
debris, dust or handling residue to remain between the
front glass and plasma panel.

28

9 Measurements and Adjustments

9.1. Adjustment

9.1.1. Vsus selection

Caution:

When Plasma panel or D-board is replaced, Vases should be set to LOW or HIGH.

Procedure

1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.

2. Press [OK] button to go to TEST stage.
White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the
On-Screen Display .

3. Press [VOL (-)] button to set to LOW.

4. In LOW setting

a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage.
b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button

to go to CONF stage if the symptom is improved.

5. Press [OK] button in CONF stage to store LOW or HIGH.

6. Exit Service Mode by pressing [Power] button.

29

9.1.2. RF video sub contrast adjustment

Name of measuring instrument Remarks

1. REMOTE TRANSMITTER

2. RF analog signal (Sprit color bar. The pattern for adjustment must contain 100% white part.)
Procedure Remarks

1. Receive the sprit color bar with RF analog signal.

(ASPECT FULL, Picture menu: Vivid)

2. Enter Service mode menu, and select ADJUST -- CONTRAST.

Pushing the remote controller [OK] key for about 3 seconds, GAIN is suited to the adjustment value automatically.

30

9.1.3. White balance adjustment

Name of measuring instrument Remarks
Color analyzer
(Minolta CA-100 or equivalent)

Note:

The CA-100 which was calibrated to less than +-0.001 with CS-1000.

Procedure Remarks

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little color variation.

1. Set to Service mode, WB-ADJ.

2. Select [VIVID] for picture menu.

3. Select [Cool] for color temperature.

4. Push [5] key of remote controller to display window pattern.

5. Confirm the brightness. The following is the confirmation value.
TC-P54VT25 170cd/m2

6. Select [Cinema] for picture menu.

7. Select [Warm] for color temperature.

8. Set [R-CUT] [G-CUT] [B-CUT] the values written in table 1.

9. Attach the sensor of color analyzer to the center of window pattern.

10. Fix G drive at C0h and adjust [B-DRV] and [R-DRV] so x, y value of color analyzer become the [Color temperature
Low] in table 2.

11. Increase RGB together so the maximum drive value in RGB becomes [FF].
That is, set [ALL DRIVE] to [FF].
Execute adjustment again. When that, the maximum value of R/G/B DRV should be
[FF], and either R/G/B DRV should be [FF].

12. The average of the adjusted values in color temperature Cool, Mid, and Warm is shown in Table 4.
The setting value for color temperature Cool will be cal culated by mu ltip lyin g the adju ste d value o f colo r tem pe ra­ture Warm to the ratio of the value of Warm and Cool in each GBR value in Table 4.
Write that values to the data area of color temperature Cool in EEPROM (Table 3).

13. The setting value for color temperatu re Mid will be c alculated by multip lying the adju sted value of colo r tempera­ture Mid to the ratio of the value of Warm and Mid in each GBR value in Table 4.
Write that values to the data area of color temperature Mid in EEPROM.

14. Select [VIVID] for picture menu when you check the adjusted data of Cool and Normal.

Note:

Adjusted value
must be written to
both SD data area
and HD data area
of the EEPROM.

31

323334

(LED:6TIMES)

(LED:8TIME)

(LED:4TIME)

COLD

(LED:7TIMES)

HOT

(LED:4TIMES)

(LED:3TIMES)

(LED:6TIMES)

(LED:5TIMES)

(LED:9TIMES)

(LED:7TIMES)

(LED:8TIMES)

(LED:2TIMES)

(LED:11TIMES)

(LED:11TIMES)

(LED:10TIMES)

(LED:12TIMES)

(LED:12TIMES)

Vda

DATA
DRIVER

DATA
DRIVER

C10 C20

P11

DATA
DRIVER

SC-BOARD
ENERGY RECOVERY
SOS DETECT

POWER MICOM

SC41

VIDEO DATA

DATA DRIVER (CENTER)

C3

RELAY

C31

STANDBY
VOLTAGE
RECTIFIER

P35

POWER
FACTOR
CONTROL

D32

SOS6_SC1

C35

C21

SUSTAIN CONTROL

SS2

SS-BOARD
SOS DETECT

SCAN DRIVE

SC46

SS33

BUFFER

SC20

DATA
DRIVER

SU11

STB5V

RECTIFIER

SS11

SC42

SC

VSUS GEN.

SUSTAIN CONTROL

C26

POWER SUPPLY

SU

Vda

SCAN
DRIVER

DATA
DRIVER

DATA DRIVER (LEFT)

VSUS

PS SOS4

ON/OFF CONTROL

DATA
DRIVER

SS21

MAIN SW2

SUSTAIN DRIVE

VIDEO DATA

DATA
DRIVER

SS

VE GEN.

DATA
DRIVER

SCAN CONTROL

ENERGY RECOVERY

VIDEO DATA

Vda

VSUS

VSUS

VSCAN GEN.

CONTROL
PULSE

SOS8_SS

VAD GEN.

DATA
DRIVER

VSUS

C2

SCAN
DRIVER

CONNECTOR

P-BOARD
SOS DETECT

SD46

VSUS

SOS7_SC2

RECTIFIER

SCAN OUT (LOWER)

DATA
DRIVER

P34

SOS8_SS

C36

SC-BOARD
FLOATING PART
SOS DETECT

DATA
DRIVER

SD

SD42

DATA DRIVER (RIGHT)

P2

SUSTAIN CONTROL

C33

DATA
DRIVER

Vda

PROCESS
VOLTAGE
RECTIFIER

(LOWER)

MAIN SW1

SCAN OUT (UPPER)

SUSTAIN
VOLTAGE
RECTIFIER

SOS8_SS

SD11

Vda

AC CORD

SS24

SU41

P

SUSTAIN

DATA
DRIVER

DATA
DRIVER

F15V

DATA
DRIVER

P9

SC2

C1

VIDEO DATA

D31

P+15V

P+5V P+5V

P+3.3V

P+3.3V

P+5V

P+15V

P+15V

P+3.3V,P+5V

P+3.3V

P6

D25

SOUND15V

STB5VSTB5V

F15V

P25

P+15V P+15V

P+5V

P+15V

C6

DATA DRIVER (RIGHT)

C61

DATA
DRIVER

DATA
DRIVER

Vda

C65

DATA
DRIVER

Vda

C5

C51

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

C4

C56

P+3.3V

DATA
DRIVER

DATA DRIVER (LEFT)

P+3.3V

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

VIDEO DATA

Vda

DATA
DRIVER

DATA
DRIVER

C40 C50

DATA
DRIVER

DATA
DRIVER

C66

VIDEO DATA

DATA
DRIVER

DATA DRIVER (CENTER)

VIDEO DATA

P+3.3V

P65

Vda

A6

STB5V

P7A7

CONTROL
SIGNAL

POWER SOS

SCAN
CONTROL

SOS8_SS

EEPROM

P+15V

DCDC

SOS6_SC1

P+5V

SOS8_SS

P+3.3V

SOS_DCC

PANEL MAIN ON

PANEL MPU

SOS7_SC2

P+5V DET

SUSTAIN
CONTROL

P+5V

P+3.3V

P+3.3V

SOS6_SC1

SOS7_SC2

VIDEO DATA

P+15V

STB_D3.3V

P+3.3V DET

STB5V_M

STB_D3.3V

P+15V DET

PD4H
SLAVE PD4H

MASTER

VIDEO DATA

D33

D34

P+5V

PANEL READY

PANEL STB_ON

PANEL ALARM

D3

D20

A32

P+1.2V

P+5V

P+3.3V

DCDC

P+1.2V

P+5V

P+15V

DCDC

P+2.5V

P+2.5V

DCDC

P+3.3V

D5

LVDS DATA

A31

P+3.3VP+3.3V

VIDEO

DATA

P+3.3V

SOUND SOS

OPTICAL AUDIO OUT

ETHERNET DATA

SLOT

(SIDE)

Y/PB/PR

USB

USB

A11

REMOTE RECEIVER

L,R

KEYSCAN3

REMOTE IN

HDMI I/F

DRIVER

TRANSMITTER

LED(R)

V

SUB+5V DET

VIDEO1

OPTICAL

3D EYEWEAR

SUB5V

TUNER

3D EYEWEAR
TRANSMITTER

MIHO2_3.3V DET

R/G/B

AUDIO

A32

D3

COMP1

D5

PWMW

3D EYEWEAR

V

PWMS L/R

TRANSMITTER

ETHERPHY

REMOTE RECEIVER

A31

K1

USB_1,2

WOOFER

L/R MONITOR OUT

PC_H/V

L/R TV

SUB1.2V_A

SUB3.3V

SUB1.5V

L/R

SUB5V

Y/PR/PB

SIF_IN

3D EYEWEAR

A20

SIF_OUT

V1

V1

F15V

CIRCUIT

HDMI1-4

FAN POWER

C.A.T.S. SENSOR

TMDS DATA

AMP1,2

PANEL ALARM

SUB1.5V

PANEL READY

SUB3.3V

OPTICAL OUT

FAN MAX

STB3.3V

POWER SWITCH

SPEAKER(L,R)

STB3.3V

F15V

AV I/O

MPU

STB3.3V

STB5V

ASIC

ANALOG

SD CARD DATA

OUT

PEAKS-LDA2

SOUND SOS DET
CIRCUIT

AUDIO

LVDS DATA

PC

COMP2

SUB1.2V_A

DCDC

DCDC

SUB9V

A7

LVDS

DATA

PANEL STB_ON

+9/7.2V

ETHER_
NET IF

VIDEO2

10BASE-T/

SUB1.2V_V

ETHERNET

100BASE-TX

F15V

DCDC

MIHO-3D

WO

SUB1.2V_V

FRONT END
PROCESSOR

FAN_A-C

SD CARD

CH0DATA

A1

P6

SOUND15V

A30

STB5V

L/R

DDR2

EEPROM

SUB+3.3V DET

TS_IN

SUB3.3V

AV SW

SOUND15V

V

KEY SWITCH

KEYSCAN1

POWER LED(R)

A

NAND
FLASH

L/R

FAN SOS

CPU BUS
I/F

SUB9V

C.A.T.S. SENSOR

V

CPU BUS

SD CARD DATA

EEPROM

C.A.T.S. SENSOR

L/R

F15V

SUB9V

A6

ETHERPHY

P7

FAN MAX

RECEIVER

POWER LED

DCDC

FAN SOS

SUB5V

K

LED_8V DET

L/R

MIHO2_3.3V DET

Y/PB/PR

A12

LED_8V DET

FAN SOS DET

IFD_OUT

DIGITAL SIGNAL PROCESSOR

(LED:6TIMES)

(LED:8TIME)

(LED:4TIME)

COLD

(LED:7TIMES)

HOT

(LED:4TIMES)

(LED:3TIMES)

(LED:6TIMES)

(LED:5TIMES)

(LED:9TIMES)

(LED:7TIMES)

(LED:8TIMES)

(LED:2TIMES)

(LED:11TIMES)

(LED:11TIMES)

(LED:10TIMES)

(LED:12TIMES)

(LED:12TIMES)

PD4H

D

OPEN

RS-232C

RS-232C

RS-232C

10 Block Diagram

10.1. Main Block Diagram

35

10.2. Block (1/5) Diagram

(LED:11TIMES)

DIGITAL SIGNAL PROCESSOR

A

V1_V

PC

STB5V

F15V

F15V

F15V

V1_L

V1_R

D1_Y

D1_PB

D1_PR

D1_L

D1_R

D2_Y

D2_PB

D2_PR

D2_L

D2_R

V2_V

V2_L

V2_R

PC_B

PC_G

PC_R

PC_H

PC_V

A7

P7

TV_SUB_ON

5

STB5V_SW_ON

8

1

IC5401

A6P6

1

2

6

7

8

F15V

D5602

Q5603

F15V DET

Q5602

ON/OFF

JK3000

VIDEO1

COMP1

COMP2

JK3701

VIDEO2
(SIDE)

JK3001

TV_SUB_ON

STB5V_SW_ON

SOUND15V

SOUND15V

SPEAKER_R

IC2301

Q2300

F15V

SOUND
SOS
DET

A11

AUDIO OUT

POWER_DET

SD BLUE LED ON

POWER_DET

SD_BLUE_LED

SPEAKER_L

12

L(+)

SPEAKER

D2303

SOUND

SOS

PD_XRST

IC5740

FAN CONT.

L(-)

L_OUT

SOS

PA_NRST

DTV_XRST

PWMS L/R

PWMS L/R

4

3

R(-)

R(+)

SPEAKER

15V

PWMW

(LED:11TIMES)

R_OUT

PWMW

LVDS_OUT

IC2302

AUDIO AMP2

SOUND15V

IIC0

IIC1

IIC2

FAN A

FAN B OVER

D5750

D5749

SUB3.3V

Q4537

CLK

AX0

X8002

24.576MHz

ARC_OFF

F15V

D3005

OPTICAL

AUDIO

OUT

AX1

IC5350

SPDIF

RESET

FAN SOS

FAN MAX

FAN ON

AUDIO AMP1

OPTICAL

AUDIO OUT

JK8700

USB_1,2

USB5V

JK8702

10BASE-T/
100BASE-TX

ETHERNET

IC8703

ETHERNET IF

ETHER

NET

USB

ETHERPHY

USB

ETHERPHY

SD DATA:

4bit

SD CARD

I/F

JK8600

SD CARD

VDDSD

IC8000

PEAKS-LDA2

VCC

SUB1.2V_D

SUB1.2V_A

SUB1.5V

AVDDH

ACHIP3.3V

SUB3.3V

IC5603

3.3V

IC5604

AVDDH

VIDEO1

V

L/R

VIDEO2

V

L/R

COMP1

Y/PB/PR

L/R

COMP2

Y/PB/PR

L/R

R/G/B

L/R

H/V

IIC0

DDC IIC

+5V

HDMI_CEC

TS_IN

SIF_IN

Y/PR/PB

L/R

H/V

LO2_L/R

JK4500

HDMI IN 2

TMDS DATA

CLOCK

DDC IIC

SUB3.3V

IIC_TU

IIC0

CH0DATA

JK4503

HDMI IN 1

TMDS DATA

CLOCK

TU8300

ANT IN

IC3001

AV SW

TV

V

L/R

PC

MAIN

Y/PR/PB

L/R

H/V

MONITOR

IN

L/R LO1_L/R

5V9V

3.3V

TV_V

VIDEO

TUNER

5V

SUB5V
TUNER

IIC_TU

3.3V

VINN_VSB

VINP_VSB

IF_AGC

DIGITAL
DEMODULATOR

IC4500

HDMI
EQUALIZER
&SWITCH

IC8300

FRONT END
PROCESSOR

IC4501

IFD_OUT2

IFD_OUT1

AFT

IF_AGC

SIF_OUT

AFT

SUB3.3V

1.2V

IC8303

+5V

HDMI_CEC

DDC IIC

RX1

RX0

HDMI I/F RECEIVER

AV I/O

JK4501

HDMI IN 3

TMDS DATA

CLOCK

RX2

IC8100

DDC IIC

+5V

DDC_0_IIC

HDMI_CEC

DDC_1_IIC

DDC_2_IIC

JK4502

HDMI IN 4

(SIDE)

TMDS DATA

CLOCK

DDC IIC

CLOCK

+5V

DDC IIC

DDR I/F

HDMI_CEC

HDMI5V_DET

HDMI_CEC

CPU BUS

I/F

IC8704

CLOCK GEN

IC8240,41

DDR3 #0

IC8501

NAND
FLASH

IC8502

RF_AFT

EEPROM

STB5V

9V

SUB9V

SOUND15V

IC5608

IC5501

IC5500

SUB5V_USB

+5V

SUB3.3V
SUB1.5V

+3.3V

+1.5V

SUB1.2V_A
SUB1.2V_D

+1.2V

+1.2V

IC5607

5V

SUB5V

SUB3.3V

SUB1.5V

IIC1

A12

15V

LVDS DATA

IIC0

IIC1

IIC2

SUB3.3V

SUB5V_USB

SOS DET
FAN STOP

VOLTAGE

D5745
D5747
D5748

WOOFER

12

WO(+)

SOS

F15V

STB5V

SUB9V

SUB5V

TP2027

WO(-)

OUT

WOOFER

1

2

3

4

5

6

7

8

9

A30

3

1

FAN A-C

36

(LED:11TIMES)

(LED:12TIMES)

(LED:10TIMES)

S

SOS

SUB3.3V

D2520

SW2500

D5614

STB3.3V

D5615

D5613

SUB9V

SUB5V

SUB9V

STB5V

SUB3.3V

STB3.3V

D5470

Q5478

Q5475

SUB5V

D2500 D2502

D2501

LED_7V_1

LED_7V_2

F15V

F15V

X5800
27MHz

X1100

Q5684

D2500 D2502

D2501

D2659

D2660

D5519

D5522

Q5522

Q5479

D5524

SUB5V_USB

STB3.3V

LED_8V

LED_8V

D2521

TEMP SENSOR

IC4800

IIC0

FAN ON

FAN MAX

TV SUB ON

TV SUB ON

FAN ON

FAN MAX

SUB3.3V DET

SUB5V DET

STB+3.3V

1

RM2501

C.A.T.S.

1

C.A.T.S.
SENSOR

C.A.T.S.

REMOTE IN

STB3.3V

A1

FOR
FACTORY
USE

K

REMOTE
RECEIVER

REMOTE RECEIVER

POWER LED

C.A.T.S. SENSOR

POWER LED

3

6

5

POWER LED(R)

5

2

R_LED_ON

6

A17

A18

FOR
FACTORY
USE

2

SUB3.3V

REMOTE IN

3

SN2510

K1

KEYSCAN3

POWER SWITCH

KEYSCAN1

GENX
IIC

GENX

IIC

EEPROM

IC1101

STB_RST

RESET

IC5606

STB_RST

KEYSCAN3

IC5480

ANALOG-ASIC

FAN SOS

FAN SOS

MPU

GenX8

STB3.3V

STB_RST

STB_RST

DTV_XRST

DTV_XRST

IIC1

IIC1

6

7

3

8

5

2

LVDS DATA

IC1100

IIC2

AVC
IIC0

STB5V_SW_ON

POWER_DET

SW_OFF_DET

SW_OFF_DET

STB_RST

A

DIGITAL SIGNAL PROCESSOR

IR_L

4

1

LED_7V

V1

IIC_CLK1

IIC_CLK2

3

IIC_DATA1

PANEL STB_ON

2

PANEL
IIC2

8

IIC_DATA2

READY

PANEL READY

D3

10

7

A32

PANEL ALARM

PANEL STB_ON

AVC_
IIC0

ALARM

11

4

MIHO2_3.3V

IC5811

+3.3V

MIHO2_1.2V

IC5806

+1.2V

LED_8V

IC5808

+8V

IC5809

7V

7V

IC5810

NAND
FLASH

CPU BUS

I/F

IC5801

XTALIN

XTALOUT

MIHO2_3.3V

MIHO2_1.2V

LVDS DATA

LVDS DATA(LEFT)

LVDS DATA(RIGHT)

MIHO-3D

IC5800

PANEL STB_ON

PANEL READY

PANEL ALARM

PANEL STB_ON

PANEL READY

PANEL ALARM

PANEL STB_ON

2

36

A31 D5

67

33

LVDS DATA(LEFT)

LVDS DATA(RIGHT)

DDC_1_IIC

DDC_2_IIC

HDMI_CEC_IN_OUT

SOUND SOS

DDC_2_IIC

DDC_0_IIC

DDC_1_IIC

DDC_0_IIC

HDMI_CEC_
IN_OUT

SOUND SOS

RF_AFT

RF_AFT

HDMI5V_DET2

HDMI5V_DET1

HDMI5V_DET0

HDMI5V_DET2

HDMI5V_DET1

HDMI5V_DET0

KEY SWITCH

VOL.UP

VOL.DN

CH.UP

CH.DN

INPUT/OK
MENU

SW3764
SW3765

SW3759
SW3761
SW3762
SW3763

10MHz

X0

XI

KEYSCAN1

KEYSCAN3

KEY3/STBY_LED_ON

KEYSCAN1

REMOTE IN

POWER LED(R)

C.A.T.S.

POWER LED(R)

REMOTE IN

C.A.T.S. SENSOR

IIC2

IIC2

IC5805

1.2V

PLL_1.2V

4

1

A20

A+IN

B+IN

V+

IR_L

4

1

LED_7V

V1

8

5

A-OUT

B-OUT

IC5813

5V

IR_L

SW OFF DET

SW OFF DET

SOS

SOS

MIHO2_3.3V DET

LED_8V DET

LED
DRIVE A

LED
DRIVE B

Q5814

Q5813

TRANSMITTER

V

3D EYEWEAR
DRIVER

3D EYEWEAR

TRANSMITTER

V

3D EYEWEAR

IC5814

4

9

1

SD_BLUE_LED

88

SD_BLUE_LED

SD_BLUE_LED

GENX
IIC

IIC0
IIC2
PANEL_IIC2

GENX_IIC
IIC1
PANEL_IIC2

TRANSMITTER

3D EYEWEAR

3D EYEWEAR
TRANSMITTER

(LED:11TIMES)

(LED:12TIMES)

(LED:10TIMES)

SBO1

TXD

SBO1

IC3002

RS232C

RS232C SBI1

DRIVER

RS-232C

SBI1

RS232C SBO1

RS-232C

RS-232C

JK3003

RXD

SBI1

10.3. Block (2/5) Diagram

37

10.4. Block (3/5) Diagram

COLDHOT

(LED:4TIMES)

COLDHOT

P

POWER SUPPLY

D603

RECTIFIER

F601

10A 250V

L603

VDET

FILTER

Q601,04,06

Q602,Q603

D609

RECTIFIER

F602

10A 250V

LIVE

IC601

PFC

BIAS

Q203

Q503

2A 250V

L601,L602

2

Q504

F501

NEUTRAL

P9

AC CORD

COLDHOT

P2

SOS4_PS

1

Vsus

P11

1

Vsus

4

P+15V

P35

1

Vda

2

Vda

P65

1

Vda

2

Vda

P25

1

P+15V

2

P+15V

5

STB+5V

7

S0

8

S1

9

PANEL_MAIN_ON

10

SOS4_PS

P6

1

SOUND+15V

2

SOUND+15V

P+15V

3

7

F+15V

9

F+15V

SC2

SS11

C35

C65

D25

A6

Q201,Q202

F201

RESONANCE

5A 250V

VGH

VGL

IC201

RESONANCE
CONTROL

FB

VC1

IC202

COMPARATOR

BIAS_MAIN

BIAS_PFC

NEUTRAL

LIVE

BIAS 5V

D501

RECTIFIER

IC501

STB
CONTROL

Q502,05,06

AC DET

T201

OCP

PHOTO COUPLER

PHOTO COUPLER

PHOTO COUPLER

RF601

D504

PHOTO COUPLER

PHOTO COUPLER

PC201

PC202

PC501

PC502

PC504

D351

K604

K602

K605

T501

D552

D551

COLDHOT

Vsus
ERROR DET

Q701

Q702

IC251

D253
D254

D401

IC551

STB
ERROR DET

L401

Q251,Q252

VSET1/2

BIAS_MAIN

BIAS_PFC

MAIN RELAY_ON

Vsus

VR251

+5V

OPEN

Q404

D402

VSET1/VSET2

POWER MICOM

AC DET

1

P34

IC701

(LED:4TIMES)

MAIN SW_ON

Q551

3

MAIN SW2

MAIN SW1

Q405
Q406

DET

F_15V_ON

IC403

Vda
CONTROL

Q407

FET
DRIVER

Q408

Q401

CONT

Vda_Vo

Vsus_Vo

15V_OUT DET

PANEL_MAIN_ON

SOS4_PS

ALL OFF

TV SUB ON

Q557

MAIN SW2

MAIN SW1

D403

Vda
DET

15V_IN

STB5V_

ON/OFF

Vsus

Vda

Q402

Vda
DET

Q403

VR401

Vda

L402

S0

S1

F+15V

STB+5V

P7

A7

15V

12

MAIN SW1

Q355

15VDET

IC352

14

MAIN SW2

D705

1

3

STB+5V

L351

P+15V

Q706

7

8

9

111

4

5

S0

S1

ALL OFF

STB5V_ON

TV SUB ON

PANEL_MAIN_ON

38

10.5. Block (4/5) Diagram

(LED:7TIMES)

(LED:8TIMES)

(LED:3TIMES)

(LED:6TIMES)

(LED:4TIMES)

(LED:5TIMES)

(LED:2TIMES)

(LED:9TIMES)

STB_D3.3V

P+15V

P+5V

P+3.3V

P+5V

STB5V

P+3.3V

P+15V

P+15V

P+5V

P+15V

P+15V

P+15V

X9000

X9400

P+3.3V

P+3.3V

P+1.2V

P+2.5V

P+3.3VP+3.3V

P+3.3V

P+5V

P+3.3V

P+5V

P+3.3V

SUSTAIN
CONTROL

113

7

IC17300

CB
14

CB
13

20

C33

CB2

BUFFER

CB4

DATA DRIVER (CENTER)

C2

CB3

C21

CB6

PANEL DRIVER

CB8

PANEL DRIVER

6

PANEL DRIVER

CB5

PLASMA PANEL

33

VIDEO DATA

CONTROL DATA

CB1

IC17201

13

CB7

3559

VIDEO DATA

9

33

40

1

4

CONTROL DATA

P+3.3V

VIDEO DATA

32

P+5V

8

P+5V

1

40

P+3.3V

37

Vda

Vda

P+3.3V

DATA DRIVER (RIGHT)

P+3.3V

C1

P+3.3V

C10

P+3.3V

C20

SOS8_SS

Vda

P35

CB
12

CB
15

CB
11

SS33

CB9

1

16

BUFFER

C35

1

C3

Vda

DATA DRIVER (LEFT)

C31

2

CONTROL DATA

20

VIDEO DATA

SUSTAIN

CONTROL

C26

18

CB
10

1

5

SOS8_SS

C36

Vda

IC17302

3

62166

BUFFER

Vda

BUFFER

CA
11

Vda

55

IC17601

DATA DRIVER (LEFT)

C61

CA6 CA7

1

68

16

VIDEO DATA

32

Vda

CA
15

2

Vda

CONTROL DATA

20

CA8

Vda

CA
12

CA
13

34

3

C50

P+3.3V

3

CA2

20

PANEL DRIVER

CA9

C40

PANEL DRIVER

P+3.3V

36

BUFFER

PLASMA PANEL

18

40

CA
10

1

1

VIDEO DATA

Vda

10

P+3.3V

IC17501

40

47

P+3.3V

CONTROL DATA

P65

8

C5

4 5

CA1

CONTROL DATA

C66

C4

CA5

CA
14

PANEL DRIVER

C65

CA3

1

66

C6

P+3.3V

DATA DRIVER (CENTER)

37

C51

CA4

63

Vda

9

1

33

P+3.3V

VIDEO DATA

DATA DRIVER (RIGHT)

VIDEO DATA

C56

GenX7

SOS6_SC1

CONTROL DATA

VIDEO DATA

P+15V

SUSTAIN CONTROL

IC9001

STB_D3.3V

DISCHARGE CONTROL

PANEL READY
(STATUS)

P_S0

POWER ON/OFF

SOS6_SC1

IIC1

3.3V

UHZ

VIDEO DATA

P+5V

EEPROM

PANEL MPU

P+15V

RESET

30

PANEL ALARM

15

P3V_
IIC2

1

P3V_
IIC1

16

STB_
IIC2

STB_
IIC1

+2.5V

PD4H MASTER

PANEL ALARM(SOS)

IC9004

UHZ

RESET

PANEL MAIN ON

+3.3V

18

OSD I/F

P_S1

P_S0

P_S1

PLASMA AI
CPG with SS
H/V Sync Control
Sub Filed Processor

SOS7_SC2

29

XRSTSYS

PANEL READY

2.5V

STB+3.3V/RESET

OSD I/F

P+15V DET

SC20

IIC2

IC9300

+5V

IC9003

PANEL MAIN ON

PANEL STB_ON

SOS4_PS

P+5V DET

FLASH I/F

ADDR/DATA

FLASH
MEMORY

SOS7_SC2

SOS8_SS

IC9304

DRVRST

P3V_
IIC2

P+3.3V DET

STB
IIC2

1.2V

IC9801

DRVRST

D20

XRSTSYS

XRSTSYS

DRVRST

SOS4_PS

SCAN CONTROL

SCAN
CONTROL

IC9802

+1.2V

+3.3V

IC9810,11

BUFFER

66

D32

63368486834 3610 66

D31

63

91

D33

533359 13

D34

635

XRSTSYS

DRVRST

OSD I/F

IC9401-03

BUFFER

VIDEO DATA

PD4H SLAVE

3.3V

IC9400

VIDEO DATA

1.2V

P3V_
IIC2

PLASMA AI
CPG with SS
H/V Sync Control
Sub Filed Processor

OSD I/F

SOS7_SC2

SOS6_SC1

SOS8_SS

SOS6_SC1

SOS8_SS

SOS7_SC2

92

P+15V

D25

SOS4_PS

510

P+15V

P25

STB5V

1

PANEL_MAIN_ON

P_S1

8

P_S0

P_S0

7

P_S1

IC9804

DC/DC OE

A32

D3

7834

PANEL STB_ON

ALARM

IIC_CLK1

2

READY

P3V
IIC1

IIC_DATA1

PANEL ALARM

PANEL READY

10 11

IIC_CLK2

STB
IIC2

IIC_DATA2

PANEL STB_ON

SOS4_PS

PANEL_MAIN_ON

2.5V

XRSTSYS

XRSTSYS

6723616 50 53

D5

19 33

LVDS DATA1

(RIGHT)

LVDS DATA2

(RIGHT)

LVDS DATA1

(LEFT)

LVDS DATA2

(LEFT)

LVDS DATA1

(RIGHT)

LVDS DATA2

(RIGHT)

LVDS DATA1
(LEFT)

LVDS DATA2
(LEFT)

DC/DC OE

A31

TEMP SENSOR

IC9002

FOR
FACTORY
USE

D6

P3V_IIC1
STB_IIC2

STB_
IIC1

XO

XI

XI

XO

DCC_SOS

DCC_SOS

DCC_SOS

DCC_SOS

DCC_SOS

DCC_SOS

P3V_
IIC2

(LED:7TIMES)

(LED:8TIMES)

(LED:3TIMES)

(LED:6TIMES)

(LED:4TIMES)

(LED:5TIMES)

(LED:2TIMES)

(LED:9TIMES)

D PD4H

39

10.6. Block (5/5) Diagram

(LED:8TIMES)

(LED:6TIMES)

(LED:7TIMES)

SCAN DRIVE

SC

SOS6_SC1

SOS7_SC2

SCAN CONTROL

D20

P+15V

P+15V

P2

Vsus

P+5V

SC2

1

IC16771

Vad+5V

PC16461

COUPLER

IC16501

CSH/CMH GATE
DRIVE CIRCUIT

IC16521

CSL/CML GATE
DRIVE CIRCUIT

IC16581

ERROR DET

SC
20

7

6

35

18

UHZ

21

20

SCAN
CONTROL

TPSOS6

(LED:6TIMES)

D16822

TPSOS7

(LED:7TIMES)

TPVSUS

F16V

D16618

PC16603

PHOTO COUPLER

MID

PC16684

PHOTO COUPLER

VRH

VRL

D16481
D16482

Q16452

Q16421
Q16422
Q16423

CMH

CSH

Q16401

CMH

Q16402
Q16403

D16461
D16462

Q16441

CSH

CSL

CML

D16583
LED(G)

IC16561,62

BUFFER

IC16563

D16493

INVERTER

D16920

Q16876

ERROR DET

PC16480


COUPLER

D16820

D16480

UHZ

P+5V

Q16607

CERS

CPH1

PC16685

COUPLER

VOL

IC16564

AND

CML
CMH

CSL

CRC1

IC16490,91

Q16490

SEPA PROTECT
CIRCUIT

P+15V

D16821

IC16471

SHUNT
REG

Q16601

Q16621
Q16622

CPH1
CIS
CERS
CEL

CIS

CRC2

SIU
OC1
OC2CSH
CLK
SEL

D16490

D16871
D16872

Q16471

SEL2

VFG

Vscn

D16721

(16V_F)

D16791

15V_F

D16476

D16473

F16V

IC16661

COMPARATOR

IC16920

COMPARATOR

IC16784,85

IPD CIRCUIT

VAD GEN.
SHUNT REG

Q16885

F16V GEN.

IC16786,87

IPD CIRCUIT

VSCN GEN.
SHUNT REG

IC16724

+5V

(SC1)

D16475

CRC1

CRC2

CEL

CEL

CHA

SCNR_PRO

IC16773

INVERTER

T16471

IC16691

NAND

TPVSCN

Q16608

D16901

IC16692

SHUNT

REG.

D16728

Q16818

Q16647

D16859

VFG

Q16661

TPVAD

Q16660

TPSC1

5V_F

TP59,TP60
TP61,TP62

VSCN-F

SEL2

SC
50

1

SC JIG

2

SS

SUSTAIN DRIVE

SCAN OUT (UPPER)

SU

IC14601-03

SCAN

SU1-SU5

PLASMA PANEL

PANEL SCAN
ELECTRODE

SD1-SD5

DRIVER

SCAN

DRIVER

IC14604-06

SU
11

SD
11

SU

SC

41

41

8

8

4

Vfo

4

2

2

IC14801-03

SD

SC

42

42

5

5

6

6

2

2

Vfo

1

1

8

8

9

9

SIU

SC

OC1
OC2
CLK
SEL

SD

46

46

SD

SCAN

DRIVER

SCAN

DRIVER

IC14804-06

SCNR_PRO

CHA

LOGIC IC

IC14901,02,04

SCAN OUT (LOWER)

SUSTAIN CONTROL

P11

P+15V

C33

SOS8_SS

Vsus

P+5V

SS
11

1

4

SS
33

1

7

IC16131

VSUS Gen.

DRIVER

IC16151

ENERGY

RECOVERY

IC16241

BUFFER

SUSTAIN CONTROL

TPVSUS

UMH

UML

USH

USL

Q16001
Q16002
Q16003

Q16021
Q16022
Q16023

USL

UEH

USH

UML
UMH

TPSOS8

(LED:8TIMES)

D16041
D16042

Q16041

Q16051

IC16251

ERROR DET

D16255

D16051
D16052

D16253
LED(G)

FPC DET

D16316

VE GEN.

COUPLER

PC16191

VE Gen.

DRIVER

D16280

IPD CIRCUIT

IC16304

PC16301

IC16312

L16303

SHUNT

REG.

UEH

UML

Q16280

ERROR DET

TPSS1

Q16101
Q16102

TPVE

D16282

SS
53

1

2

13

PLASMA PANEL

PANEL SUSTAIN
ELECTRODE

SS
56

1

2

13

SS

13

1

2

58

SS

SS

21

24

7

7

1

1

6

6

SS2

SUSTAIN
CONNECTOR
(LOWER)

40

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:

Please confirm that all flexible cables are assembled correctly.
Also make sure that they are locked in the connectors.
Verify by giving the flexible cables a very slight pull.

11.2. Wiring (1)

41

11.3. Wiring (2)

11.4. Wiring (3)

42

12 Schematic Diagram

12.1. Schematic Diagram Note

43

12.2. P-Board (1/3) Schematic Diagram

P-BOARD ETX2MM807MVH (1/3)

!

HOT

COLD

A

B

PFC

C

HOT

COLD

D

E

STB
CONTROL

STB
ERROR DET

F

COLD

731

2 896

4

5

HOT

44

12.3. P-Board (2/3) Schematic Diagram

A

RESONANCE
CONTROL

B

C

COLD

HOT

TO
SS-BOARD
(SS11)

TO
SC-BOARD
(SC2)

Vsus

Vsus
ERROR DET

TO
C3-BOARD
(C35)

TO
C6-BOARD
(C65)

Vda
CONTROL

COMPARATOR

D

Vda

TO
A-BOARD
(A6)

E

P+15V

F

P-BOARD ETX2MM807MVH (2/3)

!

COLD

HOT

2 896

4

5

731

45

12.4. P-Board (3/3) Schematic Diagram

A

B

C

POWER MICOM

TO
D-Board
(D25)

TO
A-BOARD
(A7)

D

E

OPEN

F

P-BOARD ETX2MM807MVH (3/3)

!

2 896

4

5

731

46

12.5. A-Board (1/20) Schematic Diagram

!

LDA2_ROM,SPCA-BOARD TXN/A1LWUUS (1/20)

A

B

C

PEAKS-LDA2

TO 17/20

TO 17/20

TO 2,17/20

TO 17/20

PD_ED[0-15]

PD_NFRYBY

PD_XNFRE

PD_XNFCE

PD_NFCLE

PD_NFALE

PD_XNFWE

PD_XNFWP

PD_ED0

PD_ED1

PD_ED2

PD_ED3

PD_ED4

PD_ED5

PD_ED6

PD_ED7

R8918

EXB2HV680JV

AH_ED0

AH_ED1

AH_ED2

AH_ED3

AH_ED4

AH_ED5

AH_ED6

AH_ED7

R8944

56

R8945

56

R8946

56

R8947

56

R8948

56

R8949

56

AH_ED6

AH_ED4

AH_ED7

AH_ED5

45NC46NC47NC48

NC

I/O442I/O543I/O644I/O7

IC8501

TVRR440S

R/B#8RE#9CE#10NC11NC12VCC13VSS14NC15NC16CLE17ALE18WE#19WP#20NC21NC22NC23NC24NC

1NC2NC3NC4NC5NC6NC7

R8950

56

R8951

2.2k

C8903

16V

0.1u

37

38NC39NC40NC41

VSS

VCC

1Gbit NAND_FLASH

C8904

16V

0.1u

AH_ED2

AH_ED1

AH_ED0

AH_ED3

SUB3.3V

DEBUG CONNECTOR

33NC34NC35NC36

25NC26NC27NC28NC29

I/O030I/O131I/O232I/O3

SUB3.3V

R8973

R8952

10k

10k

R8972

10k

SUB3.3V

R8963

10k

R9014

10k

PEAKS-LDA2

PD_XIRQ1

TO 17/20

TO 17/20

JTAG

R8965

10k

R8975

10k

PD_TCK

PD_TDI

PD_TMS

PD_TRST

PD_EVTRG

D

EEPROM

*IC8502

TVRR471S

E

1

2

3

4

EEPROM

NC

NC

NC

VSS

SUB3.3V

C8950

16V

TP8563

0.01u

8

R8500

VCC

4.7k

7

WC

R8503

S

6

SCL

S

5

SDA

R8504

R8501

TO 17/20

68

PD_HSDOUT6

PORT5[7]EEPROM_WP

TO 2,8,12/20

IIC1

PEAKS_SCL1

PEAKS_SDA1

F

743

91 6825

47

12.6. A-Board (2/20) Schematic Diagram

CLK Gen

!

X8100

H0J270500120

27MHz

C8151

C8150

50V

50V

0.5p

IC8100

C1ZBZ0003967

CLOCK GEN

12p

1

X1

2

S0

3

S1

4

VIN

5

VDD1

C8155

16V

6

0.01u

GND1

7

CLK1

8

CLK2

R8102

56

R8103

56

REFOUT

16

X2

15

VDD3

14

S2

13

VDD2

12

GND2

11

CLK4

10

CLK3

IIC

SUB3.3V

10k

10k

10k

R8546

R8545

R8544

10k

10k

10k

10k

10k

10k

10k

10k

R8556

R8552

R8550

R8551

R8549

R8553

R8554

R8555

IIC_BUS

PEAKS-LDA2 I2CBUS

TO 17/20

PD_SCL0

PD_SDA0

PD_SCL1

PD_SDA1

PD_SCL2

PD_SDA2 PEAKS_SDA2

R8680

R8681

R8682

R8683

R8684

R8685

SUB3.3V

L8100

J0JHC0000045

R8104

C8152

10k

0.1u
16V

R8105

56

C8153

0.1u

16V

C8154

10u

10V

R8108

9

10k

10k

R8558

R8557

10k

R8564

S

S

S

S

S

S

56

R8111

56

ETHER_25M

TP8100

C8157

10V

1u

10k

10k

10k

R8562

R8559

R8560

boot_mode_sel[0]

boot_mode_sel[1]

boot_mode_sel[2]

boot_mode_sel[3]

boot_mode_sel[4]

clk_mode[0]

clk_mode[1]

clk_mode[2]

clk_mode[3]

clk_mode[4]

clk_mode[5]

use_PCI_raw

pci_host_sel_raw

ed_pullup_sel

ea_pullup_sel

BOOTBT

eclk_mode[1]

eclk_mode[0]

pcitest_sg

cputest_sg

SDBOOT

rom_boot_size[0]

rom_boot_size[1]

mode_sel_soft

10k

10k

1k

10k

1k

R8565

R8566

R8587

R8572

R8585

SUB3.3VMIHO2_3.3V

2.7k

2.7k

2.7k

2.7k

2.7k

R8690

R8691

R8692

R8694

R8693

S

VJ8600

S

VJ8601

R8106

56

R8109

10k

R8365

TO 3/20

2.7k

R8695

LDA2_PERIPHERALA-BOARD TXN/A1LWUUS (2/20)

VBUS1

DM1

DP1

GND

21

VBUS0

DM0

DP0

GND

Temp Sensor

IC4800

C1ZBZ0003775

TEMP SENSOR

R4821

TO 6,11,12/20

IIC0

PEAKS_SDA0

PEAKS_SCL0

10k

R4820

S

1

SDA

R4819

S

2

SCL

3

ALERT

4

GND

SUB3.3V

8

V+

C4830

16V

7

0.1u

A0

6

A1

5

A2

Dchip pin

VCXO#1

PEAKS-LDA2

10k

R8754

10k

R8768

PD_CK27B

PD_CK74B

TO 17/20

Ether

SUB3.3V

R8766 10k

R8767 10k

PEAKS-LDA2

PD_WUC

PD_WAKEUP

TO 17/20

IRQ

SUB3.3V

PEAKS-LDA2

10k

R8765

R8769

R8770

R8771

R8772

R8773

PD_XIRQ3

10k

10k

10k

10k

10k

PD_XIRQ4

PD_XIRQ6

PD_XIRQ7

PD_XIRQ8

PD_XIRQ9

PORT15[4]

PORT15[6]

PORT15[7]

PORT16[0]

PORT16[1]

TO 17/20

TO 3,17/20

Reset

F15V

R5356

10k

PD_DCK33IN

PD_IPCK33IN

PD_USBXI

PD_CK27A

PD_CK74A

PD_VC27A

TO 17/20

PEAKS-LDA2

0

R8112

100k

C5353

R5357

25V

12k

0.01u

1

IC5350

C0EBY0000581

RESET

GND2VDD

OUT3CD

4

R5358
100k

C5346

16V

0.47u

SUB3.3V

R5365

10k

R5370

C5358

25V

0.01u

R5372

47

100

PD_XRST

PA_NRST

AG_DTV_XRST

TO 17/20

TO 8/20

R5373

100

USB

USB2

SUB3.3V

PD_ERXW

PD_EA0

PD_EA1

PD_EA2

PD_EA3

PD_EA4

PD_EA5

PD_XEWE0

PD_XEWE1

PD_ESZ0

PD_ESZ1

PD_EA6

PD_EA7

PD_XECS2

PD_XECS3

PD_XECS4

PD_XERE

PD_XNFCE

PD_XNFRE

PD_XNFWE

PD_XECS5

PD_NFALE

PD_EA24

PD_NFCLE

PEAKS_SCL0

PEAKS_SDA0

PEAKS_SCL1

PEAKS_SDA1

PEAKS_SCL2

LDA2_SCL2

LDA2_SDA2

TO 17/20

TO 1,17/20

TO 8,17/20
TO 1,17/20
TO 17/20
TO 1,17/20

TO 6,11,12/20

TO 1,8,12/20

TO 3,12/20

TO 10,15/20

PEAKS-LDA2

USB1

PEAKS-LDA2

PD_USB1OC

PD_USB1VBUS

PD_USB1DP

PD_USB1DN

PD_USB1RREF

PD_USB0OC

PD_USB0VBUS

PD_USB0DP

PD_USB0DN

PD_USB0RREF

TO 17/20

TO 17/20

R8747

10k

R8746

0

R8745

10k

TP8710

JS8701

JS8702

TP8711

R8744

6.2k

IC8704

C0DBZYY00365

SUB5V_USB

C8749

C8748

16V

10V
10u

0.1u

SUB3.3V

R8764

10k

R8763

0

R8762

10k

R8761

6.2k

USB5V

1

8

GND

/OC1

2

7

IN

OUT1

3

6

EN1

OUT2

4

5

EN2

/OC2

TP8712

JS8703

JS8704

TP8713

R8776

2.7k

+

C8728

6.3V
220u

L8708

J0JHC0000045

+

C8747

C8744

R8777

2.7k

16V

6.3V
220u

0.1u

L8707

J0JHC0000045

C8731

16V

0.1u

TP8707

TP8708

TP8734

TP8735

JK8700

K1FY208B0008

USB_1,2

A-1

A-2

A-3

A-4

B-1

B-2

B-3

B-4

10 12 16 1813 171511 14

48

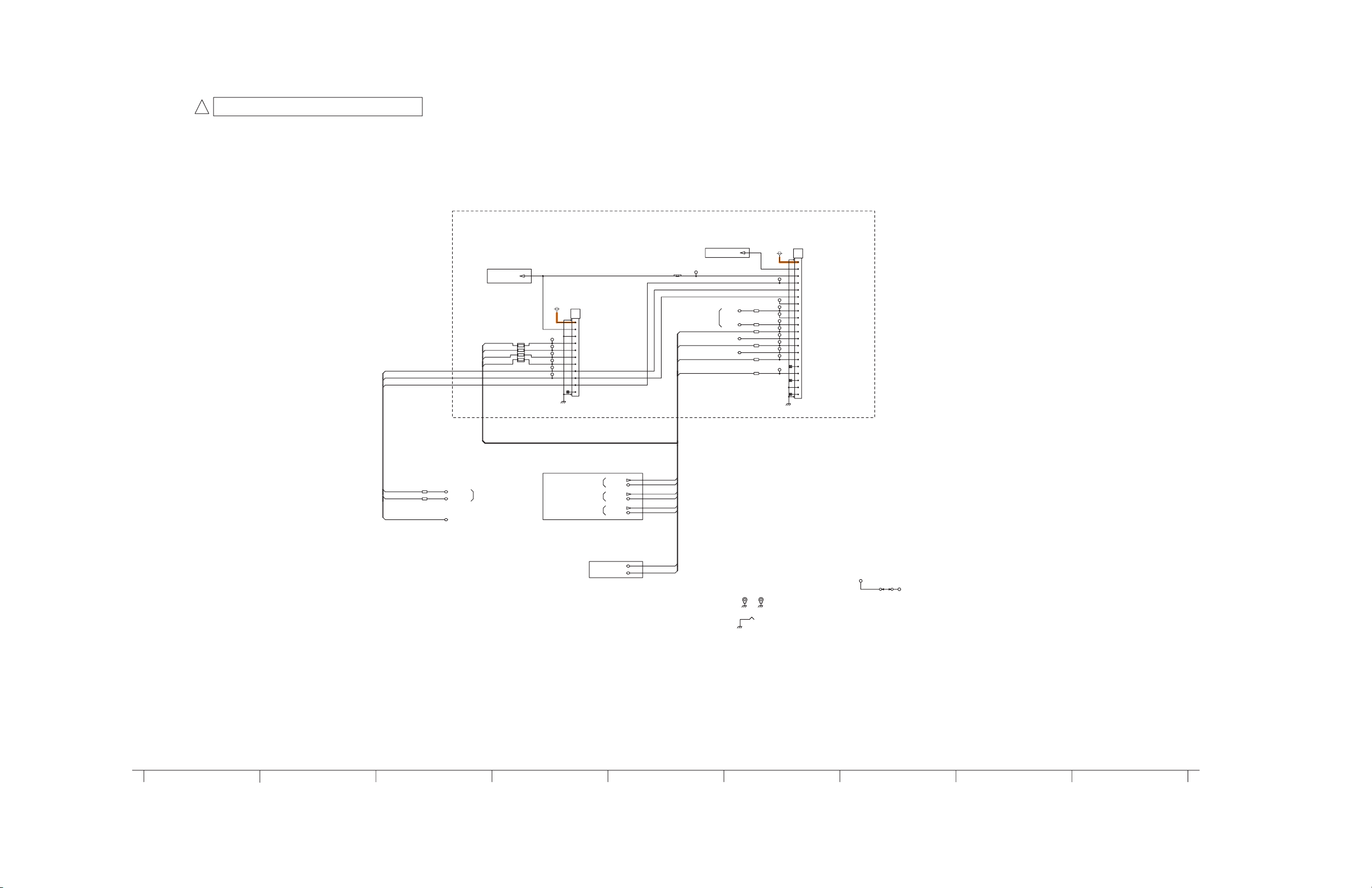

12.7. A-Board (3/20) Schematic Diagram

!

A-BOARD TXN/A1LWUUS (3/20)

LDA2_PERIPHERAL

LAN

PEAKS-LDA2

PD_MII_TXCLK

PD_MII_TXD1

PD_MII_TXD2

PD_MII_TXD3

PD_MII_TXEN

PD_MII_RXCLK

PD_MII_RXD0

PD_MII_RXD1

PD_MII_RXD2

PD_MII_RXD3

PD_MII_RXDV

PD_MII_RXER

PD_MII_COL

PD_MII_CRS

PD_MDIO_INTL

PD_PHYRSTL

PD_MDC

PD_MDIO

TO 17/20

Achip pin

X8002

H0J245500101

24.576MHz

R8758

R8759

10k

R8360

24k

0

R8756

160

System(Achip)

R8760

24k

TO 17,18/20

TO 17/20

TO 17/20

C2078

10V
1u

C2079

16V

0.01u

16V0.1u

16V 0.1u

16V0.1u

16V0.1u

C8138

16V 0.1u

C8142

16V0.1u

C8139

16V 0.1u

C8143

16V0.1u

PA_VREF1V5

TO 17/20

PA_VREG

TO 17/20

C8136

C8140

C8137

C8141

ADC

PA_VREFH0

C8144

0.1u
16V

PA_VREFL0

PA_VREFH1

C8145

16V

0.1u

PA_VREFL1

PA_VREFH2

C8146

16V

0.1u
PA_VREFL2

PA_VREFH3

C8147

16V

0.1u

C8148

10V

1u

C8149

10V

1u

PA_VREFL3

PA_BIAS

PA_BIAS2

PA_AXOETHER_25M

TO 17/20

PA_AXI

PD_DAAVDD1

PD_VVREF

PD_MVIREF

PD_VCOMPPD_MII_TXD0

PD_MVDACOC

PD_MVDACOY

C8360

50V

TO 2/20

PD_MII_RXD1

SUB3.3V

PD_MII_TXCLK

R8703

R8704

R8705

R8706

R8707

R8711

R8712

R8708

R8709

R8710

AP_MII_TXD0

56

AP_MII_TXD1

56

AP_MII_TXD2

56

AP_MII_TXD3

56

AP_MII_TXEN

56

PD_MII_RXCLK

PD_MII_RXD0

PD_MII_RXD1

PD_MII_RXD2

PD_MII_RXD3

PD_MII_RXDV

PD_MII_RXER

PD_MII_COL AP_MII_TXEN

PD_MII_CRS

4.7k

4.7k

AP_MDC

56

AP_MDIO

56

PD_MDIO_INTL

AP_PHYRSTL

56

SUB3.3V

PD_MII_RXDV

PD_MII_RXCLK

PD_MII_RXER

PD_MDIO_INTL

PD_MII_TXCLK

AP_MII_TXD0

AP_MII_TXD1

J0JHC0000045

J0JHC0000045

R8721

R8722

R8723

R8724

R8725

L8701

L8702

C8711

10u

10V

C8712

16V 0.1u

56

56

56

C8713

16V0.1u

56

56

PD_MII_RXD0

R8728

EXB28V560JX

24

GND

VDDIO_3.3

25

VDDIO_3.3

26

RXDV/CONFIG2

27

RXC

28

RXER/ISO

29

GND

30

VDD_1.8

31

INTRP

32

TXC

33

TXEN

34

TXD0

35

TXD1

36

GND38TXD239TXD340COL/CONFIG041CRS/CONFIG142LED0/MWAYEN43LED1/SPEED44NC45NC46NC47RST#48NC

37

AP_MII_TXD2

C1CB00003239

ETHERNET IF

AP_MII_TXD3

AP_MDC

PD_MII_RXD3

PD_MII_RXD2

19

20

MDC

RXD3/PHYAD021RXD2/PHYAD122RXD1/PHYAD223RXD0/DUPLEX

IC8703

56

56

R8733

R8731

PD_MII_CRS

PD_MII_COL

AP_MDIO

18

R8734

0

C8714

R8737

50V

6.49k
100p

R8588

L8705

J0JHC0000045

L8706

13

14XO15XI16

17

GND

GND

MDIO

REXT

TX+

TX-

RX+

RX-

VDDA_3.3

VDDA_3.3

V1.8_OUT

VDDA_1.8

VDDA_1.8

GND

GND

GND

10k

R8735

AP_PHYRSTL

J0JHC0000045

12

11

10

9

C8717

10u10V

8

C8718

7

16V0.1u

6

C8719
16V0.1u

5

C8720

4

16V0.1u

3

2

1

C8721

16V 0.1u

C8722

10V

R8525

10u

0

TX+

6

TX-

C8570

16V 0.01u

C8565

16V 0.01u

49.9

49.9

49.9

C8513

16V

0.1u

49.9

R8527

R8526

R8524

C8512

16V

0.1u

5

4

3

2

RX+

1

RX-

T8301

G5BYC0000015

7

8

9

10

11

12

75

R8381

VJ8702

P

VJ8703

P

JK8702

K2LC1YYA0005

10BASE-T/

100BASE-TX

ETHERNET

TX+

1

TX-

2

RX+

3

4

5

RX-

6

7

8

75

75

75

R8384

R8383

R8382

VJ8700

P

VJ8701

P

12p

C8361

50V
12p

C8741

C8742

10V

10V

1u

1u

R8757

160

SD

PEAKS-LDA2

PD_SDDAT2

PD_SDDAT3

PD_SDCMD

PD_SDCLK

PD_SDDAT0

PD_SDDAT1

PD_SDCD

PD_SDWP

TO 17/20

SUB3.3V

R8775

0

R8752

R8751

10k

10k

R8697

56

R8696

56

R8700

56

R8701

56

R8699

56

R8698

56

R8702

0

R8713

0

C8601

C8602

16V

16V

0.1u

0.1u

VDDSD

R8714

D1HG1038A002

56

R8716

56

R8715

22

R8719

22

R8720

56

R8718

56

R8717

22

R8743

22

R8748

TP8601

TP8600

TP8604

R8755

TP8606

0

TP8605

TP8603

TP8602

TP8607

TP8608

JK8600

K1NA09E00080

SD CARD SLOT

SDDAT2

SDDAT3

SDCMD

GND

3.3V

SDCLK

GND

SDDAT0

SDDAT1

SDCD

SDWP

9

1

2

3

4

5

6

7

8

10

D.SW

11

12

W.P.

+

C8610

C8609

16V

16V

0.1u

47u

SUB3.3V

L8509

C8617

J0JHC0000045

16V

0.01u

TO 2,17/20

SD_COIN_DET PORT16[1]

VJ3900

S

VJ3901

S

PD_XIRQ9

PEAKS_SDA2

PEAKS_SCL2

IIC (SDA2)

IIC (SCL2)

SUB3.3V

R8740

10k

TO 2,12/20

242221 25 2620 272319

49

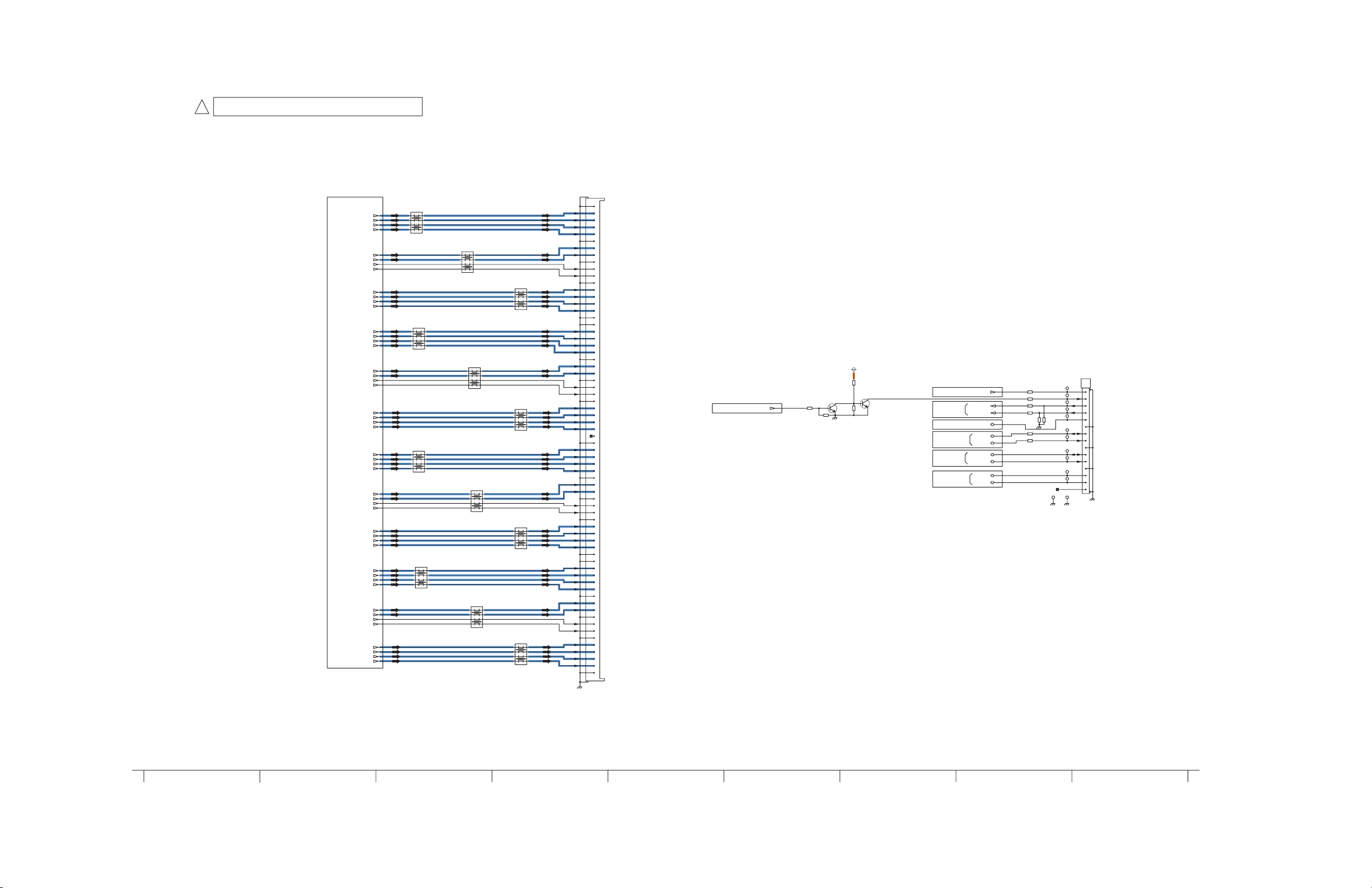

12.8. A-Board (4/20) Schematic Diagram

HDMI Input

!

HDMIA-BOARD TXN/A1LWUUS (4/20)

1

Q4539

10k

L4526

J0JYC0000068

1k

SUB3.3V

DSC200100L

R4575

47k

TP4516

TP4517

R4568

150

R4569

150

Q4538

DSA200100L

EZAEG2A50AX

C4554

6.3V
1u

R4567

22

R4561

10k

R4560

47k

R4563

10k

D4604

R4574

47k

D4605

EZAEG2A50AX

R4564

J0JYC0000068

J0JYC0000068

SPDIF

ARC_OFF

STB5V

47k

B0ACCJ000048

L4527

L4528

PD_IECOUT0

PD_HSDOUT7

D4609

R4565

TO 11,17/20

TO 17/20

47k

AG_HDMI_5V_DET1

R4566

47k

HDMI_CEC

AG_HPD1

DDC_SDA1

DDC_SCL1

RXCM1S

RXCP1S

RX1SM0

RX1SP0

RX1SM1

RX1SP1

RX1SM2

RX1SP2

2

JK4500

K1FY119D0013

HDMI IN 2

Q4533

DSC200100L

R4641

47k

Q4501

R4503

DSC200100L

33

C4501

C4503

R4501

16V

16V

10k

0.1u

0.1u

R4529

10k

TP4501

D4526

R4505

B0ACCJ000048

HPDT

19

+5V

18

DDCG

17

SDA

16

SCL

15

N.C.

14

CEC

13

CLK-

12

CLKG

11

CLK+

10

D0-

9

D0G

8

D0+

7

D1-

6

D1G

5

D1+

4

D2-

3

D2G

2

D2+

1

L4501

J0JHC0000117

L4503

J0JYC0000068

1k

TP4503

D4517

EZAEG2A50AX

R4525

R4507

10k

47k

R4530

10k

D4520

EZAEG2A50AX

R4533

47k

L4506

J0JYC0000068

L4507

J0JYC0000068

STB5V

D4541

B0ACCJ000048

R4544

R4540

47k

47k

DDC_SDA2

DDC_SCL2

RXCM2

RXCP2

RX2M0

RX2P0

RX2M1

RX2P1

RX2M2

RX2P2

AG_HDMI_5V_DET2

HDMI_CEC

AG_HPD2

JK4503

K1FY119D0013

HDMI IN 1

TP4520

Q4536

R4558

33

DSC200100L

C4551

C4552

R4557

16V

16V

10k

0.1u

0.1u

R4562

D4606

R4559

B0ACCJ000048

HPDT

19

+5V

18

DDCG

17

SDA

16

SCL

15

N.C.

14

CEC

13

CLK-

12

CLKG

11

CLK+

10

D0-

9

D0G

8

D0+

7

D1-

6

D1G

5

D1+

4

D2-

3

D2G

2

D2+

1

ARC

1k

L4525

J0JHC0000117

R4571 10k

C4555

6.3V 1u

R4573

56

R4570

150

Q4537

B1HFCFA00026

R4572

28

JK4501

K1FY119D0013

HDMI IN 3

3

Q4534

DSC200100L

R4534

47k

Q4500

R4502

33

DSC200100L

C4502

C4500

R4500

16V

16V

10k

0.1u

0.1u

R4504

HPDT

19

+5V

18

DDCG

17

SDA

16

SCL

15

N.C.

14

CEC

13

CLK-

12

CLKG

11

CLK+

10

D0-

9

D0G

8

D0+

7

D1-

6

D1G

5

D1+

4

D2-

3

D2G

2

D2+

1

L4500

J0JHC0000117

L4502

J0JYC0000068

1k

D4525

B0ACCJ000048

R4531

10k

TP4500

TP4502

D4512

EZAEG2A50AX

R4524

10k

R4528

10k

EZAEG2A50AX

R4506

47k

R4532

STB5V

47k

D4542

B0ACCJ000048

R4545

R4538

L4504

J0JYC0000068

L4505

J0JYC0000068

D4518

47k

47k

DDC3_SDA DDC0_SDA

DDC3_SCL

PA_RXCM1

PA_RXCP1

PA_RX1M0

PA_RX1P0

PA_RX1M1

PA_RX1M2

PA_RX1P2

AG_HDMI_5V_DET3

HDMI_CEC

AG_HPD3

JK4502

K1FY119E0021

HDMI IN 4

(SIDE)

Q4520

R4729

33

DSC200100L

C4702

C4703

R4728

16V

16V

10k

0.1u

0.1u

D4615

R4734

B0ACCJ000048

HPDT

19

+5V

18

DDCG

17

SDA

16

SCL

15

N.C.

14

CEC

13

CLK-

12

CLKG

11

CLK+

10

D0-

9

D0G

8

D0+

7

D1-

6

D1G

5

D1+

4

D2-

3

D2G

2

D2+

1

L4524

J0JHC0000117

L4521

J0JYC0000068

1k

Q4535

DSC200100L

R4740

47k

R4739

10k

TP4513

TP4514

D4573

EZAEG2A50AX

R4733

10k

R4735

10k

EZAEG2A50AX

R4732

47k

STB5V

R4736

47k

D4575

B0ACCJ000048

R4546

R4738

L4522

J0JYC0000068

L4523

J0JYC0000068

D4574

47k

47k

PA_RXCM2

PA_RXCP2

PA_RX2M1

PA_RX2P1

PA_RX2M2

PA_RX2P2

DDC0_SCL

AG_HPD0

AG_HDMI_5V_DET0

HDMI_CEC

4

5

3332313029 36

34 35

50

12.9. A-Board (5/20) Schematic Diagram

!

HDMI/ANALOG INPUTA-BOARD TXN/A1LWUUS (5/20)

Analog Input

1

R4808

DDC3_SDA

DDC3_SCL

DDC0_SDA

DDC0_SCL

68

R4760

68

R4552

22

R4596

68

R4595

68

R4616

68

R4615

68

R4542

68

R4539

68

R4614

68

R4613

68

R4543

68

R4541

68

R4604

68

R4607

68

R4743

68

R4742

68

GenX8

GenX8

LDA2

GenX8

LDA2

GenX8

LDA2

GenX8

PD_LOSDO2

PORT10[0]

PD_XRI0

AG_HDMI_CEC

TO 8/20

AG_HDMI_5V_DET2

AG_HPD2

(HDMI3: HPD0/DDC0/DET0 NON USE)

DDCSDA2

DDCSCL2

0-port

PA_RXCM0

PA_RXCP0

PA_RX0M0

PA_RX0P0

PA_RX0M1

PA_RX0P1

PA_RX0M2

PA_RX0P2

PA_DDCSDA0

PA_DDCSCL0

TO 8/20

DDCSDA1

DDCSCL1

AG_HDMI_5V_DET1

AG_HPD1

1-port

PA_RXCM1

PA_RXCP1

PA_RX1M0

PA_RX1P0

PA_RX1M1

PA_RX1P1

PA_RX1M2

PA_RX1P2

PA_DDCSDA1

PA_DDCSCL1

TO 8/20

DDCSDA3

DDCSCL3

AG_HDMI_5V_DET3

AG_HPD3

2-port

PA_RXCM2

PA_RXCP2

PA_RX2M0

PA_RX2P0

PA_RX2M1

PA_RX2P1

PA_RX2M2

PA_RX2P2

PA_DDCSDA2

PA_DDCSCL2

TO 8/20

DDCSDA0

DDCSCL0

AG_HDMI_5V_DET0

AG_HPD0

TO 8/20

TO 17/20

TO 17/20

TO 17/20

HDMI_TMDS_SEL1

HDMI_TMDS_SEL2PORT1[5]

TO 17/20

HDMI1

or

HDMI2

HDMI3

HDMI4

HDMI_MUX_SEL1

HDMI_MYX_SEL2

IC4501

C0DBGYY00578

L4529

J0JHC0000045

RX1SP2

RX1SM2

RX1SP1

RX1SM1

RX1SP0

RX1SM0

C4557

16V

0.1u

59

60

61

S

62

DDC_SDA2

DDC_SCL2

RXCM2

RXCP2

2

RX2M0

RX2P0

RX2M1

RX2P1

RX2M2

RX2P2

3

VJ4509

64

SCL_B

65

GND

66

GND

67

BCLKN

68

BCLKP

69

C4559

0.1u16V

VCC

70

BDT0N

71

BDT0P

72

GND

73

BDT1N

74

BDT1P

75

VCC

76

BDT2N

77

BDT2P

78

1

2

R4587

47k

R4597

1.5k

51

52

53

54

55

56

57

58

VCC

GND

ADT0P

ADT1P

ADT0N

ADT1N

ADT2N

ADT2P

GND

CEC_LINE

CVCC

HPD_B63SDA_B

GND79VCC80HPD_C

RXTM

SDA_C

SCL_C

GND5CCLKN6CCLKP7VCC8CDT0N9CDT0P10GND11CDT1N12CDT1P13VCC14CDT2N15CDT2P16GND17VCC

3

4

R4598

1.5k

IC4500

C1AB00003079

HDMI
EQUALIZER
&SWITCH

50

RXCP1S

49

VCC

OUTDIS

CEC_RX

CEC_TX

OPACTRLN

C4571

10V

4.7u

RXCM1S

DDC_SCL1

DDC_SDA1

41

42

43

44

45

46

47

48

GND

SCL_A

SDA_A

ACLKP

HPD_A

ACLKN

GND

VCC

GND

YCLKN

YCLKP

VCC

YDT0N

SCL_SINK39SDA_SINK40HPD_SINK

YDT0P

GND

YDT1N

YDT1P

VCC

SELC22SELB23SELA

YDT2N

YDT2P

REXT

GND

19

20

18

P

4.7k

R4585

R4589

3.3V

5

C4568

16V

VOUT4VIN

0.1u

VSS

ON/OFF

NC

1

2

3

C4558

16V

0.1u

VJ4508

S

38

37

36

VJ4500

35

34

33

32

31

30

29

28

27

26

25

24

21

S

VJ4510

S

VJ4501

S

VJ4502

S

VJ4503

S

VJ4504

S

VJ4505

S

VJ4506

S

VJ4507

S

47k

R4801

SUB5V

D4785

B0ECKM000048

C4569

C4570

R4578

16V

10V

100k

10u

0.1u

1k

R45841kR4583

DDC1/2_SDA

DDC1/2_SCL

PA_RXCM0

PA_RXCP0

PA_RX0M0

PA_RX0P0

PA_RX0M1

PA_RX0P1

PA_RX0M2

PA_RX0P2

47k

47k

R4799

R4824

DDC_SDA2

DDC_SCL2

HDMI_CEC

AG_HDMI_5V_DET2

AG_HPD2

AG_HDMI_5V_DET1

AG_HPD1

AG_HDMI_5V_DET3

AG_HPD3

AG_HDMI_5V_DET0

AG_HPD0

PA_RXCM0

PA_RXCP0

PA_RX0M0

PA_RX0P0

PA_RX0M1

PA_RX0P1

PA_RX0M2

PA_RX0P2

DDC1/2_SDA

DDC1/2_SCL

PA_RXCM1

PA_RXCP1

PA_RX1M0

PA_RX1P0

PA_RX1M1

PA_RX1P1

PA_RX1M2

PA_RX1P2

PA_RXCM2

PA_RXCP2

PA_RX2M0

PA_RX2P0

PA_RX2M1

PA_RX2P1

PA_RX2M2

PA_RX2P2

DDC_SDA1

DDC_SCL1

TP4515

AVSW

TO 11/20 TO 17/20

PC_HS

PC_VS

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

MAIN_L

MAIN_R

PC_HS

PC_VS

R4657

R4680

22

S

R4661

R4681

22

S

R4665

R4682

22

S

C2263

10V

R2050

10u

140k

R2051

C2264

10V

140k

10u

S

R4678

S

R4679

C4619

6.3V
1u

R4670

C4627

33

6.3V

1u

C4622

6.3V
1u

R4672

C4628

33

6.3V

1u

C4625

6.3V
1u

R4674

C4629

33

6.3V
1u

AV IO

RGB_FB

YIN

PB/C

PR

PA_HIN

PA_VIN

PA_G1

PA_G1N

PA_B1

PA_B1N

PA_R1

PA_R1N

PA_LIN1_LP

PA_LIN1_RP

4

5

37 38 43 4440 4239 41 45

51

12.10. A-Board (6/20) Schematic Diagram

RF-AGC_Monitor

BT_Monitor

IF_Monitor

!

!

TU8300

ENG36F12KF

NC

BB

NC

NC

SIF-out

VB

Video-out

SCL

SDA

AFT-OUT

IF_AGC

+B

IFD-out1

IFD-out2

TUNER

TUNERA-BOARD TXN/A1LWUUS (6/20)

RF_V

RF_VIDEO_OUT

R8315

220

PD_CH0VAL

FE_SCL_TU

FE_SDA_TU

PD_CH0DATA

PD_CH0PSYNCPEAKS_SCL0

SUB3.3V

C8340

2.2k

R8324

TP8301

28

29

31

32

33

DEN

GPO730GPO8

MSDA

TEST0

TEST1

AGCRF

VSS2

SDO

Thermal
Pad

VSSA

GPO0

CSEL1

VDDH0

VSS05GPI6INT7VDDL08SDA9SADR110CSEL011SCL

SSS

10k

R8326

R8329

C8339

16V

0.1u

220

R8328

100

16V 0.1u

IC8300

C8342

16V

0.1u

TP8310

L8310

J0JYC0000068

R8352

J0JHC0000045

0

MN88436

FRONT END
PROCESSOR

C8343

C8344

10V

10V

1u

10u

L8311

C8349

10V

4.7u

PD_CH0CLK

XRTS0

C8345

10V
10u

5

4

C8350

VOUT

VIN

NC

10V

4.7u

VSS

ON/OFF

1

2

3

47

47

R833247R8330

R8334

25

26

27

24

PCK

R8335

23

VDDL1

SCK

47

22

VDDH1

SADR0

NRST

VSS1

GPO6

GPO5

GPO4

GPO3

GPO2

GPO1

12

R8333

C8341

21

16V 0.1u

20

TP8302

19

18

17

16

15

14

13

3.3V

1.2V

SUB3.3V

SUB5V_TUNER

1

2

3

5

6

8

9

10

11

13

14

15

16

17

19

20

21

C8354
10u
10V

C8313

C8310

C8307

10V

16V

50V

10u

0.1u

1000p

C8301
50V 220p

C8302
50V 220p

C8303
50V 220p

C8309

50V

1000p

R8385

R8302

R8303

R8305

R8304

R8387

C8314

C8312

10V

16V

10u

0.1u

L8312

J0JGC0000070

0

+

C8400

6.3V
220u

FE_IF_AGC

R8386

0

RF_VIDEO_OUT

47

47

0

0

0

FE_SCL_TU

FE_SDA_TU

RF_AFT

FE_IF_AGC

SUB3.3V

L8307

J0JHC0000045

C8328

16V

0.1u

C8326

16V

0.01u

C8327

16V

0.1u

R8318

C8329

1k

C8333

16V 0.1u

10V
10u

16V0.1u

L8308

J0JHC0000045

C8330

10V
10u

C8331

16V

0.1u

R8319

10k

C8334

16V0.1u

C8335

16V 0.1u

C8332

H0J250500079

2.2k

R8321

34

35

36

37

38

MSCL

TEST2

VDDH2

39

AGCIF

40

VDDL2

41

TESTA

42

ADIRF

43

ADVRH

44

ADVRL

45

VDDA

46

ADINN

47

ADINP

48

1

2XI3XO4

C8337

16V

0.1u

X8300

R8323

25MHz

C8338

C8336

50V

50V

18p

15p

RF_AFT

RF_V

PD_CH0CLK

PD_CH0DATA

PD_CH0PSYNC

PD_CH0VAL

PEAKS_SDA0

PEAKS_SCL0

PD_XIRQ2

XRTS0

RF_AFT

TP8305

R8338

47k

SUB3.3V

R8327

47k

TP8102

R8337

R8350

47k

RF_V

PD_CH0CLK

PD_CH0DATA

PD_CH0PSYNC

PD_CH0VAL

PEAKS_SDA0

PEAKS_SCL0

PD_XIRQ2

PD_XRTS0

TO 8/20

TO 11/20

TO 17/20

TO 2,11,12/20

TO 17/20

SUB5V

R2009

0

R2007

R2015

C2096

50V

180p

R2016

4.7k

470

2.2k

R2132

22

C2092

R2008

16V

1.2k

0.1u

Q2001

DSA200100L

R2010

1k

R2006

22

C2091

16V

0.1u

Q8306

DSA200100L

C2075

R2032

560

0.1u

C2077

0.1u

AV IO

C2120

50V

1000p

16V

C2076

16V

0.1u

16V

C2121

16V

0.1u

TO 17/20

PA_SIFINP

PA_VREFHSIF

PA_VREFLSIF

PA_SIFINN

IC8303

0

0

R8301

R8300

IF_OUT_P

IF_OUT_N

C8315

50V

R8309

1000p

0

R8310

C8316

50V

0

1000p

L8303

G1CR39JA0020

L8304

G1CR39JA0020

R8312

R8313

C8322

C8324

50V

16V

0.1u

1000p

0

C8321

R8316

50V

470

120p

L8305

G1CR10JA0020

C8323

0

C8325

50V

16V

1000p

0.1u

PD_XIRQ2

PEAKS_SDA0

C0DBGYY00612

FE1.2V

5250 5146 48 49 545347

52

12.11. A-Board (7/20) Schematic Diagram

TO 10/20

System(Dchip)

TO 17/20

EXB28V220JX

AUDIO AMPA-BOARD TXN/A1LWUUS (7/20)

R2326

Wo_L+ >>

Wo_L- >>

GenX8

AG_SOUND_SOS

AMP_MUTE

PD_NSHUTDOWN

SOS

RESET

MUTE

AMP_MUTE

PWM_READY

PWM_WO_R+

PWM_WO_R-

PWM_WO_L+

PWM_WO_L-

OPERATE

TP2008

PWM_WO_L+

PWM_WO_L-

PWM_WO_R+

PWM_WO_R-

R2331

220

C2301

R2330

16V

3.9k

0.1u

R2307

4.7k

R2308

1k

OPERATE

TO 8/20

22

R2332

R2333

22

DSA200100L

C2300

16V

0.1u

Q2300

SUB3.3V

R2302

2.2k

R2303

2.2k

IC2301

C1AB00003230

AUDIO AMP1

1

STBY

2

MUTE

3

OPERATE

SOS

R2306

47k

SOS

4

NC1

5

NC2

6

NC3

7

NC4

8

PWM_A1

9

PWM_B1

10

NC5

11

NC6

12

NC7

13

GND

14

PWM_B2

15

PWM_A2

16

NC8

17

NC9

18

NC10

19

NC11

20

NC12

21

NC13

22

NC14

OUT_CH1_P

OUT_CH1_P

BOOT_CH1_P

BOOT_CH1_N

OUT_CH1_N

OUT_CH1_N

OUT_CH2_N

OUT_CH2_N

BOOT_CH2_N

BOOT_CH2_P

OUT_CH2_P

OUT_CH2_P

44

PVD1

43

PVD1

42

41

C2317

40

50V

0.1u

39

VDDA1

C2319

0.1u50V

38

37

36

35

PGND1

34

PGND1

33

PGND2

32

PGND2

31

30

29

28

VDDA2

C2323
50V

0.1u

27

26

25

24

PVD2

C2369

25V

23

1u

PVD2

L2001

J0JYC0000070

SOUND15V

L2018

J0JHC0000045

C2365

C2367

25V

25V
10u

J0JHC0000045

L2010

G1C220MA0416

L2012

G1C220MA0416

L2014

G1C220MA0416

L2016

G1C220MA0416

SOUND15VR

L2019

R2127

3.3

C2337

50V

0.022u

C2333

25V

C2377

50V

0.33u

0.022u

C2375

50V

0.022u

C2339

C2335

50V

25V

0.022u

0.33u
R2121

3.3

R2125

3.3

C2341

25V

C2345

50V

0.33u

0.022u

C2379

50V

0.022u

C2381

50V

0.022u

C2343

C2347

25V

50V

0.33u

0.022u

R2123

3.3

C2389

50V

1000p

TP2010

TP2012

C2387

TP2014

50V 1000p

C2385

50V

1000p

C2383

1000p

TP2017

50V

A11

1

2

3

4

TO SPEAKER

L+

L-

R+

R-

1u

C2305

25V

1u

JS2005

0

C2321

50V

0.1u

C2390

25V
1u

C2364

25V

10u

!

PD_APWMSRP

PD_APWMSRN

PD_APWMSLP

PD_APWMSLN

PD_APWMWLP

PD_APWMWLN

TO 17/20

PEAKS-LDA2

TO 17/20

PD_MUTEB

SUB3.3V

R2301

10k

OPERATE

SOS

IC2302

C1AB00003230

AUDIO AMP2

1

STBY

2

MUTE

3

SOS

4

NC1

5

NC2

6

NC3

7

NC4

8

PWM_A1

9

PWM_B1

10

NC5

11

NC6

12

NC7

13

GND

14

PWM_B2

15

PWM_A2

16

NC8

17

NC9

18

NC10

19

NC11

20

NC12

21

NC13

22

NC14

PVD1

PVD1

OUT_CH1_P

OUT_CH1_P

BOOT_CH1_P

VDDA1

BOOT_CH1_N

OUT_CH1_N

Thermal PadThermal Pad

OUT_CH1_N

PGND1

PGND1

PGND2

PGND2

OUT_CH2_N

OUT_CH2_N

BOOT_CH2_N

VDDA2

BOOT_CH2_P

OUT_CH2_P

OUT_CH2_P

PVD2

PVD2

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

J0JYC0000070

C2399

50V

0.1u

C2400

0.1u50V

C2401

0.1u50V

C2402

0.1u50V

C2421

25V
1u

L2307

SOUND15VW

L2304

J0JHC0000045

C2417

C2419

25V

25V

10u

1u

C2398
25V
1u

C2432

25V
1u

C2416

25V

L2305

10u

J0JHC0000045

L2300

G1C220MA0416

L2301

G1C220MA0416

SOUND15VW

R2362

3.3

C2407

50V

0.022u

C2405

C2424

25V

50V

0.33u

0.022u

C2423

50V

0.022u

C2408

C2406

50V

25V

0.022u

0.33u
R2359

3.3

C2431

50V

1000p

TP2300

TP2301

C2429

50V

1000p

A12

1

2

3

4

TO WOOFER

Wo+

Wo-

58 6357 60 6256 59 6155

53

12.12. A-Board (8/20) Schematic Diagram

!

ADV7471

C

K

TO 11/20

TO 11/20

Mute Analog asic

Power Supply

TO 13,14/20

A-BOARD TXN/A1LWUUS (8/20)

TO 5/20

DDCSCL0

DDCSDA0

DDCSCL1

DDCSDA1

DDCSCL2

DDCSDA2

DDCSCL3

DDCSDA3

AG_HPD3

AG_HPD2

AG_HPD1

TO 9/20

RS232C

TO 12/20

TO 10/20

TO 7/20

TO 9/20

TO 2/20

TO 11/20

TO 10/20

AG_HDMI_5V_DET3

AG_HDMI_5V_DET2

AG_HDMI_5V_DET1

AG_HDMI_5V_DET0

TO 10/20

AG_HPD0

AG_HDMI_CEC

AG_KEY1

AG_RMIN

AG_AI_SENSOR

AG_R_LED_ON

MAIN_FAN_ON

AG_FAN_MAX

AG_FAN_SOS

GENX_SBI1

GENX_SBO1

FACT_SDBOOT

MON_MUTE

SP_HP_MUTE

AG_SOUND_SOS

STB_RST

AG_TV_SUB_ON

PANEL_STBY_ON

AG_DTV_XRST

AG_SOS

KEY3

AG_HDMI_5V_DET3

AG_HDMI_5V_DET2

AG_HDMI_5V_DET1

AG_HDMI_5V_DET0

AG_HDMI_CEC

AG_AI_SENSOR

AG_R_LED_ON

AG_SD_LED_ON

MAIN_FAN_ON

AG_FAN_MAX

AG_FAN_SOS

FACT_SDBOOT

SP_HP_MUTE

AG_SOUND_SOS

AG_TV_SUB_ON

PANEL_STBY_ON

AG_DTV_XRST

DDCSCL0

DDCSDA0

DDCSCL1

DDCSDA1

DDCSCL2

DDCSDA2

DDCSCL3

DDCSDA3

AG_HPD3

AG_HPD2

AG_HPD1

AG_HPD0

AG_KEY1

AG_RMIN

GENX_SBI1

GENX_SBO1

MON_MUTE

STB_RST

AG_SOS

AG_ECO_ON

GenX8

STB_RST

AG_ECO_ON

STB3.3V

L1100

J0JYC0000068

R1221

7.15k

TP1110TP1111

AG_HPD3

AG_AI_SENSOR

AG_KEY1

RF_AFT

FACT_SDBOOT

KEY3

AG_HDMI_CEC

DDCSDA3

DDCSCL3

GENX_SBO1

GENX_SBI1

AG_HDMI_5V_DET3

KEY3

C1122

R1255

16V

1k

0.01u

47k

R1236

TP1104

TP1105

R1237

1k

D1107

R1182

B0JCCE000008

27k

C1102

6.3V
10u

R1243

47k

HDMI_CEC_PU_ON

HDMI_CEC

AI_SENSOR

KEY1

FACT

MODEM_LED1

KEY3

DDCSDA3

DDCSCL3

HDMI_5V_DET3

GENX3.3V

C1103

16V

0.1u

C1104

16V

0.1u

MODEM_LED2

R1210

(QLINK1)

47k

ALL_OFF

ECO_ON

47k

R1271

47k

R1124

47k

R1125

MAIN_FAN_ON

AG_SRQ-GENX

R1146

1k

C1105

25V

0.01u

76

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

100

C1106

C1107
50V
27p

18p

X1100

H0J100500035

10MHz

R1153

680

MAIN_FAN_ON

GenX_XRST

NBOOT

C1108

16V 0.1u

C1109

R1229 100

64

65

66

67

68

69

71

72

73

74

75

PE170PE2

VSS

IVDD

NRST

OSCXI

NBOOT

TRCD0

TRCD1

TRCD2

TRCD3

P40_TMIO0_SYSCLK

P80_ADIN0

P81_ADIN1

P82_ADIN2

P83_ADIN3

IVDD

VSS

P84_ADIN4

P85_ADIN5

P74_CECAVL1B

P75_CECAVL1A

PF0

P76_CEC0

PD6_DDCSDA3

PD7_DDCSCL3

1

2

3

HPD0

HPD2

HPD1

OSCXO

P02

SCLOCK

SDATA

TRCST

EXTRG077TRCCLK

IC1100

MNZSFH9GP92

GenX8

P63_SBO199P64_SBI1

PF4

P41_TMIO1

P42_TMIO2

P43_TMIO3

P44_TMIO45P006P017PF38P03_SBT0B9P04_SBO0B10PD0_DDCSDA011PD1_DDCSCL012PD2_DDCSDA113PD3_DDCSCL114PF115PD4_DDCSDA216PD5_DDCSCL217P65_USBO218P66_USBI219P2620P70_SDA021P71_SCL022VSS

4

HDMI_5V_DET0

DDCSDA0

DDCSDA1

SD_LED_ON

R_LED_ON

DDCSCL0

50V

NTEST

MPU

C1123

1u10V

63

DDCSDA1

VDD

1u10V

62

HPD1

AG_FAN_SOS

FAN_SOS

R1266

61

IVDD

DDCSDA2

AG_FAN_MAX

HPD4

100

R1265 47k

PE4_VPPEX

DDCSCL2

G-DTV_VOUTENB

DTV_VOUTENB

59

PE060PE3

P32

P31

P30

VDD

IVDD

PF2

SBO

SBI

R1179

R1181

PD_RXD1

PD_XECS5

AG_SW_OFF_DET

SW_OFF_DET

SD_BOOT_STS

R1256 47k

P50_RMIN_IRQ0

P60_SBO0A27P61_SBT0A28P62_SBI0A

SDA0

SUB3.3V_SD_SENSE

SSS

S

R1175

PEAKS_SDA1

PD_TXD1

MON_MUTE

AG_DTV_XRST

MON_MUTE

DTV_XRST

54

P3355P3456P3557P3658P37

P17

P72_SDA150P73_SCL1

P24_IRQ5

P23_IRQ4

P22_IRQ3

P21_IRQ2

P20_IRQ1

P07_IRQ8

P06_IRQ7

P05_IRQ6

SCL0

S

R1174

PEAKS_SCL1

SP_HP_MUTE

AG_TV_SUB_ON

SP_HP_MUTE

TV_SUB_ON

52

53

P16

P15

P14

P13

P12

P11

P10

VSS

IVDD

P25

24

23

HDMI_5V_Det2

1.8k

R1149

GenX-EEP_WP

51

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

26

25

C1111

1u

10V

C1112

16V

0.1u

STB3.3V

C1117

TP1103

16V

0.1u

1

A0

2

A1

3

A2

4

GND

*IC1101

TVRR468S

EEPROM

R1183

SCL1

SDA1

ADV_XRST

AUDIO_XRST

IIC_SW

SUB5V_SENSE

SUB5V_USB_SENSE

SUB9V_SENSE

SUB3.3V_SENSE

READY

RM_IN

R1260

S

PANEL_VCC_ON

C1202

SOS

16V 0.1u

SOUND_SOS

SRQ_GenX

R1272

47k

S

S

R1184

AG_AUDIO_XRST

C1114

16V

0.1u

PANEL_STBY_ON

R1162

R1203

AG_SOUND_SOS

100

47k

AG_ADV_XRST

P3.3V_DET

PANEL_READY

AG_RMIN

AG_SRQ-GENX

AG_SOS

GENX_SCL

IIC_SW

SUB5V_SENSE

SUB5V_USB_SENSE

Vcc

WP

SCL

SDA

GENX_SDA

TP1102

8

R1198

R1209

4.7k

100

7

6

5

R1201

R1205

R1206

4.7k

S

SUB5V

R1196

D1113

P

47k

R1194

68k

SUB3.3V

R1216

10k

MIHO2_3.3V

R1211

22k

C1126

16V

0.1u

LED SOS

R1273

22k

R1274

D1203

DZ2J056M0L

R1200

4.7k

PEAKS_SCL1

PEAKS_SDA1

18k

Q1203

DSC2001S0L

PD_RXD1

PD_TXD1

Q1202

DSC2001S0L

C1205

10V

0.22u

G-DTV_VOUTENB

PD_XECS5

AG_SRQ-GENX

IIC_SW

RF_AFT

AG_SW_OFF_DET

P3.3V_DET

PANEL_READY

LED_8V

R1279

10k

D1202

B0ADEJ000035

R1280

10k

C1204

10V

0.22u

R1281

10k

R1275

R1276

LED_1

TO 15/20

LED_2

LED7V_1

470

LED7V_2

470

IIC

GenX8 E2PROM LINE

GENX_SCL

TO 10,12/20

GENX_SDA

R1257

10k

R5125

68

SD-BOOT-STS

SUB3.3V

R5124

47k

R1258

10k

PEAKS_SCL1

PEAKS_SDA1

Lite2

UART(LITE2-Gen8)

PD_RXD1

PD_TXD1

Lite2 ExBUS/Etc.

PD_VOUTENB

PD_XECS5

AG_SRQ-GENX

IIC_SW

RF_AFT

AG_SW_OFF_DET

TO 17/20

TO 17/20

TO 2,17/20

TO 10/20

TO 6/20

IIC1

TO 12/20

TO 1,2,12/20

TO 10/20

From PD4H

P3.3V_DET

TO 14/20

PANEL_READY

65 69 70 72716764 6866

AG_HPD0

AG_HPD1

AG_HPD2

AG_R_LED_ON

AG_SD_LED_ON

AG_HDMI_5V_DET0

DDCSDA0

DDCSCL0

DDCSDA1

AG_HDMI_5V_DET1

DDCSCL1

DDCSDA2

DDCSCL2

AG_HDMI_5V_DET2

54

12.13. A-Board (9/20) Schematic Diagram

A-BOARD TXN/A1LWUUS (9/20)

!

POWER

LDA2 DC/DC DC/DC SOS

C5617

2.2u

D5605

B0HCMM000014

DZ2J056M0L

10V

SUB3.3V

DCDCEN

R5640

R5641

IC5603

C0DBFYY00049

ACHIP3.3V

TO 19/20

DCDCIN

C2847

25V

47u

R5609

D5602

10k

R5611

2.2k

R5610

47k

SUB5V

4.7u10V

100k

R5642

C5651

IC5604

C0DBAGF00030

+

Q5603

DSC2001S0L

B0JCCE000008

VIN

NC

AVDDH

L2754

J0JDC0000002

R5612

10k

D5618

4

VSS

3

F15V

C2848

25V

1u

F15V

R5607

22k

R5600

Q5602

DSC2001S0L

R5613

47k

TP5601

5

TP5605

VOUT

C5652

ON/OFF

6.3V

1

2

4.7u

R5643

R5644

68

C5618

R5608

25V

68k

0.01u

AVDDH

TP5600

SUB3.3V

10k

7.5k

C5649

10k

10k

R8856

10V
1u

3

CE

VSS

NC

4

C5650

10V

2.2u

SUB3.3V

47k

TP8852

2

VIN

VOUT

TO 17/20

PD_SDVOLC

SUB5V

D5619

1

B0JCCE000008

ACHIP3.3V

TP5293

TP5292

5

TP5604

SDVOLC I,int _

VDDSD

STB3.3V

DCDCIN

SUB5V_TUNER

IC5608

C0DBAYY00605

IC5607

C0DBAYY00755

VJ5451

P

VJ5453

P

F15V

R5535

22k

SUB5V

C5418

DSA200100L

R5536

C5788

25V
1u

Q5522

47k

25V
10u

C5789

25V
10u

TP5506

TP5602

IC5401

C0DBGYY00884

SUB9V

VOUT 3

1

VIN

VSS

2

C5557

16V

0.1u
B0ADEJ000035

Q5479

DSC2001S0L

TP5504

C5773

TP5505

6.3V
22u

C5420

16V

1u

B0BC01100001

R5537

1k

D5522

R5524

1k

R5525

100k

C5765

6.3V

D5573

B0ACCJ000048

C5767

25V

10u

L5742

G1C220MA0416

C5764

6.3V
22u

22u

R5542

470

R5544

470

D5524

D5620

B0JCPG000030

TP3506

TP3507

VJ5509

TP3508

C5558

R5538

16V

10k

0.1u

LED_8V

D5519

B0BC010A0007

R5569

4.7k

SUB5V

1

BOOT

SUB9V

SUB9V

SUB5V_USB

Thermal Pad

2

VIN

3

SW

4

GND

Thermal_Pad

R5809

6.2k

AG_SOS

TO 8/20

C5769

25V

0.1u

R5805

15

R5807

2.2

C5794

50V

1000p

P

AG_SOS

C5770

16V

8

0.1u

SS

7

EN

6

COMP

R5801

C5771

6.8k

16V

0.015u

5

FB

R5799

R5800

47k

10k

SOUND15V

SOUND15VR

SOUND15VW

F15V

PA5601

K5H5022A0031

SUB5V_USB

R3500

TP3521

TP5606

P

C5641

VJ5510

6.3V

R3571

0

R3570

0

0

R3573

TP3520

0

P

P

VJ3501

VJ3500

TP3502

TP3522

TP3503

TP3523

L5604

G1C6R8Z00010

C5642

6.3V

10u

10u

C5635

25V

0.1u

C5627

25V

4700p

TO
P-BOARD
(P6)

A6

TP3519

TP3518

1

+15V_S

2

+15V_S

3

S_GND

4

S_GND

5

GND

6

F+15V

7

F+15V

8

F+15V

9

10

11

1

2

3

4

5

6

7

8

9

10

TV_SUB_ON

PANEL_MAIN_ON

STB5V_SW_ON

SUB5V_USB

PGND

PGND

PGND

SW

SW

SW

BOOT

NC

SS/DELAY

GND

STB5V

GND

TO
P-BOARD
(P7)

A7

1

2

3

4

5

6

7

8

9

10

11

20

VIN

19

C5628

VIN

25V
10u

18

VIN

17

NC

16

NC

PSET

R5601

0

15

EN

C5632

2200p

50V

14

R5635 27k

13

RT

12

R5622 15k

FC

11

FB

C5722

50V
47p

R5618

4.3k

TP3500

TP3527

TP9055

TP3528

R3572

100

R5620

820

TP3526TP3501

L5605

G1C100MA0077

C5626

25V
10u

C5634

50V

2200p

F15V

DCDCEN

TO 19/20

STB5V

AG_TV_SUB_ON

TO 8/20

STB_5V_SWON

TO 10/20

74 8178 807776 7973 75

55

FAN

FAN A-C

TO 8/20

SUB5V

R5806

10k

Q5700

SUB5V

A30

1

2

3

4

5

6

7

8

9

10

11

12

AG_FAN_SOS

GenX8_#68

AG_FAN_MAX

GenX8_#60

R5793

*R5791

*R5794

1.8k

1.8k

1.8k

*D5745

B0ACCJ000048

D5747

TP5517

B0ACCJ000048

TP5516

*D5748

TP5518

B0ACCJ000048

TP2027

D5751

DZ2J033M0L

TP2028

D5750

B0ACCJ000048

R56811kR5682

B0BC010A0007

R5797

MAIN_FAN_ON

TO 8/20

F15V

C5747

25V

10u

C5746

10V

1k

10u

D5749

R5796

470

4.7k

C5748

10V
10u

D5741

B0JCMD000010

L5741

G1C220MA0416

VJ5740

P

C5796

10V
1u

C5749

0.01u

DSC200100L

R5802

R5803

4.7k
10k

R5782

39

1

BOOT

16V

2

VIN

3

SW

4

GND

IC5740

C0DBAYY00462

FAN CONT.

Q5701

DSC200100L

C5755

25V

0.1u

8

SS

7

EN

R5798

1k

6

COMP

5

FB

C5756

R5785

25V

14.3k
3300p

R5786

5.6k

R5783

1.37k

*R5787

442

12.14. A-Board (10/20) Schematic Diagram

!

A-BOARD TXN/A1LWUUS (10/20)

Analog ASIC

MUTE

TO 7/20

SP_HP_MUTE

TO 8/20

PA_HP_MUTE

TO 17/20

AMP_MUTE

MON_MUTE

R2310

100

Q2266

DSC200100L

TO 8,12/20

TO 2,15/20

SUB3.3V

R2265

10k

POWER

D5470

B0ADEJ000035

100

D5487

B0JCCE000008

VJ5454

S

Q5478

DSC200100L

R5413

68k

C5555

R5571

16V

68k

0.1u

R5418

68k

R5419

47k

C5667

25V

0.01u

Q5475

DSC2001S0L

C5556

10V

2.2u

STB_RST

TO 8/20

SUB3.3V

Peaks-COMMON

GENX-DEST

GenX8

GENX_SDA

GENX_SCL

LDA2_SDA2

LDA2_SCL2

STB3.3V

STB5V

TP5607

SUB9V

R5685

20k

R5684

10k

R2264

10k

SUB5V

D2660

D2659

Peaks

B0ECKM000048

B0ACCJ000048

C5514

C5544

10V

10V

1u

1u

C5601

16V

100u

1

2

3

4

5

6

7

8

9

10

+

11

12

13

14

IC5480

C1ZBZ0003972

ANALOG ASIC

EN_CLKBF

CLKOUT

SDA1

SCL1

SDA0

SCL0

STB5V

STB3.3V

AMUTE

SP_MUTE

MUTE_VCC

AUDIO_MUTE_IN

DTB9V

MONITOR_MUTE

STB_RST

EN_DCDC

DTV5VOUT

DTV5VIN

TO 9/20

28

CLKIN

27

SEL

26

SDA

PANEL

25

SCL

24

C5515

23

16V

CD

0.1u

22

VJ3707

21

P

20

19

DRV

18

PGND

17

FC

16

GND

15

FB

IIC_SW

TO 8/20

AVC_SDA0

TO 14/20

AVC_SCL0

TP5507

STB_RST

TO 8/20

TO 11/20

TO 8/20

AG_KEY3

R5648

10k

Q5684

KEY3

DSA200100L

R5651

C5653

R5652

100k

68k

50V

1000p

STB5VSTB3.3V

D5616

B0JCCE000008

R5662

R5663

10k

R5666

470

D5614

R5650

B0ACCJ000048

47k

B0ACCJ000048

POWER_DET

S

B0ACCJ000048

D5615

PD_XIRQ5

AG_SW_OFF_DET

STB_5V_SWON

R5665

100

R5664

1M

D5613

TO 8/20

C5664

10V
10u

TO 17/20

C5663

10V
10u

2

1

IC5606

C0EBY0000580

RESET

R5486

10k

SUB5V

R5485

S

R5412

22k

R5683

100k

CP

VDD

3

OUT

GND

4

R5667

SUB9V

C5370

C5378

10V

10V

1u

1u

SUB5V

C5367

C5374

10V

10V

1u

1u

STB3.3V

C5382

C5375

C5386

10V

10V

10V

1u

1u

1u

C5376

1u
10V

C5381

16V

0.1u

C5389

C5383

C5387

C5391

1u

1u

1u

1u

10V

10V

10V

10V

C5390

C5388

C5385

16V

16V

16V

0.1u

0.1u

0.1u

SUB3.3V

C5368

10V

1u

STB5V

C5369

1u
10V

C5377

C5372

16V

16V

0.1u

0.1u

SUB5V

C5380

C5373

0.1u

0.1u
16V

16V

898482 83 888785 86 90

56

12.15. A-Board (11/20) and K-Board Schematic Diagram

Analog Input

AV IO

Monitor R

Monitor L

Front End

TO 6/20

!

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

PC_HS

PC_VS

MAIN_R

MAIN_L

TO 17/20

PA_LO1_R

PA_LO1_L

PA_LO2_R

TV R

PA_LO2_L

TV L

RF_V

KEY SWITCH

TP3702

A-BOARD TXN/A1LWUUS (11/20) TERMINAL,AVSW

TO 5/20

R3771

SW3759

K0H1BA000445

JK3000

K2HA918A0002

AV TERMINAL

Y1

Y1

Y2

Y2

V

V

G

PB1

PB1

PB2

PB2

L

L

G

PR1

PR1

PR2

PR2

R

R

G

L1

L1

L2

L2

G

R1

R1

R2

R2

G

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

PC_HS

PC_VS

MAIN_R

MAIN_L

D3301

B0JCCE000008

D3302

B0JCCE000008

R3307

PA_LO1_R

PA_LO1_L

PA_LO2_R

PA_LO2_L

RF_V

TP3703

21k

SW3761

K0H1BA000445

MENU

KEYSCAN

C3752

50V

1000p

4.7k

R3301

0

R3302

100

TP3707

TP3706

R3772

1.74k

SW3762

K0H1BA000445

VOL.UPINPUT/OK VOL.DN CH.UP

R3765

0

JS3700

0

J0JCC0000269

R3306

4.7k

J0JCC0000269

R3303

0

R3305

100

L3308

L3309

1.62k

SW3763

R3773

K0H1BA000445

JK3001

K1FY315A0008

VD

HD

TP3705

PC IN

6

1

11

7

2

12

8

3

13

9

4

14

10

5

15

TP3704

R3775

3.16k

R3774

2.32k

SW3764

K0H1BA000445

SW3765

K0H1BA000445

CH.UPCH.DN

POWER

JS3701

0

SW2500

K0H1BA000445

R3208

75

R3202

39k

R3204

39k

R3212 75

R3211 75

R3209 75

R3190

39k

R3191

39k

R3198 75

R3194 75

R3189 75

R3192

39k

R3193

39k

B

R3318

G

R3313

R

R3310

TP3700

AG_KEY3

TP3701

AG_KEY1

TO 2,6,12/20

PEAKS_SCL0

PEAKS_SDA0

V1_V

D3079

PC_B_IN

PC_G_IN

PC_R_IN

PC_V_IN

PC_H_IN

EZJP0V080GA

V1_L

V1_R

D2_Y

D3080

EZJP0V080GA

D2_PB

D2_PR

D3067

EZJP0V080GA

D2_L

D2_R

D3068

D1_Y

EZJP0V080GA

D1_PB

D1_PR

D3072

EZJP0V080GA

D1_L

D1_R

D3073

EZJP0V080GA

PEAKS_SDA0

PEAKS_SCL0

MAIN_Y/CVBS

PC_HS

MAIN_PB/C

PC_VS

MAIN_PR

MAIN_R

MAIN_L

PA_LO1_L

PA_LO1_R

PA_LO2_L

PA_LO2_R

SN2510

B3JB00000078

C.A.T.S. SENSOR

NC

VCC

3

C2523

16V

0.1u
GND

2

IOUT

1

!

K-BOARD TXN/K1LTUUM

4

GC1

5

BOTTOM PAD NC

GC2

6

R2558

100

D3063

EZJP0V080GA

D3064

EZJP0V080GA

D3065

EZJP0V080GA

D3066

EZJP0V080GA

D3069

EZJP0V080GA

D3070

EZJP0V080GA

D3071

EZJP0V080GA

SUB9V

D3334

B0ACCJ000048

R3319

C3059

0

10V

75

10u

D3336

B0ACCJ000048

R3316

C3057

10V

0

75

10u

D3338

B0ACCJ000048

R3311

C3061

0

10V

75

10u

TO 10/20

TO 8/20

IIC0

PEAKS_SCL0

PEAKS_SDA0

V1_V

C3017

16V

0.1u

21

22

23

24

25

26

R3072

27

B1/Cin1

T_DET1

S

R3073

R3074 68

R3075 68

C3019

16V

0.1u

S

R3071

C3022

16V

0.1u

R3077

S

S

R3078

RM2501

B3RAD0000168

REMOTE RECEIVER

VCC

GND

OUT

2

3

C2512

6.3V

10u

R2517

R2516

1

C2521

50V

0.01u

STB3.3V

Q2510

47

DSC200100L

R2542

22k

100k

R2520

220k

S2_DET1

28

SCL

29

GND

30

G/CY/CVBSout1

31

HD_out1

32

SDA

B/PB/Cout1

33

VD_out1

34

Rtate_out

R/Prout1

35

VCC5V

36

T_DET10/Fbout

SAG_CVBSout4

37

Y/Y+C/CVBSout4

38

S2out

39

SAG_CVBSout5

40

C/Y+C/CVBSout5

41

GND

42

SAG_CVBSout3

43

CVBS/Y+Cout3

AU_GND49R4out50L4out

44

VCC9V

45

G/CY/Y/CVBSout7

46

O3

47

48

L2out55R10in/R1out56L10in/L1out57AU1/2Vcc58L1in59R1in60L2in61R2in62L3in63R3in64L4in65R4in66L5in67R5in68L6in69R6in70L7in71R7in72L8in

52

53

54

51

C3023

10V
10u

D2520

B3AAB0000343

POWER LED

R2524

22k

R2557

5.6k

20

CVBSin2

VCC5V

R1

R3out

L3out

R2out

19

G1/Yin1

R3079 220

C3024 10V 1u

C3013 10V 10u

220

R3067

16

17

18

B2/Cin2

T_DET3

T_DET2

CVBSin1

IC3001

C1AB00003218

VIDEO SW
AUDIO SW

R3080 220

R3082 220

R3081 220

C3026 10V 1u

C3027 10V 1u

C3025 10V 1u

R2525

2.2k

TP2520

Q2511

DSC200100L

TP2501

TP2502

TP2503

TP2505

TP2506

75

10V

10u

C3001

R3066

220

R3058

10u10V

C3006

7

8BG9

10

11

12

13

14

15

Yin3

GND

R2/Cin3

G2/Yin2

T_DET4

CVBSin3

S2_DET3

S2_DET2

Rin

HDin

HD_VD/FBKMUTE

Gin

R9in

L9in

R8in

R3088 220

R3089 220

R3083 220

R3087 220

R3090 220

R3085 220

R3084 220

R3086 220

C3035 10V 1u

C3034 10V 1u

C3033 10V 1u

C3031 10V 1u

C3030 10V 1u

C3032 10V 1u

C3028 10V 1u

C3029 10V 1u

D1_L

D1_R

D2_L

D2_R

V1_L

V1_R

V2_R

V2_L

3.3V

D2521

B3AEA0000099

SD LED

R2527

100

TP2508

5

6

CVBSin4

GND99Bin

VDin

FBin1/O177CVBSin778FBin2/O2

PC_B_IN

PC_V_IN

PC_H_IN

PC_G_IN

PC_R_IN

SSS

S

R3182

R3180

R3181

R3188 68

R3195 68

R3196 68

3

4

T_DET5

PRin1

CYin1

L3_DET1

PBin1

T_DET6

PRin2/R3

T_DET7

CYin2/G3

L3_DET2

PBin2/B3

VCC5V

T_DET8

T_DET9

CVBSin5

VCC9V

CVBSin6

73

SUB3.3V

1

2

100

98

R3107 68

97

96

R3099 68

95

94

R3098 68

93

92

R3097 68

91

90

R3096 68

89

88

R3095 68

87

86

Cin4

85

84

Yin4

83

82

81

80

79

R3068

76

220

74

75

TP2504

SUB3.3V

AI_SENSOR

STB3.3V

RM_IN

R_LED_ON

BLUE_LED

A1

GND

GND

K1

1

2

3

4

5

6

7

8

9

SUB5V

L3001

J0JYC0000068

+

C3049

C3050

10V

16V

100u

0.1u

V2_V

C3047

D1_PR

10V 10u

C3046

D1_Y

10V 10u

C3045

D1_PB

10V

10u

C3044

D2_PR

10V 10u

C3043

D2_Y

10u

10V

C3042

D2_PB

10V 10u

SUB9V

L3000

J0JYC0000068

C3015

10V
10u

RF_V

JS3051

V2_R

V2_L

V2_V

RENESAS
Video Input

V1/YC1:AV1 Back
V2:Peaks DC out
V3/YC3:AV2 Back
V4:nonuse

V5/YC4:AV3 Side
V6:nonuse

V7:RF

RGB:(PC)

YPbPr1:Comp1

YPbPr2:Comp2

Other:-

Video Out

OUT1:Main(ADV)
OUT3:Monitor out

OUT7:ADV(SOY)

Audio Input

L1/R1 RF

L2/R2 Comp1

L3/R3 Comp2

L4/R4 AV1

L5/R5 Av2

L6/R6 AV3

L7/R7 (PC)

L8/R8 (DVI)

L9/R9 DTV

Audio Out

OUT1:nonuse

OUT2:nonuse

OUT3:Monitor out

OUT4:Main(ADAV)

D3088

EZJP0V080GA

JS3052

D3087

EZJP0V080GA

JS3054

D3089

EZJP0V080GA

Audio OUT

GenX8 Serial

GENX_SBI1

TO 8/20

GENX_SBO1

SUB5V

Q4001

DSA200100L

R4001

JS4001

SD_LED

TP4009

1

2

3

4

5

6

7

8

9

TP4004

TP4008

TP4003

TP4001

TP4002

100

SUB3.3V

JS4015

123

4

FL4002

J0HAAB000036

FL4003

J0HAAB000036

123

4

FL4004

J0HAAB000036

123

4

R5734

R5733

150k

JS4010

C4075

16V

0.1u

FRONT_AV_RIN

FRONT_AV_LIN

FRONT_AV_V

R4002

22k

R4003

S

R3716

39k

R3717

39k

TO 4,17/20

PD_IECOUT0

RS-232C

TP3000

*FL3052

J0MAB0000054

4

4

*FL3053

J0MAB0000054

20

FORCEOFF

19

VCC

18

GND

17

T1OUT

16

R1IN

15

R1OUT

14

FORCEON

13

T1IN

12

T2IN

11

INVALID

C0ZBZ0001361

1

2

1

2

*IC3002

RS232C
DRIVER

LDA2

R4005

4.7k

GenX8

B0BC01600013

B0BC01600013

3

TP3001

3

STB3.3V

*C3066

10V

1u

*R3103

100

*R3104

100

*R3105

100

*R3106

100

Q4002

DSC200100L

1k

R4004

100k

STB3.3V

R3174

47k

*D3090

B0BC01600013

*D3091

B0BC01600013

*D3092

*D3093

EN

C1+

C1-

C2+

C2-

T2OUT

R2IN

R2OUT

AG_AI_SENSOR

AG_RMIN

AG_R_LED_ON

SUB3.3V

V+

V-

PD_XDSR0

1

2

3

4

5

6

7

8

9

10

TO 8/20

JK3701

K4AK08B00005

SIDE TERMINAL

R-G

R

L-G

L

V-G

V

K7AAAY000006

OPTICAL AUDIO OUT

C3157

16V

0.1u

*R3100

100

*R3101

100

*C3063

*C3062

16V 0.1u

*C3064

TO 17/20

SHIELD

SHIELD

D3005

16V

0.1u

16V

0.1u

*C3065

16V

0.1u

R

L

V

DRIVE IC

VCC

Vin

GND

*JK3003

K1FY109A0012

RS-232C

PCis

5

4
DTR

3
TXD

2
RXD

1

CD

RIGND

9

CTS

8

RTS

7

6

DSR

91 9894 9592 97 999693

57

12.16. A-Board (12/20) Schematic Diagram

A-BOARD TXN/A1LWUUS (12/20)

!

AR_STB_SCL02

AR_STB_SDA02

IIC_CONT/C_SEL

CONNECTOR

GenX4

GENX_SCL

GENX_SDA

PEAKS_SCL1

PEAKS_SDA1

AG_SRQ-GENX

TO 8/20

EXB28V220JX

TO 8/20

GenX8

FACT_SDBOOT

TP8503

R4151

S

STB5V

FOR
FACTORY

A18

USE

1

STB5V

2

SRQ-GENX

R4131

TP8537

TP8538

TP8535

TP8536

TP8529

TP8530

3

GND

4

GenX SCL1

5

GenX SDA1

6

Peaks SCL1

7

Peaks SDA1

Panel_SCL

(Panel Dpr.E2PROM)

8

Panel_SDA

(Panel Dpr.E2PROM)

9

IIC_CONT

10

11

SD_BOOT

PEAKS_SCL0

PEAKS_SDA0

PEAKS_SCL2

PEAKS_SDA2

TO 17/20

TO 14/20

TO 14/20

PD_SBI0

PD_SBO0

AR_TXD_PC

AR_RXD_PC

R4170

R4171 22

R4125 22

R4126

R4127

R4128

STB5V

FOR
FACTORY

A17

USE

1

STB5V

2

SD_BOOT

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

IIC_CONT/SRQ

IIC_CONT/C_SEL

Panel_SCL

Panel_SDA

Achip_SCL

SBI0_LITE2

Achip_SDA

SBO0_LITE2

LDA2_SCL0

Panel_TXD

LDA2_SDA0

Panel_RXD

LDA2_SCL2

REMOCON

LDA2_SDA2

(PANEL LED)

GND (10/4)

(INEXCH)

(Panel Dpr.E2PROM)

(Panel Dpr.E2PROM)

(Device Control)

(Device Control)

(Device Control)

(Device Control)

(Device Control)

(Device Control)

TP8505

TP8521

TP8501

22

TP8522

TP8500

TP8523

TP8524

TP8525

22

TP8526

TP8527

22

TP8528

22

AR_STB_SCL02

AR_STB_SDA02

IIC_CONT/C_SEL

IIC

PEAKS_SCL0

TO 2,3/20

IIC0

IIC1

IIC2

GenX8

PEAKS_SDA0

PEAKS_SCL1

PEAKS_SDA1

PEAKS_SCL2

PEAKS_SDA2

TO 8,10/20

GENX_SCL

GENX_SDA

R4809

22

PANEL_SCL02

TO 14/20

PANEL_SDA02

R4803

22

IIC_CONT/C_SEL

TO 14/20

TO 2,6,11/20

TO 1,2,8/20

PEAKS_SCL0

PEAKS_SDA0

PEAKS_SCL1

PEAKS_SDA1

PEAKS_SCL2

PEAKS_SDA2

GENX_SCL

GENX_SDA

ZA1001

K4AZ01D00004

ZA1003

K4CC01000001

ZA1002

K4AZ01D00004

Suffix:AC

TP4000

*JS4018

0

TP4017

108103 106101100 107105102 104

58

12.17. A-Board (13/20) Schematic Diagram

!

A-BOARD TXN/A1LWUUS (13/20)

TO 8,14/20

PANEL_STBY_ON

MIHO2_3.3V

MIHO2-POWER

F15V

C5976

C5977

25V

50V

D5803

10u

0.1u

B0JCPG000030

C5962

C5961

C5979

TP5900

50V

25V

25V

0.1u

R5879

0

L5814

10u

10u

G1C100MA0416

1

GND

2

C5963

50V

0.1u

SW

R5904

22

3

BS

R5877

1k

4

EN/SYNC

IC5811

C0DBAYY00727

MIHO2_3.3V

8

IN

7

VCC

R5906

100k

6

PG

5

FB

R5907

56k

C5980

50V

0.1u

C5975

50V
47p

R5910

18.2k

F15V

C5994

C5995

25V

50V

D5802

10u

0.1u

LED_8V

C5996

TP5846

50V

0.1u

TO 8,14/20

B0JCPG000030

C5985

C5987

25V

25V

L5813

10u

10u

G1C100MA0416

PANEL_STBY_ON

1

GND

2

C5988

50V

0.1u

SW

R5911

22

3

BS

R5878

1k

4

EN/SYNC

IC5808

C0DBAYY00727

LED_8V

8

IN

7

VCC

R5913

100k

6

PG

5

R5914

FB

56k

C5997

50V

0.1u

C5989

47p
50V

R5915

6.34k

MIHO2_1.2V

F15V

LED7V_1

IC5809

C0DBEJG00001

LED_7V_1

LED7V_1

+

C6021

10V

220u

R5917

R5918

150k

33k

C6000

25V

10u

LED_8V

1

PGND

2

PGND

3

PGND

4

B0JCPD000026

SW

5

SW

6

C5903

SW

25V

0.1u
7

BOOT

8

NC

C5929

25V

4700p

9

SS/DELAY

10

GND

IC5806

C0DBAYY00605

MIHO2_1.2V

TP5830

L5811

G1C6R8Z00010

C5959

6.3V
22u

D5800

20

VIN

19

VIN

18

VIN

17

NC

16

NC

15

EN

14

PSET

13

RT

12

FC

11

FB

C5933

25V
10u

R5902 27k

R5900 3.3k

C5941

R5901

C5937

25V
10u

C5958

200p50V

50V

100p

R5903

10k

R5923

C5904

25V

6800p

20k

C5998

25V

10u

LED_8V

3

(FIN)

GND

CTL2Vcc4OUT5C

1

LED_8V

3

(FIN)

GND

CTL2Vcc4OUT5C

1

LED_8V

LED7V_2

IC5810

C0DBEJG00001

LED_7V_2

R5919

R5921

150k

33k

LED7V_2

+

C6020

10V
220u

114109 110 115 117113112 116111

59

12.18. A-Board (14/20) Schematic Diagram

!

A-BOARD TXN/A1LWUUS (14/20) MIHO2-LVDS

TO 16/20

LEFT_1ST_PIX_TA-

LEFT_1ST_PIX_TA+

LEFT_1ST_PIX_TB-

LEFT_1ST_PIX_TB+

LEFT_1ST_PIX_TC-

LEFT_1ST_PIX_TC+

LEFT_1ST_PIX_TCLK-

LEFT_1ST_PIX_TCLK+

LEFT_1ST_PIX_TD-

LEFT_1ST_PIX_TD+

LEFT_1ST_PIX_TE-

LEFT_1ST_PIX_TE+

LEFT_2ND_PIX_TA-

LEFT_2ND_PIX_TA+

LEFT_2ND_PIX_TB-

LEFT_2ND_PIX_TB+

LEFT_2ND_PIX_TC-

LEFT_2ND_PIX_TC+

LEFT_2ND_PIX_TCLK-

LEFT_2ND_PIX_TCLK+

LEFT_2ND_PIX_TD-

LEFT_2ND_PIX_TD+

LEFT_2ND_PIX_TE-

LEFT_2ND_PIX_TE+

RIGHT_1ST_PIX_TA-

RIGHT_1ST_PIX_TA+

RIGHT_1ST_PIX_TB-

RIGHT_1ST_PIX_TB+

RIGHT_1ST_PIX_TC-

RIGHT_1ST_PIX_TC+

RIGHT_1ST_PIX_TCLK-

RIGHT_1ST_PIX_TCLK+

RIGHT_1ST_PIX_TD-

RIGHT_1ST_PIX_TD+

RIGHT_1ST_PIX_TE-

RIGHT_1ST_PIX_TE+

RIGHT_2ND_PIX_TA-

RIGHT_2ND_PIX_TA+

RIGHT_2ND_PIX_TB-

RIGHT_2ND_PIX_TB+

RIGHT_2ND_PIX_TC-

RIGHT_2ND_PIX_TC+

RIGHT_2ND_PIX_TCLK-

RIGHT_2ND_PIX_TCLK+

RIGHT_2ND_PIX_TD-

RIGHT_2ND_PIX_TD+

RIGHT_2ND_PIX_TE-

RIGHT_2ND_PIX_TE+

J0JYD0000033

J0JYD0000033

J0JYD0000033

J0JYD0000033

TO
D-BOARD
(D5)

A31

TERM

L4800

1234

L4801

J0JYD0000033

1234

L4802

J0JYD0000033

1234

L4803

1234

L4804

J0JYD0000033

1234

L4805

J0JYD0000033

1234

L4220

1234

L4221

J0JYD0000033

1234

L4222

J0JYD0000033

1234

L4223

1234

L4224

J0JYD0000033

1234

L4225

J0JYD0000033

1234

68

GND

67

1st pixel TA-

66

1st pixel TA+

65

1st pixel TB-

64

1st pixel TB+

63

GND

62

1st pixel TC-

61

1st pixel TC+

60

GND

59

1st pixel TCLK-

58

1st pixel TCLK+

57

GND

56

1st pixel TD-

55

1st pixel TD+

54

1st pixel TE-

53

1st pixel TE+

52

GND

51

GND

50

2nd pixel TA-

49

2nd pixel TA+

48

2nd pixel TB-

47

2nd pixel TB+

46

GND

45

2nd pixel TC-

44

2nd pixel TC+

43

GND

42

2nd pixel TCLK-

41

2nd pixel TCLK+

40

GND

39

2nd pixel TD-

38

2nd pixel TD+

37

2nd pixel TE-

36

2nd pixel TE+

35

NC

34

LVDS_DET

33

1st pixel TA-

32

1st pixel TA+

31

1st pixel TB-

30

1st pixel TB+

29

GND

28

1st pixel TC-

27

1st pixel TC+

26

GND

25

1st pixel TCLK-

24

1st pixel TCLK+

23

GND

22

1st pixel TD-

21

1st pixel TD+

20

1st pixel TE-

19

1st pixel TE+

18

GND

17

GND

16

2nd pixel TA-

15

2nd pixel TA+

14

2nd pixel TB-

13

2nd pixel TB+

12

GND

11

2nd pixel TC-

10

2nd pixel TC+

9

GND

8

2nd pixel TCLK-

7

2nd pixel TCLK+

6

GND

5

2nd pixel TD-

4

2nd pixel TD+

3

2nd pixel TE-

2

2nd pixel TE+

1

GND

SIDE

GenX-DEST

TO 8,13/20

PANEL_STBY_ON

R5950

100k

Q5807

DSC2001S0L

STB5V

R5952

10k

Q5806

Peaks-COMMON

DSC2001S0L

R5953

47k

R5916

100k

GenX

Set-PDP

TO 12/20

IIC

Set-MODEL

TO 12/20

Set-MODEL

TO 17/20

TO 8/20

TO 10/20

TO 12/20

PD_XCTS0

PANEL_READY

P3.3V_DET

IIC_CONT/C_SEL

AVC_SDA0

AVC_SCL0

PANEL_SDA02

PANEL_SCL02

AR_RXD_PC

AR_TXD_PC

1k

R5926

R5925

100

R5954

1k

R5924

1k

R5956

100k

22

R5927

22

R5928

NET023438

TO
D-BOARD
(D3)

A32

TP5822

1

TP5823

TP5821

TP5824

TP5837
R5920
100k

TP5838

TP5839

TP5840

TP5841

TP5842

TP5843

TP5845

TP5844

DISPEN

2

PANEL_STB_ON

3

READY

4

ALARM

5

IIC_CONT

6

GND

7

IIC_DATA1

8

IIC_CLK1

9

GND

10

IIC_DATA2

11

IIC_CLK2

12

GND

13

RXD

14

TXD

15

Key

60

126119 125118 120 121 124122 123

12.19. A-Board (15/20) and V-Board Schematic Diagram

A-BOARD TXN/A1LWUUS (15/20) MIHO2-3D

!

IC5800

C1AB00003253

MIHO-3D

!

V-BOARD TXN/V1LTUUM

ZA2500

K4CC01000001

K4CC01000001

ZA2501

K4CC01000001

ZA2500

ZA2501

K4CC01000001

D2502

B3EB00000048

D2502

B3EB00000048

3D EYEWEAR
TRANSMITTER

D2501

B3EB00000048

D2501

B3EB00000048

3D EYEWEAR
TRANSMITTER

D2500

B3EB00000048

D2500

B3EB00000048

RCLK_E-

TO 17/20

RESET

IIC

TO 17/20

PD_LOSDO10

PD_MII_SBO

PD_LOSDO0

MIHO2_STB

TO 2,10/20

LDA2_SDA2

LDA2_SCL2

IC5800U2TA5N

IC5800U1TA5P

IC5800U3TB5N

IC5800T3TB5P

IC5800T1TC5N

IC5800T2TC5P

IC5800R2TCLK5N

IC5800R1TCLK5P

IC5800R3TD5N

IC5800P3TD5P

IC5800P1TE5N

IC5800P2TE5P

IC5800N2TA6N

IC5800N1TA6P

IC5800N3TB6N

IC5800M3TB6P

IC5800M1TC6N

IC5800L2TCLK6N

IC5800L1TCLK6P

IC5800L3TD6N

IC5800K3TD6P

IC5800K1TE6N

IC5800K2TE6P

RCLK_E+

RCLK_E-

RA_E+

RA_E-

RB_E+

RB_E+

RB_E-

RB_E-

RC_E+

RC_E+

RC_E-

RC_E-

RD_E+

RD_E+

RD_E-

RD_E-

RE_E+

RE_E-

RCLK_O+

RCLK_O-

RA_O+

RA_O-

RB_O+

RB_O+

RB_O-

RB_O-

RC_O+

RC_O+

RC_O-

RC_O-

RD_O+

RD_O+

RD_O-

RD_O-

RE_O+

RE_O-

IC5800 A12 RCLK1P

IC5800 B12 RCLK1N

IC5800 A14 RA1P

IC5800 B14 RA1N

IC5800 C13 RB1P

IC5800 C14 RB1N

IC5800 B13 RC1P

IC5800 A13 RC1N

IC5800 C11 RD1P

IC5800 C12 RD1N

IC5800 B11 RE1P

IC5800 A11 RE1N

IC5800 A8 RCLK2P

IC5800 B8 RCLK2N

IC5800 B10 RA2N

IC5800 C9 RB2P

IC5800 C10 RB2N

IC5800 B9 RC2P

IC5800 A9 RC2N

IC5800 C7 RD2P

IC5800 C8 RD2N

IC5800 B7 RE2P

IC5800 A7 RE2N

R5839

68

R5841

68

R5840

1k

R5859

47

R5882

22

R5883

22

IC5800 V2 RA3N

IC5800 V1 RA3P

IC5800 V3 RB3N

IC5800 W3 RB3P

IC5800 W1 RC3N

IC5800 W2 RC3P

IC5800 Y2 RCLK3N

IC5800 Y1 RCLK3P

IC5800 Y3 RD3N

IC5800 AA3 RD3P

IC5800 AA1 RE3N

IC5800 AA2 RE3P

IC5800 AB2 RA4N

IC5800 AB1 RA4P

IC5800 AB3 RB4NIC5800 A10 RA2P

IC5800 AC3 RB4P

IC5800 AC1 RC4N

IC5800 AC2 RC4PIC5800M2TC6P

IC5800 AD2 RCLK4N

IC5800 AD1 RCLK4P

IC5800 AD3 RD4N

IC5800 AE3 RD4P

IC5800 AE1 RE4N

IC5800 AE2 RE4P

IC5800 AB24 NRST

IC5800 AF25 XIRQ

IC5800 Y25 STB

IC5800 U24 SDA

IC5800 U25 SCL

X'TAL

IC5800 AD26 XTALOUT

IC5800 AC26 XTALIN

X5800

H0J270500113

C5801

50V
12p

C5802

27MHz

50V
18p

LDA2->MIHO2 MIHO2->FRC->MIHO2

RCLK_E+

RA_E+(MSB)

RA_E-(MSB)

RE_E+(LSB)

RE_E-(LSB)

RCLK_O+

RCLK_O-

RA_O+(MSB)

RA_O-(MSB)

RE_O+(LSB)

RE_O-(LSB)

LED DRIVE CIRCUIT

IC5813

C6005

16V

0.1u

8

V+

7

B_OUTPUT

6

B-INPUT

5

B+INPUT

IC5814

C0ABBA000201

3D EYEWEAR
DRIVER

C0CBADB00038

5V

VOUT

VIN

3

NC

VSS

4

A_OUTPUT

A-INPUT

A+INPUT

GND

LED_8V

2

1

1

2

3

4

L5821

C6006

J0JGC0000020

10V
10u

IC5800 AA24 VESA

IR_L

IC5800 AA25

TP5809

IC5800 AA26 IR_R

TP5808

R5868

22k

R5869

6.8k

R5558

22k

R5563

6.8k

IC5800 Y26 CHANGE

LED_1

TO 8/20

LED_2

LED7V_1

R2501

5.6

R2500

5.6

R2500

5.6

R2501

5.6

V1

VJ2500

1

P

2

3

4

4

3

2

P

1

VJ2500

V1

TP5833

A20

LED_7V

1

2

GND

3

NC

IR_L

IR_L

NC

GND

LED_7V

TP5832

4

TP5834

5

6

7

8

9

R5606

0

R5605

TP5831

R5614

TP5835

R5615

C6003

0

0

0

LED7V_2

10V

0.22u

C6004

0.22u
10V

Q5814

B1CFND000005

LED DRIVE A

R5881

100

C5803

R5872

R5871

4.7

B1CFND000005

R5874

4.7

Q5813

LED DRIVE B

16V

3.3

0.1u

R5880

100

R5875

3.3

V-BOARD TXN/V1LTUUM

!

127 131 135132130129 134133128

61

JTAG

MIHO2_3.3V

R5933

R5934

10k

TP5825

TCK

TP5826

TDO

TP5827

TDI

TP5828

TMS

TP5829

TRST

R5932

10k

10k

22

R5908

22

R5909

R5929

R5930

R5931

R5935

10k

IC5800

22

22

22

T24 TCK

IC5800 R24 TDO

IC5800 R25 TDI

IC5800 T26 TMS

IC5800 T25 TRST

12.20. A-Board (16/20) Schematic Diagram

!

A-BOARD TXN/A1LWUUS (16/20)

MIHO2->PD4

TO 14/20

IC5800AE21TA1N

IC5800AF21TA1P

IC5800AD21TB1N

IC5800AD20TB1P

IC5800AF20TC1N

IC5800AE20TC1P

IC5800AE19TCLK1N

IC5800AF19TCLK1P

IC5800AD19TD1N

IC5800AD18TD1P

IC5800AF18TE1N

IC5800AE18TE1P

IC5800AE17TA2N

IC5800AF17TA2P

IC5800AD17TB2N

IC5800AD16TB2P

IC5800AF16TC2N

IC5800AE16TC2P

IC5800AE15TCLK2N

IC5800AF15TCLK2P

IC5800AD15TD2N

IC5800AD14TD2P

IC5800AF14TE2N

IC5800AE14TE2P

IC5800AE12TA3N

IC5800AF12TA3P

IC5800AD12TB3N

IC5800AD11TB3P

IC5800AF11TC3N

IC5800AE11TC3P

IC5800AE10TCLK3N

IC5800AF10TCLK3P

IC5800AD10TD3N

IC5800AD9TD3P

IC5800AF9TE3N

IC5800AE9TE3P

IC5800AE8TA4N

IC5800AF8TA4P

IC5800AD8TB4N

IC5800AD7TB4P

IC5800AF7TC4N

IC5800AE7TC4P

IC5800AE6TCLK4N

IC5800AF6TCLK4P

IC5800AD6TD4N

IC5800AD5TD4P

IC5800AF5TE4N

IC5800AE5TE4P

LEFT_1ST_PIX_TA-

LEFT_1ST_PIX_TA+

LEFT_1ST_PIX_TB-

LEFT_1ST_PIX_TB+

LEFT_1ST_PIX_TC-

LEFT_1ST_PIX_TC+

LEFT_1ST_PIX_TCLK-

LEFT_1ST_PIX_TCLK+

LEFT_1ST_PIX_TD-

LEFT_1ST_PIX_TD+

LEFT_1ST_PIX_TE-

LEFT_1ST_PIX_TE+

LEFT_2ND_PIX_TA-

LEFT_2ND_PIX_TA+

LEFT_2ND_PIX_TB-

LEFT_2ND_PIX_TB+

LEFT_2ND_PIX_TC-

LEFT_2ND_PIX_TC+

LEFT_2ND_PIX_TCLK-

LEFT_2ND_PIX_TCLK+

LEFT_2ND_PIX_TD-

LEFT_2ND_PIX_TD+

LEFT_2ND_PIX_TE-

LEFT_2ND_PIX_TE+

RIGHT_1ST_PIX_TA-

RIGHT_1ST_PIX_TA+

RIGHT_1ST_PIX_TB-

RIGHT_1ST_PIX_TB+

RIGHT_1ST_PIX_TC-

RIGHT_1ST_PIX_TC+

RIGHT_1ST_PIX_TCLK-

RIGHT_1ST_PIX_TCLK+

RIGHT_1ST_PIX_TD-

RIGHT_1ST_PIX_TD+

RIGHT_1ST_PIX_TE-

RIGHT_1ST_PIX_TE+

RIGHT_2ND_PIX_TA-

RIGHT_2ND_PIX_TA+

RIGHT_2ND_PIX_TB-

RIGHT_2ND_PIX_TB+

RIGHT_2ND_PIX_TC-

RIGHT_2ND_PIX_TC+

RIGHT_2ND_PIX_TCLK-

RIGHT_2ND_PIX_TCLK+

RIGHT_2ND_PIX_TD-

RIGHT_2ND_PIX_TD+

RIGHT_2ND_PIX_TE-

RIGHT_2ND_PIX_TE+

SERIAL FLASH

R5864

22k

1

CS#

R5827

47

2

SO/SIO1

R5828

22k

3

WP#/SIO2

4

GND

IC5801

TVRR742S

NAND FLASH

NC/SIO3

MIHO2-3D

IC5800

C1AB00003253

MIHO-3D

NOUSE

IC5800Y23TEST

IC5800V23TMC1

IC5800AA23TMC2

IC5800Y24TEN

IC5800W23THMODE

IC5800R23NECTEST1

IC5800T23NECTEST2

IC5800U23NECTEST3

MIHO2_3.3V

C5800

16V

0.1u

8

VCC

7

6

SCLK

SI/SIO0

R5865

22k

5

R5863

22k

IC5800P26HDCLKIN

IC5800D24HDENIN

IC5800D25HDHIN

IC5800G23HDVIN

IC5800L25HDRIN0

IC5800L26HDRIN1

IC5800M24HDRIN2

IC5800M25HDRIN3

IC5800M26HDRIN4

IC5800N24HDRIN5

IC5800N25HDRIN6

IC5800N26HDRIN7

IC5800P24HDRIN8

IC5800P25HDRIN9

IC5800H24HDGIN0

IC5800H25HDGIN1 IC5800A23HDGO4

IC5800H26HDGIN2

IC5800J24HDGIN3

IC5800J25HDGIN4

IC5800J26HDGIN5

IC5800K24HDGIN6

IC5800K25HDGIN7

IC5800K26HDGIN8

IC5800L24HDGIN9

IC5800D26HDBIN0

IC5800E24HDBIN1

IC5800E25HDBIN2

IC5800E26HDBIN3

IC5800F24HDBIN4

IC5800F25HDBIN5

IC5800F26HDBIN6

IC5800G24HDBIN7

IC5800G25HDBIN8

IC5800G26HDBIN9

TP5800

TP5801

TP5802

TP5803

R5829 47

R5830 47

R5826 47

IC5800B17HDCLKO

IC5800C23HDENO

IC5800B22HDHO

IC5800A25HDVO

IC5800A16HDRO0

IC5800B16HDRO1

IC5800A18HDRO2

IC5800B18HDRO3

IC5800C18HDRO4

IC5800A19HDRO5

IC5800C19HDRO6

IC5800A20HDRO7

IC5800B21HDGO0

IC5800C21HDGO1

IC5800A22HDGO2

IC5800C22HDGO3

IC5800B23HDGO5

IC5800A24HDGO6

IC5800B24HDGO7

IC5800D19HDBO0

IC5800B20HDBO1

IC5800C20HDBO2

IC5800A21HDBO3

IC5800C16HDBO4

IC5800A17HDBO5

IC5800C17HDBO6

IC5800B19HDBO7

IC5800 V26 FLSCK

IC5800 V25 FLNCS

IC5800 V24 FLSIO0

IC5800 W26 FLSIO1

IC5800 W25 FLSIO2

IC5800 W24 FLSIO3

IC5800H1CLKIN

IC5800H2OSDYS

IC5800D6HIN

IC5800A6DEIN

IC5800G1RIN0

IC5800G2RIN1

IC5800G3RIN2

IC5800G4RIN3

IC5800F1RIN4

IC5800F2RIN5

IC5800F3RIN6

IC5800F4RIN7

IC5800E1RIN8

IC5800E2RIN9

IC5800A3GIN0

IC5800C4GIN1

IC5800B4GIN2

IC5800A4GIN3

IC5800D5GIN4

IC5800C5GIN5

IC5800B5GIN6

IC5800A5GIN7

IC5800C6GIN8

IC5800B6GIN9

IC5800E3BIN0

IC5800E4BIN1

IC5800D1BIN2

IC5800D2BIN3

IC5800D3BIN4

IC5800C1BIN5

IC5800C2BIN6

IC5800B1BIN7

IC5800A2BIN8

IC5800B3BIN9

MIHO2-POWER

MIHO2_3.3V

MIHO2_1.2V

VDD33 max49mA

C5907

16V

IC5800 D16 VDD33

0.1u
IC5800 D17 VDD33

C5908

IC5800 D22 VDD33

16V

0.1u
IC5800 E22 VDD33

C5909

IC5800 F5 VDD33

16V

0.1u
IC5800

C5910

16V

IC5800 J22 VDD33

0.1u
IC5800 K22 VDD33

C5911

IC5800 U22 VDD33

16V

0.1u
IC5800 V22 VDD33

C5912

IC5800 AB6 VDD33

16V

0.1u
IC5800 AC6 VDD33

C5913

IC5800 AB22 VDD33

16V

0.1u
IC5800 AC22 VDD33

VCP33(for eDRAM)
max10mA

C5914

16V

IC5800 E16 VCP33

0.1u
IC5800 E17 VCP33

C5915

16V

IC5800

0.1u

C5984

IC5800 AB17 VCP33

16V

0.1u

C5956

10V
10u

C5927

0.1u16V

C5928

0.1u16V

C5974

1000p50V

C5930

0.1u16V

C5931

0.1u16V

C5932

0.1u16V

C5978

1000p50V

C5934

0.1u16V

C5935

0.1u16V

C5936

0.1u16V

C5982

1000p50V

C5939

0.1u16V

C5940

0.1u16V

C5986

1000p50V

VDD12 max822mA

IC5800 K12 VDD12

IC5800 K13 VDD12

IC5800

IC5800 K15 VDD12

IC5800 L12 VDD12

IC5800 L13 VDD12

IC5800 L14 VDD12

IC5800 L15 VDD12

IC5800 M10 VDD12

IC5800 M11 VDD12

IC5800 N10 VDD12

IC5800 N11 VDD12

IC5800 P10 VDD12

IC5800 P11 VDD12

IC5800 R10 VDD12

IC5800 R11 VDD12

IC5800 M16 VDD12

IC5800 M17 VDD12

IC5800 N16 VDD12

IC5800 N17 VDD12

IC5800 P16 VDD12

IC5800 P17 VDD12

IC5800 R16 VDD12

IC5800 R17 VDD12

IC5800 T12 VDD12

IC5800 T13 VDD12

IC5800 T14 VDD12

IC5800 T15 VDD12

IC5800 U12 VDD12

IC5800 U13 VDD12

IC5800 U14 VDD12

IC5800 U15 VDD12

G5 VDD33

AB14 VCP33

K14 VDD12

C5916

C5964

1000p

C5917

C5918

C5967

J0JHC0000045

16V

0.1u

50V

16V

0.1u

16V

0.1u

50V

1000p

C5942

16V

0.1u

C5943

16V

0.1u

C5944

16V

0.1u

C5945

16V

0.1u

L5803

C5890

10V

1u

C0DBGYY00905

RXVDDQ max240mA

IC5800 D8 RXVDDQ

IC5800 D9 RXVDDQ

IC5800 D12 RXVDDQ

IC5800 D13 RXVDDQ

IC5800 V4 RXVDDQ

IC5800 W4 RXVDDQ

IC5800 AB4 RXVDDQ

IC5800

DVCC(for eDRAM)
max420mA

IC5800 E12 DVCC

IC5800 E13 DVCC

IC5800 E20 DVCC

IC5800 E21 DVCC

IC5800 AB10 DVCC

IC5800 AB11 DVCC

IC5800 AB20 DVCC

IC5800 AB21 DVCC

MIHO2_3.3V

4

3

VDD

1CE2

IC5805

1.2V

VOUT

VSS

AC4 RXVDDQ

L5810

J0JHC0000045

C5891

10V

1u

C5920

16V

0.1u

C5922

16V

0.1u

C5924

16V

0.1u

L5802

J0JHC0000045

L5816

J0JHC0000045

L5817

J0JHC0000045

L5818

J0JHC0000045

J0JHC0000045

C5969

50V

1000p

C5971

50V

1000p

C5973

50V

1000p

L5800

J0JHC0000045

L5815

J0JHC0000045

L5804

IC5800 J4 TXVDDQ

IC5800 K4 TXVDDQ

IC5800 N4 TXVDDQ

IC5800 P4 TXVDDQ

IC5800 AC7 TXVDDQ

IC5800 AC8 TXVDDQ

IC5800 AC11 TXVDDQ

IC5800 AC12 TXVDDQ

IC5800 AC14 TXVDDQ

IC5800 AC15 TXVDDQ

IC5800 AC18 TXVDDQ

IC5800 AC19 TXVDDQ

C5946

0.1u16V

C5947

1000p50V

P

VJ5814

C5948

16V

0.1u

C5949

1000p50V

P

VJ5808

VJ5815

P

VJ5809

P

VJ5810

P

C5905

22u4V

C5953

0.1u16V

C5897

1000p50V

P

VJ5811

C5954

0.1u16V

C5898

1000p50V

P

VJ5812

TXVDDQ max360mA

C5950

16V

0.1u

C5951

16V

0.1u

C5952

16V

0.1u

PLL(for MainCLK)
max40mA

IC5800 J5 PLL2AVDD

IC5800 H5 PLL2AGND

IC5800 L5 PLL3AVDD

IC5800

K5 PLL3AGND

IC5800 P22 PLL1AVDD

IC5800 R22 PLL1AGND

IC5800 M22 PLL4AVDD

IC5800 M23 PLL4AGND

TXPLL(for LVDS-Tx)
max90mA

IC5800 AB16 TXPLL12AVDD

IC5800 AB15 TXPLL12AGND

IC5800 AB9 TXPLL34AVDD

IC5800 AB8 TXPLL34AGND

IC5800 P5 TXPLL56AVDD

IC5800 N5 TXPLL56AGND

RXPLL(for LVDS-Rx)
max120mA

IC5800 E10 RXPLL1AVDD

IC5800 E11 RXPLL1AGND

IC5800 E9 RXPLL2AVDD

IC5800 E8 RXPLL2AGND

IC5800 U5 RXPLL3AVDD

IC5800 T5 RXPLL3AGND

IC5800 V5 RXPLL4AVDD

IC5800 W5 RXPLL4AGND

MIHO2-GND

IC5800 E14 DGND

IC5800 E15 DGND

IC5800 E18 DGND

IC5800 E19 DGND

IC5800 AB12 DGND

IC5800 AB13 DGND

IC5800 AB18 DGND

A1 GND

IC5800

IC5800 A15 GND

IC5800 A26 GND

IC5800 B2 GND

IC5800 B15 GND

IC5800 B25 GND

IC5800 B26 GND

IC5800 C3 GND

IC5800 C15 GND

IC5800 C24 GND

IC5800 C25 GND

IC5800 C26 GND

IC5800 D4 GND

IC5800 D7 GND

IC5800 D10 GND

IC5800 D11 GND

IC5800 D14 GND

IC5800 D15 GND

IC5800 D18 GND

IC5800 D20 GND

IC5800 D21 GND

IC5800 D23 GND

IC5800 E5 GND

IC5800 E6 GND

IC5800 E7 GND

IC5800 E23 GND

IC5800 F6 GND

IC5800 F22 GND

IC5800 F23 GND

IC5800 G22 GND

IC5800 H3 GND

IC5800 H4 GND

IC5800 H22 GND

IC5800 H23 GND

IC5800 J1 GND

IC5800 J2 GND

IC5800 J3 GND

IC5800 J23 GND

IC5800 K10 GND

IC5800 K11 GND

IC5800 K16 GND

IC5800 K17 GND

IC5800

K23 GND

IC5800 L4 GND

IC5800 L10 GND

IC5800 L11 GND

IC5800 L16 GND

IC5800 L17 GND

IC5800 L22 GND

IC5800 L23 GND

IC5800

M4 GND

IC5800 M5 GND

IC5800 M12 GND

IC5800 M13 GND

IC5800 M14 GND

IC5800 M15 GND

IC5800 N12 GND

IC5800 N14 GND

IC5800 N15 GND

IC5800 N22 GND

IC5800 N23 GND

IC5800 P12 GND

IC5800 P13 GND

IC5800 P14 GND

IC5800 P15 GND

IC5800 P23 GND

IC5800 R4 GND

R5 GND

IC5800

IC5800 R12 GND

IC5800 R13 GND

IC5800 R14 GND

IC5800 R15 GND

IC5800 R26 GNDIC5800 AB19 DGND

IC5800 T4 GND

IC5800 T10 GND

IC5800 T11 GND

IC5800 T16 GND

IC5800 T17 GND

IC5800 T22 GND

IC5800 U4 GND

IC5800 U10 GND

IC5800 U11 GND

IC5800 U16 GND

IC5800 U17 GND

IC5800 U26 GND

IC5800 W22 GND

IC5800 Y4 GND

IC5800 Y5 GND

IC5800 Y22 GND

IC5800 AA4 GND

IC5800 AA5 GND

AA22 GND

IC5800

IC5800 AB5 GND

IC5800 AB7 GND

IC5800 AB23 GND

IC5800 AB25 GND

IC5800 AB26 GND

IC5800

AC5 GND

IC5800 AC9 GND

IC5800 AC10 GND

IC5800 AC13 GND

IC5800 AC16 GND

IC5800 AC17 GND

IC5800 AC20 GND

IC5800 AC21 GND

IC5800 AC23 GND

IC5800 AC24 GND

IC5800 AC25 GND

IC5800 AD4 GND

IC5800 AD13 GND

IC5800 AD22 GND

IC5800 AD23 GND

IC5800 AD24 GND

IC5800 AD25 GND

IC5800

AE4 GND

IC5800 AE13 GND

IC5800

AE22 GND

IC5800 AE23 GND

IC5800 AE24 GND

IC5800 AE25 GND

AE26 GND

IC5800

IC5800 AF1 GND

IC5800 AF2 GNDIC5800 N13 GND

IC5800 AF3 GND

IC5800 AF4 GND

IC5800 AF13 GND

IC5800 AF22 GND

AF23 GND

IC5800

IC5800 AF24 GND

IC5800 AF26 GND

137 144138 140139 143142136 141

62

12.21. A-Board (17/20) Schematic Diagram

!

ExternalBus PCI_BUS

PD_ED[0-15]

PD_ED0

IC8000AN1ED0

IC8000AM2ED1

IC8000AN2ED2

IC8000AP2ED3

IC8000AL3ED4

IC8000AM3ED5

IC8000AN3ED6

IC8000AP3ED7

IC8000AK4ED8

IC8000AM4ED9

IC8000AN4ED10 IC8000AM12VSSAPUSB

IC8000AP4ED11

IC8000AK5ED12

IC8000AL5ED13

IC8000AM5ED14

IC8000AN5ED15

IC8000AM1EA0

IC8000AL2EA1

IC8000AL1EA2 IC8000Y14VDD33

IC8000AK3EA3

IC8000AK2EA4

IC8000AK1EA5

IC8000AJ5EA6

IC8000AH5EA7

IC8000AG5EA24

IC8000AH4ECLK

IC8000AG1XECS0

IC8000AG2XECS1

IC8000AG3XECS2

IC8000AF1XECS3

IC8000AF2XECS4

IC8000AF3XECS5

IC8000AJ4XERE

IC8000AJ2XEWE0

IC8000AJ1XEWE1

IC8000AJ3ERXW

IC8000AH1XEDK

IC8000AH3ESZ0

IC8000AH2ESZ1

IC8000AH6BOOTSWAP

IC8000AC34XNMIRQ

IC8000AP5XIRQ1

IC8000E21XIRQ2

IC8000R4XIRQ3

IC8000B20XIRQ4

IC8000A20XIRQ5

IC8000AC32XIRQ6

IC8000AC33XIRQ7

IC8000F21XIRQ8

IC8000V6XIRQ9

IC8000F30XIRQ10

IC8000AE3XNFCE

IC8000AE1NFCLE

IC8000AE2NFALE

XNFRE

IC8000AF5

IC8000AE5XNFWE

IC8000AE6XNFWP

IC8000AF6NFRYBY

TO 1/20

PD_ED1 IC8000A1VSS

PD_ED2

PD_ED3

PD_ED4

PD_ED5

PD_ED6

PD_ED7

PD_ED8

PD_ED9

PD_ED10

PD_ED11

PD_ED12

PD_ED13

PD_ED14

PD_ED15

PD_EA[0-7,24]

PD_EA0

PD_EA1

PD_EA2

PD_EA3

PD_EA4

PD_EA5

PD_EA6

PD_EA7

PD_EA24 PD_MMDQ25

R8979

47k

PD_XECS2

PD_XECS3

PD_XECS4

PD_XECS5

PD_XERE

PD_XEWE0

PD_XEWE1

PD_ERXW

PD_ESZ0

PD_ESZ1

PD_XIRQ1

PD_XIRQ2

PD_XIRQ3

PD_XIRQ4

PD_XIRQ5

PD_XIRQ6

PD_XIRQ7

PD_XIRQ8

PD_XIRQ9

PD_XNFCE

PD_NFCLE

PD_NFALE

PD_XNFRE

PD_XNFWE

PD_XNFWP

PD_NFRYBY

TO 2/20

TO 2,8/20

TO 2/20

TO 2/20

TO 1/20
TO 6/20

TO 2/20

TO 10/20

TO 2/20

TO 2,3/20

TO 1,2/20

TO 1/20

TO 2/20

System(Dchip)

PD_XRST

IC8000AG6XRST

PD_CK27A

IC8000AL11CK27A

PD_VC27A

IC8000AK11VC27A

PD_CK27B

IC8000AL10CK27B

IC8000AM10VC27B

IC8000AJ11CK74A

IC8000AM11CK74B

IC8000AJ13IPCK33IN

IC8000AD32DCK33IN

IC8000B31TCK

IC8000A31TDO

IC8000A32TDI

IC8000A33TMS

IC8000B32TRST

IC8000C31EVTRG

IC8000V22DTCPOUT

IC8000N22TCPOUT0

IC8000AB13TCPOUT12

IC8000T22TCPOUT3

IC8000AB17TSTSEL

IC8000AC12FPEN

IC8000C20NSHUTDOWN

IC8000A19MUTEB

PD_CK74A

PD_CK74B

PD_IPCK33IN

PD_DCK33IN

PD_TCK

PD_TDI

PD_TMS

PD_TRST

PD_EVTRG

PD_NSHUTDOWN

PD_MUTEB

TO 2/20

TO 1/20

TO 7/20

DDR3 I/F

Video OUT(SD)

AudioOUT

SERIAL

IC CARD

IC8000AB6SMTD0

IC8000AB3SMTCMD0

IC8000AB5SMTSEL0

IC8000AC3SMTRST0

TO 20/20

PD_MMDQ0

IC8000AF31MMDQ0

PD_MMDQ1

IC8000AF33MMDQ1

PD_MMDQ2

IC8000AE31MMDQ2

PD_MMDQ3

IC8000AH34MMDQ3

PD_MMDQ4

IC8000AE30MMDQ4

PD_MMDQ5

IC8000AG34MMDQ5

PD_MMDQ6

IC8000AE33MMDQ6

PD_MMDQ7

IC8000AE34MMDQ7

PD_MMDQ8

IC8000AL32MMDQ8

PD_MMDQ9

IC8000AJ31MMDQ9

PD_MMDQ10

IC8000AM34MMDQ10

PD_MMDQ11

IC8000AH30MMDQ11

PD_MMDQ12

IC8000AN34MMDQ12

PD_MMDQ13

IC8000AJ30MMDQ13

PD_MMDQ14

IC8000AM33MMDQ14

PD_MMDQ15

IC8000AK31MMDQ15

PD_MMDQ16

IC8000AL22MMDQ16

PD_MMDQ17

IC8000AP23MMDQ17

PD_MMDQ18

IC8000AL24MMDQ18

PD_MMDQ19

IC8000AM22MMDQ19

PD_MMDQ20

IC8000AK24MMDQ20

PD_MMDQ21

IC8000AN23MMDQ21

PD_MMDQ22

IC8000AL23MMDQ22

PD_MMDQ23

IC8000AN24MMDQ23

PD_MMDQ24

IC8000AJ20MMDQ24

IC8000AK19MMDQ25

PD_MMDQ26

IC8000AM19MMDQ26

PD_MMDQ27

IC8000AL20MMDQ27

PD_MMDQ28

IC8000AP18MMDQ28

PD_MMDQ29

IC8000AJ18MMDQ29

PD_MMDQ30

IC8000AN18MMDQ30

PD_MMDQ31

IC8000AL18MMDQ31

PD_MMA0

IC8000AP32MMA0

PD_MMA1

IC8000AP28MMA1

PD_MMA2

IC8000AM31MMA2

PD_MMA3

IC8000AK27MMA3

PD_MMA4

IC8000AP26MMA4

PD_MMA5

IC8000AK29MMA5

PD_MMA6

IC8000AN27MMA6

PD_MMA7

IC8000AJ28MMA7

PD_MMA8

IC8000AP27MMA8

PD_MMA9

IC8000AH29MMA9

PD_MMA10

IC8000AL27MMA10

PD_MMA11

IC8000AN28MMA11

PD_MMA12

IC8000AJ27MMA12

PD_MMA13

IC8000AL30MMA13

TO 3/20

PD_MVDACOY

IC8000E18MVDACOY

PD_MVDACOC

IC8000D17MVDACOC

PD_VVREF

IC8000B17VVREF

PD_MVIREF

IC8000F18MVIREF

PD_VCOMP

IC8000C17VCOMP

PD_SCL0

PD_SDA0

PD_SCL1

PD_SDA1

PD_SCL2

PD_SDA2

PD_SBO0

PD_SBI0

PD_XRTS0

PD_XCTS0

PD_XDSR0

PD_XRI0

PD_TXD1

PD_RXD1

R8857

PD_APWMWLP

PD_APWMWLN

TO 7/20

PD_APWMSLP

PD_APWMSLN

PD_APWMSRP

PD_APWMSRN

PD_IECOUT0

TO 4,11/20

TO 2/20

TO 12/20

TO 6/20
TO 14/20

TO 11/20

TO 5/20

TO 8/20

10k

IC8000A18APWMWLP

IC8000B18APWMWLN

IC8000C18APWMWRP

IC8000F19APWMWRN

IC8000B19APWMSLP

IC8000C19APWMSLN

IC8000E19APWMSRP

IC8000F20APWMSRN

IC8000D20IECOUT0

IC8000A24PWMA

IC8000B24PWMB

IC8000C24PWMC

IC8000E24PWMD

IC8000F24PWMK

IC8000B21SCL0

IC8000C21SDA0

IC8000AD6SCL1

IC8000AD5SDA1

IC8000AC30SCL2

IC8000AC29SDA2

IC8000Y6SBO0

IC8000AA6SBI0

IC8000C23SBO1

IC8000E23SBI1

F23SBT1

IC8000

IC8000F22TXD0

IC8000E22RXD0

IC8000A22XRTS0

IC8000A21XCTS0

IC8000A23XDTR0

IC8000C22XDSR0

IC8000B22XRI0

IC8000B23XDCD0

IC8000E31TXD1

IC8000F31RXD1

H31TXD2

IC8000

IC8000H30RXD2

IC8000W6RMCO

PD_MMDQ[0-31]

PD_MMA[0-13]

SD CARD

HSDATA

AH33MMDM0

TS IN

CH0DATA

LOCK_PEAKS-LDA2A-BOARD TXN/A1LWUUS (17/20)

IC8000AC1SDCLK

IC8000AC2SDCMD

IC8000AD2SDDAT0

IC8000AD1SDDAT1

IC8000AB2SDDAT2

IC8000AB1SDDAT3

IC8000AC6SDCD

IC8000AD4SDWP

IC8000AD3SDVOLC

TO 6/20

IC8000V3HS0CLK

IC8000V2HS0PSYNC

IC8000V1HS0VAL

IC8000V5HS0D0

IC8000U1HS0D1

IC8000U2HS0D2

IC8000U3HS0D3

IC8000U5HS0D4

IC8000U6HS0D5

IC8000T5HS0D6

IC8000T6HS0D7

IC8000T3HSBCLKOUT

IC8000T1HSSYNCOUT

IC8000T2HSVALOUT

IC8000R1HSDOUT0

IC8000R2HSDOUT1

IC8000R3HSDOUT2

IC8000R5HSDOUT3

IC8000R6HSDOUT4

IC8000P4HSDOUT5

IC8000P5HSDOUT6

IC8000P6HSDOUT7

PD_MMBA0

PD_MMBA1

PD_MMBA2

IC8000AA1CH0CLK

IC8000AA5

IC8000AA4CH0VAL

IC8000AA3CH0PSYNC

IC8000Y1CH1CLK

IC8000Y5CH1DATA

IC8000Y4CH1VAL

IC8000Y3CH1PSYNC

IC8000W5IS0CLK

IC8000W3IS0DATA

IC8000W2IS0VAL

IC8000W1IS0PSYNC

PD_MMCK

PD_MMXCK

PD_MMCKE

PD_MMXCS0

PD_MMXCS1

PD_MMXRAS

PD_MMXCAS

PD_MMXWE

PD_MMDM0

PD_MMDM1

PD_MMDM2

PD_MMDM3

PD_MMDQS0

PD_MMXDQS0

PD_MMDQS1

PD_MMXDQS1

PD_MMDQS2

PD_MMXDQS2

PD_MMDQS3

PD_MMXDQS3

PD_MMXRESET

PD_MMVCAL

PD_MMODT

PD_MMRODT

PD_MMVREF0

PD_MMVREF1

R8774

PD_HSDOUT6

PD_HSDOUT7

PD_SDCLK

PD_SDCMD

PD_SDDAT0

PD_SDDAT1

PD_SDDAT2

PD_SDDAT3

PD_SDCD

PD_SDWP

PD_SDVOLC

10k

PD_MMBA[0-2]

TO 1/20
TO 4/20

TO 3/20

TO 9/20

PD_CH0CLK

PD_CH0DATA

PD_CH0VAL

PD_CH0PSYNC

LVDS

EtherPHY

IC8000AN30MMCK

IC8000AP30MMXCK

IC8000AP25MMCKE

IC8000AJ26MMXCS0

IC8000AL26MMXCS1

IC8000AJ25MMXRAS

IC8000AM25MMXCAS

IC8000AP33MMXWE

IC8000

IC8000AJ32MMDM1

IC8000AP19MMDM2

IC8000AN20MMDM3

IC8000AG31MMDQS0

IC8000AG32MMXDQS0

IC8000AK33MMDQS1

IC8000AK34MMXDQS1

IC8000AP21MMDQS2

IC8000AN21MMXDQS2

IC8000AJ21MMDQS3

IC8000AK21MMXDQS3

IC8000AM29MMXRESET

IC8000AD29MMVCAL

IC8000AK25MMODT

IC8000AD31MMRODT

IC8000AF29MMVREF0

IC8000AJ23MMVREF1

IC8000AL28MMBA0

IC8000AN26MMBA1

IC8000AN32MMBA2

TO 15/20

IC8000AL7MII_TXCLK

IC8000AN8MII_TXD0

IC8000AM8MII_TXD1

IC8000AP7MII_TXD2

IC8000AN7MII_TXD3

IC8000AP8MII_TXEN

IC8000AL6MII_RXCLK

IC8000AK10MII_RXD0

IC8000AJ10MII_RXD1

IC8000AK9MII_RXD2

IC8000AJ9MII_RXD3

IC8000AP9MII_RXDV

IC8000AN9MII_RXER

IC8000AP6MII_COL

IC8000AN6MII_CRS

IC8000AK6WUC

IC8000AJ8MDC

IC8000AL8MDIO

IC8000AM9MDIO_INTL

IC8000AM6PHYRSTL

IC8000AJ6WAKEUP

IC8000AK7MII_SBO

IC8000AJ7MII_SBI

IC8000

MN2WS0110E

PEAKS-LDA2

IC8000M17VDD12A

IC8000M19VDD12A

IC8000N17VDD12A

IC8000N18VDD12A

IC8000P17VDD12A

IC8000P18VDD12A

IC8000R12AVDDH

IC8000R13AVDDH

IC8000T12AVDDH

IC8000T15AVDDH

IC8000K5AVDDV

IC8000K6AVDDV

IC8000L5VDDAVAD

IC8000L6VDDAVAD

IC8000M5VDDAVAD

IC8000C10AVDDSIF

IC8000E8AVDDPLLA

IC8000E6AVDD75D

IC8000M15AVDDADA3

IC8000D14AVDDHP

IC8000E14AVDDHP

IC8000M18VDD12A

IC8000N19VDD12A

IC8000P19VDD12A

IC8000R14AVDDH

IC8000R15AVDDH

IC8000T13AVDDH

IC8000T14AVDDH

IC8000H5AVDDV

IC8000J5AVDDV

IC8000M6VDDAVAD

IC8000N5VDDAVAD

IC8000N6VDDAVAD

IC8000E7AVDDPLLV

IC8000D11AVDDA

IC8000E11AVDDA

IC8000F12AVDDA

IC8000M14AVDDADA1

IC8000M13AVDDADA2

IC8000C14AVDDHP

TO 18/20

PD_VDDUSB

PD_VDDAUSB

PD_VDDPUSB

PD_LVVDD12

PD_LVVDD33

IC8000F4FBL1

IC8000B9SIFINN

IC8000A9SIFINP

IC8000C9VREFHSIF

IC8000D9VREFLSIF

IC8000G5ADCT0

IC8000F5ADCT1

IC8000E5ADCT2

IC8000D8T_L0N

IC8000C8T_L0P

IC8000F9T_L1N

IC8000E9T_L1P

IC8000C16TESTIO

IC8000A8BIAS

IC8000B8BIAS2

IC8000D4VREFH0

IC8000D5VREFH1

IC8000D6VREFH2

IC8000D7VREFH3

IC8000C4VREFL0

IC8000C5VREFL1

IC8000C6VREFL2

IC8000C7VREFL3

IC8000A13LO1_R

IC8000B13LO1_L

IC8000C13LO2_R

IC8000D13LO2_L

PA_VDD12A

PA_AVDDH

PA_AVDDV

PA_VDDAVAD

PA_AVDDSIF

PA_AVDDPLLA

PA_AVDD75D_PLLV

PA_AVDDA

PA_AVDDADA

PA_AVDDHP

TO 18/20

Dchip Power

IC8000AB33PCAD0

IC8000AB34PCAD1

IC8000AA32PCAD2

IC8000AA33PCAD3

IC8000AA34PCAD4

IC8000Y32PCAD5

IC8000Y33

PCAD6

IC8000Y34PCAD7

IC8000W32PCAD8

IC8000W33PCAD9

IC8000W34PCAD10

IC8000V32PCAD11

IC8000V33PCAD12

IC8000V34PCAD13

IC8000U32PCAD14

IC8000U33PCAD15

IC8000U34PCAD16

IC8000T32PCAD17

IC8000T33PCAD18

IC8000T34PCAD19

IC8000R32PCAD20

IC8000R33PCAD21

IC8000R34PCAD22

IC8000P32PCAD23

IC8000P33PCAD24

IC8000P34PCAD25

IC8000L30PCAD26

IC8000L31PCAD27

IC8000K30PCAD28

IC8000K31PCAD29

IC8000J30PCAD30

IC8000J31PCAD31

IC8000AB29PCCLKO0

IC8000AB30PCCLKO1

IC8000M29PCDEVSEL

IC8000V29PCIDSELA

IC8000V30PCIDSELB

IC8000AB32PCRST

IC8000M30PCPAR

IC8000N29PCXIRDY

IC8000N30PCXTRDY

IC8000P29PCXFRAME

IC8000P30PCXSTOP

IC8000T29PCCXBE0

IC8000T30PCCXBE1

IC8000R29PCCXBE2

IC8000R30PCCXBE3

IC8000U29PCXPERR

IC8000U30PCXSERR

IC8000AA29PCIRQ0

IC8000AA30PCIRQ1

IC8000W29PCBRQ0

IC8000W30PCBRQ1

IC8000Y29PCBGT0

IC8000Y30PCBGT1

PD_MII_TXCLK

PD_MII_TXD0

PD_MII_TXD1

PD_MII_TXD2

PD_MII_TXD3

PD_MII_TXEN

PD_MII_RXCLK

PD_MII_RXD0

PD_MII_RXD1

PD_MII_RXD2

PD_MII_RXD3

PD_MII_RXDV

PD_MII_RXER

PD_MII_COL

PD_MII_CRS

PD_WUC

PD_MDC

PD_MDIO

PD_MDIO_INTL

PD_PHYRSTL

PD_WAKEUP

PD_MII_SBO

TO 2/20

TO 3/20

TO 3/20

TO 2/20

TO 15/20

RCLK_E+

RCLK_E-

RA_E+

RA_E-

RB_E+

RB_E-

RC_E+

RC_E-

RD_E+

RD_E-

RE_E+

RE_E-

RCLK_O+

RCLK_O-

RA_O+

RA_O-

RB_O+

RB_O-

RC_O+

RC_O-

RD_O+

RD_O-

RE_O+

RE_O-

LOSD

USB

TO 2/20

PD_LOSDO0

IC8000E29LOSDO0

IC8000D29LOSDO1

PD_LOSDO2

IC8000C29LOSDO2

IC8000B29LOSDO3

IC8000A29LOSDO4

IC8000F28LOSDO5

IC8000E28LOSDO6

IC8000C28LOSDO7

IC8000B28LOSDO8

IC8000A28LOSDO9

TP8101

IC8000F27LOSDO10

IC8000E27LOSDO11

IC8000C27LOSDO12

IC8000B27LOSDO13

IC8000A27LOSDO14

IC8000F26LOSDO15

R3970

IC8000A25LOSDOYS

S

IC8000B25LOSDOYM

IC8000A26LOSDIHS

IC8000B26LOSDIVS

IC8000C26LOSDOHS

IC8000C25LOSDOVS

IC8000E26LOSDOCLK

IC8000E25LOSDICLK

PD_VOUTENB

IC8000F25VOUTENB

IC8000AN14USB0DP

IC8000AP14USB0DN

IC8000AN12USB0VBUS

IC8000AP12USB0OC

IC8000AM14USB0RREF

IC8000AC16USB0ATEST

IC8000AN13USB1DP

IC8000AP13USB1DN

IC8000AJ12USB1VBUS

IC8000AK12USB1OC

IC8000AP11USB1RREF

IC8000AB16USB1ATEST

IC8000AN10USBXO

IC8000AP10USBXI

IC8000E34TCLK1P

IC8000E33TCLK1N

IC8000B34TA1P

IC8000B33TA1N

IC8000C34TB1P

IC8000C33TB1N

IC8000D34TC1P

IC8000D33TC1N

IC8000F34TD1P

IC8000F33TD1N

IC8000G34TE1P

IC8000G33TE1N

IC8000L34TCLK2P

IC8000L33TCLK2N

IC8000H34TA2P

IC8000H33TA2N

IC8000J34TB2P

IC8000J33TB2N

IC8000K34TC2P

IC8000K33TC2N

IC8000M34TD2P

IC8000M33TD2N

IC8000N34TE2P

IC8000N33TE2N

IC8000D31TSTAIO

IC8000A30VDD33

IC8000B30VDD33

IC8000C30VDD33

IC8000D21VDD33

IC8000D22VDD33

IC8000D30VDD33

IC8000E30VDD33

IC8000F29VDD33

IC8000M22VDD33

IC8000M23VDD33

IC8000N23VDD33

IC8000R31VDD33

IC8000T31VDD33

IC8000V4VDD33

IC8000W4VDD33

IC8000W12VDD33

IC8000W13VDD33

IC8000W14VDD33

IC8000W31VDD33

IC8000Y12VDD33

IC8000Y13VDD33

IC8000Y31VDD33

IC8000AB4VDD33

IC8000AE4VDD33

IC8000AK8VDD33

IC8000AL9VDD33

IC8000R17VDD12

IC8000R18VDD12

IC8000R19VDD12

IC8000T17VDD12

IC8000T18VDD12

IC8000T19VDD12

IC8000U17VDD12

IC8000U18VDD12

IC8000U19VDD12

IC8000V17VDD12

IC8000V18VDD12

IC8000V19VDD12

IC8000W17VDD12

IC8000W18VDD12

IC8000W19VDD12

IC8000W20VDD12

IC8000Y18VDD12

IC8000Y19VDD12

IC8000Y20VDD12

IC8000Y21VDD12

IC8000AA19VDD12

IC8000AA20VDD12

IC8000AA21VDD12

IC8000AB18VDD12

IC8000AB19VDD12

IC8000AB20VDD12

IC8000AB21VDD12

IC8000AC18VDD12

IC8000AC19VDD12

IC8000AJ15VDD12

IC8000AJ16VDD12

IC8000AK15VDD12

IC8000AK16VDD12

IC8000AL15VDD12

IC8000AL16VDD12

IC8000AM15VDD12

IC8000AM16VDD12

IC8000AN15VDD12

IC8000AN16VDD12

IC8000AP15VDD12

IC8000AP16VDD12

PD_LOSDO10

PD_USB0DP

PD_USB0DN

PD_USB0VBUS

PD_USB0OC

PD_USB0RREF

PD_USB1DP

PD_USB1DN

PD_USB1VBUS

PD_USB1OC

PD_USB1RREF

PD_USBXI

TO 15/20

TO 5/20

TO 15/20

TO 8/20

PD_VDD33

TO 18/20

PD_VDD12

TO 18/20

Dchip Achip

DAAVDD1 IC8000AA17VSS

VDDR

HDMI IN

TESTIOH

PD_AVDDPWM

IC8000E20AVDDPWM

IC8000AF4VDDEX

IC8000AG4VDDEX

IC8000D25VDDEX

IC8000D26VDDEX

IC8000AC5VDDSD

IC8000P23AVDDPLL0

IC8000R23AVDDPLL3

IC8000U22DPAVDD

IC8000AB15AVDDPLL12

IC8000AB14AVDDPLL12

IC8000E17

IC8000Y23VDDA

IC8000AA23VDDA

IC8000AB23VDDA

IC8000AC20VDDR

IC8000AC21VDDR

IC8000AC22

IC8000AJ17VDDR

IC8000AK17VDDR

IC8000AL17VDDR

IC8000AM17VDDR

IC8000AN17VDDR

IC8000AP17VDDR

IC8000AD30VDDIO

IC8000AE29VDDIO

IC8000AF32VDDIO

IC8000AG30VDDIO

IC8000AH31VDDIO

IC8000AJ22VDDIO

IC8000AJ24VDDIO

IC8000AJ29VDDIO

IC8000AJ33VDDIO

IC8000AJ34VDDIO

IC8000AK20VDDIO

IC8000AK23VDDIO

IC8000AK28VDDIO

IC8000AK32VDDIO

IC8000AL19VDDIO

IC8000AL31VDDIO

IC8000AM18VDDIO

IC8000AM21VDDIO

IC8000AM23VDDIO

IC8000AM26VDDIO

IC8000AM30VDDIO

IC8000AN25VDDIO

IC8000AN29VDDIO

IC8000AN33VDDIO

IC8000AP20VDDIO

IC8000AP24VDDIO

IC8000AP29VDDIO

IC8000AD34VDDIOCK

IC8000AL29VDDIO

DDR1.5V

PD_VDD33

PD_VDDSD

PD_AVDDPLL0_3

PD_AVDDPLL1_2

PD_DAAVDD1

PD_VDDA

PD_VDDR

PD_VDDIOCK

TO 18/20

TO 18/20

TO 3,18/20

TO 18/20

TO 18/20

TO 5/20

IC8000B1RXCP0

IC8000B2RXCM0

IC8000C1RX0P0

IC8000C2RX0M0

IC8000D1RX0P1

IC8000D2RX0M1

IC8000E1RX0P2

IC8000E2RX0M2

IC8000F1RXCP1

IC8000F2RXCM1

IC8000G1RX1P0

IC8000G2RX1M0

IC8000H1RX1P1

IC8000H2RX1M1

IC8000J1RX1P2

IC8000J2RX1M2

RXCP2

IC8000K1

IC8000K2RXCM2

IC8000L1RX2P0

IC8000L2RX2M0

IC8000M1RX2P1

IC8000M2RX2M1

IC8000N1RX2P2

IC8000N2RX2M2

IC8000H4DDCSCL0

IC8000L4DDCSDA0

IC8000J4DDCSCL1

IC8000M4DDCSDA1

IC8000K4DDCSCL2

IC8000N4DDCSDA2

IC8000V14

PA_RXCP0

PA_RXCM0

PA_RX0P0

PA_RX0M0

PA_RX0P1

PA_RX0M1

PA_RX0P2

PA_RX0M2

PA_RXCP1

PA_RXCM1

PA_RX1P0

PA_RX1M0

PA_RX1P1

PA_RX1M1

PA_RX1P2

PA_RX1M2

PA_RXCP2

PA_RXCM2

PA_RX2P0

PA_RX2M0

PA_RX2P1

PA_RX2M1

PA_RX2P2

PA_RX2M2

PA_DDCSCL0

PA_DDCSDA0

PA_DDCSCL1

PA_DDCSDA1

PA_DDCSCL2

PA_DDCSDA2

Achip Power

IC8000AJ14VDDUSB

IC8000AK13VDDAUSB0

IC8000AL13VDDAUSB1

IC8000AL14VDDPUSB0

IC8000AL12VDDPUSB1

IC8000U23LVVDD12

IC8000G29LVVDD33

IC8000H29LVVDD33

IC8000J29LVVDD33

IC8000K29LVVDD33

IC8000L29LVVDD33

AV IO

Achip/Dchip GND

System(Achip)

PA_SIFINN

PA_SIFINP

PA_VREFHSIF

PA_VREFLSIF

PA_AVDDV

TO 18/20

PA_BIAS

PA_BIAS2

PA_VREFH0

PA_VREFH1

PA_VREFH2

PA_VREFH3

PA_VREFL0

PA_VREFL1

PA_VREFL2

PA_VREFL3

PA_LO1_R

PA_LO1_L

TO 11/20

PA_LO2_R

PA_LO2_L

TO 6/20

TO 3/20

PA_B1

PA_B1N

PA_G1

PA_G1N

PA_R1

PA_R1N

PA_HIN

PA_VIN

PA_VREF1V5

PA_VREG

PA_LIN1_LP

PA_LIN1_RP

PA_HP_MUTE

Dchip

Achip

TO 5/20

IC8000D19AVSSPWM

IC8000P22AVSSPLL0

IC8000AC15AVSSPLL12

IC8000AC14AVSSPLL12

IC8000R22AVSSPLL3

IC8000A17DAAVSS1

IC8000AK14VSSAPUSB

IC8000AM13VSSAPUSB

IC8000A34LVVSS

IC8000C32LVVSS

IC8000D32LVVSS

IC8000E32LVVSS

IC8000F32LVVSS

IC8000G30LVVSS

IC8000G31LVVSS

IC8000G32LVVSS

IC8000H32LVVSS

IC8000J32LVVSS

IC8000K32LVVSS

IC8000L32LVVSS

IC8000M32LVVSS

IC8000N32LVVSS

IC8000F6AVSSV

IC8000F7AVSSV

IC8000G6AVSSV

IC8000G7AVSSV

IC8000H6AVSSV

IC8000J6AVSSV

IC8000M12AVSSV

IC8000N12AVSSV

IC8000P12AVSSV

IC8000P13AVSSV

IC8000P14AVSSV

IC8000P15AVSSV

IC8000D10AVSSSIF

IC8000F8AVSSPLLA

IC8000E13AVSSA

IC8000F13AVSSA

IC8000F14AVSSA

IC8000N14AVSSADA1

IC8000N13AVSSADA2

IC8000N15AVSSADA3

IC8000D15AVSSHP

IC8000E15AVSSHP

IC8000F15AVSSHP

TO 3/20

TO 5/20

TO 10/20

PA_AXI

PA_AXO

PA_NRST

IC8000A5B1

IC8000B5B1N

IC8000A4G1

IC8000B4G1N

IC8000A6R1

IC8000B6R1N

IC8000A7V1

IC8000B7V1N

IC8000P2HIN

IC8000P1VIN

IC8000F11VREF1V5

IC8000F10VREG

IC8000A15LIN1_LP

IC8000B15LIN1_N

IC8000C15LIN1_RP

IC8000E16TEST_A1

IC8000D16TEST_A2

IC8000B14HP1_L1

IC8000A14HP1_R1

IC8000E10HP_MUTE

IC8000D12ZEROMUTE0

IC8000E12ZEROMUTE1

IC8000C12ZEROMUTE2

IC8000A3VCMOBGR

TO 3/20

TO 2/20

IC8000V23VSS

IC8000V31VSS

IC8000W15VSS

IC8000W16VSS

IC8000W21VSS

IC8000W22VSS

IC8000W23VSS

IC8000Y2VSS

IC8000Y15VSS

IC8000Y16VSS

IC8000Y17VSS

IC8000Y22VSS

IC8000AA2VSS

IC8000AA12VSS

IC8000AA13VSS

IC8000AA14VSS

IC8000AA15VSS

IC8000AA16VSS

IC8000AA22VSS

IC8000AA31VSS

IC8000AB12VSS

IC8000AB22VSS

IC8000AB31VSS

IC8000AC4VSS

IC8000AC13VSS

IC8000AC17VSS

IC8000AC23VSS

IC8000AC31VSS

IC8000AD33VSS

IC8000AE32VSS

IC8000AF30VSS

IC8000AF34VSS

IC8000AG29VSS

IC8000AG33VSS

IC8000AH32VSS

IC8000AJ19VSS

IC8000AK18VSS

IC8000AK22VSS

IC8000AK26VSS

IC8000AK30VSS

IC8000AL4VSS

IC8000AL21VSS

IC8000AL25VSS

IC8000AL33VSS

IC8000AL34VSS

IC8000AM7VSS

IC8000AM20VSS

IC8000AM24VSS

IC8000AM27VSS

IC8000AM28VSS

IC8000AM32VSS

IC8000AN11VSS

IC8000AN19VSS

IC8000AN22VSS

IC8000AN31VSS

IC8000AP1VSS

IC8000AP22VSS

IC8000AP31VSS

IC8000AP34VSS

IC8000A2VSS

IC8000A10VSS

IC8000A12VSS

IC8000A16VSS

IC8000B3VSS

IC8000B10VSS

IC8000B12VSS

IC8000B16VSS

IC8000C3VSS

IC8000C11VSS

IC8000D3VSS

IC8000D18VSS

IC8000D23VSS

IC8000D24VSS

IC8000D27VSS

IC8000D28VSS

IC8000E3VSS

IC8000F3VSS

IC8000F16VSS

IC8000F17VSS

IC8000G3VSS

IC8000H3VSS

IC8000J3VSS

IC8000K3VSS

IC8000L3VSS

IC8000M3VSS

IC8000M16VSS

IC8000M20VSS

IC8000M21VSS

IC8000M31VSS

IC8000N3VSS

IC8000N16VSS

IC8000N20VSS

IC8000N21VSS

IC8000N31VSS

IC8000P16VSS

IC8000P20VSS

IC8000P21VSS

IC8000P31VSS

IC8000R16VSS

IC8000R20VSS

IC8000R21VSS

IC8000T4VSS

IC8000T16VSS

IC8000T20VSS

IC8000T21VSS

IC8000T23VSS

IC8000U4VSS

IC8000U12VSS

IC8000U13VSS

IC8000U14VSS

IC8000U15VSS

IC8000U16VSS

IC8000U20VSS

IC8000U21VSS

IC8000U31VSS

IC8000V15VSS

IC8000V16VSS

IC8000V20VSS

IC8000V21VSS

IC8000B11AXI

IC8000A11AXO

IC8000AA18I2CSEL

IC8000V12SCL

IC8000V13SDA

IC8000E4TMODE0

IC8000G4TMODE1

IC8000P3NRST

147 153150 152146 148 151145 149

63

12.22. A-Board (18/20) Schematic Diagram

!

A-BOARD TXN/A1LWUUS (18/20)

PEAKS-LDA2 Dchip

SUB3.3V

L8003

J0JHC0000045

C8010

C8001

16V

10V

0.1u

10u

SUB1.2V_D

L8004

J0JKC0000021

+

C8002

4V
68u

SUB1.5V

DDR1.5V

L8005

J0JKC0000021

SUB3.3V

C8009

10V
10u

L8000

J0JCC0000287

L8001

J0JCC0000287

C8017

C8015

10V
10u

C8000

10V

10u

LOCK_LDA2-POWER

R8031

4.7k

L8015

AVDDH

L8018

J0JHC0000045

L8019

J0JHC0000045

L8021

J0JCC0000287

L8023

J0JHC0000045

ACHIP3.3V

C8108

10V
10u

C8099

10V
10u

C8124

C8110

L8017

J0JHC0000045

J0JCC0000287

L8022

J0JHC0000045

TO 17/20

16V

0.1u

16V

0.1u

C8104

10V
10u

C8105

10V
10u

C8107

6.3V

4.7u

C8103

10V
10u

L8020

R8000

330

PA_VDD12A

C8133

C8134

C8132

C8128

16V

16V

16V

16V

0.1u

0.1u

0.1u

0.1u

PA_VDDAVAD

C8129

C8120

16V

16V

0.1u

0.1u

PA_AVDDH

C8119

C8127

C8109

C8100

10V
10u

C8131

C8114

16V

0.1u

C8115

16V

0.1u

C8117

C8126

16V

0.1u

C8123

C8113

16V

0.1u

C8106

C8101

C8102

C8130

16V

16V

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

6.3V

4.7u

10V
10u

10V
10u

16V

0.1u

0.1u

0.1u

PA_AVDDV

PA_AVDDSIF

PA_AVDD75D_PLLV

PA_AVDDHP

PA_AVDDPLLA

C8116

16V

0.1u

C8111

C8121

16V

16V

0.1u

0.1u

C8112

C8122

16V

16V

0.1u

0.1u

PA_AVDDA

PA_AVDDADA

PEAKS-LDA2 Achip

SUB1.2V_A

SUB3.3V

J0JHC0000116

L8016

J0JHC0000116

PD_VDD33

TO 17/20

C8016

C8020

16V

0.1u

C8008

C8006

10V
10u

C8024
10V
10u

C8003

10V
10u

C8004

16V

0.1u

C8028

16V

16V

16V

0.1u

10V
10u

16V

0.1u

16V

0.1u

0.1u

0.1u

C8023

C8029

C8021

16V

16V

16V

0.1u

0.1u

0.1u

C8033

C8027

C8030

16V

10V

16V

0.1u

1u

0.1u

PD_AVDDPWM

C8011

16V

0.1u

PD_AVDDPLL0_3

C8018

C8012

16V

16V

0.1u

0.1u

C8025

C8022

C8037

C8034

C8031

16V

16V

0.1u

0.1u

0.1u

C8038

C8044

C8035

16V

16V

0.1u

0.1u

C8042

C8036

C8039

10V

16V

1u

0.1u

TO 17/20

C8046

C8043

C8040

16V

16V

0.1u

0.1u

C8050

C8053

16V

16V

0.1u

0.1u

C8048

C8045

16V

10V

0.1u

1u

C8052

16V

0.1u

16V

0.1u

10V

1u

J0JCC0000287

J0JHC0000045

C8062

C8055

C8066

16V

16V

16V

0.1u

C8067

16V

0.1u

C8057

10V

1u

L8006

L8009

16V

0.1u

0.1u

0.1u

PD_VDD12

C8079

C8072

C8077

16V

16V

16V

0.1u

0.1u

0.1u

L8024

J0JCC0000287

C8068

C8073

C8064

16V

16V

0.1u

C8058

C8061

10V

0.1u

1u

C8069

6.3V

16V

4.7u

0.1u

C8074

C8065

C8078

16V

16V

10V
10u

16V

0.1u

0.1u

0.1u

PD_VDDIOCK

PD_DAAVDD1

PD_LVVDD33

TO 17/20

TO 3,17/20

TO 17/20

VDDSD

J0JCC0000287

SUB1.2V_A

J0JHC0000116

J0JCC0000287

J0JCC0000287

C8049

16V

16V

0.1u

C8056

C8063

16V

16V

0.1u

0.1u

C8051

C8054

16V

10V

0.1u

1u

SUB3.3V

L8002

J0JCC0000287

C8013

C8005

16V

10V

0.1u

10u

L8007

J0JHC0000045

C8070

C8059

16V

6.3V

0.1u

4.7u

L8008

J0JCC0000287

C8071

C8060

16V

6.3V

0.1u

4.7u

L8010

C8090

C8085

16V

10V

0.1u

10u

L8011

C8091

C8082

C8087

10V

10u

0.1u

L8014

J0JCC0000287

L8012

C8083

C8088

6.3V

4.7u

L8013

C8084

C8089
10V
10u

C8094

C8092

16V

16V

16V

0.1u

16V

0.1u

16V

16V

0.1u

0.1u

0.1u

PD_AVDDPLL1_2

C8019

16V

0.1u

PD_VDDAUSB

C8075

16V

0.1u

PD_VDDPUSB

C8076

16V

0.1u

PD_VDDSD

TO 17/20

PD_VDDR

C8096

16V

0.1u

PD_VDDA

PD_VDDUSB

PD_LVVDD12

64

161156 159 160157 162155154 158

12.23. A-Board (19/20) Schematic Diagram

!

A-BOARD TXN/A1LWUUS (19/20)

LOCK_LDA2-DCDC

DCDCEN

TO 9/20

IC5500

C0DBAYY00715

DC-DC CONVERTER

15V->1.2V_A,15V->1.2V_D

1

DRVH1

2

VBST1

3

EN1

R5508

R5500

820

0

R5504

1.24k

R5501

0

R5505

R5509

1.24k
820

4

VO1

R5529

0

5

VFB1

6

GND

C5500

7

25V

6800p

SS1

8

VFB2

R5530

9

VO2

0

10

EN2

11

VBST2

12

DRVH2

R5512

C5508

10

0.1u16V

R5516

24

0

SW1

23

DRVL1

22

R5517

PGND1

10k

21

TRIP1

20

VIN

C5502

4.7u

10V

19

VREG5

C5503

1u16V

18

V5FILT

C5504

17

6800p25V

SS2

16

TRIP2

R5522

15

20k

PGND2

14

DRVL2

13

SW2

R5518

0

R5513

C5509

10

16V

0.1u

Q5501

B1CFRD000048

Q5504

B1CFRD000048

Q5500

B1MBDDA00003

S1G1S2G2

D5505

B0JCPD000026

C5516

25V
10u

D2 D2 D1 D1

C5522

25V
10u

G1C100MA0077

C5520

25V
10u

L5502

G1C2R2Z00007

L5500

G1C2R2M00022

C5526

25V
10u

DCDCIN

L5504

SUB1.2V_A

TP5500

C5532

C5528

C5536

6.3V

6.3V

6.3V

22u

22u

22u

C5529

C5537

C5533

6.3V

6.3V

6.3V

22u

22u

22u

SUB1.2V_D

TP5501

IC5501

C0DBAYY00715

DC-DC CONVERTER
15V->3.3V,15V->1.5V

1

DRVH1

2

VBST1

3

EN1

R5510

R5502

2k

0

R5506

2.1k

R5503

0

R5507

R5511

1.1k

3.6k

4

VO1

R5531

0

5

VFB1

6

GND

C5501

0.15u10V

7

SS1

8

VFB2

R5532

9

0

VO2

10

EN2

11

VBST2

12

DRVH2

R5514

C5510

10

0.1u16V

R5519

0

24

SW1

23

DRVL1

22

R5520

PGND1

15k

21

TRIP1

20

VIN

C5505

4.7u

10V

19

VREG5

C5506

18

1u16V

V5FILT

C5507

17

0.039u10V

SS2

16

TRIP2

R5523

15

24k

PGND2

14

DRVL2

13

SW2

R5521

0

R5515

C5511

10

16V

0.1u

Q5502

B1MBDDA00003

S1G1S2G2

Q5503

B1MBEDA00015

S1G1S2G2

C5517

25V

10u

D2 D2 D1 D1

C5519

25V

D2 D2 D1 D1

10u

G1C100MA0077

C5521

25V
10u

L5503

G1C3R3Z00004

L5501

G1C3R3Z00005

C5523

25V
10u

DCDCIN

L5505

SUB1.5V

TP5502

C5538

C5530

C5534

6.3V

6.3V

6.3V
22u

22u

22u

C5531

C5535

C5539

6.3V

6.3V

6.3V

22u

22u

22u

SUB3.3V

TP5503

65

169 171170167165164 168163 166

12.24. A-Board (20/20) Schematic Diagram

A-BOARD TXN/A1LWUUS (20/20) LOCK_DDR3

!

PEAKS-LDA2

PD_MMDQ[0-15]

PD_MMDQS1

PD_MMXDQS1

PD_MMDQS0

PD_MMXDQS0

PD_MMDM1

PD_MMDM0

PD_MMA[0-13]

PD_MMVCAL

PD_MMVREF0

PD_MMVREF1

PD_MMRODT

PD_MMBA0

PD_MMBA1

PD_MMBA2

PD_MMCK

PD_MMXCK

PD_MMXCS0

PD_MMXCS1

PD_MMXRAS

PD_MMXCAS

PD_MMXWE

PD_MMCKE

PD_MMODT

PD_MMXRESET

PD_MMDQ[16-31]

PD_MMDQS2

PD_MMXDQS2

PD_MMDQS3

PD_MMXDQS3

PD_MMDM2

PD_MMDM3

TO 17/20

PD_MMA0

PD_MMA1

PD_MMA2

PD_MMA3

PD_MMA4

PD_MMA5

PD_MMA6

PD_MMA7

PD_MMA8

PD_MMA9

PD_MMA10

PD_MMA11

PD_MMA12

PD_MMA13

C8240

16V

0.1u

C8241

16V

0.1u

C8242

16V

0.1u

R8240

240

R8241

R8242

R8243

R8244

R8245

R8246

R8247

R8248

R8249

R8250

R8251

R8252

R8256

0

R8257

0

R8258

0

R8259

0

R8260

0

R8261

0

R8262

0

R8263

0

R8264

0

R8265

0

R8266

0

R8267

0

R8268

0

R8269

0

R82531kR8270

R8254

1k

R8255

1k

0

0

0

0

0

33

33

0

0

0

0

0

R8289

10k

DDR1.5V

+

IC8240

IC8240=A8 VDDQ

IC8240=C1 VDDQ

IC8240=C9 VDDQ

IC8240=D2 VDDQ

IC8240=E9 VDDQ

IC8240=F1 VDDQ

IC8240=H2 VDDQ

IC8240=H9 VDDQ

IC8240=B2 VDD

IC8240=D9 VDD

IC8240=G7 VDD

IC8240=K2 VDD

IC8240=K8 VDD

IC8240=N1 VDD

IC8240=N9 VDD
=
IC8240

IC8240=R9 VDD

A5

A11

IC8241 A1

IC8241=A8 VDDQ

IC8241=C1 VDDQ

IC8241=C9 VDDQ

IC8241=D2 VDDQ

IC8241=E9 VDDQ

IC8241=F1 VDDQ

IC8241=H2 VDDQ

IC8241=H9 VDDQ

IC8241=B2 VDD

IC8241=D9 VDD

IC8241=G7 VDD

IC8241=K2 VDD

IC8241=K8 VDD

IC8241=N1 VDD

IC8241=N9 VDD

IC8241=R1 VDD

IC8241=R9

IC8240

C3ABTY000025

1Gbit DDR3

A1 VDDQ

VDD

R1

IC8241

C3ABTY000025

1Gbit DDR3

VDDQ

VDD

IC8240=A9 VSS

IC8240=B3 VSS

IC8240=E1 VSS

IC8240=G8 VSS

IC8240=J2 VSS

IC8240=J8

IC8240=T9 VSS

IC8240=M1 VSS

IC8240=M9 VSS

IC8240=P1 VSS

IC8240=P9 VSS

IC8240=T1 VSS

IC8240=B1 VSSQ

IC8240=B9 VSSQ

IC8240=D1 VSSQ

IC8240=D8 VSSQ

IC8240=E2 VSSQ

IC8240=E8 VSSQ

IC8240=F9 VSSQ

IC8240=G1 VSSQ

IC8240=G9 VSSQ

IC8240=J1 NC

IC8240=J9 NC

IC8240=L9 NC

IC8240=M7 NC

IC8240=T7 NC

IC8241=J1 NC

IC8241=J9 NC

IC8241=L1 NC

IC8241=L9 NC

IC8241=M7 NC

IC8241=T7 NC

IC8241=A9 VSS

IC8241=B3 VSS

IC8241=E1 VSS

IC8241=G8

IC8241=J2 VSS

IC8241=J8 VSS

IC8241=T9 VSS

IC8241=M1 VSS

IC8241=M9 VSS

IC8241=P1 VSS

IC8241=P9 VSS

IC8241=T1 VSS

IC8241=B1 VSSQ

IC8241=B9 VSSQ

IC8241=D1 VSSQ

IC8241=D8 VSSQ

IC8241=E2 VSSQ

IC8241=E8 VSSQ

IC8241=F9 VSSQ

IC8241=G1 VSSQ

IC8241=G9

VSS

VSS

VSSQ

PD_MMDQ8

PD_MMDQ9

PD_MMDQ10

PD_MMDQ11

PD_MMDQ12

PD_MMDQ13

PD_MMDQ14

PD_MMDQ15

PD_MMDQ0

PD_MMDQ1

PD_MMDQ2

PD_MMDQ3

PD_MMDQ4

PD_MMDQ5

PD_MMDQ6

PD_MMDQ7

AD_MMCK

AD_MMXCK

AD_MMCK

AD_MMXCK

AD_MMCKE

AD_MMXCS0

AD_MMXRAS

AD_MMXCAS

AD_MMXWE

AD_MMBA0

AD_MMBA1

AD_MMBA2

AD_MMODT

PD_MMXRESET

DDR1.5V

AD_MMCK

AD_MMXCK

AD_MMCKE

AD_MMXCS1

AD_MMXRAS

AD_MMXCAS

AD_MMXWE

AD_MMBA0

AD_MMBA1

AD_MMBA2

AD_MMODT

PD_MMXRESET

R8277

1k

R8278

1k

R8279

1k

R8280

1k

AD_MMA0

AD_MMA1

AD_MMA2

AD_MMA3

AD_MMA4

AD_MMA5

AD_MMA6

AD_MMA7

AD_MMA8

AD_MMA9

AD_MMA10

AD_MMA11

AD_MMA12

AD_MMA13

DDR1.5V

1k

R8271

1k

R8272

1k

AD_MMBA0

AD_MMBA1

AD_MMBA2

C8243

50V

3p

MMCK

MMXCK

AD_MMXCS0

AD_MMXCS1

AD_MMXRAS

AD_MMXCAS

AD_MMXWE

AD_MMCKE

AD_MMODT

PD_MMXRESET

R8274

0

R8275

0

DDR1.5V

C8246

10V

1u

R8286 220

R8281

1k

R8282

1k

R8283

1k

R8284

1k

R8285

PD_MMDQ16

PD_MMDQ17

PD_MMDQ18

PD_MMDQ19

PD_MMDQ20

PD_MMDQ21

PD_MMDQ22

PD_MMDQ23

PD_MMDQ24

PD_MMDQ25

PD_MMDQ26

PD_MMDQ27

PD_MMDQ28

PD_MMDQ29

PD_MMDQ31

PD_MMDQ30

IC8240=E3 DQL0

IC8240=F7 DQL1

IC8240=F2 DQL2

IC8240=F8 DQL3

IC8240=H3 DQL4

IC8240=H8 DQL5

IC8240=G2 DQL6

IC8240=H7 DQL7

IC8240=D7 DQU0

IC8240=C3 DQU1

IC8240=C8 DQU2

IC8240=C2 DQU3

IC8240=A7 DQU4

IC8240=A2 DQU5

DQU6

IC8240=B8

IC8240=A3 DQU7

IC8240=F3 DQSL

IC8240=G3 /DQSL

IC8240=C7 DQSU

IC8240=B7 /DQSU

IC8240=E7 DML

IC8240=D3 DMU

IC8240=J7 CK

IC8240=K7 /CK

IC8240=K9 CKE

IC8240=L2 /CS

IC8240=J3 /RAS
=
IC8240

/CAS

K3

IC8240=L3 /WE

IC8240=M2 BA0

IC8240=N8 BA1

IC8240=M3 BA2

IC8240=K1 ODT

1%

R8288

240

C8247

0.1u
16V

C8248

0.1u
16V

C8249

16V

0.1u

C8250

16V

0.1u

R8287

240

220

/RESET

IC8240=T2

IC8240=L8 ZQ

IC8240=M8 VREFCA

IC8240=H1 VREFDQ

IC8241=M8 VREFCA

IC8241=H1 VREFDQ

IC8241=L8 ZQ

CK

IC8241=J7

IC8241=K7 /CK

IC8241=K9 CKE

IC8241=L2 /CS

IC8241=J3 /RAS

IC8241=K3 /CAS

IC8241=L3 /WE

IC8241=M2 BA0

IC8241=N8 BA1

IC8241=M3 BA2

IC8241=K1 ODT

IC8241=T2 /RESET

IC8241=E3 DQL0

IC8241=F7 DQL1

IC8241=F2 DQL2

IC8241=F8 DQL3

IC8241=H3 DQL4

IC8241=H8 DQL5

IC8241=G2 DQL6

IC8241=H7 DQL7

IC8241=D7 DQU0

IC8241=C3 DQU1

IC8241=C8 DQU2

IC8241=C2 DQU3

IC8241=A7 DQU4

IC8241=A2 DQU5

IC8241=B8 DQU6

IC8241=A3 DQU7

IC8241=F3 DQSL

IC8241=G3 /DQSL

IC8241=C7 DQSU

IC8241=B7 /DQSU

IC8241=E7 DML

IC8241=D3 DMU

C8271

68u

4V

C8272

10u10V

10V

1u

C8273

16V

0.1u

C8274

10V

1u

C8275

16V

0.1u

C8276

16V

0.1u

C8277

10V

1u

C8278

16V

0.1u

C8279

16V

0.1u

C8280

10V

1u

C8281

16V

0.1u

C8282

10V

1u

C8283

10V

1u

C8284

10V

1u

C8285

10V

1u

C8286

16V

0.1u

C8289

16V

0.1u

C8290

AD_MMA0

IC8240=N3 A0

AD_MMA1

IC8240=P7 A1

AD_MMA2

IC8240=P3 A2

AD_MMA3

IC8240=N2 A3

AD_MMA4

IC8240=P8 A4 IC8240=L1 NC

AD_MMA5

IC8240=P2 A5

AD_MMA6

IC8240=R8 A6

AD_MMA7

IC8240=R2 A7

AD_MMA8

IC8240=T8 A8

AD_MMA9

IC8240=R3 A9

AD_MMA10

IC8240=L7 A10(AP)

AD_MMA11

IC8240=R7 A11

AD_MMA12

IC8240=N7 A12(/BC)

AD_MMA13

IC8240=T3 NC

AD_MMA0

IC8241=N3 A0

AD_MMA1

IC8241=P7 A1

AD_MMA2

IC8241=P3 A2

AD_MMA3

IC8241=N2 A3

AD_MMA4

IC8241=P8 A4

AD_MMA5

IC8241=P2

AD_MMA6

IC8241=R8 A6

AD_MMA7

IC8241=R2 A7

AD_MMA8

IC8241=T8 A8

AD_MMA9

IC8241=R3 A9

AD_MMA10

IC8241=L7 A10(AP)

AD_MMA11

IC8241=R7

AD_MMA12

IC8241=N7 A12(/BC)

AD_MMA13

IC8241=T3 NC

DDR1.5V

+

C8251

68u

4V

C8252

10u10V

16V

0.1u

C8253

10V

1u

C8254

10V

1u

C8255

10V

1u

C8256

16V

0.1u

C8257

16V

0.1u

C8258

10V

1u

C8259

16V

0.1u

C8260

16V

0.1u

C8261

16V

0.1u

C8262

10V

1u

C8263

10V

1u

C8264

16V

0.1u

C8265

16V

0.1u

C8266

16V

0.1u

C8267

16V

0.1u

C8268

16V

0.1u

C8269

16V

0.1u

C8270

16V

0.1u

C8291

16V

0.1u

C8292

16V

0.1u

C8293

172 179 180174 175 177 178173 176

66

12.25. D-Board (1/5) Schematic Diagram

TERM

SIDE

P_ON/OFF

OHZ1

P_S1

P_S0

SOS4_PS

PANEL_MAIN_ON

PD_CIS

PD_CERS

PD_CML

PD_OC2

PD_CPH1

PD_SEL

PD_OC1

SC_CML2

SC-SEL2

PD_SCNRST

PD_CRC3

PD_CML2

SC_CML

PD_CRC1

SC_CMH

SC_SEL

SC_CSL

SC_CRC3

PD_CRC2

SC_CSH

SC_CEL

PD_SCCLK

SC_CIS

PD_SIU

SC_CPH1

SCNRST

SC_CRC2

SC_SCCLK

PD_CEL

SC_OC2

SC_SIU

SC_CERS

PD_CMH

SC_CRC1

SC_OC1

PD_CSL

PD_CSH

SC_CEL

SC_SEL

SC_CRC1

SC_CML2

SC_CIS

SC_CERS

SC_SIU

SC_OC2

SC_CSH

SC_SCCLK

SC_CPH1

SC_CRC2

SC-SEL2

SC_UHZ

SCNRST

SC_CSL

SC_CMH

SOS6_SC

SC_OC1

SC_CML

SOS7_SC

SC_CRC3

PD_SEL2

C9215

4.7u10V

C9213

22u

6.3V

C9212

22u

6.3V

C9211

10u

25V

C9208

10u

25V

C9207

0.1u

25V

C9116

1000p

50V

C9402

22u

6.3V

C9403

22u

6.3V

C9401

820p50V

C9400

0.1u

25V

C9214

1u

16V

C9432

22u

6.3V

C9231

22u

6.3V

C9248

2200p

50V

C9246

22u

6.3V

C9245

0.1u

25V

C9252

10u

25V

C9253

47p

50V

C9251

10u

25V

C9262

10u

25V

C9258

3300p

50V

C9255

0.1u

25V

C9263

100p

50V

C9264

220p50V

C9261

10u

25V

C9256

22u

6.3V

C9254

220p50V

C9260

0.047u

16V

C9250

0.047u

16V

C9267

16V

0.1u

C9266

25V

0.01u

C9103

25V

0.01u

C9100

10u

10V

C9101

25V

0.01u

C9102

10u

25V

C9265

10u

25V

C9405

16V

0.1u

C9404

16V

0.1u

C9406

16V

0.1u

D9009

B0JCPD000026

D9803

B0JCCE000008

D9802

B0JCCE000008

C0JBAU000010

IC9401

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0DBAYY00605

IC9804

PGND

1

2

PGND

3

PGND

4

SW

5

SW

6

SW

7

BOOT

8

NC

9

SS/DELAY

10

GND

11

FB

12

FC

13

RT

14

PSET

15

EN

16

NC

17

NC

18

VIN

19

VIN

20

VIN

C0JBAU000010

IC9402

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0JBAU000010

IC9403

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0DBAYY00605

IC9801

PGND

1

2

PGND

3

PGND

4

SW

5

SW

6

SW

7

BOOT

8

NC

9

SS/DELAY

10

GND

11

FB

12

FC

13

RT

14

PSET

15

EN

16

NC

17

NC

18

VIN

19

VIN

20

VIN

C0DBAYY00715

IC9802

1

DRVH1

2

VBST1

3

EN1

4

VO1

5

VFB1

6

GND

7

SS1

8

VFB2

9

VO2

10

EN2

11

VBST2

12

DRVH2

13

SW2

14

DRVL2

15

PGND2

16

TRIP2

17

SS2

18

V5FILT

19

VREG5

20

VIN

21

TRIP1

22

PGND1

23

DRVL1

24

SW1

D20

23

29

30

2

12

5

33

14

32

20

28

26

4

9

11

19

22

21

25

8

13

6

31

17

10

34

24

18

1

7

27

16

15

3

35

D25

1

2

3

4

5

6

7

8

9

10

L9005

G1C6R8Z00008

L9006

G1C6R8Z00010

L9002

G1C2R2ZA0243

L9003

G1C4R7Z00014

P5V

P15V

P5V

P15V

P3.3V

P1.2V

P15V

P2.5V

P5V

P5V

P15V

P5V

P15V

STB5V

P15V

TP9087

TP9082

TP9091

TP9083

TP9088

TP9094

TP9084

TP9196

TP9099

TP9006

TP9090

TP9081

TP9085

TP9095

TP9092

TP9098

TP9089

TP9080

TP9097

TP9086

TP9101

TP9093

TP9096

TP9100

Q9007

B1CFRD000048

Q9008

B1CFRD000048

Q9001

B1MBDDA00003

S1G1S2G2

D2 D2 D1 D1

Q9802

B1ABCF000231

Q9800

B1ABCF000231

R9198

EXB38V101JV

R9162

EXB38V101JV

R9402

EXB38V103JV

R9208

EXB2HV470JV

R9209

EXB2HV470JV

R9400

EXB2HV103JV

R9401

EXB2HV103JV

R9113

10k

R9247 47

R9224 47

R9388

51k

R9199

10

R9384

43k

R9387

8.2k

R9195

10

R9598

3.3

R9884

10k

R9385

5.6k

R9882

10k

R9881

10k

R9386

27k

R9111

0

R9390

24k

R9389

27k

R9196

0

R9192

33k

R9880

10k

R9114

5.6k

R9226 47

R9383

15k

R9142 15k

R9116

10k

R9522 11k

R9901

47

STBY5V

S0

GND

+15V

+15V

GND

GND

S1

PANEL_MAIN_ON

SOS4_PS

UHZ

GND

RSV

CMH

CIS

CEL

P5V

GND

GND

SCCLK

GND

GND

NC

SCNRST

SOS7_SC2

NC

+15V

CSH

CRC3

OC1

GND

CRC1

CPH1

OC2

GND

CRC2

SIU

SOS6_SC1

CERS

+15V

GND

SEL

SEL2

CML

CSL

F

B

5

E

9

A

68732

D

14

C

BUFFER

BUFFER

BUFFER

TO
P-BOARD
(P25)

TO
SC-BOARD
(SC20)

DC-DC CONVERTER

15V->5V

DC-DC CONVERTER

15V->2.5V

DC-DC CONVERTER
15V->3.3V,15V->1.2V

1

2

3

4

!

DC-DC CONVERTERD-BOARD TXN/D1LWUUS (1/5)

67

12.26. D-Board (2/5) Schematic Diagram

D-BOARD TXN/D1LWUUS (2/5) PANEL MICOM,EEPROM

!

DISPEN

PANEL_STBY_ON

SCL2

SDA3

GND

GND

LED_R

LED_R

SDA1

P3V_SDA01

REMOCON

REMOCON

SCL1

P3V_SCL01

RXD

AR_RXD_PC

LED_G

TXD

AR_TXD_PC

LED_G

1

IIC_SW

LED_G

LED_R

2

RXD_PC

TXD_PC

IIC_CONT

NRST

P3.3V

C9055

DCDC_OE

P33V_IN

CD_OUT

16V

0.1u

16

P_SCL2

15

P_SDA2

14

P_SCL1

13

P_SDA1

12

VIN_OR

11

10

GND

9

STB33V

8

C9037

7

RESET

6

Y1

5

Y2

4

Y3

3

Y4

2

Y5

1

R9225

R9223

2.7k

2.7k

R9201

10

R9200

10

R9871

10k

C9034

16V

0.01u25V

0.1u

C9054

50V

200p

P15V

R9868
100k

STB3.3V

C9035

R9121

10V

100k

10u

P3V_SCL02

P3V_SDA02

P3V_SCL01

P3V_SDA01

NRST

SOS6

SOS7

SOS8

REM_IN

IIC_SW

17

S_SCL2

18

S_SDA2

19

S_SCL1

20

S_SDA1

21

STB3.3V

P_ON/OFF

STB5V

D9110

B0JCGD000002

C9033

16V

0.1u

R9129

68k

STB33VIN

22

P33V

23

P_ON_OFF

24

STB5V_IN

25

C9036

10V

GND

10u

26

CE

27

A1

28

A2

29

A3

30

A4

31

A5

32

IC9004

C1ZBZ0003983

STB+3.3V/RESET

R9132

100

X9000

H2C1005A0041

R9070

10k

10MHz

SCL3

SDA2

NC

NC

NC

1011121314151617181920

AR_STB_SDA02

STB3.3V

C9045

16V

0.1u

R9194

470

C9063

16V

0.1u

P15V

R9215

100k

R9207

24k

AR_STB_SCL02

EXB38V101JV

R9900

0

R9152

10k

C9044

IIC_CONT

10V

4.7u

AR_IIC_CONT

R9104

R9154

R9203

C9052

16V

0.1u

IIC_INT

2.7k

R9155

2.7k

MAIN_CONF

INT_CONF

22k

STBY5V

STBY3.3V

FOR

123456789

FACTORY

D6

USE

STB5V

STB3.3V

AR_TXD_PC

AR_RXD_PC

RXD_PC

R9153

10k

C9062

4.7u10V

P3.3V

AR_IIC_CONTIIC_CONT

AR_STB_SCL02

AR_STB_SDA02

R9105

22

C9105

50V

TXD_PC

STB_SCL02

26

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

STB_SDA02

R9205

33k

R9206

56k

STB_SCL01

22

R9150

P31

P32

P33

P34

P35

P36

P37

VPPEX_(N.C.)

IVDD

VDD

RONA

VSS

OSCXO

OSCXI

IVDD

P64_SBI1

P63_SBT1

NBOOT_(N.C.)

NRST

100p

INEXCH

IIC_CONT

STB_SDA01

0

EXCLKSEL

R9189

22

R9151

24

25

23

EXCLKSEL

P72_SDA1

P73_SCL1

P30

P65_SBT227P66_SBI2

MNZSFH8KFD2

PANEL MICOM

NTEST49SCLOCK_(UND)50SDATA_(UND)

ENTRG0_(UND)

ENTRG1_(UND)

TRCCLK_(UND)

TRCST_(UND)55TRCD0_(UND)56TRCD1_(UND)57TRCD2_(UND)58TRCD3_(UND)59P80_ADIN060P81_ADIN161P82_ADIN262P83_ADIN363IVDD64VSS65P84_ADIN466P85_ADIN567P86_ADIN668P87_ADIN769P90_ADIN870P91_ADIN971P92_ADIN1072P93_ADIN11

51

52

53

54

C9040

P5V

16V

0.1u

16V

0.1u

C9221

C9048

14

15

16

P1017P1118P1219P1320P1421P1522P16

VSS

IVDD

IC9003

C9046

C9065

16V

0.1u

C9053

16V

0.1u

READY

ALARM

10k

16V

R9164

0.1u

16V 0.1u

SOS6

REM_IN

EEP_WR_CTL

R9187 2.7k

10

P2011P2112P2213P23

P62_SBI0A

P61_SBT0A

P60_SBO0A

P40_TM0IO

P75_SCL2

P74_SDA2

SOS8

SOS4_PS

STB_SCL02

STB_SDA02

R9188 2.7k

22

22

R9186

R9185

8

9

P71_SCL0

P50_RMIN_IRQ0

R9191
100k

SOS7

NCS

XRST_SYS

P3.3V

10k

R9214

7

P70_SDA0

PA0_HSYNC

PA1_VSYNC_IRQ1

VDD

IVDD

OSDXI

PA5_YSOUT

PA6_HOUT

PA7_VCLKOUT

P04_SBO0B

P03_SBT0B

P41_TM1IO77P42_TM2IO78P43_TM3IO

P44_TM4IO_SYSCLK

TO
A-BOARD
(A32)

SIN

SCLK

R9130 47

3

4

P05_IRQ65P06_IRQ76P07_IRQ8

VSS

PA2_R00

PA3_G00

PA4_B00

P54_IRQ5

P53_IRQ4

P52_IRQ3

P51_IRQ2

P02

P01

P00

73

SOUT

R9124 47

1

2

100

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

80

79

76

74

75

PANEL_MAIN_ON

EXB38V101JV

C9061

16V

0.1u

D3

R9069

ALARM

READY

123456789

DRVMUTE

PANEL_STBY_ON

READY

ALARM

C9047

16V

0.1u

R9119

EXB38V470JV

R9212 47

R9213 47

R9120

10k

R9107

3.3k

R9166

10k

IIC_CONT

TP9200

AR_IIC_CONT

GND

IIC_DATA1

P3V_SDA01

IIC_CLK1

TP9204

P3V_SCL01

GND

IIC_DATA2

1011121314

TP9203

AR_STB_SDA02

IIC_CLK2

TP9202

AR_STB_SCL02

GND

RXD

TXD

KEY_SCAN

15

TP9201

AR_RXD_PC

AR_TXD_PC

OSD_CLKIN

OSD_HIN

OSD_VIN

OSD_CKI

DCC_SOS

SOS_DCC

P_ON/OFF

OSD_YS

DRVRST

1

E0

2

E1

3

E2

4

VSS

*IC9001

TP9313

TVRR478S

EEPROM

IC9002

C1ZBZ0004127

TEMP SENSOR

OSD_R

OSD_G

OSD_B

OSD_HI

P3V_SCL02

P3V_SDA02

TP9316

1

6

SCL

SDA

2

3

P3.3V

5

GND

A0

TP9315

4

A1

VDD

C9056

16V

0.1u

TP9314

8

VCC

7

WC

6

SCL

5

SDA

STB3.3V

C9057

TP9000

16V

0.1u

TP9001

TP9002

Soft_PullUP

EEP_WR_CTL

STB_SCL02

STB_SDA02

STB_SDA02

STB_SDA01

STB_SCL01

STB_SCL02

P_ON/OFF

3

IIC_SW

4

SOS6_SC

SOS7_SC

PANEL_STBY_ON

SOS8_SS

SC_UHZ

REMOCON

11

D_UHZ

12

1812 151311 171610 14

68

12.27. D-Board (3/5) Schematic Diagram

TERM

SIDE

TERM

SIDE

P

P

P

P

P

P3V_SCL02

P3V_SDA02

NCS

SIN

DU8_2P

DU8_2N

DU8_1P

DU8_1N

DRVCLK5UP

DRVCLK5UN

DU7_2P

DU7_2N

DU7_1P

DU7_1N

DU6_2P

DU6_2N

DU6_1P

DU6_1N

DU5_2P

DU5_2N

DU5_1P

DU5_1N

DU4_2P

DU4_2N

DU4_1P

DU4_1N

DU3_2P

DU3_2N

DU3_1P

DU3_1N

DU2_2P

DU2_2N

DU2_1P

DU2_1N

DU1_2P

DU1_2N

DU1_1P

DU1_1N

DRVCLK1UP

DRVCLK1UN

DD1_2P

DD1_2N

DD1_1P

DD1_1N

DRVCLK1DP

DRVCLK1DN

DD2_2P

DD2_2N

DD2_1P

DD2_1N

DD3_2P

DD3_2N

DD3_1P

DD3_1N

DRVCLK2DP

DRVCLK2DN

DD4_2P

DD4_2N

DD4_1P

DD4_1N

DD5_2P

DD5_2N

DD5_1P

DD5_1N

DRVCLK3DP

DRVCLK3DN

DD6_2P

DD6_2N

DD6_1P

DD6_1N

DD7_2P

DD7_2N

DD7_1P

DD7_1N

DRVCLK4DP

DRVCLK4DN

DRVCLK4UP

DD8_1N

DRVCLK2UN

DRVCLK3UP

DRVCLK5DP

DD8_2P

DRVCLK4UN

DRVCLK2UP

DD8_1P

DRVCLK5DN

DD8_2N

DRVCLK3UN

RC_E-

RCLK_O-

RB_O+

RCLK_E-

RE_E+

RD_E-

RB_E-

RA_E+

RA_O-

RC_E+

RC_O-

RB_O-

RE_O+

RB_E+

RD_O+

RD_E+

RA_E-

RCLK_E+

RC_O+

RCLK_O+

RD_O-

RE_E-

RA_O+

RE_O-

SCK

NCS_M

SIO1

SRLF1

SRLF2

SRLF0

MHIO

SBI1

SFLATCH

SFVRST

SFRST

SOUT

SCLK

DD1_1P

DD4_1N

ODED2

DD5_2N

DD2_2N

DD1_2P

DRVCLK1DP

DD8_1P

DD8_1N

DD7_1N

DD7_2N

DD3_2P

DD1_2N

DRVCLK4DP

DRVCLK2DP

DD2_1P

DD6_2P

DD5_1P

DD5_2P

DD1_1N

DRVCLK4DN

DD6_1P

PCD4

DRVCLK2DN

DD2_2P

DD7_2P

DD4_2N

DRVCLK3DP

DRVCLK5DN

DD3_1N

DD2_1N

DD8_2N

DD3_1P

DRVCLK1DN

DD4_1P

DRVCLK5DP

DD7_1P

DD4_2P

DRVCLK3DN

DD5_1N

DD3_2N

DD6_2N

DD6_1N

CLRD2

DD8_2P

LED1

PCD3

DU6_2N

DRVCLK4UP

DU6_2P

DU6_1P

DU3_1P

DU5_2P

DRVCLK2UN

DRVCLK1UN

DRVCLK3UP

DU1_1N

DU4_1N

DRVCLK4UN

DU2_1P

DU7_2N

DU1_1P

DU5_1P

DRVCLK5UN

DU3_1N

DU4_2N

DU7_1P

DU8_1N

DRVCLK1UP

DU7_2P

DU4_2P

DU3_2N

DU8_2P

DU1_2N

DU8_1P

DU1_2P

DU2_2P

DU5_1N

DU3_2P

DU5_2N

DU6_1N

DU2_2N

DU8_2N

DRVCLK3UN

DU4_1P

DU7_1N

DU2_1N

DRVCLK2UP

DRVCLK5UP

CLRU2

PCU2

ODEU2

LEU2

LVDS_EN1

MVIO

LVDS_EN2

XRST_SYS

DCC_SOS

SBO0

CLKMO_P

SIO0

C9307

0.1u

16V

C9308

0.1u16V

C9311

0.1u

16V

C9312

10V

10u

C9314

10V 10u

C9313

0.1u

16V

C9316

10V 10u

C9315

0.1u16V

C9319

0.1u16V

C9322

0.1u16V

C9323

0.1u16V

C9325

0.1u16V

C9327

0.1u16V

C9302

50V
18p

C9301

50V
18p

C9335

10V 10u

C9336

10V 10u

C9337

10V 10u

C9344

0.1u16V

C9339

0.1u16V

C9342

0.1u16V

C9347

1u

6.3V

C9349

10u10V

C9351

0.1u16V

C9352

6.3V 1u

C9350

0.1u16V

C9356

0.1u16V

C9361

0.1u16V

C9363

0.1u16V

C9371

10V

10u

C9372

10V

10u

C9373

10V

10u

C9374

0.1u

16V

C9375

0.1u

16V

C9380

0.1u16V

C9383

0.1u16V

C9392

10V

10u

C9391

10V

10u

C9340

0.1u16V

IC9400

C1AB00003258

A1 VDD33

IC9400 M30 DCCOP12

IC9400

E3 OSDHI

IC9400 B26 SFVRST

IC9400 AF27 miniLVDS_RI3

IC9400 C3 VDD33

IC9400 AH27 LVDRCK12P

IC9400 AB2 VDDC

IC9400 AH1 LVDOD5N

IC9400 P3 DCCOP41

IC9400 AH22 LVDRCK10N

IC9400 AA27 PLLSSDCCCK_AVS

IC9400 N2 DCCOSCRST

IC9400 AG18 PLLSSMLCK_AVS

IC9400 B6 SPIHZ

IC9400 A15 RXOAN

IC9400 AJ13 LVDOD13P

IC9400 AE1 LVDOD2N

IC9400 AK22 LVDOD20N

IC9400 A24 ID0

IC9400 AC4 LVDRCK0P

IC9400 AJ23 LVDOD21P

IC9400 AJ24 LVDOD22P

IC9400 AC5 MLVDS_VDD

IC9400 AB1 VDDC

IC9400 AF29 LVDOD28P

IC9400 AF7 MLVDS_VDD

IC9400 B17 RXEDP

IC9400 B24 ID1

IC9400 AF14 SCS_VDD18

IC9400 P27 VDD33

IC9400 AK14 LVDOD14N

IC9400 J30 SHIO

IC9400 AE5 miniLVDS_MON0

IC9400 AH24 LVDRCK11N

IC9400 T3 DCCIFBK2

IC9400 V5 SCS_VDD18

IC9400 A19 RXECN

IC9400 AA1 DCCOP28

IC9400 D24 VDD33

IC9400 J3 VDD33

IC9400 E7 VDDC

IC9400 AJ8 LVDOD10P

IC9400 AK6 LVDOD8N

IC9400 AG24 MLVDS_VDD

IC9400 D1 OSDVO

IC9400 H30 MHIO

IC9400 J27 VDD33

IC9400 AA2 DCCOP17

IC9400 AF8 VDDC

IC9400 A7 SCL

IC9400 C2 OSDHO

IC9400 AK12 LVDOD12N

IC9400 AH18 LVDRCK9N

IC9400 A13 RXOCN

IC9400 AH30 LVDOD26N

IC9400 B12 RXOCKP

IC9400 R26 SCS_VDD18

IC9400 C29 SFLATCHI

IC9400 AG28 LVDRCK13N

IC9400 AB29 MLVDS_VDD

IC9400 AK18 LVDOD18N

IC9400 J5 VDDC

IC9400 B28 XRSTSYS

IC9400 AE26 VDDC

IC9400 AB30 MLVDS_VDD

IC9400 D10 VDD33

IC9400 M29 DCCOP13

IC9400 AJ14 LVDOD14P

IC9400 AH25 LVDRCK11P

IC9400 AH14 LVDRCK7N

IC9400 L30 DCCOP14

IC9400 A20 RXEBN

IC9400 AH17 LVDRCK8P

IC9400 L28 TMODE1

IC9400 D2 OSDRI

IC9400 D23 VDD33

IC9400 G29 SRLF1

IC9400 AA30 MLVDS_VDD

IC9400 N5 SCS_VDD15

IC9400 AK5 LVDOD7N

IC9400 B2 VDD33

IC9400 B13 RXOCP

IC9400 B16 RXEEP

IC9400 AK26 LVDOD24N

IC9400 AE30 LVDOD29N

IC9400 B20 RXEBP

IC9400 Y2 DCCOP20

IC9400 R4 VDD33

IC9400 D25 VDD33

IC9400 AJ26

LVDOD24P

IC9400 AH13 LVDRCK6P

IC9400 D4 VDD33

IC9400 A11 RXODN

IC9400 U2 DCCOP4

IC9400 J29 SVIO

IC9400 AH8 LVDRCK5N

IC9400 L3 DCCOP27

IC9400 AK23 LVDOD21N

IC9400 AK25 LVDOD23N

IC9400 B25 TEST

IC9400 W27 PLLICK_AVD

IC9400 K28 TMODE0

IC9400 AJ15 LVDOD15P

IC9400 U3 DCCOP40

IC9400 AF6 MLVDS_VDD

IC9400 U26 VDDC

IC9400 AC1 LVDOD0N

IC9400 AH26 LVDRCK12N

IC9400 AH23 LVDRCK10P

IC9400 AG16 MLVDS_VDD

IC9400 B15 RXOAP

IC9400 E11 LRX_V12

IC9400 P29 DCCOP18

IC9400 A18 RXECKN

IC9400 AJ16 LVDOD16P

IC9400 AK19 LVDOD19N

IC9400 D20 LRX_V12C_0

IC9400 A27 SFRST

IC9400 M3 DCCOP35

IC9400 V3 DCCOP11

IC9400 N1 DCCOP32

IC9400 D19 LRX_V12C_3

IC9400 AF21 VDDC

IC9400 U28 VDD33

IC9400 AK16 LVDOD16N

IC9400 AH16 LVDRCK8N

IC9400 AD29 LVDOD30P

IC9400 AA5 VDDC

IC9400 AD3 LVDRCK1N

IC9400 Y3 DCCOP22

IC9400 E30 SBO0

IC9400 M26 SCS_VDD15

IC9400 AF22 VDDC

IC9400 AD27 MLVDS_VDD

IC9400 AC3 LVDRCK0N

IC9400 AH5 LVDRCK3P

IC9400 AB26 VDDC

IC9400 D9 VDD33

IC9400 L2 DCCOP6

IC9400 C5 FLSIO1

IC9400 AA28 MLVDS_VDD

IC9400 W28 VDD33

IC9400 B11 RXODP

IC9400 D18 LRX_V12C_2

IC9400 W3 VDD33

IC9400 U1 DCCOP0

IC9400 M1 DCCOP7

IC9400 D29 SBI0

IC9400 AH12 LVDRCK6N

IC9400 AA4 VDDC

IC9400 E29 FPDAT1

IC9400 E12 LRX_V12

IC9400 P30 DCCOP21

IC9400 E2 OSDYSI

IC9400 AK7 LVDOD9N

IC9400 AB28 LVDRCK15P

IC9400 AJ25 LVDOD23P

IC9400 M2 DCCOP33

IC9400 N28 DCCOP26

IC9400 AH15 LVDRCK7P

IC9400 AG3 LVDRCK2P

IC9400 V2 DCCOP1

IC9400 K2 DCCOP30

IC9400 K1 DCCOP34

IC9400 K3 OCKOUT

IC9400 T5 SCS_VDD18

IC9400 AD4 MLVDS_VDD

IC9400 AB4 VDDC

IC9400 AG19 PLLSSMLCK_AVD

IC9400 AH19 LVDRCK9P

IC9400 E8 VDDC

IC9400 G5 VDDC

IC9400 A25 ID2

IC9400 B7 SDA

IC9400 AH2 LVDOD5P

IC9400 A14 RXOBN

IC9400 AK13 LVDOD13N

IC9400 AJ6 LVDOD8P

IC9400 AK24 LVDOD22N

IC9400 AF16 SCS_VDD18

IC9400 AF17 SCS_VDD18

IC9400 H3 VDD33

IC9400 T1 DCCOP3

IC9400 AE4 miniLVDS_RI0

IC9400 A12 RXOCKN

IC9400 T26 SCS_VDD18

IC9400 A21 RXEAN

IC9400 R28 DCCOP23

IC9400 R3 DCCIFBK1

IC9400 AK8 LVDOD10N

IC9400 AG7

MLVDS_VDD

IC9400 B14 RXOBP

IC9400 G30 SRLF0

IC9400 P26 SCS_VDD18

IC9400 V4 VDD33

IC9400 AJ12 LVDOD12P

IC9400 AF2 LVDOD3P

IC9400 AK4 LVDOD6N

IC9400 H29 MVIO

IC9400 AG8 MLVDS_VDD

IC9400 AJ19 LVDOD19P

IC9400 B9 LRX_VDDH

IC9400 AH4 LVDRCK3N

IC9400 N27 VDD33

IC9400 H27 VDD33

IC9400 K5 VDDC

IC9400 A29 XRST

IC9400 B21 RXEAP

IC9400 E1 OSDBI

IC9400 AF13 SCS_VDD18

IC9400 A5 FLSIO3

IC9400 E17 SCS_VDD18

IC9400 L29 DCCOP15

IC9400 D6 LRX_TXN_1

IC9400 P2 DCCOP10

IC9400 K30 DCCOP24

IC9400 F30 SBT0

IC9400 D13 LRX_TXN_0

IC9400 W2 DCCOP31

IC9400 V26 VDDC

IC9400 AJ9 LVDOD11P

IC9400 AF3 LVDRCK2N

IC9400 N3 DCCOP39

IC9400 E14 SCS_VDD18

IC9400 Y28 MLVDS_VDD

IC9400 T2 DCCOP2

IC9400 AC28 LVDRCK15N

IC9400 AG14 MLVDS_VDD

IC9400 AH7 LVDRCK4P

IC9400 AD26 VDDC

IC9400 AG6 MLVDS_VDD

IC9400 F28 SBO1

IC9400 AK17 LVDOD17N

IC9400 L1 DCCOP38

IC9400 B5 FLNCS

IC9400 P28 DCCOP25 IC9400 AG29 LVDOD27P

IC9400 P5 SCS_VDD15

IC9400 L26 SCS_VDD15

IC9400 B10 RXOEP

IC9400 W1 DCCOP36

IC9400 D8 VDD33

IC9400 V28 VDD33

IC9400 AB3 VDDC

IC9400 E19 LRX_V12

IC9400 AB5 VDDC

IC9400 B22 LRX_VDDH

IC9400 AE28 LVDRCK14N

IC9400 B4 FLSIO0

IC9400 H5 VDDC

IC9400 AJ17 LVDOD17P

IC9400 J26 VDDC

IC9400 AG2 LVDOD4P

IC9400 F29 SBT1

IC9400 E28 FPDAT0

IC9400 E5 VDD33

IC9400 F1 OSDCKI

IC9400 AC26 VDDC

IC9400 AK15 LVDOD15N

IC9400 AF30 LVDOD28N

IC9400 Y1 DCCOP16

IC9400 AD30 LVDOD30N

IC9400 C30 DCCIDISPEN

IC9400 G26 VDDC

IC9400 A6 FLSIO2

IC9400 R5 SCS_VDD18

IC9400 P4 VDD33

IC9400 E10 VDDC

IC9400 AG15 VTEST1IC9400 AG12 miniLVDS_RI1

IC9400 B18 RXECKP

IC9400 B3 EXTFLSO

IC9400 AE27 miniLVDS_MON3

IC9400 E22 VDDC

IC9400 AJ22 LVDOD20P

IC9400 AJ27 LVDOD25P

IC9400 E20 LRX_V12

IC9400 N30 DCCOP19

IC9400 G28 SRLF2

IC9400 AE3 LVDRCK1P

IC9400 R2 DCCOP5

IC9400 D15 VTEST0

IC9400 E16 SCS_VDD18

IC9400 W4 VDD33

IC9400 A22 LRX_VDDH

IC9400 AH9 LVDRCK5P

IC9400 AK27 LVDOD25N

IC9400 AC30 LVDOD31N

IC9400 AG25 MLVDS_VDD

IC9400 AG23 miniLVDS_RI2

IC9400 AG1 LVDOD4N

IC9400 A10

RXOEN

IC9400 AG13 MLVDS_VDDIC9400 K29 SFVO

IC9400 A16 RXEEN

IC9400 E9 VDDC

IC9400 D17 VDD33

IC9400 AJ7 LVDOD9P

IC9400 AD5 MLVDS_VDD

IC9400 V1 DCCOP8

IC9400 AE29 LVDOD29P

IC9400 AF28 LVDRCK13P

IC9400 A3 EXTFLSCK

IC9400 R1 DCCOP9

IC9400 AF10 VDDC

IC9400 D16 VDD33

IC9400 AG26 MLVDS_VDD

IC9400 A17 RXEDN

IC9400 E21 VDDC

IC9400 C4 EXTFLSI

IC9400 AF9 VDDC

IC9400 AF24 VDDC

IC9400 B27 SOS

IC9400 D21 LRX_V12C_1

IC9400 N26 SCS_VDD18

IC9400 AB27 PLLSSDCCCK_AVD

IC9400 H26 VDDC

IC9400 AJ18 LVDOD18P

IC9400 U5 SCS_VDD18

IC9400 AG22 miniLVDS_MON2

IC9400 AG30 LVDOD27N

IC9400 AJ4 LVDOD6P

IC9400 D3 OSDGI

IC9400 AH29 LVDOD26P

IC9400 C1 OSDCKO

IC9400 Y27 PLLICK_AVS

IC9400 AG9 MLVDS_VDD

IC9400 AD28 LVDRCK14P

IC9400 AC2 LVDOD0P

IC9400 N29 DCCOP29

IC9400 E24 VDDC

IC9400 H28 VDD33

IC9400 V30 XI

IC9400 A28 DCCIDRVRST

IC9400 R29 DCCOP37

IC9400 A26 SFLATCHO

IC9400 D7 LRX_TXP_1

IC9400 AF1 LVDOD3N

IC9400 B30 DCCIPORT0

IC9400 A9 LRX_VDDH

IC9400 C6 IICSYNC

IC9400 J4 VDD33

IC9400 A2 EXTFLNCS

IC9400 B19 RXECP

IC9400 A4 FLSCK

IC9400 AG17 MLVDS_VDD

IC9400 E13 SCS_VDD18

IC9400 AH6 LVDRCK4N

IC9400 AC27 MLVDS_VDD

IC9400 AJ5 LVDOD7P

IC9400 T30 CKMO

IC9400 E23 VDDC

IC9400 M28 DCCIPORT1

IC9400 W30 XO

IC9400 D28 SBI1

IC9400 AD2 LVDOD1P

IC9400 D30 FPCLK

IC9400 AE2 LVDOD2P

IC9400 AK9 LVDOD11N

IC9400 D14 LRX_TXP_0

IC9400 P1 DCCIFBK0

IC9400 AA29 MLVDS_VDD

IC9400 AD1 LVDOD1N

IC9400 AC29 LVDOD31P

IC9400 AG11 miniLVDS_MON1

IC9400 AF23 VDDC

D31

123456789

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555758596061626364656667

68

56

D34

123456789

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

55

5758596061626364656667

68

56

L9300

J0JHC0000117

L9301

J0JHC0000117

L9008

J0JHC0000117

P1.2V

P3.3V

P2.5V

P3.3V

P3.3V

P3.3V

VJ9302

VJ9904

VJ9300

VJ9902

VJ9301

TP9302

R9300

EXB38V470JV

R9321

1M

R9316

47

R9324

1.6k

R9320

1.2k

R9327

1.6k

R9322

47

R9391

47

R9325

1.6k

R9326

1.6k

R9347

0

R9241

47

R9287

47

R9288

47

R9348

0

R9220

1k

X9400

H0J200500076

20MHz

IIC

LVDS_INPUT

DD8_2+

DRVCLK4+

DD3_1-

DD7_2+

DD7_1+

DRVCLK5+

DRVCLK5-

GND

DD4_1+

DD1_2+

DD6_2-

PC1

P3.3V

GND

DRVCLK3-

GND

DD2_1-

P3.3V

GND

GND

DD6_2+

DRVCLK4-

GND

KEY_SCAN

DD4_2+

DD2_2+

GND

DD6_1+

GND

DD2_1+

CLR1

DD6_1-

GND

DD5_2-

ODE1

DD5_2+

DD8_1-

DD5_1-

DD8_1+

DRVCLK1-

GND

LE1

GND

DD4_2-

GND

DD1_1-

DD3_2+

DRVCLK1+

DD3_1+

DD2_2-

GND

NC

DD5_1+

DD1_1+

DD4_1-

GND

PC2

DD3_2-

DRVCLK3+

GND

DRVCLK2-

P3.3V

DD7_1-

DD1_2-

DRVCLK2+

DD8_2-

GND

DD7_2-

GND

DD4_2+

DD1_2+

DD3_2-

DD6_2-

DRVCLK1-

DD3_2+

DRVCLK3+

DRVCLK1+

DD7_2-

PC1

GND

P3.3V

DRVCLK2-

GND

P3.3V

DD3_1+

DD7_1-

DRVCLK3-

DD1_2-

DD2_2-

GND

DD2_1-

DD5_1-

DD6_1-

P3.3V

DD8_1+

DD2_2+

GND

GND

DD6_1+

DD5_2-

GND

ODE1

DD6_2+

DD5_2+

GND

GND

NC

DD5_1+

DD1_1+

DRVCLK4-

GND

GND

DD8_2-

GND

DD2_1+

DD8_2+

DD4_2-

DRVCLK4+

DD3_1-

DD4_1-

GND

GND

DRVCLK2+

DD7_2+

DD7_1+

DRVCLK5+

DRVCLK5-

CLR1

GND

DD4_1+

GND

DD8_1-

LE1

PC2

DD1_1-

KEY_SCAN

25 2619 23 24 2721 2220

TO
C2-BOARD
(C21)

TO
C5-BOARD
(C51)

IC9400

C1AB00003258

PD4H SLAVE

11

12

21

22

23

24

25

26

!

PD4H SLAVED-BOARD TXN/D1LWUUS (3/5)

69

12.28. D-Board (4/5) Schematic Diagram

RC_E-

RE_E-1

RE_E-(LSB)

RCLK_E+

GND

RD_E+

RD_E-

RD_E-1

RCLK_E+1

RD_E+1

RD_O-

RD_O+

RE_O-1

RE_O-(LSB)

RD_O+1

RCLK_O+

RCLK_O-

GND

RCLK_O+1

RD_O-1

RCLK_O-1

RE_O+(LSB)

!

D-BOARD TXN/D1LWUUS (4/5)

PD4H SLAVE,PD4H MASTER

21

GND

68

TERM

RE_O+1

RB_O+

RA_O+(MSB)

GND

GND

GND

RC_O-

RC_O+

5758596061626364656667

RC_O-1

RC_O+1

GND

RE_E+(LSB)

RA_O-(MSB)

RB_O-

55

56

RB_O+1

RA_O-1

RE_E+1

RA_O+1

RB_O-1

RCLK_E-

RCLK_E-1

GND

GND

RC_E+

RC_E+1

RC_E-1

LVDS_DET

RB_E-

RB_E+

RA_E+(MSB)

RA_E-(MSB)

RB_E-1

INEXCH

RA_E+1

RB_E+1

RA_E-1

RD_O-

RD_O+

RE_O+(LSB)

NC

RE_O-(LSB)

100

R9158

RE_O-

RE_O+

RCLK_O-

GND

GND

RC_O+

RCLK_O+

RCLK_O-

RCLK_O+

RC_O+

RD_O+

RD_O-

RA_O+(MSB)

RB_O+

RA_O-(MSB)

GND

RC_O-

RB_O-

RC_O-

RB_O+

RB_O-

RA_O+

RE_E-(LSB)

GND

GND

RE_E+(LSB)

RE_E-

RA_O-

RE_E+

22

RCLK_E-

RCLK_E+

RCLK_E+

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

RCLK_E-

RC_E-

RB_E+

RC_E+

GND

GND

RC_E-

RC_E+

GND

RB_E-

RA_E-(MSB)

RA_E+(MSB)

TO

123456789

D5

A-BOARD

SIDE

(A31)

RA_E+

RB_E-

RB_E+

RA_E-

RD_E+

RD_E-

GND

RD_E-

RD_E+

31

23

OSD_HIN

OSD_VIN

OSD_CLKIN

OSD_YS

OSD_R

OSD_B

OSD_G

OSD_CKI

OSD_HI

XRST_SYS

DRVRST

DRVMUTE

SOS_DCC

SBI1

SBO0

SRLF0

SRLF1

SRLF2

MVIO

MHIO

SFLATCH

SFRST

SFVRST

CLKMO_P

P3.3V

510

510

510

R9296

R9295

R9297

R9292

47

IC9300 G30 SRLF0

R9293

47

IC9300 G29 SRLF1

R9294

47

R9351

R9236

47

47

R9101

47

TP9076

IC9300 G28 SRLF2

IC9300 H29 MVIO

IC9300 H30 MHIO

R9352

47

IC9300 J29 SVIO

IC9300 J30 SHIO

IC9300 A26 SFLATCHO

IC9300 C29 SFLATCHI

IC9300 A27 SFRST

IC9300 B26 SFVRST

IC9300 T30 CKMO

IC9300 V30 XI

IC9300 W30 XO

TP9078

IC9300 D29 SBI0

IC9300 F28 SBO1

IC9300 D28 SBI1

IC9300 E30 SBO0

IC9300 F30 SBT0

IC9300 F29 SBT1

IC9300 D30 FPCLK

IC9300 E29 FPDAT1

IC9300 E28 FPDAT0

IC9300 C2 OSDHO

IC9300 K29 SFVO

IC9300 D1 OSDVO

IC9300 C1 OSDCKO

IC9300 E2 OSDYSI

IC9300 D2 OSDRI

IC9300 E1 OSDBI

IC9300 D3 OSDGI

IC9300 F1 OSDCKI

IC9300 E3 OSDHI

IC9300 A29 XRST

IC9300 B28 XRSTSYS

IC9300 A28 DCCIDRVRST

IC9300 C30 DCCIDISPEN

IC9300 B27 SOS

R9298 47

R9299 47

R9100

47

R9102 47

R9109 47

R9238 47

R9239 47

R9218

10k

R9310

47

RA_O+1

RA_O-1

RB_O+1

RB_O-1

RC_O+1

RC_O-1

RCLK_O+1

RCLK_O-1

RD_O+1

RD_O-1

RE_O+1

RE_O-1

LVDS_INPUT

IC9300 B15 RXOAP

IC9300 A15 RXOAN

IC9300 A14 RXOBN

IC9300 B13 RXOCP

IC9300 A13 RXOCN

IC9300 B12 RXOCKP

IC9300 A12 RXOCKN

IC9300 B11 RXODP

IC9300 A11 RXODN

IC9300 B10 RXOEP

IC9300 A10 RXOEN

RA_E+1

RA_E-1

RB_E+1

RB_E-1

RC_E+1

RC_E-1

RCLK_E+1

RCLK_E-1

RD_E+1

RD_E-1

RE_E+1

RE_E-1

PD_VSET2

PD_SIU

PD_SCCLK

PD_CERS

PD_SEL

PD_OC2

PD_CRC1

PD_SCNRST

PD_OC1

PD_CIS

PD_CML2

PD_CEL

PD_CSH

PD_CSL

PD_CPH1

PD_CMH

PD_CML

PD_SEL2

PD_CRC2

PD_CRC3

D_UHZ

R9099

LVDS_EN1

C1AB00003258

PD4H MASTERPD4H SLAVE

47

IC9300

IC9300 B21 RXEAP

IC9300 A21 RXEAN

IC9300 B20 RXEBPIC9300 B14 RXOBP

IC9300 A20 RXEBN

IC9300 B19 RXECP

IC9300 A19 RXECN

IC9300 B18 RXECKP

IC9300 A18 RXECKN

IC9300 B17 RXEDP

IC9300 A17 RXEDN

IC9300 B16 RXEEP

IC9300 A16 RXEEN

IC9300 T3 DCCIFBK2

IC9300 K2 DCCOP30

IC9300 K1 DCCOP34

IC9300 L2 DCCOP6

IC9300 L1 DCCOP38

IC9300 M2 DCCOP33

IC9300 M1 DCCOP7

IC9300 N2 DCCOSCRST

IC9300 N1 DCCOP32

IC9300 P2 DCCOP10

IC9300 R2 DCCOP5

IC9300 R1 DCCOP9

IC9300 T2 DCCOP2

IC9300 T1 DCCOP3

IC9300 U2 DCCOP4

IC9300 U1 DCCOP0

IC9300 V2 DCCOP1

IC9300 L3 DCCOP27

IC9300 V1 DCCOP8

IC9300

W2 DCCOP31

IC9300 P1 DCCIFBK0

IC9300 V3 DCCOP11

IC9300 R3 DCCIFBK1

M3 DCCOP35

IC9300

IC9300 N3 DCCOP39

IC9300 N28 DCCOP26

32

33

IC9400

C1AB00003258

GND

IC9400 E6 GND

IC9400 E15 GND

IC9400 E18 GND

IC9400 E25 GND

IC9400 E26 GND

IC9400 F4 GND

IC9400 F5 GND

IC9400 F26 GND

IC9400 G1 GND

IC9400 G4 GND

IC9400 H1 GND

IC9400 H2 GND

IC9400 H4 GND

IC9400 J1 GNDIC9400 AG4 GND

IC9400 J2 GND

IC9400 K4 GND

IC9400 K26 GND

IC9400 K27 GND

IC9400 L4 GND

IC9400 L5 GND

IC9400 L27 GND

IC9400 M5 GNDIC9400 AJ20 GND

IC9400 R30 GND

IC9400 T4 GND

IC9400 T27 GND

IC9400 T28 GND

IC9400 T29 GND

IC9400 U30 GND

IC9400 E27 SCS_ANA_7

IC9400 F2 SCS_ANA_25

IC9400 F3 SCS_ANA_4

IC9400 F27 SCS_ANA_9

IC9400 G2 SCS_ANA_29

IC9400 G3 SCS_ANA_27

IC9400 G27 SCS_ANA_5

IC9400 J28 SCS_ANA_26

IC9400 M4 SCS_ANA_31

IC9400 M27 SCS_ANA_28

IC9400 N4 SCS_ANA_33

IC9400 R27 SCS_ANA_30

IC9400 U4 SCS_ANA_35

IC9400 U27 SCS_ANA_34

IC9400 U29

SCS_ANA_32

IC9400 Y26 SCS_ANA_38

IC9400 Y29 SCS_ANA_36

IC9400 V27 GND

IC9400 V29 GND

IC9400 W5 GND

IC9400 W26 GND

IC9400 W29 GND

IC9400 Y4 GND

IC9400 Y5 GND

IC9400 Y30 GND

IC9400 AA26 SCS_ANA_40

IC9400 AF18 SCS_ANA_0

IC9400 AF19 SCS_ANA_2

IC9400 AF25 SCS_ANA_18

IC9400 AG5 SCS_ANA_39

IC9400 AG10 SCS_ANA_24

IC9400 AG21 SCS_ANA_20

IC9400 AH10 SCS_ANA_19

IC9400 AH21 SCS_ANA_22

IC9400 AJ3 SCS_ANA_37

IC9400 AJ10 SCS_ANA_17

IC9400 AJ21 SCS_ANA_1

IC9400 AJ28 SCS_ANA_16

IC9400 AK10 SCS_ANA_21

IC9400 AK21 SCS_ANA_3

IC9400 C7 SCS_ANA_23

IC9400 C8 SCS_ANA_8

IC9400 C18 SCS_ANA_13

IC9400 C19 SCS_ANA_15

IC9400 C24 SCS_ANA_14

IC9400 C25 SCS_ANA_12

IC9400 C26 SCS_ANA_10

IC9400 D11 SCS_ANA_6

IC9400 D12 SCS_ANA_11

PD_UEH

PD_USL/UML2

PD_USH

PD_UML

PD_UMH

PD_PC1

PD_PC2

PD_LE1

PD_ODE1

PD_CLR1

PD_LE2

PD_ODE2

PD_PC3

PD_CLR2

PD_PC4

R9616

EXB38V470JV

R9614

EXB38V470JV

SIO1

SCK

SIO0

NCS_M

R9257

EXB38V681JV

EXB38V681JV

R9609

EXB2HV470JV

R9259

IC9400 A8 GND

IC9400 A23 GND

IC9400 A30 GND

IC9400 AA3 GND

IC9400 AF4 GND

IC9400 AF5 GND

IC9400 AF11 GND

IC9400 AF12 GND

IC9400 AF15 GND

IC9400 AF20 GND

IC9400 AF26 GND

IC9400 AG20 GND

IC9400 AG27 GND

IC9400 AH3 GND

IC9400 AH11 GND

IC9400 AH20 GND

IC9400 AH28 GND

IC9400 AJ1 GND

IC9400 AJ2 GND

IC9400 AJ11 GND

IC9400 AJ29 GND

IC9400 AJ30 GND

IC9400 AK1 GND

IC9400 AK2 GND

IC9400 AK3 GND

IC9400 AK11 GND

IC9400 AK20 GND

IC9400 AK28 GND

IC9400 AK29 GND

IC9400 AK30 GND

IC9400 B1 GND

IC9400 B8 GND

IC9400 B23 GND

IC9400 B29 GND

IC9400 C9 GND

IC9400 C10 GND

IC9400 C11 GND

IC9400 C12 GND

IC9400 C13 GND

IC9400 C14 GND

IC9400 C15 GND

IC9400 C16 GND

IC9400 C17

IC9400 C20 GND

IC9400 C21 GND

IC9400 C22 GND

IC9400 C23 GND

IC9400 C27 GND

IC9400 C28 GND

IC9400 D5 GND

IC9400 D22 GND

IC9400 D26 GND

IC9400 D27 GND

IC9400 E4 GND

25

R9378

47

R9379

47

*IC9304

TVRR491S

FLASH MEMORY

1

CS#

2

SO/SIO1

3

WP#/SIO2

4

GND

P3.3V

C9218

16V

8

7

6

5

IC9810

C0JBAU000043

IC9811

C0JBAU000043

Vcc

G2

Y1

Y2

Y3

Y4

BUFFERBUFFER

Y5

Y6

Y7

Y8

Vcc

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

0.1u

R9250

EXB38V470JV

R9251 47

R9252 47

R9253

EXB38V470JV

UEH_C

USL/UML2_C

USH_C

UML_C

UMH_C

PCU1

R9268

EXB2HV470JV

R9270

EXB2HV470JV

PCU2

PD_UEH

PD_USL/UML2

PD_USH

PD_UML

PD_UMH

LED1

LEU1

ODEU1

PD_LE2

CLRU1

PD_PC3

LED2

LEU2

PD_PC4

ODEU2

PD_ODE2

CLRU2

PD_CLR2

PD_LE1

PD_PC1

PD_PC2

PD_ODE1

PD_CLR1

ODED1

PCD1

PCD2

CLRD1

ODED2

PCD3

PCD4

CLRD2

OHZ1

P3.3V

C9219

20

16V

0.1u

19

18

17

16

15

14

13

12

11

P3.3V

C9220

20

16V

0.1u

19

18

17

16

15

14

13

12

11

VCC

NC/SIO3

SCLK

SI/SIO0

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

TP9300

P3V_SDA02

P3V_SCL02

P_S0

P_S1

P3.3V

R9255

1k

IC9300 B30 DCCIPORT0

IC9300 B6 SPIHZ

IC9300 A4 FLSCK

IC9300 B5 FLNCS

IC9300 B4 FLSIO0

IC9300 C5 FLSIO1

IC9300 A6 FLSIO2

IC9300 A5 FLSIO3

IC9300 B3 EXTFLSO

IC9300 A3 EXTFLSCK

IC9300 C4 EXTFLSI

IC9300 A2 EXTFLNCS

IC9300 P28 DCCOP25

IC9300 K30 DCCOP24

IC9300 L29 DCCOP15

IC9300 L30 DCCOP14

IC9300 M29 DCCOP13

IC9300 M30 DCCOP12

IC9300 R29 DCCOP37

IC9300 P29 DCCOP18

IC9300 N30 DCCOP19

IC9300 P30 DCCOP21

IC9300 N29 DCCOP29

IC9300 W1 DCCOP36

IC9300 Y1 DCCOP16

IC9300 AA2 DCCOP17

IC9300 Y2 DCCOP20

IC9300 AA1 DCCOP28

IC9300 Y3 DCCOP22

IC9300 R28 DCCOP23

R9350

0

R9349

0

IC9300 U3 DCCOP40

IC9300 P3 DCCOP41

IC9300 B7 SDA

IC9300 A7 SCL

26

27

DATA_DRIVER

28

3330 31 34 3529 32 36

70

12.29. D-Board (5/5) Schematic Diagram

TERM

SIDE

TERM

SIDE

P

P P

P

P

P

DRVCLK6UN

DRVCLK7UN

DU13_1N

DU13_1P

DU13_2N

DU13_2P

DU9_1N

DU14_1N

DU9_1P

DU14_1P

DRVCLK6UP

DU9_2N

DRVCLK8UP

DU14_2N

DU9_2P

DU14_2P

DRVCLK8UN

DU10_1N

DU10_1P

DU10_2N

DU10_2P

DRVCLK7UP

DU11_1N

DU11_1P

DU11_2N

DU11_2P

DU12_1N

DU12_1P

DU12_2N

DU12_2P

DU15_2P

DU15_1N

DU15_2N

DU15_1P

DRVCLK7DN

DD12_1P

DD13_1P

DRVCLK9DP

DRVCLK7DP

DD12_2P

DD11_2N

LED2

DD12_2N

DD10_1N

DD10_2P

DD13_2N

PCD1

UEH_C

DD9_2N

DRVCLK8DN

USL/UML2_C

DRVCLK9DN

USH_C

DD15_2P

DD11_2P

DD11_1N

DD12_1N

UML_C

DD11_1P

DD13_1N

DD9_2P

UMH_C

SOS8_SS

DRVCLK6DN

DRVRST

C_3.3V_DET1

CLRD1

DD14_2N

DD15_2N

DD10_1P

DD15_1P

DRVCLK8DP

PCD2

DRVCLK6DP

ODED1

DD13_2P

DD15_1N

DD10_2N

DD9_1N

DD14_2P

DD14_1P

DD9_1P

DD14_1N

DD15_2N

DD11_1N

DD14_2P

DD10_1N

DD13_2P

DD12_1N

DD14_1N

DD12_1P

DD10_2P

DD13_1P

DD14_2N

DD11_2N

DD11_1P

DD9_2N

DD13_2N

DD10_2N

DD9_1N

DD15_1N

DD15_2P

DD12_2N

DD14_1P

DD13_1N

DD15_1P

DD9_2P

DD11_2P

DD9_1P

DD10_1P

DD12_2P

DRVCLK6DP

DRVCLK6DN

DRVCLK8DP

DRVCLK7DN

DRVCLK9DP

DRVCLK9DN

DRVCLK7DP

DRVCLK8DN

3.3V_SENSE

3.3V_SENSE

DU15_1N

DU14_2P

DU13_1P

DRVCLK6UP

DRVCLK6UN

DU9_2N

DU10_1N

DU14_2N

DU10_2P

DU14_1N

DU12_1P

DRVCLK9UP

DU9_2P

DU15_1P

DU10_1P

DU14_1P

DU11_1P

DU15_2P

DU12_1N

DU13_1N

DRVCLK7UN

DRVCLK9UN

DU9_1N

DU13_2P

DU11_2N

3.3V_SENSE

DRVCLK8UP

DU12_2P

DU13_2N

DU12_2N

DRVCLK7UP

DU9_1P

DU11_2P

DRVCLK8UN

DU11_1N

DU15_2N

DU10_2N

C_3.3V_DET2

CLRU1

ODEU1

PCU1

LEU1

DRVCLK9UN

DRVCLK9UP

C9203

6.3V 1u

C9202

0.1u16V

C9201

0.1u16V

C9171

0.1u16V

C9176

0.1u16V

C9174

0.1u16V

C9200
10V

10u

C9177

10V

10u

C9183

0.1u16V

C9170

0.1u16V

C9178

0.1u16V

C9180

0.1u16V

C9199
10V

10u

C9187

0.1u16V

C9179
10V 10u

C9189

0.1u16V

C9175
10V

10u

C9198
10V

10u

C9167

10u10V

C9160

0.1u16V

C9158

0.1u16V

C9165

1u6.3V

C9162

0.1u16V

C9138

0.1u16V

C9137

0.1u16V

C9136
10V

10u

C9135
10V

10u

C9134
10V

10u

C9124

0.1u16V

C9122

0.1u16V

C9154

10V

10u

C9155

10V

10u

C9145

0.1u16V

C9142

0.1u

16V

C9241

0.1u16V

C9900

25V

0.01u

C9096

25V

0.01u

D9001

B0JCCE000008

D9008

B0JCCE000008

IC9300

C1AB00003258

A1 VDD33

IC9300 AF11 GND

IC9300

C8 SCS_ANA_8

IC9300 E11 LRX_V12

IC9300 AG9 MLVDS_VDD

IC9300 AG4 GND

IC9300 AA27 PLLSSDCCCK_AVS

IC9300 D22 GND

IC9300 Y5 GND

IC9300 R4 VDD33

IC9300 AK11 GND

IC9300 D4 VDD33

IC9300 AA4 VDDC

IC9300 E9 VDDC

IC9300 C9 GND

IC9300 T27 GND

IC9300 AH18 LVDRCK9N

IC9300 AK4 LVDOD6N

IC9300 J4 VDD33

IC9300 M26 SCS_VDD15

IC9300 AJ15 LVDOD15P

IC9300 AD3 LVDRCK1N

IC9300 AJ4 LVDOD6P

IC9300 AK21 SCS_ANA_3

IC9300 F5 GND

IC9300 AK2 GND

IC9300 F27 SCS_ANA_9

IC9300 D8 VDD33

IC9300 B22 LRX_VDDH

IC9300 AF15 GND

IC9300 AF5 GND

IC9300 D15 VTEST0

IC9300 R30 GND

IC9300 AA3 GND

IC9300 AG24 MLVDS_VDD

IC9300 G1 GND

IC9300 AK13 LVDOD13N

IC9300 U27 SCS_ANA_34

IC9300 AH13 LVDRCK6P

IC9300 D5 GND

IC9300 M27 SCS_ANA_28

IC9300 AB4 VDDC

IC9300 C11 GND

IC9300 AJ18 LVDOD18P

IC9300 AG16 MLVDS_VDD

IC9300 AG14 MLVDS_VDD

IC9300 Y27 PLLICK_AVS

IC9300 AF27 miniLVDS_RI3

IC9300 AD27 MLVDS_VDD

IC9300 H27 VDD33

IC9300 AG15 VTEST1

IC9300 AH10 SCS_ANA_19

IC9300 AB27 PLLSSDCCCK_AVD

IC9300 AJ29 GND

IC9300 AG19 PLLSSMLCK_AVD

IC9300 J28 SCS_ANA_26

IC9300 E6 GND

IC9300 AK14 LVDOD14N

IC9300 AF12 GND

IC9300 AJ17 LVDOD17P

IC9300

U30 GND

IC9300 C13 GND

IC9300 AG11 miniLVDS_MON1

IC9300 J3 VDD33

IC9300 H2 GND

IC9300 AH25 LVDRCK11P

IC9300 Y4 GND

IC9300 AJ23 LVDOD21P

IC9300 AF18 SCS_ANA_0

IC9300 C21 GND

IC9300 AJ21 SCS_ANA_1

IC9300 AJ9 LVDOD11P

IC9300 K3 OCKOUT

IC9300 T28 GND

IC9300 AF9 VDDC

IC9300 AF25 SCS_ANA_18

IC9300 N5 SCS_VDD15

IC9300 Y29 SCS_ANA_36

IC9300 AH16 LVDRCK8N

IC9300 AJ6 LVDOD8P

IC9300 AJ16 LVDOD16P

IC9300 AC1 LVDOD0N

IC9300 AK7 LVDOD9N

IC9300 AD5 MLVDS_VDD

IC9300 AG20 GND

IC9300 U26 VDDC

IC9300 AK26

LVDOD24N

IC9300 R26 SCS_VDD18

IC9300 L26 SCS_VDD15

IC9300 AH9 LVDRCK5P

IC9300 AH8 LVDRCK5N

IC9300 AF26 GND

IC9300 H4 GND

IC9300 C18 SCS_ANA_13

IC9300 D9 VDD33

IC9300 AF23 VDDC

IC9300 Y28 MLVDS_VDD

IC9300 AA28 MLVDS_VDD

IC9300 D12 SCS_ANA_11

IC9300 M4 SCS_ANA_31

IC9300 J27 VDD33

IC9300 AK29 GND

IC9300 AF7 MLVDS_VDD

IC9300 AC3 LVDRCK0N

IC9300 AJ13 LVDOD13P

IC9300 AJ20 GND

IC9300 AJ19 LVDOD19P

IC9300 AD29 LVDOD30P

IC9300 AJ5 LVDOD7P

IC9300 AD1 LVDOD1N

IC9300 AK23 LVDOD21N

IC9300 W28 VDD33IC9300 AJ14 LVDOD14P

IC9300 C10 GND

IC9300 AF17 SCS_VDD18

IC9300 A9 LRX_VDDH

IC9300 V27 GND

IC9300 B2 VDD33

IC9300 A24 ID0

IC9300 AH27 LVDRCK12P

IC9300 C20 GND

IC9300 W5 GND

IC9300 W27 PLLICK_AVD

IC9300 E17 SCS_VDD18

IC9300 C24 SCS_ANA_14

IC9300 AJ11 GND

IC9300 AH11 GND

IC9300 AK15 LVDOD15N

IC9300 AJ3 SCS_ANA_37

IC9300 AF6 MLVDS_VDD

IC9300 AG30 LVDOD27N

IC9300 P26 SCS_VDD18

IC9300 E26 GND

IC9300 E13 SCS_VDD18

IC9300 AF2 LVDOD3P

IC9300 V26 VDDC

IC9300 AE5 miniLVDS_MON0

IC9300 U29 SCS_ANA_32

IC9300 AB30 MLVDS_VDD

IC9300 A23 GND

IC9300 AG22 miniLVDS_MON2

IC9300 AK24 LVDOD22N

IC9300 D23 VDD33

IC9300 AJ7 LVDOD9P

IC9300 AC27 MLVDS_VDD

IC9300 G4 GND

IC9300 C22 GND

IC9300 AD4 MLVDS_VDD

IC9300 R5 SCS_VDD18

IC9300 K5 VDDC

IC9300 J5 VDDC

IC9300 E24 VDDC

IC9300 B23 GND

IC9300 AB28 LVDRCK15P

IC9300 G27 SCS_ANA_5

IC9300 AB5 VDDC

IC9300 AH14 LVDRCK7N

IC9300 E20 LRX_V12

IC9300 AG28 LVDRCK13N

IC9300 L27 GND

IC9300 AJ12 LVDOD12P

IC9300 AK3 GND

IC9300 H28 VDD33

IC9300 AK16 LVDOD16N

IC9300 B29 GND

IC9300 C7 SCS_ANA_23

IC9300 Y30 GND

IC9300 AA26 SCS_ANA_40

IC9300 AC2 LVDOD0P

IC9300 D18 LRX_V12C_2

IC9300 W26 GND

IC9300 F3 SCS_ANA_4

IC9300 AE30 LVDOD29N

IC9300 D11 SCS_ANA_6

IC9300 C26 SCS_ANA_10

IC9300 AK6 LVDOD8N

IC9300 C17 GND

IC9300 C3 VDD33

IC9300 AF20 GND

IC9300 AK27 LVDOD25N

IC9300 N27 VDD33

IC9300 AA30 MLVDS_VDD

IC9300 AG6 MLVDS_VDD

IC9300 AG10 SCS_ANA_24

IC9300 AK5 LVDOD7N

IC9300 AG21 SCS_ANA_20

IC9300 M5 GND

IC9300 L4

GND

IC9300 AE3 LVDRCK1P

IC9300 AF14 SCS_VDD18

IC9300 U4 SCS_ANA_35

IC9300 AK10 SCS_ANA_21

IC9300 V29 GND

IC9300 K28 TMODE0

IC9300 K4 GND

IC9300 AF13 SCS_VDD18

IC9300 AG12 miniLVDS_RI1

IC9300 D27 GND

IC9300 AF3 LVDRCK2N

IC9300 J26 VDDC

IC9300 V28 VDD33

IC9300 AG7 MLVDS_VDD

IC9300 AF28 LVDRCK13P

IC9300 AE26 VDDC

IC9300 P27 VDD33

IC9300 D10 VDD33

IC9300 A8 GND

IC9300 B8 GND

IC9300 AC28 LVDRCK15N

IC9300 AH29 LVDOD26P

IC9300 AH2 LVDOD5P

IC9300 A30 GND

IC9300 T5 SCS_VDD18

IC9300 E27 SCS_ANA_7

IC9300 AF1 LVDOD3N

IC9300 L28 TMODE1

IC9300 D26 GND

IC9300 H5 VDDC

IC9300 AH19 LVDRCK9P

IC9300 G26 VDDC

IC9300 AF24 VDDC

IC9300 AC30 LVDOD31N

IC9300 C15 GND

IC9300 A25 ID2

IC9300 AG27 GND

IC9300 D13 LRX_TXN_0

IC9300 AG23 miniLVDS_RI2

IC9300 C23 GND

IC9300 K26 GND

IC9300 U28 VDD33

IC9300 G5 VDDC

IC9300 AH30 LVDOD26N

IC9300 AB2 VDDC

IC9300 AG5 SCS_ANA_39

IC9300 E12 LRX_V12

IC9300 AF21 VDDC

IC9300 AH20 GND

IC9300 F26 GND

IC9300 AF22 VDDC

IC9300 AG25 MLVDS_VDD

IC9300 AJ28 SCS_ANA_16

IC9300 AK25 LVDOD23N

IC9300 AG2 LVDOD4P

IC9300 E25 GND

IC9300 AH21 SCS_ANA_22

IC9300 AK22 LVDOD20N

IC9300 AK18 LVDOD18N

IC9300 J2 GND

IC9300 H3 VDD33

IC9300 AH15 LVDRCK7P

IC9300 AD26 VDDC

IC9300 R27 SCS_ANA_30

IC9300 AG29 LVDOD27P

IC9300 AG17 MLVDS_VDD

IC9300 AJ30 GND

IC9300 AK17 LVDOD17N

IC9300 B9 LRX_VDDH

IC9300 AC4 LVDRCK0P

IC9300

T29 GND

IC9300 AB29 MLVDS_VDD

IC9300 G3 SCS_ANA_27

IC9300 AH7 LVDRCK4P

IC9300 D17 VDD33

IC9300 E22 VDDC

IC9300 D25 VDD33

IC9300 AH23 LVDRCK10P

IC9300 AK1 GND

IC9300 E5 VDD33

IC9300 H26 VDDC

IC9300 AF16 SCS_VDD18

IC9300 AE1 LVDOD2N

IC9300 E7 VDDC

IC9300 D19 LRX_V12C_3

IC9300 C28 GND

IC9300 AE28 LVDRCK14N

IC9300 AE27 miniLVDS_MON3

IC9300 E10 VDDC

IC9300 AH1 LVDOD5N

IC9300 E19 LRX_V12

IC9300 AB1 VDDC

IC9300 C14 GND

IC9300 AJ2 GND

IC9300 C19 SCS_ANA_15

IC9300 C16 GND

IC9300 AF4 GND

IC9300 AB3 VDDC

IC9300 AE4 miniLVDS_RI0

IC9300 AH6

LVDRCK4N

IC9300 E15 GND

IC9300 E4 GND

IC9300 T4 GND

IC9300 H1 GND

IC9300 AG1 LVDOD4N

IC9300 AJ24 LVDOD22P

IC9300 T26 SCS_VDD18

IC9300 N26 SCS_VDD18

IC9300 F4 GND

IC9300 AH4 LVDRCK3N

IC9300 D7 LRX_TXP_1

IC9300 L5 GND

IC9300 A22 LRX_VDDH

IC9300 AK8 LVDOD10N

IC9300 P5 SCS_VDD15

IC9300 AH12 LVDRCK6N

IC9300 E8 VDDC

IC9300 AJ1 GND

IC9300 AF29 LVDOD28P

IC9300 P4 VDD33

IC9300 AA29 MLVDS_VDD

IC9300 C12 GND

IC9300 AH5 LVDRCK3P

IC9300 D16 VDD33

IC9300 AJ25 LVDOD23P

IC9300 U5 SCS_VDD18

IC9300 V5 SCS_VDD18

IC9300 D6 LRX_TXN_1

IC9300 E23 VDDC

IC9300 V4 VDD33

IC9300 E21 VDDC

IC9300 AK20 GND

IC9300 K27 GND

IC9300 AH17 LVDRCK8P

IC9300 AK30 GND

IC9300 C6 IICSYNC

IC9300 E14 SCS_VDD18

IC9300 AK12 LVDOD12N

IC9300 B25 TEST

IC9300 AG3 LVDRCK2P

IC9300 AH24 LVDRCK11N

IC9300 AD30 LVDOD30N

IC9300 W3 VDD33

IC9300 W4 VDD33

IC9300 AJ26 LVDOD24P

IC9300 AJ8 LVDOD10P

IC9300 AC29 LVDOD31P

IC9300 AJ10 SCS_ANA_17

IC9300 AF10 VDDC

IC9300 C25 SCS_ANA_12

IC9300 AF19 SCS_ANA_2

IC9300 AJ27 LVDOD25P

IC9300 D20 LRX_V12C_0

IC9300 D14 LRX_TXP_0

IC9300 AD28 LVDRCK14P IC9300 M28 DCCIPORT1

IC9300 AA5 VDDC

IC9300 N4 SCS_ANA_33

IC9300 D21 LRX_V12C_1

IC9300 B24 ID1

IC9300 E18 GND

IC9300 AH22 LVDRCK10N

IC9300 AH3 GND

IC9300 Y26 SCS_ANA_38

IC9300 D24 VDD33

IC9300 AK28 GND

IC9300 AE29 LVDOD29P

IC9300 F2 SCS_ANA_25

IC9300 AC5 MLVDS_VDD

IC9300 G2 SCS_ANA_29

IC9300 B1 GND

IC9300 AK9 LVDOD11N

IC9300 AC26 VDDC

IC9300 AK19 LVDOD19N

IC9300 AF8 VDDC

IC9300 AE2 LVDOD2PIC9300 AD2 LVDOD1P

IC9300 W29 GND

IC9300 AH26 LVDRCK12N

IC9300 J1 GND

IC9300 AB26 VDDC

IC9300 E16 SCS_VDD18

IC9300 AG26 MLVDS_VDD

IC9300 AG13 MLVDS_VDD

IC9300 AF30 LVDOD28N

IC9300 AG8 MLVDS_VDD

IC9300 AG18 PLLSSMLCK_AVS

IC9300 AJ22 LVDOD20P

IC9300 AH28 GND

IC9300 C27 GND

D33

123456789

10111213141516171819202122232425262728293031323334353637383940414243444546

47

48495051525354

55

D32

123456789

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555758596061626364656667

68

56

L9001

J0JHC0000117

L9007

J0JHC0000117

L9000

J0JHC0000117

P2.5V

P1.2V

P3.3V

P3.3V

P3.3V

P3.3V

P3.3V

P5V

VJ9900

VJ9305

VJ9304

VJ9901

VJ9303

VJ9003

ZA9001

K4AZ01D00004

TP9912

TP9913

TP9911

TP9010

TP9910

TP9914

Q9900

B1ABCF000231

Q9006

B1ABCF000231

Q9901

B1ABCF000231

R9907

100

R9177

1.6k

R9098

100k

R9906
100k

R9269

10k

R9176

1.6k

R9174

1.6k

R9904

100k

R9903

4.7k

R9175

1.6k

R9596

10k

R9110

4.7k

C9120

0.1u16V

C9157

0.1u16V

D31 D32

D34 D33

DD13_1-

DD14_2+

DRVCLK8+

DRVCLK7+

P3.3V

DRVSOS8

P5V

GND

DD15_1-

GND

UMH

DD10_1-

ODE2

DD11_1-

DRVCLK7-

GND

GND

LE2

DRVCLK8-

DRVCLK6-

DD11_2-

USH

DD12_1+

NC

DD13_2-

NC

DD10_1+

GND

UML

DD15_1+

GND

DD9_1-

DD15_2+

DD12_1-

3.3V_DET

GND

USL/UML2

DD13_2+

DD9_1+

DD14_1-

DD9_2+

GND

DD11_2+

DD13_1+

DD12_2+

GND

DD15_2-

GND

DD12_2-

DD14_1+

DRVCLK9+

GND

GND

PC3

DD9_2-

PC4

CLR2

DRVCLK6+

GND

GND

UEH

GND

GND

DD10_2+

DD11_1+

DD14_2-

DD10_2-

DRVCLK9-

38 41 4537 4240 43 4439

TO
C3-BOARD
(C31)

TO
C6-BOARD
(C61)

IC9300

C1AB00003258

PD4H MASTER

GND

GND

DRVCLKU8+

DU13_1+

DU10_1+

DU9_1+

DU13_1-

DRVCLKU8-

DU10_2-

GND

DRVCLKU9-

DU14_2+

GND

DU14_1-

DU11_2-

DU11_1-

DRVCLKU6-

GND

DRVCLKU7+

DU10_1-

DU14_1+

DRVCLKU9+

DU15_2-

DU9_1-

DU10_2+

DU15_1-

GND

DU12_2+

DU15_2+

DU9_2-

DU13_2-

DU12_1-

GND

DU15_1+

ODE6

DU14_2-

LE6

P3.3V

PC6

DU9_2+

CLR6

GND

GND

3.3V_DET

GND

DRVCLKU6+

DU11_1+

NC

DU13_2+

GND

DU12_1+

DU12_2-

DRVCLKU7-

GND

DU11_2+

31

32

33

D-BOARD TXN/D1LWUUS (5/5)

!

PD4H MASTER

71

12.30. C1-Board Schematic Diagram

C1-BOARD TXNC11LVUU

!

A

AC_PCD1

AC_PCD1

ZA17104

K4CD01000013

ZA17103

K4CD01000013

AC_CLRD1

BLK

CLR

OHZ

VDD1

VDD1

AC_CLRD1

BLK

CLR

OHZ

VDD1

VDD1

40

C10

1

DD3_1+

DD3_1-

DD3_2+

DD3_2-

NC

GND

GND

GNDNCGND

NC

GND

GND

GNDNCGND

A2N

GND

GND

GND

DD4_2-

A2N

GND

GND

GND

DRVCLK2-

100

100

R17115

R17116

A1P

A2P

A1N

FXN

GND

GND

DD4_2+

DD4_1-

DD4_1+

DRVCLK2-

100

100

R17118

R17117

A1P

A2P

A1N

FXN

GND

GND

DRVCLK2+

FXP

DRVCLK2+

FXP

AC_LED1

AC_ODED1

AC_PCD1

AC_CLRD1

200

R17123

GND

GND

GND

GND

GND

TEST

200

R17124

GND

GND

GND

GND

GND

TEST

R17142

EXB38V470JV

VDA

R17135

NC

R17137

NC

C17136

1

100V

0.33u

NC

VDD2

VDD2

VDD2

VDD2

VDD2

VDA

C17138

1

100V

0.33u

NC

VDD2

VDD2

VDD2

VDD2

VDD2

AB_LED1

AB_ODED1

AB_PCD1

AB_CLRD1

TERM

55

DM

VDD2

TERM

55

DM

VDD2

AB_LED1

AB_ODED1

AB_PCD1

AB_CLRD1

DD1_2-

DD1_2+

DD1_1-

DD1_1+

DRVCLK1-

DRVCLK1+

DD2_2-

DD2_2+

DD2_1-

DD2_1+

DD3_2-

DD3_2+

DD3_1-

DD3_1+

DRVCLK2-

DRVCLK2+

DD4_2-

DD4_2+

DD4_1-

DD4_1+

C1_P3.3V

R17126

1k

3.3V_DET

VDA

R17127

220k

TERM

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SIDE

C10

TO
C2-BOARD
(C20)

P3.3V

3.3V_DET

LE1

ODE1

PC1

CLR1

GND

DD1_2-

DD1_2+

DD1_1-

DD1_1+

GND

DRVCLK1-

DRVCLK1+

GND

DD2_2-

DD2_2+

DD2_1-

DD2_1+

GND

DD3_2-

DD3_2+

DD3_1-

DD3_1+

GND

DRVCLK2-

DRVCLK2+

GND

DD4_2-

DD4_2+

DD4_1-

DD4_1+

GND

NC

NC

NC

VDA

VDA

VDA

VDA

ZA17101

K4CD01000013

B

1 55155 155

CB1 CB2 CB3 CB4 CB5

ZA17102

K4CD01000013

DD1_2+

DD1_1-

DD1_1+

GND

GNDNCGND

GND

GND

GND

GNDNCGND

DD1_2-

A2N

GND

DD2_2-

DD2_2+

A2N

GND

DRVCLK1-

DRVCLK1+

R17131

100

100

R17111

A2P

A1N

GND

DD2_1-

100

R17113

A2P

A1N

GND

200

R17112

R17121

3637383940414243444547484951525355

A1P

FXP

FXN

GND

DRVCLK1-

FXN

DRVCLK1+

FXP

GND

TEST

200

R17122

GND

GND

TEST

GND

DD2_1+

100

R17114

A1P

GND

1

NC

GND

GND

GND

VDD2

R17133

1

NC

GND

GND

GND

VDD2

VDA

C17132

100V

0.33u

TERM

SIDE

1345789

NC

VDD2

VDD2

VDA

NC

VDD2

VDD2

DM

VDD2

VDD2

VDD2

C17134

100V

0.33u

TERM

55

DM

VDD2

VDD2

VDD2

DM

CB3

TO
PANEL DATA
DRIVER

SIDE

DM

NC

NC

VDD2

VDD2

VDD2

1345789

NC

NC

VDD2

VDD2

VDD2

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

NC

GND

GND

VDD2

VDD2

VDD2

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

NC

GND

GND

VDD2

VDD2

VDD2

AC_PCD1

AC_LED1

AC_CLRD1

AC_ODED1

C

R17199

150

SIDE

1345789

NC

NC

DM

VDD2

VDD2

VDD2

D

CB1

TO
PANEL DATA
DRIVER

11121314151617181920212223242526272829303132333435

NC

GND

GND

GND

GND

VDD2

VDD2

VDD2

BLK

LEN

ODE

GND

GND

C1_P3.3V C1_P3.3V

C17101

10V
1u

AC_PCD1

AC_LED1

AC_ODED1

CLR

AC_CLRD1

NC

OHZ

GND

GND

VDD1

VDD1

E

SIDE

1345789

NC

NC

DM

VDD2

VDD2

VDD2

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

NC

GND

GND

GND

VDD2

VDD2

GND

VDD2

BLK

LEN

ODE

GND

GND

NC

CLR

OHZ

GND

GND

VDD1

VDD1

155 1 55

AC_LED1

AC_ODED1

LEN

ODE

GND

GND

GND

GND

C17103

10V

1u

AC_LED1

AC_ODED1

LEN

ODE

GND

GND

GND

GND

CB2

TO
PANEL DATA
DRIVER

C1_P3.3V

C17102

10V

1u

CB4

TO
PANEL DATA
DRIVER

C1_P3.3V

C17104

10V

1u

F

214

3

56 8

7

9

72

12.31. C2-Board (1/2) Schematic Diagram

C2-BOARD TXNC21LVUU (1/2)

!

A

B

1

2

C2_P3.3V

SIDE

P3.3V

1

3.3V_DET
2

LE1

3

ODE1

4

PC1

5

CLR1

6

GND

DRVCLK1-

DRVCLK1+

DRVCLK2-

DRVCLK2+

7

DD1_2-

8

DD1_2+

9

DD1_1-

10

DD1_1+

11

GND

12

13

14

GND

15

DD2_2-

16

DD2_2+

17

DD2_1-

18

DD2_1+

19

GND

20

DD3_2-

21

DD3_2+

22

DD3_1-

23

DD3_1+

24

GND

25

26

27

GND

28

DD4_2-

29

DD4_2+

30

DD4_1-

31

DD4_1+

32

GND

33

NC

34

NC

35

NC

36

VDA

37

VDA

38

VDA

39

VDA

40

TERM

C20

TO
C1-BOARD
(C10)

C

D

E

AB_LED1_C1

AB_ODED1_C1

AB_PCD1_C1

AB_CLRD1_C1

DD1_2-

DD1_2+

DD1_1-

DD1_1+

DRVCLK1-

DRVCLK1+

DD2_2-

DD2_2+

DD2_1-

DD2_1+

DD3_2-

DD3_2+

DD3_1-

DD3_1+

DRVCLK2-

DRVCLK2+

DD4_2-

DD4_2+

DD4_1-

DD4_1+

VDA

SIDE

1345789

NC

DM

VDD2

VDD2

CB5

TO
PANEL DATA
DRIVER

NC

NC

VDD2

VDD2

VDD2

VDD2

C17232

100V

0.33u

AB_LED2

AB_PCD2

AB_ODED2

AB_CLRD2

111213141516171819202122232425262728293031

AB_CLRD2

NC

CLR

OHZ

VDD1

VDD1

GND

GND

GND

GND

GNDNCGND

BLK

LEN

ODE

GND

GND

GND

GND

GND

GND

C2_P3.3V

C17206

10V

1u

AB_PCD2

AB_LED2

AB_ODED2

DD5_1-

DD5_2+

DD5_2-

DD5_1+

DRVCLK3+

DRVCLK3-

R17231

100

100

R17211

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

DD6_2-

DD6_2+

DD6_1-

100

R17213

200

R17212

R17221

A1P

FXP

A1N

FXN

GND

DRVCLK3-

DRVCLK3+

GND

TEST

200

R17222

GND

DD6_1+

100

R17214

1

NC

GND

GND

GND

VDD2

R17233

1

VDA

C17233

100V

0.33u

TERM

55

NC

VDD2

VDD2

VDA

DM

VDD2

VDD2

VDD2

3

SIDE

1345789

NC

NC

DM

VDD2

VDD2

VDD2

F

1 586

2

3

CB6

TO
PANEL DATA
DRIVER

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

NC

GND

GND

GND

VDD2

VDD2

GND

VDD2

BLK

LEN

ODE

GND

GND

C2_P3.3V

C17201

10V

1u

NC

CLR

OHZ

VDD1

VDD1

GND

GND

GND

GND

GNDNCGND

GND

A1P

A2P

A2N

GND

FXP

A1N

FXN

GND

GND

GND

GND

GND

TEST

NC

GND

NC

VDD2

VDD2

VDD2

TERM

55

DM

VDD2

VDD2

VDD2

7

94

73

12.32. C2-Board (2/2) Schematic Diagram

C2-BOARD TXNC21LVUU (2/2)

!

ODE1

LE1

PC2

PC1

CLR1

GND

GND

AA_PCD2

DD1_2-

DD1_2-

AA_CLRD1

GND

GND

68

TERM

1

AA_LED1

AA_ODED1

AA_PCD1

DRVCLK1-

DD1_2+

DD1_2+

DRVCLK1+

DD1_1+

DD1_1-

GND

GND

55

5758596061626364656667

56

DD1_1-

DD1_1+

DRVCLK1-

DRVCLK1+

GND

DD2_2+

DD2_1+

DD2_2-

DD2_1-

DD2_2-

DD2_2+

DD2_1-

DD2_1+

GND

GND

DRVCLK2+

DRVCLK2-

DD3_2+

DD3_1+

DD3_2-

DD3_1-

DD3_2-

DD3_2+

DD3_1-

DD3_1+

DRVCLK2-

DRVCLK2+

GND

DD4_2+

DD4_1+

DD4_2-

DD4_1-

DD4_2-

DD4_2+

DD4_1-

DD4_1+

GND

GND

DRVCLK3+

DRVCLK3-

DD5_2+

DD5_1+

DD5_2-

DD5_1-

DD5_2-

DD5_2+

DD5_1-

DD5_1+

DRVCLK3-

DRVCLK3+

GND

DD6_2+

DD6_1+

DD6_2-

DD6_1-

DD6_2+

DD6_1-

DD6_1+

DD6_2-

GND

GND

DRVCLK4+

DRVCLK4-

DD7_2+

DD7_1+

DD7_2-

DD7_1-

DD7_2-

DD7_2+

DD7_1-

DD7_1+

DRVCLK4-

DRVCLK4+

GND

DD8_2+

DD8_1+

DD8_2-

DD8_1-

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

DD8_2-

DD8_2+

DD8_1-

DD8_1+

DRVCLK5-

DRVCLK5-

DRVCLK5+

DRVCLK5+

P3.3V

P3.3V

P3.3V

NC

GND

TO
D-BOARD
(D31)

123456789

C21

SIDE

C2_P3.3V

R17204

0

2

3

Y8

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

G2

19

Vcc

20

GND

BUFFER

C0JBAU000043

IC17201

A8

A7

A6

A5

A4

A3

A2

A1

G1

SIDE

1345789

NC

DM

VDD2

VDD2

CB7

TO
PANEL DATA
DRIVER

R17241

AB_LED1_C1

AB_ODED1_C1

AB_PCD1_C1

AB_CLRD1_C1

DD7_2-

DD7_2+

DD7_1-

AB_PCD2

AB_LED2

AB_CLRD2

AB_ODED2

C17235

100V

0.33u

111213141516171819202122232425262728293031

NC

NC

VDD2

VDD2

GND

GND

GND

VDD2

GND

VDD2

BLK

LEN

ODE

GND

GND

C2_P3.3V

C17204

10V

1u

NC

CLR

OHZ

VDD1

VDD1

GND

GNDNCGND

GND

GND

GND

DD7_1+

DRVCLK4-

DRVCLK4+

100

100

R17215

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

100

R17216

R17223

A1P

FXP

A1N

FXN

GND

GND

GND

TEST

R17235

1

NC

GND

GND

GND

VDD2

VDA

TERM

55

NC

VDD2

VDD2

DM

VDD2

VDD2

VDD2

AB_LED2

AB_ODED2

AB_PCD2

AB_CLRD2

C17213

EXB38V470JV

R17242

EXB38V470JV

C2_P3.3V

16V

0.1u

R17226

680

10

9

8

7

6

5

4

3

2

1

R17247

EXB38V681JV

R17296

R17294

0

0

R17295

AA_LED1

C17241

50V

100p

AA_ODED1

AA_PCD1

AA_PCD2

AA_CLRD1

0

3.3V_DET_2

C2_P3.3V

VDA

R17229

220k

TERM

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SIDE

C26

TO
C3-BOARD
(C36)

P3.3V

P3.3V

P3.3V

NC

3.3V_DET

NC

GND

GND

GND

GND

GND

GND

NC

NC

NC

VDA

VDA

VDA

VDA

VDA

SIDE

1345789

NC

DM

VDD2

VDD2

CB8

TO
PANEL DATA
DRIVER

DD8_2-

DD8_2+

DD8_1-

AB_PCD2

AB_LED2

AB_CLRD2

AB_ODED2

111213141516171819202122232425262728293031323334353637

NC

NC

VDD2

VDD2

GND

GND

GND

VDD2

GND

VDD2

BLK

LEN

ODE

GND

GND

C2_P3.3V

C17205

10V

1u

NC

CLR

OHZ

VDD1

VDD1

GND

GND

GNDNCGND

GND

GND

DD8_1+

DRVCLK5-

DRVCLK5+

VDA

100

R17217

A2P

A2N

GND

GND

R17224

R17218

38

39404142434445474849515253

A1P

FXP

A1N

FXN

GND

GND

GND

TEST

100

100

R17237

NC

GND

GND

GND

C17238

100V

1

0.33u

TERM

55

NC

VDD2

VDD2

VDD2

DM

VDD2

VDD2

VDD2

ZA17204

1

K4CD01000013

C20

40

55 155

1 551

CB6 CB7 CB8 CB9 CB10

ZA17201

K4CD01000013

ZA17203

K4CD01000013

ZA17202

1

C21

68

155 1 55

K4CD01000013

20

C26

1

13 1412 181711 1610 15

74

12.33. C3-Board (1/2) Schematic Diagram

!

C3-BOARD TXNC31LWUU (1/2)

A

1

B

AA_LED2

PC4

ODE2

AA_ODED2

AA_PCD3

CLR2

GND

GND

UML

USH

USL

AA_PCD4

AA_CLRD2

AA_UMH

UMH

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

AA_UML

AA_USL

AA_USH

PC3

GND

LE2

AA_UEH

P3.3V

NC

DRVSOS8

UEH

DRVSOS8

AA_UEH

AA_USL

AA_USH

AA_UML

AA_UMH

P5V_SS

GND

NC

123456789

R17346

EXB38V681JV

TO
D-BOARD

C31

SIDE

(D32)

SS_5V

C3_P3.3V

R17349

0

8

GND

SS_5V

Vcc

G2

Y1

Y2

Y3

Y4

BUFFER

Y5

Y6

Y7

Y8

C17346

20

16V

0.1u

19

18

17

16

15

14

13

12

11

R17342

EXB38V470JV

R17343

EXB38V470JV

AB_UEH

AB_USH

AB_UML

AB_UMH

AB_USL

R17347

EXB38V681JV

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

IC17302

C0JBAZ002692

9

A8

10

GND

SOS8_SS

AB_UMH

VDA

R17326

220k

TO

123

4

C35

P-BOARD
(P35)

NCUML

VDA

VDA

GND

AB_USH

AB_UML

AB_UEH

AB_USL

SS_5V

TO

1234567

C33

SS-BOARD
(SS33)

P5V

USL

UEH

USH

UMH

DD11_1+

DD11_1+

GND

DRVCLK7-

DRVCLK7+

DRVCLK7-

DRVCLK7+

DD12_2+

DD12_2-

DD12_2-

DD12_2+

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

GND

R17341

680

DD12_1+

DD12_1-

DD12_1+

DD12_1-

BUFFER

IC17301

C0JBAU000043

DD13_2+

GND

DD13_1+

GND

DD13_2-

DD13_2-

DD13_2+

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

DD13_1-

C3_P3.3V

DD13_1-

DD13_1+

C17347

DRVCLK8+

DRVCLK8-

DRVCLK8+

DRVCLK8-

16V

0.1u

R17344

EXB38V470JV

R17345

EXB38V470JV

DD14_1+

DD15_2+

DD14_1-

GND

DD14_2+

DD14_2+

DD14_1-

DD14_1+

AB_CLRD32

AB_CLRD31

AB_PCD32

AB_ODED32

AB_ODED31

AB_LED32

AB_LED31

DD15_2-

DD15_2-

DD15_2+

DD15_1-

DD14_2-

GND

DD14_2-

DD15_1-

DD15_1+

DD15_1+

GND

DRVCLK9-

GND

DRVCLK9+

DRVCLK9+

DRVCLK9-

DD9_2+

GND

3.3V_DET

TO
C2-BOARD
(C26)

C36

C3_P3.3V

SIDE

P3.3V

1

P3.3V

2

P3.3V

3

NC

4

3.3V_DET
5

NC

6

GND

7

GND

C

8

GND

9

GND

10

GND

11

GND

12

NC

13

NC

14

NC

VDA

VDA

VDA

VDA

VDA

VDA

15

16

17

18

19

20

TERM

68

TERM

3.3V_DET_3

D

GND

DD9_2-

DD9_2-

DRVCLK6-

GND

DD9_1+

DD9_1-

DRVCLK6+

DRVCLK6+

DRVCLK6-

DD9_1+

DD9_1-

DD9_2+

R17350

0

AA_CLRD2

AA_PCD4

AA_PCD3 AB_PCD31

AA_ODED2

R17351

0

AA_LED2

DD10_2-

DD10_2-

5758596061626364656667

DD10_2+

DD10_2+

GND

DD10_1-

DD11_2+

DD11_1-

DD10_1+

DD11_2-

55

56

DD11_1-

DD11_2+

DD11_2-

DD10_1+

DD10_1-

R17395

0

C17348

50V

100p

R17348

EXB38V681JV

E

F

2

35

4

681

97

75

12.34. C3-Board (2/2) Schematic Diagram

!

C3-BOARD TXNC31LWUU (2/2)

1

AB_LED31

AB_PCD31

AB_CLRD31

AB_ODED31

SIDE

1345789

NC

DM

CB9

TO
PANEL DATA
DRIVER

SIDE

1345789

NC

DM

CB10

TO
PANEL DATA
DRIVER

NC

VDD2

VDD2

VDD2

NC

VDD2

VDD2

VDD2

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

NC

GND

GND

GND

GND

VDD2

VDD2

VDD2

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

NC

GND

GND

GND

VDD2

VDD2

GNDNCGND

VDD2

BLK

LEN

CLR

ODE

GND

GND

C3_P3.3V

C17358

10V

1u

AB_LED31

AB_PCD31

AB_CLRD31

AB_ODED31

BLK

LEN

CLR

ODE

GND

C3_P3.3V

C17362

10V
1u

DD9_1-

DD9_2-

DD9_1+

DD9_2+

NC

OHZ

GND

GND

GND

VDD1

VDD1

OHZ

GND

GND

GND

VDD1

VDD1

A2N

GND

GND

GND

GND

DD10_2-

DD10_2+

A2N

GND

GND

GND

GND

DRVCLK6-

DRVCLK6+

VDA

R17355

100

R17352

A2P

A1N

GND

DD10_1-

100

R17357

A2P

A1N

GND

DD10_1+

200

100

R17354

R17353

A1P

FXP

FXN

GND

GND

TEST

DRVCLK6-

DRVCLK6+

100

200

R17358

R17359

A1P

FXP

FXN

GND

GND

TEST

NC

GND

GND

GND

GND

GND

VDD2

NC

GND

GND

GND

VDD2

C17360

1

100V

0.33u

TERM

55

NC

NC

DM

VDD2

VDD2

VDD2

VDD2

VDA

VDD2

VDD2

R17360

C17364

1

100V

0.33u

TERM

55

NC

NC

VDD2

DM

VDD2

VDD2

VDD2

SIDE

1345789

NC

DM

CB13

TO
PANEL DATA
DRIVER

SIDE

1345789

NC

DM

CB14

TO
PANEL DATA
DRIVER

VDD2

VDD2

VDD2

NC

NC

VDD2

VDD2

VDD2

VDD2

VDD2

NC

NC

VDD2

VDD2

VDD2

VDD2

AB_LED32

AB_PCD32

AB_CLRD32

AB_ODED32

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

CLR

AB_CLRD32

CLR

NC

OHZ

VDD1

VDD1

OHZ

VDD1

VDD1

GND

GND

GND

GNDNCGND

GND

NC

GNDNCGND

GND

GND

GND

GND

BLK

LEN

ODE

GND

GND

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

GND

GND

GND

GND

GND

GND

C3_P3.3V

C17305

10V

1u

AB_LED32

AB_PCD32

AB_ODED32

BLK

LEN

ODE

GND

GND

GND

GND

C3_P3.3V

C17306

10V

1u

DD13_1-

DD13_2-

DD13_1+

DD13_2+

A2N

GND

DD14_2-

DD14_2+

A2N

GND

DRVCLK8-

DRVCLK8+

VDA

R17335

100

R17315

A2P

GND

DD14_1-

100

R17317

A2P

GND

R17324

R17316

A1P

FXP

A1N

FXN

GND

GND

TEST

DD14_1+

DRVCLK8-

DRVCLK8+

100

200

R17318

R17325

A1P

FXP

A1N

FXN

GND

GND

TEST

NC

GND

GND

GND

GND

NC

GND

GND

GND

GND

200

100

C17336

1

100V

0.33u

TERM

55

NC

VDD2

VDD2

VDD2

VDA

R17337

1

NC

VDD2

VDD2

VDD2

DM

VDD2

VDD2

VDD2

C17338

100V

0.33u

TERM

55

DM

VDD2

VDD2

VDD2

SIDE

1345789

NC

DM

CB11

TO
PANEL DATA
DRIVER

SIDE

1345789

NC

DM

CB12

TO
PANEL DATA

DRIVER

DD11_2-

DD11_1+

DD11_2+

AB_LED31

AB_PCD31

AB_ODED31

AB_CLRD31

111213141516171819202122232425262728293031

NC

NC

VDD2

VDD2

VDD2

NC

VDD2

VDD2

VDD2

GND

GND

GND

GND

VDD2

VDD2

VDD2

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

NC

GND

GND

GND

GND

VDD2

VDD2

VDD2

BLK

LEN

ODE

GND

GND

C3_P3.3V

C17301

10V

1u

AB_LED31

AB_PCD31

AB_ODED31

BLK

LEN

ODE

GND

GND

C3_P3.3V

C17304

10V
1u

CLR

AB_CLRD31

CLR

NC

OHZ

VDD1

VDD1

OHZ

VDD1

VDD1

GND

GND

GND

GNDNCGND

GND

NC

GND

GND

GND

GNDNCGND

GND

DD11_1-

DRVCLK7-

DRVCLK7+

VDA

100

DD12_1+

200

R17312

R17322

A1P

FXP

FXN

GND

DRVCLK7-

100

R17314

A1P

FXN

GND

DRVCLK7+

FXP

GND

GND

GND

GND

TEST

200

R17323

GND

GND

GND

GND

TEST

100

R17311

323334353637383940414243444547484951525355

A2P

A1N

A2N

GND

GND

DD12_2-

DD12_1-

DD12_2+

100

R17313

A2P

A1N

A2N

GND

GND

R17331

1

NC

GND

GND

NC

VDD2

VDD2

VDD2

VDD2

VDA

R17333

1

NC

NC

VDD2

VDD2

VDD2

VDD2

AB_LED32

AB_PCD32

AB_CLRD32

AB_ODED32

VDD2

NC

VDD2

ZA17301

K4CD01000013

CB9

C17339

100V

0.33u

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

VDD2

ZA17305

K4CD01000013

NC

GND

GND

GND

GND

VDD2

VDD2

CB10

BLK

LEN

ODE

GND

GND

C3_P3.3V

C17307

10V

1u

155155

CB11

CLR

K4CD01000013

ZA17302

OHZ

VDD1

VDD1

1

NC

GND

GND

68

CB12 CB13

C17332

100V

0.33u

TERM

DM

VDD2

VDD2

C17334

100V

0.33u

TERM

55

DM

VDD2

VDD2

SIDE

1345789

NC

DM

CB15

TO
PANEL DATA
DRIVER

VDD2

1

C26

20

1551551

GND

GNDNCGND

GND

C31

155

GND

1

DD15_2-

DD15_2+

A2N

ZA17304

K4CD01000013

DD15_1-

DD15_1+

DRVCLK9-

DRVCLK9+

100

100

R17319

A2P

GND

100

R17320

R17321

A1P

FXP

A1N

FXN

GND

GND

GND

TEST

155155

CB14

K4CD01000013

GND

10 1

ZA17303

VDA

R17339

1

TERM

55

NC

GND

GND

NC

VDD2

VDD2

VDD2

14

C35C33

CB15

DM

VDD2

VDD2

VDD2

R17399

150

14 1713 1815121110 16

76

12.35. C4-Board Schematic Diagram

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

DU3_1+

DRVCLKU2-

DU1_2+

DU3_1-

AB_PCU4

DRVCLKU1+

AB_ODEU4

DRVCLKU1-

DU4_2-

DU3_2+

DU1_2-

DU4_1+

AB_LEU4

DU4_1-

AB_CLRU4

DU4_2+

DU3_2-

DU2_2-

DU2_1+

DU2_1-

DRVCLKU2+

DU1_1+

DU2_2+

DU1_1-

3.3V_DET

AB_LEU4

DRVCLKU1-

DRVCLKU1+

AB_CLRU4

DU1_1-

DU1_2+

AB_ODEU4

AB_PCU4

DU1_1+

DU1_2-

DU2_1+

AB_PCU4

AB_ODEU4

DU2_2+

DU2_1-

DRVCLKU1-

AB_CLRU4

DRVCLKU1+

AB_LEU4

DU2_2-

DU4_2-

AB_PCU4

DU4_2+

AB_ODEU4

DU4_1+

DRVCLKU2-

DU4_1-

AB_LEU4

DRVCLKU2+

AB_CLRU4

DU3_2+

AB_CLRU4

AB_PCU4

DRVCLKU2+

DU3_1+

DU3_2-

AB_ODEU4

DRVCLKU2-

DU3_1-

AB_LEU4

C17414

10V

1u

C17416

100V

0.33u

C17412

100V

0.33u

C17410

10V
1u

C17408

100V

0.33u

C17406

10V

1u

C17404

100V

0.33u

C17402

10V

1u

C40

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

1345789

11121314151617181920212223242526272829303132333435363738394041424344454748

49

515253

55

1345789

1112131415161718192021222324252627282930313233343536373839404142434445

474849

515253

55

1345789

1112131415161718192021222324252627282930313233343536373839404142434445

474849

515253

55

1345789

11121314151617181920212223242526272829303132333435363738394041424344454748

49

515253

55

VDA

C4_3.3V

VDA

VDA

C4_3.3V

C4_3.3V

VDA

C4_3.3V

C4_3.3V

VDA

ZA17402

K4CD01000013

ZA17404

K4CD01000013

ZA17401

K4CD01000013

ZA17403

K4CD01000013

R17412

1

R17417

1

R17403

100

R17422

1

R17415

100

R17410

100

R17419

100

R17409

100

R17405

200

R17411

200

R17421

200

R17416

200

R17404

100

R17401
1k

R17402

220k

R17406

1

R17414

100

R17420

100

40

1 55

1

55 1

55

1

C40

155

P3.3V

VDA

VDA

VDA

VDA

3.3V_DET

GND

NC

NC

NC

ODE4

PC4

LE4

GND

CLR4

DU4_1-

DU4_2+

DU4_1+

DU4_2-

DRVCLKU2-

DRVCLKU2+

GND

GND

GND

DU1_2+

DRVCLKU1+

GND

DRVCLKU1-

DU1_2-

DU1_1-

DU1_1+

DU2_1-

DU2_2+

DU2_1+

DU2_2-

DU3_1-

DU3_2+

DU3_1+

DU3_2-

GND

NC(GND)

VDD2

A1(-)

GND

VDD2

GND

VDD2

GNDNCGND(TEST)

GND

DM

VDD1

A2(-)

VDD2

VDD2

NC(GND)

TEST1(GND)

GND

GND

A2(+)

VDD2

VDD2

GND

GND

LBLK(BLK)

HZ

NC(GND)

NC

GND

NC

NC

GND

NC(GND)

GND

HBLK(ODE)

NC(GND)

VDD2

LE(LEN)

CLK(-)NCA1(+)

GND

VDD2

GND

VDD1

CLR

CLK(+)

VDD2

VDD2

GND

GND

NC

VDD2

DM

LE(LEN)

CLK(-)NCA1(+)

GND

VDD2

GND

HZ

NC(GND)

NC

GND(TEST)

GND

GND

NC

DM

NC

VDD1

A2(-)

VDD2

GND

VDD2

GND

NC

A2(+)

VDD2

VDD2

GND

GND

LBLK(BLK)

GND

NC(GND)

GND

HBLK(ODE)

NC(GND)

VDD2

NC(GND)

VDD2

VDD2

VDD2

NC(GND)

A1(-)

TEST1(GND)

GND

GND

GND

NC

VDD2

DM

VDD1

CLR

CLK(+)

VDD2

VDD2

GND

GND

NC(GND)

VDD2

NC(GND)

VDD2

VDD2

LE(LEN)

GND

VDD2

GND

VDD1

A2(-)

VDD2

A1(+)

GND

NC

DM

NC

NC

A2(+)

VDD2

VDD2

GND

VDD2

GND

HZ

NC

NC

VDD2

DM

VDD1

GND

GND

LBLK(BLK)

NC(GND)

GND

TEST1(GND)

NC

GND

CLK(-)

GND(TEST)

GND

GND

GND

GND

VDD2

NC(GND)

A1(-)

CLR

CLK(+)

VDD2

NC(GND)

VDD2

GND

GND

HBLK(ODE)

HZ

NC

VDD2

NC(GND)

TEST1(GND)

NC

GND

NC

A2(+)

VDD2

VDD1

A2(-)

NC

DM

NC

GND

VDD1

GND

GND

GND

VDD2

GND

HBLK(ODE)

LE(LEN)

GND

LBLK(BLK)

NC(GND)

GND

VDD2

VDD2

GND

GND

VDD2

NC(GND)

NC(GND)

VDD2

GND

GND

CLK(-)

GND(TEST)

GND

VDD2

A1(+)

GND

NC

VDD2DMVDD2

NC(GND)

VDD2

A1(-)

CLR

CLK(+)

VDD2

GND

F

B

5

E

9

A

68732

D

14

C

C4-BOARD TXNC41LWUU

!

TO
C5-BOARD
(C50)

TO
PANEL DATA

CA1

DRIVER

TO
PANEL DATA

CA2

DRIVER

TO
PANEL DATA

CA3

DRIVER

TO
PANEL DATA

CA4

DRIVER

77

12.36. C5-Board (1/2) Schematic Diagram

!

C5-BOARD TXNC51LWUU (1/2)

A

C5_3.3V

C17520

10V

1u

VDD2

VDD2

VDD2

NC

VDD2

VDD2

TERM

CA5

TO
PANEL DATA
DRIVER

TERM

CA6

TO
PANEL DATA
DRIVER

DM

515253

55

C17509

100V

0.33u

VDD2

DM

VDD2

NC

VDD2

515253

55

B

VDA

SIDE

VDA

1

VDA

2

VDA

3

VDA

4

NC

5

NC

6

NC

7

GND

8

DU4_2-

9

DU4_2+

10

DU4_1-

11

DU4_1+

12

GND

C

D

DRVCLKU2-

DRVCLKU2+

DRVCLKU1-

DRVCLKU1+

3.3V_DET

13

14

15

GND

16

DU3_2-

17

DU3_2+

18

DU3_1-

19

DU3_1+

20

GND

21

DU2_2-

22

DU2_2+

23

DU2_1-

24

DU2_1+

25

GND

26

27

28

GND

29

DU1_2-

30

DU1_2+

31

DU1_1-

32

DU1_1+

33

GND

34

LE4

35

ODE4

36

PC4

37

CLR4

38

39

P3.3V

40

C50

TO
C4-BOARD
(C40)

C5_3.3V

TERM

AB_ODEU4

AB_PCU4

AB_CLRU4

3.3V_DET_2

AB_LEU4

DRVCLKU2-

DRVCLKU2+

DRVCLKU1-

DRVCLKU1+

DU4_2-

DU4_2+

DU4_1-

DU4_1+

DU3_2-

DU3_2+

DU3_1-

DU3_1+

DU2_2-

DU2_2+

DU2_1-

DU2_1+

DU1_2-

DU1_2+

DU1_1-

DU1_1+

NC

NC

NC

GND

VDD2

48

49

47

VDD2

GND

VDD2

VDD2

474849

GND

GND

CLK(+)

CLK(-)

A1(+)

DRVCLKU3-

CLK(-)NCA1(+)

DRVCLKU4-

GND

A1(-)

100

R17524

DU5_1+

DU5_1-

GND

A1(-)

GND

100

R17509

DU6_1-

DU6_1+

GND

GND(TEST)

GND

GND

100

R17525

DRVCLKU3+

GND

CLK(+)

GND

GND(TEST)

GND

GND

200

R17510

DRVCLKU4+

NC(GND)

A2(-)

GND

A2(+)

NC(GND)

100

R17523

DU5_2+

DU5_2-

NC(GND)

NC(GND)

GND

A2(-)

A2(+)

100

R17508

DU6_2-

DU6_2+

NC(GND)

TEST1(GND)

NC(GND)

GND

NC(GND)

C5_3.3V VDA

C17508

10V
1u

NC(GND)

NC(GND)

TEST1(GND)

GND

NC(GND)

LBLK(BLK)

VDD1

HZ

HZ

HBLK(ODE)

VDD1

CLR

AB_CLRU5

AB_PCU5

AB_ODEU5

LBLK(BLK)

HBLK(ODE)

VDD1

CLR

VDD1

AB_ODEU5

AB_PCU5

AB_CLRU5

GND

GND

GND

LE(LEN)

GND

1718192021222324252627282930313233343536373839404142434445

16

AB_LEU5

GND

GND

LE(LEN)

GND

GND

AB_LEU5

E

R17505

EXB38V681JV

R17506

0

C17502

100p

AA_LEU5

50V

AA_ODEU5

AA_PCU5

AA_CLRU5

R17507

0

AB_LEU5

AB_ODEU5

AB_PCU5

AB_CLRU5

AB_LEU4

AB_ODEU4

AB_PCU4

AB_CLRU4

R17502

EXB38V470JV

R17503

EXB38V470JV

Y8

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

17

18

C5_3.3V

19

20

C17501

16V

0.1u

Y2

Y1

G2

Vcc

BUFFER

IC17501

C0JBAU000043

R17528

GND

10

A8

A7

A6

A5

A4

A3

A2

A1

G1

0

9

8

7

6

5

4

3

2

1

VDA

R17526

C17522

1

100V

0.33u

NC

VDD2

VDD2

VDD2

GND

GND

1112131415

NC

DM

VDD2

VDD2

VDD2

NC

1345789

SIDE

1

R17511

1

GND

VDD2

NC

GND

VDD2

1112131415161718192021222324252627282930313233343536373839404142434445

VDD2

VDD2

VDD2

VDD2

NC

DM

NC

1345789

SIDE

2

3

4

5

6

F

1 962 857

3

4

78

12.37. C5-Board (2/2) Schematic Diagram

SIDE

TERM

TERM

SIDE

TERM

SIDE

TERM

SIDE

P

AA_LEU5

AA_PCU5

AA_CLRU5

DU4_2-

DU4_2+

DU4_1-

DU4_1+

DRVCLKU2-

DRVCLKU2+

DU3_2-

DU3_2+

DU3_1-

DU3_1+

DU2_2-

DU2_2+

DU2_1-

DU2_1+

DRVCLKU1-

DRVCLKU1+

DU1_2-

DU1_2+

DU1_1-

DU1_1+

DU6_2-

DU6_2+

DU6_1-

DU6_1+

DRVCLKU3-

DRVCLKU3+

DU5_2-

DU5_2+

DU5_1-

DU5_1+

AB_LEU5

AB_ODEU5

AB_PCU5

AB_CLRU5

DU8_2-

DU8_2+

DU8_1-

DU8_1+

DRVCLKU5-

DRVCLKU5+ DRVCLKU4+

DRVCLKU4-

DU7_1+

DU7_1-

DU7_2+

DU7_2-

AB_CLRU5

AB_PCU5

AB_ODEU5

AB_LEU5

DRVCLKU4+

DRVCLKU4-

DU7_1+

DU7_1-

DU7_2+

DU7_2-

DRVCLKU5+

DRVCLKU5-

DU8_1+

DU8_1-

DU8_2+

DU8_2-

AA_ODEU5

C17517

100V

0.33u

C17516

10V
1u

C17512

10V

1u

C17514

100V

0.33u

C56

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

C51

123456789

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555758596061626364656667

68

56

134

5

789

1112131415161718192021222324252627282930313233343536373839404142434445

474849

515253

55

134

5

789

1112131415

16

17181920212223242526272829303132333435

36

373839404142434445

47

48

49

515253

55

VDAC5_3.3V

C5_3.3V

VDA

C5_3.3V

C5_3.3V

VDA

VJ17501

ZA17502

K4CD01000013

ZA17504

K4CD01000013

ZA17503

K4CD01000013

ZA17501

K4CD01000013

R17518

100

R17519

100

R17521

1

R17514

100

R17513

100

R17501

220k

R17515

100

R17520

200

R17516

1

GND

NC

VDA

VDA

VDA

NC

VDA

GND

GND

VDA

NC

P3.3V

GND

GND

ODE5

DRVCLKU1-

LE5

GND

DRVCLKU1+

55 55

1

1

1

40

C50

1

C56

1

1

1

55

20

55

C51 68

PC5

CLR5

GND

GND

DU1_2-

DU1_2+

DU1_1+

DU1_1-

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

DRVCLKU2+

DRVCLKU2-

DRVCLKU3+

DRVCLKU3-

DRVCLKU4+

DRVCLKU4-

DU2_2+

DU2_1+

DU2_2-

DU2_1-

DU3_2+

DU3_1+

DU3_2-

DU3_1-

DU4_2+

DU4_1+

DU4_2-

DU4_1-

DU5_2+

DU5_1+

DU5_2-

DU5_1-

DU6_2+

DU6_1+

DU6_2-

DU6_1-

DU7_2+

DU7_1+

DU7_2-

DU7_1-

DU8_2+

DU8_1+

DU8_2-

DU8_1-

P3.3V

P3.3V

P3.3V

NC

GND

GND

GND

P3.3V

P3.3V

3.3V_DET

NC

NC

DRVCLKU5+

DRVCLKU5-

GND

NC(GND)

VDD2

VDD1

NC(GND)

CLR

NC

GND(TEST)

NC(GND)

VDD2

VDD1

GND

GND

A2(-)

VDD2

GND

NC(GND)

NC

A1(+)

GND

GND

NC

GND

HBLK(ODE)

VDD2

GND

LBLK(BLK)

GND

GND

GND

CLK(+)

GND

VDD2NCNC

A2(+)

VDD2

GND

HZ

GND

VDD2

GND

VDD2

GND

DM

LE(LEN)

A1(-)

CLK(-)

TEST1(GND)

DM

NC

NC(GND)

VDD2

VDD2

VDD2

VDD2

CLK(-)

TEST1(GND)

VDD2

VDD2

A1(+)

LBLK(BLK)

GND

VDD2

NC(GND)

NC(GND)

VDD1

GND

GND

GND

VDD2

A2(-)

GND

GND

HZ

DM

NC

VDD2

HBLK(ODE)

A2(+)

GND(TEST)

VDD2

VDD1

VDD2

VDD2

GND

LE(LEN)

GND

NC(GND)

GND

A1(-)

DM

CLR

GND

VDD2

NC

NC

NC

GND

GND

NC(GND)

VDD2

VDD2

GND

VDD2

GND

CLK(+)

NC

GND

NC

NC(GND)

121110 15 171613 1814

C5-BOARD TXNC51LWUU (2/2)

!

4

5

3

6

1

2

PANEL DATA

TO

DRIVER

CA7

PANEL DATA

TO

DRIVER

CA8

TO
D-BOARD
(D34)

TO
C6-BOARD
(C66)

79

12.38. C6-Board (1/2) Schematic Diagram

!

C6-BOARD TXNC61LWUU (1/2)

A

B

C

TO
C5-BOARD
(C56)

C66

VDA

SIDE

VDA

1

VDA

2

VDA

3

VDA

4

VDA

5

NC

6

NC

7

3.3V_DET

NC

8

GND

9

GND

10

GND

11

GND

12

GND

13

GND

14

NC

15

16

NC

P3.3V

P3.3V

P3.3V

C6_3.3V

17

18

19

20

TERM

TO
D-BOARD
(D33)

SIDE

C61

D

E

DU9_2-

DU9_1-

DU9_2+

DU9_1+

3.3V_DET_3

123456789

3.3V_DET

GND

GND

DU9_1-

DU9_2-

DU9_1+

DU9_2+

DU14_2-

GND

DRVCLKU8+

DRVCLKU8+

DRVCLKU8-

DRVCLKU8-

DU14_1-

DU14_2+

DU14_1+

GND

DU14_1-

DU14_2+

DU14_1+

DU14_2-

GND

DRVCLKU9+

DRVCLKU9+

DRVCLKU9-

DRVCLKU9-

DU15_1+

DU15_1+

DU15_1-

DU15_1-

DU15_2+

DU15_2+

DU15_2-

DU15_2-

GND

DU13_2-

DU13_1-

DU12_2-

GND

DRVCLKU7+

DRVCLKU7+

DRVCLKU7-

DRVCLKU7-

DU12_1-

DU12_2+

DU12_1+

GND

DU12_1-

DU12_1+

DU12_2+

DU12_2-

DU13_2+

DU13_1+

GND

DU13_2-

DU13_1-

DU13_2+

DU13_1+

DU10_1-

DU10_2+

DU10_1+

DRVCLKU6-

DRVCLKU6+

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

GND

DU10_1-

DU10_1+

DRVCLKU6-

DRVCLKU6+

DU10_2+

DU10_2-

DU11_2+

DU11_1+

GND

DU11_2-

DU11_1-

DU11_2+

DU11_1+

DU11_2-

DU11_1-

DU10_2-

AA_CLRU6

CLR6

AA_PCU6

ZA17605

K4CD01000013

551155 155

1

C66

20

1

55

C61

ZA17601

K4CD01000013

ZA17604

K4CD01000013

1

55 155 155 155

ZA17602

K4CD01000013

ZA17603

K4CD01000013

51

C65

1

C6_3.3V

1

AA_CLRU6

R17606

0

AA_PCU6

AA_ODEU6

R17607

0

AA_LEU6

AA_LEU6

AA_ODEU6

VJ17601

55

NC

LE6

PC6

GND

ODE6

P3.3V

C17603

50V

100p

C6_3.3V

P

TERM

R17602

EXB38V681JV

R17644

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

IC17601

C0JBAU000043

A7

9

A8

10

GND

0

TO
P-BOARD
(P65)

Vcc

G2

Y1

Y2

Y3

Y4

BUFFER

Y5

Y6

Y7

Y8

C65

20

19

18

17

16

15

14

13

12

11

VDA

VDA

12345

C17602

16V

0.1u
R17604

EXB38V470JV

EXB38V470JV

GND

NC

GND

VDA

R17601

220k

AB_CLRU61

AB_CLRU62

AB_PCU61

AB_PCU62

AB_ODEU61

AB_ODEU62

AB_LEU61

AB_LEU62

R17605

F

1 962 857

3

4

80

12.39. C6-Board (2/2) Schematic Diagram

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

TERM

SIDE

DRVCLKU6+

DRVCLKU6-

DU10_1+

DU10_1-

DU10_2+

DU10_2-

AB_CLRU61

AB_PCU61

AB_ODEU61

AB_LEU61

DRVCLKU6+

DRVCLKU6-

DU9_1+

DU9_1-

DU9_2+

DU9_2-

AB_CLRU61

AB_PCU61

AB_ODEU61

AB_LEU61

DRVCLKU7+

DRVCLKU7-

DU12_1+

DU12_1-

DU12_2+

DU12_2-

AB_CLRU61

AB_PCU61

AB_ODEU61

AB_LEU61

DRVCLKU8+

DRVCLKU8-

DU14_1+

DU14_1-

DU14_2+

DU14_2-

AB_CLRU62

AB_PCU62

AB_ODEU62

AB_LEU62

DRVCLKU7+

DRVCLKU7-

DU11_1+

DU11_1-

DU11_2+

DU11_2-

AB_CLRU61

AB_PCU61

AB_ODEU61

AB_LEU61

DRVCLKU8+

DRVCLKU8-

DU13_1+

DU13_1-

DU13_2+

DU13_2-

AB_CLRU62

AB_PCU62

AB_ODEU62

AB_LEU62

DRVCLKU9+

DRVCLKU9-

DU15_1+

DU15_1-

DU15_2+

DU15_2-

AB_CLRU62

AB_PCU62

AB_ODEU62

AB_LEU62

C17619

100V

0.33u

C17617

10V

1u

C17613

10V

1u

C17623

100V

0.33u

C17615

100V

0.33u

C17621

10V
1u

C17627

100V

0.33u

C17611

100V

0.33u

C17609

10V
1u

C17625

10V

1u

C17629

10V

1u

C17634

100V

0.33u

C17631

100V

0.33u

C17633

10V

1u

134

5

789

1112131415

16

1718192021222324252627282930313233343536373839404142434445

474849

515253

55

134

578

9

1112131415161718192021222324252627282930313233343536373839404142434445

474849

515253

55

1

34578

9

1112131415161718192021222324252627282930313233343536373839404142434445

47

48

49

515253

55

134

578

9

1112131415

16

1718192021222324252627282930313233343536373839404142434445

474849

515253

55

134

5

789

1112131415161718192021222324252627282930313233343536373839404142434445

474849

515253

55

1345789

1112131415161718192021222324252627282930313233343536373839404142434445

47

48

49

515253

55

134

5

7

8

9

1112131415161718192021222324252627282930313233343536373839404142434445

474849

515253

55

C6_3.3V

C6_3.3V VDA

C6_3.3V VDAC6_3.3V

C6_3.3V VDA

C6_3.3V

VDA

VDA

C6_3.3VVDA

VDA

R17631

1

R17610

200

R17611

1

R17625

200

R17633

100

R17624

100

R17616

1

R17628

100

R17629

100

R17639

100

R17609

100

R17638

100

R17641

1

R17636

1

R17615

200

R17620

200

R17618

100

R17619

100

R17621

1

R17613

100

R17608

100

R17626

1

R17640

100

R17630

200

R17634

100

R17635

200

R17623

100

R17614

100

VDD2

VDD2

VDD2

VDD2

VDD2

GND

A1(+)

GND

VDD2NCVDD2

GND

LBLK(BLK)

A2(-)

VDD1

TEST1(GND)

A2(+)

HBLK(ODE)

NC(GND)

GND

VDD2

NC

CLK(-)

NC

NC

VDD1

GND

GND

NC(GND)

VDD2

VDD2

GND

VDD2

NC(GND)

GND

GND(TEST)

GND

GND

CLK(+)

GND

LE(LEN)

GND

GND

CLR

GND

HZ

NC

VDD2

GND

NC

A1(-)

NC(GND)

DM

NC(GND)

DM

GND

NC

NC(GND)

CLK(-)

VDD2NCVDD2

NC

GND

VDD1

VDD2

GND

A2(+)

HBLK(ODE)

NC(GND)

GND

GND

LE(LEN)

VDD2

GND

GND

CLR

GND

HZ

NC(GND)

DM

NC

VDD2

VDD2

GND

GND

NC

LBLK(BLK)

A1(-)

A2(-)

VDD2

NC(GND)

VDD1

VDD2

DM

TEST1(GND)

VDD2

VDD2

VDD2

GND

A1(+)

GND

VDD2

NC

NC(GND)

GND

GND(TEST)

GND

GND

CLK(+)

GND

NC

NC(GND)

CLK(-)

VDD2NCVDD2

NC

GND

VDD1

VDD2

GND

A2(+)

HBLK(ODE)

NC(GND)

GND

GND

LE(LEN)

VDD2

GND

GND

CLR

GND

HZ

NC(GND)

DM

NC

VDD2

VDD2

GND

GND

NC

LBLK(BLK)

A1(-)

A2(-)

VDD2

NC(GND)

VDD1

VDD2

DM

TEST1(GND)

VDD2

VDD2

VDD2

GND

A1(+)

GND

VDD2

NC

NC(GND)

GND

GND(TEST)

GND

GND

CLK(+)

GND

NC

NC(GND)

CLK(-)

VDD2NCVDD2

NC

GND

VDD1

VDD2

GND

A2(+)

HBLK(ODE)

NC(GND)

GND

GND

LE(LEN)

VDD2

GND

GND

CLR

GND

HZ

NC(GND)

DM

NC

VDD2

VDD2

GND

GND

NC

LBLK(BLK)

A1(-)

A2(-)

VDD2

NC(GND)

VDD1

VDD2

DM

TEST1(GND)

VDD2

VDD2

VDD2

GND

A1(+)

GND

VDD2

NC

NC(GND)

GND

GND(TEST)

GND

GND

CLK(+)

GND

NC

NC(GND)

CLK(-)

VDD2NCVDD2

NC

GND

VDD1

VDD2

GND

A2(+)

HBLK(ODE)

NC(GND)

GND

GND

LE(LEN)

VDD2

GND

GND

CLR

GND

HZ

NC(GND)

DM

NC

VDD2

VDD2

GND

GND

NC

LBLK(BLK)

A1(-)

A2(-)

VDD2

NC(GND)

VDD1

VDD2

DM

TEST1(GND)

VDD2

VDD2

VDD2

GND

A1(+)

GND

VDD2

NC

NC(GND)

GND

GND(TEST)

GND

GND

CLK(+)

NC(GND)

NC

NC(GND)

GND

CLK(-)

LBLK(BLK)

VDD2

A1(-)

A2(-)

VDD2

NC(GND)

VDD1

VDD2

DM

TEST1(GND)

VDD2

VDD2

VDD2

GND

A1(+)

NC

GND

GND

GND

CLK(+)

VDD2

GND

GND(TEST)

NC

NC

GND

NC

GND

VDD1

VDD2

GND

A2(+)

HBLK(ODE)

NC(GND)

LE(LEN)

VDD2

GND

GND

CLR

GND

HZ

NC(GND)

GND

DM

NC

VDD2

VDD2

GND

VDD2

GND

NC(GND)

NC

NC(GND)

GND

CLK(-)

LBLK(BLK)

VDD2

A1(-)

A2(-)

VDD2

NC(GND)

VDD1

VDD2

DM

TEST1(GND)

VDD2

VDD2

VDD2

GND

A1(+)

NC

GND

GND

GND

CLK(+)

VDD2

GND

GND(TEST)

NC

NC

GND

NC

GND

VDD1

VDD2

GND

A2(+)

HBLK(ODE)

NC(GND)

LE(LEN)

VDD2

GND

GND

CLR

GND

HZ

NC(GND)

GND

DM

NC

VDD2

VDD2

GND

VDD2

GND

121110 15 171613 1814

C6-BOARD TXNC61LWUU (2/2)

!

1

PANEL DATA
DRIVER

CA9

TO

TO

DRIVER

CA10

PANEL DATA

TO

DRIVER

PANEL DATA

CA11

TO

DRIVER

PANEL DATA

CA12

TO

DRIVER

PANEL DATA

CA13

TO

DRIVER

PANEL DATA

CA14

TO

DRIVER

PANEL DATA

CA15

81

12.40. SC-Board (1/4) Schematic Diagram

!

SC-BOARD TXNSC1LWUU (1/4)

A

B

TO
D-BOARD
(D20)

SC20

TERM

35

P5V

34

SIU

33

CLK

32

GND

TP24

C

TP25

D

E

F

31

CERS

30

CRC2

29

GND

28

OC2

27

CRC1

26

SC_FPGANRST

25

OC1

24

GND

23

CPH1

22

CIS

21

SOS6

20

SOS7

19

GND

18

UHZ

17

GND

16

CEL

15

GND

14

CSH CSH

13

GND

12

CSL

11

GND

10

CMH

9

CML

8

NC

7

P15V

6

P15V

5

4

SEL2

3

SEL

2

CRC3

1

Reserve

SIDE

15V

TP8

Vsus

1

TO
P-BOARD
(P2)

SC2

1

Vsus

3

GND

TP16

TP17

B0JCME000093

TP32

P5V

SIU

CLK

CERS

OC2

CRC1

SC_FPGANRST

OC1

Reserve

CEL

CSL

CPH1

CMH

CML

SEL

SEL2

CRC2

CRC3

D16790

TP109

TP110

TP119

TP120 TP121

TP34

TP33

TP113TP108TP107

TP112

TP111

TP122

TP123

TP35

TP18

TP36

TP19

TP38

TP21

TP22

TP70

TP52

TP15

TP37

TP23

TP20

TP14

TP39

TP40

TP11

TP26

TP10

TP99

TP88

TP89

TP97

C16791

25V

220u

TP82

TP9

TP7

TP6

TP105

TP106

TP115

TP118

TP117

TP116

TP30

TP31

TP29

TP28

TP2

TP1

+++

*C16416

TPVSUS

TP4

R16561

EXB38V470JV

R16562

EXB38V470JV

R16566

EXB38V472JV

R16563

EXB38V470JV

R16568

EXB38V472JV

R16564

EXB38V470JV

R16567

EXB38V472JV

R16579

EXB38V470JV

TP98

TP114

TP124

*C16412

220V

R16570

EXB38V472JV

300u

R16580

5.6k

EXB38V472JV

C16561

10V
10u

R16565

TP5

+

*C16419

16V

1u

220V
300u

IC16561

C0JBAU000043

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

IC16562

C0JBAU000043

*IC16564

C0JBAA000377

14

VCC

13

6A

12

6Y

11

5A

10

5Y

9

4A

8

4Y

IC16563

C0JBAB000916

C16418

BUFFER

BUFFER

AND GATE

INVERTER

250V

1.5u

220V
300u

C16564

5V

TP101

VSUS

5V

C16562

AA_SOS6

16V

1u

SOS7_SC2

R16476

4.7k

R16590

220

C16593

50V

1000p

D16480

B0ACCJ000048

C16565

TPSOS6

50V

0.01u

TP71

C16566

TP72

50V

0.01u
TPSOS7

D16822

B0ADCJ000100

R16588

10k

R16587

2.2k

IC16581

C0BBBA000024

ERROR DET

1

A_OUTPUT

2

A_-INPUT

B_OUTPUT

3

A_+INPUT

B_-INPUT

4

GND

B_+INPUT

VOLTAGE ERROR DET
OPERATES AT 151V OR MORE
AND 60V OR LESS

D16583

B3ABB0000210

15V

8

VCC

7

6

5

C16581

R16585

25V

1k

1u

C16582

16V
1u

R16586

2.15k

R16593

1.4k

(GREEN LED)NC

R16582

39k

R16583

39k

R16584

6.8k

MID

22

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

1

1A

2

1Y

3

2A

4

2Y

5

3A

6

3Y

7

GND

TP46

AA_SIU

AA_CLK

AA_CERS

AA_SEL

AA_OC2

AA_SC_FPGANRST

AA_OC1

MAIN_STOP0

AA_CIS

AA_CEL

AA_CSH

AA_CSL

TP3

AA_CPH1

AA_CMH

AA_CML

AA_CML2

R16591

EXB38V472JV

1

5

VCC

IN_B

2

IN_A

3

GND

AA_SEL2

4

OUT_Y

AA_CRC2

AA_CRC3

AA_UHZ

AA_CRC1

3

1

42

68573

9

82

12.41. SC-Board (2/4) Schematic Diagram

1

!

SC-BOARD TXNSC1LWUU (2/4)

PC16461

AA_CMH

AA_CML2

AA_CSH

*D16461

B0FACP000005

*D16462

B0FACP000005

B0ACCJ000048

*Q16441

B1JAEP000013

R16416

D16411

10k

R16410

R16441

C16441

5.6

50V

3900p

VRH

TP90 TP91

R16533

47k

C16471

*C16461

PS9856-2-F3-AX

1

R16411

270

2

3

390

45

Q16531

B1HFPFA00001

630V

1000p

630V
1000p

R16531

10

8

7

6

*L16401

G0CR28K00001

Vsus

11

16V_F

IC16771

C0CBADC00072

16V
1u

VAD

1

NC

9

NC

10

VCC

11

HIN

12

NC

13

LIN

14

GND

15

NC

16

IC16501

C0ZBZ0001708

FET DRIVER

CSH/CMH GATE
DRIVE CIRCUIT

Vad+5V

VOUT

COM

2

VIN 3

HO

VB

VS

NC

NC

VCC2

VCOM

LO

16V_F

+

C16796

25V

470u

8

R16504

75

7

C16502

25V

4.7u

6

5

4

3

C16522

25V

4.7u

2

1

D16522

D1FK60-5073

R16523

75

D16503

B0ECHR000001

+

R16534

5.6

D16534

B0ECHR000001

C16523

25V

470u

+

D16536

B0ECHR000001

C16503

25V

470u

Q16501

R16503

10

B1HFPFA00001

R16512

47k

C16504

25V

4.7u

Vad+5V

C16534

25V
1u

R16417

100

R16418

100

C16771

C16501

25V

1u

*R16401

*D16401

DA3DF50ACSLW

*D16402

DA3DF50ACSLW

*Q16401

DG3D5020CSLW

7.5

*Q16402

DG3D5020CSLW

R16402

7.5

*Q16403

DG3D5020CSLW

R16403

7.5

C16401

630V

5600p

12

13

C16524

25V

4.7u

MIDF

VFG

Vsus

VFG

Vad+5V

14

VOL

15

Vad+5V

16

*C16632

250V

MIDC

4u

*D16481

B0FACP000005

*D16482

B0FACP000005

*C16633

250V

*Q16452

B1JAEP000012

MID

4u

*C16481

630V

C16491

630V

1000p

Q16551

B1HFPFA00001

1000p

*L16411

G0CR28K00001

B0ACCJ000048

R16551

10

R16468

82k

R16467

82k

R16466

56k

D16466

R16465

27k

AA_CSL

AA_CML

15V

R16509

1

D16523

B0ECHR000001

NC

9

NC

10

15V

VCC

R16521

100

R16522

100

11

HIN

12

C16521

25V

1u

NC

13

LIN

14

GND

15

NC

16

IC16521

C0ZBZ0001708

FET DRIVER

CSL/CML GATE
DRIVE CIRCUIT

HO

8

VB

7

VS

6

NC

5

NC

4

VCC2

3

C16505

25V

1u

VCOM

2

LO

1

C16525

25V

4.7u

Q16521

R16506

10

B1HFPFA00001

R16517

47k

*R16423

*Q16421

DG3D4020CSRP

R16421

7.5

*Q16422

DG3D4020CSRP

R16422

7.5

*Q16423

DG3D4020CSRP

7.5

*D16421

B0FACP000006

C16421

630V

5600p

VAD

17

TP93

TP92

VRL

R16452

5.6

C16452

50V

3900p

R16553

47k

18

*C16631

250V

4u

MID

2

D16451

B0ECKP000055

3

11 13 1410 1815 1712 16

83

12.42. SC-Board (3/4) Schematic Diagram

Vsus

11

16V_F

12

AA_CERS

AA_CPH1

SEPA PROTECT
CIRCUIT

IC16490

C0DBZMC00006

SHUNT REG

13

VFG

14

VOL

15

Vad+5V

16

VAD VAD

17

AA_CIS

AA_UHZ

AA_CEL

D16493

B0ADCJ000100

R16497

47k

D16494

B0ADCJ000100

Q16921

B1ABCN000007

C16707

R16707

DZ2J15000L

50V
22p

3.9k

3

ANODE

CATHODE

R16891

69.8k

R16892

82.5k

R16893

D16678

5V

R16923
10k

B0ADCJ000100

Q16920

B1ABCN000007

4

1NC2

REFERENCE

82.5k

D16920

D16492

DZ2J047M0L

R16717

R16494

R16747

2.2k

R16928

4.7k

1k

R16711

2k

R16926

2.2k

4.7k

IC16491

C0BBAA000008

R16927

22k

Q16701

B1ADCN000007

Q16702

B1ABCF000231

R16495

750

3

+INPUT

GND

2

1

-INPUT

R16493

6.19k

1

2

3

4

R16712

1k

4

OUTPUT

VCC

5

IC16661

C0BBBA000024

COMPARATOR

A_OUTPUT

A_-INPUT

A_+INPUT

GND

R16921

1.24k

R16922

3.48k

D16702

B0ACCJ000048

C16490

16V

1u

SEPA PROTECT

R16492

120k

B_OUTPUT

R16920

10k

1

2

3

4

IC16773

C0JBAB000715

5V

TP68TP67

R16496

47

R16491

120k

1

2

R16685

220

34

R16686

10k

8

VCC

R16897

7

6

B_-INPUT

R16898

5

1.05k

B_+INPUT

R16899

2.74k

A_OUTPUT

A_-INPUT

B_OUTPUT

A_+INPUT

B_-INPUT

GND

B_+INPUT

IC16920

C0BBBA000024

COMPARATOR

Vad+5V

1

5

NC

VCC

2

IN_A

3

4

GND

OUT_Y

INVERTER

R16490

120k

PC16685

B3PBA0000496

1k

VCC

R16498

10k

Q16490

B1CBGD000001

D16491

B0ECKP000055

6

5

C16685

16V_F

C16891

R16900

25V

10k

1u

R16901

4.7k

8

7

6

5

16V_F

Q16818

B1CBGD000001

C16708

50V

R16776

0.1u
47

R16604

330

PC16603

B3PBA0000498

D16490

B0ECKP000055

R16769

75

R16761

C16753

50V

0.1u

R16801

R16802

10

25V

4.7u

TP103

C16641

630V

2200p

TP104

Vad+5V

Q16649

B1ABCN000007

R16652

8.2k

D16902

B0ACCJ000048

D16478

B0ACCJ000048

22k

30.9k

Q16801

DSA2001S0L

Q16810

B1ABCF000231

R16746

47k

R16742

R16745

470k

47k

C16773

18

4

12

3

PC16684

B3PBA0000496

1

2

34

R16684

220

Q16762

B1HFPFA00001

R16655

10k

R16656

4.7k

D16653

B0ACCJ000048

D16901

B0ADCJ000100

R16904

22k

R16804

1.1k

D16477

DZ2J047L0L

AA_CRC1

R16691

R16692

1.5k

25V

1u

C16602

50V
22p

6

5

C16684

50V

0.1u

D16407

B0JCME000093

R16763

47k

IC16691

C0JBAC000363

NAND GATE

1

IN_B

2

IN_A

3

GND

R16661

1.2k

IC16692

C0DBZYY00352

R16690

4.7k

Q16670

B1ADCN000007

56k

Q16671

B1ABCF000231

15V

R16765

R16633

22k

10

D16497

B0ECKP000055

R16631

10k

D16765

B0ECKP000055

C16756

C16755

25V

25V

4.7u

R16645

5.6k

D16651

DZ2J051M0L

R16654

47

R16679

10.7k

1

2

SHUNT REG

AA_CRC2

R16658

R16663

6.34k

7.15k

VOL

Q16621

B1JADN000009

15V

R16694

56k

R16695

1.5k

R16653

1.8k

Q16647

B1CBGD000001

R16680

4.7k

R16622

220

R16682

10

Q16608

B1CBGD000001

R16675

4.7k

Q16675

B1ADCN000007

Q16676

B1ABCF000231

DSC2001Q0L

R16659

0

Q16678

B1ABCF000231

D16671

B0ACCJ000048

Q16663

DSA2001S0L

Q16645

D16602

DZ2J150M0L

R16699

10k

R16634

Q16622

B1JADN000009

4.7u

R16621

220

R16681

10

5

VCC

C16692

50V

0.1u

4

OUT

Q16662

DSC2001Q0L

R16662

10k

C16675

50V
390p

4

NC

REFERENCE

3

ANODE

CATHODE

R16673

4.7k

470

B0ACCJ000048

DZ2J051L0L

Q16607

B1CBGD000001

R16615

1.1k

Q16602

R16607

DSC2001Q0L

6.98k

D16610

D16605

B0ACCJ000048

DZ2J051L0L

R16605

1.8k

Q16603

DSA2001S0L

C16642

630V

5600p

R16667

D16650

B0ACCJ000048

C16661

1000p

Q16677

DSC2001Q0L

2k

R16668

2k

C16662

630V

630V

1000p

D16677

B0ADEJ000035

R16666

22k

D16654

R16646

1.18k

D16648

Q16646

DSA2001S0L

R16677

2k

R16678

2k

R16687

27k

R16688

8.87k

C16668

50V
220p

D16669

B0ACCJ000048

!

SC-BOARD TXNSC1LWUU (3/4)

B0ADCJ000100

D16641

B0FBCN000006

C16645

630V

1000p

C16603

630V

1000p

D16604

C16608

50V

220p

C16646

630V
1000p

R16650

100k

C16664

50V

82p

D16662

DZ2J150M0L

Q16668

DSC2001Q0L

D16642

B0FBCN000006

D16645

DZ2J150M0L

C16604

630V

1000p

Q16606

DSC2001Q0L

D16607

R16610

100k

B0ACCJ000048

D16646

DZ2J150M0L

D16647

DZ2J150M0L

R16649

D16649

B0ACCJ000048

C16665

50V
82p

D16663

DZ2J150M0L

R16660

2.2k

B1CERR000042

33

R16617

2.2k

Q16660

R16665

R16609

R16612

R16648

R16651

C16666

D16664

DZ2J150M0L

33

21

16V_F

Vsus

22

F2A2T301A004

+

C16691

*C16417

160V
100u

220V
300u

B0ECHR000001

+

VSCN_F

23

VFG

24

D16674

D16673

B0ECHR000001

VAD

25

16V_F

26

2k

47

2k

2k

D16652

B0ECKP000055

50V

82p

D16618

B0ECKP000055

R16601

1

D

*Q16601

B1CERR000042

S

G

VOL

D16422

B0FACP000005

R16664

2k

R16674

2k

Q16661

B1JAER000010

27

20 2523 272419 2621 22

84

12.43. SC-Board (4/4) Schematic Diagram

21

!

SC-BOARD TXNSC1LWUU (4/4)

Vsus

22

IC16784

MIP3910MSSCF

VAD GEN.

DRAIN

LS

4

FB

3

SOURCE

NC

2

SOURCE

VDD

1

C16856

10V

1u

C16858

10V

1u

R16837

1k

C16857

16V

0.1u

D16711

B0ECHR000001

PC16896

B3PBA0000498

R16938

180k

12

34

Q16816

DSC2001Q0L

R16789

C16843

10k

50V

0.1u

TPVAD

VSCN_F

23

VFG

24

5

7

8

B3PBA0000498

L16472

G0ZZ00002183

PC16897

34

TP94

D16719

B0ECKP000055

R16841

4.7k

12

R16843

1k

CATHODE

IC16785

C0DBZYY00352

SHUNT REG

*

R16838

C16859
50V

0.1u

C16854

50V

0.1u

R16852

470k

4

3

ANODE

1NC2

REFERENCE

100k

D16710

DZ2J15000L

AA_SOS6

B0ACCJ000048

R16756

TPSC1

5V

R16752

4.7k

Q16876

B1ABCF000231

D16875

12k

R16696

2.2

TP96

VSCN_F

VFG

TP59

TP60

TP61

TP62

D16820

B0ACCJ000048

Vfo

SOS7_SC2

D16874

DZ2J051M0L

9

8

7

6

5

4

3

2

1

SC41

TO
SU-BOARD
(SU41)

TP45

R16719

22

9

TP41

8

7

TP42

6

TP43

5

4

C16902

630V

3300p

3

2

1

SC46

TO
SD-BOARD
(SD46)

ZA16411
TUXJ490

ZA16412

TUXJ490

K4CD01000011

SC46 SC41SC42

ZA16421
TUXJ490

ZA16422
TUXJ490

K4CD01000011

TUX2AX0981
TUXJ559

ZA16402

ZA16403

K4CD01000011

R16753

47k

5V_F

ZA16401

TP44

TP100

ZA16407

K4CD01000011

R16721
EXB38V220JV

*R16720

AA_SEL

AA_SIU

AA_OC2

AA_CLK

AA_OC1

AA_SEL2

22

ZA16404

K4CD01000011

15V

*

R16774

27k

TP125

D16871

DZ2J240M0L

D16872

DZ2J200M0L

R16825

150k

R16845

66.5k

R16846

64.9k

R16849

64.9k

+

C16813

220V
220u

R16844

2.4k

R16785

107k

R16786

107k

R16787

33k

G4DYA0000200

10

8

T16471

P1

PT

R16822

82k

R16823

82k

R16937

180k

D16824

DZ2J330M0L

D16825

DZ2J330M0L

R16824

33k

1

NC

3

S2

4

S1

B0ECKP000055

5

NC6P2

PC16722

B3PBA0000498

12

Q16817

DSC2001Q0L

34

C16844

R16826

50V

10k

Q16930

DSC2001Q0L

R16936

2.2k

D16893

DZ2J056H0L

0.1u

Q16931

B1ABCN000007

R16930

2.7

Q16815

B1ABCN000007

Q16885

B1CFNG000001

D16728

R16827

2.2k

+

C16793

25V

220u

C16860

R16932

22k

Q16932

DSC2001Q0L

IC16786

MIP3910MSSCF

VSCN GEN.

DRAIN

LS

4

FB

3

SOURCE

NC

2

SOURCE

VDD

1

R16829

1k

C16862

C16861

PC16723

10V
1u

R16931

R16935

16V

10V
1u

VAD

C16794

10V
10u

2.7

5.1k

B3PBA0000498

0.1u

D16713

B0ECHR000001

TP57

R16933

10k

+

C16795

25V

470u

R16934

6.8k

TP95

D16720

B0ECKP000055

5

7

8

TP58

R16772

12

34

G0C681MA0065

4.7k

L16698

R16870

68k

C16864

50V

DZ2J15000L

0.1u

R16773

C16863

1k

50V

R16851

0.1u

470k

4

3

IC16787

C0DBZYY00352

ANODE

CATHODE

1NC2

REFERENCE

SHUNT REG

VSCN

R16831

68.1k

D16712

R16832

+

71.5k

R16873

2.4k

R16751

150k

R16783

D16821

150k

DZ2J330M0L

R16750

R16755

12k

12k

TPVSCN

R16860

8.2

C16842

D16859

160V

B0HCKS000002

100u

L16851

C16460

630V

2200p

CHA

TP51

TP78

9

8

7

6

5

4

3

2

1

TP79

TP80

TP81

5V_F

SC42

D16473

B0ACCJ000048

Q16471

B1ABCF000231

SCNR_PRO

VAD

16V_F

15V_F

D16791

DZ2J200M0L

R16791

1k

D16476

B0ACCJ000048

C16472

R16479

25V

10k

1u

D16475

DZ2J051M0L

R16478

5.6k

IC16724

C0CBADE00049

5V_F

CHA

5V_F

OUT3

1

IN

COMMON

C16724

2

25V

4.7u

D16721

B0ECHR000001

R16929

+

C16723

25V
1u

1

C16721

50V
82u

31

SCNR_PRO

343332 36353029

TO
SD-BOARD
(SD42)

VAD

25

16V_F

26

5V

R16475

4.7k

D16474

AA_SC_FPGANRST

MAIN_STOP0

B0ACCJ000048

PC16480

B3PBA0000498

27

=

34

R16473

560

R16474

1k

12

C0DBEYY00114

3

ANODE

CATHODE

IC16471

SHUNT REG

4

1NC2

REFERENCE

R16471

3.9k

R16472

2.2k

28

FOR

1

2

FACTORY

SC50

USE

85

12.44. SS-Board (1/2) Schematic Diagram

!

SS-BOARD TXNSS1LWUU (1/2)

A

TO
P-BOARD
(P11)

SS11

1

B

VSUS

3

GND

4

15V

TP6

TP5

TP9

TP10

C

D

TO
C3-BOARD
(C33)

SS33

1

SOS8_SS

P5V

2

UEH

3

USL

4

USH

5

UML

6

UMH

7

8

GND

TP16

TP17

TP18

TP19

TP20

E

TP21

TP34

TP33

TP22

C16243

50V

0.01u

TPSOS8

R16241

EXB38V470JV

EXB38V472JV

R16230

47

R16280

2.2k

TP14

TP13

R16242

R16231

4.7k

F

VSUS

TP2TP1

+++

C16104

25V

47p

C16105

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

IC16241

C0JBAU000043

*C16011

25V
47p

BUFFER

220V
300u

TPVSUS

TP7 TP8

5V

D16281

DZ2J051M0L

R16031

1

82k

R16032

82k

R16033

56k

D16032

B0ACCJ000048

*C16013

*C16012

220V
300u

+

C16271

25V

220u

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

*C16014

220V

250V

1.5u

300u

1

NC

NC

VCC

HIN

NC

LIN

GND

NC

IC16151

C0ZBZ0001708

FET DRIVER

ENERGY

RECOVERY

R16258

D16151

B0ECKP000055

HO

8

R16154

75

VB

7

C16152

25V

4.7u

VS

6

D16152

NC

B0ECKP000055

5

NC

4

VCC2

3

VCOM

2

LO

1

R16181

R16257

27k

10k

Q16251

B1ABCF000231

R16260

2.2k

R16155

9

10

AA_USH

AA_USL

C16242

C16244

16V

10V

1u

10u

AA_UEH

AA_USL

AA_USH

AA_UML

AA_UMH

AA_SOS8

11

12

R16151

100

C16151

25V

13

1u

14

R16152

100

15

16

AA_SOS8

D16255

B0ACCJ000048

Q16055

R16171

10

B1HFPFA00001

R16173

47k

C16153

25V

4.7u

R16159

1

D16153

B0ECKP000055

C16154

25V

4.7u

Q16056

B1HFPFA00001

10

R16183

47k

C16252

25V

1u

1

A_OUTPUT

2

A_-INPUT

B_OUTPUT

3

A_+INPUT

B_-INPUT

4

GND

B_+INPUT

IC16251

C0BBBA000024

ERROR DET

*Q16041

B1JAEN000010

R16041

5.6

C16041

50V

3900p

*Q16051

B1JAEN000011

R16051

5.6

D16050

B0ECKP000055

8

VCC

7

R16255

1.2k

6

-

5

R16256

1.5k

R16251

1.4k

R16034

27k

*C16202

*C16201

R16252

R16253

C16251

R16254

16V
1u

250V

4u

D16253

B3ABB0000210

(GREEN LED)

39k

39k

6.8k

250V

4u

*D16041

B0FACP000006

*D16042

B0FACP000006

*D16051

B0FBCN000008

*D16052

B0FBCN000008

*C16203

250V

4u

C16071

630V
1000p

TP39

TP38

*L16001

C16072

630V

2200p

C16091

630V

2200p

C16092

630V

1000p

G0CR28K00001

NC

9

NC

10

NC

AA_UMH

AA_UML

VSUS

11

HIN

12

R16131

100

NC

13

LIN

14

R16132

100

GND

15

NC

16

C0ZBZ0001707

TP41

TP40

*L16011

G0CR28K00001

IC16131

FET DRIVER

VSUS Gen.

DRIVER

HO

8

VB

7

VS

6

NC

5

NC

4

VCC

3

GND

2

LO

1

Q16141

B1HFPFA00001

R16141

10

D16131

B0ECKP000055

C16133

25V

4.7u

B1HFPFA00001

R16137

Q16161

R16134

75

C16131

25V

4.7u

C16135

25V
1u

R16161

10

*Q16001

B1JADN000009

R16001

7.5

*Q16002

B1JADN000009

R16002

R16143

7.5

47k

*Q16003

B1JADN000009

*R16003

7.5

*D16002

B0FBCN000005

C16002

630V

5600p

*D16001

B0FBCN000005

2

1

*Q16021

B1JADN000008

R16021

7.5

*Q16022

B1JADN000008

R16022

7.5

R16163

47k

*Q16023

B1JADN000008

*R16023

7.5

*D16023
B0FCCN000003

*D16022

B0FCCN000003

C16022

630V

3300p

*D16021

B0FCCN000003

3

4

2

71345

8

96

86

12.45. SS-Board (2/2) and SS2-Board Schematic Diagram

!

SS-BOARD TXNSS1LWUU (2/2)

1

TPSS1

Q16101

B1CFRM000008

Q16102

B1CFRM000008

TP54

*SS53

*SS56

1

2

3

4

5

6

7

8

9

10

11

12

13

1

2

3

4

5

6

7

8

9

10

11

12

13

SIDE

PANEL
SUSTAIN
ELECTRODE

TERM

SIDE

PANEL
SUSTAIN
ELECTRODE

TERM

ZA16003

K4CD01000011

TP29 TP31

TP30

ZA16002

K4CD01000011

ZA16001

K4CD01000011

TP26TP25

TP27TP24

TP28

TP51

TP56

TP43

C16101

630V

2200p

D

S

G

G

S

D

R16105

470k

D16286

B0ACCJ000048

D16285

B0ADEJ000035

R16288

C16285

330k

50V

0.1u

R16289

C16286

330k

50V

0.1u

R16290

C16287

50V

0.1u

330k

R16285

EXB38V623JV

AA_SOS8

D16280

B0ACCJ000048

FPC protector

C16280

25V
1u

R16281

10k

Q16280

TP36

B1ABCF000231

R16282

220

D16282

DZ2J068M0L

R16283

47k

R16284

220k

2

D16191

R16195

B0ECKP000055

1

PC16191

AA_UEH

R16192

AA_UML

C16195

25V

1u

D16192

B0ACCJ000048

10k

B3PBA0000496

1

2

34

R16191

150

6

5

R16193

75

R16109

10 R16101

+

D16196

DZ2J200M0L

G0C471MA0049

C16193

25V
47u

L16303

C16331

250V

1u

C16191

C16192

25V

25V

0.1u

4.7u

D16317

B0ECKP000055

Q16191

B1HFPFA00001

R16116

47k

TP42

+

TPVe

C16328

160V
220u

D16101

B0JCME000093

220

R16103

10

R16104

10

R16102

220

*R16309

27k

*

+

*C16314

220V

=

34

300u

R16334

4.7k

12

R16335

1k

IC16312

C0DBZMC00006

SHUNT REG.

SS21

SS24

1

R16320

68k

C16318

D16315

50V

DZ2J150M0L

0.1u

R16332

470k

C16319

50V

0.1u

4

3

ANODE

CATHODE

1NC2

REFERENCE

*R16307

*R16318

R16319

51.1k

71.5k

2.49k

2

3

4

5

6

7

D16316

B0ECKP000055

3

4

C16316

16V

C16317

0.1u

10V
1u

IC16304

MIP3900MSSCF

R16330

VE GEN.

1k

4

3

2

1

C16315

10V

1u

DRAIN

LS

FB

CL

VDD

SOURCE

SOURCE

5

PC16301

B3PBA0000498

7

8

!

1

SS2-BOARD

2

3

TXNSS21EDUUM

4

5

6

7

SS58

1

2

3

4

5

6

7

8

9

10

11

12

13

SIDE

PANEL
SUSTAIN
ELECTRODE

TERM

171311 151410 181612

87

13 Printed Circuit Board

13.1. P-Board

P-BOARD (FOIL SIDE)
ETX2MM807MVH

6

5

4

3

2

1

ABCDEFGH I

88

Parts Location

P-BOARD (FOIL SIDE)

IC201 E-4
IC202 E-3
IC251 C-5
IC352 D-3
IC403 B-3
IC501 F-2
IC551 E-1
IC601 G-4
IC701 C-1

PC201 D-3
PC202 D-3
PC501 E-2
PC502 F-1
PC504 F-1

IC

PHOTO COUPLER

Q201 D-5
Q202 D-4
Q203 E-3
Q204 E-3
Q251 C-6
Q252 C-6
Q355 D-3
Q401 B-4
Q402 B-3
Q403 B-3
Q404 B-2
Q405 B-2
Q406 C-2
Q407 B-3
Q408 B-3
Q502 G-2
Q503 E-2
Q504 E-3
Q505 G-2
Q506 G-1
Q551 D-2
Q557 D-1
Q558 D-2
Q559 D-2

TRANSISTOR

TP5 H-6
TP9 B-4

Q601 F-4
Q602 G-4
Q603 F-4
Q604 F-4
Q605 E-3
Q606 F-3
Q607 E-3
Q701 C-1
Q702 B-1
Q703 C-1
Q704 C-1
Q705 D-2
Q706 B-2
Q707 C-1
Q708 C-2

TEST POINT

VR251 C-5
VR401 B-2

VOLUME

Parts Location

P-BOARD (COMPONENT SIDE)

IC201 D-4
IC501 D-2

IC

Q201 E-5
Q202 E-4
Q355 F-3
Q401 G-4
Q402 H-3
Q403 H-3
Q551 F-2
Q601 D-4
Q604 D-4
Q606 D-3

TRANSISTOR

TP5 B-6
TP9 H-4

TEST POINT

VR251 F-5
VR401 H-2

VOLUME

P

89

P-BOARD (COMPONENT SIDE)
ETX2MM807MVH

6

5

4

3

2

1

ABCDEFGH I

90

13.2. K, V and SS2-Board

ABCDEFGH I

1

2

3

4

5

6

SS24

1

SS2MM2

SS2MM1

SS2

TNPA4804

SS58

PbF

7

1

2

6

ORDER

NO.

11 3131

SS24

TNPA4804

1

SS2

SS58

PbF

7

1

6

2

SEE REVERSE FOR ORDER NO.

113 113

SS2-BOARD (COMPONENT SIDE)
TXNSS21EDUUM

SS2-BOARD (FOIL SIDE)
TXNSS21EDUUM

D2500

D2501

D2502

D2503

PbF

ORDER

NO.

C2500

C2501

C2502

R2500

R2501

R2502

FL2500

VJ2500L2500

V1

PbF

TNPA5148

V

1

SEE

REVERSE

FORORDER

NO.

1

4

NO.

ORDER

PbF

D2500

D2501

D2502

D2503

1

V

TNPA5148

SEE

REVERSE

FOR ORDER

NO.

PbF

C12

Q10

Q11

C15

C16

C20

C21

C22

C23

C24

D12

R16

R17

D20

R20

D24

R24

R25

R27

R42

R57

R58

R60

K1

SN10

D21

RM01

PbF

1 K

CRNO.25

TNPA5159

ORDER

NO.

1

8

1

TP01

TP02

TP03

TP04

TP05

TP06

TP08

D21

TP20

RM01

PbF

TNPA5159

1

K

CRNO.25

SEE REVERSE FOR ORDER NO.

K-BOARD (COMPONENT SIDE)
TXN/K1LTUUM

K-BOARD (FOIL SIDE)
TXN/K1LTUUM

V-BOARD (COMPONENT SIDE)
TXN/V1LTUUM

V-BOARD (FOIL SIDE)
TXN/V1LTUUM

V K V

SS2

91

13.3. A-Board

A-BOARD (FOIL SIDE)

6

5

4

3

2

1

TXN/A1LWUUS

TP3531

TP5517

TP3523

TP3529

TP3501

C8570
C8565

TP9056

TP3501

TP3528

R8588

TP5835

TP5831

TP5837

TP5839

TP5842

TP5837

TP5821

TP5823

TP5821

TP5823

TP5822

D5742

D5743

R3500

R3570

TP5503

TP5503

D5503

R5503

R5502

R5511

R5507

C5542 C5543

R5532

C5501

12

R5515

R5521

IC5501

C5511

13

R5523

IC5501

C5507

C5506

C5505

C5502

R5517

24

IC5500

R5516

1

C5540

C5500

R5529

R5504

R5508

R5501

R5500

D5500 D5501

TP5500

TP5500 TP5501

1

7

TP8707

TP8707

A-1

A-4

TP8735

TP8735

C5753

TP5504

D5502

R5531

C5503

R5530

JK8702

JK8702

TP5822

TP2028

R5787

VJ5740

R5783

TP2028

5

R5785

IC5740

C5756

C5754

R5786

C5755

8

C5749

R5798

IC5740

R5810

C5795

C5769

R5805

TP5602

VJ5453

TP5504

TP5602

TP5505

TP5502

TP5502

R5510

R5506

1

R5514

R5519

C5510

24

R5520

C5504

R5522

C8251

13

+

C5509

R5513

C8252

R5518

12

C5541

C8009

R5505

R5509

TP5501

C8743

R8763

5

8

IC8704

R5794

C5760

D5748

R5793

TP2027

C5759

D5747

TP2027

R5792

C5758

D5746

R5791

C5757

D5745

TP5516

TP5516

TP5517

TP3502

TP3502TP3503

VJ3501

TP3523

TP9056

TP9055

TP3528

TP3527

TP3529

TP3531

TP3500

TP3521

TP9055

TP3530

R3573

R3568

R3569

TP3503

TP3521

R3571

TP3518

TP3519

TP3518

TP3519

TP3527

TP3530

TP3500

C5508

IC5500

R5512

TP5606

TP5606

TP8713

TP8712

TP8711

TP8710

C8513

C8512

R8524

R8525

R8526

R8527

2

8

JK8700

TP8734

TP8734

B-1

B-4

JK8700

TP8708

TP8708

TP5843

TP5845

TP5824

TP5824

TP5838

TP5838

TP5841

TP5841

C5747

C5745

TP5833

TP5843

TP5842

TP5844

TP5845

TP5844

TP5839

TP5840

TP5840

4

C5750

R5782

1

C5655

C5654

C5656

TP5505

R8106

+

C8271

C8068

C8263

C8261

R8280

C8260

R8285

C8259

R8284

C8258

C8250

C8257

C8267

C8270

C8255

C8265

C8254

C8253

C8293

C8154

X8100

L8100

C8713

R8724

L8701

R8722

C8717

C8718

R8725

L8705

C8721

C8722

25

C8903

48

Q5701

Q5701

R5806

R8745

R8764

4

R8762

IC8704

C8748

C8749

1

TP3704

TP3704

C8264

C8262

C8256

C8292

L8706

R5804

R5802
R5803

TP3705

TP3705

C8290
R8277

C8285

C8283

C8268

R8265

R8261

5

R8275

IC8242

R8274

8

R8259

C8249

IC8242

R8246

R8249

R8287

R8279

R8283

R8248

C8291

IC8100

TP8100

C8153

9

16

C8152

R8109

TP8100

R8107

C8151

R8105

IC8100

R8768

R8103

C8150

8

R8100

C8155

1

R8102

24

IC8501

IC8501

TP8900

R8978

TP8900

C5796

Q5700

Q5700

TP3707

TP3706

TP3706

TP5831

TP5833

C6012

C6013

TP5846

R8281
C8247

C8280

C8278

R8288

C8277

C8279

R8286

C8282

C8289

C8281

R8278

R8289

R8282

R8269

R8263

4

R8245

R8273

C8243

R8244

1

R8241
R8247

R8252

R8112

R8744

R8754

R8708

R8711

R8704

R8703

R8930

C8904

R8950

1

TP3701

TP3701

R3765

C3753

TP3707

TP5835

FL5800

TP5832

TP5832

C6003

Q5814

TP5846

C8017

C8274

C8276

C8275

C8273

C8039

C8036

C8033

C8030

C8027

C8024

C8087

C8094

C8021

C8008

R8761

C8060

R8709
R8712

R8766

R8938

R8932

R5372
R8931
R8565
R8541
R8951

R8581
R8582
R8583
R8584
R8585
R8586

D3750

IC1100

FL5801

R5615

R5606

L5808

L5809

TP5834

C5549

C5550

C5888

C5889

TP5834

TP5836

R5614

R5605

L5819

L5820

C6004

Q5813

Q5814

C6016

R5880

R5881

R5871

Q5813

TP5836

R5872

R5874

R5875

R5960

TP5900

TP5900

C5894

C5968

C5921

L5804

C5969

C5920

C5990

C5951

C5984

VJ5809

C5919

C5964

C5981

C5898

C5918

C5966

C5938

L5818

C5899

C5954

VJ5812

C5930

L5817

C5952

C5896

VJ5810

C5925

C5973

L5800

C5947

VJ5814

C5927

TP5830

C5936

C5972

C5924

C5946

C5900

C5905

C5897

C5908

C5953

VJ5811

C5967

C5916

C5893

L5803

TP5830

IC5805

CL4217

CL4209

CL4205

CL4221

CL4207

CL4219

CL4223

CL4211

CL4218

CL4222

CL4210

CL4206

CL4204

CL4208

CL4220

CL4216

TNPH0835

C5923

C5970

C5971

C5922

C5910

VJ5815

C5909

C5914

C5939

C5940

C5950

C5992

C5902

L5802

L5816

C5915

C5932

C5957

C5944

C5974

C5934

C5982

C5945

C5949

L5815

C5978

C5943

C5948

C5986

VJ5808

C5942

C5935

C5895

C5926

C5956

L5801

C5907

C5955

C5993

C5991

C5931

C5928

C5983

C5913

C5912
C5917
C5965

L5810

IC5805

C5891

R5883

C6017

C5911

C5892

C5890

Q5684

Q5684

C5666
C5667
R5683

TP5507

IC5606

C5663

R5667

IC5606

TP5507

CL4215

CL4203

CL4202

CL4214

CL4824

CL4832

CL4828

CL4816

CL4812

CL4815

CL4823

CL4827

CL4831

CL4200

CL4212

1

CL4811

CL4819

CL4825

CL4829

CL4813

CL4817

PbF

A

CL4822

CL4814

CL4826

CL4213

CL4830

CL4201

CL4818

CL4810

CL4820

REVERSE FOR SUFFIX.SEE

R5866

Q5804

Q5804

R5867

TP5807

TP5809

TP5809

TP5808

IC5801

IC5801

TP5607

TP5829

R5935

TP5808

R5931

R5930
R5934

4

R5933

R5828

R5929
R5827
R5864

R5909

1

R5932

R5908

R5668

R5662

D5616

R5663

R5666

R5665

R5664

D5613

C5390

C5367

TP5807

5

R5865
R5863
R5825

C5800

8

C6011

R5882

R5652
C5653
R5648
R5650

D5614

R5651

D5615

C5664

C5665

TP5607

TP8536

C8064

R8690

R8691

R8270

L8024

C8045

R8253

R8684

R8685

C8057

R8240

C8022

C8042

C8048

C8284

C8241

C8054

R8254

C8240

R8271

C8093

C8286

C8095

C8097

R8272

R8255

L8014

C8006

C8092

C8242

C8082

C8063

C8096

L8011

C8072

C8051

C8077
C8079

C8091

C8029

C8083

C8088

C8038

L8012

L8008

C8013

C8071

C8076

C8019

C8059

C8005

C8070

C8075

L8002

L8007

L8016

C8043

C8031

C8020

C8037

C8062

C8090

R8767

C8085

L8010

C5362

R8544

R8948

R8944

R8949

C1117

R1202
R1209

IC1101

R1205

R1206

R1201

R1200

1

TP1102

TP1102

R1196
D1109

R1183

R1184

R1414

R1415

R1198

R1194

51

C1123

C1110
C1108

TP1110

R1237

R1236

TP1104

76

TP1104

TP1105

TP1110

TP3703

TP3703

C8053
C8050

C8035

C8100

D1113

R8031

C8084

C8052
C8046

R8774

IC5350

C5358

TP1105

R8979

C8040

C8000

L8001

C8012

C8004

L8013

C8089

L8015

C8128

C8023

C8044

C8067

C8056

C8109

C8130

C8119

C8127

L8017

C8099

R8773

R8765

R5373

C5363

R5370

R5365

IC5350

R5358

C5353

R5356

R5357

5

8

IC1101

4

TP1103

R1211
C1126

R1267

R1212

IC1100

R1271

R1182

L8003

C8028

C8010

R8857

C8055
C8016

C8078

R4808

R5124

C8074

C8065

TP8101

L8009

C8061

R5123

C8034

TP8101

C8018

C8001

R8772

C8049

C8066

C8025

C8134

C8003

C8132

L8000

C8124
C8133

C8108

C8102

R8000

C8122

C8112

L8022

L8018

L8020

R8001

C8104

C8129

L8021

C8120

C8106

C8110

C8131
C8114

R4613

R4604

R4607

R4614

R4616

R4679

R4678

TP5292

C5345

C5346

TP5292

TP5604

TP5600

C5652

1

R5643

R5644

5

IC5604

3

C5651

TP5605

R5642

TPS0S

26

C1111

L1100

C1103
C1112

R1181
R1179
R4595
R4596

1

D1107

R1207

D4650

R1208

R4552

100

TP3702

TP3702

R8769

C8011

C8742

R8758

R2301

C8058

C8069

R8759

L8006

C8741

R8756

R8760

C8103

L8023

C8123

C8113

R8757

C8101

C8111

C8121

C8105

C2078

L8019

C2079

C8115

C2075

C2076

C2077

C8116

C8143

C8126

C8147

C8139
C8142

C8107

C8117

C8146

C8138

C8145

C8144

C8137

C8141

R4615

C8136

C8140

C4630

TP5604

TP5600

5

C5650

4

IC5603

IC5603

D5619

3

1

C5649

R5641

R5640

D5618

D5605

4

IC5604

C1102

TP5605

TP1103

TPS0S

R4539
R4542

TP8563

TP8563

TP4515

TP4515

TP4514

TP4513

TP8850

TP8607

R8851

Q8850

D4575

R8855

R4546

R8856

Q4535

R4738

R4733

Q4535

R4732

C4704

D4562

TP4514

TP4513

D4563

L4521

TP8608

R4675

R4673

R4671

D5487

C4560

C4557

C4558

C4561

VJ4508

R4582

R4578

D4785

C4569

45

C4570

L4529

C4568

C4571

TP8851

TP8851

TP8603 TP8604

R8775

R8714

TP8850

TP8603

TP8606

TP8607

TP8606

TP8602

C8625

TP8602

R8740

L8509

Q8850

R8732

R8739

TP8608

IC4501

TP8600

L8600

C8621

C4567

C4559

IC4501

C8609

TP8102

Q4501

3

1

C8623

R8730

C8624

TP4008

FL4002

TP4008

TP4003

C5743

JS4016

R5733
C5744

R5734

TP4003

TP4004

TP4009

TP4005

TP4004

C4074

C4075

CL4809

JS4015

CL4821

TP5829

TP5828

TP3508

TP5828

TP5827

TP3508

TP5827

TP5826

TP5826

TP5825

TP5825

TP4009

TP4005

TP4002

TP4001

JS4011

JS4010

FL4000

TP4001

TP3507

TP3507

TP4002

L2307

JS2302

R2307

Q2300

Q2300

R2330

R2302

R2303
C2300

R2118

R2119

TP2008

TP2008

C5376

TP8537

TP8537

TP8538

TP8538

R4803

R4809

TP8536

TP8530

TP8530

TP8102

Q4536

R4562

D4606

L4525

D4608

D4607

R4563
R4564
D4621

Q4501

R4641
R4529

D4526

D4611

R4530

D4534

R4533

D4533

D4541

Q4534

Q4500

D4525

R4528

D4536

R4532

D4513

D4535

D4542

C2103

L2033

R2032

C2120

TP8604

D8601

C8619

1

C8622

R8729

4

IC8600

ZA1003

TP8528

TP8524

TP8527

TP8526

R4126

TP8525

TP8535

TP8535

TP8529

TP8529

TP8527

TP8523

TP8521

R4560

R4561

Q4539

C4553

Q4539

Q4536

R4575

R4573

C4552

C4555

D4603

R4558

R4571

R4557
C4551

TP4520

R4559

TP4516

D4604

TP4517

L4527

L4528

D4605

L4526

R4565

R4566

D4609

Q4533

Q4533

R4525

R4507

C4505

L4503

TP4501

TP4501

D4517

D4520

TP4503

TP4503

L4506

L4507

R4540
R4544

C4504

R4506

R4524

Q4534

R4531

R4534

Q4500

TP4500

D4512

TP4500

D4518

TP4502

TP4502

L4505

R4538

L4504

R4545

Q8306

Q8306

C2100

R2010

C2091

L2039

R2009

C2131

R2189

C2121

R2188

Q2106

R2187

C2135

C2136

TP8600

R2190

C2134

R2184

Q2105

C2130

R2186

R2185

TP8601

C8620

7

C5373

IC8600

5

R4570

TP8605

R4125

TP8528

TP8525

TP8522

TP8503

TP8524

TP8523

TP8500

Q4537

D3334

TP8501

TP8505

D3336

TP8501

R4170

D3338

L4609

C4611

C4610

C3057

D3339

D3335

D3337

C3061

C3059

L3001

R3311

R3319

FL3003

FL3004

FL3005

R3316

C3304

C3306

R3310

R3187

C3303

R3318

R3185

R3186

R3313

S003

S004

S005

10

5

15

JK3001

JK3001

6

1

11

TP8522

TP8521

TP8503

TP8526

TP8500

TP8505

R4574
R4572

R4568

C4554

Q4537

C4556

R4569

Q4538

Q4538

R4567

TP4520

TP4516

TP4517

JK3002

TU8300

Q2001

TP8310

R2007

R2008

Q2001

R2006

R2011

R2132

R2174

R2016

Q2102

R2172

Q2102

Q2101

Q2101

R2171

R2173

Q2106

Q2105

TP8601

TP8605

L8306

C2092

R2015

C2096

R8317

L8310

L8311

TP8305

Q8300

R8315

Q8300

C8349

C8350

R8314

4

5

L8312

R8385

IC8303

C8354

1

C8347

3

C8300

C8348

R8352

IC8303

RFAGCMONITOR

BB

V

CL3008

C3064

CL3004

JK3000

TP8305

C8400

L

C2301

L3003

JK3701

JK3701

R2331

C3049

C8344

C2432

C2398

C2390

C2305

CL3005

C3062

CL3007

C3050

FL3044

D3048

D3051

S3018

JK3002

R8326

R8327

R8328

IC8300

R8329
R8333

13

TP8302

R8337

C8341

TP8302

R8335
R8338
R8334
R8332
R8330

C8355

R8305

R8386

C8356

BTMONITOR

1

IC3001

FL3043

S3017

R8350

C8303

C8313

SIFOUT

C2436

R2362

C2430

TP2300

TP2300

R2368

C2407

C2424

C2408

C2423

R2369

TP2301

R2359

TP2301

C2433

C2437

C2347

C2381

C2397

R2123

C2393

R2358

C2396

C2345

C2379

C2392

R2125

R2357

C2395

R2121

C2391

C2339

C2375

R2356

C2394

C2377

C2388

C2337

R2355

R2127

JK3003

5

JK3003

6

9

1

TP2017

A11

4

1

A11

TP2010

TP2012

TP2017

TP2014

TP2012

TP2010

A

TP2014

TP3001

TP3000 TP3001

TP3000

L3002

L3000

S3032

D3073

CL3014

S3010

C3000

D3078

S3027

D3068

S3031

D3072

Q3124

Q3123

S3009

D3077

CL3013

Q3123

Q3124

S3026

D3067

C3056

100

76

FL3050

D3071

S3030

IC3001

S3022

JK3000

D3080

51

S3025

FL3047

D3066

R3071

C3022

C3019

26

S3019

D3052

C8338

C8339

TU8300

C8343

C8342

TP8301

25

C8310
C8307

FL3049

S3029

D3070

C3020

S3021

D3079

S3024

FL3046

D3065

S3028

FL3048

D3069

S3020

FL3051

D3063

TP4000

FL3045

S3023

D3064

D3005

D3005

X8300

R8323

C8336

R8320

C8323

L8308

1

C8330

C8328

C8337

C8325

R8313

C8321

R8316

L8305

R8312

C8324

C8320

C8322

48

C8318

L8303

C8327

C8329

C8332

L8307

C8335

IC8300

C8334
C8333

R8318
C8331

C8326

37

C8340

R8321

R8324

R8303

R8302

C8302

C8301

C8317

R8319

R8309

C8315

C8345

C8346

R8301

R8387

C8306

C8305

C8357

C8314

C8312

R8304

C8304

C8309

TP4000

TP4018

TP4019

TP4018

TP4019

TP4021

TP4017

TP4020

TP4021

TP4017

TP4020

C8319

L8304

R8310

C8316

R8300

TP8301

AFTOUT

VIDEOOUT

R

+B

SCL

SDA

IFAGC

IFDOUT1

IFDOUT2

TP3700

IFMONITOR

TP3700

VB

ABCDEFGH I

92

ABCDEFGH I

1

2

3

4

5

6

TP5800

A30

TP5801

A31

TP5802

A32

TP5803

Q4001

Q4002

IC8240

IC8241

TP3506

A61

Q4610

Q4611

Q4612

IC8850

TP3520

TP3522

Q2103

Q2104

TP3526

A1

A5

A6

A7

JK8700

JK8702

IC4800

TP5293

JK3701

SW2500

IC2301

IC2302

Q5602

Q5603

Q5806

Q5807

IC5401

TU8300

IC5607

IC5608

IC5800

JK4500

JK4501

JK4502

JK4503

IC5806

IC5808

IC5809

IC5810

IC5811

IC5813

IC5814

IC8502

IC8703

Q1202

Q1203

TP5506

Q5475

Q5478

Q5479

TP5518

Q5480

IC3900

IC5480

SW3759

Q4520

JK3000

JK3001

JK3002

JK3003

SW3761

SW3762

SW3763

SW3764

SW3765

IC4500

JK8600

TP1111

TP8852

Q5500

Q5501

Q5502 Q5503

Q5504

Q5522

Q2266

IC8000

D3005

IC3002

A11

A12

A13

A16

A17

A18

A20

A23

TP5601

Thermal pad

CH.UP

CH.DN

VOL.UP

VOL.DN

INPUT/OK

MENU

Thermal pad

Thermal pad

TNPH0835

1

A

AF

NILAB AC

AD

AE

AGAHAJ

AKALAM

AN

AR

ASATAUAVAW

AQ

AP

POWER

PbF

1

12

1

68

1

15

1

A

1

A

1

2

19

20

1

3

4

5

1

8

1

11

1

10

1

9

127

8

4

5

8

1

VL

R

SUFFIX.

44

22

23

1

44

22

23

1

SCL

SDA

BTMONI

TOR

SIFOUTVIDEOOUT

RFAGCMON

ITOR

IFMONITOR

VB

+B BBAFTOUT

IFAGC

IFDOUT2

IFDOUT1

4

5

8

1

11 10

20

1

1

A

19 1

19

1

19

1

19

1

1110

20

1

1

4

5

8

1

5

1

5

1

4

5

8

1

4

5

8

1

4

5

8

+

1

A

+

1

13

25

37

48

1

6

11

16

20

1

6

7

12

1

14

15

28

1

6

11

5

10

15

5

1

6

9

1

21

4161

80

8

1

9

10

111

11111

1

11

1

+

1

A

1

10

11

20

1

A

1

4

1

2

4

1

1

30

31

60

1

2

19

20

111

1

9

1

10

C5380

D5744

VJ5454

C1119

C5381

C5382

C5383

C5960

TP5800

VJ3900

A30

C5961

TP5801

VJ3901

A31

D5749

C5385

C5962

TP5802

TD9062

C8266

C5386

A32

C5963

TP5803

TD9063

C8073

C5387

C5770

C5388

L5821

C8269

C5771

C5389

C5772

C1122

R8242

L8702

C3063

C5773

R8243

R5558

D5750

L3308

C3065

D5751

C1125

Q4001

L3309

C3066

Q4002

L8707

IC8240

R1100

L2754

L8708

C5391

IC8241

R1101

C8272

R1102

R5947

R1103

R5948

R1104

C8080

JS2005

R5949

C8851

R1105

C8081

C8852

R1106

R5563

R1107

R5564

R8250

R1108

C5975

R1109

R8251

C5976

C5977

R5950

C5979

R5569

R5951

R5952

R8256

D1112

R5953

R8257

R5954

C5788

D1114

R8258

R5955

L3511

C5789

R5956

L3512

D5573

R5957

C5980

R5570

R5958

R5959

R5571

S3033

S3034

R8260

R3058

C5985

R3059

R8262

C5987

C5988

C5794

R8264

C5989

R8266

R8267

CL5404

R9014

R8268

R4001

TP3506

R4002

R3062

R4003

R1124

R4004

R1125

R4005

A61

R3066

R3067

C5994

R3068

C5995

FL3001

C5996

FL3002

C5997

C5998

R8850

C5999

R8852R8853

R8854

Q4610

R3070

Q4611

Q4612

R3072
R3073

C4617

IC8850

R1134

R3074

C4618

CL5419

C4619

R3075

R3076

R3077

R1138

R3078

R3079

S001

S002

R5598

VJ4500

TP3520

C4620

VJ4501

C4621

VJ4502

TP3522

C4622

VJ4503

Q2103

C4623

VJ4504

Q2104

D4600

C4624

R3080

R1140

VJ4505

R1141

C4625

D4601

R3081

VJ4506

TP3526

D4602

R3082

VJ4507

C4627

D3087

R3083

C4628

D3088

R3084

VJ4509

R5795

C4629

D3089

R3085

R5796

R1146

R3086

R5797

R3087

R1148

R3088

A1

R5799

R1149

R3089

VJ4510

D3090

D3091

A5

D3092A6D3093

A7

D4610

R8680

R3090

JK8700

R4801

R8681

D4612

R8682

JK8702

D4613

R8683

R1153

D4614

D4615

R3095

D4616

R3096

D4617

R3097

D4618

TD8700

IC4800

C4830

R3098

D4619

TD8701

R3099

C2122

C2123

C2317

FL3035

C2319

FL3036

D4620

C2128

L4500

FL3038

C2129

L4501

R1162

R8692

L4502

TP5293

R8693

R1163

R8694

R8695

JK3701

C2321

R8696

R8697

C2323

R8698
R8699

R4819

C2325

C2132
C2133

SW2500

C2137

R4820

R4821

R2306

R4822

R4823

R1173

R4824

R1174

R2308

R4825

R1175

C2331

IC2301

R2309

R4826

IC2302

R4827

C2333

R4828 R4829

C2335

FL3052

FL3053

R2310

L2001

C5601

R4830

TD5848

R4831

TD5849

R4832

L4522

Q5602

R4833

L4523

Q5603

R4834

L4524

R4835

X8001

C2341

PA5601

R4836

X8002

R4837

C2343

TD5850

C5418

TD5851

C5801

FL4001

TD5852

C5802

TD5853

FL4003

C5803

TD5854

FL4004

L2010

TD5855

FL4005

TD5856

L2012

FL4006

TD5857

TD5858

C5420

L2014

Q5806

R2326

L2016

Q5807

C5617

L2018

R2328

C5618

L2019

R2138

TD5861

R2139

TD5862

R4656

R4657

R4658

R4659

R2332

R2333

R2140

IC5401

R2141

C5626

D5602

C5627

C5628

D5604

R4660

R5600

R5601

VJ5509

C2361

C3301

R4661

C2362

C3302

R4662

R4663

C2363

R4664

C2364 C2365

R4665

R4666

C2366

R5412

R4667

C2367

R5607

R5413

D5800

VJ5510

C2368

R5608

R8101

C2369

R5609

D5802

C5632

D5803

C5634

R5800

R8104

TU8300

R5418

C5635

R5801

R5419

JS3051

JS3052

IC5607

IC5608

R4670

R8108

JS3054

C2370

R5610

R5611

R4672

R5612

R5807

R5613

D5617

C6000

IC5800

R4674

JK4500

C6001

R5809

JK4501

C8711

C6002

R4676

C8712

JK4502

C3123

JK4503

R5618

R8110

C3124

C8714

C6005

C5641

R8111

C8715

IC5806

C6006

C5642

C3702

C8716

C6007

C5643

IC5808

C6008

R3100

D5620

C3704

L5500

IC5809

C6009

R3101

L5501

JS4001

C8719

R3102

L5502

R3103

L5503

R3104

R5620

R4680

L5504

R8500

R3105

R4681

L5505

R8501

R3106

R5622

R4682

R3107

C2383

R8503

IC5810

C6010

C3900

C3130

C8720

R8504

VJ8600

IC5811

C3131

D3301

C2385

VJ8601

C3132

D3302

IC5813

C2387

C3133

C8148

C3134

L8004

IC5814

C6014

L8005

C8149

R3301

C2389

C3135

D8701

C8725

C6015

IC8502

C3136

R3302

D8702

R2363

C3137

R3303

D8703

R2364

R8700

D8704

C8728

C6018

R2365

R8701

IC8241-A

R3305

D8705

C8729

C6019

R2366

R8702

R3306

D8706

R2367

R3307

JS4013

JS4014

R8705

R2175

R5826

R8706

R2176

JS4017

R8707

R2177

JS4018

X1100

R2178

C8730

C6020

R5829

R5635

JS4019

R2179

C8731

C6021

C8156

C1202

C1203

C8157

IC8703

C1204

C1205

C2399

Q1202

Q1203

R5830

JS4020

R8710

R2180

R5831

JS4021

R2181

C8351

R5832

TP5506

R2182

R8713

R2183

R3123

R3124

R8715

R8716

D3707

R8717

D3708

R8718

R5839

Q5475

R8719

C8744

Q5478

Q5479

C8745

C8746

C3157

C8747

R5840

C8360

R8720

JS4030

C3158

R5841

C8361

R2191

C5481

R8721

D3712

D3713

R8723

TP5518

R8918

C8364

D3714

Q5480

C8365

D3715

R8919

R8726

R8727

R8728

IC3900

R3716

R3717

D1202

D1203

T8301

R8731

R1203

R8733

C8950

R8540

R8734

D5470

R3145

R8735

R8542

R3146

R8736

R3147

R8737

R3148

R8738

R5859

R8545

S3701

R3149

R8546

S3702

S3703

R8549

L5741

L5742

C3752

R8933

R1210

R8934

C4500

R3150

R8935

C4501

C4502

R8743

R8937

C4503

R1214

R8550

R8939

R8551

R1216

R8552

R8746

R1217

R8553

R8747

R5868

R8748

R8360

R8554

R5869

R8361

R8555

FL5802

R8556

R8362

FL5803

R8363

R8557

R8558

R8364

R8940

R8365

R8559

R8941

R5485

C4702

R8942

R5486

R1413

C4703

R8943

IC5480

R8751

R1221

R8945

R8752

R8946

R8947

R8560

R5681

R8561

R8755

R5876

R5682

R8562

R5877

R8563

R5878

R5684

TD8000

R8564

R5490

R5879

R5685

TD8001

R1229

R5491

C8399

TD8002

R8566

R5492

R5493

R9121

R8952

R8953

SW3759

Q4520

D4500

R3174

JK3000

R8959

D4501

JK3001

R3946

R8572

JK3002

D4503

JK3003

CL3000

R4500

CL3001

SW3761

D4505

R4501

R8381

FL8701

CL3002

SW3762

R4502

R8382

FL8702

CL3003

SW3763

D4507

R8577

R4503

R8383

SW3764

R8960

R8578

R4504

R8384

SW3765

D4509

R8579

R4505

CL3006

R8962

R8963

IC4500

R8964

R3180

R8770

CL3009

R8965

R3181

R8771

R3182

R1243

C2400

JK8600

R8580

C2401

D4511

C2402

R8776

C2403

R4127

R8777

CL3010

R4128

R3188

CL3011

C2405

TP1111

R3189

CL3012

C2406

R3572

D4516

R8587

R8972R8973

R3190

R4131

R9145

R8975

R3191

R9146

R1252

R8976

R3192

R8977

R3193

R3964

R3194

R1255

R3771

D4521

R3195

R1256

R3772

R3196

C2413

R1257

D4523

R3773

C2414

R1258

R3198

R3774

C2415

R3969

R3199

R3775

C2416 C2417

C2418

C2419

R3970

R1260

R4140

R4141

R1262

C2420

C2421

R1265

C2422

TP8852

R1266

L4220

R1268

L4221

R1269

L4222 L4223 L4224L4800

R4728

L4225L4801

C2429

R4729

L4802 L4803 L4804

R1270

JS8701

L4805

R4151

JS8702

R4152

R1272

JS8703

R1273

JS8704

R1274

Q5500

R1275

C2431

Q5501

R1276

Q5502

R1277

Q5503

R1278

R2600

Q5504

R4734

R1279

R4541

R4735R4736

C8002

R4543

TD1100

R4739

L2101

R1280

R1281

C5514

CL9000

R4740

JS3700

C5515

CL9001

X8101

JS3701

CL9002

R4742

C5516

C5517

R4743

L2300

X5800

C5518

C5901

L2301

C5519

C5903

C5904

L2304

C8014

L2305

C8015

C3001

C5906

C3002

C3003

C5520

C3004

C5521

R4171

C3005

C5522

C3006

C5523

C3007

C5524

C3008

C5525

D4561

C3009

C5526

Q5522

C5527

C5528

D5504

D5505

C5529

D5506 D5507

C2263

R9190

C2264

C3010

R9191

C8601

C3011

C5722

C8602

C3012

C8026

C8603

C3013

C5530

C8604

C3014

C5531

C8605

C3015

Q2266

C8606

C3016

C5532

C2847

C8607

C3017

C5533

R4760

C5534

R2050

C8608

C3018

C2848

C5535

R2051

R5125

C5536

D4573

C5537

C5538

D4574

IC8000

C5539

X8701

C8032

C8610

D5519

C3021

C3023

R5900

C3024

C5929

R5901

C3025

R5902

C8616

C3026

R5903

C8617

C3027

C5544

R5904

C8618

C3028

D5521

C3029

D3005

R5906

D5522

R5907

D5524

C5933

R4583

D4587

R5524

R4584

D4588

C3030

R5525

R4585

D4589

C3031

R4586

IC3002

C3032

C5937

R4587

C3033

C8047

R4588

R5910

C3034

R4589

R5911

C3035

C3036

R3202

C5746

R5913

C3037

R3203

R2264

R5914

L5604

D4590

R3204

C3038

C5748

R2265

R5915

L5605

C5555

IC8240-A

D4591

C3039

R2266

R5916

C5556

D4592

R5917

C5557

D4593

R5918

R4590

C5558

C8244

D4594

R3208

VJ8700

C5941

R5919

A11

L8101

C8245

D4595

R3209

VJ8701

A12

C8246

D4596

VJ8702

D4597

VJ8703

A13

TD4800

C8248

C5368

D4598

TD4801

C5369

R5535

D4599

D2659

A16

R5536

C3042

R4597

R5537

A17

C3043

R4598

R5920

VJ3500

C1104

R5538

A18

C3044

R5921

R5539

C1105

C3045

R3211

R5922

C1106

R3212

C3046

R5923

C1107

C3047

R5924

C3048

C5370

D2660

R5925

C1109

R5926

C5372

R5927

A20

R5928

C5374

R5540

R5541

C5375

ZA1001

R5542

ZA1002

C5377

R5543

A23

R5544

C5378

ZA1004

L5811

R4799

TP5601

R5545

C3051

ZA1005

C5762

C3052

ZA1006

L5813

C5763

C5958

L5814

C5764

C1114

C5959

VJ5451

C5765

D5741

C5766

C1116

C5767

VJ3707

A-BOARD (COMPONENT SIDE)
TXN/A1LWUUS

A

93

13.4. D-Board

6

5

D-BOARD (FOIL SIDE)

TXN/D1LWUUS

4

TP107

TP106

TP108

TP110

3

2

1

IC304

TP9106

TP9108

TP9110

5

TP105

TP109

TP913

TP914

TP200

C9218

8

TP9105

TP9107

TP9109

TD9131TD9138

TP9914

TP9200

R9251
R9252

IC9304

TD9128

TD9130

TP9913

TP204

TD9129

R9250

TP912

TP9204

TP9912

TD9127

TP201

TP202

TP9201

TP9203

TP9202

TP203

TD9020

TD9021

R9096

R9097

C9092

C9132

R9255

C9139

L9000

C9137

C9140

C9138

TP076

C9128

R9310

TD9104

C9131

R9294

R9297

C9119

C9129

C9127

C9190

C9121

C9122

C9242

C9243

TD9142

R9293

R9296

C9186

C9123

TD9143

R9292

R9295

C9161

C9160

C9241

TD9144

C9195

C9197

R9352

C9187

C9198

C9170

C9166

C9200

R9351

R9616

C9171

TP9076

C9120

C9184

C9172

C9173

TP078

TD9126

TP301

R9614

4

TD9125

1

C9134

TP9301

TP300

TP9300

PbF

TNPA5149

SEE REVERSE FOR ORDER NO.

TP911

TP9911

TP910

TP9910

TD9159

TD9157

TD9109

TD9158

TD9236

C9117

C9130

C9136

C9203

C9204

C9165

C9159

C9202

C9124

C9126

TD9384

TD9401

TP9078

CR NO.9

C9201

C9125

C9135

C9158

C9133

C9182

C9162

TD9235

C9188

TD9108

C9167

C9175

C9118

VJ9303

TD9254

C9174

C9141

C9151

C9143

C9163

C9155

L9004

L9007

L9001

C9199

C9194

C9183

R9174

C9181

C9154

C9180

C9193

C9156

C9164

C9157

VJ9305

VJ9304

C9177

C9176

C9185

123

C9153

C9147

C9149

C9145

C9150

C9179

C9178

C9192

C9196

C9191

C9189

C9144

C9142

1 D

C9148

C9146

C9152

R9175

R9176

R9177

TP080

TP9010

TP010

TP9080

TP196

TP302

TP9196

TP9302

TP100

C9371

C9366

TP9100

TP9006

TP006

C9374

C9376

L9301

C9377

C9375

TP101

C9354

C9370

C9223C9224

TP9101

C9364

C9368

C9355

C9168

C9362

C9318

C9363

C9169

C9244

C9365

TD9153

C9343

C9342

C9325

C9330

C9333

C9322

C9335

C9307

C9348

C9336

C9308

R9162

C9356

R9288

C9309

C9310

C9321

C9361

C9367

C9351

TD9147

C9353

C9357

C9341

C9360

C9352

C9347

C9372

C9350

C9359

C9369

C9373

C9340

C9326

C9344

C9317

C9312

C9358

C9349

VJ9300

C9311

C9390

C9385

C9392

L9302

L9008

C9345

D

TP9315

TP315

4

C9056

TP9313

TP9002

R9151

R9154

C9039

TP9000

TP9316

TP316

IC002

6

TP9085

TP085

TP083

TP9083

TP9081

TP087

TP081

TP089

TP090

C9407

R9155

R9150

TP001

TP9001

5

4

IC9001

IC001

C9057

C9058

TD9058

1

8

TP313

R9129
C9033

C9095

C9032

C9049

C9050

C9051

TD9067

TD9066

C9036

R9132

TD9375

32

IC004

1

C9054

C9061

C9047

R9121

C9038

C9037

C9337

C9332

C9319

C9386

R9324

C9320

C9378

C9391

C9379

C9327

L9300

C9331

C9387

R9326

C9338

C9380

C9346

C9388

C9339

C9316

C9381

VJ9302

C9315

R9327

C9328

C9334

VJ9301

C9329

C9389

C9314

C9323

C9313

C9324

C9382

C9383C9384

R9325

C9034

R9197

C9035

IC9004

R9185

TD9028TD9029

R9868

R9186

TD9096

R9871

R9207

R9200

R9215

TD9097

C9053

R9201

R9187R9188

17

R9223

TD9042

R9206

C9040

16

C9055

R9225

TP002

R9205

TP9000

R9598

C9207

R9199

R9192

1

D9004D9005

D9006

C9250

R9384

C9253

R9387

R9383

R9386

C9254

C9249
C9248

R9116

R9113

R9114

C9116

12

R9196

D9007

IC9802

C9400

R9195

C9260

IC9002

TP9087

TD9105

TP9089TP9090

C9102

TP099

IC802

24

13

TP9088

C9103

R9142

R9522

R9388

C9401

ZA9001

3

1

TP314

TP9314

TP086

TP9086

TP9084

TP084

TP088

TP082

TP9082

TP093

TP092

TP091

TP9091

TP9092 TP9093

TP095

TP9094

TP9095

TP097

TP094

TP9096

TP9097

TP9099

TP9098

TP096

TP098

C9215

C9214

R9390

C9263

C9259
C9258

R9385

R9389

C9264

ABCDEFGH I

94

ABCDEFGH I

1

2

3

4

5

6

Q008

IC003

Q800

Q801

Q802

IC400

IC401

IC402

IC403

IC801

IC804

IC810

IC811

D3

D5

D6

D7

D20

TD161

D25

TD162

D31

D32

D33D34

Q900

Q901

IC300

R118

R122

R123

R125

R126

R127
R131

R133

R134

R135

R137

R138

R139

R140

R141

R143

R144

R146

R147

R148

R156

R157

R159

R160

IC189

Q001

Q006

Q007

PbF

D

1

TNPA5149

CR NO.9

HIN

VIN

1

26

51

76

100

1

A

1

10

11

20

1

10

11

20

1

10

11

20

11

10

20

1

11

10

20

1

1

1011

20

11

20

1

10

ORDER

NO.

1

15

68

1

1

2

19

20

1

11

1

35

110

1

68

1

68

1

55

68

1

1

A

1

10

11

20

TD9250

Q9008

TD9251

TD9252

TD9253

C9205

TD9255

TD9256

C9206

TD9257

C9208

C9209

TD9065

C9402

C9403

C9404

C9210

C9211

C9405

C9406

C9212

C9213

C9216

C9217

C9219

D9001

C9220

D9008

C9221

D9009

IC9003

Q9800

Q9801

R9202

Q9802

R9203

R9208

C9231

R9209

TD9282

TD9283

C9233

C9234

R9400

C9041

R9401

C9235

C9042

R9402

TD9093

R9403

C9238

C9044

TD9094

C9239

C9045

TD9095

C9046

R9212
R9213

IC9400

C9048

R9214

TD9099

IC9401

IC9402

C9432

C9433

IC9403

R9218

C9240

R9219

C9245

C9246

C9052

C9247

TD9298

C9824

R9220

R9609

D9802

D9803

R9224
R9226

R9227

VJ9900

VJ9901

C9251

VJ9902

C9252

VJ9904

C9255

IC9801

C9062

C9256

C9257

C9063

IC9804

C9065

R9236

R9238

R9239

C9261

C9262

IC9810

IC9811

C9265

C9266

C9267

C9268

C9269

R9241

TD9899

R9247

R9253

R9257

R9259

R9069

FL9002

C9094

C9096

D3

C9097

R9070

D5

D6

D7

R9268

R9269

R9270

TD001 TD9100TD9101

TD9102

TD9103

TD9106

TD9107

R9287

R9093

R9094

TD9110

R9098

R9099

TD9111

TD9306

TD9112

TD9307

TD9113

TD9308

TD9114

TD9309

TD9115

TD9116

TD9117

TD9118

TD9119

R9298

TD9310

R9299

TD9311

TD9312

R9876

TD9313

TD9314

TD9120

TD9121

TD9122

TD9123

TD9124

R9880

R9881

R9882

R9883

R9884

TD9321

R9885

TD9322

TD9323TD9324

TD9900

R9888

TD9325

TD9901

TD9326

TD9902

TD9327

TD9903

TD9904TD9905

TD9906

TD9907

TD9908

TD9139

TD9909

TD9330

TD9331

R9896

TD9332

TD9333

TD9910

TD9140

TD9141

TD9911

TD9912

TD9913

TD9914

TD9915

TD9145

TD9146

TD9916

TD9917

TD9148

TD9918

TD9149

TD9919

TD9342 TD9343

TD9150

C9100

X9000

TD9151

C9101

TD9152

TD9154

C9104

C9105

TD9155

C9106

TD9156

C9107

C9108

D20

C9301

ZA9001

C9302

TD9160

TD9161

D25

TD9162

TD9163

TD9357

TD9164

TD9358

TD9165

TD9359

TD9166

TD9167

X9400

TD9360

TD9361

D31 D32

TD9362

D33

TD9363

TD9170

D34

TD9364

TD9365

TD9172

TD9366

VJ9003

TD9367

TD9174

TD9368

TD9369

TD9176

TD9177

R9100

TD9178

R9101

R9102

R9103

R9104

TD9370

R9105

TD9371

TD9372

TD9373

R9107

C9900

TD9374

R9109

R9300

D9110

Q9900

Q9901

TD9379

TD9185

TD9187

R9110

TD9188

TD9189

R9111

R9112

IC9300

R9115

R9118

TD9190

TD9191

R9119

TD9192

TD9193

TD9194

TD9195TD9196

L9002

TD9197

L9003

TD9198

R9120

TD9199

L9005

R9122

R9316

L9006

R9123

R9124

R9125

R9126

R9127

R9128

R9320 R9321

R9322

R9900

R9130

R9901

R9131

R9133

R9903

R9134

R9904

R9135

R9905

R9906

R9137

R9907

R9138

R9139

R9140

R9141

R9143

R9144

R9146

R9147

R9148

R9152

R9347

R9153

R9348

R9349

R9156

R9157

R9158

R9159

R9350

R9160

R9164

R9165

R9166

C9393

C9394

TD9000

TD9001

TD9002

TD9003

TD9004

TD9005

TD9006

TD9007

R9378

TD9008

R9184

R9379

TD9009

R9189

TD9010

TD9205

TD9011

TD9206

TD9012

TD9207

TD9013

TD9014

R9191

TD9015

IC9189

TD9016TD9017TD9018

R9194

TD9019

R9198

FL9900

FL9901

FL9902

FL9903

R9391

TD9022

TD9023

TD9024TD9025

TD9027

TD9030

TD9800

TD9031

TD9802

R9596

TD9032

TD9033TD9034

TD9804

TD9036TD9037

TD9039TD9040

TD9043TD9044

TD9239

TD9045

TD9046

TD9047

TD9048

TD9049

TD9240

TD9241

TD9242

TD9243

TD9244TD9245

TD9246

TD9052

TD9247

TD9248

TD9054

TD9249

Q9001

TD9055

TD9056

TD9057

Q9006

Q9007

D-BOARD (COMPONENT SIDE)
TXN/D1LWUUS

D

95

13.5. C1-Board

6

5

C1-BOARD (FOIL SIDE)
TXNC11LVUU

C1

4

TNPA5102 1 C1

SEE REVERSE FOR ORDER NO.

123

PbF

3

C1-BOARD (COMPONENT SIDE)
TXNC11LVUU

40

40

R142

ZA101

TNPA5102 1 C1

ORDER

NO.

PbF

ZA104

CR NO.17

C141 C142 C143

2

R199

C131 C132 C133 C134 C135

C101 C102 C103

1

1

R111 R112 R113 R114 R115 R116 R117 R118R121 R122 R123

CB1 CB2 CB3

R131

55

55

R132

1

1

R133

55

55

R134

C136

1

1

R135

55

55

R136

ZA102 ZA103

CB4

C137 C138

C144

C104

1

1

R124

R126

C10

R127

1

1

55

55

R137

R138

1

ABCDEFGH I

96

13.6. C2-Board

ABCDEFGH I

1

2

3

4

5

6

C20

C21

C26

R294

R295

R296

C201

C204

C205C206

CB5

IC201

CB6

CB7

CB8

C213

FL201

C231

C232

C233

C234

C235

C236C237

C238

ZA201

ZA202

ZA203

ZA204

C241

C242

C245

C246

C247

C248

C250

C251

C252

C253

R204

R211

R212

R213

R214

R215

R216

R217

R218

R221 R222 R223

R224

R226

R229

R231

R232

R233

R234

R235

R236

R237

R238

R241R242

R247

TNPA5103

1

C2

CR NO.17

PbF

1

40

1

68

1

20

1

68

1

55

1

55

ORDER

NO.

55

1

1

10

11

20

15 5

1

55

15 5

1

40

1

20

15 5 15 5

12 3

TNPA5103

1

C2

PbF

SEE REVERSE FOR ORDER NO.

C2-BOARD (FOIL SIDE)
TXNC21LVUU

C2-BOARD (COMPONENT SIDE)
TXNC21LVUU

C2

97

13.7. C3-Board

6

5

C3-BOARD (FOIL SIDE)
TXNC31LWUU

4

C3

1TNPA5140 C3

SEE REVERSE FOR ORDER NO.

321

PbF

3

C3-BOARD (COMPONENT SIDE)
TXNC31LWUU

R346

C353

C346

R342

R350

C349

C347

R344

C350

20

1

168

2

1

1

R349

FL301

C36

C361

20

20

C358

C359

1

1

168

C31

R352

R353

ZA301

C362

CB9

R355

R354

C360

55

55

R356

ZA305

C365

R357

C363

1

1

C351

C352

R348

C348

10 11

R345

C392

R341

R351

IC301

CB10

R395

R360

55

55

R361

CB11

1

1

R358

C364

R359

C354

C355

C356

C357

C341

C301 C304

R312

C332

R311

R322 R323 R324 R325

C331

20

1

R343

10

11

R347

IC302

C342

ZA304

CB12

1

1

R331

55

55

R332

R314

R313

C333

R333

C334

55

55

R334

ZA303

CB13

TNPA5140

ORDER

C305

C343

R316

C335

R315

1

1

NO.

R335

C336

55

55

CR NO.17

R336

1

PbF

C33

1

8

C31

C306

C344

CB14

1

1

R318

R317

C337

C338

R326

4

1

C314

C35

R337

ZA302

55

55

R338

R339

C339

1

1

R340

CB15

R320

R319

C307

R321

C345

R399

C340

55

55

ABCDEFGH I

98

13.8. C4-Board

ABCDEFGH I

1

2

3

4

5

6

C40

CA1

CA2

CA3

CA4

C401

C402

C403

C404

C405

C406C407

C408

C409

C410

C411

C412

C413

C414

C415

C416

ZA401

ZA402

ZA403

ZA404

R401

R402

R403R404R405

R406

R407

R408

R409R410R411

R412

R413

R414R415R416

R417

R418

R419R420R421

R422

R423

PbF

TNPA5154 1 C4

CR NO.17

1

40

ORDER

NO.

1

55

1

55

1

55

1

55 551155

40

1

55

1

1

55

PbF

123

TNPA5154 1 C4

SEE REVERSE FOR ORDER NO.

C4-BOARD (FOIL SIDE)
TXNC41LWUU

C4-BOARD (COMPONENT SIDE)
TXNC41LWUU

C4

99

13.9. C5-Board

6

5

C5-BOARD (FOIL SIDE)
TXNC51LWUU

4

12 3

TNPA5155

1

SEE REVERSE FOR ORDER NO.

PbF

C5

C5

3

C5-BOARD (COMPONENT SIDE)
TXNC51LWUU

C518

CA7

ZA503

CA8

R517

55155

55

C513

R515

R514

R513

C512

C514

C511

R516

1

1

R501

20

20

C56

1

1

ZA504

CA5

R527

55 1

55 155 1

2

R525

1

1

R524

R523

C520

C519

C521

1

1

R526

C522

CR NO.17

C50

40

40

CA6

R512

R511

TNPA5155

ORDER

ZA502

R502

NO.

R503

IC501

R522

R521

55

R520

R508

C509

R509

C508

C510

C507

1

C504

C506

R507

C503

C51

1

1

C502

C523

R528

11

R506

10

1

20

C501

R505

C5

ZA501

PbF

VJ501

68

68

FL501

55

R510
R519

C517

R518

C516

C515

1

ABCDEFGH I

100
