Panasonic SC-EN9 User Manual

Dear customer

Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

These instructions are applicable to the following systems.

System SC-EN9

Main unit SA-EN9

Speakers SB-EN7

NoteNote

“EB” on the packaging indicates the United Kingdom.

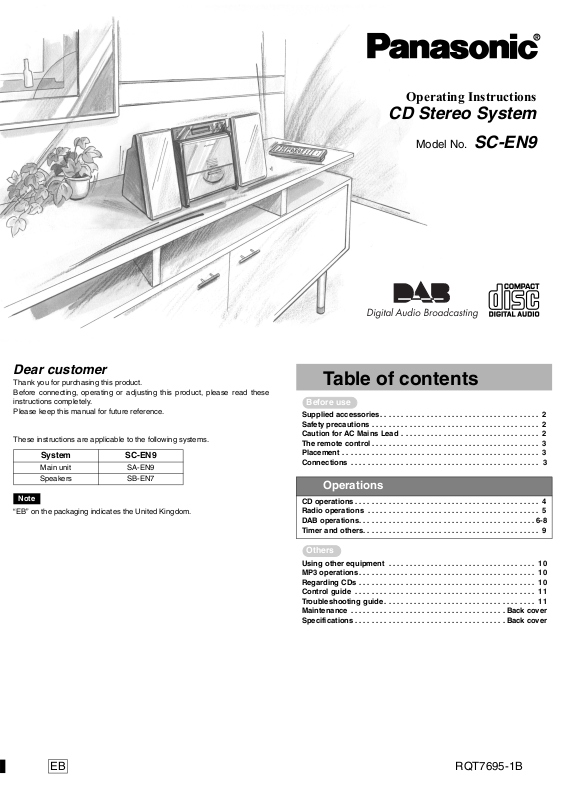

Operating Instructions

CD Stereo System

Model No. SC-EN9

Table of contents

Before use

Supplied accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Caution for AC Mains Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

The remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operations

CD operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Radio operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

DAB operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Timer and others. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Others

Using other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

MP3 operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Regarding CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Control guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

RQT7695-1B

Supplied accessories

Caution for AC Mains Lead

Use the numbers indicated in parentheses when asking for replacement parts.

1 Remote control

(EUR7711130)

1 AC adaptor

(RFAW2646)

NoteNote

• The included AC adaptor is for use with this unit only. Do not use it with other equipment.

• Do not use an AC adaptor from any other type of equipment with this unit.

www. panasonic.co.uk

• Order accessory and consumable items for your product with ease and confidence by telephoning our Customer Care Centre Mon-Friday 9:00am- 5:30pm. (Excluding public holidays.)

• Or go on line through our Internet Accessory ordering application.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

Customer Care Centre For UK customers: 08705 357357 For Republic of Ireland customers: 01 289 8333

Technical Support For UK customers: 0870 1 505610

This Technical Support Hot Line number is for Panasonic PC software related products only. For Republic of Ireland, please use the Customer Care Centre number listed above for all enquiries. For all other product related enquiries, please use the Customer Care Centre numbers listed above.

2 Batteries 1 AM loop antenna

(G0ZZ00002036)

1 DAB “T” antenna

(N1EADY000001)

(for UK customers only)

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 3-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life.

Place it at least 15 cm away from wall surfaces to avoid distortion and unwanted acoustical effects.

Do not place heavy items on the unit.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC adaptor and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF–KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A

2. Replace the fuse and close or attach the fuse cover.

Figure A

Fuse (3 ampere)

Figure B

Fuse cover

Figure B

Fuse (3 ampere)

RQT7695

The remote control

Batteries

• Insert so the poles (+ and –) match those in the remote control.

• Do not use rechargeable type batteries.

(R6, AA, UM-3)

Placement

Placement of speakers

You can remove the speaker cover netting. Left and right speakers are exactly the same.

NoteNote

• Keep your speakers at least 10 mm away from the system for proper ventilation.

• These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other

Place this unit in an area with more than 300 mm of vertical space. The CD lid may become damaged if it cannot open completely.

devices easily influenced by magnetism.

• To avoid damage to the speakers, do not touch the speaker cones if you have taken the nets off.

Use

Remote control signal sensor

• Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly in front of the unit.

• Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets.

Caution

• Use the speakers only with the recommended system. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

• Do not attach these speakers to walls or ceilings.

Connections

1 AM loop antenna

Stand the antenna up on its base.

2 Speakers

Before connecting, twist and pull off the speaker cord ends.

Red

Black

Copper (+)

Red

Copper (+)

Silver (–)

3 DAB “T” antenna

The cross bar of the T should be kept firmly stretched. Find a position with good reception. There is a function on the unit to check signal quality (

&#$#06

For best reception

A DAB outdoor antenna is recommended (

→

page 8).

4 AC adaptor

Connect the AC adaptor only after all other connections have been made.

To household mains socket

Be sure to fully tighten the screw.

Adhesive tape

→

page 10).

BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.

NoteNote

If the unit is left unplugged for longer than two weeks, all settings

13VDC IN

will revert to the factory settings. Do the settings again if this occurs.

RQT7695

CD operations

>=>=> =

1 Set the CD in place.

The CD lid opens and the unit comes on.

Label must face outward.

Press until you hear it click into place.

Press again to close.

Keep fingers away from the CD lid when it is closing to avoid possible minor injury.

To tu rn on

the unit

2 Start play.

Remote controlMain unit

If the CD is already in the unit, the unit comes on and play begins.

(One touch play)

Function indicator

The color changes when using the CD mode.

To adjust the volume

–

VOLUME

VOL 22

(Minimum)

(Maximum)

Elapsed playing time of track

Track number

CD 1 0:01 CD P LAY

Input using the numbered buttons

To select a 2-digit number

e.g. 16: [ 10] → [1] → [6]

To select 3-digit number

e.g. 226: [ 10] → [10] → [2] → [2] → [6]

To adjust the volume

Stop

Pause

Skip/ Search

Direct access play

Main unit

Remote control

Number of tracks

Total play time

CD 14 40:19

Number of albums

Number of tracks

MP3

A 40 T111

Main unit

Remote control

CD 1 0 2 : 1 6 CD P AUSE

Press again to resume play.

Main unit Remote control

Press to skip/

Press and hold to search

NoteNote

• You cannot search through MP3 files.

• Perform search during play or while paused.

• You can search only within the current track during program, track repeat, or random play.

Repeat play/ random play

1-&:

Repeats one track

& :

Repeats all tracks

RND: Random

play

Program play

This function allows you to program up to 24 tracks.

PLAY MODE

Select the

play mode

NoteNote

• During random play, you cannot skip to the previous track.

• You cannot select “RND” while playing MP3.

• You cannot use random play and program play at the same time.

Press while

stopped

PGM

• Erase a program

(While stopped)

NoteNote

Program contents are stored in memory even after the function has been changed or the unit is turned off. All program contents are erased by pressing [PGM/CLEAR] or by opening the CD lid.

• Each time you press the button:

1-& →

↑

PLAY MODE OFF ←

(Maximum 24 tracks)

(CD only)

& → RND

Select tracks

6 4:01

PROGRAM CLE AR

(While stopped)

Start play

Track number Sequence number

Total play time

PGM/CLEAR

• Confirm a programmed track (While stopped)

RQT7695

Play starts with the track you select.

Select the desired track

Refer to page 10 regarding MP3 play.

• Add a program track

(While stopped)

Select the track

NoteNote

You cannot use random play and program play at the same time.

you want to add

+ 8 hidden pages
