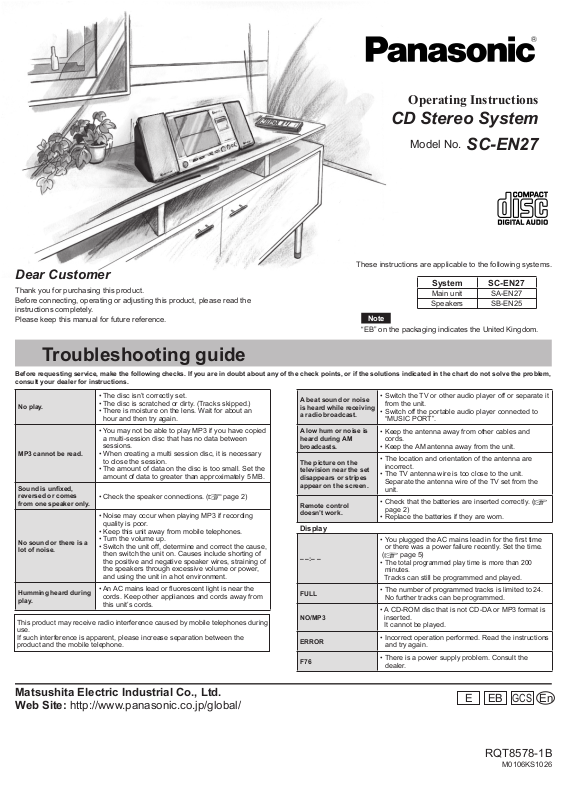

Operating Instructions
Troubleshooting guide
CD Stereo System
Model No.
These instructions are applicable to the following systems.
Dear Customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read the
instructions completely.
Please keep this manual for future reference.
Before requesting service, make the following checks. If you are in doubt about any of the check points, or if the solutions indicated in the chart do not solve the problem,
consult your dealer for instructions.
• The disc isn’t correctly set.
No play.
MP3 cannot be read.
Sound is unfi xed,
reversed or comes
from one speaker only.
No sound or there is a
lot of noise.
Humming heard during
play.
This product may receive radio interference caused by mobile telephones during
use.
If such interference is apparent, please increase separation between the
product and the mobile telephone.
• The disc is scratched or dirty. (Tracks skipped.)
• There is moisture on the lens. Wait for about an
hour and then try again.
• You may not be able to play MP3 if you have copied
a multi-session disc that has no data between
sessions.
• When creating a multi session disc, it is necessary
to close the session.
• The amount of data on the disc is too small. Set the
amount of data to greater than approximately 5 MB.
• Check the speaker connections. ( page 2)
• Noise may occur when playing MP3 if recording
quality is poor.
• Keep this unit away from mobile telephones.
• Turn the volume up.
• Switch the unit off, determine and correct the cause,
then switch the unit on. Causes include shorting of
the positive and negative speaker wires, straining of
the speakers through excessive volume or power,
and using the unit in a hot environment.
• An AC mains lead or fl uorescent light is near the
cords. Keep other appliances and cords away from
this unit’s cords.
A beat sound or noise
is heard while receiving
a radio broadcast.
A low hum or noise is
heard during AM
broadcasts.
The picture on the
television near the set
disappears or stripes
appear on the screen.
Remote control
doesn’t work.
Display
– –:– –
FULL
NO/MP3
ERROR
F76
Note
“EB” on the packaging indicates the United Kingdom.
• Switch the TV or other audio player off or separate it
from the unit.
• Switch off the portable audio player connected to
“MUSIC PORT”.
• Keep the antenna away from other cables and
cords.
• Keep the AM antenna away from the unit.
• The location and orientation of the antenna are
incorrect.
• The TV antenna wire is too close to the unit.
Separate the antenna wire of the TV set from the
unit.
• Check that the batteries are inserted correctly. (
page 2)
• Replace the batteries if they are worn.
• You plugged the AC mains lead in for the fi rst time
or there was a power failure recently. Set the time.
page 5)
(
The total programmed play time is more than 200
•
minutes.
Tracks can still be programmed and played.
• The number of programmed tracks is limited to 24.
No further tracks can be programmed.
• A CD-ROM disc that is not CD-DA or MP3 format is
inserted.
It cannot be played.
• Incorrect operation performed. Read the instructions
and try again.
• There is a power supply problem. Consult the
dealer.
System SC-EN27
Main unit SA-EN27
Speakers SB-EN25
SC-EN27
Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/global/
EB
E
RQT8578-1B
M0106KS1026
GCS
En
Page 2
PHONES
SPEAKERS(6
)
R
L
HAU
T-
P
ARLEURS
FM/AM
ANT
AC IN
3
2
1
4
Supplied accessories
The remote control
Use the numbers indicated in parentheses when asking for
Placement of speakers
Connections
replacement parts.
As of December 2005
1 Remote control
2 Batteries
(N2QAGB000038)
1 AC mains lead
For continental Europe
1 FM/AM antenna
(N1DADYY00003)
(RFA2699)
For the United Kingdom
(RFA2700)
For other areas
(RJA0019-D)
1 Music port cable
For continental Europe
and the United Kingdom
(K2KC39A00002)
Note
The included AC mains lead is for use with this unit only. Do not use it
with other equipment.
Do not use an AC mains lead from any other type of equipment with
this unit.
Batteries
Use
• Insert so the poles (+ and –)
match those in the remote
control.
• Do not use rechargeable type
batteries.
(R6, AA)
Remote control signal sensor
• Aim at the sensor, avoiding obstacles, at a
maximum range of 7 m directly in front of the
unit.
• Operation can be affected by strong light
sources, such as direct sunlight, and the glass
doors on cabinets.
Place this unit in an area with more than 240 mm of
vertical space.
The CD lid may become damaged if it cannot open
completely.
1 Speakers
If the speaker cords
2 FM/AM antenna
Stand the antenna up on its base.
have tips, twist the tips
and pull them off.
Copper (+)
Taped part
Silver (–)
2
1
Silver (–)
L
Copper (+)
R
Unplug the antenna connector by
holding the taped part.
Red
Black
Black
Red
Placement of speakers
Left and right speakers are exactly the same.
Note
• Keep your speakers at least 10 mm away from the
system for proper ventilation.
• These speakers do not have magnetic shielding.
Do not place them near televisions, personal
computers or other devices easily infl uenced by
magnetism.
To avoid damage to the speakers, do not touch
•
the speaker cones if you have taken the nets off.
3 AC mains lead
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE
AC MAINS LEAD ON PAGE 7
BEFORE CONNECTION.
FM antenna
AM antenna
To household
mains socket
Caution
• Use the speakers only with the
recommended system. Failure
to do so may lead to damage to
the amplifi er and/or the speakers,
and may result in the risk of
fi re. Consult a qualifi ed service
person if damage has occurred
or if you experience a sudden
change in performance.
• Do not attach these speakers to
walls or ceilings.
Connect the AC mains lead only after all
other connections have been made.
Note
If the unit is left unplugged for longer than
approximately two weeks, all settings will
revert to the factory settings.
Remember to reset the radio stations and
any other memory items before using the
unit again.
Portable audio equipment
(Cable included for continental Europe and the United
Kingdom.)
Portable audio player
Use
Remote control
MUSIC PORT
Select
“MUSIC P”
Note
• Adjust the volume and sound quality of this unit and
the other equipment.
• For details, refer to the instruction manual of the other
equipment.
Music port cable
Plug type:
Ø 3.5 mm stereo
mini plug
Start Playback from the
Portable audio source.
Headphones
(Not included)
2
Reduce the volume before connection.
Plug type: Ø 3.5 mm stereo mini plug
Note
Avoid listening for prolonged periods of
time to prevent hearing damage.
Page 3
CD
q/h
SLEEP
CLOCK/
TIMER ADJ
DISPLAY
TIMER
SET/CHECK
PGM/CLEAR
-
AUTO PRESET
OPEN/
CLOSE
123
4
5
6
7
8
0
9
>
=
10
MUSIC PORT
TUNER/
BAND
CD
SOUNDEQLIVE
VIRTUALIZER
PLAY
MODE
ALBUM
VOL
VOL
g
CD
q/h
MPMP
3
TRTR ACKACK
ALBUMALBUM
CD operations
1 Set the CD in place.
MP3
Main unit
Remote control
OPEN/
CLOSE
Note
• Be sure to press the [OPEN/CLOSE]
button to open and close the CD lid.
•
Damage may occur if the lid is forced closed.
2 Start play.
Main unit
Remote control
Elapsed playing time of track
Track number
The unit comes on and the CD lid opens.
Label must face outward.
Press until you hear it click into place.
Press [;] again to close.
Keep fi ngers away from the CD lid when it is closing to avoid possible minor injury.
To turn on
the unit
To adjust the volume
0
(Minimum)
To skip/
To stop play
search
Number of tracks
Stop
Main unit
Main unit
Remote control
Remote control
Total play time
Number of albums
Number of tracks
Pause
Note
If the CD is already in the unit, the unit comes on and play begins.
(One touch play)
1
Input using the
numbered buttons
To select a 2-digit number
e.g. 16: [ 10] → [1] → [6]
To select a 3-digit number
e.g. 226:
[ 10] → [ 10]
→ [2] → [2] → [6]
2
50
(Maximum)
Repeat play/
random play
1-&
: One track
repeat
&
: All track
repeat
RND : Random
play
• Each time you press the button:
1-& → & → RND
Select the
play mode
Note
• During random play, you cannot skip to the previous
track.
• You cannot select “RND” while playing MP3.
• You cannot use random play and program play at the
same time.
To adjust the volume
No display (Canceled)
(While stopped)
Press again to resume play.
Skip/
Main unit
Search
Press to skip/
Press and hold to search
Note
• You can search during play or while paused.
• You cannot search through MP3 fi les.
• You can only search within the current track during
program play, one track repeat, and random play.
Direct
access
play
Play starts
with the track
you select.
Refer to page 6 regarding MP3 play.
Select the desired track
Remote control
Program
play
This function
allows you to
program up to 24
tracks.
3
Press while
stopped
PGM
(CD only)
Select tracks
(Maximum 24 tracks)
Start play
Track number
Sequence number
Track number
Total play time
• Erase a program
(While stopped)
Note
Program contents are stored in the unit’s memory
even after changing to a different function or turning
the unit off. All program contents are erased by
pressing [PGM/CLEAR] or by opening the CD lid.
• Confi rm a programmed
track
(While stopped)
• Add a program track
(While stopped)
Select the track
Note
• You cannot use random play and program play at
the same time.
you want to add
Page 4
TUNER/
BAND
ui
3
4
TUNER/
BAND
ui
3
4
TUNER/
BAND
123
4
5
6
7
8
0
9
>
=
10
Within 10 seconds

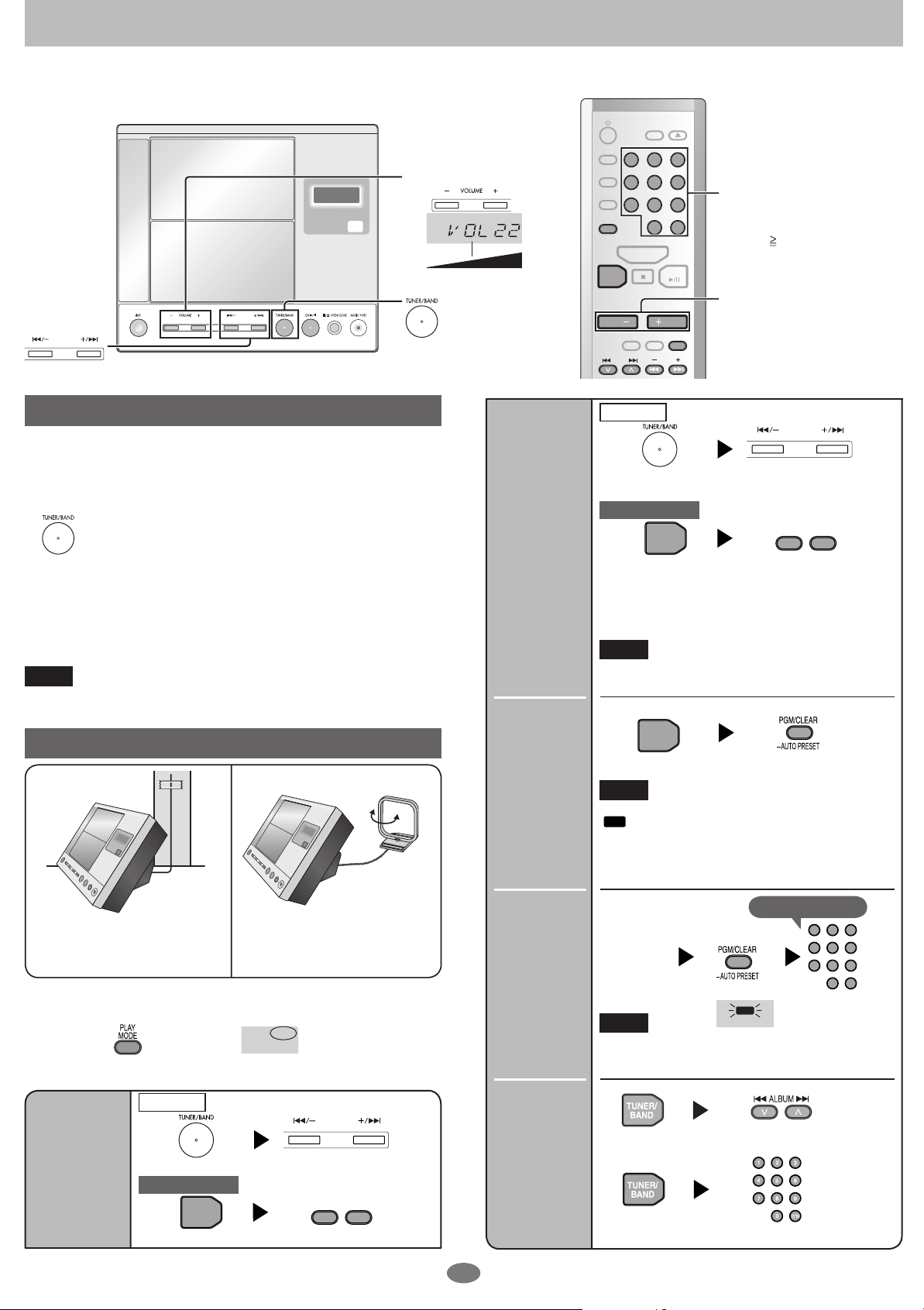

Radio operations
Radio stations can be tuned manually by selecting the station’s frequency or they can be preset into channels to make it easy to tune.
Allocation settings
To improve reception
PGM
You can preset up to 20 FM channels and up to 12 AM channels.
OPEN/
DISPLAY
CLOSE
SLEEP
123
CLOCK/
To adjust the volume
0
(Minimum)
50
(Maximum)
TIMER ADJ
TIMER
SET/CHECK
PGM/CLEAR
-
AUTO PRESET
TUNER/
BAND
4
7
MUSIC PORT
6
5
8
9
>
0
=
Input using the numbered
buttons
10
To select a 2-digit number
e.g. 11: [ 10] → [1] → [1]
CD
To adjust the volume
VOL
ALBUM
SOUNDEQLIVE
VIRTUALIZER
VOL
PLAY
MODE
Each country allocates broadcast bands according to their particular
system. You can change the AM step. The step is factory-set to 9 kHz, but
you can change it to receive broadcasts allocated 10-kHz steps. Any AM
frequencies preset in channels will be changed by this procedure. Preset
them again.
1. Select the FM band with [TUNER/BAND].
2. Press and hold [TUNER/BAND] on the unit.
After a few seconds the display changes to show the current minimum
frequency. Continue to hold the button down. The minimum frequency
changes and the step is changed.
To return to the original step, repeat the above steps.
Note
The preset memory will be initialized when you change the frequency step.
FM AM
Auto
tuning
Automatic
presetting
The tuner
presets the
stations it can
receive into
channels in
ascending order.
Main unit
Select “FM” or “AM”
Remote control
Select “FM” or “AM”
Press and hold until the
frequency starts changing
rapidly
Press and hold until the
frequency starts changing
rapidly
• Auto tuning stops when it fi nds a station.
• To cancel auto tuning press the same button again.
Note
• Auto tuning may not function when there is
excessive interference.
Perform once for FM stations and once for AM stations.
Select “FM” or “AM”
Press and hold until
“AUTO” appears
Note
During automatic presetting, the memory indicator
) fl ashes and the frequency scrolls. The memory
(
indicator and channel numbers are displayed for a
second when a station is preset.
The fi rst station to be preset is displayed when
presetting fi nishes.
Receive the radio stations after
connecting the antenna. Then
attach the antenna code on the wall
Change the direction and location
of the antenna.
or pillar in the good reception.
If noise is excessive in FM
You can improve FM reception by switching reception to monaural.
MONO
Press to turn the MONO
mode ON/OFF
Manual
Main unit
tuning
Select “FM” or “AM”
Remote control
Select “FM” or “AM”
Select the frequency
Select the frequency
Manual
presetting
Preset the
stations one at a
time.
Selecting
channels
4
Tune to
the station
you want to
set as the
preset.
Note
The station occupying a channel is erased if another
station is preset over that channel.
Select “FM” or “AM” Select a channel
Select “FM” or “AM” Select a channel
Enter preset mode
PGM
Select a channel
Page 5
SLEEP
CLOCK/
TIMER ADJ
DISPLAY
TIMER
SET/CHECK
PGM/CLEAR
-
AUTO PRESET
OPEN/
CLOSE
123
4
5
6
7
8
0
9
>
=
10
MUSIC PORT
TUNER/
BAND
CD
SOUNDEQLIVE
VIRTUALIZER
PLAY
MODE
ALBUM
VOL
VOL
CLOCK/
TIMER ADJ
ui
3
4
CLOCK/
TIMER ADJ
Within 10 seconds
CLOCK/
TIMER ADJ
TIMER
SET/CHECK
SLEEP
SLEEP
SOUND
EQ
LIVE
VIRTUALIZER
CLOCK/
TIMER ADJ
ui
3
4
Within 10 seconds
CLOCK/
TIMER ADJ
ui
3
4
CLOCK/
TIMER ADJ
MUSIC PORT
TUNER/
BAND
CD
q/h
4 VOL
VOL
3
TIMER
SET/CHECK
TIMER
SET/CHECK
TIMER
SET/CHECK
TIMER
SET/CHECK
DISPLAY

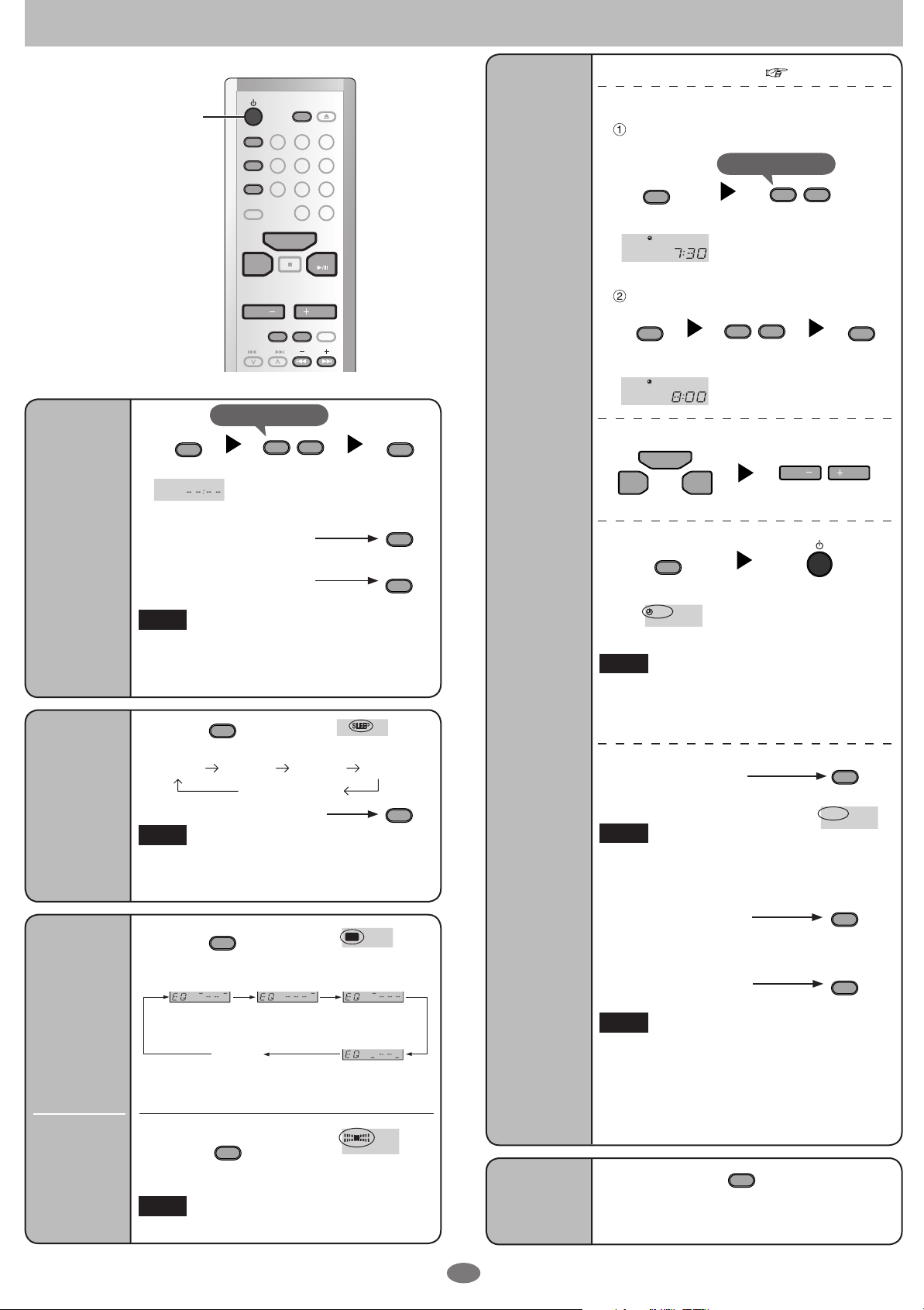

Timers and others
Press [^] to turn the unit
on.
Play timer
This timer starts
play of the
selected source
at the selected
time.
Preparation: Set the clock (
1 Perform timer settings
Set the start time
While the time is displayed
left).
Setting
the time
This is a 24-hour
clock.
SLEEP
timer
The SLEEP
timer can turn
the unit off after
a set time.
Set the clock
Select the time
• Press and hold to
change the time faster.
• To display the clock
when the unit is on
• To check the time when
the unit is off
Note
The clock is accurate to within ±60 seconds a month.
Readjust if necessary.
Set again after disconnecting the AC mains lead or
power failure.
• Each time you press the button:
SLEEP 30 SLEEP 60 SLEEP 90 SLEEP 120
OFF (Canceled)
•
To check the remaining time
Note
The play timer and sleep timer can be used together.
The sleep timer always has priority. Be sure not to
overlap timer settings.
Press once
Select
“zPLAY ON”
PLAY
ON
Select the start time
• Press and hold to
change the time
faster.
Set the end time
Select
“zPLAY OFF”
PLAY
Select the end time
• Press and hold to
OFF
change the time
faster.
2
Select the source and adjust the volume
Select the source Adjust the volume
3 Turn the timer on
Display “zPLAY” Turn the unit off
PLAY
The unit must be off for the timer to be operated.
Note
You can enjoy any sources while the play timer is set.
The timer function will be canceled when you change
the frequency step. Follow the step 3 again while the
unit is on.
•
To cancel the timer
while the unit is on
Note
The timer function will be canceled, but the settings
stay in the memory.
The timer comes on every day if the timer is on.
Clear “zPLAY”
Sound
• Each time you press the button:
quality
Select the sound quality
You can choose
one of four types
of sound quality.
Live
Virtualizer
You can create a
three-dimensional
sound fi eld when
listening to stereo
sound.
XBS
(Adds punch
to rock)
Press to turn the Live
Virtualizer ON/OFF
Note
The actual effect depends on the source played.
CLEAR
(
Clarifies higher
sounds)
EQ OFF
(Turns the sound
quality off)
EQ
SOFT
(
For background
music)
VOCAL
(
Adds gloss to
vocals
)
Display
You can change
the display.
5
• To change the timer
Clear “zPLAY”and
set the timer again
• To check the setting
while the unit is off
Note
• If you turn the unit off and on again while the timer
is functioning, the fi nish time setting will not be
activated.
• When the “MUSIC P” source is selected, set the
timer on the connected equipment to the same time.
The following types of information are displayed.
• Original display
• Time display
RQT8578
Page 6
OPEN/
001album
001track.mp3
002track.mp3
003track.MP3
008track.MP3
009track.MP3
002album
004track.mp3
005track.mp3
004album
003album
006track.mp3
007track.MP3
CD-ROM drive
3
u
ALBUM
i
PLAY
MODE
CD
q/h
u
ALBUM
i

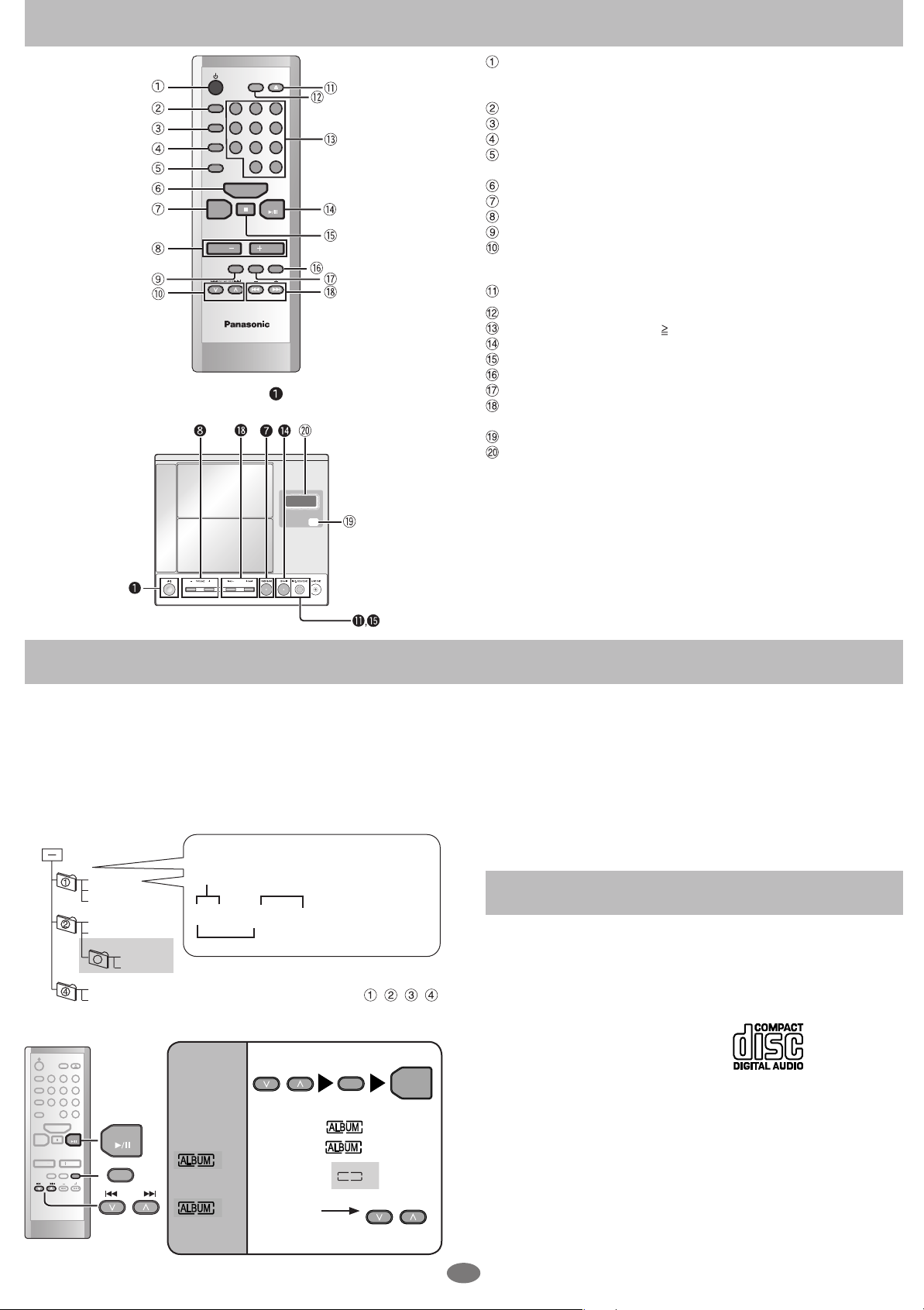

Control guide
MP3 operations
Regarding CDs
DISPLAY
CLOSE
SLEEP
123
CLOCK/
TIMER ADJ
4
6
5
TIMER
SET/CHECK
PGM/CLEAR
-
AUTO PRESET
TUNER/
BAND
VOL
MUSIC PORT
SOUNDEQLIVE
ALBUM
7
8
0
VOL
VIRTUALIZER
>
=
CD
PLAY
MODE
9
10
The shaded buttons, such as , function in the
same way as the buttons on the remote control.
Standby/on switch [^, ^/l] ................................................................... 3
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
SLEEP timer button [SLEEP] ............................................................... 5
Clock/timer adjust button [CLOCK/TIMER ADJ] ................................ 5
Timer set/check button [TIMER SET/CHECK] .................................... 5
CD program/clear, tuner preset button
[PGM/CLEAR, –AUTO PRESET] ..................................................... 3, 4
MUSIC PORT button [MUSIC PORT] ................................................... 2
Tuner/band select button [TUNER/BAND] .......................................... 4
Volume buttons [VOL –, + VOL, – VOLUME +] .................................. 3
Sound EQ button [SOUND EQ] ........................................................... 5
Album skip, preset channel select buttons
[2, 1, u ALBUM i] .................................................................... 4, 6
CD open/close button [;, OPEN/CLOSE] ........................................... 3
Display button [DISPLAY] .................................................................... 5
Numbered buttons [1–9, 0, 10] .......................................................... 3
CD play/pause button [CD q/h] .......................................................... 3
CD stop button [g] ............................................................................... 3
Play mode button [PLAY MODE] ................................................. 3, 4, 6
Live virtualizer button [LIVE VIRTUALIZER] ...................................... 5
CD skip/search, frequency select, time adjust buttons
[u, i, –, +, u/–, +/i] ........................................................ 3, 4, 5
Remote control signal sensor
Display
This unit can play MP3, a method of compressing audio without overly
hurting audio quality.
When creating MP3 fi les to play on this unit
• Maximum number of tracks and albums: 999 tracks and 256 albums.
• Compatible compression rate: Between 64 kbps and 320 kbps (stereo).
128 kbps (stereo) is recommended.
• Disc formats: ISO9660 level 1 and level 2 (except for extended formats).
• It is better not to create folders (album) within folders (004album below).
• The time for reading TOC depends on the number of the tracks, the folders
or folder structures.
Naming tracks and albums
Prefi x with 3-digit numbers in the order you
want to play
Extension
001track.mp3 (or.MP3)
If you created an album such as 004album on the
left, the fi les may not play in order.
, , , .
Select
” or
“
“ &”
ALBUM
OPEN/
DISPLAY
CLOSE
SLEEP
123
CLOCK/
TIMER ADJ
4
6
5
TIMER
SET/CHECK
8
7
9
PGM/CLEAR
>
10
0
=
-
AUTO PRESET
MUSIC PORT
TUNER/
CD
PLAY MODE
PLAY
MODE
CD
ALBUM
BAND
VOL
VOL
SOUNDEQLIVE
VIRTUALIZER
ALBUM
Album
play
You can
listen to
tracks within
albums.
Album play
Album
repeat
The albums would play in the order
Title names and album names are not
displayable on this unit.
Select the
album
:
:
&
• Skip the
album
Start
play
Limitations on MP3
• This unit is compatible with multi-session but if there are a lot of sessions
it takes more time for play to start. Keep the number of sessions to a
minimum to avoid this.
• This unit cannot play fi les recorded using packet write.
• If the disc includes both MP3 and normal audio data (CD-DA), the unit
plays the type recorded in the inner part of the disc.
If the disc includes both MP3 and other types of audio data (e.g. WMA or
WAV), the unit plays only the MP3.
• Depending on how you create MP3 fi les, they may not play in the order
you numbered them or may not play at all.
Note on CD-R and CD-RW
This unit can play CD-R and CD-RW recorded with CD-DA or MP3. Use an
audio recording disc for CD-DA and fi nalize∗ it when you fi nish recording.
The unit may not be able to play some discs due to the condition of the
recording.
∗
A process performed after recording that enables CD-R/CD-RW players to
play audio CD-R and CD-RW.
Caution
Choose discs with this mark:
Do not;
• use irregularly shaped CDs.
• attach extra labels and stickers.
• use CDs with labels and stickers that are coming off or with adhesive
exuding from under labels and stickers.
• attach scratch-proof covers or any other kind of accessory.
• write anything on the CD.
• clean CDs with liquids (Wipe with a soft, dry cloth.).
6

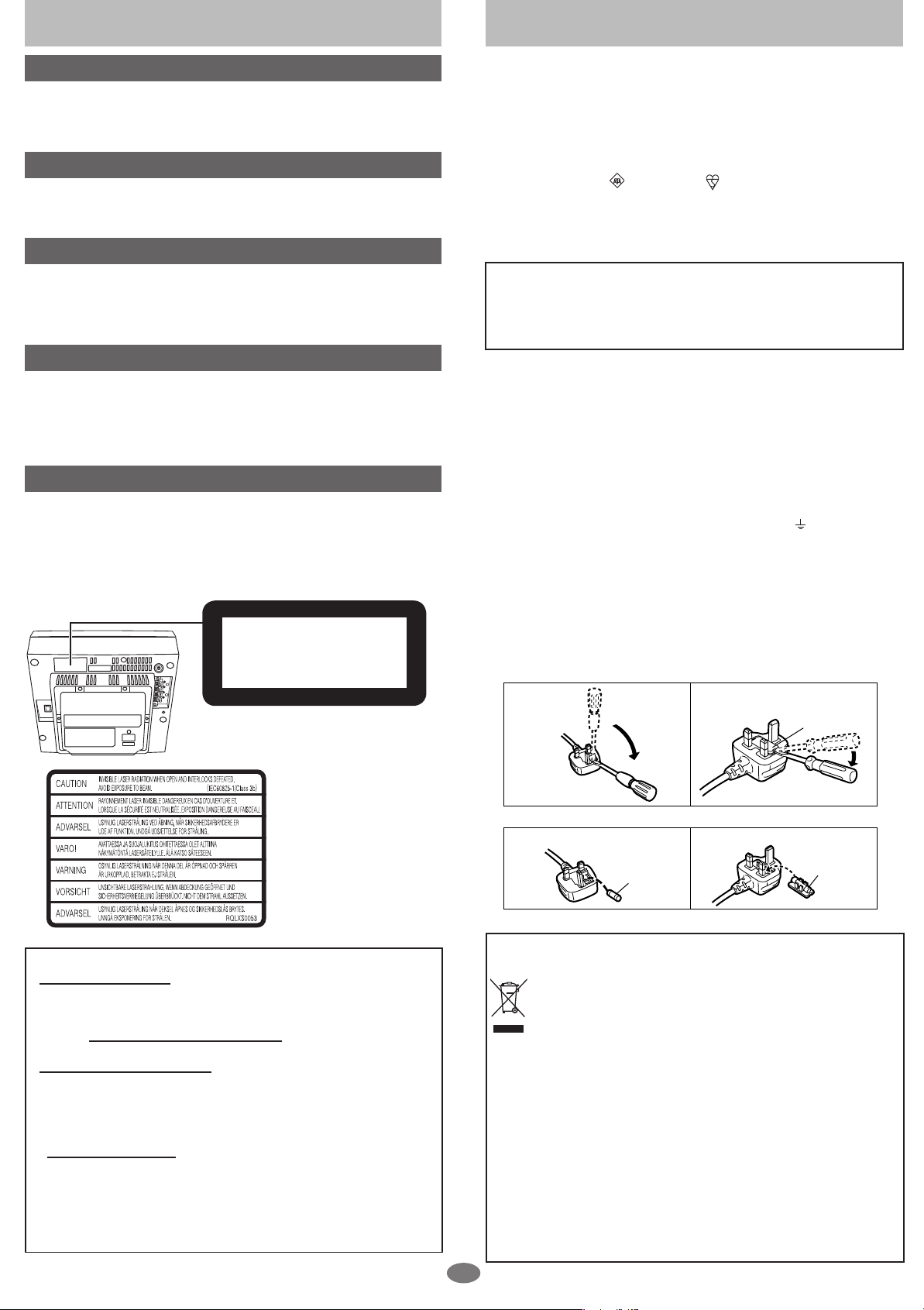

Page 7
Safety precautions
Placement
Caution for AC Mains Lead
Fuse cover
Figure A
Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
Figure A
Figure B
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These conditions can
damage the cabinet and other components, thereby shortening the unit’s service
life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit and cause
a fi re.
Do not use a DC power source. Check the source carefully when setting the
unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged. Poor
connection and lead damage can cause fi re or electric shock. Do not pull, bend,
or place heavy items on the lead.
Grasp the plug fi rmly when unplugging the lead. Pulling the AC mains lead can
cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric shock or
malfunction.
Do not let liquids get into the unit. This can cause electric shock or malfunction.
If this occurs, immediately disconnect the unit from the power supply and contact
your dealer.
Do not spray insecticides onto or into the unit. They contain fl ammable gases
which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indicators
fail to light, smoke appears, or any other problem that is not covered in these
instructions occurs, disconnect the AC mains lead and contact your dealer or an
authorized service center. Electric shock or damage to the unit can occur if the
unit is repaired, disassembled or reconstructed by unqualifi ed persons.
Extend operating life by disconnecting the unit from the power source if it is
not to be used for a long time.
(Back of product)
CLASS 1
LASER PRODUCT
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for your safety and
convenience.
A 5-ampere fuse is fi tted in this plug.
Should the fuse need to be replaced please ensure that the replacement
fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
If the plug contains a removable fuse cover you must ensure that it is refi tted
when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is
obtained.
A replacement fuse cover can be purchased from your local dealer.
or the BSI mark on the body of the fuse.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET
IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT
OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG
IS INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fi tted please observe the wiring code as stated below.If in any
doubt please consult a qualifi ed electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal which is marked
with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH
IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL
GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug (fi gures A and B).
Confi rm the AC mains plug fi tted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
OR COLOURED
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
Except continental
Europe and
the United Kingdom
Inside of product
Tuotteen sisällä
Produktets innside
For the United Kingdom and Republic of Ireland
Sales and Support Information
Customer Care Centre
• For customers within the UK: 08705 357357
• For customers within the Republic of Ireland: 01 289 8333
• Visit our website for product information
• E-mail: [email protected]
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product with ease
and confi dence by phoning our Customer Care Centre Monday -
Thursday 9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding
public holidays).
• Or go on line through our Internet Accessory ordering application at
www.panasonic.co.uk.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided
directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a wide range
of fi nished products, take a browse on our website for further details.
2. Replace the fuse and close or attach the fuse cover.
-If you see this symbol-
Information on Disposal for Users of Waste Electrical & Electronic
Equipment (private households)
This symbol on the products and/or accompanying documents means that
used electrical and electronic products should not be mixed with general
household waste.
For proper treatment, recovery and recycling, please take these products
to designated collection points, where they will be accepted on a free
of charge basis. Alternatively, in some countries you may be able to return your
products to your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent
any potential negative effects on human health and the environment which could
otherwise arise from inappropriate waste handling. Please contact your local
authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer
or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and
ask for the correct method of disposal.
7
Page 8
Specifi cations
CAUTION!
Maintenance
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILTIN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE
UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH
NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY
MANNER.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
SUOMI
VAROITUS!
LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA
MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN
TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE
LASERSÄTEILYLLE.
VAROITUS!
• ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINETTITYYPPISEEN
KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA
TUULETUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN
MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA
VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI
TULIPALOVAARA.
• ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEHDELLÄ,
PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA
ESINEELLÄ.
• ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN
LÄHDETTÄ LAITTEEN PÄÄLLE.
• HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA
TAVALLA.
VAROITUS:
TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN MUUN
VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA ALTISTAA
SATEELLE, KOSTEUDELLE, VESIPISAROILLE TAI ROISKEELLE,
EIKÄ NESTETTÄ SISÄLTÄVIÄ ESINEITÄ, KUTEN ESIMERKIKSI
MALJAKOITA, SAA ASETTAA LAITTEEN PÄÄLLE.
Laite tulee asettaa lähelle verkkopistorasiaa ja pistokkeen täytyy olla
sellaisessa asennossa, että siihen on helppo tarttua ongelman sattuessa.
The socket outlet shall be installed near the equipment and easily
accessible or the mains plug or an appliance coupler shall remain readily
operable.
(For continental Europe and the United Kingdom)
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
(For other areas)
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
SUOMI
TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA
ILMASTOSSA.
NORSK
DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE
KLIMAFORHOLD.
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with
the cloth carefully.
Care of the CD lens
• Clean the lens regularly to prevent malfunctions. Use a blower to remove
dust and a cotton swab if it is extremely dirty.
Recommended product: Lens cleaner kit (part no. SZZP1038C).
• Do not use the lens cleaner of the CD type.
NORSK
ADVARSEL!
DETTE PRODUKTET ANVENDER EN LASER.
BETJENING AV KONTROLLER, JUSTERINGER ELLER ANDRE
INNGREP ENN DE SOM ER BESKREVET I DENNE
BRUKSANVISNING, KAN FØRE TIL FARLIG BESTRÅLING.
DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å REPARERE
APPARATET PÅ EGENHÅND. ALT SERVICE OG
REPARASJONSARBEID MÅ UTFØRES AV KVALIFISERT
PERSONELL.
ADVARSEL!
• APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET
INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED
HVOR VENTILASJONSFORHOLDENE ER UTILSTREKKELIGE.
SØRG FOR AT GARDINER ELLER LIGNENDE IKKE FORVERRER
VENTILASJONSFORHOLDENE, SÅ RISIKO FOR ELEKTRISK SJOKK
ELLER BRANN FORÅRSAKET AV OVERHETING UNNGÅS.
• APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES TIL
MED AVISER, BORDDUKER, GARDINER OG LIGNENDE.
• PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ
APPARATET.
• BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET.
ADVARSEL:
FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT ELLER
SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE UTSETTES
FOR REGN, FUKTIGHET, VANNDRÅPER ELLER VANNSPRUT. DET
MÅ HELLER IKKE PLASSERES GJENSTANDER FYLT MED VANN,
SLIK SOM BLOMSTERVASER, OPPÅ APPARATET.
Utstyret bør plasseres i nærheten av AC-stikkontakten, og støpslet må
være lett tilgjengelig hvis det skulle oppstå problemer.
Main unit
Radio
Frequency range
FM 87.50 MHz to 108.00 MHz (50 kHz steps)
AM 522 kHz to 1629 kHz (9 kHz steps)
520 kHz to 1630 kHz (10 kHz steps)
CD player
Sampling frequency 44.1 kHz
Decoding 16 bit linear
Beam source
Semiconductor laser (wavelength 795 nm)
(For Norge)
Bølgelengde 795 nm
Laserstyrke Ingen farlig stråling sendes ut
(med sikkerhets-beskyttelse)
Number of channels 2 channel, stereo
Wow and fl utter
Less than possible measurement data
D/A converter MASH(1 bit DAC)
Terminals
Input MUSIC PORT: Ø
Output PHONES:
General
Power supply
(For continental Europe and the United Kingdom)
(For other areas) AC 220 V to 240 V, 50/60 Hz
Power consumption 15 W
Dimensions (W×H×D)
241 mm×206 mm×206 mm
Mass
With speakers
Without speakers 1.8 kg
3.1 kg
3.5 mm stereo (33 kΩ)
Ø 3.5 mm stereo (32 Ω)
AC 230 V to 240 V, 50 Hz
8
Speakers
Full range 8 cm , 6 Ω×2
Dimensions (W×H×D)
91 mm×206 mm×176 mm
Power consumption in standby mode: 1.6 W
Note
Specifi cations are subject to change without notice.
Mass and dimensions are approximate.
MPEG Layer-3 audio decoding technology
licensed from Fraunhofer IIS and Thomson
multimedia.
Loading...
