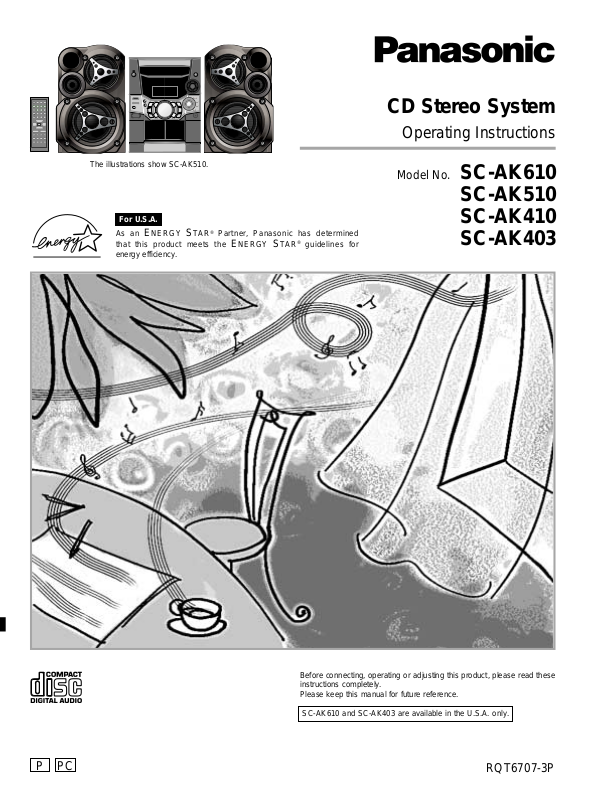

Panasonic SC-AK510PC, SC-AK410PC, SC-AK610P, SC-AK403PC, SC-AK510P User Manual

...
The illustrations show SC-AK510.
CD Stereo System
Operating Instructions
Model No. SC-AK610
SC-AK510
For U.S.A.
As an ENERGY STAR® Partner, Panasonic has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
SC-AK410 SC-AK403
P PC
Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.
RQT6707-3P
Table of contents
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.
These operating instructions are applicable to the following systems. Unless otherwise indicated, illustrations in these operating instructions are of SC-AK510.
System SC-AK610 SC-AK510 SC-AK410 SC-AK403
Main unit SA-AK610 SA-AK510 SA-AK410 SA-AK403
Front speakers SB-AK610 SB-AK510 SB-AK410 SB-AK410
Subwoofer SB-WAK610
Before using
CAUTION!
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.
MODEL NUMBER SERIAL NUMBER
User memo:
DATE OF PURCHASE DEALER NAME DEALER ADDRESS
IMPORTANT SAFETY INSTRUCTIONS............................. 3
Listening caution ...............................................................3
Product Service ................................................................. 3
Supplied accessories ........................................................ 4
Placement of speakers...................................................... 4
The remote control ............................................................ 4
Set-up ................................................................................. 5
Front panel controls ..........................................................6

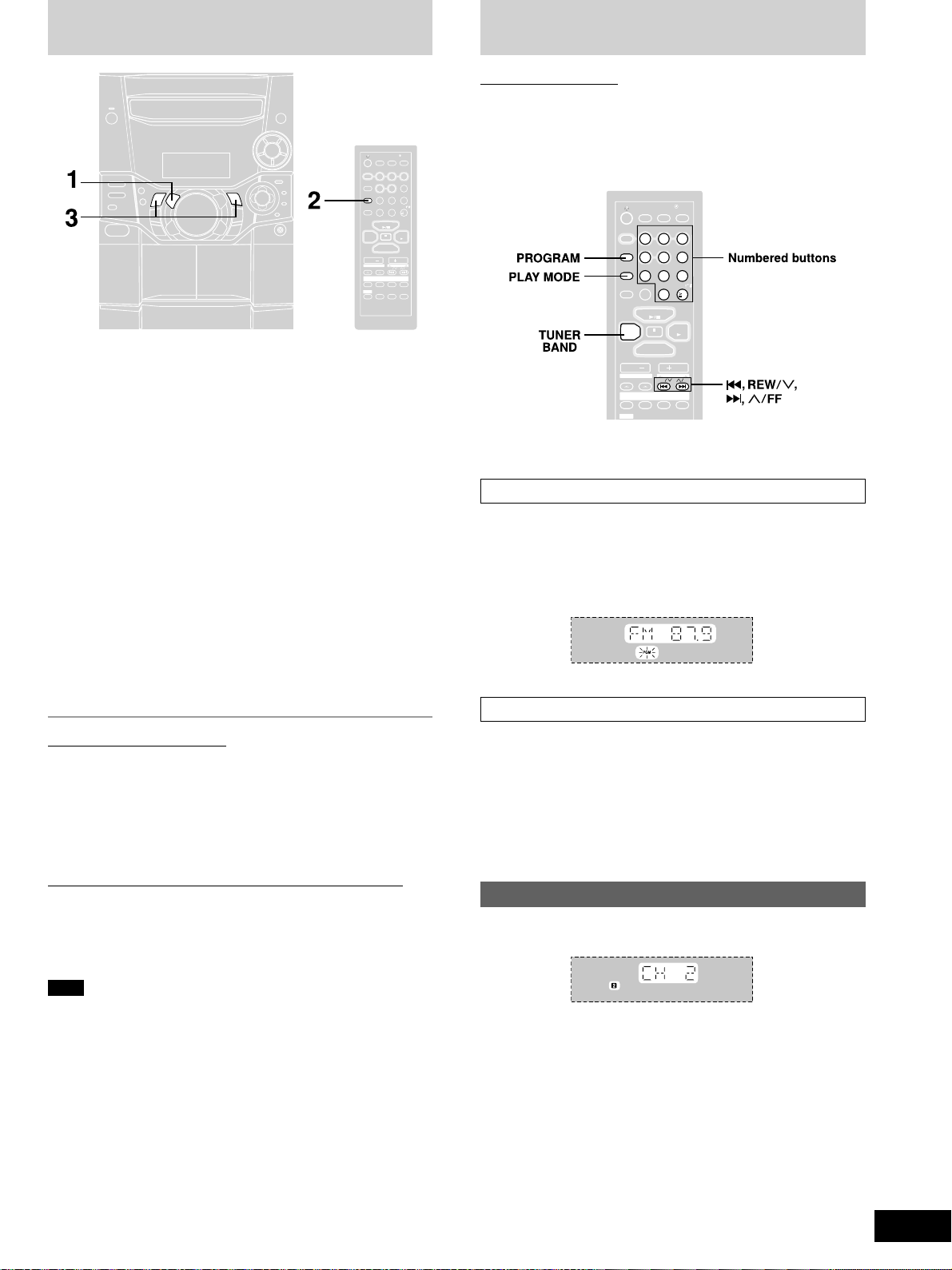

The radio: manual tuning.................................................. 7
The radio: preset tuning ................................................... 7

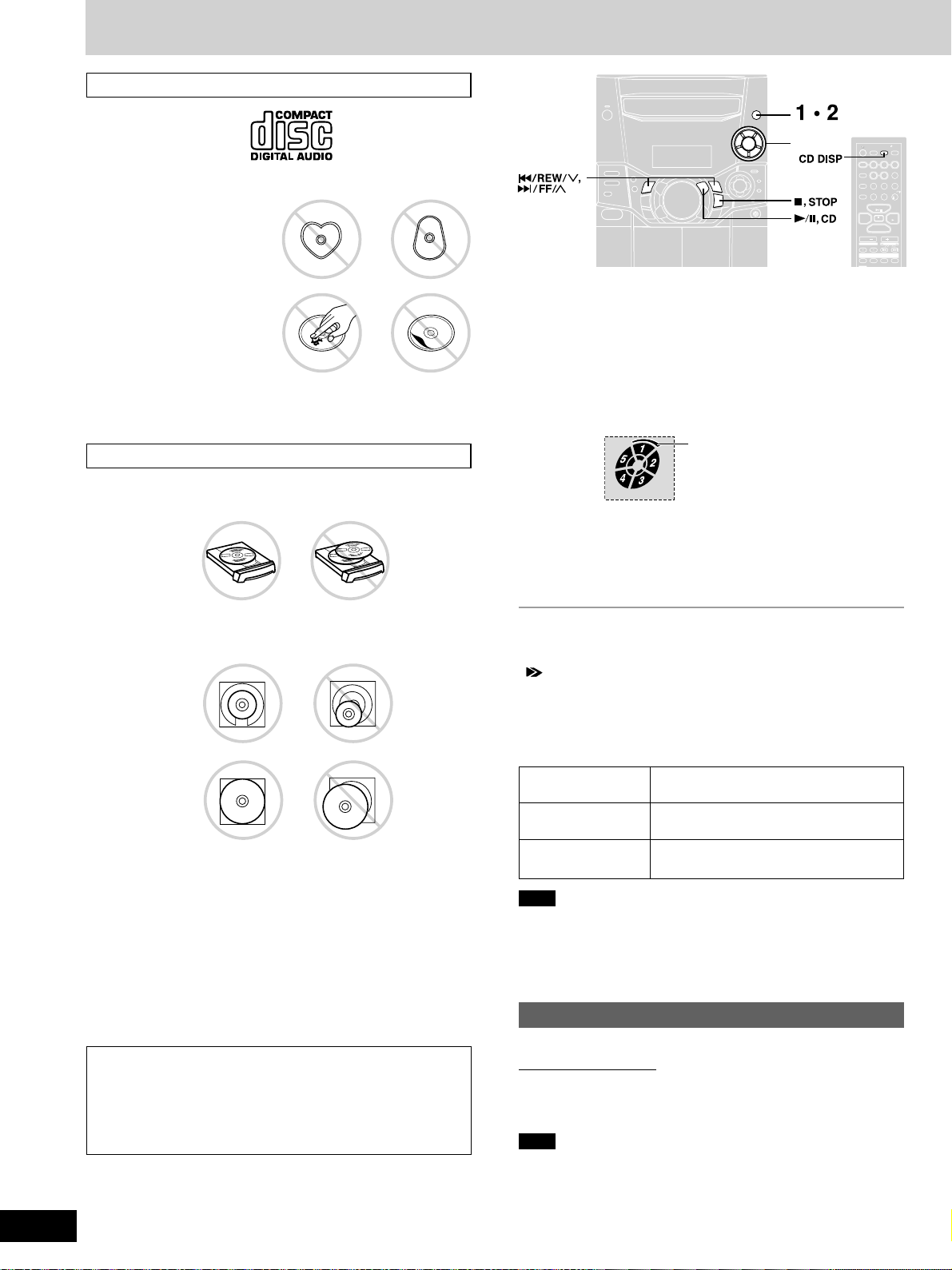

CDs .....................................................................................8

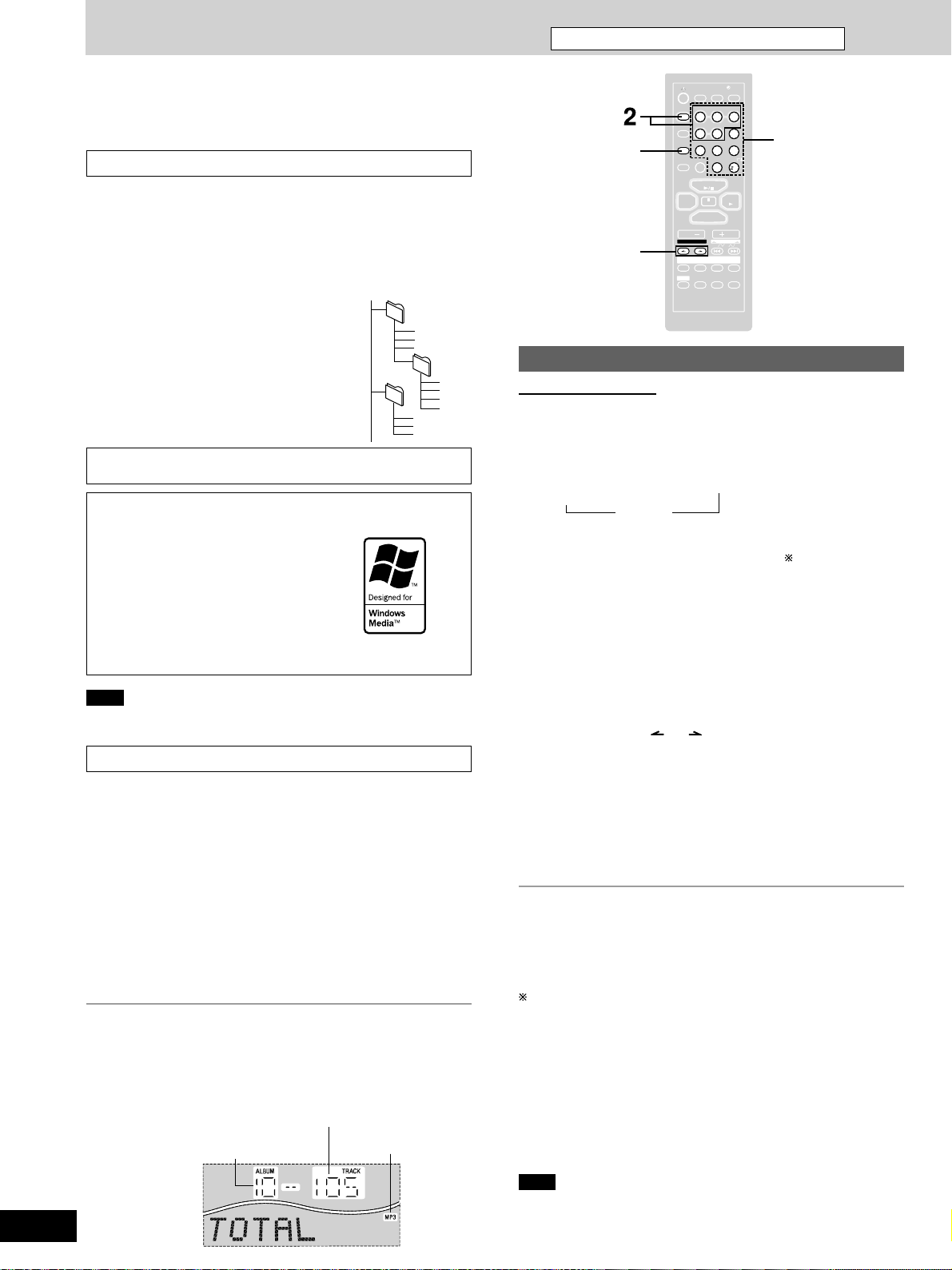

How discs with MP3/WMA differ from CDs ................... 10
CD play mode function for MP3/WMA............................ 10

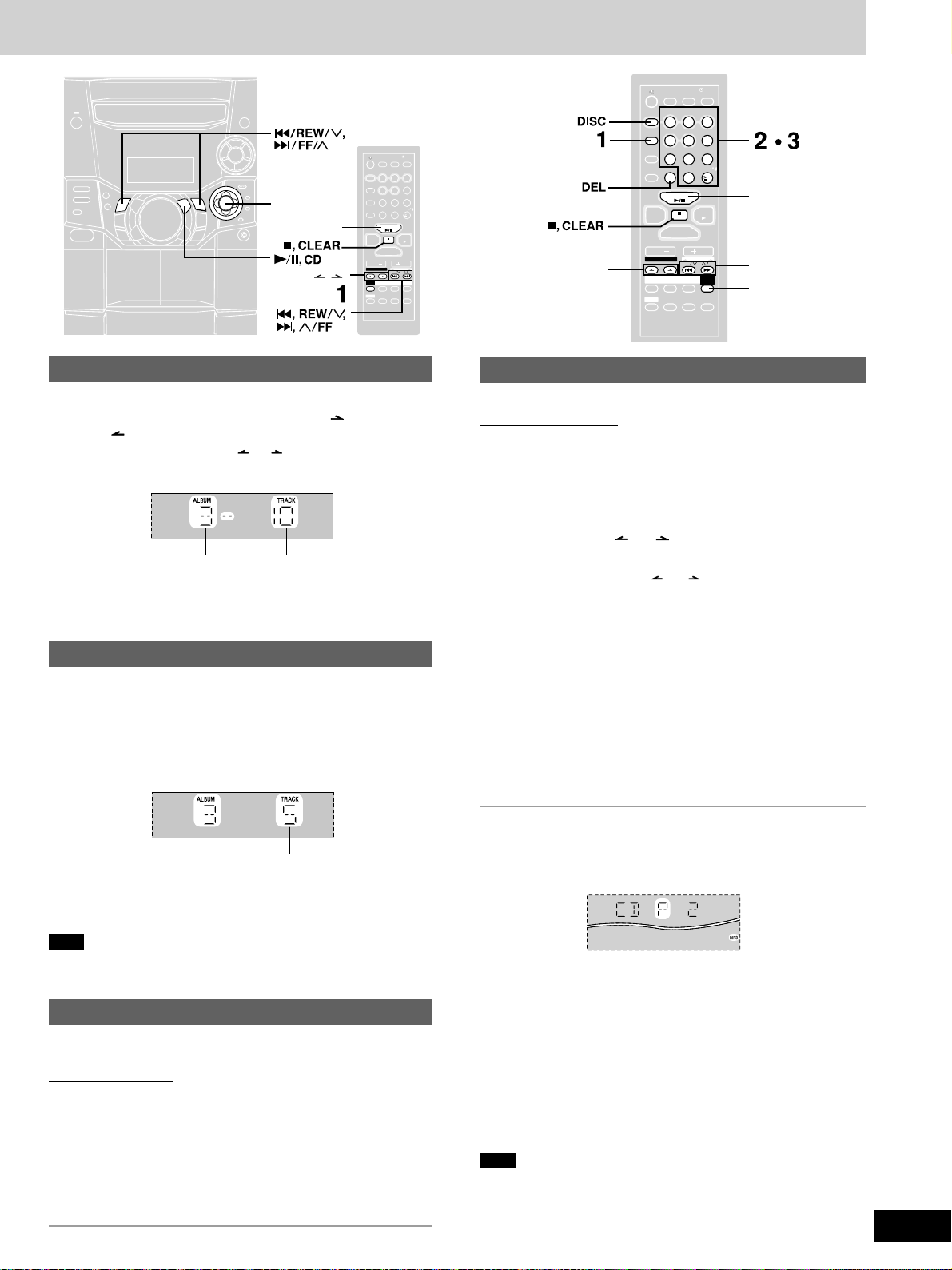

Album skip play.............................................................. 11
Track skip play ............................................................... 11
INTRO function (Album scan) ........................................ 11
Program play for MP3/WMA .......................................... 11

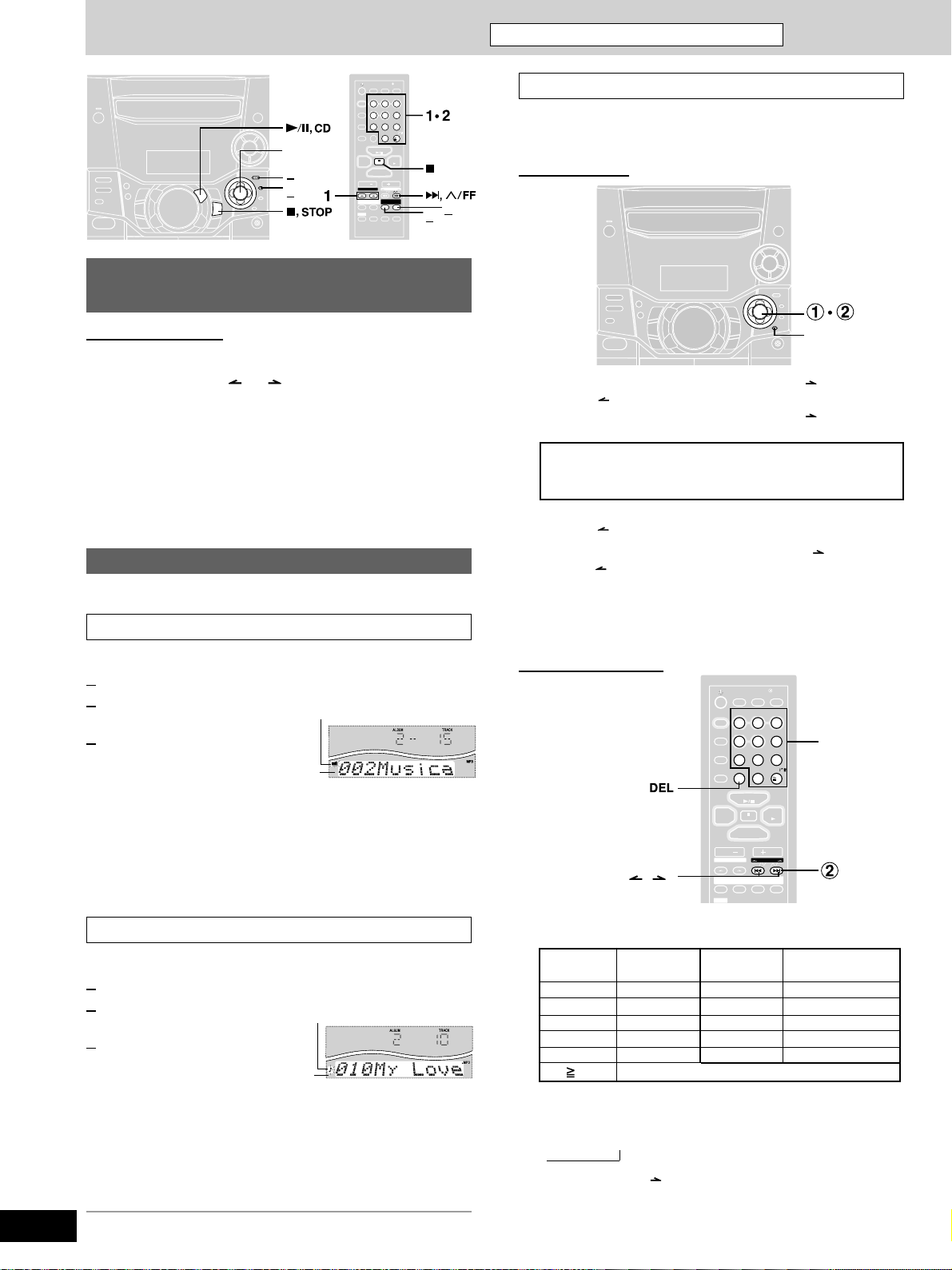

Starting play from a desired track in a desired album ....12
Title search function ....................................................... 12
Marking a track .............................................................. 13
CD display for MP3/WMA ..............................................13

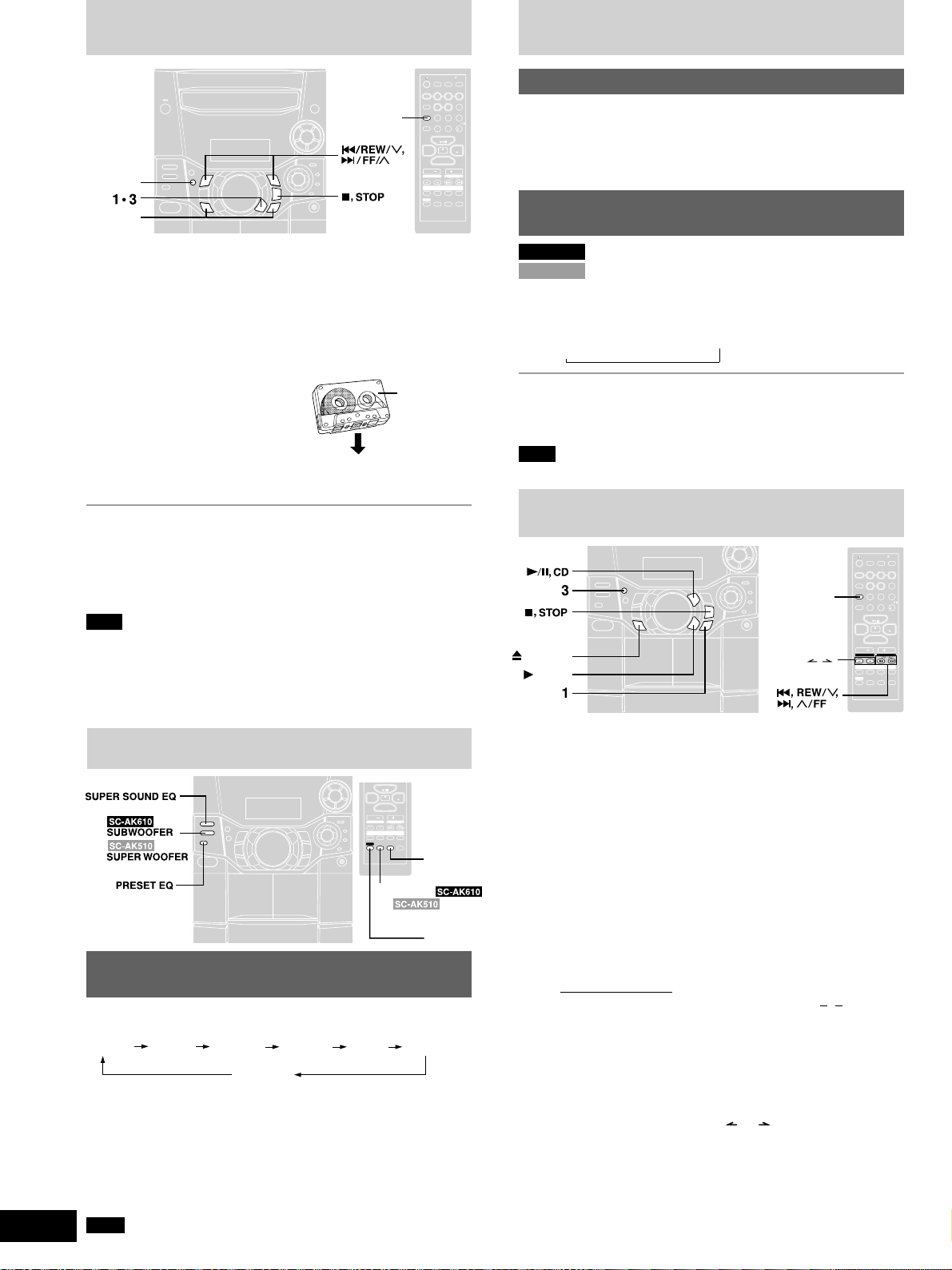

Cassettes.......................................................................... 14
Sound quality/sound field ............................................... 14
Recording......................................................................... 14

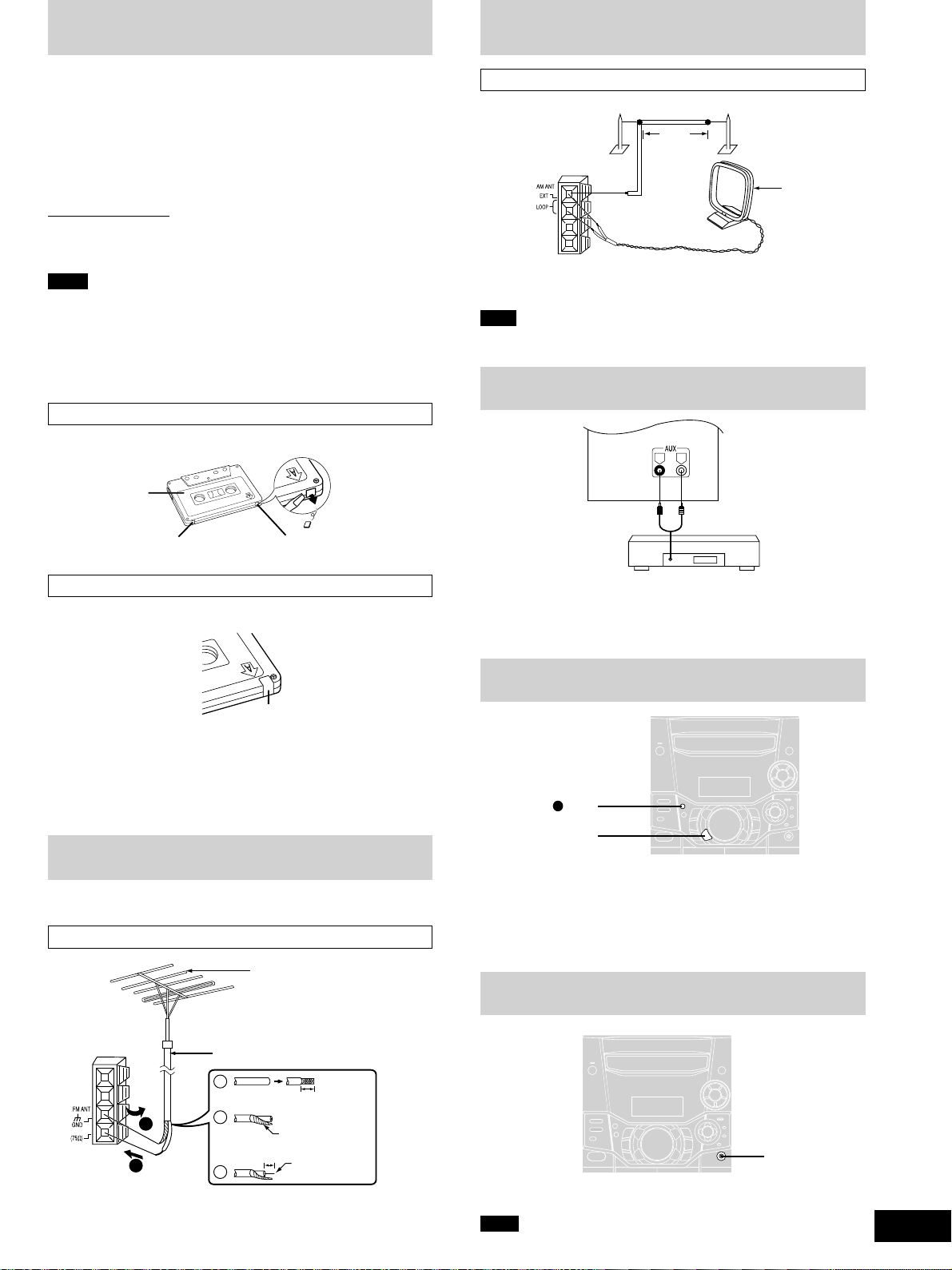

Optional antenna connections ....................................... 15
External unit connections ............................................... 15
Using an external unit ..................................................... 15
Using headphones (not included) .................................. 15
Turning the demo function off........................................ 16
Convenient functions ...................................................... 16
Auto-off function.............................................................. 16
Setting the time ............................................................... 16
Using the timers .............................................................. 17
Troubleshooting guide ....................................................18
Maintenance .....................................................................18
Specifications ..................................................................19

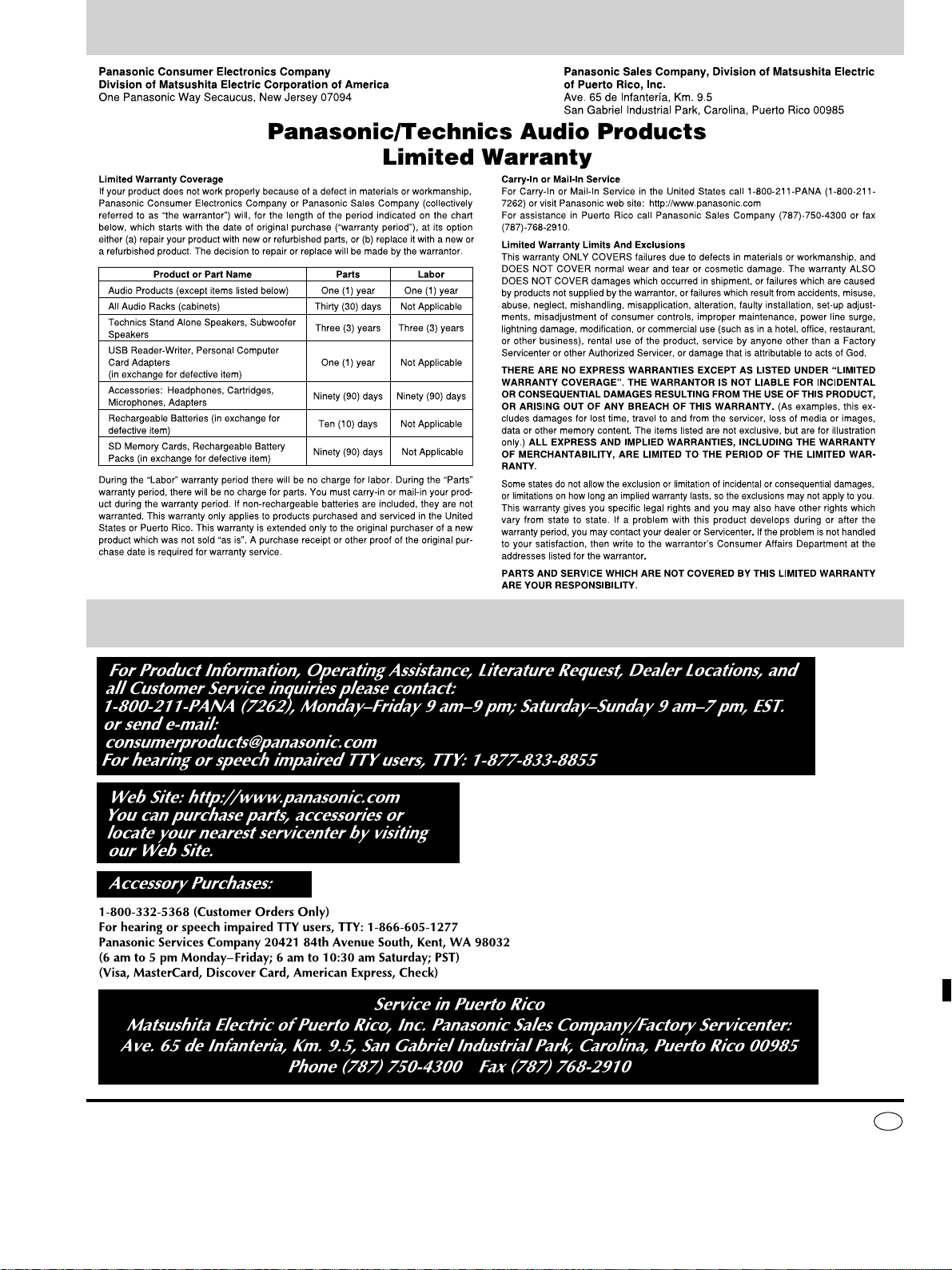

Limited Warranty (ONLY FOR U.S.A.) ............. Back cover
Customer Services Directory
(ONLY FOR U.S.A.)......................................... Back cover
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
2
RQT6707
TELEPHONE NUMBER
Except for U.S.A.
Inside of product
For SC-AK410 sold in Canada
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding­type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Listening caution
Selecting fine audio equipment such as the unit you’ve just pur­chased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equip­ment offers. This manufacturer and the Electronic Industries Associ­ation’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion—and, most importantly, without affecting your sensitive hearing.
We recommend you to avoid prolonged exposure to excessive noise. Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level:
Start your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and
clearly, and without distortion.
Once you have established a comfortable sound level:
Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.:
CAUTION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inter­ference will not occur in a particular installation. If this equip­ment does cause harmful interference to radio or television reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and re-
ceiver. Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician
for help.
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Opera­tion is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Before using
Product Service
1. Damage requiring service —The unit should be serviced by
qualified service personnel if: (a)The AC power supply cord or AC adaptor has been damaged; or (b)Objects or liquids have gotten into the unit; or (c)The unit has been exposed to rain; or (d)The unit does not operate normally or exhibits a marked change
in performance; or
(e)The unit has been dropped or the cabinet damaged.
2. Servicing —Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts —When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4. Safety check —After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail consumerproducts@panasonic.com, or web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, web site (www.panasonic.ca), or an authorized Servicentre closest to you.
3
RQT6707
Supplied accessories
Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.
(Only for U.S.A.) To order accessories contact 1-800-332-5368 or web site (http://www.panasonic.com).
AC power supply cord . . 1 pc.
(RJA0065-1D)
The remote control
Batteries
R6, AA, UM-3
FM indoor antenna .. 1pc.
(RSA0006-J)
Remote control
Before using
transmitter .....................1 pc.
SC-AK610
(N2QAHB000036)
SC-AK410
For U.S.A.:
• Black: (EUR7710010)
• Silver: (EUR7710020)
For Canada:
(EUR7710020)
SC-AK403
(EUR7710010)
SC-AK510
AM loop antenna . . 1 pc.
(N1DADYY00002)
Batteries ............. 2 pcs.
R6, AA, UM-3
Placement of speakers
SC-AK610 SC-AK510
Place the front speakers so that the tweeter is on the outside.
SC-AK410
Place the front speakers so that the super tweeter is on the outside.
Tweeter
SC-AK403
Super tweeter Super tweeter
Tweeter
Insert so the poles (+ and –) match those in the remote control.
Do not use rechargeable type batteries.
Do not:
mix old and new batteries.
use different types at the same time.
heat or expose to flame.
take apart or short-circuit.
attempt to recharge alkaline or manganese batteries.
use batteries if the covering has been peeled off.
keep together with metallic objects such as necklaces.
Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire. If electrolyte leaks from the batteries, consult your dealer. Wash thoroughly with water if electrolyte comes in contact with any part of your body.
Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place. Replace if the unit does not respond to the remote control even when held close to the front panel.
Use
4
RQT6707
(SB-AK610/ SB-AK510)
Front speaker (left)
(SB-WAK610)
Note
(SB-AK410)
only
SC-AK610
Subwoofer
Place on the floor or a sturdy shelf so that it won’t cause vibration.
If irregular coloring occurs on your television
The subwoofer is designed to be used close to a television, but the picture may be affected with some televisions and set-up combinations.
If this occurs, turn the television off for about 30 minutes.
The televisions demagnetizing function should correct the problem. If it persists, move the speaker further away from the television.
(SB-AK410)
Main unit
Keep your speakers at least 10 mm (
for proper ventilation.
13
/32˝) away from the system
(SB-AK610/ SB-AK510)
Front speaker (right)
The front speakers do not have magnetic shielding. Do not place
them near televisions, personal computers or other devices easily influenced by magnetism.
You cannot take the front net off the speakers.
1
2
5
3
Remote control
signal sensor
30
Transmission
window
Aim at the sensor, avoiding obstacles, at a maximum range of 7 meters directly in front of the unit.
Keep the transmission window and the unit’s sensor free from dust.
Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets.
˚
4
30
˚
About 7 meters in front of the signal sensor
Do not:
put heavy objects on the remote control.
take the remote control apart.
spill liquids onto the remote control.
Set-up
Connect the AC power supply cord only after all other connections have been made.
Preparation
Twist and pull off the vinyl tip of the antenna wires and speaker cords.
2
AM loop antenna
Stand the antenna up on its base.
The illustration shows SC-AK510.
(L)
4
AC power supply cord
Note
The included AC power supply cord is for use with this unit only. Do not use it with other equipment.
For your reference
Information you enter into the unit’s memory, except for time, remains intact for up to a week after the AC power supply cord is disconnected.
3 Speaker cords
SC-AK610 SC-AK510
Gray
Blue
(R)
Red
Connect the left (L) side in the same way.
1
FM indoor antenna
Adhesive tape Affix where
reception is best.
Before using
SC-AK410
Gray
3
SC-AK403
Blue
1
Black
Black
2
Gray (+)
3
1
R
Black (–)
Connect the left (L) side in the same way.
Red
-
L
Red (+)
Black (–)
Blue (–)
Red (+)
Blue (+)
Gray (+)
SC-AK610
Use only the supplied speakers.
The combination of the main unit and speakers provide the best sound. Using other speakers can damage the unit and sound quality will be negatively affected.
only
SUB– WOOFER
Caution
Use the speakers only with the recommended
system. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance. Do not attach these speakers to walls or
ceilings.
Subwoofer
(SB-WAK610)
5
RQT6707
Front panel controls
VOL
VOL
SHI
CLOCK TIMER
REC
O OFF
INTRO
UND EQ
T EQ
ING
ENTER
MARKER
TITLE
SEARCH
PROG
AM
REP
AT
AY MODE
DISC
SPACE
ABC
DEF
GHI
TUV
WXY
PQRS
JKL
MNO
EEP
CD DISP
DIMMER
BUM
CURSOR
DEL
TAPE
CD
AUX
LEAR
TUNER
ND
S.WOOFER
Main unit
Before using
Remote control
(For SC-AK410 and SC-AK403)
(For SC-AK610
6
RQT6707
and SC-AK510)
REC
DECK 1/2
TUNER /
REW FF
BAND
DISP/ DEMO
AUX
DECK 1
AUTO OFF
DISC
PROG
RAM
PL AY MODE
REP
EAT
TUNER
BAND
VOL
ALBUM
INTRO
SHI
FT
S.S.SOSOUND EQ
SLEEP
GHI
DEL
MARKER
S.WOOFER
CD
STOP
TAP E
DECK 2
/
PLPLAY
CLOCK
/
REC
TIMER
CD DISP
DIMMER
DEF
ABC
2
1
4
JKL
5
TUV
3
MNO
6
WXY
ZPQRS
789
SPACE
10
0
CD
TAPE
CLEAR
AUX
VOL
CURSOR
REW FF
TITLE
ENTER
SEARCH
PRERESET EQ
MUTUTING
1 AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC power supply.
2 Standby/on switch (
Press to switch the unit from on to standby mode or vice versa. In
ff
f/I, POWER)
ff
standby mode, the unit is still consuming a small amount of power.
3 Display
4 Remote control signal sensor............................................... 4
5 Super sound EQ button (SUPER SOUND EQ) ................... 14
6
SC-AK610
Subwoofer button (SUBWOOFER) ..................................... 14
SC-AK510
Super woofer button (SUPER WOOFER) ............................14
only
only
7 Preset EQ select button (PRESET EQ)............................... 14
8 Deck 1 cassette holder .........................................................14
9 Disc tray
! CD tray open/close button (c, OPEN/CLOSE) .................... 8
!
CD direct play buttons (1 ~ 5) ............................................... 8
# Joystick ...........................................................................11, 12
$ Enter button (ENTER) .....................................................11, 12
% Title search mode select button (TITLE SEARCH) .............12
& Marker memory/recall button
(MARKER, –MEMORY, -RECALL) ....................................... 13
( Delete button (DELETE) ............................................ 9, 11, 13
) Headphones jack (PHONES) ................................................15
~ Deck 2 cassette holder .........................................................14
Center console
Tuner/band select button (TUNER/BAND) ........................... 7
+ , CD skip/search, tape fast-forward/rewind,
tune/preset channel select, time adjust buttons
(g/REW/3, f/FF/4)........................... 7-9, 11, 14, 16, 17
- Record button (a REC) .........................................................14
. Deck select button (DECK 1/2) ............................................14
/ Display, demonstration button (-DISP/DEMO) ................. 16
: Deck 1 open button (c, DECK 1) ....................................... 14
; AUX button (AUX) ................................................................ 15
< Volume control (VOLUME DOWN, UP) ............................... 16
= CD play/pause button ( :/ J, CD).......................................... 8
> Stop/program clear button ( L, STOP) .................. 8, 9, 11, 14
? Deck 2 open button (c, DECK 2) ....................................... 14
@ Tape play button ( :, TAPE) ................................................ 14
Buttons such as 2 function in exactly the same way as the buttons on the main unit.
[ Sleep timer + Auto off button (SLEEP, AUTO OFF) .....16, 17
\ Disc button (DISC) ................................................................. 9
] Program button (PROGRAM) .......................................... 9, 11
^ Play mode select button (PLAY MODE) ............ 7, 9, 10, 14, 15
Use this for selecting CD play mode, tune mode, FM mode and AM beat proof.
_ Repeat button (REPEAT) ....................................................... 9
{ Album skip buttons ( , , ALBUM) .................................10
| Intro button (INTRO) .............................................................11
} Shift button (SHIFT)
To use functions labeled in orange : While pressing [SHIFT], press the corresponding button.
SC-AK610
SC-AK510
: For buttons [AUTO OFF],
[CLOCK/TIMER], [rPLAY/REC] and [S.WOOFER]
SC-AK410
SC-AK403
: For buttons [AUTO OFF], [CLOCK/
TIMER] and [rPLAY/REC]
SC-AK610
V
Super sound EQ + Subwoofer button
(S.SOUND EQ, S.WOOFER) ................................................ 14
SC-AK510
Super sound EQ + Super woofer button
(S.SOUND EQ, S.WOOFER) ................................................ 14
0 Dimmer + Play timer/record timer button
(DIMMER, rPLAY/REC) ..................................................16, 17
1 CD display + Clock/timer button
(CD DISP, CLOCK/TIMER) ................................... 8, 13, 16, 17
2 Numbered, character buttons
XX
(
X
10, 1–9, 0, A-Z, SPACE!”#) ........................................ 7, 9-12
XX
3 CD skip/search, tape fast-forward/rewind,
tune/preset channel select, time adjust, cursor buttons (g, REW/ 3, CURSOR,
f, 4/FF, CURSOR ) ............................. 7-9, 11-14, 16, 17
44
Muting button (MUTING) ..................................................... 16
Loading...
+ 14 hidden pages
