Specifications and Main Features
- Exhibits Single Phase US voltage of 120 V + 60 Hz as input
- Electrical Input:
- NE-1056A: 1680 W (14.6 A)
- NE-1056C: 1650 W (14.2 A)
- Total Input power is rated at 1000W(INFRA):IEC705-88
- Emission Frequency:F=2.450 MHz
- Timer: Maximum Controllable 99 Minutes 99 Seconds
- Overall Constructional:Dimensions: Width: 540 mm; Depth: 427 mm; Height: 360 mm
- Basic Dimensions: Width: 330 mm; Depth: 205 mm; Height: 330 mm
- Mass: Approximately equal to 37 lbs which is roughly equal to 16.8 kg
- This particular microwave is subjected to IEC705-88 which tests the OPP of a varied range of microwaves.
- The above mentioned specification could change without any abolishment period.
Frequently Asked Questions
- Q: What US Single phase input do both NE-1056 A and C require ?
A: A US Single phase input of 120V is required.
- Q: What max power rating does the NE-1056A consume?
A: A max of 1680W is consumed with a rated amperage of 14.6 A.
- Q: While using this microwave what max output can one expect?
A: According to IEC705-88 the max output is rated up to 1000W.
- Q: What are the microwaves external measurements?
A: The microwaves external measurements are 427 mm in height 540 mm in width and 360 mm in depth.
- Q: For what duration can the timer be set?
A: The maximum duration for setting the timer is 99 minutes and 99 seconds.
- Q: What is the weight of the microwave?
A: It has a weight of 37 lbs(16.8 kg).

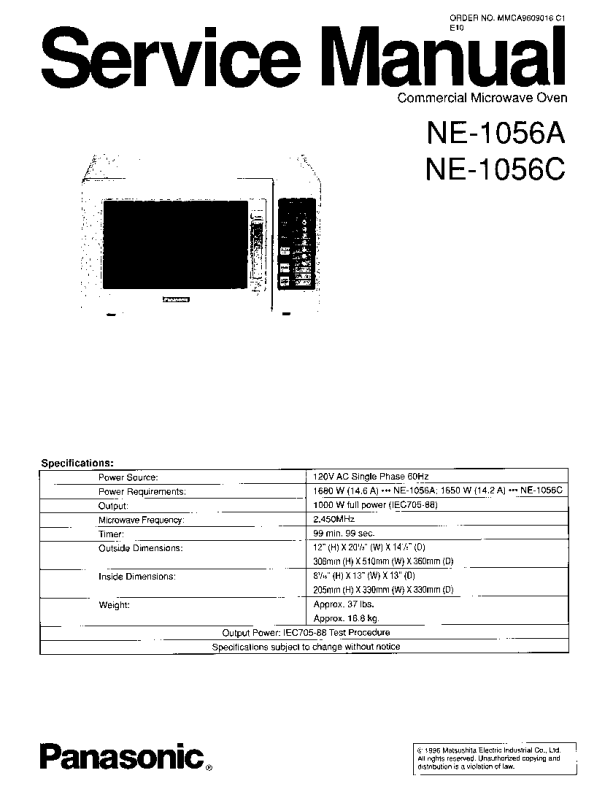

User Manual
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
