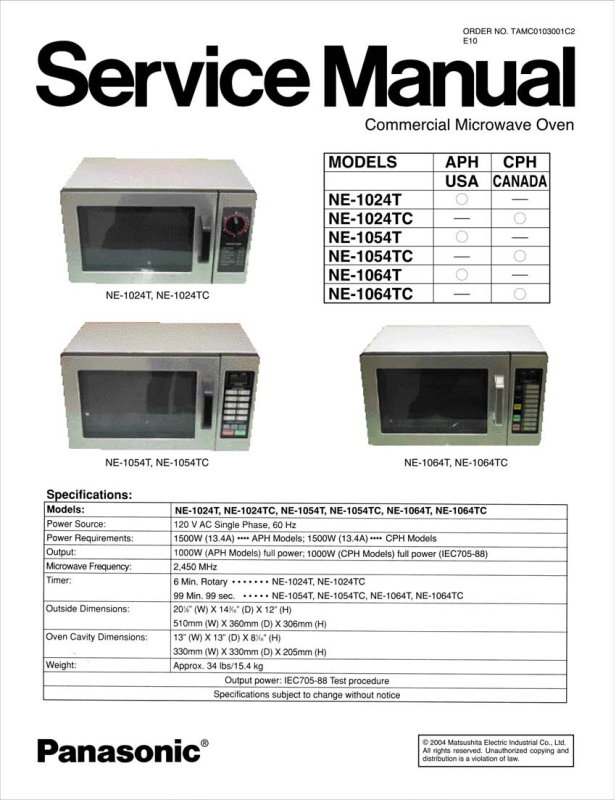

Panasonic NE-1024T, NE-1054T, NE-1024TC, NE-1064TC, NE-1054TC User Manual
...Specifications and Main Features
- Models: NE-1024T, NE-1024TC, NE-1054T, NE-1054TC, NE-1064T, NE-1064TC
- Rated input voltage: 120 V AC Single Phase, 60 Hz
- Power Supply for APH Models: 1500W (13.4A); Power Supply for CPH Models: 1500W (13.4A)
- APH Models Output Capacity: 1000W (IEC705-88) full output; CPH Models Output Capacity: 1000W (IEC705-88) full output
- Power levels for Microwave: 2,450MHz
- Programmable timer features: A rotary timer on models NE-1024T, NE-1024TC with maximum settings of 6 minutes, 99 minutes, and 99 seconds for models - NE-1054T, NE-1054TC, NE-1064T and NE-1064TC respectively
- External Measurement: 20.14 W X 14.15 D X 12 H (510mm x 360mm x 306mm)
- Internal Dimensions: 13 W X 13 D X 8 H (330mm x 330mm x 205mm)
- Mass: Approximately thirty four pounds
- Notice: Technical specifications are subject to change without notice.
Frequently Asked Questions
Q. What are the Power Requirements for the microwave oven:
Microwaves for single-phase power require a frequency of 120 V AC with a range of 60 Hz, along with 1500 W (which is around 13.4A) for the APH and also 1500W (around 13.4A) for CPH.
Q. What is the maximum amount of time that a microwave timer can be set?
A rotary controller for NE-1024T and NE-1024TC microwaves is available and this timer can be set for 6 minutes maximum, while the NE-1054T, NE-1054TC, NE-1064T and NE-1064TC models can be set for 99 minutes and 99 seconds as the maximum timer setting.
Q: What is the output power of the microwave?
A: According to IEC705-88 regulations, W 1000 is the output parameter for both the APH and CPH models while they are on maximum power.
Q: What are the dimensions of the oven cavity?
A: The oven cavity has the measurements of 13” (W) x 13” (D) x 8” (H) which comes out to be 330mm x 330mm x 205mm.
Q: How much does the microwave oven weigh?
A: It is a fact that the microwave oven weighs approximately around 34 lbs out which about is 15.4 kg.
