Panasonic HDC-HS900PC, HDC-TM900P, HDC-TM900PC Operating Instruction

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo

For Canadian assistance, please call: 1-800-561-5505 or visit us at www.panasonic.ca

Owner’s Manual

High Definition Video Camera

Model No.HDC-TM900P/PC

HDC-HS900P/PC

Before connecting, operating or adjusting this product, please read the instructions completely.

VQT3K69

Things You Should

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Know

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Pleas e take time to fill in the information on the right. The serial number is on the tag loca te d on the back of your camera. Be sure to retain this manual as your convenient camera information source.

Date of Purchase Dealer Purchased From Dealer Address Dealer Phone No. Model No. Serial No.

Safety Precautions

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, ≥ DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR

SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

≥ USE ONLY THE RECOMMENDED ACCESSORIES.

DO NOT REMOVE T HE C O VER (OR BAC K); THE R E AR E NO U S ER S ERVICEABLE

≥

PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

The following mark and symbols are located on bottom of the unit.

VQT3K69

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

HDC-TM900P

HDC-HS900P

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B dig i tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, a nd can radia te radio fr equenc y energy and, if not inst alled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa tion. If this equipment does cause harmful interference to radio or television recept ion, whic h ca n be determin ed b y tur ning th e eq uipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥ Reorient or relocate the receiving antenna. ≥ Increase the separation between the equipment and receiver. ≥ Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

≥ Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the at tached installation

instructions and use only shielded interface cables with ferrite

core when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the us er’s authority to operate this equipment. Declaration of Conform ity Trade Name: Panasonic Model No.: HDC-TM900P/HDC-HS900P Responsible party: Panasonic Corporation of North Amer ica

One Panasonic Way, Secaucus, NJ 07094 Support Contact: Panasonic Consumer Electronics Company

1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This dev ice may not c ause harmf ul interfer ence, and (2) this device mus t accept any interference received, including interference that may cause undesired operation.

THE FOLLOWING APPLIES ONLY IN CANADA.

This Class B digital apparatus complies with Canadian ICES-003.

VQT3K69

AC adaptor

This AC adaptor operates on AC between 110 V and 240 V. But ≥ In the U.S.A. and Canada, the AC adaptor must be connected to a 120 V AC power

supply only.

≥ When connecting to an AC supply out side of th e U.S .A. or Canada , use a plu g ada ptor to

suit the AC outlet configuration.

≥ When connecting to a supply of greater than AC 125V, ensure the cord you use is suited

to the voltage of the AC supply and the rated current of the AC adaptor.

≥ Contact an electrical parts dis tributor for assistance in selecting a s uitable AC plug

adaptor or AC cord set.

The unit should be install ed near an accessible AC power outlet, with the power cord connected directly to i t. To completely disconnect power from the unit, unplug the power cord from the AC power outlet.

∫ Concerning the battery

Batteries

1 Battery pack (Li thium ion battery pack)

≥ Use the specified unit to recharge the battery pack. ≥ Do not use the battery pack with equipment other than the specified unit. ≥ Do not get dirt, sand, liquids, or other foreign matter on the terminals. ≥ Do not touch the plug terminals (i and j) with metal objects. ≥ Do not disassemble, remodel, heat or throw into fire.

2 Button-type battery (Lithium battery)

≥ Insert with poles aligned. ≥ Do not touch the terminals (i and j) with metal objects. ≥ Do not recharge, disassemble, remodel, heat or throw into fire. ≥ Keep out of reach of children.

If any electrolyte should come int o con tac t wit h yo ur hands or cl othes, wash i t off th oroughly with water. If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse eyes thoroughly with water, and then consult a doctor.

Warning

Risk of fire, explosion and burns. Do not disassemble. Do not heat the batteries above the following temperatures or incinerate.

Button-type battery 60 oC (140 oF) Battery pack 60 oC (140 oF)

VQT3K69

CAUTION

A lithium ion/polymer battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

U.S.A./CANADA CONSUMERS: ATTENTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

∫ Product Identification Marking

Product Location

High Definition Video Camera Battery holder AC adaptor Bottom

This product contains a CR Coin Cell Lithium Batte ry which contains Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardous waste/perchlorate

VQT3K69

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these inst ructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilat i on openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided fo r your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

11) O nl y us e attachments/a c cessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damage d in any way, s uc h as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exp osed to rain or moisture, does not operate normally, or has been dropped.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience recept acles, and the point where they exit fr om the apparatus.

VQT3K69

Precautions

WARNING

CAUTION

USE & LOCATION

≥ TO AVOID SHOCK HAZARD ... Your

camera and power supply shoul d not be exposed to rain or moisture. Do not connect the power supply or operate your camera if it gets wet. Your camera has been designed for outdoor use, howeve r it is not designed to sust ain direct exposure to water, rain, sleet, snow, sand, dust, or a direct splashing fro m a pool or even a cup of coffee. This action could permanently damage the internal parts of your camera. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your camera from the power supply before cleaning.

≥ AS WITH ANY SMALL OBJECT, SD

CARDS CAN BE SWALLOWED BY YOUNG CHILDREN. DO NOT ALLOW CHILDREN TO HANDLE THE SD CARD.

≥ DO NOT AIM YOUR CAMERA AT THE

SUN OR OTHER BRIGHT OBJECTS

≥ DO NOT LEAVE THE CAMERA WITH

THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE DAMAGE TO THE INTERNAL PARTS OF THE EVF

≥ DO NOT EXPOSE YOUR CAMERA TO

EXTENDED HIGH TEMPERATURE ...

Such as, in direct sunlight, inside a closed car, ne xt to a heater, etc... This action could permanently damage the i nternal parts of your camera.

≥ AVOID SUDDEN CHANGES IN

TEMPERATURE ... If the unit is suddenly

moved from a cold place to a warm place, moisture may form on the SD card and inside the unit.

≥ DO NOT LEAVE YOUR CAMERA OR

THE POWER SUPPLY TURNED ON WHEN NOT IN USE.

≥ STORAGE OF YOUR CAMERA ... Store

and handle your camera in a manner tha t will not subject it to unnecessary movement (avoid shaking and striking). Y our camera contains a sensitive pick-up device which could be damaged by improper handling or storage.

CARE

≥ TO CLEAN YOUR CAMERA ... Do not

use strong or abrasive detergents when cleaning your camera body.

≥ TO PROTECT THE LENS ... Do not touch

the surface of the lens with your hand. Use a commercial camera lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.

≥ TO PROTECT THE FINISH OF YOUR

CAMERA ... Before handling your

camera, make sure your hands and face are free from any chemical prod ucts , su ch as suntan lotion, as it may damage the finish.

-If you see this symbol-

Information on Dispos a l in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

VQT3K69

∫ About the recording format for

recording motion pictures

Y ou can select from AVCHD, 1080/60p or iFrame recording formats to record motion pictures using this unit. (l 57, 67)

AVCHD:

Y ou can record high defi nition qua lity images with this format. It is suitab le for viewing on a large format TV or for saving to disc.

1080/60p:

This is a 1080/60p (1920k1080/60 progressive) recording mode that can record in maximum quality 1080/60p can be saved or played back by this unit or the HD Writer AE 3.0. * This means the highest quality for this unit.

iFrame:

This is a recording format suitable for playing back or editing on Mac (iMovie’11). Using iMovie’1 1, iFrame mot ion pictu res can be imported faster than AVCHD motion pictures. Also, the imported file size of iFrame motion pictures will be smaller than that of AVCHD motion pictures. ≥ It is not compatible with motion pictures

recorded in AVCHD or

. The scenes recorded in

1080/60p

format.

∫ Indemnity about recorded

content

Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content, and does not guarantee any cont ent if recording or editing does not work properly. Likewise, the above also applies in a case where any type of repair is made to the unit (including any other non-built-in memory/ HDD related component).

∫ Handling of built-in memory

[HDC-TM900]

This unit is equipped with the built-in memory. When using this component, pay attention to the following points.

Back up data periodically.

The built-in memory is temporary storag e. In order to avoid erasing data due to static electricity, electromagnetic waves , breakage, and failur es, back up the dat a t o a PC or DVD disc. (l 113, 125) ≥ Access lamp [ACCESS] (l 17)

illuminates while the SD card or built-in memory is being accessed (initial ization, recording, playback, de leting etc.). Do not perform the following ope rati ons whe n th e lamp illuminates. It may damage the builtin memory or cause a malfunction in the unit.

jTurn the unit off (remove the batt e ry ) jInsert and remove the USB cable jExpose th e un i t to vibrations or sho c k

≥ About disposing of or giving a way this unit .

(l 149)

∫ Handling of HDD [HDC-HS900]

This unit is equipped with the built-in HDD. While the HDD is capable of storing a large amount of data, there are a few things to look out for. When using this component, pay attention to the following points.

Do not expose the HDD to vibrations and shocks.

Due to the environment and handling conditions, the HDD may be subject to partial damages or may not be able to read, record, and play back data. Do not expose the unit to vibrations or shock, and do not turn off the unit dur ing re cordin g or p layba ck.

If the unit is used in a plac e with loud sounds, such as a club or similar venue, the recording may stop due to sound vibrations. Recording data on an SD card is recommended in these pl aces.

Back up data periodically.

The HDD is temporary storage. In order to avoid erasing data due t o static electricity, electromagnetic waves, breakage, and failures, back up the data to a PC or DVD disc. (l 113, 125)

VQT3K69

If the HDD experiences any abnormality,

HDC-TM900

HDC-HS900

HDC-TM900

back up data immediately.

Failure in the HDD may produce continuous noise or choppy sound during record ing or playing back. Continuous use will cause further deterioration, and may eventually disable the HDD. If these phenomena are observed, copy the data on the HDD to a PC, a DVD disc etc. immediately and contact consumer support. (l 168, 169) Once the HDD is out of order, data cannot be restored.

Operation may stop in hot or cold environments.

The unit is disabled in order to pr otect the HDD.

Do not use the unit in low atmospheric pressures.

The HDD may fail if it is used at altitudes of 3000 m (9800 feet) or higher above sea level.

Transportation

When the unit is trans porte d, turn of f the unit and be careful not to shake, drop, or cause impact to the unit.

Falling detection

[ ] is indicated on the screen when it detects a falling state (a weightless state). If the falling state is detected repeatedly, the unit may stop the recording or playb ac k operation in order to protect the HDD. ≥ HDD access lamp [ACCESS HDD] (l 20)

illuminates while the HDD is being accessed (initialization, rec ording, playback, deleting etc.). Do not perform the following operations when the lamp illuminates. It may damage the HDD or cause a malfunction in the unit.

jTurn the unit off (re m ove the battery ) jInsert and remove the USB cable jExpose the unit to vibrations or shock

≥ About disposing of or giving awa y this unit.

(l 149)

∫ Cards that you can use with

this unit

SD Memory Card, SDHC Memory Card and SDXC Memory Card

≥ 4 GB or more Memory Cards that do not

have the SDHC logo or 48 GB or more Memory Cards that d o not have t he S DXC logo are not based on SD Memory Card Specifications.

≥ Refer to page 26 for more details on SD

cards.

∫ For the purposes of this

owner’s manual

≥ SD Memory Card, SDHC Memory Card

and SDXC Memory Card are referred to as the “SD card”.

≥ Functions that can be used for Motion

Picture Recording Mode: Functions that can be used for Still Picture Recording Mode:

≥ Functions that can be used for Motion

Picture Playback Mode: Functions that can be used for Still Picture Playback Mode:

≥ Pages for reference are indicated by an

arrow, for example: l 00

This owner’s manual is designed for use with models and

. Pictures may be slightl y different from the original. ≥ The illustrations used in this owner’s

manuals show model , however, parts of the explanation refer to different models.

≥ Depending on the model, some

functions are not available.

≥ Features may vary, so please read

carefully.

≥ Not all models may be available

depending on the region of purc hase.

VQT3K69

Contents

Accessories.............................................12

Quick Guide....... ... .. ... ................. ... ... .. .....13

Advanced (Recording)

Preparation

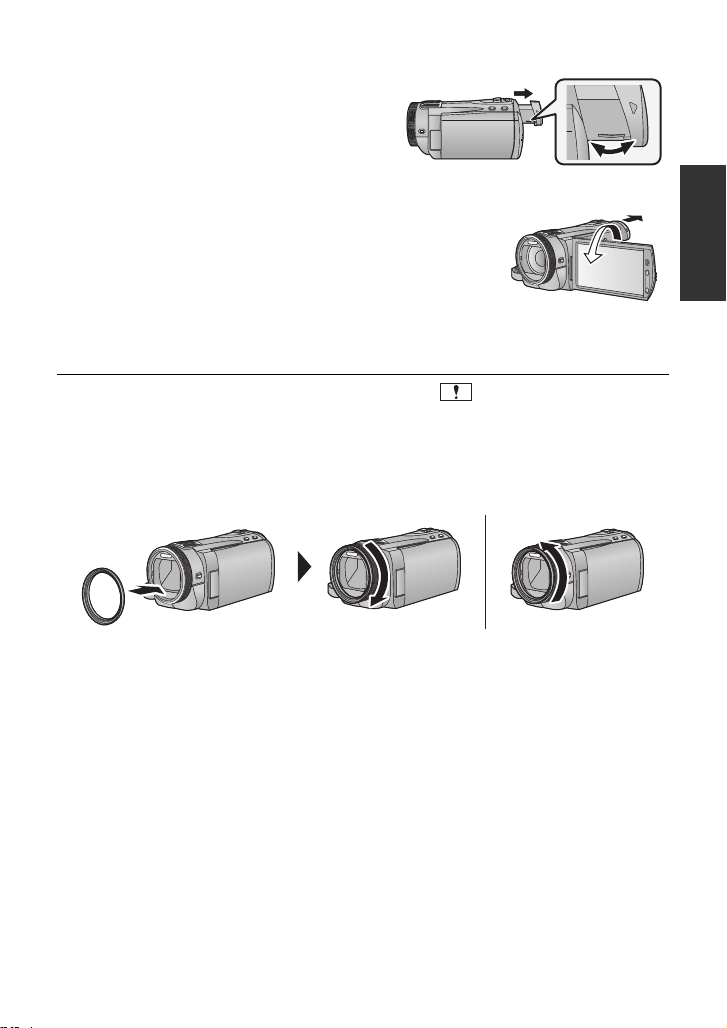

Parts identificat ion and handling ..... ... ..17

Power supply.. ... ... ................................. ..21

Inserting/removing the battery........... 21

Charging the battery ......................... 22

Charging and reco rdi n g tim e.... ... ...... 23

Recording to a card ................................26

Cards that you can use

with this unit ...................................... 26

Inserting/removing an SD card.......... 27

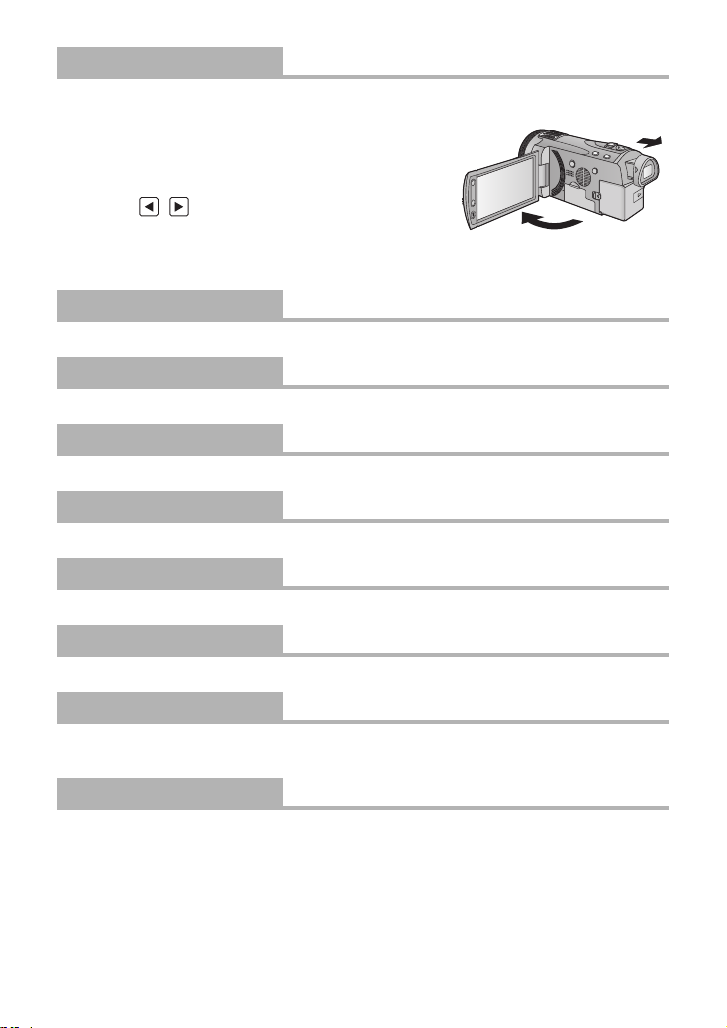

Turning the unit on/off............................28

Turning the unit on and off

with the power button........................ 28

Turning the unit on and off

with the LCD monitor/viewfinder ....... 28

Selecting a mode ....................................29

How to use the touch screen.................29

About the Touch Menu.. .. ................. . 30

Setting date and time..............................31

Basic

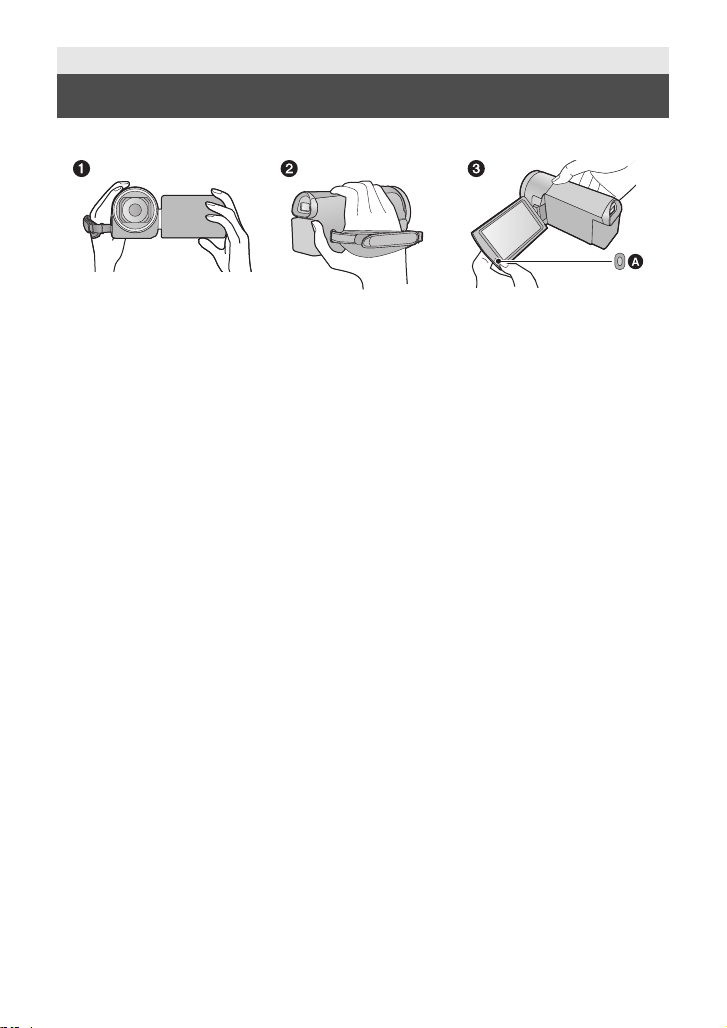

Before recording.....................................32

Selecting a media to record ...................34

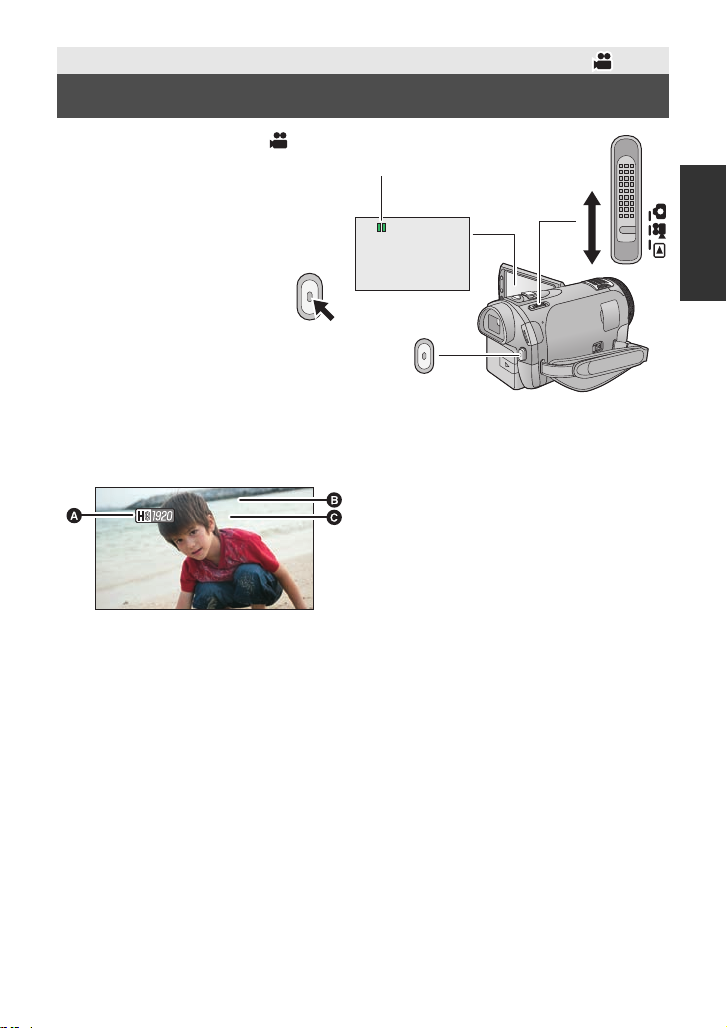

Recording motion pictures ....................35

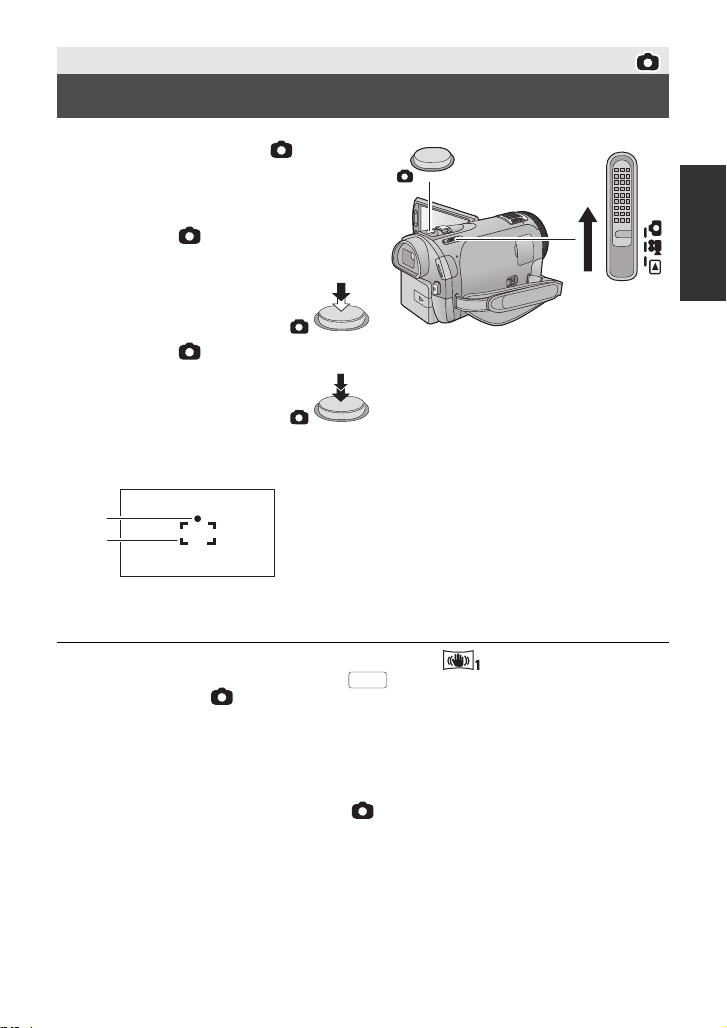

Recording still pictures..........................37

Recording still pictures in

Motion Picture Recording Mode........ 38

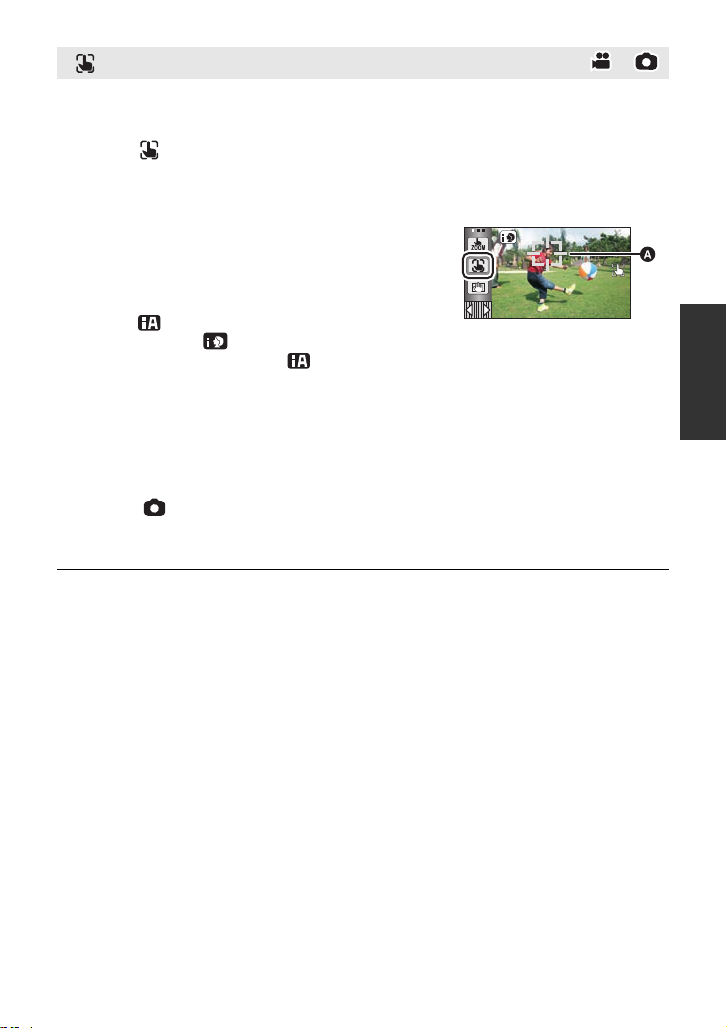

Intelligent Auto Mode .............................39

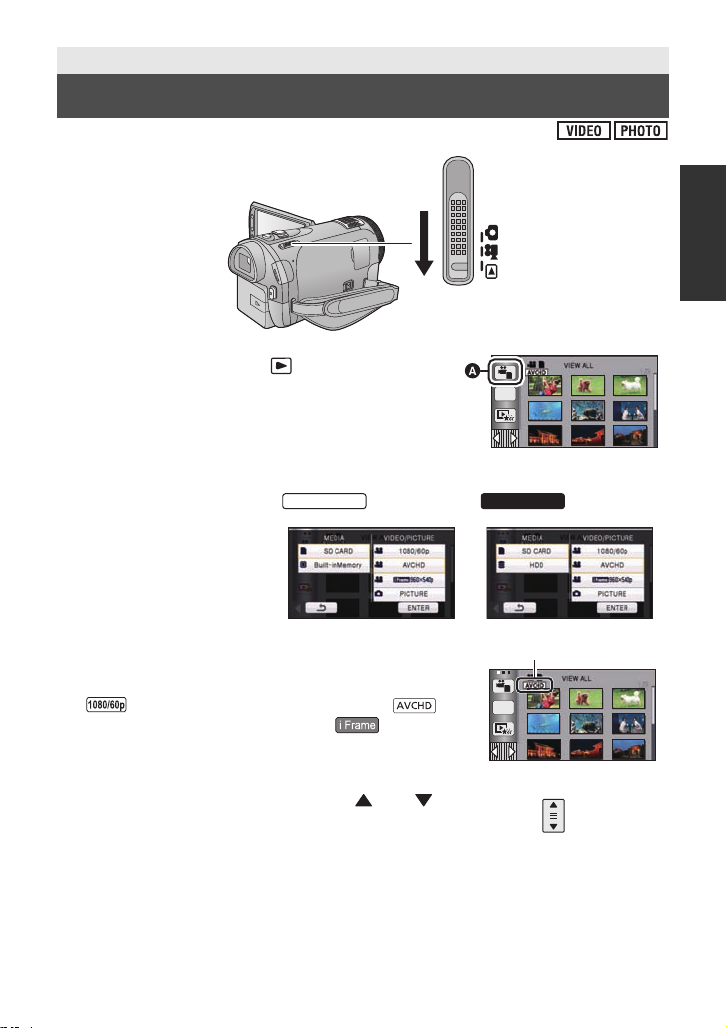

Motion picture/Still picture playback ....41

Using the menu scre e n ................ ..........44

Using the quick menu ....................... 45

Using the Setup M enu .... ... .. ...................46

Using with the remote control...............53

Operation of direction buttons/

OK button..... ..................................... 54

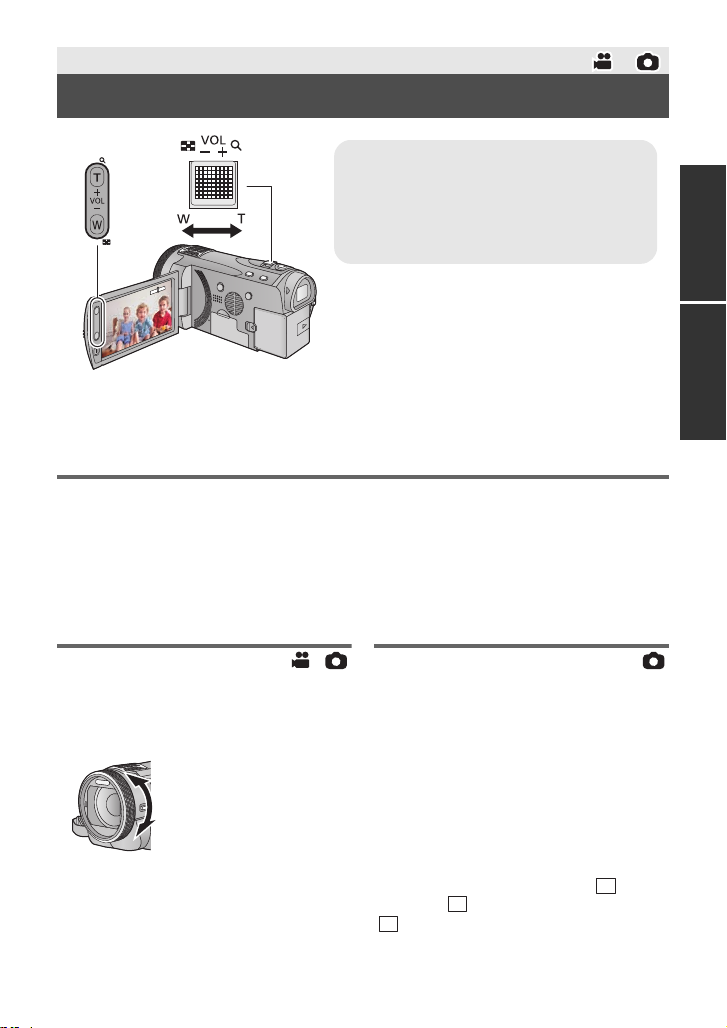

Zoom in/out function..............................55

About the zoom spee d.................. ... . 55

Ring zoom............ ... .......................... 55

Extra Optical Zoom ...... ... ... ............... 55

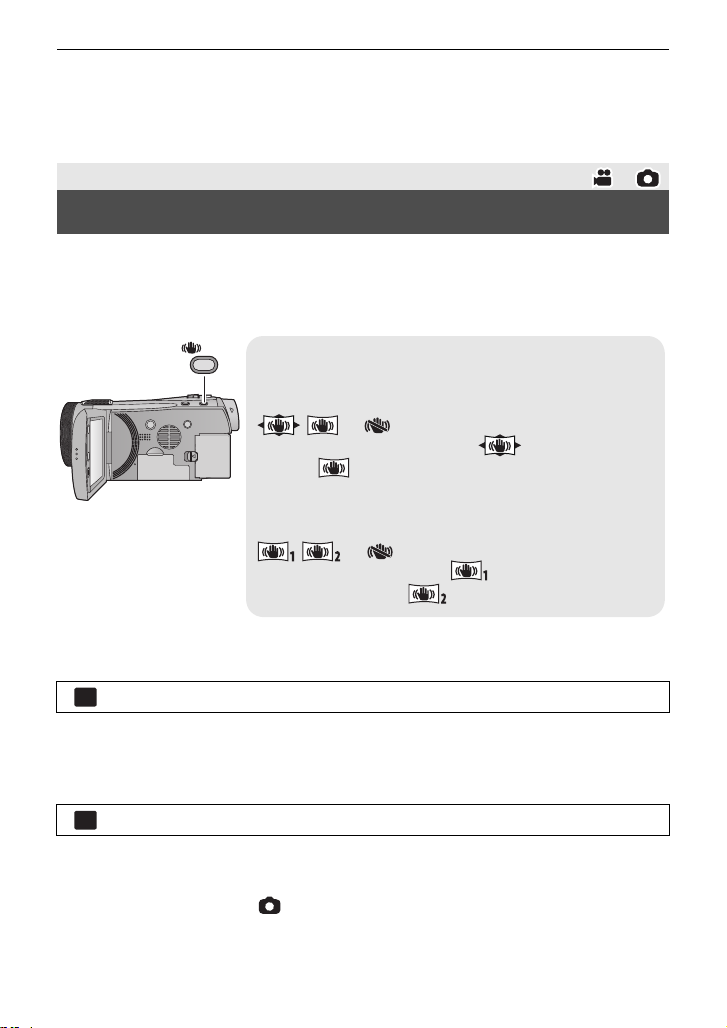

Image Stabilizer Function...................... 56

1080/60p recording................................. 57

Recording with the Touch function.......58

Touch function icons ......................... 58

Recording functions of

operation icons .................... ................... 61

Operation icons................................. 61

Recording functions of menus.............. 66

Manual recording.................................... 82

White balance ................................... 83

Manual shutter speed/iris

adjustment ..... ................................... 84

Recording with Manual focus............ 85

Recording 3D video................................ 86

Functions not available du ring

3D recording ..................................... 88

Advanced (Playback)

Playback Operatio ns....... ................. ......89

Motion picture playback us ing

operation icon ................. ... ... ............ 89

Creating still picture from

motion picture ................................... 90

Highlight&Time frame index.............. 90

Repeat playba ck .......... ... ... ............... 91

Resuming the previous playback...... 91

Zooming in on a still picture during

playback (Playbac k zoom )................ 91

Various playback function s ........ ... ... .....92

Playing back motion pictures/

still pictures by date .......................... 92

Highlight Playback ............................ 93

Changing the playback settings and

playing back the slide show.............. 95

VQT3K69

Deleting scene s/ sti ll p ic t ure s .............. ..96

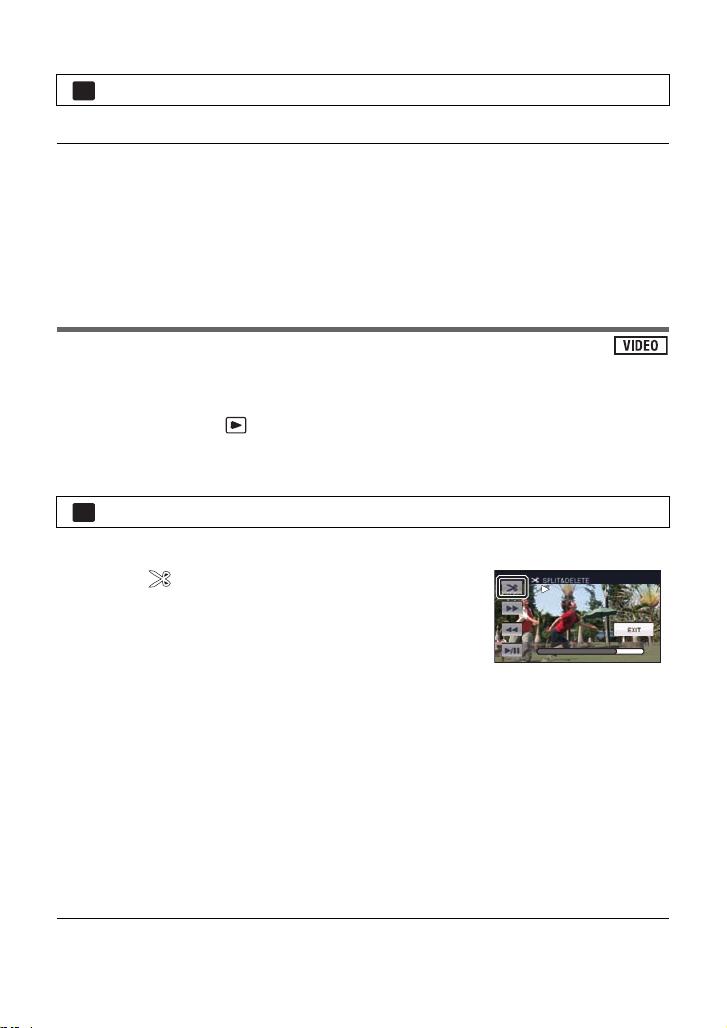

Dividing a scene

(AVCHD, 1080/60p) .......................... 97

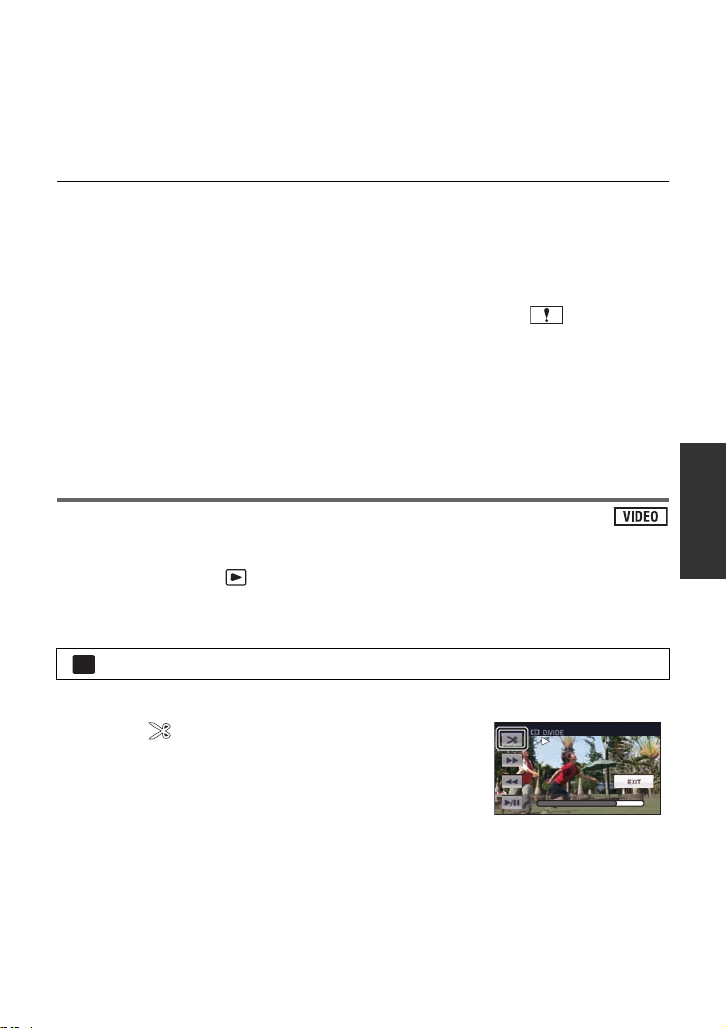

Dividing a scene to partially delete

(iFrame) ............................................ 98

Deleting personal information ........... 99

Protecting scenes/still pictures.......... 99

DPOF setting .........................................1 0 0

Relay scene combining

[HDC-TM900] .........................................101

Watching Video/Pictures

on your TV ................. ............................10 3

Connecting with a HDMI mini

cable ............................................... 106

Listening in 5.1 channel sound

(AVCHD, 1080/60p) ........................ 106

Connecting with the AV multi

cable ............................................... 106

Playback using VIERALink

3D video playback.................................109

Functions not available during

3D playback .................................... 110

™

..............107

Copy/Dubbing

Copying between SD card and Built-in

Memory/HDD ......................................... 111

Connecting a DVD burner to copy to/

play back a disc........................... .........113

Preparing for copying/

playing back .................................... 113

Copying to discs.............................. 115

Playing back the copied disc........... 117

Managing the copie d disc ............... 118

Dubbing with a Blu-ray disc recorder,

video device, etc. .................................. 119

3D video storage...................................123

With a PC

What you can do with a PC.................. 125

End User License Agreement......... 127

Operating environment ........................ 128

Installation.............................................131

Connecting to a PC .............................. 133

About the PC displ a y ................. ..... 135

Starting HD Writer AE 3.0..................... 136

Reading the operating instructions

of the software applications ............ 136

If using Mac ...........................................136

Others

Indications............................................. 138

Messages ..............................................141

About recovery................................ 142

Troubleshooting ...................................143

Cautions for use ...................................148

About copyright....................................154

Recording modes/approximate

recordable time .....................................155

Approximate number of recordable

pictures..................................................156

Specifications ....................................... 158

Optional accessories ...........................163

Accessory Order Form (For USA and

Puerto Rico Customers) ................. 166

Limited Warranty (ONL Y FOR U.S.A.

AND PUERTO RICO).............................167

Warranty

(For Canadian Cust o me rs ) .. ... ... ........... 169

Index ...................................................... 170

Spanish Quick Use Guide/

Guía española para el uso rápido .......172

PreparationBasicAdvanced

(Recording)

(Playback)

Copy/DubbingWith a PCOthers Advanced

VQT3K69

Accessories

Check the accessories before using this unit. Keep the accessories out of reach of children to prevent swallowing. Product numbers correc t as of Dec. 2010. These may be subject to change.

Battery pack

VW-VBN130

AC adaptor

VSK0732

AC cable

K2CA2CA00025

Remote control (Built-in battery)

N2QAEC000024

AV multi cable

K1HY12YY0008

USB cable

K1HA05AD0007

Stylus pen

VGQ0C14

CD-ROM

Software

≥ This is used for operations that are hard to

operate with your fingers or performing detailed operation s wit h the touch screen operation. (l 29, 52)

Lens hood

VDW2053

Shoe adaptor

(supplied for HDC-TM900; not supplied for HDC-HS900) VYC0996

VQT3K69

Quick Guide









∫ Inserting the battery

Install the battery by inserting it in the direction shown in the figure.

A Insert the battery until it clicks and locks.

∫ Charging the battery

A DC input terminal

1 Connect the AC adaptor to the DC inp ut

terminal.

2 Connect the AC cable to the AC

adaptor, then the AC outlet.

≥ The status indicator will flash red at an

interval of 2 seconds, indicating that charging has begun. It will turn off when the charging is completed.

∫ Inserting/removing an SD card

Access lamp [ACCESS] A

≥ When this unit is accessing the SD

card or built-in memory, the access lamp lights up.

1) Open the LCD monitor. ≥ Check that the access lamp has gone off.

2) Open the SD card/terminal cover and insert (remove) the SD card into (from) the card slot.

≥ Face the label side B in the direction

shown in the illustration and press it straight in as far as it will go.

≥ Press the center of the SD card and then

pull it straight out.

3) Securely close the SD card/terminal cover.

≥ Securely close it until it clicks.

VQT3K69

∫ Turning the unit on/off



Turning the unit on and off with the power button

Press the power button to turn on the unit.

A The status indicator lights on. ≥ To turn off the unit, hold down the power

button until the status indicator goes off.

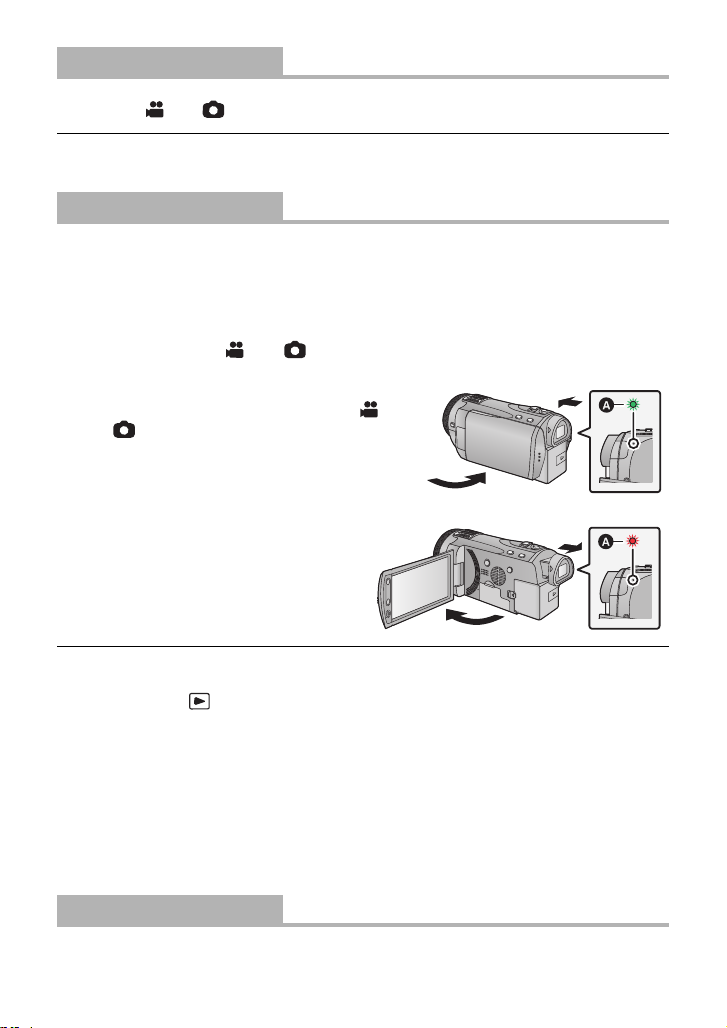

Turning the unit on and off with the LCD monitor/viewfinder

Opening the LCD monitor or extending the viewfinder turns on the unit . Closing the LCD monitor/viewfinder turns off the unit.

To turn on the unit

A The status indicator lights on.

To turn off the unit

∫ Selecting a mode

Operate the mode switch to change the mode to , or .

Motion Picture Recording Mode (l 35)

Still Picture Recording Mode (l 37)

Playback Mode (l 41, 89)

∫ How to use the touch screen

You can operate by directly touching the LCD monitor (touch screen) with your finger. It is easier to use the stylus pen (supplied) for detailed operation or if it is hard to operate with your fingers.

Touch

T ouch and release t he touch scr een to select icon or pictur e.

B The status indicator goes off.

VQT3K69

Slide while touching

Move your finger while pr essing on t he touch screen.

Touch Menu

HDC-HS900

Touch to display the Touch Menu. T ouch (lef t side)/ (right side) of on the Touch Menu to switch the operation icons.

A Touch Menu

∫ Language selection

1) Touch [MENU], then touch [SETUP] # [LANGUAGE].

2) Touch desired language.

∫ Selecting a media to record

1) Change the mode to or .

2) Select the menu.

: [MEDIA SELECT]

3) Touch the media to record motion pictures or still pictures.

≥ Touch [VIDEO/SD C A R D] or [PICTURE/

SD CARD] to record to the SD card.

HDC-TM900

Touch [VIDEO/Built-inMemory] or [PICTURE/Built-inMemory] to record to the built-in memory.

∫ Recording motion pictures

1) Change the mode to .

2) Open the LCD monitor or ext end the viewfinder.

3) Press the recor ding start/stop button to start recording.

A When you begin recording, ; changes

to ¥.

∫ Recording still pictures

1) Change the mode to .

2) Open the LCD monitor or ext end the viewfinder.

3) Press the button fully to take the picture.

Touch [VIDEO/HDD] or [PICTURE/HDD] to record to the HDD.

≥ The media is selected separately to

motion pictures or still pictures is highlighted in yellow .

4) Touch [ENTER].

VQT3K69

∫ Motion picture/Still picture



0h00m15s0h00m15s0h00m15s



playback

1) Change the mode to .

2) Touch the play mode select icon A.

ALL

3) Select the [MEDIA] and [VIDEO/ PICTURE] you wish to play back.

≥ Touc h [ENTER].

4) Touch the scene or the still pictur e to be played back.

ALL

B is displayed when [1080/60p] is

touched, is displayed when [AVCHD] is touched displayed when [ step 3.

≥ To display the next (previous) page:

jSlide the thumbnail display upward

(downward) while touching it.

jSwitch the Touch Menu, and then

touch (up)/ (down) on the thumbnail scroll lever.

5) Select the playback operation by touching the operation icon.

or is

iFrame

] is touched

for a specific period of time. To display them again, touch the screen.

(Motion picture playback)

1/;: Playback/Pause 6: Rewind playback 5: Fast forward playback ∫: Stops the playback and shows

the thumbnails.

(Still picture pl ayback) 1/;: Slide show (playback of the still

pictures in numerical order) start/ pause.

2;: Plays back the previous picture. ;1: Plays back the next picture. ∫: Stops the playback and shows

the thumbnails.

C Operation icon

≥ Operation icons and screen display will

disappear when no function is performed

VQT3K69

Preparation

11 12

1314

Parts identification and handling

1 Speaker 2 Power button [ ] (l 28) 3 Inlet (cooling fan) (l 32) 4 Intelligent auto/Manual button

[iA/MANUAL] (l 39, 82)

5 Optical image stabilizer button

[ O.I.S.] (l 56) 6 Eyepiece corrector dial (l 33) 7 1080/60p button [1080/6 0p] (l 57) 8 Battery release lever [BATT] (l 21) 9 Battery holder (l 21) 10 HDMI mini connector [HDMI]

(l 103, 107) 11 USB terminal [ ] (l 114, 119, 133) 12 A V multi connector (l 103, 122)

≥ Use the AV multi cable (only the supplied

cable).

13 Card slot (l 27) 14 Access lamp [ACCESS] (l 27)

19 20 21

22 23

15 Lens cover

≥ The lens cover opens in Motion

Picture Recording Mode or Still

16 17

Picture Recording Mode. (l 29)

16 Multi manual ring (l 82, 85) 17 Camera function button

[CAMERA FUNCTION] (l 82) 18 Remote control sensor (l 54) 19 Built-in flash (l 63) 20 3D Conversion Lens attachment part

(concave) (l 86) 21 Lens (LEICA DICOMAR)

≥ Please refer to page 33 for details about

attaching the lens hood.

22 AF assist lamp (l 81) 23 Recording lamp (l 49)

VQT3K69

26 27

24 25

24 LCD monitor (Touch screen) (l 29)

≥ It can open up to 90o.

≥ It can rotate up to 180o A towards the lens

or 90o B towards the viewfinder.

Due to limitations in LCD production technology , t here may be some ti ny bright or dark spots on th e L CD monit or scr een. However, t his is not a malfunction and does not affect the recorded picture.

25 Viewfinder (l 33)

Due to limitations in LCD production technology , t here may be some ti ny bright or dark spots on the viewf i nder screen. However, t his is not a malfunction and does not affect the recorded picture.

26 Zoom buttons (l 55) 27 Sub recording start/stop button

(l 32)

≥ This button functions in the same manner

as the recording star t/stop button.

VQT3K69

28 Trip od receptacle

≥ If you attach a tripod which has 5.5 mm

(0.22 q) screw or larger, it may damage this unit.

353231

36 37

MIC

29 30

29 Microphone terminal [MIC]

≥ A compatible plug-in powered mic rophone

can be used as an external microphone.

≥ Audio will be stereo (2 ch) with the

external microphone input.

≥ (Microphone input level

meter) is displayed when the extern al microphone is connected. (l 75)

≥ When the unit is connected with the AC

adaptor, sometimes noise may be heard depending on the micr ophone ty p e. In th is case, please switc h to the ba tte ry for th e power supply and the noise will stop.

30 Headphone terminal [ ] (l 65) 31 Photoshot button [ ] (l 37) 32 Zoom lever [W/T] (In Motion Picture

Recording Mode or Still Picture

Recording Mode) (l 55)

Thumbnail display switch [ / ]/

Vo lume lever [sVOLr] (In Playback

Mode) (l 42) 33 Mode switch (l 29) 34 Status indicator (l 28) 35 Internal microphones 36 Recording start/stop button (l 35) 37 Shoulder strap fixture 38 Grip belt

Adjust the length o f the grip bel t so tha t it fits your hand.

1 Flip the belt. 2 Adjust the length. 3 Replace the belt.

VQT3K69

39 Shoe adaptor mount (l 165)

HDC-TM900

39 40

HDC-HS900

4443

40 Shoe adaptor cover (l 165) 41 Shoe adaptor release l ever

[SHOE ADAPTOR RELEASE] (l 165)

42 DC input terminal [DC IN] (l 22)

≥ Do not use any other AC adaptors except

the supplied one.

VQT3K69

43 HDD access lamp [ACCESS HDD] 44 Accessory shoe (l 165) 45 DC input terminal [DC IN] (l 22)

≥ Do not use any other AC adaptors except

the supplied one.

Preparation

Removing the battery

Be sure to hold down the power button until the status indicator goes off. Then remove the battery while support i ng the unit to prevent it from dropping.

Move the battery release lever in the direction indicated by the arrow and remove the battery when unlocked.

A Insert the battery until it clicks and

locks.

Power supply

∫ About batteries that you can use with this unit

The battery that can be used with this unit is VW-VBN130/VW-VBN260. ≥ The unit has a function for distinguishing batteries which can be used safely. The

dedicated battery (VW-VBN130/VW-VBN260) supports this function. The only batteries suitable for use with this unit are genuine Panasonic products and batteries manufactured by other companies and certified by Panasonic. (Batteries which do not support this function cannot be used). Panasonic cannot in any way guarantee the quality, performance or safety of batteries which have been manufactured by other companies and are not genuine Panasonic products.

It has been found that counterfeit battery packs which look very similar to the genuine product are made available to purchase in some markets. Some of these battery packs are not adequately protected with internal protection to meet the requirements of appropriate safety standards. There is a possibility that these battery packs may lead to fire or explosion. Please be advised that we are not liable for any ac cident or failure occurring as a result of use of a counterfeit battery pack. To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used.

Inserting/removing the battery

≥ Press the power button to turn off the unit. (l 28)

Install the battery by inserting it in the direction shown in the figure.

BATT

VQT3K69

Charging the battery



When this unit is purchased, the battery is not charged. Charge the battery fully before using this unit for the first time.

Important:

≥ Use the supplied AC adaptor. Do not use the AC adaptor of another device. ≥ Do not use the AC cable with any other equipment as it is designed only for this unit.

Also, do not use the AC cable from other equipment with this unit.

≥ The battery can also be charged using a battery charger (VW-BC20PP; optional). ≥ The battery will not be charged if the unit is turned on. ≥ It is recommended to charge the battery in a temperatu re between 10 °C to 30 °C

(50 °F to 86 °F). (The battery temperature should also be the same.)

A DC input terminal

≥ Insert the plugs as far as they will go.

1 Connect the AC adaptor to the DC input terminal. 2 Connect the AC cable to the AC adaptor, then the AC outlet.

≥ The status indicator will flash red at an interval of 2 seconds, indicating that ch arging has

begun. It will turn off when the charging is completed.

∫ Connecting to the AC outlet

If you turn on the unit while connec ting the AC adaptor , you can use the unit with power supplied from the outlet.

≥ If the status indicator flashes at a particularly fast or slow rate, refer to page 151. ≥ We recommend using Panasonic batteries (l 12, 23, 24, 163). ≥ If you use other batteries, we cannot guarantee the quality of this product. ≥ Do not heat or expose to flame. ≥ Do not leave the battery(ies) in an automobile ex posed to direct sunlight for a long period

of time with doors and windows closed.

VQT3K69

Charging and recording time

∫ Charging/Recording time

≥ Temperature: 25 oC (77 oF)/humidity: 60%RH ≥ When using the viewfinder (times in parentheses are when using the LCD monitor)

HDC-TM900

Battery model number

[Voltage/Capacity

(minimum)]

Supplied ba ttery/

VW-VBN130 (optional)

[7.2 V/1250 mAh]

VW-VBN260 (optional)

[7.2 V/2500 mAh]

Charging

time

2h30min

4h30min

Recording

mode

[1080/60p]

[HA]

[HG], [HX],

[HE]

[iFrame]

[1080/60p]

[HA]

[HG], [HX],

[HE]

[iFrame]

Maximum

continuous

recordable time

1h30min

(1h25min)

1h35min

(1h30min)

1h35min

(1h35min)

1h40min

(1h35min)

2h55min

(2h50min)

3h5min

(3 h)

3h10min

(3 h)

3h15min

(3h10min)

Actual

recordable

55 min

(55 min)

1h45min

(1h45min)

1h55min

(1h50min)

(1h55min)

time

(1 h)

VQT3K69

Battery mod e l

number

[Volt ag e/Capacity

(minimum)]

Supplied battery/

VW-VBN130

(optional)

[7.2 V/1250 mAh]

VW-VBN260

(optional)

[7.2 V/2500 mAh]

Charging

time

2h30min

4h30min

HDC-HS900

Recording

destination

HDD

Recording

mode

[1080/60p]

[HA], [HG],

[HX], [HE]

[iFrame]

[1080/60p]

[HA], [HG] [HX], [HE]

[iFrame]

[1080/60p]

[HA], [HG],

[HX], [HE]

[iFrame]

[1080/60p]

[HA]

[HG], [HX],

[HE]

[iFrame]

Maximum

continuous

recordable

time

1h15min

(1 h 10 min)

1h20min

(1 h 15 min)

1h20min

(1 h 20 min)

1h15min

(1 h 15 min)

1h20min

(1 h 20 min)

1h25min

(1 h 20 min)

2h25min

(2 h 20 min)

2h35min

(2 h 30 min)

2h40min

(2 h 35 min)

2h30min

(2 h 25 min)

2h40min

(2 h 35 min)

2h45min

(2 h 40 min)

Actual

recordable

time

45 min

(45 min)

50 min

(45 min)

50 min

(50 min)

45 min

(45 min)

50 min

(45 min)

50 min

(50 min)

1h30min

(1 h 25 min)

1h35min

(1 h 30 min)

1h40min

(1 h 35 min)

1h30min

(1 h 30 min)

1h35min

(1 h 35 min)

1h40min

(1 h 35 min)

1h40min

(1 h 40 min)

VQT3K69

≥ These times are approximations. ≥ The indicated charging time is f or when the batter y has been disc harged compl etely.

Charging time and recordable time vary depending on the usage conditions such as high/low temperature.

≥ Recordable time of 3D recording mode is the same.

(During 3D recording mode, 1080/60 p and iF rame recording mode cannot be used.)

≥ The actual recordable time refers to the recorda ble t ime when repeat ed ly st art ing/s toppin g

recording, turning the unit on/off, moving the zoom lever etc.

≥ The batteries heat up after use or charging. This is not a malfunction.

Battery capacit y indica tion

≥ The display changes as the battery capacity reduces.

####

If there is less than 3 minutes rema ining, then will become red. If the battery discharges, then will flash.

≥ The remaining battery capacity is displayed when using the Panasonic battery that you

can use for this unit. The actual time can vary depending on your actual use.

≥ When using the AC adaptor or batteries made by other companies, the remaining

battery capacity will not be shown.

VQT3K69

Preparation

Recording to a card

The unit can record still pictures or motion pictures to an SD card, built-in memory or HDD. To record to an SD card, read the following.

This unit (an SDXC compatible device) is compatible with SD Memory Cards, SDHC Memory Cards and SDXC Memory Cards. When using an SDHC memory card/SDXC memory card with other equipment, ch eck the equipment is compatible with these memory cards.

Cards that you can use with this unit

Use SD cards conforming to Class 4 or higher of the SD Speed Class Rating* for motion picture record ing.

Card type Capacity Motion picture recording

8MB/16MB/

Memory

Card

SDHC

Memory

Card

SDXC

Memory

Card

* SD Speed Class Rating is the speed

standard regarding continuous writing. Check via the label on the card, etc.

64 MB/128 MB/

4GB/6GB/8GB/

32 MB

256 MB

512MB/1GB/

12 GB/16 GB/

24 GB/32 GB

48 GB/64 GB

Cannot be used.

Cannot be guaranteed in operation.

2GB

Can be used. Can be used.

e.g.:

Still picture

recording

Cannot be guaranteed in operation.

≥

Please confirm the latest information about SD Memory Cards/SDHC Memory Cards/SDXC Memory Cards that can be used for motion picture recording on the following website.

http://panasonic.jp/support/global/cs/e_cam

(This website is in English only.) ≥ 4 GB or more Memory Cards that do not have the SDHC logo or 48 GB or more Memory

Cards that do not have the SDXC logo are not based on SD Memory Card Specifications.

≥ When the write-protect switch A on SD card is locked, no recording,

deletion or editing will be possible on th e card.

≥ Keep the Memory Card out of reach of children to prevent swallowing.

VQT3K69

Inserting/removing an SD card





When using an SD card not from Pana sonic, or one previously used on other equipment, for the first time on this unit, format the SD card. (l 51) When the SD card is formatted, all of the recorded data is deleted. Once the data is deleted, it cannot be restored.

Caution: Check that the access lamp has gone off.

Access lamp [ACCESS] A

≥ When this unit is accessing the SD

card or built-in memory, the access lamp lights up.

1 Open the LCD monitor. 2 Open the SD card/terminal

cover and insert (remove) the

SD card into (from) the card

slot.

≥ Face the label side B in the direction

shown in the illustration and press it straight in as far as it will go.

≥ Press the center of the SD card and then

pull it straight out.

3 Securely close the SD card/

terminal cover.

≥ Securely close it until it clicks.

≥ Do not touch the terminals on the back of

the SD card.

≥ Do not apply strong shocks, bend, or drop

the SD card.

≥ Electrical noise, static electricity or the

failure of this unit or the SD card may damage or erase the dat a st ored on the SD card.

≥ When the card access lam p is lit, do not:

jRemove the SD card jTurn the unit off jInsert and remove the USB cable jExpose the unit to vibrations or shock

Performing the above while the lamp is on may result in damage to data/SD card or this unit.

≥ Do not expose the terminals of the SD

card to water, dirt or dust.

≥ Do not place SD cards in the following

areas:

jIn direct sunlight jIn very dusty or humid areas jNear a hea ter jLocations susceptible to significant

difference in temperat ure (cond ensation

can occur.)

jWhere static electricity or

electromagnetic waves occur ≥ To protect SD cards, return them to their

cases when you are not using th em.

≥ About disposing of or giving away the SD

card. (l 152)

VQT3K69

Preparation

To turn off the unit

Hold down the power button until the status indi cator goes off.



Turning the unit on/off

You can turn the unit on and off using the power button, the LCD monitor or the viewfinder.

A clicking sound is heard when the unit is shaken.

≥ This is the sound of the lens moving an d i s not a defect.

This sound will no longer be heard when the unit is turned on and change the mode to

or .

Turning the unit on and off with the power button

Press the power button to turn on the unit.



A The status indicator lights on.

Turning the unit on and off with the LCD monitor/ viewfinder

Opening the LCD monitor or extending the viewfinder turns on the unit . Closing the LCD monitor/viewfinder turns off the unit.

During general use, you may find it convenient to turn the unit on/off using the LCD monitor or viewfinder.

∫ To turn on the unit

∫ To turn off the unit

A The status indicator lights on.

≥ The unit will not turn off unless the LCD monitor is closed and th e viewfinder is retracted. ≥ The unit will not turn off while recording motion pictures even if the LCD monitor is closed

and the viewfinder is retracted.

VQT3K69

B The status indicator goes off.

≥ In the following cases, opening the LCD monitor or ex tending the viewfinder does not turn

on the unit. Press the power button to turn on the unit.

jWhen the un i t i s originally purchased jWhen you have turned off the unit using the power button

Preparation

Selecting a mode

Change the mode to recording or pl ayback.

Operate the mode switch to change the mode to , or .

Motion Picture Recording Mode (l 35) Still Picture Re co rding Mode (l 37)

Playback Mode (l 41, 89)

Preparation

How to use the touch screen

You can operate by directly touching the LCD monitor (touch screen) with your finger. It is easier to use the stylus pen (supplied) for detaile d operati on or if it is hard to oper ate with your fingers.

∫ Touch

T ouch a nd releas e the touch screen to sele ct icon o r picture.

≥ Touch the center of the icon. ≥ Touc hing the touch screen will not operate while

you are touching another part of the touch screen.

VQT3K69

∫ Slide while touching

FOCUS

SHTR

IRIS





ALL

Move your finger while pressing on the touch screen.

∫ About the operation icons

///: These icons are used to switch the menu and thumbnail display page, fo r item selection and setting etc.

: Touch to return to the previous screen such as when setting menus.

About the Touch Menu

Touch (left side)/ (right side) of on the Touch Menu to switch the operation icons.

Touch (left side)/ (right side) of on the Touch Menu.

≥ It is also possible to swit ch the operation icons by sliding the Touch Menu right or left while

touching it.

A Touch Menu

Recording Mode Playback Mode

B Touch these icons to switch pages upward or downward. C Displayed only during the Manual Mode.

VQT3K69

∫ To display the Touch Menu

The Touch Menu will disappear when n o function is performed for a specific period of time during Recording mode. To display it again, touch .

≥ Do not touch on the LCD monitor with hard pointed tips, such as ball point pens. ≥ Perform the touch screen c alibration when the touch is not recognized or wrong location is

recognized. (l 52)

Preparation

Setting date and time

When the unit is turned on for the first time, a message asking you to set the date and time will appear. Select [YES] and perform steps 2 to 3 below to set the date and time.

1 Select the menu. (l 44)

: [SETUP] # [CLOCK SET]

2 Touch the date or time to be set, then set the des ired value using /

A Displaying the World time setting (l 46):

[HOME]/ [DESTINATION]

≥ The year can be set between 2000 and 2039. ≥ The 12-hour system is used to display the time.

3 Touch [ENTER].

≥ A message prompting for World time setting may be

displayed. Perform the World time setting by touching the screen. (l 46)

≥ Touch [EXIT] to complete the setting.

≥ The date and time function is driven by a built-in lithium battery. ≥ When this unit is purchased, the clock is set. If the time display becomes [- -], the built-in

lithium battery needs to be cha rged. To recharge the built-in lithium battery, connect the AC adaptor or attac h the b at ter y t o this unit . Leav e the uni t as it is fo r ap pro x. 2 4hours and the battery will maintain the date and time for approx. 6 months. (The battery is still being recharged even if the unit is off.)

VQT3K69

Basic

Before recording

∫ Basic cam era positi oning

1 Hold the unit with both hands. 2 Put your hand through the grip belt. 3 It is convenient to use the Sub-recording Start/Stop button A when holding the unit at

waist level.

≥ When recording, make sure your footing is stab le and there is no danger of colliding with

another person or objec t.

≥ When you are outdoors, record pictures with the sunlight behind you. If the subject is

backlit, it will become dark in the recording.

≥ Keep your arms near your body and separate your legs for better balance. ≥ Do not cover the microphones or the cooling fan inlet with your hand etc.

∫ Basic motion picture recording

≥ The unit should normally be held steady when recording. ≥ If you move the unit when recording, do so slowly, maintaining a constant speed. ≥ The zoom operation is use ful f or reco rding sub jec ts yo u ca nnot get cl ose to, bu t overu se o f

zoom in and zoom out can make the resulting motion picture less enjoyable to watch.

VQT3K69

∫ To adjust the image in the viewfinder





Adjust to make the image clear by rotating the eyepiece corrector dial.

≥ Extend the viewfinder and close the LCD

monitor to turn on th e vie w fi n der.

∫ To record while showing the contents to someone beside you Extend the viewfinder and rotate the LCD monitor towards the lens side.

≥ LCD monitor and viewfinder are turned on during the face-to-

face recording when the viewfinder is extended.

≥ The image is horizontally flipped as if you see a mirror image.

(However the image recorded is the same as a normal recording.)

≥ Record by viewing the image in the viewfinder during the face-to-face recording.

≥ Only some indications will appear on the screen. When appears, return the direction

of the LCD monitor to normal positio n and check the warning/alarm indication. (l 141)

∫ Attaching/Removing the lens hood

This will reduce the extra light entering the lens in bright sunlight or backlight etc., making it possible to take clearer pictures.

A Attaching the lens hood B Removing the lens hood

≥ If you use the Filter Kit (optional), the Conversion Lens (optional) or the 3D Conversion

Lens (optional), remove th e lens hood.

VQT3K69

Basic

 



 



Selecting a media to record

The card, built-in memory and HDD media can be selected separately to record motion pictures or still pictures.

1 Change the mode to or . 2 Select the menu. (l 44)

: [MEDIA SELECT]

3 Touch the media to record motion pictures or still pictures.

HDC-TM900

A [VIDEO/SD CARD] B [VIDEO/Built-inMemory] C [PICTURE/SD CARD] D [PICTURE/Built-inMemory]

HDC-HS900

E [VIDEO/SD CARD] F [VIDEO/HDD] G [PICTURE/SD CARD] H [PICTURE/HDD]

≥ The media is selected separately to motion pictures or still pictures is highlighted in yellow.

4 Touch [ENTER].

VQT3K69

Basic



0h00m00s0h00m00s0h00m00s

R 1h20mR 1h20mR 1h20m

A Recording mode B Recording t ime elapsed

Each time the unit is put into recording pause, the counter display will be reset to 0h00m00s. (“h” is an abbreviation for hour, “m” for minute and “s” for second.)

C Approximate remaining recordable

time

(When the remaining time is less than 1 minute, R 0h00m flashes red.)

≥ Screen display will disappear when no

function is performed for a specific period of time. To display it again, tou ch the screen. (It will not display when AF/ AE tracking is used.)

Recording motion pictures

1 Change the mode to . 2 Open the LCD monitor or

extend the viewfinder.

3 Press the recording start/stop

button to start recording.

A When you begin recording, ;

changes to ¥.

4 Press the recording start/stop

button again to pause recording.

∫ Screen indications in the Motion Picture Recording Mode

VQT3K69

≥ There are 3 recording formats that can be used with this unit: AVCHD that records

high-definition motion pictures, 1080/60p that records motio n pictures in maximum quality for this unit and iFrame that records motion pictures suitable for playback and editing on Mac (iMovie’11). To change the recording format, chang e the Recording Mode (l 67) or press and hold the 1080/60p button. (l 57)

≥ Still pictures can be recor ded while recording the motion pic t ure. (l 38) ≥ The images recorded between pressing the rec ording start/stop button to start recording

and pressing it again to pause recording become one scene. When you record with the [REC MODE] set to [iFrame], the scenes longer than approximately 20 minutes will be automatically divided. (Recording will continue.)

≥ (Maximum recordable scenes of a single SD card, built-in memory or HDD)

Recording f o rmats [HA]/[HG]/[HX]/[HE] [1080/60p] [iFrame]

Recordable scenes Approx. 3900 Approx. 3900 Approx. 89100

Different dates (l 92) Approx. 200 Approx. 200 Approx. 900

≥ Maximum number of recordable scenes and maximum number of di fferent dates will be

less than above t able when there are both AVCHD scenes and 1080/60p scenes recorded on SD card, built-in memory or HDD.

≥ Maximum number of recordable scenes and maximum number of di fferent dates will be

less than above table when there are both iFrame scenes and still picture s recorded on SD card, built-in memory or HDD.

≥ While recording is in progress, the recording will n ot stop even if the LCD mo nitor is closed

and the viewfinder is retracted.

≥ Put the unit in Pause mode when connectin g or discon necting an external mic rophone wit h

the MIC terminal.

≥ Please refer to page 155 for detail abo ut the approximate recordable time.

About the compatibility of the recorded motion pictures

When motion picture is recorded in A VCHD format

≥ Only motion pictures recorded with the recording format set to AVCHD are supported

by AVCHD compatible equipment. Images cannot be played with equipment that does not support AVCHD (ordinary DVD recorders). Confirm that your equipment supports AV CHD by ref erring to the operating instructions.

≥ It is not always possible to play back motion pictures recorded with the recording

format set to AVCHD on AVCHD compatible equipment. I n such a case, play back on this unit instead.

When motion picture is recorded in iFrame format

≥ You can play back on Mac (iMovie’11). ≥ It is not compatible with motion pictures recorded in AVCHD format.

VQT3K69

Please refer to page 57 about 1080/60p

Basic

Recording still pictures

1 Change the mode to . 2 Open the LCD monitor or extend

the viewf inder.

3 Press the button halfway.

(For Auto focus only)

4 Press the button fully.

Focus indication:

A Focus indication

 

± (The white lamp flashes.): Focusing ¥ (The green lamp lights up.): When in focus No mark: When focusing is unsuccessful.

B Focus area (area inside bracke ts)

≥ If you set the Optical image stabilizer function (l 56) to ([MODE1]), then the Image

Stabilizer fu nction will be more effective. ( (MEGA Optical Image Stabilizer) will be displayed when the button is pressed halfway.)

≥ The AF assist lamp lights in dark places. ≥ Focus indication will change to register ed focus icon when [FACE RECOG.] is set to [ON].

(l 71)

≥ Using a flash or tripod is recommended when recording still pictures in dark places

because the shutter speed becomes slow.

≥ The screen will become darker when the button is pressed halfway if the shutter

speed is 1/30 or slower.

≥ You can also take a picture just by touching the subject to focus. (Touch Shutter: l 60) ≥ To print a picture, save the picture to the SD card (l 111) and print using a PC or a printer.

MEGA

VQT3K69

∫ About the screen indications in Still Picture Recording

R3000

≥ Screen display will disappear when

no function is performed for a specific period of time. To display it again, touch the screen. (It will not display when AF/AE tracking or Touch shutter is used.)

14.2

MEGA

R3000: Remaining number of still pictures

ß: Flash (l 63) ßj: Flash level (l 63)

Still picture operation indicator (

(Flashes in red when [0] appears. )

: Quality of still pictures (l 79)

: Size of still pictures (l 78)

MEGA optical image stabilizer (

: Optical image stabilizer (l 56)

: AF assist lamp (l 81)

: Red-eye reduction (l 64)

l 138

l 37

)

R3000

14.2

MEGA

∫ About the focus indication

≥ The focus indication indicates the status of the Auto focus. ≥ The focus indication does not appear in Manual Focus Mode. ≥ The focus indication does not appear or has difficulty focusing in the following cases.

jWhen close subjects and far subjects are included in the same scene jWhen the scene is dark jWhen there is a bright part in the scene jWhen the scene is filled with only horizontal lines

∫ About the focusing area

When there is a contrasting object ahead or behind the subject in the focus area, the subject may not be focused. If so, move the contrasting object out of the focus area.

≥ Focus area is not displayed in the following conditions.

jWhen the Intelligent Auto Mode (Portrait) is used jWhen AF/AE tracking is used jWhen the Ex tr a Op ti ca l Z oo m is u sed jWhen the un i t de termines tha t the A F assist lamp is ne c e s sa r y

Recording still pictures in Motion Picture Recording Mode

You can record still pictures even in Motion Picture Recording Mode.

¬ Change the mode to .

Press the button fully (press to the bottom) to take the picture.

≥ It is possible to record still pictures while recording motion pictures.

(Simultaneous recording)

≥ Remaining number of recordable pictures is display ed while still pictures

are being re corded.

≥ Built-in flash, Red-eye reduction, Self-timer (l 64) do not work. ≥ While recording motion pictures or during the PRE-REC operation, image quality is

different from ordinary still pictures so that motion picture rec ording takes preference over still picture recording.

≥ If simultaneous recording is used while recording a motion picture, the recordable time

remaining will shorten. If the unit is tu rned off or the mode switch operated, the recor dable time remaining may lengthen.

VQT3K69

Basic

/MANUAL

Intelligent auto/Manual button

Press this button to switch Intelligent Auto Mode/Manual Mode.

≥ Please refer to page 82 for

details about Manual Mode.

Intelligent Auto Mode

The following modes (appropriate for the condition) are set just by pointing the unit to what you want to record.

Mode Scene Effect

Portrait When the object is a

Scenery Recording outdoors The whole landscape will be recorded

Spotlight Under a spotlight Very bright object is recorded clearly.

Low light Dark room or twilight It can record very clearly even in a dark

Night portrait Recording night

Night scenery Recording night

Macro Recording zooming in

Normal Other situations Contrast is adjusted automatically for

*1 In Motion Picture Recording Mode only *2 In Still Picture Recording Mode only

person

portrait

scenery

on a flower et c.

Faces are detected and focused automatically, and the brightness is adjusted so it is recorded clearly.

vividly without whiting out t he background sky, which may be very bright.

room or twilight. A subject and the back ground are

recorded with near real-life brightness. You can record night scenery vividly by

slowing the shutter spe ed. This allows recording at very close

proximity to the object of recording.

clear images.

≥ Depending on the recording conditions, the unit may not enter the desired mode. ≥ In the Portrait, Spotlight and Low light mode, the face will be surrounded by white frame

when detected. In the Potrait mode, a subject that is bigger and close to center of the screen will be surrounded by an orange frame. (l 72)

≥ Using a tripod is recommended in Night Portrait and Ni ght Scenery Mode.

VQT3K69

≥ Faces cannot be detected depending on the recording conditions, such as wh en faces are

10 000K

9 000K 8 000K

7 000K 6 000K

5 000K

4 000K

3 000K

2 000K

1 000K

of certain sizes or at certain tilts or when digital zoom is used.

≥ [MIC SETUP] is set to [SURROUND] in the Intelligent Auto Mode. Also, when [REC

MODE] is set to [iFrame] in th e Intelli gent Auto Mod e, [MIC SETUP] will be se t to [STEREO MIC]. (l 74)

∫ Intelligent Auto Mode

When switching to Intelligent Auto Mode, the Auto White Balance and Auto Focus operate and automatically adjust the color balance and focusing. Depending on the brightness of the subject etc., the aperture and shut ter speed are automatically adjusted for an optimum brightness. ≥ Color balance and focus may not be adjusted automa tically depending on light sources or

scenes. If so, manually adjust these settings. (l 83, 85)

Automatic white balance

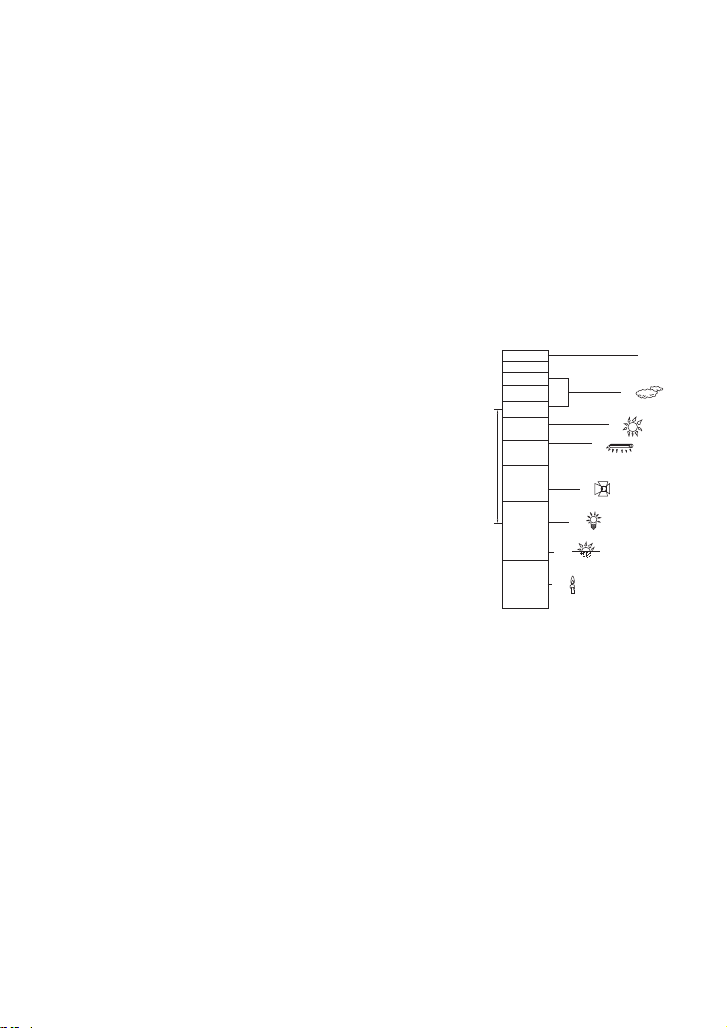

The illustration shows the range over which Automatic white balance functions.

1) The effective range of Automatic white balance

adjustment on this unit

2) Blue sky

3) Cloudy sky (rain)

4) Sunlight

5) White fluorescent lamp

6) Halogen light bulb

7) Incandescent light bulb

8) Sunrise or sunset

9) Candlelight If the automatic white balance is not functioning normally, adjust the white balance manually. (l 83)

Auto focus

The unit focuses automatically. ≥ Auto focus does not work correctly in the following situations. Record pictures in the

Manual Focus Mode. (l 85)

jRecording distant and close-up objects at the same time jRecording a subject behind a dirty or dusty window jRecording a subject that is surrounded by objects with glossy surfaces or by highly

reflective objects

VQT3K69

Basic

HDC-TM900

HDC-HS900

Motion picture/Still picture playback

1 Change the mode to . 2 Touch the play mode select icon A. (l 30)

3 Select the [MEDIA] and [VIDEO/PICTURE]

you wish to play back.

≥ Touch [ENTER].

ALL

4 Touch the scene or the still picture to be

played back.

≥ To display the next (previous) page:

is displayed when [1080/60p] is touched, is displayed when [AVCHD] is touched or is displayed when [iFrame] is touched in step 3.

jSlide the thumbnail display upward (dow nward) while touching it. jSwitch the Touch Menu, and then touch (up)/ (down) on the

thumbnail scroll lever.



ALL

VQT3K69

5 Select the playback operation by touching the operation icon.

0h00m15s0h00m15s0h00m15s



C Operation icon

≥ Operation icons and screen display will disappear

when no function is performe d for a speci fic peri od of time. To display them again, touch the screen.

Motion picture playback Still picture pl ayback

1/;: Playback/Pause 6: Rewind playback 5: Fast forward playback ∫: Stops the pl ayb ack and shows

the thumbnails.

∫ Change the thumbnail display

While the thumbnail is displayed, the thumbnail display changes in the following order if the zoom lever or zoom butt ons are ope rated to

side or side.

20 scenes () 9 scenes () 1 scene () Highlight&Time frame index* (l 90) * Highlight&Time frame index can only set in Motion Picture

Playback Mode. Even in Motion Picture Playback Mode, [FACE] and [HIGHLIGHT] cannot be used when [iFrame] is selected.

≥ 9 scenes display returns if the unit is turned off or the mode is changed. ≥ By displaying in 1 scene or pressing and holdin g the thumbnail in the 20 scenes or 9

scenes display, recording date and time are displayed when playing back motion pictures, and recording date and file number when playing back still pictures.

1/;: Slide show (playback of the still

pictures in numerical order) start/pause.

2;: Plays back the previous picture. ;1: Plays back the next picture. ∫: Stops the playback and shows

the thumb n a i ls.

VQT3K69

∫ Speaker/Headphone

volume adjustment

Operate the volume lever or the zoom buttons to adjust the speaker/ headphone volume during Mot i on Picture Playback Mode.

Towards “r”:

Increases the volume

Towards “s”:

Decreases the volume

≥ Sound will be heard only during normal play back. ≥ If pause play is continued for 5 minutes, the screen returns to the thumbnails. ≥ The elapsed time for playback indication will be reset to 0h00m00s for each scene. ≥ When playing back iFrame scenes, the image will pause momentarily and the screen may

turn black when the scenes are switching .

Motion picture compatibility

≥ This unit is based on AVCHD format/MPEG-4 AVC file format. ≥ Video signals for the AVCHD that can be p layed back with this un it are 1920k1080/60i,

1920k1080/24p and 1440k1080/60i. ≥ Video signals for the iFrame that can be played back with this unit are 960k540/30p. ≥ This unit may degrade or not play back motion pictures recorded or created on other

products, and oth er products may degrade or not play back motion pictures recorded

on this unit, even if the products support AVCHD or iFrame. ≥ Motion pictures recorded in AVCHD and iFrame are not compatible with each other.

Please refer to page 57 about 1080/60p.

Still picture compatibility

≥ This unit is compliant with the unified standard DCF (Design rule for Camera File

system) established by JEIT A (Japan Electronics and Information Technology

Industries Association). ≥ The file format of still pictures supported by this unit is JPEG. (Not all JPEG formatted

files will be played back.) ≥ This unit may degrade or not play back still pictures recorded or created on other

products and other products may degrade or not play back still pictures recorded on

this unit.

VQT3K69

Basic

Using the menu screen

≥ Touch (left side)/ (right side) of on the Touch Menu to display . (l 30)

1 Touch [MENU].

2 Touch the top menu A.

3 Touch the submenu B.

≥ Next (previous) page can be displayed by

touching / .

4 Touch the desired item to enter

the setting.

5 Touch [EXIT] to exit the menu

setting.

∫ About guide display

After touching , touching the submenus and items will cause function descriptions and settings confirmation messages to appear. ≥ After the messages have been displa yed,

the guide display is canceled.

VQT3K69

Using the quick menu

iFrame

540

This allows quick setting of some of the menus. ≥ Touch (left side)/ (right side) of on the Touch Menu to display . (l 30)

1 Touch [Q.MENU].

The following menus can be set. Touch the desired menu. ≥ The items displayed differ depending on the position of the mode switch or settings.

Icon Function Page

14.2

[REC MODE]

[PICTURE SIZE]

13.3

[POWER LCD]

[GUIDE LINES]

[MIC LEVEL]

[MF ASSIST]

[ZEBRA]

[LUMINANCE]

[HISTOGRAM]

l 67

l 78

l 49

l 65

l 75

l 85

l 76

l 77

2 Touch the desired item to enter the setting.

13.3

3 Touch [EXIT] to exit the quick menu.

VQT3K69

Basic





A The curre nt time B The time difference from GMT

(Greenwi ch M ean Time)

Using the Setup Menu

≥ The items displayed differ depending on the position or settings of the mode switch.

Select the menu.

: [SETUP] # desired setting

[CLOCK SET]

Please refer to page 31.

[SET WORLD TIME]

It is possible to display and record the time at the travel destination by selecting your home region and the travel destination.

1 Touch [SET WORLD TIME].

≥ If the clock is not set, adjust the clock to the current time. (l 31) ≥ When the [HOME] (your home region) is not set, the message appears. Touch [ENTER]

and proceed to Step 3.

2 (Only when setting your home region)

Touch [HOME].

≥ Touc h [ENTER].

3 (Only when setting your home region)

Touch / to select your home region and touch [ENTER] .

≥ Touch [SUMMER TIME SET] to set daylight

saving time. appears and the summer time setting is turned on; the time difference from GMT is set forward b y one hour. Touch [SUMMER TIME SET] again to return to the normal time setting.

4 (Only when setting the r egion of your travel

destination)

Touch [DESTINATION].

≥ Touc h [ENTER]. ≥ When the home region is set for the first time, the screen for selecting home/travel

destination appears after setting the home region successi vely. If the home region has already been set once, execute the menu operation for Step 1.

VQT3K69

5 (Only when setting the r egion of your travel

C The local time at the selected

travel destination

D The time difference between

the travel destination and the home region

destination)



Touch / to select your travel destination and touc h [ENTER].

≥ Touch [SUMMER TIME SET] to set daylight

saving time. appears and the summer time setting is turned on. The travel destination time and time difference from the home region time are set forward by one hour. Touch [SUMMER TIME SET] again to return to the normal time setting.

≥ Close the setting by touching [EXIT].

appears and the time of th e travel destination is indicated.



To return the display to the home setting

Set the home region using Step 1 to 3, and close the set ting by touching [EXIT].

≥ If you cannot find your travel destination in the area shown on the screen, set it by using

the time difference from your home region.

[DATE/TIME]

It is possible to change the date and time display mode. ≥ You can also show or change the date and time display by repeatedly pressing the DATE/

TIME button on the remote control.

[DATE FORMAT]

It is possible to change the date format.

[ECONOMY]

When about 5 minutes have passed without any operat ion, th is unit automat ically tu rns of f t o save battery life.

≥ The Power Save function will not activate when:

jconnected to AC adaptor jusing the USB cable for PC, DVD burner etc. jPRE-REC is used

[OFF]/[D/T]/[DATE]

[Y/M/D]/[M/D/Y]/[D/M/Y]

[OFF]/[5 MINUTES]

VQT3K69

[QUICK POWER ON]

The unit is put into recording p ause approx. 1 second when the unit is turned on with the mode set to or .

≥ Depending on the recording conditions, start time may be longer than 1 second. ≥ In the Quick power on mode, the zoom magnification becomes 1k.

[QUICK START]

This unit is put into recording p ause approx. 0.6 seconds after the LCD monitor is reopened or the viewfinder is extended.

≥ When in Quick start standby mode about 80% of the power used in Recording pause

mode is being consumed, so the recording time will be reduced.

≥ Quick start will not work if the [SD CARD] is selected in the [MEDIA SELECT], even if there

is no SD card inserted.

≥ Change the mode to or .

[OFF]/[ON]

1Set [QUICK START] to [ON]. 2 Close the LCD monitor and retract the

viewfinder while the mode is set to or .

The status indicator A flashes green and t he unit goes into Quick start standby mode. ≥ The lens cover does not close.

3 Open the LCD monitor or extend

the viewfinder.

The status indicator A light s red and the unit is put into recording pause.

≥ Quick Start Standby Mode is canceled if

jabout 5 minutes have elapsed jmode is set to

≥ Depending on the recording conditions and men u settings, time for Quick start may be

longer than 0.6 seconds.

≥ It may take some time for Automatic white balance to adjust. ≥ In the Quick Start Mod e, the zoom magnification becomes 1k. ≥ If [ECONOMY] (l 47) is set to [5 MINUTES] an d the u ni t a ut oma ti c all y go e s in to Quic k

Start Standby Mode, close the LCD monit or and vi ewfinder and then open th e LCD monitor or extend the viewfinder again.

≥ Turn the unit off using the power button. ≥ Quick start standby mode ca nnot be released by the remote control.

[REMOTE CONTROL]

Please refer to page 53.

VQT3K69

[OFF]/[ON]

[REC LAMP]

[OFF]/[ON]

The recording lamp lights up during recording and flashes when the unit receive s a signal from the remote control or when the Self-timer is counting down. When this is set to [OFF], it does not light during recording.

[ALERT SOUND]

[OFF]/ /

Touch screen operation, starting and stopping of recording and unit on/off can be confirmed with this sound.

(Volume low)/ (Volume high)

2 Beeps for 4 times

When an error occurs. Check the sentence displayed on the screen. (l 141)

[POWER LCD]

////

This makes it easier to view the LCD monitor in bright places including outdoors.

≥ These settings will not affect the images actually recorded. ≥ It is possible to set from the quick menu. ( l 45)

(Makes even brighter)/ (Makes brighter)/ (Normal)/ (Makes less bright)/

*(Automatic adjustment)

* It is not displayed in the Manual Mode or in the Playback Mode.

≥ When the AC adaptor is in use, the LCD monitor is set to automatically. ≥ When the LCD monitor is bright, the recordable time with the battery will be shorte r.

[LCD SET]

It adjusts brightness and c olor density on the LCD monitor. ≥ These settings will not affect the images actually recorded.

1Touch [LCD SET]. 2 Touch the desired setting item.

[BRIGHTNESS]:

Brightness of the LCD monito r

[COLOR]:

Color level of the LCD monitor

3 Touch / to adjust settings. 4 Touch [ENTER].

≥ Touc h [EXIT] to exit the menu screen.

VQT3K69

[EVF SET]

It adjusts the brightness of the viewfinder. ≥ These settings will not affect the images actually recorded.

1 Extend the viewfinder and open the LCD

monitor.

2Touch [

≥ The viewfinder turns on.

3 Touch / to adjust the setting.

≥ Adjust while checking the picture in the vi ewfinder.

4 Touch [ENTER].

≥ Touch [EXIT] to complete the setting.

[AV MULTI]

Please refer to page 106.

[COMPONENT OUT]

Please refer to page 106.

[HDMI RESOLUTION]

Please refer to page 106.

[VIERA Link]

Please refer to page 107.

[TV ASPECT]

Please refer to page 105.

[3D PLAYBACK]

Please refer to page 109.

EVF SET].

[COMPONENT]/[AV OUT]

[480i]/[1080i]

[AUTO]/[1080p]/[1080i]/[480p]

[OFF]/[ON]

[16:9]/[4:3]

[3D]/[2D]

[INITIAL SET]

Set to [YES] for cha nging the menu settings back to the default condition. ≥ Settings for [MEDIA SELECT], [CLOCK SET] and [LANGUAGE ] will not be changed.

[NUMBER RESET]

Set the file number of the iFrame and still picture recorded next to 0001.

≥ Folder number is updated and file number will start from 0001.(l 135) ≥ To reset the folder number, format the SD card, built-in memory or HDD, and then perform

[NUMBER RESET].

≥ Please be aware that if a medium is formatted, then all the data recorded on the medium

will be erased and cannot be restored. Back up important data on a PC, DVD disc etc. (l 113, 125)

VQT3K69

[FORMAT MEDIA]

HDC-TM900

HDC-HS900

Please be aware that if a medium is formatted, then all the data recorded on the medium will be erased and cannot be restored. Back up important data on a PC, DVD di sc etc. (l 113,

125)

1 Touch [FORMAT MEDIA]. 2

Touch [SD CARD] or [Built-inMemory].

Touch [SD CARD] or [HDD].

≥ When formatting is complete, touch [EXIT] to exit the message screen. ≥ Perform a physical formatting of the SD card when the SD card is to be disposed/

transferred. (l 152)

≥ Perform a physical formatting of the built-in memory/ HDD when this unit is to be dispos ed/

transferred. (l 149)

≥ Do not turn this unit off or remove the SD card, while formatting. Do not expose the unit to

vibrations or shock.

Use this un it to format media. Formatting built-in memory or HDD is only available with this unit. Do not format an SD card using any other equ ipment such as a PC. The card may not be used on this unit.

[MEDIA STATUS]

The used space and remaining recordable time of the SD card, built-in memory or HDD can be checked. ≥ Touc hi ng [CHANGE MEDIA] switc hes the u nit between th e displa y for th e SD c ard and the

display for the built-in memory/HDD.

≥ When the mode switch is set to , remaining recordable time for the selected recording

mode is displayed.

≥ Touch [EXIT] to close the indicati on. ≥ The SD card, built-in memory or built-in HDD requires some space to store infor mation and

manage system files, so the actual usable space is slightly less than th e indicated value. The usable built-in memory/HDD space is generally calculated as 1 GB=1,000,000,000 bytes. The capacitie s of this unit, PCs and software are expre ssed as 1 GB=1,024k1,024k1,024=1,073,741,824 bytes . Therefore, the indicated value of the capacity appears to be smaller.

VQT3K69

[CALIBRATION]

Perform the touch screen calibration if a different object to the one touched is selected.

1Touch [CALIBRATION].

≥ Touc h [ENTER].

2Touch the [_] that appears on the screen with the supplied stylus pen.

≥ Touc h [_] in sequence (up left # down left # down right # up right # center).

3 Touch [ENTER].

[DEMO MODE]

This item is used to start the unit demonstration. (Only when the mode is at the or position) If [DEMO MODE] is switched to [ON] an d you touch [ EXIT] when t here is no S D card inser ted and while this unit is connected to the AC adaptor, the demonstration automatically starts. If any operation takes plac e, the demonstration is canceled. However if no operations take place for approx. 10 minutes, the demonstration automatically starts agai n. To stop the demonstration, set [DEMO MODE] to [OFF] or insert an SD card.

[OFF]/[ON]

[O.I.S. DEMO]

This item is used to start the Optical Image Stabilizer demo. (Only when the mode is at the position) Touch [O.I.S . DEM O ], th e d em o n str a ti o n au t om a tica l l y star ts. When you touch [EXIT], the demonstration will be canceled.

[LANGUAGE]

You can select the language on the scre en display and the menu screen.

VQT3K69

Basic

STILL ADV STILL ADV

/VOL

DATE/TIME

START/

STOP

EXT DISPLAY

PLAY

STOP

SKIP SKIP

PAUSE

2 3

Using with the remote control

Select the menu.

: [SETUP] #

[REMOTE CONTROL] # [ON]

1 Power on/off button [ ]

Unit can be turned on/off when the LCD monitor is opened or the viewfinder is extended.

≥

Unit cannot be turned on by the power on/ off button when 36 hours have passed after the unit is turned off. Press the power button on the unit and turn the unit back on.

≥ Unit cannot be turned off when it is

connected to the PC or the DVD burner.

2 Photoshot button [ ] 3 On-screen display button

[EXT DISPLAY] (l 105)

4 Playback operation buttons (l41, 89)

These buttons function in the same manner as the corresponding playback operation icon being displayed on screen.

5 Delete button [ ] 6 Direction buttons [3,4,2,1] 7 Zoom/volume/thumbnail display

8 Recording start/stop button [START/

9 Date/time button [DATE/TIME] (l 47)

switch button s [T, W, /VOL]*

STOP]

10 Menu button [MENU] 11 OK button [OK]

* means that thes e buttons function in the

same manner as the corresponding buttons on the unit.

Remove the insulation sheet A before using.

Replacing a button-type battery

1 While pressing the stopper B, pull

out the battery holder.

2 Set the button-type battery with it s

(i) mark facing upward and then put the battery holder back in place.

≥ When the button-type battery runs

down, replace it with a new battery (part number: CR2025). The battery should normally last about 1 ye ar, however this depends on how frequently the unit is use d.

≥ Keep the button-type battery out of

reach of children to pre vent swa llowing .

VQT3K69

CAUTION

1515

1010

1515

STILL ADV STILL ADV

STOP

SKIP SKIP

PAUSE

STILL ADV STILL ADV

STOP

SKIP SKIP

PAUSE

Replace battery with Panaso nic PART NO. CR2025 only. Use of another batter y may present a risk of fire or ex plosion. Caution: Battery may explode if mistreated. Dispose of used battery promptly. Keep away from children. Do not recharge, disassemble or dispose of in fire.

∫ Remote control usable range

A Remote control sensor Distance: Within approx. 5 m (16 feet) Angle: Approx. 10o up and 1 5o down, left, and right ≥ The remote control is intended for indoor

operation. Outdoors or under strong light, the unit may not operate properly even within the usable ranges.

Operation of direction buttons/OK button

1 Press a direction button.

≥ Selected item will become yellow.

2 Select the item with the

direction button.

3 Confirm the selection by

pressing the OK button.

≥ Selection/confirmation of operation icons,

thumbnail display etc. can be operated.

≥ All touc h op e r ations on the un it can al s o

be operated by the remote control (some exceptions).

VQT3K69

Advanced (Recording)



Zoom lever/Zoom buttons

T side:

Close-up recording (zoom in)

W side:

Wide-angle recording (zoom out)

A side:

Close-up recording (zoom in)

B side:

Wide-angle recording (zoom out)

0.3

Zoom in/out function

≥ Maximum zoom magnification for recording motion pi ctures can be set with [ZOOM

MODE]. (l 67)

≥ You can also zoom by sim p l y tou c h i ng th e LC D monitor. (Touch Zoom: l 58)

About the zoom speed

The zoom speed will be faster in the order of zoom lever/ring zoom, zoom button/zoom button on the remote control, touch zoom. ≥ The zoom speed varies depending on the r ange over whic h the zoo m lever is moved o r the

speed to rotate the ring .

≥ The zoom operation using the zoom butto n, zoom button on the remote control or touc h

zoom will be performed at a constant speed.

Ring zoom

Zoom operation can be done using the multi manual ring.

Zoom by rotating the ring.

Extra Optical Zoom

If the number of the re cordin g pi xels is set to anything other than the maximu m number of recording pixels in Still Picture Recording Mode, the still picture can be record ed wit h a zoom ratio of a maximum of 25k without degrading the picture quality. ≥ Extra optical zoom ratio varies depending

on the setting of [PICTU RE SIZ E ] a nd [ASPECT RATIO]. (l 78, 79)

∫ Extra optical zoom mechanism

When you set the picture size to , the maximum area is cropped to the center

zoom effect.

12.2

area, allowing a picture with a higher

VQT3K69

≥ If you take your finger off the zoom lever during zoom operation, the operation sound may

O.I.S.

Optical image stabilizer button

Press the bu t t o n to tu r n optical imag e stabilizer on/of f. (Motion Picture Recording Mode)

/ # (setting canceled)

≥ When [HYBRID O.I.S.] is [ON], is displayed. When

[OFF], is displayed.

≥ When recording with a tripod in Motion Picture Recording

Mode, we recommend that you s et t he i mage st abi lizer of f .

(Still Picture Recording Mode)

/ # (setting canceled)

≥ When [O.I.S.] is [MODE1], is displayed. When

[O.I.S.] is [MODE2], is displayed.

be recorded. When returning t he zoom lever to the original position, move it quietly.

≥

When the zoom magn ific atio n is 1 2k, the subjects a re foc use d at abo ut 1. 2m (3.9 feet) or more.

≥ When th e zo om m ag n i fi ca ti o n i s 1k, this unit can focus on a subject approx. 4cm (1.6q)

away from the lens.

Advanced (Recording)

Image Stabilizer Function

Use the image stabilizer to reduce the effects of shake during recording. This unit is equipped with Hybrid Optical Image Stabilizer. Hybrid Optical Image Stabilizer is a hybrid of optical and electrical image stabilizer.

≥ Please refer to page 60 for details about the Optical Image Stabilizer Lock .

∫ Changing Image Stabilizer Mode

(Motion Picture Recording Mode)

: [RECORD SETUP] # [HYBRID O.I.S.] # [ON] or [OFF]

When set to [ON], you can further improve image stabilization for recording wh ile walking, or holding the unit and recording a distant subject with zoom. ≥ This function’s default setting is [ON].

(Still Picture Recording Mode)

: [RECORD SETUP] # [O.I.S.] # [MODE1] or [MODE2]

[MODE1]:

The function works all the time.

[MODE2]:

The function works when the button is pressed. We reco mmend using this mode when you are recording yourself or recording with a tripod in Still Picture Recording Mode.

VQT3K69

Advanced (Recording)

1080/60p b utton

To set to 1080/60p recording mode, press and hold the button until is displayed. ≥ To r eturn to nor mal recor ding mode, pre ss and hold

the button until disappears.

1080/60p recording

This is a 1080/60p (1920k1080/60 progress ive) reco rding mode th at can recor d in maximu m quality*. * This means the highest quality for this unit.

≥ Please refer to page 155 for details about approximate recordable time.

1080/60p

≥ The scenes recorded in 1080/60p can be s aved or played back by this unit or by using

the HD Writer AE 3.0 so ftw ar e .

VQT3K69

Advanced (Recording)

≥ An icon is displayed in the

A position when the Touch function icon is set.

B Touch zoom bar C Zoom magnification

position

Recording with the Touch function

You can record using convenient funct i ons just by the easy operation of touching the screen.

1 Touch (left side)/ (right side) of on

the Touch Menu to display Touch function icons. (l 30)

2 (e.g. AF/AE tracking)

Touch the Touch function icon.

≥ To cancel, touch the Touch function icon aga in. (Optical

Image Stabilizer Lock is canceled by releasing the finger touching .)

Touch function icons

Touch Zoom AF/AE tracking Optical Image Stabilizer Lock Touch Shutter

*1 In Motion Picture Recording Mode only *2 In Still Picture Recording Mode only.

Touch Zoom

You can zoom by touching on the touch zoom bar.

≥ Touc h zoom function is useful for making fi ne adjustments to the zoom magnification.

1Touch .

≥ Touc h zoom bar appears. ≥ The touch zoom bar will disappear when no function is

performed for a specific period of t i me. To display it again, touch the screen.

2 Touch and hold the touch zoom bar.

≥ You can zoom to the touched position. ≥ Touch T side to zoom in or touch W side to zoom out. ≥ You can also z oom by slidi ng the touch z oom bar toward the

T or W while touching it.

≥ Screen display will disappear when no function is per formed for a specific period of time.

To display it again, touch the screen whil e Touch zoom bar is displayed.

≥ Please refer to page 55 for details about the zoom speed.

VQT3K69

AF/AE tracking

A Target frame

It is possible to set the focus and exposure to the subject specified on the touch screen. The focus and exposure w ill keep f oll owi ng the subje ct a utomati ca lly e ven i f i t move s. (Dynamic tracking)

1Touch .

≥ When [FACE RECOG.] (l 69) is [ON] and a registered face is detected, the target is

automatically locked.

2 Touch the object and lock the target.

≥ When you touch the head of the object, the target

frame on the head gets locked and tracking starts.

≥ Touc h the object to be changed again when you want

to change the target.

≥ When the Intelligent Auto Mode is selected, t he setti ng

becomes (Normal) and touched object is tracke d. Selection becomes (Portrait) when target frame is locked on a face. (It may turn to (Normal) even if the target is locked on the face when a spotlight is shining or with a dark scene.)

3 Start recording.

∫ About target frame

≥ When target lock fails, the target frame blinks in red and then disappears. Touch a

characteristic part (color etc.) on the object to lock onto it again.

≥ When the button is pressed halfway in Still Picture Recording Mode, the f ocus is set to

the object that is locked. The target frame turns green when it foc uses, and the target cannot be changed.

≥ This function cannot be used in Manual Mode. When Manual Mode is set in Still Picture

Recording Mode, it can only be used with some settings in Scene Mode.

≥ It may track different objects or may not lock the target depending on the recording

conditions such as the following:

jWhen the object is too large or too small jWhen color of the object is similar to the background jWhen the scene is dark

≥ When the target is locked in Still Picture Recording Mode, the screen may become dark or

the AF assist lamp may turn on.

≥ AF/AE tracking will be canceled in the following cases.

jWhen the mode is changed jWhen the un i t i s tur n ed off jWhen the Scene mode is se t jSwitch to Intelligent Auto Mode/Manual Mode jSwitch to face-to-face recording

VQT3K69

Optical Image Stabilizer Lock

In Motion Picture Recording Mode, you can further improve optical image stabilization by touching and holding Optical Image Stabilizer Lock icon. With this function, you can further reduce the effects of the shake that tends to occur when using zoom.

A Optical Image Stabilizer Lock icon

1 Press the Optical Image Stabilizer button to turn the image stabilizer on. 2 Touch and hold .

≥ is display ed while you are touching the icon. ≥ Optical Image Stabilizer Lock is released when you remove your finger from the icon.

∫ To set the display method of the Op tical Image Stabilizer Loc k icon

: [RECORD SETUP] # [O.I.S. LOCK DISPLAY] # desired setting

[OFF]: [ON]: Constantly display.

≥ Stabilization may not be possible under strong shaking conditions. ≥ To record while moving the unit quickly, release Optical Image Stabilizer Lock.

If no operation is performed for approx. 5 seconds, the icon disappears.

Touch Shutter

It is possible to focus and record a still picture of a subject that is touched.

1Touch . 2 Touch the subject.

≥ Focus area will display to the touched position, and a

still picture is recorded.

≥ Depending on the recording co ndit ions or recog nition of the t ouche d p ositi on, it ma y no t be

possible to record the intended picture.

VQT3K69

Advanced (Recording)

Recording functions of operation icons

Select the operation icons to add different effects to the images to be recorded.

1 Touch (left side)/ (right side) of on

the Touch Menu to display the operation icons. (l 30)

≥ Touc h / on Touch Menu to switch pages upward or

downward.

2 (e.g. Backlight compensation)

Touch an operation icon.

≥ Select the operation icon again to cancel the f unction. ≥ Refer to the respective pages for canc elled the following

functions.

jSmile shot (l 63) jBuilt-in flash (l 63) jSelf-timer (l 64) jGuideline (l 65)

Operation icons

Fade Intelligent contrast control PRE-REC Smile shot Built-in flash Red-Eye Reduction Self-timer

*1 Not displayed in Still Picture Recording Mode. *2 Not displayed in the Intelligent Auto Mode. *3 Not displayed in Motion Picture Recording Mode. *4 It is displayed only when a headphone is connected to the headphone output te rminal. ≥ If you turn off the unit or change the mod e to , PRE-REC, Backlight compensation,

Color night rec, Self-timer and Tele macro functions are canceled.

≥ If you turn off the unit, the Fade f unction is canceled. ≥ It is possible to set from the menu.

(Except for the PRE-REC and Headphone volume adjustment)

*1, 2

*2, 3

Intelligent exposure Backlight compensation Soft skin mode Tele macro Guideline Color Night Rec Headphone volume adjustment

*2, 3

*1, 2

VQT3K69

Fade

(Fade in)

(Fade out)

PRE-REC

When you start recording, the image/audio gradually appears. (Fade in) When you pause recording, the image/audio gradually disappears. (Fade out)

≥ The Fade setting is canceled when the record ing stops.

∫ To select the color for Fade in/out

: [RECORD SETUP] # [FADE COLOR] #

[WHITE] or [BLACK]

≥ The thumbnails of scenes recorded using fade in beco me black (or white).

Intelligent contrast control

This brightens parts that are in shadow and difficult to see and suppresses white saturation in bright parts at the same time. Both bright and dark parts can be recorded clearly.

≥ If there are extremely dark or brigh t pa rts or the bri ghtness is insuff icient, the ef fect ma y not

be clear.

PRE-REC

This prevents you from missing a shot.

This allows recording of the pictures and sound to start approximately 3 seconds before the recording start/stop button is pressed.

≥ appears on the screen.

≥ Aim the unit at the subject beforehand. ≥ There is no beep sound. ≥ PRE-REC is canceled in the following cases.

jIf you change the mode jIf you remove the SD card while [MEDIA SELECT] is set to [VIDEO/SD CARD] jIf you touch [MENU] or [Q.MENU] jIf you press 1080/60p button jIf you turn the unit off jIf you start recording jAfter 3 hours have passed

After setting PRE-REC, if recording starts in less than 3 seconds, or while the PRE-REC

≥

indication flashes within about 3 seconds after initiating the Quick start operation, motion pictures taken 3 seconds before pressing the recording start/stop button cannot be recorded.

≥ Images displayed on the thumbnail in Playback Mode will differ from the motion pictures

displayed at the start of playback.

VQT3K69

Smile shot

13.3

8.3M2.1

When a smiling face is detected during motion picture recording, the unit automatically records a still picture.

The icon changes each time it is to uched.

([ON]) # ([FACE RECOG.]) # [OFF]

: The unit records a still picture on detecting a smiling face. : Still pictures are only recorded when the face of a person registered using Face

Recognition

(

l 69) is detected. [OFF]: Cancel the setting. ≥ During Smile Shot recording, t he face detected as a smiling face is surrounded by a green

frame and / are red.

≥ Smile Shot recording will not work in the following cases. ( / will flash)

When [MEDIA SELECT] is set to [PICTURE/SD CARD], and there is no SD card inserted.

jWhen it is set to Manual Focus jWhen the Inte r v a l reco r d ing is u sed

When [FACE RECOG.] is set to [OFF], or no one is registered (In ([FACE RECOG.])

only)

≥ Depending on the recording conditions (t ype of smile, camera shake, etc.), the fa ce of the

subject may not be detected correctly.

≥ The number of recording pixels are (4864k2736), (3840k2160) or

(1920k1080). (l 78)

≥ When still pictures that have been recorded using the Smile Shot are displayed as

thumbnails, the appears.

≥ When the AF/AE tracking function is target locking a face of the subject, still pictures are

only recorded if a smiling face is detected on the locked subject. When the Smile Shot function is set to ([FACE RECOG.]), it will record only if the face of a subject registered with [FACE RECOG.] is locked as a target.

Built-in flash

When the button is pressed, the flash is activ ated and the picture will be recorded. Use the Built-in flash in order to record still pictures in dark places.

Each time the ß icon is selected, the indication changes by one setting in the following order: ß ([ON]) # ßA ([AUTO]) # ([OFF])

≥ The unit automatically determines if the flash is necessary even when it has been set to

by detecting the ambient brightness. (If it determines that th e flash is necessary, the indication lights up in red.)

∫ To adjust the brightness of the flash

: [PICTURE] # [FLASH LEVEL] # desired setting

[ßj]: Less bright [ßd0]: Normal [ßi]: Much brighter

≥ The light from the flash may be blocked by th e lens hood when the lens hood is attached. ≥ Do not use the flash with the ND filter (optional) or the conversion lens (optional) attached. ≥

If the ß indication etc. flashes when the button is pressed halfway, the flash is not activated.

VQT3K69

≥ The available range of the flash is approx. 1 m to 2.5 m (3.3 feet to 8.2 feet) in dark places. ≥ Using the flash fixes a shutter speed to 1/500 or slower.

Red-Eye Reduction

Reduces the phenomena where hu man eyes become red from flashes.

≥ The flash is activated 2 times. ≥ The red-eye phenomenon tends to appear in certain recording conditions and more with

some people than with others.

≥ When faces are detected in the Intelligent Auto Mode, the Red-Eye Reduction is set to on.

Self-timer

This is for recording still pictures using the timer.

Each time the icon is selected, the indication changes by one setting in the following order: Ø10 (Records after 10 seconds) # Ø2 (Records after 2 seconds) # setting cancel ed ≥ When the button is pressed, a still picture is recorded after the Ø10 or Ø2 display

and the recording lamp flashes for the time which has been set. After recording, the Self-timer is canceled.

≥ In Auto Focus Mode, if the button is pressed halfway once and then fully, the lens

focuses on the subject when the button is pressed halfway. If the button is pressed fully all at once, the lens focuses on the subject just before recording.

To stop the timer midway through

Touch [CANCEL].

≥ Setting the Self-timer to Ø2 is a good way to preve nt image sha ke when the button is

pressed while using a tripod etc.

≥ Self-timer can be stopped midway by pressing MENU on the remote control.

Intelligent exposure

This brightens dark areas so the image can be recorded clearly.

≥

If there are extremely dark parts or the brightness is insufficient, the eff ect may not be clear.

Backlight compensation

This makes the image brighter to prevent darkening of a backlit subject.

Soft skin mode

This makes skin colors appear softer for a more attractive appearance. This is more effective if you record a person closely from the torso up.

≥ If the background or anything els e in th e scene has colo rs similar to the sk in colo r, they will

also be smoothed.

≥ If the brightness is insufficient, the effect may not be clear. ≥ If you record a person in the distance, the face may not be recorded clearly. In this c ase,

cancel Soft Skin Mode or zoom in on the face (close-up) to record.

VQT3K69

Tele macro

A more impressive image can be obtained by focusing on the object only in close-up and shading off the background.

≥ The unit can focus on the subject at a distance of approx. 70 cm (28q). ≥ When the Tele macro is set with the zoom ma gnifi cati on les s th an 1 2k, it will automati cally

be set to 12k.

≥ Tele Macr o function is canceled when the zoom magnification becomes lower than 12k.

Guideline

You c an check if the image is level while recording or playing back motion pi ctures and still pictures. The function can also be used to estimate the balance of the composition.

It will switch every time the icon is touched.

# # # Setting canceled

≥ It is possible to set from the quick menu. ( l 45) ≥ The guidelines do not appear on the images actually recorded.

∫ Displaying Guidelines at playback

≥ Change the mode to and touch the play mode select icon. Then set [VIDEO/

PICTURE] to [1080/60p], [AVCHD] or [iFrame]. (l 41)

: [VIDEO SETUP] # [GUIDE LINES] # desired setting

≥ To ca ncel the Guideline function during play back, set to [OFF]. ≥ It cannot be set while in Still Pict ure Playback Mode.

Color Night Rec

This function allows you to record color images in very low light situations. (Minimum required illumination: approx. 1 lx)

≥ Recorded scene is seen as if frames were missed. ≥ If set in a bright place, the screen may become washe d out for a while. ≥ Bright dots that are usually invisi ble may be seen, but this is not a malfunction. ≥ Using a tripod is recommended. ≥ In darker are as , Au to Foc us ma y focu s a bi t slow e r. This is normal.

Headphone volume adju stme nt

Adjust the volume of the headphone while recording. (When the LCD monitor is in use)

: Increase the volume : Decrease the volume

≥ Actual volume to be recorded does not chang e.

VQT3K69

Advanced (Recording)

Recording functions of menus

[SCENE MODE]

When you record images in dif fere nt si tuations , this mode automat ically set s opt imum shut ter speeds and apertures.

: [RECORD SETUP] # [SCENE MODE] # desired setting

[OFF]: Cancel the setting

5Sports: To make fast moving scenes less shaky with slow playback

Portrait: To make people stand out against the background Spotlight: Improved quality when subject is brightly illuminated. Snow: Improved image quality when shooting in snowy locations. Beach: To make blue in the sea or sky vibrant Sunset: To make red in the sunrise or sunset vibr ant Fireworks: To capture the fireworks in the night sky beautifully Scenery: For spatial scenery

Night scenery: To capture the evening or night scenery beautifully.

Low light: For dark scene s, such as at dusk

Night portrait: To capture a person and the background brightly.

and pause of playback

(In Motion Picture Recording Mode only)

(In Still Picture Recording Mode only)

≥ (Sports/Portrait/Spotlight/Snow/Beach/Sunset/Scenery)

jThe shutter speed is 1/8 or more in S till Picture Recording Mode.

≥ (Sunset /L ow light)

jThe shutter speed is 1/30 or more (When [DIG ITAL CINEMA] is [ON], it is 1/ 24 or more.)

in Motion Picture Recording Mode.

≥ (Sunset/Fireworks/Scenery/Night scenery)

jImage may get blurry when a close object is recorded.

≥ (Sports)

jDuring normal playback, the image movement may not look smooth. jColor and screen brightness may change under indoor lighting. j

If the brightness is insuf ficient, th e S p orts Mode doe s not fun ction. The 5 display flashes.

≥ (Portrait)

jColor and screen brightness may change under indoor lighting.

≥ (Fireworks)

jThe shutter speed is 1/30. jImage may get washed out when recorded in bright surroundings.

VQT3K69

≥ (Night scenery/Night portrait)

jThe shutter speed is 1/2 or more in S till Picture Recording Mode. jUsing a tripod is recommended.

≥ (Night portrait)

jThe flash is set to [ON].

[ZOOM MODE]

Set the maximum zoom ratio for the Mot i on Picture Recording Mode.

: [RECORD SETUP] # [ZOOM MODE] # desired setting

[Opt.Zo om 12 k]: Optical zoom only (Up to 12k) [i.Zoom 20k]: This zoom function allows you to maintain high-definition

picture quality (Up to 20k)

[D.Zoom 30k]: Digital zoom (Up to 30k) [D.Zoom 700k]: Digital zoom (Up to 700k)

≥ The larger the digital zoom magnificati on, the more the image quality is degraded.

≥ This function cannot be used in Still Picture Recording Mode.

[REC MODE]

Switch the picture quality an d recording format of the motion pictures to be recorded.

: [RECORD SETUP] # [REC MODE] # desired setting

≥ It is possible to set from the quick menu. (l 45)

[HA]/[HG]/[HX]/[HE]*1: Set the recording m ode to AVCHD . [iFrame]*2: Set the recording mode to iFrame.

*1 Recording will have higher quality in the order of [HA], [HG] , [HX], and [HE]. *2 iFrame is a format suitable for Mac (iMovi e’11). It is recommended fo r when using a Mac.

≥ Recordable time using the battery (l 23) ≥ This function’s default setting is [HG] mode. ≥ Please refer to page 155 about approximate recordable time. ≥ When the unit is moved a lot or moved quickly, or when a fast-moving subject is recorded

(particularly when recording in [HE] mode), mosaic-type noise may appear at play back.

VQT3K69

[TIME LAPSE REC]

A scene that moves slowly for long pe riod of time is recorded fra me by frame with an interval, and is recorded as a short time motion picture. A frame is recorded with a set recording interval. 30 frames will make up motion picture of 1 second.

≥ Set [ZOOM MODE] to [Opt.Zoom 12k]. (l 67) ≥ Set [REC MODE] to [HA], [HG], [HX] or [HE]. (l 67)

: [RECORD SETUP] # [TIME LAPSE REC] # desired setting

[OFF]:

Cancel the setting

[1 SECOND]/[10 SECONDS]/[30 SECONDS]/[1 MINUTE]/[2 MINUTES]:

Change the recording interval.

≥ appears on the screen. ≥ After recording, the setting of interval recording is canceled. ≥ Audio cannot be recorded.

Setup time

Setup example

Sunset 1 s Approx. 1 h Approx. 2 min

Blooming 30 s Approx. 3h Approx. 12 s

≥ Maximum recordable time is 12 hours.

≥ Still picture recording cannot be used. ≥ Recording mode cannot be changed when the Interval recording is set. ≥ If you turn off the unit or change the mode to , this function is canceled. ≥ The shortest motion picture recording time is 1 second. ≥ Color balance and focus may not be adjusted automa tically depending on light sources or

scenes. If so, manually adjust these settings. (l 83, 85)

(recording

interval)

Recording time Recorded time

[DIGITAL CINEMA]

Use this function to record an image with vi vid color, like an image on a movie film.

≥ Switch to Manual Mode. (l 82) ≥ Set [ZOOM MODE] to [Opt.Zoom 12k]. (l 67) ≥ Set [REC MODE] to [HA] or [HG]. (l 67)

: [RECORD SETUP] # [DIGITAL CINEMA] # [ON]

≥

The shutter speed is 1/48 or more. (When [AUTO SLOW SHTR (2D)] is [ON], it is 1/24 or more.)

≥ The images may not appear smooth.

VQT3K69

[RELAY REC]

HDC-TM900

It is possible to continuously record motion picture to an SD card when there is no space available in the built-in memory. (It allows you to record on ly to SD card from built-in memory.)

≥ Set [MEDIA SELECT] to [Built-inMemory]. ≥ Set [REC MODE] to [HA], [HG], [HX] or [HE] (l 67), or se t to 10 8 0/60p record ing

mode. (l 57)

≥ Insert an SD ca rd.

: [RECORD SETUP] # [RELAY REC] # [ON]

≥ is displayed on the screen. will disappear when space in the built-in memory i s

gone and the recording to the SD card starts.

≥ Relay recording can only be performed once. ≥ Combine the scenes that were relay-recorded using the [RELA Y SCENE COMBINE]

into the SD card. ( l 101, 111)

≥ Once you have performed [RELAY SCENE COMBINE], you can use t he Relay Recording

function again. If the [R ELAY REC] is set to [ON] without performing the [RELAY SCENE COMBINE], a message is displayed. You will be able to perform Relay Recording by touching [YES], but you will not be able to perform the [RELAY SCENE COMBINE] after that.

≥ Still pictures are recorded to the SD card after Relay recording. ≥ is displayed on the thumbnail display during the playback of a scene that was relay-

recorded on the built-in memory.

[FACE RECOG.]

Face Recognition is a functio n for find ing faces th at resemble f aces which hav e already bee n registered and automatically prioritizing focus and exposure for those faces. This function makes it possible to keep the face of your loved ones in focus even when th ey are at the back or on the end of a line in a group picture.

: [RECORD SETUP] # [FACE RECOG.] # desired setting

[OFF]: Cancel the setting [ON]: The Face Recognition function is available [SET]: Face Recognition registration/editing/cancellation

VQT3K69

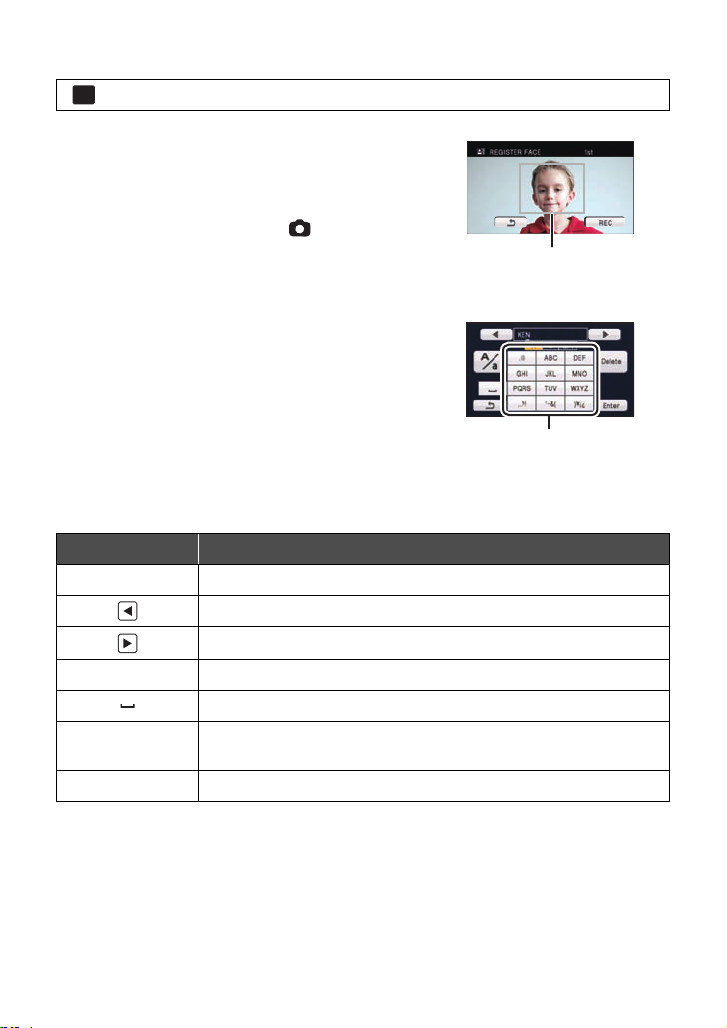

∫ Registering a face for face recognition

A Guide



B Text entr y icon

: [RECORD SETUP] # [FACE RECOG.] # [SET] # [SET]

≥ Up to a maximum of 6 people can be registered.

1 Align the person’s face with the guide.

≥ Tak e a picture of the persons face from the front,

ensuring that their hair does not hide the outline of their face, their eyes or their eyebrows.

2 Touch [REC] or press the button fully.

≥ Touc h [ENTER]. ≥ It may not be possible to register a face dep ending

on the recording condition s. In this case, try recording the fa ce ag ain .

3 Entering the pe r s on’s name.

≥ Touc h the text entry icon in the center of the screen

and enter the name.

≥ After entering the name, touch [Enter].

Entering text

Icon Description of operation

[A] etc. Enters a character.

Moves cursor left. Moves cursor right.

[A/a] Swit ches between [A]/[a] (alphabet) and [&/1] (symbols/numbers).

Enter a space.

[Delete]

[Enter] Ends text entry.

≥ A maximum of 9 characters can be entered.

4 Touch [ENTER] to end registration.

≥ Touch [EXIT].

Deletes a character. Deletes the previous charact er if the cursor is in an empty space.



VQT3K69

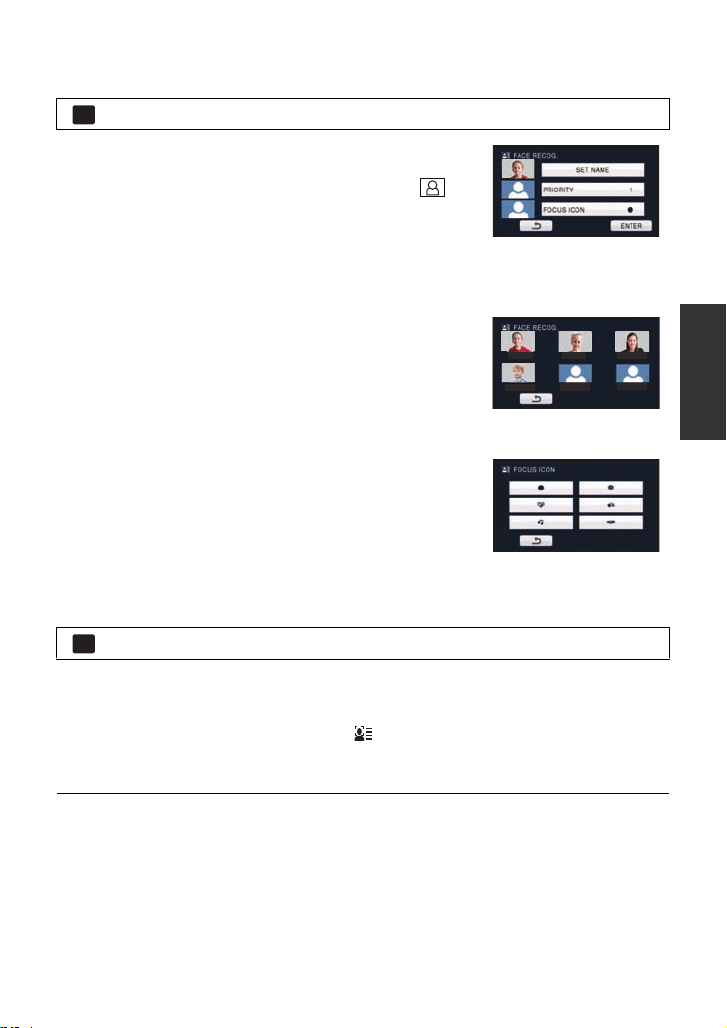

∫ Changing the information of a registered person

ANNAKEN MARY

JOE

111222333

444

555

666

123

1 Select the menu.

: [RECORD SETUP] # [FACE RECOG.] # [SET] # [EDIT]

2 Touch the desired item to enter the setting.

≥ Up to 3 face shots can be registered. To additionall y regi ster

or to change/delete the registered face shots, touch or the face shot.

≥ If you register several face shot s of the s ame person ( up to 3

face shots can be registered), each with a different facial expression or different background, it is more likely that face recognition will be successful.

[SET NAME]:

Change the name.

[PRIORITY]:

Focus and exposure will be set in priority according to the registration order setting from the first person. Ta rget will be locked according to the registration order setting from the first person when AF/AE tracking is active. ≥ To change the registration order, select the person you wish

to change.

[FOCUS ICON]:

This changes the focus indication icon that appe ars durin g still picture recording. (Only display ed when Face Recogn ition is in use.) ≥ Touc h the icon you wish to have displayed.

3 Touch [ENTER].

∫ Canceling a registered person

1 Select the menu.

: [RECORD SETUP] # [FACE RECOG.] # [SET] # [DELETE] or [DELETE ALL]

≥ Touching [DELETE ALL] cancels all the registered people.

2 (When [DELETE] is selected)

Touch the person to cancel.

≥ When touched, the person is sele cted and is displayed. To cancel the selected person,

touch again.

≥ Touc h [ENTER].

≥ Since face recognition searches for faces that resemble the registered faces, there is no

guarantee of positive recognition.

≥ It may not be possible to correctly recognize a person who has been registered due to

differences in facial expression and environment.

≥ Perform the registration again if recognition becomes unstable in cases such as when

facial features change with age.

VQT3K69

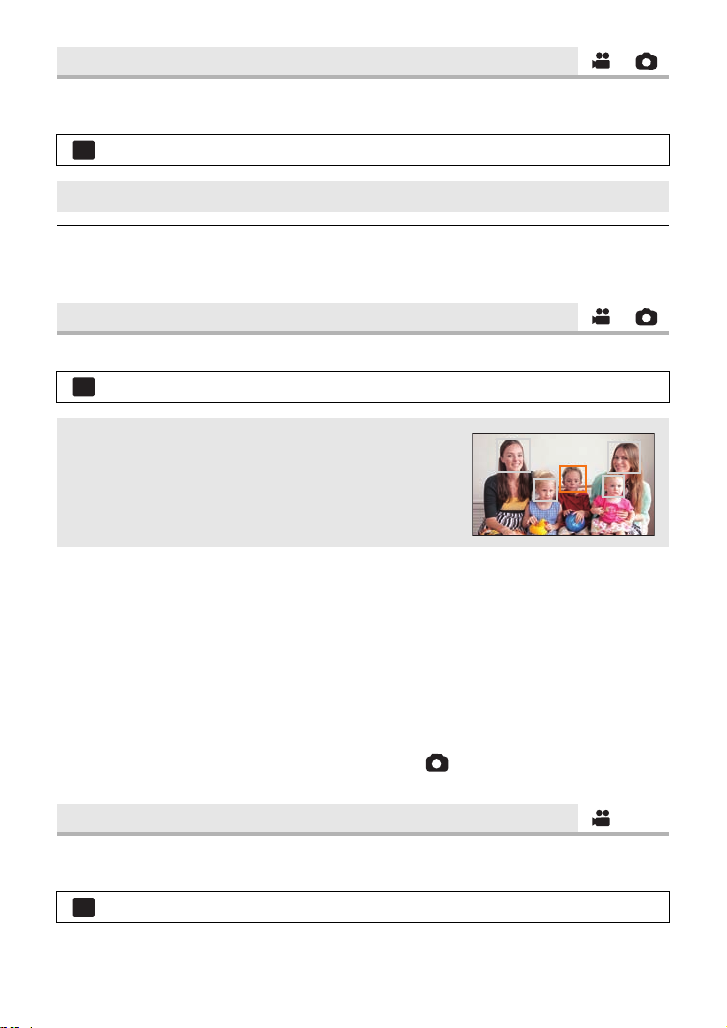

[NAME DISPLAY]

When a registered person is detected by face recognition during recording, the name registered for that person is displayed.

: [RECORD SETUP] # [NAME DISPLAY] # desired number

[OFF]/[1]/[2]/[3]

≥ Displayed name will disappear after a while. ≥ It is displayed according to the registration order setting from the first person. ≥ This function is not displayed during the face-to-face recording or Playback Mode .

[FACE FRAMING]

Detected faces appear with frames.

: [RECORD SETUP] # [FACE FRAMING] # desired setting

[OFF]:

Cancel the setting.

[PRIMARY]:

Only the prioritized face framing is displayed.

[ALL]:

All face detection fram ings are displayed.

≥ Up to 15 frames are indicated. Larger faces and faces nearer to the ce nter of the screen

take preference over others. When [FACE RECOG.] is [ON] registered people are given priority.

∫ Prioritized face framing

Prioritized face framing is displayed as orange frames. Focus and adjustment of brightness will be performed against the prioritize d face framing.

≥ Prioritized face framing is only displayed with Portrait Mode in the Intelligent Auto Mode. ≥ The white frame is for face detection only. ≥ Focus will be set to prioritized face framing and the brigh tness adjusted when t he unit is set

to Portrait mode in Intelligent Auto Mode.

≥ Focus will be set to prioritized face framing when the button is pressed halfway when

recording still pictures. Prioritized face framing will turn to green when the focus is set.

[AUTO SLOW SHTR (2D)]

You can record bright pictures even in dark places by slowing the shutter speed.

≥ Switch to Manual Mode. (l 82)

: [RECORD SETUP] # [AUTO SLOW SHTR (2D)] # [ON]

≥ The shutter speed is set to 1/30 or more depending on the surrounding brightness.

VQT3K69

≥ This function cannot be used when using the 3D Conv ersion Lens (optional).

≥ This function cannot be used in Still Picture Recording Mode. ≥ When the shutter speed becomes 1/30, the screen may be seen as if frames are missed

and afterimages may appear.

[AUTO SLOW SHTR (3D)]

This auto slow shutter function is only used with the 3D Conversion Lens (optional).

: [RECORD SETUP] # [AUTO SLOW SHTR (3D)] # [ON]

≥ For details, refer to [AUTO SLOW SHTR (2D)].

≥ This function’s default setting is [ON]. ≥ When a 3D Conversion Lens is used, the recording scene will become darker. We

recommend setting this function to [ON].

[AGS]

If the unit continues to be tilted upside down from the normal horizon tal position while recording motion pictures, it is automatically put into recording pause.

: [RECORD SETUP] # [AGS] # [ON]

≥ The AGS function may activate and cause the unit to pause the recording if you are

recording a subject right ab o ve or right below yo u .

[Digital Cinema Color]

Recording motion pictures with more vivid colors, using x.v.Color™ technology.

≥ Switch to Manual Mode. (l 82) ≥ Set [REC MODE] to [HA], [HG], [HX] or [HE] (l 67), or se t to 10 8 0/60p record ing

mode. (l 57)

: [RECORD SETUP] # [Digital Cinema Color] # [ON]

≥ For more realistic colors, use an HDMI mini cable with a TV that supp orts the x.v.Color

≥ When motion pictures recorded while this function is turned [ON] are played back

with a TV not compatible with x.v.Color

≥ To play back images recorded in Digital cinema color with vivid colors of wider color

ranges, a device compatible with x.v.Color back with devices other than ones c ompatibl e with x.v.Color the images after this fu nc ti o n is turn ed [OFF].

≥ x.v.Color

™

is a name for devices that are compatible with the xvYCC format, an

™

, colors may not be reproduced properly.

™

is required. When these images are played

™

, it is recommended to record

international stand ard for expanded color in motion pictures, and that follow the rules for signal transmission.

™

VQT3K69

[SHOOTING GUIDE]

Message is displayed when this unit is move d rapidly.

: [RECORD SETUP] # [SHOOTING GUIDE] # [ON]

When “CAMERA PANNING IS TOO FAST.” appears, move the unit slowly while recording.

≥ Set to [OFF] to turn off the message indication.

≥ Message will not appear while pausing the recording. (Message will appear even if it is

pausing the recording if [DEMO MODE] is set to [ON].)

[WIND NOISE CANCELER]

This will reduce the wind noise coming into the built-in microphones while maintaining the realism.

≥ Switch to Manual Mode. (l 82)

: [RECORD SETUP] # [WIND NOISE CANCELER] # [ON]

≥ This function’s default setting is [ON]. ≥ When switching to Intelligent Auto Mode, [

WIND NOISE CANCELER

] is set to [ON], and the

setting cannot be changed.

≥ You may not s ee the full effect depending on the recording conditions. ≥ If wind sound cannot be reduced with the Wind noise canceler function alone, set [BASS

SETTING] to [LOWCUT]. (l 76)

[MIC SETUP]

Recording setting of the built-in mic rophone can be adjusted.

≥ Switch to Manual Mode. (l 82)

: [RECORD SETUP] # [MIC SETUP] # desired setting

[SURROUND]: Sound is recorded with 5.1ch surround microphone. [ZOOM MIC]:

Directivity of the microphone is synchronized with the zoom operation. Sounds near the front of the unit are recorded more clearly if you zoom in (close-up) and surrounding sounds are recorded more realistically if you zoom out (wide angle).

[FOCUS MIC]: Directivity of the cent er is en hanced f or re cording a udio ne ar th e

front of the unit more clea rly.

[STEREO MIC]: Sound from two directions is recorded in 2 ch by forward-facing

stereo microphones.

VQT3K69

≥ If you wish to record higher quality sound and maintain realism even when zooming in, for

A Center B Front left C Back left D Front right E Back right F Microphone input level

instance, when recordin g a music recital, we recommend setting [MIC SETU P] to [SURROUND].

≥ If you have an external microphone c onnecte d when recor ding in [ iFrame], [ MIC SETUP] is

set to [STEREO MIC] au t oma ti ca ll y.

[MIC LEVEL]

When recording, the input level from the built-in microphones and the external microphone terminal can be adjusted.

≥ Switch to Manual Mode. (l 82)

1 Select the menu.

: [RECORD SETUP] # [MIC LEVEL] # desired setting

[AUTO]: AGC is activated, and the recording level is adjusted

[SETr ]/[SET]: The desired recording level can be set.

≥ It is possible to select the setting fr om the quick menu in Manual Mode. (l 45) The

microphone level returns to the setting adjusted previously, and it cannot be set from the quick menu.

automatically.

2 (When [SETr ]/[SET] is selected)

Touch / to adjust.

≥ Touch to activate/disactivate AGC.

When AGC is activated, the icon is surrounded by yellow and the amount of sound distortion can be reduced. When AGC is disactivated, natural recording can be performed.

≥ Adjust the microphone input level so that the last

2 bars of the gain value are not red. (Otherwise, the sound is distorted.) Select a lower setting for microphone input level.

3 Touch [ENTER] to set the microphone input

level and then touch [EXIT].

≥ (Microphone input level meter) appears

on the screen.

≥ When switching to Intelligent Auto Mode, the setting is fixed to [AUTO] and cannot be

changed.

≥ When [MIC SETUP] is [ZOOM MIC], the volume will be different depending on the zoom

rate.

≥ When [MIC SETUP] is set to [STEREO MIC] or external microphone input is used, the

sound is stereo (2 ch) and only the front-left and front-right input level meters function.

≥ The microphone input level meter shows the larges t volume for the microphones. ≥ You cannot record with the audio completely muted.

VQT3K69

[BASS SETTING]

A Zebra pattern

Change the lower setting of the built-in microphone according to your choice.

≥ Switch to Manual Mode. (l 82)

: [RECORD SETUP] # [BASS SETTING] # desired setting

[0dB]/[+3dB]/[+6dB]/[LOWCUT]

≥ Normally set to [0dB]. ≥ Select [+3dB] or [+6dB] to get strong power feeling at bass level.

[PICTURE ADJUST]

Adjust the quality of the image whi l e recording. Adjust by outputting to a TV while adjusting the quality of the image.

≥ This setting is retained when you change between Motion Picture Recording Mode

and Still Picture Recor ding Mode.

≥ Switch to Manual Mode. (l 82)

1 Select the menu.

: [RECORD SETUP] # [PICTURE ADJUST]

2 Touch the desired setting items.

[SHARPNESS]: Sharpness of the edge [COLOR]: Depth of the color of the image [EXPOSURE]: Brightness of the image [WB ADJUST]: Picture color balance

3 Touch / to adjust settings. 4 Touch [ENTER].

≥ Touch [EXIT] to complete the settings. ≥ appears on the screen.

[ZEBRA]

Parts where white saturation (color saturation) is likely to occur (extremely brightly lit or shiny parts) are displayed with diagonal lines (zebra pattern).

≥ Switch to Manual Mode. (l 82)

: [RECORD SETUP] # [ZEBRA] # [ON]

≥ It is possible to set from the quick menu in Man ual Mode.

(l 45)

≥ You can record an image with little white saturation if you

manually adjust the shutter speed or brightness (Iris/Gain) (l 84).

≥ The zebra pattern does not appear on the images actually recorded.

VQT3K69

[LUMINANCE]

50%

Displays the luminance level of the center of the screen (luminance display frame) in %. It makes the adjustment of the brightness of the object easier, by checking the luminance level of the object, when recording same object in different surroundings. Adjust the brightness using [IRIS]. (l 84)

≥ Switch to Manual Mode. (l 82)

: [RECORD SETUP] # [LUMINANCE] # desired setting

≥ It is possible to set from the quick menu in Manual Mode. (l 45)

[OFF]:

Cancel the setting.

[ALWAYS]:

Constantly display.

[ON ADJUST]:

Display only when [IRIS] is adjusted. (l 84)

A Luminance display frame B Luminance level

≥ Luminance level is displayed between 0% and 99% . I t will be displa yed a s 99% when it is

over 99%.

[HISTOGRAM]

A graph with brightnes s a s horizontal axis and number of pixels at that brightness as v ertical axis is displayed. It is possi ble to determine the exposure of the whole image by looking at the distribution in the graph. Adjust the brightness using [IRIS]. (l 84)

≥ Switch to Manual Mode. (l 82)

: [RECORD SETUP] # [HISTOGRAM] # desired setting

≥ It is possible to set from the quick menu in Manual Mode. (l 45)

[OFF]:

Cancel the setting.

[ALWAYS]:

Constantly display.

[ON ADJUST]:

Display only when [IRIS] is adjusted. (l 84)

A Normal B Dark C Bright

∫ Example of the display

VQT3K69

[PICTURE SIZE]

12.2

7.7

4.9

0.3

14.2

8.6

5.5

13.3

8.3

5.3

13.3

8.3

2.1

The higher the number of pixels, the higher the clarity of the picture when printing.

: [PICTURE] # [PICTURE SIZE] # desired setting

≥ It is possible to set from the quick menu. (l 45)

≥ The number of recording pixels that can be set c hanges depending on selected screen

aspect ratio. (l 79)

∫ Picture size and Maximum zoom ratio

Picture size

4032k3024 3200k2400 13.2k 2560k1920 16.5k

Aspect ratio

[4:3]

Extra optical zoom (l 55)

–

640k480 25k 4608k3072 3600k2400 13.2k

[3:2]

–

2880k1920 16.5k 4864k2736 3840k2160 13.2k

[16:9]

–

3072k1728 16.5k

* Extra optical zoom cann ot be used. The maximum zoom magnification is 12k.

∫ Picture size in Motion Picture Recording Mode

≥ Change the mode to .

: [PICTURE] # [PICTURE SIZE] # desired setting

≥ It is possible to set from the quick menu. (l 45)

Picture size Aspect ratio

4864k2736

[16:9]3840k2160

1920k1080

VQT3K69

≥ This function’s default set tings are in Still Picture Recording Mode and in Motion

13.3

14.2

Picture Recording Mode.

≥ The recording will become longer depending on the recording pixels. ≥ Please refer to page 156 for details about the number of recordable pictures.

[QUALITY]

Selecting the picture quality.

: [PICTURE] # [QUALITY] # desired setting

: Still pictures with a high picture quality are recorded.

: Priority is given to the number of still pictures recorded. S t ill pictures are recorded

in normal picture quality.

[ASPECT RATIO]

This allows you to select the aspe ct ratio of the pictures to suit printing or the playback method.

: [PICTURE] # [ASPECT RATIO] # desired setting

[4:3]: Aspect ratio of 4:3 television [3:2]: Aspect ratio of conventional film camera or prints (such as L-size print) [16:9]: Aspect ratio of high-definition television, etc.

≥ This function’s default setting is [3:2]. ≥ When the aspect ratio is set to [4:3] or [3:2], black bands may appear on the left and right

of the screen.

≥ The edges of still pictures recorded on this unit with a [16:9] aspect ratio may be cut at

printing. Check the printer or photo studio before printing.

VQT3K69

[HI-SPEED BURST]

2.1

A Start point

B Finish point

Recording is done continuousl y at the rate of 60 still pictures per second. Use this function to record an obje ct with fast movement.

1 Select the menu.

: [PICTURE] # [HI-SPEED BU RS T] # desired setting

[OFF]:

Cancel the setting.

[60 frames/sec]:

180 still pictures are recorded continuously at the rate of 60 per second. The picture size is (1920k1080).

2 Press the button.

≥ flashes in red during recording. ≥ First press th e button halfway, then press it fully to set the focu s and record. It will

automatically focus if you press fully once, so it is convenient when r ecording objects moving back and forth.

3 Touch [Record] or [Delete].

[Record]: Pictures are stored. [Delete]: All pictures are deleted.

(

When

[Record] is selected in step 3)

Touch [REC ALL] or [SELECT].

[REC ALL]: All pictures are stored. [SELECT]: Pictures are stored by specifying range.

5 (When [SELECT] is selected in step 4)

Touch the range of pictures that will be stored.

≥ Previous (Next) page is displayed by touching /

* Only select the p ictur e f or st art poi nt if only 1 pict ure is

to be stored.

≥ A confirmation message is displayed when [Enter] is

touched after selecting the start point and finish point. Touch [YES] to store the pictures.

≥ If you turn off the unit or change the mode, this function is canceled. ≥ The maximum number of times you can record on a media is 15.

(In the case of SD cards it is the maximum number of recordable scenes per card.)

≥ Color balance and brightness on the screen may ch ange with some light sources such as

fluorescent lamps.

≥ Image quality is different from ordinary still picture recording.

VQT3K69

[AF ASSIST LAMP]

Illuminating the subject makes i t eas ier for the camera to focus when recording in low light conditions that make f ocusing difficult.

≥ Switch to Manual Mode. (l 82)

: [PICTURE] # [AF ASSIST LAMP] # [AUTO]

≥ The available distance of the AF as sist lamp is approx. 1.5 m (5 feet).

≥ A conversion lens (optional) can block the AF assist lamp, and it will become harder to

adjust the focus.

≥ When switching to Intelligent Auto Mode, the setting is fixed to [AUTO] and cannot be

changed.

[SHTR SOUND]

You can add a shutter sound when recording still pi c tures.

: [PICTURE] # [SHTR SOUND] # desired setting

[OFF]: Cancel the setting.

: Volume low : Volume hi gh

≥ No shutter sound is emitted in Motion Picture Recording Mode.

VQT3K69

Advanced (Recording)

FOCUS

SHTR

IRIS

A Manual icons

Focus (l 85) White balance (l 83) Manual shutter speed (l 84)

Iris adjustment (l 84)

FOCUS

SHTR

IRIS

1/1001001/100

MNL

FOCUS

SHTR

IRIS

1/1001001/100

MNL

FOCUS

SHTR

IRIS

Manual recording

The operation sequence differs for the LCD monitor and viewfinder.

≥ The Manual Focus, White Balance, Shutter Speed, Brightness (Iris and Gain)

settings are ret ained when you cha nge betwe en Motion P icture Re cording Mo de and Still Picture Recording Mode.

Press the iA/MANUAL button or CAMERA FUNCTION button to switch to Manual M ode.

≥ appears on the screen.

MNL

/MANUAL

∫ When using the LCD monitor

1 Touch the desired item to be

set.

2 Touch / to enter the

selection.

≥ Press the iA/MANUAL button to cancel

manual setting.

VQT3K69

∫ When using the viewfinder

1 Press the CAMERA FUNCTION

button to select the desired item.

≥ Selected item changes whenever the

CAMERA FUNCTION button is pressed.

2 Rotate the multi manual ring to

select the setting and p ress the CAMERA FUNCTION button to enter the setting.

≥ Zoom operation cannot be done using the

multi manual ring during setting.

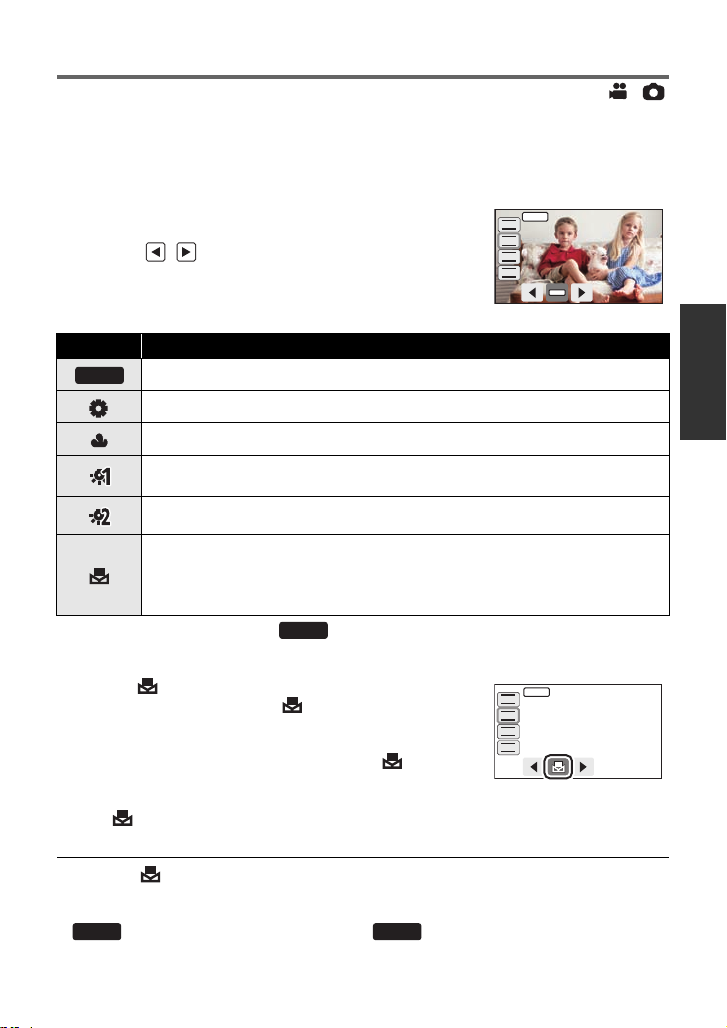

White balance

AWB

MNL

AWB

MNL

FOCUS

SHTR

IRIS

AWB

Automatic white bala nce f uncti on ma y not repro duce natur al c o lors d ependin g o n the s cenes or lighting conditions. If so, you can adjust the white balance manually.

≥ Press the iA/MANUAL button or CAMERA FUNCTION button to switch to Manual

Mode. (l 82)

≥ For how to perform the settings when using the viewfinder, refer to page 82.

1 Touch [WB]. 2 Touch / to select White balance mode.

≥ Select the optimal mode by confirming the color on th e

screen.

≥ Touc h [WB] to determine the mode.

Icon Mode/Recording conditions

Auto white bala nce adjustment Sunny mode: Outdoors under a clear sky Cloudy mode: Outdoors under cloudy sky Indoor mode 1: Incandescent light, video lig hts like in the studio, etc.

Indoor mode 2: Color fluorescent lamps, sodium lamps in gymnasiums etc.

Manual adjustment mode:

≥ Mercury-vapor lamps, sodium lamps, some fl uorescent lights ≥ Lights used for wedding receptions at hotels, stage spotlights in theaters ≥ Sunrise, sunset, etc.

≥ To return to auto setting, set to or press the iA/MANUAL button again.

∫ To set the white balance manually

1 Select , fill the screen with a whi t e subject. 2 Touch and set the blinking .

≥ When using the viewfinder, press and hold the

CAMERA FUNCTION button.

≥ When the screen turns black instant ly and the display

stops flashing and then lights constantly, the setting is complete.

≥ If the display continues flashing, the white balance cannot be set. In this case, use

other Whit e ba l a nce modes.

AWB

FOCUS

SHTR

IRIS

≥ When the display flashes, the manual white balance previously adjusted is stored.

Whenever recording conditions change, re-set the white balance.

≥ When setting both the white balance and the iris/gain, set the white balanc e first. ≥ is no t di s p l a ye d o n th e s cr e en w he n is being set.

VQT3K69

Manual shutter speed/iris adjustment

SHTR

IRIS

Shutter Speed:

Adjust it when recording fast-moving subjects.

Iris:

Adjust it when the screen is to o bright or too dark.

≥ Press the iA/MANUAL button or CAMERA FUNCTION button to switch to Manual

Mode. (l 82)

≥ For how to perform the settings when using the viewfinder, refer to page 82.

1 Touch [SHTR] or [IRIS]. 2 Touch / to adjust settings.

≥ Touch [SHTR]/[IRIS] to complete th e ad ju stm e n ts.

Shutter speed:

1/60 to 1/8000

≥ If [AUTO SLOW SHTR (2D)] is set to [ON], the shutter speed will be set between 1/30 and

1/8000.

≥ If [DIGITAL CI NEMA] is se t to [ON], the shut ter speed will be set between 1/4 8 and 1/80 00.

(When [AUTO SLOW SHTR (2D)] is set to [ON], the range is 1/24 to 1/8000.)

≥ The shutter speed closer to 1/8000 is faster. ≥ The shutter speed will be set between 1/2 and 1/2000 in Still Picture Recording Mode.

Iris/Gain value:

≥ Value closer to CLOSE darkens the image. ≥ Value closer to 18dB brightens the image. ≥ When the iris value is adjusted to brighter than OPEN, it changes to the gain value. ≥ To return to auto setting, press the iA/MANUAL but ton again.

≥ When setting both the shutter speed and th e iris/g ain value, s et the shutt er speed and th en

Manual shutter speed adjustme nt

≥ When the shutter speed is set lower than 1/15 in the Still Picture Recording Mode, using a

≥ You may se e a band of ligh t aroun d an o bject th at i s shining v er y bright , or hi ghly reflec ti ve. ≥ During normal playback, image movement may not look smooth. ≥ If you record an extremely bright object or record under indoor lighting, color and screen

Manual iris/gain adjustment

≥ Luminance level and histogram are displayed during the iris adjustment. (l 77) ≥ If the gain value is increased, the noise on the screen increases. ≥ Depending on the zoom magnification, there are iris values that are not displayed.

(F16 to F1.7) !# OPEN !# (0dB to 18dB)

set the iris/gain valu e .

tripod is recommended. Also, white b alan ce cann ot be set. The shu tter speed will be set to 1/30 when the unit is turned on again or when the Quick start is performed.

brightness may change or a horizontal line may appear on the screen. In this case, record in the Intelligent Auto Mode or set the shu tter speed to 1/60 in areas where the power supply frequency is 60 Hz, or 1/100 in areas of 50 Hz.

VQT3K69

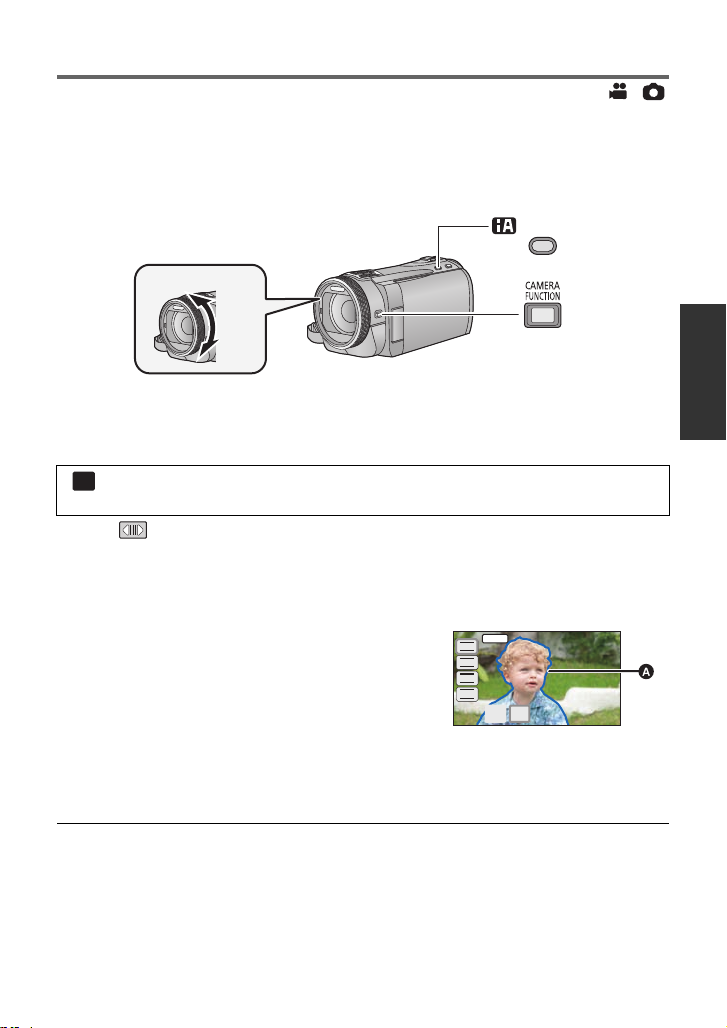

Recording with Manual focus



MNL

MFAF

FOCUS

SHTR

IRIS

A Part displayed in blue

Perform focus adjustments using the multi manual ring. If auto focusing is difficult due to the conditions, then use Manual Focu s.

≥ Press the iA/MANUAL button or CAMERA FUNCTION button to switch to Manual

Mode. (l 82)

≥ For how to perform the settings when using the viewfinder, refer to page 82.

/MANUAL



A Rotate the multi ma nu a l ring to ad j u st th e fo cu s.

1 (When MF assist function is used)

Select the menu.

: [RECORD SETUP] # [MF ASSIST] # [ON]

≥ It is possible to set from the quick menu. (l 45)

≥ Touch to display the Manual icon.

2 Touch [FOCUS]. 3 Touch [MF] to change to Manual Focus.

≥ MF appears on the screen.

4 Adjust the focus by rotating the multi

manual ring.

The in-focus area is displayed in blue. The normal screen returns approximately 2 seconds after you finish bringing the subject into focus. ≥ When [MF ASSIST] is [OFF], the blue area is not

displayed.

≥ To restore Auto Focus, touch [AF] in step 3 or press

the iA/MANU A L bu tton again.

≥ When adjusting the focus, you cannot zoom using the multi manual ring. ≥ The blue display does not appear on the images actually recorded.

VQT3K69

Advanced (Recording)

3D video

The image is an illustration.

Recording 3D video

With the 3D Conversion Lens (optio nal) attached, you can record life -like and powerful 3D video. To view 3D video, a television that supports 3D is required.

≥ In the unit, the recordable 3D videos are side-by-side format (2-screen structure). ≥ Since the 3D video is recorded in side-by-side format, the recorded 3D video is not of high

definition picture qu ality.

∫ Recording 3D video

For details on how to att ach and how to adjust t he atta chment posit ion of the 3 D Conversion Lens, please read the operating instructions for the 3D Convers i on Lens.

When using for the first time , be sure to adjust the 3D Conversion Lens attachment position.

≥ Turn off the unit. ≥ Change the mode to

1 Attach the 3D Conversion Lens to the unit.

≥ Attach the 3D Conversion Lens securely so it will not tilt or move. ≥ You cannot attach the 3D Conversion Lens toget her with the lens hood or a filter etc. ≥ Attach the Lens front cap supplied with the 3D Conversion Lens.

2 Turn on the unit.

≥ Turn on with th e un i t i n a ho r i z o nta l stat e. ≥ The 3D Conversion Lens adjustment mode screen will appear automatically after

performing the initial setting.

≥ If the 3D Conversion Lens adjustment mode screen does not appear automatically,

set from the menu. ([SETUP] # [3D CONV. LENS SETUP])

≥ If the unit is turned on with the USB cable still connected, the USB connection will take

priority.

3 Adjust the 3D Conversion Lens attachment part following the

instructions on the screen.

≥ 2 screens will appear. ≥ The 3D Conversion Lens cannot be adjusted using the viewfinder.

VQT3K69

4 Touch [EXIT] to end the adjustment.

0h00m00s

R 1h20m

A appears.

≥ After adjustment, a single sc r een appears. ≥ When re-attaching the 3D Conversion Lens or

after an impact etc., it is recommended that you perform the adjustment again.



0h00m00s

R 1h20m

5 Press the recording start/stop button to

start recording.

≥ Start recording after removing the Lens front cap. ≥ When the 3D Conversion Lens is attached, the zoom position is fixed, and the zoom

operation is disabled.

≥ When recording in 3D, the image will appear with gray frame ar ound it. The gra y frame will

be record ed in t h e v i de o .

To ensure that the 3D video can be safel y vi ewed, pay attentio n t o the fo ll o wing points when recording.

≥ Where possible, record with the unit in a horizontal state. ≥ Do not get too close to the subject. (record from a distance of at least 1.2 m (3.9 feet).) ≥ When moving the unit as you record, move it slowly. ≥ Try to hold the unit as steady as possible when recording while riding in a vehicle or

walking.

≥ Use of a tripod is recommended for recording with a stable picture. ≥ The reception range for the remote control might become narrow at the upper side of the

unit, so operate from the lower side. (l 54)

≥ [ECONOMY] will not work while you adjust the 3D Conversion Lens attachment position. ≥ When the 3D Conversion Lens is attached, the auto slow shutter setting is [AUTO SLOW

SHTR (3D)]. The default setting of [AUTO SLOW SHTR (3D)] is [ON]. (l 73)

≥ While 3D recording if moving the unit fast, the message is more likely to appear. ≥ If the unit is turned on with the lens cap attached in the shade etc., the screen may appear

to be blue. In such a case, rem o ve th e lens ca p to retu r n th e scre en to norm a l.

VQT3K69

∫ Functions that cannot be used during 3D recording

When recording with the 3D Conversion Lens, you cannot use certain functions.

Functions not available during 3D recording

(Button/lever operations) (Recording functions)

jZoom in/out function jHybrid Optical Image Stabilizer jIntelligent auto mode j1080/60p recording jStill picture record ing (Still Picture

Recording Mode, and still picture recording in Motion Picture Recording Mode)

jManual operations

speed, iris)

j[EXT DISPLAY] (remote control)

(Setup menu)

jQuick power on jQuick start jInitial set

*1 The zoom position is fixed, and the zoom operat i on is disabled. *2 The Optical Image Stabilizer and Optical Image Stabilizer Lock can be used. *3 Intelligent Auto Mode is canceled. *4 The 1080/60p recording mode is canceled, and the video is recorded with AVCHD picture

quality.

*5 Only White Balance can be used.

(focus, shutter

jAF/AE trac k ing jiFrame ([REC MODE]) jIntelligent contrast control jSmile shot jSoft skin mode jTele macro jGuideline jColor night rec jScene mode jDigital cinema jFace recognition jDigital cinema color jZoom microphone jPicture adjust jLuminance jHistogram

Touch to display the Manual icon.

VQT3K69

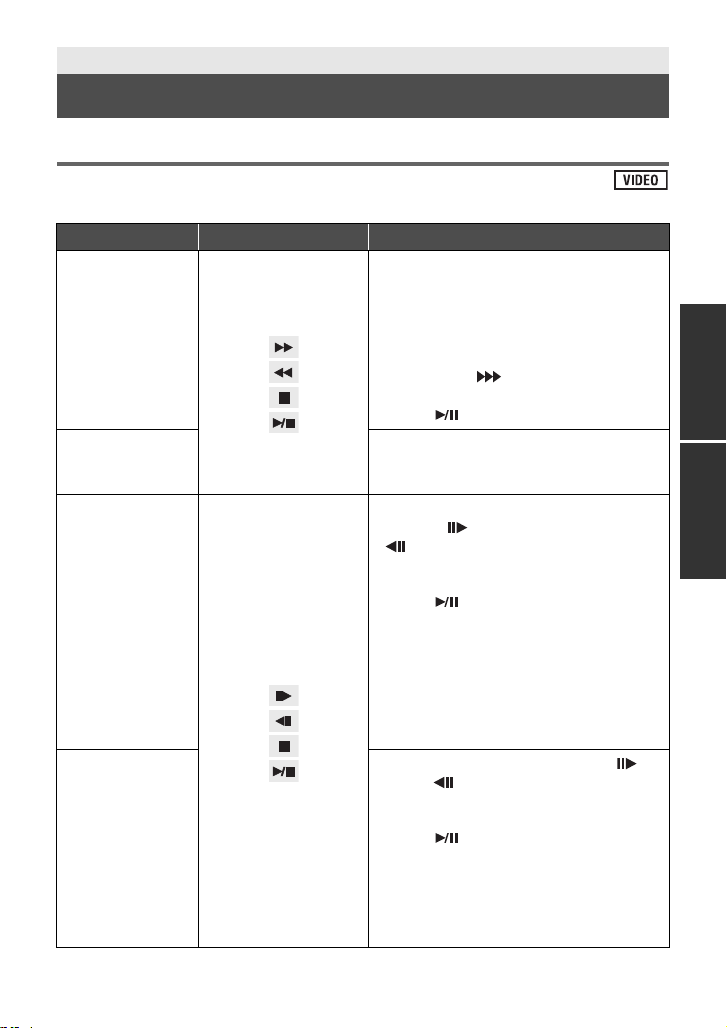

Advanced (Playback)

Playback Operations

Motion picture playback using operation icon

For details on the basi c playback operations, refer to page 41.

Playback operation

Fast forward/

rewind playback

Skip playback

(to the start of a

scene)

Slow-motion

playback

Frame-by-frame

playback

The motion picture is advanced one frame at a time.

Playback display Operating steps

Touch 5 during playback to fast forward.

During Playback

During Pause

(Touch 6 to rewind.)

≥ The fast forward/rewind speed

increases if you touch 5/6 again. (The display on the screen changes from 5 to .)

≥ Normal playback is restored when you

touch .

Slide the LCD screen display right to left (left to right) while touching it during playback.

With the playback paused, continue touching . ( is for slow rewind playback)

Playback is slow while touchi ng. ≥ Normal playback is restored when you

touch .

≥ When slow-motion pictures are played

back in reverse, they will be shown continuously at approximately 2/3 speed of normal playback (intervals of

0.5 seconds).

≥ Slow-motion playback for iFrame

scenes will be in 1 second intervals.

With the playback p aused, touch . (Touch to advance the frames one at a time in the reverse direction.)

≥ Normal playback is restored when you

touch .

≥ When the frames are advan ced one a t a

time in the reverse direction, they will be shown in intervals of 0.5 seconds.

≥ Frame-by-frame playback for iFrame

scenes will be in 1 second intervals.

the

VQT3K69

Playback operation

2.1

Direct playback

Playback display Operating steps

Touch the Direct playback bar or slide it while touching.

≥ The playback pauses temporarily and

During Playback

skips to the position touched or slid to while touching.

≥ Playback will start by releasing your

touching or sliding finger.

≥ Direct playback bar cannot be operated

with the remote control.

Creating still picture from motion picture

A single frame from the recorded motion picture can be saved as a still pic ture. Picture size of the still picture to be recorded is (1920k1080).

1 Pause at the scene you want to save as a still picture during

playback.

≥ It is convenient to use slow-motion playback and frame-by-frame playback.

2 Press the button fully.

≥ Date the motion picture was recorded will be registered as da te of the still picture. ≥ Quality will be different from the normal still picture.

Highlight&Time frame index

An image of one scene is displayed as a thumbnail at set search condition. Scene can be played back from any midway point of the scene you wish to see.

≥ Operate the zoom lever or the zoom buttons to side

and change over the thumbnail display to Highlight&Time frame index. (l 42)

1 Touch .

≥ To display the next (previous) page:

jSlide the thumbnail display upward (downward) while

touching it.

jSwitch the T o uch Me nu, and t hen touch (up)/ (down) on the

thumbnail scroll lever.

2 Touch the desired search condition.

[3 SECONDS]/[6 SECONDS]/[12 SECONDS]/[MINUTES]/[FACE]*/[HIGHLIGHT]

* It is not displa y e d on iFrame scen e s .

≥

When select [FACE], it will select the port i on f or w hich face recognition was performed from the scenes judged to be clearly recorded. This will then be displayed as a thumbnail.

≥ A portion judged to be clearly recorded will be det ec ted and displayed in thumbnail if you

select [HIGHLIGHT].

VQT3K69

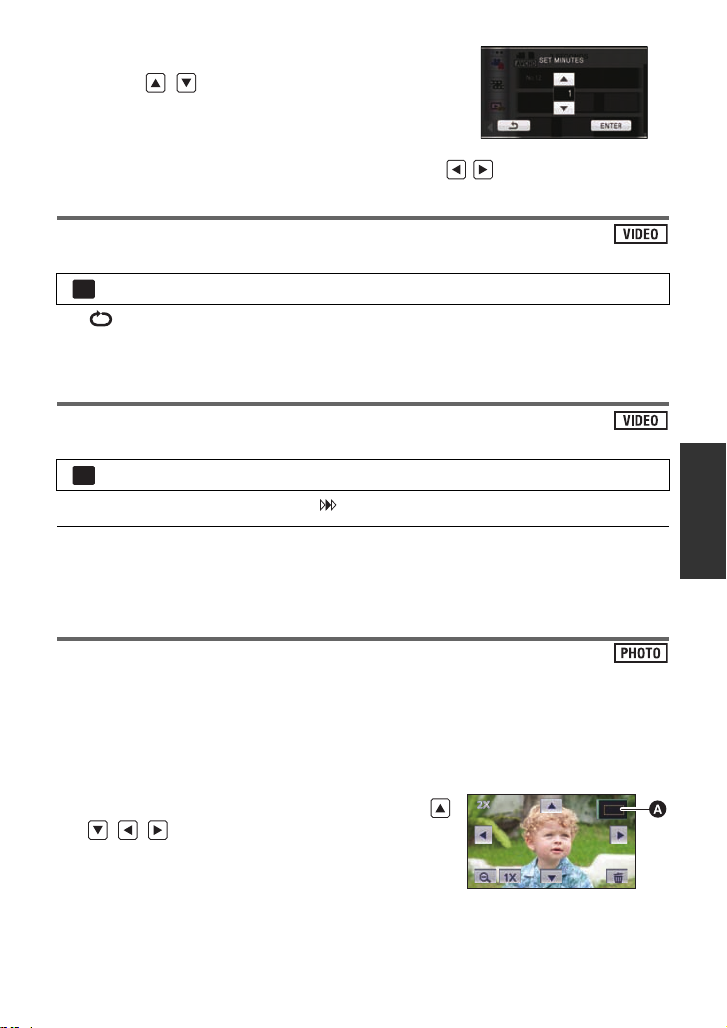

3 (W hen [MIN UTES] is selected)

A Displayed location of

the zoom

Touch / to set the time.

≥ It can be set up to a maximum of 60 minutes. ≥ Touc h [ENTER].

4 Touch the thumbnail to be played back.

≥ Next (Previous) thumbnail can be displayed by touching / .

Repeat playback

Playback of the first scene starts after playback of the last scene finishes.

: [VIDEO SETUP] # [REPEAT PLAY] # [ON]

The indication appears on the fu ll screen views. ≥ All the scenes are played back r epeate dly. (When playing back motion pictures by date, all

the scenes on the selected date are played back repeatedly.)

Resuming the previous playback

If playback of a scene was stopped halfway, the playback can be resumed from where it was stopped.

: [VIDEO SETUP] # [RESUME PLAY] # [ON]

If playback of a motion picture is stopped, appears on the thumbnail view of the stopped scene.

≥ The memorized resume position is cleared if y ou turn off the unit or change the mode.

(The setting of [RESUME PLAY] does not change.)

Zooming in on a still picture during playback (Playback zoom)

You can zoom in by touching a still picture during playback.

Touch and hold the part you wish to zoom in on during still picture playback.

≥ The still picture is zoomed in the following order: k1 # k2 # k4. Touch and hold the

screen to zoom in from the normal display to k2, Touch the screen to zoom in from k2 to

k4.

≥ The still picture is zoomed in on, centering on the part you touched.

Move to the zoomed in position by touching /

/ / or slide while touching the screen.

≥ The location of the zoom di splays for about 1 seco nd when

zooming in (zooming out) or movi ng the dis playe d loca tion. The more picture is enlarged, the more its quali ty deteri orates.

≥

VQT3K69

Zooming out from the zoomed still picture



A Date select icon

Touch to zoom out. (k4 # k2 # k1)

≥ Touc h to return to normal playback (k1). ≥ You can also perform zoom operations using the zoom lever or the zoom buttons.

Advanced (Playback)

Various playback functions

Playing back motion pictures/still pictures by date

The scenes or the still pictures recorded on the same day can be played back in succes sion.

1 Touch the date select icon. (l 30) 2 Touch the playback date.

The scenes or the still pictures recorded on the date selected are displayed as thumbnails.

3 Touch the scene or the still picture to be

played back.

≥ Playing back of all the scenes or the still pi ctures ret urns if the unit is turned of f or the mod e

is changed.

≥ Even if AVCHD scenes are recorded on the same day, they are grouped separately in the

following cases. –1, –2... is added after the recording date displayed on the screen.

jWhen the number of scenes exceeds 99 jWhen the Inte r v a l reco r d ing is u sed

≥ Even if AVCHD scenes or 1080/60p scenes are recorded on the same day, they are

grouped separately when switching bet ween AVCHD and 1080/60p recordi ngs. –1, –2... is added after the recording date displayed on the screen.

≥ Even if iFrame scenes are recorded on the same day, they are grouped separately in the

following cases.

jWhen the number of scenes exceeds 99 jWhen [NUMBER RESET] is performed

≥ Even if still pictures are recorded on the same day, they are grouped separately in the

following cases.

jWhen the number of still pictures exceeds 999 jWhen pictures are recorded in Hi-S peed Burst Sh ooting mode ( is indicated after the

date in the list by date)

jWhen [NUMBER RESET] is performed

≥ is displayed after the da te in the list by dat e for the still pict ures created f rom the motion

picture. (l 90)

ALL

VQT3K69

Highlight Playback

Part that was recognized as clearly recorded is extr acted from a lon g recording, and it can be played back in a short time with effects and music added.

≥ Highlight playback cannot be used for iFrame scenes.

1 Touch . (l 30)

ALL

2 (O nly when you would like to change the settings)

Touch [SET] to select the item to change.

[SCENE SETUP]: Select the scene or date to be played back. [PRIORITY SE T U P ] : Select the target to give priority to play back. (l 94) [PLAYBACK TIME]: Select the time to play back. (l 94) [EFFECT SETUP]: Select the effect fo r playback. (l 94) [MUSIC SELECT]: Select the music to be played on playback. (l 94)

3 Touch [START].

≥ When the [SCENE SETUP] is not changed in step 2, it will playback with the last recorded

date.

4 Select the playback operation. (l 41, 89)

≥ When the playback is finished or stopped, the screen to select [REPLAY],

[SELECT AGAIN] or [EX IT ] i s disp l aye d . Touch the desired item .

≥ Playing back of all the scenes returns if the unit is turned off or the mode is changed. ≥

Slow-motion playback, frame-by-frame playback, and direct playback bar operation are not possible.

≥ Highlight playback cannot be performed with interval-recorded motion pictures. (l 68)

∫ Scene setting

1 Touch [SELECT SCENES] or [SELECT DATE]. 2 (When [SELECT SCENES] is selected)

Touch the scenes to be played back.

≥ Up to 99 scenes can be selected in successio n. ≥ When touched, the scene is selected and is displayed.

Touch the scene again to cancel the operation.

(When [SELECT DATE] is selected)

Touch the date to be played back.

≥ A maximum of 7 days can be selected. ≥ When touched, the date is selected and surrounded by red.

Touch the date again to cancel th e operation.

3 Touch [Enter]/[ENTER].

VQT3K69

∫ Priority setting

111222333

444

555

666

123

ANNAKEN MARY

JOE

1 Touch [FACE] or [FACE RECOG.].

≥ If you touch [FACE], any detected face, including the face of person registered for Face

Recognition, is given priority on playback.

2 (When [FACE RECOG.] is selected)

Touch a face to specify.

≥

Y ou can specify up to 6 faces, which are to be played back in priority.

≥ When touched, the regist ered face is sel ected a nd surro unded

by red. Touch the registered face again to cancel the operation.

≥ Touc h [ENTER]. When a single face is specified, the na me registered for that face is

displayed. When multiple faces are specified, the number of faces is displayed.

∫ Playback time setting

Touch the playback time.

≥

The playback time of [AUTO] is a maximum of approx. 5 minutes.

≥ Playback time may become shorter than the setting, or it may

not even play back if the p art re cognized as cle arly recorde d is short.

∫ Effect setting

Effects such as fade, slow-motion, still (pause), or digest playback are inserted.

1 Touch the desired effect.

[POP]: Recommended for enjoyable

situations such as party scene.

[CLASSICAL]: Recommended for slow moving

scene.

[NATURAL]: Recommended for scenery. [DYNAMIC]: Recommended for fast mov ing scene such as sports scene. [NONE]: Effect is off.

≥ When the effect setting is changed, music setting will be set the same as the effect setting.

(To set the effect setting and music setting to differ ent settings, change the music settin g after setting the effect setting.)

2 Touch [ENTER].

∫ Music setting

1 Touch your favorite music.

≥ When [EFFECT SETUP] is set to [NONE], you will be able to

select [NO MUSIC]. When [N O MUSIC] is s elected, t he audio recorded at the time of shooting is played back.

≥ To adjust the volume of music during playback or audio

testing, operate the volume lever or the zoom buttons. (l 43)

2 Touch [ENTER]. To test the music audio

Touch [START].

≥ Touc h the other music option to change the musi c to be tested. ≥ When you touch [STOP], the music playback stops.

VQT3K69

Changing the playback settings and playing back the

ALL

slide show

1 Touch . (l 30) 2 (O nly when you would like to change the settings)

Touch [SET] to select the item to change.

[DATE SETUP]: Select the date to be played back. [EFFECT SETUP]: Select the effect fo r p l ayback. (l 94) [SLIDE INTERVAL]: Selects the interval between still pictures at playback. [MUSIC SELECT]: Select the music to be played on playback.

3 (W hen [DATE SETUP] is selected)

Touch the playback date.

(When [EFFECT SETUP] is selected)

Touch the desired effect.

≥ When the effect setting is changed, music setting will be set

the same as the effect set ting. (To set the effect settin g and music setting to different settings, change the music setting after setting the effect setting.)

≥ When [EFFECT SETUP] is set, [SLIDE INTERVAL] cannot be set.

(When [SLIDE INTERVAL] is selected)

Touch the interval of playback for the slide show.

[SHORT]: Approx. 1 second [NORMAL]: Approx. 5 seconds [LONG]: Approx. 15 seconds

(When [MUSIC SELECT] is selected)

Touch the desired sound.

≥ To adjust the volume of music during playback of the slide

show or audio testing, operate the volume lever or the zoom buttons. (l 43)

≥ Touc h [ENTER].

(To test the music audio)

Touch [START] and start the audio testing.

≥ Touc h the other music option to change the musi c to be tested. ≥ When you touch [STOP], the music playback stops.

4 Touch [START].

VQT3K69

5 Select the playback operation. (l 41)

0h00m15s0h00m15s0h00m15s

≥ When the playback is finished or stopped, the screen to select [REPLAY],

[SELECT AGAIN] or [EX IT ] i s disp l aye d . Touch the desired item .

Advanced (Playback)

Deleting scenes/still pictures

Deleted scenes/still pictures cannot be restored, so perform appropriate confirmation of the contents before proceeding with deletion.

¬ Change the mode to .

∫ To delete the scene or still picture being

played back Touch while scenes or still pictures to be deleted are being played back.

∫ To delete scenes or still pictures from the thumbnail display

≥ Switch the thumbnail display of the scenes or still pictures to delete. (l 41)

Touch . (l30

≥ When the thumbnail display is 1 scene display or

Highlight&Time frame index, the scene or still picture being displayed is deleted.

2 Touch [ALL SCENES], [MULTI] or [SINGLE].

≥ All the scenes or still pictures displayed as th umbnails will be

deleted by selecting [ALL SCENES]. (In case of playing back s cenes or s till pict ures by dat e, all the scenes or still pictures on the selec ted date will be deleted.)

≥ Protected scenes/still pictures cannot be deleted.

3 (W hen [MULTI] is selected in step 2)

Touch the scene/still picture to be deleted.

≥ When touched, the scene/still picture is select ed and the indication appears on the

thumbnail. Touch the scene/still picture again to cancel the operation.

≥ Up to 99 scenes can be selected to be dele ted.

(When [SINGLE] is selected in step 2)

Touch the scene/still picture to be deleted.

≥ Touc hed scene or still picture is deleted.

4 (W hen [MULTI] is selected in step 2)

Touch [Delete].

≥ To co ntinuously delete other scenes/still pictures, repeat steps 3-4.

)

VQT3K69

When you stop deleting halfway

0h00m15s0h00m15s0h00m15s

Touch [CANCEL] while deleting. ≥ The scenes or still pictures that have al ready been deleted when the deletion is canceled

cannot be restored.

To complete editing

Touch [Return].

≥ You can als o delet e sc enes by touc hi ng [MENU] , sele cting [E DIT SCE NE] # [DELETE] #

[ALL SCENES], [M ULTI] or [SINGLE ].

≥ You can also delete still pictures by touching [MENU], selecting [PICT. SETUP] #

[DELETE] # [ALL SCENES], [MULTI] or [ S INGLE].

≥ During Highlight Playback or Disc Playback when connected to a DVD burner (optional),

scenes/still pictures cannot be deleted.

≥ Scenes that cannot be played back (the thumbnails are displayed as ) cannot be

deleted.

≥ In case of [ALL SCENES], the deletion may take time if there are many scenes or still

pictures.

≥ If you delete scenes recorded on other products or still pictures conforming to DCF

standard with this unit, all the data related to the scenes/still picture s may be deleted.

≥ When still pictures recorded on an SD card by other products are deleted, a still picture

(other than JPEG) that cannot be played back on this unit, may be erased.

Dividing a scene (AVCHD, 1080/60p)

It is possible to divide an AVCHD or 1080/60p scene. Any unwanted parts in the scene can be deleted after di viding.

≥ Change the mode to and touch the play mode select icon. Then set [VIDEO/

PICTURE] to [1080/60p] or [AVCHD]. (l 41)

1 Select the menu.

: [EDIT SCENE] # [DIVIDE] # [SET]

2 Touch the scene to be divided. 3 Touch to set the dividing point.

≥ Using Slow-Motion Playback or Frame-by-Frame Playback

makes it easy to search for the point where you want to divide the scene. (l 89)

≥ Touch [YES] to continue dividing the s ame scene. To

continue dividing other sce nes, touch [NO] and repeat steps 2-3.

4 Touch [Return] to complete dividing.

≥ Unwanted parts can be deleted. (l 96)

VQT3K69

To delete all t he divided points

0h00m15s

: [EDIT SCENE] # [DIVIDE] # [CANCEL ALL]

≥ The scenes that were deleted after division cannot be recovered.

≥ You cannot di vide a scene if you are playing back a disc with a DVD burner (optional)

connected, or if the numbe r of scenes of a given date would exceed 99 sc enes.

≥ It may not be possible to divide scenes with a short record ing time. ≥ Data that has been recorded or ed ited on anot her devic e cannot be d ivided and the divided

points cannot be deleted.

≥ If personal information in the divide d scenes is dele ted, the person al inf ormati on is dele ted

when the divided scenes are canceled.

Dividing a scene to partially delete (iFrame)

Divide the iFrame scene, and delete unnecessary parts. This divides the recorded scenes in two and deletes the front half or back half.

The scenes that were deleted after division cannot be recovered. ≥ Change the mode to and touch the play mode select icon. Then set [VIDEO/

PICTURE] to [iFrame]. (l 41)

1 Select the menu.

: [EDIT SCENE] # [SPLIT&DELETE

]

2 Touch the scene to be divided. 3 Touch to set the dividing point.

≥ Using Slow-Motion Playback or Frame-by-Frame Playback

makes it easy to search for the point where you want to divide the scene. (l 89)

≥ Set to at least 2 seconds for the port ions to be deleted and

least 3 seconds for the portion that is to remain.

4 Touch the part for deletion. 5 Touch [YES] and confirm (play back) the part for deletion.

≥ When [NO] is touched, a confirmation message appears. Proceed to step 7.

6 Stop the playback.

≥ A confirmation message appears.

7 Touch [YES].

≥ To continue dividing and deleting other scenes, repeat st eps 2-7.

To complete editing

Touch [Return].

≥ It may not be possible to divide scenes with a short record ing time. ≥ The actual division may slightly slip off the previously designated dividing point.

VQT3K69

0h00m15s

Deleting personal information

Deletes face recognition information from scenes in which faces were recogni zed.

≥ Change the mode to and touch the play mode select icon. Then set [VIDEO/

PICTURE] to [1080/60p] or [AVCHD]. (l 41)

≥ Personal information is not recorded in the iFrame scenes.

1 Select the menu.

: [VIDEO SETUP] # [DELETE PER S ON AL IN FO]

2 Touch the desired scenes with personal information to be deleted.

≥ appears at scenes for which faces were recognized. Touch one of the scenes where

appears.

≥

will change to (red) when touched. Touch the (red) again to cancel the operation.

≥ Up to 99 scenes can be selected in successio n.

3 Touch [Delete].

≥ To co ntinuously delete other personal information, repeat steps 2-3. ≥ Touch [Return] to complete the settings.

When you stop deleting halfway

Touch [CANCEL] while deleting personal information. ≥ The personal information that has already been deleted when the deletion is canceled

cannot be restored.

≥ During Disc Playback when connected to a DVD burner (optio nal), scenes/still pictures

cannot be deleted.

Protecting scenes/still pictures

Scenes/still pictures can be protected so that they are not deleted by mist ake.

(Even if you protect some scenes/still pictures, formatting th e media will delete them.) ≥ Change the mode to .

1 Select the menu.

: [VIDEO SETUP] or [PICT. SETUP] # [SCENE PROTECT]

2 Touch the scene/still picture to be protected.

≥ When touched, the scene/still picture is select ed and the indication appears on the

thumbnail. Touch the scene/still picture again to cancel the operation.

≥ Touch [Return] to complete the settings.

≥ When the Disc Playback is selected while a DVD burner (optional) is connected, scenes/

still pictures cannot be prote ct ed.

VQT3K69

Advanced (Playback)

DPOF setting

Y ou can write the data selecting still pictures to be printed and the number of prints (DPOF data) onto the SD card. (Copy still pictures recorded t o the bu ilt-in memo ry or HDD to the SD card before setting DPOF.)

¬ Change the mode to and touch the play mode select icon. Then set

[MEDIA] to [SD CARD], and set [VIDEO/PICTURE] to [PICTURE]. (l 41)

∫ What is DPOF?

DPOF (Digital Print Order Format) is a format which allows the us er of a di gi tal ca m er a t o define which captured imag es on the SD card are to be printed, together with information on the number of copies they wish to prin t. (Please note: Not all commercial printing services support this feature at this time.)

1 Select the menu.

: [PICT. SETUP] # [DPOF SET] # [SET]

2 Touch the still picture to be set. 3 Touch / to set the number of

prints.

≥ Up to 999 prints can be selected. (Pri nts for set

number can be printed with a printer that supports DPOF.)

≥ To cancel the setting, set the number of prints to [0].

4 Touch [ENTER].

≥ To continuously set other still pictures, repeat steps 2-4. ≥ Touch [Return] to complete the settings.

To cancel all DPOF settings

: [PICT. SETUP] # [DPOF SET] # [CANCEL ALL]

≥ When the disc playback is selected while a DVD burner (optional) is connected, scenes/

still pictures cannot be set DPOF.

≥ You cannot add the recording date to pictures to be printed with the DPOF settings.

100

VQT3K69
