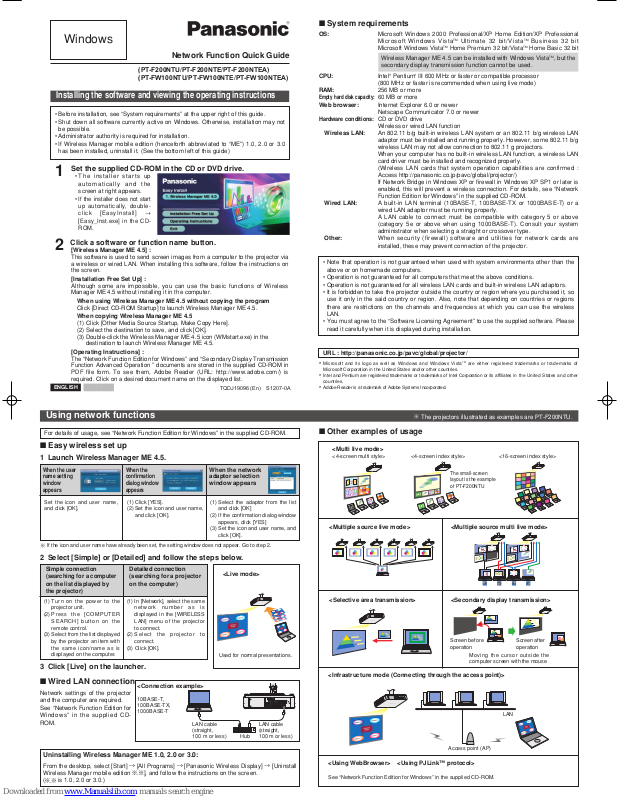

[Wireless Manager ME 4.5] :

This software is used to send screen images from a computer to the projector via
a wireless or wired LAN. When installing this software, follow the instructions on
the screen.

[Installation Free Set Up] :

Although some are impossible, you can use the basic functions of Wireless
Manager ME 4.5 without installing it in the computer.

When using Wireless Manager ME 4.5 without copying the program

Click [Direct CD-ROM Startup] to launch Wireless Manager ME 4.5.

When copying Wireless Manager ME 4.5

(1) Click [Other Media Source Startup, Make Copy Here].
(2) Select the destination to save, and click [OK].
(3) Double-click the Wireless Manager ME 4.5 icon (WMstart.exe) in the

destination to launch Wireless Manager ME 4.5.

[Operating Instructions] :

The “Network Function Edition for Windows” and “Secondary Display Transmission
Function Advanced Operation ” documents are stored in the supplied CD-ROM in
PDF file form. To see them, Adobe Reader (URL: http://www.adobe.com/) is
required. Click on a desired document name on the displayed list.

Network Function Quick Guide

(PT-F100NTU/PT-F100NTE/PT-F100NTEA)
(PT-FW100NTU/PT-FW100NTE/PT-FW100NTEA)

TQDJ19062-1 (En) M0307-2067

OS: Microsoft Windows 2000 Professional/XP Home Edition/XP Professional

Microsoft Windows Vista

TM

Ultimate 32 bit/VistaTMBusiness 32 bit

Microsoft Windows Vista

TM

Home Premium 32 bit/VistaTMHome Basic 32 bit

CPU: Intel

®

Pentium®III 600 MHz or faster or compatible processor

(800 MHz or faster is recommended when using live mode)

RAM: 256 MB or more
Empty hard disk capacity:

60 MB or more

Web browser: Internet Explorer 6.0 or newer

Netscape Communicator 7.0 or newer

Hardware conditions:

CD or DVD drive
Wireless or wired LAN function

Wireless LAN: An 802.11 b/g built-in wireless LAN system or an 802.11 b/g wireless LAN

adaptor must be installed and running properly. However, some 802.11 b/g
wireless LAN may not allow connection to 802.11 g projectors.
When your computer has no built-in wireless LAN function, a wireless LAN
card driver must be installed and recognized properly.
(Wireless LAN cards that system operation capabilities are confirmed :
Access http://panasonic.co.jp/pavc/global/projector/)
If Network Bridge in Windows XP or firewall in Windows XP SP1 or later is
enabled, this will prevent a wireless connection. For details, see “Network
Function Edition for Windows” in the supplied CD-ROM.

Wired LAN: A built-in LAN terminal (10BASE-T, 100BASE-TX or 1000BASE-T) or a

wired LAN adaptor must be running properly.
A LAN cable to connect must be compatible with category 5 or above
(category 5e or above when using 1000BASE-T). Consult your system
administrator when selecting a straight or crossover type.

Other: When security (firewall) software and utilities for network cards are

installed, these may prevent connection of the projector.

� System requirements

• Before installation, see “System requirements” at the upper right of this guide.

• Shut down all software currently active on Windows. Otherwise, installation may not

be possible.

• Administrator authority is required for installation.

• If Wireless Manager mobile edition (henceforth abbreviated to “ME”) 1.0, 2.0 or 3.0

has been installed, uninstall it. (See the bottom left of this guide)

Set the supplied CD-ROM in the CD or DVD drive.

1

Click a software or function name button.

2

• Note that operation is not guaranteed when used with system environments other than the
above or on homemade computers.

• Operation is not guaranteed for all computers that meet the above conditions.

• Operation is not guaranteed for all wireless LAN cards and built-in wireless LAN adaptors.

• It is forbidden to take the projector outside the country or region where you purchased it, so

use it only in the said country or region. Also, note that depending on countries or regions
there are restrictions on the channels and frequencies at which you can use the wireless
LAN.

• You must agree to the “Software Licensing Agreement” to use the supplied software. Please
read it carefully when it is displayed during installation.

Installing the software and viewing the operating instructions

• The installer starts up
automatically and the
screen at right appears.

•

If the installer does not start
up automatically, double­click [EasyInstall]

→

[Easy_Inst.exe] in the CD­ROM.

•

Microsoft and its logo as well as Windows and Windows Vista

TM

are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

•

Intel and Pentium are registered trademarks or trademarks of Intel Corporation or its affiliates in the United States and other
countries.

•

Adobe Reader is a trademark of Adobe Systems Incorporated.

URL : http://panasonic.co.jp/pavc/global/projector/

Detailed connection
(searching for a projector
on the computer)

Using network functions

The projectors illustrated as examples are PT-F100NTU.

� Easy wireless set up

For details of usage, see “Network Function Edition for Windows” in the supplied CD-ROM.

<Live mode>

Used for normal presentations.

<Multiple source live mode>

<Selective area transmission> <Secondary display transmission>

Moving the cursor outside the
computer screen with the mouse

<Multiple source multi live mode>

When the user
name setting
window
appears

Set the icon and user name,
and click [OK].

When the
confirmation
dialog window
appears

When the network
adaptor selection
window appears

(1) Select the adaptor from the list

and click [OK]

(2) If the confirmation dialog window

appears, click [YES]

(3) Set the icon and user name, and

click [OK].

Simple connection
(searching for a computer
on the list displayed by
the projector)

(1) In [Network], select the same

network number as is
displayed in the [WIRELESS
LAN] menu of the projector
to connect.

(2) Select the projector to

connect.

(3) Click [OK].

(1) Turn on the power to the

projector unit.

(2) Press the [COMPUTER

SEARCH] button on the
remote control.

(3) Select from the list displayed

by the projector an item with
the same icon/name as is
displayed on the computer.

(1) Click [YES].
(2) Set the icon and user name,

and click [OK].

� Other examples of usage

<Multi live mode>

<Infrastructure mode (Connecting through the access point)>

<Using WebBrowser> <Using PJLink™ protocol>

See “Network Function Edition for Windows” in the supplied CD-ROM.

<4-screen multi style> <16-screen index style>

If the icon and user name have already been set, the setting window does not appear. Go to step 2.

1 Launch Wireless Manager ME 4.5.

2 Select [Simple] or [Detailed] and follow the steps below.

3 Click [Live] on the launcher.

Access point (AP)

LAN

Screen before
operation

Screen after
operation

Wireless Manager ME 4.5 can be installed with Windows VistaTM, but the
secondary display transmission function cannot be used.

Windows

� Wired LAN connection

<Connection example>

10BASE-T,
100BASE-TX,
1000BASE-T

Network settings of the projector
and the computer are required.
See “Network Function Edition for
Windows” in the supplied CD­ROM.

Hub

LAN cable
(straight,
100 m or less)

LAN cable
(straight,
100 m or less)

Uninstalling Wireless Manager ME 1.0, 2.0 or 3.0:

From the desktop, select [Start] →[All Programs] →[Panasonic Wireless Display] →[Uninstall
Wireless Manager mobile edition . ], and follow the instructions on the screen.
(.is 1.0, 2.0 or 3.0.)

<4-screen index style>

The small-screen
layout is the example
of PT-F100NTU.

ENGLISH

(PT-F200NTU/PT-F200NTE/PT-F200NTEA)
(PT-FW100NTU/PT-FW100NTE/PT-FW100NTEA)

TQDJ19096 (En) S1207-0A
