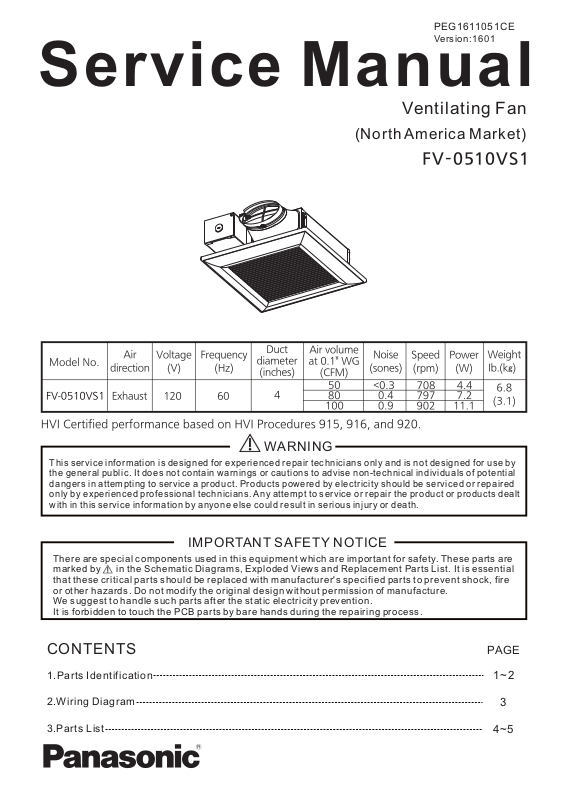

PEG1611051CE
Version:1601
Service Manual
Ventilating Fan
(North America Market)
FV-0510VS1
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians.Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
CONTENTS
1.Parts Identification
2.Wiring Diagram
PAGE
1~2
3
3.Parts List
4~5
Page 2
1. Parts Identification
Main Body Section
FV-0510VS1
2
3
1
4
A
5
7
B
A
6
Adapter Assembly
C
(4pcs)
8
(4pcs)
9
A
D
C
(2pcs)
A
(2pcs)
16
12
14
10
11
13
15
E
(3pcs)
17
1
Page 3
1. Parts Identification
Main Labels
FV-0510VS1
E78414
US
LISTED
FAN
19
Packing Section
21
18
08VSL3082
Not for use in cooking area-See installation
//.
instructions Non destiné à la zone de cuisson -Voir
instructions d’installation.
cocine - Consulte las instrucciones de instalación.
se
No usar en áreas donde
20
26
22
23
24
25
27
28
2
Page 4
2. Wiring Diagram
FV-0510VS1
3
Page 5
3. Parts List
Main Body Section
No. Part No. Part Name Q'ty Remark
1 FFV5710025S Suspension Bracket 1
2 FFV1600159S Frame Assy 1
3 FFV0000166S Adapter Assy 1
4 FFV0900052S Connector Plate 1
5 FFV3450010S Earth Lead Wire 1
6 FFV0900072S Connector Assy (V) 1
7 FFV2800020S Junction Cover 1
8 FFV4700070S PCB Assy Unit 1
9 FFV3700347S Motor Assy 1
10 FFV3700348S Motor Support Unit 1
11 FFV0400127S Blade Plate 1
12 FFV0400128S Blade 1
13 FFV0400113S Blade Fix Ring 1
14
FFE06090801S Undee Washer 1
15 FFV7020024S Hexagon Nut 1
16 FFV1610080S Casing Unit 1
17 FFV3400146S Louver Assy 1
A FFV7000108S Truss Tap Screw 5
B FFV7000227S Earth Screw Assy 1 Include Spring Washer
C FFV7000089S Truss Tap Screw 6
D FFV7000163S Pan Tap Screw 4
E FFV7000202S Bind Tap Screw 3
Main Labels
No. Part No. Part Name Q'ty Remark
18 FFV4020865S Name Plate 1 Stuck On Casing
19 FFV2260003S UL Mark 1 Stuck On Frame Assy
20 FFV0810011S Caution Label 1 1 Stuck On Frame Assy
FV-0510VS1
4
Page 6
3. Parts List
Packing Section
No. Part No. Part Name Q'ty Remark
21 FFV4710381S Louver Case Assy 1
22 FFV4650016S Poly Cover 1
23 FFV2540204S Installation Instructions 1 English,For USA/CA Market
24 FFV2540205S Installation Instructions 1 Spanish,For USA Market
(24) FFV2540206S Installation Instructions 1 French,For CA Market
25 FFV0010231S Accessory A 1
26 FFV4710369S Right Pad 1
27 FFV4710370S Left Pad 1
28 FFV9001231S Packing Case Assy 1
FV-0510VS1
5
