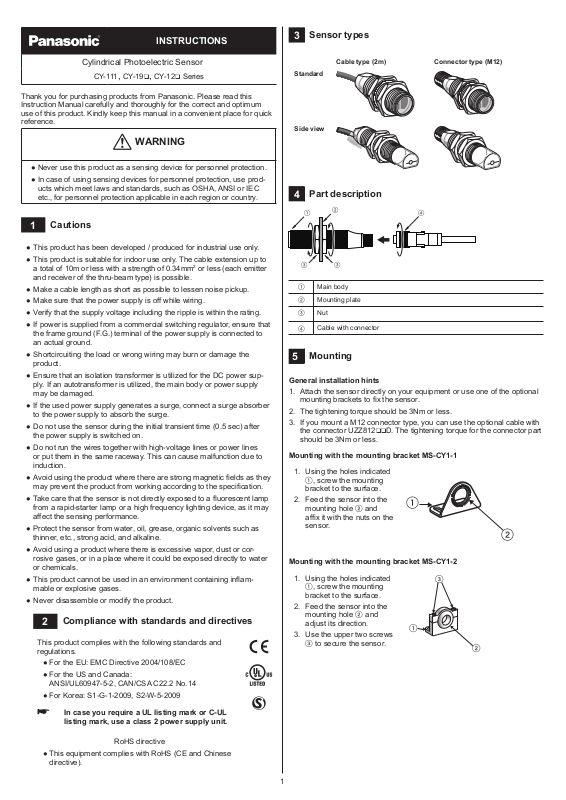

INSTRUCTIONS

Cylindrical Photoelectric Sensor

CY-111, CY-19q, CY-12q Series

Thank you for purchasing products from Panasonic. Please read this Instruction Manual carefully and thoroughly for the correct and optimum use of this product. Kindly keep this manual in a convenient place for quick reference.

WARNING

●●Never use this product as a sensing device for personnel protection.

●●In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.

1 Cautions

●●This product has been developed / produced for industrial use only.

●●This product is suitable for indoor use only. The cable extension up to a total of 10m or less with a strength of 0.34mm2 or less (each emitter and receiver of the thru-beam type) is possible.

●●Make a cable length as short as possible to lessen noise pickup. ●●Make sure that the power supply is off while wiring.

●●Verify that the supply voltage including the ripple is within the rating.

●●If power is supplied from a commercial switching regulator, ensure that the frame ground (F.G.) terminal of the power supply is connected to an actual ground.

●●Shortcircuiting the load or wrong wiring may burn or damage the product.

●●Ensure that an isolation transformer is utilized for the DC power supply. If an autotransformer is utilized, the main body or power supply may be damaged.

●●If the used power supply generates a surge, connect a surge absorber to the power supply to absorb the surge.

●●Do not use the sensor during the initial transient time (0.5 sec) after the power supply is switched on.

●●Do not run the wires together with high-voltage lines or power lines or put them in the same raceway. This can cause malfunction due to induction.

●●Avoid using the product where there are strong magnetic fields as they may prevent the product from working according to the specification.

●●Take care that the sensor is not directly exposed to a fluorescent lamp from a rapid-starter lamp or a high frequency lighting device, as it may affect the sensing performance.

●●Protect the sensor from water, oil, grease, organic solvents such as thinner, etc., strong acid, and alkaline.

●●Avoid using a product where there is excessive vapor, dust or corrosive gases, or in a place where it could be exposed directly to water or chemicals.

●●This product cannot be used in an environment containing inflammable or explosive gases.

●●Never disassemble or modify the product.

2 Compliance with standards and directives

This product complies with the following standards and regulations.

●●For the EU: EMC Directive 2004/108/EC

●●For the US and Canada: ANSI/UL60947 5 2, CAN/CSA C22.2 No.14

●●For Korea: S1-G-1-2009, S2-W-5-2009

*In case you require a UL listing mark or C-UL listing mark, use a class 2 power supply unit.

RoHS directive

●●This equipment complies with RoHS (CE and Chinese directive).

3 Sensor types

Cable type (2m)

Connector type (M12)

Standard

Side view

4 Part description

1	2	4

3 3

1Main body

2Mounting plate

3Nut

4Cable with connector

5 Mounting

General installation hints

1.Attach the sensor directly on your equipment or use one of the optional mounting brackets to fix the sensor.

2.The tightening torque should be 3Nm or less.

3.If you mount a M12 connector type, you can use the optional cable with the connector UZZ812qqD. The tightening torque for the connector part should be 3Nm or less.

Mounting with the mounting bracket MS-CY1-1

1.Using the holes indicated 1, screw the mounting

bracket to the surface.
2. Feed the sensor into the	1
mounting hole 2 and
affix it with the nuts on the
sensor.

2

Mounting with the mounting bracket MS-CY1-2

1. Using the holes indicated	3
1, screw the mounting
bracket to the surface.

2.	Feed the sensor into the
	mounting hole 2 and
	adjust its direction.	1
3.	Use the upper two screws
	3 to secure the sensor.	2

1

Model no.	Description
MS-CY1-1	Material: Stainless steel
MS-CY1-2	Material: Plastic (recommended for a more flexible beam axis
	alignment)

6 Mating cables

There are two types of mating cables: straight type and elbow type. You only need mating cables for the connector type (M12).

Straight type

Elbow type

	Cable type	Model no.	Description
	Straight	UZZ81220D	Length: 2m
		UZZ81250D	Length: 5m
	Elbow	UZZ81221D	Length: 2m
		UZZ81251D	Length: 5m

7 Reflectors

Square form Hexagonal form

Reflective tape

Reflector form		Model no.	Description
Square		RF-420	50 x 50mm
Hexagonal		RF-410	24 x 21mm
Reflective tape		RF-40RL5	22 x 5m, thickness: 0.4mm

8 Wiring diagrams

Emitter of thru-beam type

%URZQ 9

							WR 9 '&
					±
				9LROHW ,QSXW
				%OXH 9

Receiver of thru-beam / reflective type (NPN)

%URZQ 9

/RDG

%ODFN 2XWSXW

%OXH 9

± WR 9 '&

Receiver of thru-beam / reflective type (PNP)

%URZQ 9

			%ODFN RXWSXW					WR 9
						±
								'&
				/RDG
			%OXH 9

9	Terminal arrangement
M12 connector
		Terminal no.	Function
4	3	1	+V
		2	Input (only emitter of thru-beam type)
1	2	3	0V
		4	Output (only receiver of thru-beam and reflec-
			tive type)

*Make sure to insulate the ends of all unused lead wires.

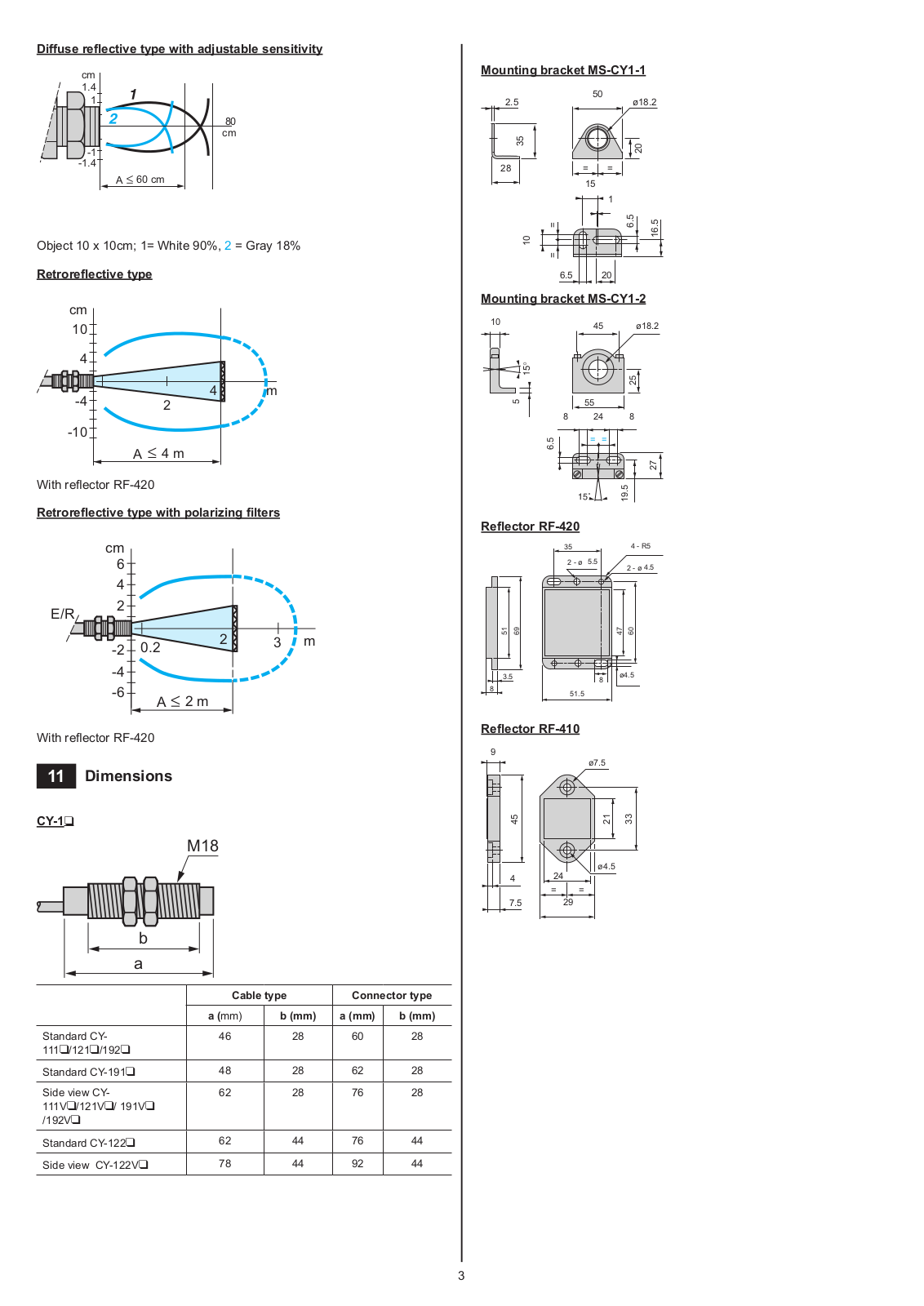

10 Detection curves

Thru-beam type

cm

15	ø 12 mm

10	15	m

-15

A 15 m

A = Sensing range

Diffuse reflective type

cm
1.4
1
	1 5
5	cm
-1
-1.4
A 10 cm

Object 10 x 10cm; 1= White 90%, 2 = Gray 18%

2
