Panasonic CS-E12DKRW, CS-E9DKRW, CU-E9DKR, CU-E12DKR User Manual

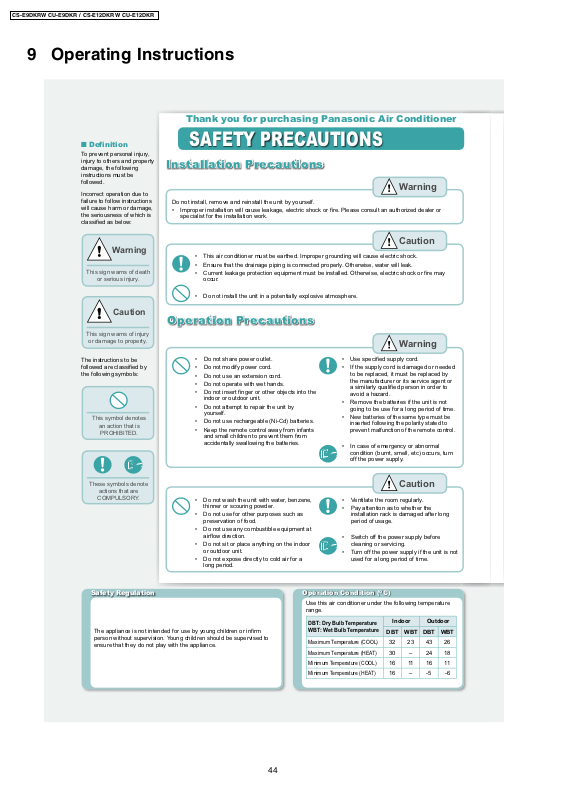

9 Operating Instructions

• Ventilate the room regularly.

• Pay attention as to whether the installation rack is damaged after long period of usage.

• Switch off the power supply before cleaning or servicing.

• Turn off the power supply if the unit is not used for a long period of time.

Caution

• Use speciﬁ ed supply cord.

• If the supply cord is damaged or needed to be replaced, it must be replaced by the manufacturer or its service agent or a similarly qualiﬁ ed person in order to avoid a hazard.

• Remove the batteries if the unit is not going to be use for a long period of time.

•

New batteries of the same type must be inserted following the polarity stated to prevent malfunction of the remote control.

• In case of emergency or abnormal condition (burnt, smell, etc) occurs, turn off the power supply.

Warning

The appliance is not intended for use by young children or inﬁ rm person without supervision. Young children should be supervised to ensure that they do not play with the appliance.

Thank you for purchasing Panasonic Air Conditioner

SAFETY PRECAUTIONS

 Definition

Safety Regulation

Operation Condition (OC)

Use this air conditioner under the following temperature range.

DBT: Dry Bulb Temperature WBT: Wet Bulb Temperature

Indoor Outdoor

DBT WBT DBT WBT

Maximum Temperature (COOL)

32 23 43 26

Maximum Temperature (HEAT)

30 – 24 18

Minimum Temperature (COOL)

16 11 16 11

Minimum Temperature (HEAT)

16 – -5 -6

This sign warns of death

or serious injury.

To prevent personal injury, injury to others and property damage, the following instructions must be followed.

Incorrect operation due to failure to follow instructions will cause harm or damage, the seriousness of which is classiﬁ ed as below:

This symbol denotes

an action that is

PROHIBITED.

Caution

• This air conditioner must be earthed. Improper grounding will cause electric shock.

• Ensure that the drainage piping is connected properly. Otherwise, water will leak.

• Current leakage protection equipment must be installed. Otherwise, electric shock or ﬁ re may occur.

• Do not install the unit in a potentially explosive atmosphere.

Warning

Do not install, remove and reinstall the unit by yourself.

• Improper installation will cause leakage, electric shock or ﬁ re. Please consult an authorized dealer or specialist for the installation work.

These symbols denote

actions that are

COMPULSORY.

Warning

This sign warns of injury

or damage to property.

Caution

The instructions to be followed are classiﬁ ed by the following symbols:

Installation Precautions

• Do not wash the unit with water, benzene, thinner or scouring powder.

• Do not use for other purposes such as preservation of food.

• Do not use any combustible equipment at airﬂ ow direction.

• Do not sit or place anything on the indoor or outdoor unit.

• Do not expose directly to cold air for a long period.

Operation Precautions

• Do not share power outlet.

• Do not modify power cord.

• Do not use an extension cord.

• Do not operate with wet hands.

• Do not insert ﬁ nger or other objects into the indoor or outdoor unit.

• Do not attempt to repair the unit by yourself.

• Do not use rechargeable (Ni-Cd) batteries.

• Keep the remote control away from infants and small children to prevent them from accidentally swallowing the batteries.

C S -E 9D K R W C U -E 9 D K R / C S - E 1 2 D K R W C U - E 1 2 D K R

QUIET

POWE

RFUL

TIM

ERPOWE

QUIET

POWERFUL

ION

SUPER

ALLERU-BUSTER

TIMERPOWER

Air intake

Airflow direction louver

Ionizer

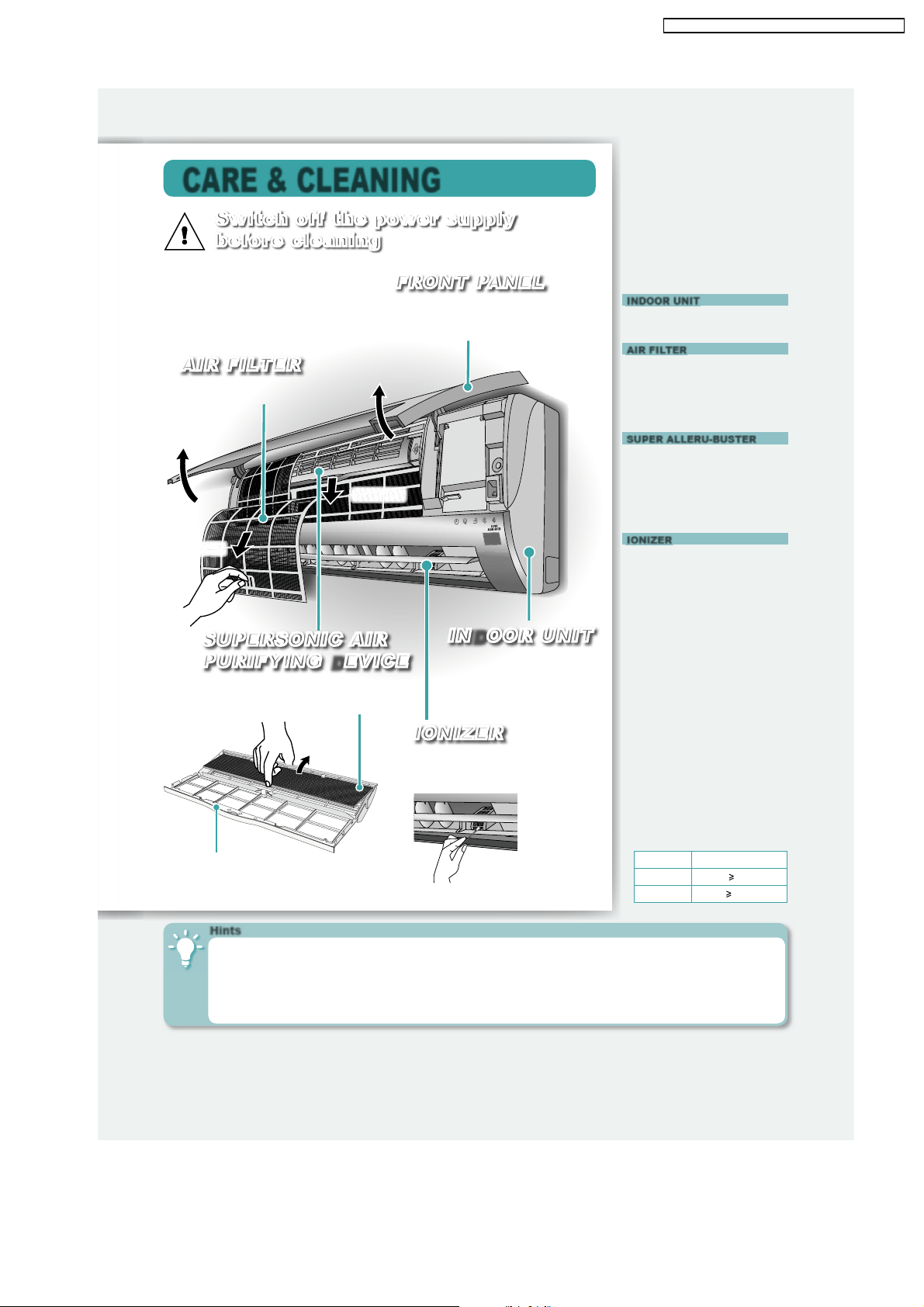

Air filter

Front panel

Indoor Unit

Indicator

Supersonic air purifying device

Auto OFF/ON button

Receiver

Discharged air

Do not touch during operation

Note: The illustrations in this manual are for explanation purposes only and may differ from the

actual unit. It is subjected to change without notice for future improvement.

PRODUCT OVERVIEW

Outdoor Unit

Air inlet

(rear)

Air outlet

 About

Remote Control Preparation

• Make sure it is not obstructed.

• Maximum distances: 10m.

• Certain fluorescent lights may interfere with signal transmission. Consult your dealer.

Remote Control Signal

• To operate the unit if the remote control is misplaced or malfunctioning.

Action

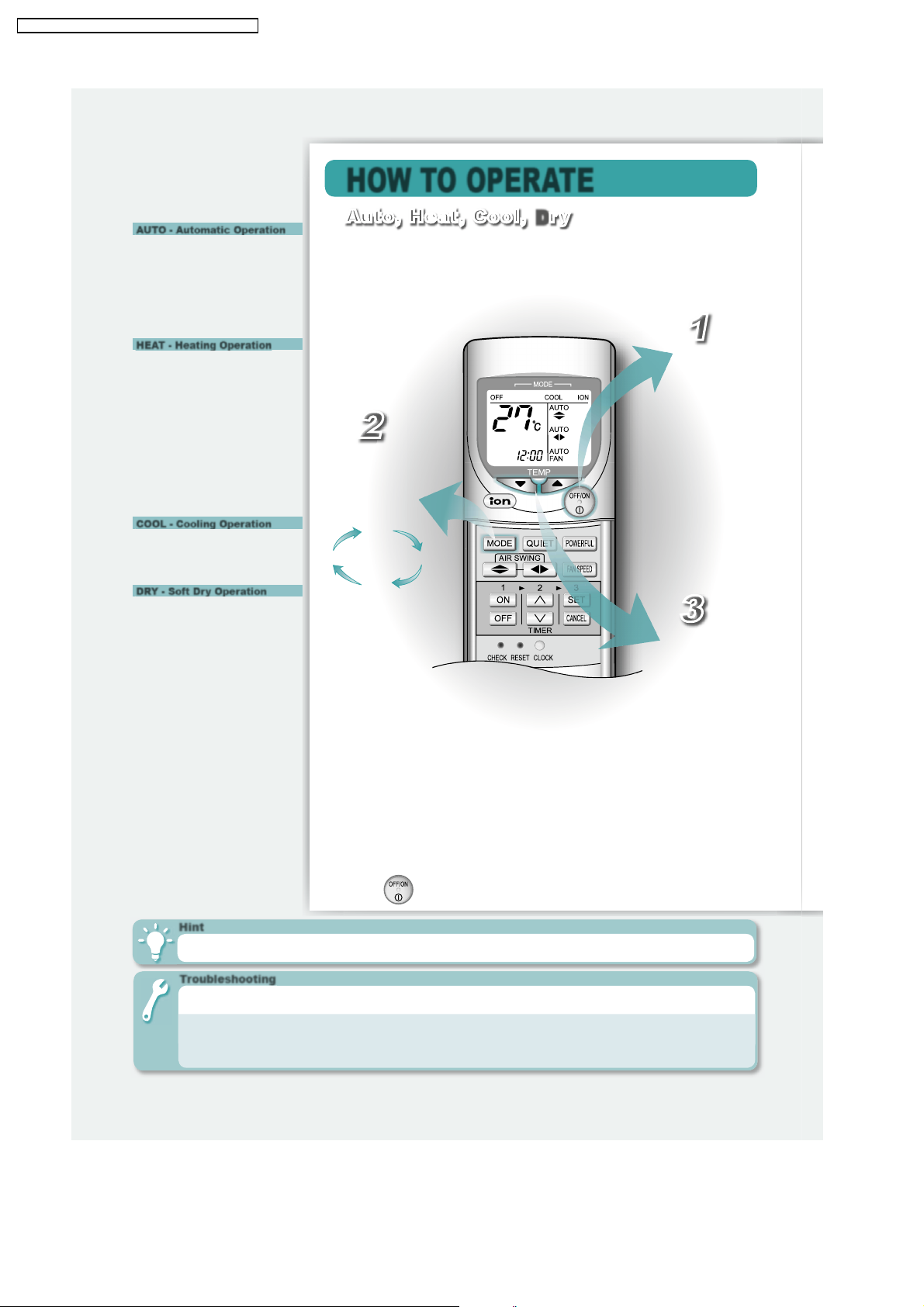

Operation

mode

Press once

Automatic

Operation

Press until “beep”

sound and release.

Cooling

Operation

Press until “beep”

sound and release.

Press again until

“beep-beep” sound

and release.

Heating

Operation

• To OFF, press again the Auto OFF/ ON button.

Auto OFF/ON Button

1. Pull out

2. Insert batteries

(AAA or

R03)

5. Press again to conﬁ rm

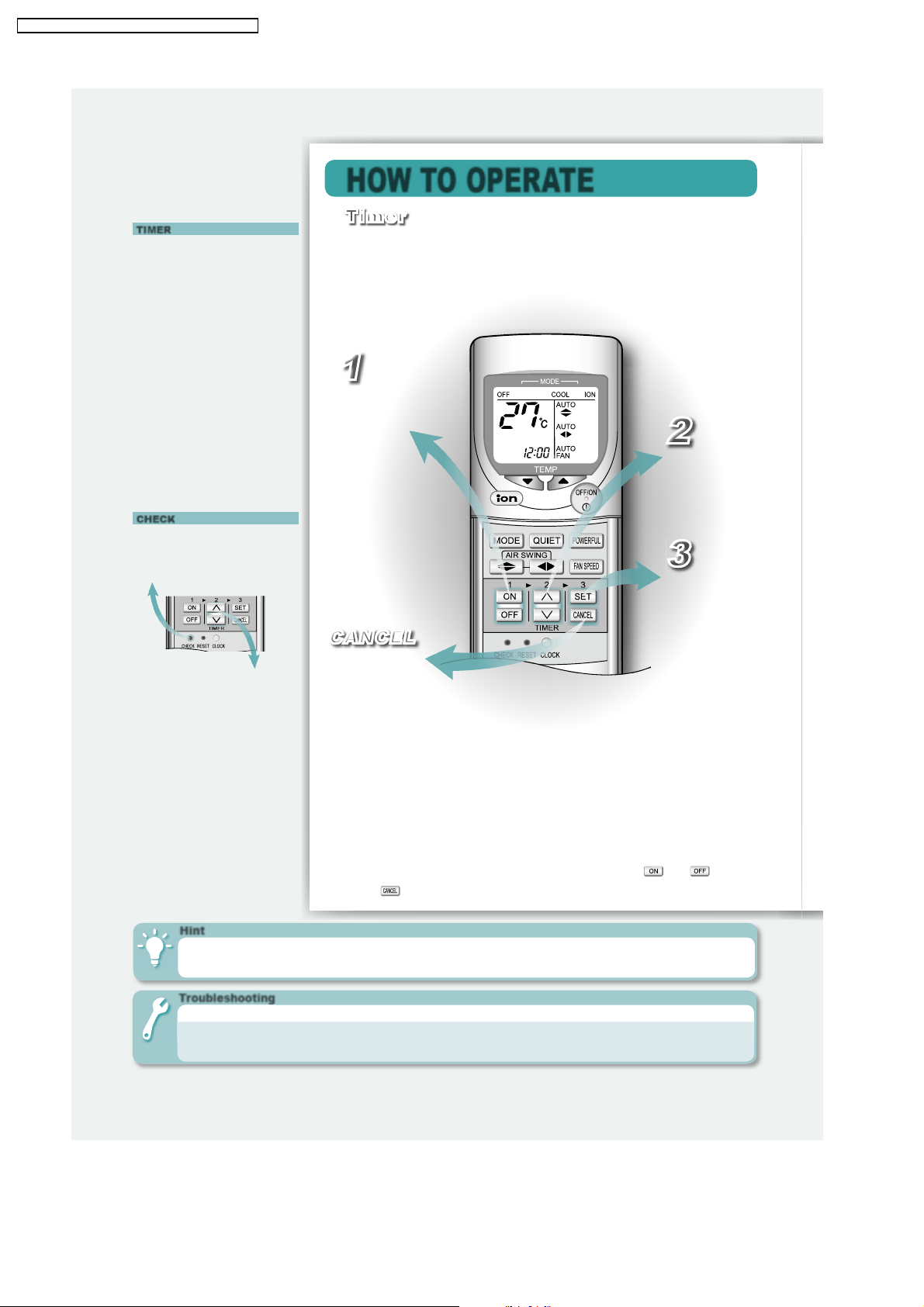

• Timer operation will be based on current time set.

• The batteries can be used for approximately 1 year.

• The batteries must be recycled or disposed of properly.

3. Press CLOCK button

4. Set current time

Troubleshooting



Operation delayed for few minutes after restart.

 This is a normal self protection control.



Sound like water ﬂ owing during operation.

 Caused by refrigerant ﬂ ow inside.



Mist emerges from indoor unit.

 Condensation effect due to cooling process.



Noisy during operations.

 Installation work could be slanted or front panel didn’t close properly.



Remote control/display does not work.

 Check whether batteries are correctly inserted or need replacement.



The unit cannot operate.

 Check either circuit breaker is tripped or timer is used correctly.



Outdoor unit emits water/steam.

 Condensation or evaporation happens at piping surface.

Air inlet

(side)

LCD display

Off/On

Fan speed selection

Memory reset

Clock setting

Temperature setting

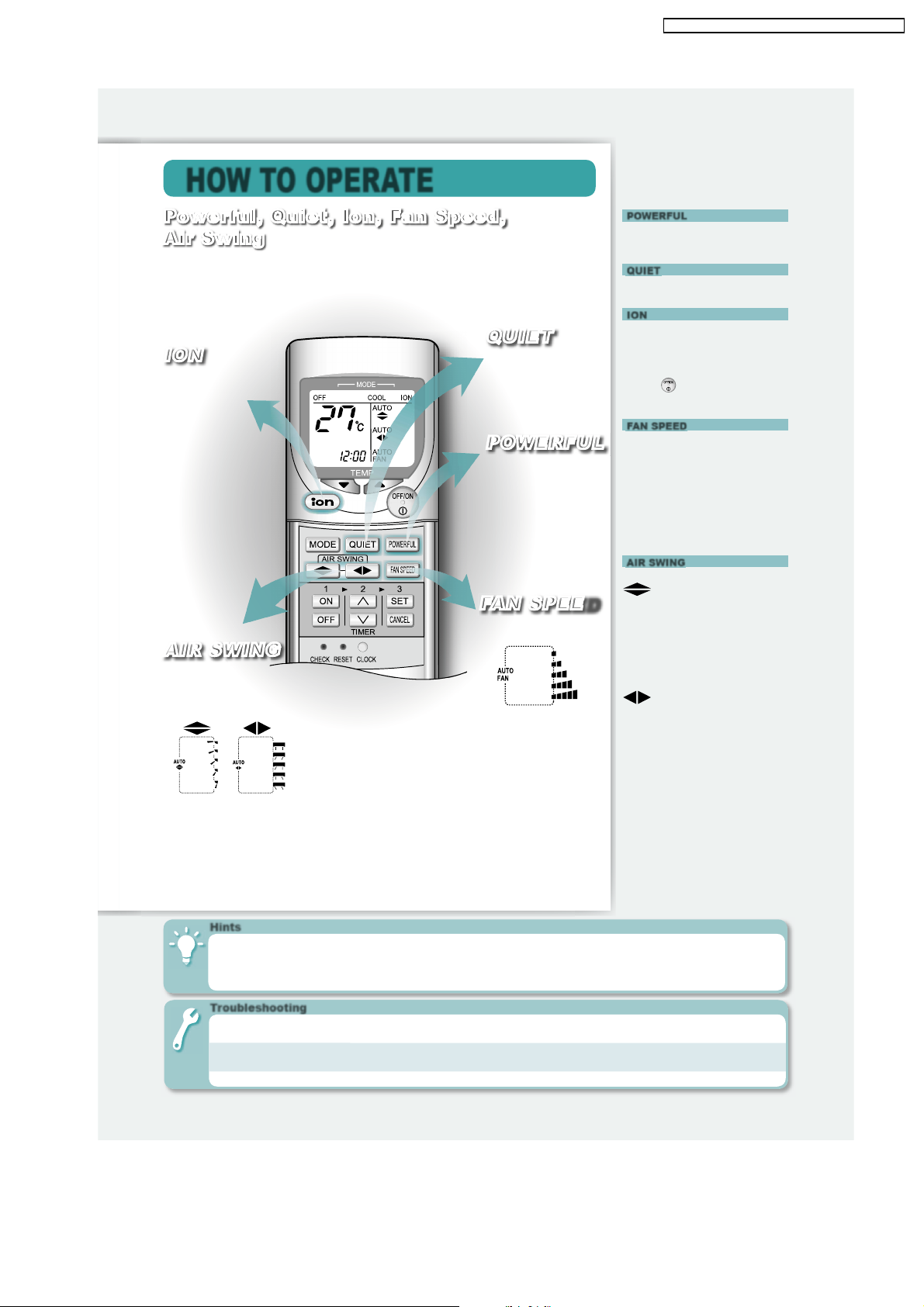

Powerful operation

Operation mode

Quiet operation

Timer setting

Ion operation

Airflow direction adjustment

Remote Control

Transmitter

Check

CS-E9DKRW CU-E9 DKR / CS-E12DKR W CU-E12DK R
