Setting Up Your Sprint Power VisionSM
Smart Device Treo
© 2006 Sprint Nextel. All rights reserved. SPRINT, the “Going Forward” logo, and other trademarks are
trademarks of Sprint Nextel.
June 6, 2006
TM
700p by Palm
Your Treo 700P Smart Device
Expansion Card Slot
Indicator Light
(alert and charge
indicator)
Volume Button
Side Button
Talk Button
Phone Button
Calendar Button
Ringer Switch
Stylus
Earpiece
Power/End Button
Applications Button
Messaging Button
5-way Navigator
and Center Button
Menu Button
Setting Up Your Treo 700p Smart Device
1
Welcome to Your Treo 700P Smart Device
Before you begin using your Treo 700P smart device, there are a few
simple steps you’ll need to take care of:
1. Set Up Your Device.
2. Make Your First Phone Call.
3. Connect to Your Computer.
Once you’ve completed these simple setup procedures, you’ll be ready to
begin using all the exciting features of your Treo 700
P smart device.
2
Setting Up Your Treo 700p Smart Device
Step
Set Up Your Device.
1
Remove These Items From the Box
Sprint Power Vision
Smart Device TreoTM 700P
®
by Palm
SM
AC Charger
USB Sync Cable
Headset
Palm Software Installation CD
(includes Palm
software and bonus software
for your device)
®
Desktop
Printed Materials
(includes Getting Started
Guide and Warranty)
Rechargeable Battery
Sprint Charger Adapter
Setting Up Your Treo 700p Smart Device
3

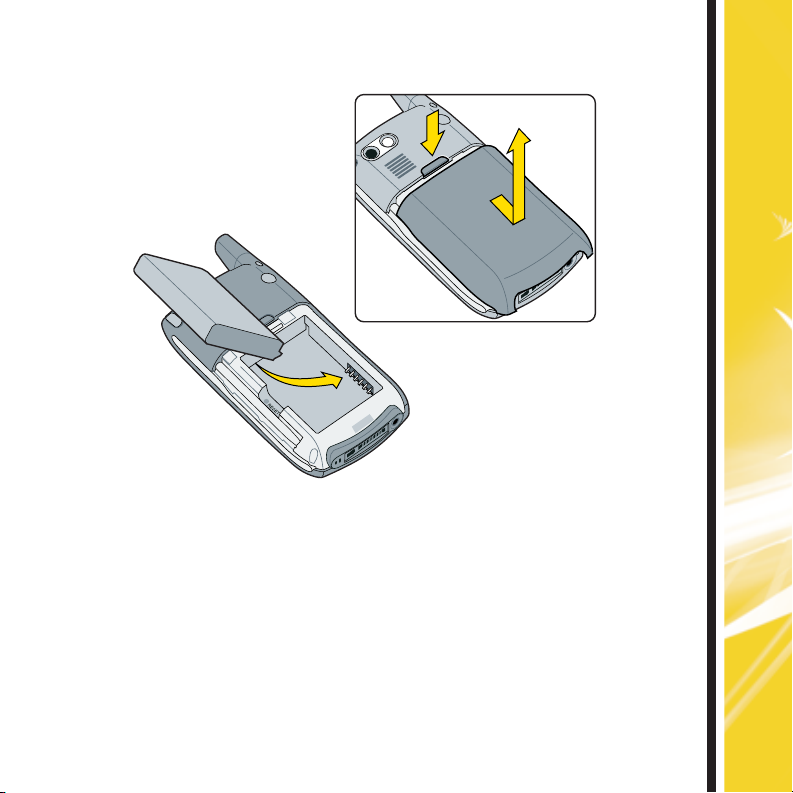

Insert the Battery
a. Remove the battery door.
b. Insert the battery.
c. Replace the battery door.
4
Setting Up Your Treo 700p Smart Device
Complete Device Setup
a. Confirm that the date and time are correct, and select Next. If the date or time is incorrect,
uncheck the Get date & time from mobile network box, select the correct date or time,
and then select Next.
b. Read through the screens to learn about three key features of your device.
c. When you’re finished, select Done.
Tip: If your device screen turns off, press Power/End to wake up the screen.
5
Setting Up Your Treo 700p Smart Device
Step
Make Your First Phone Call.
2
Check Your Device
To use your device's phone, press Phone . If Sprint appears in the upper-left corner, your
phone is ready to use; skip ahead to “Make a Call.” If Locked appears in the upper-left corner,
you need to unlock your device.
Using the keyboard, enter your four-digit lock code. If you do not know the code,
try the following:
• the last four digits of your Social Security number
• the last four digits of your wireless phone number
• 0000 (four zeros)
If none of these works, you may need to activate your phone. Call Sprint Customer Service at
1-888-211-4PCS (4727) for help.
What’s My Phone Number?
To view your phone number, press Phone , press
Menu , select Options, and then select Phone Info.
Look Here for Your
Phone Number
6
Setting Up Your Treo 700p Smart Device
Make a Call
a. Press Phone .
b. Enter the number you want to call.
Tip: There are two ways to enter a phone number: press the numbered keys on the
keyboard, or use the stylus to tap the onscreen buttons.
c. Press Talk to dial.
d. After you finish the call, press Power/End to end the call.
Phone
Numbered
Keys
Talk
Keyboard Onscreen Buttons
Power/End
7
Setting Up Your Treo 700p Smart Device
Set Up Your Voicemail
a. Press Phone .
b. On the keyboard, press and hold 1.
c. Follow the system prompts to:
• Create your password.
• Record your name announcement.
• Record your greeting.
• Choose whether or not to activate Skip Pass Code (a feature that lets you access your
voicemail simply by pressing and holding 1, bypassing the need for you to enter your
password). If you do not activate Skip Pass Code, your device uses the Voicemail Pass
Code feature, which requires you to enter your password each time you want to access
your voicemail.
Tip: If you are concerned about unauthorized access to your voicemail account, we
recommend that you use the Voicemail Pass Code.
8
Setting Up Your Treo 700p Smart Device
Step
Connect to Your Computer.
3
Install the Software
IMPORTANT: You must install the software that came with your
Treo 700
P device even if you already have Treo software installed
on your computer.
a. Insert the Palm Software Installation CD into your computer’s
CD drive.
b. On a Windows computer, follow the onscreen instructions to
install the software. On a Mac computer, double-click the C D
icon, and then double-click PalmSoftware.pkg.
c. When prompted, connect your device and your computer.
USB Sync Cable
Sync Button
9
Setting Up Your Treo 700p Smart Device
Synchronize
a. When prompted to synchronize, press the sync button on the USB sync cable.
Tip: During the installation process on a Windows computer, you can select
to synchronize with Outlook.
b. When synchronization is complete, press Applications on your device
to view and start using the applications.
What Does the First Synchronization Do?
The first synchronization is required in order for you to move
information between your computer and your device, such as
the following:
• Install bonus software from the Palm Software Installation
CD on your device.
• Transfer your address book and calendar to your device.
• Take photos and videos with your device’s camera
and camcorder, and then transfer them to your
computer for editing.
10
Setting Up Your Treo 700p Smart Device
Learn More
Explore these resources to learn how to use your device:
Quick Tour:Introduces you to your device’s features. Press Applications and
select Quick Tour .
Getting Started Guide: Shows you how to move around on your device, set up features
(such as voicemail and email), and perform common tasks.
User Guide: Provides step-by-step instructions and explanations of all your device’s
features. To access the User Guide on your desktop computer, click Start > Programs >
Palm > User Manuals > Treo700pUG_Sprint.pdf. A copy of the guide is also available
right on your device. Press Applications an d se lec t My Treo .
My Device Web site: Answers common questions and provides links to accessories,
additional software, the User Guide, and other useful information. Check out
www.palm.com/my treo700pSprint .
Online Support from Palm: Provides up-to-date downloads, troubleshooting, support
information, and online forums. Visit www.palm.com/us/support/Treo700pSprint.
11
Setting Up Your Treo 700p Smart Device
