Overview
This document contains step-by-step service instructions for the EasyNote L. The instructions are
illustrat ed where necessary with images of the part that is being removed or disassembled.
Packard Bell reserves the right to make changes to the EasyNote L without notice.
Technician Notes
Only technicians authorized by NEC Computers Int ernational B.V. should attempt to repair this
equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module
level repair. Because of the complexity of the individual boards and subassemblies, no one should
attempt to make repairs at the component level or to make modifications to any printed wiring board.
Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring
board modifications may void any warranty or ex change allowances.
Disassembly Instructions
When disassembling the system unit, foll ow these general rules:
n Turn off the power and disconnect all cables and peripherals.
n Label all remov ed connect ors. Note where the connector goes and in what positi on it was
install ed.
n Do not disassemble the system into parts that are sm aller t han those specified in the
instructions.
2
Reassembly Instructions
Reassembly is the reverse of the disassembly process. Use care to ensure that all cabl es and screws are
returned to their proper positions. Check that no tools or any loose parts have been left inside the casing.
Check that ev erything is properly installed and tightened.
Required Tools
All disassembly procedures can be performed using the following tool s:
n PH 0 x 40 Philips screwdriver
n 4.0 x 60 Flat-bladed screwdriver
n 2.0 x 30 Flat-bladed screwdriver
n SW 5.0 Spacer screwdriver
n Small tweezers
Packard Bell EasyNote L Disassembly Manu al
Page 4
3
Hazardous Voltage
There is hazardous voltage present inside the
computer when it is connected to an AC supply, even
when the computer’s power switch is off. Exposure to
hazardous voltage could cause personal injury. To
avoid risk of injury, contact an Authorized Service
Provider for proper (un)installation of optional
hardware devi ces.
Avoid Electrostatic Discharge
Electrostatic electricity can easily damage circuit cards
and integrated circuits (ICs). To reduce risk of
damage, store them in protective packaging whenever
they are not installed in your system.
Add-in cards can be ex tremely sensitive to ESD and
always require careful handling. After remov ing the
card from the computer, place the card flat on a
grounded, static-free surface, component-side up. Use
a conductive foam pad if available, but not the card
wrapper. Do not slide t he card over any surface.
Before you install or remove memory modules, video
memory, disk drives, circuit cards or other devices,
protect them from static electricity. To do so, make
sure your comput er’s power switch is OFF. Then,
unplug the comput er’s AC power cord. Before picki ng
up the device you (un)install, you should wear an antistatic wrist wrap (available at electronic supply stores).
Be sure to connect the wrist wrap to an unpai nted
metal portion of the computer casing. As an
alternativ e, you can di ssipat e electrostatic build-up by
touching an unpainted metal portion of the computer
casing with one hand. T hen touch the device you are
(un)installing with the other hand, and maintain
continuous contact with it until it is (un)installed in the
computer.
WARNING
Ensure that the computer is disconnected
from its power source and from all
telecommunications links, networks, or
modem lines whenever the casing cover is
removed. Do not operate the computer with
the cover removed.
AVERTISSEMENT
Assurez-vous que le système est
débranché de son alimentation ainsi que de
toutes les liai sons de tél écommunication,
des réseaux, et des lignes de modem avant
d’enlever le capot. Ne pas utiliser le
système quand le capot est enlevé.
WARNUNG
Das System darf weder an eine
Stromquelle angeschlossen sein noch eine
Verbindung mit einer
Telekommunikationseinrichtung, einem
Netzwerk oder einer Modem -Leitung haben,
wenn die Gehäuseabdeckung entfernt wird.
Nehmen Sie das System nicht ohne die
Abdeckung in Betrieb.
ADVERTENCIA
Asegúrese de que cada vez que se quite la
cubierta del chasi s, el sistema haya sido
desconectado de la red de alimentación y
de todos lo enlaces de telecom unicaciones,
de red y de líneas de módem. No ponga en
funcionamiento el sistema mientras la
cubierta esté quit ada.
WAARSCHUWING
Zorg er voor dat alle verbindingen van en
naar de computer (stroom, modem,
netwerk, etc) verbroken worden voordat de
behuizing geopend wordt. Zet de computer
nooit aan als de behuizing geopend is.
Power Supply Unit
Under no circumstances should you attempt to
disassemble t he power supply. The power supply
contains no user-serviceable part s. Insi de the power
supply are hazardous voltages that can cause serious
personal injury. Always return a defectiv e power
supply to your deal er.
Packard Bell EasyNote L Disassembly Manu al
AVVERTENZA
Prima di rimuovere il coperchio del telaio,
assicurarsi che il sistema sia scollegato
dall’alimentazione, da tutti i collegamenti di
comunicazione, reti o linee di modem. Non
avviare il sistema senza aver prima messo
a posto il coperchi o.
Page 5
Removing the Battery
Perform the following steps to remove the battery:
i. Make sure to power of f the EasyNote L.
ii. Disconnect the AC adapt er and all peripherals.
iii. Turn the unit ov er.
iv. Unlock the battery and sli de it out.
4
Fig. 1 Releasing the battery.
Removing the Memory Module
To remove the memory module, first remove the battery (see Removing the Battery
following steps:
1. Remove the screw securing t he m emory compartment cover.
Fig. 2 Memory compartment cover screw location.
), then perform the
ii. Rel ease with your fingers the side l ocks located on t he memory slot. As you release the
locks, the module will automatically pop up and stay in a 45º angle position.
Packard Bell EasyNote L Disassembly Manu al
Page 6
Fig. 3 Releasing the memory side locks.
iii. Pull out the memory module from its slot.
Removing the Hard Disk Drive
To remove the hard disk drive, first remove the battery (see Removing the Battery
following steps:
5
), then perform the
1. Remove the 2 screws securing the hard di sk drive compartment cover.
Fig. 4 Removing the hard disk drive cover.
2. Remove the 2 screws that secure the hard di sk drive.
3. Caref ully pull the Mylar to slide the hard di sk drive assem bly out of the bay.
Fig. 5 Removing the HDD assembly.
Removing the Keyboard
To remove the keyboard, first remove the battery (see Removing the Battery
steps:
Packard Bell EasyNote L Disassembly Manual
), then perform the following
Page 7
1. Release the keyboard cover f rom the rear of the notebook.

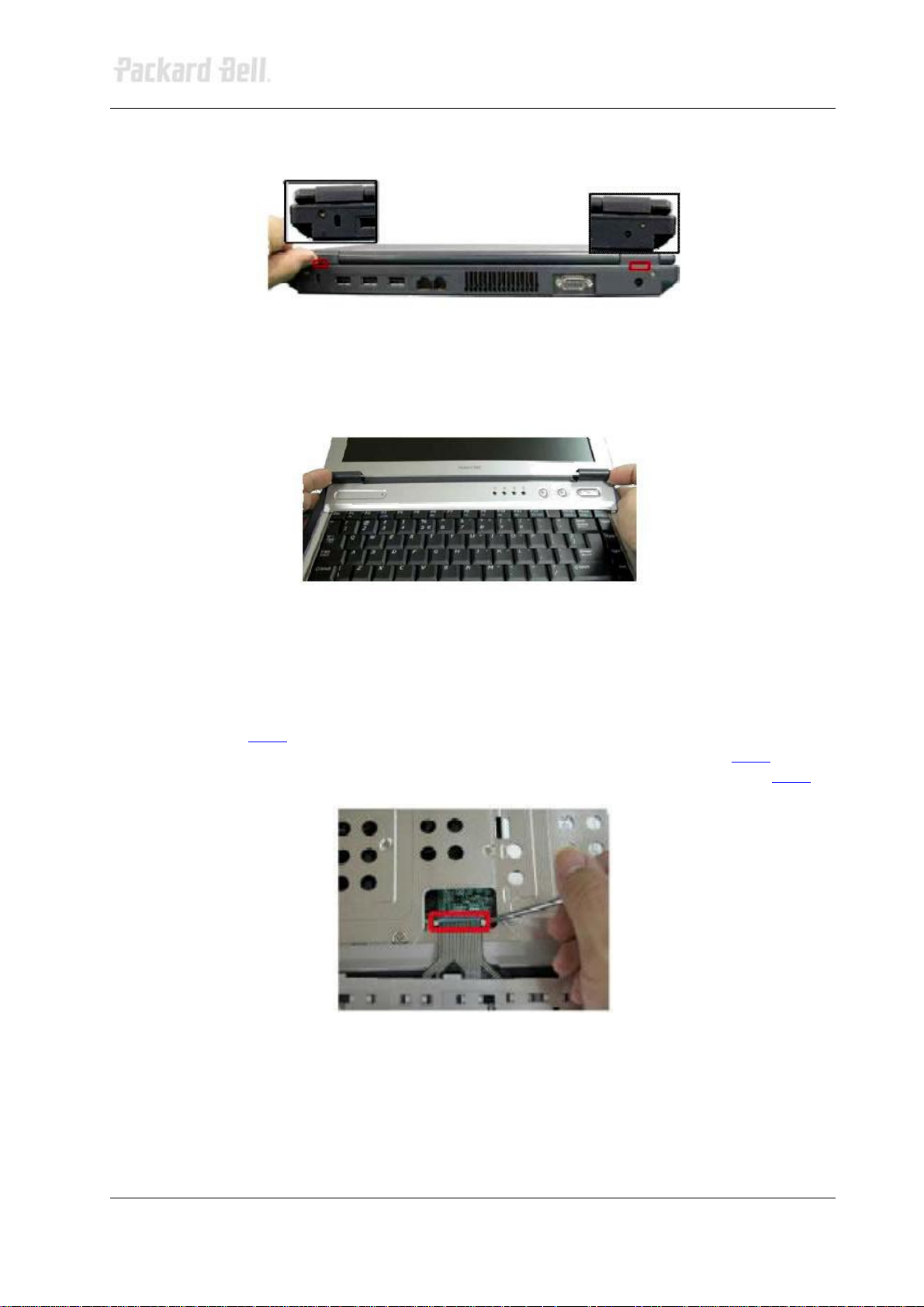

Fig. 6 Releasing the keyboard cover.
2. Open the notebook and tilt the LCD module entirely backward.
3. Carefully remove the keyboard cov er.
6
Fig. 7 Lifting the keyboard.
4. Pull the keyboard up with your fingertips. Be careful not to break the keyboard locks. Since the
keyboard is connect ed to the computer through a flat cabl e, your have to be careful to not
break this cabl e.
5. W ith the keyboard lying on top of the palm rest, di sconnect the keyboard flat cable from the
unit (see Fig. 8
i. Set the flat cabl e connector on the m ain board in the unlock ed position (#1, Fig. 9
ii. Rem ove the keyboard cable f rom the keyboard connect or on the main board (#2, Fig. 9
). To do so:
).
).
Fig. 8 Disconnecting the keyboard flat cable.
Packard Bell EasyNote L Disassembly Manual
Page 8
Fig. 9 Disconnecting the flat cable.
Removing the Optical Disk Drive
To remove the optical disk drive, first remove the battery (see Removing the Battery) and remove the
keyboard (see Removing the Keyboard
1. Remove the 2 screws securing the optical disk drive.
), then perform the following steps:
7
Fig. 10 Releasing the optical disk drive.
2. Fli p over the unit, open the LCD and push the optical disk drive module out f rom the base unit.
Fig. 11 Pushing the optical disk drive out.
Removing the LCD Module
To remove the LCD module, first remove the battery (see Removing the Battery
(see Removing the Keyboard), then perform the following steps:
1. Remove the 6 screws securing the heat plate.
), remove the keyboard
Packard Bell EasyNote L Disassembly Manual
Page 9
Fig. 12 Removing the heat plat e screws.
2. Close the LCD, flip over the notebook and remove the 2 screws securing the LCD module.
8
Fig. 13 Removing the LCD module scr ews (bot tom).
3. Rem ove the 2 screws on t he back.
Fig. 14 Removing the LCD module scr ews (rear).
4. Open up the LCD and gently disconnect the LCD power cabl e and the 2 WLAN antenna
cables.
Fig. 15 Location WLAN antenna cables and LCD power cable.
Note The black WLAN antenna cable is on the MAIN connector, the grey one on the AUX connector.
Packard Bell EasyNote L Disassembly Manual
Page 10
5. Carefully lift the LCD module away from the unit.
Removing the LCD Panel
To remove the LCD panel, first remove the LCD module (see Rem ov ing the LCD Module), then perform
the following steps:
1. Use a pi n to remove the rubber covers on the LCD m odule.
9
Fig. 16 Location of rubber covers and screws.
2. Aft er removing the rubber covers, remove the screws and release the LCD cov er carefully.
3. Remove the inverter board after unscrewing the screw and di sconnecting all connectors.
Fig. 17 Removing the invert er board.
4. Carefully lift t he LCD panel.
5. Rem ove the screws on both sides of the LCD panel in order to release the LCD hinges.
Fig. 18 Removing the LCD panel hinges.
Removing the CPU
To remove the CPU first remove the battery (see Removing the Battery) and remove the key board (see
Removing the Keyboard
), then perform the following steps:
Packard Bell EasyNote L Disassembly Manual
Page 11
1. Remove the screws securing the heat plate (see Fig. 12).
2. Aft er taking out the heat plate, remove the 3 CPU f an screws, disconnect the CPU f an
connector and remove the CPU fan.
Fig. 19 Location CPU fan screws.
10
3. Remov e the 3 remaining screws on the CPU heat si nk and take it out.
Fig. 20 Location remaining CPU heat sink screws.
4. Unlock the CPU socket by turni ng captured screw head full y counter clockwise wi th a flatbladed screwdriver.
Fig. 21 Removing the CPU.
Packard Bell EasyNote L Disassembly Manual
Page 12
5. Take out the CPU v ery carefully.
),
Note Beware of the screws you use on the CPU heat sink! Make sure to use the original screws,
otherwise it might cause damage to the CPU die.
Note Use extra care when unlocking or locking the CPU socket because the screwdriver might
cause damage on CPU’s edge each time when unlocking or locking the CPU socket..
Removing the Top Cover
To remove the top cover, first remove the battery (see Removing the Battery), remove the hard disk drive
(see Removing the Hard Disk Drive
remove the keyboard ( see Removing the Keyboard) and remove the LCD module (see Removing the
LCD Module), then perform the following steps:
1. Remov e all screws (2 small and 8 larger ones) on the bottom of the base unit.
), remove the optical disk drive (see Removing the Optical Disk Drive
11
Fig. 22 Location bottom cover screws.
2. Fli p over and open up the notebook completely so that the LCD is l evell ed with the bottom of
the casing.
3. Release all screws (2 large and 3 smaller ones) on t he top cover.
Packard Bell EasyNote L Disassembly Manual
Page 13
Fig. 23 Location top cover screws.
4. Disconnect the touchpad connector and remove the f lat cable (same principle as described in
Fig 9
).
12
Fig. 24 Disconnecting the touchpad cable.
5. Caref ully lif t the top cover.
Removing the Touchpad
To remove the touchpad, first remove the top cover (see Removing the Top Cover), then perform the
following steps:
1. Remove the screws securing the touchpad to the top cov er.
Packard Bell EasyNote L Disassembly Manual
Page 14
Fig. 25 Location touchpad screws.
2. Carefully separate the touchpad module from the top cover.
Removing the Chipset Heat Sink
To remove the chipset heat sink, first remove the top cover (see Removing the Top Cover
the following steps:
13
), then perform
1. Remov e the 2 screws securi ng the chipset heat sink to t he main board.
Fig. 26 Location chipset heat sink screws.
Removing the WLAN Card
To remove the WLAN card, first remove the LCD module (see Removing the LCD Module) and then
perform the following steps:
1. Release with your fingers the side locks securing the WLAN card. As you release the locks,
the card will automati cally pop up and stay in a 45º angle position.
Packard Bell EasyNote L Disassembly Manual
Page 15
Fig. 27 Releasing the WLAN side locks.
2. Carefully take out the WLAN car d from the sl ot.
Removing the MDC Modem
To remove the modem, first remove the top cover (see Removing the Top Cover
following steps:
14
), then perform the
1. Remove the 2 screws securing the m odem to the main board.
Fig. 28 Location modem card screws.
2. Turn over t he modem and gently disconnect the MDC cable.
Removing the Main Board
To remove the main board, first remove the top cover (see Removing the Top Cover
the following steps:
) and then perform
1. Remove the hex screws from the VGA port.
2. Rem ove all screws on the HDD holder and separate it caref ully from the m ain board.
Packard Bell EasyNote L Disassembly Manual
Page 16
Fig. 29 Screw location on the HDD holder.
3. Disconnect the speaker and Lid switch connectors f rom the main board and remove the
screws encircled in the following picture.
15
Fig. 30 Screws and connectors on main board.
4. Lift the main board and remov e i t away f rom the unit.
Fig. 31 Removing the main board.
Packard Bell EasyNote L Disassembly Manual
Page 17
Notice
The information in this guide is subject t o change without notice.
This guide contains information protected by copyright. No part of this guide may be photocopied or
reproduced in any form or by any means without prior written consent from NEC Computers International
B.V.
NEC COMPUTERS INTERNATIONAL B.V. SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL
ERRORS OR OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
Copyright © 2005 NEC Comput ers International B.V. All rights reserved.
Packard Bell is a trademark of NEC Computers Inter national B.V.
The names of actual companies and products mentioned herein may be trademarks and/or registered
trademark s of their r espect ive owners.
The software described in this guide is furnished under a license agreement or nondisclosure agreem ent.
The software may be used or copied only in accordance with the terms of the agreement.
16
EasyNote L Disassem bly Manual
Author: Juan M. Calviño & Thomas Herbers - ECCS
First Edition: October 2005
Document Part Number: 7400360000
Version: 1.0
Packard Bell
A division of NEC Computers International B.V.
Packard Bell EasyNote L Disassembly Manual
Loading...
