Pace ST 65 Maintenance Manual

ST 65 Systems

Operation & Maintenance Manual

i

© 2000 P ACE Incorporated, Laurel MD. All rights reserved. Printed in the U.S.A.

MANUAL NUMBER 5050-0454

REV. C

PACE Incorporated retains the right to make changes to specifications
contained herein at any time, without notice.

Contact your local authorized PACE Distributor or P ACE Incorporated to obtain the
latest specifications.

The following are registered trademarks and/or servicemarks of P ACE Incorporated,
Laurel Maryland U.S.A. and may only be used to identify genuine PACE products or
services:

Arm-Evac, Mini-Wa ve, P A CE, SensaT emp, Snap-V ac, Sodrtek, Sodr-X­Tractor, ThermoFlo, ThermoJet, ThermoTweez, T oolnet, Visifilter.

For any questions regarding this Operation & Maintenance Manual, contact your
local authorized PACE distributor or contact P ACE directly at the appropriate address
listed below .

P ACE USA 9893 Brewers Court, Laurel, Maryland 20723-1990

Tel. [phone] (toll-free), [phone]
FAX [phone]

www .p aceworldwide.com

PACE EUROPE. Sherbourne House Sherbourne Drive Tilbrook

Milton Keynes United Kingdom MK7 8HX
Tel. [phone] FAX [phone]

1

TITLE PAGE

General Information...................................................................................................2

Introduction ...................................................................................................2

Specifications.................................................................................................2

Parts Identification .........................................................................................3

Safety ........................................................................................................................4

Safety Guidelines, English Language.............................................................4

Safety Guidelines, French Language..............................................................5

Safety Guidelines, German Language.............................................................6

Safety Guidelines, Italian Language ...............................................................7

Safety Guidelines, Portuguese Language ......................................................8

Safety Guidelines, Spanish Language ............................................................9

Safety Guidelines, Swedish Language .........................................................1 0

Set-Up ..................................................................................................................... 11

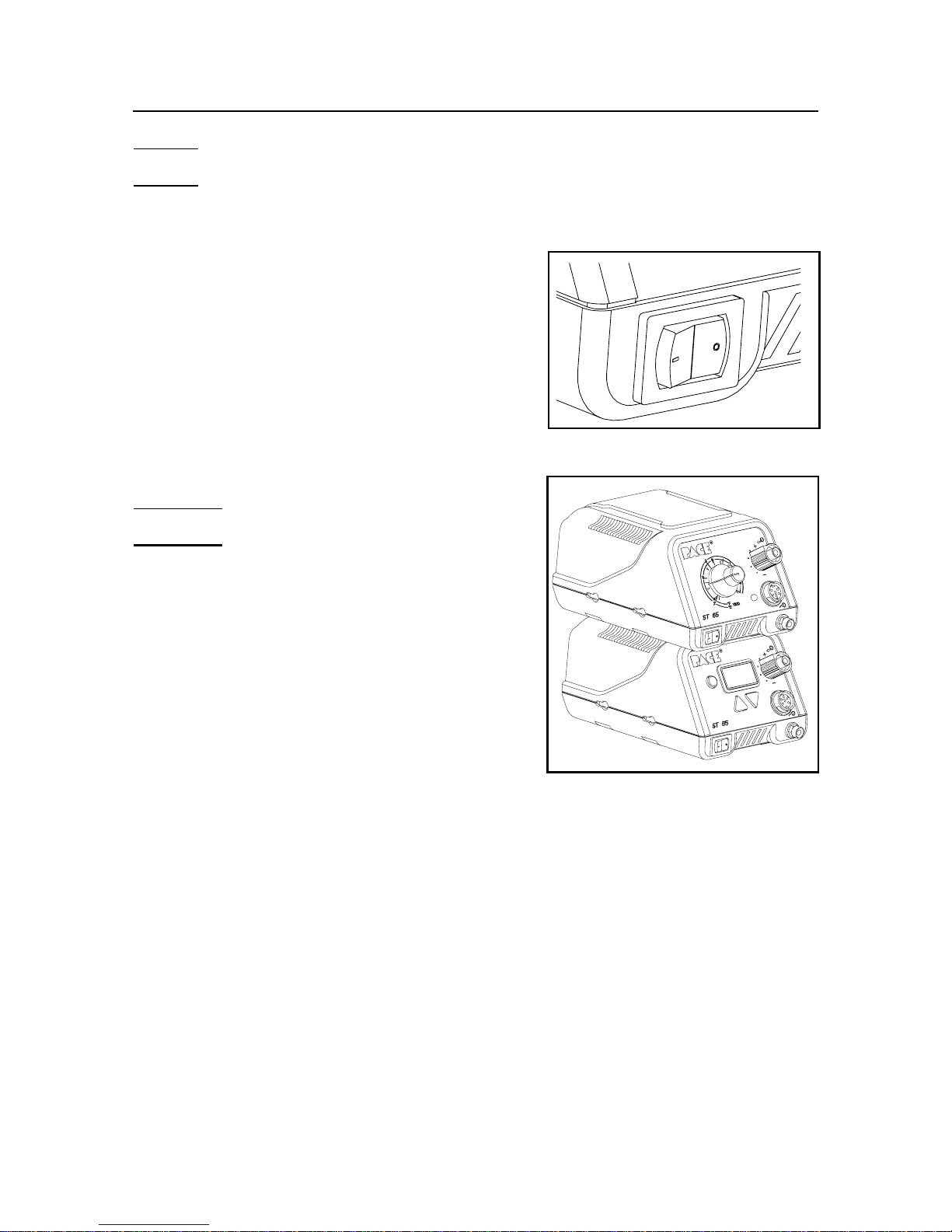

Stacking .......................................................................................................11

Tip & Tool Stand..........................................................................................11

Air Supply Connection ................................................................................ 13

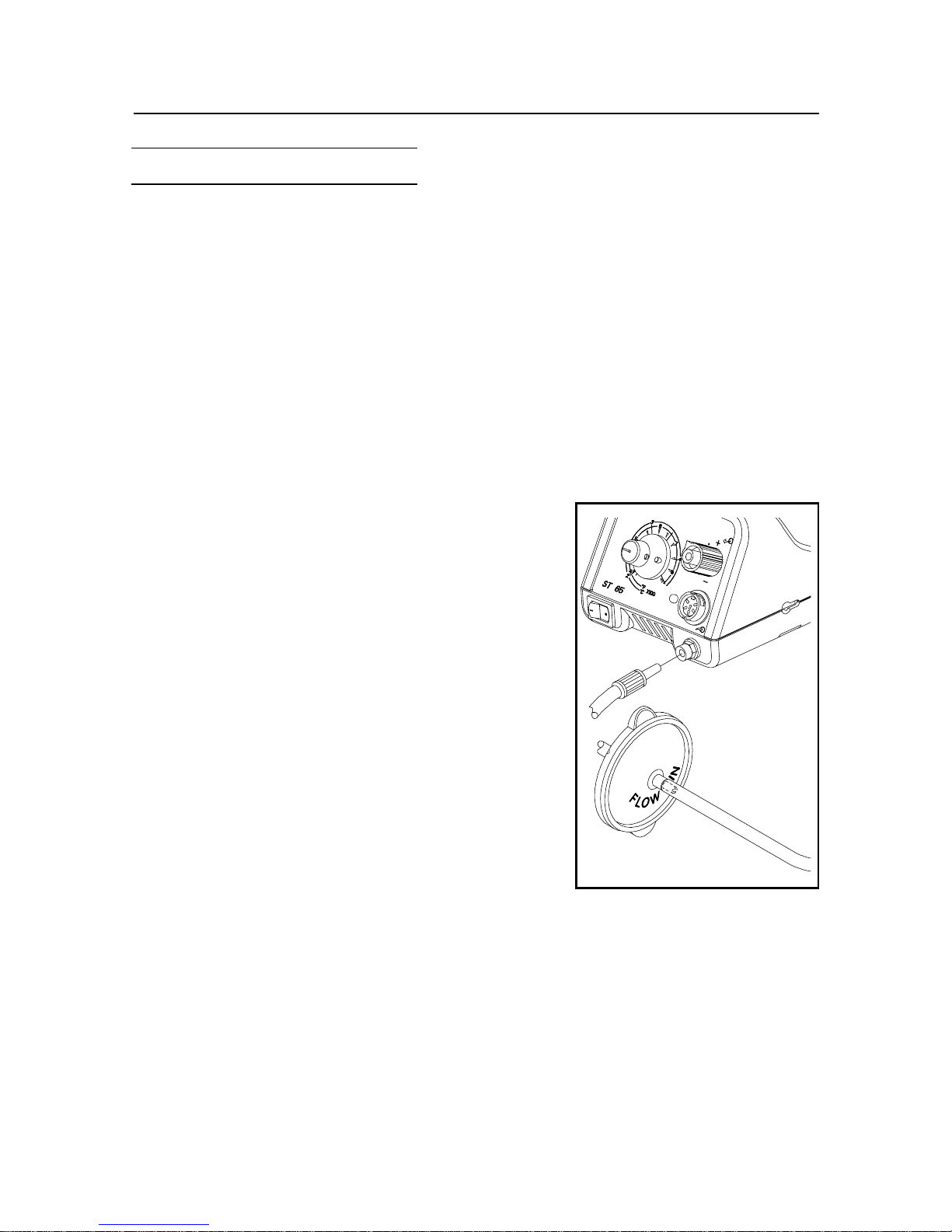

Handpiece V acuum/Pressure........................................................................ 1 4

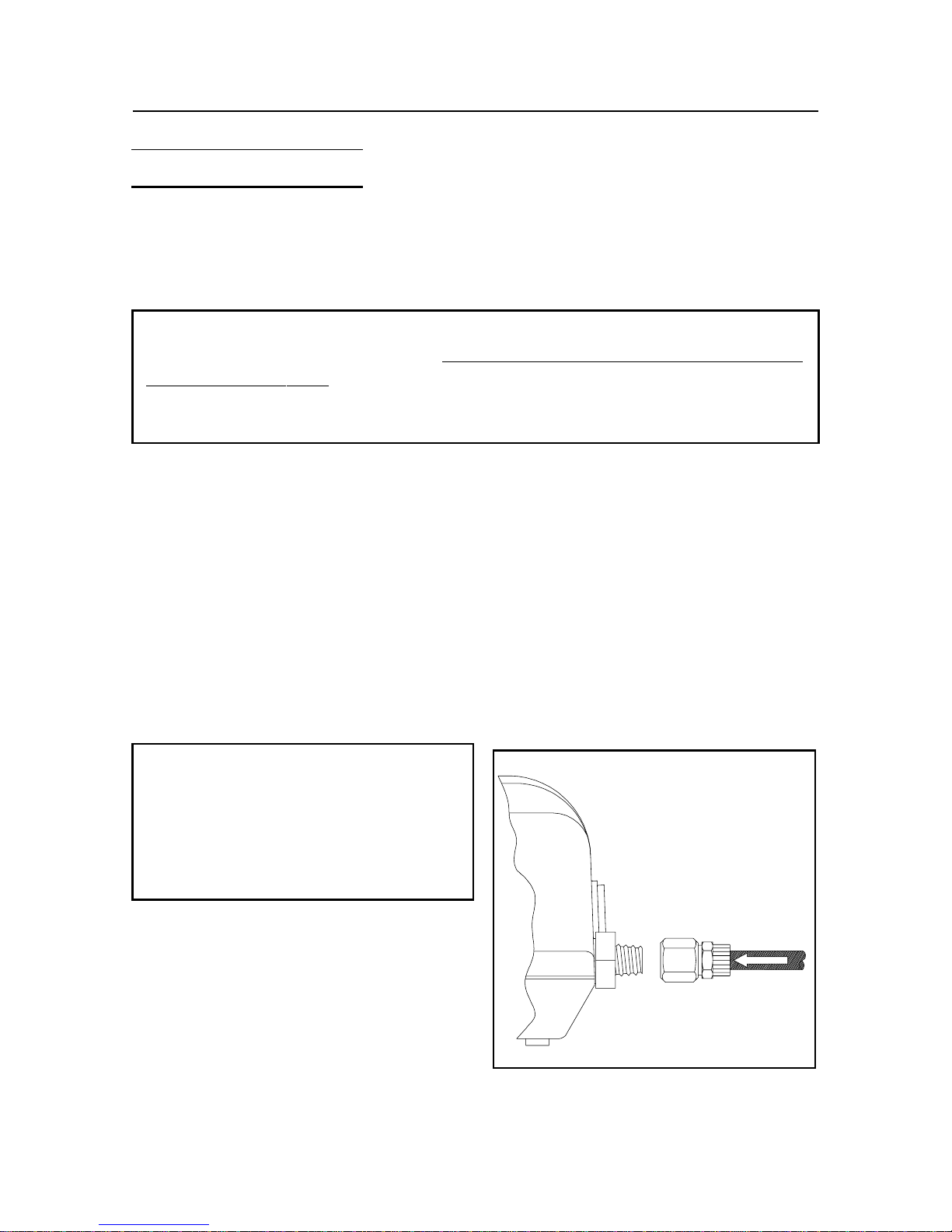

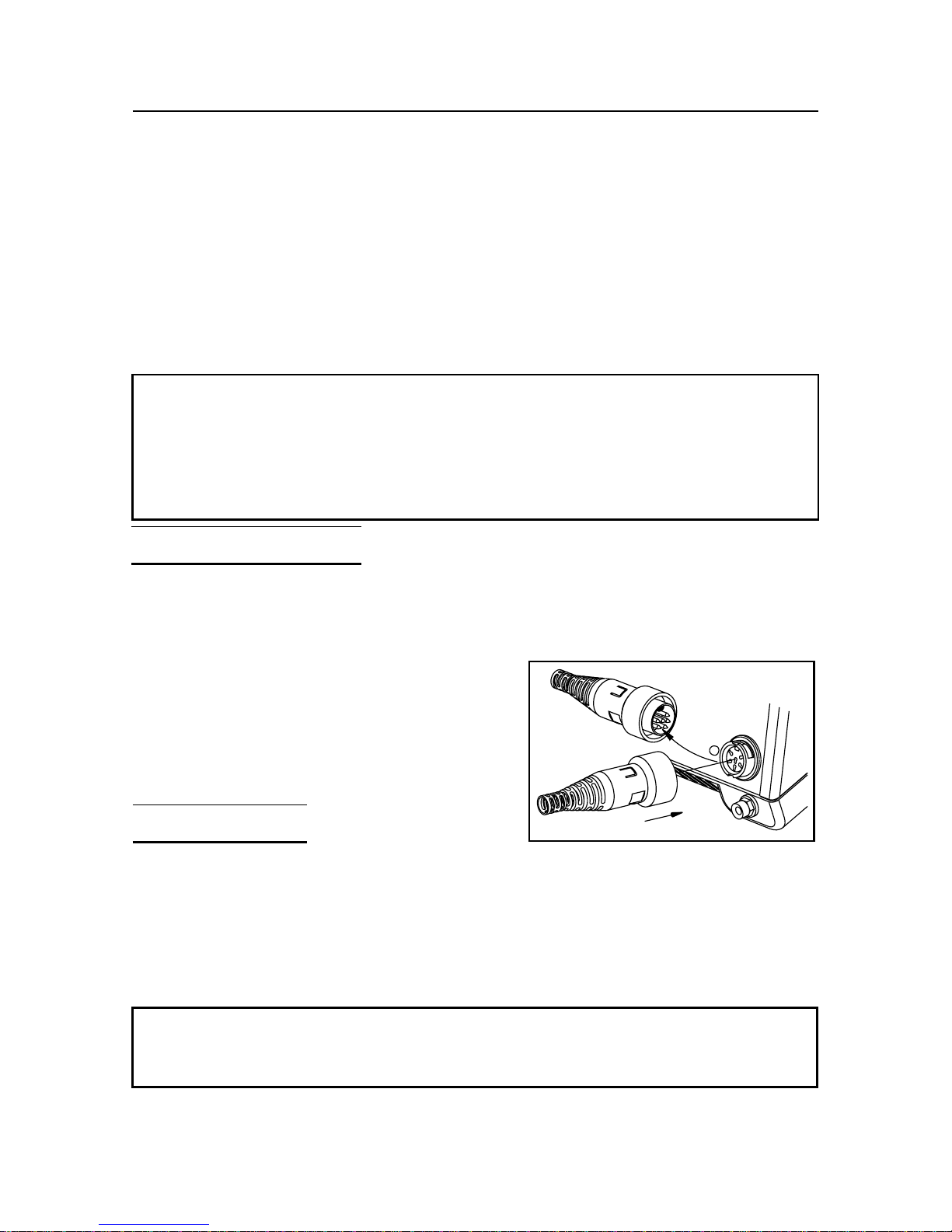

Handpiece Connection.................................................................................15

System Power Up ......................................................................................... 1 5

Handpiece Heater Burn In ............................................................................1 6

Operation ................................................................................................................16

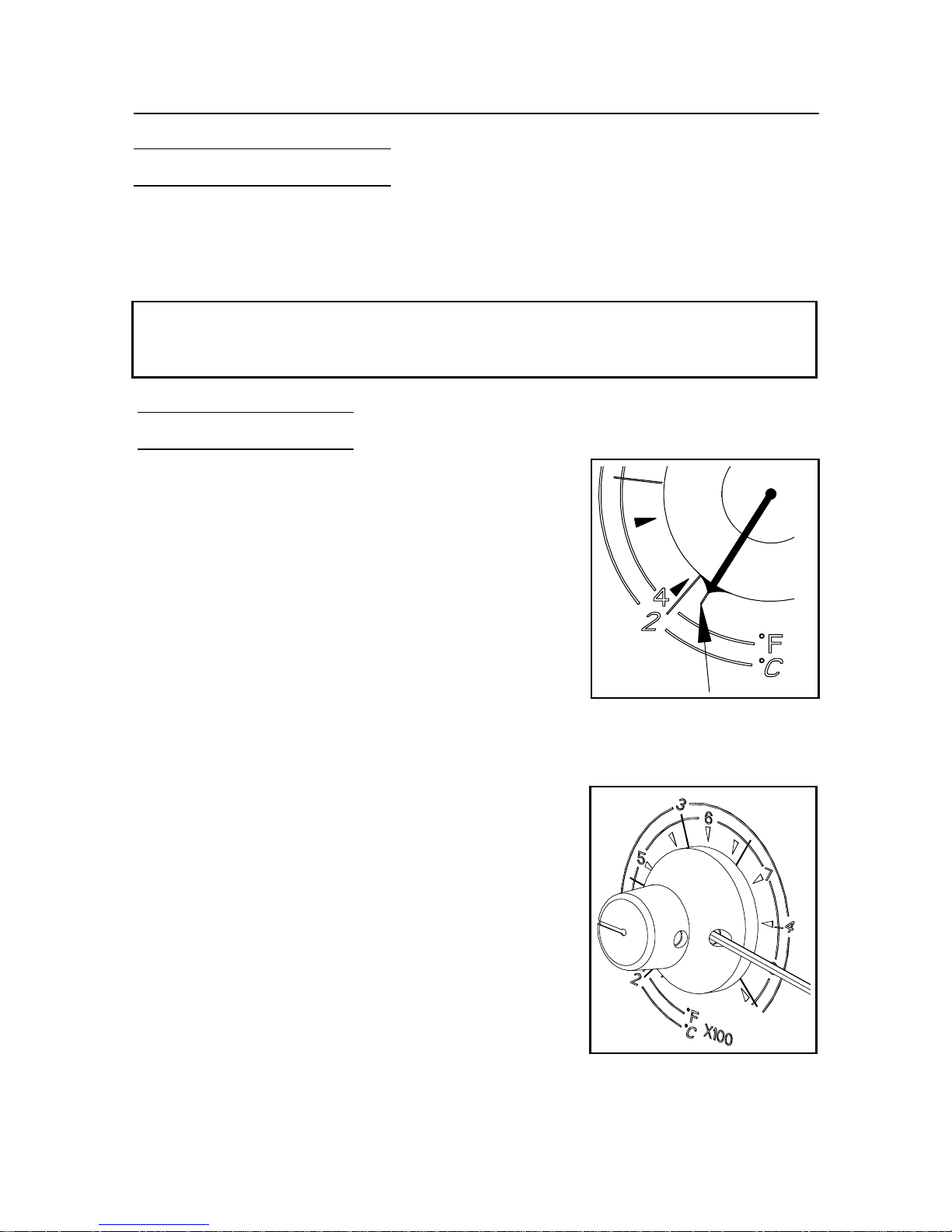

Temperature Selection ..................................................................................1 6

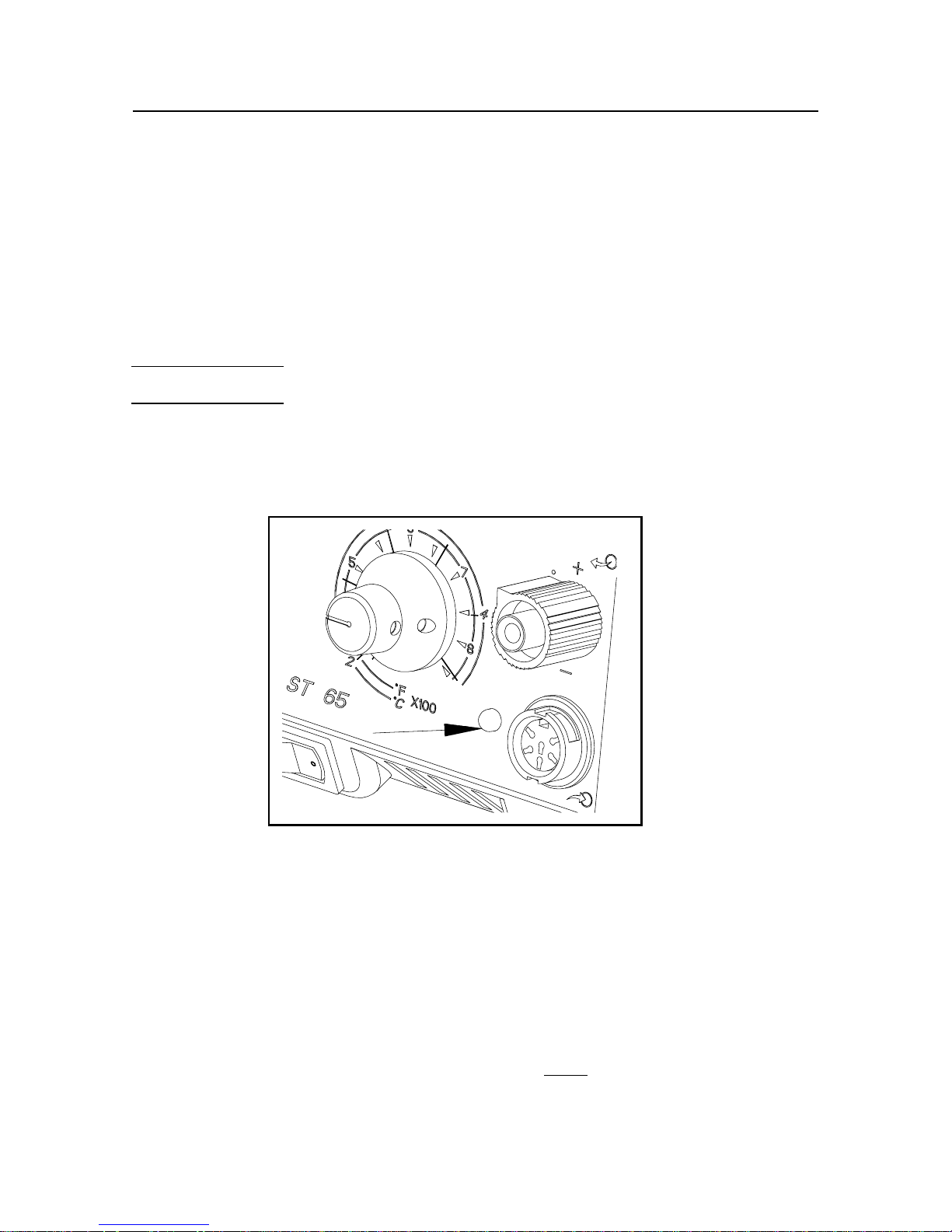

LED Operation..............................................................................................17

Calibration............................................................................................................... 18

Corrective Maintenance..........................................................................................1 9

Power Source ............................................................................................... 1 9

Handpieces .................................................................................................. 20

Packing List/Spare Parts ......................................................................................... 2 1

Packing List.................................................................................................. 21

Spare Parts ...................................................................................................2 1

Limited Warranty Form ...........................................................................................2 2

Table of Contents

2

Specifications

System Power Source Power Requirements

ST 65 - Operates on 97-127 VAC, 50/60Hz, 90 Watts maximum

at 115 VAC, 60Hz

ST 65E - Operates on 197-253 VAC 50/60Hz, 80 Watts maximum

at 230 VAC, 50Hz

Shop Air Input Requirements:

Pressure - 5.48 Bar (80 p.s.i.) recommended

6.17 Bar (90 p.s.i.) maximum

Air Flow - 45.3 SLPM (1.6 SCFM) minimum

Temperature Specifications

Handpieces

Tip Temperature Range: 204 to 454°C (400 to 850°F) nominal.
Temperature Stability: ±1.1°C (±2°F) at idle from set tip temp.

NOTE - Actual minimum and maximum Operating Tip Temperatures may vary
depending on Handpiece, Tip Selection and application.

EOS/ESD Specifications

The specifications shown below apply except on "Soft Ground Systems" which have
a 1 meg ohm current limiting resistance and a label placed on the power source front
panel referring to EN 100015-1.

Tip-To-Ground Resistance: Less than 2 ohms.
AC Leakage: Less than 2 millivolts RMS from 50Hz to 100MHz.
Transient Level: Less than 500 mV peak, out to 100MHz.

Introduction

Thank you for purchasing the P ACE model ST 65 Soldering/Desoldering System. This
manual will provide you with the information necessary to properly set up, operate and
maintain the system. Please read this manual thoroughly before using the system.

The ST 65 systems are available in either the 1 15 VAC, or 230 VAC version which
incorporates a highly responsive SensaTemp (closed loop) control system providing
up to 80 Watts of total power to a single output channel. The 230 VAC version
system bears the CE Conformity Marking which assures the user that it conforms
to all the requirements of council directive EMC 89/336/EEC. The systems
package the power source with a selection of accessories and functional aids.

General Information

3

General Information

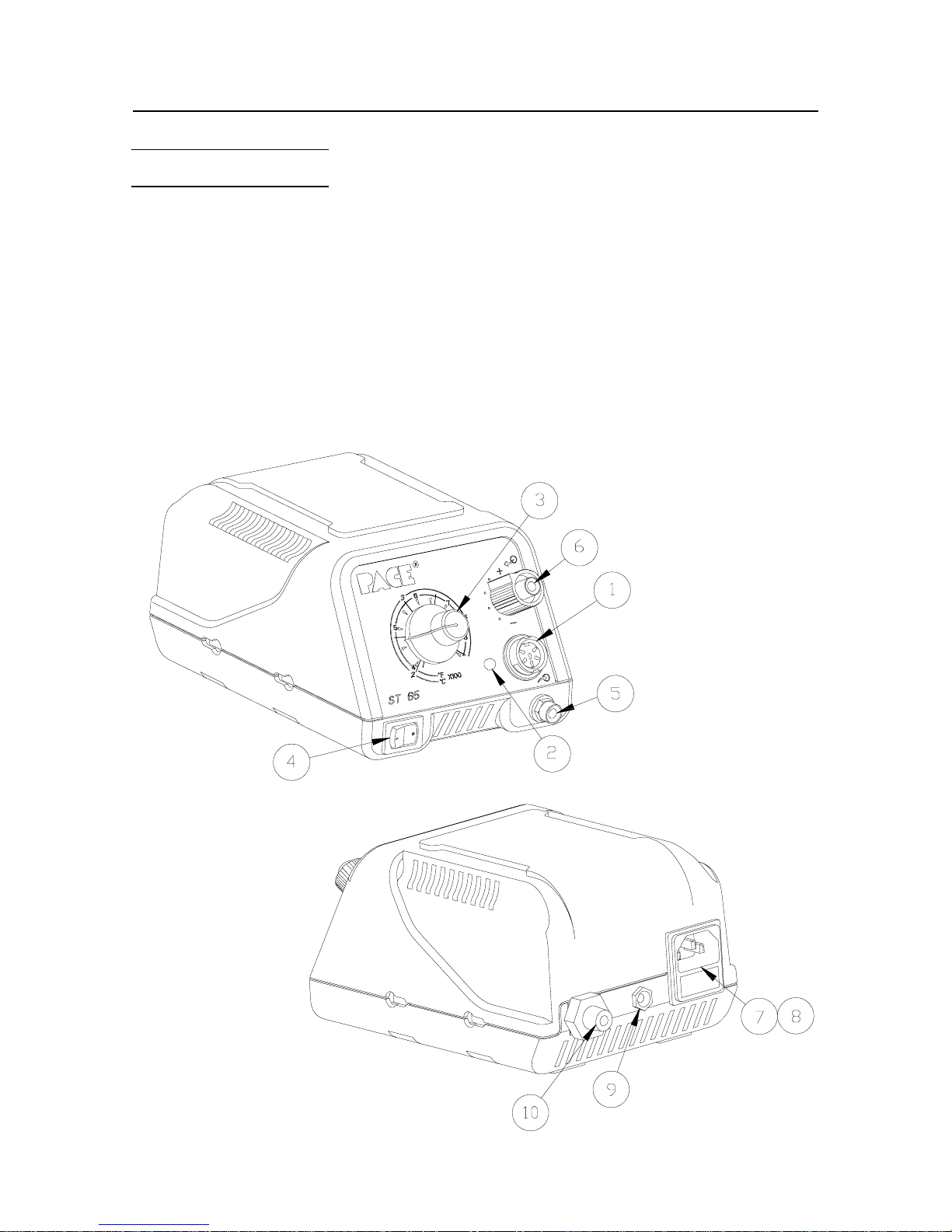

Parts Identification

 Controllable Pressure Port
 AC Power Receptacle/Fuse Holder

 Fuse
 Earth Ground Receptacle

(230 VAC Systems only)

 Air Hose Fitting

 Power Receptacle
 LED
 Variable Temperature Control
 Power Switch
 Vacuum Port

4

Safety Guidelines, English Language

The following are safety precautions which personnel must understand and follow
when using or servicing this product.

1. POTENTIAL SHOCK HAZARD - Repair procedures on P ACE products

should be performed by Qualified Service Personnel only . Line voltage

parts may be exposed when the equipment is disassembled. Service

personnel must avoid contact with these parts when troubleshooting the

product.

2. To prevent personnel injury, adhere to safety guidelines in accordance
with OSHA and other applicable safety standards.

3. SensaTemp handpiece heaters and installed tips are hot when the
handpiece is powered on and for a period of time after power off.
DO NOT touch either the heater or the tip. Severe burns may
result.

4. PACE Tip & Tool Stands and handpiece cubbies are designed
specifically for use with the associated handpiece and houses it in
a manner which protects the user from accidental burns. Always
store the handpiece in its holder. Be sure to place the handpiece
in its holder after use and allow to cool before storing.

5. Always use PACE systems in a well ventilated area. A fume
extraction system such as those available from PACE are highly
recommended to help protect personnel from solder flux fumes.

6. Exercise proper precautions when using chemicals (e.g., solder
paste). Refer to the Material Safety Data Sheet (MSDS) supplied
with each chemical and adhere to all safety precautions
recommended by the manufacturer.

Safety

5

Directives de Sécurité, Française Langue

Les précautions suivantes, sont celles que le personnel doit comprendre et suivre
lorsqu'il utilise, effectue la maintenance ou se sert d'un produit PACE.

1. Danger potentiel de choc èlectrique - Les procédures de réparation sur

les produits PACE doivent être effectuées seulement par du personnel
qualifié. Des parties de l'équipement désassemblées peuvent être sous
tension. Le personnel de maintenance doit éviter tout contact avec ces
parties en réparant le produit.

2. Pour prévenir tout préjudice, le personnel adhère au guide de sécurité en
accord avec OSHA (équivalent à des normes françaises de sécurité) et
d'autres standards de sécurité applicable.

3. La mise sous tension des outils SensaTemp comporte des éléments
chauffants (buse). Ces derniers, gardent la chaleur même après la mise
hors tension pendant un certain temps. Ne pas toucher les parties
chaudes aux extrémités des outils. Des brûlures sévères peuvent en
résulter .

4. Les outils PACE et leurs pannes ainsi que le support sont dessinés de
manière spécifique afin de protéger l'utilisateur/opérateur de brûlures
accidentelles. Reposer toujours les outils après chaque utilisation dans
leurs étuis/supports afin de permettre leur refroidissement.

5. Utiliser toujours les stations Pace dans unlieu bien ventilé. Des
extracteurs de fumée Pace sont hautement recommandés pour protéger
votre personnel des vapeurs de soudure/flux.

6. Prenez les mesures nécessaires quand vous utilisez des produits (ex:
solder paste) chimiques. Reportez-vous au document (fiche technique/
sécurité) du fabricant fourni avec chaque produit. Respectez toutes les
procédures de sécurité recommandées par le constructeur.

Sécurité

6

Sicherheit Korrekturlinien, Deutsche Sprache

Die nachfolgenden Sicherheitsvorschriften sollten vom Bedien- un Servicepersonal
verstanden und befolgt werden.

1. Entladung spannungsfuehrender T eile - Reparaturen an PACE Produkten
sollten nur von qualifizierten Personal durchgefuehrt werden.
Spannungsfuehrende Teile koennen sich bei gezogenen Netzstecker
entladen. Servicepersonal muss den Kontakt dieser Teile vermeiden.

2 . Um moegliche Gefahren fuer Personen auszuschliessen, muessen alle

Sicherheitsvorschriften in Uebereinstimmung mit OSHA und anderen
anwendbaren Sicherheitsstandards eingehalten werden.

3. Angeschlossene SensaTemp Heizelemente von Handwerkzeugen und
installierte Loetspitzen sind heiss wenn das System eingeschaltet ist oder
erst vor kurzer Zeit ausgeschaltet wurde. Heizelement und Loetspitze
nicht beruehren. Verbrennungsgefahr.

4. PACE Tip & Tool und andere Handwerkzeugablagen sind so konstruiert,
dass ein versehentliches Beruehren des dazugehoerendes
Handwerkzeuges vermieden wird. Bewahren Sie das Handwerkzeug nach
Gebrauch stets in der Ablage auf. Bevor das Handwerkzeug an einem
anderen Ort gelagert werden muss, lassen Sie es in der Werkzeugablage
vollstaendig abkuehlen.

5 . Benutze P ACE Systeme nur in gut beluefteten Raeumen. Ein

Loetrauchabsaugsystem, wie es z.B. von P ACE erhaeltlich ist, hilft
Bedienpersonen von den Gefahren von Loetrauch zu schuetzen.

6 . W enn Chemikalien (z.B.: Lotpaste) verwendet werden, muessen alle die in

den Sicherheitsdatenblaettern des Herstellers ausgewiesenen
Sicherheitsvorschriften eingehalten werden.

Sicherheit

7

Misure di Sicurezza, Italiana Lingua

Le seguenti instruzioni sono misure di sicurezza che il personale deve comprendere e
seguire quando utilizza o ripara I prodotti P ACE.

1. EVENTUALI RISCHI DI SHOCK ELETTRICO- Si consiglia di far
eseguire le operazioni di riparazione dei prodotti P ACE, da un servizio di
personale qualificato. Quando la stazione non é assemblata le parti
sottoposte alla tensione di linea potrebbero essere scoperte. Il personale
deve evitare il contatto con queste parti durante manutenzione del
prodotto.

2 . Per evitare eventuali pericoli al personale, attenersi alle norme di sicurezza

previste dalla guida, in conformitá all’OSHA e agli altri Standard di Sicurezza
applicabili.

3. Le resistenze PACE Sensatemp e le punte installate sono calde quando la
stazione é accesa e per un periodo successivo allo spegnimento. Non
toccare la resistenza e la punta. Puó comportare gravi ustioni.

4 . I supporti PACE sono specificamente costruiti insieme alla corrispondente

impugnatura e progettati per un uso che protegge gli utenti da ustioni
accidentali. Mettere sempre l’impugnatura nel propio supporto dopo
l’utilizzo e lasciarla raffredare prima di riporla.

5 . Utilizzare sempre I stazioni P ACE in una zona be aerata per proteggere il

personale dai fumi. É fortemente raccomandato un sistema di aspirazione
(dei fumi) come quello disposta dalla P ACE.

6 . Usare precauzioni quando si utilizzano sotanze chimiche (es. Pasta di

stagno). Fare riferimento al Material Safety Data Sheet (MSDS) fornita con
ogni sostanza chimica e seguire tutte le misure di sicurezza raccomandate
dal fabbricante.

Sicurezza

8

Guidelines de Segurança, Portuguese Lingua

Segurança

Segeum-se precauções de segurança que os operadores devem compreender e seguir
ao utilizar ou reparar produtos PACE.

1. Perigo de choque eléctrico - Os procedimentos de reparação em

produtos PACE, devem ser apenas efectuados por pessoal qualificado.
Linhas de alimentação podem ficar expostas ao desmontar o
equipamento. Pessoal de reparação deve evitar o contacto com essas
partes ao reparar o produto.

2. Para evitar danos pessoais, siga as normas de segurança OSHA ou outras
normas aplicáveis.

3. Resistencias de aquecimento dos ferros e as pontas instaladas estão
quentesquando o ferro está alimentado, e mesmo durante algum tempo
após ser desligado. NUNCA TOCAR nem na resistencia de
aquecimento nem na ponta. Pode resultar em queimaduras severas.

4. Os suportes para pontas e ferros da PACE, foram concebidos para uso
especifico, e para proteger o operador de queimaduras acidentais.
Coloque sempre os ferros nos respectivos suportes. Tenha a certeza de
colocar sempre o ferro no respectivo suporte após cada utilização e deixe­o arrefecer antes de o guardar.

5. Utilize sempre os sistemas da PACE em locais bem ventilados. Um Sistema de
extracção de fumos, como os Sistemas disponiveis na PACE, são altamente
recomendados para a protecção dos utilizadores contra os fumos produzidos pela
solda e fluxo.

6. Tenha precauções apropriadas ao utilizar produtos quimicos (ex. pasta de soldar).
Lêr sempre atentamente os normas de segurança fornecidas com cada produto
químico e siga sempre todas as precauções de segurança recomendadas pelo
fabricante.

9

Guias de Consulta de Seguridad, Espãnol Lenguaje

Lo siguiente es precauciones de seguridad que el personal debe entender y debe
seguir al usar o reparar productos de PACE.

1. RIESGO de SHOCK POTENCIAL - Los procedimientos de la Reparación en

productos de PACE sólo deben ser realizados por Personal de Servicio
Calificado. Pueden exponerse partes de voltaje de línea cuando el equipo se
desmonta. El personal de servicio debe evitar contacto con estas partes al
arreglar el producto.

2. Para prevenir lesión del personal, adhiera a las reglas de seguridad de
acuerdo con OSHA y otras normas de seguridad aplicables.

3. Las herramientas SensaTemp tienen sus calentadores y las puntas
instaladas calientes cuando la herramienta esta encendida y por un
periodo de tiempo después de apagar el equipo. No toque el calentador o
la punta. Las quemaduras severas pueden resultar.

4 . El Soporte de punta y Herramienta PACE se diseñan específicamente para

el uso con las herramientas asociadas y las almacena de una manera que
protege al usuario de las quemaduras accidentales. Siempre guarde la
herramienta en su soporte. Esté seguro de poner la herramienta en su
soporte después del uso y permita que la herramienta enfríe antes de
guardar.

5 . Siempre use sistemas de PACE en una área bien ventilada. Un sistema de

extraccíon de humo como esos disponibles de PACE se recomiendan para
ayudar a protejer al personal contra los humos de flujo de soldadura.

6. Ejercicie las precauciones apropiadas al usar químicos (ej., pasta de la soldadura).
Refiérase a la Hoja de Datos de Seguridad de Material (MSDS) proporcionadó con
cada químico y adhiere a todas las precauciones de seguridad recomendadas por
el fabricante.

Seguridad

10

Säkerhetsföreskrifter

Följande säkerhetsföreskrifter måste förstås och följas av personal som använder
eller utför service på PACE produkter.

1. RISK FÖR STRÖMSTÖT - Service / Reparation av PACE produkter

får endast utföras av aktoriserad service personal. Strömförande delar
kan kommas åt när produkten är isärplockad. Iaktag aksamhet när
felsökning görs för att undvika strömstötar.

2. För att undvika personskada rekommenderas att OSHA eller andra
liknande arbetssäkerhets standarder följs.

3. SensaTemp verktygselement och installerade spetsar är heta när
strömmen är påslagen och en tid efter att strömmen slagits av. RÖR EJ
element eller spets. Risk för brännskador!

4. PACE Spets och Verktygshållare är speciellt utformade för att passa
PACE respektive verktyg så att risken för brännskador kan undvikas. När
verktyget ej används bör det alltid förvaras i sin hållare.

5. Tillse att ventilationen är god där PACE System används. Ett
lödröksutsug system som t.ex. PACE tillhandahåller rekommenderas för
att skydda användaren för giftig lödrök.

6. Tillse att gällande säkerhetsföreskrifter följs vid användning av
kemikalier, t.ex. lodpasta.Se säkerhetsdatabladen som medföljer
kemikalierna och följ de rekommenderade säkerhetsföreskrifterna från
respektive tillverkare.

Säkerhetsföreskrifter, Svenska

11

Set-Up

Set-up

Set up the ST 65 system using the following steps
and associated drawings.

1. Store the shipping container(s) in a
convenient location. Reuse of these
containers will prevent damage if you store
or ship the system.

2 . Place the Power Switch in the “OFF” or “0”

position.

Stacking

ST 25, 45, 65 & 85 systems can be stacked one on
top of the other (up to 3 units high). Ensure that
the power sources are positioned as shown with
the recessed area in the bottom of the top power
source placed over the raised portion on top of the
bottom power source.

12

Set-Up

Tip & Tool Stand

If you have purchased a system with a handpiece, set up the Tip & Tool Stand in the
following manner. If you have purchased another SensaTemp handpiece, use the
instructions enclosed with the handpiece and associated Tip & Tool Stand.

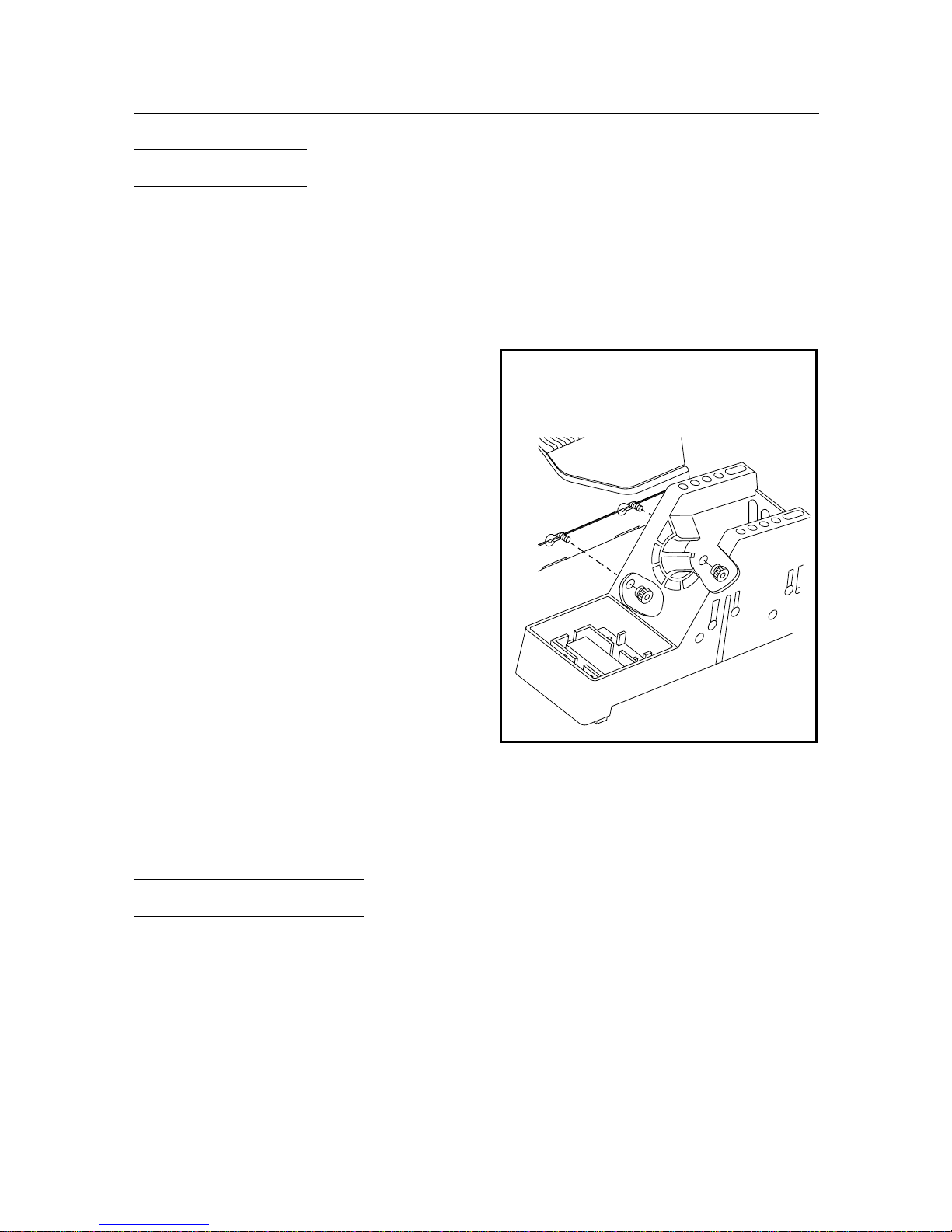

1. To attach the stand to the power
source, use the following procedure.

a) Insert the 2 Mounting Screws

(head first) into the 2 power
source mounting slots shown.
Slide the screws toward rear of
power source.

b) Place the Tip & Tool Stand beside

the power source. Insert ends of
the 2 Mounting Screws into the 2
Tip & Tool Stand mounting holes
shown.

c) Install a Thumb Nut onto the end

of each Mounting Screw. Tighten
Thumb Nuts to secure the stand
in position.

2. Place the handpiece into its Tip &
Tool Stand.

Handpiece Connection

Connect the handpiece connector plug into the Power
Receptacle in the following manner.

1. Align guide on connector with slot on power
receptacle.

2. Insert connector into power receptacle.

13

Air Supply Connection

The ST 65 system utilizes an integral air venturi system to provide air pressure and
vacuum for any connected PACE SensaTemp air handpiece. Your in-house air supply
(regulated to 5.48 Bar (80 P.S.I.); see "Specifications") must be connected to the
system power source.

CAUTION

The system must be connected to a clean, dry , and filtered air supply regulated
to 5.48 Bar (80 P.S.I.); see "Specifications". Connection to a contaminated air
supply or one with pressure in excess of 6.16 Bar (90 p.s.i. may cause damage
to the power source.

1 . Attach a length of Small, Flexible Air Hose (not supplied) to the Air Hose

Fitting on the rear of the PACE power source using the following procedure.
PACE does not recommend the attachment of quick connect air hose

fittings to the power source. The weight of the standard large air hose
lines will affect the stability of the system and would require a larger
bench space.

a) 230 V AC Systems only: A metric adapter fitting (P ACE part number

1259-0081) is included for use with 230 V AC systems.

Set-Up

NOTE

DO NOT overtighten connections.

Damage to the system could occur if
excessive torque is applied to the Air
Hose Fitting, metric adapter or
Connector.

b) Install the Connector (with Small,

Flexible Air Hose) onto the Air
Hose Fitting (or metric adapter)
finger tight. Using an
appropriate wrench, tighten the
Connector an additional 1/4 turn.
DO NOT overtighten.

2 . Connect the free end of the small, flexible air line hose to your air supply

using the appropriate fittings.

14

Handpiece Vacuum/Pressure

To set up your handpiece air hose connection, perform the following steps:

1. Air Hose To Handpiece Connection
a) Attach one end of a 137cm (54 inch) length of air hose to the metal tube in

the back of the handpiece.

b) If you have a P ACE system incorporating only one handpiece, attach the

air hose to the power cable using the supplied Hose Clamps. Space them
evenly along the length of the power cable starting at a point 6 inches
from the ends of the handpiece.

c) If you have a P ACE system incorporating 2 or more air handpieces, you

may wish to leave the air hose assembly unattached to allow a quick
change to any air handpiece being used.

2 . Prepare a V isiFilter (if needed) in the following

manner:

a) Connect a 1 inch (2.5cm) length of clear pvc

air hose to the FLOW OUT side of the
VisiFilter; push and turn the hose onto the
VisiFilter nipple to seat.

b) Insert the ribbed end of a male quick connect

hose mount fitting (P/N 1259-0087) into the
free end of the 1 inch (2.5cm) length of air
hose connected to the FLOW OUT side of
the VisiFilter.

c) Connect the free end of the 137cm (54 inch)

length of air hose to the FLOW IN side of the
V isiFilter .

d) Insert the end of the quick connect hose

mount fitting (on VisiFilter FLOW OUT
side) into the power source Vacuum Port.

3. When using air pressure, and/or utilizing multiple air handpieces,
PACE recommends the use of the following set up procedure which
utilizes additional quick connect hose mount fittings. An assortment
of quick connect air fittings are supplied with each additional air
handpiece.

a) Disconnect the 137cm (54 inch) length of air hose from the FLOW

IN side of the VisiFilter assembly. Insert the ribbed end of a male
quick connect hose mount fitting (P/N 1259-0087) into the free
end of this air hose.

Set-Up

15

Set-Up

3. Turn the connector housing clockwise to
lock in place.

System Power Up

1 . Insert the female end of the power cord into the AC Power Receptacle at the

rear panel of the power source.

2 . Plug the prong end (male end) of the power cord into a 3 wire grounded AC

supply receptacle. The system is now ready for operation.

CAUTION

To ensure operator safety, the AC supply receptacle must be checked for proper
grounding before initial operation.

3. Read this manual and all other included manuals thoroughly before
operating the system.

b) Connect the free end of a 1 inch (2.5cm) length of air hose with an

installed female quick connect hose mount fitting (P/N 1259-0086) to
the FLOW IN side of the V isiFilter Assembly .

c) The 137cm (54 inch) length of air hose can now be easily moved

between the V isiFilter Assembly and the Controllable Pressure Port.
The V isiFilter assembly remains connected to the Vacuum Port.

4. Additional fittings may also be added to the hose connection at the rear of
each air handpiece to ease changing of handpieces.

NOTE

When removing any air hose, turn and pull. Do not attempt to pull hose directly off.
Damage to or breakage of fitting or VisiFilter may occur. Use your Sodr-X-Tractor with
a clean V isiFilter element. Otherwise a deterioration in performance or damage to the
unit may occur.

Handpiece Connection

Connect the handpiece connector plug into the Power Receptacle in the following
manner.

1. Align guide on connector with slot on
power receptacle.

2. Insert connector into power receptacle.

16

Set-Up/Operation

Handpiece Heater Burn In

T oeinsure optimum performance and long life, some new handpieces must undergo a
burn in procedure. A Red tag is attached to the handpiece and with replacement heater
assemblies. Follow the Burn In procedure listed on the tag when setting up a new ST 65
system or when replacing a handpiece heater assembly .

NOTE

Ensure that the system is placed in a well-ventilated area. Smoke will be emitted from the
heater assembly during the burn in cycle.

Temperature/Dial Lock

The Variable T emperature Control Knob can be locked in
position to avoid accidental or unauthorized changes of
the temperature setting. Perform the following procedure
to lock the Variable T emperature Control Knob.

1. Adjust the Temp. Control Knob to the desired
temperature setting.

2 . Using the Temp. Locking Key (hex key supplied

with system), tighten the set screw on the Temp.
Locking Ring closest to the front panel.

Temperature Selection

Variable Temperature Control

Adjust the Variable T emperature Control Knob to the
desired temperature setting. Notice that the control dial
has a White graphic scale denoting temperature in °C
(Celsius) and a Yellow graphic scale denoting
temperature in °F (Fahrenheit). These numerical scales
denote the set tip temperature times 100 (e.g., “3” on the
White scale is 3 x 100 or 300°C).

17

Operation

Tip Offset

Differences between the temperature settings and true tip temperatures are negligible
when using Thru-Hole, single point soldering tips. With any heating system however,
True T ip Temperatures can differ greatly from temperature settings when using larger
SMT soldering tips. This difference is called T ip T emperature Of fset. P ACE
recommends the use of the T ip & T emperature Selection System booklet (PACE P/N
5050-0251) as a guide to accurately set and maintain a true tip temperature for any size
and type of SMT tip.

LED Full On - Continuous power is being delivered to the handpiece. This condition is
evident when the system is first powered up (handpiece heater cold) or the Variable
T emperature Control setting is increased.

LED Flashing - Indicates that the set tip temperature (as set on the Variable Temperature
Control) has been reached. Power to the handpiece is cycling Off and On to maintain set
temperature.

LED Off - No power is being delivered to the handpiece heater. This condition is evident
for a short period of time when set temperature is reached and stabilizing or if the Variable
T emperature Control setting is decreased. If the LED never illuminates, check for a faulty
handpiece (see Corrective Maintenance section). Also, if no handpiece is connected to
the power source, the LED will not illuminate.

LED Operation

The Green colored LED on the power source front panel indicates System Status and
Power Receptacle output status (LED OFF , ON or Flashing). Following is an explanation
of these status indicators.

18

Calibration

The ST 65 system is tested for temperature accuracy at the factory and can be
checked for calibration according to P ACE requirements. Also, a temperature setting
normally used by the operator can be adjusted to the precise temperature indicated
on the Dial/Display . No internal adjustments can be made to the power supply. To
verify calibration of the power supply , perform the following procedure.

1. Install a tip with an attached thermocouple
wire into the handpiece connected to the
system. Tips with K type thermocouples
are available from P ACE; use part number
7021-0004-P1 when ordering.

2. Connect the thermocouple assembly to a PACE Process Monitor (part
number 8001-0077 or 8001-0078) or appropriate temperature meter.

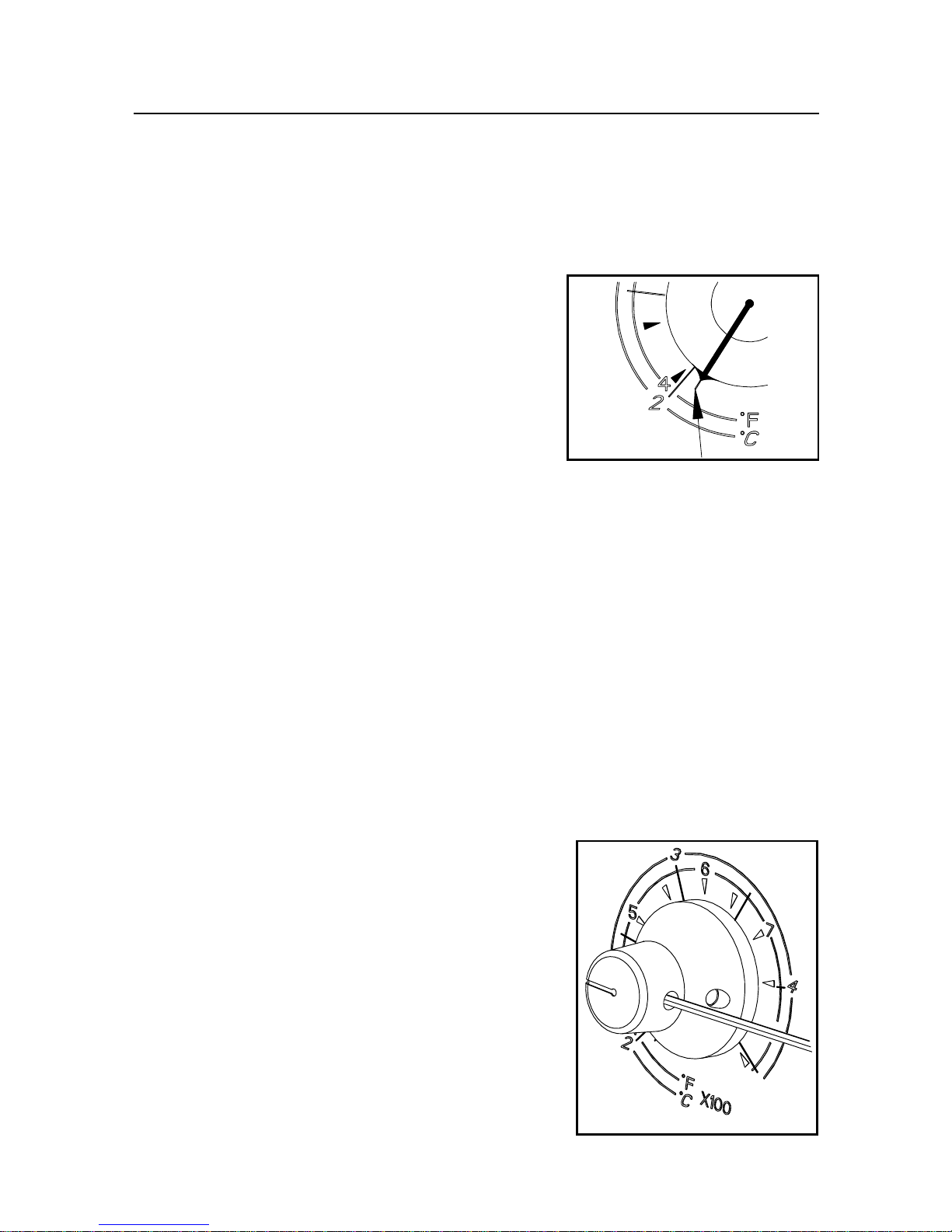

3. When set fully counterclockwise,the pointer of the Variable Temperature
Control knob will align to the Calibration Mark as shown. W ith the
system turned on, adjust the Variable Temperature Control to obtain a
stable tip temperature of 300°C (for P ACE factory specifications) or the
temperature setting normally used by the operator .

If the temperature displayed on the Process Monitor (or temperature meter) is
within ±15°C (27°F), perform steps 4 thru 6 to obtain a precise reading. If the
temperature is off by more than ±15°C, the handpiece may require
maintenance. Recheck the temperature using a second handpiece.

4 . Carefully lock the Variable T emperature Control in position by tightening

the inner set screw (closest to front panel).

5. Loosen the outer set screw on the Variable
T emperature Control knob (furtherest from
front panel) using the T emp. Locking Key (hex
key) supplied with the system. Position the
knob with the pointer aligned to match the
temperature indicated on the Process Monitor
(or temperature meter). Secure the knob in
position by tightening the outer set screw.

6. Loosen the inner set screw to unlock the
V ariable Temperature control if adjustment of
operating tip temperature is desired.

19

Corrective Maintenance

Symptom Probable Cause Solution

No power to system. Blown Fuse Check handpiece using Table 2. Replace the fuse

(located in the AC Receptacle/Fuse Holder) with
one of same value (see Table 4, Spare Parts).

No heat on handpiece. Defective Heater See Table 2.

No vacuum or air
pressure at
handpiece.

House air supply not
connected.

Check house air supply connection to power
source.

Kinks in handpiece air
hose.

Remove kinks or replace air hose.

Table 1. Power Source Corrective Maintenance

Power Source

Most malfunctions are simple and easy to correct. Refer to T able 1 below to clear
these malfunctions.

20

Corrective Maintenance

Handpieces

The following “Heater Assembly Checkout Procedures” (Table 4) is applicable to
all PACE SensaTemp handpieces used with the ST 85 system except for the TT­65 and DTP-80 handpieces. Refer to the applicable manuals for troubleshooting
procedures pertinent to that handpiece.

Perform the procedures with the handpiece heater at room temperature. If the heater
is warm, resistance readings will be different from those shown. Disconnect the
handpiece from the power source. Use a meter to check resistance across the
handpiece connector plug pins as outlined in the “Checkout Procedure” column.

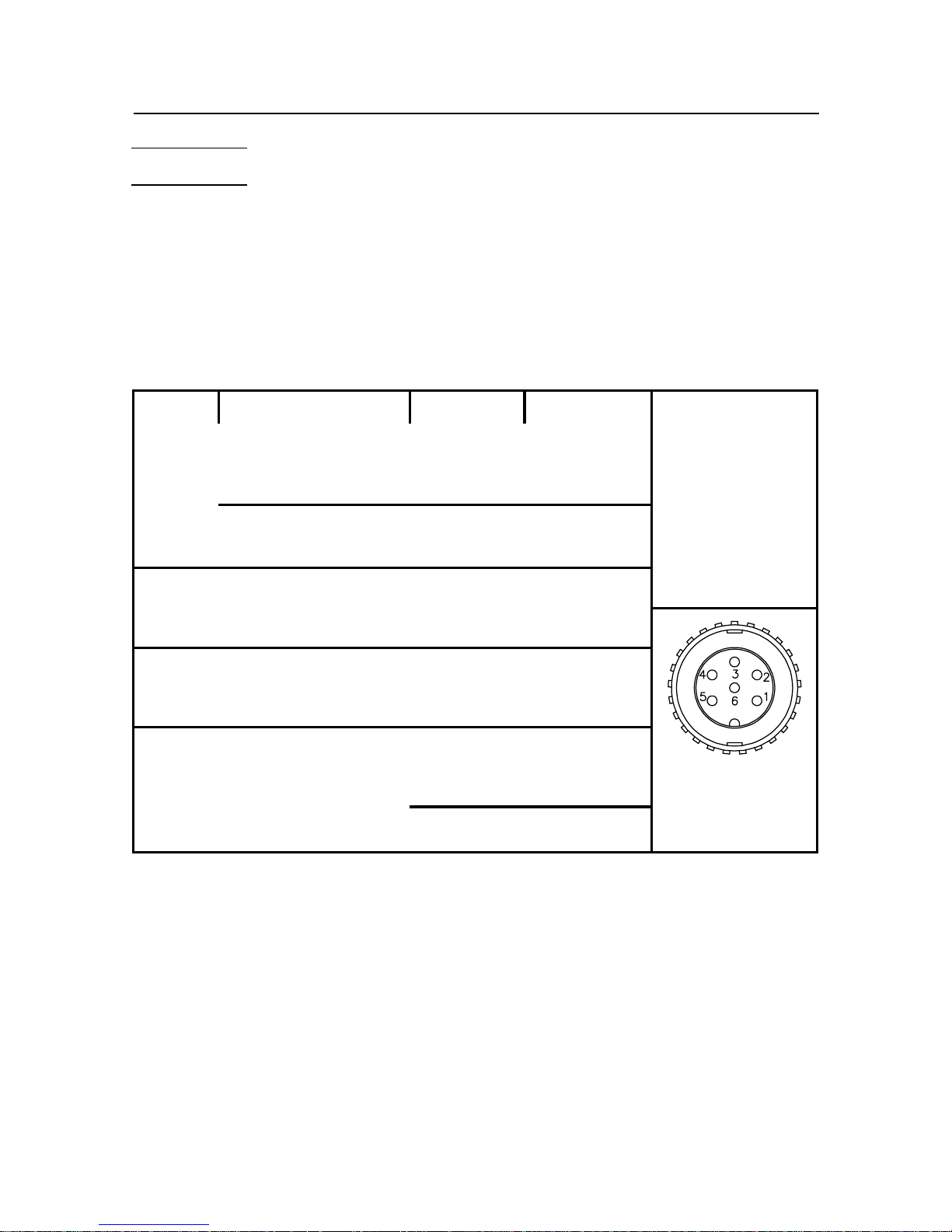

Table 2. Heater Assembly Checkout Procedures

Connector

Plug Pinouts

S ymptom Checkout Procedure Cause S olution Heater Sp ecifications

Handpiece
does not
heat.

Check resistance - Pin 2 to
Pin 5. Refer to "Heater
S pecifications" column.
If resistance is high - -

Open Heater Replace Heater

Assembly.

PS-80

SX-80

SX-70

TP-65

TJ-70

= 8-10 ohms

= 8-10 ohms

= 8-10 ohms

= 9-11 oh ms

= 6 - 8 ohms

Check resistance - Pin 3 to
Pin 6. If circuit reads open -

-

Open Sensor Replace Heater

Assembly.

Handpiece
overheatin­g; LED off.

Check resistance - Pin 3 to
Pin 6. Resistanc e should be
110 ohms. If resi stance is
less than 105 ohms - -

Shor ted Sens or Replace Heater

Assembly.

Fuse blows

when unit is
turned on.

Check resistance - Pin 2 to
Pin 5. Refer to "Heater
S pecifications" column. If
resistance is low - -

Shor ted Heater Replace Hea ter

Assembly & Fuse.

No Ground
on Ti p.

Check resistance - Pin 4 to
a NEW Tip. Resistance
should be less than 2 ohms.
If not - -

Oxi dation in
Heater Bore.

Clean Heater
Bore using
appropriate wi re
brush.

Defective
Heater

Replace Heater.

21

Packing List/Spare Parts

Packing List

Spare Parts

This is a packing list of the items shipped with the system and is current at the time
of publication of this manual.

Table 4. Spare Parts

Table 3. Packing List

Item

# Description Pa rt Number

1Fuse,

1.0 A mp Time Lag (ST 65) 1159-0246

0.5 Amp Time Lag (ST 65E) 1159-0213

2

Replac ement PCB Asse mbly 6 020-0125-P-

1

3

Tip & Temperature Selection System Booklet.

5050-0251

PACKING LIST

Quan tity S upp lied

ST 65

Systems

ST 65-SX80

Systems

Item#Description Part Number

ST 85 ST 85E ST 85 ST 8 5E

1 S T 65 S ystem P o wer Source - - - - - 1 1 1 1
2 SX-80 Handpiece, (48 Wa tts) 6010–0106 0 0 1 1
3 Power Supply Cord, 115 VAC 1 332 -0094 1 0 1 0
4 Power Supply C ord, 230 VAC 1332-0093 0 1 0 1
5 Tip & Tool Stand Ki t 6019-0060-P1 0 0 1 1
6 SX-80 A c c e s sory Kit - - - - - 0 0 1 1
7 Air Fitting Adaptor 1259-0081 0 1 0 1
8 Tip Tool 1100–0206 1 1 1 1
9 Hex Key Tool - - - - - 1 1 1 1

1 0 O peration & Maint enance M anual 5 05 0- 04 54 1 1 1 1

22

LIMITED WARRANTY

P ACE warrants that this equipment will be free of defects in materials and workmanship for a period of one

(1) year from th e d ate of receipt by the first user.

This warran ty does not cover repai r o r re p lacement require d a s a re s ult of misuse, mishan dling or improper
storage. Failure to perform recommended routine maintenance, alterations or repairs made other th an in
accordance with PACE’s directions, or remov al or alteration of identification plates in an y w ay will void this

warran ty. This w arranty is available only to the first user, but the exclusions and limitations therei n apply to all

persons and en tities.

Th is warranty does not apply to consumable items, such as tips, fil ter el ements, hoses, collecti on chambers
etc., except that heaters are normal ly warranted for a period of six (6) months from the date of receipt by the

first user.

PACE MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED, AND MAKES N O

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

P ACE will, at its option , repair or replace an y defective equ i pment or parts at its facility or other location
approved by i t at no charge to th e user, or prov i de parts wi thout charg e for installation by th e user in the fi eld
at user’s expen se and risk. User will be responsible for al l costs of shipping equipmen t to PACE or other

warran ty location for warranty service.

EXCEPT FOR THE REMEDY ABOVE DESCRIBED, UNLESS OTHERWISE REQUIRED BY

APPLICABLE LAW, PACE WI LL HAVE NO OTHER OBLIGATION WITH REGARD TO ANY

BREACH OF WARRANTY OR OTHER CLAIM W ITH RESPECT TO THE EQUIPMENT, OR

LIABILITY FOR ANY DIRECT, INDIRECT , CONSEQUENTIAL, OR INCIDENTAL LOSS OR

DAMAGE CAUSED BY OR OCCURRING IN CONNECTION WITH ANY OF THE EQUIPMENT.

To obtain warranty service, contact the appropriate PACE company listed belo w

P ACE Inc. 9893 B rewers Court, Laurel, M ary lan d 20723-1990

Tel. [phone] (toll-free) Warran ty Service F AX 301 483 7030

PACE Europe Ltd. Sherbourne House Sherbou rne Drive Ti lbrook Milton Keynes

United Kingdom MK 7 8HX

Tel. [phone] Warranty Servi ce FAX [phone]

Do NOT return defective equi pment or parts to PACE without obtaining prior authorization .

Any warranty or other claim with respect to the equipment must be made in writing and delivered to PACE
(or local authorize d PA CE Distribu tor outside t he U.S.) within a reas onabl e time of the expiration date of this

warran ty. Sufficient evidence of purchase and date of receipt must also be included, otherwise user’s rights

u nder this warranty shall be deemed waived.
