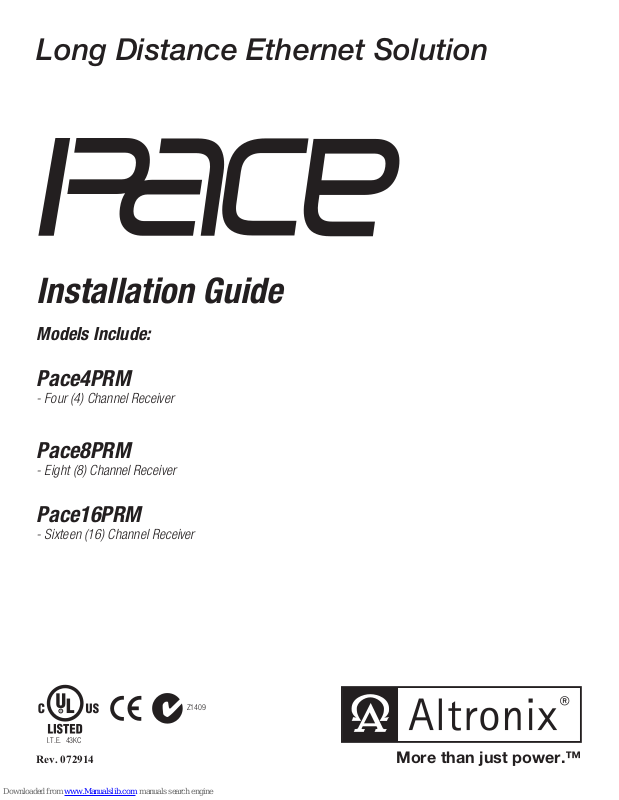

Pace Pace4PRM Installation Manual

Long Distance Ethernet Solution

Installation Guide

Models Include:

Pace4PRM

- Four (4) Channel Receiver

Pace8PRM

- Eight (8) Channel Receiver

Pace16PRM

- Sixteen (16) Channel Receiver

Z1409

I.T.E. 43KC

Rev. 072914 More than just power.™

Overview:

Pace4/8/16PRM are long range Ethernet receivers that transmit data at 100mbps full duplex and power via CAT5e or higher
cable in a PoE(+) compliant format. The Pace4/8/16PRM receivers are powered via a PoE midspan such as the Altronix
Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM trans­ceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective
solutions for IP devices that need to be installed at the distances greater than 100m. They also provide a simple way to
replace legacy analog products with new IP devices over structured cable.

Features:

Agency Listings:

• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).

• CE approved.

• C-Tick compliant.

Input (Pace4/8/16PRM):

• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).

Ethernet:

• Connectivity: RJ45, auto-crossover.

• Wire type: 4-pair CAT5 or 1 pair UTP structured cable.

• Distance: up to 450m.

• Speed: 100BaseT, full duplex, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and PoE+
compliant to IEEE 802.3at (30W) delivered to
camera by Pace1PTM. Power provided by
Pace4/8/16PRM to Pace1PTM by PoE protocol.

CAT5e or Higher:

• Throughput is rated to pass 100mbps of data at
distances up to 450m. With proper headend
equipment, this supports Megapixel, HD720, HD1080.

• Distance: up to 450m @ 100mbps (see Maximum Length

of CAT5e Type vs. Camera Power/PoE Class, pg. 4).

LED Indicators:

• Pace4/8/16PRM:
Green (RJ45) IP Link status, 100Base-T/active.

• Pace1PTM:
Yellow - PoE ON (by respective RJ45 jack).
Yellow & Green (RJ45) IP Link status, 100Base-T/active.

Environmental:

• Operating Temperature Pace4/8/16PRM/Pace1PTM:

-- 20ºC to +49ºC (-- 4ºF to 120.2ºF).

• Storage Temperature:

-- 30º to +70ºC (-- 22º to 158ºF).

• Humidity: 20 to 85%, non-condensing.

Applications:

• Works with Megapixel, HD720, HD1080 and VGA
(SD) cameras (see note, pg. 2).

• Extend Network link distance in an industrial
environment (see note, pg. 2).

Mechanical:

• Dimensions (H x W x D approx.):
Pace4PRM:

1.7” x 5.25” x 8.42” (43.8mm x 133.35mm x 213.9mm)
Pace8PRM/16PRM:

1.625” x 19.125” x 8.5” (42mm x 486mm x 216mm)
Pace1PTM:
1” x 2.5” x 4.375” (25.4mm x 63.5mm x 111.125mm)

Installation Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and
authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application.
Pace4/8/16PRM is not intended to be connected to outside plant leads and should be installed indoors within the protected
premises. The Pace4/8/16PRM and Pace1PTM are intended for indoor use only.
Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment
in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe
operation of the equipment is not compromised. Do not obstruct any air vents on the unit. It is recommended to leave half
space above and below the unit.
Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due
to uneven mechanical loading.

Note: Caution: once PoE connection is established between Pace4/8/16PRM and Pace1PTM, disconnecting the CAT5
from Pace1PTM will not disable the PoE compliant voltage from the Pace4/8/16PRM, although the Pace1PTM can be
reconnected, caution should be taken not to connect the CAT5 wiring from Pace4/8/16PRM to any non-PoE device.

1. Pace4/8/16PRM installation:
a. Pace4PRM - Affix rubber pads to Pace4PRM for shelf installation (Fig. 5, pg. 6).
Pace8/16PRM - Attach mounting brackets to Pace8/16PRM unit for rack installation (Fig. 4, pg. 6).
Affix rubber pads to Pace8/16PRM for shelf installation (Fig. 5, pg. 6).
Unit should be located in proximity to ethernet switch/network, NVR or video server.
b. Connect structured cables from port marked [IN] on Pace4/8/16PRM to the corresponding inputs of an ethernet
midspan or endspan device (Fig. 3, pg. 4).
c. Connect structured cables from port marked [OUT] on Pace4/8/16PRM to Pace1PTM (Fig. 3, pg. 4).

- 2 - Pace4/8/16PRM

2. Pace1PTM installation:
a. Secure unit to desired mounting surface with a proper fastening device utilizing the case’s mounting hole.
Unit should be mounted in proximity of camera/device.
b. Connect structured cable from IP camera/device to RJ45 jack marked [PoE Out] (Fig. 2, pg. 3).
c. Connect structured cables from Pace4/8/16PRM to RJ45 jack marked [RJ45 Link] (Fig. 2, pg. 3).

Note: The Pace4/8/16PRM is designed to accommodate Megapixel, HD720, HD1080 and VGA (SD) cameras. It is impor­tant to note that some high resolution and high frame rate cameras may demand faster headend processing ability, such
as a PC graphics card to present a quality image. If the headend processing equipment is insufficient in speed, the image
may show pixelation and latency. It is advisable to pretest system if unsure. Alternatively, frame rate and resolution may
be reduced to accommodate system equipment.

Fig. 1 Pace8PRM

CAT5 Cable to

Pace1PTM

OUT

Ports
1 4

IN

Pace8PRM (front)

Structured
Cable from

midspan/endspan

Ports

5 8

OUT

IN

Fig. 1a Pace16PRM

CAT5 Cable to

Pace1PTM

OUT

Ports

1 4

IN

Pace16PRM (front)

Fig. 2

Structured

Cable from

midspan/endspan

Ports

5 8

OUT

IN

OUT

Ports

9 12

IN

Pace1PTM

Ports

13 16

OUT

IN

Yellow LED

indicates

PoE transmitted

to Camera/Device

N/A

CAT5 or higher

out to Pace4/8/16PRM

Yellow LED

indicates

PoE received

Structured

Cable from

Camera/Device

from Pace4/8/16PRM

Pace4/8/16PRM - 3 -

Fig. 3

Multiple PoE Camera Connection:

Pace8PRM shown. Pace16PRM is similar, with twice as many channels.

450m max.

450m max.

450m max.

450m max.

450m max.

450m max.
450m max.

Pace1PTM

Pace1PTM

Pace1PTM

Pace1PTM

Pace1PTM

Pace1PTM

PoE compliant

100m max.

PoE compliant

100m max.

PoE compliant

100m) max.

PoE compliant

100m max.

PoE compliant

100m max.

PoE compliant

100m max.

PoE Camera

PoE Camera

PoE Camera

PoE Camera

PoE Camera

PoE Camera

450m max.

OUT

Ports
1 4

IN

OUT

Ports

5 8

IN

Pace8PRM - Front Panel

Pace1PTM

Pace1PTM

PoE compliant

100m) max.

PoE compliant

100m max.

PoE Camera

PoE Camera

100m max.

100m max.

100m max.

100m max.

100m max.

100m max.

100m max.

100m max.

Powered Switch or NetWay MidSpan

Pace1PTM

- 4 - Pace4/8/16PRM

Parameter Description

Connections RJ45 for ethernet link.
Input power

requirements

UL Listed power-limited Midspan or endspan port connected.

Pace4/8/16PRM:

Green LED (RJ45) IP Link status, 100Base-T/active.

Indicators

Pace1PTM:

Yellow - PoE ON (by respective RJ45 jack).
Yellow and Green LED (RJ45) IP Link status, 100Base-T/active.

Operating Ambient Temperature: UL60950-1

Pace4/8/16PRM: -- 20ºC to +49ºC (-- 4ºF to 120.2ºF).
Environmental
Conditions

Pace1PTM: -- 20ºC to +49ºC (-- 4ºF to 120.2ºF).

Relative humidity: 20 to 85%, non-condensing.

Storage Temperature: -- 30º to +70ºC (-- 22º to 158ºF).

Operating Altitude: -- 1000 to 6,561.679 ft. (-- 304.8 to 2000m).

Technical Specifications:

Regulatory
Compliance

UL/CUL Listed for Information Technology Equipment (UL 60950-1).

CE approved. C-Tick compliant.

Pace4PRM: Product: 1.35 lbs. (0.61 kg); Shipping: 1.7 lbs. (0.77 kg)
Weights (approx.)

Pace8PRM: Product: 5.8 lbs. (2.63 kg); Shipping: 7.8 lbs. (3.54 kg)

Pace16PRM: Product: 7.2 lbs. (3.27 kg); Shipping: 9.2 lbs. (4.17 kg)

Maximum Length of CAT5e Type vs. Camera Power/PoE Class:

Camera Power/PoE Class

13W/0 335.28m
4W/1 457m

6.5W/2 457m
13W/3 335.28m
19W 335.28m
25W 335.28m

Note: Higher gauge wiring will allow for longer distances.

CAT5 or Higher

Max. Length (meters)

Pace4/8/16PRM - 5 -

Mounting Options:

Rack Mount Installation

1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 4a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the
four (4) flat head screws (B) (included) (Fig. 4b).
3- Place unit into desired EIA 19” rack position and secure with mounting screws (not included) (Fig. 4c).

Fig. 4
Fig. 4a Fig. 4b Fig. 4c

Top

Top Top

Front
Front
Left

B

Left

Front Left

Remove

A

Shelf Installation

1- Position and affix rubber pads (C) (included) at each
corner on the bottom of the unit (Fig. 5).
2- Place unit in desired location.

Mounting Hardware (Included):

Fig. 5

Left Side

C

Rubber Pad

A

Two (2) mounting brackets

Six (6) flat head screws

B

for mounting brackets.

C

Four (4) rubber pads.

- 6 - Pace4/8/16PRM

Enclosure Dimensions (H x W x D approximate):

1.7” x 5.25” x 8.42” (43.8mm x 133.35mm x 213.9mm)
Pace4PRM

5.25”

133.35mm

213.9mm

8.42”

OUT

Ports

1 4

IN

Pace4/8/16PRM - 7 -

1.7”

43.8mm

Enclosure Dimensions (H x W x D approximate):

1.625” x 19.125” x 8.5” (42mm x 486mm x 216mm)
Pace16PRM shown. Pace8PRM is similar.

1.625"
42mm

8.5"

216mm

1 4

0.75"

19.05mm

5 8

OUT

Ports

IN

OUT

Ports

IN

OUT

Ports

9 12

IN

19.125"
486mm

17.625"

447.7mm

13 16

OUT

Ports

IN

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: [phone]
website: www.altronix.com, e-mail: [e-mail]. Lifetime Warranty, Made in U.S.A.

- 8 - Pace4/8/16PRM
