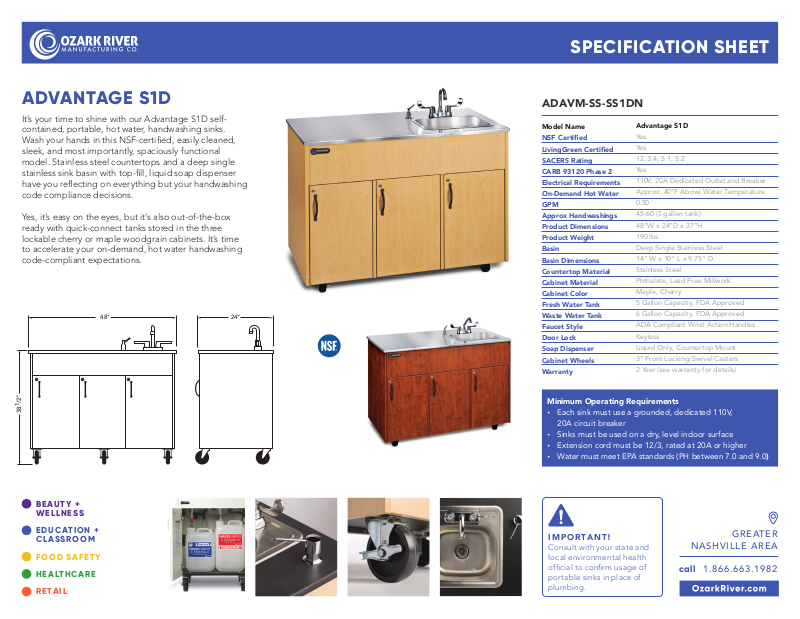

SPECIFICATION SHEET
38
1
/2"
48" 24"
ADVANTAGE S1D
It’s your time to shine with our Advantage S1D selfcontained, portable, hot water, handwashing sinks.
Wash your hands in this NSF-certifi ed, easily cleaned,
sleek, and most importantly, spaciously functional
model. Stainless steel countertops and a deep single
stainless sink basin with top-fi ll, liquid soap dispenser
have you refl ecting on everything but your handwashing
code compliance decisions.
Yes, it’s easy on the eyes, but it’s also out-of-the-box
ready with quick-connect tanks stored in the three
lockable cherry or maple woodgrain cabinets. It’s time
to accelerate your on-demand, hot water handwashing
code-compliant expectations.
ADAVM-SS-SS1DN
Model Name
NSF Certifi ed
LivingGreen Certifi ed
SACERS Rating
CARB 93120 Phase 2
Electrical Requirements
On-Demand Hot Water
GPM
Approx Handwashings
Product Dimensions
Product Weight
Basin
Basin Dimensions
Countertop Material
Cabinet Material
Cabinet Color
Fresh Water Tank
Waste Water Tank
Faucet Style
Door Lock
Soap Dispenser
Cabinet Wheels
Warranty
Advantage S1D
Yes
Yes
12, 3.4, 5.1, 5.2
Yes
110V, 20A Dedicated Outlet and Breaker
Approx. 40°F Above Water Temperature
0.50
45-60 (5 gallon tank)
48”W x 24”D x 37”H
190 lbs.
Deep Single Stainless Steel
14” W x 10” L x 9.75” D
Stainless Steel
Phthalate, Lead Free Millwork
Maple, Cherry
5 Gallon Capacity, FDA Approved
6 Gallon Capacity, FDA Approved
ADA Compliant Wrist Action Handles
Keyless
Liquid Only, Countertop Mount
3” Front Locking/Swivel Casters
2 Year (see warranty for details)
BEAUTY +
WELLNESS
EDUCATION +
CLASSROOM
FOOD SAFETY
HEALTHCARE
RETAIL
Minimum Operating Requirements
• Each sink must use a grounded, dedicated 110V,
20A circuit breaker
• Sinks must be used on a dry, level indoor surface
• Extension cord must be 12/3, rated at 20A or higher
• Water must meet EPA standards (PH between 7.0 and 9.0)
IMPORTANT!
Consult with your state and
local environmental health
offi cial to confi rm usage of
portable sinks in place of
plumbing.
