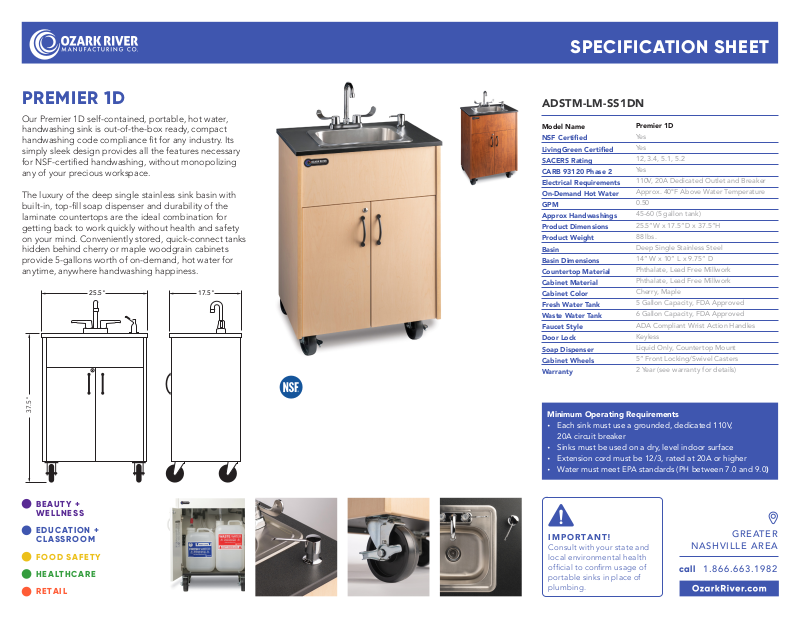

SPECIFICATION SHEET
PREMIER 1D
Our Premier 1D self-contained, portable, hot water,
handwashing sink is out-of-the-box ready, compact
handwashing code compliance t for any industry. Its
simply sleek design provides all the features necessary
for NSF-certied handwashing, without monopolizing
any of your precious workspace.
The luxury of the deep single stainless sink basin with
built-in, top-ll soap dispenser and durability of the
laminate countertops are the ideal combination for
getting back to work quickly without health and safety
on your mind. Conveniently stored, quick-connect tanks
hidden behind cherry or maple woodgrain cabinets
provide 5-gallons worth of on-demand, hot water for
anytime, anywhere handwashing happiness.
25.5" 17.5"
ADSTM-LM-SS1DN
Model Name
NSF Certied
LivingGreen Certied
SACERS Rating
CARB 93120 Phase 2
Electrical Requirements
On-Demand Hot Water
GPM
Approx Handwashings
Product Dimensions
Product Weight
Basin
Basin Dimensions
Countertop Material
Cabinet Material
Cabinet Color
Fresh Water Tank
Waste Water Tank
Faucet Style
Door Lock
Soap Dispenser
Cabinet Wheels
Warranty
Premier 1D
Yes
Yes
12, 3.4, 5.1, 5.2
Yes
110V, 20A Dedicated Outlet and Breaker
Approx. 40°F Above Water Temperature
0.50
45-60 (5 gallon tank)
25.5”W x 17.5”D x 37.5”H
88 lbs.
Deep Single Stainless Steel
14” W x 10” L x 9.75” D
Phthalate, Lead Free Millwork
Phthalate, Lead Free Millwork
Cherry, Maple
5 Gallon Capacity, FDA Approved
6 Gallon Capacity, FDA Approved
ADA Compliant Wrist Action Handles
Keyless
Liquid Only, Countertop Mount
5” Front Locking/Swivel Casters
2 Year (see warranty for details)
37.5"
BEAUTY +
WELLNESS
EDUCATION +
CLASSROOM
FOOD SAFETY
HEALTHCARE
RETAIL
Minimum Operating Requirements
• Each sink must use a grounded, dedicated 110V,
20A circuit breaker
• Sinks must be used on a dry, level indoor surface
• Extension cord must be 12/3, rated at 20A or higher
• Water must meet EPA standards (PH between 7.0 and 9.0)
IMPORTANT!
Consult with your state and
local environmental health
ofcial to conrm usage of
portable sinks in place of
plumbing.
NASHVILLE AREA
call 1.866.663.1982
