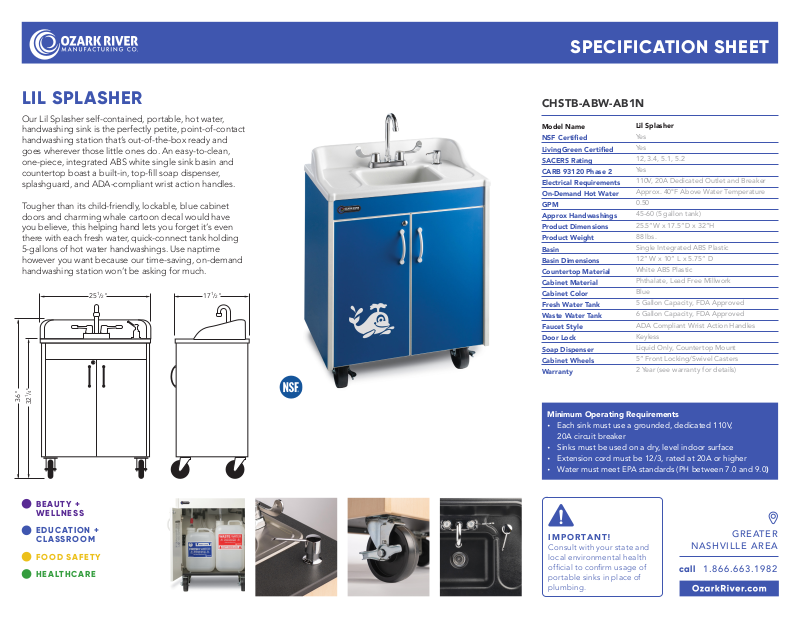

SPECIFICATION SHEET
LIL SPLASHER
Our Lil Splasher self-contained, portable, hot water,
handwashing sink is the perfectly petite, point-of-contact
handwashing station that’s out-of-the-box ready and
goes wherever those little ones do. An easy-to-clean,
one-piece, integrated ABS white single sink basin and
countertop boast a built-in, top-ll soap dispenser,
splashguard, and ADA-compliant wrist action handles.
Tougher than its child-friendly, lockable, blue cabinet
doors and charming whale cartoon decal would have
you believe, this helping hand lets you forget it’s even
there with each fresh water, quick-connect tank holding
5-gallons of hot water handwashings. Use naptime
however you want because our time-saving, on-demand
handwashing station won’t be asking for much.
251/2" 171/2"
"
4
/
1
36"
32
CHSTB-ABW-AB1N
Model Name
NSF Certied
LivingGreen Certied
SACERS Rating
CARB 93120 Phase 2
Electrical Requirements
On-Demand Hot Water
GPM
Approx Handwashings
Product Dimensions
Product Weight
Basin
Basin Dimensions
Countertop Material
Cabinet Material
Cabinet Color
Fresh Water Tank
Waste Water Tank
Faucet Style
Door Lock
Soap Dispenser
Cabinet Wheels
Warranty
Minimum Operating Requirements
• Each sink must use a grounded, dedicated 110V,
20A circuit breaker
• Sinks must be used on a dry, level indoor surface
• Extension cord must be 12/3, rated at 20A or higher
• Water must meet EPA standards (PH between 7.0 and 9.0)
Lil Splasher
Yes
Yes
12, 3.4, 5.1, 5.2
Yes
110V, 20A Dedicated Outlet and Breaker
Approx. 40°F Above Water Temperature
0.50
45-60 (5 gallon tank)
25.5”W x 17.5”D x 32”H
88 lbs.
Single Integrated ABS Plastic
12” W x 10” L x 5.75” D
White ABS Plastic
Phthalate, Lead Free Millwork
Blue
5 Gallon Capacity, FDA Approved
6 Gallon Capacity, FDA Approved
ADA Compliant Wrist Action Handles
Keyless
Liquid Only, Countertop Mount
5” Front Locking/Swivel Casters
2 Year (see warranty for details)
BEAUTY +
WELLNESS
EDUCATION +
CLASSROOM
FOOD SAFETY
HEALTHCARE
IMPORTANT!
Consult with your state and
local environmental health
ofcial to conrm usage of
portable sinks in place of
plumbing.
