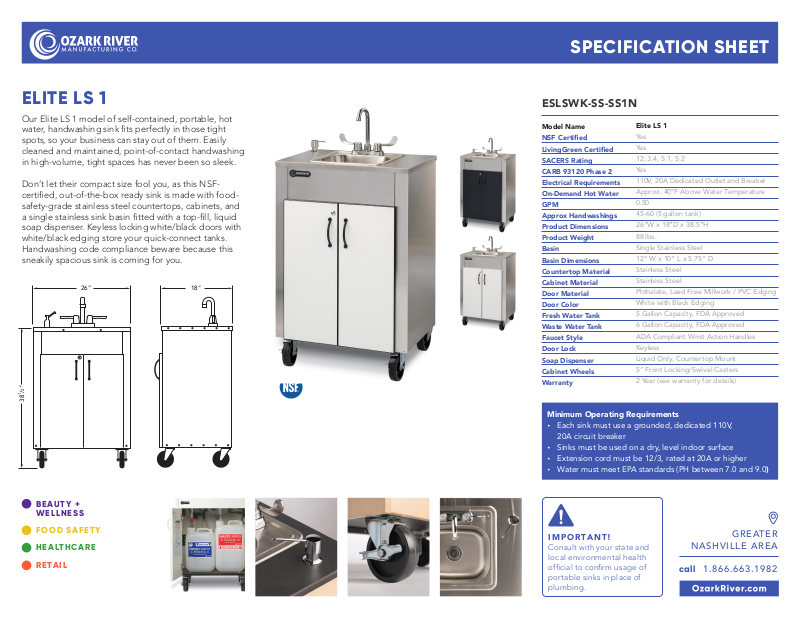

SPECIFICATION SHEET
ELITE LS 1
Our Elite LS 1 model of self-contained, portable, hot
water, handwashing sink ts perfectly in those tight
spots, so your business can stay out of them. Easily
cleaned and maintained, point-of-contact handwashing
in high-volume, tight spaces has never been so sleek.
Don’t let their compact size fool you, as this NSFcertied, out-of-the-box ready sink is made with foodsafety-grade stainless steel countertops, cabinets, and
a single stainless sink basin tted with a top-ll, liquid
soap dispenser. Keyless locking white/black doors with
white/black edging store your quick-connect tanks.
Handwashing code compliance beware because this
sneakily spacious sink is coming for you.
26” 18"
/2"
1
38
ESLSWK-SS-SS1N
Model Name
NSF Certied
LivingGreen Certied
SACERS Rating
CARB 93120 Phase 2
Electrical Requirements
On-Demand Hot Water
GPM
Approx Handwashings
Product Dimensions
Product Weight
Basin
Basin Dimensions
Countertop Material
Cabinet Material
Door Material
Door Color
Fresh Water Tank
Waste Water Tank
Faucet Style
Door Lock
Soap Dispenser
Cabinet Wheels
Warranty
Minimum Operating Requirements
• Each sink must use a grounded, dedicated 110V,
20A circuit breaker
• Sinks must be used on a dry, level indoor surface
• Extension cord must be 12/3, rated at 20A or higher
• Water must meet EPA standards (PH between 7.0 and 9.0)
Elite LS 1
Yes
Yes
12, 3.4, 5.1, 5.2
Yes
110V, 20A Dedicated Outlet and Breaker
Approx. 40°F Above Water Temperature
0.50
45-60 (5 gallon tank)
26”W x 18”D x 38.5”H
88 lbs.
Single Stainless Steel
12” W x 10” L x 5.75” D
Stainless Steel
Stainless Steel
Phthalate, Lead Free Millwork / PVC Edging
White with Black Edging
5 Gallon Capacity, FDA Approved
6 Gallon Capacity, FDA Approved
ADA Compliant Wrist Action Handles
Keyless
Liquid Only, Countertop Mount
5” Front Locking/Swivel Casters
2 Year (see warranty for details)
BEAUTY +
WELLNESS
FOOD SAFETY
HEALTHCARE
RETAIL
IMPORTANT!
Consult with your state and
local environmental health
ofcial to conrm usage of
portable sinks in place of
plumbing.
GREATER
NASHVILLE AREA
call 1.866.663.1982
