VS0434
EN Instruction manual
RU Руководство по эксплуатации
220-240 V~
1 1
2
3
1
6
2 3
7
3
8
9
10
4
11
5
3
D
√
2 |
3 |
1
Click
Click
2
e
4

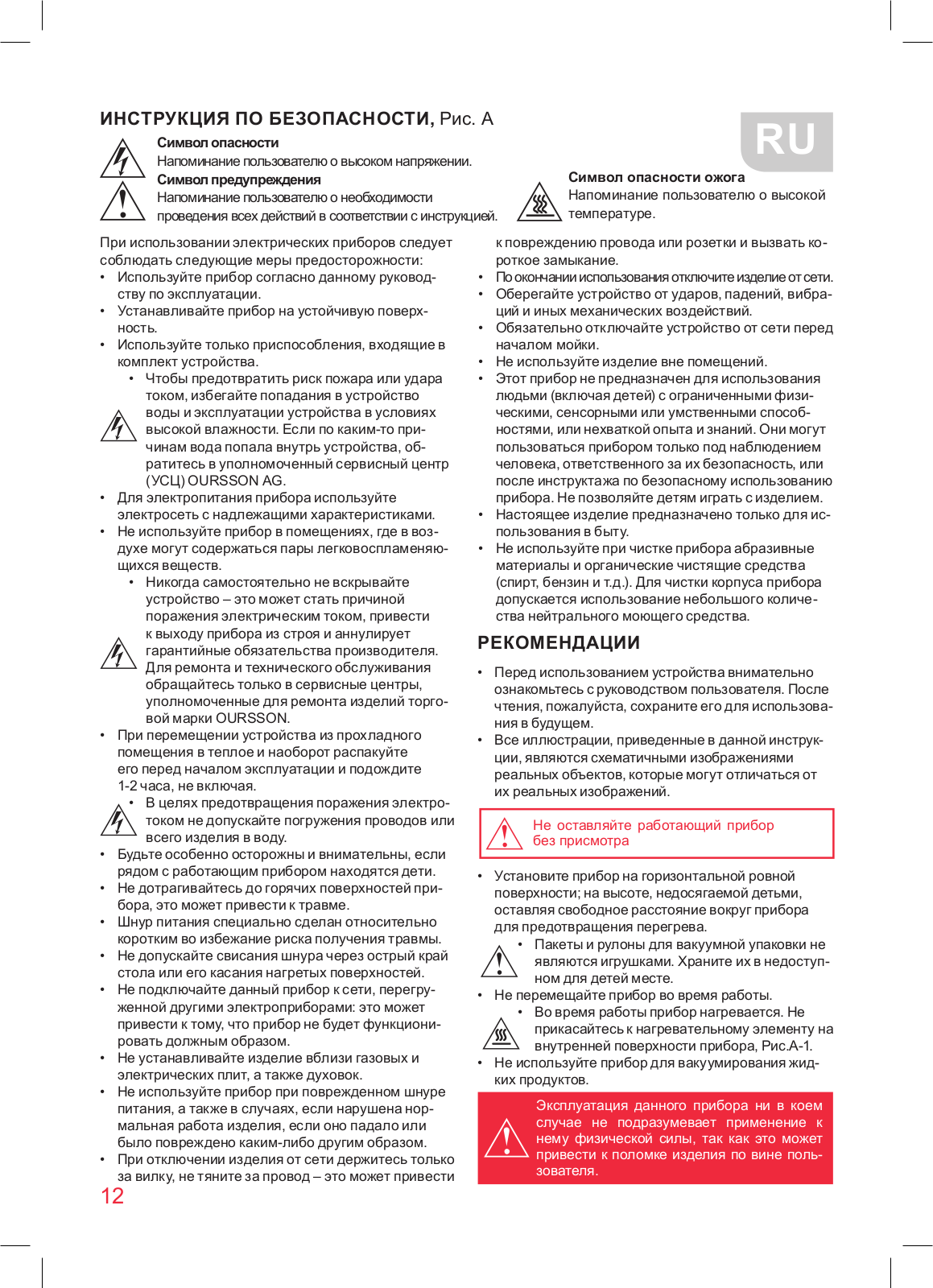

SAFETY INSTRUCTIONS, Pic. A
Danger symbol
A reminder to user about high voltage.
Warning symbol
A reminder to user about the necessity of operating exactly according to the instructions.
When using electrical appliances should take the following precautions:
•Use the device according to the following instructions manual.
•Install the device on a stable surface.
•Use only the tools, which are included in the product set.
•To protect against risk of electrical shock do not put the cord in water or other liquid. If for some reason the water got into the unit, contact an authorized service center (ASC) OURSSON AG.
•For power supply, use a power grid with proper characteristics.
•Do not use the device in areas where the air can contain vapors of flammable substances.
•Never attempt to open the device by yourself – it could possibly be the reason of an electrical shock can lead to product malfunction and will invalidate the manufacturer’s warranty. For repair and maintenance, contact only authorized service centers meant for repair of products under the trademark OURSSON.
•When moved from a cool to a warm place and vice versa unpack it before use and wait 1-2 hours without turning it on.
•In order to prevent electrical shock do not immerse the entire product or the wires into the water.
•Be particularly careful and cautious when using the device near children.
•Do not touch any hot parts, as this may cause injury.
•The power cord is specially made relatively short in order to avoid the risk of injury.
•Do not allow the cord to hang over the sharp edge of the table or touch hot surfaces.
•Do not connect this device to a grid which is overloaded with other appliances: it can lead to the fact that the device will not function properly.
•Do not install the device near gas and electric stoves and ovens.
•After use, make sure to disconnect the device from the power grid.
•Keep the device from bumps, falls, vibration and other mechanical influences.
•Make sure to disconnect the device from the power grid before cleaning or changing accessories.
•Do not use the device outdoors.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. They can only use the device under the supervision of the person responsible for their safety, or after instruction on the safe use of the de-
EN
Risk of burn symbol
Reminder for user of high temperatures
vice. Do not allow children to play with the product.
•This product is intended only for use in the home.
•If the power cord is damaged, it must be replaced by a specialist from the authorized service center ( ASC ) OURSSON AG to avoid danger.
•Use only the tools, which are included in the product set.
•When cleaning the appliance do not use abrasives and organic cleaners (alcohol, gasoline, etc.). When cleaning the device it is allowed to use a small amount of neutral detergent.
RECOMMENDATIONS
•Please read the instruction manual before using the device. Keep the manual after reading for further use.
•All illustrations in this manual are schematic representations of real objects, which may differ from the actual images.
Do not leave working device unattended!
•Place the device on a horizontal, flat surface; at a height not reachable by children, leaving free distance around the device to prevent overheating.
•Bags and rolls for vacuum sealing are not
toys. Keep them out of the reach of children.
•Do not move the device during operation.
•During operation, the device heats up. Do not
touch the heating element in the inner surface
of the device, Pic. А-1.
• Do not use the device to vacuum liquid products.
The operation of this device in any case does not imply application of any force to it, as this may damage the product due to user fault.

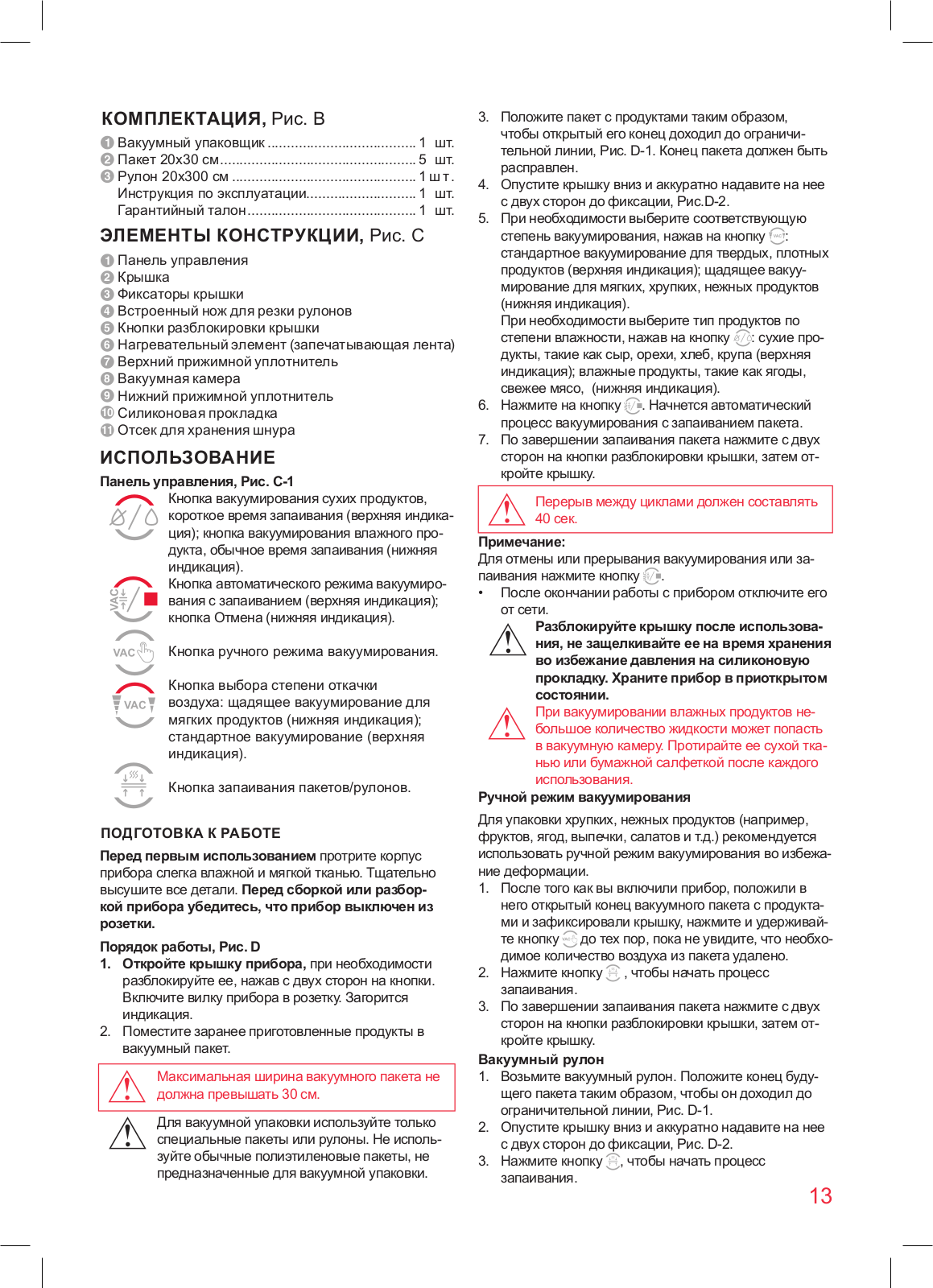

PRODUCT SET, Рiс. В
Vacuum sealer ................................................... |
1 |
pc. |
Bag 20x30 cm..................................................... |
5 pcs. |
|
Roll 20x300 cm................................................... |
1 |
pc. |
Instructions manual............................................. |
1 |
pc. |
Guarantee sheet................................................. |
1 |
pc. |
5
ELEMENTS OF DESIGN, Рiс. C
Control panel 2 Lid
3 Lid latches
4 Build-in blade for cutting rolls
5 Lid unlock buttons
6 Heating element (sealing tape)
7 Upper pressure seal
8 Vacuum chamber
9 Lower pressure seal
10Silicone gasket
11Cord storage
UTILIZATION
Control panel, Pic. С-1
Dry product vacuum button, short sealing time
(upper indication); wet product vacuum button, standart sealing time (lower indication).
Button for automatic vacuum mode with
sealing (upper indication); Cancel button (lower indication) .
Manual vacuum mode button.
Button for selecting the degree of pumping out air: gentle vacuum for soft products
(lower indication); standard vacuum (upper indication).
Button for sealing bags/rolls.
Preparation for operation
Before first use, wipe the body of the device with a soft, dry cloth. Thoroughly dry all parts. Before assembling or disassembling the device, make sure that the device is unplugged.
ORDER OF OPERATION, Pic. D
1.Open the lid, unlock it by pressing buttons on both sides, if necessary. Plug in the device. Indication will light up.
2.Place foods into the vacuum bag
The maximum width of the vacuum bag must not exceed 30 cm.
For vacuum sealing, use only special bags or rolls. Do not use ordinary plastic bags that are not suitable for vacuum sealing.
3.Place the bag with foods so that its open end reaches the boundary line, Pic. D-1. The end of the bag should be straightened.
4.Lower the lid down and gently push it on both sides until it locks in place, Pic. D-2.
5.If necessary, select the appropriate degree of vacuum
by pressing the
: button: standard vacuum for hard, solid products (upper indication); gentle vacuum for soft, fragile products (lower indication).
If necessary, select the type of products by degree of humidity by pressing
: button: dry products, like
cheese, nuts, bread, groats (upper indication); wet products, like berries, fresh meat (lower indication).
6.Press
button. Automatic vacuum mode with bag sealing will start.
7.When the bag is sealed, press the lid release buttons on both sides, then open the lid.
The interval between cycles should be 40 seconds.
NOTE:
To cancel or interrupt vacuum or sealing, press the
button.
•After use, unplug the device.
Unlock the lid after use. Do not lock the lid during storage to avoid pressure on the
silicone gasket. Keep the device ajar.
When you vacuum wet products, a small amount of liquid may get into the vacuum chamber. Wipe it with a dry cloth or paper towel after every use.
Manual vacuum mode
For sealing fragile, delicate products (for example, fruits, berries, pastries, salads, etc.) it is recommended to use the manual vacuum mode to avoid deformation.
1.After you turned on the device, placed in it open end of the bag with foods and fixated the lid, press and
hold
button until you see that the required amount of air has been pumped out.
2.Press
button to start the sealing process.
3.When the bag is sealed, press the lid release buttons on both sides, then open the lid.
Vacuum roll
1.Take a vacuum roll. Place the open end of the future bag so that it reaches the boundary line, Pic. D-1.
2.Lower the lid down and gently push it on both sides until it locks in place, Pic. D-2.
3.Press
, button to start the sealing process.
4.When the roll is sealed, press the lid release buttons on both sides, then open the lid.
5.Lift the bar with the build-in knife and insert the sealed end of the roll under it from the side of the vacuum channel. Pull the end of the roll to the required length of the future bag, Pic. D-3-1. The bag should be longer than the size of the sealed product. Lower the bar and slide the knife in the opposite direction to cut the bag.
Pic. D-3-2. It is necessary to cut straight.
Do not touch the blade of the knife with your hands to prevent cuts.
RECOMMENDATIONS FOR
PREPARATION
•Vacuum sealing extends the shelf life of products, but does not replace storage in a refrigerator or freezer. Store short-lived foods in the refrigerator/freezer at an appropriate temperature.
•The storage time in the table is advisory and may vary depending on the initial quality, freshness of the products.
6
