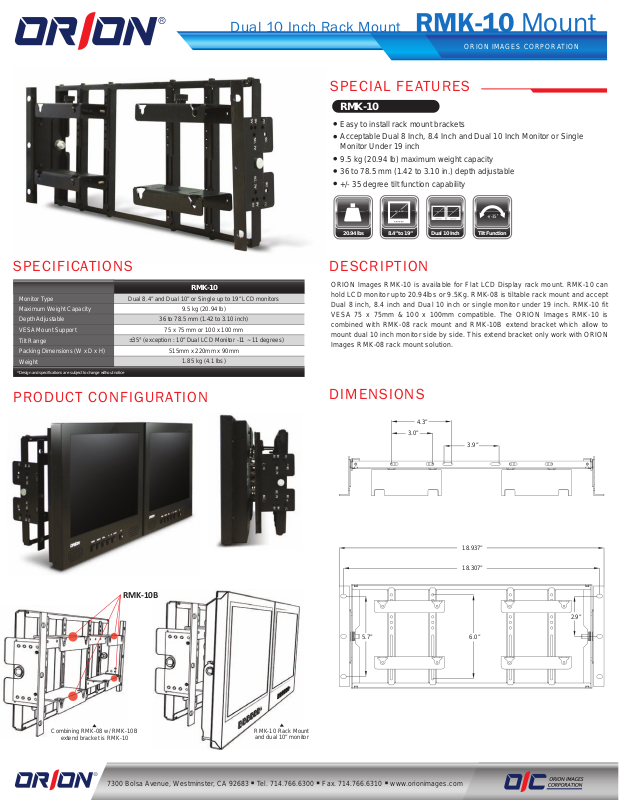

Orion RMK-10 Specsheet

RMK-10 MountDual 10 Inch Rack Mount

ORION IMAGES CORPORATION

SP ECI AL FEATU RE S

RMK-10

Easy to install rack mount brackets
Acceptable Dual 8 Inch, 8.4 Inch and Dual 10 Inch Monitor or Single

Monitor Under 19 inch

9.5 kg (20.94 lb) maximum weight capacity
36 to 78.5 mm (1.42 to 3.10 in.) depth adjustable
+/- 35 degree tilt function capability

SP ECI FI CAT ION S

RMK-10

Monitor Type
Maximum Weight Capacity
Depth Adjustable
VESA Mount Support

Tilt Range
Packing Dimensions (W x D x H)
Weight

*Design and specifications are subject to change without notice

Dual 8.4” and Dual 10” or Single up to 19” LCD monitors

9.5 kg (20.94 lb)

36 to 78.5 mm (1.42 to 3.10 inch)

75 x 75 mm or 100 x 100 mm

±35° (exception : 10” Dual LCD Monitor -11 ~ 11 degrees)

515mm x 220mm x 90mm

1.85 kg (4.1 lbs)

PRO DU CT CO NF IGU RAT ION

20.94 lbs

8.4” to 19”

8.4” to 19”

10” 10”

Dual 10 Inch Tilt Function

+/-35

DE SCR IP TION

ORION Images RMK-10 is available for Flat LCD Display rack mount. RMK-10 can
hold LCD monitor upto 20.94lbs or 9.5Kg. RMK-08 is tiltable rack mount and accept
Dual 8 inch, 8.4 inch and Dual 10 inch or single monitor under 19 inch. RMK-10 fit
VESA 75 x 75mm & 100 x 100mm compatible. The ORION Images RMK-10 is
combined with RMK-08 rack mount and RMK-10B extend bracket which allow to
mount dual 10 inch monitor side by side. This extend bracket only work with ORION
Images RMK-08 rack mount solution.

DI MEN SI ONS

4.3”

3.0”

3.9”

RMK-10B

Combining RMK-08 w/ RMK-10B

extend bracket is RMK-10

7300 Bolsa Avenue, Westminster, CA 92683 Tel. [phone] Fax. [phone] www.orionimages.com

RMK-10 Rack Mount
and dual 10” monitor

18.937”

18.307”

2.9”

6.0”5.7”
