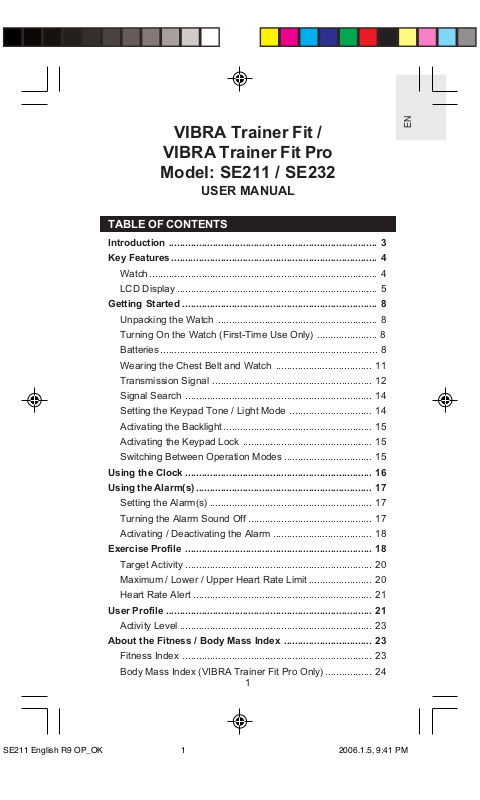

Oregon SE211 User Manual

VIBRA Trainer Fit /
VIBRA Trainer Fit Pro
Model: SE211 / SE232
USER MANUAL
TABLE OF CONTENTS
Introduction ............................................................................ 3
Key Features ........................................................................... 4
Watch ................................................................................... 4
LCD Display ......................................................................... 5
Getting Started ....................................................................... 8
Turning On the Watch (First-Time Use Only) ...................... 8
Batteries ............................................................................... 8
Wearing the Chest Belt and Watch ................................... 11
Transmission Signal .......................................................... 12
Signal Search .................................................................... 14

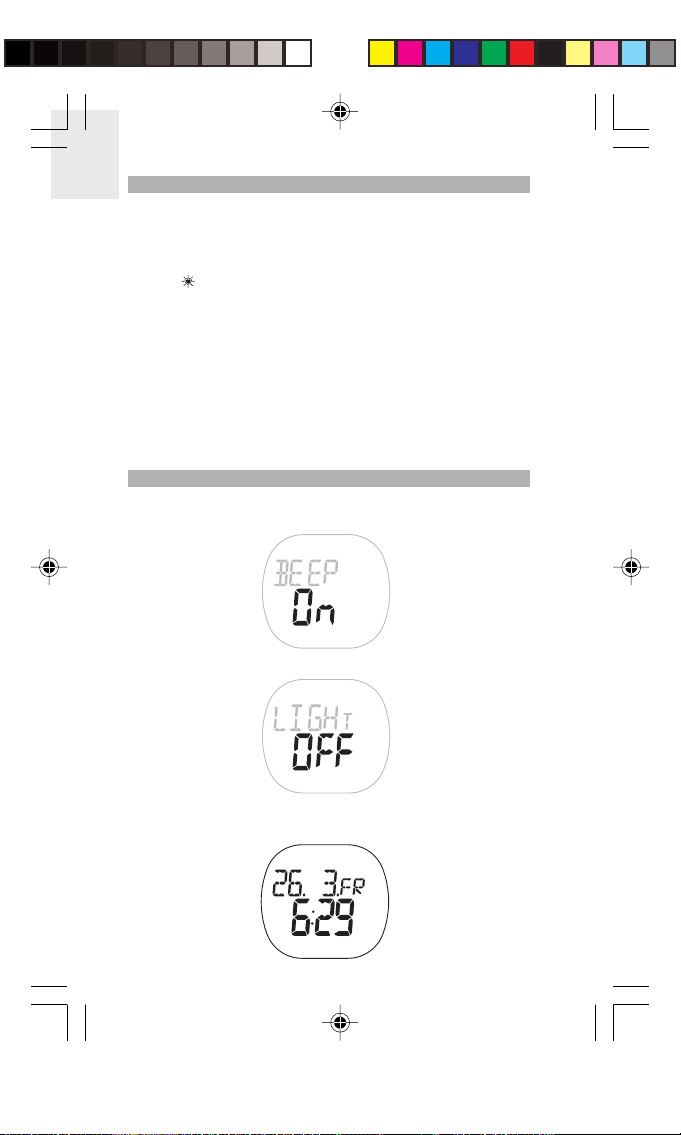

Setting the Keypad Tone / Light Mode .............................. 14
Activating the Backlight ...................................................... 15
Activating the Keypad Lock ............................................... 15
Switching Between Operation Modes ................................ 15
Using the Clock .................................................................... 16
Using the Alarm(s) ................................................................ 17

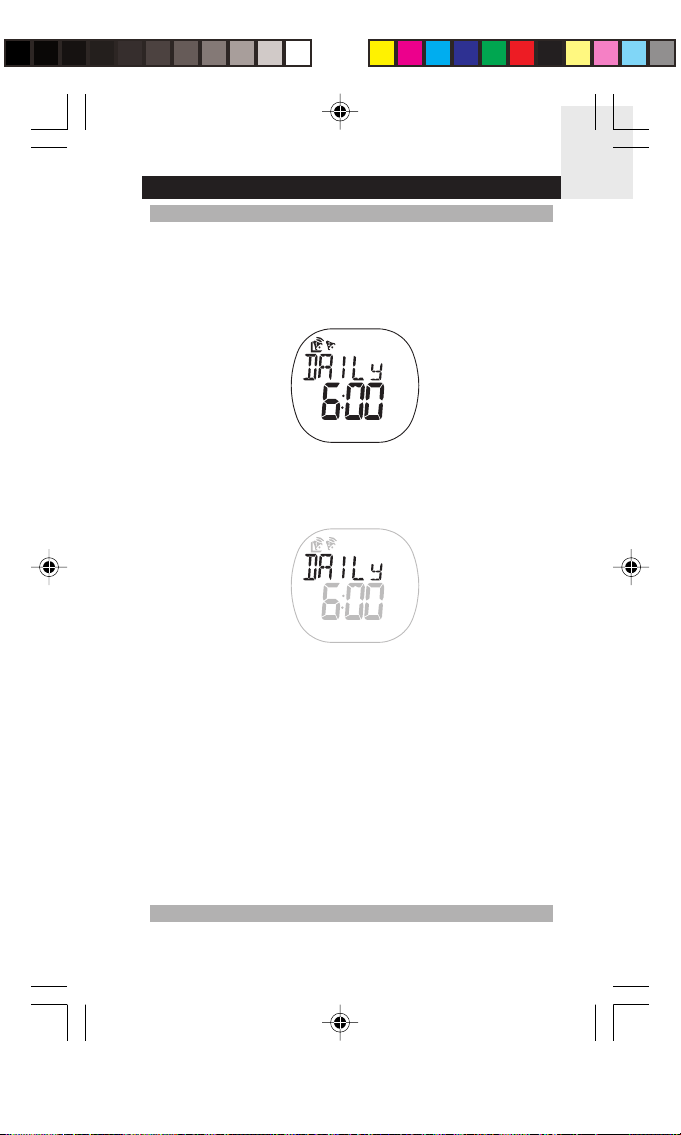

Setting the Alarm(s) ........................................................... 17
Turning the Alarm Sound Off ............................................. 17
Activating / Deactivating the Alarm .................................... 18
Exercise Profile .................................................................... 18
Target Activity .................................................................... 20
Maximum / Lower / Upper Heart Rate Limit ....................... 20
Heart Rate Alert ................................................................. 21

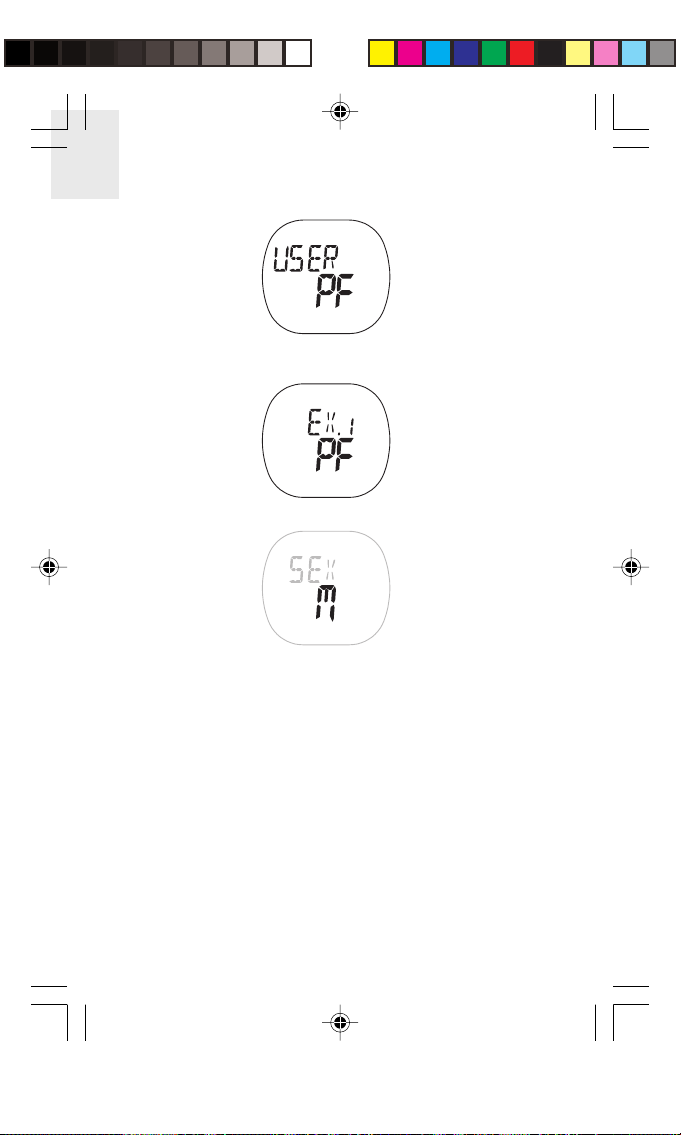

User Profile ........................................................................... 21
Activity Level ...................................................................... 23
About the Fitness / Body Mass Index ................................ 23
Fitness Index ..................................................................... 23

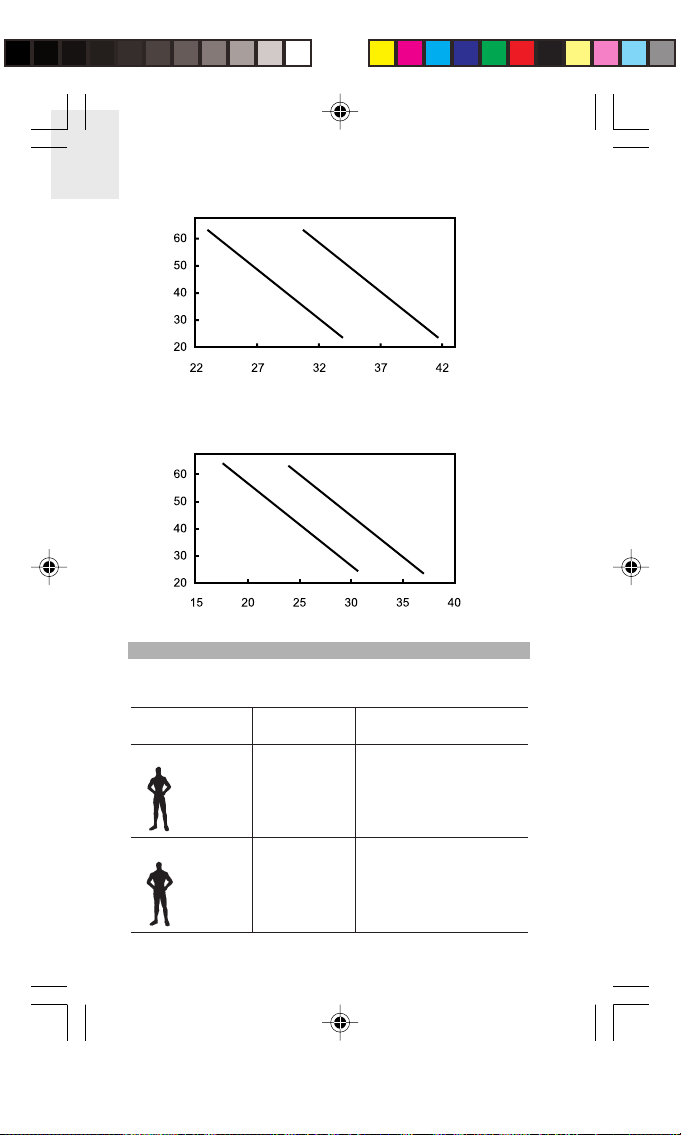

Body Mass Index (VIBRA Trainer Fit Pro Only) ................. 24
1
EN
SE211 English R9 OP_OK 2006.1.5, 9:41 PM1
EN

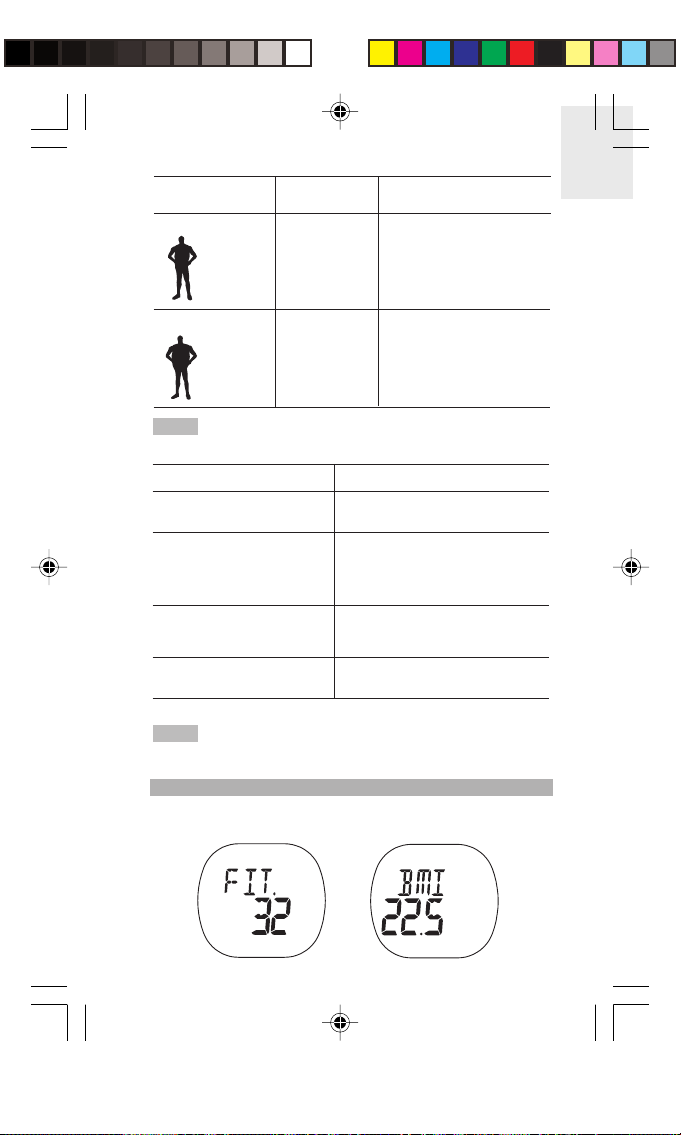

View Fitness / Body Mass Index ........................................ 25
About the SMART TRAINING PROGRAM .......................... 26
Using the SMART TRAINING PROGRAM ........................ 26

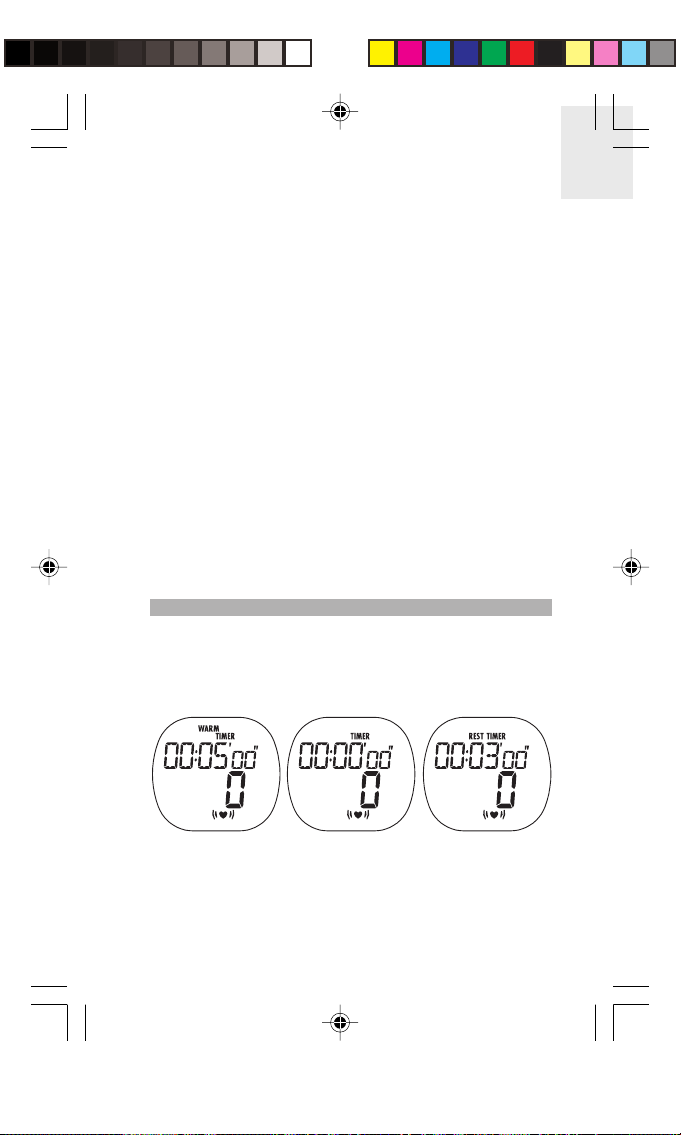

View Data while SMART TRAINING PROGRAM is Running .. 27

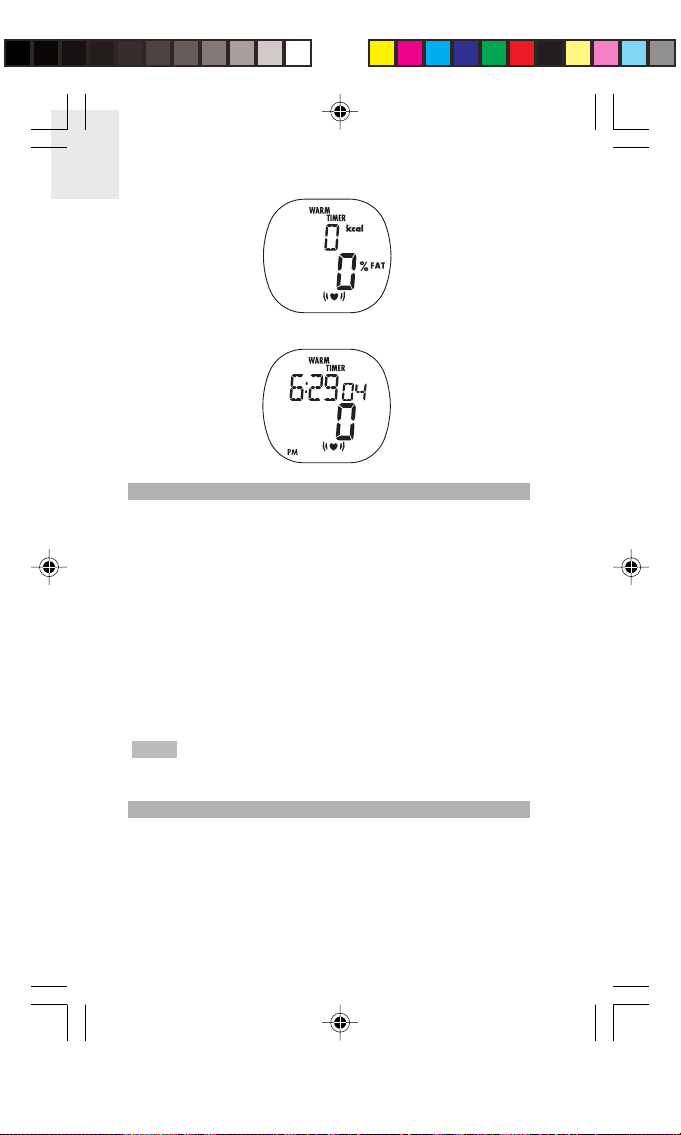

View SMART TRAINING PROGRAM Memory Records ... 28
Recovery Heart Rate (VIBRA Trainer Fit Pro Only) ........... 28
Stopwatch ............................................................................. 29
View Data while Stopwatch / Lap is Running .................... 29

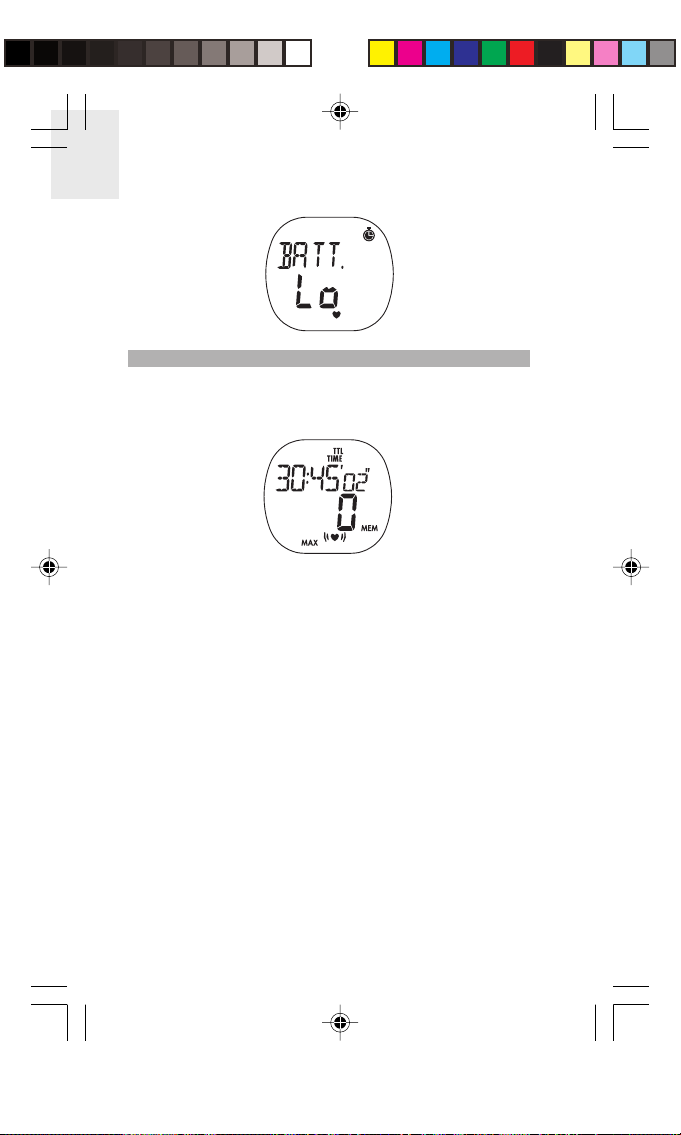

View Stopwatch or Lap Memory Records ......................... 30
Training Information ............................................................. 31
How the Heart Rate Monitor Helps You ............................ 31
Training Tips ...................................................................... 31
Care Instructions ................................................................. 32

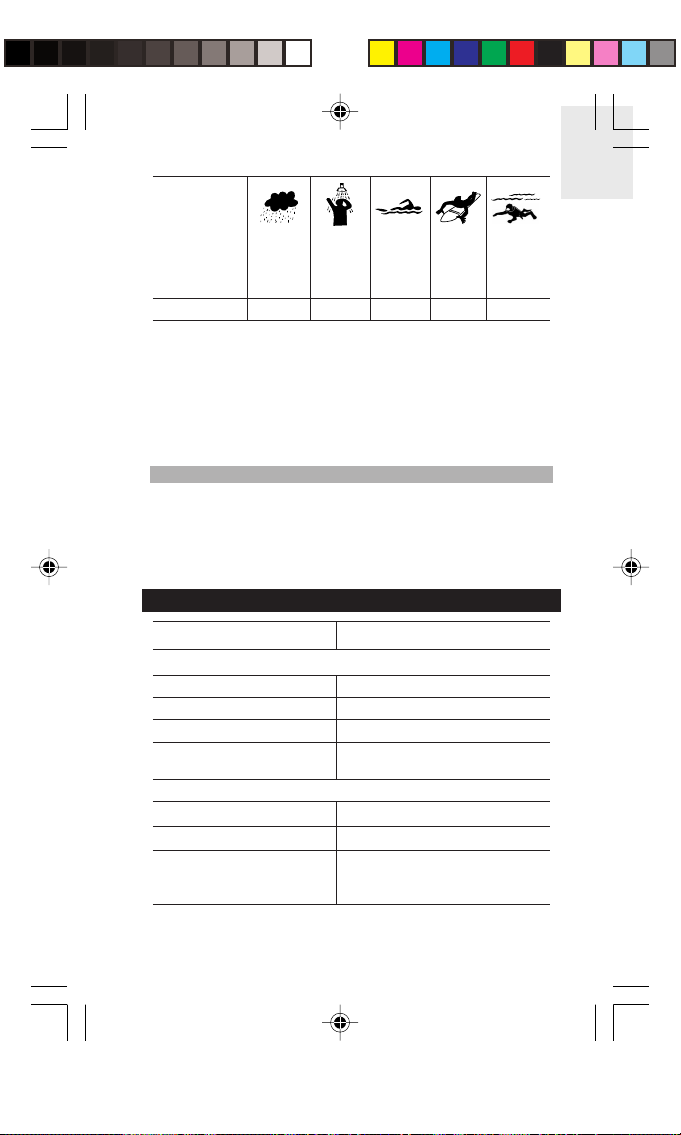

Aquatic and Outdoor Activities ........................................... 32
Tips for Keeping Your Watch Fit ........................................ 33
Specifications ....................................................................... 33
Warnings ............................................................................... 34
About Oregon Scientific ...................................................... 35
EU-Declaration of Conformity ............................................. 36
SE211 English RX OP_OK.p65 2006.1.7, 1:26 AM2
2
INTRODUCTION
Thank you for selecting the Oregon ScientificTM VIBRA Trainer Fit (SE211) / VIBRA Trainer Fit Pro (SE232) watch as your sports fitness product of choice. This precision device includes the following features:
• Heart rate monitor with cordless transmission between watch and chest belt.
• Digital coding system to reduce environmental interference.
• Heart rate monitoring system when you go above or below your upper and lower heart rate limit.
•Vibration, visual or sound alert for heart rate thresholds during training.
• Memory stores heart rate figures during exercise.
• SMART TRAINING PROGRAM enables you to complete exercise cycles effectively.
• Calorie consumption and percent fat burn display during and after exercise.
• Exercise profile - to calculate your personal heart rate limit for training.
• User profile - to calculate your fitness index and body mass index (BMI - VIBRA Trainer Fit Pro only).
• Stopwatch.
• 99 lap memory storage showing average heart rate and maximum heart rate. (VIBRA Trainer Fit Pro only.)
• Dual alarms with a choice of daily, weekday or weekend settings.
• Mounting bracket, chest belt and carrying case included.
•Watch - up to 50 metres water resistant.
• Chest belt - splash proof.
EN
IMPORTANT
purposes only and it is not meant to replace any medical advice.
This manual contains important safety and care information, and provides step-by-step instructions for using this product. Read the manual thoroughly, and keep it in a safe place in case you need to later refer to it.
SE211 English R9 OP_OK 2006.1.5, 9:41 PM3
The use of the SE211 or SE232 watch is for sport
3
EN
KEY FEATURES
WATCH
SE211 - VIBRA Trainer Fit
SE232 - VIBRA Trainer Fit Pro
1
2
3
4
5
2
6
1. LCD display.
2. - VIBRA Trainer Fit Pro only - L / MEM / -: Display training records; decrease setting value; mark a lap.
- VIBRA Trainer Fit only - MEM / -: Display training records; decrease setting value.
3. MODE: Switch to another display.
4. ST / SP / +: Start / stop timer; increase setting value.
5.
/
: Turn on backlight for 3 seconds; lock / unlock the
keypad.
6. SET: Enter Setting Mode; select another setting option; display different information during training; reset timer / stopwatch.
SE211 English R9 OP_OK 2006.1.5, 9:41 PM4
4
LCD DISPLAY
1
2
3
4
1. Area 1
2. Area 2
3. Area 3
4. Area 4
Area 1
3
1
4 5
6
2
/
1.
: Alarm 1 and 2 time; waves show when alarm
7 8 9
is activated.
2.
: Cursor highlights the selected alarm in Alarm Mode.
3. WARM: Warm-up timer is shown or running.
4. TTL: Total exercise time is displayed.
5. SPLIT: Shows and calculates split time (VIBRA Trainer Fit
Pro only).
6.
: Stopwatch is shown or running.
7. LAP: Shows current lap time or memory lap time (VIBRA
Trainer Fit Pro only).
8. TIMER: SMART TRAINING PROGRAM is shown or running.
9. REST: Recovery timer is shown or running.
EN
SE211 English R9 OP_OK 2006.1.5, 9:41 PM5
5
EN
Area 2
1

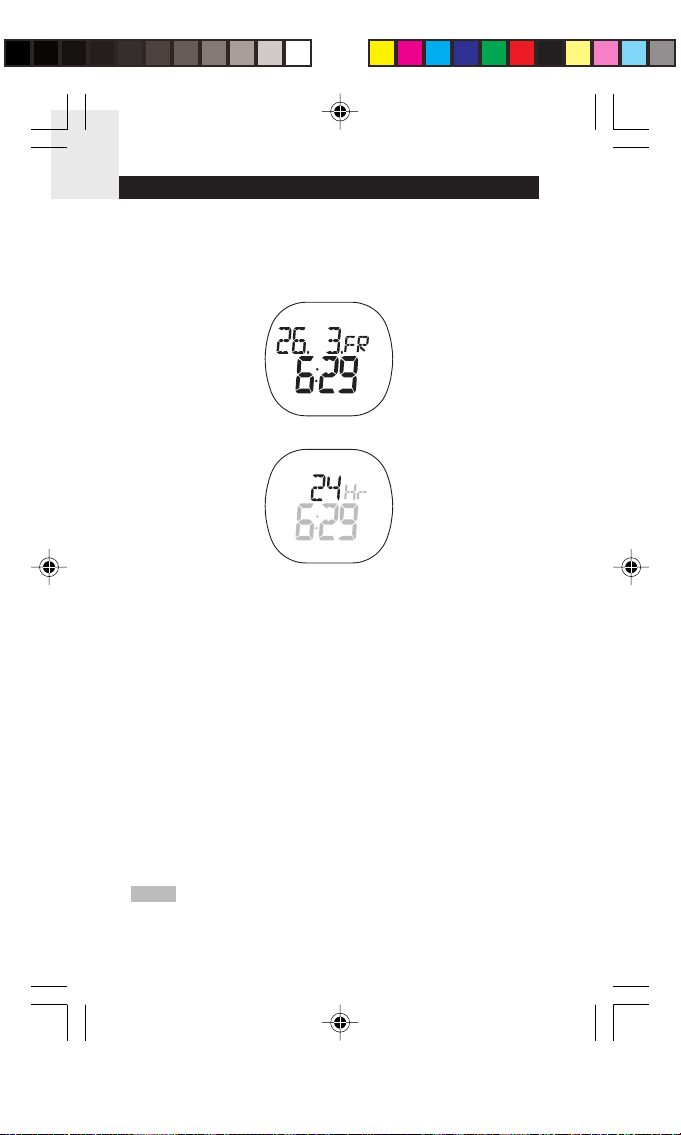

1. Date: MM:DD or DD:MM and day of the week; stopwatch time.
2. kcal: Calorie unit.
3.
: Keypad tone is disabled.
4.
: Light Mode is enabled.
5.
: Keypad lock is enabled.
Area 3
1
2
1. Time: HH:MM.
2.
/ : Flash in Timer / Stopwatch Mode when the heart rate
is above or below the upper and lower zone.
3. kg / lb: Body weight unit.
4. % FAT: Percentage of fat burn.
5. cm: Height unit.
6. LAP: Take lap; lap number (VIBRA Trainer Fit Pro only).
7. MEM: Stopwatch or timer memory is shown.
8. Yr: Year of user's birth.
2 3
4 5
3
4 5
6 7 8
SE211 English R9 OP_OK 2006.1.5, 9:41 PM6
6
Area 4
4
1
2
3
5 6 7
8
1. AVG: Average heart rate is displayed.
2. AM / PM: Appears when the 12-hour clock / alarm is being
used.
3. MAX: Maximum heart rate is displayed (VIBRA Trainer Fit
Pro only).
4.
: Heart rate is above or below limit; sound alert is activated.
5.
: Flashes when receiving heart rate signal.
6. VIBRO: Battery is too low for vibrate function.
7.
: Battery status.
8.
: Heart rate alert is set to vibrate.
EN
SE211 English R9 OP_OK 2006.1.5, 9:41 PM7
7
EN
GETTING STARTED
UNPACKING THE WATCH
When you unpack your VIBRA Trainer Fit / VIBRA Trainer Fit Pro watch, make sure to keep all the packing materials in a safe place, in case you need to later transport or return the product for servicing.
In this box, you will find:
•Watch
• Heart rate chest belt
• Mounting bracket
• Carry case
•2 x CR2032 lithium batteries - already installed
TURNING ON THE WATCH (FIRST-TIME USE ONLY)
Press any key for 2 seconds to activate the LCD display.
BATTERIES
The VIBRA Trainer Fit / VIBRA Trainer Fit Pro uses two CR2032 lithium batteries, one for the watch and another for the heart rate chest belt. Both are already installed. See the table below for battery warnings.
LOW BATTERY ICON DESCRIPTION
The battery is too low to run the backlight
The battery is too low to run the vibration alert
The watch battery is low; the vibration alert and backlight cannot be used
The chest belt battery is nearly too low to send a signal to the watch
The batteries typically last one year. We highly recommend that you contact the retailer or our customer service department if you need to replace them.
SE211 English R9 OP_OK 2006.1.5, 9:41 PM8
8
To replace the watch battery:
1. Turn the watch over so that you are looking at the back plate.
2. Disconnect the watchstrap as shown above.
3. Using a small screwdriver, remove the four screws that hold
the back plate into position.
4. Remove the back plate and set it aside.
5. Using a thin blunt instrument, hook the release catch and lift
the clip.
6. With your finger, remove the old battery and set it aside.
7. Slide the new battery into the battery compartment with the +
side upwards.
8. Replace the battery clip.
9. Replace the back plate and screws.
EN
SE211 English R9 OP_OK 2006.1.5, 9:41 PM9
9
EN
To replace the chest belt battery:
1. Locate the battery compartment on the back of the chest belt.
2. Using a coin, as shown above, twist the compartment lid counter-clockwise until it clicks out of place.
3. Set the battery compartment lid aside.
4. With your finger, remove the old battery and set it aside.
5. Insert the new battery with the + side upwards.
6. Replace the battery compartment lid by twisting it clockwise until it is firmly in place.
IMPORTANT
Non-rechargeable and rechargeable batteries must be
disposed of properly. For this purpose, special containers are provided for non-rechargeable and rechargeable battery disposal at communal collection centres.
• Batteries are extremely dangerous when swallowed! Therefore, keep batteries and the article away from infants. If a battery has been swallowed seek immediate medical advice.
• The batteries supplied must not be recharged, reactivated by any other means, dismantled, put into fire or short-circuited.
SE211 English R9 OP_OK 2006.1.5, 9:41 PM10
10
WEARING THE CHEST BELT AND WATCH
CHEST BELT

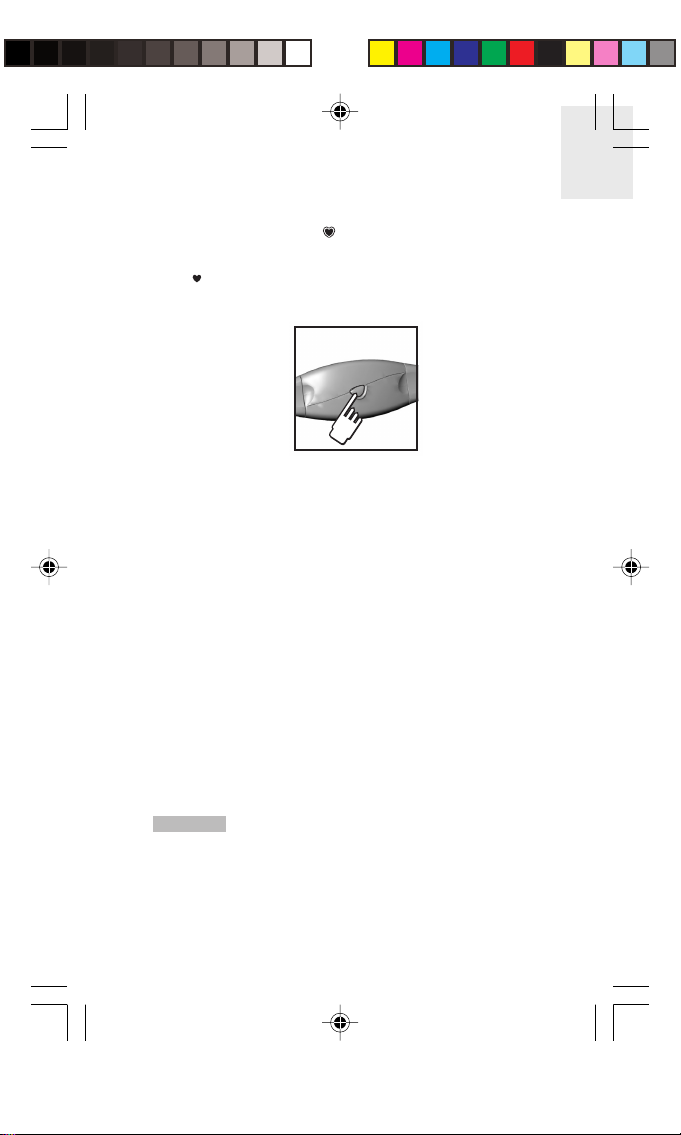

The heart rate chest belt is used to count your heartbeat and transmit the data to the watch. To wear the chest belt:
1. Wet the conductive pads on the underside of the chest belt
with a few drops of water or a conductive gel to ensure solid contact.
2. Strap the heart rate chest belt across your chest. To ensure
an accurate heart rate signal, adjust the strap until the belt sits snugly below your pectoral muscles.
TIPS
• The position of the chest belt affects its performance. Move
the chest belt along the strap so that it falls above your heart.
•Avoid areas with dense chest hair.
• In dry, cold climates, it may take several minutes for the chest
belt to function steadily. This is normal and should improve with several minutes of exercise.
NOTE
If the watch is kept idle without receiving a heart rate signal
for 5 minutes, the Heart Rate Mode will quit and return to Clock Mode.
WATCH
You can wear the receiver watch on your wrist or strap it to a bike or exercise machine, as shown below.
EN
SE211 English R9 OP_OK 2006.1.5, 9:41 PM11
11
