VERTICAL/HORIZONTAL 22 TON LOG SPLITTER
MODEL NO. S402022H0 & S402022K0
Owner’s Manual
ASSEMBLY & OPERATING INSTRUCTIONS
WARNING: All operators must read this manual before operating this log splitter. Follow the safety instructions in the manual and in decals attached to the product. Failure to do so could result in serious injury or death.
LS181-877-0411
Rev. 0
Table of Contents |
|
|
Page(s) |
Important Safety Information................................................................................................................. |
1-6 |
Intended Use ......................................................................................................................... |
1 |
Personal Protective Equipment ............................................................................................... |
1 |
Safety Decals ....................................................................................................................... |
1-2 |
General Safety ...................................................................................................................... |
3 |
Preparation of the Log ........................................................................................................... |
3 |
Work Area ........................................................................................................................... |
3 |
Operation of the Log Splitter .................................................................................................. |
3-4 |
Repair and Maintenance Safety ............................................................................................. |
4 |
Hydraulic Safety .................................................................................................................. |
5 |
Fire Prevention ..................................................................................................................... |
5-6 |

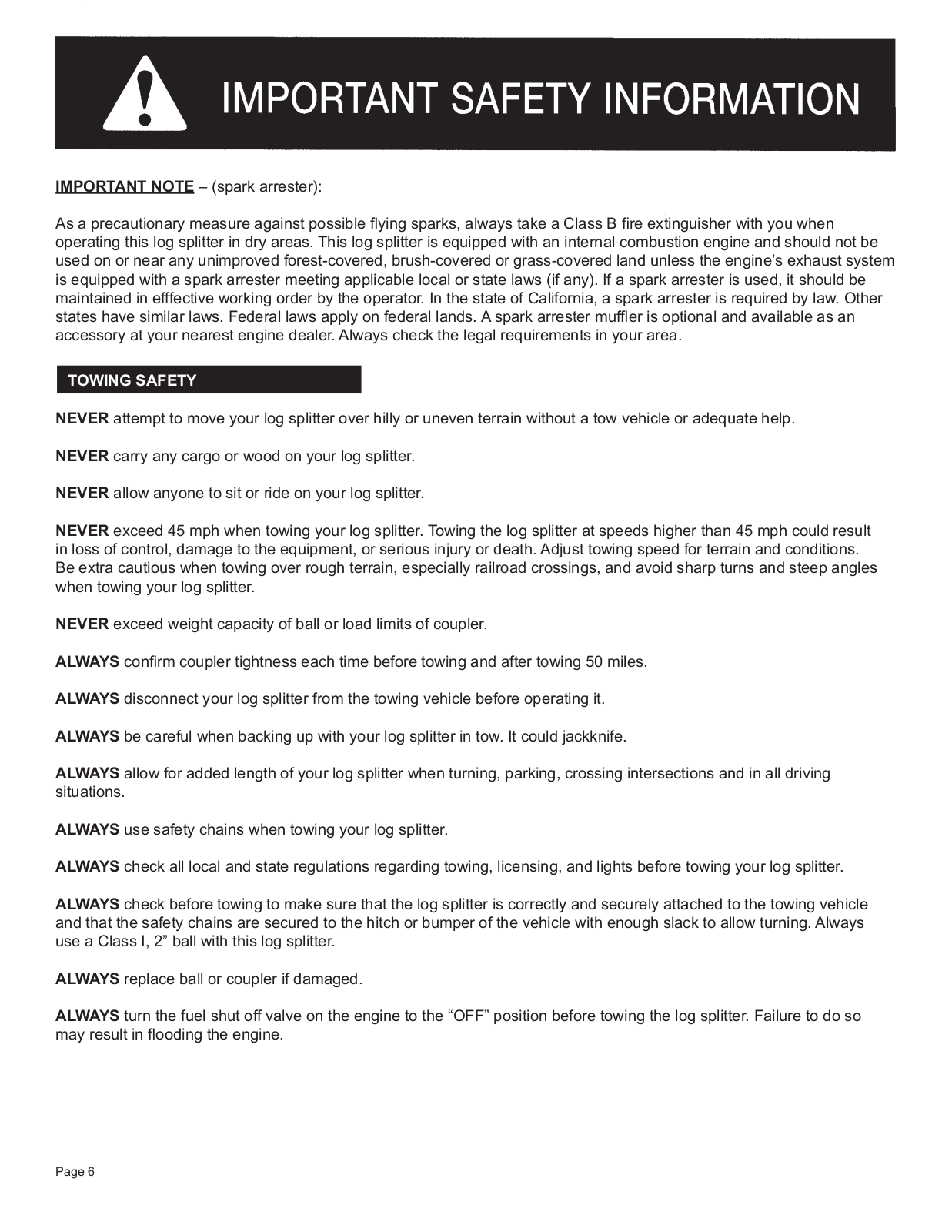

Towing Safety ...................................................................................................................... |
6 |

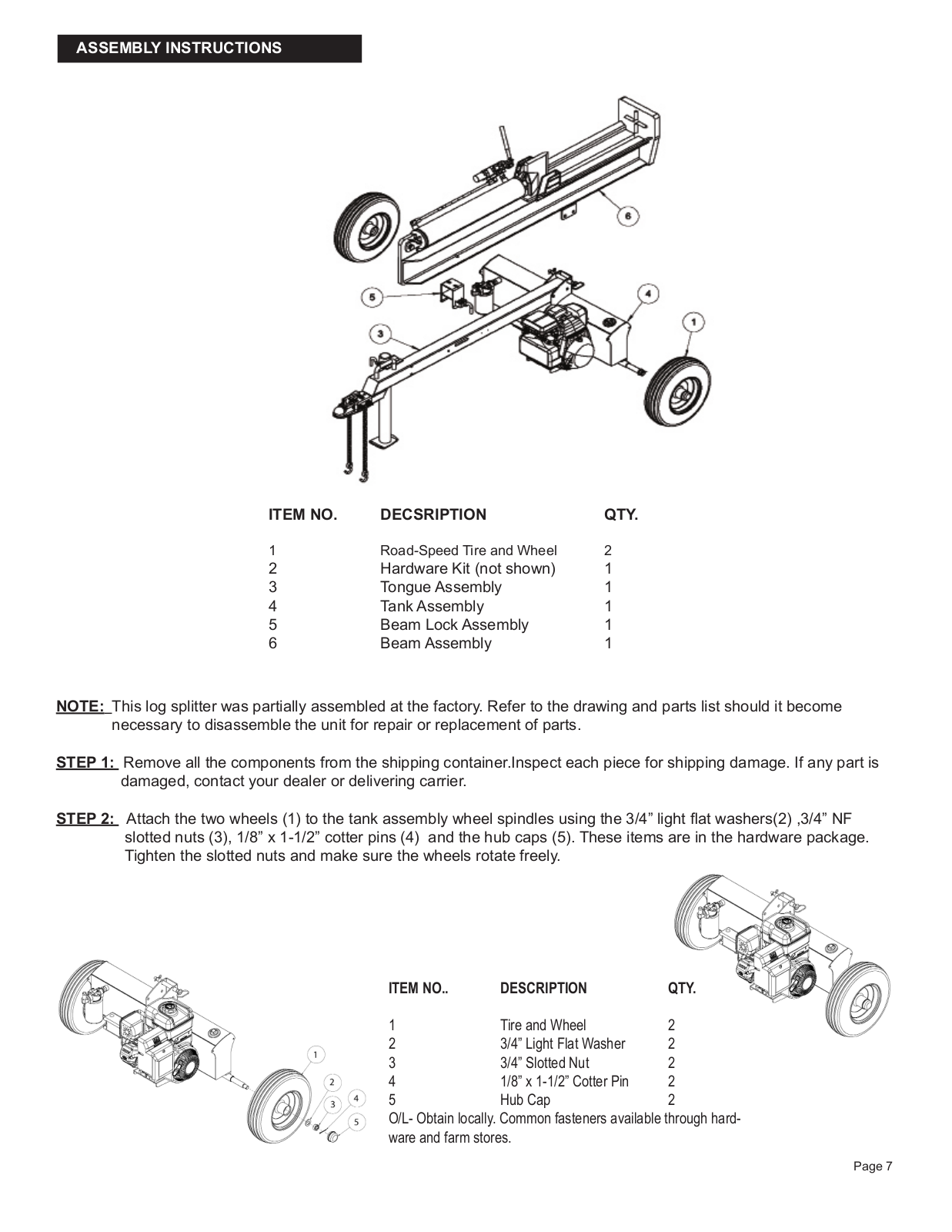

Assembly Instructions ...................................................................................................................... |
7-9 |
Operating Instructions ....................................................................................................................... |
13-15 |
Engine Oil Recommendations ................................................................................................ |
15 |
Hydraulic Oil Recommendations ............................................................................................ |
13 |
Starting Instructions ............................................................................................................... |
13 |
Operation .............................................................................................................................. |
14 |
Towing ...................................................................................................................................... |
14 |
Maintenance .......................................................................................................................................... |
14 |
Parts Breakdown Illustrations................................................................................................................ |
10-12 |

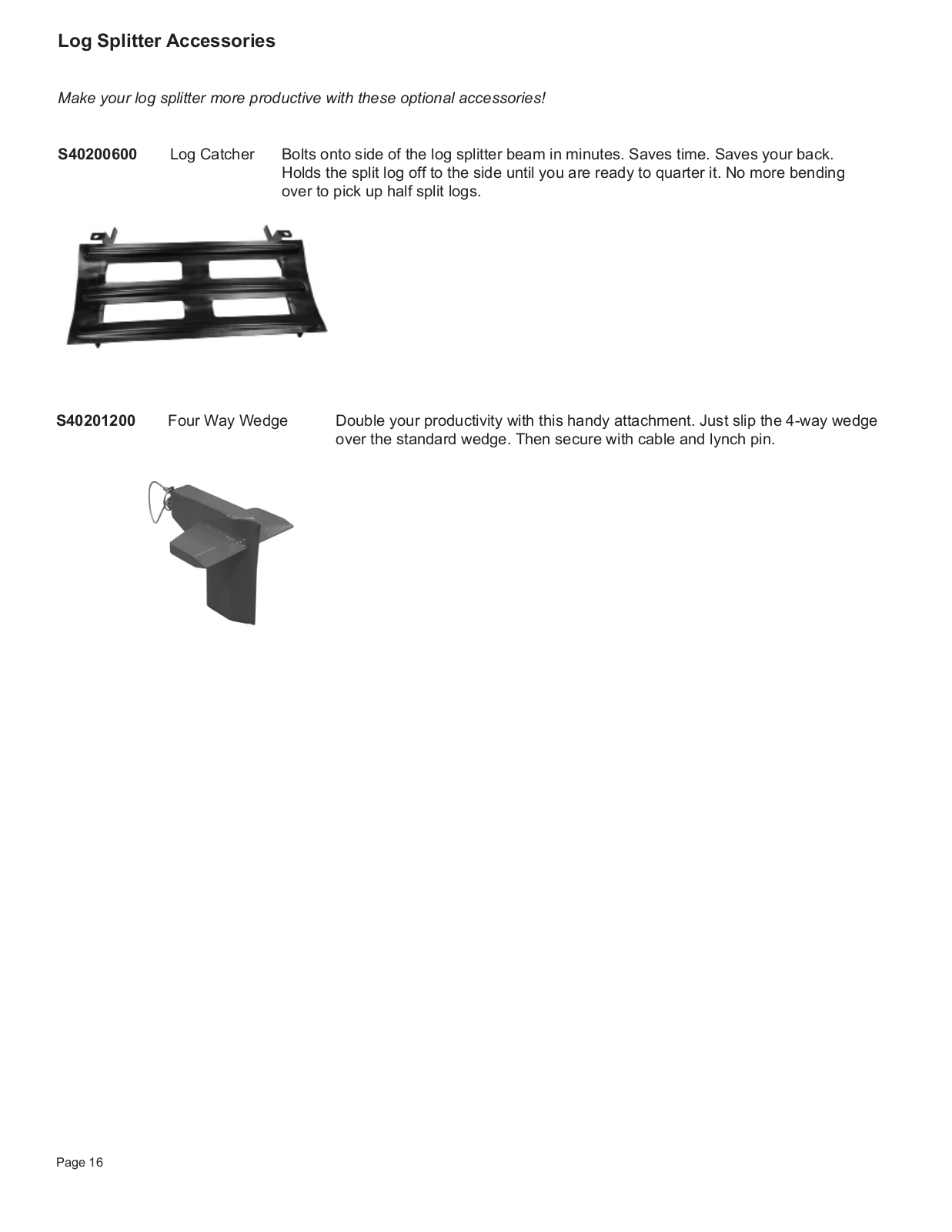

Accessories ............................................................................................................................................. |
16 |
Warranty Service Information ................................................................................................................ |
17 |
Specifications ......................................................................................................................................... |
Back Cover |
assembling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. As with all power equipment, a log splitter can be dangerous if assembled or used improperly. Do not operate this log splitter if you have any questions concerning safe operation. To get answers to any questions, call our customer service department at 1-800-525-8322.
Si no entiende ingles, se prefiere que busque alguien que interprete las instrucciones para usted.
This is the SAFETY ALERT SYMBOL. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will result in serious injury or death.
WARNING indicates a hazardous situation which, if not avoided, could result in serious injury or death.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
INTENDED USE
NEVER use this log splitter for any other purposes than splitting wood. It is designed for this use only. Any other use can cause serious injury or death.
PERSONAL PROTECTIVE EQUIPMENT
BEFORE operating this log splitter, make sure that you wear safety gear such as goggles or safety glasses, steel toed shoes and tight fitting gloves (without loose cuffs or draw strings). Always wear a protective hearing device when operating this log splitter.
SAFETY DECALS
Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals.
Contact SpeeCo at 1-800-525-8322 for replacement decals.
PART NUMBER: S52062500, |
LOCATION: TOP, FRONT END OF TONGUE |
Page 1 |
PART NUMBER: S52062400
LOCATION: HYDRAULIC TANK
LOWER TANK, RIGHT CORNER
PART NUMBER: S52062200
LOCATION: TOP OF CYLINDER
PART NUMBER: S52062100
LOCATION: TOP OF HYDRAULIC
CYLINDER
Page 2
PART NUMBER:
LOCATION: OUTSIDE OF BOTH
STRIPPER PLATES
GENERAL SAFETY
ALWAYS keep the operator’s manual nearby for reference. Reread the manual periodically.
ALWAYS establish a safety zone restricting bystanders to a 10 foot radius around the log splitter when log splitter is in operation.
ALWAYS ensure that all operators are properly trained or have read and understood the operator’s manual.
ALWAYS operate the log splitter with a clear mind, free of the influence of alcohol, drugs or medication.
ALWAYS wear close fitted clothing, free from lanyards, strings or jewelry which could be an entrapment hazard.
ALWAYS keep clothing and hair away from moving parts..
ALWAYS kep safety shields in place during operation.
WORK AREA
ALWAYS operate this log splitter on firm ground/earth.
ALWAYS wear proper footwear with adequate traction.
ALWAYS operate your log splitter in an open area. (Exhaust fumes contain carbon monoxide which can be deadly when inhaled.)
ALWAYS operate your log splitter on level ground. (Operating on a slope couyld cause the log splitter to roll over or logs to fall off.)
ALWAYS operate your log splitter in daylight or under good artificial light.
ALWAYS keep the work area clean. Remove split wood around the log splitter immediately so that you don’t stumble over it.
PREPARATION OF THE LOG
Both ends of the log should be cut as square as possible to help prevent the log from riding out of the splitter during operation. Do not split logs greater than 26 inches in length.
Page 3
OPERATION OF THE LOG SPLITTER
ONLY operate the log splitter from the operator zone as shown in the diagram. The operator has the safest and most efficient access to the control valve and the beam in this location. Operating the log splitter in another location can result in serious injury or death.
TOP VIEW
OPERATOR
ZONE
ALWAYS block the wheels to prevent movement of the log splitter while in operation.
KNOW how to stop the log splitter and disengage the controls before operating it.
NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke as this could result in serious injury or death.
NEVER straddle or step over the log splitter during operation.
NEVER reach or bend over the log splitter to pick up a log.
NEVER try to split two logs on top of each other.
NEVER try to cross split a log.
NEVER attempt to load the log splitter when the ram or wedge is in motion.
NEVER use your foot, a rope or any extension device to operate the control lever on the valve. Only use hand.
NEVER move the log splitter while the engine is running. Shut off the engine if you are leaving the log splitter, even for a short period of time.
NEVER touch the muffler and other hot areas of the engine during operation. Wait until the engine cools down.
ALWAYS be careful when moving or lifting the log splitter. Get assistance if it feels too heavy to move by yourself.
GENERAL REPAIR
NEVER operate your log splitter when it is in poor mechanical condition or in need of repair.
NEVER alter your log splitter in any manner. Such alterations may cause your log splitter to be unsafe and will void the warranty.
NEVER tamper with the engine to run it at excessive speeds. The maximum engine speed is preset by the manufacturer and is within safety limits. Refer to the engine owner’s manual for your particular log splitter.
Page 4
