Easy Multi Channel Thermometer
Model: RAR621
User Manual
Page 2
CONTENTS
Contents ................................................................... 1
Introduction .............................................................. 2
Product Overview .................................................... 3
Top / Front View .....................................................3
Back View .............................................................. 4
LCD Display ...........................................................5
Remote Sensor (THN122N) .................................. 6
Getting Started ......................................................... 7
Batteries ................................................................. 7
Change Settings .................................................... 7
Table Stand or Wall Mount ..................................... 7
Remote Sensor (THN122N) ..................................... 8
Setup Sensor ......................................................... 8
Data Transmission .................................................9
Search for Sensor ..................................................9
Clock ....................................................................... 10
Set Clock ............................................................. 10
Switch Clock Display ........................................... 10
Alarm ....................................................................... 10
View Alarm Settings ............................................. 10
Set Alarm ............................................................. 11
Activate Alarm ...................................................... 11
Silence Alarm ....................................................... 11
Temperature............................................................ 11
Select Channel Number ....................................... 11
Select Minimum / Maximum Records .................. 12
Reset System ......................................................... 12
Safety & Care ..........................................................12
Warnings .................................................................12
Troubleshooting .....................................................13
Specifications .........................................................13
Main Unit Dimensions ..........................................13
Remote Sensor Dimensions ................................ 13
Temperature ......................................................... 13
Remote Sensor (THN122N) ................................ 13
Clock ....................................................................14
Power ................................................................... 14
About Oregon Scientific ........................................ 14
EC-Declaration of Conformity ...............................15
1
EN
RAR621 English R4 OP 8/18/04, 5:29 PM1
Black
Page 3
EN
INTRODUCTION
Thank you for selecting the Oregon Scientific
Multi Channel Thermometer (RAR621). This device
bundles precise time keeping, alarm, and temperature
monitoring features into a single tool you can use from
the convenience of your home.
In this box, you will find:
• Main unit
• Remote sensor
• Main unit batteries
• Remote sensor batteries
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well
as technical specifications and warnings you should
know.
TM
2
RAR621 English R4 OP 8/18/04, 5:29 PM2
Black
Page 4
PRODUCT OVERVIEW
FRONT VIEW
EN
The Multi Channel Thermometer features:
1
RAR621 English R4 OP 8/18/04, 5:29 PM3
Black
2
1. Outdoor Temperature: Three-channel temperature
readings, (this feature is sold separately). To the right
of it is the indoor temperature.
3
4
5
2.
3. MODE button: Press to change display / settings.
4. CHANNEL button: Selects one of the 3 weather
channels.
5.
button: Press to increase settings.
and
button: Press to view and set times for
"single" and "weekday" alarms.
3
Page 5
EN
BACK VIEW
1
2
3
1. Wall mount hole
2. Battery compartment: Contains 2 x "AAA"UM4
1.5V batteries.
3. Table stand
4. Batteries
5. RESET hole: Changes all settings back to the default
settings.
6. MEM button: Displays the maximum and minimum
temperatures recently recorded.
4
5
6
4
RAR621 English R4 OP 8/18/04, 5:29 PM4
Black
Page 6
LCD DISPLAY
EN
1 6
2
3
4
5
RAR621 English R4 OP 8/18/04, 5:29 PM5
Black
1. Outdoor temperature reading
7
2. 3 Channels: Shows 1, 2 or 3
3. Battery indicator for remote sensor
8
9
10
4. Alarm display indicator
5. Time or calendar
6. Indoor temperature indicator
7. Battery indicator for main unit
8. Indoor temperature reading
9. Indicates "single" or "weekday" alarm
10. Seconds or weekday
5
Page 7
EN

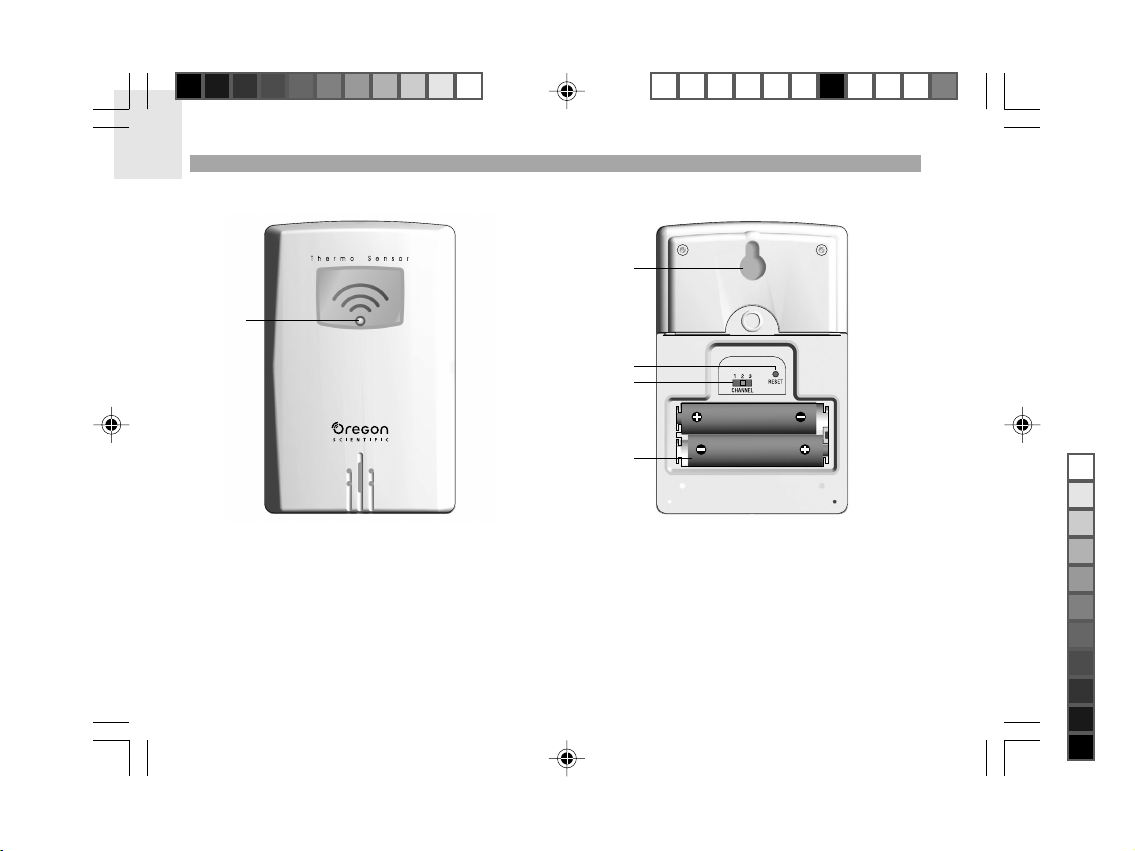

REMOTE SENSOR (THN122N)
1
1
2
3
4
1. LED status indicator
RAR621 English R4 OP 8/18/04, 5:29 PM6
Black
1. Wall mount hole
2. RESET hole
3. Channel number (1-3)
4. Battery compartment
(Battery compartment cover not shown)
6
Page 8

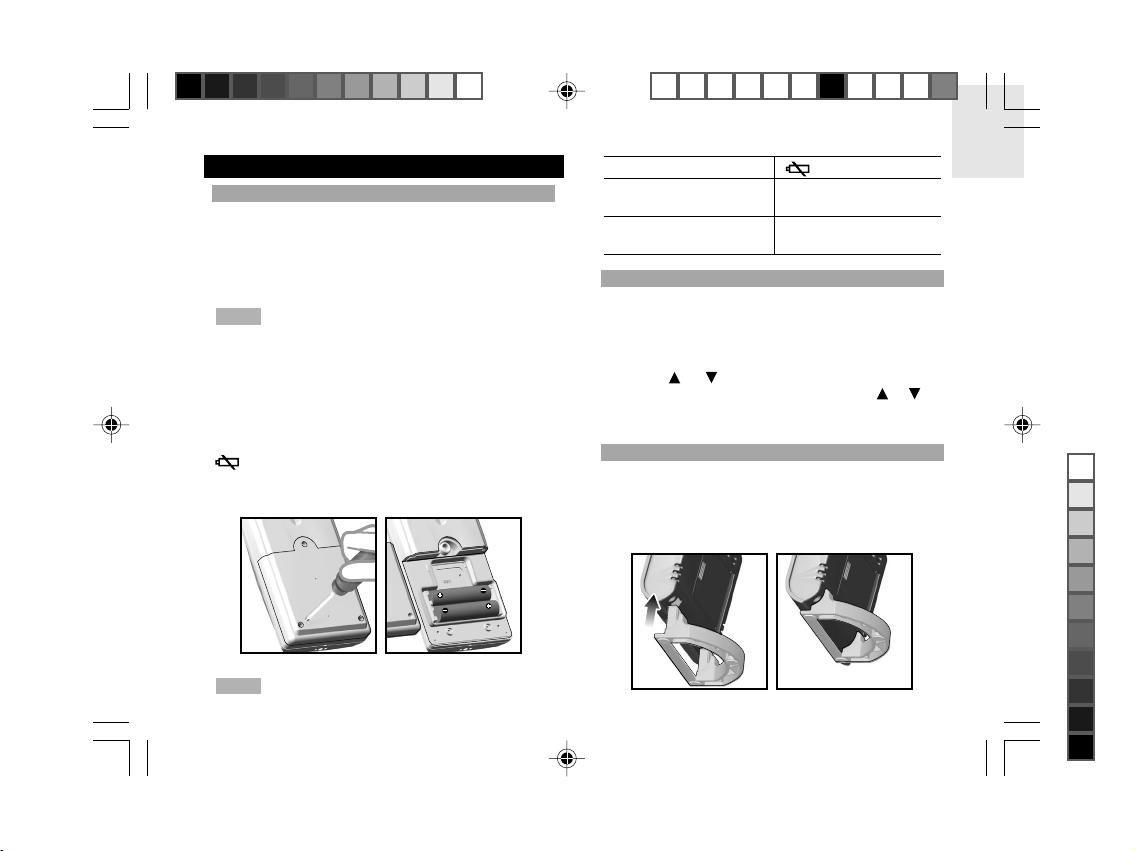

GETTING STARTED
BATTERIES
Batteries are supplied with this product:
Main unit 2 x UM-4 (AAA) 1.5V batteries
Remote unit 2 x UM-4 (AAA) 1.5V batteries
It is recommended that you use alkaline
NOTE
batteries with this product for longer performance.
Insert batteries before first use, matching the polarity
(+ and -) as shown in the battery compartment. For best
results, install batteries in the remote sensor before the
main unit. Press RESET after each battery change.
shows when batteries are low.
Installing the Batteries
Do not use rechargeable batteries.
NOTE
UNIT
LOCATION
Main Indoor Temperature
Area
Remote Outdoor Temperature
Area
CHANGE SETTINGS
To change, time, calendar and language settings:
1. Press and hold MODE for 2 seconds to enter setting
mode.
2. Press
to change settings. (To reach the
or
setting you want quickly, press and hold or
3. Press MODE to confirm.

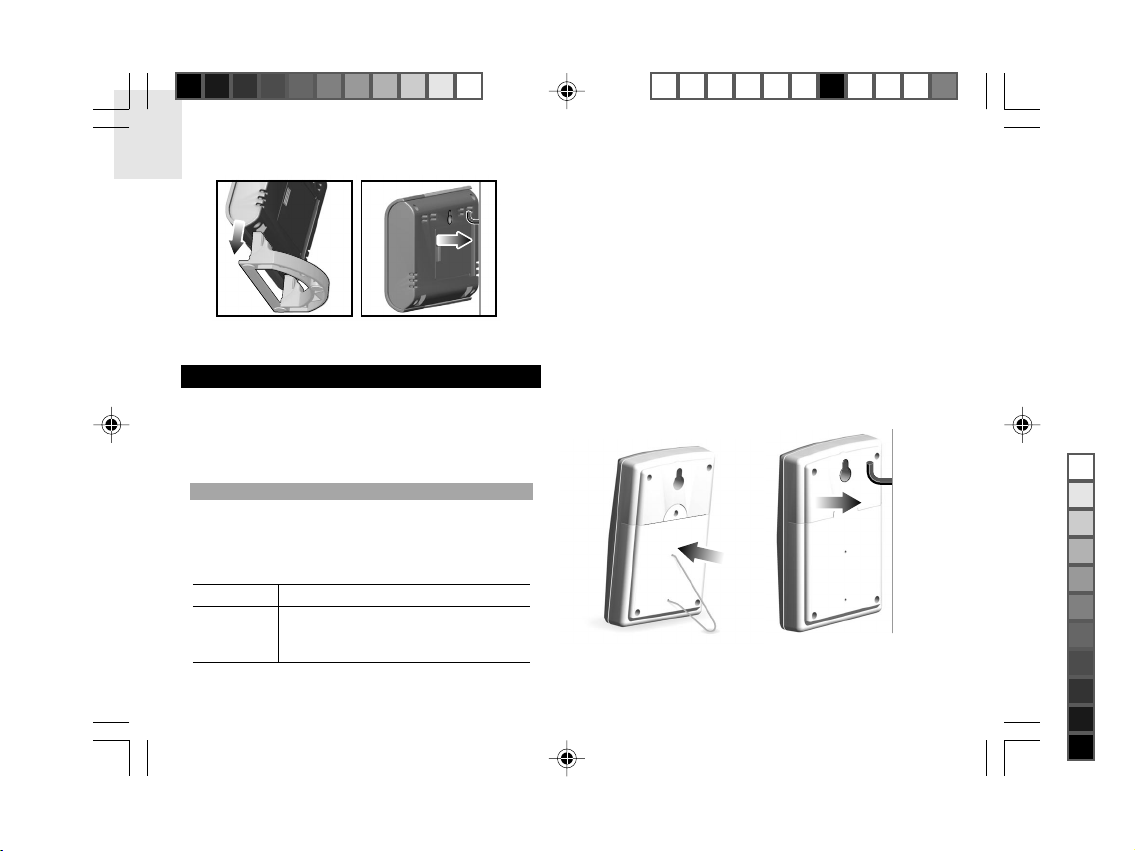

TABLE STAND OR WALL MOUNT
Use the stand on the back of the main unit / remote
sensor, or mount it on a wall with a nail.
Attaching the Table Stand
7
EN
).
RAR621 English R4 OP 8/18/04, 5:29 PM7
Black
Page 9
EN
Installing the Wall Mount
REMOTE SENSOR (THN122N)
This product is shipped with a THN122N Thermometer
Sensor that collects Temperature data. Data can be
collected from up to 3 sensors. Additional sensors sold
separately.
SETUP SENSOR
1. Open the remote sensor battery compartment with
a small Phillips screwdriver.
2. Insert the batteries, matching the polarity (+ and -)
as shown in the battery compartment.
SWITCH OPTION
Channel Channel 1-3. If you are using more
than one sensor, select a different
channel for each sensor.
3. Set the channel. The switch is located in the
battery compartment.
4. Place the sensor near the main unit. Press RESET
on the sensor. Then, press and hold MEM and
CHANNEL on the main unit to initiate signal sending
between the sensor and the main unit. The reception
icon on the main unit will blink for approximately
3 minutes while it is searching for the sensor. (Refer
to the Sensor Data Transmission section for more
information.)
5. Close the remote sensor battery compartment.
6. Secure the sensor in the desired location using the
wall mount or table stand.
Using the stand or wall mount
8
RAR621 English R4 OP 8/18/04, 5:29 PM8
Black
Page 10
For best results:
• Insert the batteries and select the channel before
you mount the sensor.
• Place the sensor out of direct sunlight and
moisture.
• Do not place the sensor more than 30 meters
(98 feet) from the main (indoor) unit.
• Position the sensor so that it faces the main
(indoor) unit, minimizing obstructions such as
doors, walls, and furniture.
• Place the sensor in a location with a clear view to
the sky, away from metallic or electronic objects.
• Position the sensor close to the main unit during
cold winter months as below-freezing
temperatures may affect battery performance and
signal transmission.
You may need to experiment with various locations to
get the best results.

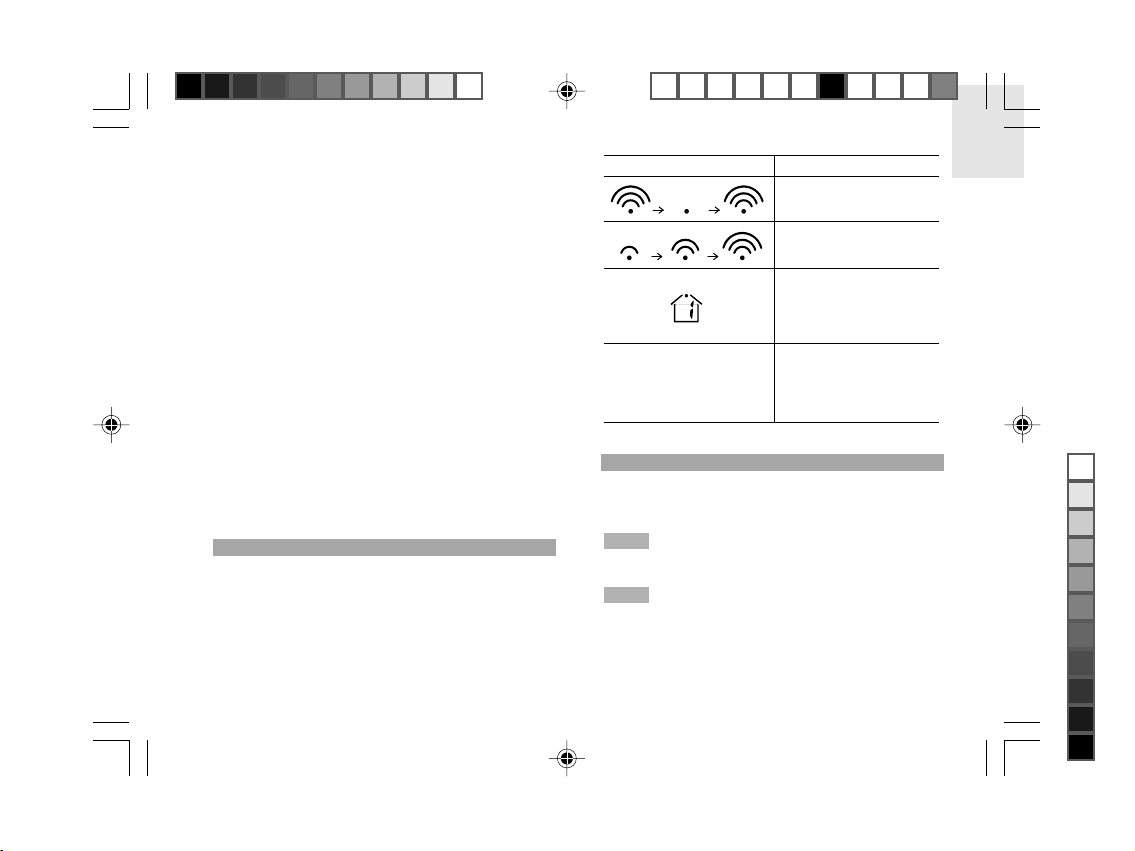

DATA TRANSMISSION
Data is sent from the sensor(s) every 78 seconds. The
reception icon shown in the Temperature Area shows
the status.
ICON DESCRIPTION
Main unit is searching
for sensors.
At least 1 channel has
been found.
Channel 1 is selected.
(number will change
depending on the
sensor you select.)
--- shows in Outdoor /
Area
The selected sensor
cannot be found.
Search for the sensor
or check batteries.
SEARCH FOR SENSOR
To search for a sensor, press and hold MEM and
CHANNEL for 2 seconds.
If the sensor is still not found, check the
NOTE
batteries, obstructions, and remote unit location.
Signals from household devices such as
NOTE
doorbells, electronic garage doors, and home security
systems may cause temporary reception failure. This is
normal and does not affect general product performance.
The reception will resume once the interference ends.
9
EN
RAR621 English R4 OP 8/18/04, 5:29 PM9
Black
Page 11
EN
CLOCK
This product has two displays: Clock with day of week
in German, English, French, Italian, or Spanish, and
Calendar display with month and date.

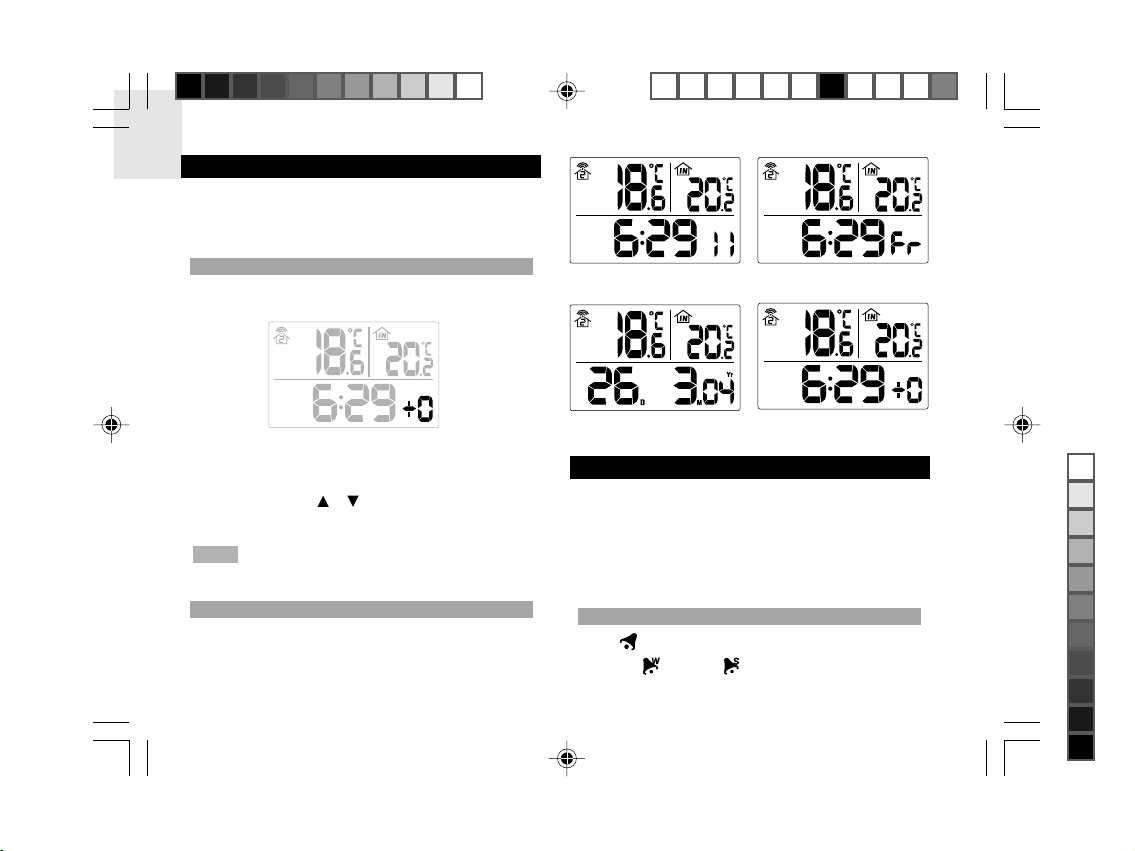

SET CLOCK
1. Press and hold MODE for 2 seconds. The Clock Area
will blink.
2. Select the hour offset (-9 to +9), hour display format
(12 or 24 hour), hour, minute, year, month, day, and
language. Press
MODE to confirm.
NOTE
The language options are (D) German,
(E) English, (F) French, (I) Italian, and (S) Spanish.
SWITCH CLOCK DISPLAY
Press MODE to toggle between Calendar and Clock
display with Hour Offset, Seconds, or Weekday.
RAR621 English R4 OP 8/18/04, 5:29 PM10
or
to change the setting. Press
Black
ALARM
This product has 2 alarms: a Single Alarm and a
Weekday Alarm. The Single Alarm can be set to go off
at a specific time for a one-time event (for example, if
you are napping on Saturday). The Weekday Alarm will
sound at the same time Monday-Friday (but not on
weekends).
VIEW ALARM SETTINGS
to display the Alarm settings you wish to view:
Press
Weekday
10
or Single .
Page 12

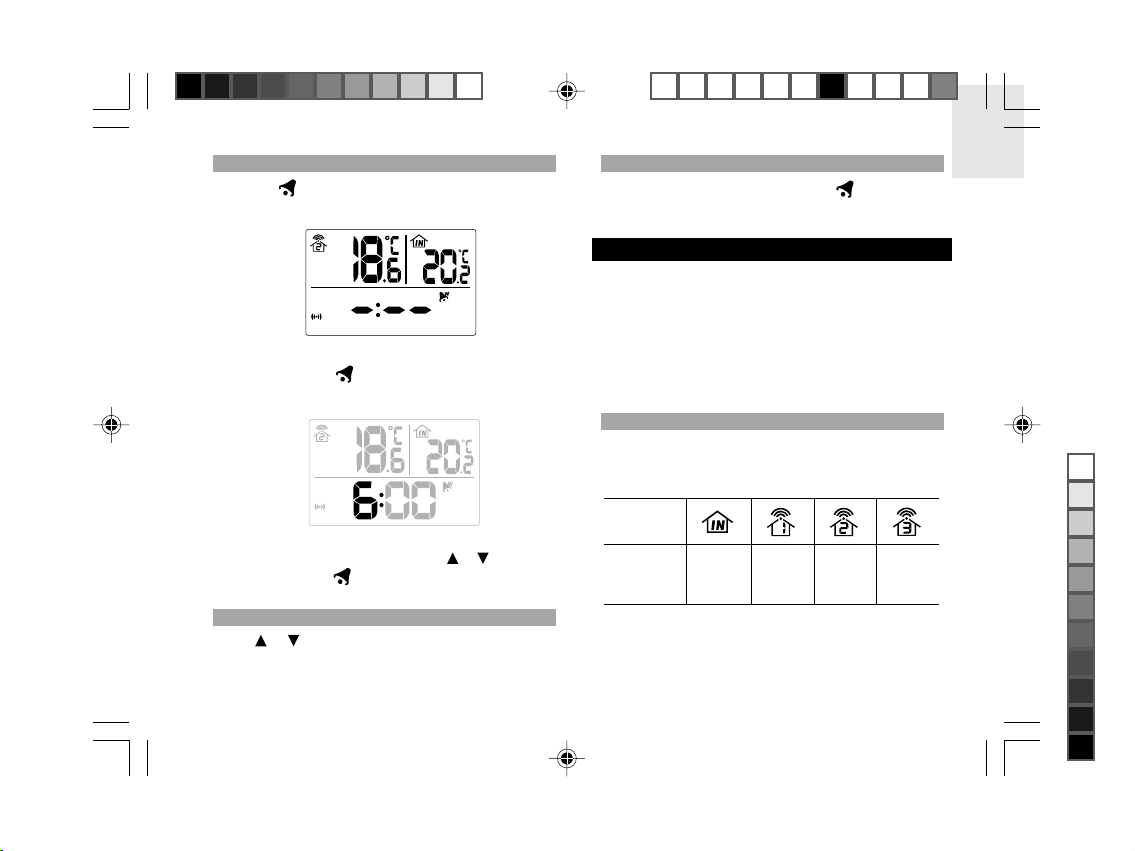

SET ALARM
1. Press
to display the type of Alarm you wish to
set: Weekday or Single.
2. Press and hold
again for 2 seconds. The Alarm
settings will blink.
3. Select the hour and minute. Press
settings. Press
To confirm.
ACTIVATE ALARM
or
Press
to activate or deactivate the Alarm. "-:--"
indicates that the alarm is deactivated.
or
to change
STOP ALARM
To stop the alarm from ringing, Press
.
TEMPERATURE
This product can display current, minimum, and
maximum temperature information collected by the
remote sensors and main (indoor) unit.
Outdoor data is collected and displayed every
78 seconds. Indoor data is collected and displayed every
10 seconds.
SELECT CHANNEL NUMBER
Press CHANNEL to switch between sensors 1-3.
The icon shows the selected sensor.
Kineticwave icon
Designated
Display
To auto-scan between sensors, press and hold
CHANNEL for 2 seconds. Each sensor's data will be
displayed for 3 seconds. To end auto-scan, press
CHANNEL or MEM.
11
Indoor
Display
Remote
Display
Channel 1
Remote
Display
Channel 2
EN
Remote
Display
Channel 3
RAR621 English R4 OP 8/18/04, 5:29 PM11
Black
Page 13
EN
NOTE
For more information on the sensor see
"Remote Sensor THN122N" Section.
MINIMUM / MAXIMUM RECORDS
The MEM button is located in the main unit battery
compartment. Press MEM to toggle between current,
maximum (MAX) and minimum (MIN) records. To clear
the records, press and hold MEM for 2 seconds. A beep
will sound to confirm that the memory has been cleared.
RESET SYSTEM
The RESET button is located in the main unit battery
compartment. Press RESET when you change the
batteries and whenever performance is not behaving
as expected (for example, unable to establish radio
frequency link with remote sensor or Clock).
SAFETY & CARE
Clean the product with a slightly damp cloth and alcoholfree, mild detergent. Avoid dropping the product or
placing it in a high-traffic location.
WARNINGS
This product is designed to give you years of service if
handled properly. Oregon Scientific will not be
responsible for any deviations in the usage of the device
from those specified in the user instructions or any
unapproved alterations or repairs of the product.
Observe the following guidelines:
• Never immerse the product in water. This can
cause electrical shock and damage the product.
• Do not subject the main unit to extreme force,
shock, or fluctuations in temperature or humidity.
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of
different types.
• Do not use rechargeable batteries with this
product.
• Remove the batteries if storing this product for a
long period of time.
• Do not scratch the LCD display.
NOTE
The technical specification of this product and
contents of this user guide are subject to change without
notice. Images not drawn to scale.
NOTE
Under the environment with electrostatic
discharge, the sample may malfunction and require user
to rest the sample.
12
RAR621 English R4 OP 8/18/04, 5:29 PM12
Black
Page 14
TROUBLESHOOTING
PROBLEM SYMPTOM
Calendar Strange date /
Temp
Remote
sensor
month
Shows "LLL"
or "HHH"
Cannot locate
remote sensor
Cannot
change
channel
Data does not
match main
unit
REMEDY
Change language
Temperature is
out-of-range
Check batteries
Check location
Check sensors.
Only one sensor
is working
Initiate a manual
sensor search
SPECIFICATIONS
MAIN UNIT DIMENSIONS
L x W x H 103 x 48 x 75 mm
Weight 82 g (2.9 ounces) without
REMOTE SENSOR DIMENSIONS
L x W x H 92 x 60 x 20 mm
Weight 63 grams (2.22 ounces)
TEMPERATURE
Unit °C
Indoor Range -5°C to 50°C
Outdoor Range -20°C to 60°C
Resolution 0.1°C
REMOTE SENSOR (THN122N)
RF frequency 433 MHz
Range 30 meters (98 feet) with
Transmission Every 78 seconds
Channel No. 1 - 3
13
(4.06 x 1.89 x 2.96 inches)
batteries
(3.6 x 2.4 x .79 inches)
without battery
no obstructions
EN
RAR621 English R4 OP 8/18/04, 5:29 PM13
Black
Page 15
EN
CLOCK
Clock display HH:MM:SS
Hour format 12hr AM / PM or 24hr
Hour offset + / - 9 hours
Calendar DD / MM; weekday in
5 languages (E, D, F, I, S)
Alarm weekday and single;
2-minute crescendo
POWER
Main unit batteries 2 x UM-4 AAA 1.5V
Sensor batteries 2 x UM-4 AAA 1.5V
It is recommended that you use alkaline
NOTE
batteries with this product for longer performance.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products such as digital
cameras, MP3 players, projection clocks, health and
fitness gear, weather stations, and digital and conference
phones. The website also includes contact information
for our customer care department in case you need to
reach us, as well as frequently asked questions and
customer downloads.
We hope you will find all the information you need on
our website, however if you'd like to contact the Oregon
Scientific Customer Care department directly, please visit
www2.oregonscientific.com/service/support or call
949-608-2848 in the US. For international enquiries,
please visit www2.oregonscientific.com/about/
international/default.asp.
14
RAR621 English R4 OP 8/18/04, 5:29 PM14
Black
Page 16
EC-DECLARATION OF CONFORMITY
This product contains the approved transmitter module
that complies with the essential requirements of Article
3 of the R&TTE 1999 / 5 / EC Directive, if used as
intended and the following standards have been applied:
Safety of information technology equipment
(Article 3.1.a of the R&TTE Directive)
Applied Standard EN 60950 : 2000
Electromagnetic compatibility
(Article 3.1.b of the R&TTE Directive)
Applied Standards
ETSI EN 301 489-1-3 (Ver.1.4.1) : 2002-08
Additional information:
The product herewith complies with the requirements of
the Low Voltage Directive 73 / 23 / EC, the EMC Directive
89 / 336 / EC and carries the CE marking accordingly.
Carmelo Cubito
Agrate Brianza (MI) / Italy January 2004
Manufacturer's EU R&TTE Representative
EN
Efficient use of radio frequency spectrum
(Article 3.2 of the R&TTE Directive)
Applied Standards
ETSI EN 300 220-3 (Ver1.1.1) : 2000-09
RAR621 English R4 OP 8/18/04, 5:29 PM15
Black
COUNTRIES RTTE APPROVAL COMPLIED
All EC countries, Switzerland CH
and Norway N
15
Page 17
RAR621 English Back R4 OP 8/18/04, 5:29 PM1
Black
© 2004 Oregon Scientific. All Rights Reserved.
P/N.: 086-003515-015
Loading...
