Opel Mokka X 2019 Owner's Manual
Owner's Manual
Contents
Introduction .................................... 2
In brief ............................................ 6
Keys, doors and windows ............ 21
Seats, restraints ........................... 39
Storage ........................................ 59
Instruments and controls ............. 76
Lighting ...................................... 111
Climate control ........................... 122
Driving and operating ................. 128
Vehicle care ............................... 175
Service and maintenance .......... 216
Technical data ........................... 219
Customer information ................ 231
Index .......................................... 240
2 Introduction
Introduction
Introduction 3
Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.
When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner. For gas
vehicles we recommend an Opel
Repairer authorised for servicing gas
vehicles.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual
● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.
● The table of contents at the
beginning of this manual and
within each section shows where
the information is located.
● The index will enable you to
search for specific information.
● This Owner's Manual depicts lefthand drive vehicles. Operation is
similar for right-hand drive
vehicles.
● The Owner's Manual uses the
engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
● Displays may not support your
specific language.
● Display messages and interior
labelling are written in bold
letters.
4 Introduction
Danger, Warnings and
Cautions
9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Page references and index entries
refer to the indented headings given
in the section table of content.
We wish you many hours of
pleasurable driving.
Your Opel Team
Introduction 5
6 In brief
In brief
Initial drive information
Vehicle unlocking
Press c to unlock the doors and load
compartment. Open the doors by
pulling the handles. To open the
tailgate, push the touchpad switch
below the handle.
Radio remote control 3 22.
Central locking system 3 25.
Electronic key system 3 23.
Load compartment 3 30.
Seat adjustment
Longitudinal adjustment
Pull handle, sllde seat, release
handle. Try to move the seat back and
forth to ensure that the seat is locked
in place.
Seat position 3 40.
Seat adjustment 3 41.
In brief 7
Backrest inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 40.
Seat adjustment 3 41.
Seat height
Lever pumping motion
up : seat higher
down : seat lower
Seat position 3 40.
Seat adjustment 3 41.
Seat inclination
Press switch
top : front end higher
bottom : front end lower
Seat position 3 40.
Seat adjustment 3 41.
8 In brief
Head restraint adjustment
Pull the head restraint upwards.
Press the catch (1) to release and
push the head restraint downwards.
Head restraints 3 39.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25°).
To unfasten belt, press red button on
belt buckle.
Seat position 3 40.
Seat belts 3 44.
Airbag system 3 47.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 34.
Automatic anti-dazzle interior mirror
3 35.
In brief 9
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 33.
Electric adjustment 3 33.
Folding exterior mirrors 3 33.
Heated exterior mirrors 3 34.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and
the steering wheel lock has been
released.
Airbag system 3 47.
Ignition positions 3 130.
10 In brief
Instrument panel overview
In brief 11
1 Central locking system .......... 25
2 Power windows ..................... 35
3 Exterior mirrors ..................... 33
4 Light switch ......................... 111
5 Cruise control ...................... 150
Speed limiter ....................... 152
Forward collision alert ......... 153
6 Side air vents ...................... 126
7 Turn lights ........................... 118
Headlight flash .................... 113
Low beam and high beam ..112
Buttons for Driver
Information Centre ................ 97
8 Instruments ........................... 84
9 Steering wheel controls .......77
10 Windscreen wiper,
windscreen washer system ...78
Rear window wiper, rear
window washer system ......... 80
11 Centre air vents ................... 126
12 Anti-theft alarm system
status LED ........................... 31
13 Info Display ........................ 102
14 Controls for Info Display
operation ............................. 102
15 Glovebox .............................. 59
16 Descent control system ......... 94
Fuel selector ......................... 86
Stop-start system ................ 134
17 Climate control system ........ 122
18 Electronic Stability Control
(ESC) .................................. 148
19 Control indicator for airbag
deactivation .......................... 93
20 Front storage ......................... 60
Power outlet .......................... 83
USB port, AUX input
21 Selector lever, manual
transmission ....................... 144
Selector lever, automatic
transmission ....................... 141
22 Parking brake ...................... 146
23 Hazard warning flashers ....117
24 Parking assist ..................... 156
Lane departure warning ...... 163
25 Ignition switch with
steering wheel lock ............ 130
Power button ....................... 131
26 Horn ..................................... 78
Driver airbag ........................ 50
27 Steering wheel adjustment ..77
28 Bonnet release lever .......... 177
29 Front storage ......................... 60
Fuse box ............................ 190
12 In brief
In brief 13
Exterior lighting
Turn light switch:
m
: lights off
: sidelights
8
: low beam
9
Automatic light control
AUTO : automatic light control:
exterior lighting is switched
m
8
9
Fog lights
Press light switch:
>
ø
Lighting 3 111.
on and off automatically
: activation or deactivation of
the automatic light control
: sidelights
: low beam
: front fog lights
: rear fog light
Headlight flash, high beam and low beam
headlight flash : pull lever
high beam : push lever
low beam : push or pull lever
Automatic light control 3 112.
High beam 3 112.
Headlight flash 3 113.
Adaptive forward lighting 3 115.
14 In brief
Turn lights
lever up : right turn signal
lever down : left turn signal
Turn lights 3 118.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 117.
Horn
Press j.
In brief 15
Washer and wiper systems
Windscreen wiper
HI : fast
LO : slow
INT : interval wiping or automatic
wiping with rain sensor
OFF : off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 78.
Wiper blade replacement 3 182.
Windscreen washer system
Pull lever.
Windscreen washer system 3 78.
Washer fluid 3 180.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch : continuous
operation
lower switch : intermittent
operation
middle position : off
16 In brief
Rear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 80.
Climate control
Heated rear window, heated exterior mirrors
The heating is operated by pressing
Ü.
Heated rear window 3 37.
Demisting and defrosting the windows
Press V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control systems 3 122.
In brief 17
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again, then repeat
gear selection.
Manual transmission 3 144.
Automatic transmission
P : park
R : reverse
N : neutral
D : drive
Manual mode: Move selector lever to
M.
: higher gear
<
: lower gear
]
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 141.
Starting off
Check before starting off
● Tyre pressure and condition
3 195, 3 230.
● Engine oil level and fluid levels
3 178.
● All windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats,
and seat belts 3 33, 3 40,
3 45.
● Brake function at low speed,
particularly if the brakes are wet.
18 In brief
Starting the engine
Ignition switch
● Turn key to position 2.
● Move the steering wheel slightly
to release the steering wheel
lock.
● Manual transmission: operate
clutch and brake pedal.
● Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Diesel engines: wait until control
indicator ! for preheating
extinguishes.
● Turn key to position 3 and
release.
To turn the key back from position 2
to 1 or 0, first push the key all the way
in towards the steering column.
Power button
● Press Engine Start/Stop for a few
seconds until green LED
illuminates.
● Move the steering wheel slightly
to release the steering wheel
lock.
● Manual transmission: operate
clutch and brake pedal.
● Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Press Engine Start/Stop and
release.
In brief 19
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● Depress the clutch pedal.
● Shift the selector lever to N.
● Release the clutch pedal.

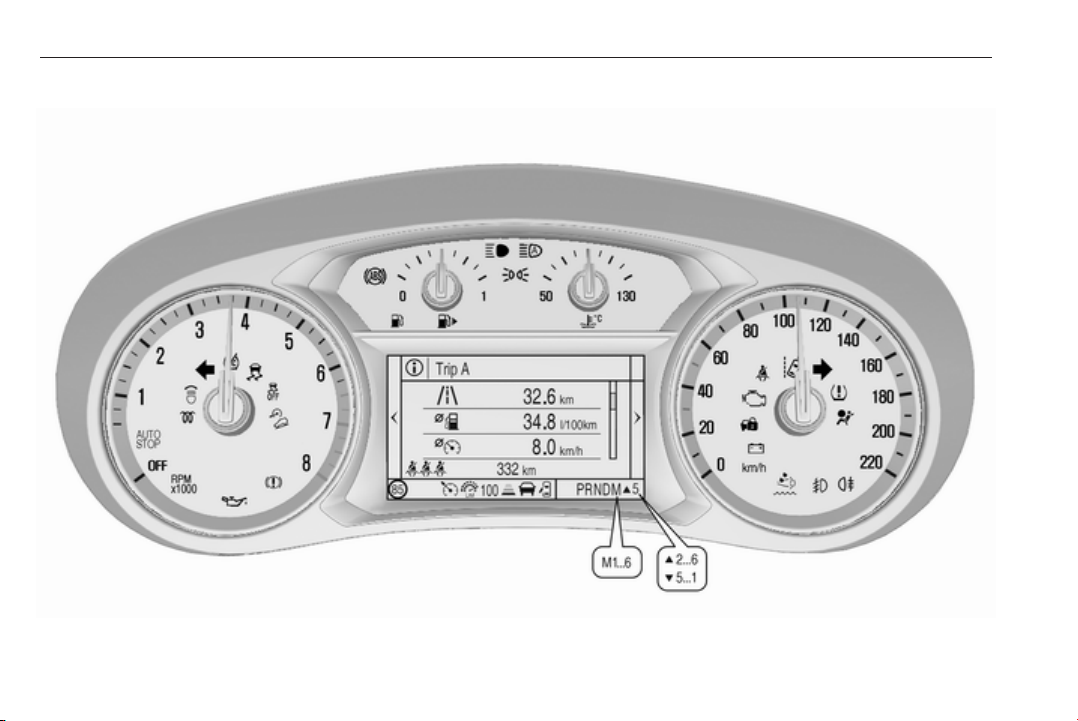

An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 134.
Parking
9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking
brake. Activate the parking
brake without pressing the
release button. Apply as firmly
as possible on a downhill slope
or uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level
surface or uphill slope, engage
first gear or set the selector
lever to position P before
removing the ignition key. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P before removing the ignition
key. Turn the front wheels
towards the kerb.
● Close the windows and the
sunroof.
● Remove the ignition key from
the ignition switch. For vehicles
with automatic transmission,
the key can only be removed
when the selector lever is in
position P.
Turn the steering wheel until
the steering wheel lock is felt to
engage.
●
Lock the vehicle with e on the
radio remote control.
Activate the anti-theft alarm
system 3 31.
● The engine cooling fans may run
after the engine has been
switched off 3 177.
20 In brief
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low
load or run in neutral for approx.
30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 21.
Laying the vehicle up for a long period
of time 3 176.
Keys, doors and windows 21
Keys, doors and windows
Keys, locks ................................... 21
Keys .......................................... 21
Radio remote control ................. 22
Electronic key system ................ 23
Memorised settings ................... 25
Central locking system .............. 25
Delayed locking ......................... 28
Automatic locking ...................... 29
Child locks ................................. 30
Doors ........................................... 30
Load compartment .................... 30
Vehicle security ............................ 31
Anti-theft locking system ...........31
Anti-theft alarm system .............. 31
Immobiliser ................................ 32
Exterior mirrors ............................ 33
Convex shape ........................... 33
Electric adjustment .................... 33
Folding mirrors .......................... 33
Heated mirrors ........................... 34
Interior mirrors ............................. 34
Manual anti-dazzle .................... 34
Automatic anti-dazzle ................ 35
Windows ...................................... 35
Windscreen ............................... 35
Manual windows ........................ 35
Power windows ......................... 35
Heated rear window .................. 37
Sun visors .................................. 37
Roof ............................................. 37
Sunroof ...................................... 37
Keys, locks
Keys
Caution
Do not attach heavy or bulky items
to the ignition key.
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 213.
Central locking 3 25.
Starting the engine 3 132.
Radio remote control 3 22.
Electronic key 3 23.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
22 Keys, doors and windows
Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Radio remote control
Enables operation of the following
functions via the use of the remote
control buttons:
● central locking system 3 25
● anti-theft locking system 3 31
● anti-theft alarm system 3 31
The radio remote control has a range
of approx. 30 m. It can be restricted
by external influences. The hazard
warning flashers confirm operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Radio remote control battery replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Press button to extend the key.
Keys, doors and windows 23
Open the unit. Replace the battery
(battery type CR 2032), paying
attention to the installation position.
Close the unit and synchronise.
Fault
If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of
the radio remote control while not
in range, which will require resynchronisation.
● Overload of the central locking
system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power
radio waves from other sources.
Electronic key system
Enables a keyless operation of the
following functions:
● central locking system 3 25
● starting the engine 3 132
The electronic key simply needs to be
on the driver's person.
Additionally, the electronic key
includes the functionality of the radio
remote control 3 22.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Note
Do not put the electronic key into the
load compartment or in front of the
Info Display.
Replacing battery in electronic key
Replace the battery as soon as the
system no longer operates properly
or the range is reduced. The need for
battery replacement is indicated by a
message in the Driver Information
Centre 3 104.
24 Keys, doors and windows
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
To replace:
1. Press button at the back of the
electronic key unit and extract the
key blade from the housing.
2. Insert the key blade approx. 6 mm
into the housing and turn the key
to open the housing. Further
insertion of the key blade can
damage the housing.
3. Remove and replace battery. Use
CR 2032 or equivalent battery.
Pay attention to the installation
position.
4. Close the housing and insert key
blade.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Electronic key synchronisation
The electronic key synchronises itself
automatically during every starting
procedure.
Fault
If the central locking cannot be
operated or the engine cannot be
started, the cause may be one of the
following:
● Fault in electronic key.
● Electronic key is out of reception
range.
● The battery voltage is too low.
● Overload of the central locking
system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power
radio waves from other sources.
To rectify the cause of the fault,
change the position of the electronic
key.
Manual unlocking 3 25.
Keys, doors and windows 25
Memorised settings
Whenever the ignition is switched off,
some functions of the following
settings may be automatically
memorised by the remote control unit
or the electronic key:
● lighting
● Infotainment system
● central locking system
● comfort settings
A precondition is that Personalization
by driver is activated in the personal
settings of the Info Display. This must
be set for each remote control unit or
electronic key which is used.
Vehicle personalisation 3 106.
Central locking system
Unlocks and locks doors, load
compartment and fuel filler flap.
A pull on an interior door handle
unlocks the respective door. Pulling
the handle again opens the door.
Note
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Note
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened. A precondition is that the
setting is activated in the vehicle
personalisation 3 106.
Remote control operation
Unlocking
Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● All doors, load compartment and
fuel filler flap will be unlocked by
pressing c once.
● Only the driver's door and fuel
filler flap will be unlocked by
pressing c once. To unlock all
doors and load compartment,
press c twice.
Select the relevant setting in the
settings menu in the Info Display.
Vehicle personalisation 3 106.
The setting can be saved for the
remote control being used.
Memorised settings 3 25.
Locking
Close doors, load compartment and
fuel filler flap.
Press c.
26 Keys, doors and windows
Press e.
If the driver's door is not closed
properly, the central locking system
will not work.
Confirmation
Operation of the central locking
system is confirmed by the hazard
warning flashers. A precondition is
that the setting is activated in the
vehicle personalisation 3 106.
Electronic key system operation
The electronic key must be outside
the vehicle, within a range of approx.
1 m of the relevant door side.
Unlocking
Press the button on the respective
exterior door handle and pull the
handle.
Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● All doors, load compartment and
fuel filler flap will be unlocked by
pressing the button on any
exterior handle once.
● Only the driver's door and fuel
filler flap will be unlocked by
pressing the button on the
driver's door exterior handle
Keys, doors and windows 27
once. To unlock all doors and
load compartment, press button
twice.
The setting can be changed in the
settings menu in the Info Display.
Vehicle personalisation 3 106.
Locking
Press the button on any exterior door
handle.
All doors, load compartment and fuel
filler flap will be locked.
The system locks if any of the
following occurs:
● It has been more than
five seconds since unlocking.
● The button on an exterior handle
has been pressed twice within
five seconds to unlock the
vehicle.
● Any door has been opened and
all doors are now closed.
If the driver's door is not closed
properly, the electronic key remains in
the vehicle or the ignition is still on,
locking will not be permitted.
If there have been two or more
electronic keys in the vehicle and the
ignition was on once, the doors will be
locked even if just one electronic key
is taken out of the vehicle.
Unlocking and opening the tailgate
The tailgate and the doors can be
unlocked by pressing the button
under the tailgate moulding when the
electronic key is in range.
Operation with buttons on the electronic key
The central locking system can also
be operated with the buttons on the
electronic key.
Press c to unlock.
Press e to lock.
Remote control operation 3 25.
Passive locking
Automatic locking 3 29.
28 Keys, doors and windows
Confirmation
Operation of central locking system is
confirmed by the hazard warning
flashers. A precondition is that the
setting is activated in the vehicle
personalisation 3 106.
Central locking buttons
Locks or unlocks all doors, the load
compartment and fuel filler flap from
the passenger compartment via a
switch in the driver's door panel.
Press e to lock.
Press c to unlock.
Operation with the key in case of a central locking system fault
In case of a fault, e.g. vehicle battery
or remote control / electronic key
battery is discharged, the driver's
door can be locked or unlocked with
the mechanical key.
Manual unlocking
Manually unlock the driver's door by
inserting and turning the key in the
lock cylinder.
The other doors can be opened by
pulling the interior handle twice or by
pressing c in the driver's door panel.
The load compartment and fuel filler
flap will possibly not be unlocked.
By switching on the ignition, the antitheft locking system is deactivated.
Manual locking
Push inside locking knob of all doors
except driver's door or press e in the
driver's door panel. Then close the
driver's door and lock it from the
outside by turning the key in the lock
cylinder. The fuel filler flap and
tailgate are possibly not locked.
Delayed locking
This feature will delay the actual
locking of the doors and arming of the
anti-theft alarm system for
five seconds when the power door
lock switch or radio remote control is
used to lock the vehicle.
This can be changed in the vehicle
settings.
Vehicle personalisation 3 106.
Loading...
