Opel New Gtc 2016 Owner's Manual

ASTRA

Owner's Manual

Contents

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 22

Seats, restraints ........................... 39

Storage ........................................ 61

Instruments and controls ............. 73

Lighting ...................................... 116

Climate control ........................... 129

Driving and operating ................. 139

Vehicle care ............................... 200

Service and maintenance .......... 254

Technical data ........................... 257

Customer information ................ 280

Index .......................................... 288

2 Introduction

Introduction

Introduction 3

Vehicle specific data

Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.

Introduction

Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness
and economy.

This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.

Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.

You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner's Manual.

Disregarding the description given in
this manual may affect your warranty.

When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner. For gas
vehicles we recommend an Opel
Repairer authorised for servicing gas
vehicles.

All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.

The customer literature pack should
always be kept ready to hand in the
vehicle.

Using this manual

● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.

● The "In brief" section will give you
an initial overview.

● The table of contents at the
beginning of this manual and
within each section shows where
the information is located.

● The index will enable you to
search for specific information.

● This Owner's Manual depicts left­hand drive vehicles. Operation is
similar for right-hand drive
vehicles.

● The Owner's Manual uses the
engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".

● Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.

● Displays may not support your
specific language.

● Display messages and interior
labelling are written in bold
letters.

4 Introduction

Danger, Warnings and
Cautions

9 Danger

Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.

9 Warning

Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.

Caution

Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.

Symbols

Page references are indicated with 3.
3 means "see page".

Page references and index entries
refer to the indented headings given
in the section table of content.

We wish you many hours of
pleasurable driving.

Adam Opel AG

Introduction 5

6 In brief

In brief

Initial drive information

Vehicle unlocking

c to unlock the doors and load

Press
compartment. Open the doors by
pulling the handles.

3-door hatchback

To open the tailgate, push the brand
emblem at the bottom half.

Press x on remote control to unlock
and open the tailgate. The doors
remain locked.

In brief 7

4-door notchback

Press x on the remote control for at
least two seconds; the boot lid opens
slightly.

Radio remote control 3 23, Central
locking system 3 24, Load
compartment 3 27.

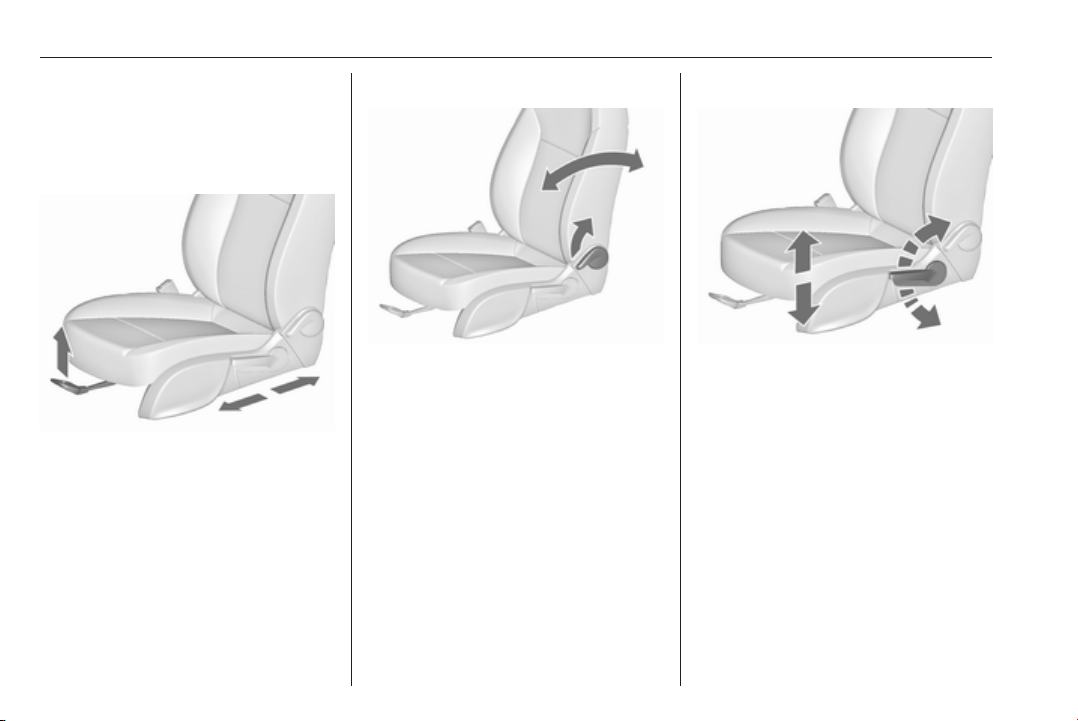

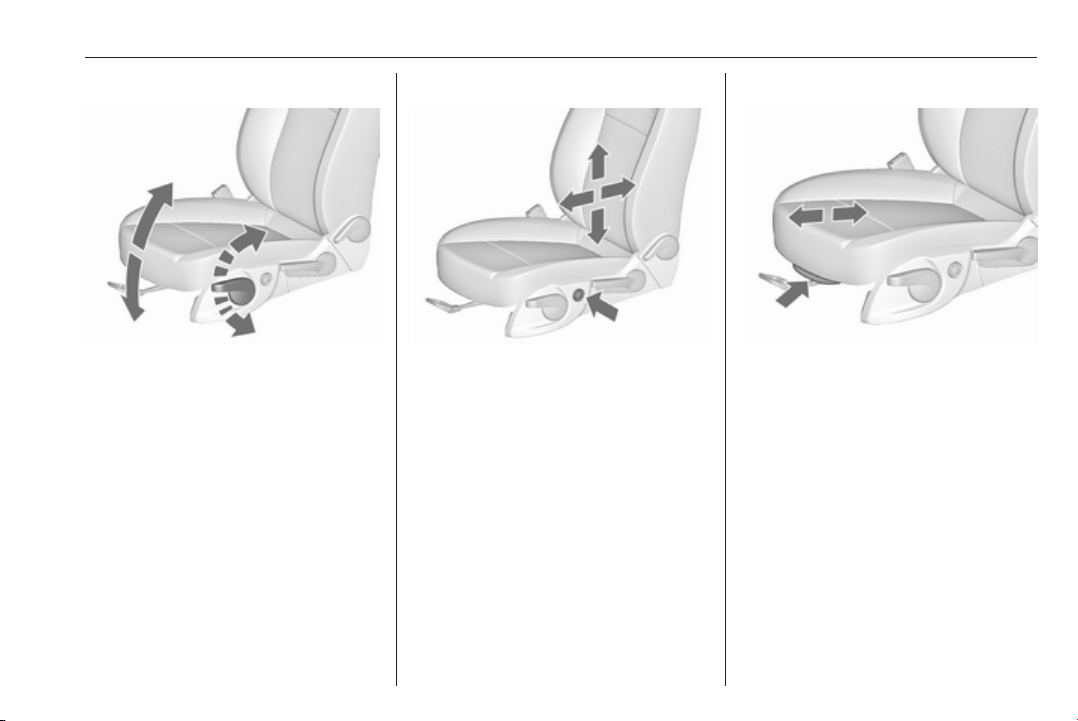

Seat adjustment

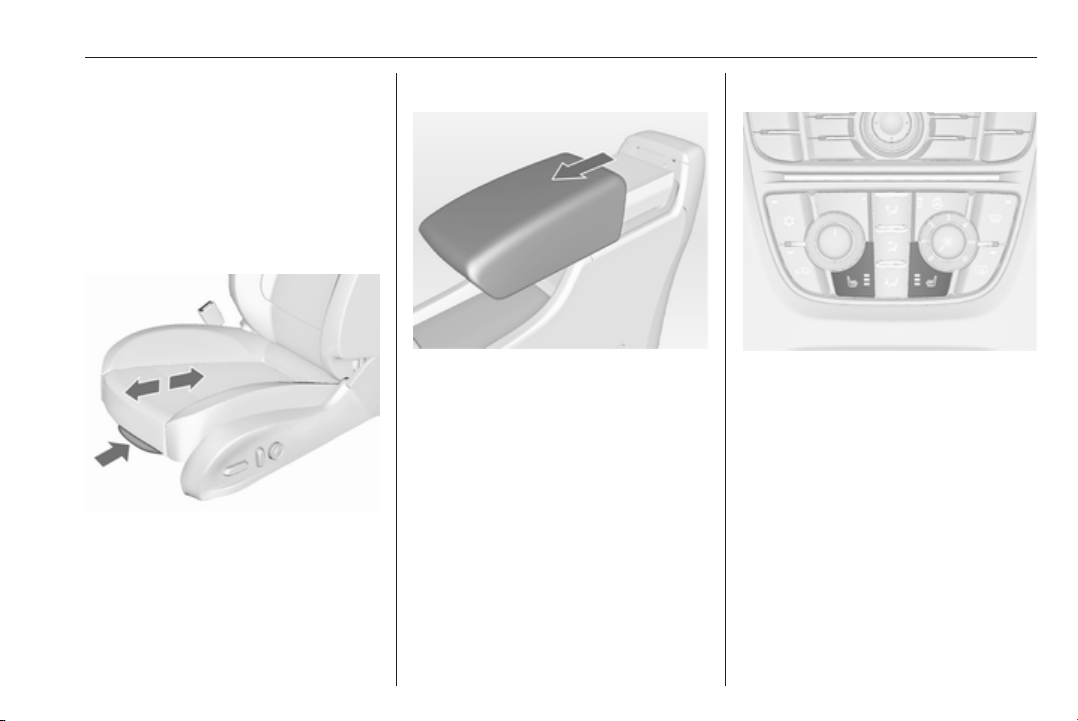

Longitudinal adjustment

Pull handle, slide seat, release
handle. Try to move the seat back and
forth to ensure that the seat is locked
in place.

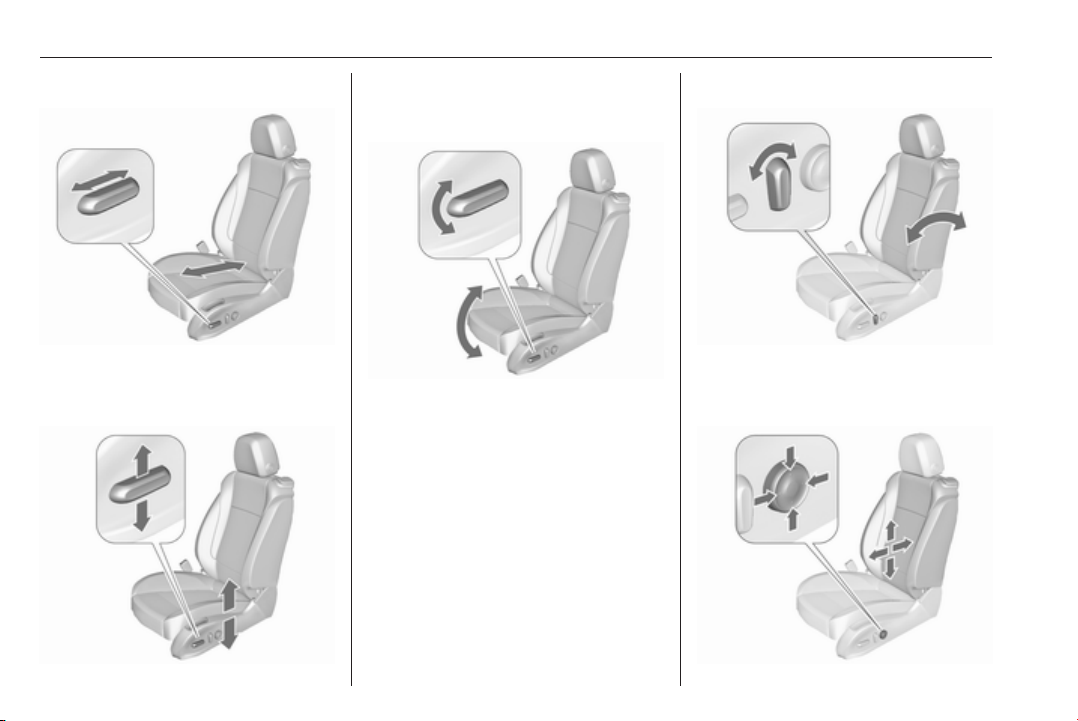

Seat position 3 41, Manual seat
adjustment 3 42, Power seat
adjustment 3 45.

Backrest inclination

Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.

Seat position 3 41, Manual seat
adjustment 3 42, Power seat
adjustment 3 45, Seat folding
3 44.

8 In brief

Seat height

Lever pumping motion
up : seat higher

down : seat lower

Seat position 3 41, Manual seat
adjustment 3 42, Power seat
adjustment 3 45.

Seat inclination

Lever pumping motion
up : front end higher

down : front end lower

Seat position 3 41, Manual seat
adjustment 3 42, Power seat
adjustment 3 45.

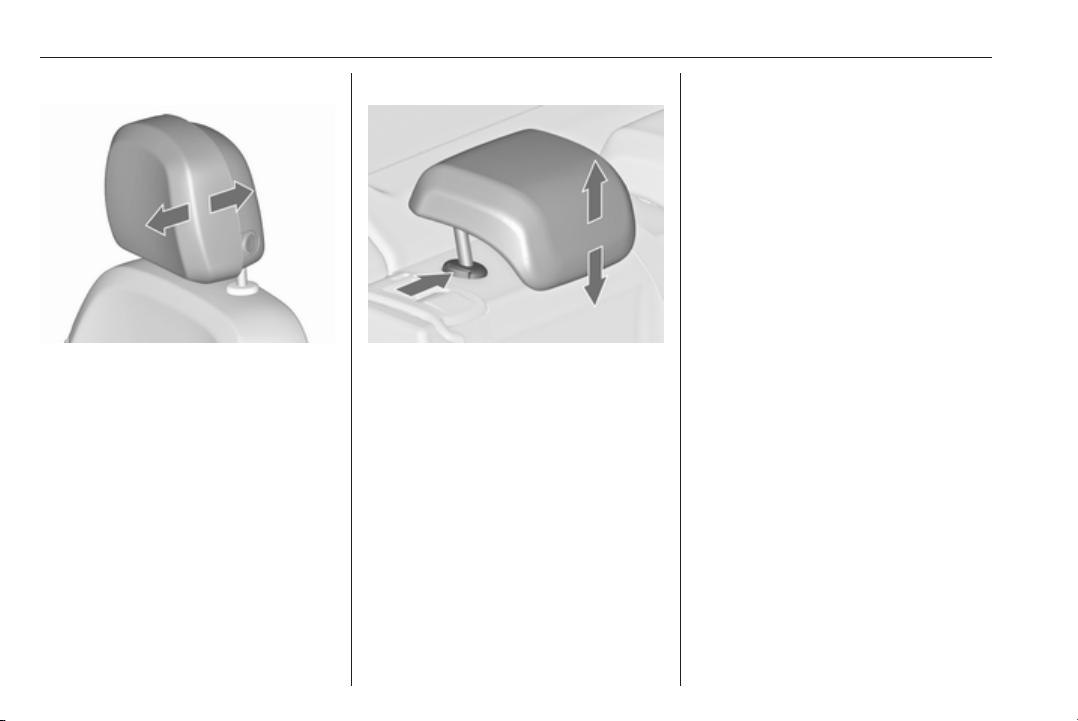

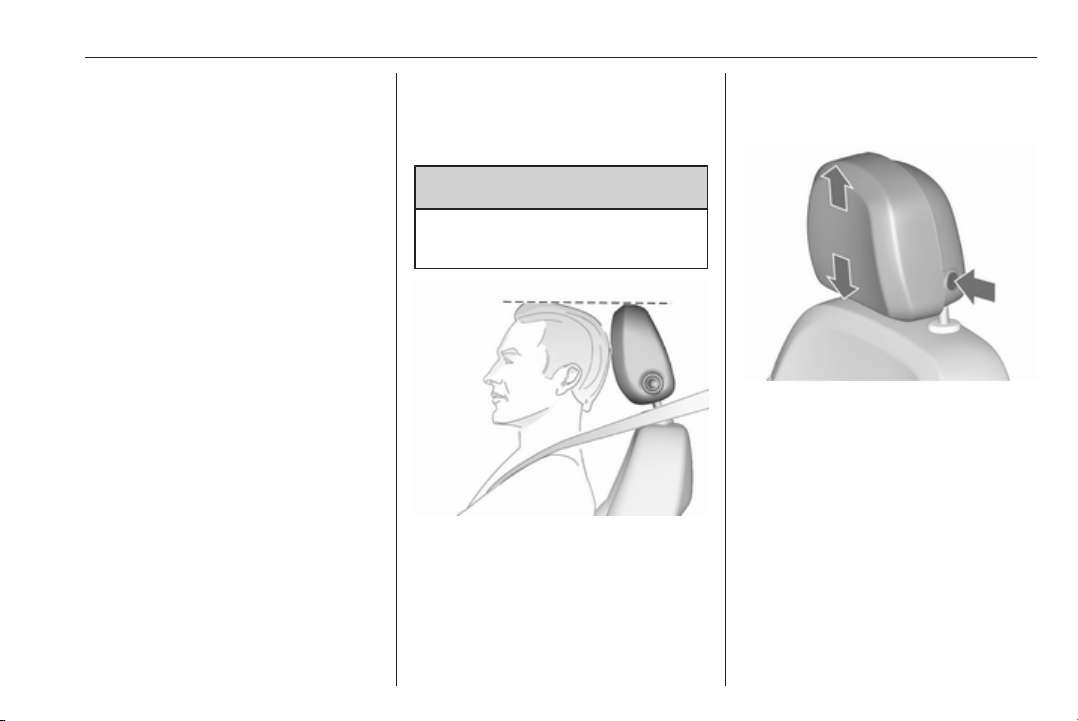

Head restraint adjustment

Press release button, adjust height,
engage.

Head restraints 3 39.

In brief 9

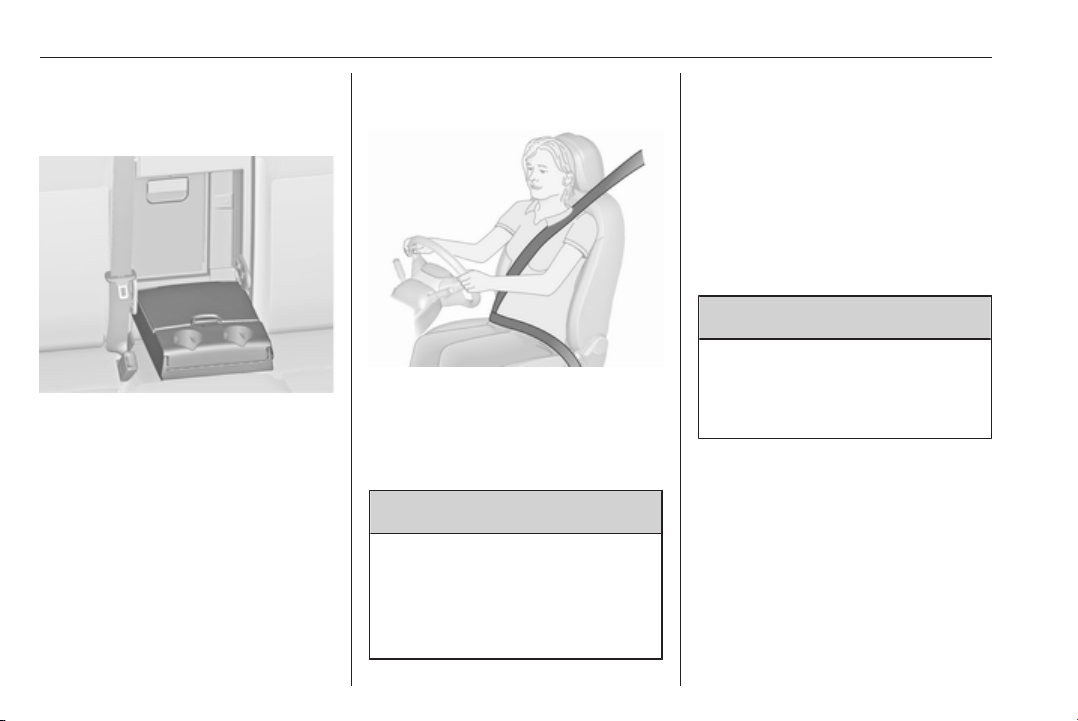

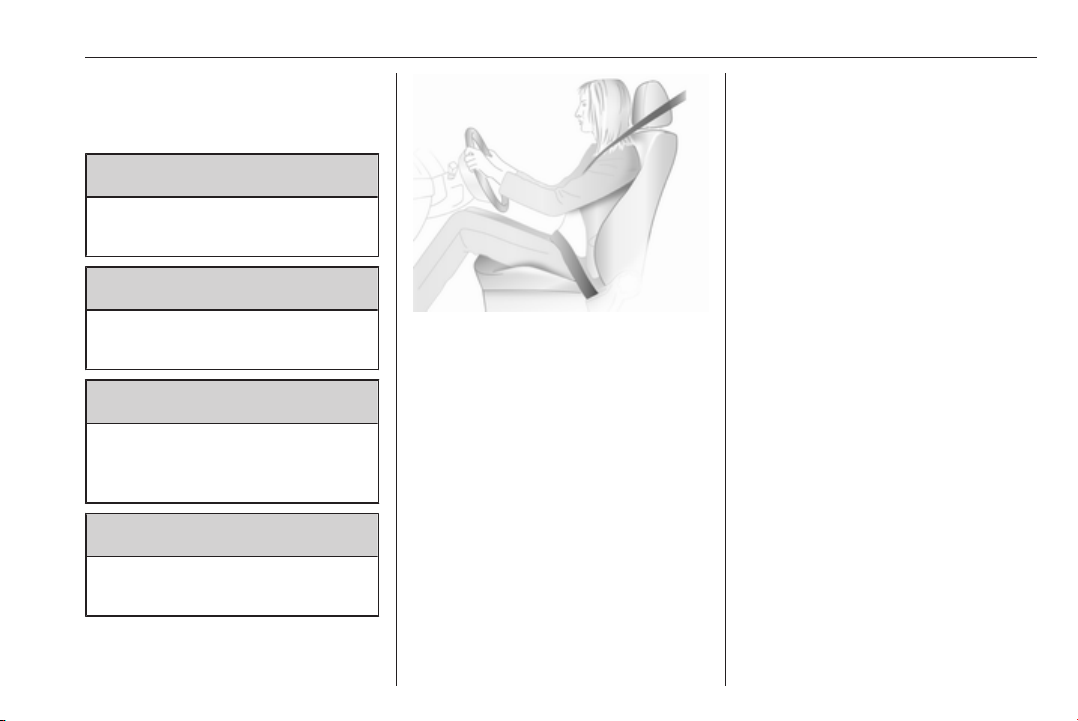

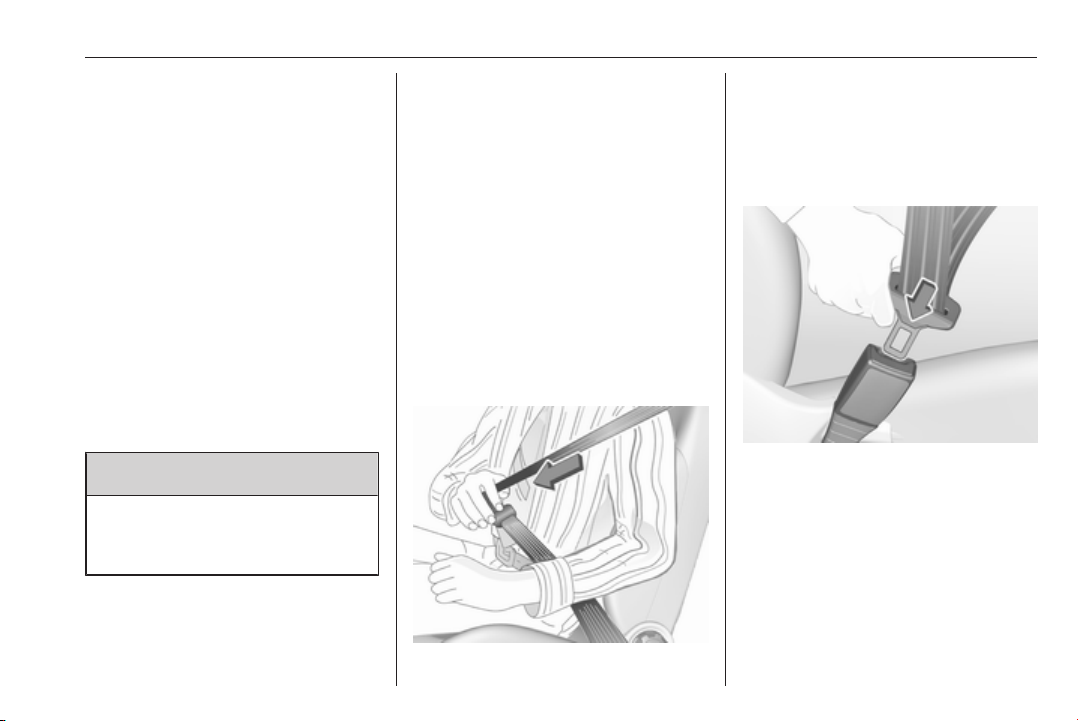

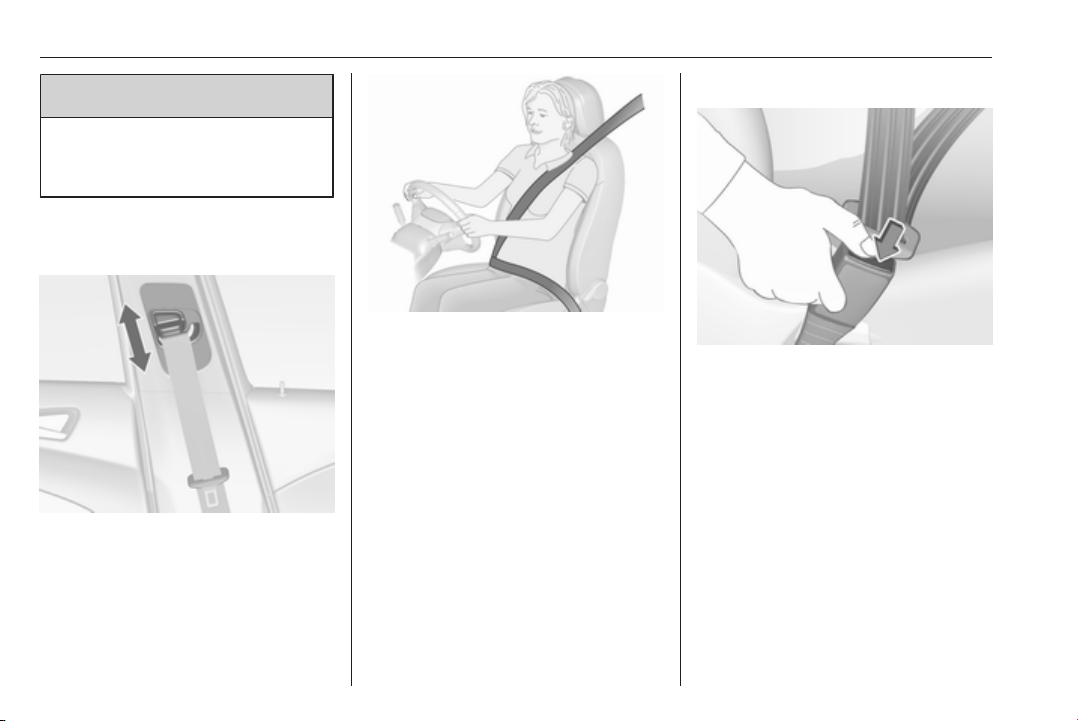

Seat belt

Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).

To unfasten belt, press red button on
belt buckle.

Seat position 3 41, Seat belts
3 48, Airbag system 3 51.

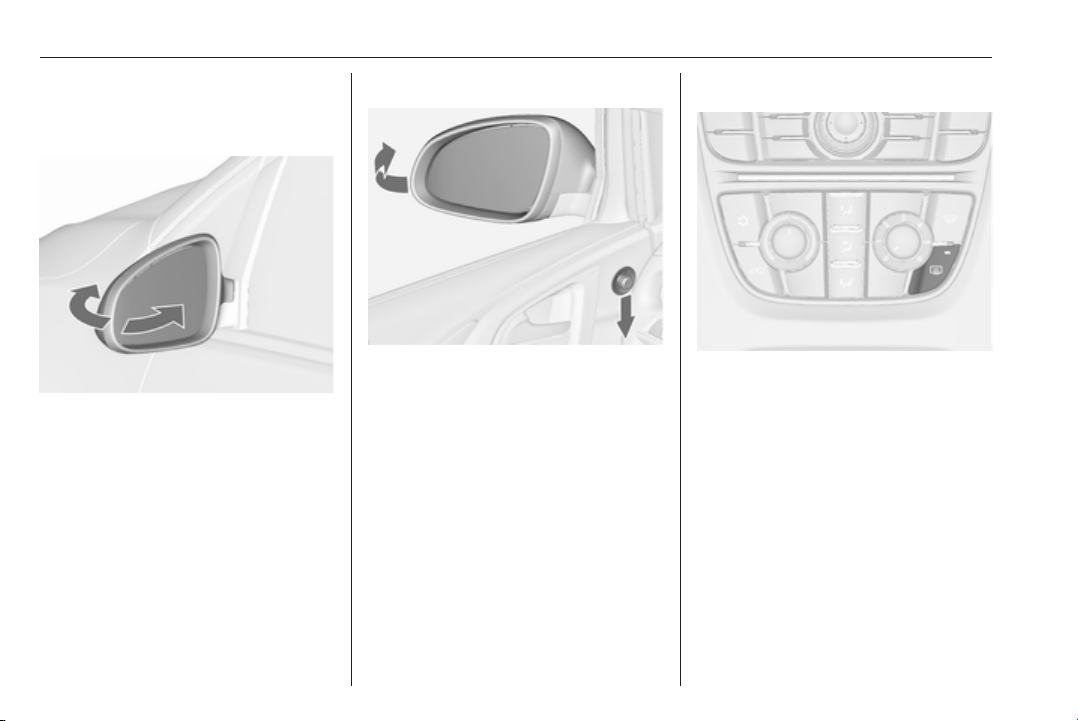

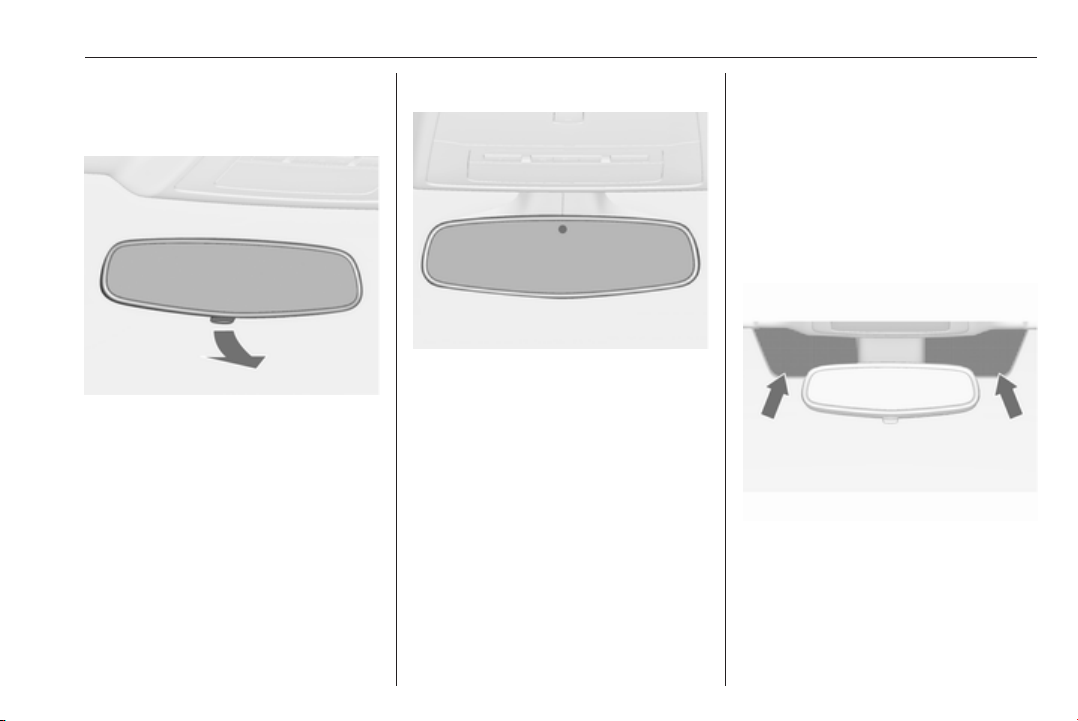

Mirror adjustment

Interior mirror

To adjust the mirror, move the mirror
housing in the desired direction.

Manual anti-dazzle interior mirror
3 33, Automatic anti-dazzle interior
mirror 3 33.

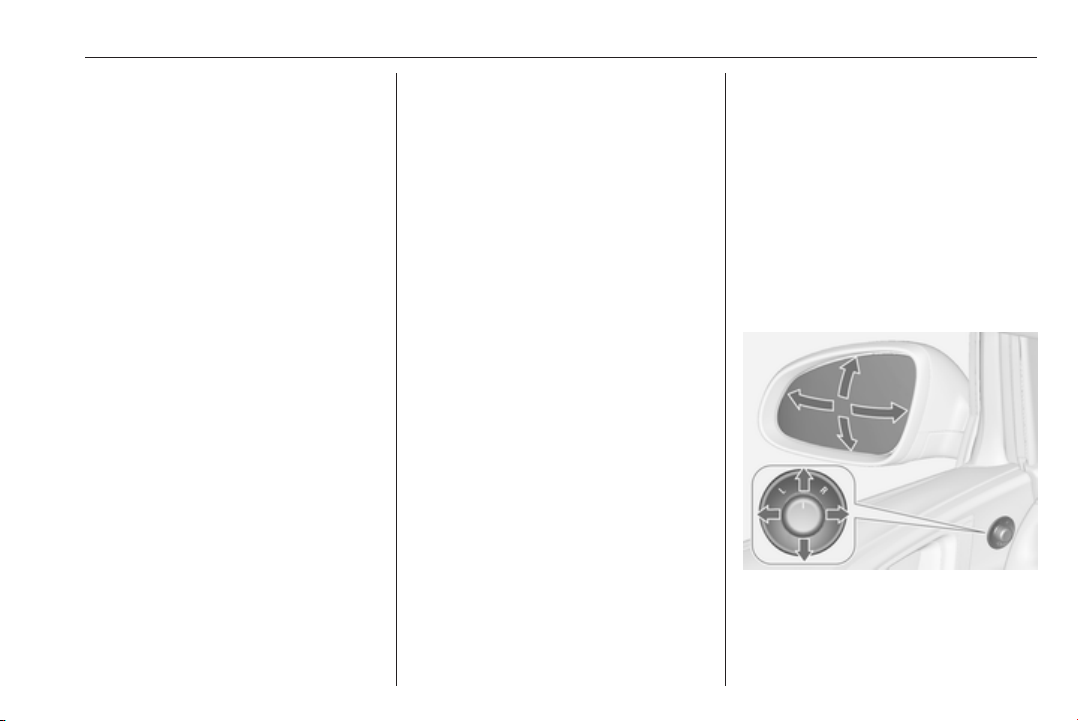

Exterior mirrors

Select the relevant exterior mirror and
adjust it.

Convex exterior mirrors 3 31,
Electric adjustment 3 31, Folding
exterior mirrors 3 32, Heated
exterior mirrors 3 32.

10 In brief

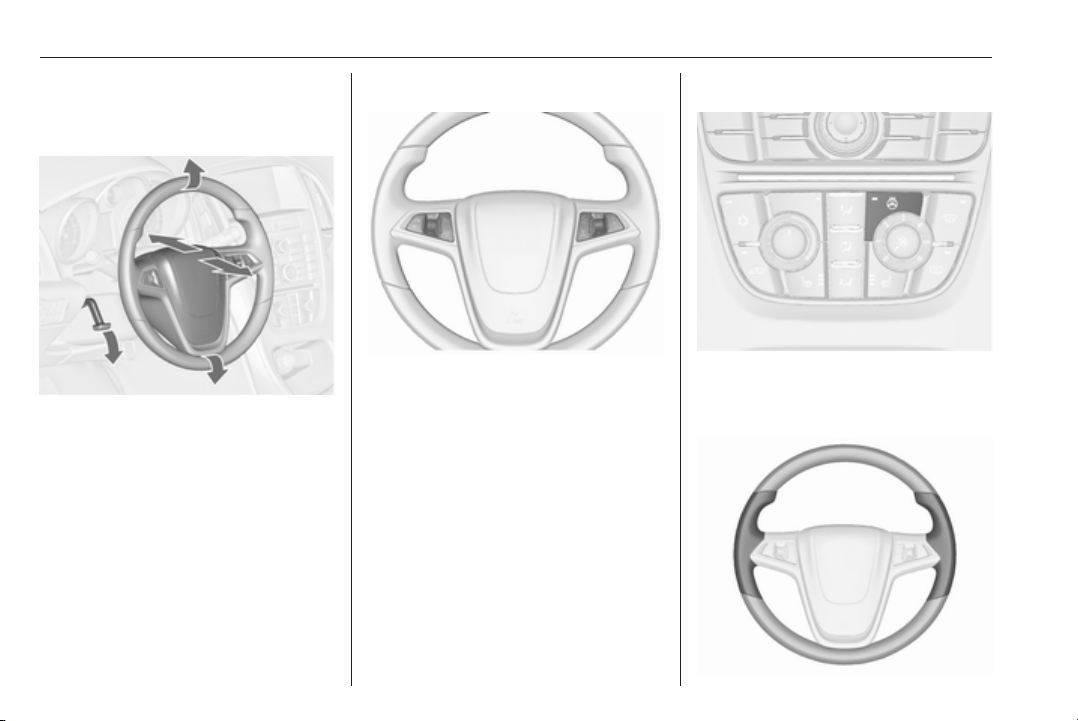

Steering wheel adjustment

Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.

Do not adjust the steering wheel
unless the vehicle is stationary and
the steering wheel lock has been
released.

Airbag system 3 51, Ignition
positions 3 141.

Instrument panel overview

In brief 11

12 In brief

1 Power windows ..................... 34

2 Exterior mirrors ..................... 31

3 Cruise control ..................... 159

Speed limiter ....................... 161

Adaptive cruise control .......162

Forward collision alert ......... 169

4 Side air vents ...................... 137

5 Turn and lane-change

signals, headlight flash,

low beam and high beam,

high beam assist ................. 123

Exit lighting ......................... 127

Parking lights ...................... 124

Buttons for Driver

Information Centre ................ 93

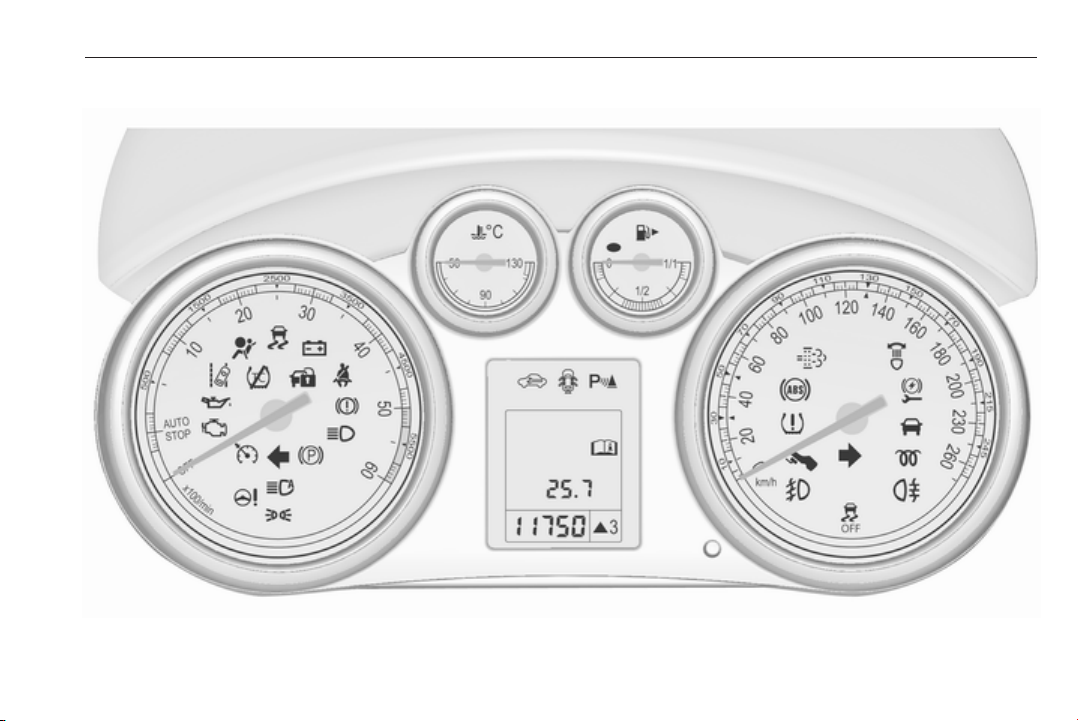

6 Instruments .......................... 81

7 Steering wheel controls .......74

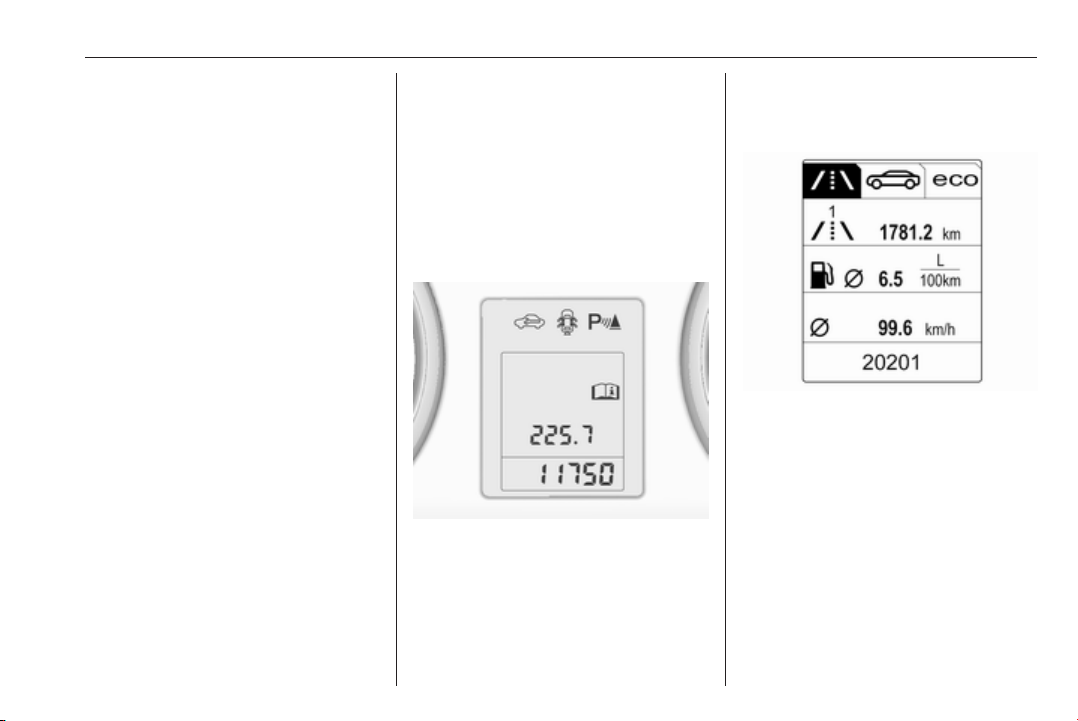

8 Driver Information Centre ...... 93

9 Windscreen wiper,

windscreen washer

system, headlight washer

system, rear window

wiper, rear window washer

system ................................... 75

10 Sport mode ........................ 156

Central locking system .......... 24

Fuel selector ......................... 82

Hazard warning flashers ....123

Control indicator for airbag

deactivation .......................... 87

Control indicator for front

passenger seat belt ............. 87

Tour mode .......................... 156

11 Info-Display .......................... 97

12 Anti-theft alarm system

status LED ........................... 29

13 Centre air vents .................. 137

14 Glovebox .............................. 61

15 Traction Control system

(TC) ..................................... 154

Electronic Stability Control

(ESC) .................................. 155

Parking assist systems .......175

Lane departure warning ..... 187

Eco button for stop-start

system ................................. 142

Unlock button for boot lid ......27

16 Climate control system ........ 129

17 AUX input, USB input, SD

card slot ................................ 11

18 Power outlet .......................... 79

19 Selector lever, manual

transmission ....................... 151

Automatic transmission ...... 147

20 Electric parking brake ......... 152

21 Ignition switch with

steering wheel lock ............ 141

22 Horn ..................................... 75

Driver airbag ........................ 51

23 Bonnet release lever .......... 202

24 Storage compartment,

fuse box ............................. 226

25 Steering wheel adjustment ..74

26 Light switch ........................ 116

Headlight range

adjustment ......................... 119

Front fog lights ................... 124

Rear fog light ...................... 124

Instrument illumination ....... 125

In brief 13

14 In brief

In brief 15

Exterior lighting

Turn light switch:

: lights off

7

: sidelights

8

: low beam

9

Automatic light control
AUTO : automatic light control:

exterior lighting is switched

m

8
9

Fog lights
Press light switch:

>
r

Lighting 3 116.

on and off automatically

: activation or deactivation of

the automatic light control
: sidelights
: low beam

: front fog lights
: rear fog light

Headlight flash, high beam and low beam

headlight flash : pull lever
high beam : push lever
low beam : push or pull lever

Automatic light control 3 117, High
beam 3 118, Headlight flash 3 118,
Adaptive forward lighting 3 120.

16 In brief

Turn and lane-change signals

lever up : right turn signal
lever down : left turn signal

Turn and lane-change signals
3 123, Parking lights 3 124.

Hazard warning flashers

Operated by pressing ¨.
Hazard warning flashers 3 123.

Horn

Press j.

In brief 17

Climate control

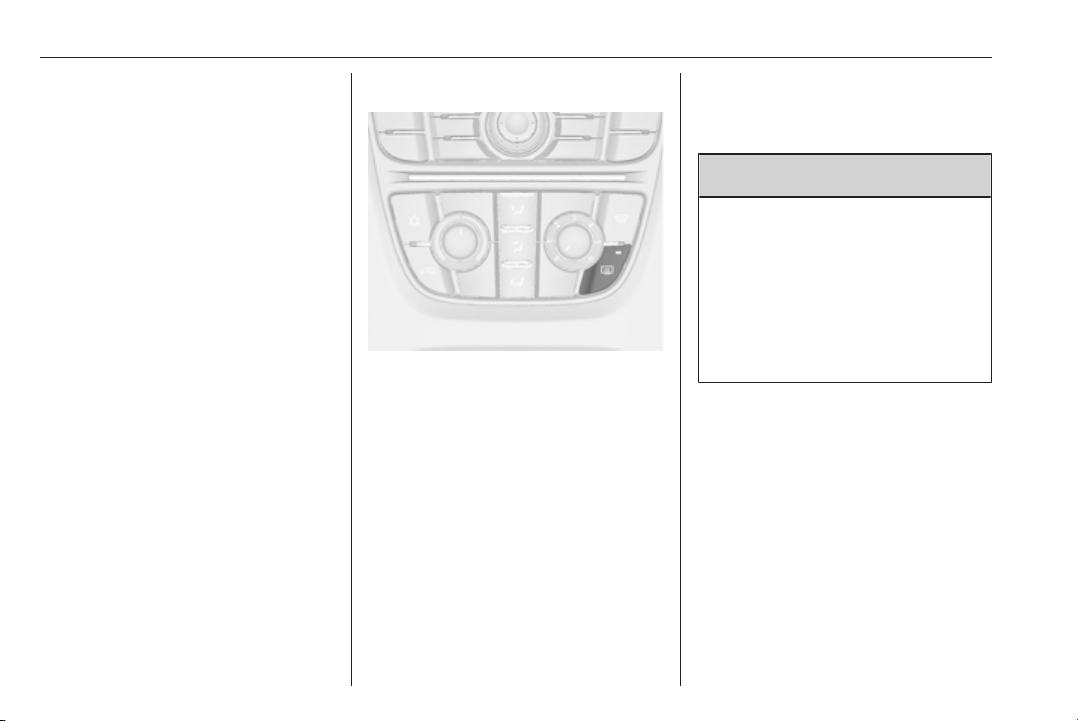

Heated rear window, heated exterior mirrors

The heating is operated by pressing
Ü.

Heated rear window 3 36.

Demisting and defrosting the windows

Press V.
Set the temperature control to the

highest level.
Heated rear window Ü on.
Climate control system 3 129.

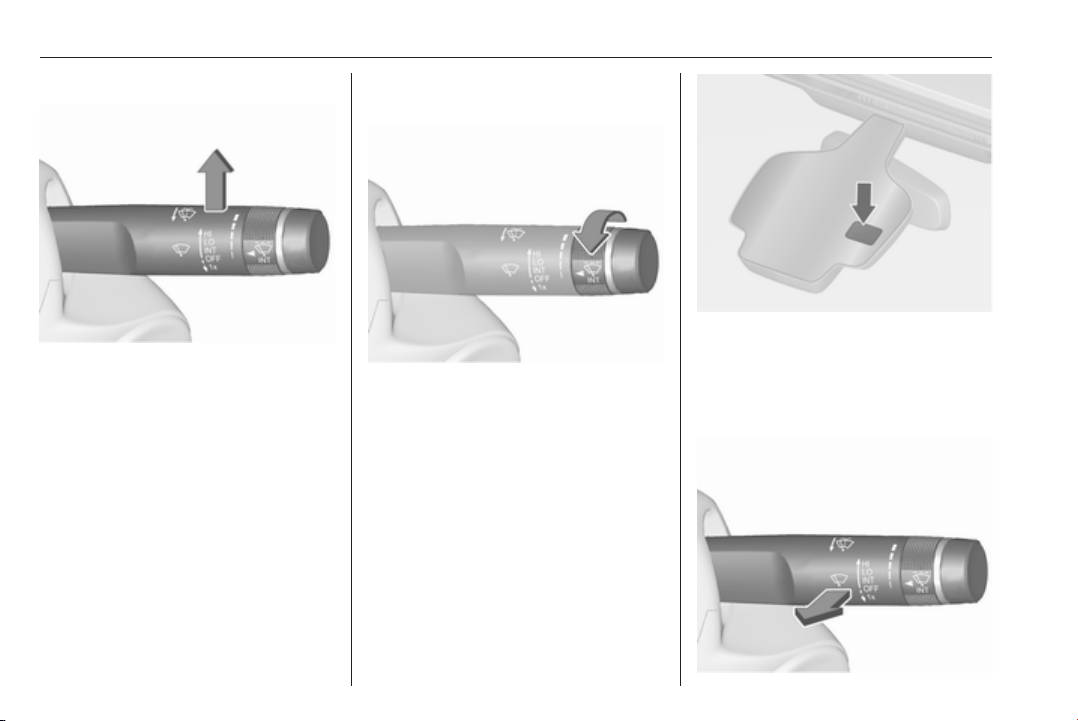

Washer and wiper systems

Windscreen wiper

HI : fast
LO : slow
INT : interval wiping or automatic

wiping with rain sensor

OFF : off

For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.

Windscreen wiper 3 75, Wiper
blade replacement 3 208.

18 In brief

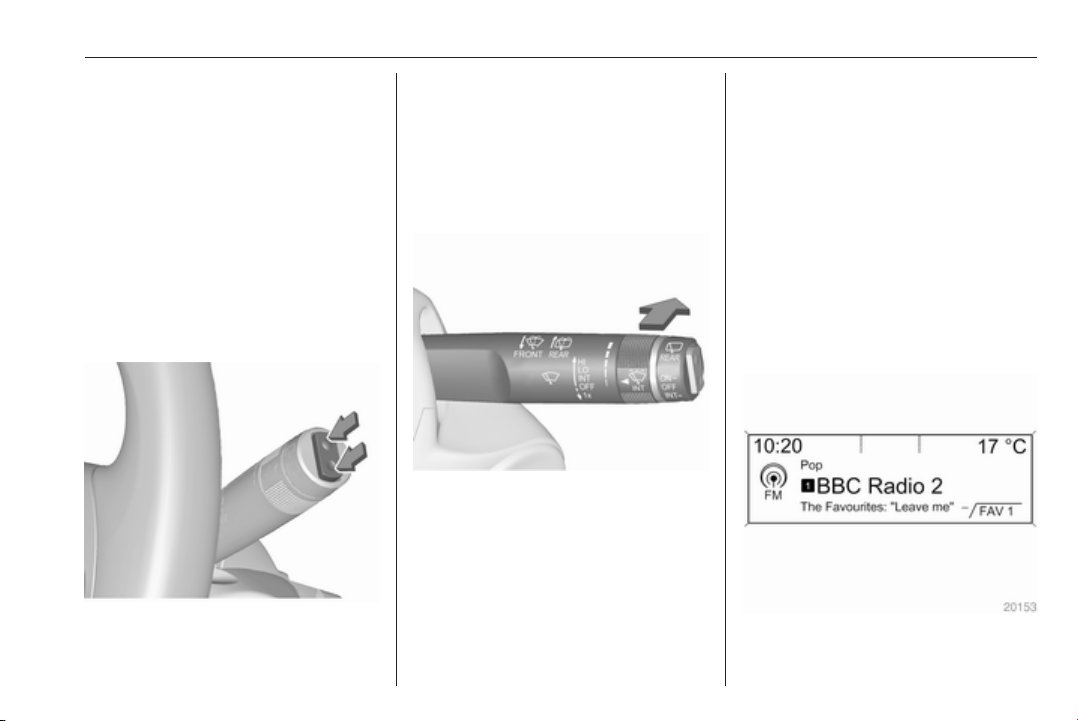

Windscreen and headlight washer

Pull lever.
Windscreen and headlight washer

system 3 75, Washer fluid 3 205.

Rear window wiper

Press the rocker switch to activate the
rear window wiper:

upper switch : continuous

operation

lower switch : intermittent

operation

middle position : off

Rear window washer

Push lever.
Washer fluid is sprayed on the rear

window and the wiper wipes a few
times.

Rear window wiper/washer 3 77.

In brief 19

Transmission

Manual transmission

Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.

If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.

Manual transmission 3 151.

Automatic transmission

P : park
R : reverse
N : neutral
D : automatic mode
M : manual mode: move selector

lever from D to the left.

: manual mode upshifting

<

: manual mode downshifting

]

The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.

Automatic transmission 3 147.

Starting off

Check before starting off

● Tyre pressure and condition
3 230, 3 271.

● Engine oil level and fluid levels
3 203.

● All windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational.

● Proper position of mirrors, seats,
and seat belts 3 31, 3 41,
3 49.

● Brake function at low speed,
particularly if the brakes are wet.

20 In brief

Starting the engine

● Turn key to position 1.

● Move the steering wheel slightly
to release the steering wheel
lock.

● Operate clutch and brake.

● Automatic transmission in P or N.

● Do not operate accelerator pedal.

● Diesel engines: turn the key to
position 2 for preheating and wait
until control indicator !
extinguishes.

● Turn key to position 3 and
release.

Starting the engine 3 141.

Stop-start system

If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:

● Depress the clutch pedal.

● Set the lever in neutral.

● Release the clutch pedal.

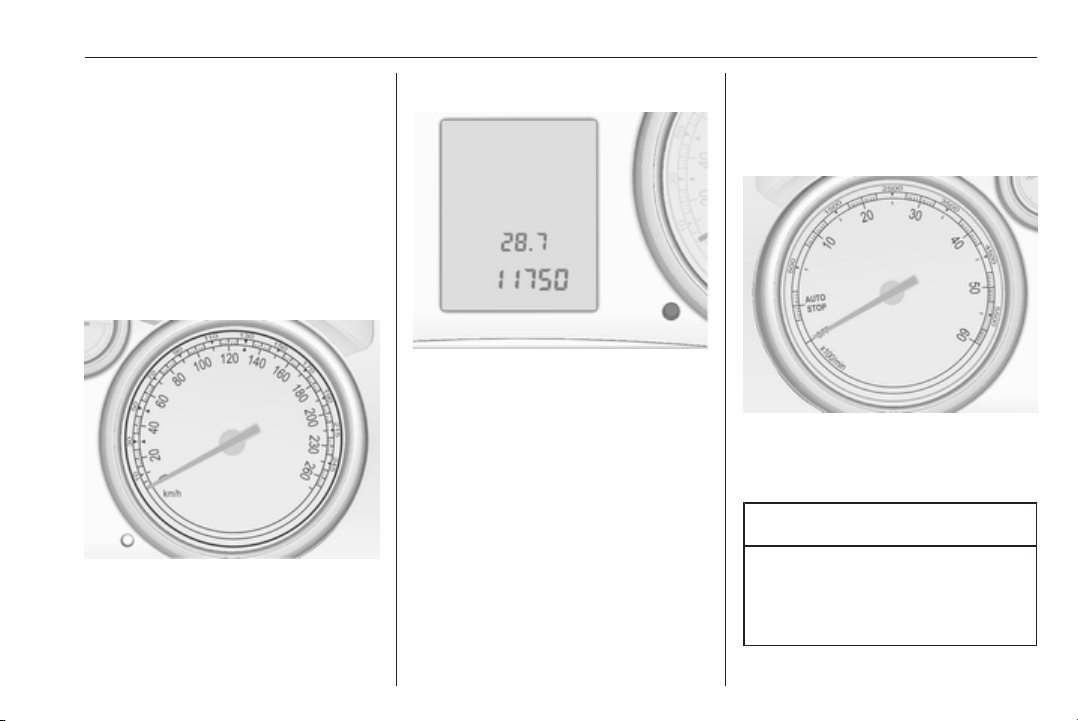

An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.

To restart the engine, depress the
clutch pedal again.

Stop-start system 3 142.

Parking

9 Warning

● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.

● Always apply the parking
brake. Activate the manual
parking brake without pressing
the release button. Apply as
firmly as possible on a downhill
slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.

For vehicles with electric
parking brake, pull switch m for
approx. one second.

The electric parking brake is
applied when control indicator
m illuminates 3 88.

● Switch off the engine.

● If the vehicle is on a level
surface or uphill slope, engage
first gear or set the selector

In brief 21

lever to position P before
removing the ignition key. On
an uphill slope, turn the front
wheels away from the kerb.

If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P before removing the ignition
key. Turn the front wheels
towards the kerb.

● Close the windows and the
sunroof.

● Remove the ignition key from
the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.

For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.

●

Lock the vehicle by pressing e on
the radio remote control.

Activate the anti-theft alarm
system 3 29.

● The engine cooling fans may run
after the engine has been
switched off 3 202.

Caution

After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low
load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.

Keys, locks 3 22, Laying the vehicle
up for a long period of time 3 201.

22 Keys, doors and windows

Keys, doors and windows

Keys, locks ................................... 22

Keys .......................................... 22

Car Pass .................................... 23

Radio remote control ................. 23

Memorised settings ................... 24

Central locking system .............. 24

Automatic locking ...................... 26

Child locks ................................. 26

Doors ........................................... 27

Load compartment .................... 27

Vehicle security ............................ 29

Anti-theft locking system ........... 29

Anti-theft alarm system .............. 29

Immobiliser ................................ 31

Exterior mirrors ............................ 31

Convex shape ........................... 31

Electric adjustment .................... 31

Folding mirrors .......................... 32

Heated mirrors ........................... 32

Interior mirrors ............................. 33

Manual anti-dazzle .................... 33

Automatic anti-dazzle ................ 33

Windows ...................................... 33

Windscreen ............................... 33

Manual windows ........................ 34

Power windows ......................... 34

Heated rear window .................. 36

Sun visors .................................. 36

Roof ............................................. 36

Sunroof ...................................... 36

Glass panel ............................... 38

Keys, locks

Keys

Caution

Do not attach heavy or bulky items
to the ignition key.

Replacement keys

The key number is specified in the
Car Pass or on a detachable tag.

The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.

Locks 3 250.
The code number of the adapter for

the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.

Wheel changing 3 239.

Keys, doors and windows 23

Key with foldaway key section

Press button to extend. To fold the
key, first press the button.

Car Pass

The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.

When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.

Radio remote control

Used to operate:

● central locking system

● anti-theft locking system

● anti-theft alarm system

● power windows

● sunroof

The radio remote control has a range
of approx. 20 metres. It can be
restricted by external influences. The
hazard warning flashers confirm
operation.

Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.

Fault

If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:

● Range is exceeded.

● Battery voltage is too low.

● Frequent, repeated operation of
the radio remote control while not
in range, which will require re­synchronisation.

● Overload of the central locking
system by operating at frequent
intervals, the power supply is
interrupted for a short time.

● Interference from higher-power
radio waves from other sources.

Unlocking 3 24.

Basic settings

Some settings can be changed in the
Settings menu in the Info-Display.
Vehicle personalisation 3 105.

Radio remote control battery replacement

Replace the battery as soon as the
range reduces.

24 Keys, doors and windows

Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.

Key with foldaway key section

Extend the key and open the unit.
Replace the battery (battery type
CR 2032), paying attention to the
installation position. Close the unit
and synchronise.

Radio remote control synchronisation

After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control is
synchronised by switching on the
ignition.

Memorised settings

Whenever the key is removed from
the ignition switch, the following
settings are automatically memorised
by the key:

● lighting

● Infotainment system

● central locking system

● Sport mode settings

● comfort settings

The saved settings are automatically
used the next time the memorised key
is inserted into the ignition switch and
turned to position 1 3 141.

A precondition is that Personalization
by driver is activated in the personal
settings of the Graphic-Info-Display.
This must be set for each key used.
On vehicles equipped with
Colour-Info-Display, the
personalisation is permanently
activated.

Vehicle personalisation 3 105.

Central locking system

Unlocks and locks doors, load
compartment and fuel filler flap.

A pull on an interior door handle
unlocks the respective door. Pulling
the handle once more opens the door.

Note
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.

Keys, doors and windows 25

Note
A short time after unlocking with the
remote control, the doors are
relocked automatically if no door has
been opened.

Unlocking

Press c.
Two settings are selectable:

● To unlock only the driver's door,
load compartment and fuel filler
flap, press c once. To unlock all
doors, press c twice.

●

Press c once to unlock all doors,
load compartment and fuel filler
flap.

The setting can be changed in the
Settings menu in the Info-Display.
Vehicle personalisation 3 105.

The setting can be saved for the key
being used. Memorised settings
3 24.

Unlocking and opening the tailgate
3 27.

Locking

Close doors, load compartment and
fuel filler flap.

Press e.
If the driver's door is not closed

properly, the central locking system
will not work.

Central locking buttons

Locks or unlocks all doors, the load
compartment and fuel filler flap from
inside the passenger compartment.

Press e to lock.
Press c to unlock.

26 Keys, doors and windows

Fault in radio remote control system

Unlocking

Manually unlock the driver's door by
turning the key in the lock. Switch on
the ignition and press the central
locking button c to unlock the other
doors, load compartment and fuel
filler flap. By switching on the ignition,
the anti-theft locking system is
deactivated.

Locking
Manually lock the driver's door by
turning the key in the lock.

Fault in central locking system

Unlocking
Manually unlock the driver's door by
turning the key in the lock. The other
doors can be opened by pulling the
interior handle twice. The load
compartment and fuel filler flap
cannot be opened. To deactivate the
anti-theft locking system, switch on
the ignition 3 29.

Locking
Push inside locking knob of all doors
except driver's door. Then close the
driver's door and lock it from the
outside with the key. The fuel filler flap
and tailgate cannot be locked.

Automatic locking

This security feature can be
configured to automatically lock all
doors, load compartment and fuel
filler flap as soon as a certain speed
is exceeded.

Additionally, it is configurable to
unlock the driver's door or all doors
after the ignition is switched off and
the ignition key is removed (manual

transmission) or the selector lever is
moved to position P (automatic
transmission).

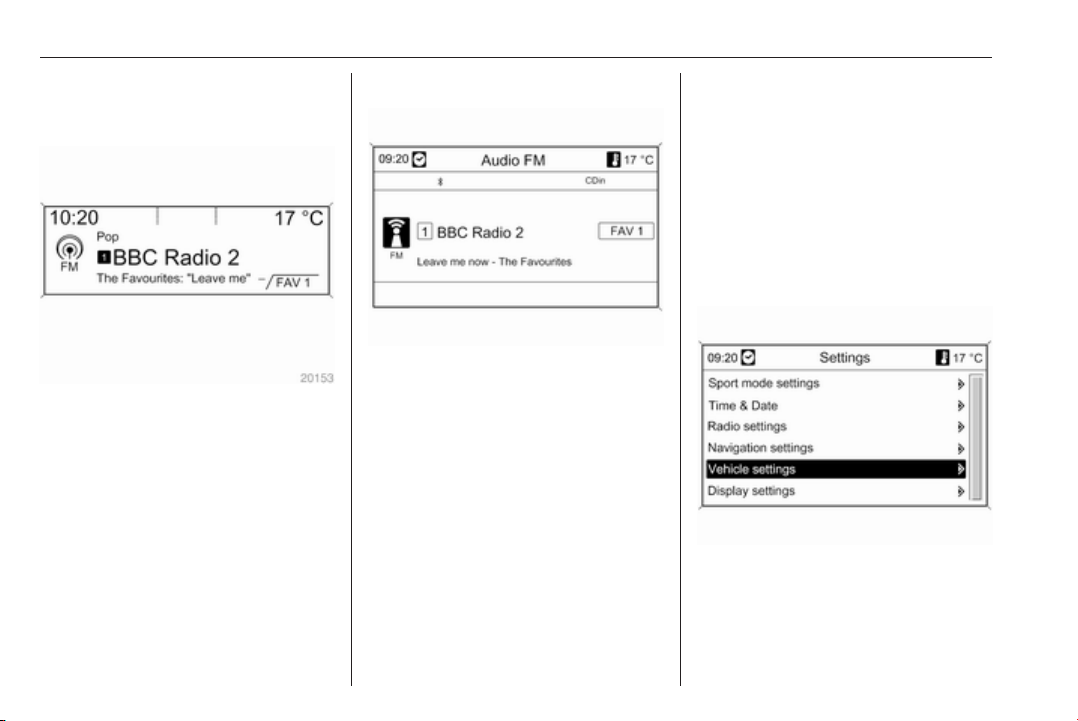

Settings can be changed in the
Settings menu in the Info-Display.
Vehicle personalisation 3 105.

The settings can be saved for the key
being used 3 24.

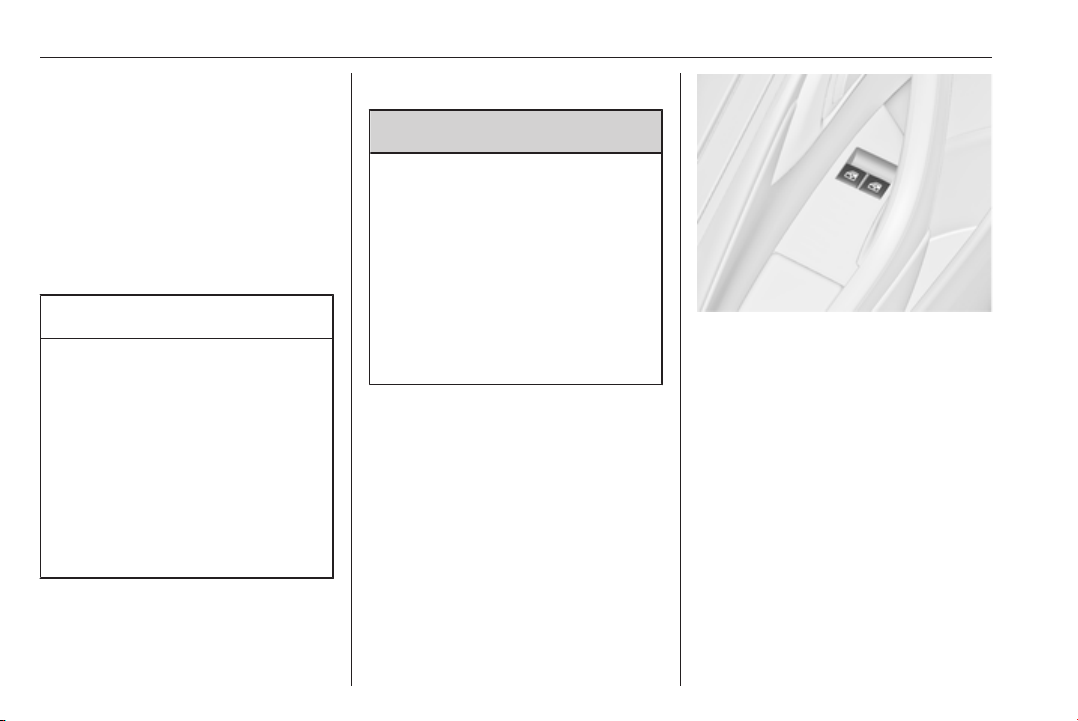

Child locks

9 Warning

Use the child locks whenever
children are occupying the rear
seats.

Keys, doors and windows 27

Using a key or suitable screwdriver,
turn the child lock in the rear door to
the horizontal position. The door
cannot be opened from the inside.

To deactivate, turn the child lock to
the vertical position.

Doors

Load compartment

Tailgate

Opening
3-door hatchback

Pressing x opens the tailgate even
if the doors are locked.

4-door notchback

Press x on radio remote control or
push the brand emblem at the bottom
half to unlock and open the tailgate.

28 Keys, doors and windows

To unlock the boot lid, press x on
the remote control for at least two
seconds, or, to open from the inside,
press x in the centre console; the
boot lid is opened slightly.

With the doors centrally locked, the
boot lid cannot be opened by pressing
x in the centre console.

Closing

Use one of the interior handles.
Do not push the touchpad switch or

the brand emblem whilst closing as
this will unlock the tailgate again.

Central locking system 3 24.

General hints for operating tailgate

9 Danger

Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust

gases, which cannot be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.

Caution

Before opening the tailgate check
overhead obstructions, such as a
garage door, to avoid damage to
the tailgate. Always check the
moving area above and behind the
tailgate.

Note
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.

Keys, doors and windows 29

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are
people in the vehicle! The doors
cannot be unlocked from the
inside.

The system deadlocks all the doors.
All doors must be closed otherwise
the system cannot be activated.

If the ignition was on, the driver's door
must be opened and closed once so
that the vehicle can be secured.

Unlocking the vehicle disables the
mechanical anti-theft locking system.
This is not possible with the central
locking button.

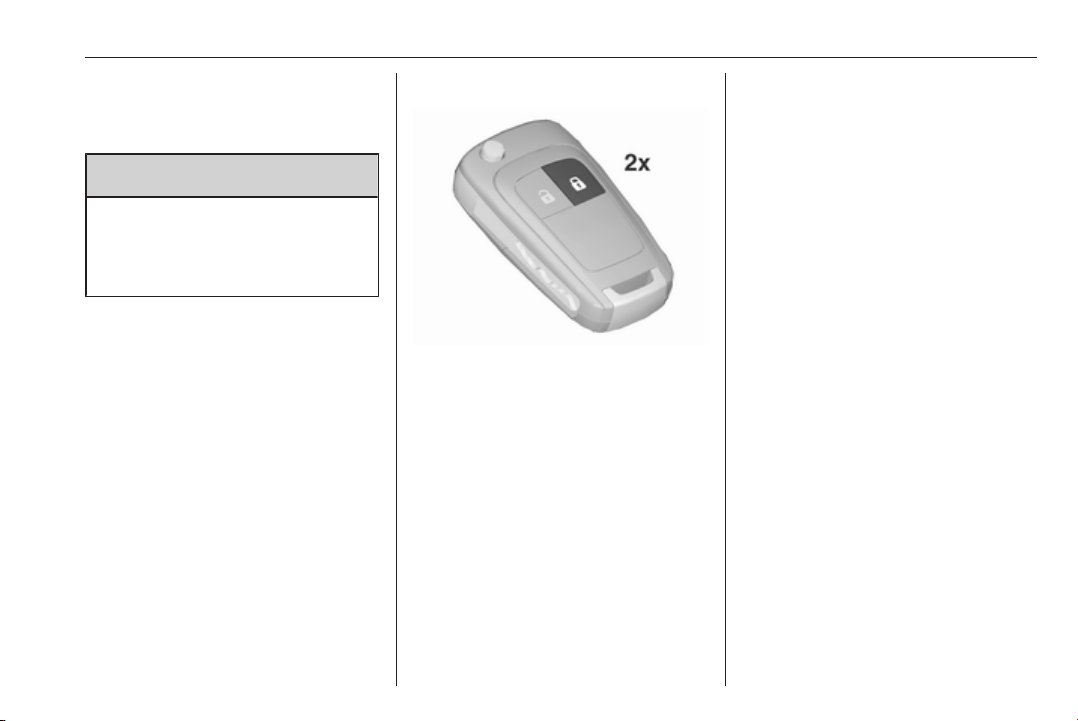

Activating

Press e on the radio remote control
twice within 15 seconds.

Anti-theft alarm system

The anti-theft alarm system is
combined with the anti-theft locking
system.

It monitors:

● doors, tailgate, bonnet

● passenger compartment
including adjoining load
compartment

● vehicle inclination, e.g. if it is
raised

● ignition

Activation

● Self-activated 30 seconds after
locking the vehicle by pressing e
once.

●

Directly by pressing e twice
briefly within five seconds.

Note
Changes to the vehicle interior such
as the use of seat covers, and open
windows or sunroof, could impair the
function of passenger compartment
monitoring.

30 Keys, doors and windows

Activation without monitoring of passenger compartment and vehicle inclination

Switch off the monitoring of
passenger compartment and vehicle
inclination when animals are being
left in the vehicle, because of high
volume ultrasonic signals or
movements triggering the alarm. Also
switch off when the vehicle is on a
ferry or train.

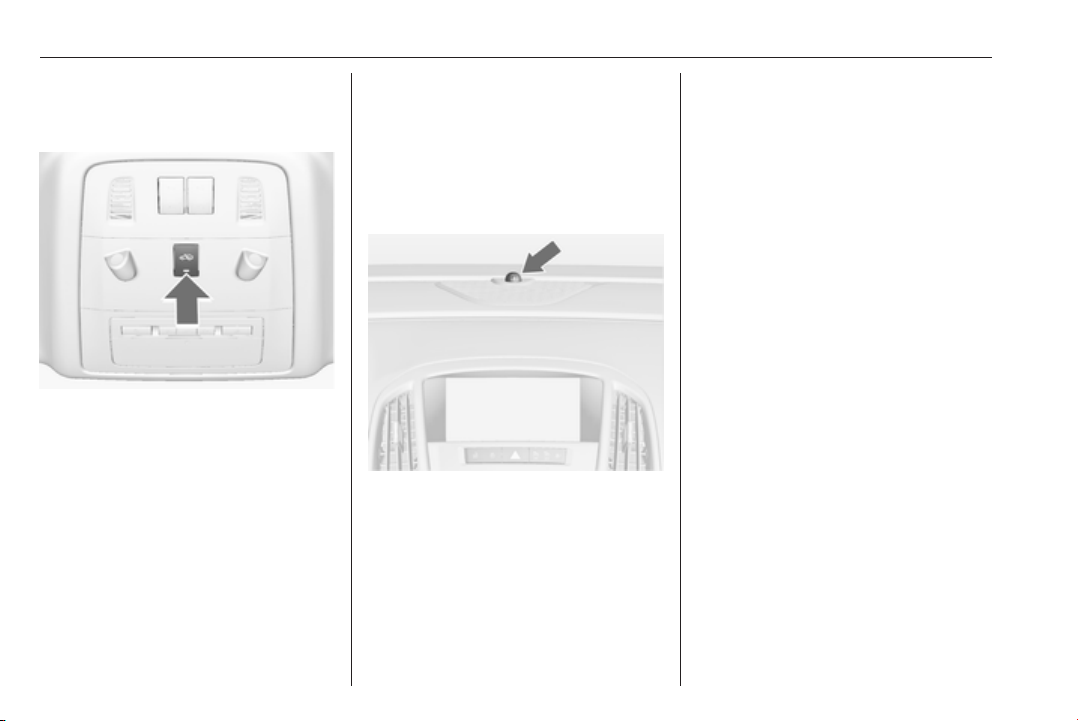

1. Close tailgate, bonnet, windows
and sunroof.

2. Press o. LED in the button o
illuminates for a maximum of ten
minutes.

3. Close doors.

4. Activate the anti-theft alarm
system.

Status message is displayed in the
Driver Information Centre.

Status LED

Status LED is integrated in the sensor
on top of the instrument panel.

Status during the first 30 seconds of
anti-theft alarm system activation:

LED illuminates : test, arming delay
LED flashes
quickly

: doors, tailgate or

bonnet not
completely closed,
or system fault

Status after system is armed:
LED flashes

slowly

Seek the assistance of a workshop in
the event of faults.

: system is armed

Deactivation

Unlocking the vehicle by pressing c
deactivates the anti-theft alarm
system.

The system is not deactivated by
unlocking the driver's door with the
key or with the central locking button
in the passenger compartment.

Alarm

When triggered, the alarm horn
sounds and the hazard warning lights
flash simultaneously. The number
and duration of alarm signals are
stipulated by legislation.

The alarm can be silenced by
pressing any button on the radio
remote control or by switching on the
ignition.

The anti-theft alarm system can be
deactivated only by pressing c or by
switching on the ignition.

Keys, doors and windows 31

A triggered alarm, which has not been
interrupted by the driver, will be
indicated by the hazard warning
lights. They will flash quickly three
times the next time the vehicle is
unlocked with the radio remote
control. Additionally, a warning
message or a warning code is
displayed in the Driver Information
Centre after switching on the ignition.

Vehicle messages 3 99.
If the vehicle's battery is to be

disconnected (e.g. for maintenance
work), the alarm siren must be
deactivated as follows: Switch the
ignition on then off, then disconnect
the vehicle's battery within
15 seconds.

Immobiliser

The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.

The immobiliser is activated
automatically after the key has been
removed from the ignition switch.

If the control indicator d flashes when
the ignition is on, there is a fault in the
system; the engine cannot be started.
Switch off the ignition and repeat the
start attempt.

If the control indicator continues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.

Note
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it and switch on
the anti-theft alarm system 3 24,
3 29.

Control indicator d 3 92.

Exterior mirrors

Convex shape

The convex exterior mirror contains
an aspherical area and reduces blind
spots. The shape of the mirror makes
objects appear smaller, which will
affect the ability to estimate
distances.

Electric adjustment

Select the relevant exterior mirror by
turning the control to left (L) or right
(R). Then swivel the control to adjust
the mirror.

32 Keys, doors and windows

In position 0 no mirror is selected.

Folding mirrors

For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.

Electric folding

Turn control to 0, then push the
control down. Both exterior mirrors
will fold.

Push the control down again - both
exterior mirrors return to their original
position.

If an electrically folded mirror is
manually extended, pressing down
the control will only electrically extend
the other mirror.

Heated mirrors

Operated by pressing Ü.
Heating works with the engine

running and is switched off
automatically after a short time.

Keys, doors and windows 33

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on
the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles at
night is automatically reduced.

Windows

Windscreen

Heat-reflecting windscreen

The heat-reflecting windscreen has a
coating which reflects solar radiation.
Also data signals, e.g. from toll
stations, might be reflected.

The marked areas on the windscreen
are not covered with the coating.
Devices for electronic data recording
and fee payment must be attached in
these areas. Otherwise data
recording malfunctions may occur.

34 Keys, doors and windows

Windscreen stickers

Do not attach stickers such as toll
road stickers or similar on the
windscreen in the area of the interior
mirror. Otherwise the detection zone
of the sensor and the view area of the
camera in the mirror housing could be
restricted.

Windscreen replacement

Caution

If the vehicle has a front-looking
camera sensor for the driver
assistance systems, it is very
important that any windscreen
replacement is performed
accurately according to Opel
specifications. Otherwise, these
systems may not work properly
and there is a risk of unexpected
behaviour and/or messages from
these systems.

Manual windows

The door windows can be opened or
closed with the window cranks.

Power windows

9 Warning

Take care when operating the
power windows. Risk of injury,
particularly to children.

If there are children on the rear
seats, switch on the child safety
system for the power windows.

Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.

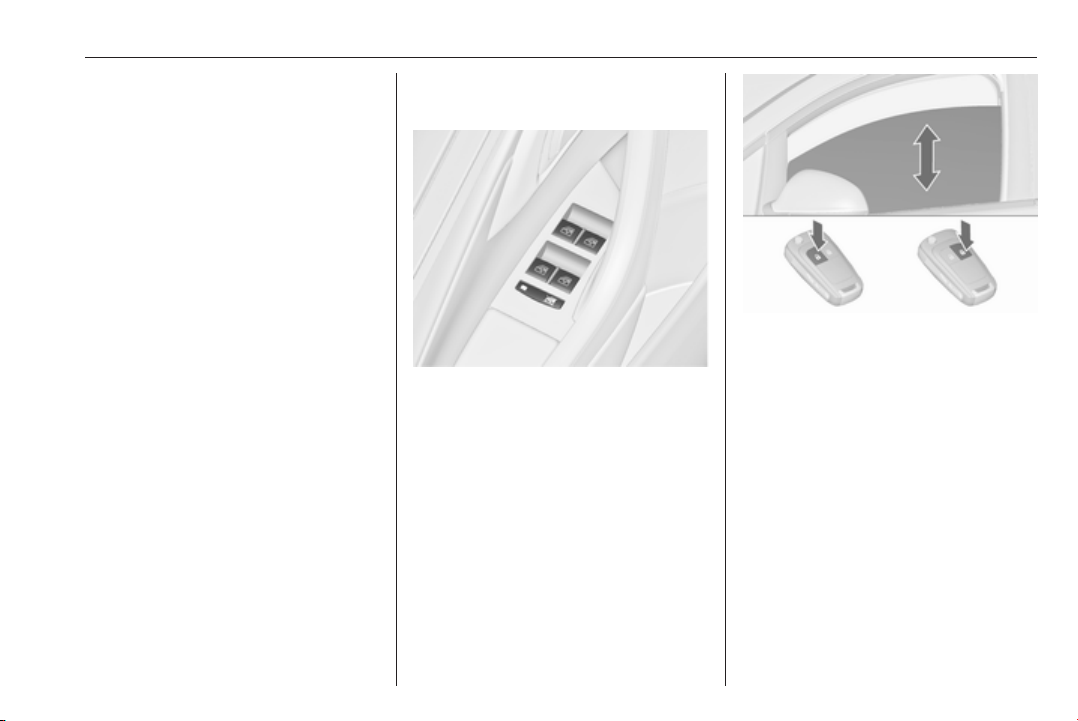

Switch on ignition to operate power
windows. Retained power off 3 141.

Operate the switch for the respective
window by pushing to open or pulling
to close.

Pushing or pulling gently to the first
detent: window moves up or down as
long as the switch is operated.

Pushing or pulling firmly to the second
detent and then releasing: window
moves up or down automatically with
safety function enabled. To stop
movement, operate the switch once
more in the same direction.

Keys, doors and windows 35

Safety function

If the window glass encounters
resistance above the middle of the
window during automatic closing, it is
immediately stopped and opened
again.

Override safety function

In the event of closing difficulties due
to frost or the like, switch on the
ignition, then pull the switch to the first
detent and hold. The window moves
up without safety function enabled.
To stop movement, release the
switch.

Child safety system for rear windows

Press z to deactivate rear door
power windows; the LED illuminates.
To activate, press z again.

Operating windows from outside

The windows can be operated
remotely from outside the vehicle.

Press and hold c to open windows.
Press and hold e to close windows.
Release button to stop window

movement.
If the windows are fully opened or

closed, the hazard warning lights will
flash twice.

Overload

If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.

36 Keys, doors and windows

Initialising the power windows

If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery), a
warning message or a warning code
is displayed in the Driver Information
Centre.

Vehicle messages 3 99.
Activate the window electronics as

follows:

1. Close doors.

2. Switch on ignition.

3. Pull switch until the window is
closed and keep pulling for
additional two seconds.

4. Repeat for each window.

Heated rear window

Operated by pressing Ü.
Heating works with the engine

running and is switched off
automatically after a short time.

Sun visors

The sun visors can be folded down or
swivelled to the side to prevent
dazzling.

If the sun visors have integral mirrors,
the mirror covers should be closed
when driving.

A ticket holder is located on the
backside of the sun visor.

Roof

Sunroof

9 Warning

Take care when operating the
sunroof. Risk of injury, particularly
to children.

Keep a close watch on the
movable parts when operating
them. Ensure that nothing
becomes trapped in them as they
move.

Switch on ignition to operate the
sunroof.

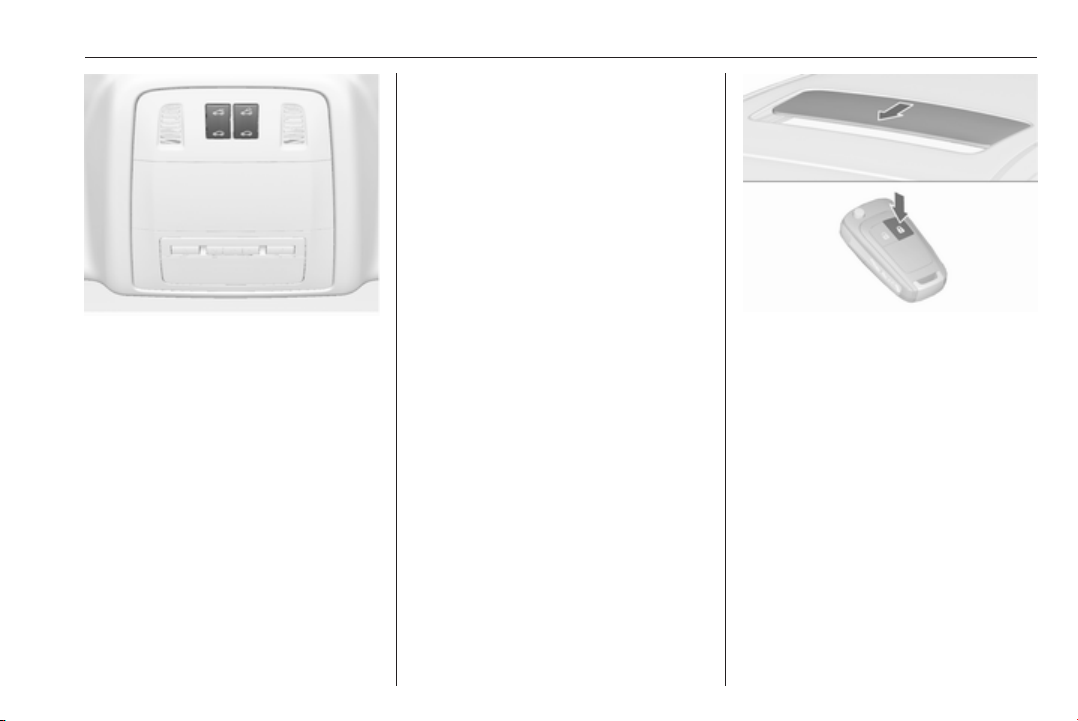

Open or close

Press p or r gently to the first
detent: sunroof is opened or closed
with safety function enabled as long
as the switch is operated.

Press p or r firmly to the second
detent and then release: the sunroof
is opened or closed automatically
with safety function enabled. To stop
movement, operate the switch once
more.

Raise or close

Press q or r: sunroof is raised or
closed automatically with safety
function enabled.

If the sunroof is raised, it can be
opened in one step by pressing p.

Sunblind

The sunblind is manually operated.
Close or open the sunblind by sliding.

When the sunroof is open, the
sunblind is always open.

General hints

Safety function
If the sunroof encounters resistance
during automatic closing, it is
immediately stopped and opened
again.

Override safety function
In the event of closing difficulties,
e.g. due to frost, hold the switch r
pressed to the second detent. The
sunroof closes with safety function
disabled. To stop movement, release
the switch.

Closing sunroof from outside
The sunroof can be closed remotely
from outside the vehicle.

Keys, doors and windows 37

Press and hold e to close the sunroof.
Release the button to stop the

movement.

Initialising after a power failure
After a power failure, it may only be
possible to operate the sunroof to a
limited extent. Have the system
initialised by your workshop.

38 Keys, doors and windows

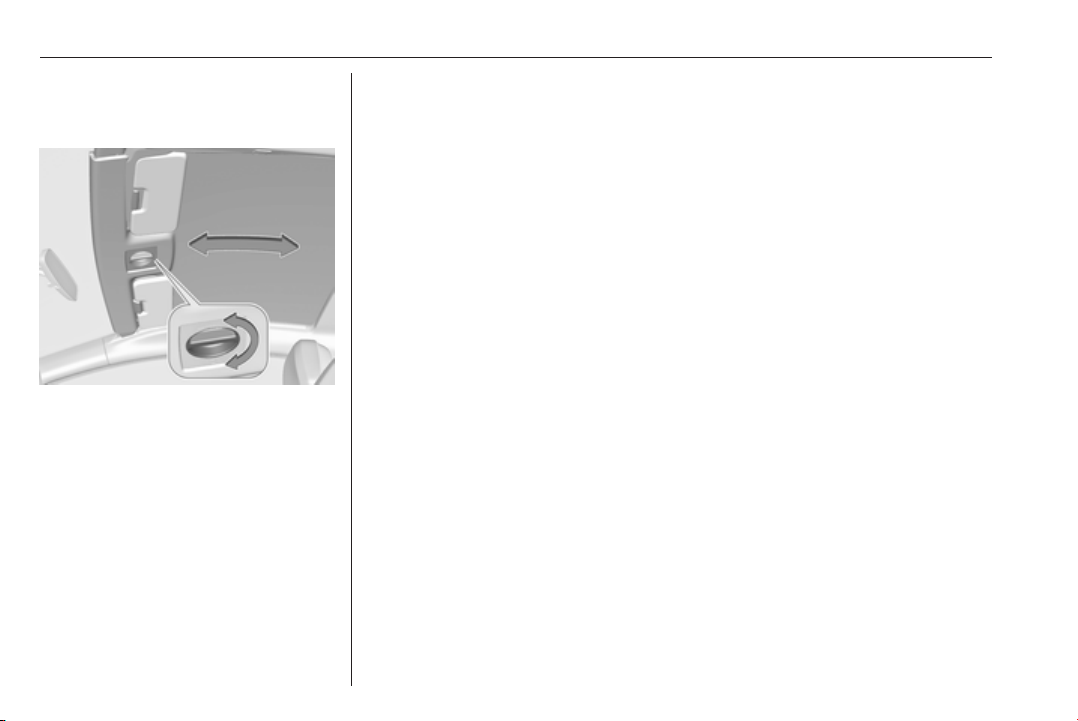

Glass panel

Panorama roof

Turn the handle and move the roof
cover to a suitable position.

The roof cover engages in position
after releasing the handle.

Note
Close the sun visors before sliding
the roof lining.

Seats, restraints 39

Seats, restraints

Head restraints ............................ 39

Active head restraints ................ 40

Front seats ................................... 41

Seat position .............................. 41

Manual seat adjustment ............ 42

Seat folding ............................... 44

Power seat adjustment .............. 45

Armrest ...................................... 47

Heating ...................................... 47

Rear seats ................................... 48

Armrest ...................................... 48

Seat belts ..................................... 48

Three-point seat belt ................. 49

Airbag system .............................. 51

Front airbag system ................... 51

Side airbag system .................... 52

Curtain airbag system ............... 53

Airbag deactivation .................... 53

Child restraints ............................. 55

Child restraint systems .............. 55

Child restraint installation

locations ................................... 57

ISOFIX child restraint systems ..60

Top-tether fastening eyes .......... 60

Head restraints

Position

9 Warning

Only drive with the head restraint
set to the proper position.

The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.

Adjustment

Head restraints on front seats

Height adjustment
Press release button, adjust height,
engage.

40 Seats, restraints

Horizontal adjustment

To adjust horizontally, pull the head
restraint forwards. It engages in
several positions.

To return to its rearmost position, pull
fully forwards and release.

Head restraints on rear seats

Height adjustment
Pull the head restraint upwards or
press the catch to release and push
the head restraint downwards.

Removal
Press both catches, pull the head
restraint upwards and remove.

Active head restraints

In the event of a rear-end impact, the
front parts of the active head
restraints are moved slightly

forwards. Thus the head is supported
so that the risk of whiplash injury is
reduced.

Note
Approved accessories may only be
attached if the seat is not in use.

Seats, restraints 41

Front seats

Seat position

9 Warning

Only drive with the seat correctly
adjusted.

9 Warning

Never adjust seats while driving as
they could move uncontrollably.

9 Danger

Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

9 Warning

Never store any objects under the
seats.

● Sit with buttocks as far back
against the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when pressing
the pedals. Slide the front
passenger seat as far back as
possible.

● Set seat height high enough to
have a clear field of vision on all
sides and of all display
instruments. There should be at
least one hand of clearance
between head and the roof
frame. Your thighs should rest
lightly on the seat without
pressing into it.

● Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do
not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.

● Adjust seat and steering wheel in
a way that the wrist rests on top
of the steering wheel while the
arm is fully extended and
shoulders on the backrest.

● Adjust the steering wheel 3 74.

● Adjust the head restraint 3 39.

● Adjust the height of the seat belt
3 49.

● Adjust the thigh support so that
there is a space approx. two
fingers wide between the edge of
the seat and the hollow of the
knee.

● Adjust the lumbar support so that
it supports the natural shape of
the spine.

42 Seats, restraints

Manual seat adjustment

Drive only with engaged seats and
backrests.

Longitudinal adjustment

Pull handle, slide seat, release
handle. Try to move the seat back and
forth to ensure that the seat is locked
in place.

Backrest inclination

Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly.

Seat height

Lever pumping motion
up : seat higher

down : seat lower

Seats, restraints 43

Seat inclination

Lever pumping motion
up : front end higher

down : front end lower

Lumbar support

Adjust lumbar support using the four­way switch to suit personal
requirements.

Moving support up and down: push
switch up or down.

Increasing and decreasing support:
push switch forwards or backwards.

Adjustable thigh support

Pull the lever and slide the thigh
support.

44 Seats, restraints

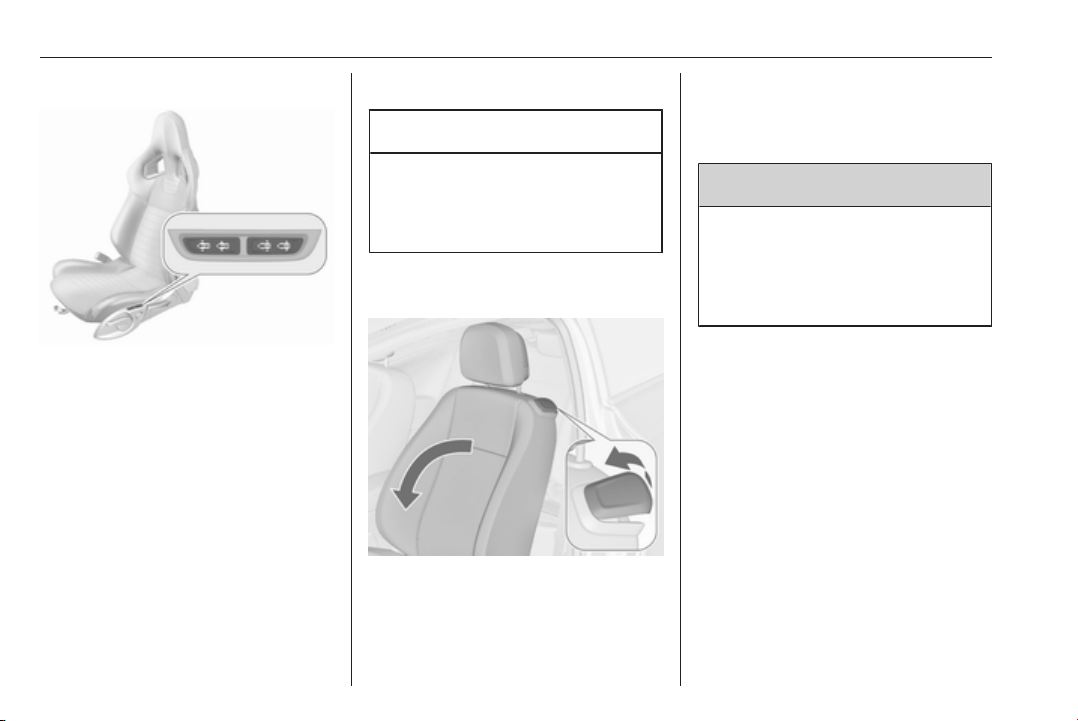

Side bolster, OPC version

Adjust seat width and backrest width
using the switches to suit personal
requirements.

Operate front rocker switch to change
seat width.

Operate rear rocker switch to change
backrest width.

Seat folding

Caution

When seat height is in highest
position, push head restraints
down and lift up sun visors before
folding backrest forwards.

Seat folding on manual operated seats

Lift release lever and fold backrest
forwards, then slide seat forwards to
the stop.

To restore, slide the seat backwards
to the stop. Lift backrest to upright
position without operating any lever.
Ensure backrest engages.

9 Warning

When folding up, ensure that the
seat is securely locked in position
before driving. Failure to do so
may result in personal injury in the
event of hard braking or collision.

The memory function allows the seat
to engage in its original position.

Do not operate backrest inclination
lever while backrest is tilted forward.

Vehicles with panorama roof: to tilt
backrest forward, push head
restraints down and lift up sun visors.

Seats, restraints 45

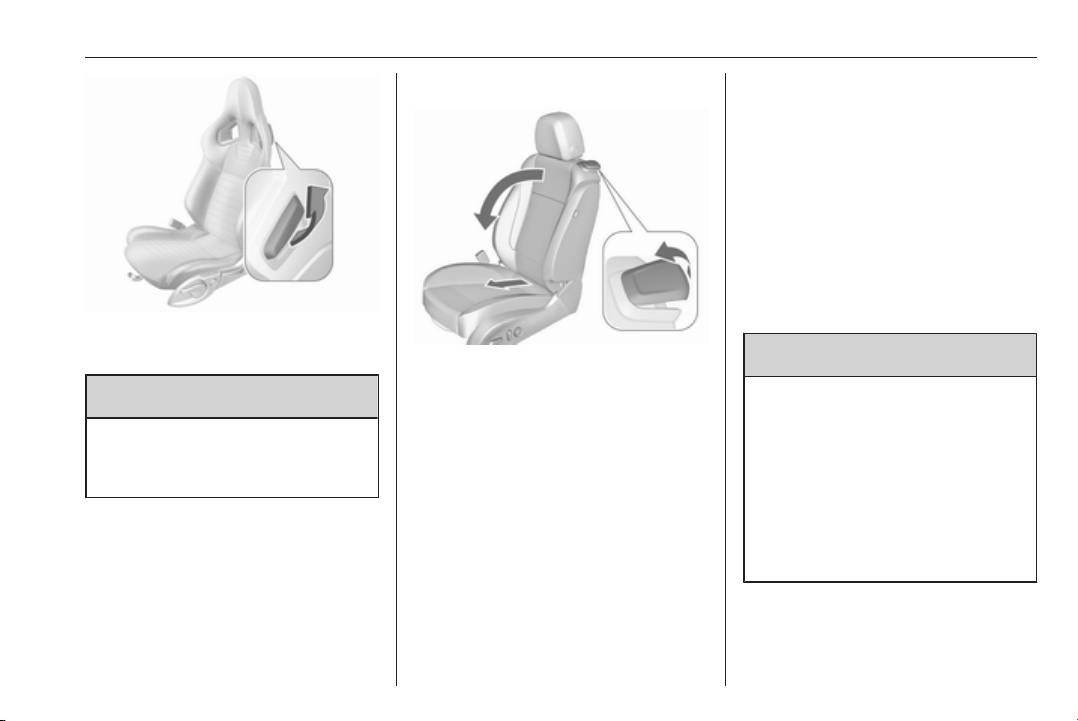

The illustration shows the release
lever on OPC seat.

9 Warning

To avoid injury, move the backrest
to an upright position before
folding.

Seat folding on power seats

Lift release lever and fold backrest
forwards. The seat slides
automatically forwards to the stop.

To restore, lift backrest to upright
position and engage. The seat slides
automatically backwards to the
original position.

In case the head restraint of the
folded backrest is blocked by the
upper windscreen frame, allow the
seat to move backwards slightly
before lifting up the backrest 3 45.

Safety function
If the power seat encounters
resistance while sliding forward or
rearward, it is immediately stopped
and moved back.

Overload
If the folding function is electrically
overloaded, the power supply is
automatically cut-off for a short time.

Power seat adjustment

9 Warning

Care must be taken when
operating the power seats. There
is a risk of injury, particularly for
children. Objects could become
trapped.

Keep a close watch on the seats
when adjusting them. Vehicle
passengers should be informed
accordingly.

46 Seats, restraints

Seat lengthwise position

Move switch forwards/backwards.

Seat height

Move switch upwards/downwards.

Seat inclination

Move front of switch upwards/
downwards.

Seat backrests

Turn switch forwards/backwards.

Lumbar support

Seats, restraints 47

Adjust lumbar support using the
four-way switch to suit personal
requirements.

Moving support up and down: push
switch up or down.

Increasing and decreasing support:
push switch forwards or backwards.

Adjustable thigh support

Pull the lever and slide the thigh
support.

Overload
If the seat setting is electrically
overloaded, the power supply is
automatically cut-off for a short time.

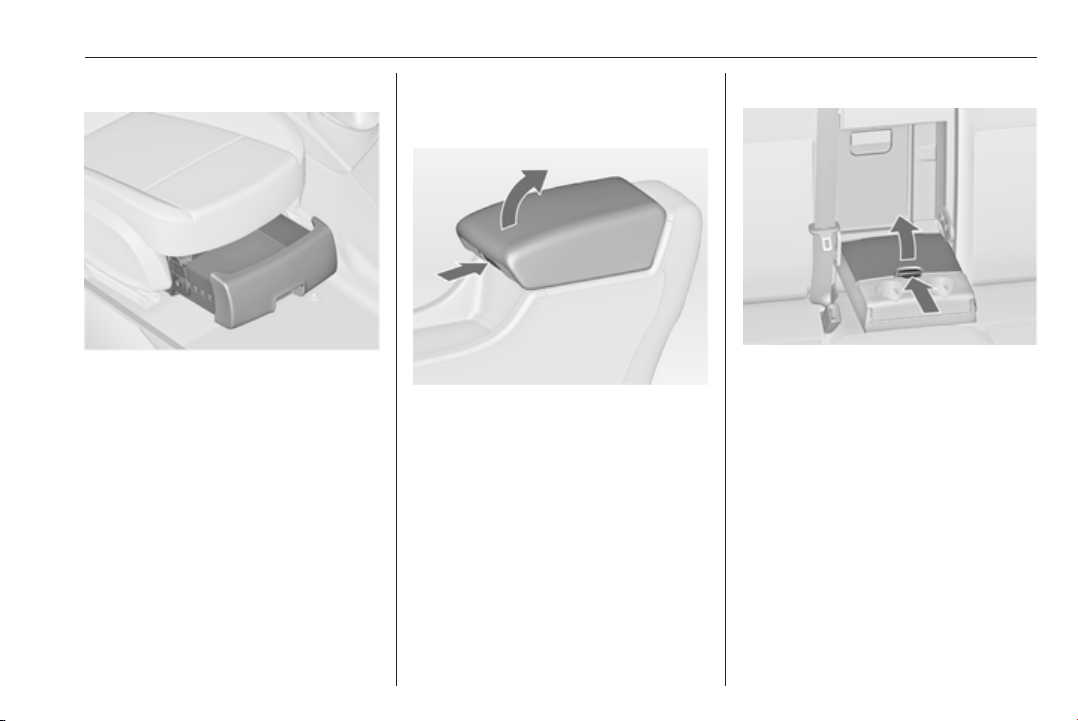

Armrest

The armrest can be slid forwards by
10 cm. Under the armrest there is a
storage compartment.

Armrest storage 3 63.

Heating

Adjust heating to the desired setting
by pressing ß for the respective seat
one or more times. The control
indicator in the button indicates the
setting.

Prolonged use of the highest setting
for people with sensitive skin is not
recommended.

Seat heating is operational when
engine is running and during an
Autostop.

Stop-start system 3 142.

48 Seats, restraints

Rear seats

Armrest

Fold armrest down. The armrest
contains cupholders and a storage
box.

Seat belts

The seat belts are locked during hard
acceleration or deceleration of the
vehicle, holding the occupants in the
seat position. Therefore the risk of
injury is considerably reduced.

9 Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger
their fellow occupants and
themselves.

Seat belts are designed to be used by
only one person at a time. Child
restraint system 3 55.

Periodically check all parts of the belt
system for damage, soiling and
proper functionality.

Have damaged components
replaced. After an accident, have the
belts and triggered belt pretensioners
replaced by a workshop.

9 Warning

The openings in the backrests of
the OPC seats are not designed to
mount or carry through any kind of
additional seat belts.

Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.

Seats, restraints 49

Seat belt reminder

Front seats are equipped with a seat
belt reminder, indicated for driver seat
by control indicator X in the
tachometer 3 87 and for passenger
seat by the control indicators in the
centre console 3 84.

Belt force limiters

On the front seats, stress on the body
is reduced by the gradual release of
the belt during a collision.

Belt pretensioners

In the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.

9 Warning

Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.

Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 87.

Triggered belt pretensioners must be
replaced by a workshop. Belt
pretensioners can only be triggered
once.

Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.

Three-point seat belt

Fasten

Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
whilst driving by pulling the shoulder
belt.

Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your
body.

50 Seats, restraints

9 Warning

The belt must not rest against hard
or fragile objects in the pockets of
your clothing.

Seat belt reminder X 3 87.

Height adjustment

1. Pull belt out slightly.

2. Shift the height adjuster upwards
or press button to disengage and
push the height adjuster
downwards.

Adjust the height so that the belt lies
across the shoulder. It must not lie
across the throat or upper arm.

Do not adjust while driving.

Unfasten

To release belt, press red button on
belt buckle.

Seat belts on the rear seats

The seat belt for the rear centre seat
can only be withdrawn from the
retractor if the backrest is engaged in
upright position.

Seats, restraints 51

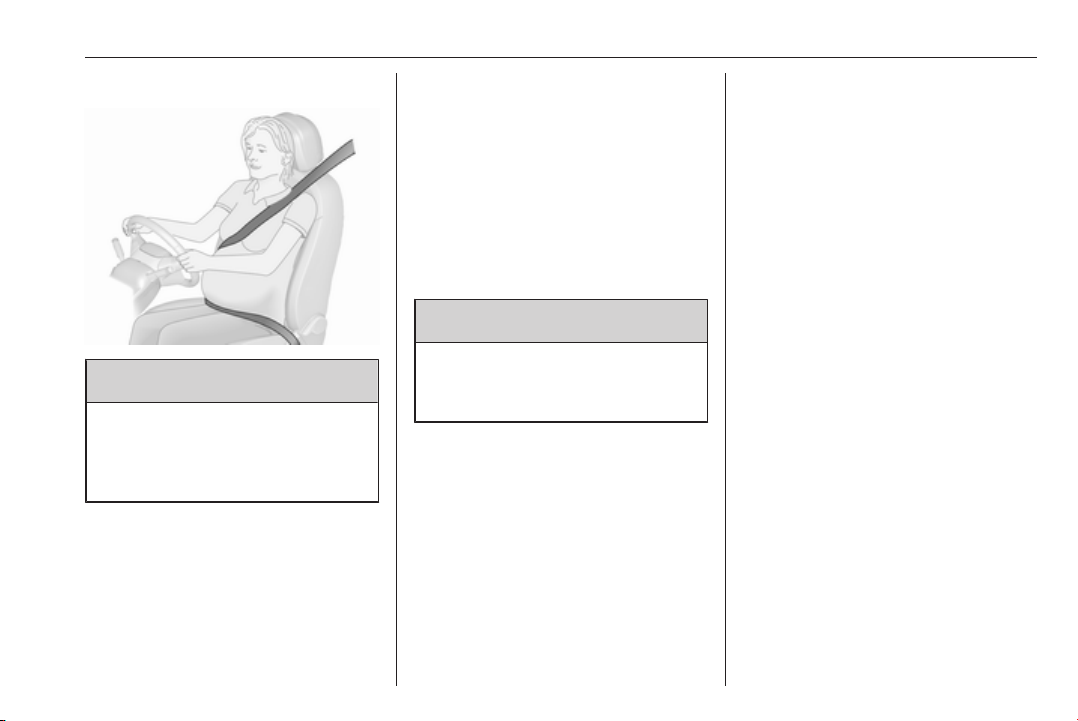

Using the seat belt while pregnant

9 Warning

The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.

Airbag system

The airbag system consists of a
number of individual systems
depending on the scope of
equipment.

When triggered, the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision.

9 Warning

If handled improperly the airbag
systems can be triggered in an
explosive manner.

Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.

Do not affix any objects onto the
airbag covers and do not cover them
with other materials.

Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be

necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.

Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.

When the airbags inflate escaping hot
gases may cause burns.

Control indicator v for airbag systems
3 87.

Front airbag system

The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel on the
front passenger side. These can be
identified by the word AIRBAG.

52 Seats, restraints

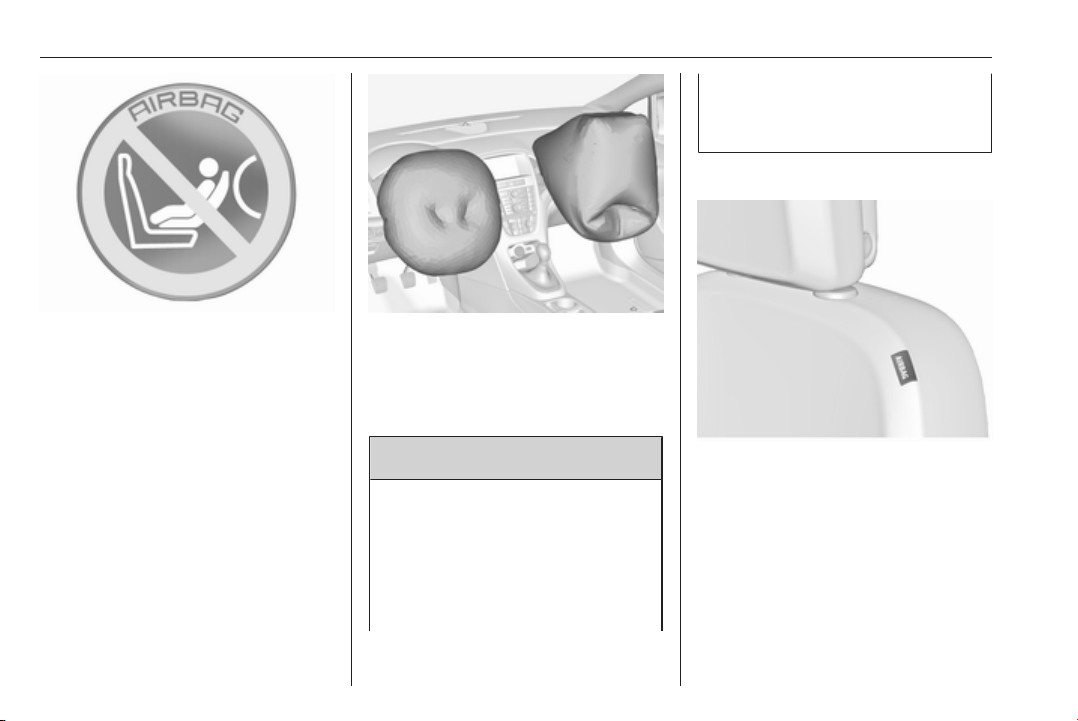

Fit the seat belt correctly and
engage securely. Only then is the
airbag able to protect.

Side airbag system

Additionally, there is a warning label
on the side of the instrument panel,
visible when the front passenger door
is open, or on the front passenger sun
visor.

The front airbag system is triggered in
the event of a front-end impact of a
certain severity. The ignition must be
switched on.

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and head of
the front seat occupants
considerably.

9 Warning

Optimum protection is only
provided when the seat is in the
proper position.

Seat position 3 41.
Keep the area in which the airbag

inflates clear of obstructions.

The side airbag system consists of an
airbag in each front seat backrest.
This can be identified by the word
AIRBAG.

The side airbag system is triggered in
the event of a side impact of a certain
severity. The ignition must be
switched on.

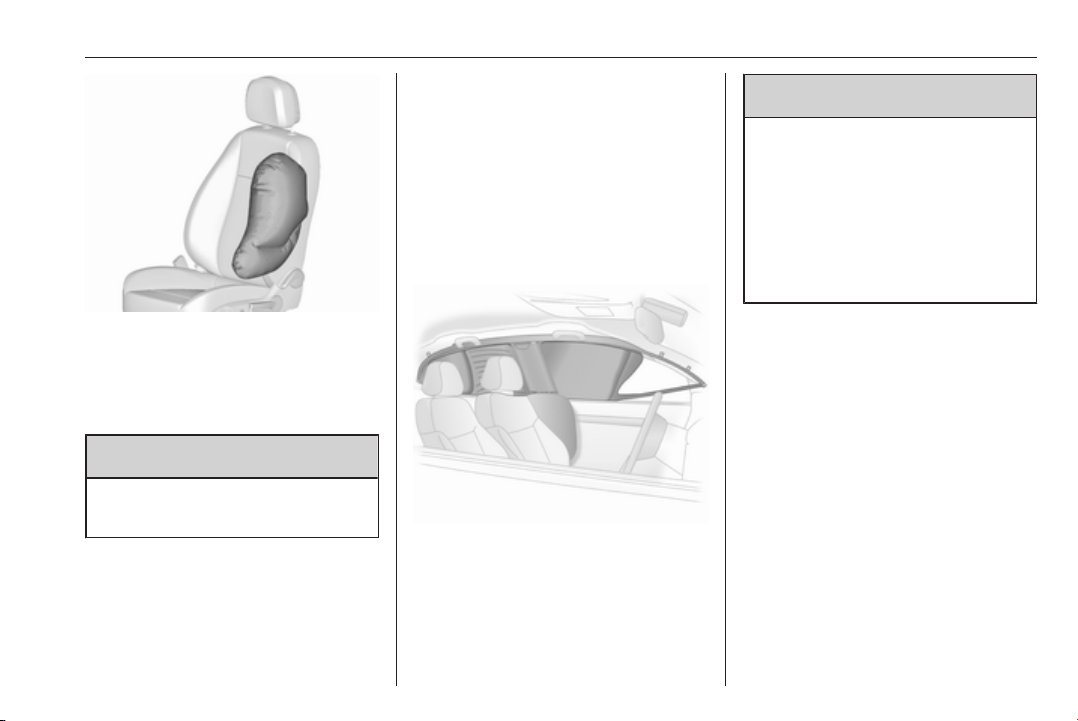

Seats, restraints 53

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and pelvis in
the event of a side-on collision
considerably.

9 Warning

Keep the area in which the airbag
inflates clear of obstructions.

Note
Only use protective seat covers that
have been approved for the vehicle.
Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of
an airbag in the roof frame on each
side. This can be identified by the
word AIRBAG on the roof pillars.

The curtain airbag system is triggered
in the event of a side-on impact of a
certain severity. The ignition must be
switched on.

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the head in the event of a
side-on impact considerably.

Warning

9

Keep the area in which the airbag
inflates clear of obstructions.

The hooks on the handles in the
roof frame are only suitable for
hanging up light articles of
clothing, without coat hangers. Do
not keep any items in these
clothes.

Airbag deactivation

The front passenger airbag system
must be deactivated if a child restraint
system is to be fitted on this seat. The
side airbag and curtain airbag
systems, the belt pretensioners and
all driver airbag systems will remain
active.

54 Seats, restraints

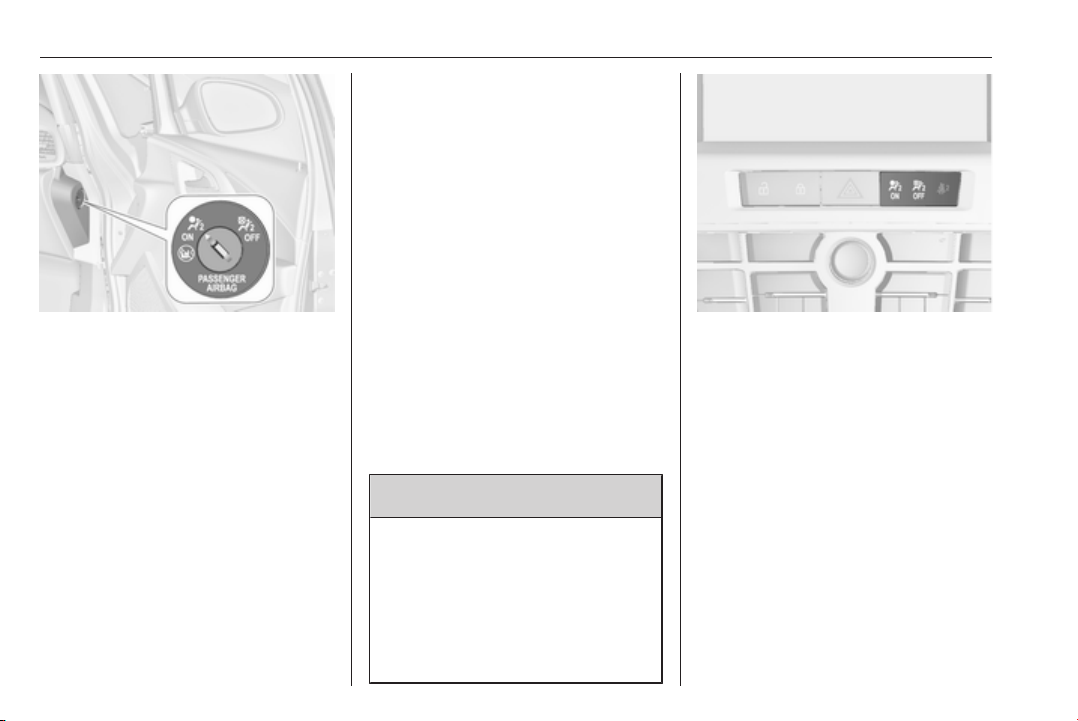

The front passenger airbag system
can be deactivated via a key­operated switch on the passenger
side of the instrument panel.

Use the ignition key to choose the
position:

*OFF

VON : front passenger airbag is

: front passenger airbag is

deactivated and will not
inflate in the event of a
collision. Control indicator
*OFF illuminates
continuously in the centre
console. A child restraint
system can be installed in
accordance with the chart
Child restraint installation
locations 3 57. No adult
person is allowed to occupy
the front passenger seat

active. A child restraint
system must not be
installed

9 Danger

Risk of fatal injury for a child using
a child restraint system on a seat
with activated front passenger
airbag.

Risk of fatal injury for an adult
person on a seat with deactivated
front passenger airbag.

If the control indicator V illuminates
for approx. 60 seconds after the
ignition is switched on, the front
passenger airbag system will inflate
in the event of a collision.

If both control indicators are
illuminated at the same time, there is
a system failure. The status of the
system is not discernible, therefore
no person is allowed to occupy the
front passenger seat. Contact a
workshop immediately.

Change status only when the vehicle
is stopped with the ignition off.

Status remains until the next change.

Seats, restraints 55

Control indicator for airbag
deactivation 3 87.

Child restraints

Child restraint systems

We recommend the Opel child
restraint system which is tailored
specifically to the vehicle.

When a child restraint system is being
used, pay attention to the following
usage and installation instructions
and also those supplied with the child
restraint system.

Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.

9 Warning

When using a child restraint
system on the front passenger
seat, the airbag systems for the
front passenger seat must be
deactivated; if not, the triggering of
the airbags poses a risk of fatal
injury to the child.

This is especially the case if rear­facing child restraint systems are
used on the front passenger seat.

Airbag deactivation 3 53.
Airbag label 3 51.

Selecting the right system

The rear seats are the most
convenient location to fasten a child
restraint system.

Children should travel facing
rearwards in the vehicle as long as
possible. This makes sure that the
child's backbone, which is still very
weak, is under less strain in the event
of an accident.

Suitable are restraint systems that
comply with valid UN ECE
regulations. Check local laws and
regulations for mandatory use of child
restraint systems.

Ensure that the child restraint system
to be installed is compatible with the
vehicle type.

Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.

Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.

56 Seats, restraints

When the child restraint system is not
in use, secure the seat with a seat belt
or remove it from the vehicle.

Note
Do not affix anything on the child
restraint systems and do not cover
them with any other materials.

A child restraint system which has
been subjected to stress in an
accident must be replaced.

Seats, restraints 57

Child restraint installation locations

Permissible options for fitting a child restraint system

On front passenger seat

Weight class

Group 0: up to 10 kg X

Group 0+: up to 13 kg X

Group I: 9 to 18 kg X

1

U

1

U

1

U

Group II: 15 to 25 kg X X U U

Group III: 22 to 36 kg X X U U

1

: if the child restraint system is being secured using a three-point seat belt, move seat height adjustment to uppermost

position and ensure that vehicle seat belt runs forwards from the upper anchorage point. Adjust seat backrest

inclination as far as necessary to a vertical position to ensure that the belt is tight on the buckle side.
U : universal suitability in conjunction with three-point seat belt.
X : no child restraint system permitted in this weight class.

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

U U

U U

U U

58 Seats, restraints

Permissible options for fitting an ISOFIX child restraint system

Weight class Size class Fixture On front passenger seat On rear outboard seats On rear centre seat

Group 0: up to 10 kg E ISO/R1 X IL X

Group 0+: up to 13 kg E ISO/R1 X IL X

D ISO/R2 X IL X

C ISO/R3 X IL X

Group I: 9 to 18 kg D ISO/R2 X IL X

C ISO/R3 X IL X

B ISO/F2 X IL, IUF X

B1 ISO/F2X X IL, IUF X

A ISO/F3 X IL, IUF X

Group II: 15 to 25 kg X IL X

Group III: 22 to 36 kg X IL X

IL : suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type.
IUF : suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class.
X : no ISOFIX child restraint system approved in this weight class.

Seats, restraints 59

ISOFIX size class and seat device

A – ISO/F3 : forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg
B – ISO/F2 : forward-facing child restraint system for smaller children in the weight class 9 to 18 kg
B1 – ISO/F2X : forward-facing child restraint system for smaller children in the weight class 9 to 18 kg
C – ISO/R3 : rear-facing child restraint system for children of maximum size in the weight class up to 18 kg
D – ISO/R2 : rear-facing child restraint system for smaller children in the weight class up to 18 kg
E – ISO/R1 : rear-facing child restraint system for young children in the weight class up to 13 kg

60 Seats, restraints

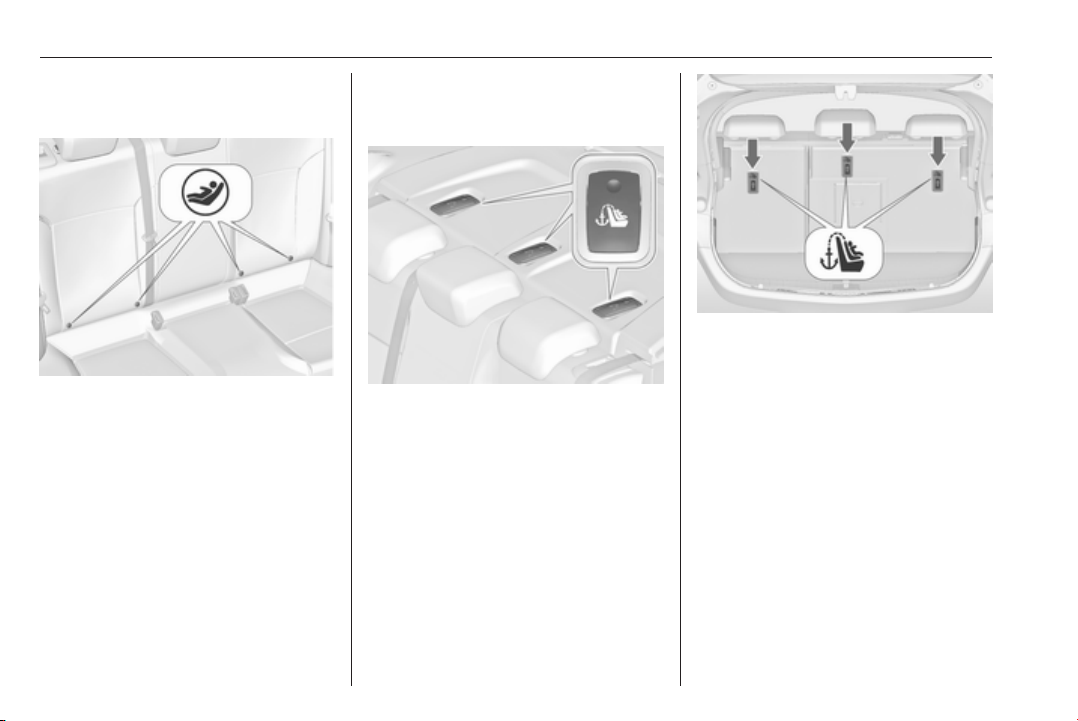

ISOFIX child restraint systems

Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets. Specific vehicle
ISOFIX child restraint system
positions are marked in the table by
IL.

ISOFIX mounting brackets are
indicated by a label on the backrest.

Top-tether fastening eyes

Depending on country specific
equipment, the vehicle might have
two or three fastening eyes.

Top-Tether fastening eyes are
marked with the symbol : for a child
seat.

On Notchback version, open the flap
of the required fastening eye on the
placement area behind the head
restraints, marked by the child seat
symbol.

On hatchback version, fastening eyes
are on the backside of the rear seats.

In addition to the ISOFIX mounting,
fasten the Top-Tether strap to the
Top-Tether fastening eyes. The strap
must run between the two guide rods
of the head restraint.

ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.

Storage 61

Storage

Storage compartments ................ 61

Glovebox ................................... 61

Cupholders ................................ 61

Front storage ............................. 62

Underseat storage ..................... 63

Armrest storage ......................... 63

Centre console storage ............. 64

Load compartment ....................... 65

Rear storage .............................. 67

Load compartment cover ........... 67

Rear floor storage cover ............ 68

Lashing eyes ............................. 69

Warning triangle ........................ 70

First aid kit ................................. 70

Roof rack system ......................... 71

Roof rack ................................... 71

Loading information ..................... 71

Storage compartments

9 Warning

Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could
be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.

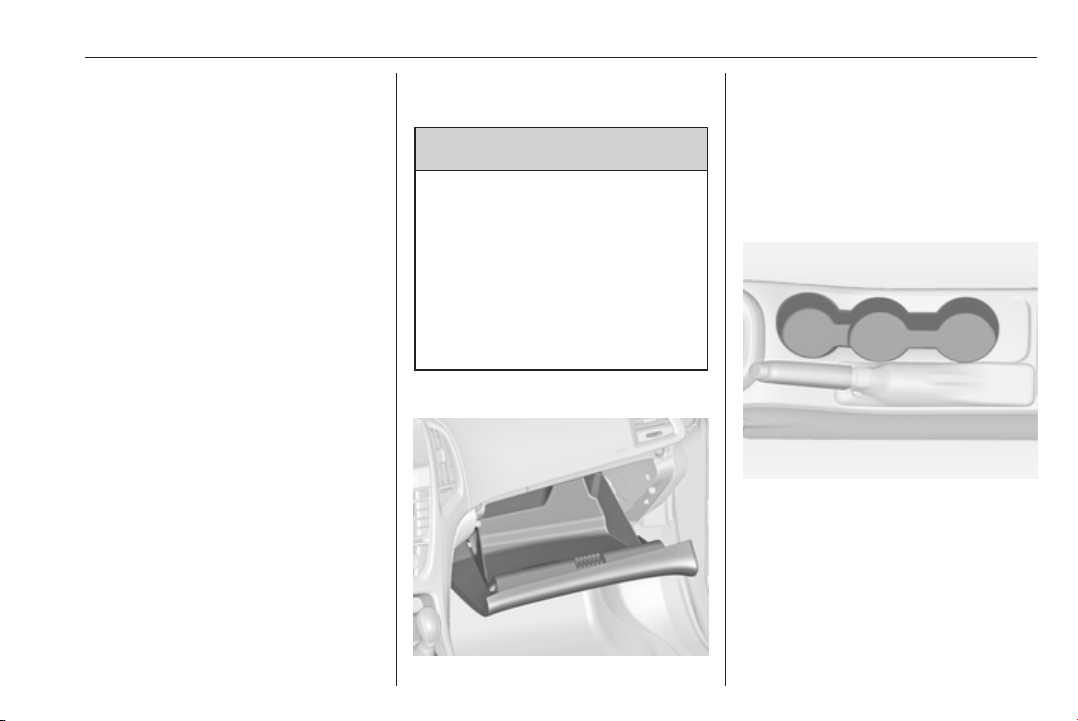

Glovebox

The glovebox features a pen holder,
a credit card holder, a coin holder and
an adapter for the locking wheel nuts.

The glovebox should be closed whilst
driving.

Cupholders

Cupholders are located in the centre
console.

62 Storage

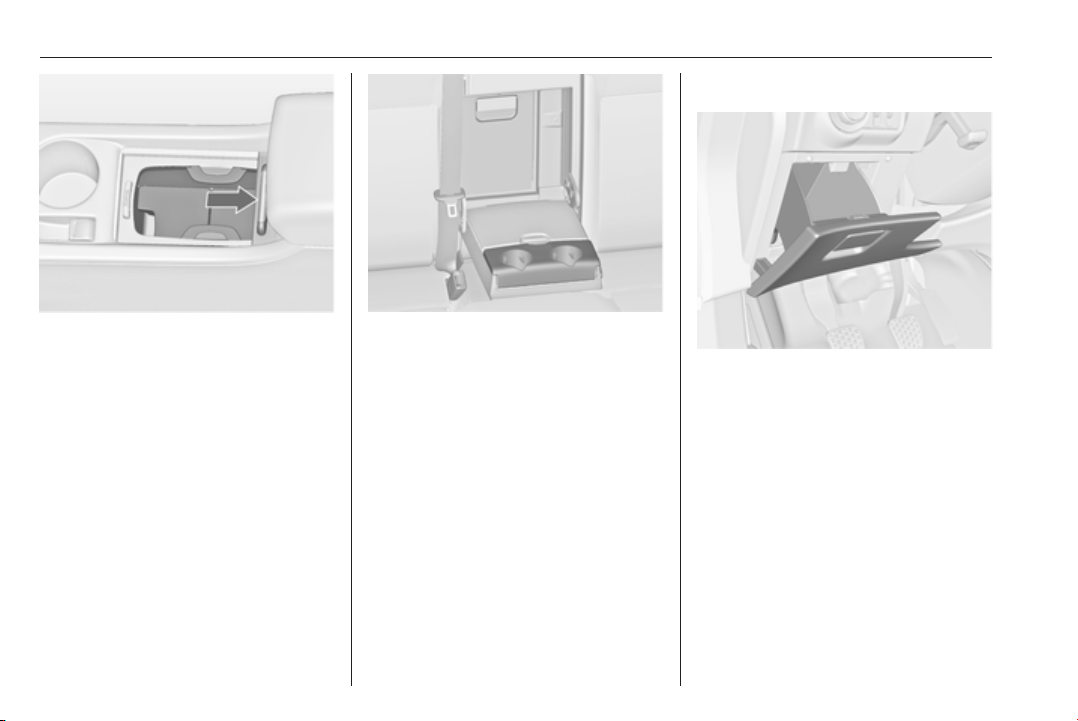

Front storage

Depending on the version,
cupholders are located under a cover
in the centre console. Slide cover
backwards. Bottles can be stowed
after folding up the intermediate shelf
3 64.

Additional cupholders are located in
the rear armrest. Fold down the
armrest.

A storage compartment is located
next to the steering wheel.

Storage 63

Underseat storage

Press button in the recess and pull out
drawer. Maximum load: 3 kg. To
close, push in and engage.

Armrest storage

Storage under the front armrest

Press button to fold up the armrest.
The armrest must be in rearmost
position.

Storage in the rear armrest

Fold down armrest and open cover.
Close cover before folding the

armrest up.

64 Storage

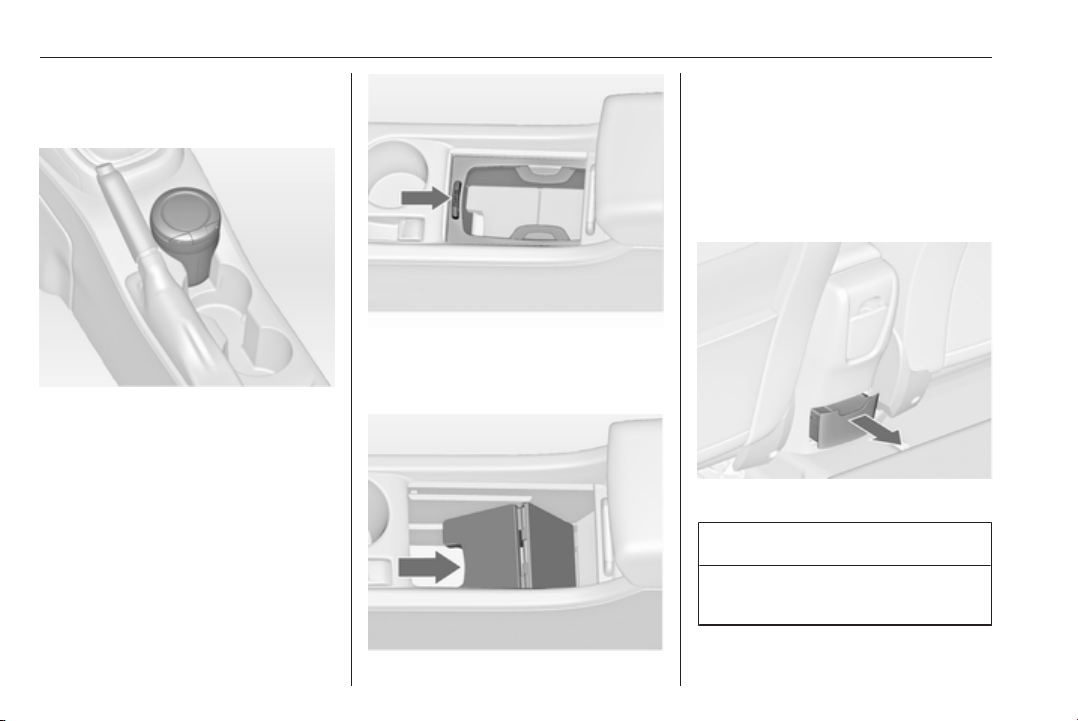

Centre console storage

Front console

The storage container can be used to
store small items.

Depending on the version, a storage
compartment is located under a
cover.

Slide cover backwards.

A further storage compartment is
located under the intermediate shelf.
Fold up the intermediate shelf and fix
it in the vertical position. The frame of
the cupholder can be reintegrated to
stow bottles.

Rear console

Press button to remove the frame of
the cupholder. The frame can be
stowed in the glovebox.

Pull out the drawer.

Caution

Do not use for ash or for other
combustible items.

Storage 65

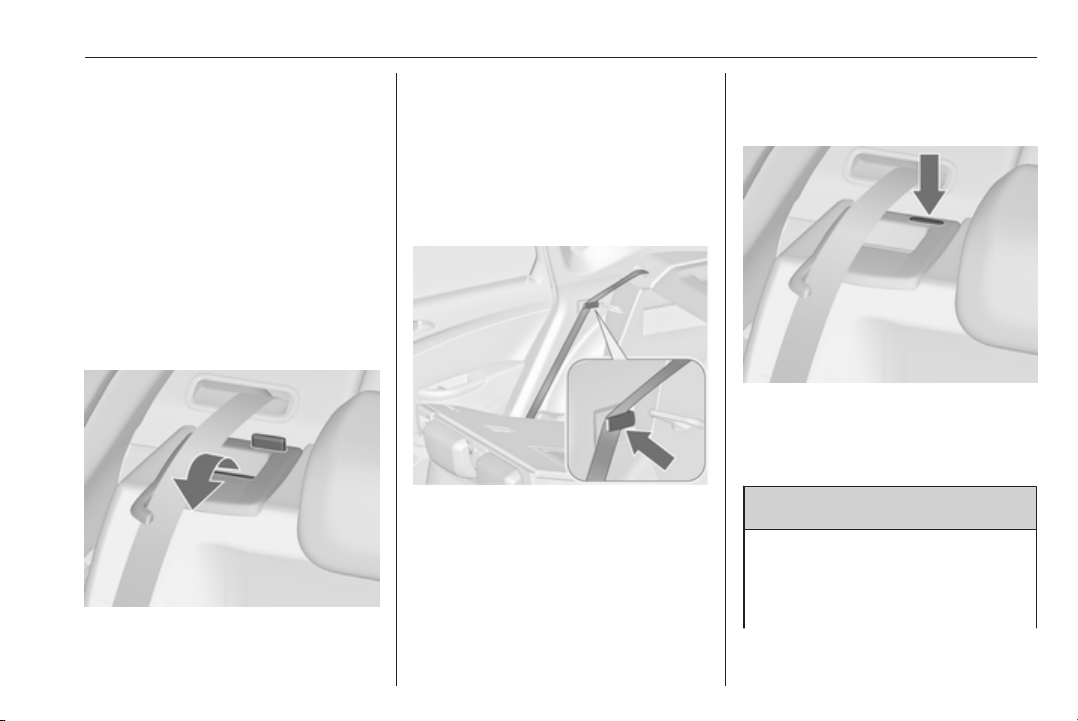

Load compartment

The rear seat backrest is divided into
two parts. Both parts can be folded
down.

Load compartment extension

● Only 3-door hatchback: remove
the load compartment cover if
necessary.

● Press and hold the catch to push
the head restraints down 3 39.

● Fold up the rear armrest.

● Guide the seat belts through side
supports to protect them against
damage. When folding the
backrests, pull the seat belts
along with them.

● Pull the release lever on one or
both sides and fold down the
backrests onto the seat cushion.

● Take the seat belt out of the seat
backrest guide and put it behind
the retainer as shown in the
illustration.

To fold up, raise the backrests and
guide them into an upright position
until they engage audibly.

Ensure that the seat belts of the
outboard seats are placed in the
corresponding belt guides.

The backrests are properly engaged
when the red marks on both sides
near the release lever are no longer
visible.

9 Warning

When folding up, ensure that
backrests are securely locked in
position before driving. Failure to
do so may result in personal injury

66 Storage

or damage to the load or vehicle in
the event of hard braking or a
collision.

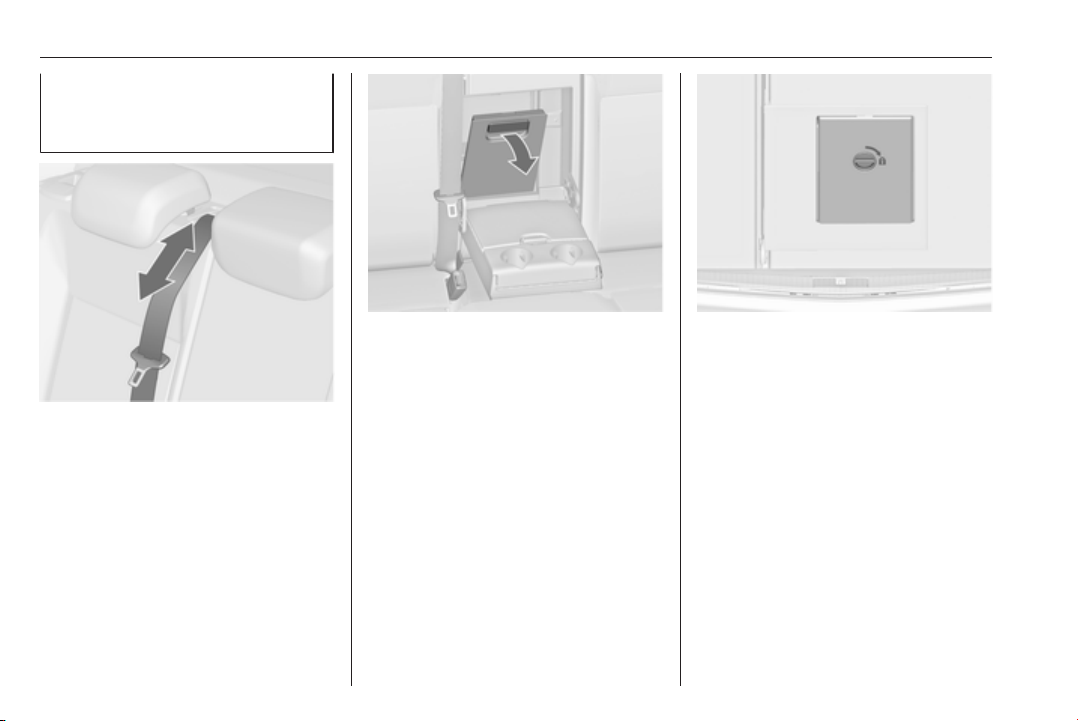

The seat belt of the centre seat could
be blocked when the backrest is
folded up too quickly. To unlock the
retractor, push in the seat belt or pull
it out by approx. 20 mm then release.

Open the pass-through in the rear
centre backrest

● Fold down the rear armrest.

● Pull the grip and open the cover.

Suitable for loading long, narrow
objects.

Ensure that the cover engages after
folding up.

The closed cover can be secured
from the side of the load
compartment. Turn the knob 90°:

knob horizontal : cover secured

from the side of
the passenger
compartment

knob vertical : cover not secured

Storage 67

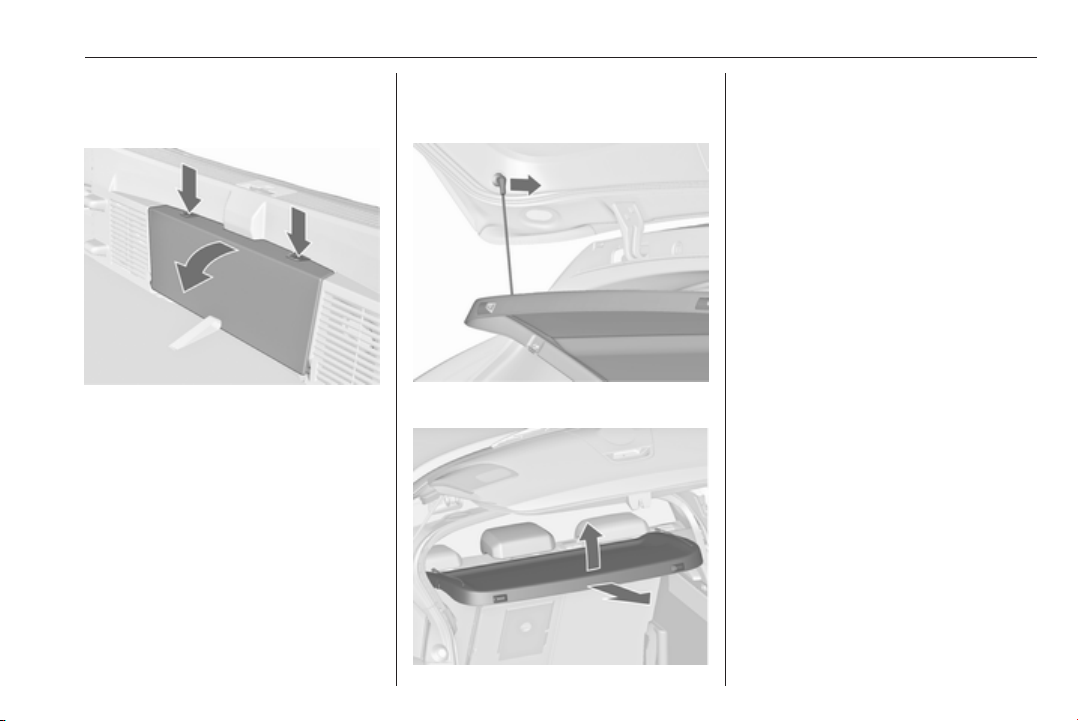

Rear storage

3-door hatchback

Press both buttons and fold down
cover.

Maximum load: 0.5 kg.

Load compartment cover

Do not place any objects on the cover.

3-door hatchback

Removing

Unhook retaining straps from tailgate.

Lift cover at the rear and push it
upwards at the front.

Remove the cover.
If the height adjustable cover is

mounted in the middle or upper
position, the load compartment cover
can be stowed below it.

Height adjustable cover 3 68.

Fitting
Engage cover in side guides and fold
downwards. Attach retaining straps to
tailgate.

68 Storage

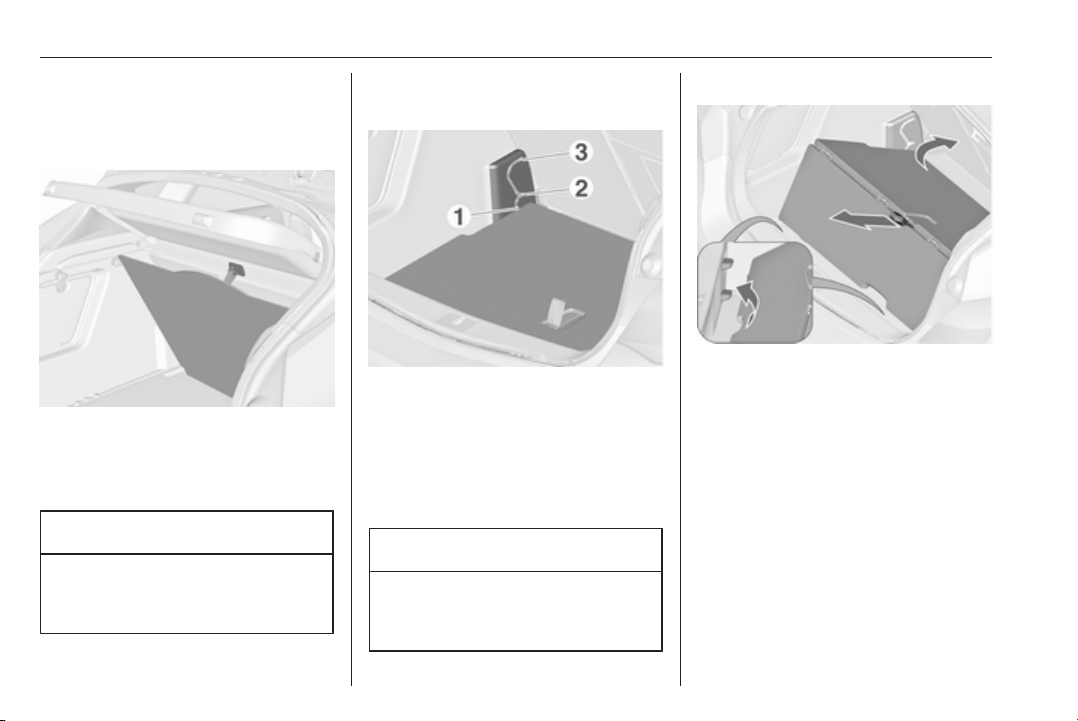

Rear floor storage cover

Rear floor cover, 3-door hatchback

The rear floor cover can be lifted.
Hang the loop on the hook on the
lower side of the load compartment
cover.

Caution

Only use the hook for hanging up
the rear floor cover and the height
adjustable cover.

Height adjustable cover, 3-door hatchback

The height adjustable cover can be
mounted in three positions:

● directly above the rear floor cover
(1)

● in a middle position (2)

● in an upper position (3)

Caution

Ensure that the front and rear end
of the height adjustable cover are
attached at the same level.

Lifting

To lift the cover to a higher level, pull
the loop backwards and lift the rear
edge of the cover onto the
corresponding supports.

Storage 69

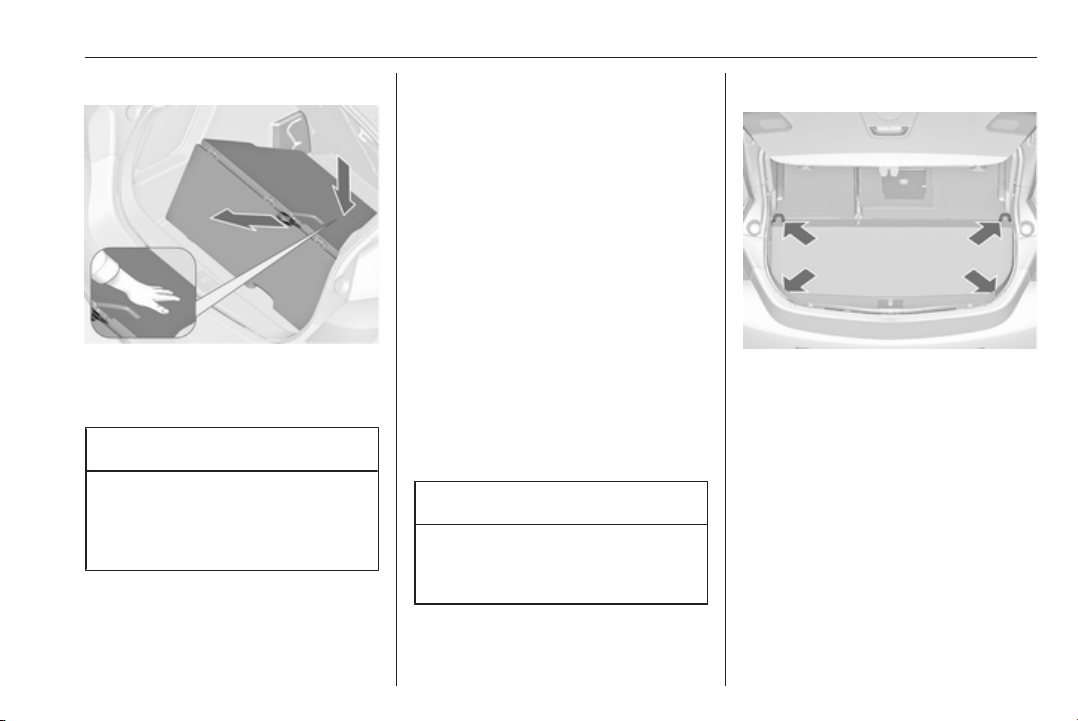

Lowering

To lower the cover, pull the strap
backwards and push down the front
centre of the cover at the same time.

Caution

Do not lower the height adjustable
cover to position 1 in vehicles
equipped with subwoofer. The
subwoofer could be damaged.

Note

● If mounted in position 2 or 3, the
space between the rear floor
cover and the height adjustable
cover can be used as a stowage
compartment.

● The height adjustable cover can
be lifted and hooked in with the
strap when it is mounted in
position 1 or 2.

● If mounted in position 2, an
almost completely flat load-bay is
created if the rear seat backrests
are folded forwards.

● Opening the side covers (e.g.
when exchanging the rear light
bulbs) is only possible with the
height adjustable cover mounted
in position 1 or 2.

Caution

The height adjustable cover is
able to withstand a load of no more
than 100 kg.

Lashing eyes

The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.

The lashing eyes are only accessible
if the rear floor storage cover is in the
lower position 3 68.

70 Storage

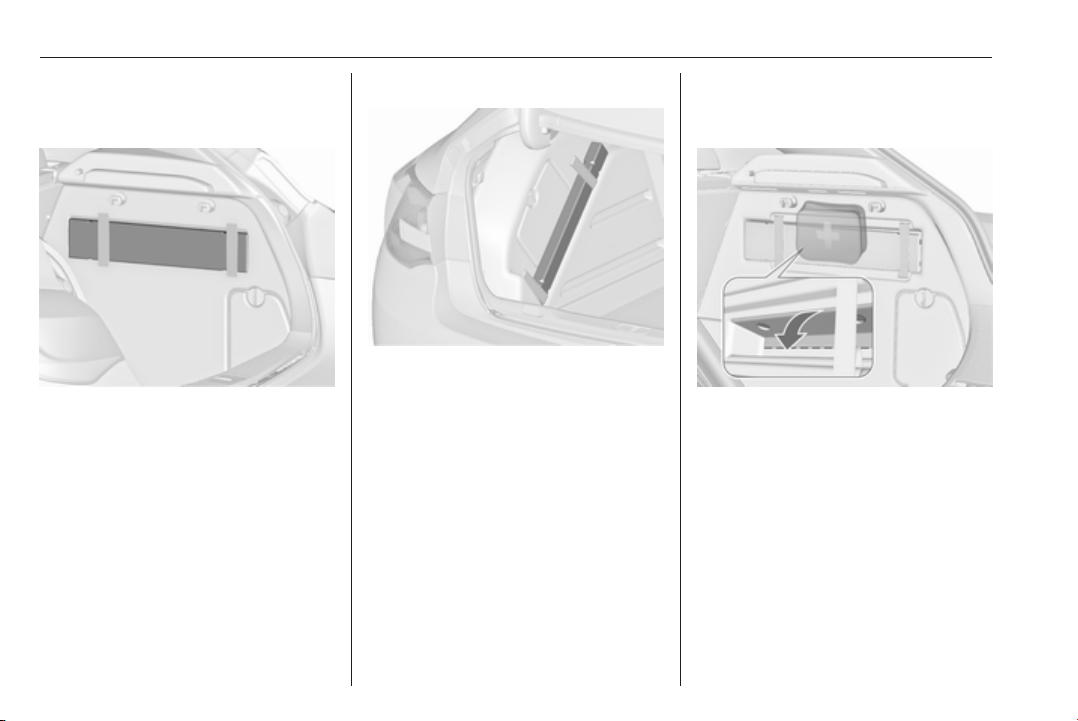

Warning triangle

3-door hatchback

Stow the warning triangle in the space
behind the strap on the right side of
the load compartment.

4-door notchback

Stow the warning triangle in the
recess on the left side of the load
compartment.

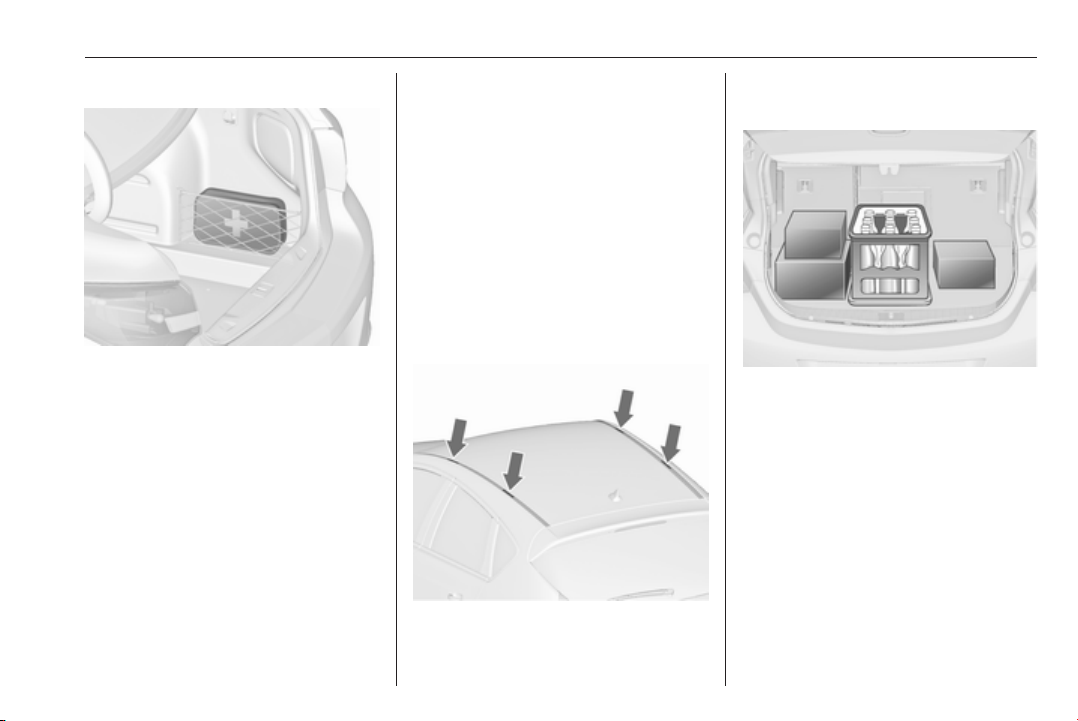

First aid kit

3-door hatchback

Stow the first aid kit in the stowage
compartment behind the warning
triangle.

Use the recesses to fold down the
cover.

Depending on the equipment, the first
aid kit can be stored in the rear
storage compartment 3 67.

Storage 71

4-door notchback

Stow the first aid kit in the space
behind the mesh net on the right side
of the load compartment.

Roof rack system

Roof rack

For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended. For further
information contact your workshop.

Follow the installation instructions
and remove the roof rack when not in
use.

Mounting roof rack

Detach the cover from each mounting
point by using a coin.

Loading information

● Heavy objects in the load
compartment should be placed
against the seat backrests.
Ensure that the backrests are
securely engaged. If objects can
be stacked, heavier objects
should be placed at the bottom.

● Secure objects with lashing
straps attached to the lashing
eyes 3 69. Attach the height
adjustable cover in the lowest
position (1) 3 68.

72 Storage

● Use the four hooks on the
sidewalls of the load
compartment for hanging up
carrier bags. Maximum load:
5 kg per hook.

● Secure loose objects in the load
compartment to prevent them
from sliding.

● When transporting objects in the
load compartment, the backrests
of the rear seats must not be
angled forward.

● Do not allow the load to protrude
above the upper edge of the
backrests.

● Do not place any objects on the
load compartment cover or the
instrument panel, and do not
cover the sensor on top of the
instrument panel.

● The load must not obstruct the
operation of the pedals, parking
brake and selector lever, or
hinder the freedom of movement
of the driver. Do not place any
unsecured objects in the interior.

● Do not drive with an open load
compartment.

Warning

9

Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.

● The payload is the difference
between the permitted gross
vehicle weight (see identification
plate 3 257) and the EC kerb
weight.

To calculate the payload, enter
the data for your vehicle in the
weights table at the front of this
manual.

The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (fuel
tank 90% full).

Optional equipment and
accessories increase the kerb
weight.

● Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a

detrimental effect on vehicle
handling due to the vehicle's
higher centre of gravity.
Distribute the load evenly and
secure it properly with retaining
straps. Adjust the tyre pressure
and vehicle speed according to
the load conditions. Check and
retighten the straps frequently.

Do not drive faster than
120 km/h.

The permissible roof load is
75 kg. The roof load is the
combined weight of the roof rack
and the load.

Instruments and controls 73

Instruments and controls

Controls ....................................... 74

Steering wheel adjustment ........ 74

Steering wheel controls ............. 74

Heated steering wheel ............... 74

Horn ........................................... 75

Windscreen wiper/washer ......... 75

Rear window wiper/washer .......77

Outside temperature .................. 77

Clock ......................................... 78

Power outlets ............................. 79

Cigarette lighter ......................... 80

Ashtrays .................................... 80

Warning lights, gauges and indi‐

cators ........................................... 81

Instrument cluster ...................... 81

Speedometer ............................. 81

Odometer .................................. 81

Trip odometer ............................ 81

Tachometer ............................... 81

Fuel gauge ................................ 82

Fuel selector .............................. 82

Engine coolant temperature

gauge ....................................... 82

Service display .......................... 83

Control indicators ...................... 84

Turn signal ................................. 87

Seat belt reminder ..................... 87

Airbag and belt tensioners ......... 87

Airbag deactivation .................... 87

Charging system ....................... 88

Malfunction indicator light .......... 88

Service vehicle soon ................. 88

Brake and clutch system ........... 88

Operate pedal ............................ 88

Electric parking brake ................ 88

Electric parking brake fault ........ 89

Antilock brake system (ABS) ..... 89

Upshift ....................................... 89

Power steering .......................... 89

Lane departure warning ............ 89

Ultrasonic parking assist ........... 90

Electronic Stability Control off ...90
Electronic Stability Control and

Traction Control system ........... 90

Traction Control system off .......90

Preheating ................................. 90

Diesel particle filter .................... 90

Tyre pressure monitoring

system ...................................... 91

Engine oil pressure .................... 91

Low fuel ..................................... 91

Immobiliser ................................ 92

Reduced engine power ............. 92

Exterior light .............................. 92

High beam ................................. 92

High beam assist ....................... 92

Adaptive forward lighting ........... 92

Fog light ..................................... 92

Rear fog light ............................. 92

Low washer fluid ........................ 92

Cruise control ............................ 92

Adaptive cruise control .............. 92

Vehicle detected ahead ............. 93

Door open .................................. 93

Information displays ..................... 93

Driver Information Centre .......... 93

Graphic-Info-Display, Colour-

Info-Display .............................. 97

Smartphone controller ............... 99

Vehicle messages ........................ 99

Warning chimes ....................... 102

Battery voltage ........................ 102

Trip computer ............................. 103

Vehicle personalisation .............. 105

Telematics service ..................... 110

OnStar ..................................... 110

ERA GLONASS ....................... 113

74 Instruments and controls

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.

Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.

Steering wheel controls

The Infotainment system, the cruise
control and a connected mobile
phone can be operated via the
controls on the steering wheel.

Further information is available in the
Infotainment manual.

Driver assistance systems 3 159.

Heated steering wheel

Activate heating by pressing *.
Activation is indicated by illumination
of the LED in the button.

Instruments and controls 75

The recommended grip areas of the
steering wheel are heated quicker
and to a higher temperature than the
other areas.

Heating is operational when the
engine is running and during an
Autostop.

Stop-start system 3 142.

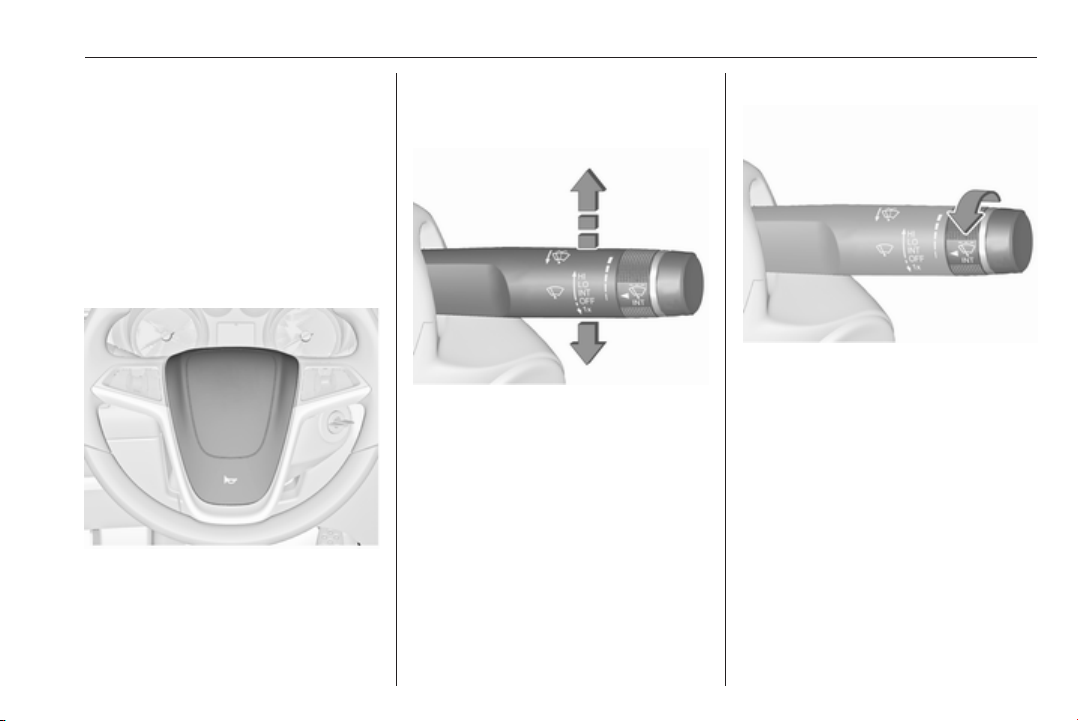

Horn

Press

j.

Windscreen wiper/washer

Windscreen wiper

HI : fast
LO : slow
INT : interval wiping or automatic

wiping with rain sensor

OFF : off

For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.

Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe interval:
short interval : turn adjuster

wheel upwards

long interval : turn adjuster

wheel downwards

76 Instruments and controls

Automatic wiping with rain sensor

INT : automatic wiping with rain

sensor

The rain sensor detects the amount of
water on the windscreen and
automatically regulates the frequency
of the windscreen wiper.

If the wiper frequency is above
20 seconds, the wiper arm moves
slightly down to the park position.

Adjustable sensitivity of the rain sensor

Turn the adjuster wheel to adjust the
sensitivity:

low sensitivity : turn adjuster

wheel downwards

high sensitivity : turn adjuster

wheel upwards

Keep the sensor free from dust, dirt
and ice.

Windscreen and headlight washer

Instruments and controls 77

Pull lever. Washer fluid is sprayed
onto the windscreen and the wiper
wipes a few times.

If the headlights are on, washer fluid
is also sprayed onto the headlights,
provided that the lever is pulled
sufficiently long. Afterwards, the
headlight washer system is
inoperable for 5 wash cycles or until
engine or headlights have been
switched off and on again.

Rear window wiper/washer

Press the rocker switch to activate the
rear window wiper:

upper position : continuous

operation

lower position : intermittent

operation

middle position : off

Push lever. Washer fluid is sprayed
onto the rear window and the wiper
wipes a few times.

Do not use if the rear window is
frozen.

Switch off in car washes.

The rear window wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear
is engaged.

Activation or deactivation of this
function can be changed in the
Settings menu in the Info-Display.

Vehicle personalisation 3 105.
The rear window washer system is

deactivated when the fluid level is too
low.

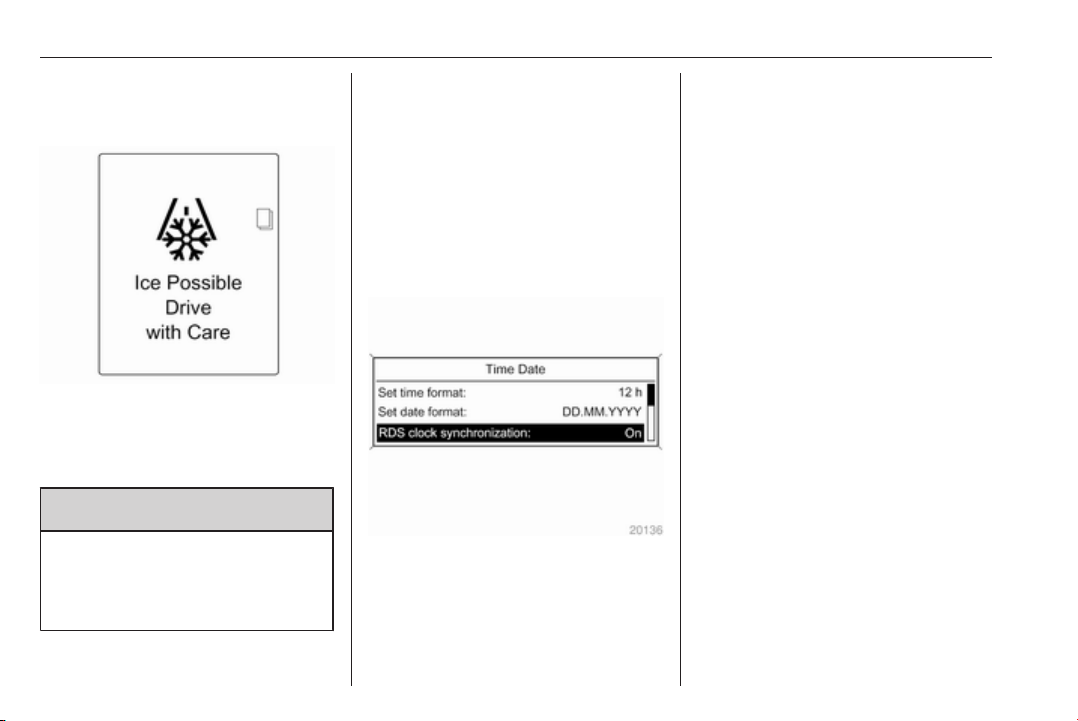

Outside temperature

78 Instruments and controls

A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.

If outside temperature drops to 3 °C,
a warning message is displayed in the
Driver Information Centre with
Uplevel-Combi-Display.

9 Warning

The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.

Clock

Date and time are shown in the
Info-Display.

Time and date settings

CD 400plus/CD 400/CD 300
Press CONFIG. The menu Settings is

displayed.
Select Time Date.

Selectable setting options:

● Set time: Changes the time
shown on the display.

● Set date: Changes the date
shown on the display.

● Set time format: Changes
indication of hours between 12 h
and 24 h.

● Set date format: Changes
indication of date between MM/
DD/YYYY and DD.MM.YYYY.

● Display clock: Switches on/off
indication of time on the display.

● RDS clock synchronization: The
RDS signal of most VHF
transmitters automatically sets
the time. RDS time
synchronisation can take a few
minutes. Some transmitters do
not send a correct time signal. In
such cases, it is recommended to
switch off automatic time
synchronisation.

Vehicle personalisation 3 105.

Time and date settings

Navi 950/Navi 650/CD 600
Press CONFIG and then select the

Time and Date menu item to display
the respective submenu.

Instruments and controls 79

Note
If RDS Auto Time Adjust is activated,
time and date are automatically set
by the system.

See Infotainment manual for further
information.

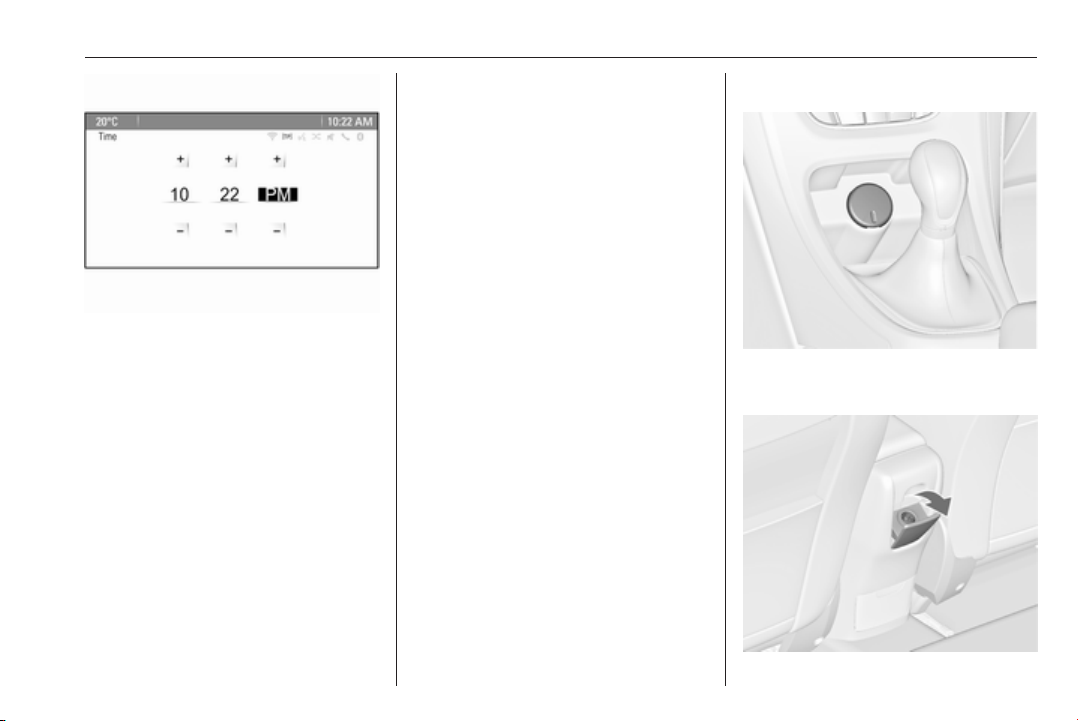

Set time
To adjust the time settings, select the
Set Time menu item. Turn the
multifunction knob to adjust the first
setting.

Press the multifunction knob to
confirm the input. The coloured
background moves to the next
setting.

Adjust all settings.

Set date
To adjust the time settings, select the
Set Date menu item. Turn the
multifunction knob to adjust the first
setting.

Press the multifunction knob to
confirm the input. The coloured
background moves to the next
setting.

Adjust all settings.

Time format
To choose the desired time format,
select 12 hr / 24 hr Format. Activate
12 Hour or 24 Hour.

Vehicle personalisation 3 105.

Power outlets

A 12 Volt power outlet is located in the
front console.

80 Instruments and controls

A further 12 Volt power outlet is
located in the rear console. Fold the
cover downwards.

Do not exceed the maximum power
consumption of 120 watts.

With ignition off, the power outlets are
deactivated. Additionally, the power
outlets are deactivated in the event of
low vehicle battery voltage.

Electric accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in
DIN VDE 40 839.

Do not connect any current-delivering
accessories, e.g. electric charging
devices or batteries.

Do not damage the outlet by using
unsuitable plugs.

Stop-start system 3 142.

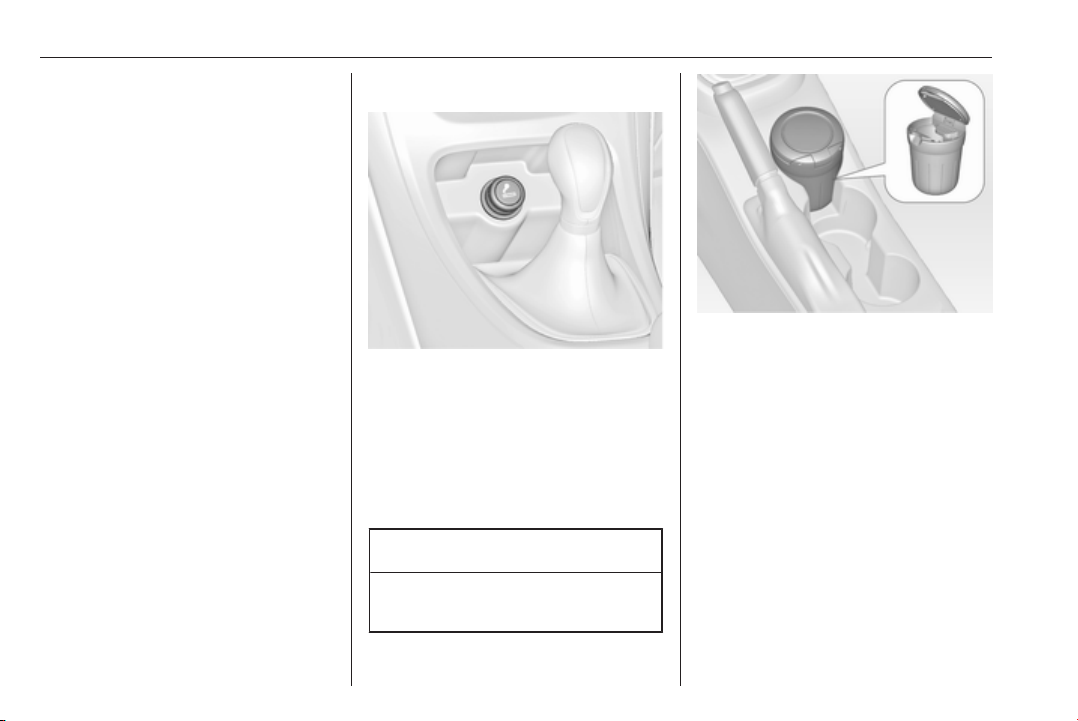

Cigarette lighter

The portable ashtray can be placed in
the cupholders.

The cigarette lighter is located in the
front console.

Press in cigarette lighter. It switches
off automatically once the element is
glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for
combustible rubbish.

Instruments and controls 81

Warning lights, gauges and indicators

Instrument cluster

In some versions, the needles of the
instruments briefly rotate to the end
position when the ignition is switched
on.

Speedometer

Indicates vehicle speed.

Odometer

The bottom line displays the recorded
distance in km.

Trip odometer

The top line displays the recorded
distance since the last reset.

To reset, press SET/CLR on the turn
signal lever for a few seconds
3 93.

Some versions are equipped with a
reset knob between speedometer
and Driver Information Centre: to
reset press and hold the knob for a
few seconds with the ignition on.

Trip odometer counts up to a distance
of 2000 km and then restarts at 0.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine
at risk.

82 Instruments and controls

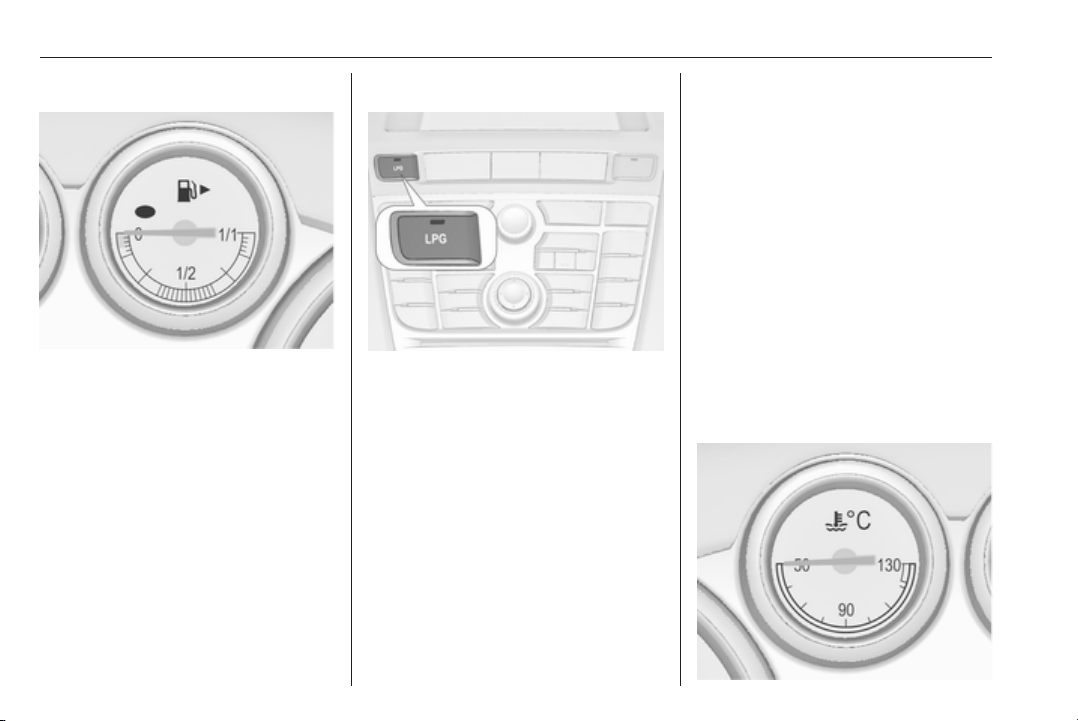

Fuel gauge

Displays the fuel level or gas level in
the tank depending on the operation
mode.

Control indicator i illuminates if the
level in the tank is low. Refuel
immediately if it flashes.

During liquid gas operation, the
system automatically switches over to
petrol operation when gas tanks are
empty 3 82.

Never run the tank dry.
Because of the fuel remaining in the

tank, the top-up quantity may be less
than the specified tank capacity.

Fuel selector

Press LPG to switch between petrol
and liquid gas operation. The LED
1 status shows the current operating
mode.

1 off : petrol operation
1 flashes : checking conditions

for fuel transition to
liquid gas operation.
Illuminates if
conditions are fulfilled.

1 illumi‐
nates
1 flashes
five times
and extin‐
guishes

As soon as the liquid gas tank is
empty, petrol operation is
automatically engaged until the
ignition is switched off.

Fuel for liquid gas operation 3 189.

: liquid gas operation

: liquid gas tank is

empty or failure in
liquid gas system. A
message is displayed
in the Driver
Information Centre.

Engine coolant temperature gauge

Instruments and controls 83

Displays the coolant temperature.
left area : engine operating

temperature not yet

reached
central
area
right area : temperature too high

: normal operating

temperature

Caution

If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.

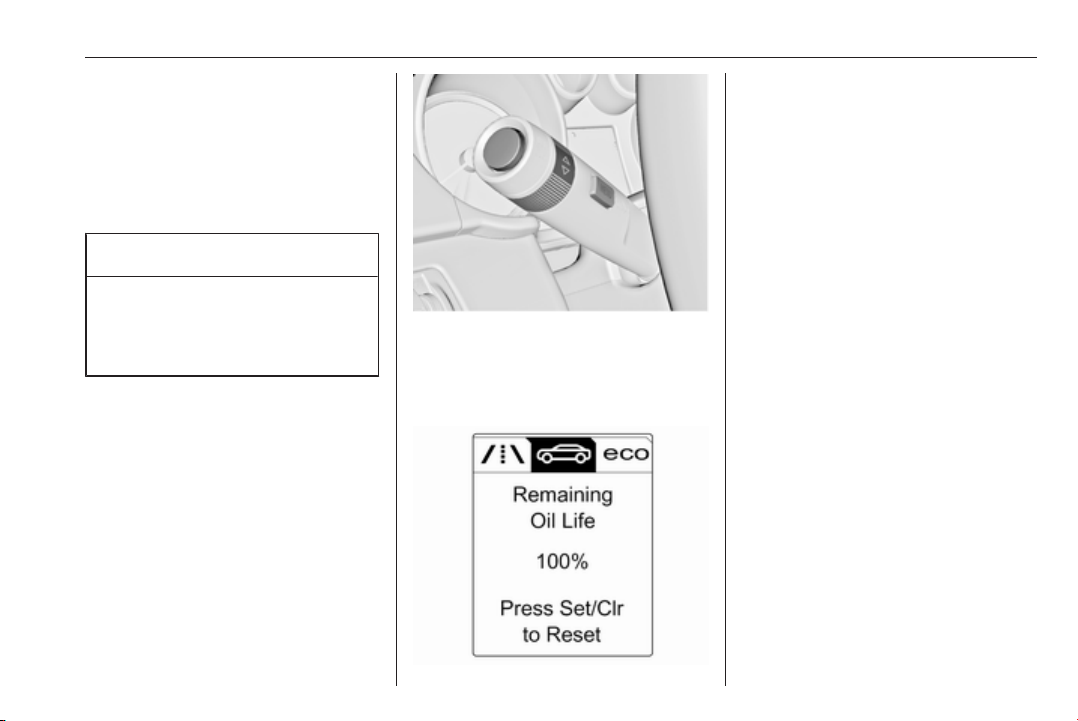

Service display

The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.

To display the remaining engine oil
life duration use turn signal lever
buttons:

Press MENU to select the Vehicle
Information Menu X.

Turn the adjuster wheel to select
Remaining Oil Life.

The remaining engine oil life duration
is displayed in percent in the Driver
Information Centre.

Reset

Press SET/CLR on turn signal lever
for several seconds to reset. The
remaining engine oil life duration
page must be active. Switch on
ignition, but not the engine.

The system must be reset every time
the engine oil is changed, to ensure
proper functionality. Seek the
assistance of a workshop.

Next service

When the system has calculated that
engine oil life has diminished, a
warning message appears in the
Driver Information Centre. Have
engine oil and filter changed by a
workshop within one week or
500 km (whichever occurs first).

Driver Information Centre 3 93.
Service information 3 254.

84 Instruments and controls

Control indicators

The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control
indicators may vary. When the
ignition is switched on, most control
indicators will illuminate briefly as a
functionality test.

The control indicator colours mean:
red : danger, important reminder

yellow : warning, information, fault
green : confirmation of activation
blue : confirmation of activation
white : confirmation of activation

Control indicators in the instrument cluster

Instruments and controls 85

86 Instruments and controls

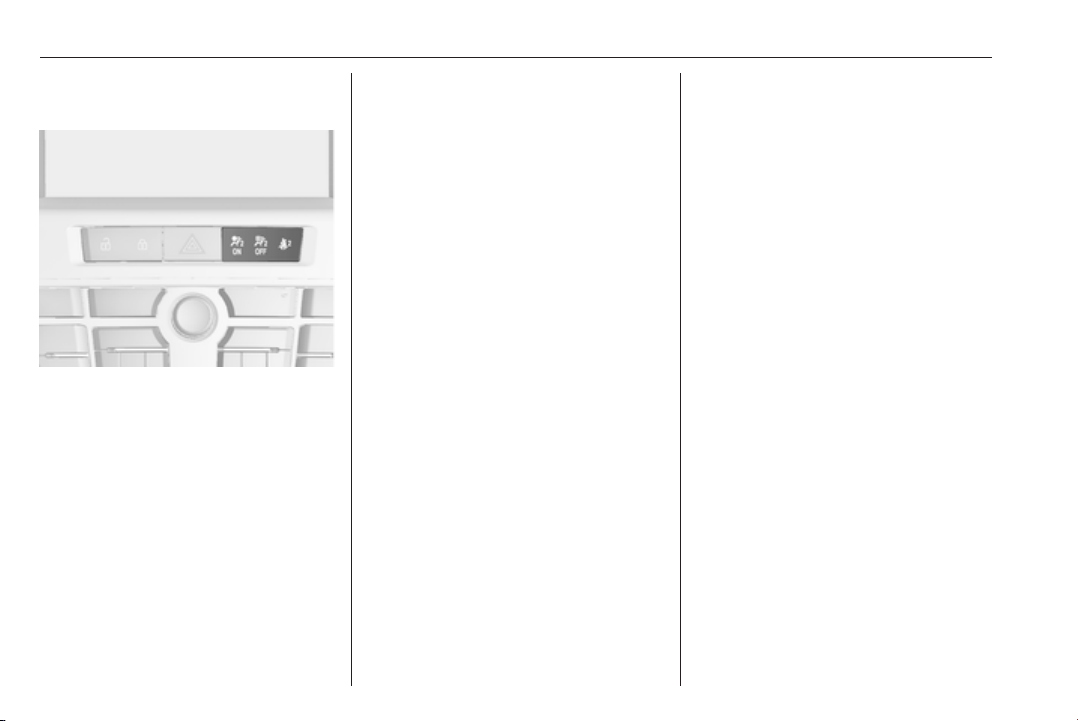

Control indicators in the centre console

Overview

Turn signal 3 87

O

Seat belt reminder 3 87

X

Airbag and belt tensioners

v

3 87

V

Airbag deactivation 3 87

Charging system 3 88

p

Malfunction indicator light

Z

3 88

g

Service vehicle soon 3 88

Brake and clutch system

R

3 88

-

Operate pedal 3 88

m

Electric parking brake 3 88

j

Electric parking brake fault
3 89

Antilock brake system (ABS)

u

3 89

[

Upshift 3 89

c

Power steering 3 89

)

Lane departure warning 3 89

Ultrasonic parking assist

r

3 90

n

Electronic Stability Control off
3 90

b

Electronic Stability Control and
Traction Control system 3 90

k

Traction Control system off
3 90

Preheating 3 90

!

%

Diesel particle filter 3 90

Tyre pressure monitoring

w

system 3 91

Engine oil pressure 3 91

I

i

Low fuel 3 91

d

Immobiliser 3 92

#

Reduced engine power 3 92

Exterior light 3 92

8

High beam 3 92

C

l

High beam assist 3 92

f

Adaptive forward lighting
3 92

Fog light 3 92

>

Rear fog light 3 92

r

Low washer fluid 3 92

G

m

Cruise control 3 92 / Adaptive
cruise control 3 92

A

Vehicle detected ahead 3 93

h

Door open 3 93

Instruments and controls 87

Turn signal

O illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn signal or the hazard warning
flashers are activated.

Rapid flashing: failure of a turn signal
light or associated fuse, failure of turn
signal light on trailer.

Bulb replacement 3 209, Fuses
3 223.

Turn signals 3 123.

Seat belt reminder

Seat belt reminder on front seats

X for driver's seat illuminates or
flashes red.

k for front passenger seat illuminates
or flashes red, when the seat is
occupied.

Illuminates
After the ignition has been switched
on until the seat belt has been
fastened.

Flashes
After having started the engine for a
maximum of 100 seconds until the
seat belt has been fastened.

Airbag and belt tensioners

v illuminates red.
When the ignition is switched on, the

control indicator illuminates for
approx. four seconds. If it does not
illuminate, does not go out after four
seconds or illuminates whilst driving,
there is a fault in the airbag system.
Seek the assistance of a workshop.
The airbags and belt pretensioners
may fail to trigger in the event of an
accident.

Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.

9 Warning

Have the cause of the fault
remedied immediately by a
workshop.

Belt pretensioners, airbag system
3 48, 3 51.

Airbag deactivation

V illuminates yellow.
Illuminates for approx. 60 seconds

after the ignition is switched on. The
front passenger airbag is activated.

* illuminates yellow.
The front passenger airbag is

deactivated 3 53.

9 Danger

Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.

Risk of fatal injury for an adult
person with deactivated front
passenger airbag.

88 Instruments and controls

Charging system

p illuminates red.
Illuminates when the ignition is

switched on and extinguishes shortly
after the engine starts.

Illuminates when the engine is running

Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.

Malfunction indicator light

Z illuminates or flashes yellow.
Illuminates when the ignition is

switched on and extinguishes shortly
after the engine starts.

Illuminates when the engine is running

Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of a
workshop immediately.

Flashes when the engine is running

Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.

Service vehicle soon

g illuminates yellow.
Additionally, a warning message or a

warning code is displayed.
The vehicle needs a service.
Seek the assistance of a workshop.
Vehicle messages 3 99.

Brake and clutch system

R illuminates red.
The brake and clutch fluid level is too

low 3 206.

9 Warning

Stop. Do not continue your
journey. Consult a workshop.

Illuminates after the ignition is
switched on if the manual parking
brake is applied 3 152.

Operate pedal

- illuminates or flashes yellow.

Illuminates

Brake pedal needs to be depressed
to release the electric parking brake
3 152.

Clutch pedal needs to be depressed
to start the engine in Autostop mode.
Stop-start system 3 142.

Flashes

Clutch pedal needs to be depressed
for a main start of the engine 3 19,
3 141.

On some versions the operate pedal
message is indicated in the Driver
Information Centre 3 99.

Electric parking brake

m illuminates or flashes red.

Instruments and controls 89

Illuminates

Electric parking brake is applied
3 152.

Flashes

Electric parking brake is not fully
applied or released. Switch on
ignition, depress brake pedal and
attempt to reset the system by first
releasing and then applying the
electric parking brake. If m remains
flashing, do not drive and seek the
assistance of a workshop.

Electric parking brake fault

j illuminates or flashes yellow.

Illuminates

Electric parking brake is operating
with reduced performance 3 152.

Flashes

Electric parking brake is in service
mode. Stop vehicle, apply and
release the electric parking brake to
reset.

Warning

9

Have the cause of the fault
remedied immediately by a
workshop.

Antilock brake system (ABS)

u illuminates yellow.
Illuminates for a few seconds after the

ignition is switched on. The system is
ready for operation when the control
indicator extinguishes.

If the control indicator does not go out
after a few seconds, or if it illuminates
while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.

Antilock brake system 3 151.

Upshift

[ illuminates green as a control
indicator, or is shown as a symbol R
with the number of a higher gear in the

Driver Information Centre, when
upshifting is recommended for fuel
saving reasons.

On some versions, gearshift
indication is popped-up as full page in
the Driver Information Centre.

EcoFlex drive assistant 3 103.

Power steering

c illuminates yellow.

Illuminates with power steering reduced

Power steering is reduced due to
overheating of the system. Control
indicator extinguishes when the
system has cooled down.

Stop-start system 3 142.

Illuminates with power steering disabled

Failure in the power steering system.
Consult a workshop.

Lane departure warning

) illuminates green or flashes yellow.

90 Instruments and controls

Illuminates green

System is switched on and ready to
operate.

Flashes yellow

System recognises an unintended
lane change.

Ultrasonic parking assist

r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or

covered by ice or snow
or
Interference due to external sources

of ultrasound. Once the source of
interference is removed, the system
will operate normally.

Have the cause of the fault in the
system remedied by a workshop.

Ultrasonic parking assist 3 175.

Electronic Stability Control off

n illuminates yellow.
The system is deactivated.

Electronic Stability Control and Traction Control system

b illuminates or flashes yellow.

Illuminates

A fault in the system is present.
Continued driving is possible. Driving
stability, however, may deteriorate
depending on road surface
conditions.

Have the cause of the fault remedied
by a workshop.

Flashes

The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.

Electronic Stability Control (ESC)

3 155, Traction Control system (TC)
3 154.

Traction Control system off

k illuminates yellow.
The system is deactivated.

Preheating

! illuminates yellow.
Preheating is activated. Only

activates when outside temperature
is low.

Diesel particle filter

% illuminates or flashes yellow.
The diesel particle filter requires

cleaning.
Continue driving until %

extinguishes. If possible, do not allow
engine speed to drop below
2000 rpm.

Illuminates

The diesel particle filter is full. Start
cleaning process as soon as
possible.

Instruments and controls 91

Flashes

The maximum filling level of the filter
is reached. Start cleaning process
immediately to avoid damage to the
engine.

Diesel particle filter 3 145, Stop-start
system 3 142.

Tyre pressure monitoring system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss. Stop immediately
and check tyre pressure.

Flashes

Fault in system or tyre without
pressure sensor mounted (e.g. spare
wheel). After 60-90 seconds the
control indicator illuminates
continuously. Consult a workshop.

Engine oil pressure

I illuminates red.

Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.

Illuminates when the engine is running

Caution

Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.

1. Depress clutch.

2. Select neutral gear, set selector
lever to N.

3. Move out of the flow of traffic as
quickly as possible without
impeding other vehicles.

4. Switch off ignition.

9 Warning

When the engine is off,
considerably more force is needed
to brake and steer. During an
Autostop the brake servo unit will
still be operational.

Do not remove key until vehicle is
stationary, otherwise the steering
wheel lock could engage
unexpectedly.

Check oil level before seeking the
assistance of a workshop 3 203.

Low fuel

i illuminates or flashes yellow.

Illuminates

Level in fuel tank is too low.

Flashes

Fuel used up. Refuel immediately.
Never run the tank dry.

Catalytic converter 3 146.
Bleeding the diesel fuel system

3 208.

92 Instruments and controls

Immobiliser

d flashes yellow.
Fault in the immobiliser system. The

engine cannot be started.

Reduced engine power

# illuminates yellow.
The engine power is limited. Consult

a workshop.

Exterior light

8 illuminates green.
The exterior lights are on 3 116.

High beam

C illuminates blue.
Illuminates when high beam is on or

during headlight flash 3 118, or when
high beam is on with high beam assist
or intelligent light range 3 120.

High beam assist

l illuminates green.

The high beam assist or intelligent
light range is activated 3 118,
3 120.

Adaptive forward lighting

f illuminates or flashes yellow.

Illuminates

Fault in system.
Seek the assistance of a workshop.

Flashes

System switched to symmetrical low
beam.

Control indicator f flashes for approx.
four seconds after the ignition is
switched on as a reminder that the
system has been activated 3 119.

Automatic light control 3 117.

Fog light

> illuminates green.
The front fog lights are on 3 124.

Rear fog light

r illuminates yellow.
The rear fog light is on 3 124.

Low washer fluid

G illuminates yellow.
The washer fluid level is low.
Washer fluid 3 205.

Cruise control

m illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Cruise control is active.
Cruise control 3 159.

Adaptive cruise control

m illuminates white or green.

Illuminates white

The system is on.

Instruments and controls 93

Illuminates green

Adaptive cruise control is active.
Adaptive cruise control 3 162.

Vehicle detected ahead

A illuminates green.
A vehicle ahead is detected in the

same lane.
Adaptive cruise control 3 162,

Forward collision alert 3 169.

Door open

h illuminates red.
A door or the tailgate is open.

Information displays

Driver Information Centre

The Driver Information Centre is
located in the instrument cluster
between speedometer and
tachometer. It is available as
Midlevel-Display or Uplevel-Combi­Display.

Midlevel-Display indicates:

● overall odometer

● trip odometer

● some control indicators

● vehicle information

● trip/fuel information

● vehicle messages, displayed as
code numbers 3 99.

In the Uplevel-Combi-Display, menu
pages can be selected by pressing
MENU. Menu symbols are indicated
in the top line of the display:

● X Vehicle Information Menu

● W Trip/Fuel Information Menu

● s ECO Information Menu

● C Performance Menu

94 Instruments and controls

Some of the displayed functions differ
when the vehicle is being driven or at
a standstill. Some functions are only
available when the vehicle is being
driven.

Vehicle personalisation 3 105.
Memorised settings 3 24.

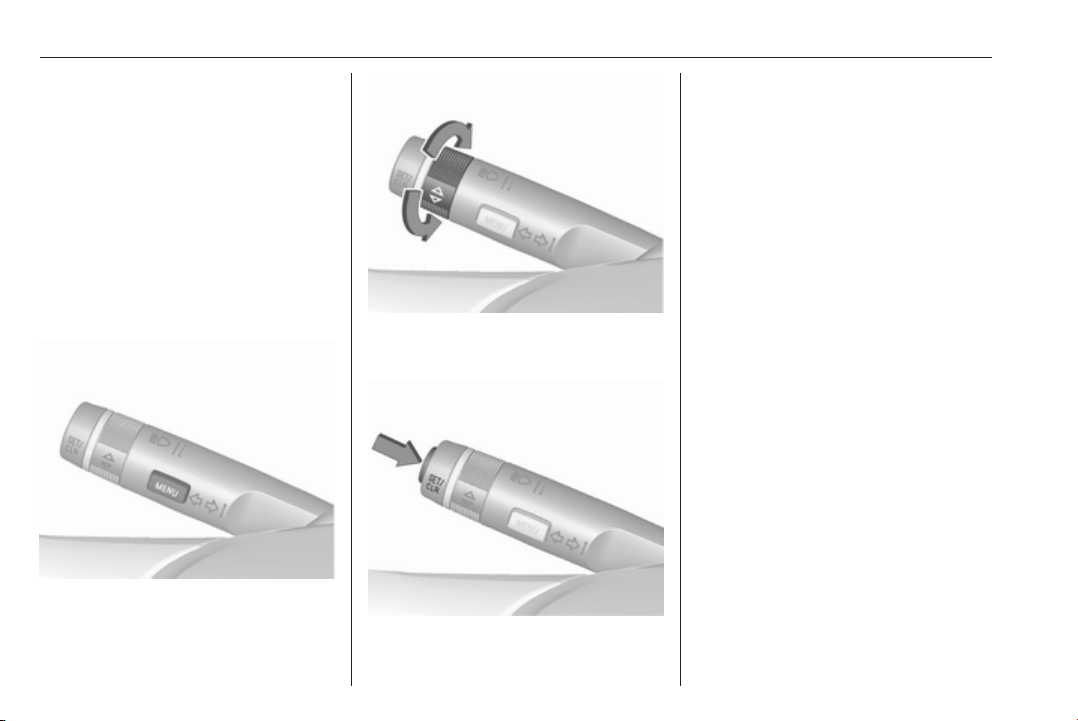

Selecting menus and functions

The menus and functions can be
selected via the buttons on the turn
signal lever.

Press MENU to switch between the
menus or to return from a submenu to
the next higher menu level.

Turn the adjuster wheel to highlight a
menu option or to set a numeric value.

Press SET/CLR to select a function or
confirm a message.

Vehicle Information Menu

Press MENU to select the Vehicle
Information Menu or, on Uplevel­Combi-Display, select X.

Turn the adjuster wheel to select a
submenu. Press SET/CLR to confirm.

Follow the instructions given in the
submenus.

Possible submenus can include,
depending on the version:

● Unit: Displayed units can be
changed.

● Tyre Pressure: Checks tyre
pressure of all wheels during
driving 3 232.

● Tyre Load: Select tyre pressure
category according to the current
actual tyre inflation pressure
3 232.

Instruments and controls 95

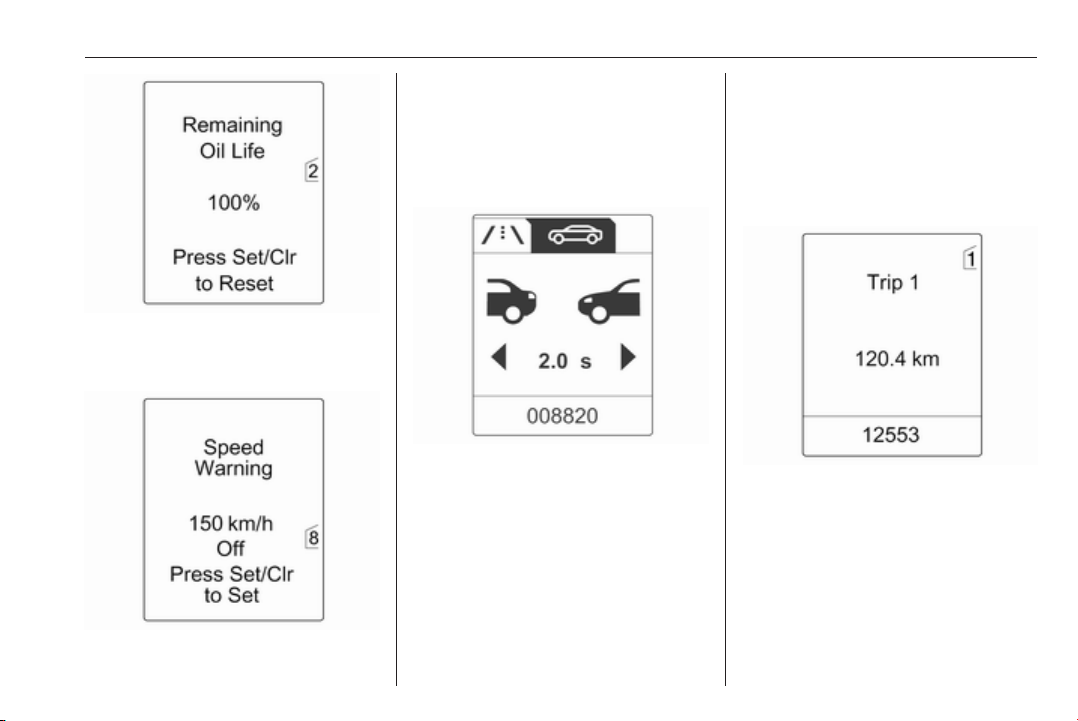

● Remaining Oil Life: Indicates
when to change the engine oil
and filter 3 83.

● Speed Warning: If exceeding the
preset speed, a warning chime
will be activated.

● Traffic Sign Assistant: Displays
detected traffic signs for the
current route section. 3 183

● Following Dist.: Displays the
distance to a moving vehicle
ahead 3 172.

Selection and indication can be
different between Midlevel-Display
and Uplevel-Combi-Display.

Trip/Fuel Information Menu

Press MENU to select the Trip/Fuel
Information Menu, or select W on
Uplevel-Combi-Display.

Turn the adjuster wheel to select a
submenu. Press SET/CLR to confirm.

● trip odometer 1

● trip odometer 2

● digital speed

Trip odometer 2 and digital speed are
only available on vehicles with
Uplevel-Combi-Display.

Reset trip odometer by pressing
SET/CLR on the turn signal lever for
a few seconds or by pressing the

96 Instruments and controls

reset knob between speedometer
and Driver Information Centre with
the ignition on.

On vehicles with trip computer, more
submenus are available.

Selection and indication can be
different between Midlevel-Display
and Uplevel-Combi-Display.

Trip/Fuel Information Menu, Trip
Computer 3 103.

ECO Information Menu

Press MENU to select s in the top
line of the Uplevel-Combi-Display.

Turn the adjuster wheel to select a
submenu. Press SET/CLR to confirm.

Submenus are:

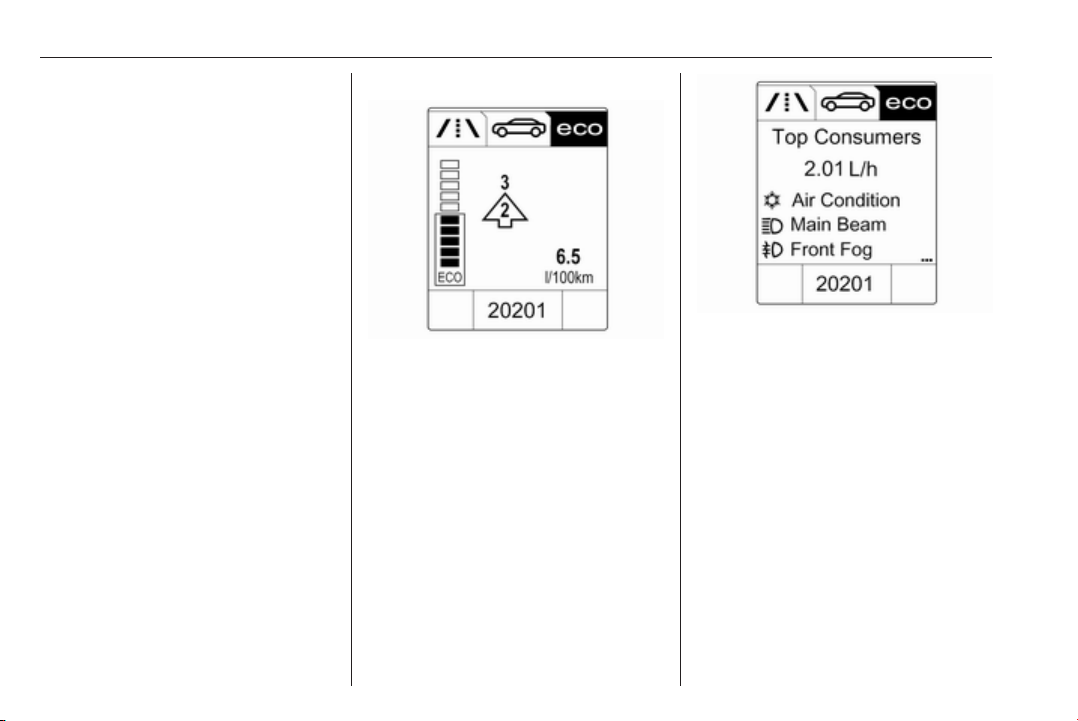

● Shift indication: Current gear is
indicated inside an arrow. The
figure above recommends
upshifting for fuel saving
reasons.

Eco index display: The current
fuel consumption is indicated on
a segment display. For
economical driving, adapt your
driving characteristic to keep the
filled segments within the Eco
area. The more segments are
filled, the higher the fuel
consumption. Simultaneously
the current consumption value is
indicated.

● Top Consumers: List of top
comfort consumers currently
switched on is displayed in
descending order. Fuel saving
potential is indicated. A switched
off consumer disappears from
the list and the consumption
value will be updated.

During sporadic driving
conditions, the engine will
activate the heated rear window
automatically to increase the
engine load. In this event, the
heated rear window is indicated
as one of the top consumers,
without activation by the driver.

Instruments and controls 97

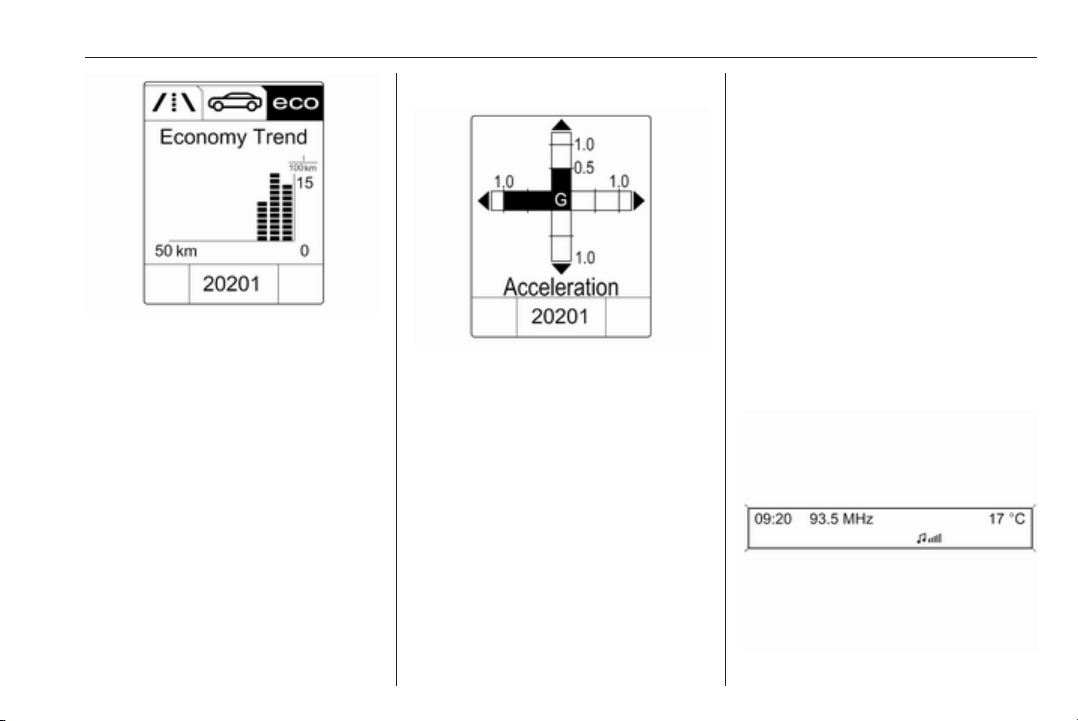

● Economy Trend: Displays the
average consumption
development over a distance of
50 km. Filled segments display
the consumption in 5 km steps
and shows the effect of
topography or driving behaviour
on fuel consumption.

Performance Menu

Press MENU to select the
Performance Menu, or select C on
Uplevel-Combi-Display.

Turn the adjuster wheel to select a
submenu. Press SET/CLR to confirm.

Submenus are:

● Acceleration: Display of current
acceleration in all directions.

● Lap Timer: Display of lap times,
top speed, average speed and
average time. Follow the
instructions given in the
submenu.

● Coolant Temp.: Display of
coolant temperature.

● Battery Volt.: Display of vehicle
battery voltage.

Graphic-Info-Display, Colour-Info-Display

Depending on the vehicle
configuration the vehicle has a
Graphic-Info-Display or Colour-Info­Display. The Info-Display is located in
the instrument panel above the
Infotainment system.

Graphic-Info-Display

98 Instruments and controls

Depending on the Infotainment
system, the Graphic-Info-Display is
available in two versions.

Graphic-Info-Display indicates:

● time 3 78

● outside temperature 3 77

● date 3 78

● Infotainment system, see
description in the Infotainment
manual

● settings for vehicle
personalisation 3 105

Colour-Info-Display

The Colour-Info-Display indicates in
colour:

● time 3 78

● outside temperature 3 77

● date 3 78

● Infotainment system, see
description in the Infotainment
manual

● navigation, see description in the
Infotainment manual

● system settings

● vehicle messages 3 99

● settings for vehicle
personalisation 3 105

The type of information and how it is
displayed depends on the equipment
of the vehicle and the settings made.

Selecting menus and settings

Menus and settings are accessed via
the display.

Selections are made via:

● menus

● function buttons and
multifunction knob of the
Infotainment system
