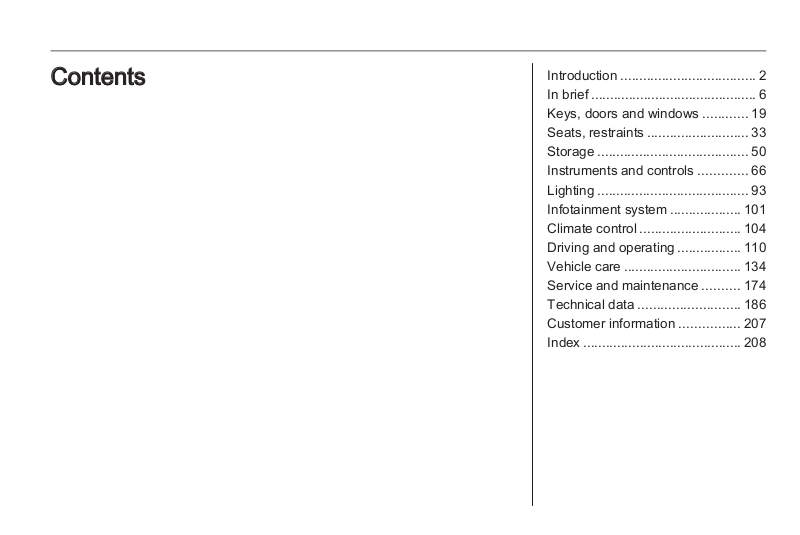

Contents

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 19

Seats, restraints ........................... 33

Storage ........................................ 50

Instruments and controls ............. 66

Lighting ........................................ 93

Infotainment system ................... 101

Climate control ........................... 104

Driving and operating ................. 110

Vehicle care ............................... 134

Service and maintenance .......... 174

Technical data ........................... 186

Customer information ................ 207

Index .......................................... 208

2 Introduction

Introduction

Introduction 3

Vehicle specific data

Please enter your vehicle's data on the previous page to keep it easily accessible. This information is available under the sections "Service and Maintenance" and "Technical data" as well as on the identification plate.

Introduction

Your vehicle is a designed combination of advanced technology, safety, environmental friendliness and economy.

This Owner's Manual provides you with all the necessary information to enable you to drive your vehicle safely and efficiently.

Make sure your passengers are aware of the possible risk of accident and injury which may result from improper use of the vehicle.

You must always comply with the specific laws and regulations of the country that you are in. These laws may differ from the information in this Owner's Manual.

When this Owner's Manual refers to a workshop visit, we recommend your Opel Service Partner.

All Opel Service Partners provide first-class service at reasonable prices. Experienced mechanics trained by Opel work according to specific Opel instructions.

The customer literature pack should always be kept ready to hand in the vehicle.

Using this manual

■ This manual describes all options and features available for this model. Certain descriptions, including those for display and menu functions, may not apply to your vehicle due to model variant, country specifications, special equipment or accessories.

■ The "In brief" section will give you an initial overview.

■ The table of contents at the beginning of this manual and within each chapter shows where the information is located.

■ The index will enable you to search for specific information.

■ This Owner's Manual depicts lefthand drive vehicles. Operation is similar for right-hand drive vehicles.

■ The Owner's Manual uses the factory engine designations. The corresponding sales designations can be found in the chapter "Technical data".

■ Directional data, e.g. left or right, or front or back, always relate to the direction of travel.

■ The vehicle display screens may not support your specific language.

■ In this manual all display messages and interior labellings are written in bold type.

4 Introduction

Danger, Warnings and Cautions

9 Danger

Text marked 9 Danger provides information on risk of fatal injury. Disregarding this information may endanger life.

9 Warning

Text marked 9 Warning provides information on risk of accident or injury. Disregarding this information may lead to injury.

Caution

Text marked Caution provides information on possible damage to the vehicle. Disregarding this information may lead to vehicle damage.

Symbols

Page references are indicated with

3. 3 means "see page". We wish you many hours of

pleasurable driving. Adam Opel GmbH

Introduction 5

6 In brief

In brief

Initial drive information

Vehicle unlocking

Turn the key in the driver's door lock to the front or press button q to unlock the doors and load compartment. Open the doors by pulling the handles. To open the tailgate, pull the button under the tailgate moulding.

Radio remote control 3 19, Central locking system 3 21, Load compartment 3 24.

Seat adjustment

Seat positioning

Pull handle, slide seat, release handle.

Seat adjustment 3 35, Seat position 3 34.

In brief 7

Seat backrests

Turn handwheel. Do not lean on seat when adjusting.

Seat adjustment 3 35, Seat position 3 34, Folding front passenger seat backrest 3 36.

Seat height

Lever pumping motion up = higher

down = lower

Seats 3 35, Seat position 3 34.

Head restraint adjustment

Press release button, adjust height, engage.

Head restraints 3 33.

8 In brief

Seat belt

Pull out the seat belt and engage in belt buckle. The seat belt must not be twisted and must fit close against the body. The backrest must not be tilted back too far (maximum approx. 25 °).

To release belt, press red button on belt buckle.

Seat belts 3 37, Airbag system 3 39, Seat position 3 34.

Mirror adjustment

Interior mirror

Swivel the lever on the underside to reduce dazzle.

Interior mirror 3 28, Automatic antidazzle interior mirror 3 29.

Exterior mirrors

Setting with four-way switch in version with manual window operation

First select the relevant exterior mirror then use the control to adjust.

In brief 9

Setting with four-way switch in version with electronic window operation

First select the relevant exterior mirror then use the control to adjust.

Electric adjustment 3 26, Convex exterior mirrors 3 26, Folding exterior mirrors 3 27, Heated exterior mirrors 3 28.

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked. Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Airbag system 3 39, Ignition positions 3 111.

10 In brief

In brief 11

Instrument panel overview

1 Side air vents ...................... 108

2 Light switch .......................... 93

Instrument illumination ......... 97

Rear fog light ......................... 97

Front fog lights ..................... 96

Headlight range

adjustment ........................... 94

3 Turn and lane-change

signals, headlight flash,

low beam and high beam ..... 96

Exit lighting ............................ 99

Parking lights ........................ 97

Cruise control ....................... 80

4 Steering wheel controls ......... 66

5 Horn ...................................... 67

Driver airbag ......................... 40

6 Instruments .......................... 72

7 Windscreen wiper,

windscreen washer system ... 68

Trip computer ........................ 86

8 Centre air vents ................... 108

9 Info-Display ........................... 81

Trip computer ........................ 86

Electronic climate control

system ................................. 106

10 Left heated seat .................... 36

Heated steering wheel .......... 67

Tyre deflation detection

system ................................. 159

Parking assist ...................... 125

Hazard warning flashers ....... 96

Central locking system .......... 21

Electronic stability program . 123

Airbag deactivation ............... 43

Right heated seat .................. 36

11 Front passenger airbag ......... 40

12 Glovebox .............................. 50

13 Infotainment system ............ 101

14 Climate control system ........ 104

15 Cigarette lighter ..................... 71

Power outlet .......................... 71

16 Ashtray .................................. 71

17 Ignition switch with

steering wheel lock ............. 111

18 Accelerator pedal ................ 110

19 Brake pedal ......................... 122

20 Clutch pedal ........................ 110

21 Steering wheel adjustment .... 66

22 Bonnet release lever ........... 135

12 In brief

In brief 13

Exterior lighting

Turn light switch

= Off

= Side lights

= Headlights

Press light switch

= Front fog lights

= Rear fog lights

Lighting 3 93.

Headlight flash, high beam and low beam

headlight flash = pull lever high beam = push lever low beam = push or pull lever

High beam 3 94, Headlight flash

3 94, Automatic light control 3 93.

Turn and lane-change signals

right = lever up left = lever down

Turn and lane-change signals 3 96, Parking lights 3 97.

14 In brief

Hazard warning flashers

Operated with the ¨ button. Hazard warning flashers 3 96.

Horn

Press j.

Washer and wiper systems

Windscreen wiper

= fast

= slow

= timed interval wipe or

automatic wiping with rain sensor

= off

For a single wipe when the windscreen wiper is off, press the lever down.

Windscreen wiper 3 68, Wiper blade replacement 3 139.

In brief 15

Windscreen and headlight washer systems

Pull lever. Windscreen and headlight washer

system 3 68, Washer fluid 3 138.

Rear window wiper and washer system

Wiper on = push lever Wiper off = push lever again Wash = push lever and hold

Rear window wiper and washer system 3 69, Wiper blade replacement 3 139, Washer fluid 3 138.

Climate control

Heated rear window, heated exterior mirrors

Heating is operated by pressing the Ü button.

Heated rear window 3 30.

16 In brief

Demisting and defrosting the windows

Air distribution to l. Set temperature control to warmest

level. Set fan speed to highest level. Cooling n on. Press button V. Climate control system 3 104.

Transmission

Manual transmission

Reverse: with the vehicle stationary, wait 3 seconds after depressing clutch pedal and then pull up the button on the selector lever and engage the gear.

If the gear does not engage, set the lever to neutral, release the clutch pedal and depress again; then repeat gear selection.

Manual transmission 3 117.

Manual transmission automated

N = neutral position

= drive position

+ = higher gear

- = lower gear A = switch between automatic and

manual mode

R = reverse gear (with selector

lever lock)

Manual transmission automated 3 118.

In brief 17

Automatic transmission

P = park position R = reverse gear N = neutral position D = drive position

The selector lever can only be moved out of P or N when the ignition is on and the foot brake is depressed (Selector lever lock). To engage P or R, push button on selector lever.

The automatic transmission is available in two versions 3 114.

Starting off

Check before starting off

■ Tyre pressure and condition

3 159, 3 200.

■ Engine oil level and fluid levels

3 136.

■ All windows, mirrors, exterior

lighting and number plates are free from dirt, snow and ice and are operational.

■ Proper position of mirrors, seats,

and seat belts 3 26, 3 34, 3 38.

■ Brake function at low speed,

particularly if the brakes are wet.

Starting the engine

Turn key to position 1. Move the steering wheel slightly to release the steering wheel lock. Operate clutch and brake, automatic transmission in P or N, do not accelerate; for diesel engines, turn the key to position 2 for preheating and wait until control indicator ! goes out; turn key to 3 and release key.

Starting the engine 3 111.

18 In brief

Parking

■ Always apply the parking brake without pressing the release button. Apply as firmly as possible on a downhill slope or uphill slope. Depress the foot brake at the same time to reduce operating force.

■ Switch off the engine. Turn the ignition key to 0 and remove it. Turn the steering wheel until the steering wheel lock is felt to engage.

For vehicles with automatic transmission, the key can only be removed when the selector lever is in the P position.

■ If the vehicle is on a level surface or uphill slope, engage first gear or set the selector lever to P before switching off the ignition. On an uphill slope, turn the front wheels away from the kerb.

If the vehicle is on a downhill slope, engage reverse gear or set the selector lever to P before switching off the ignition. Turn the front wheels towards the kerb.

■ Lock the vehicle with button p on

the radio remote control. Activate the anti-theft alarm system

3 25.

■ Do not park the vehicle on an easily ignitable surface. The high temperature of the exhaust system could ignite the surface.

■ Close windows and sunroof.

■ The engine cooling fans may run after the engine has been switched off 3 135.

■ After running at high engine speeds or with high engine loads, operate the engine briefly at a low load or run in neutral for approx. 30 seconds, before switching off in order to protect the turbocharger.

Keys, locks 3 19, Laying the vehicle up for a long period

of time 3 134.

Keys, doors and windows 19

Keys, doors and windows

Keys, locks ................................... 19

Doors ........................................... 24

Vehicle security ............................ 25

Exterior mirrors ............................ 26

Interior mirrors ............................. 28

Windows ...................................... 29

Roof ............................................. 31

Keys, locks

Keys

Replacement keys

The key number is specified in the Car Pass or on a detachable tag.

The key number must be quoted when ordering replacement keys as it is a component of the immobiliser system.

Locks 3 171

Key with foldaway key section

Press button to extend. To fold the key, first press the button.

Car Pass

The Car Pass contains security related vehicle data and should therefore be kept in a safe place.

When the car is taken to a workshop, this vehicle data is needed in order to perform certain operations.

Radio remote control

Used to operate:

■ Central locking system,

■ Anti-theft locking system,

■ Anti-theft alarm system,

■ Power windows.

20 Keys, doors and windows

The radio remote control has an approximate range of up to 5 metres. This range can be affected by outside influences. The hazard warning flashers confirm operation.

Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.

Fault

If the central locking system cannot be operated with the radio remote control, it may be due to the following:

■ Range exceeded,

■ Battery voltage too low,

■ Frequent, repeated operation of the radio remote control while not in range, which will require resynchronisation,

■ Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time,

■ Interference from higher-power radio waves from other sources.

Unlocking 3 21.

Radio remote control battery replacement

Replace the battery as soon as the range is noticeably diminished.

Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.

Key with foldaway key section

Extend the key and open the unit. Replace the battery (battery type CR

2032), paying attention to the installation position. Close the unit and synchronise.

Key with fixed key section Have the battery replaced by

a workshop.

Radio remote control synchronisation

After replacing the battery, unlock the door with the key in the driver's door lock. The radio remote control will be synchronised when you switch on the ignition.

Memorised settings

Whenever the vehicle is locked, the following settings are automatically remembered by the key being used:

■ Electronic climate control,

■ Info-Display,

■ Infotainment system,

■ Instrument panel illumination. The saved settings are automatically

used next time that key is used for unlocking.

Keys, doors and windows 21

Central locking system

Unlocks and locks doors, load compartment and fuel filler flap.

A pull on an interior door handle unlocks the entire vehicle and opens the door.

Note In the event of an accident of a certain severity, the vehicle unlocks automatically.

Note A short time after unlocking with the remote control the doors are locked automatically if no door has been opened.

Unlocking

Central locking system with key activation

Turn the key in the driver's door lock to the front.

Central locking system with radio remote control

Press button q. Two settings are possible:

■ To unlock only the driver's door,

press button q once, to unlock the entire vehicle, press button q twice.

■ To unlock the entire vehicle, press

button q once.

Settings can be changed in the Driver Information Center.

Vehicle personalisation 3 90.

22 Keys, doors and windows

Locking

Close doors, load compartment and fuel filler flap. If the driver's door is not closed properly, the central locking system will not work.

Central locking system with key activation

Turn the key in the driver's door lock rearwards.

Central locking system with radio remote control

Press button p.

Central locking button

Press button m: the doors are locked or unlocked.

The LED in the button m illuminates for approx. 2 minutes after locking with the radio remote control.

If the doors are locked from the inside whilst driving, the LED remains lit.

If the key is in the ignition lock, locking is only possible if all doors are closed.

Keys, doors and windows 23

Fault in radio remote control

Unlocking

Turn the key in the driver's door lock as far as it will go. The entire vehicle is unlocked when the driver's door is opened. To open the other doors, switch on the ignition and press the central locking button.

Locking Close the driver's door, open the

passenger door, press central locking button m. The vehicle is locked. Close the passenger door.

Fault in central locking system

Unlocking Turn the key in the driver's door lock

as far as it will go. The other doors can be opened by pulling the interior handle (not possible if the anti-theft locking system is active). The load compartment and fuel filler flap remain locked. To deactivate the antitheft locking system, switch on the ignition 3 25.

Locking

Insert the key into the opening above the lock on the inside of the door and operate the lock by lifting until it clicks.

Then close the door. The procedure must be carried out for each door. The driver's door can also be locked from the outside with the key. The fuel filler flap and tailgate cannot be locked.

Automatic locking

This security feature can be configured to automatically lock all doors, load compartment and fuel filler flap as soon as the vehicle is driven. Vehicle personalisation 3 90.

Child locks

24 Keys, doors and windows

9 Warning

Use the child locks whenever children are occupying the rear seats.

Using a key or suitable screwdriver, turn button on rear door lock to the horizontal position: door cannot be opened from inside.

Doors

Load compartment

Opening

Pull the button underneath the moulding.

9 Warning

Do not drive with the tailgate open or ajar, e.g. when transporting bulky objects, since toxic exhaust gases could enter the vehicle.

Note The installation of certain heavy accessories onto the tailgate may affect its ability to remain open.

Closing

Use the interior handle. Do not press the button under the

moulding while closing as this will unlock it again.

Keys, doors and windows 25

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are people in the vehicle! The doors cannot be unlocked from the inside.

The system deadlocks all the doors. All doors must be closed or the system cannot be activated.

If the ignition was on, the driver's door must be opened and closed once so that the vehicle can be secured.

Unlocking the vehicle disables the mechanical anti-theft locking system. This is not possible with the central locking button.

Activating with the remote control

Press p again at the latest 10 seconds after locking.

Anti-theft alarm system

The anti-theft alarm system incorporates and is operated in conjunction with the anti-theft locking system.

It monitors:

■ Doors, load compartment, bonnet,

■ Ignition. Unlocking the vehicle deactivates

both systems simultaneously.

Light-emitting diode (LED)

During the first 10 seconds of antitheft alarm system activation:

LED illuminates LED flashes quickly

After the first 10 seconds of anti-theft alarm system activation:

LED flashes slowly

= Test, ignition delay,

= Door, load

compartment or bonnet open, or system fault.

= System active.

26 Keys, doors and windows

Seek the assistance of a workshop in the event of faults.

Alarm

When triggered, the alarm gives off an acoustic signal (horn) and a visual signal (hazard warning flashers). The number and duration of which are stipulated by legislation.

The alarm siren can be silenced by pressing any button of the radio remote control or by switching on the ignition. The anti-theft alarm system is deactivated at the same time.

Immobiliser

The system checks whether the vehicle is allowed to start with the key being used. If the transponder in the key is recognised, the engine can be started.

The electronic immobiliser activates itself automatically after the key has been removed from the ignition switch.

If the control indicator A flashes when the ignition is on, there is a fault in the system; the engine cannot be started. Switch off the ignition and then repeat the start attempt.

If the control indicator continues flashing, attempt to start the engine using the spare key and seek the assistance of a workshop.

If control indicator illuminates after the engine has started, there is a fault in the engine electronics or transmission electronics 3 77, 3 116, 3 121, or there is water in the diesel fuel filter 3 86.

Note The immobiliser does not lock the doors. You should always lock the vehicle after leaving it and switch on the anti-theft alarm system 3 21, 3 25.

Exterior mirrors

Convex shape

The convex exterior mirror reduces blind spots. The shape of the mirror makes objects appear smaller, which will affect the abilty to estimate distances.

Electric adjustment

Setting with four-way switch in version with manual window operation

Keys, doors and windows 27

First select the relevant exterior mirror then use the control to adjust.

Setting with four-way switch in version with electronic window operation

First select the relevant exterior mirror then use the control to adjust.

Folding

For pedestrian safety, the exterior mirrors will swing out of their normal mounting position if they are struck with sufficient force. Reposition the mirror by applying slight pressure to the mirror housing.

Corsa OPC: For pedestrians safety, the exterior mirrors of the Corsa OPC are released from the holder if they are bumped. Fit mirror housing to holder with latching lugs and engage by striking gently.

28 Keys, doors and windows

Manual

The exterior mirrors can be folded in by pressing gently on the outer edge of the housing.

Heated

Operated by pressing the Ü button. Heating works with the engine

running. It is switched off automatically after a short time.

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on the underside of the mirror housing.

Keys, doors and windows 29

Automatic anti-dazzle

Dazzle from following vehicles at night is automatically reduced.

Windows

Manual windows

The door windows can be opened or closed with the window winders.

Power windows

9 Warning

Take care when operating the power windows. Risk of injury, particularly to children.

Keep a close watch on the windows when closing them. Ensure that nothing becomes trapped in them as they move.

Power windows can be operated:

■ with the ignition on,

■ within 5 minutes of switching the ignition off,

■ within 5 minutes of turning the ignition key to position 1.

After switching off the ignition, the window operation is disabled, when the driver's door is opened, then closed and locked.

30 Keys, doors and windows

Operate the control to open or close the window.

For vehicles with automatic feature, pull or press the switch again to stop window movement.

Safety function

If the window glass encounters resistance during automatic closing, it is immediately stopped and opened again.

In the event of closing difficulties due to frost or the like, operate the switch several times to close the window in stages.

Operating windows from outside

Depending on the equipment level, the windows can be operated remotely from outside the vehicle.

Press q or p until all windows have opened or closed.

Overload

If the windows are repeatedly operated at short intervals, the window operation is disabled for some time.

Fault

If the windows cannot be opened or closed automatically, activate the window electronics as follows:

1. Close doors.

2. Switch on ignition.

3. Close the window completely and operate the button for 5 more seconds.

4. Open the window completely and operate the button for 1 more second.

5. Repeat this for each window.

Heated rear window

Keys, doors and windows 31

Operated by pressing the Ü button. Heating functions with the engine

running and is switched off automatically after a short time.

Depending on the engine type, the heated rear window comes on automatically when the diesel particle filter is being cleaned.

Sun visors

The sun visors can be folded down or swivelled to the side to prevent dazzling.

If the sun visors have integral mirrors, the mirror covers should be closed when driving.

Roof

Sunroof

9 Warning

Take care when operating the sunroof. Risk of injury, particularly to children.

Keep a close watch on the movable parts when operating them. Ensure that nothing becomes trapped in them as they move.

Sunroof can be operated with ignition on.

Operated via a rocker switch in the roof console.

Press the button briefly for activation in steps. Hold down the button for longer for automatic opening.

Raise

With the sunroof closed, press ü. The sunroof is raised at the rear.

Open

Press ü again with the sunroof in the raised position. The sunroof opens automatically until it reaches its end position.

To close: press d.

32 Keys, doors and windows

Caution

When using a roof rack, check the free movement of the sunroof in order to avoid damage. It is only permitted to raise the sunroof.

Note If the top of the roof is wet, tilt sunroof, allow water to run off and then open sunroof.

Do not affix any stickers to sunroof.

Close

Hold down d until the sunroof is completely closed.

Sunblind

The sunblind is manually operated. Close or open the sunblind by sliding.

When the sunroof is open, the sunblind is always open.

Overload

If the system is overloaded, the power supply is automatically cut off for a short time. The system is protected by fuses in the fuse box 3 152

Initialising the sun roof

If the sunroof cannot be operated, activate the electronics as follows: with ignition on, close the sunroof and hold d depressed for at least 10 seconds.

Seek the assistance of a workshop to have the cause of the fault remedied.

Seats, restraints 33

Seats, restraints

Head restraints ............................ 33

Front seats ................................... 34

Seat belts ..................................... 37

Airbag system .............................. 39

Child restraints ............................. 44

Head restraints

Position

9 Warning

Only drive with the head restraint set to the proper position.

The middle of the head restraint should be at eye level. If this is not possible for extremely tall people, set to highest position, and set to lowest position for small people.

Adjustment

Head restraints on front seats

Press the button, adjust height and engage.

Active head restraints In the event of a rear-end impact, the

active head restraints tilt slightly forwards. The head is more effectively supported so the risk of whiplash injury is reduced.

Note Approved accessories may only be attached to the front passenger seat head restraint if the seat is not in use.

34 Seats, restraints

Head restraints on rear seats

The height of the head restraints can be set in two positions. To set in the first position, pull the head restraint upwards, in the second position press the spring marked in the illustration and push the head restraint right up to the top. To adjust downwards, press the spring marked in the illustration and push the head restraint downwards.

Front seats

Seat position

9 Warning

Only drive with the seat correctly adjusted.

Sit with buttocks as far back against

■ the backrest as possible. Adjust the distance between the seat and the pedals so that legs are slightly angled when pressing the pedals. Slide the front passenger seat as far back as possible.

■ Sit with shoulders as far back against the backrest as possible. Set the backrest to an angle so that it is possible to reach the steering wheel with arms slightly bent. Maintain contact between shoulders and the backrest when turning the steering wheel. Do not tilt the backrest too far back. We recommend a maximum angle of approx. 25°.

■ Adjust the steering wheel 3 66.

■ Set the seat high enough to have a clear field of vision on all sides and on all display instruments. There should be at least one hand of clearance between head and the roof frame. Thighs should rest lightly on the seat without pressing into it.

■ Adjust the head restraint 3 33.

■ Adjust the height of the seat belt 3 38.

Seats, restraints 35

Seat adjustment

9 Danger

Do not sit nearer than 25 cm to the steering wheel, to permit safe airbag deployment.

9 Warning

Never adjust seats while driving as they could move uncontrollably.

Seat positioning

Pull handle, slide seat, release handle.

Seat backrests

Turn handwheel. Do not lean on backrest when adjusting.

Seat height

Lever pumping motion up = higher

down = lower

36 Seats, restraints

Seat folding

Lift release lever and tilt backrest forwards. Lower release lever and backrest engages in lowered position. Slide seat forwards.

To push the seat back to upright, it engages in its original position. Lift the release lever, move the backrest back to upright, lower lever, backrest engages.

Folding the backrest forwards is possible only when the backrest is in an upright position.

Do not operate handwheel to adjust backrest with backrest tilted forward.

Corsa OPC

Remove seat belt from belt mount on backrest.

Pull release lever on rear of backrest and tilt backrest forwards. Release lever and backrest engages in the lowered position. Slide seat forwards.

To move the backrest upright, slide seat back and it will engage in its original position. Pull release lever, move backrest upright, release lever, backrest engages.

Folding the backrest forwards is possible only when the backrest is in an upright position.

Do not operate handwheel to adjust backrest with backrest tilted forward.

Heating

Activate heating by pressing ß button for the seat with the ignition on.

LED in button ß on: relevant front seat heating on.

Seat heating is operational when the engine is running.

Seats, restraints 37

Seat belts

The belts are locked during heavy acceleration or deceleration of the vehicle for the safety of the occupants.

9 Warning

Fasten seat belt before each trip. In the event of an accident, people

not wearing seat belts endanger their fellow occupants and themselves.

Seat belts are designed to be used by only one person at a time. They are not suitable for people younger than 12 years of age or smaller than 150 cm.

Periodically check all parts of the belt system for damage and proper functionality.

Have damaged components replaced. After an accident, have the belts and triggered belt tensioners replaced by a workshop.

Note Make sure that the belts are not damaged by shoes or sharp-edged objects or trapped. Prevent dirt from getting into the belt retractors.

Seat belt reminder X 3 76.

Belt force limiters

In the front seats, stress on the body is reduced by the gradual release of the belt during a collision.

Belt tensioners

In the event of a head-on or rear-end collision of a certain severity, the front seat belts are tightened.

9 Warning

Incorrect handling (e.g. removal or fitting of belts) can trigger the belt tensioners with risk of injury.

Deployment of the belt tensioners is indicated by illumination of control indicator v 3 76.

38 Seats, restraints

Triggered belt tensioners must be replaced by a workshop. Belt tensioners can only be triggered once.

Note Do not affix or install accessories or other objects that may interfere with the operation of the belt tensioners. Do not make any modifications to belt tensioner components as this will invalidate the vehicle type approval.

Three-point seat belt

Fitting

Withdraw belt from retractor, guide it untwisted across the body and insert the latch plate in the buckle. Tension the lap belt regularly whilst driving by tugging the shoulder belt.

With the Corsa OPC: Feed seat belt through belt mount on backrest when fastening seat belt.

Loose or bulky clothing prevents the belt from fitting snugly. Do not place objects such as handbags or mobile phones between the belt and your body.

9 Warning

The belt must not rest against hard or fragile objects in the pockets of your clothing.

Height adjustment

1. Pull belt out slightly.

2. Press button.

3. Adjust height and engage audibly.

Adjust the height so that the belt lies across the shoulder. It must not lie across the throat or upper arm.

Do not adjust while driving.

Seats, restraints 39

Removing

To release belt, press red button on belt buckle.

Seat belts on the rear outer seats

When not in use or to fold forward the rear backrests, feed seat belts through belt mount.

Using the seat belt while pregnant

9 Warning

The lap belt must be positioned as low as possible across the pelvis to prevent pressure on the abdomen.

Airbag system

The airbag system consists of a number of individual systems.

When triggered the airbags inflate within milliseconds. They also deflate so quickly that it is often unnoticeable during the collision.

9 Warning

If handled improperly the airbag systems can be triggered in an explosive manner.

40 Seats, restraints

Note The airbag systems and belt tensioner control electronics are located in the centre console area. Do not put any magnetic objects in this area.

Do not stick anything on the airbag covers and do not cover them with other materials.

Each airbag is triggered only once. Have deployed airbags replaced by a workshop.

Do not make any modifications to the airbag system as this will invalidate the vehicle type approval.

In the event of airbag deployment have the steering wheel, the instrument panel, all panelling parts, the door seals, the handles and the seats removed by a workshop.

Control indicator v for airbag systems 3 76.

Front airbag system

The front airbag system consists of one airbag in the steering wheel and one in the instrument panel on the front passenger side. These can be identified by the word AIRBAG.

There is also a warning label on the side of the instrument panel, visible when the front passenger door is open.

Seats, restraints 41

The front airbag system is triggered in the event of an accident of a certain severity in the depicted area. The ignition must be on.

The forward movement of the front seat occupants is decelerated, thereby considerably reducing the risk of injury to the upper body and head.

9 Warning

Optimum protection is only provided when the seat is in the proper position 3 34.

Keep the area in which the airbag inflates clear of obstructions.

Fit the seat belt correctly and engage securely. Only then the airbag is able to protect.

Side airbag system

The side airbag system consists of an airbag in each front seat backrest and in the rear outboard seat backrests. This can be identified by the word AIRBAG.

The side airbag system is triggered in the event of an accident of a certain severity in the depicted area. The ignition must be on.

42 Seats, restraints

Curtain airbag system

The risk of injury to the upper body and pelvis in the event of a side-on collision is considerably reduced.

9 Warning

Keep the area in which the airbag inflates clear of obstructions.

Note Only use protective seat covers that have been approved for the vehicle. Be careful not to cover the airbags.

The curtain airbag system consists of an airbag in the roof frame on each side. This can be identified by the word AIRBAG on the roof pillars.

The curtain airbag system is triggered in the event of an accident of a certain severity in the depicted area. The ignition must be on.

Seats, restraints 43

The risk of injury to the head in the event of a side impact is considerably reduced.

9 Warning

Keep the area in which the airbag inflates clear of obstructions.

The hooks on the handles in the roof frame are only suitable for hanging up light articles of clothing, without coat hangers. Do not keep any items in these clothes.

Airbag deactivation

Front airbag and side airbag systems for the front passenger seat have to be deactivated if a child restraint system is to be fitted on this seat. The curtain airbag system, the belt tensioners and all driver airbag systems will remain active. The front passenger airbag systems are active in the as-delivered condition.

Control indicator v and LEDs in the button not on:

Airbag systems for the front passenger are active. No child restraint systems can be installed.

Control indicator W and LEDs in button on:

Front passenger airbags are deactivated and will not inflate in the event of a collision. A child restraint system according to the chart Child restraint installation locations can be installed 3 46.

44 Seats, restraints

Deactivation:

■ switch on ignition, control indicator

W flashes,

■ press button W within 15 seconds

and hold down,

■ after about 2 seconds, you will hear a confirmation buzzer. Release button W after another 4 seconds at the latest.

Activation:

■ switch on ignition, control indicator W flashes,

■ press button W within 15 seconds and hold down,

■ after about 2 seconds, you will hear a confirmation buzzer. Release button W after another 4 seconds at the latest.

Only if control indicator does not light up, the airbag systems for front passenger seat will inflate in the event of a collision.

Change status only when the vehicle is stopped with the ignition off.

Status remains up to the next change.

Control indicator for airbag deactivation 3 76.

Starting the engine terminates changing of the setting.

The setting can then only be changed once the ignition has been switched off and then back on again.

Child restraints

Child restraint systems

When a child restraint system is being used, pay attention to the following usage and installation instructions and also those supplied with the child restraint system.

Always comply with local or national regulations. In some countries, the use of child restraint systems is forbidden on certain seats.

9 Warning

When using a child restraint system on the front passenger seat, the airbag systems for the front passenger seat must be deactivated; if not, the triggering of the airbags poses a risk of fatal injury to the child.

This is especially the case if rearfacing child restraint systems are used on the front passenger seat.

Seats, restraints 45

Selecting the right system

Children should travel facing backwards in the vehicle, until as old as possible. It is appropriate to change the system when the child’s head can no longer be properly supported at eye height. The child’s cervical vertebrae are still very weak and in an accident they suffer less stress in the semi-prone rearward position than when sitting upright.

Children under 12 years or under 150 cm tall should only travel in an appropriate child restraint system.

Never hold a child whilst travelling in the vehicle. The child will become too heavy to be held in the event of a collision.

When transporting children, use the child restraint systems suitable for the child's weight.

Ensure that the child restraint system to be installed is compatible with the vehicle type.

Ensure that the mounting location of the child restraint system within the vehicle is correct.

Only allow children to enter and exit the vehicle at the side facing away from the traffic.

When the child restraint system is not in use, secure the seat with a seat belt or remove it from the vehicle.

Note Do not stick anything on the child restraint systems and do not cover them with any other materials.

A child restraint system which has been subjected to stress in an accident must be replaced.

46 Seats, restraints

Child restraint installation locations

Permissible options for fitting a child restraint system

On front passenger seat

Weight and age class

Group 0: up to 10 kg

or approx. 10 months

Group 0+: up to 13 kg

U1,

or approx. 2 years

Group I: 9 to 18 kg

U1,

or approx. 8 months to 4 years

Group II: 15 to 25 kg

X X U X

or approx. 3 to 7 years

Group III: 22 to 36 kg

X X U X

or approx. 6 to 12 years

= Only if front passenger seat airbag systems are deactivated. If the child restraint system is being secured using a three-

point seat belt, move seat height adjustment to uppermost position and ensure that vehicle safety belt runs forwards from the upper anchorage point.

= Seat available with ISOFIX and Top-tether mounting brackets (Not available on the front passenger seat in the Corsa

OPC). U = Universal suitability in conjunction with three-point seat belt. X = No child restraint system permitted in this weight class.

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

Seats, restraints 47

Permissible options for fitting an ISOFIX child restraint system

Weight class Size class Fixture On front passenger seat On rear outboard seats On rear centre seat

Group 0: up to 10 kg E ISO/R1 IL IL X

Group 0+: up to 13 kg E ISO/R1 IL IL X

D ISO/R2 X X X

C ISO/R3 X X X

Group I: 9 to 18 kg D ISO/R2 X X X

C ISO/R3 X X X

B ISO/F2 IL, IUF IL, IUF X

B1 ISO/F2X IL, IUF IL, IUF X

A ISO/F3 X X X

IL = Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type. IUF = Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this mass group. X = No ISOFIX child restraint system approved in this weight class.

48 Seats, restraints

ISOFIX size class and seat device

A – ISO/F3 = Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg. B – ISO/F2 = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg. B1 – ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg. C – ISO/R3 = Rear-facing child restraint system for children of maximum size in the weight class up to 13 kg. D – ISO/R2 = Rear-facing child restraint system for smaller children in the weight class up to 13 kg. E – ISO/R1 = Rear-facing child restraint system for young children in the weight class up to 13 kg.

Seats, restraints 49

Isofix child restraint systems

Fasten vehicle-approved ISOFIX child restraint systems to the mounting brackets.

When using ISOFIX mounting brackets for seat mounting, universally approved child restraint systems for ISOFIX may be used.

ISOFIX mounting brackets are indicated by a label on the backrest.

Closely follow the installation instructions accompanying the ISOFIX child restraint system.

Top-tether child restraint systems

Fasten Top-tether child restraint systems to the fastening eyes on the back of the rear seat and to the passenger seat rail in the rear foot well. The strap must run between the two guide rods of the head restraint.

On the pillar trim of the rear roof and on the attachment points are symbols indicating the attachement eyes on which to mount the child restraint system.

When using Top-tether for seat mounting, universally approved child restraint systems for Top-tether may be used.

Closely follow the installation instructions accompanying the Toptether child restraint system.

50 Storage

Storage

Storage compartments ................ 50

Load compartment ....................... 59

Roof rack system ......................... 64

Loading information ..................... 64

Storage compartments

Glovebox

The glovebox features:

■ a card holder in cheque card format

■ a pen holder

■ pocket torch holder. The glovebox should be closed whilst

driving.

Cupholders

A cupholder is located in the front of the centre console.

In the 3-door passenger vehicle, also located at the side of the rear seat.

Storage 51

Underseat storage

Lift at recessed edge and pull out. Maximum load: 1.5 kg. To close, push in and engage.

Rear carrier system

The rear carrier system (Flex-Fix system) allows bikes to be attached to a pull-out carrier integrated into the vehicle floor.

The maximum load is 40 kg. If not in use, the carrier system can be

slid back into the vehicle floor. A multifunction box is offered as an

accessory for the rear carrier system. The transportation of other objects is not permitted.

There must not be any objects on the bicycles that could become loose during transportation.

Extending

Open the tailgate.

9 Warning

No persons may remain in the extension zone of the rear carrier system, risk of injury.

Pull release lever up. The system disengages and travels quickly out of the bumper.

52 Storage

Completely pull out the rear carrier system until it engages.

Ensure that it is not possible to push in the rear carrier system without pulling the release lever again

9 Warning

It is only permissible to fit objects to the rear carrier system if the system has been correctly engaged. If the rear carrier system will not engage correctly, do not fit objects to the system and slide the system back. Seek the assistance of a workshop.

Install the tail lamps

First remove the rear (1), then the front (2) tail lamp from the recesses.

Open out the bulb holder on the back of the tail lamp completely.

Push the clamping lever down and push the bulb holder into the retainer until it hits the stop.

Perform this procedure for both tail lamps.

Storage 53

Check the cable and lamp position to make sure these are correctly installed and are securely located.

Lock the rear carrier system

Swivel the left clamping lever (1) back first, followed by the right clamping lever (2) until they stop. Both clamping levers must point backwards, otherwise safe functionality is not guaranteed.

Close the tailgate.

Unfold pedal crank recesses

Fold one or both pedal crank recesses upwards until the diagonal support engages.

54 Storage

Adapting the rear carrier system to a bicycle

Remove the pedal crank mounts from the pedal crank recesses.

With the rotary lever on the pedal crank recess, roughly adapt the adjustable pedal crank unit to the protrusion of the pedal crank.

If the bicycle has straight pedal cranks, unscrew the pedal crank unit completely (position 5).

If the bicycle has curved pedal cranks, screw in the pedal crank unit all the way (position 1).

Storage 55

Press the release lever and withdraw the wheel recesses.

Push the release lever on the strap retainer and remove the strap retainer.

Prepare the bicycle for attachment

Rotate the left pedal (without a chain leaf) vertically downwards. The pedal on the left pedal crank must be horizontal.

The front bicycle must have its front wheel facing left.

The rear bicycle must have its front wheel facing right.

Attaching a bicycle to the rear carrier system

Put on the bicycle. The pedal crank here must be placed in the pedal crank recess opening as shown in the illustration.

56 Storage

Attach the pedal crank by rotating the attachment screw on the pedal crank mount.

Insert pedal crank mount into outer rail of each pedal crank recess from above and slide downwards as far as it will go.

Place the wheel recesses such that the bicycle is more or less horizontal. Here, the distance between the pedals and the tailgate should be at least 5 cm.

Both bicycle tyres must be in the wheel recesses. In order to prevent damage, neither the pedal bearing housing on the bicycle nor the pedal crank is allowed to be touching the pedal crank recess.

Align the bicycle in the longitudinal direction of the vehicle: Slightly loosen the pedal mount.

Place the bicycle upright using the rotary lever on the pedal crank recess.

If the two bicycles obstruct one another, the relative positions of the bicycles can be adapted by adjusting the wheel recesses and the rotary lever on the pedal crank recess until the bicycles no longer touch one another. Make sure there is sufficient clearance to the vehicle.

Storage 57

Tighten the attachment screw for the pedal bearing mount to its maximum point.

Secure both bicycle wheels to wheel recesses using strap retainers.

Check the bicycle to make sure it is secure.

The settings for the wheel recesses and on the rotary lever on the pedal crank recess should be noted and saved for each bicycle. Correct presetting will facilitate refitting of the bicycle.

Removing a bicycle from the rear carrier system

Undo strap retainers on both bicycle tyres.

Hold on to the bicycle, loosen the attachment screw for the pedal bearing mount, then lift the pedal bearing mount to remove it.

Retracting the rear carrier system

Push the pedal crank mounts into the pedal crank recess.

58 Storage

Insert the strap retainer and pull tightly downwards as far as possible.

Press release lever and slide in wheel recesses all the way as far as they will go.

Disengage the locking lever on the diagonal support and fold both pedal crank recesses down.

9 Warning

Risk of pinching.

Swivel first the right clamping lever (1) forwards, followed by the left clamping lever (2), until they can be engaged in their respective recesses.

Storage 59

Push the clamping lever down and pull both lamp supports out of the recesses.

Fold in the bulb holders on the backs of the tail lamps.

First place the front (1) tail lamp, then the rear (2) tail lamp in the recesses and push down as far as possible. Push cables all the way into all guides in order to prevent damage.

Open the tailgate. Push the release lever up and push

the system into the bumper until it engages.

Release lever must return to original position.

9 Warning

If the system cannot be correctly engaged, please seek the assistance of a workshop.

Load compartment

Load compartment extension

The rear backrest, in a single unit or split, can be locked in an upright position for transporting bulky items.

Pull the release handle, pull the backrest forwards to the vertical position and engage.

When unlocking, a red marking appears next to the release lever. The backrest is only engaged correctly when the red bolt is no longer protruding.

60 Storage

If the backrest is split, unlock the relevant side, and unlock at both sides if it is a single unit.

Folding down rear backrests

Remove load compartment cover as necessary.

Push head restraints down by pressing the catch.

Guide the seat belts through side supports to protect them against damage. When folding the backrests, pull the seat belts along with them.

Disengage the backrest (single or split) using the release lever and fold it down onto the seat cushion.

If the backrest is split, unlock the relevant side, and unlock at both sides if it is a single unit.

If the vehicle is to be loaded via a rear door, take the seat belt out of the seat backrest guide, roll it up and insert the latch plate into the side shade retainer.

Move rear seat backrests upright and allow locking mechanisms to engage audibly at both sides. Once the backrests are locked the red mark must no longer protrude.

The rear seat backrests can be locked in two positions.

Do not trap the seat belt when moving the backrest to the upright position.

Install the load compartment cover.

Load compartment cover

Do not place any objects on the cover.

Storage 61

5-door passenger vehicle

Lift the cover backwards, until it unlatches, then remove.

Fit in reverse order.

3-door passenger vehicle

Lift the cover backwards until it unlatches, set at an angle, then remove.

Fit in reverse order.

Stowing

When the load compartment is fully loaded, stow the load compartment cover behind the rear seat backrests:

Lift the cover backwards until it unlatches, then slide down in guides behind the seat backrests.

Van

The load compartment cover consists of four segments which can be individually removed and inserted.

The rear segment (1) has identical functionality (removal and installation) to that of the 3-door passenger vehicle 3 60.

62 Storage

Rear floor storage cover

To remove the three other segments (order 2 to 4) lift at the rear, disengage, twist and remove.

Install the segments in the order 4 to

1. Engage segments in recesses at the side.

The segments overlap at the connecting points when they are closed.

The double load-bay floor can be inserted in the load compartment in two positions:

■ directly beneath the cover for the spare wheel recess or the floor cover,

■ or in the upper openings in the load compartment.

To remove, lift the load-bay floor using the lever and pull backwards.

To insert, push the load-bay floor forwards in the corresponding guide, then lower.

If mounted in the upper position, the space between the load-bay floor and the spare wheel well cover can be used as a stowage compartment.

In this position, if the rear seat backrests are folded forwards, an almost completely flat load bay is created.

The double load-bay floor is able to withstand a load of no more than 100 kg.

In models with a tyre repair kit, the spare wheel recess may be used as an additional stowage compartment.

Storage 63

Lashing eyes

The lashing eyes are designed to secure items against slippage, e.g. using lashing straps or luggage net.

Warning triangle

Store warning triangle in rear load compartment wall: first fit warning triangle into recess on left and then insert in guide on right.

To remove the warning triangle, lift to the right and pull out to the right.

First aid kit

Stow the first-aid kit (cushion) in the compartment in the left wall of the load compartment.

To open the compartment, disengage cover and open it.

64 Storage

Roof rack system

Roof rack

For safety reasons and to avoid damage to the roof, the vehicle approved roof rack system is recommended.

Follow the installation instructions and remove the roof rack when not in use.

Fitting on model without sun roof

Push covers for concealing roof rack mounts down and push backwards with a valve cap key 3 156.

Fitting on model with sun roof

Disengage covers concealing roof rack mounts by pushing sliders in direction of arrow (e.g. with coin) and remove upwards. To close roof rack mounts, first insert covers at front and engage sliders at rear.

Attach roof rack at appropriate points, see enclosed roof rack system instructions.

Loading information

■ Heavy objects in the load compartment should be placed against the seat backrests. Ensure the backrests are securely engaged. If objects can be stacked, the heavier objects should be placed at the bottom.

■ Secure objects with lashing straps attached to lashing eyes.

■ Secure loose objects in load compartment to prevent sliding.

Storage 65

■ When transporting objects in the load compartment, the backrests of the rear seats must not be angled forward.

■ Do not allow the load to protrude above the upper edge of the backrests.

■ Do not place any objects on the load compartment cover or the instrument panel, and do not cover the sensor on top of the instrument panel.

■ The load must not obstruct the operation of the pedals, parking brake and gear selector, or hinder the freedom of movement of the driver. Do not place any unsecured objects in the interior.

■ Do not drive with an open load compartment.

■ The payload is the difference between the permitted gross vehicle weight (see identification plate 3 186) and the EC kerb weight.

To calculate the EC kerb weight, enter the data for your vehicle in the Weights table on page 3 3.

The EC kerb weight includes weights for the driver (68 kg), luggage (7 kg) and all fluids (tank 90 % full).

Optional equipment and accessories increase the kerb weight.

■ Driving with a roof load increases the sensitivity of the vehicle to cross-winds and has a detrimental effect on vehicle handling due to the vehicle’s higher centre of gravity. Distribute the load evenly and secure it properly with retaining straps. Adjust the tyre pressure and vehicle speed according to the load conditions. Check and retighten the straps frequently.

The permissible roof load is 75 kg. The roof load is the combined weight of the roof rack and the load.

66 Instruments and controls

Instruments and controls

Controls ....................................... 66

Warning lights, gauges and

indicators ..................................... 72

Information displays ..................... 81

Vehicle messages ........................ 85

Trip computer ............................... 86

Vehicle personalisation ................ 90

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked.

Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Steering wheel controls

The Infotainment system and the Info-Display can be operated via the controls on the steering wheel.

Further information is available in the Infotainment system manual.

Instruments and controls 67

Heated steering wheel

Activate heating in combination with the seat heating by pressing ß* button once or several times with the ignition on.

LED ß on: driver seat heating on. LED ß and * on: driver seat heating

and steering wheel heating on. LED * on: steering wheel heating on.

The steering wheel is heated with the engine running in the area shown in the illustration above.

Horn

Press j.

68 Instruments and controls

Windscreen wiper/washer

Windscreen wiper

The lever always springs back to its original position.

= fast

= slow

= adjustable timed interval wipe

= off

For a single wipe when the windscreen wiper is off, press the lever down.

Run through the windscreen wiper stages by pushing the lever past the resistance point and holding it. An acoustic signal sounds at §.

Do not use if the windscreen is frozen. Switch off in car washes.

Adjustable wiper interval To set the wiper interval to a value

between 2 and 15 seconds: Switch on ignition, move lever down from position §, wait desired time interval and raise lever to $.

After turning on the ignition and setting the lever to $, the interval is set to 6 seconds.

Automatic wiping with rain sensor

= Automatic wiping with rain

sensor

The rain sensor detects the amount of water on the windscreen and automatically regulates the frequency of the windscreen wiper.

Instruments and controls 69

Keep the sensor free from dust, dirt and ice.

Windscreen washer

Pull lever. Washer fluid is sprayed onto the windscreen and the wiper wipes a few times.

Rear window wiper/washer

Push lever forwards. The rear window wiper wipes in interval mode. Switch off by pushing lever forwards again.

If the lever is held forwards, washer fluid is sprayed onto the rear window.

The rear windscreen wiper comes on automatically when the windscreen wiper is switched on and reverse gear

is engaged. Activation or deactivation of this function can be changed. Vehicle personalisation 3 90.

Outside temperature

A drop in temperature is indicated immediately and a rise in temperature after a time delay.

If the outside temperature drops to 3 °C, the symbol : illuminates in the Triple-Info-Display or the Board-Info-Display as a warning for icy road conditions. : remains illuminated until the temperature reaches at least 5 °C.

70 Instruments and controls

In vehicles with Graphic-Info-Display or Color-Info-Display, a warning message appears in the display as a warning for icy road conditions. There is no message below -5 °C.

9 Warning

The road surface may already be icy even though the display indicates a few degrees above 0 °C.

Clock

Date and time are shown in the Info-Display.

Graphic-Info-Display, Color-Info-Display 3 81.

Set date and time in Triple-Info-Display

The Infotainment system must be off. Activate setting mode by holding the Ö button depressed for approx. 2 seconds. The flashing value is adjusted using the ; button. The Ö button is used to switch to the next mode and to exit setting mode.

Automatic time synchronisation The RDS signal of most VHF

transmitters automatically sets the time, identified by } in the display.

Some transmitters do not send a correct time signal. In such cases, it is recommend to switch off automatic time synchronisation.

Activate setting mode and set it to year setting. Hold the Ö button depressed for approx. 3 seconds until } flashes in the display and "RDS TIME" appears. The function is activated (RDS TIME 1) or deactivated (RDS TIME 0) with the ; button. Exit setting mode using the Ö button.

Instruments and controls 71

Power outlets

The power outlet is located in the centre console.

Caution

Do not damage the outlet by using unsuitable plugs.

Connecting electrical accessories while the engine is off will discharge the battery. Do not exceed the maximum power consumption of 120 Watts. Do not connect any currentdelivering accessories, e.g. electrical charging devices or batteries.

Electrical accessories that are connected must comply with the electromagnetic compatibility requirements laid down in DIN VDE 40 839.

If the tyre repair set is in operation, no consumers may be connected to the auxiliary outlet.

Cigarette lighter

The cigarette lighter is located in the centre console.

Press in cigarette lighter. It switches off automatically once the element is glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for combustible rubbish.

Portable ashtray

The portable ashtray can be placed in the cupholders. Open cover to use.

72 Instruments and controls

Warning lights, gauges and indicators

Instrument cluster

In some versions, the needles of the instruments briefly rotate to the end position when the ignition is switched on.

Speedometer

Indicates vehicle speed.

Speed warning

With the "Personalised key" function, P6 a particular top speed can be assigned to each vehicle key. When this speed is exceeded, a warning buzzer sounds. Vehicle personalisation 3 90.

Odometer

The bottom line displays the recorded distance.

Trip odometer

The top line displays the recorded distance since the last reset.

To reset, hold the reset knob depressed for a few seconds with the ignition on.

Tachometer

Displays the engine speed. Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning zone, the maximum permitted engine speed is exceeded. Engine at risk.

Instruments and controls 73

Fuel gauge

Displays the fuel level in the tank. If the fuel level is too low, Y lights up.

When the light flashes, refuel immediately.

Never run the tank dry. Because of the fuel remaining in the

tank, the top-up quantity may be less than the specified tank capacity.

Service display

The message InSP appears when it is time for servicing. Further information 3 174.

Transmission display

The mode or selected gear is shown in the transmission display.

P = Automatic transmission

park position R = Reverse gear N = Neutral position A = Manual transmission

automated automatic mode D = Drive position 1, 2,3= Selected gear, automatic

transmission 1 - 5 = Current gear, manual

transmission automated,

manual mode

74 Instruments and controls

Control indicators

The control indicators described are not present in all vehicles. The description applies to all instrument versions. When the ignition is switched on, most control indicators will illuminate briefly as a functionality test.

The control indicator colours mean: red = danger, important

reminder yellow = warning, information, fault green = confirmation of activation blue = confirmation of activation

Control indicators in the instrument

Instruments and controls 75

76 Instruments and controls

Turn signal

O illuminates or flashes green.

Illuminates

The control indicator illuminates briefly when the parking lights are switched on.

Flashes

The control indicator flashes if a turn signal or the hazard warning flashers are activated.

Rapid flashing: failure of a turn signal light or associated fuse, failure of turn signal light on trailer.

Bulb replacement 3 140. Fuses 3 152. Turn signals 3 96.

Seat belt reminder

X illuminates or flashes red.

Illuminates

After the ignition is switched on until the seat belt is fastened.

Flashes

After starting off until the seat belt is fastened.

Fastening the seat belt 3 38.

Airbag and belt tensioners

v illuminates red. When the ignition is switched on, the

control indicator illuminates for approx. 4 seconds. If it does not illuminate, does not go out after 4 seconds or illuminates whilst driving, there is a fault in the belt tensioner or the airbags. In this case the LEDs in the button W will also flash.The airbags and belt tensioners may fail to trigger in the event of an accident.

Deployment of the belt tensioners or airbags is indicated by continuous illumination of v.

9 Warning

Have the cause of the fault remedied immediately by a workshop.

Airbag system, belt tensioners 3 39, 3 37.

Airbag deactivation

V illuminates together with the LEDs in the button W: airbag deactivated 3 43.

V flashes: the system can be activated or deactivated within 15 seconds of switching on the ignition 3 43.

Charging system

p illuminates or flashes red. Illuminates when the ignition is

switched on and goes out shortly after the engine starts.

Illuminates when the engine is running

Stop, switch off engine. Battery is not charging. Engine cooling may be interrupted. In diesel engines, power to the brake servo unit may be cut. Seek the assistance of a workshop.

Instruments and controls 77

Flashes during or after engine start

Battery voltage too low. Have electrical system tested by a workshop.

Malfunction indicator light

Z illuminates or flashes yellow. Illuminates when the ignition is

switched on and goes out shortly after the engine starts.

Illuminates when the engine is running

Fault in the emission control system. The permitted emission limits may be exceeded. Immediately seek the assistance of a workshop.

Flashes when the engine is running

Fault that could lead to catalytic converter damage. Ease up on the accelerator until the flashing stops. Seek the immediate assistance of a workshop.

Service vehicle soon

A illuminates or flashes yellow.

Illuminates when the engine is running

Fault in engine or transmission electronics. The electronics switch to an emergency running programme. Fuel consumption may be increased and the vehicle handling may be impaired.

If the fault persists after restarting the vehicle, consult a workshop.

Illuminates together with InSP4 in the service display

Seek the assistance of a workshop for draining the diesel fuel filter.

Flashes with switched on ignition

Fault in the electronic immobiliser system. The engine cannot be started 3 26.

Brake and clutch system

R illuminates or flashes red.

Illuminates

Illuminates when the hand brake is released if the brake and clutch fluid level is too low 3 138.

9 Warning

Stop. Do not continue your journey. Consult a workshop.

Illuminates after the ignition is switched on if the hand brake is applied 3 123.

Flashes

On vehicle with automated manual transmission, R flashes for a few seconds when the ignition is switched off if the hand brake is not applied.

On vehicles with automated manual transmission, R flashes when the driver's door is opened if no gear is engaged and the hand brake is not applied.

Antilock brake system (ABS)

u illuminates red.

78 Instruments and controls

Illuminates for a few seconds after the ignition is turned on. The system is ready for operation when the control indicator goes out.

If the control indicator does not go out after a few seconds, or if it illuminates while driving, there is a fault in the ABS. The brake system remains operational but without ABS regulation.

Anti-lock Braking System 3 122.

Sport mode

1 illuminates yellow. The symbol is illuminated when Sport

mode is on 3 119.

Winter mode

T illuminates yellow. The symbol is illuminated when

Winter mode is on 3 115, 3 119.

Power steering

p illuminates yellow.

Fault in power steering system. The power steering may have failed. The vehicle can be steered but considerably more force is required. Contact a workshop.

Ultrasonic parking assist

r illuminates or flashes yellow.

Illuminates

Fault in system. Have the cause of the fault remedied by a workshop.

Flashes

Fault due to sensors that are dirty or covered by ice or snow.

or Interference due to external sources

of ultrasound. Once the source of interference is removed, the system will operate normally.

Ultrasonic parking assist 3 125.

Electronic Stability Program

v flashes or illuminates yellow. Illuminates for a few seconds when

the ignition is switched on.

Flashing during driving

The system is actively engaged. Engine output may be reduced and the vehicle may be braked automatically to a small degree 3 123.

Illuminates while driving

The system is switched off or a fault is present. Continued driving is possible. Driving stability, however, may deteriorate depending on road surface conditions.

Have the cause of the fault remedied by a workshop.

Plus

ESP®

3 123.

Engine coolant temperature

W illuminates red.

Illuminates when the engine is running

Stop, switch off engine.

Caution

Coolant temperature too high.

Instruments and controls 79

Check coolant level immediately 3 137.

If there is sufficient coolant, consult a workshop.

Preheating and diesel particle filter

! illuminates or flashes yellow.

Illuminates

Preheating activated. Only activates when outside temperature is low.

Flashes

(in vehicles fitted with a diesel particle filter).

Control indicator ! flashes if the filter requires cleaning and previous driving conditions did not permit automatic cleaning. Continue driving and if possible do not allow engine speed to drop below 2000 rpm.

The control indicator ! goes off as soon as the self-cleaning operation is complete.

Diesel particle filter 3 112.

Deflation detection system

w illuminates red or yellow.

Illuminates red

Deflation detected. Stop immediately and check tyre pressure. A maximum speed of 80 km/h is permitted for runflat tyres 3 158.

Illuminates yellow

Fault in system. Consult a workshop. Deflation detection system 3 159.

Engine oil pressure

I illuminates red. Illuminates for a view seconds after

the ignition is switched on.

Illuminates when the engine is running

Caution

Engine lubrication may be interrupted. This may result in damage to the engine and/or locking of the drive wheels.

1. Depress clutch.

2. Select neutral gear, set selector lever to N.

3. Move out of the flow of traffic as quickly as possible without impeding other vehicles.

4. Switch off ignition.

9 Warning

When the engine is off, considerably more force is needed to brake and steer.

Do not remove key until vehicle is stationary, otherwise the steering wheel lock could engage unexpectedly.

Seek the assistance of a workshop.

Low engine oil level

S illuminates yellow. Engine oil level is checked

automatically.

80 Instruments and controls

Illuminates when the engine is running

Low engine oil level. Check engine oil level and top up as necessary 3 136.

Low fuel

Y illuminates or flashes yellow.

Illuminates

Level in fuel tank too low.

Flashes

Fuel used up. Refuel immediately. Never run the tank dry.

Erratic fuel supply can cause catalytic converter to overheat 3 113.

Bleeding the diesel fuel system 3 139.

Apply footbrake

j illuminates yellow. The engine with manual transmission

automated can only be started if the foot brake is depressed. If the foot brake is not depressed, the control indicator illuminates 3 118.

Exterior light

8 illuminates green. Illuminated when the exterior lights

are on 3 93.

High beam

P illuminates blue. Illuminated when high beam is on and

during headlight flash 3 94.

Adaptive forward lighting

B illuminates or flashes yellow.

Illuminates

Fault in system. Seek the assistance of a workshop.

Flashes

System switched to symmetrical dipped beam.

Control indicator B flashes for approx. 4 seconds after the ignition is switched on as a reminder that the headlights have been set to symmetrical low beam 3 94.

Fog light

> illuminates green. Illuminated when the front fog lights

are on 3 96.

Rear fog light

r illuminates yellow. Illuminated when the rear fog light is

on 3 97.

Cruise control

m illuminates or flashes green.

Illuminates

Illuminates when the system is on 3 124.

Flashes

Cruise control was enabled without depressing the brake pedal beforehand.

Instruments and controls 81

Information displays

Triple-Info-Display

Displays time, outside temperature and date or Infotainment system (when it is on).

When the ignition is off, the time, date and outside temperature can be displayed by briefly pressing one of the two buttons below the display.

Graphic-Info-Display, ColourInfo-Display

Displays time, outside temperature, date or Infotainment system (when it is on) and electronic climate control system.

The Color-Info-Display displays the information in colour.

The type of information and how it is displayed depends on the equipment of the vehicle and the settings made.

Selecting functions

Functions and settings of the Infotainment system and electronic climate control system are accessed via the display.

Selections are made via the menus and buttons, the multifunction control of the Infotainment system or the left adjuster wheel of the steering wheel.

Selecting with the Infotainment system buttons

82 Instruments and controls

Select menu items via the menus and using the Infotainment system buttons. The OK button is used to select the highlighted item or confirm a command.

To exit a menu, press the right or left arrow button until Return or Main appear and select.

Selecting with the multifunction control

Turn the multifunction control to highlight menu items or commands and to select function areas.

Press the multifunction control to select the highlighted item or confirm a command.

To exit a menu, turn the multifunction control until Return or Main appears and select.

Selecting with the left adjuster wheel on the steering wheel

Turn to select a menu item. Press the adjuster wheel to select the

highlighted item or confirm a command.

Function areas

For each function area there is a main page (Main), which is selected at the top edge of the display (not with the Infotainment system CD 30 or the Mobile Phone Portal):

■ Audio,

■ Navigation,

■ Telephone,

■ Trip computer.

Instruments and controls 83

System settings

Press the Main button of the Infotainment system.

Press the Settings button on the Infotainment system. For Infotainment system CD 30, no menu may be selected.

Setting date and time

Select menu item Time, Date from the Settings menu.

Select the required menu items and make settings.

Automatic time synchronisation The RDS signal of most VHF

transmitters automatically sets the time.

Some transmitters do not send a correct time signal. In such cases, we recommend to switch off automatic time synchronisation.

On Infotainment systems with navigation, time and date are also harmonised upon receipt of a GPS satellite signal.

The function is activated by highlighting the field in front of Synchron. clock automatical. in the Time, Date menu.

Language selection

The display language for some functions can be selected.

Select menu item Language from the Settings menu.

Select the desired language.

84 Instruments and controls

Selection is indicated by a 6 in front of the menu item.

In systems with voice output, when the language setting of the display is changed the system will ask whether the announcement language should also be changed - see Infotainment system manual.

Setting units of measure

Select menu item Units from the Settings menu.

Select the desired unit. Selections are indicated by a o in

front of the menu item.

Adjusting contrast (Graphic-Info-Display)

Select menu item Contrast from the Settings menu.

Confirm the required setting.

Setting display mode Display brightness is dependent on

vehicle lighting. Additional settings can be made as follows:

Select menu item Day/Night from the Settings menu.

Automatic: The colours are adapted to the exterior lights.

Instruments and controls 85

Always day design: black or coloured text on light background.

Always night design: white or coloured text on dark background.

Selection is indicated by a o in front of the menu item.

Ignition logic See Infotainment system manual.

Vehicle messages

Messages are given via the instrument panel display or as warning and signal buzzers. Check control messages appear on the Info-Display. Some appear in an abbreviated form. Confirm warning messages with the multifunction knob 3 81.

Warning chimes

When starting the engine or whilst driving

■ If seat belt is not fastened.

■ If a door or the tailgate is not fully closed when starting off.

■ If a certain speed is exceeded with the hand brake applied.

■ If the speed programmed at the factory is exceeded.

■ If the vehicle has automated manual transmission and the driver's door is opened when the engine is running, a gear is engaged and the foot brake is not depressed.

■ Warning signal sounds three times if the rear carrier system is extended and reverse gear is selected.

When the vehicle is parked and the driver's door is opened

■ When the key is in the ignition switch.

■ With exterior lights on.

■ For automated manual transmission, if the hand brake is not applied and no gear is engaged when the engine is switched off.

Battery voltage

Low battery voltage in the radio remote control. On vehicles without check control, the message InSP3 appears in the instrument panel display. Replace the battery 3 19.

86 Instruments and controls

Brake light switch

Brake light does not come on during braking. Have the cause of the fault remedied immediately by a workshop.

Drain diesel fuel filter

If there is water in the diesel fuel filter, the message InSP4 appears in the instrument panel. In some models InSP4 illuminates together with A in the instrument. Consult a workshop.

Lighting

Important exterior lighting lamps, including cables and fuses, are monitored. In trailer mode, trailer lighting is also monitored. Trailers with LED lighting must have an adapter that enables lamp monitoring as with conventional bulbs.

The failed lighting will be indicated in the information display or the message InSP2 will appear in the instrument panel display.

Trip computer

The trip computer provides information on driving data, which is continually recorded and evaluated electronically.

Instruments and controls 87

The functions can be selected via the buttons on the wiper lever.

Turn the adjuster wheel to select:

■ Range

■ Instantaneous consumption

■ Distance travelled

■ Average speed

■ Absolute consumption

■ Average consumption

■ Stop watch

Range

Range is calculated from current fuel tank content and current consumption. The display shows average values.

After refuelling, the range is updated automatically after a brief delay.

When the fuel level in the tank is low, a message appears on the display. Confirm the warning message by pressing 7 on the wiper lever.

Instantaneous consumption

Display of the instantaneous consumption. At low speeds, consumption per hour is displayed.

Distance travelled

Display of distance travelled.

Average speed

Display of average speed. The measurement can be reset at any time.

Absolute consumption

Display of fuel consumed.

Average consumption

Display of average consumption. The measurement can be reset at any time.

Stop watch

Measurement of the time from activation to deactivation.

Press the 7 button to start and stop the measurement.

Reset trip computer

The measurement or calculation of the following trip computer information can be restarted:

■ Distance,

■ Average speed,

■ Absolute consumption,

■ Average consumption.

Select the desired function. To reset a value to zero, hold down the button 7 for more than three seconds.

To reset all functions, hold down the button 7 for more than 6 seconds.

88 Instruments and controls

Trip computer in Graphic-InfoDisplay or Colour-Info-Display

The main page of the trip computer provides information on range, current consumption and average consumption of BC 1.

To display other trip computer data, press the BC button on the Infotainment system, select the trip computer menu from the display or press the left adjuster wheel on the steering wheel.

Select BC 1 or BC 2 from the trip computer menu.

Range

Range is calculated from current fuel tank content and current consumption. The display shows average values.

After refuelling, the range is updated automatically after a brief delay.

When the fuel level in the tank is low, the message Range appears in the display.

When the fuel tank is nearly empty, the message Please refuel! appears in the display.

Instantaneous consumption

Displays the instantaneous consumption. At low speeds, consumption per hour is displayed.

Distance

Display of distance travelled. The measurement can be reset at any time.

Average speed

Display of average speed. The measurement can be reset at any time.

Stoppages in the journey with the ignition off are not included in the calculations.

Absolute consumption

Displays fuel consumed. The measurement can be reset at any time.

Average consumption

Displays average consumption. The measurement can be reset at any time.

Restart trip computer

The measurement or calculation of the following trip computer information can be restarted:

■ Distance,

■ Average speed,

■ Absolute consumption,

■ Average consumption. Select BC 1 or BC 2 from the Board

computer menu.

The information of the two trip computers can be reset separately, making it possible to evaluate data from different time periods.

Select the required trip computer information and confirm.

Instruments and controls 89

To reset all information of a trip computer, select menu item All values.

90 Instruments and controls

Stop watch

Select menu item Stop Watch from the Board Computer menu.

To start, select menu item Start. To stop, select menu item Stop.

To reset, select menu item Reset. The relevant stop watch display can

be selected in the Options menu:

Driving Time excl. Stops

The time the vehicle is in motion is recorded. Stationary time is not included.

Driving Time incl. Stops

The time the vehicle is in motion is recorded. The time the vehicle is stationary with the ignition switched on is included.

Travel Time

Measurement of the time from manual activation via Start to manual deactivation via Reset.

Vehicle personalisation

The vehicle-specific functions P1 to P7 can be activated and deactivated.

The setting selected is automatically stored depending on the vehicle key used.

Different settings are stored for each vehicle key. Use of a specific vehicle key will activate the settings associated with it.

A total of up to five vehicle keys can be programmed separately.

Programming permits the technical prerequisite of the relevant function. To activate and deactivate the functions and set the functions, please see the relevant sections.

Programming

■ Turn the ignition off, the key must be in the ignition lock.

■ Pull turn signal stalk and wiper stalk simultaneously to the steering wheel until you hear a confirmation signal (approx. 3 seconds).

■ The kilometre display shows P1.

■ Push the turn signal stalk (left) up or down and select the desired function P1 - P7.

Instruments and controls 91

■ Push the wiper stalk (right) up or down and select status On or OFF, or input a value for speed (P6) or value for volume (P7).

■ Pull turn signal stalk (left) and wiper stalk (right) simultaneously to the steering wheel until you hear a confirmation signal (approx. 3 seconds).

The selected settings are now stored for the key in the ignition lock. To activate and deactivate the functions and set the functions selected, please see the relevant sections.

Repeat the procedure to programme additional keys.

Programmable functions

P1: Switch on the external lighting using the remote control (Entry lighting). Entry lighting 3 99.

P2: Automatic rear windscreen wiper when reverse gear is selected. Rear window wiperwasher 3 69.

P3: Lane change indication: three flashes when the lever is moved slightly. Turn and lane-change signals 3 96.

92 Instruments and controls

P4: Automatic locking 3 23. P5: Selective unlocking 3 21. P6: Speed warning 3 72. P7: Volume of the acoustic turn signal

3 96.

Lighting 93

Lighting

Exterior lighting ............................ 93

Interior lighting ............................. 97

Lighting features .......................... 99

Exterior lighting

Light switch

Turn light switch:

= Off

= Side lights

= Headlights

Control indicator 8 3 80. If the ignition is switched off with the

headlights on, only the side lights remain illuminated.

Automatic light control

Light switch set to A: When the engine is running, headlights are switched on when external light conditions are poor.

For reasons of safety, the light switch should always remain in the A position.

Move light switch to 9 if visibility is poor because of fog or mist.

94 Lighting

High beam

To switch from low to high beam, push lever.

To switch to low beam, push lever again or pull.

Headlight flash

To activate the headlight flash, pull lever.

Headlight range adjustment

Manual headlight range adjustment

To adapt headlight range to the vehicle load to prevent dazzling: Push button ∆ or ∇ step-by-step until the required setting is displayed on the kilometre display. The display shows for 4 seconds, when low beam is switched on or every time the beam range is changed, together with the symbol ?.

0 = Front seats occupied 1 = All seats occupied

2 = All seats occupied and load

compartment laden

3 = Driver's seat occupied and load

compartment laden

Headlights when driving abroad

The asymmetrical headlight beam extends visibility at the edge of the road at the passenger side.

However, when driving in countries where traffic drives on the opposite side of the road, adjust the headlights to prevent dazzling of oncoming traffic.

Vehicles with halogen headlight system

Have the headlights adjusted by a workshop.

Lighting 95

Vehicles with adaptive forward lighting

Adapting the aim of the headlight beam:

1. Pull headlight flash lever and hold until control indicator f starts flashing.

2. Switch on ignition.

3. An acoustic signal sounds after approx. 3 seconds.

Control indicator f 3 80. Every time the ignition is switched on,

f flashes for approx. 4 seconds. For deactivation operate the same

procedure as described above. f will not flash when the function is deactivated.

Daytime running lights

With the ignition on and the light switch set to 7 or A, the side lights are switched on. When the engine is running, headlights illuminate.

On vehicle without automatic light control, 9 must be switched on when it gets dark for illumination of the instrument panel.

The daytime running lights switch off when the ignition is switched off.

Adaptive forward lighting

Adaptive forward lighting ensures better illumination of bends, crossings and narrow bends.

Curve lighting

The light beam pivots based on steering wheel position and speed.

Corner lighting

On tight bends or when turning off, depending on the steering angle or the indicator light signal, an additional left or right reflector is switched on which illuminates the road in the direction of travel. It is activated up to a speed of 40 km/h.

Reversing function

If the lights are on, reverse gear is engaged, and the turn signal is activated, the cornering light on the appropriate side is switched on. The cornering light stays on for 15 seconds once the turn signal has been switched off.

Control indicator B 3 80.

96 Lighting

Hazard warning flashers

Operated with the ¨ button. The hazard warning flashers activate

automatically if the airbags deploy.

Turn and lane-change signals

Lever up = right turn signal Lever down = left turn signal

The lever always springs back to its original position.

If the lever is moved past the resistance point, the turn signal is switched on constantly. When the steering wheel moves back, the turn signal is automatically deactivated.

For three flashes, e.g. when changing lanes, press the lever until resistance is felt and then release. This function can be activated or deactivated depending on the key used 3 90.

Move the lever to the resistance point and hold for longer indication.

Switch the turn signal off manually by moving the lever slightly.

Acoustic turn signal

The volume of the acoustic turn signal can be adjusted. This function can be programmed depending on the key used 3 90.

Front fog lights

The front fog lights can only be switched on when both the ignition and headlights are on.

Lighting 97

Operated with the > button.

Rear fog lights

The rear fog light can only be switched on when both the ignition and headlights or side lights (with front fog lights) are on.

Operated with the r button. The vehicle rear fog light is

deactivated when towing.

Parking lights

When parked, the parking lights on one side can be activated:

Set light switch to 7 or A.

2. Ignition off.

3. Move turn signal lever all the way up (right parking lights) or down (left parking lights).

Confirmed by a signal and the corresponding turn signal control indicator.

To switch it off, switch on the ignition or move the turn signal lever in the opposite direction.

Reversing lights

The reversing lights come on when the ignition is on and reverse gear is selected.

Misted light covers

The inside of the light covers may mist up briefly in poor, wet and cold weather conditions, in heavy rain or after washing. The mist disappears quickly by itself; to help, switch on the headlights.

Interior lighting

Instrument panel illumination control

Brightness can be adjusted when the exterior lights are on:

Brighter = Darker =

Hold down the button until the required brightness is achieved.

Push button < Push button ]

98 Lighting

Interior lights

During entry and exit of the vehicle, the front and centre courtesy lights automatically come on and then switch off after a delay.

Front courtesy light

Centre switch position: automatic interior light.

To operate manually when the doors are closed:

On = Switch position I Off = Switch position 0

Front courtesy light with reading lights

Operated with the c button when the doors are closed.

Rear courtesy lights

Operated with switch. I = On

0 = Off centre = automatic

Load compartment lighting

The lighting switches on when opened.

Lighting 99

Reading lights

Operated with a buttons with ignition on.

Lighting features

Centre console lighting

Spotlight in interior mirror housing. Daylight-dependent, automatically regulated centre console lighting.

Entry lighting

After unlocking the vehicle, the instrument panel lighting, the front and rear foot well lighting and the information display come on for a few seconds.

Peripheral lighting

Headlights come on for approx. 30 seconds.

To activate, press button q on the radio remote control twice when the vehicle is locked.

Country-specific application: To switch on the function, press button q on the radio remote control once when the vehicle is locked.

Switching on the ignition or pressing button p on the radio remote control will deactivate the function.

This function can be activated and deactivated depending on the key being used. Vehicle personalisation3 90.

Exit lighting

Headlights come on for approx. 30 seconds after the system is activated and the driver's door is closed.

Activating

1. Switch off ignition.

2. Remove ignition key.

3. Open driver's door.

100 Lighting

4. Pull turn signal lever.

5. Close driver's door.

If the driver's door is not closed the lights switch off after two minutes.

The lighting is switched off immediately if inserting the key into the ignition switch or pulling the turn signal lever while the driver's door is open.

Battery discharge protection

To prevent the battery from becoming discharged, all the interior lighting is switched off automatically after 5 minutes, when the ignition is switched off.

Opel Corsa 2010 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

In brief

Initial drive information

Vehicle unlocking

Seat adjustment

Seat positioning

Seat backrests

Seat height

Head restraint adjustment

Seat belt

Mirror adjustment

Interior mirror

Exterior mirrors

Setting with four-way switch in version with manual window operation

Setting with four-way switch in version with electronic window operation

Steering wheel adjustment

Instrument panel overview

Exterior lighting

Headlight flash, high beam and low beam

Turn and lane-change signals

Hazard warning flashers

Horn

Washer and wiper systems

Windscreen wiper

Windscreen and headlight washer systems

Rear window wiper and washer system

Climate control

Heated rear window, heated exterior mirrors

Demisting and defrosting the windows

Transmission

Manual transmission

Manual transmission automated

Automatic transmission

Starting off

Check before starting off

Starting the engine

Parking

Keys, doors and windows

Keys, locks

Keys

Replacement keys

Key with foldaway key section

Car Pass

Radio remote control

Fault

Radio remote control battery replacement

Key with foldaway key section

Radio remote control synchronisation

Memorised settings

Central locking system

Unlocking

Central locking system with key activation

Central locking system with radio remote control

Locking

Central locking system with key activation

Central locking system with radio remote control

Central locking button

Fault in radio remote control

Unlocking

Fault in central locking system

Locking

Automatic locking

Child locks

Doors

Load compartment

Opening

Closing

Vehicle security

Anti-theft locking system

Activating with the remote control

Anti-theft alarm system

Light-emitting diode (LED)

Alarm

Immobiliser

Exterior mirrors

Convex shape
